Specifications
| Feature | Description |
|---|---|
| Model | 2672 |
| Type | Heavy-Duty Foldable Disc Harrow |
| Hitch | Pull-Type |
| Folding System | Hydraulic |
| Frame Style | Hydraulic Folding Tandem |
| Main Frame | 6" × 8" structural tubing |
| Side Frame | 4" × 8" structural tubing |
| Disc Diameter | 26" |
| Number of Discs | 72 |
| Disc Spacing | 11" |
| Disc Thickness | 1/4" |
| Disc Type | Notched or Plain |
| Disc Material | Carbon Steel |
| Working Width | Approx. 33 ft |
| Maximum Working Depth | Approx. 10" |
| Gang Angle | Adjustable |
| Scrapers | Adjustable, Included |
| Axle Diameter | 1-3/4" or 2" |
| Hydraulic Functions | Lift, Fold |
| Tire Size | 11L-16 |
| Lighting Kit | Included |
| Operating Weight | Approx. 19,842 lb (9,000 kg) |
| Finish | Wet Paint |
| Application | Heavy tillage, residue incorporation, seedbed preparation, and large-acreage field work |

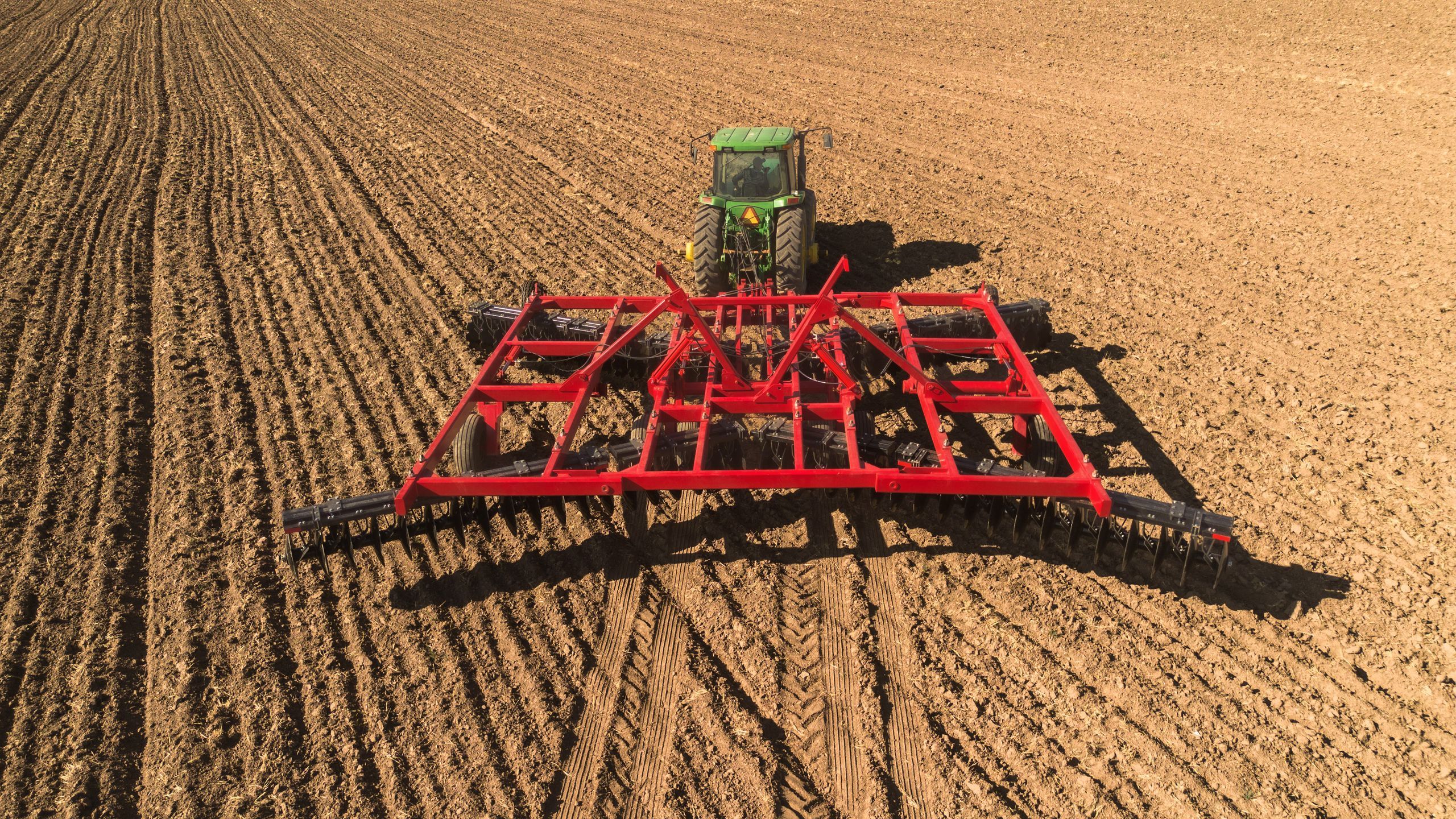

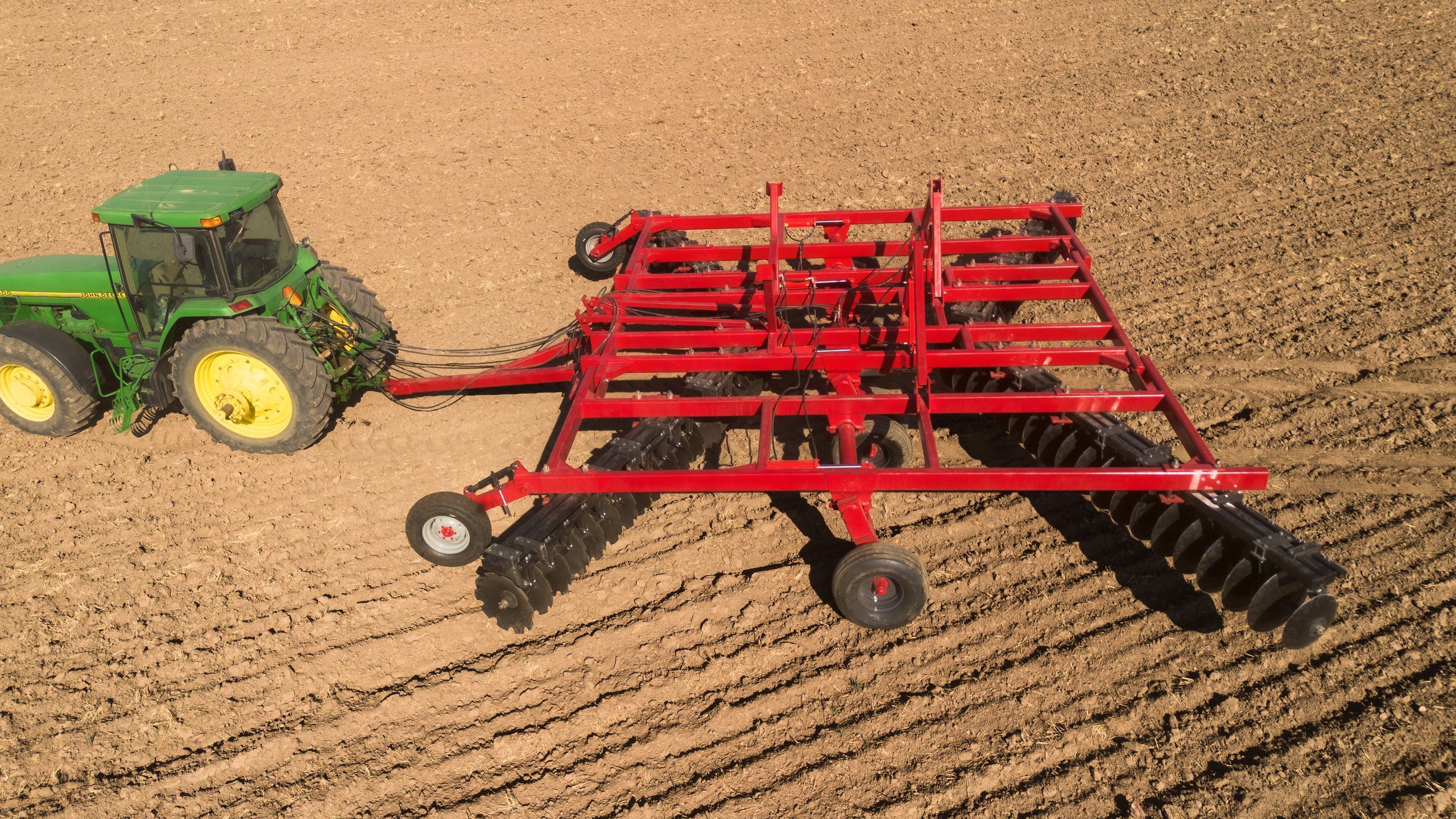

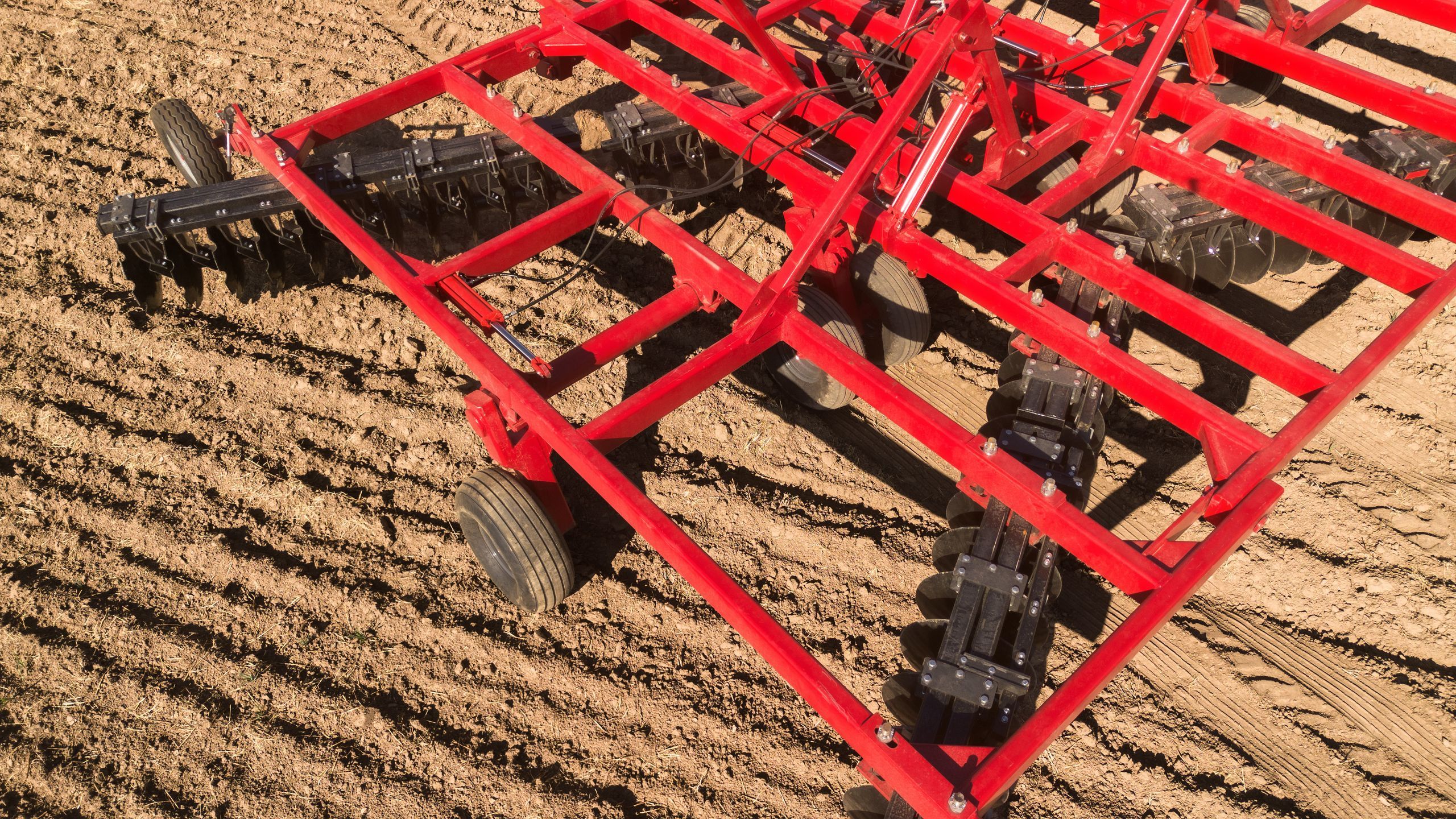

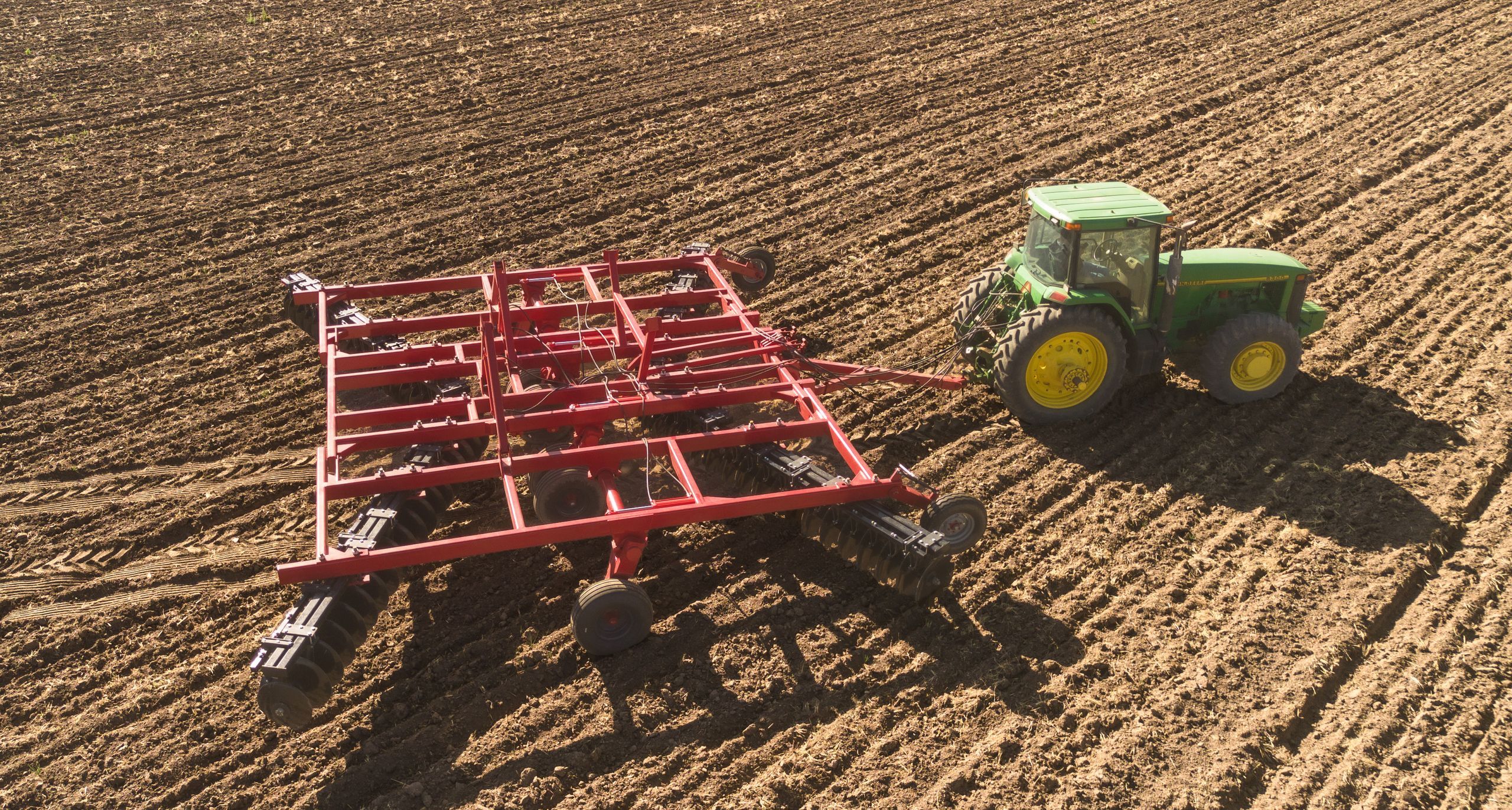

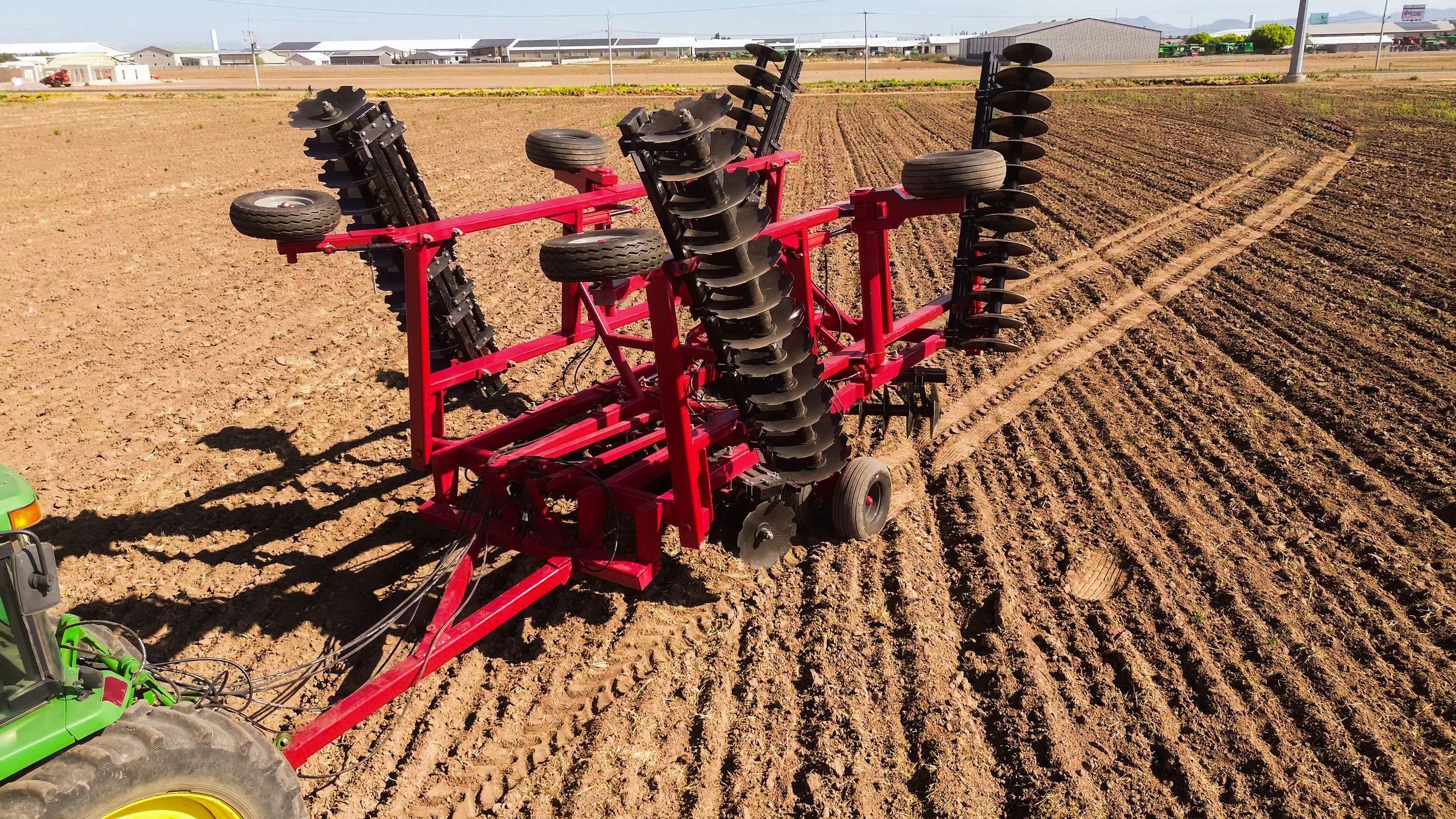

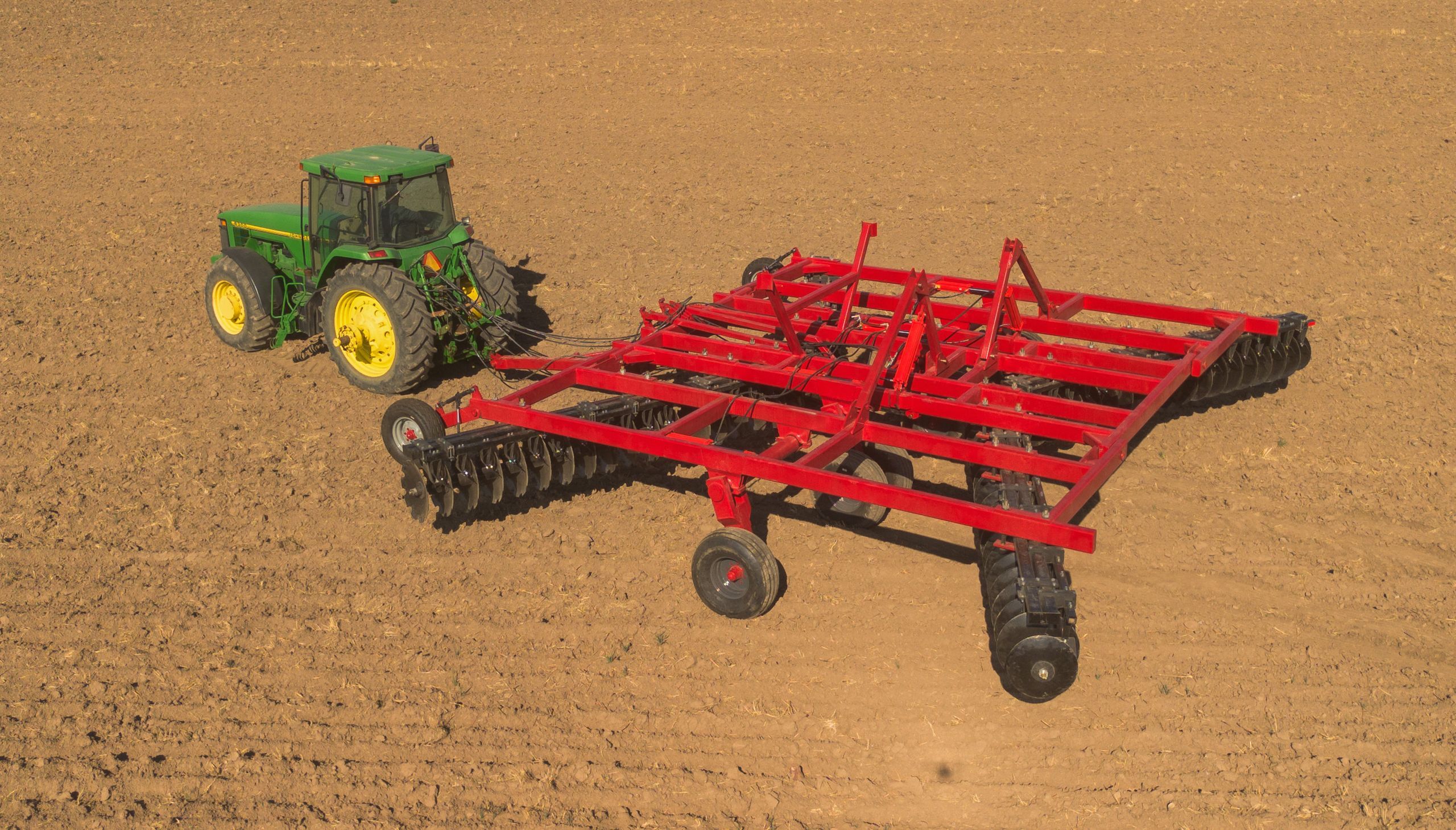

The 2672 Foldable Disc Harrow is built for large-acreage operations that need a wide working width without giving up strength or transport convenience. Its hydraulic folding frame allows the machine to cover approximately 33 feet in the field while folding into a more manageable configuration for transport and storage. Built around a heavy-duty 6"×8" main frame with reinforced 4"×8" side sections, the 2672 is designed to handle demanding tillage work and heavy residue. Seventy-two 26" discs with 11" spacing provide aggressive soil penetration and consistent coverage across the full width of the machine. Adjustable gang angles allow the operator to change how aggressively the discs work depending on soil conditions and residue levels. Hydraulic lift, folding adjustment make setup and field operation easier from the tractor. With an operating weight of approximately 19,842 lb, the 2672 provides the weight and stability needed for deep, consistent tillage in large fields.
