Specifications
| Feature | Description |
|---|---|
| Header Capacity (ft) | 40 |
| Total Length (ft) | 48.5 (including gooseneck, dolly, and telescopic hitch) |
| Overall Width (in) | 116 |
| Frame Material | Steel |
| Main Frame Size | 8x4 |
| Incline Frame Design | Incline |
| Number of Brackets | 4 |
| Bracket Type | Adjustable |
| Axle Type | Fixed |
| Axle Quantity | 2 |
| Axle Rating (lbs) | 7,000 each |
| Dolly Type | Swivel front dolly with plastic fenders and 6.5'–10.5' telescopic hitch |
| Dolly Axle Rating (lbs) | 7,000 |
| Wheel / Tire Size | ST235/80R16 |
| Tire Ply Rating | 10-ply (16-ply optional) |
| Brakes | None |
| Lights | Rear lights |
| Shipping Weight lbs | / 4,554 lbs |
| GVWR (lbs) | 21,000 |

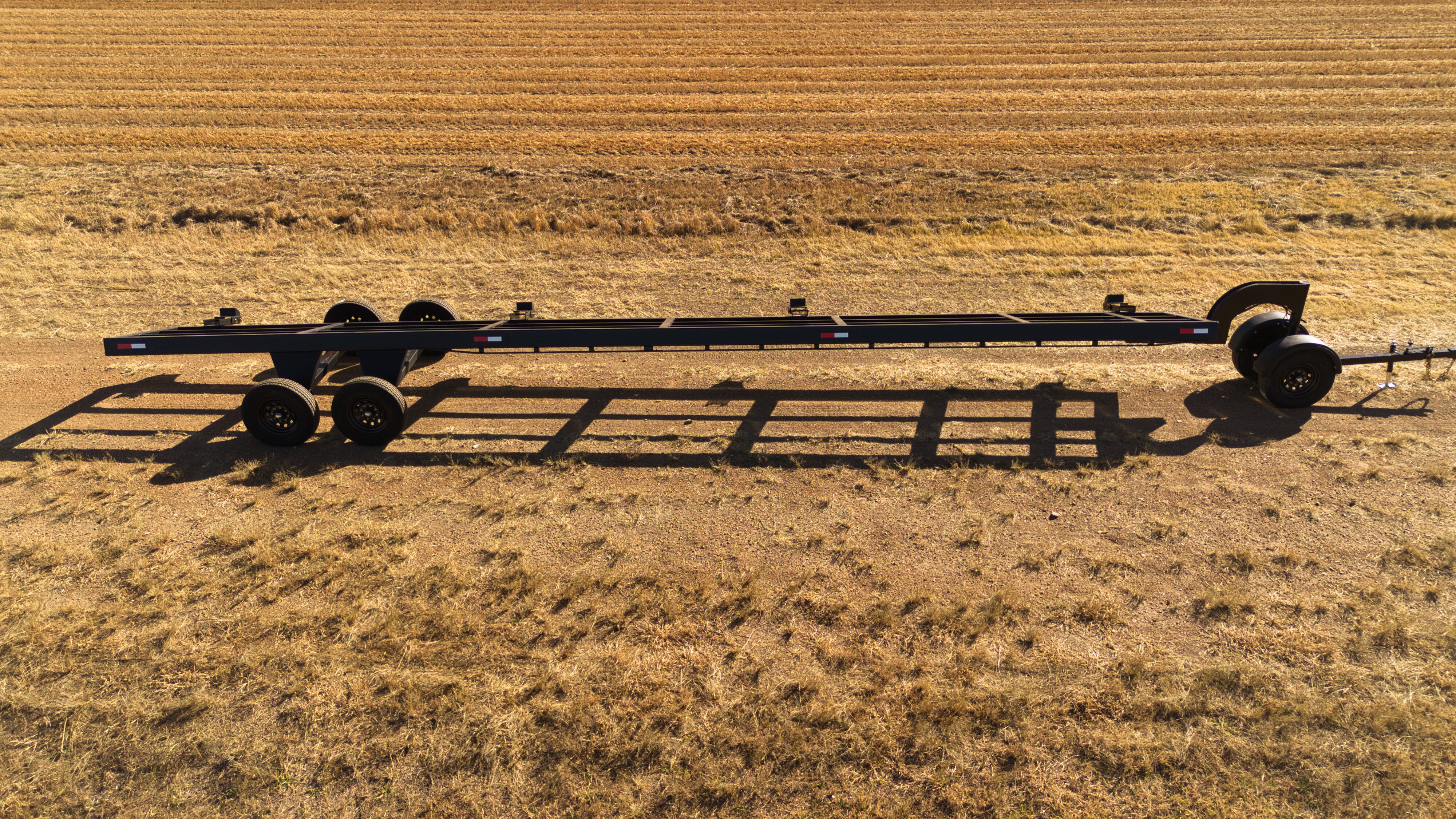

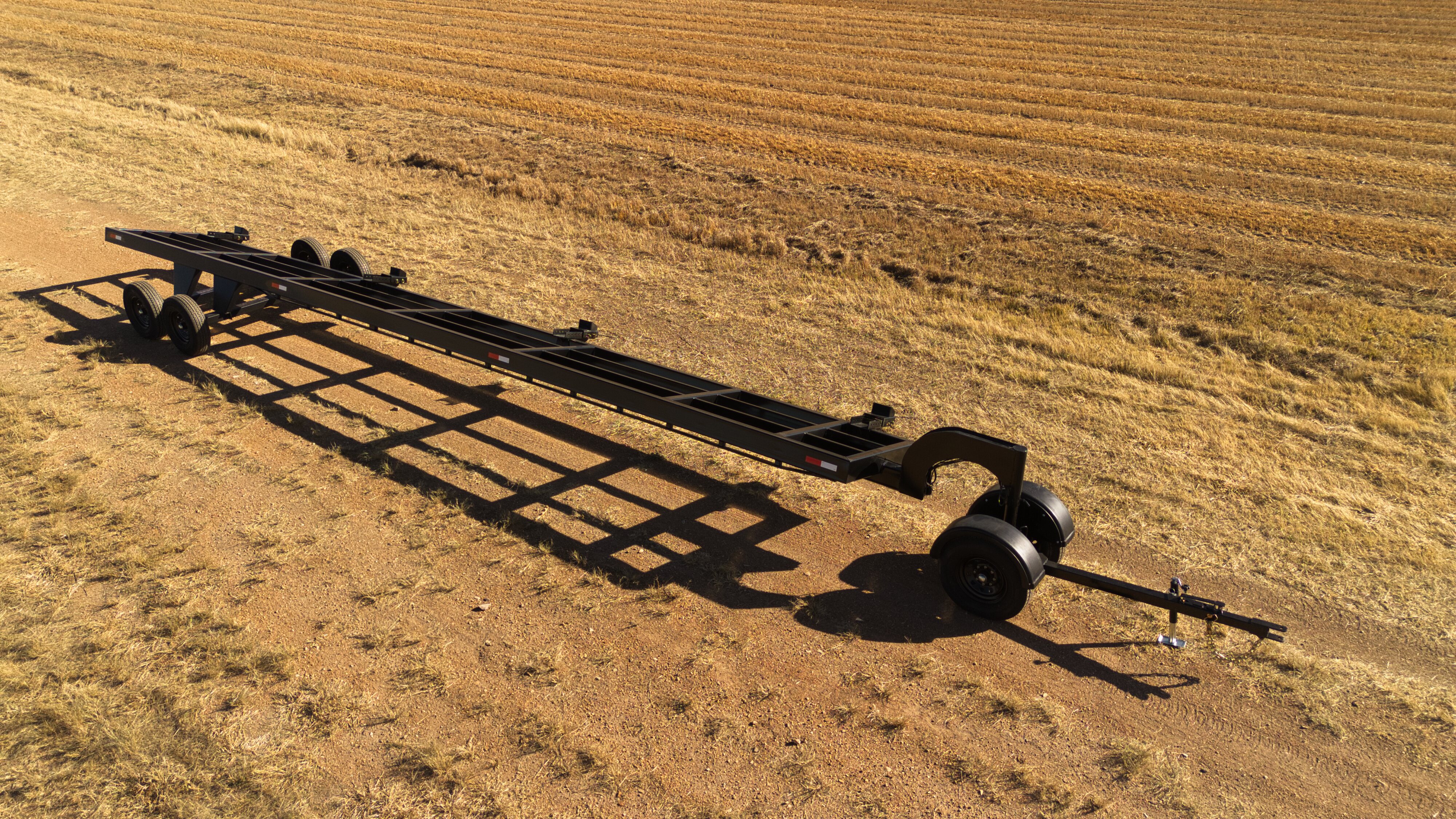

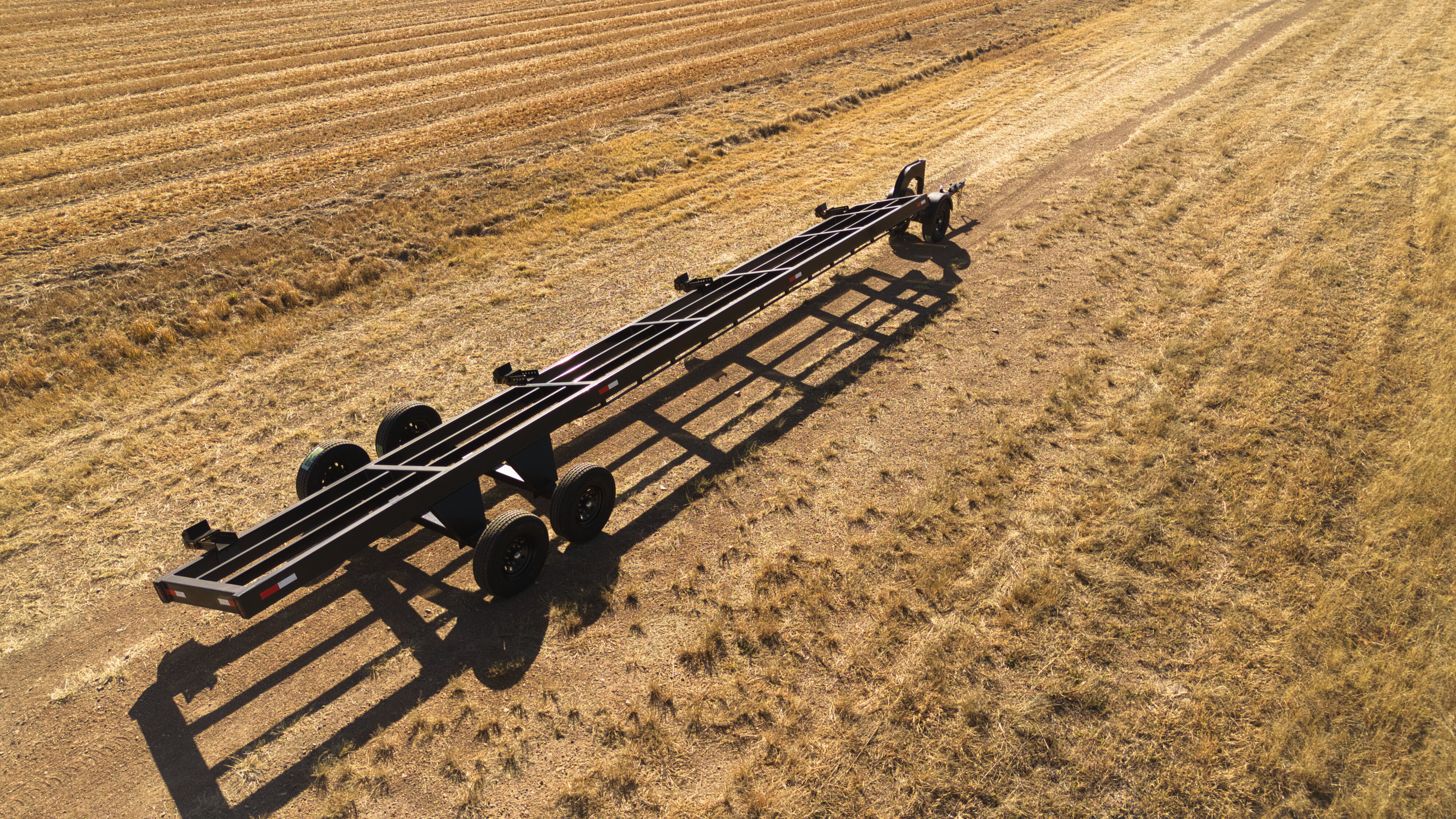

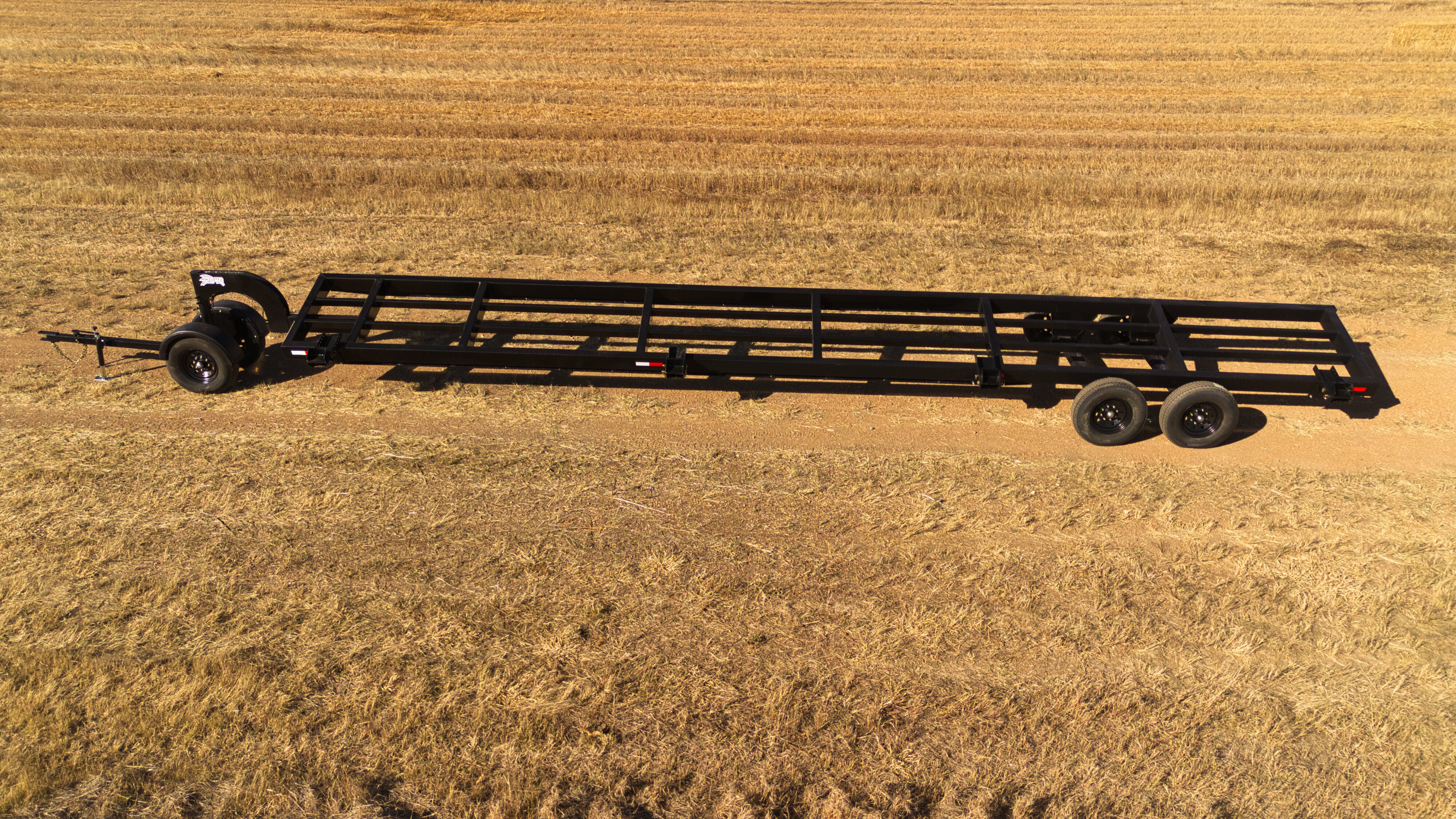

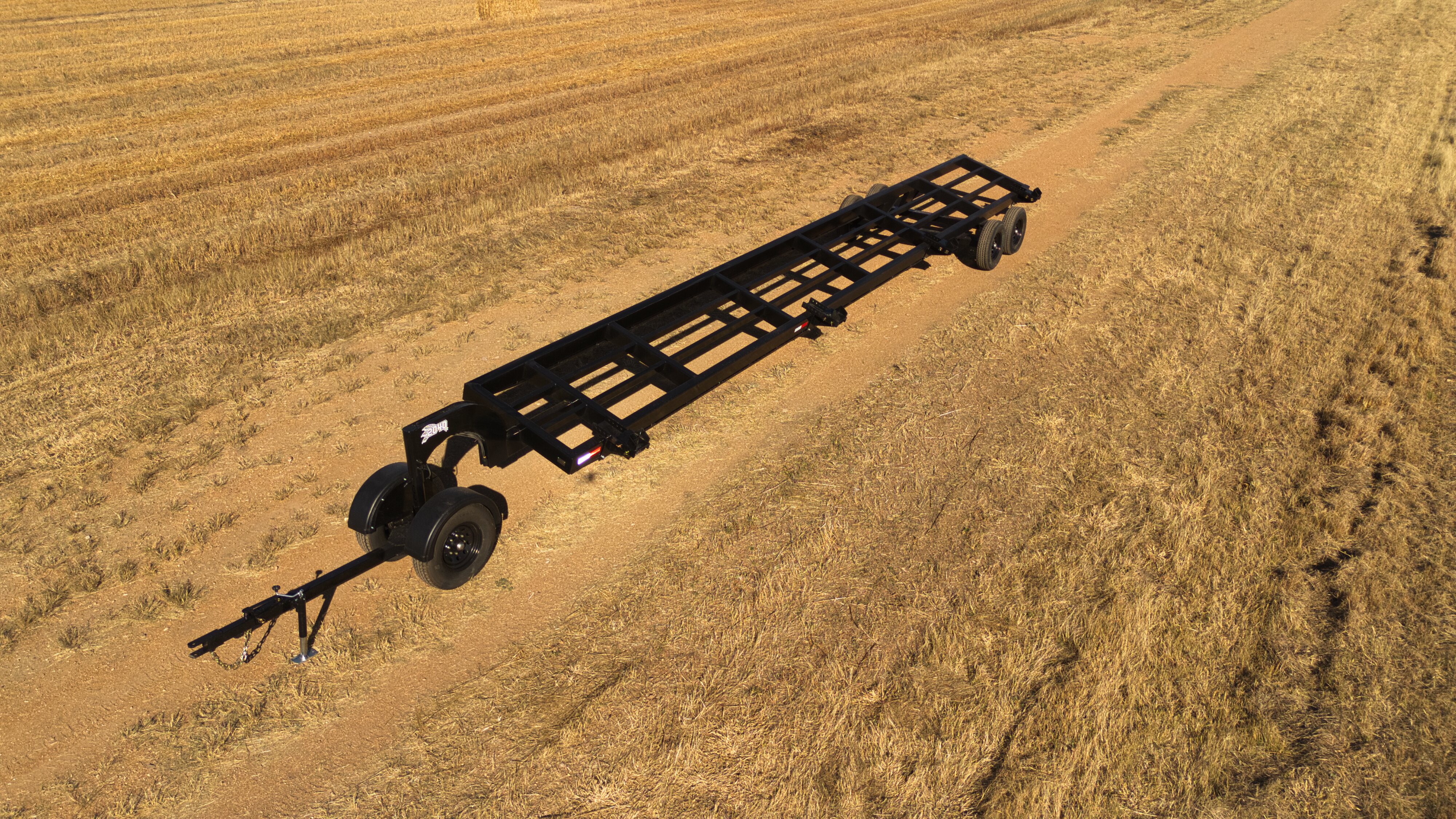

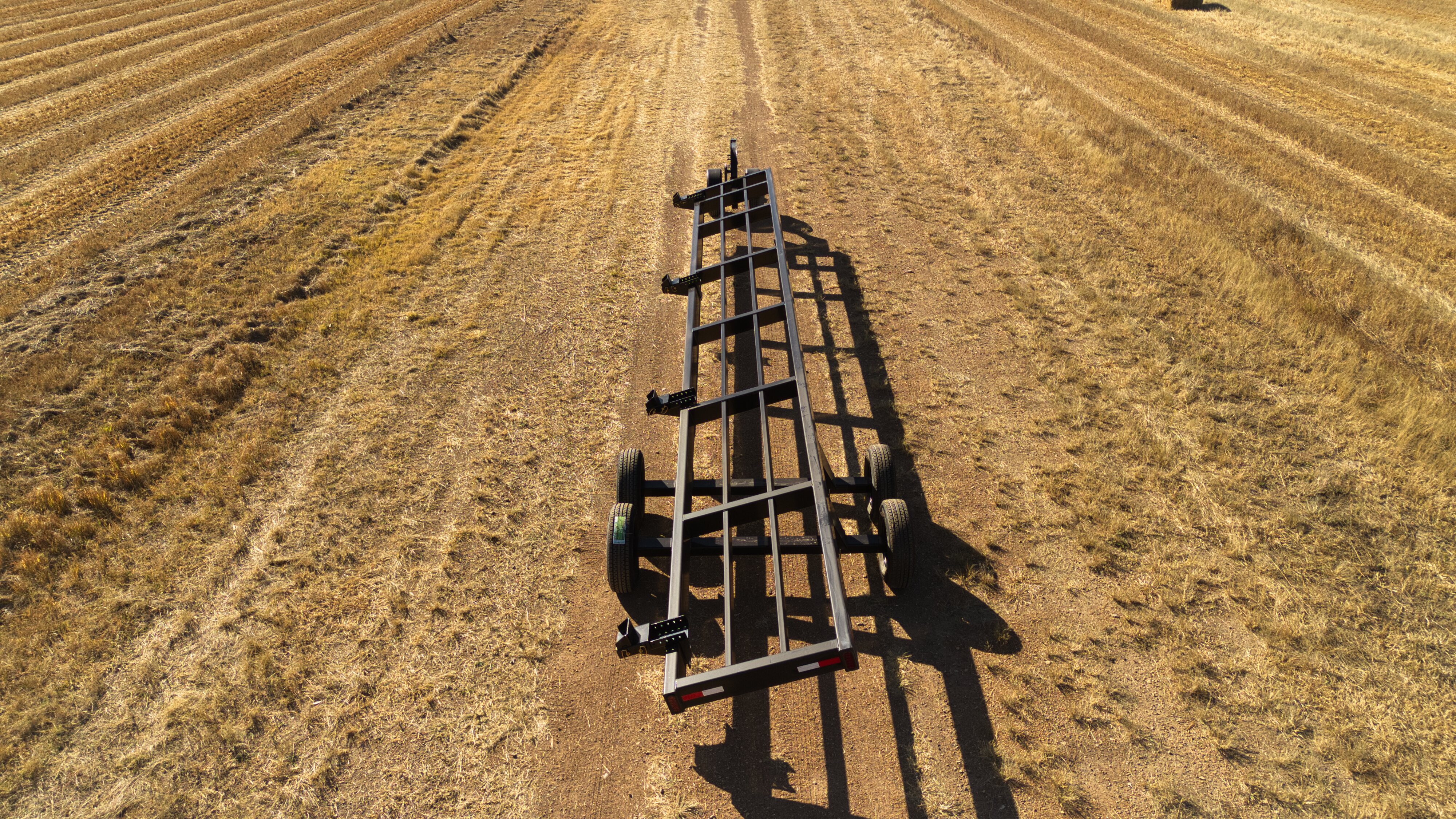

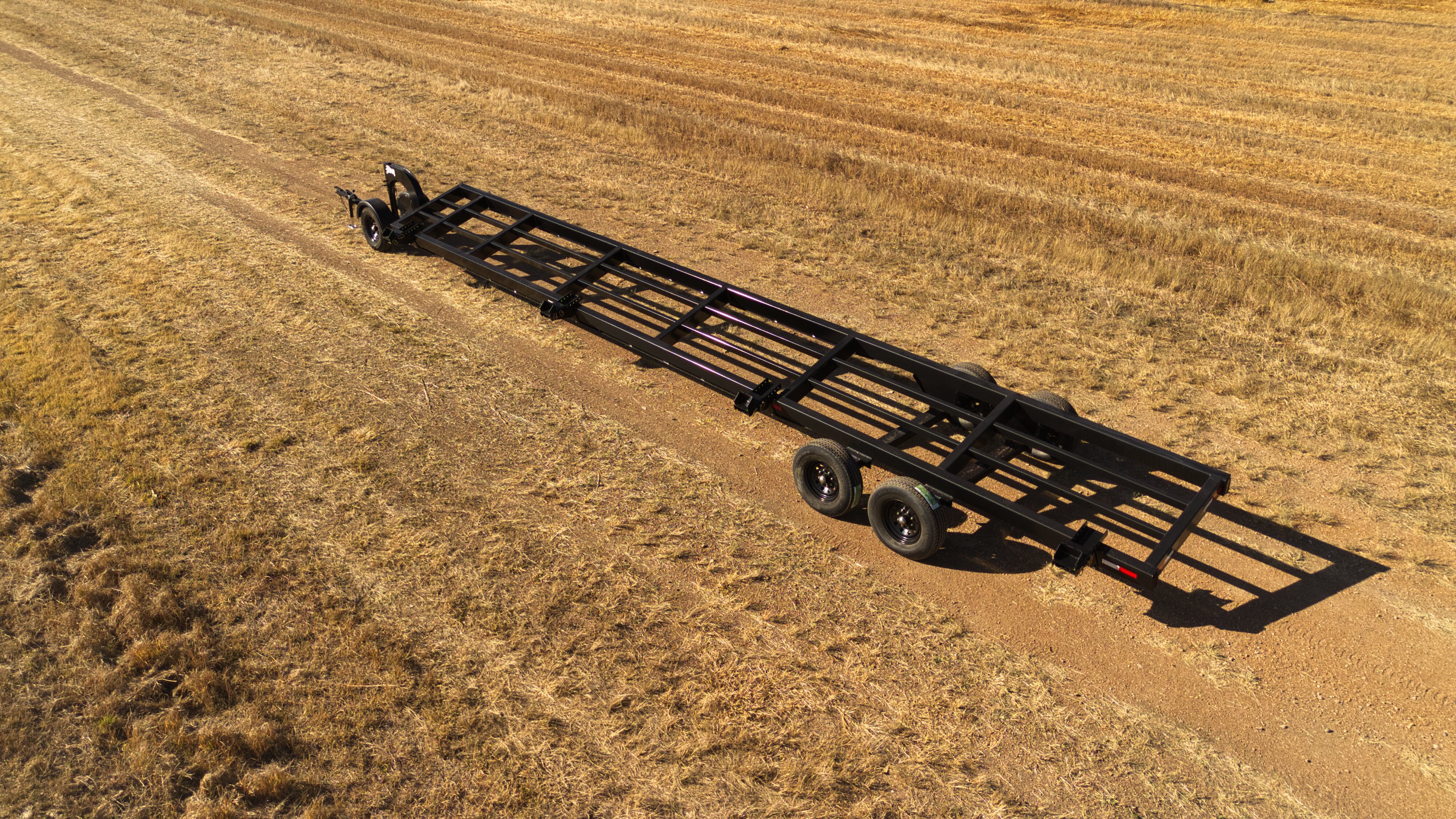

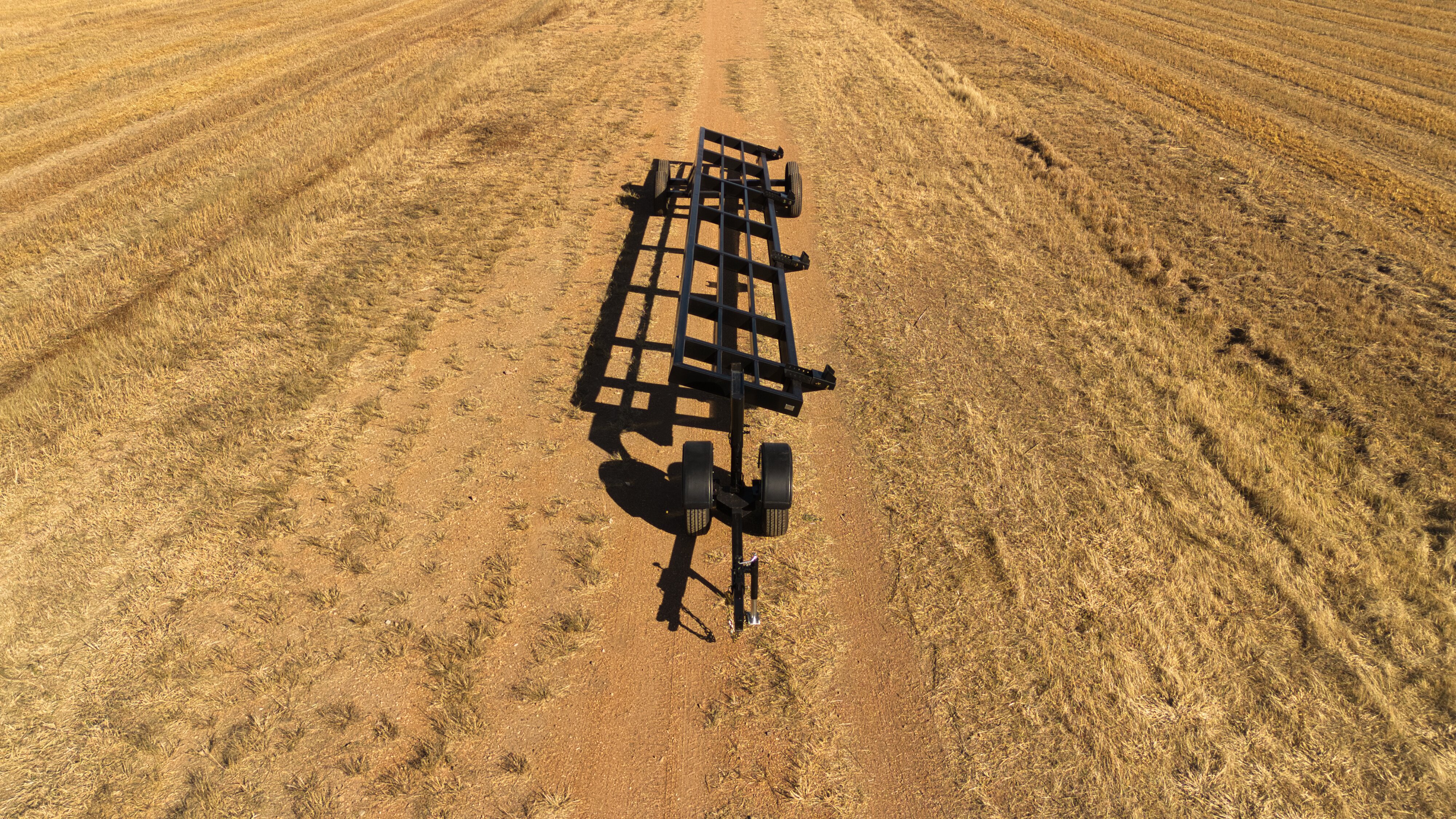

The 2040 is a 40’ 20-Series trailer designed for larger heads that need a heavier frame and tandem 7k axles. This wagon is built to handle longer road runs, rough approaches, and field access points without feeling flimsy under the header. With four adjustable brackets, a big swivel dolly, telescopic hitch, and rear lighting, the 2040 is a solid choice for custom harvesters and bigger farms who spend a lot of time moving from farm to farm. There are no brakes on the axles, keeping the system simple, but the overall build is still very much “commercial-grade.”
