Specifications

FeatureDescription
Hitch Type3-Point Hitch, Category 1 & 2
Working Widths6 ft, 7 ft, 8 ft, 9 ft, 10 ft, 11 ft, 12 ft
Actual Coverage (Working Width in Inches)100 in – 175 in (varies by model)
Overall Width116 in – 191 in (varies by model)
Drum Diameter10 in
Ring Count40 – 70 rings (increases by 5 rings per foot)
Ring Dimensions2.5" width, 12" inner diameter, 14" outer diameter
Frame MaterialHeavy-duty PTR steel
BearingsP210 sealed pillow block bearings
Weight Range544 – 895 kg (1,196 – 1,969 lb)
Recommended HP40 – 70 HP (increases 5 HP per foot)
StandIncluded
Transport SystemNone (lifts with tractor)
FinishLiquid paint, Industrias America colors

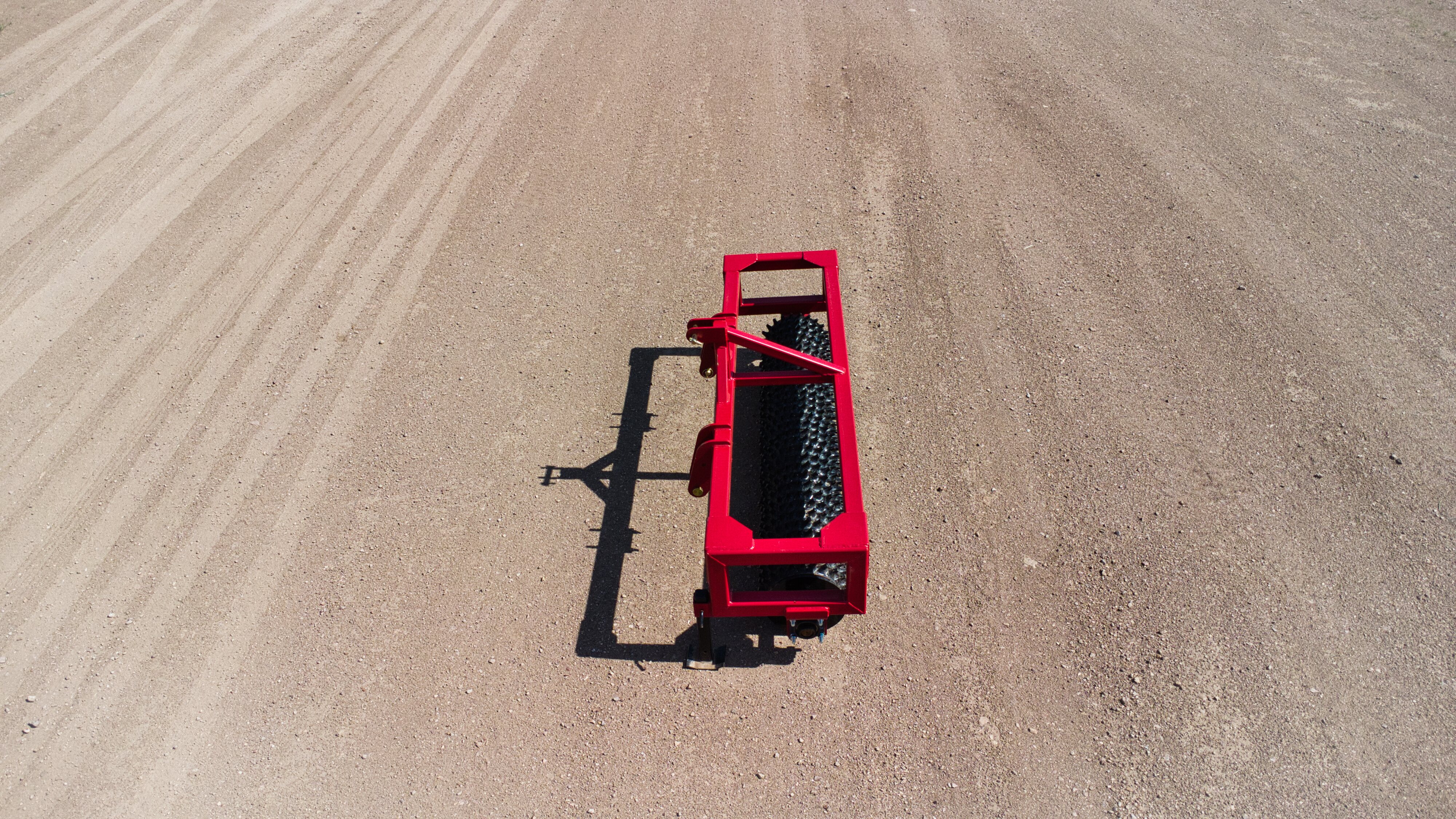

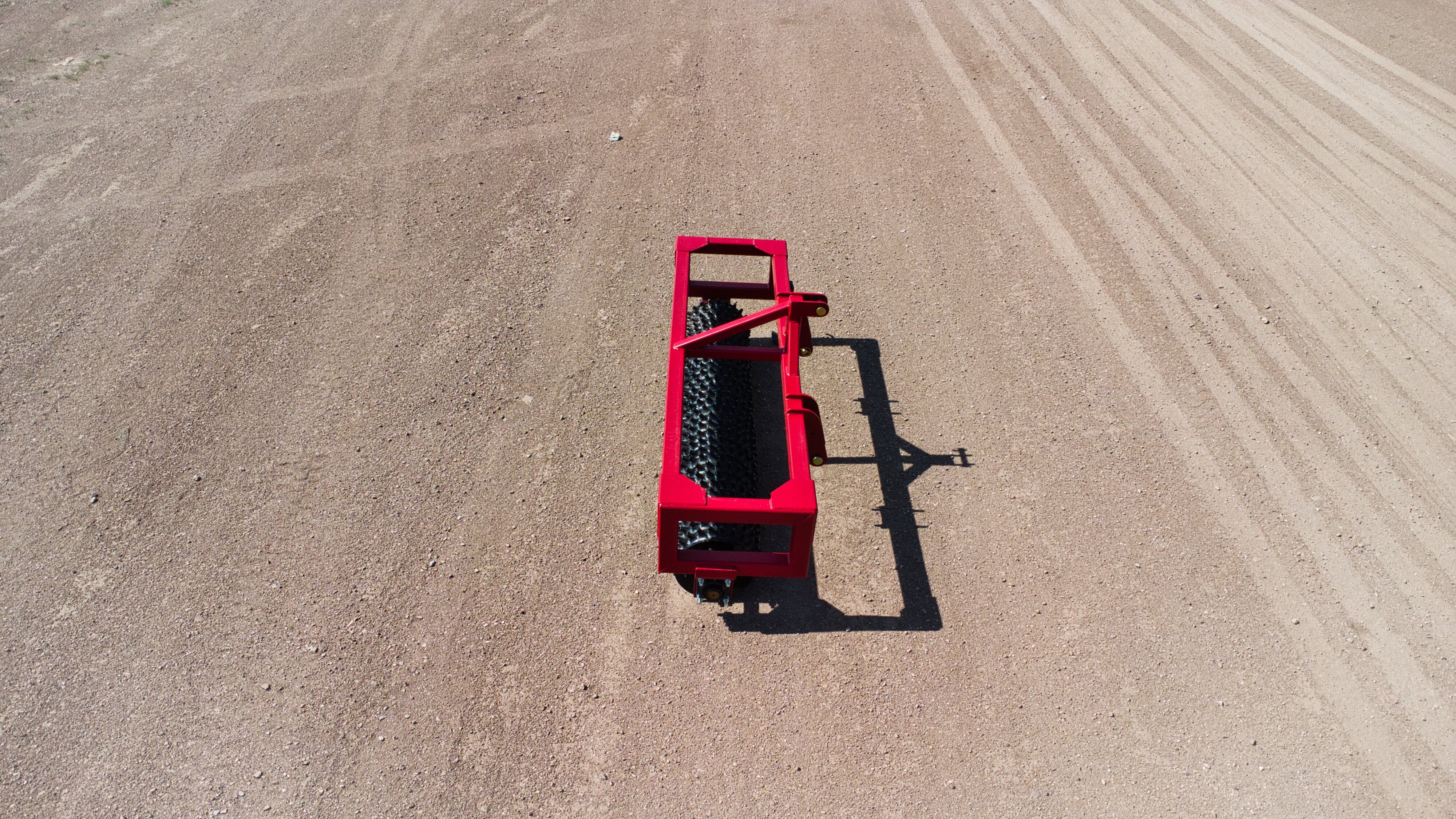

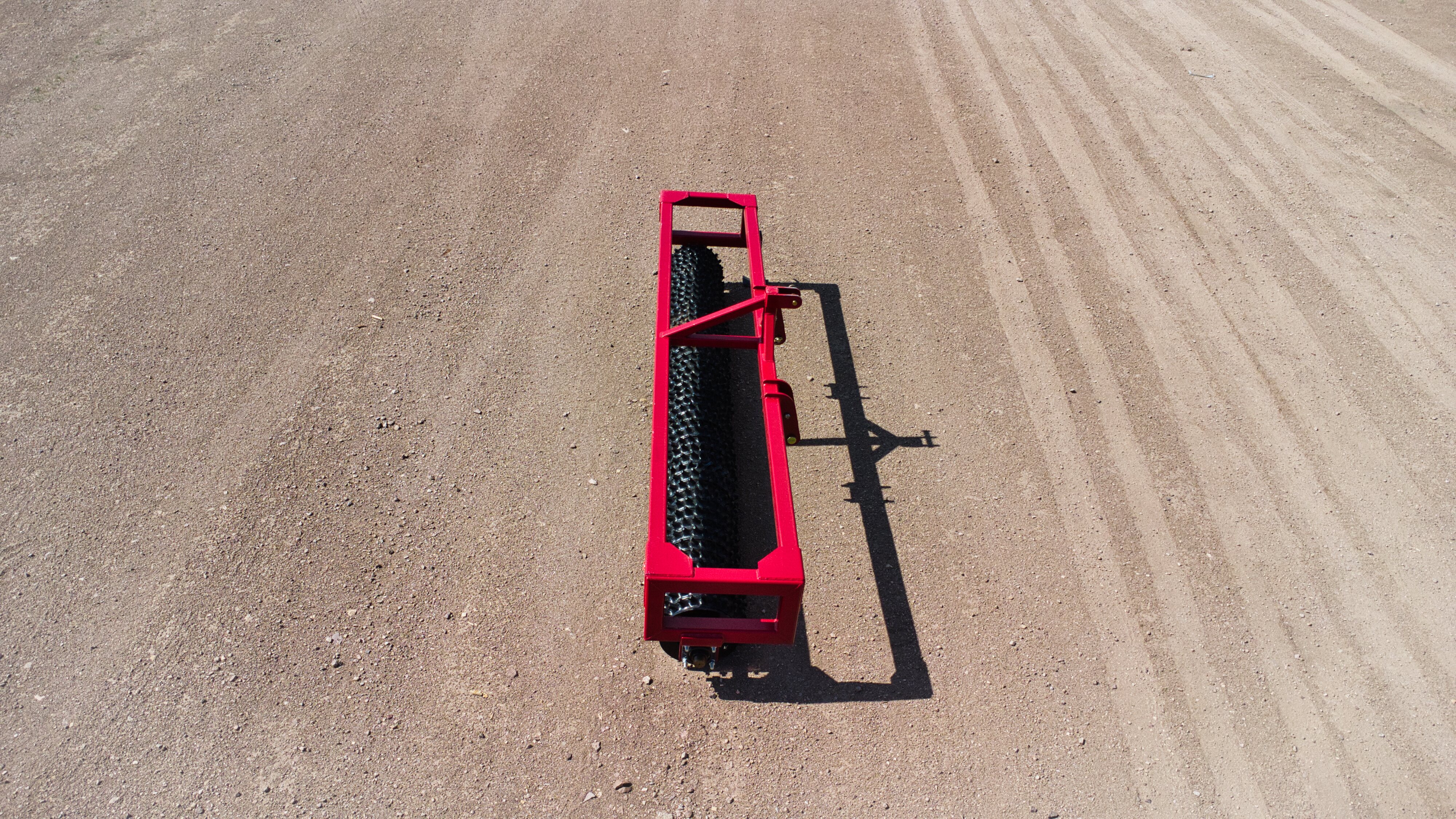

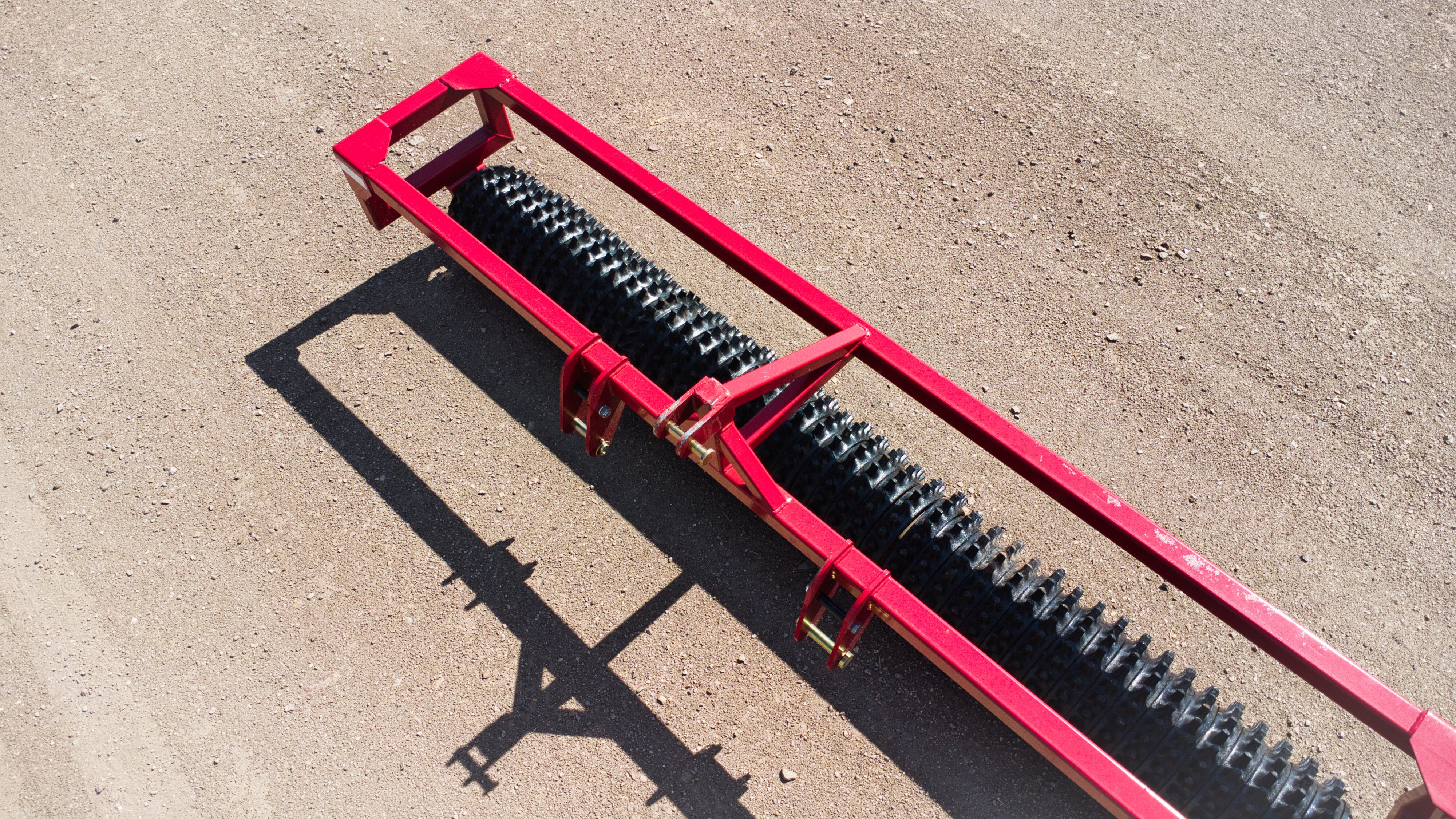

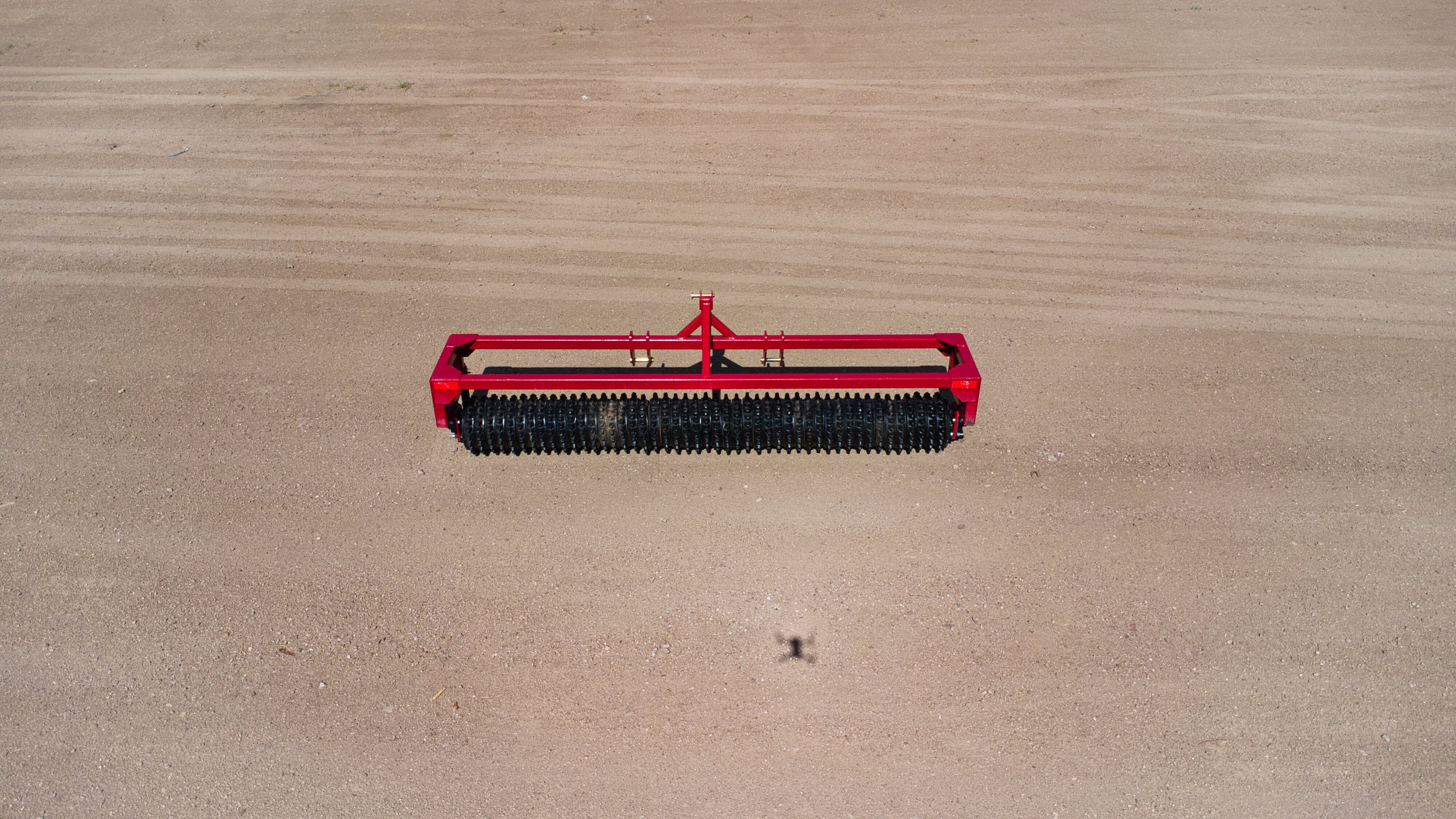

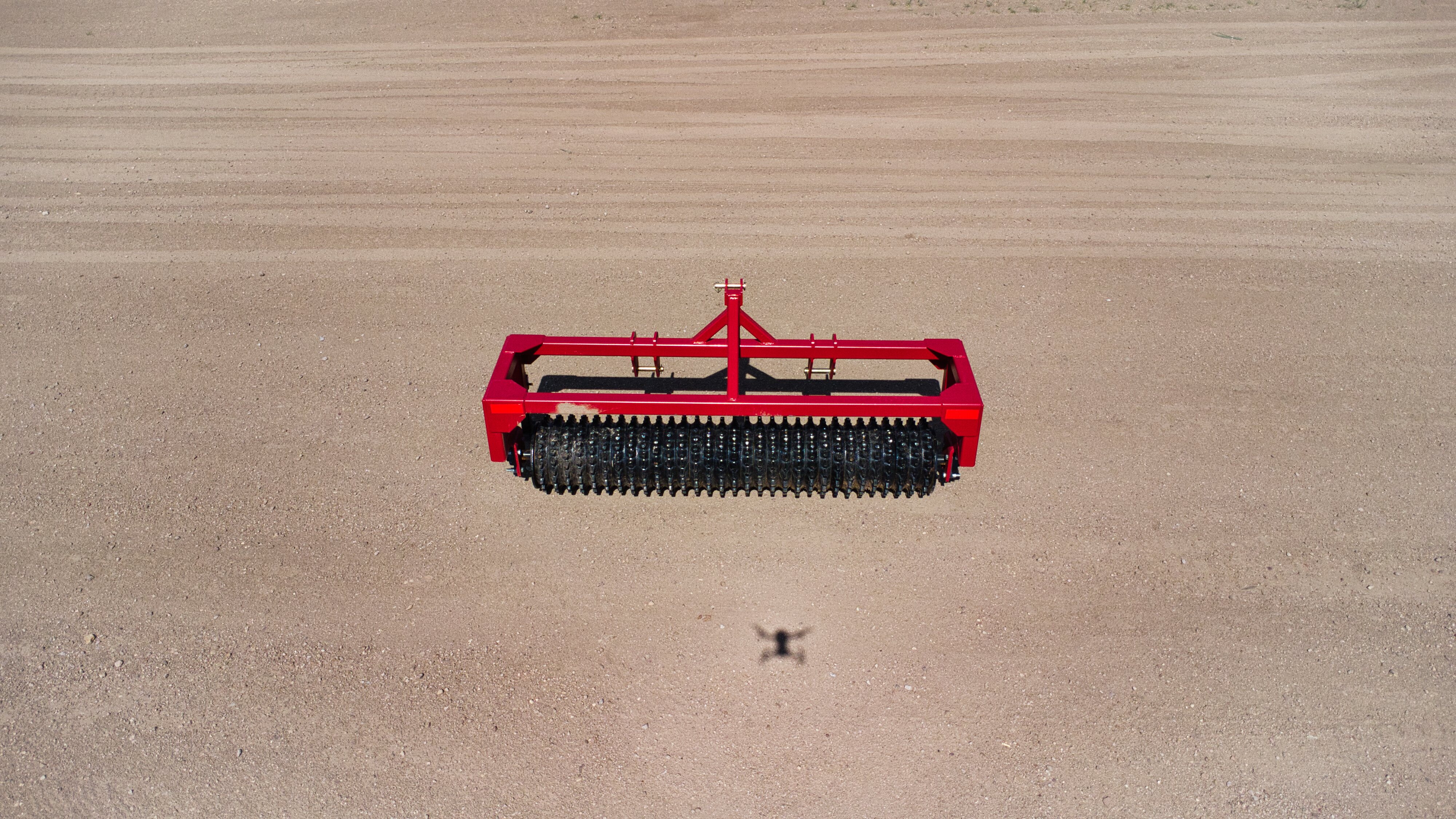

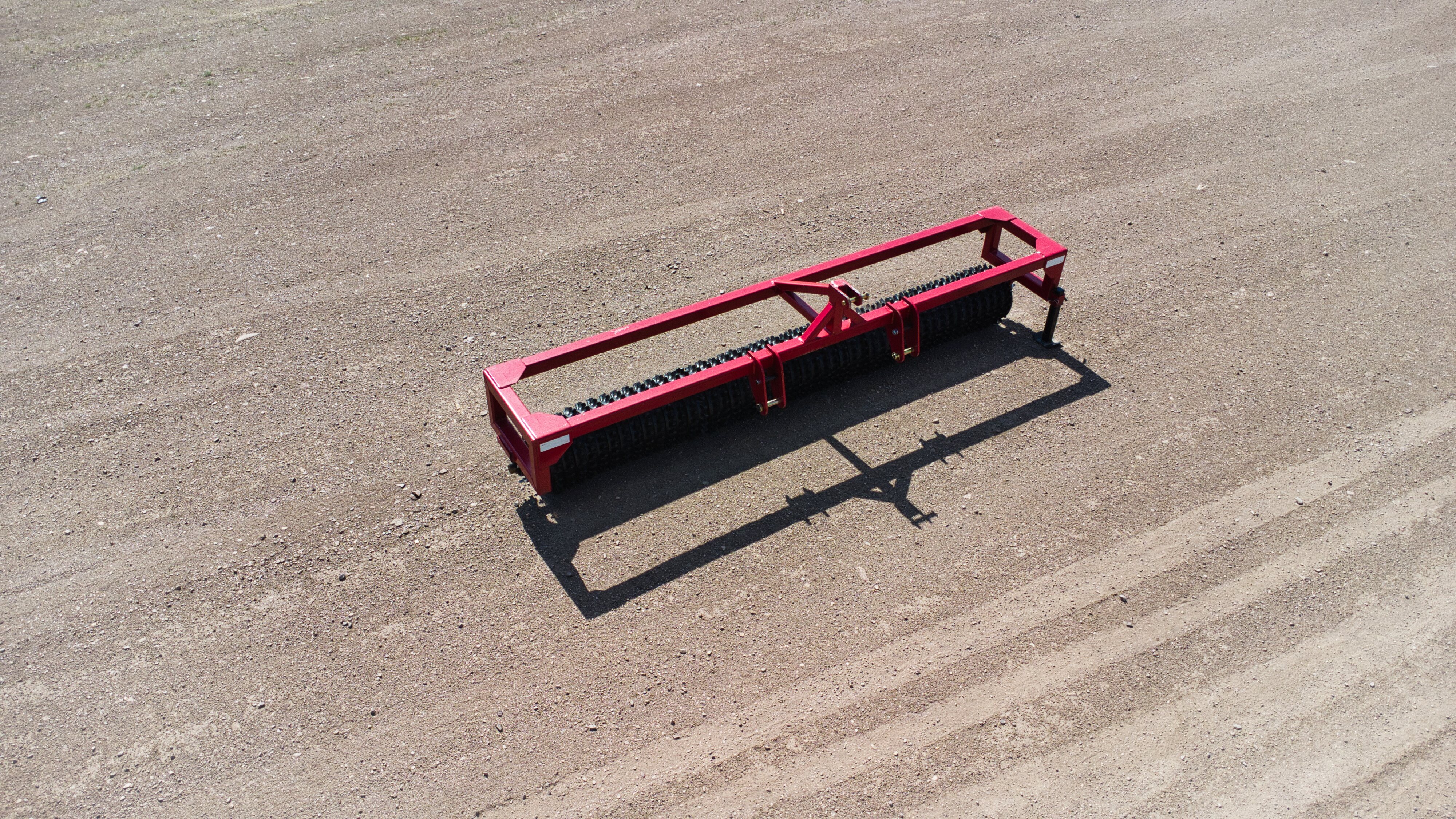

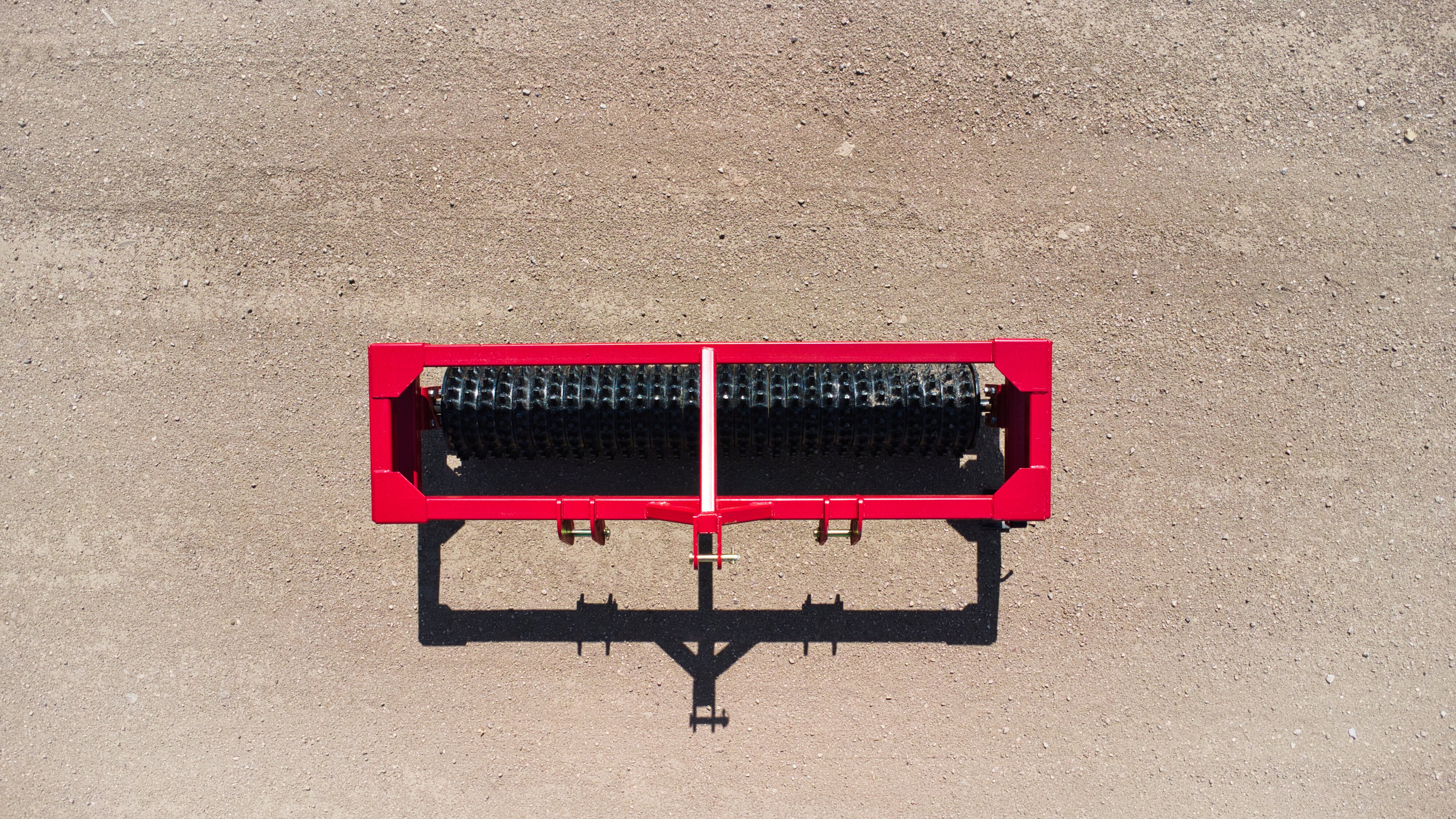

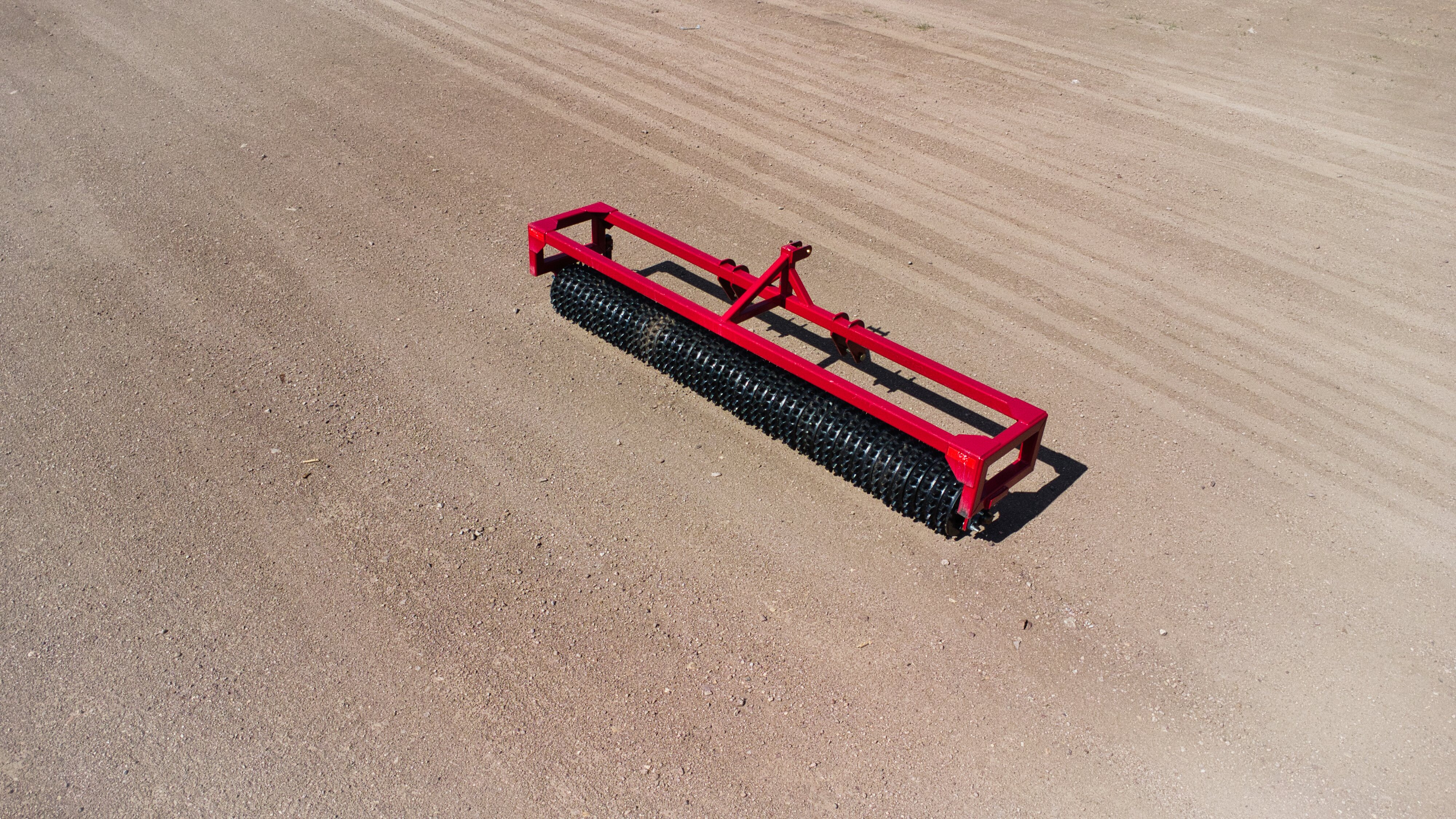

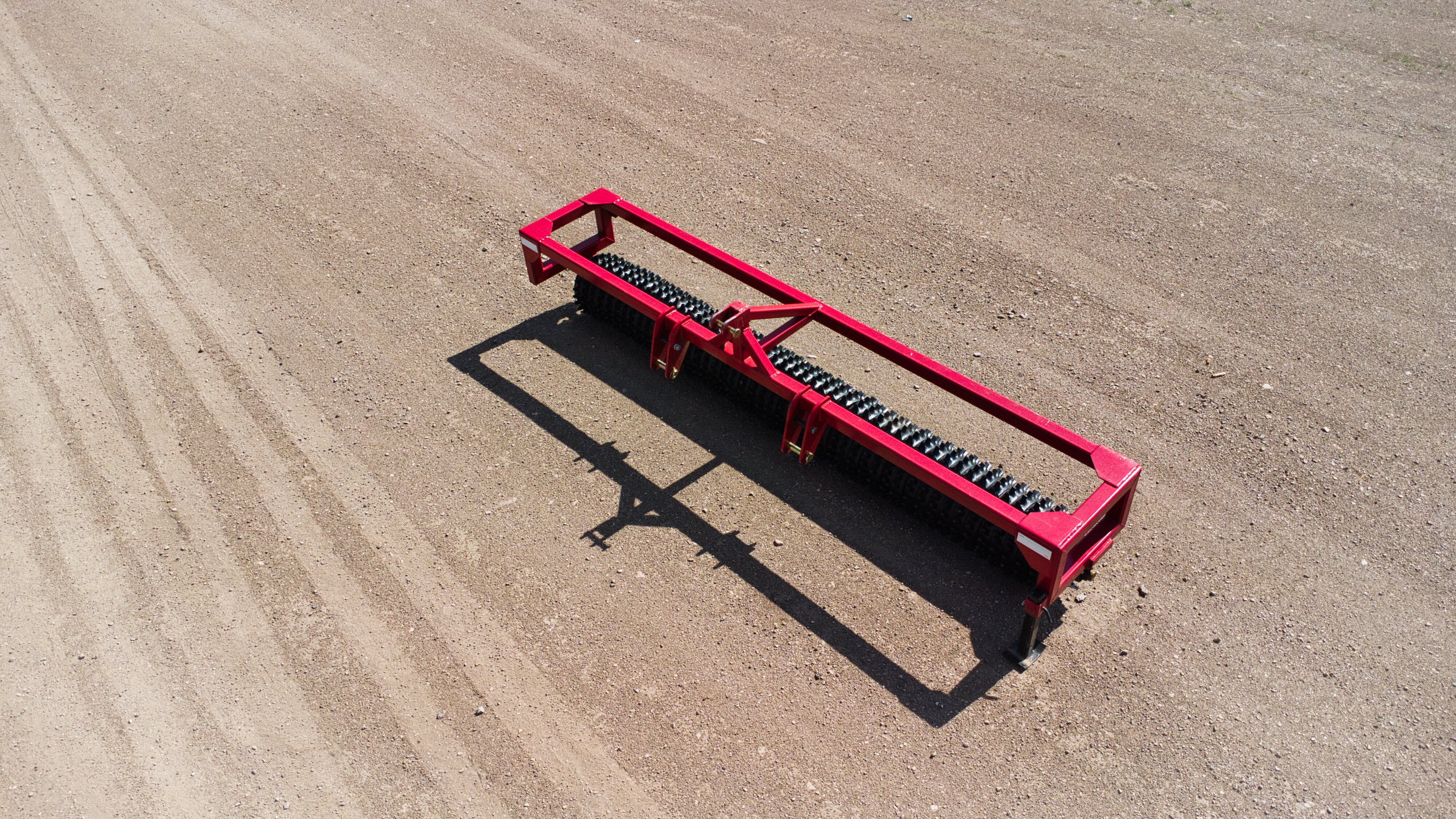

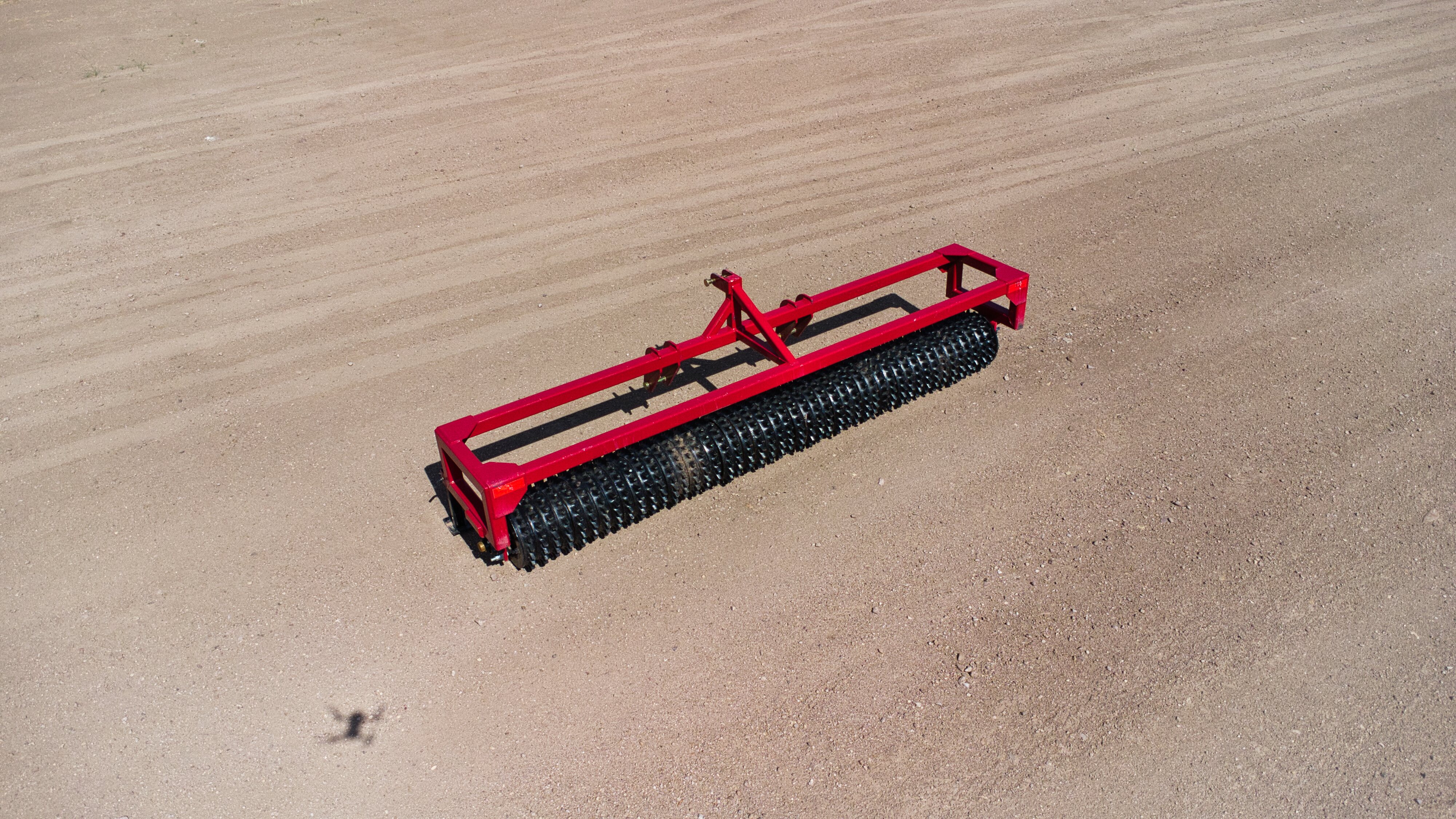

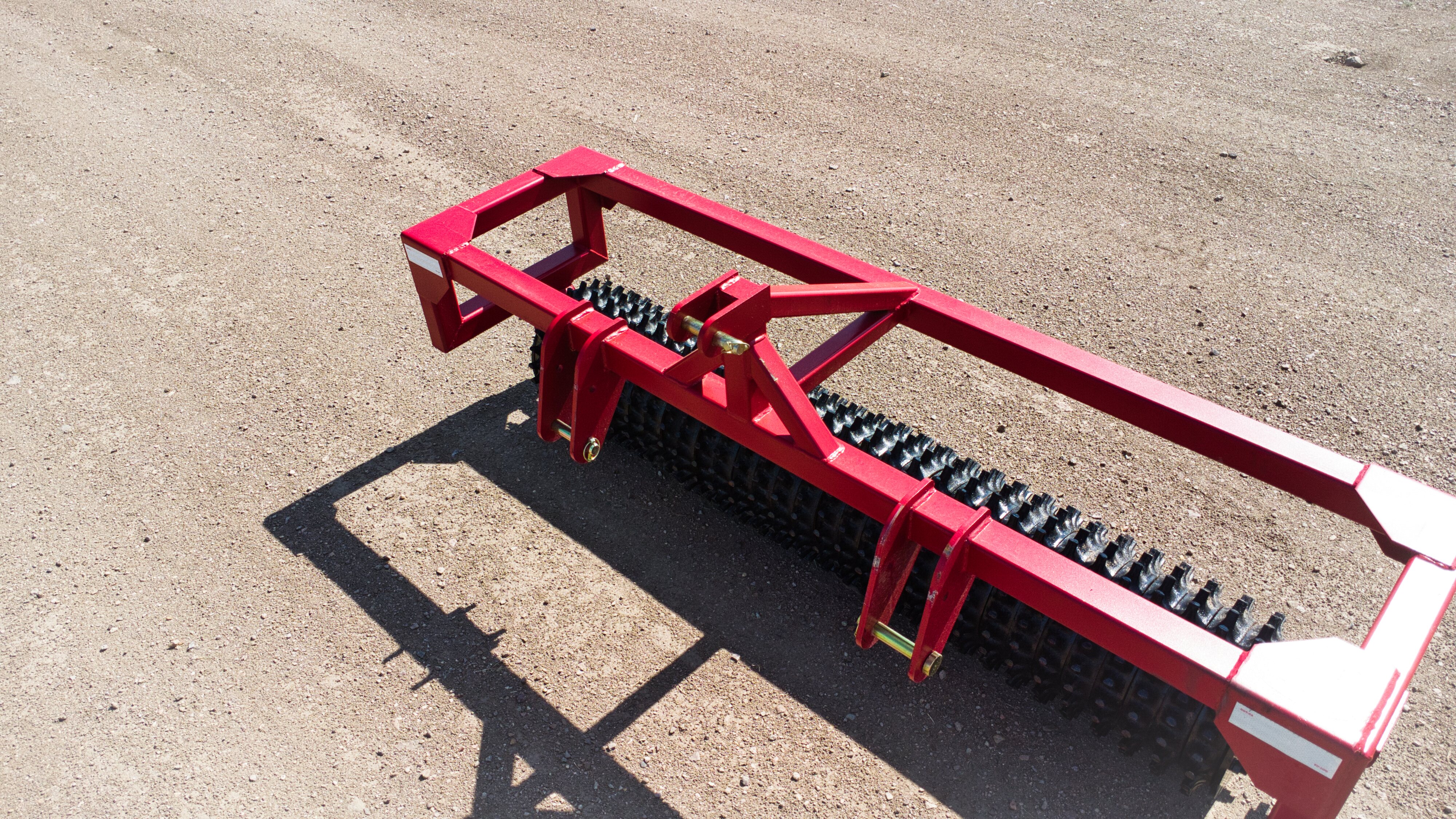

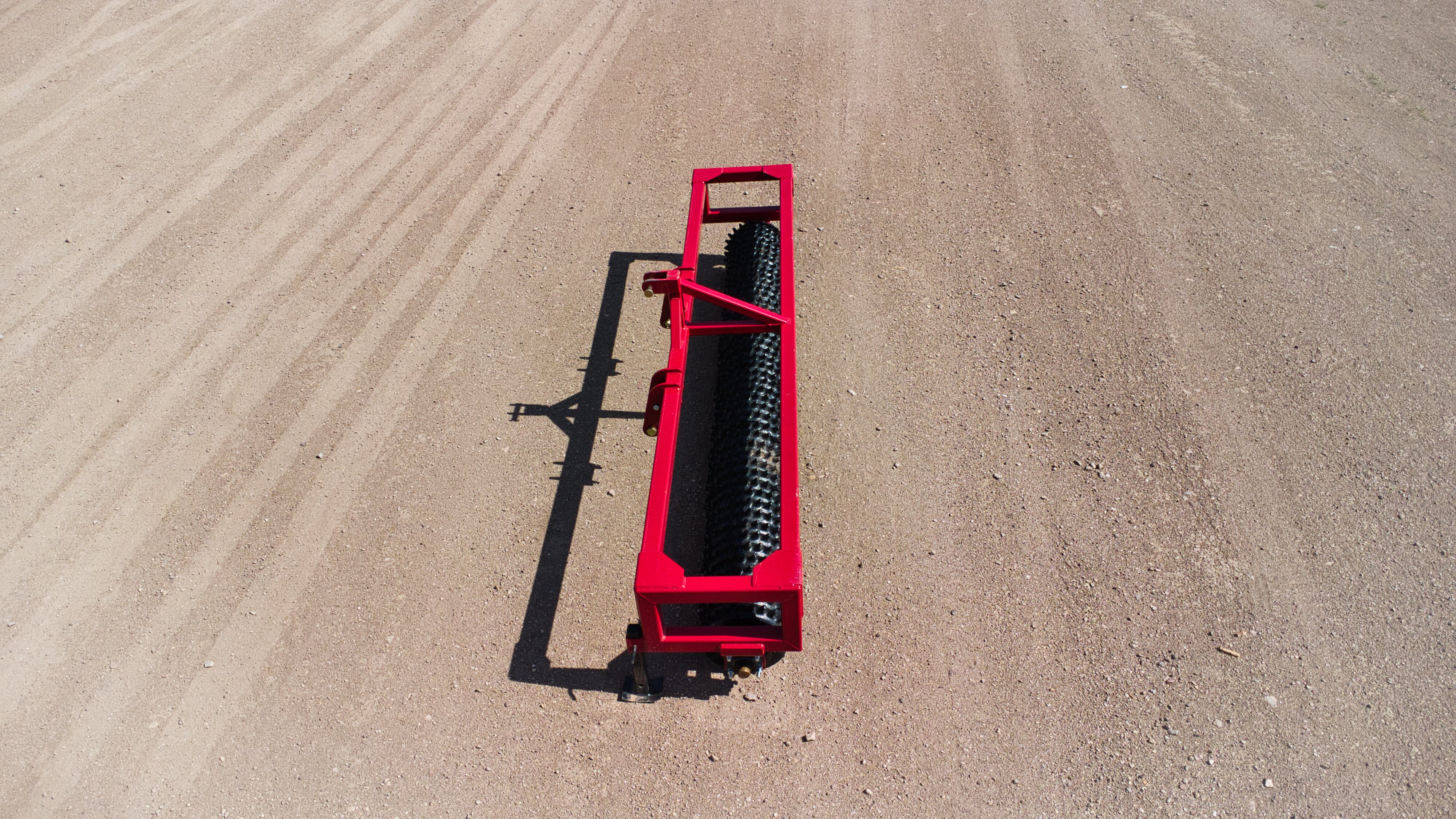

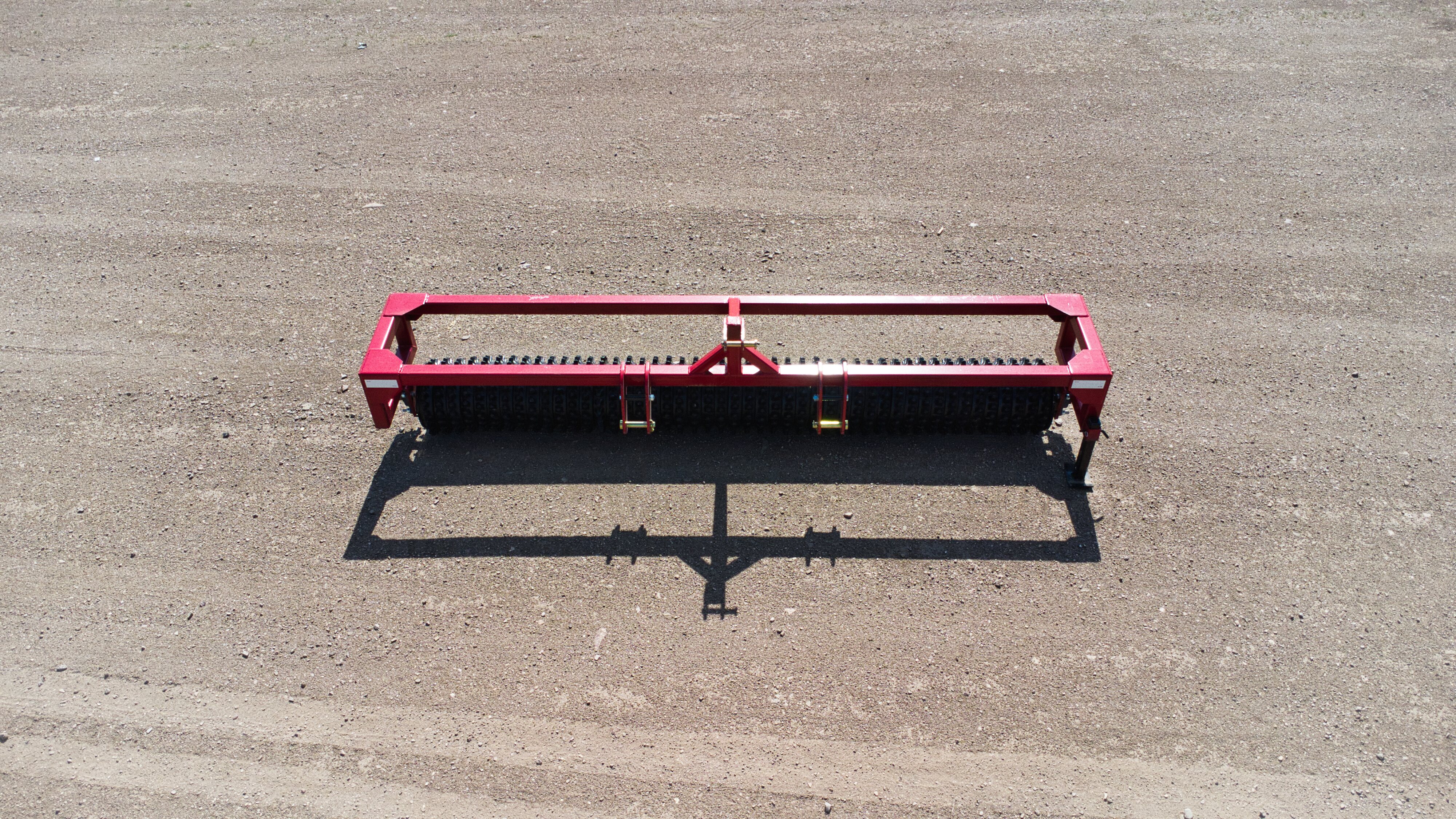

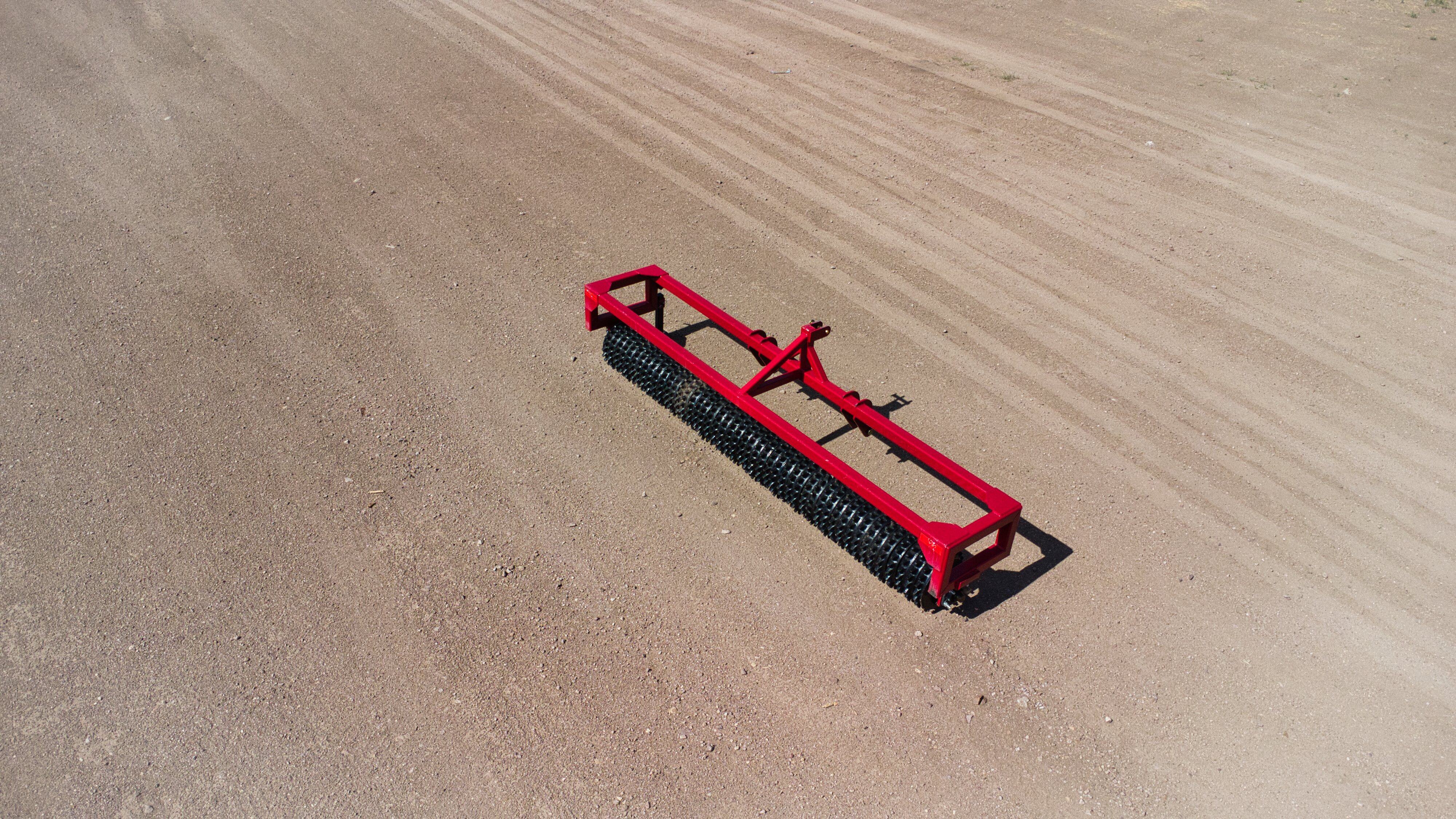

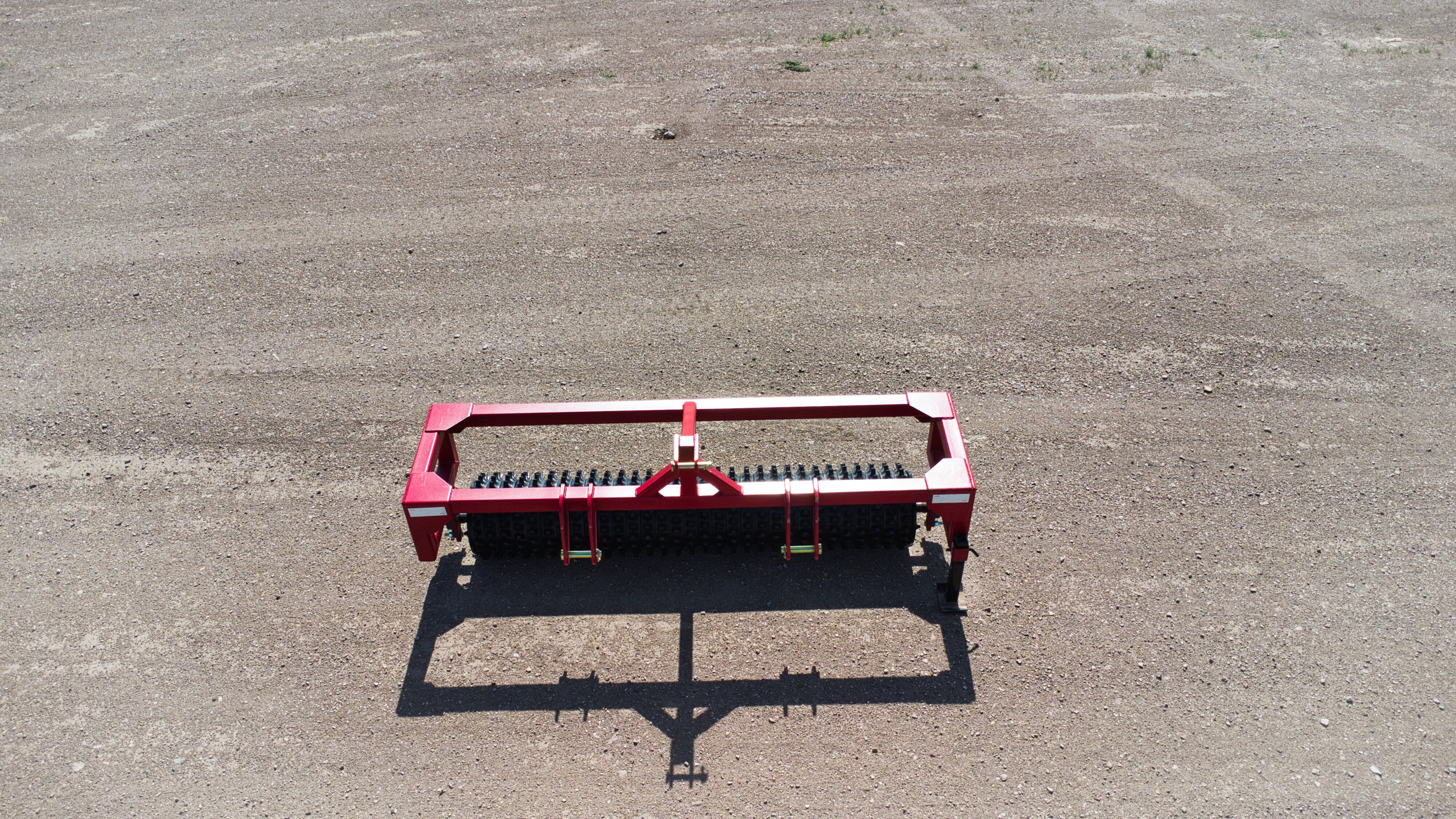

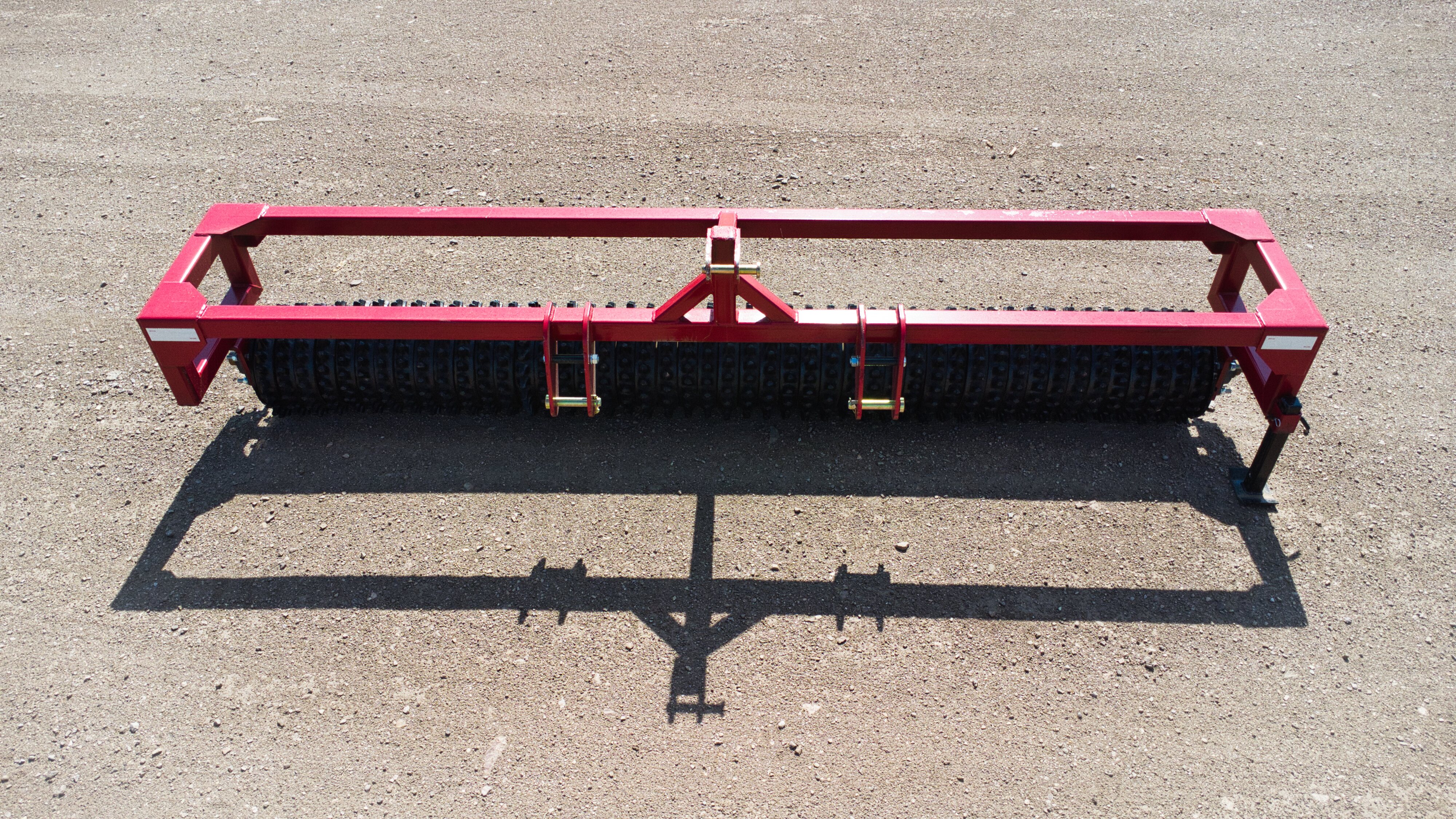

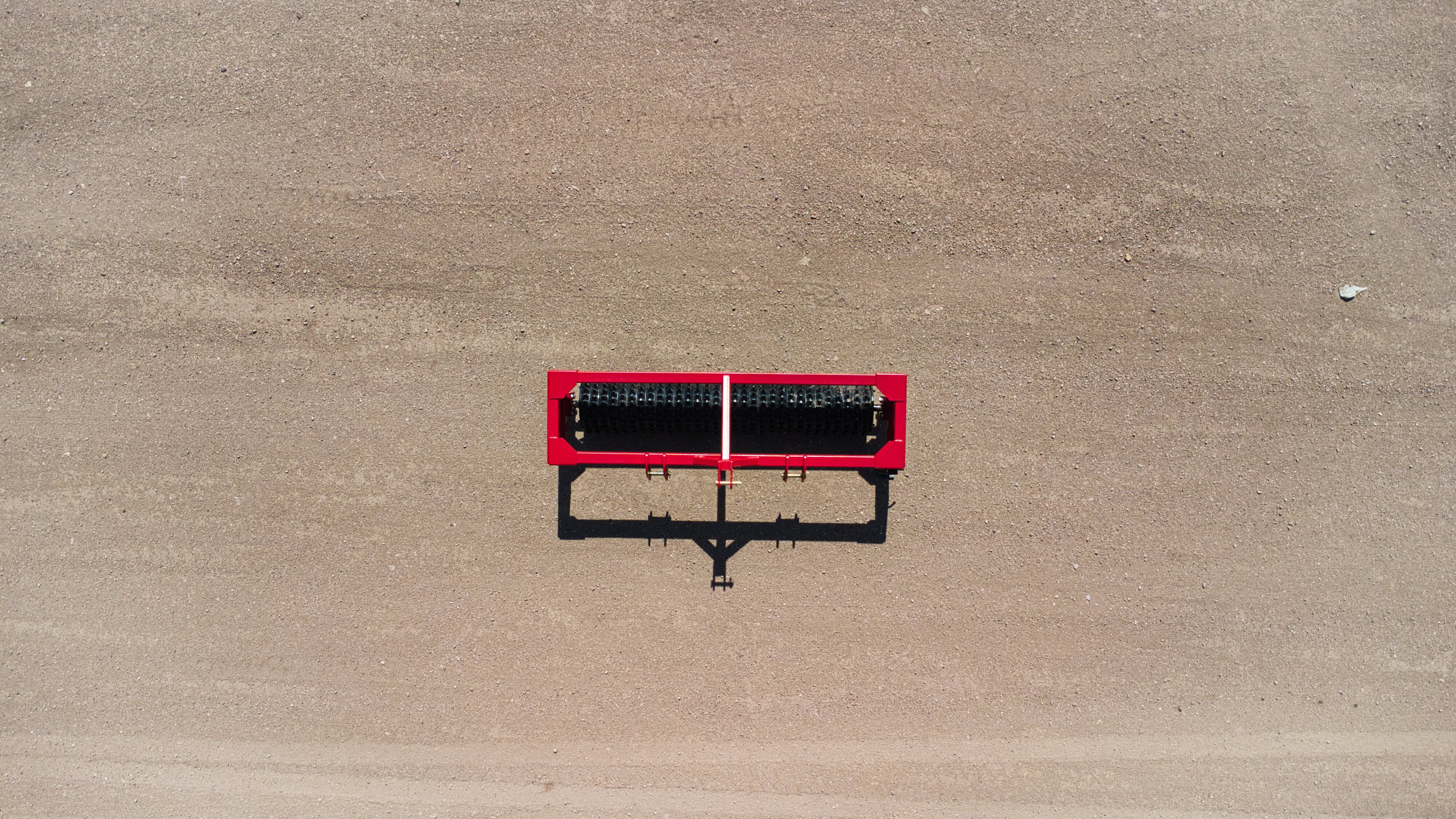

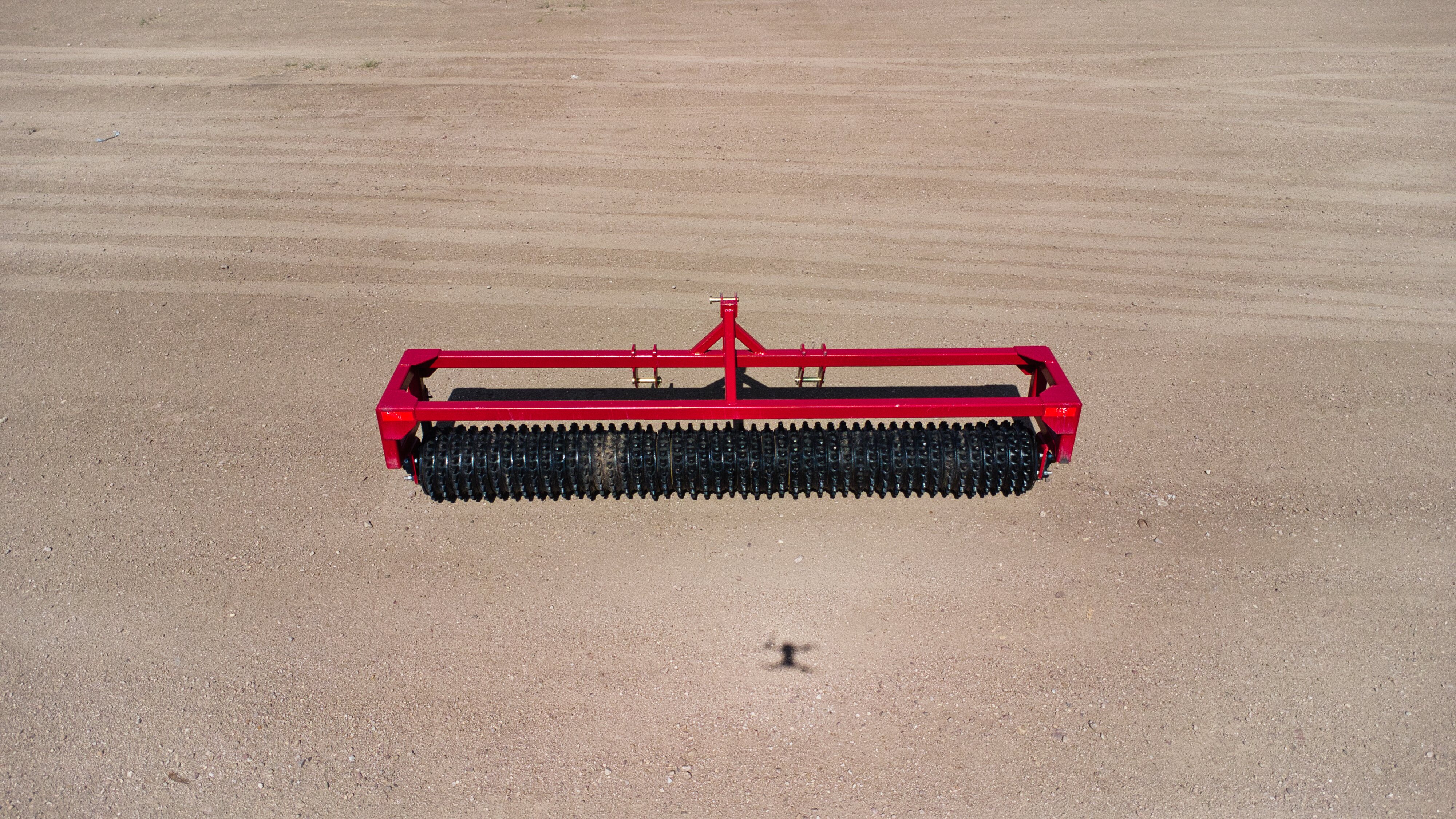

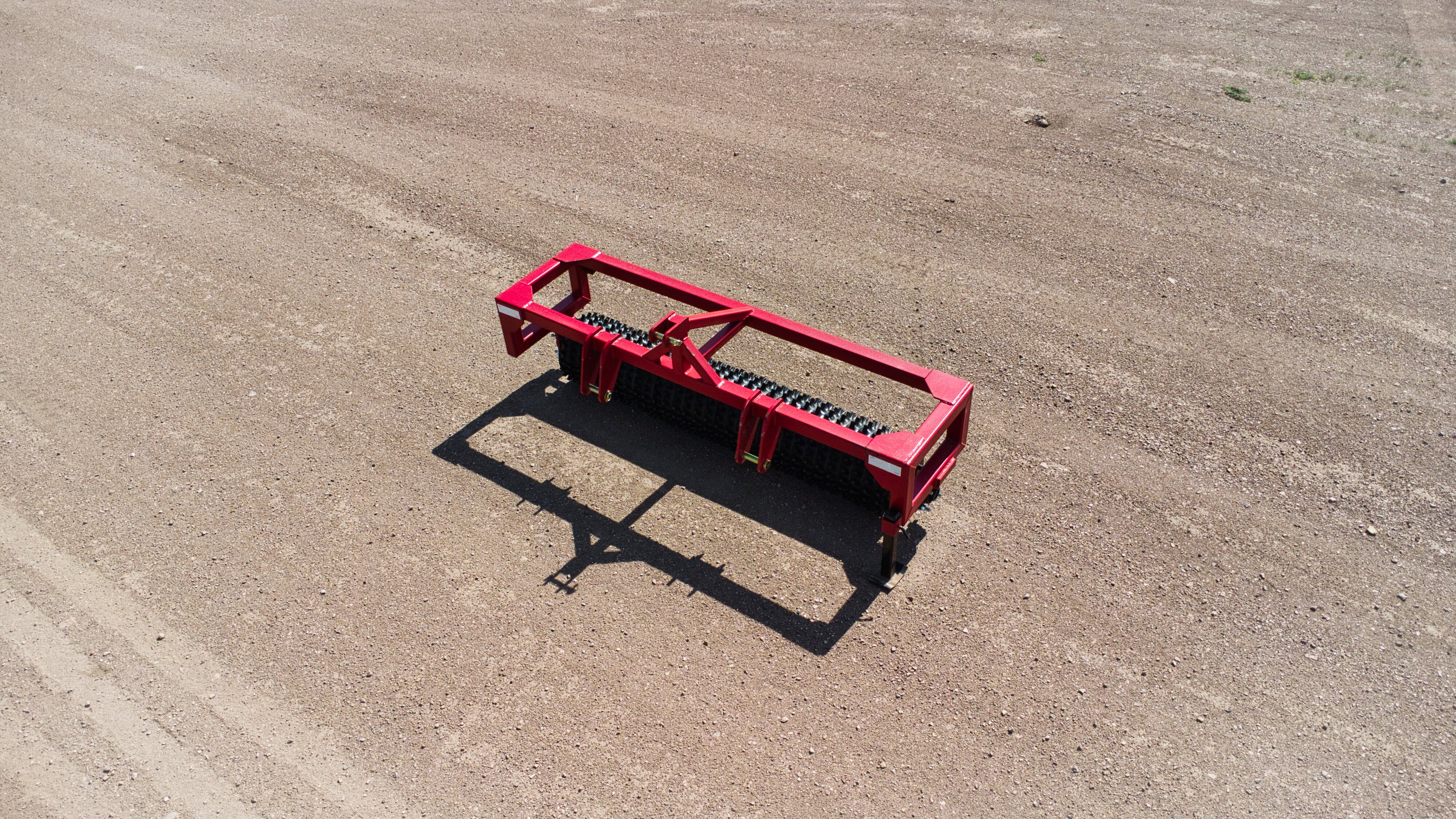

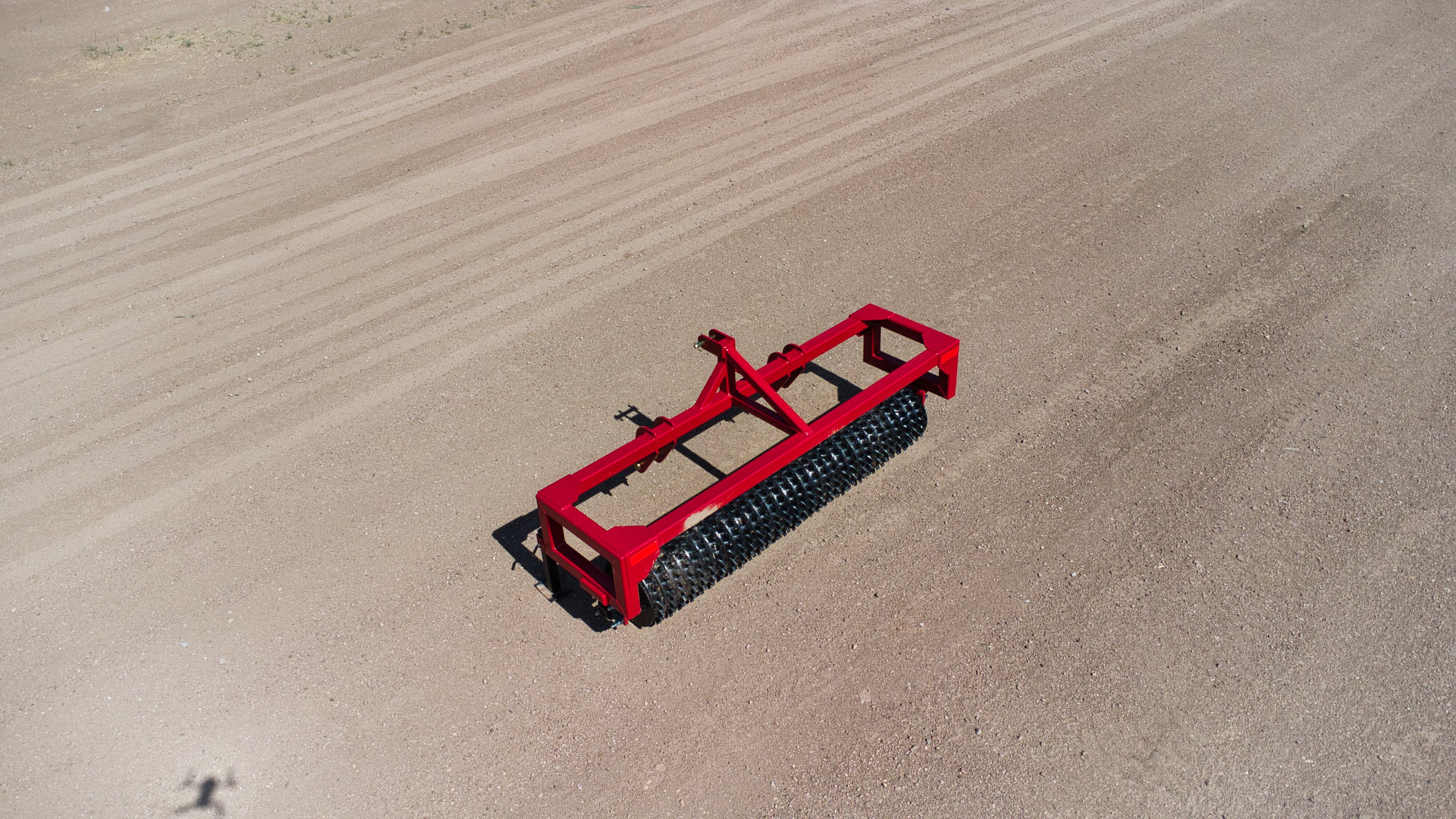

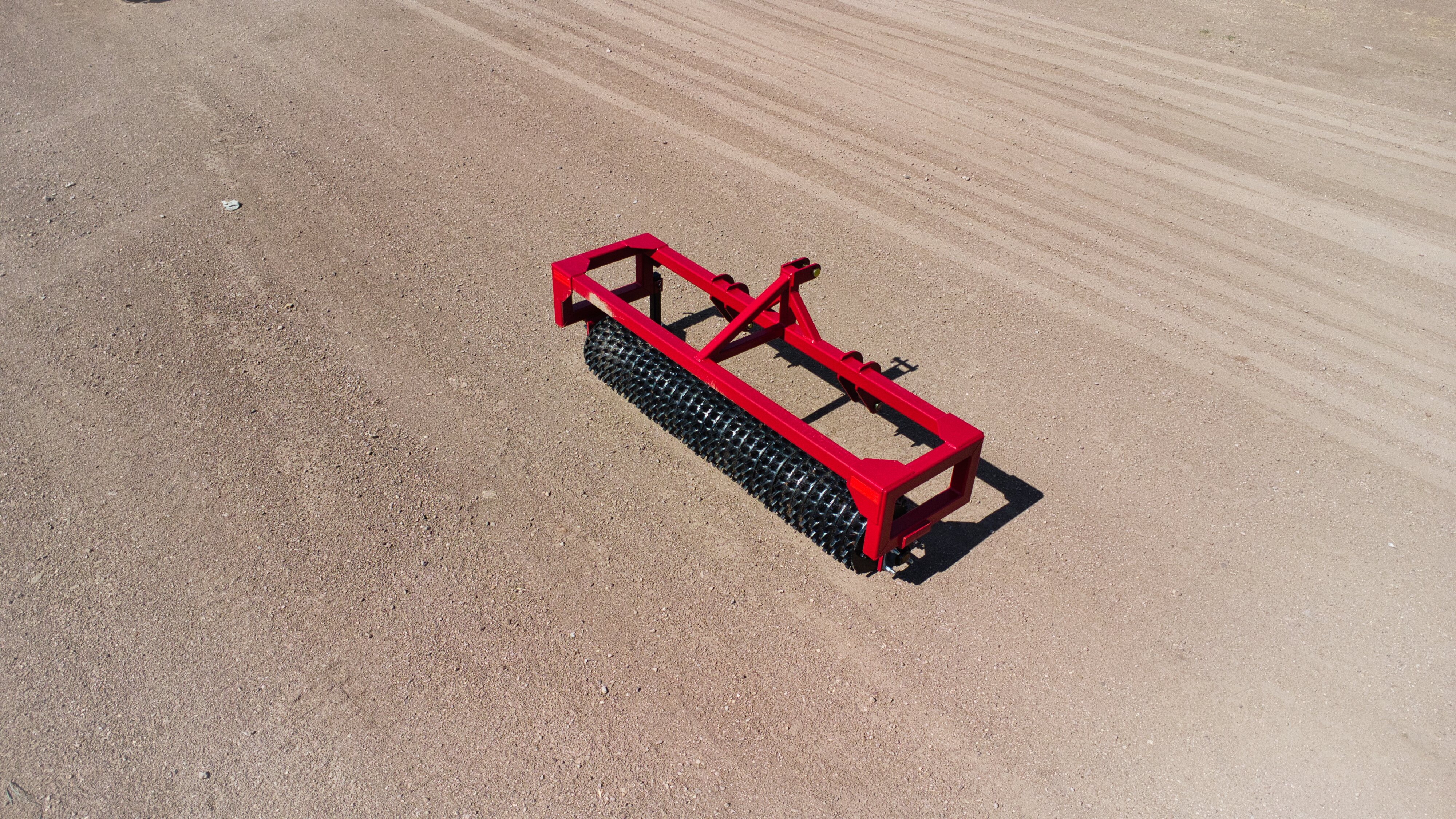

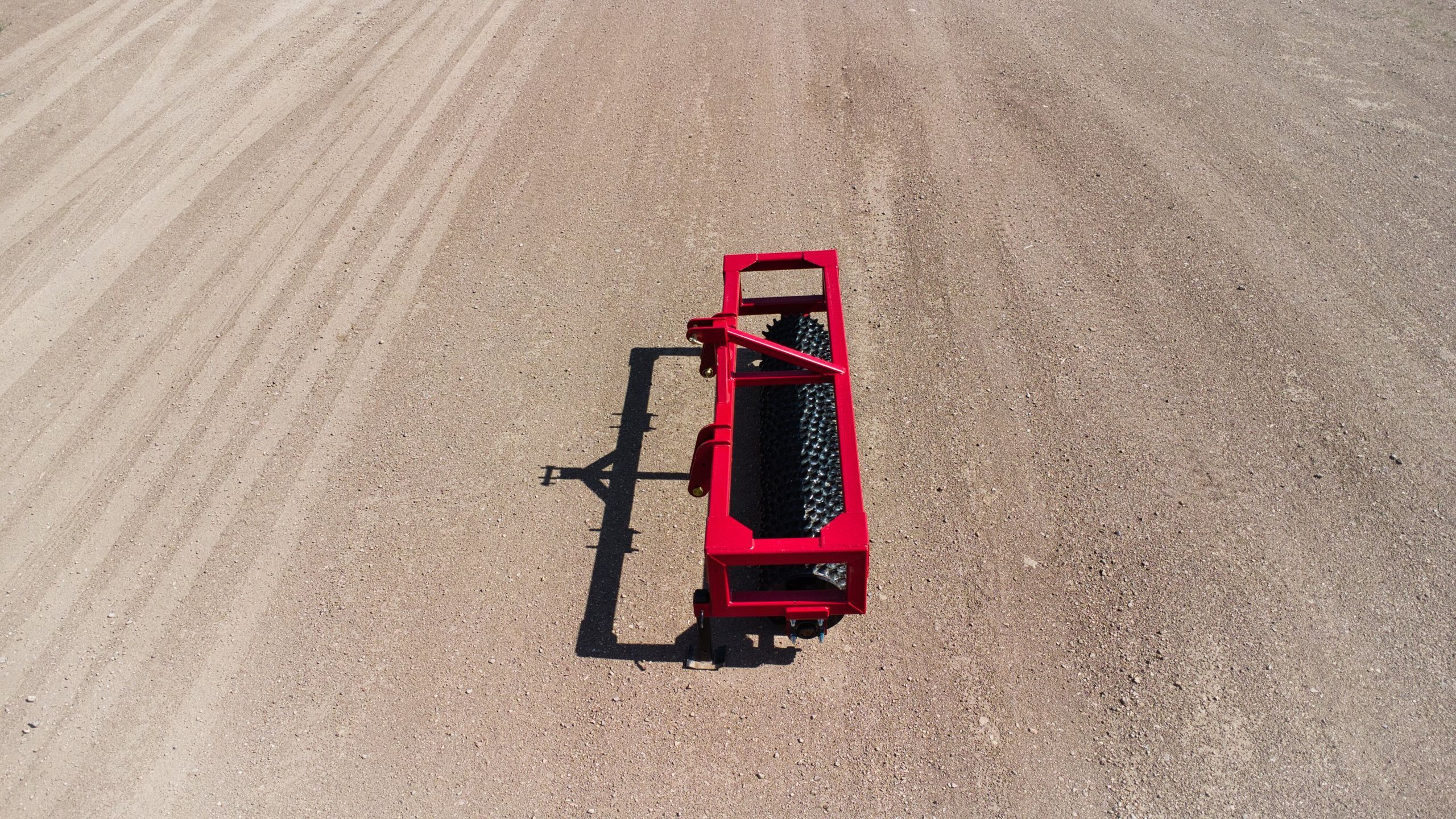

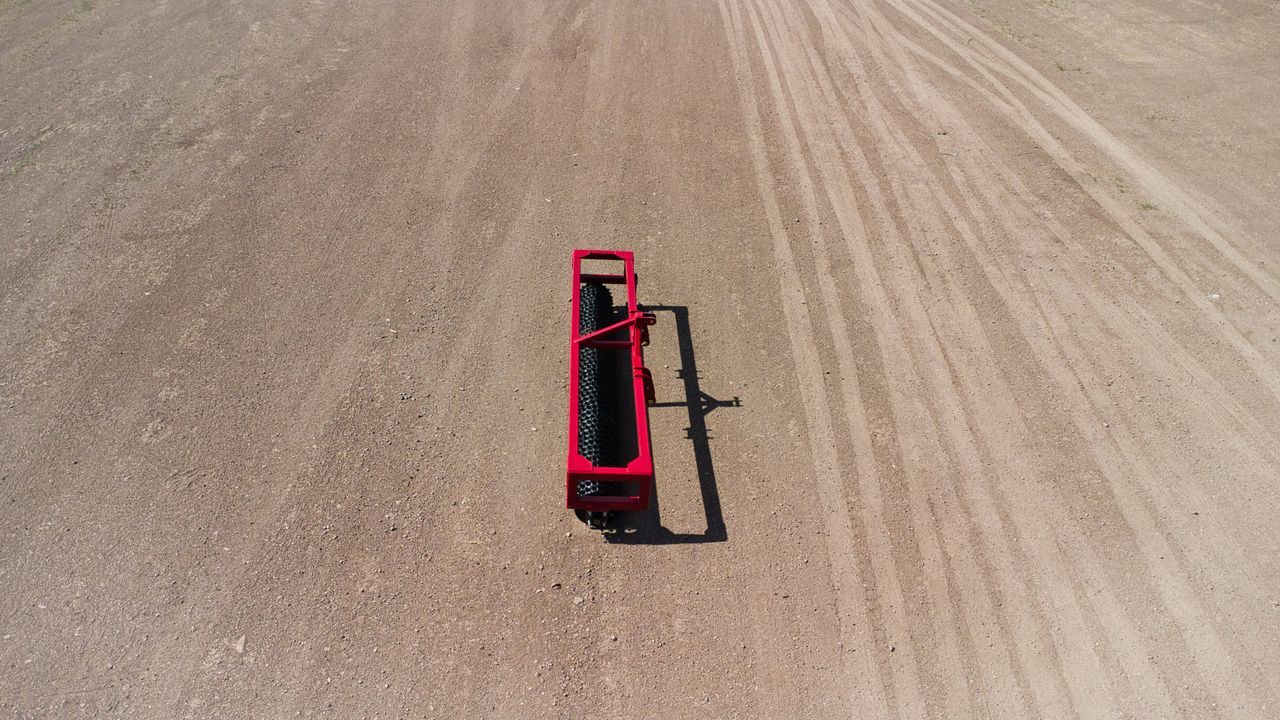

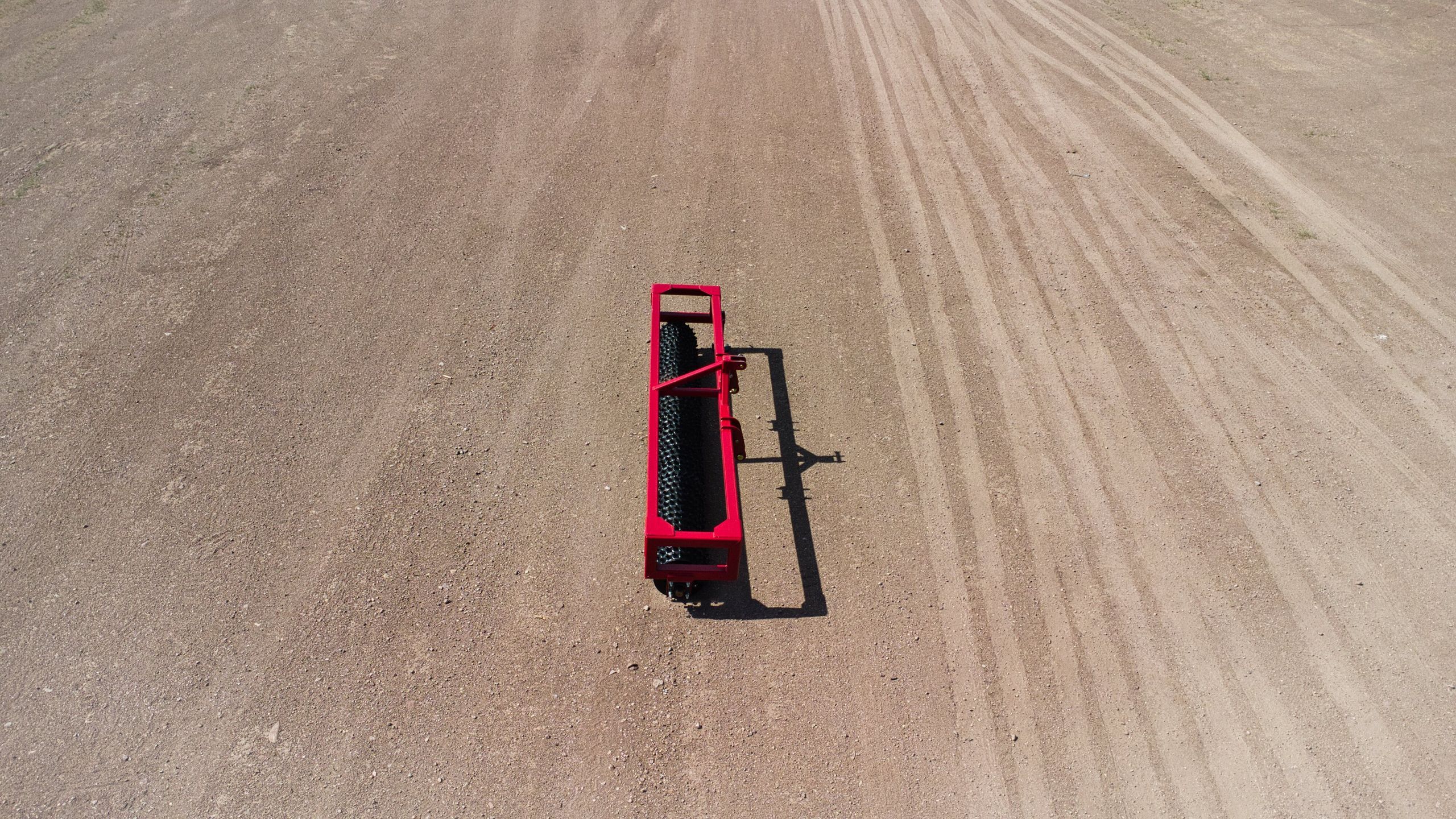

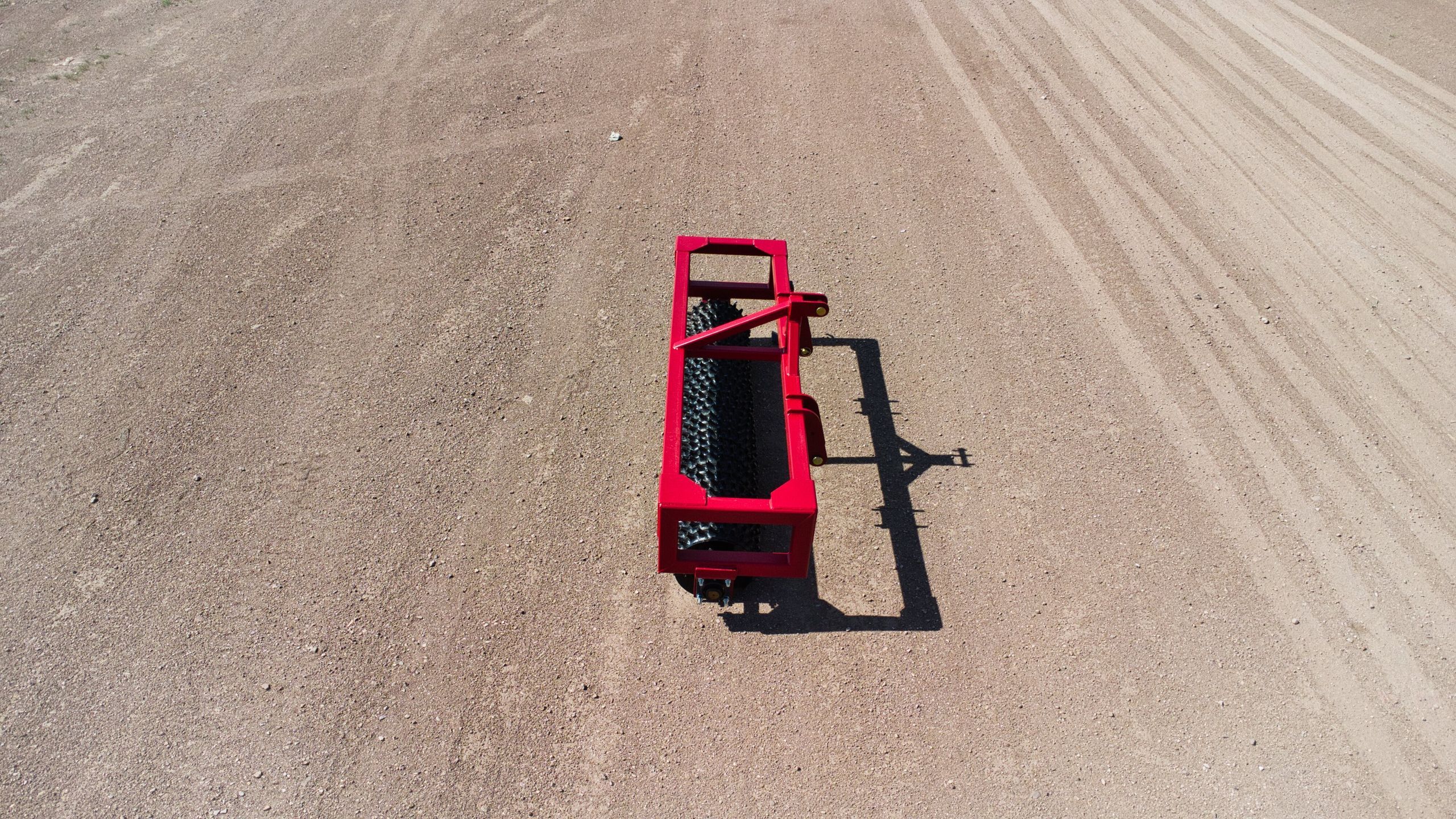

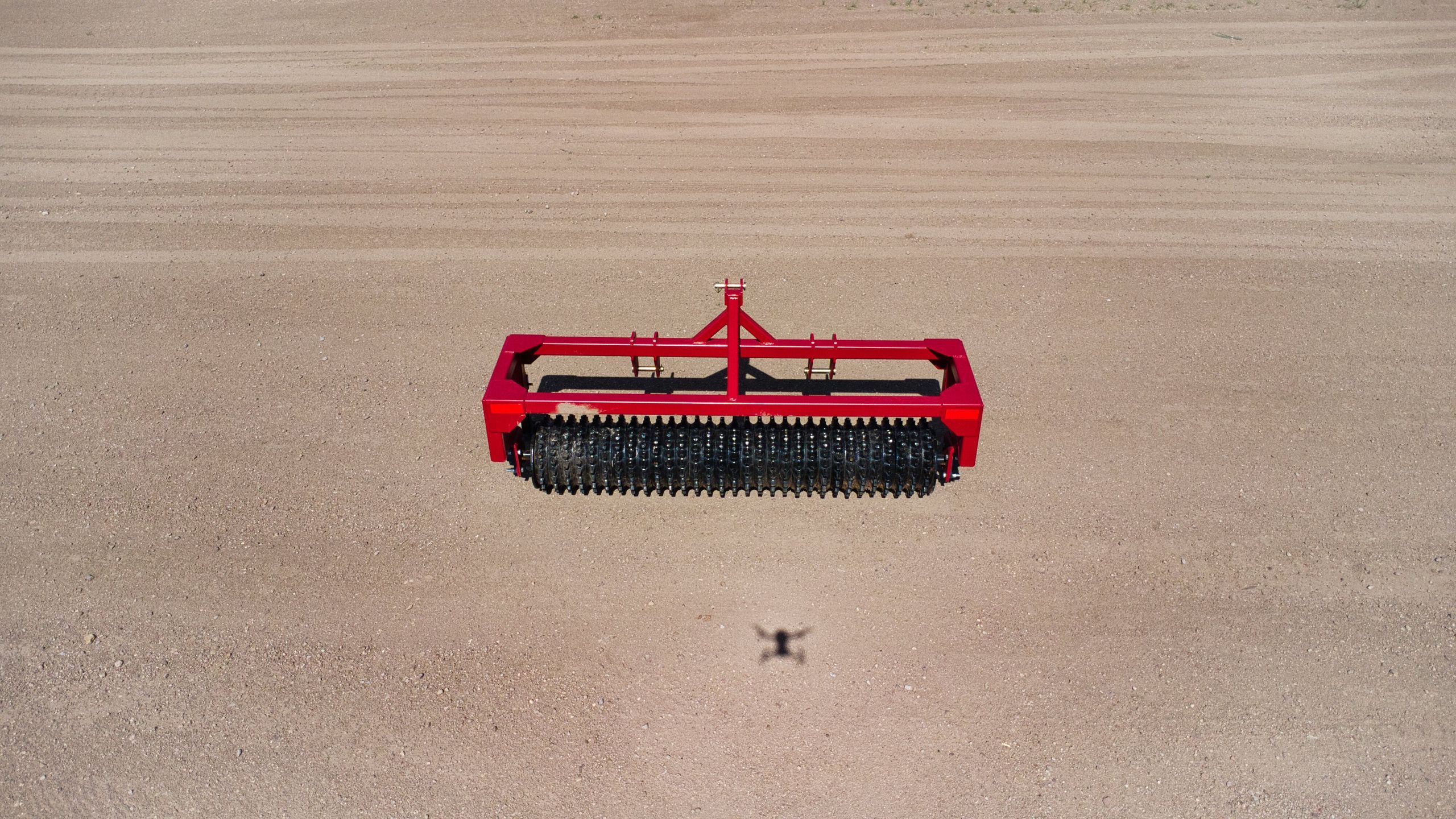

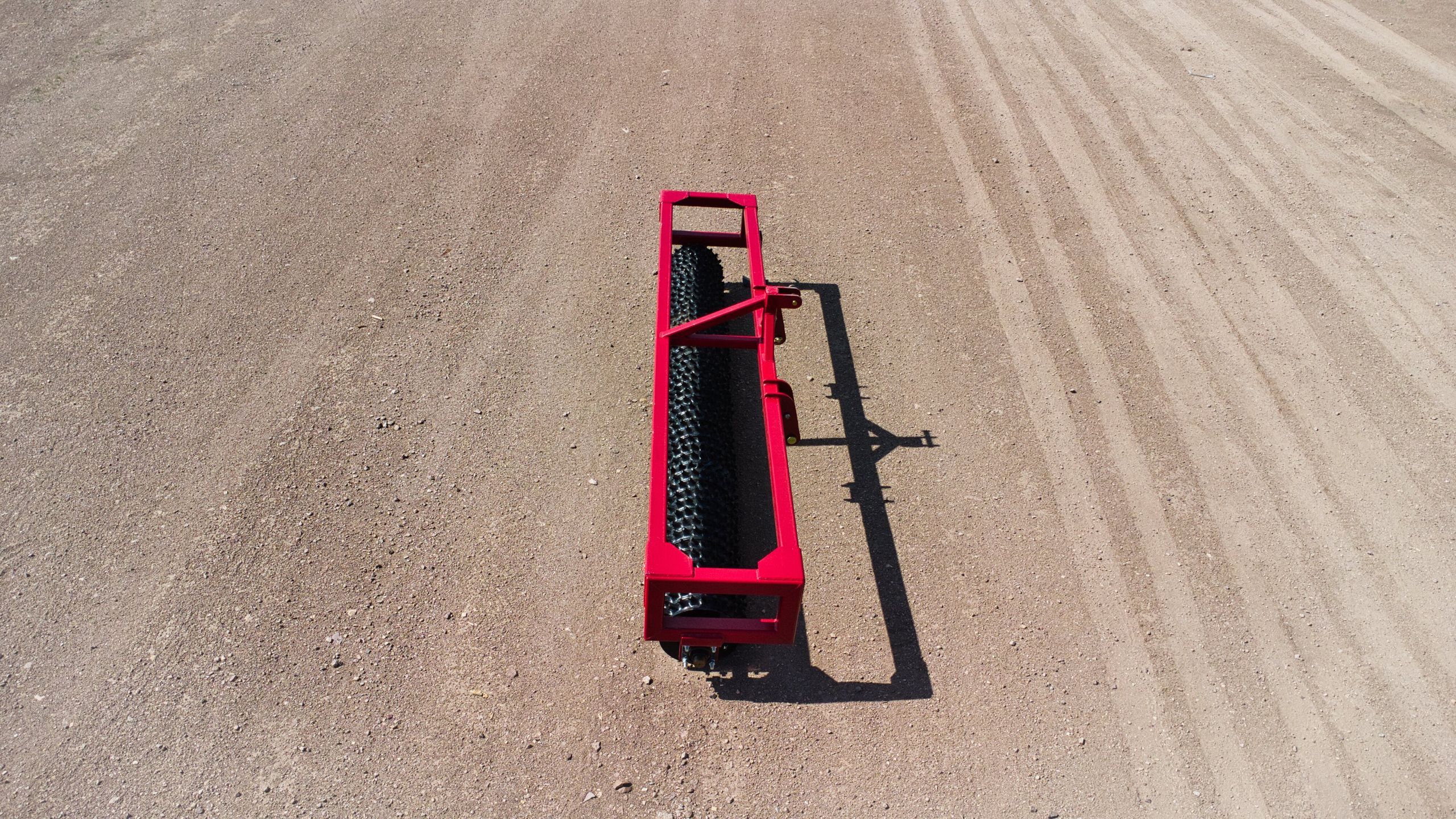

Our 3-point hitch cultipackers provide a simple, reliable way to prepare a firm, level seedbed across a wide range of applications—pastures, food plots, small fields, gardens, and specialty crops. Built around a heavy-duty 10" steel drum and equipped with notched cast-iron rings, these units break clods, level soil, and press seed firmly into place to improve germination. The loose-ring design helps prevent soil buildup and ensures smooth, consistent operation in a variety of soil conditions. These models mount directly to the tractor using a Category 1 & 2 three-point hitch, lifting fully off the ground without wheels or cylinders. A built-in stand keeps the unit stable when unhooked for easier storage and safer handling. Available in a range of sizes—from compact 6-ft units up to wide 12-ft models—our 3-point cultipackers give operators the flexibility to match tractor horsepower and field size. Designed using rugged PTR steel and supported by sealed P210 bearings, these implements deliver long service life with minimal maintenance. Durable, practical, and built for real farm work, they’re a dependable tool for improving seed-to-soil contact and establishing healthier crops. ✔ Available Working Widths 6 ft — Model D06403P 7 ft — Model D07453P 8 ft — Model D08503P 9 ft — Model D09553P 10 ft — Model D010603P 11 ft — Model D011653P 12 ft — Model D012703P

×
