Specifications
| Feature | Description |
|---|---|
| Feed Type | Silage |
| Feeding Spaces | 34 |
| Total Width | 104" |
| Feeder Width | 82" |
| Total Length | 35 ft |
| Feed Space | 82"×24 ft |
| Weight | 1,660 kg |
| Pan Depth | 11" |
| Pan Material | 11-gauge steel |
| Frame | 2.5" + square tubing |

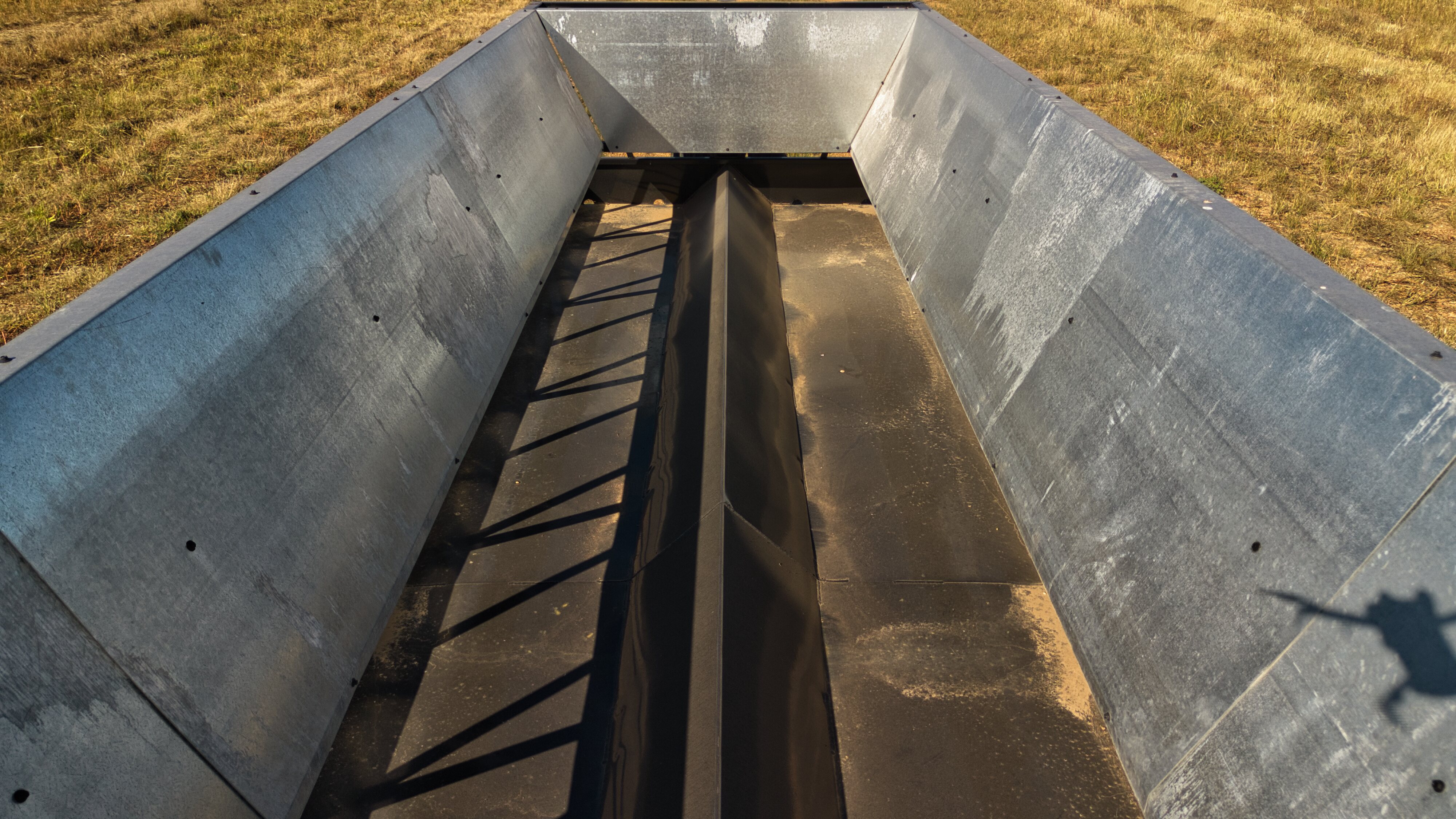

| Inner Tubes | 1.75" round with 24" sheet metal funnel |

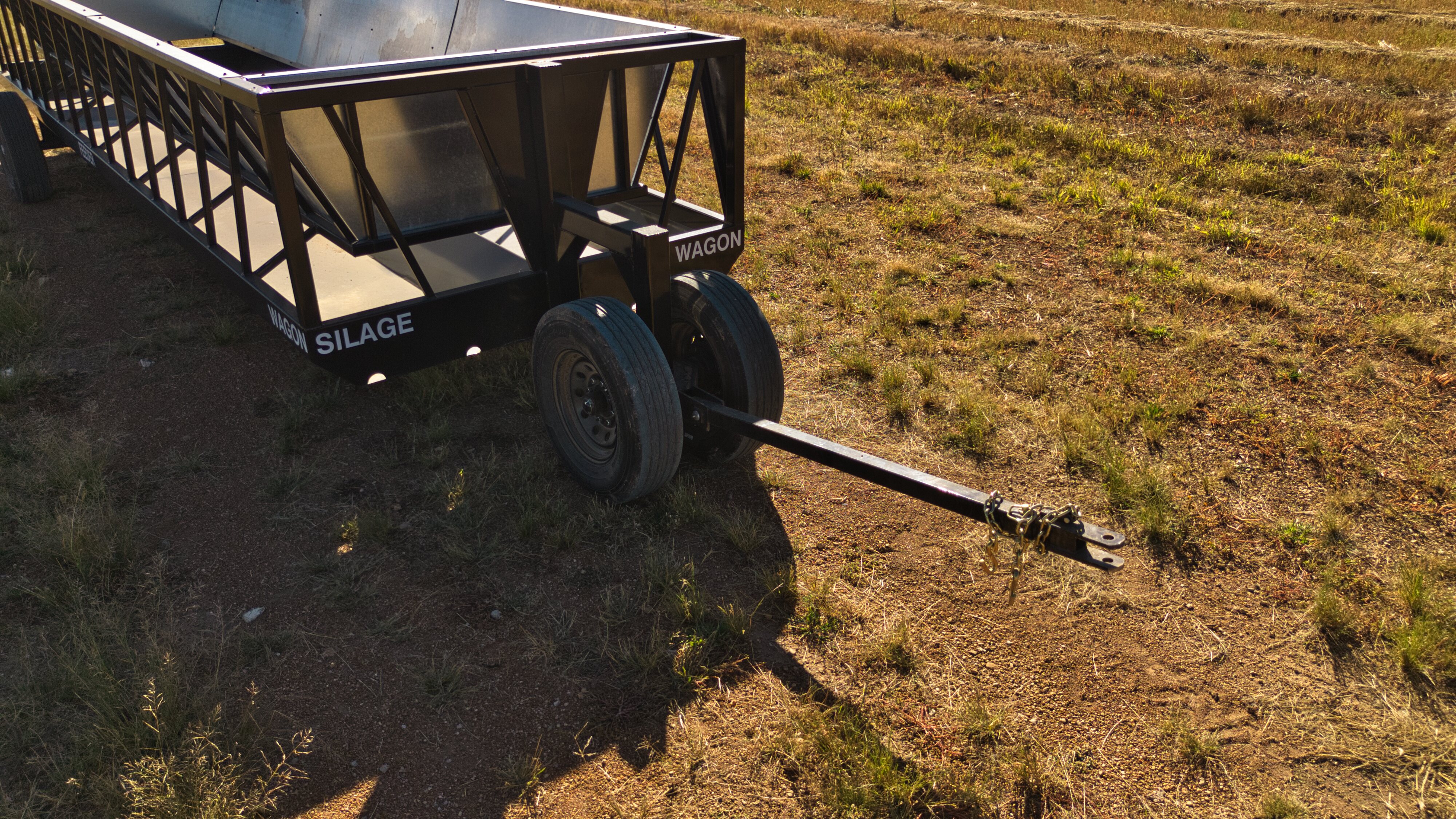

| Hitch Type | Telescopic gooseneck (extends 45") |

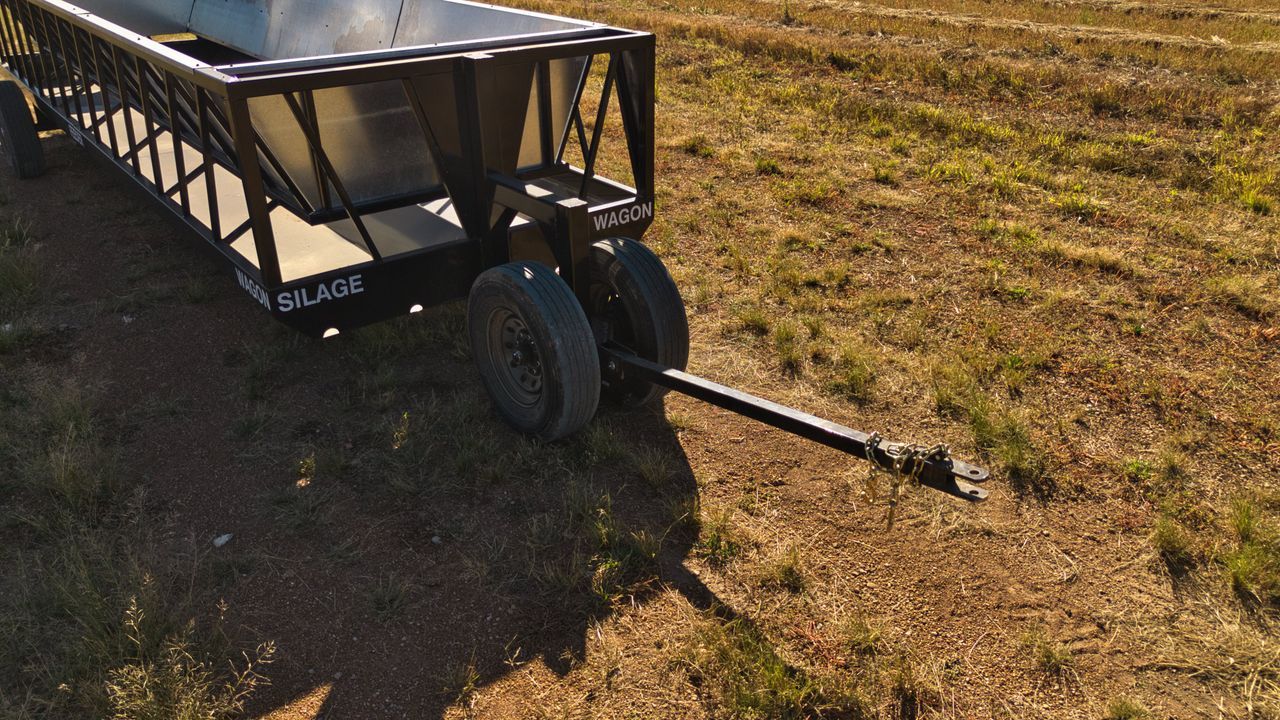

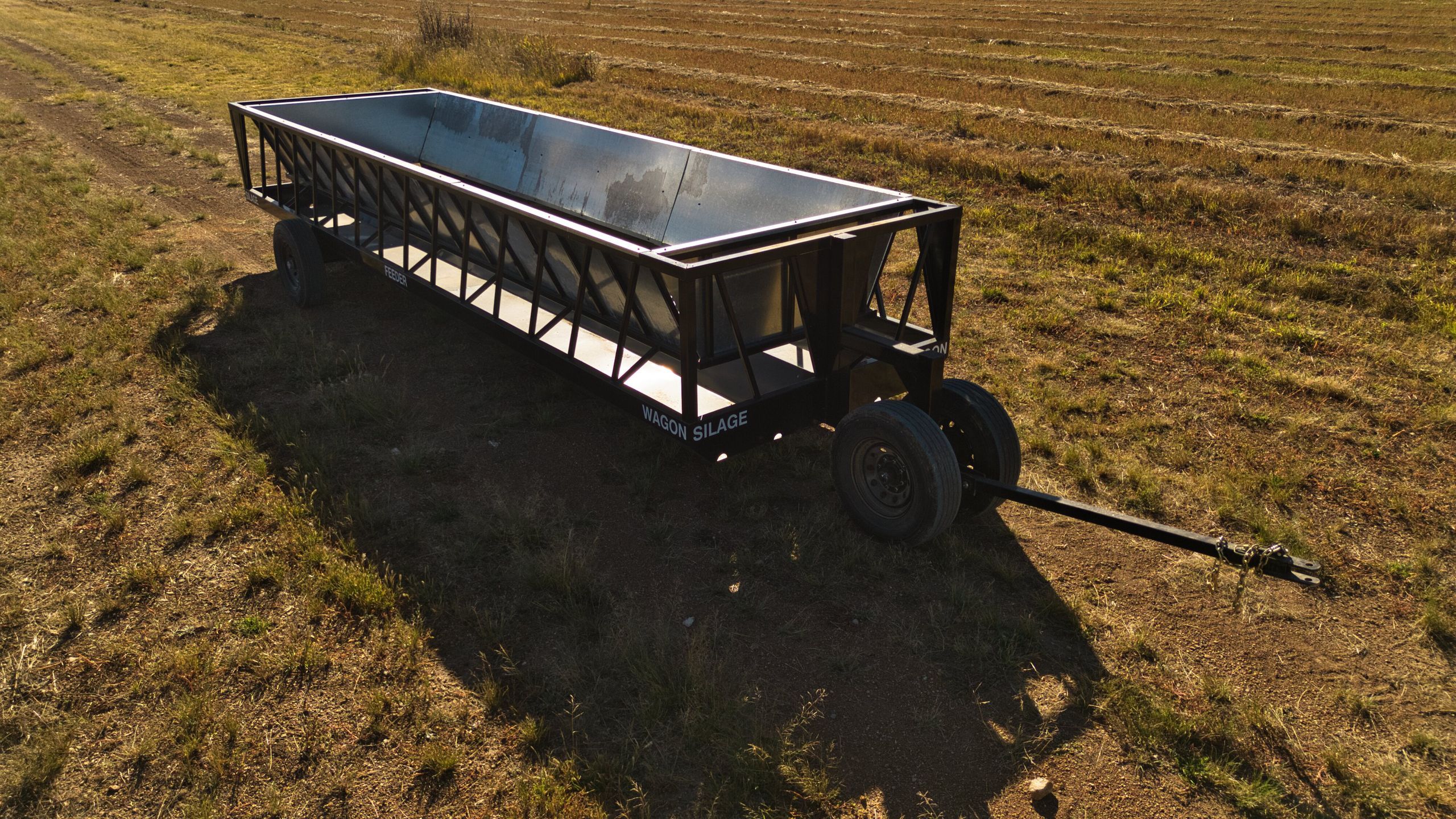

| Steering / Dolly | Front dolly with 2 wheels |
| Axle Configuration | Front & rear 7,000 lb spindles |
| Tires | ST235/80 R16 |
| Wheel Count | 4 |
| Finish / Color | Black powder coat |
| Feed Types Supported | Silage, chopped feed |

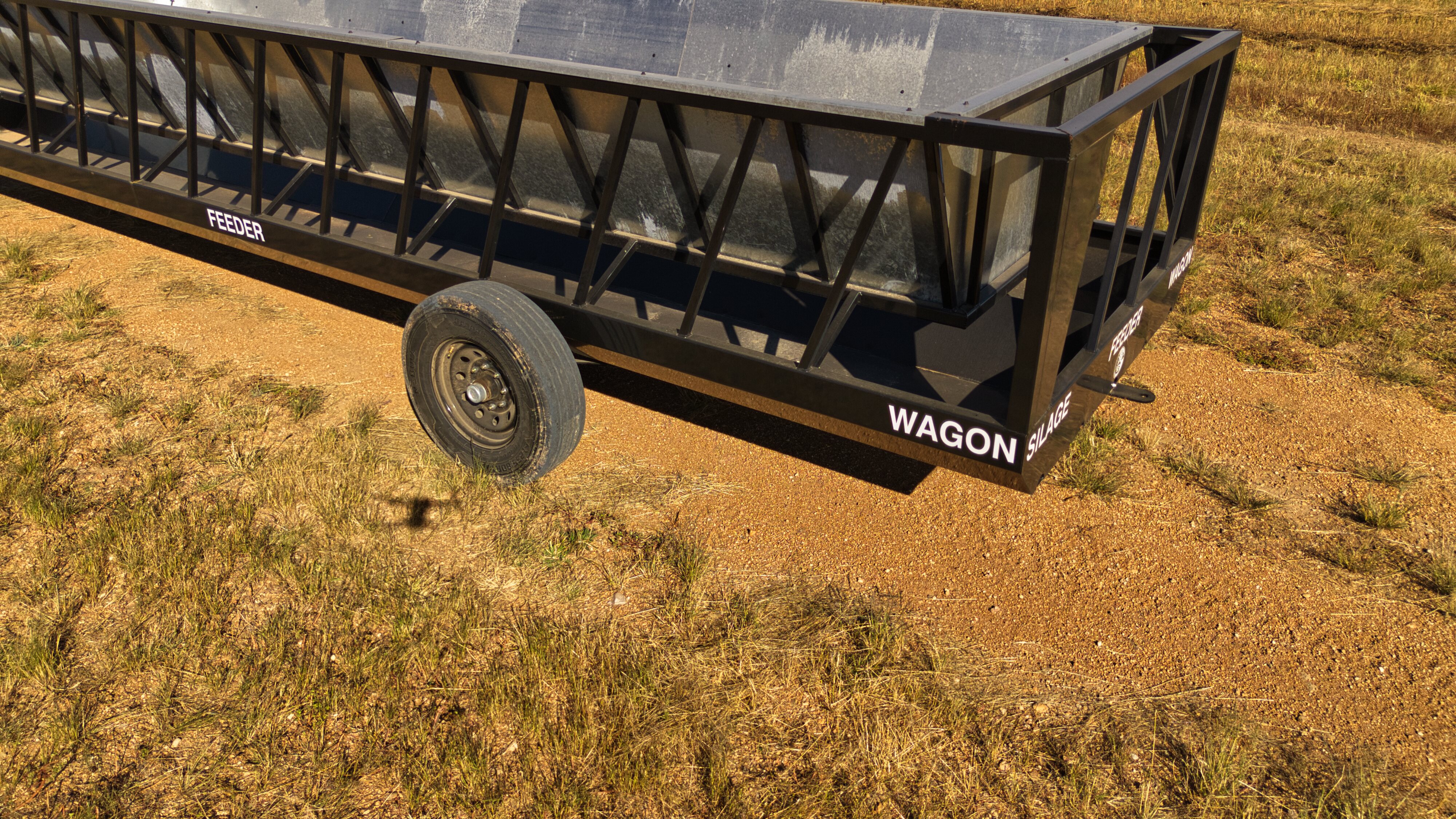

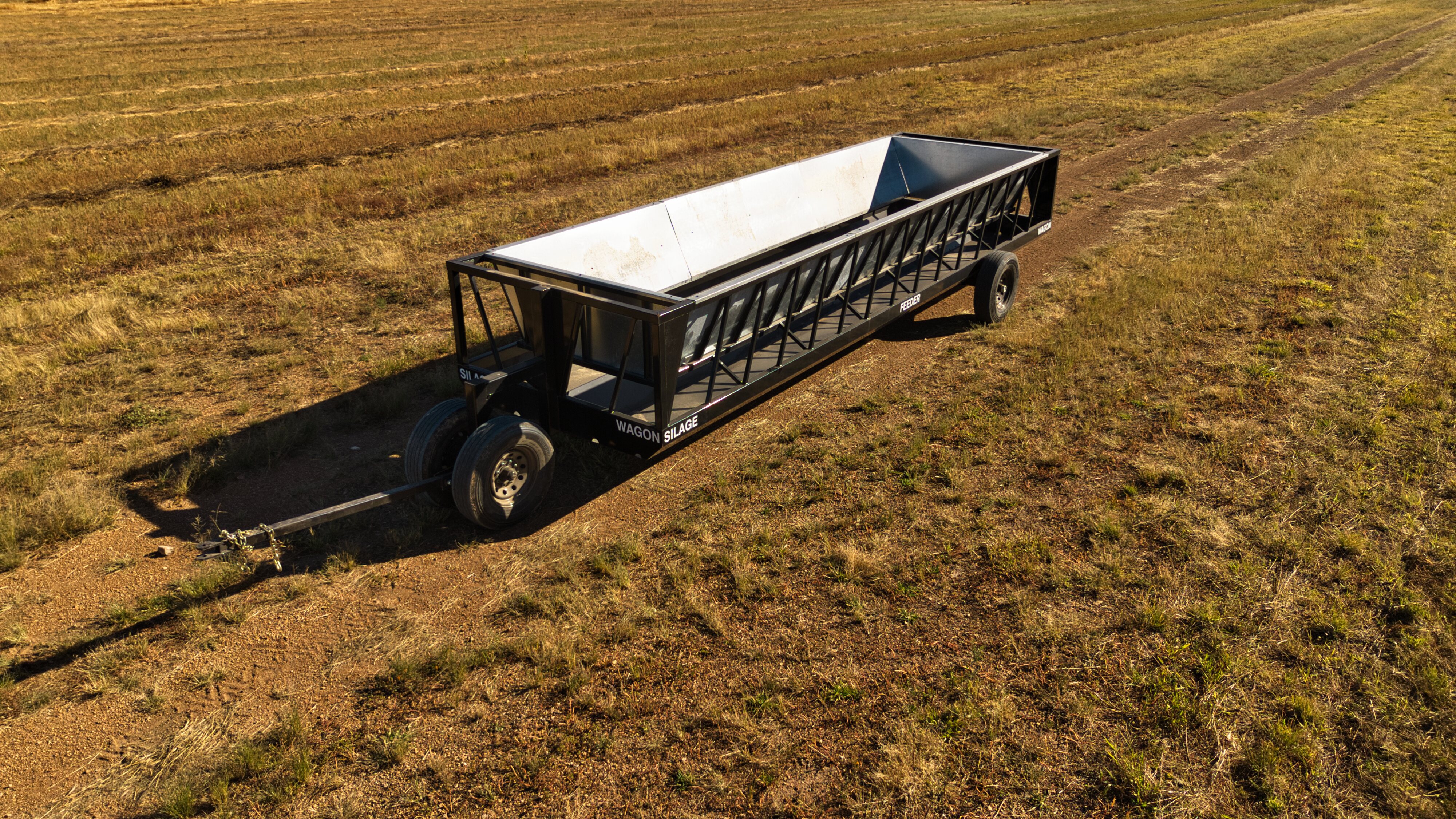

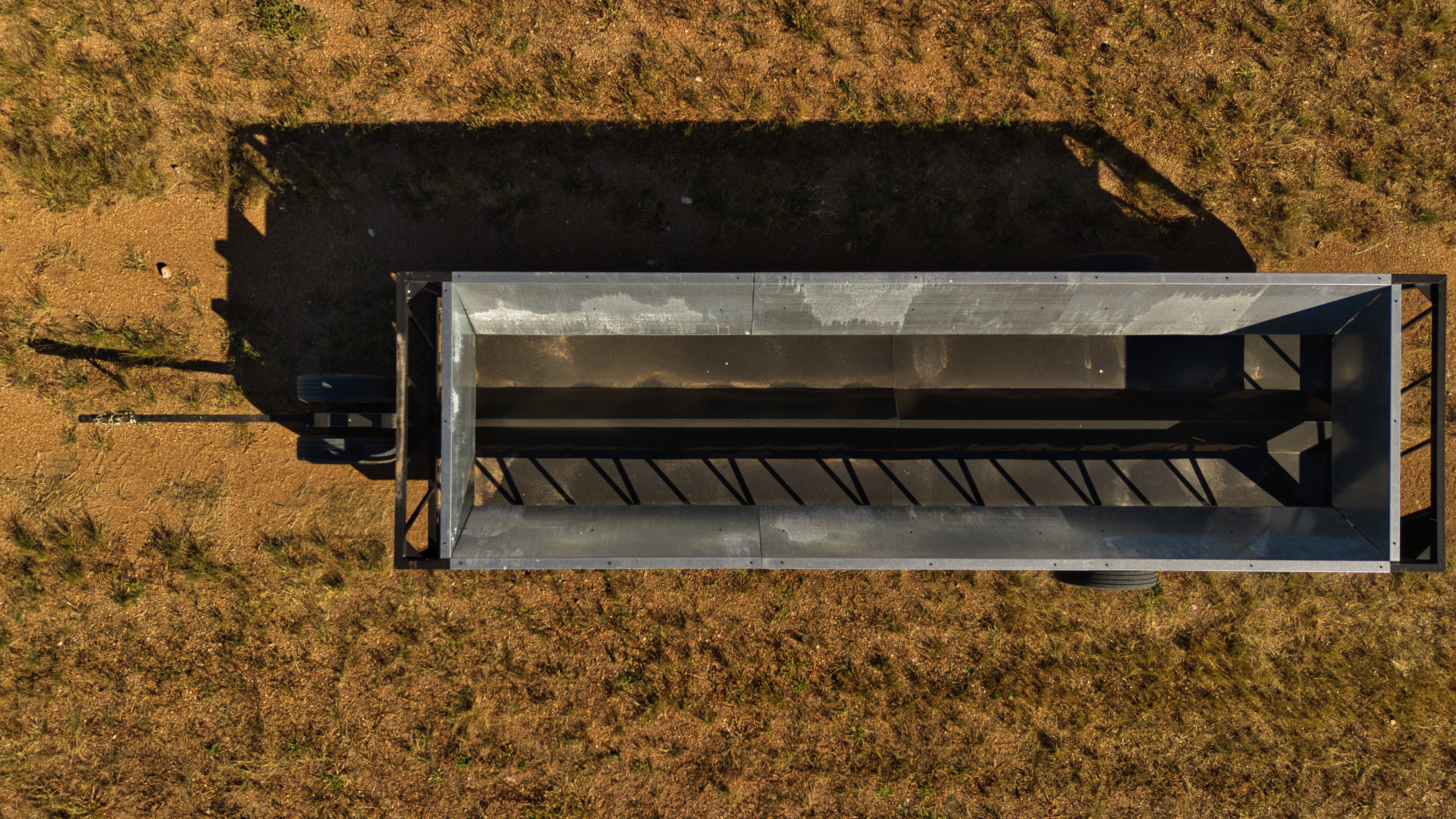

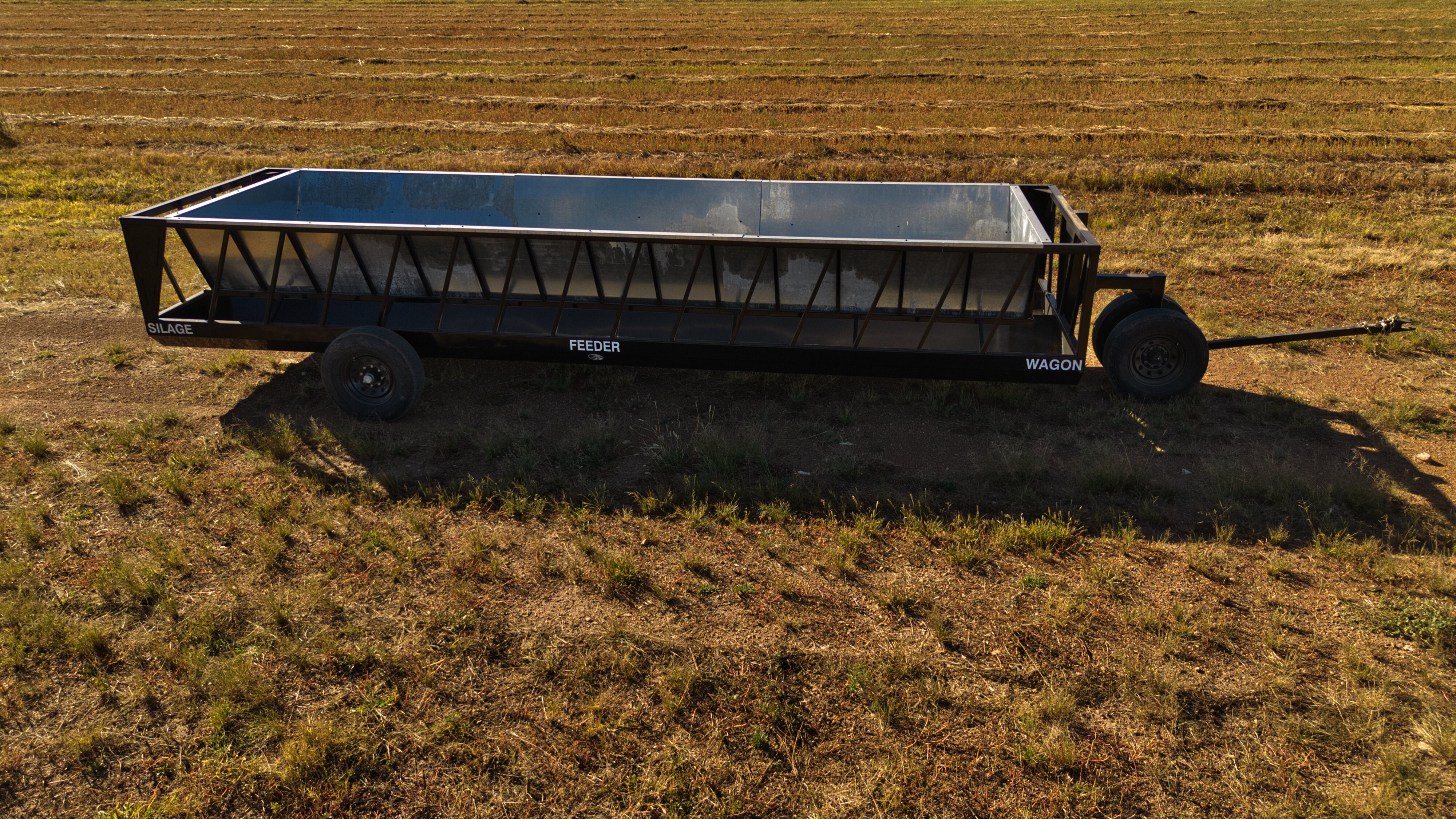

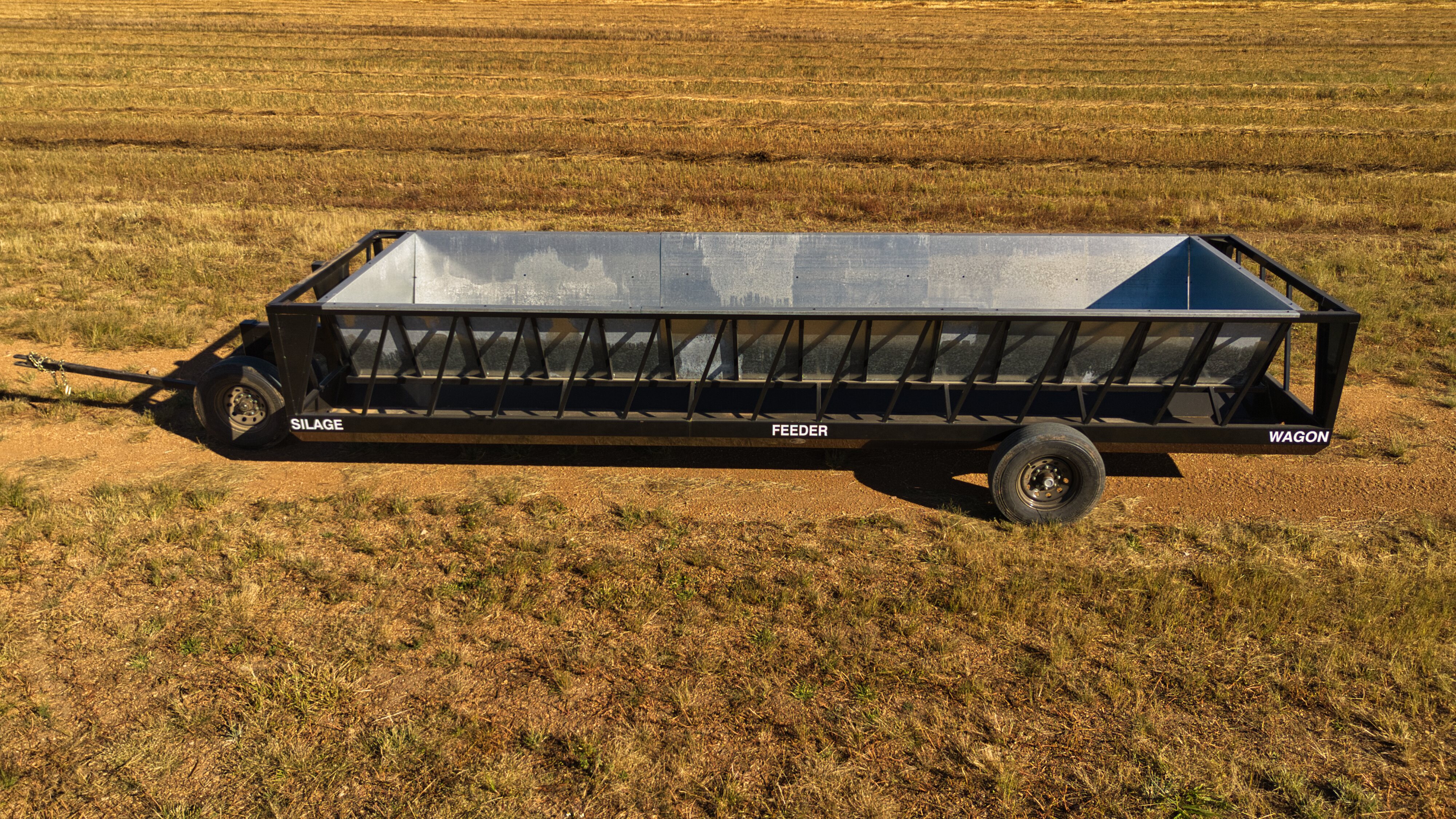

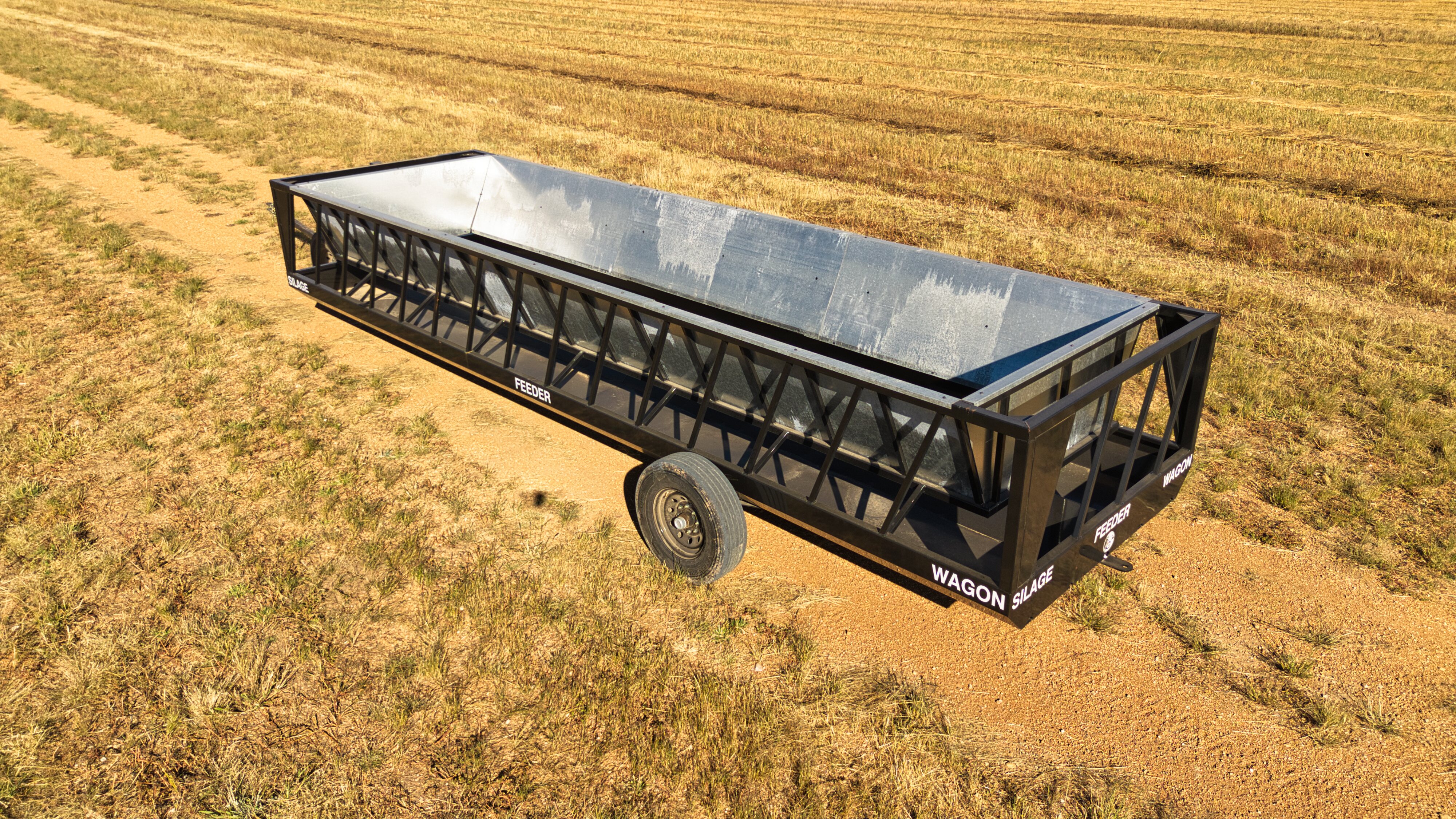

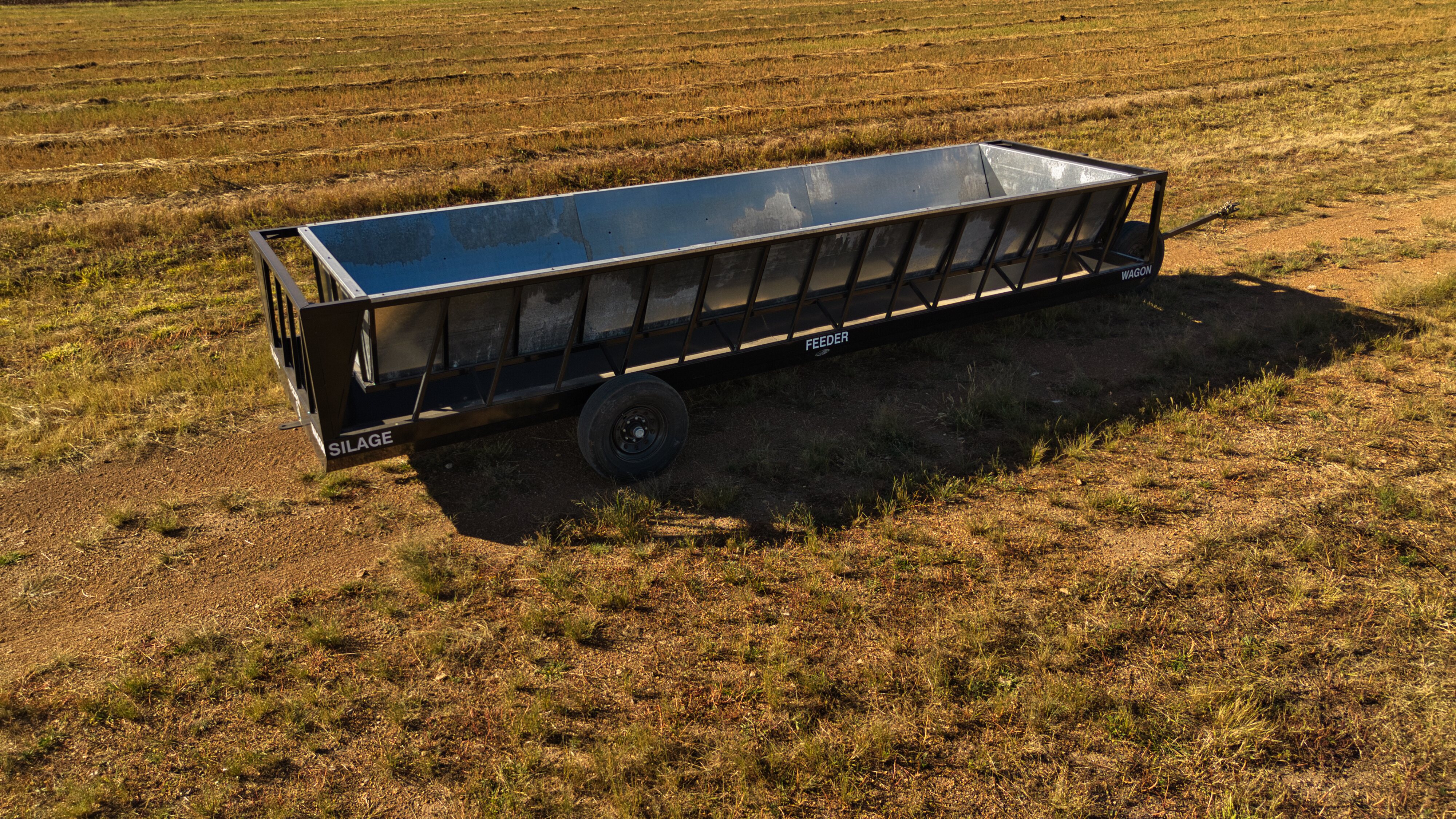

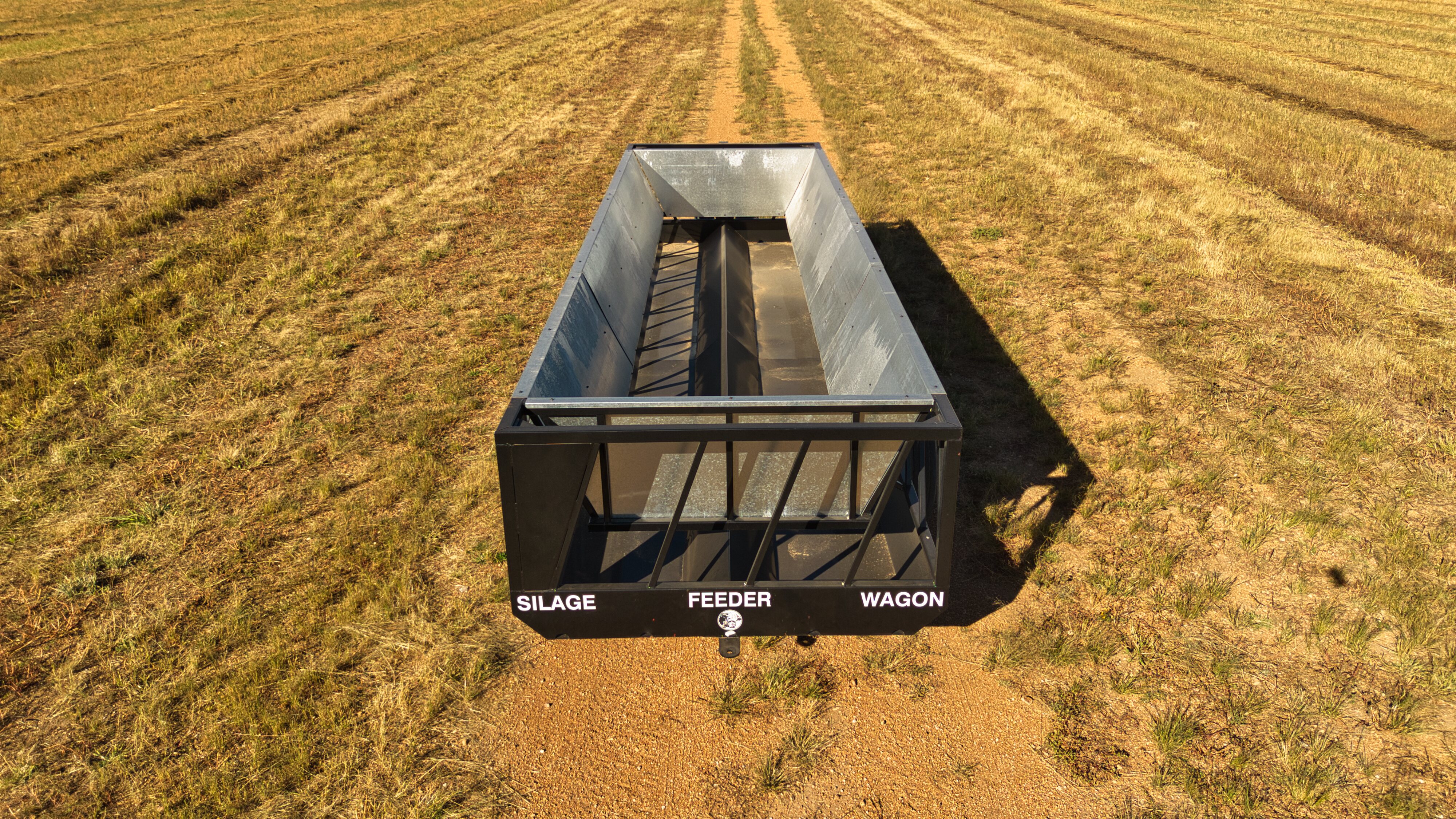

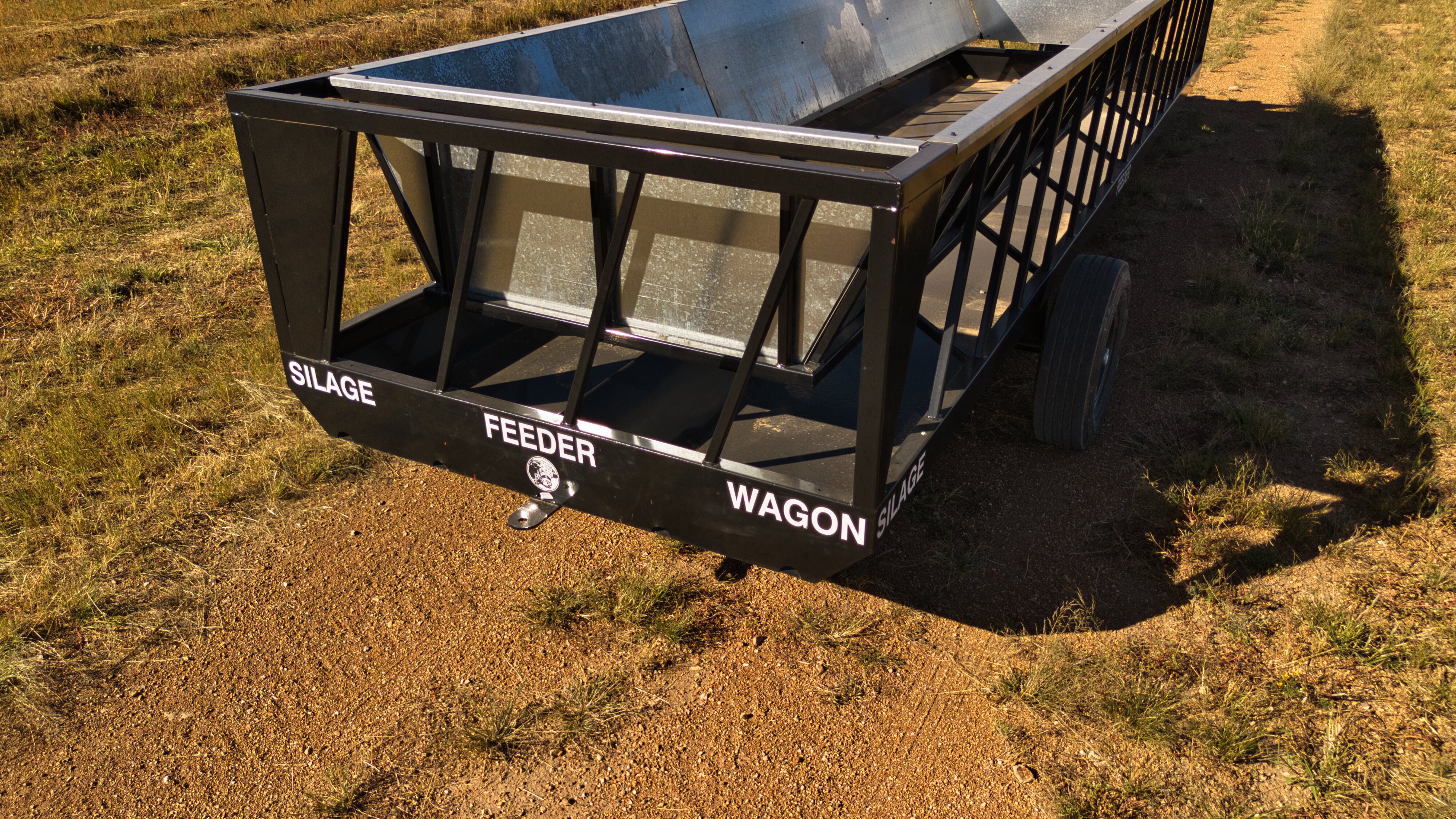

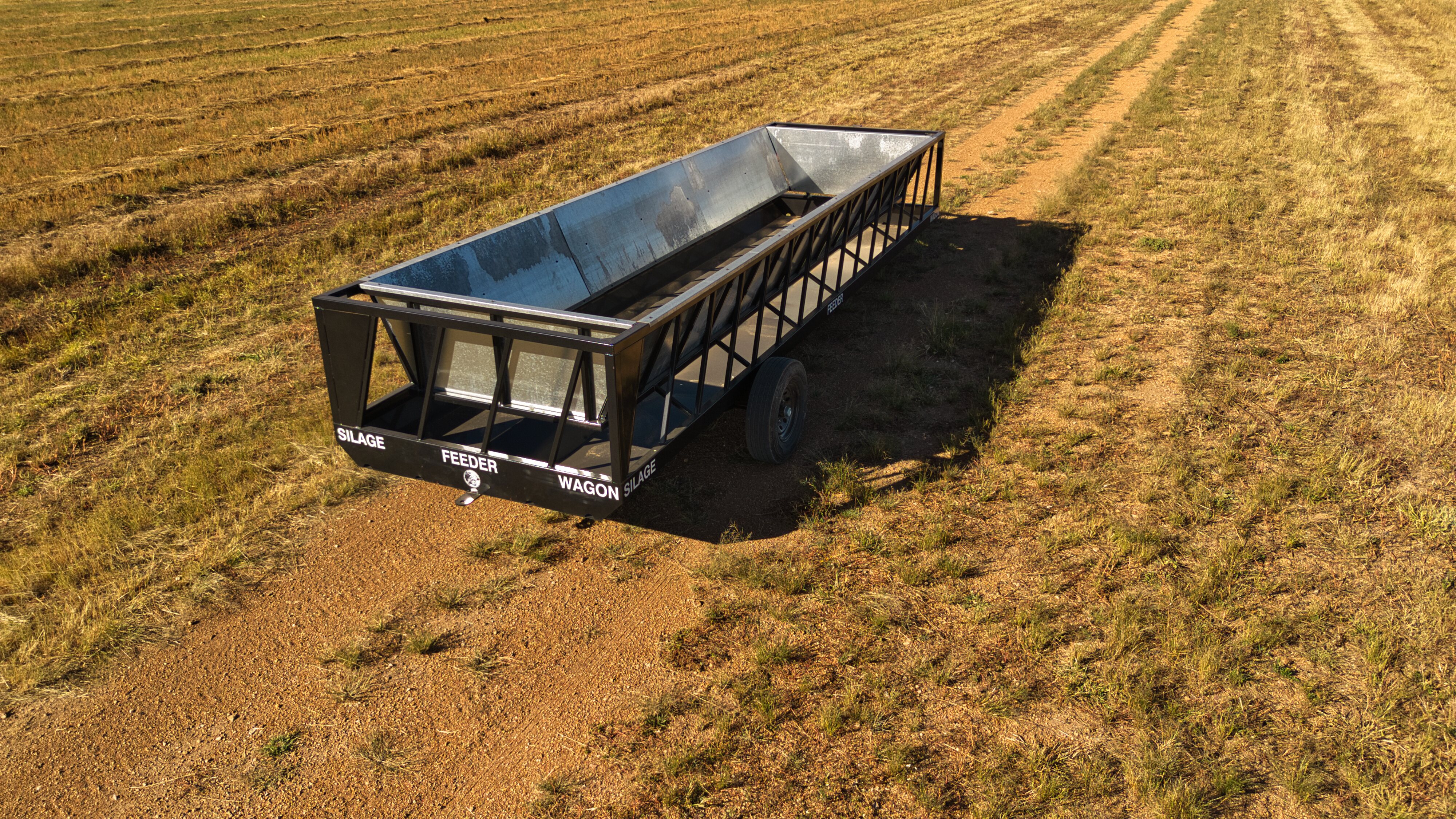

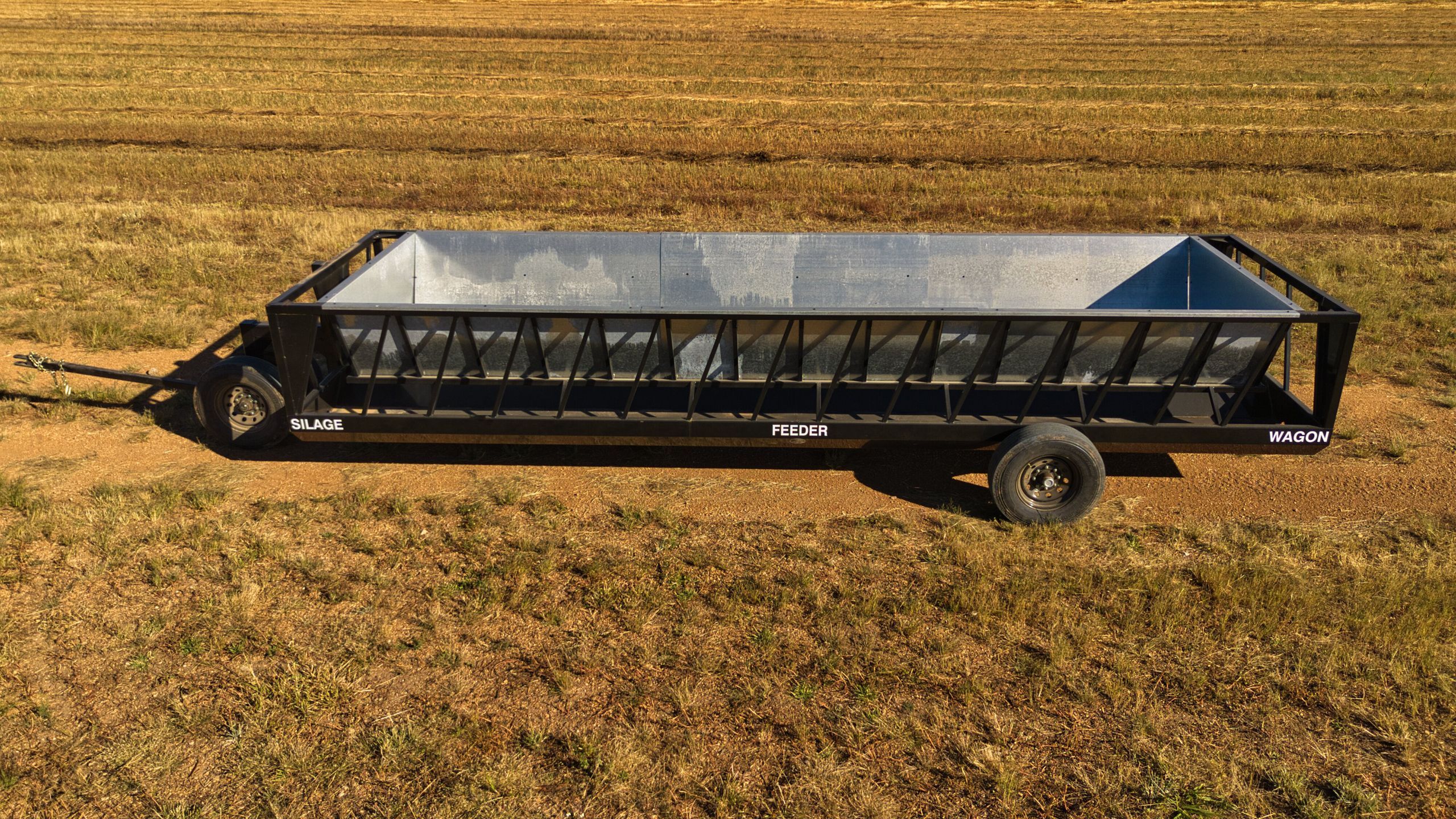

The S94R Silage Feeder Wagon is designed for operators who feed high-moisture silage or chopped rations. Its internal 24-inch sheet metal panels create a funnel effect, preventing feed from spilling and improving flow. With a front dolly, telescopic gooseneck, and 11-gauge steel construction, the S94R delivers strength, mobility, and clean feeding performance under heavy use.
