Specifications
| Feature | Description |
|---|---|
| Feed Type | Silage |
| Feeding Spaces | 34 |
| Total Width | 104" |
| Feeder Width | 82" |
| Total Length | 35 ft |
| Feed Space | 82"×24 ft |
| Weight | 1,660 kg |
| Pan Depth | 11" with drain holes |
| Pan Material | 11-gauge steel |
| Frame | 2.5" + square tubing |
| Inner Tubes | 1.75" round with 24" sheet metal funnel |
| Hitch Type | Telescopic gooseneck (extends 45") |
| Steering / Dolly | Front dolly with 2 wheels |
| Axle Configuration | Front & rear 7,000 lb spindles |
| Tires | ST235/80 R16 |
| Wheel Count | 4 |
| Finish / Color | Red powder coat |
| Feed Types Supported | Silage, chopped feed |

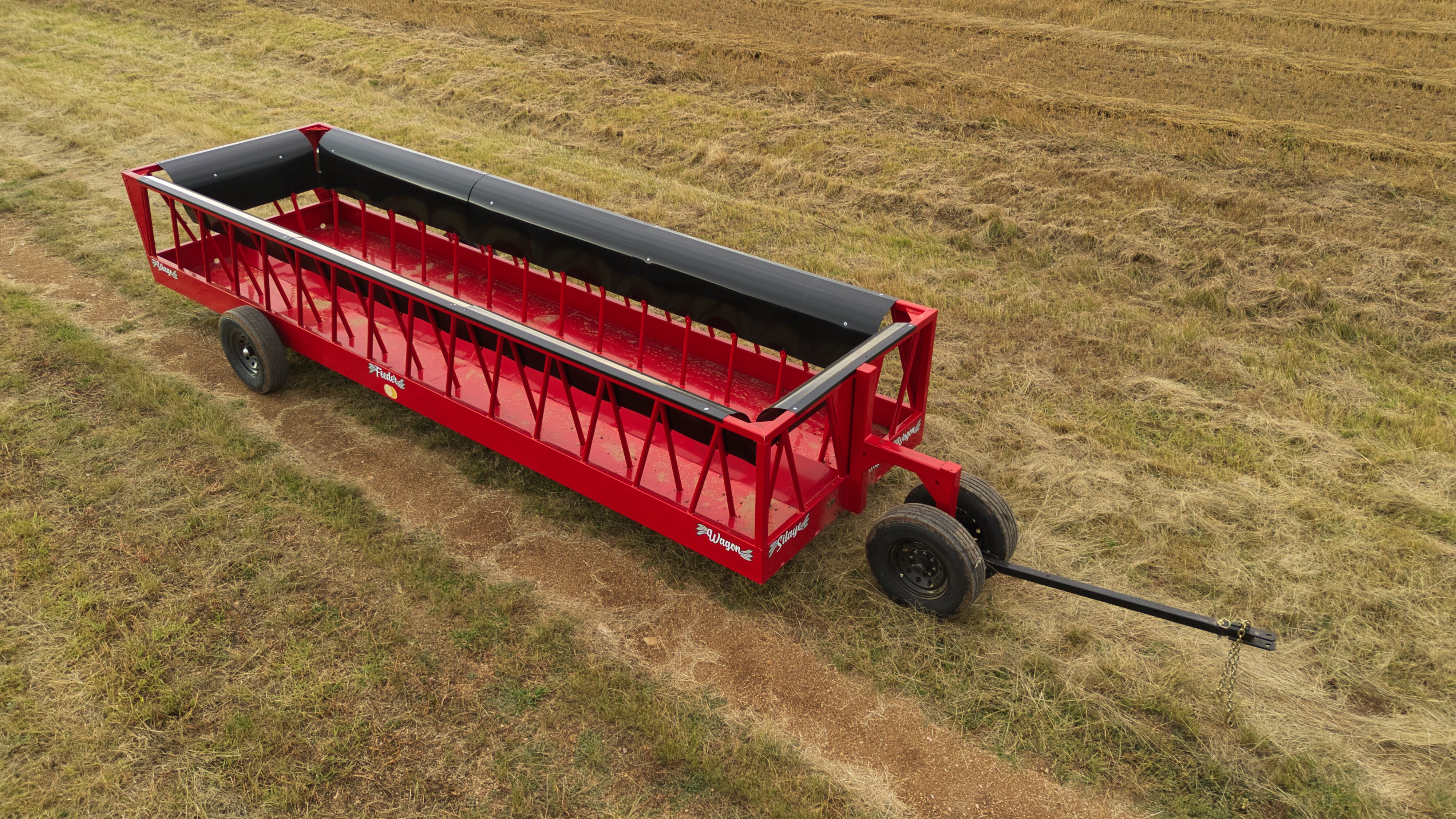

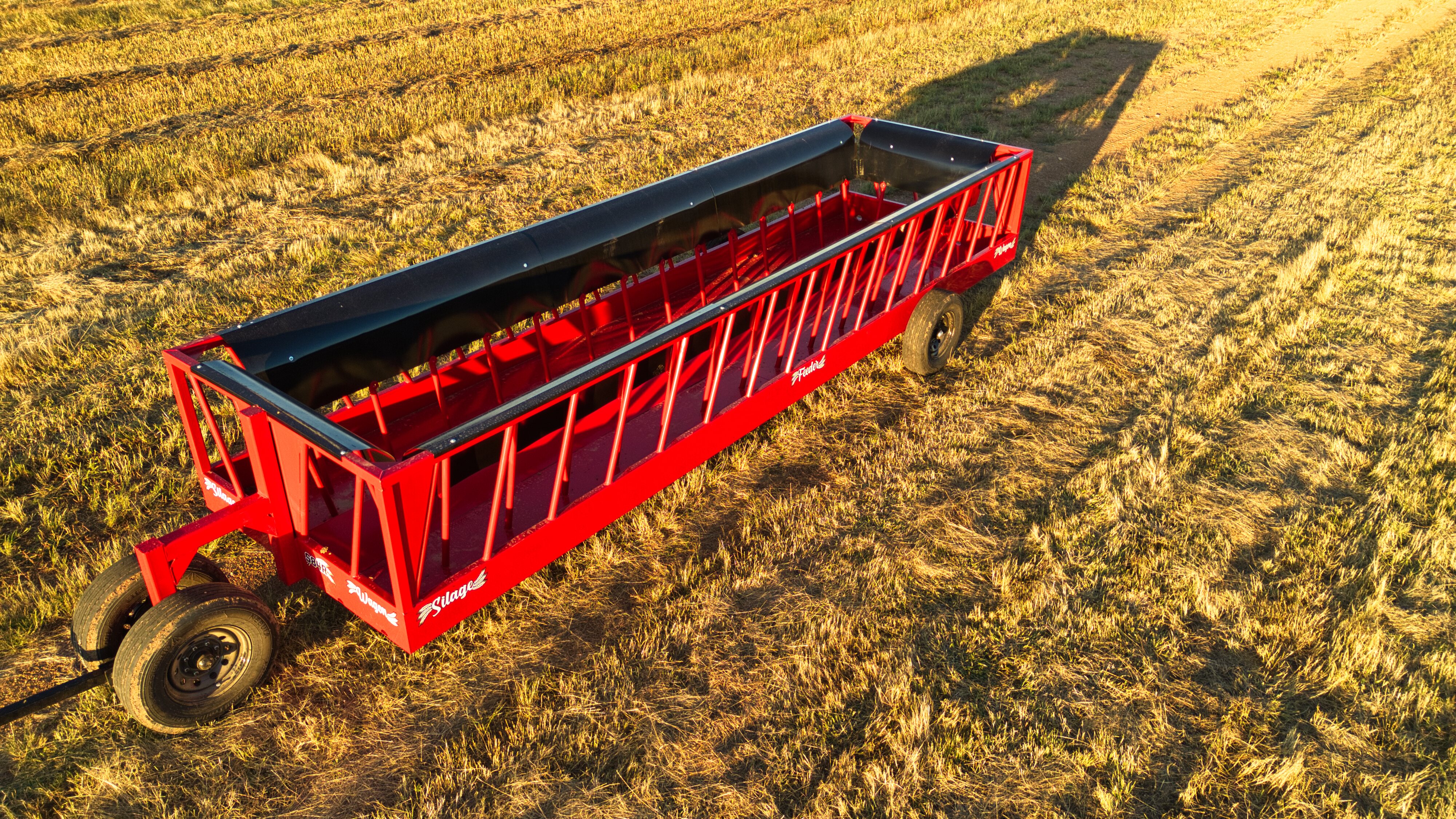

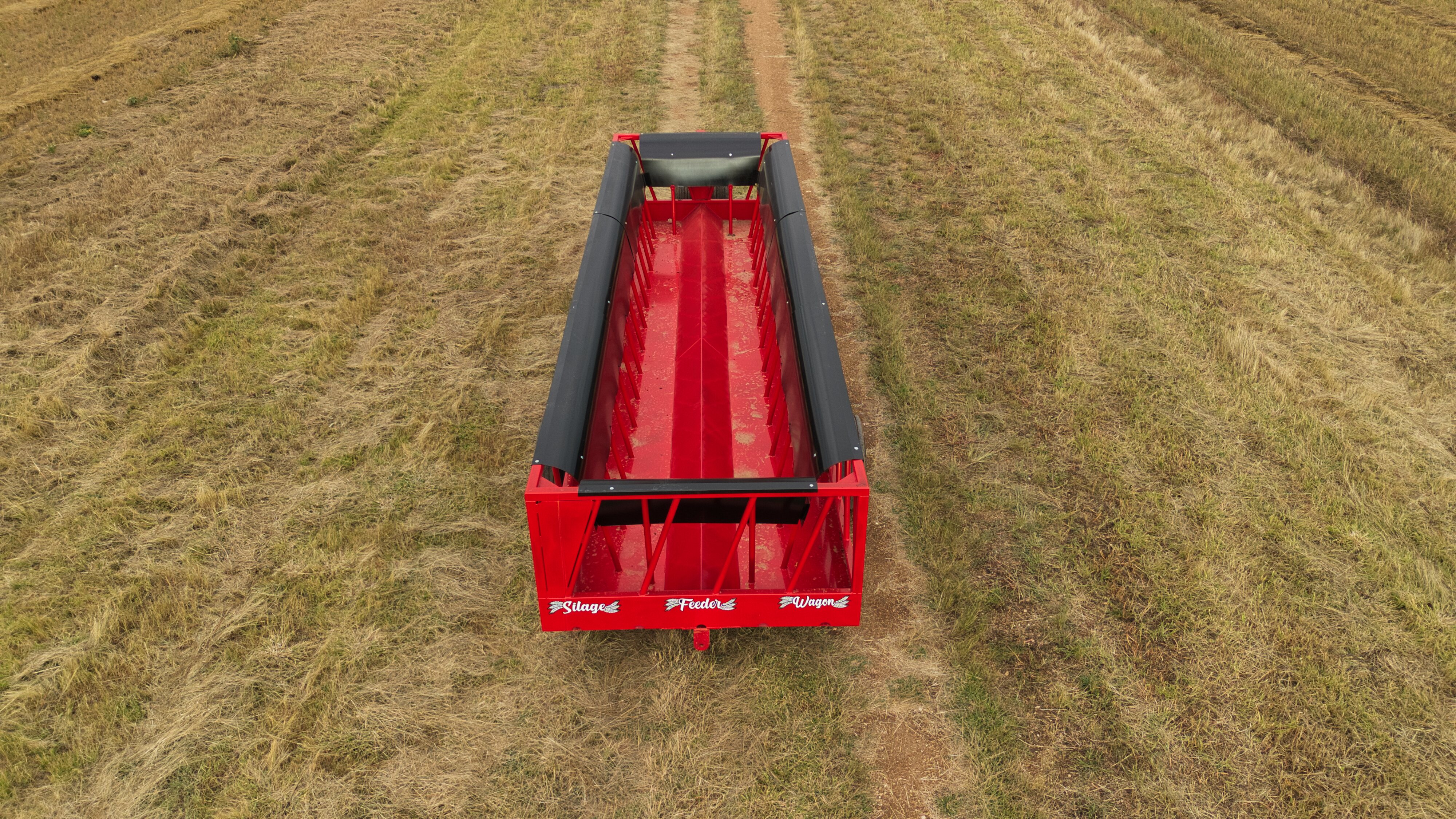

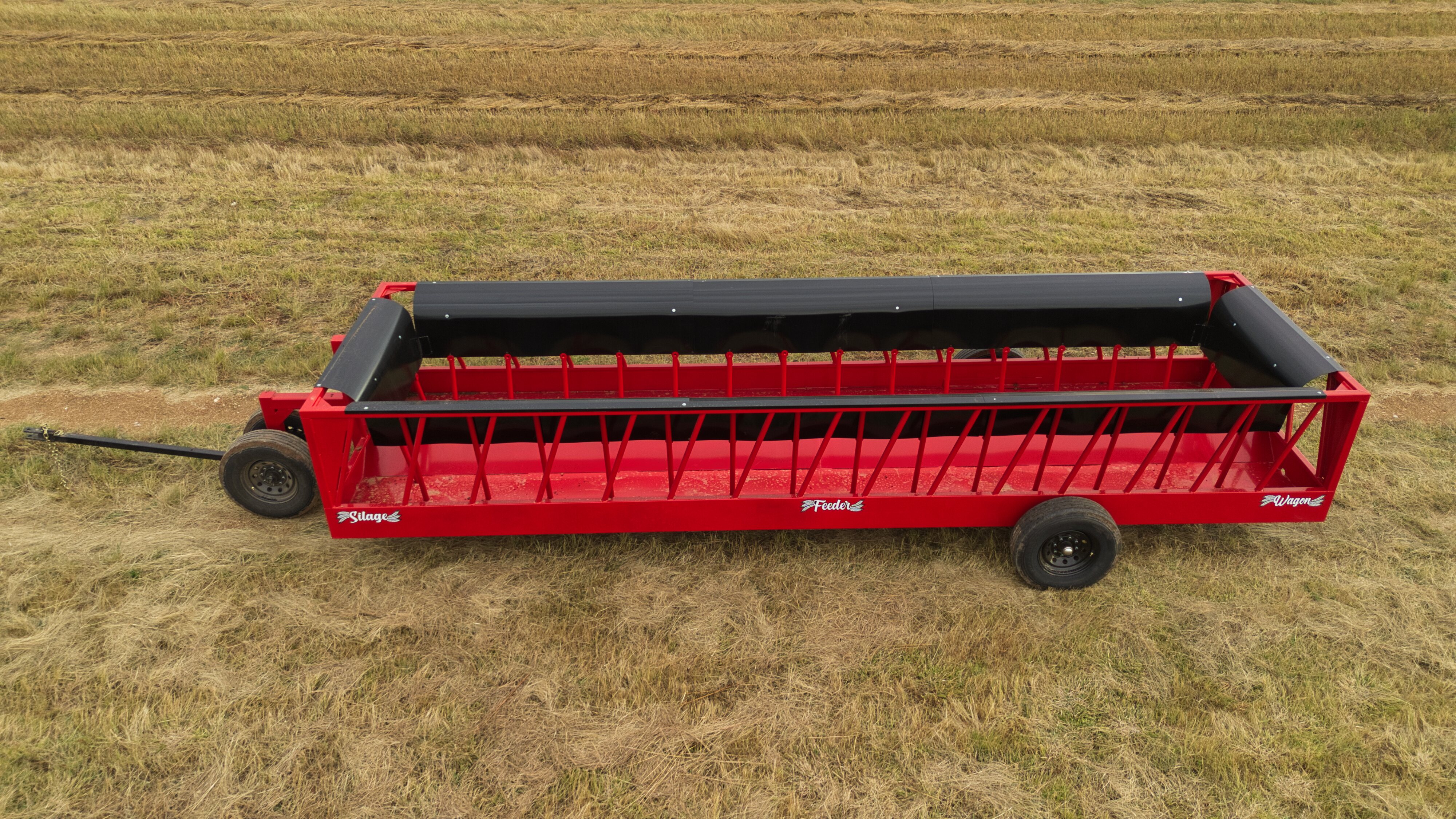

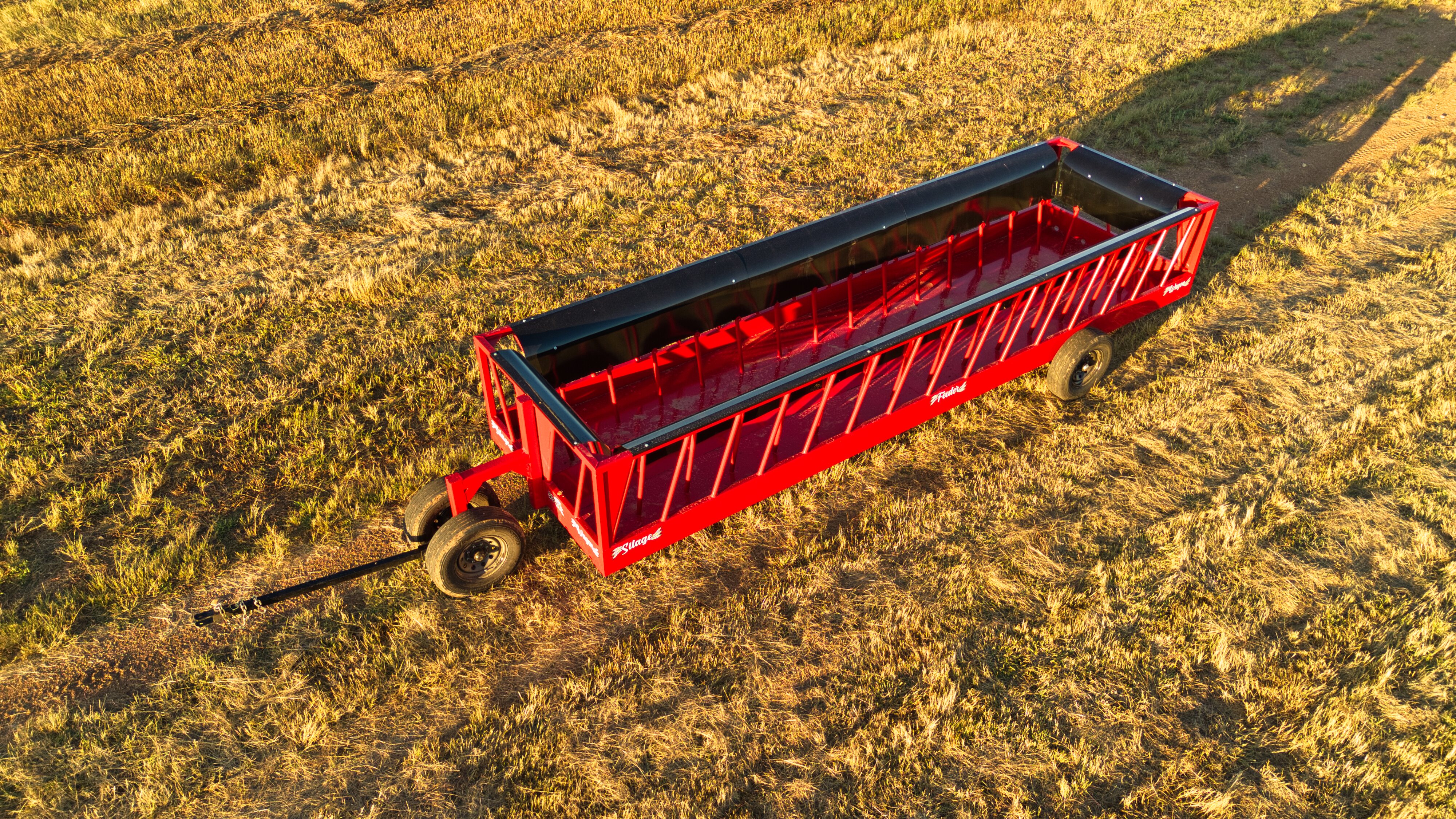

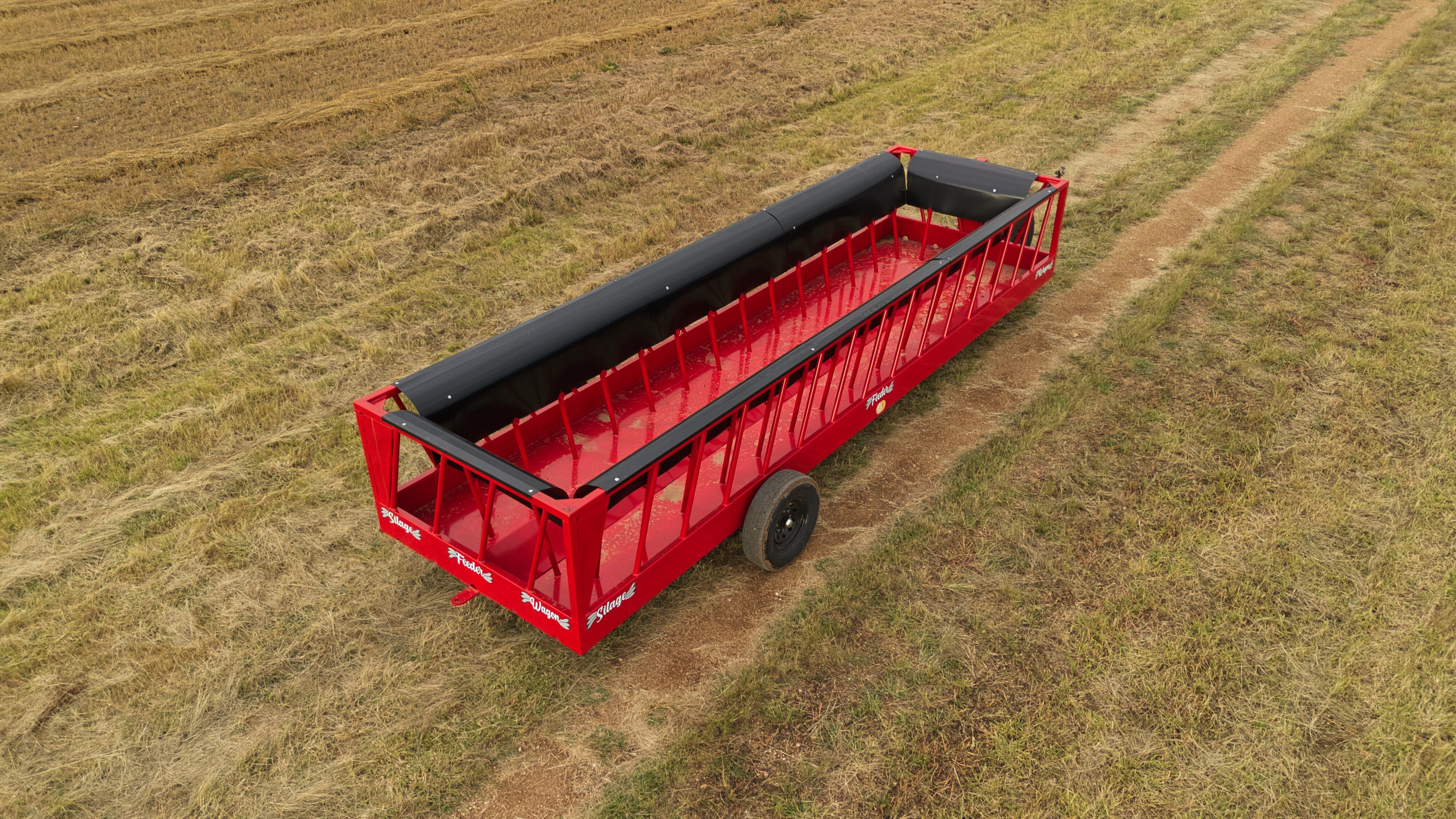

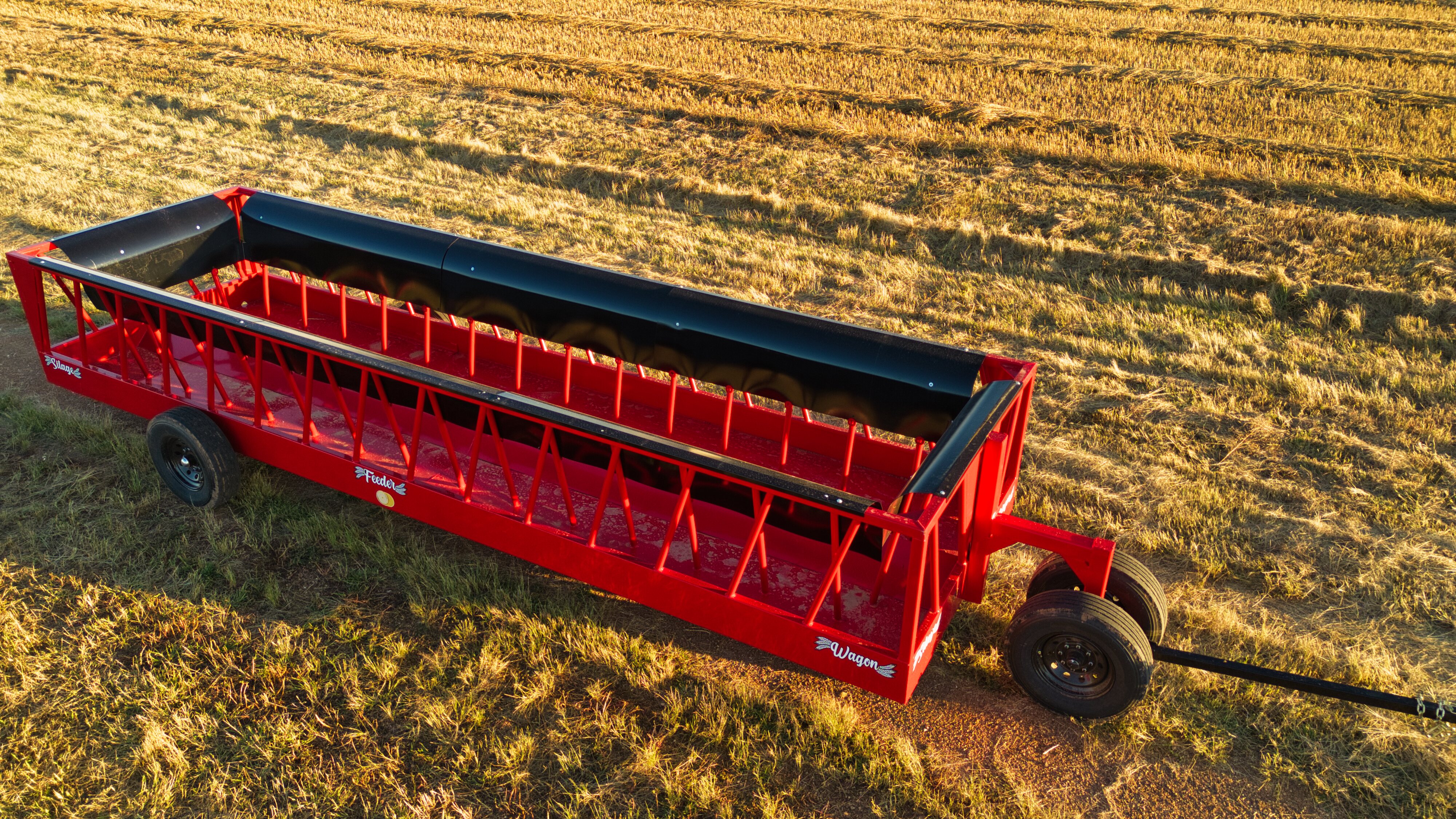

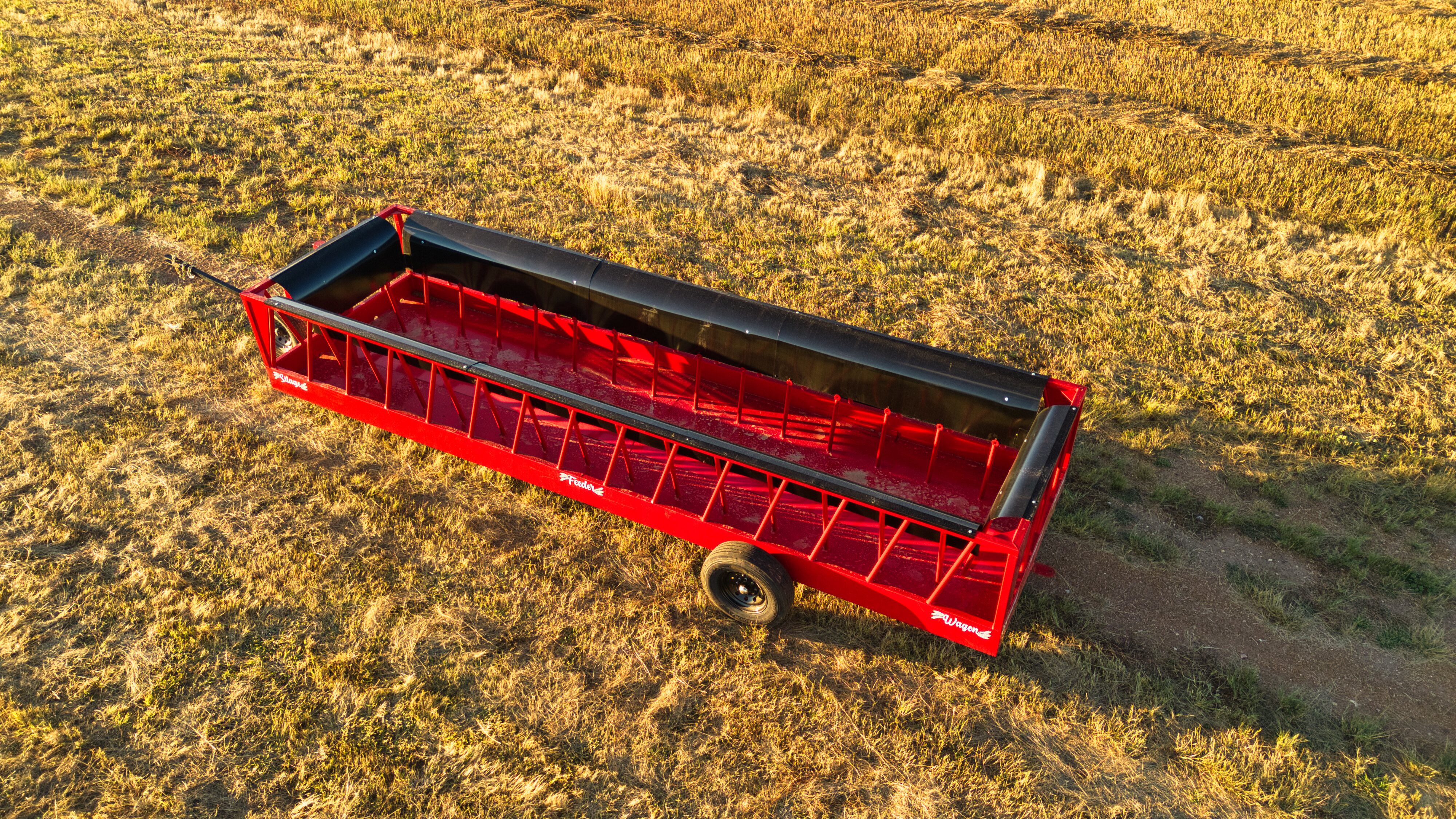

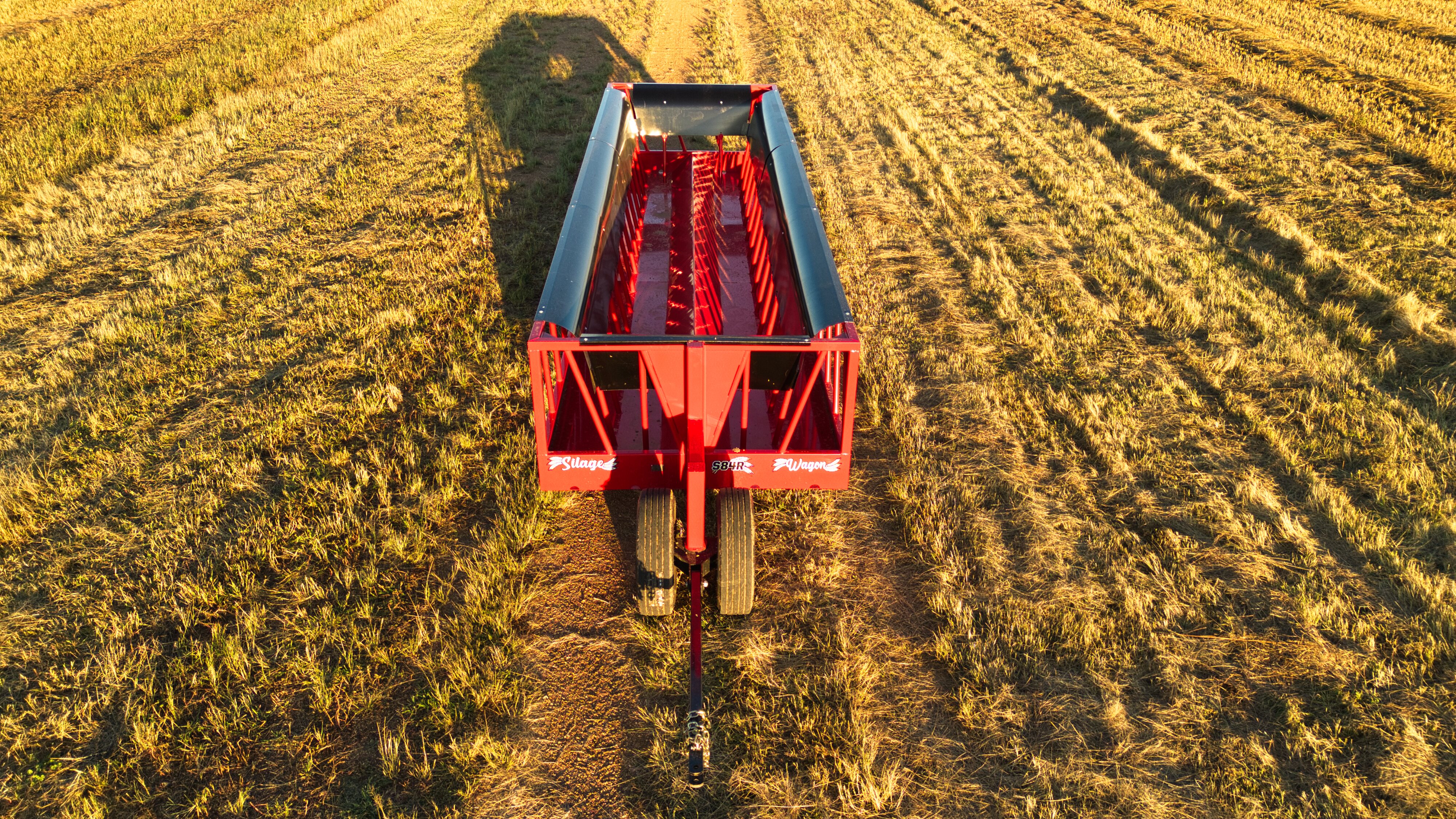

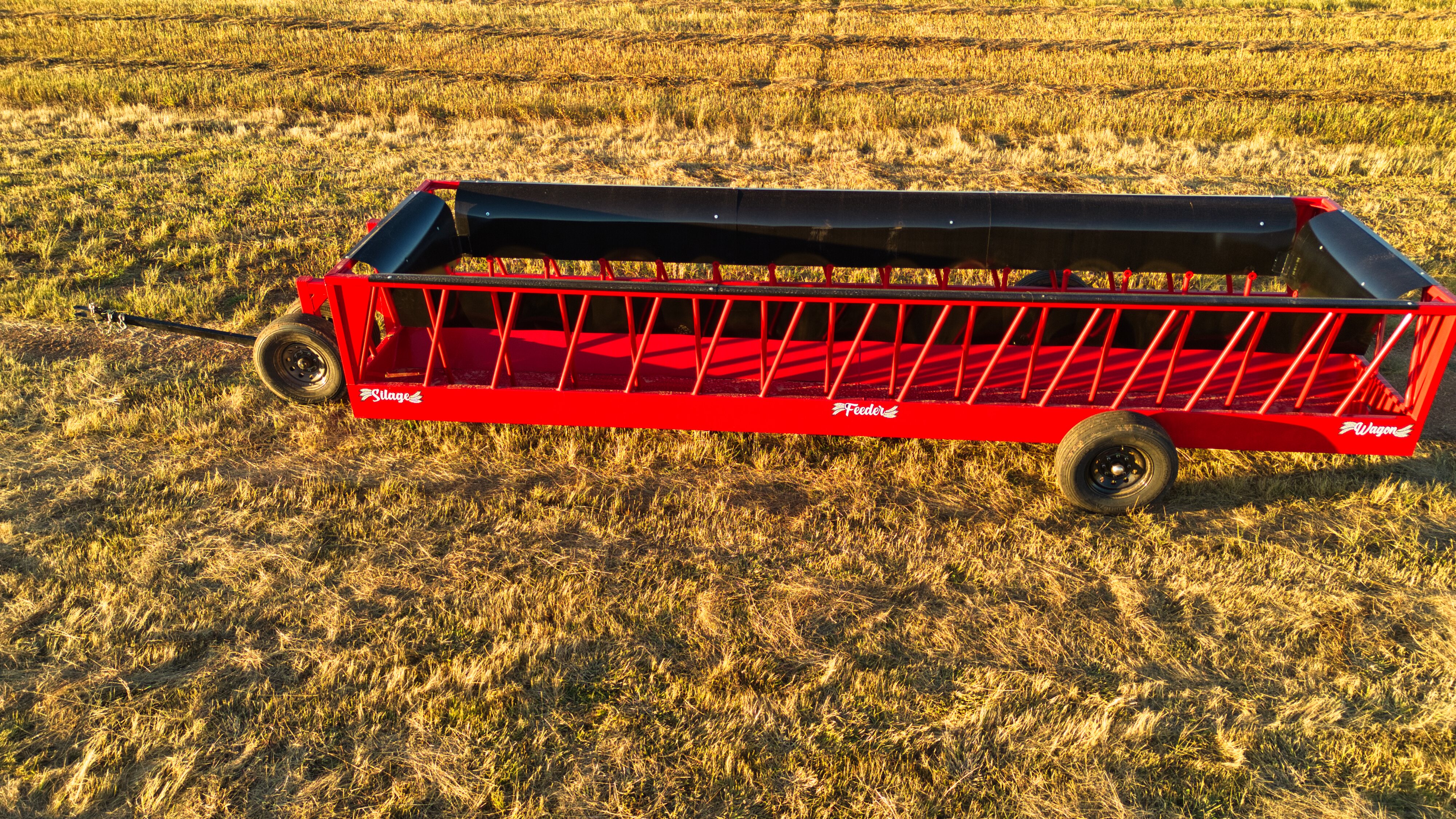

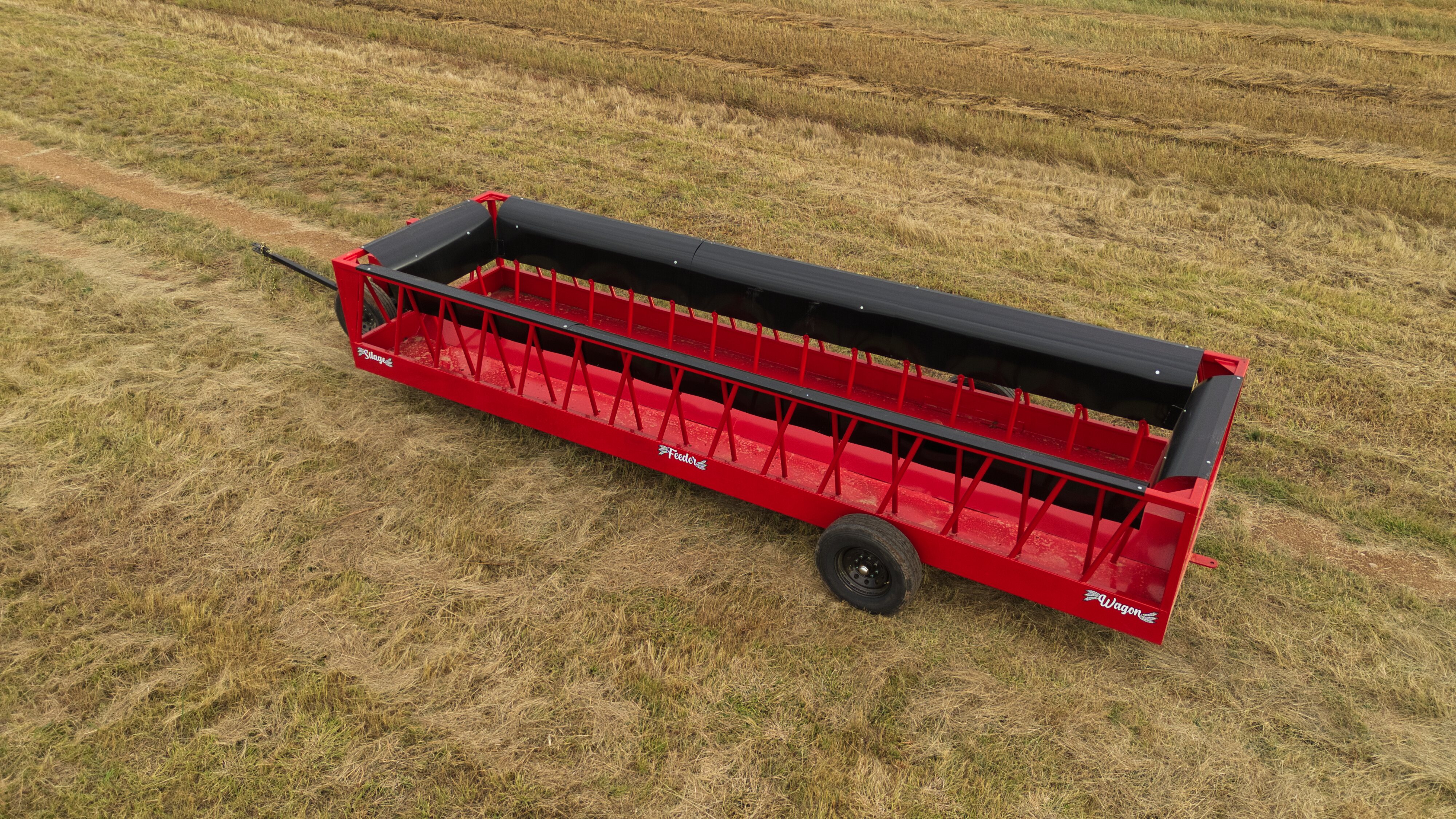

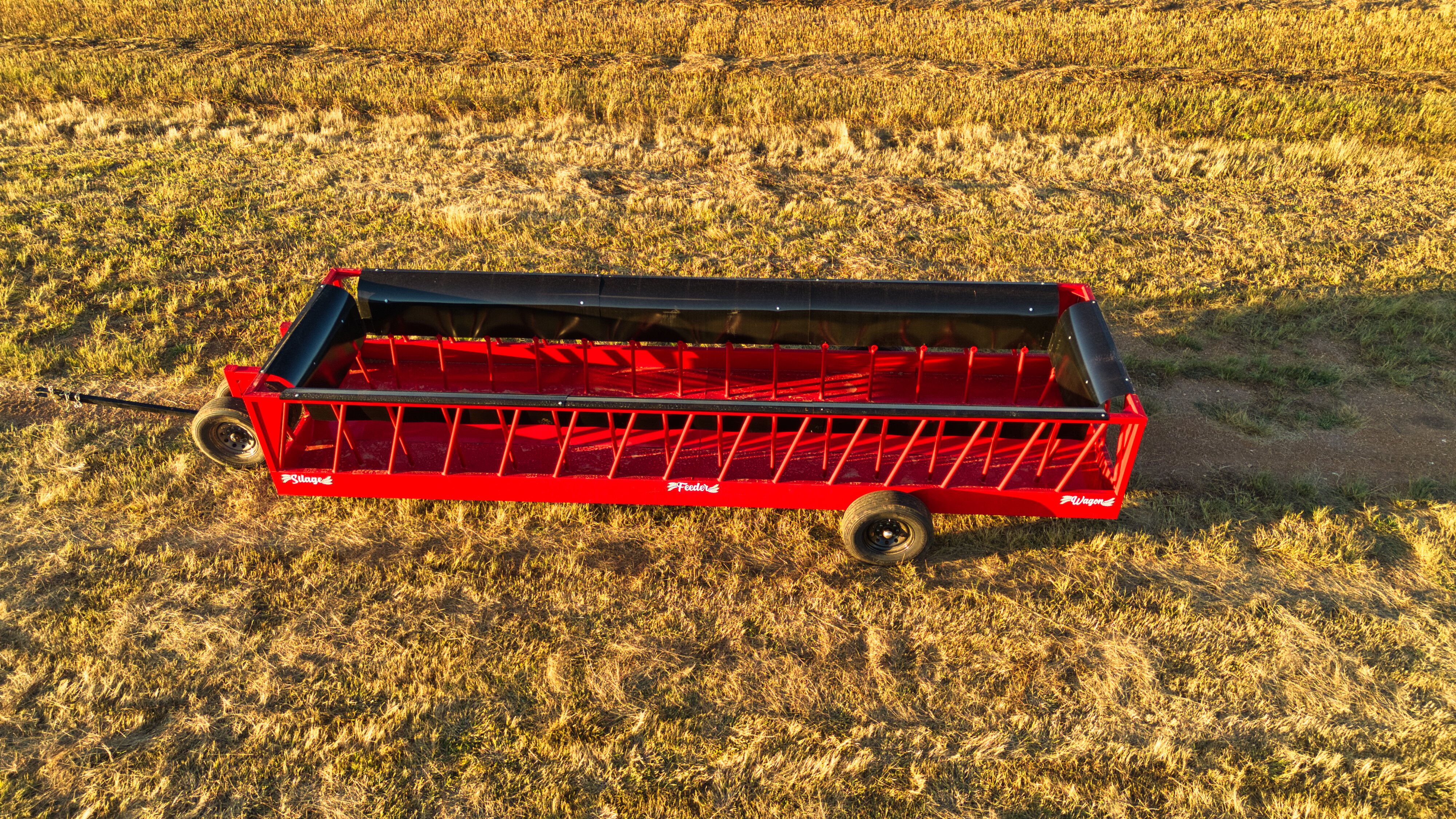

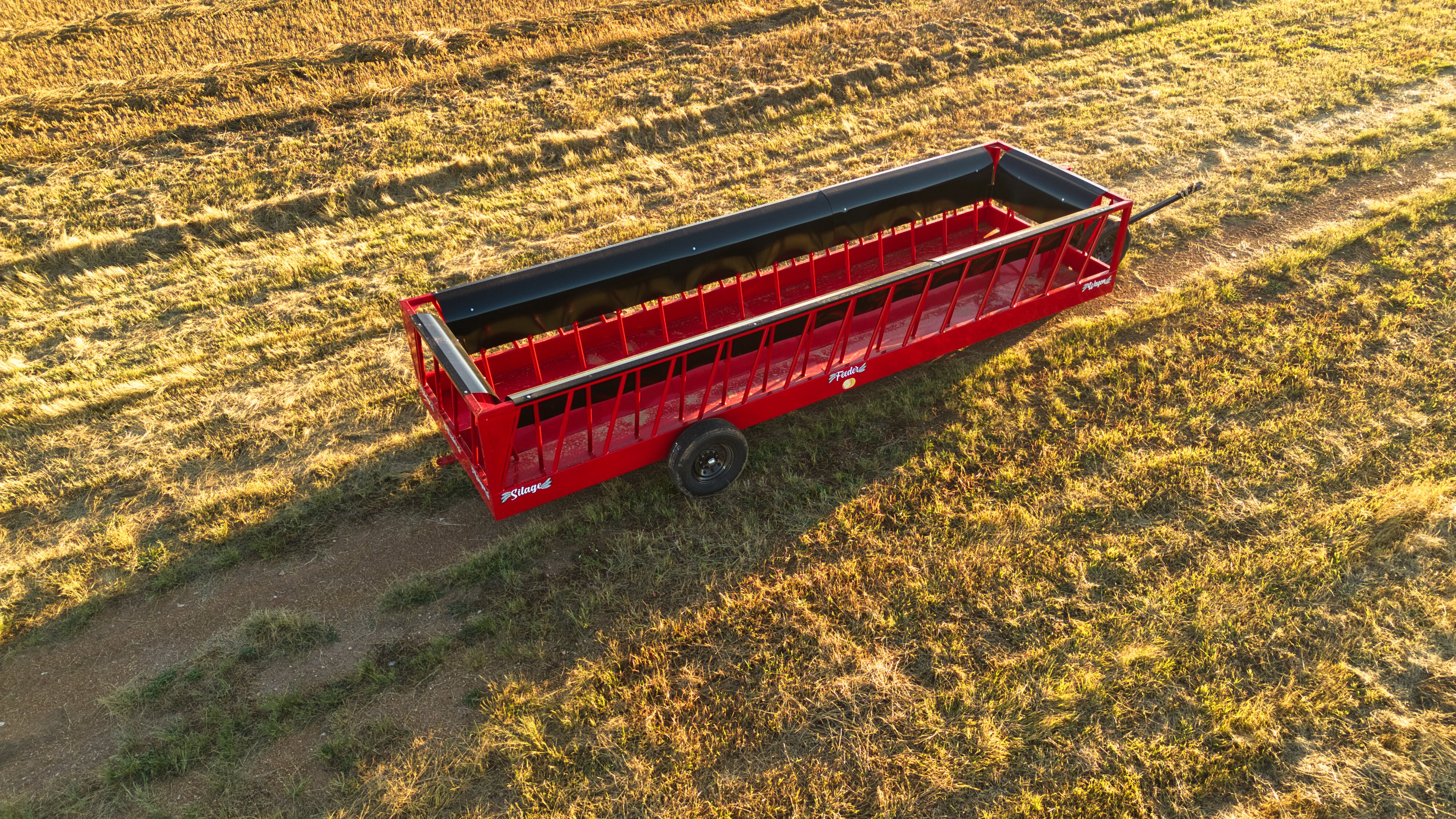

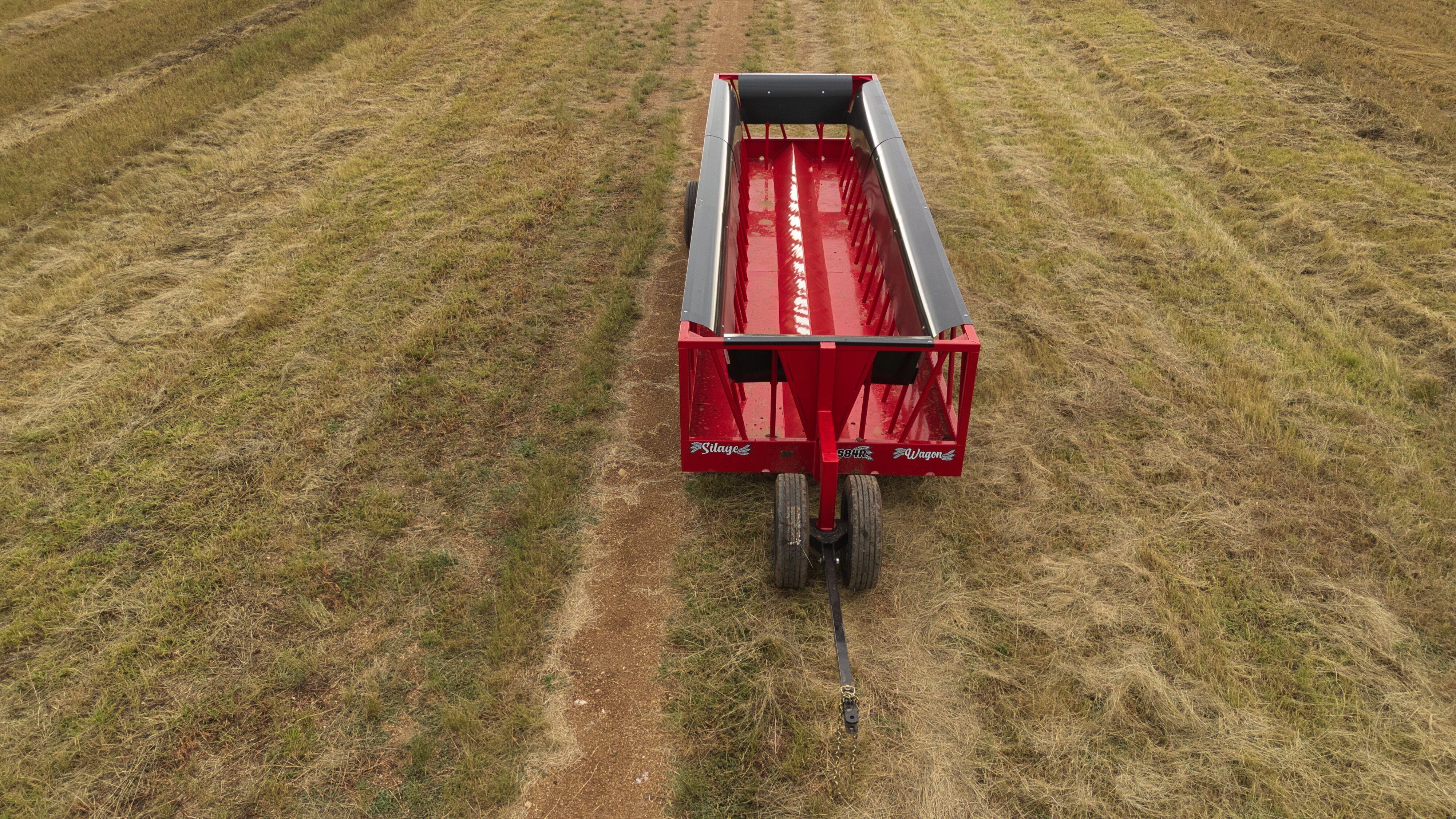

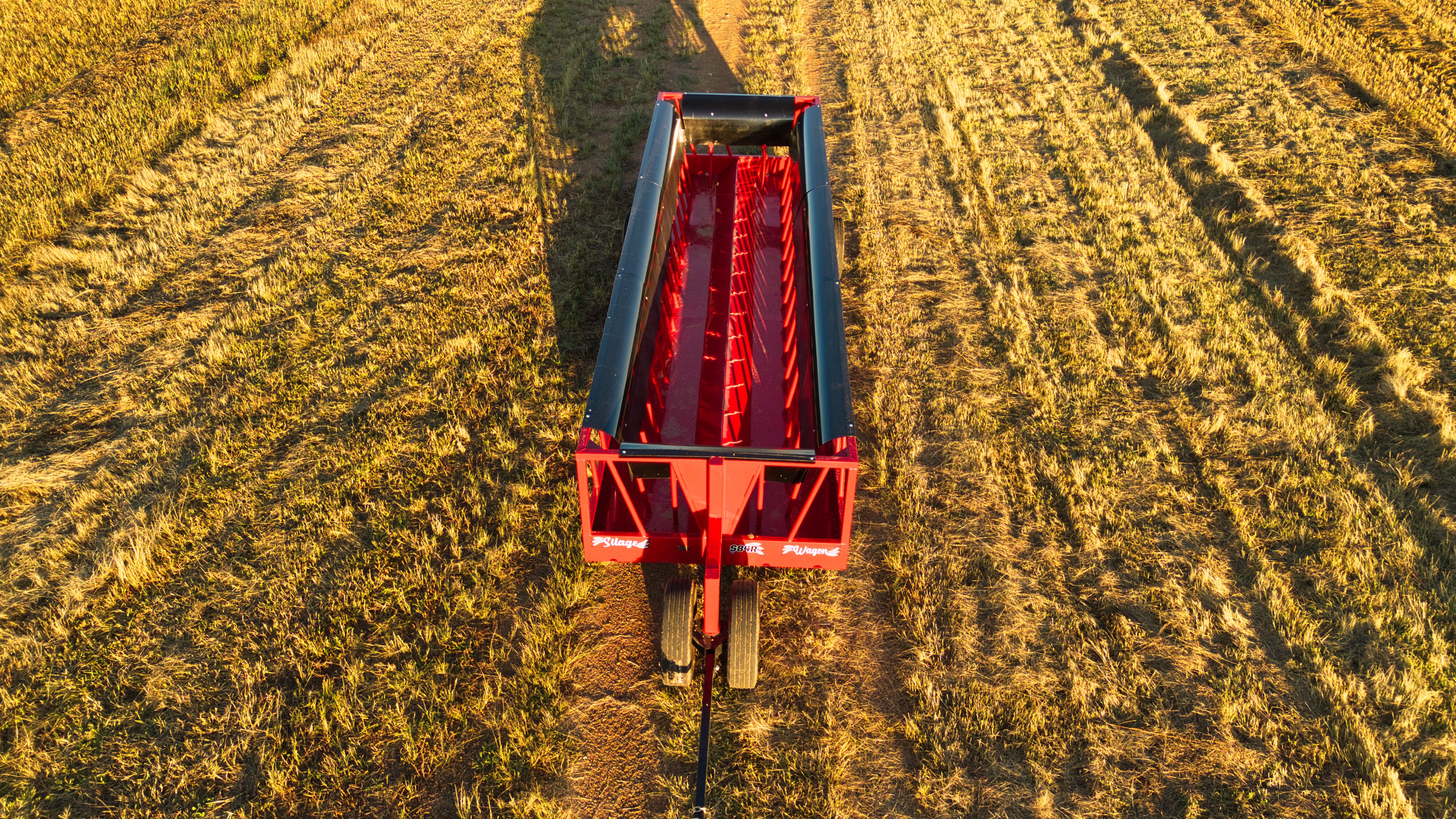

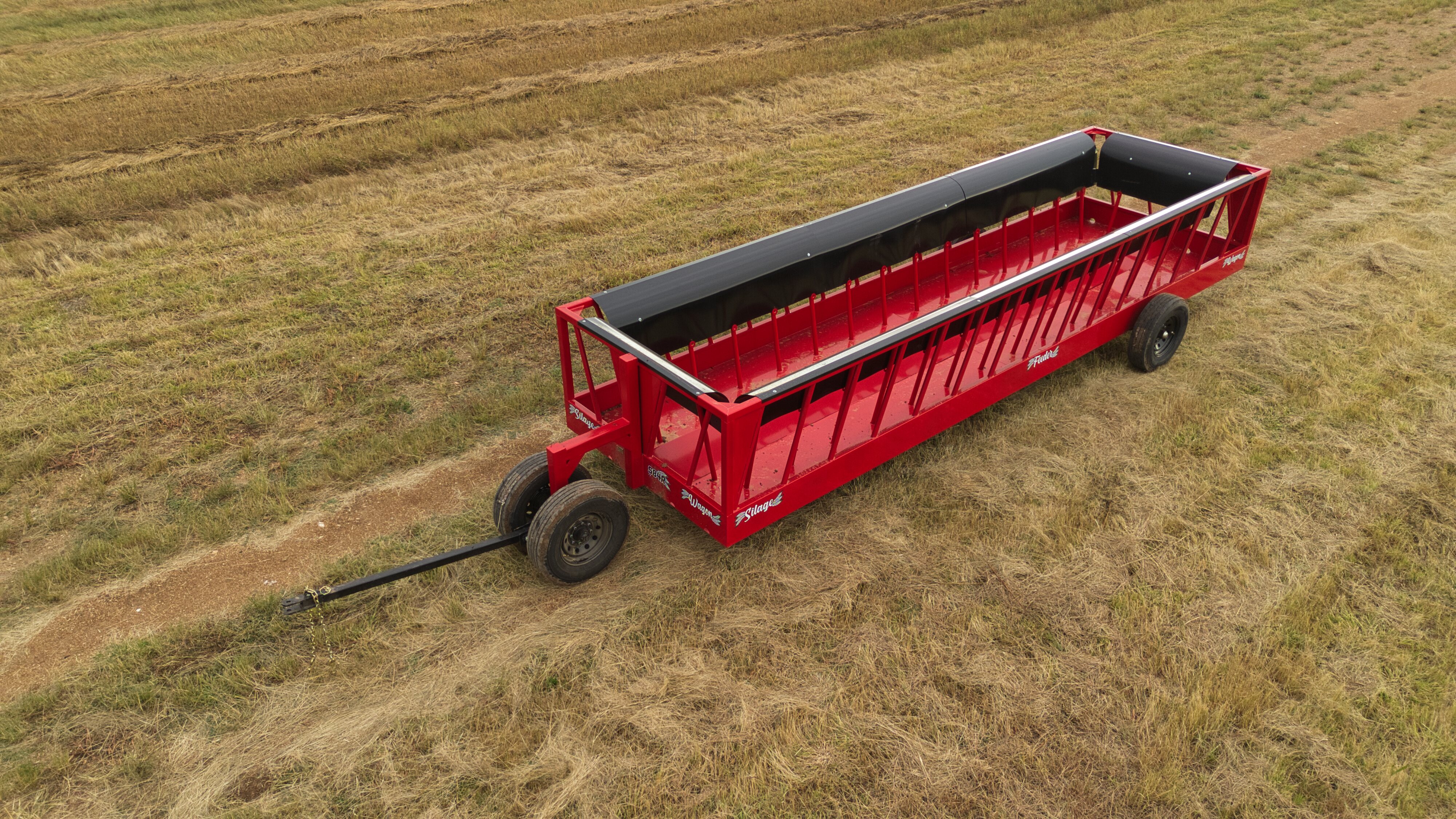

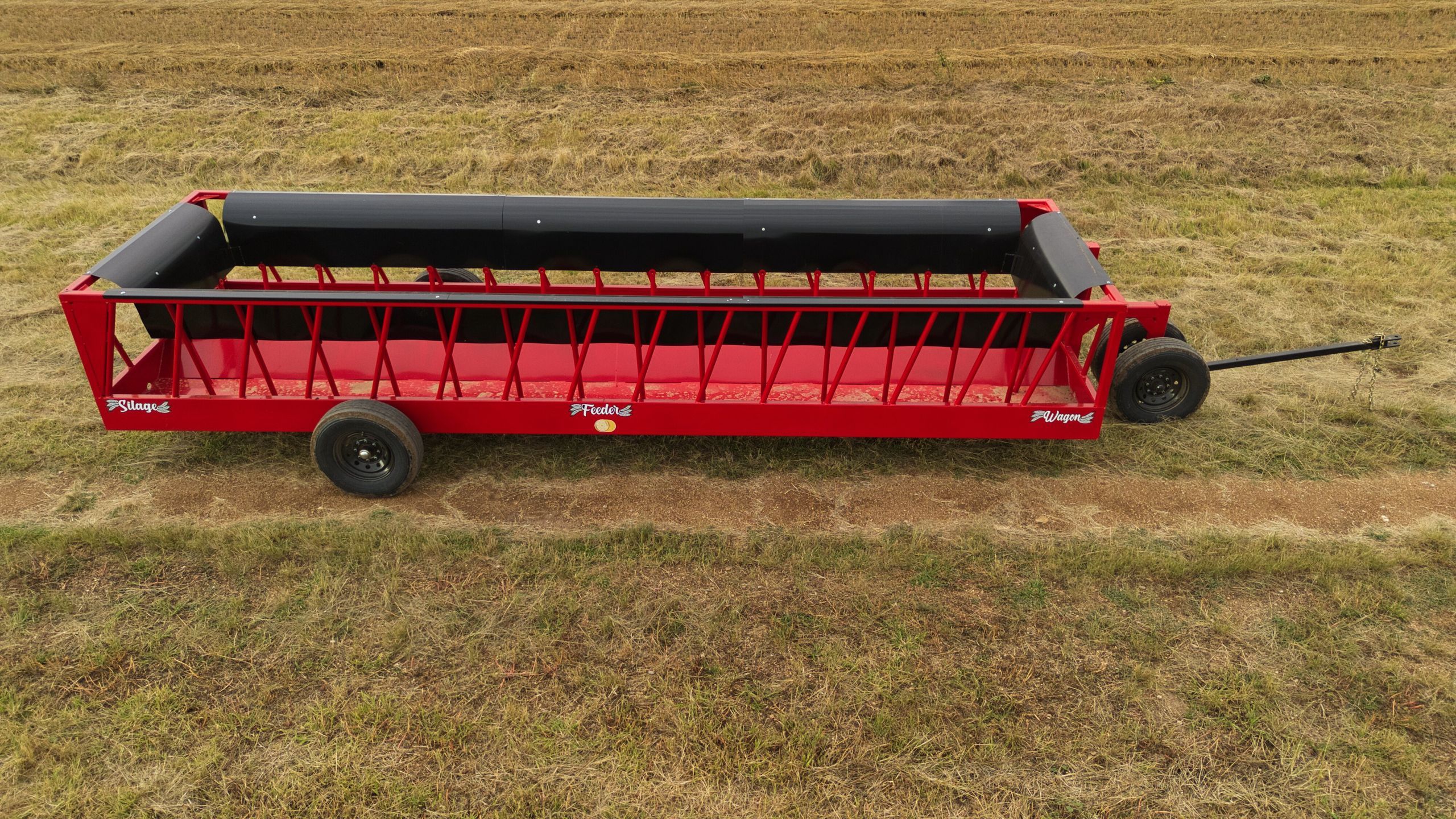

The S84R Silage Feeder Wagon is designed specifically for handling silage and chopped feed. It features 24-inch sheet metal panels inside the curved inner tubes, forming a funnel that prevents fine material from spilling out while guiding feed toward the trough. Built on the same robust frame as the 82R, the S84R includes a front dolly and 45-inch telescopic gooseneck, providing easy maneuvering and transport. This model ensures controlled, efficient silage delivery and clean operation in any feeding setup.
