Specifications
| Feature | Description |
|---|---|
| Type | Pull-type disc harrow |
| Hitch Type | Pin-through drawbar |
| Disc Diameter | 22” |
| Disc Thickness | 3/16” |
| Disc Type | Plain or notched |
| Disc Material | Carbon steel |
| Disc Spacing | 8” |
| Number of Discs | 20, 24, 28, 32, 36 |
| Working Width | Approx. 80” – 144” |
| Gang Angle | Adjustable (manual or hydraulic depending on model) |
| Frame | 3” × 4” × 3/16” steel tubing |
| Bearings | Sealed cast housings |
| Scrapers | Included |
| Transport | Wheels included |
| Hydraulic System | Lift and angle adjustment (select models) |
| Jack | Not required |
| Recommended HP | 100–160 HP |
| Soil Type | Medium to heavy |
| Residue Handling | High |

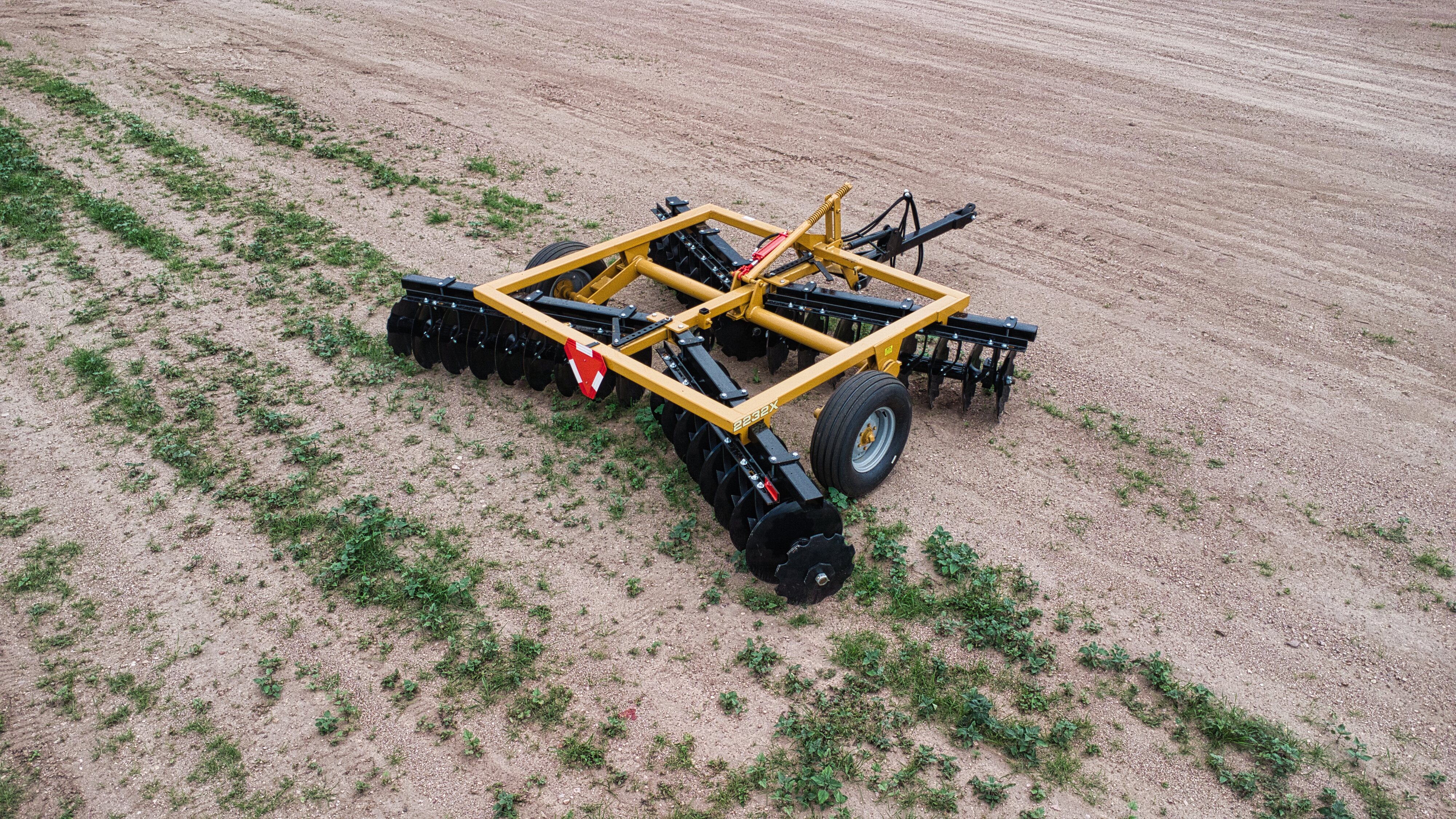

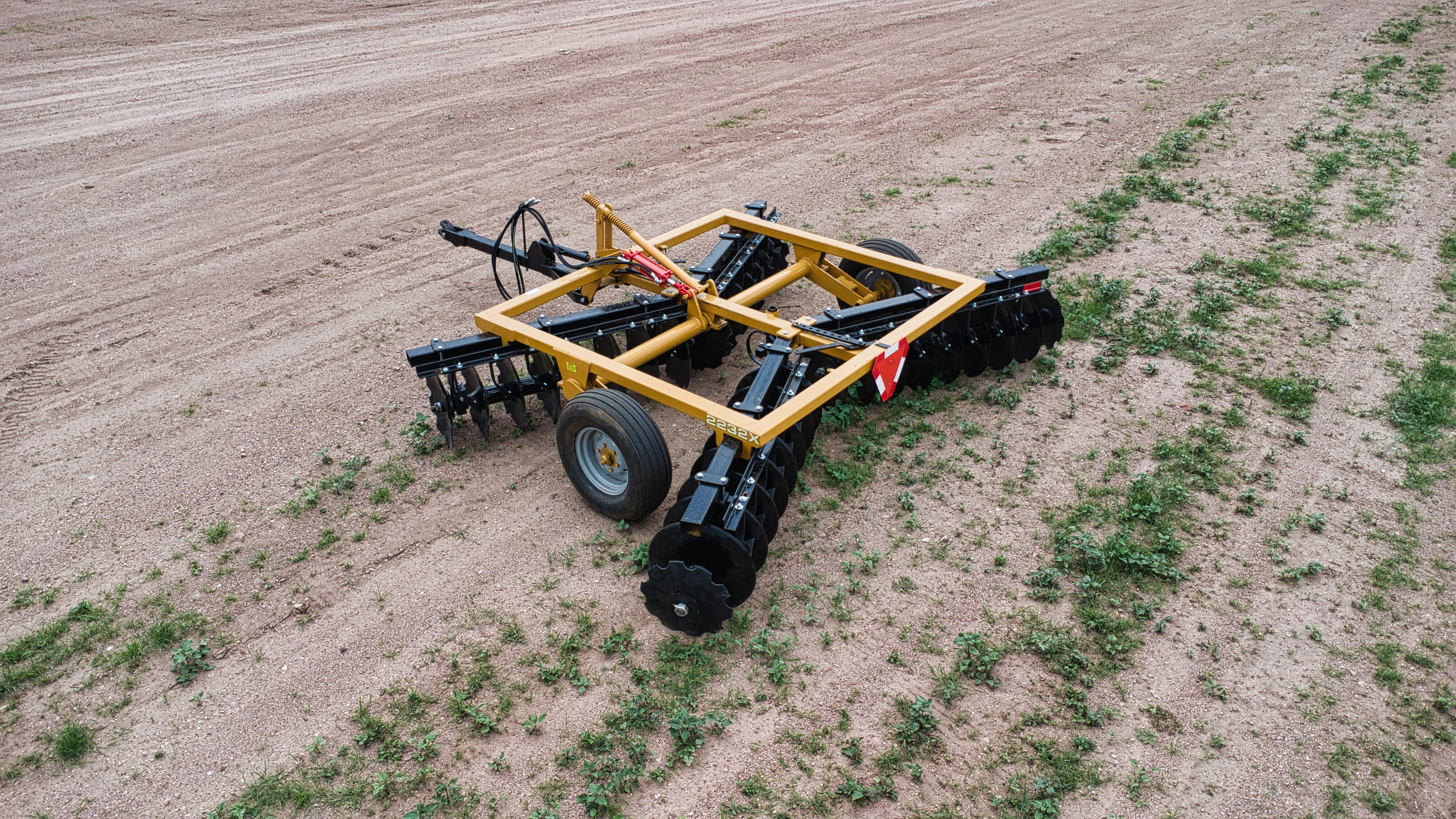

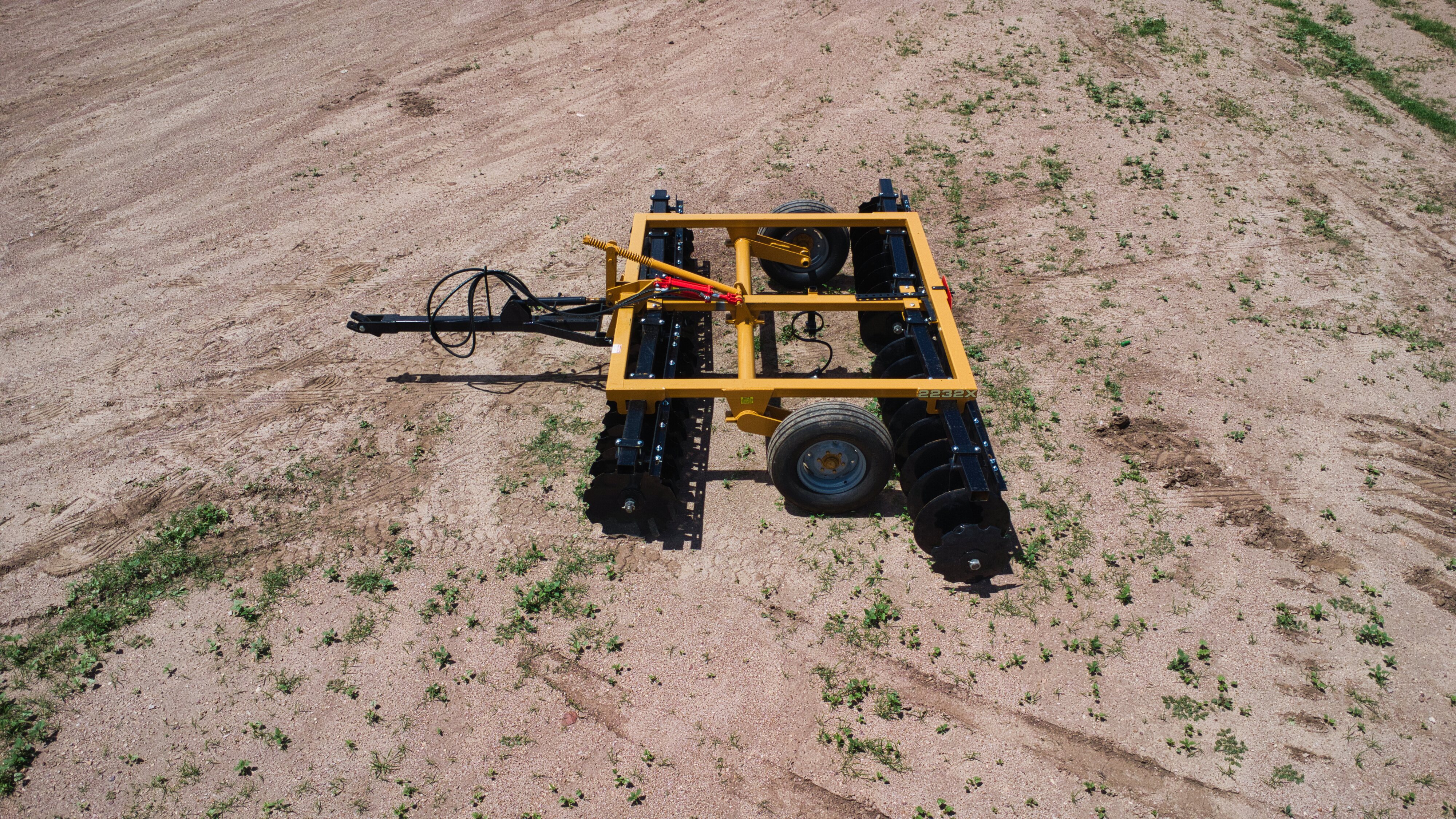

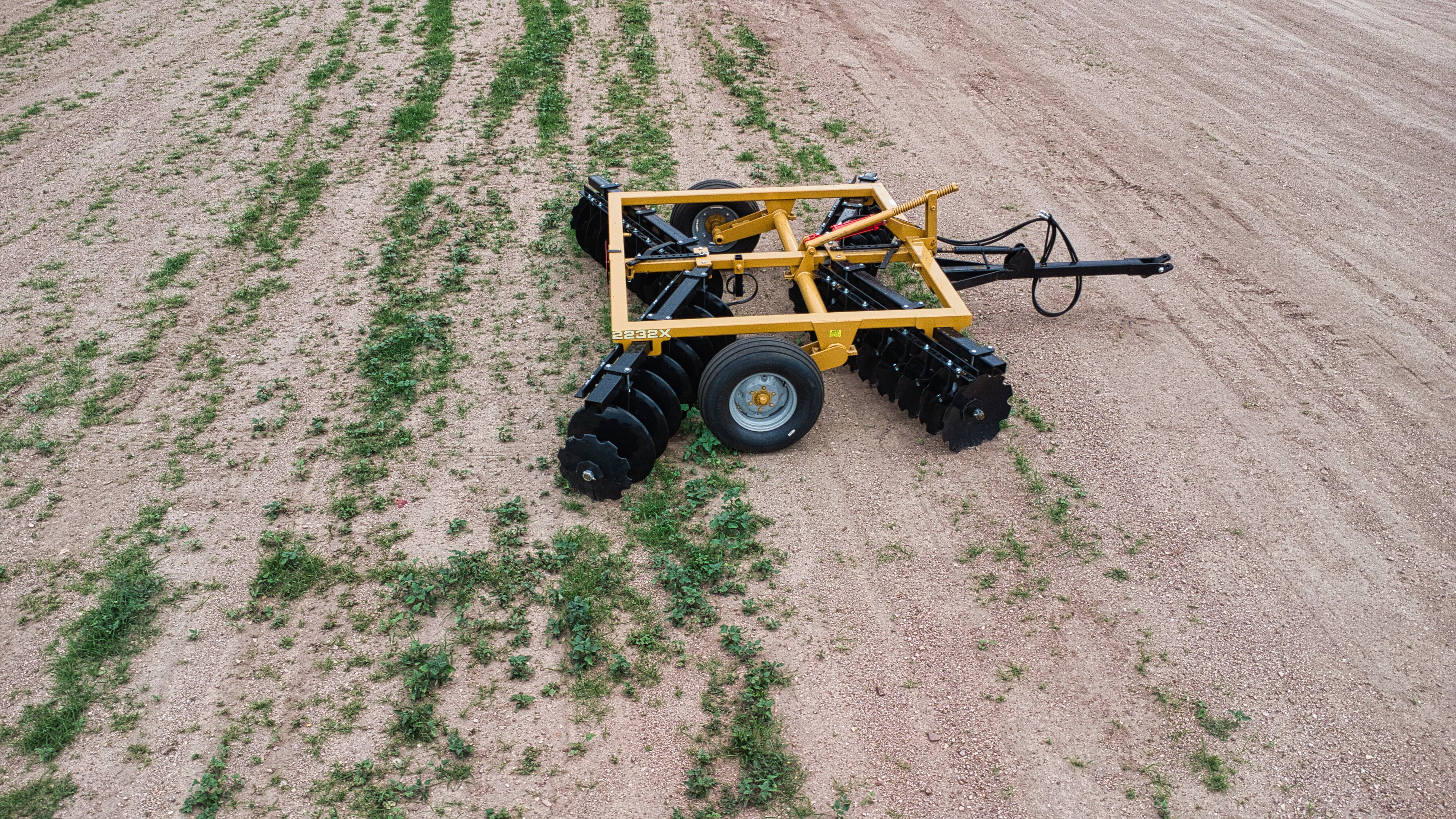

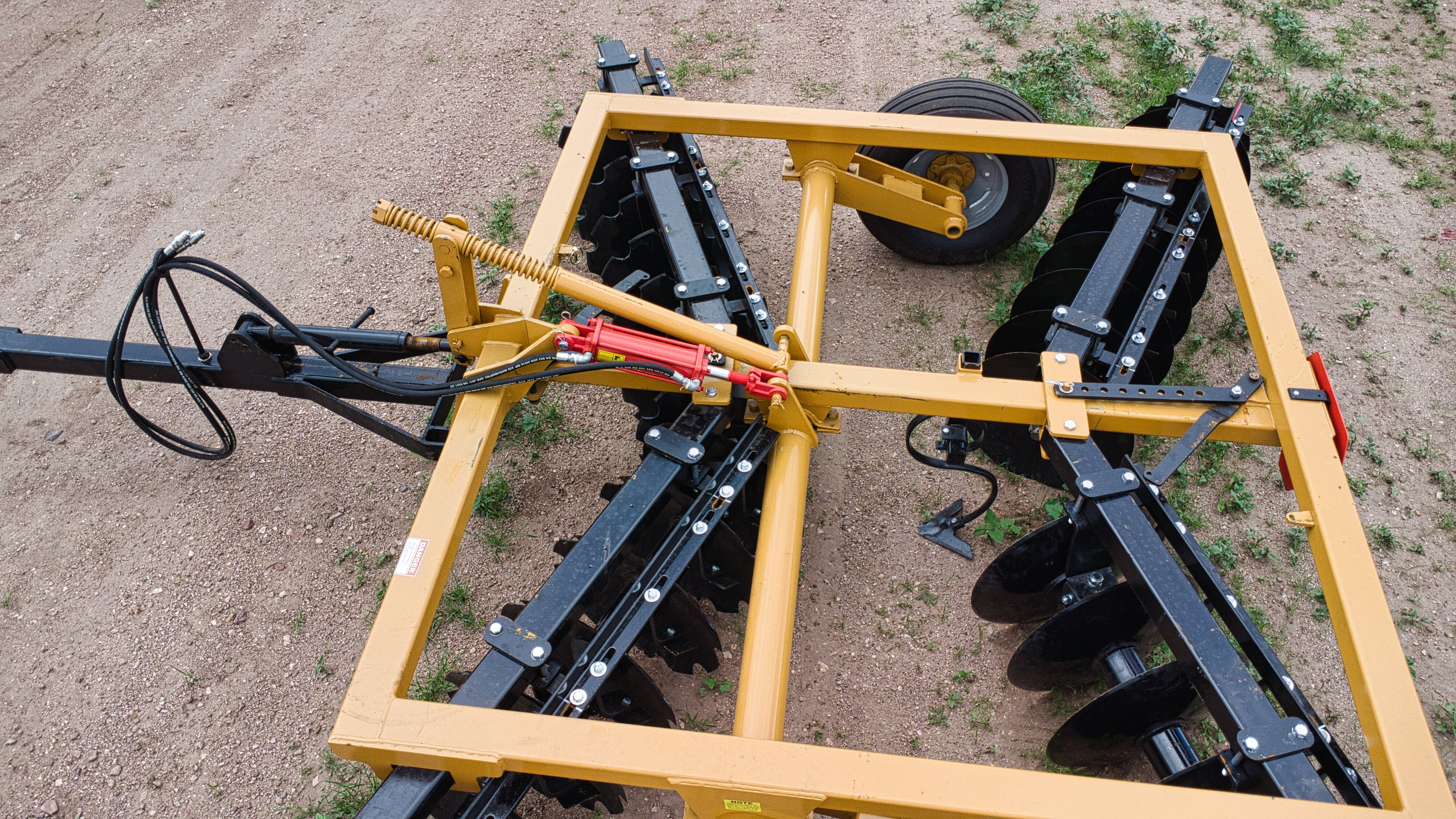

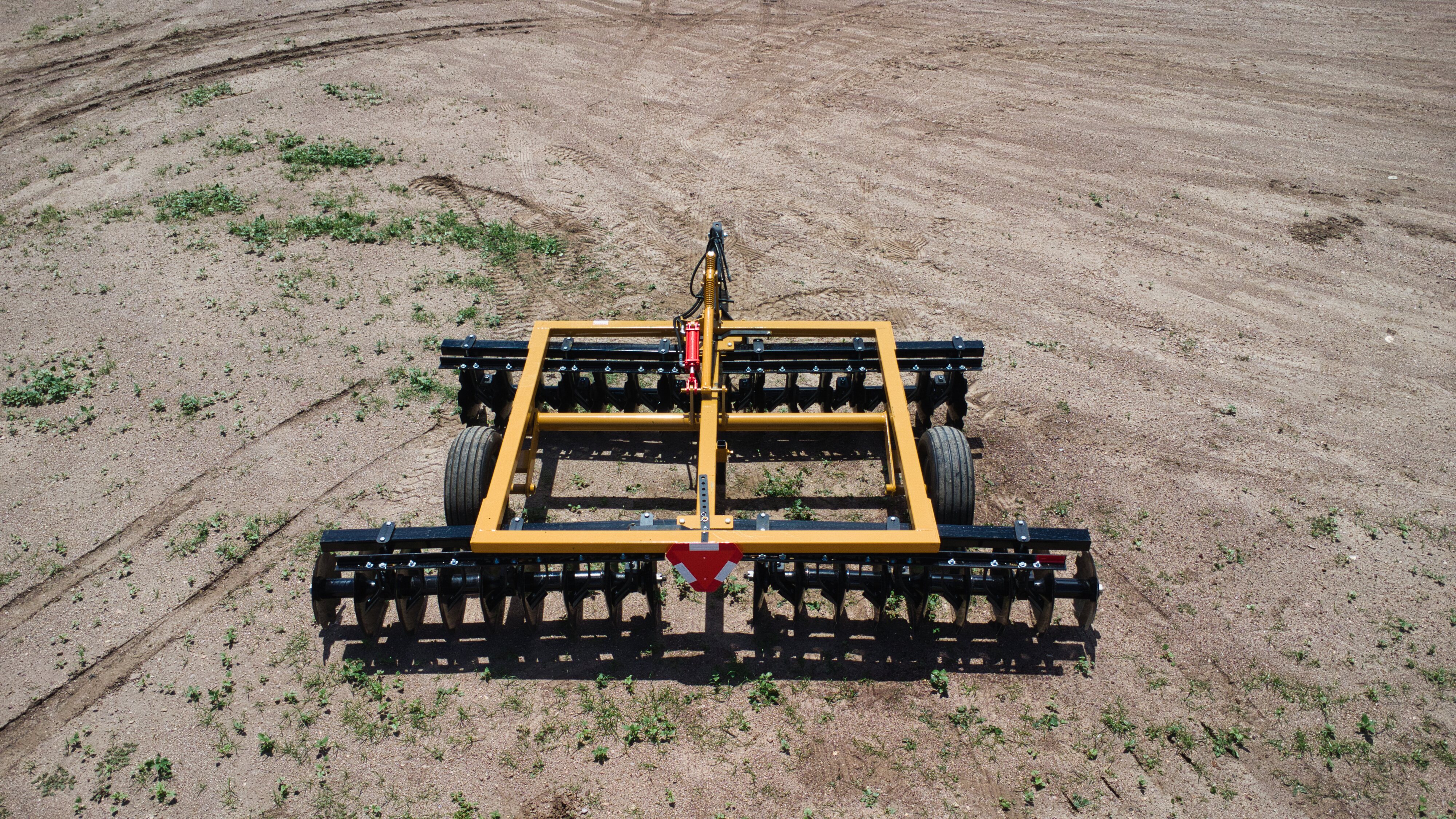

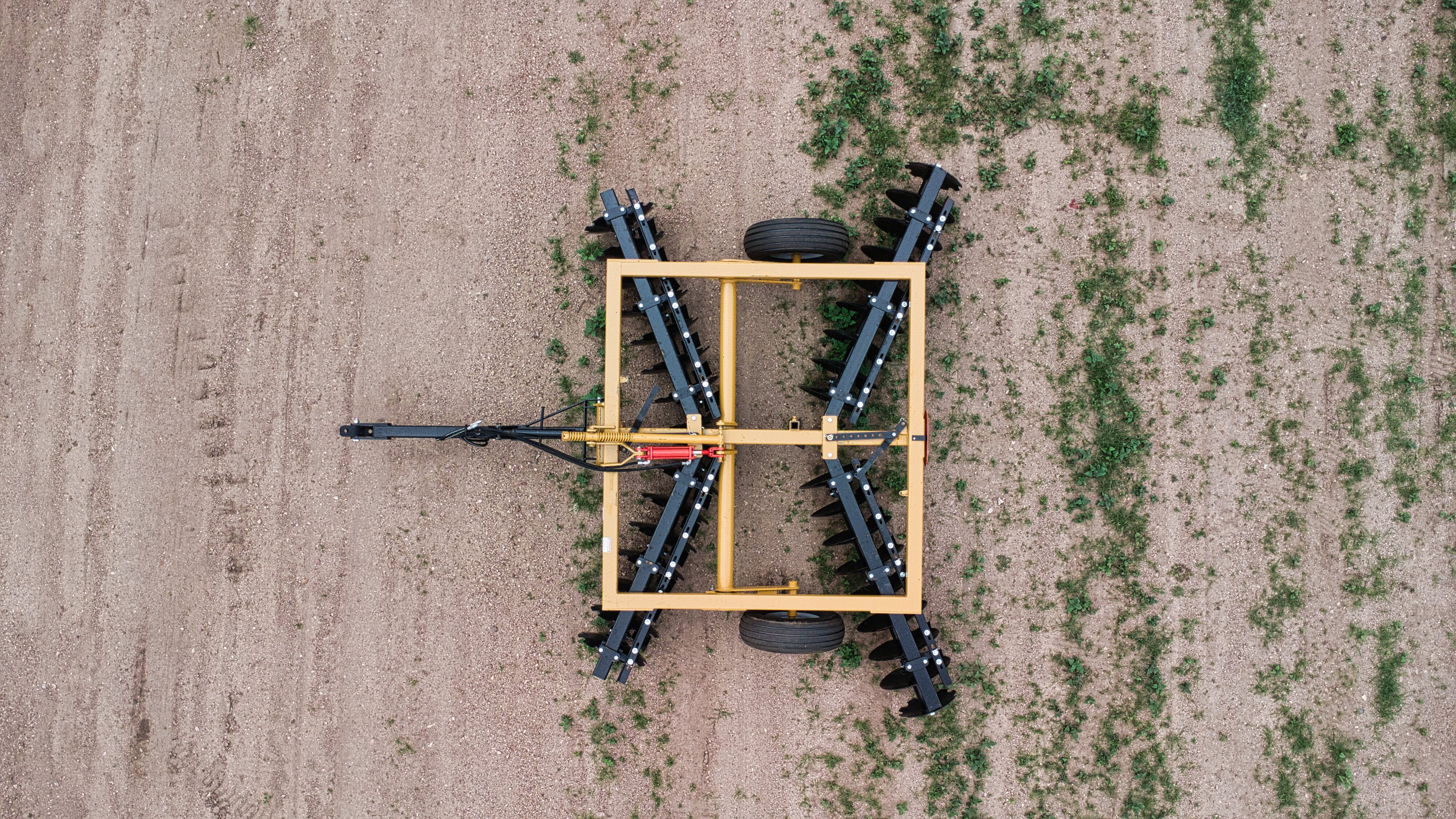

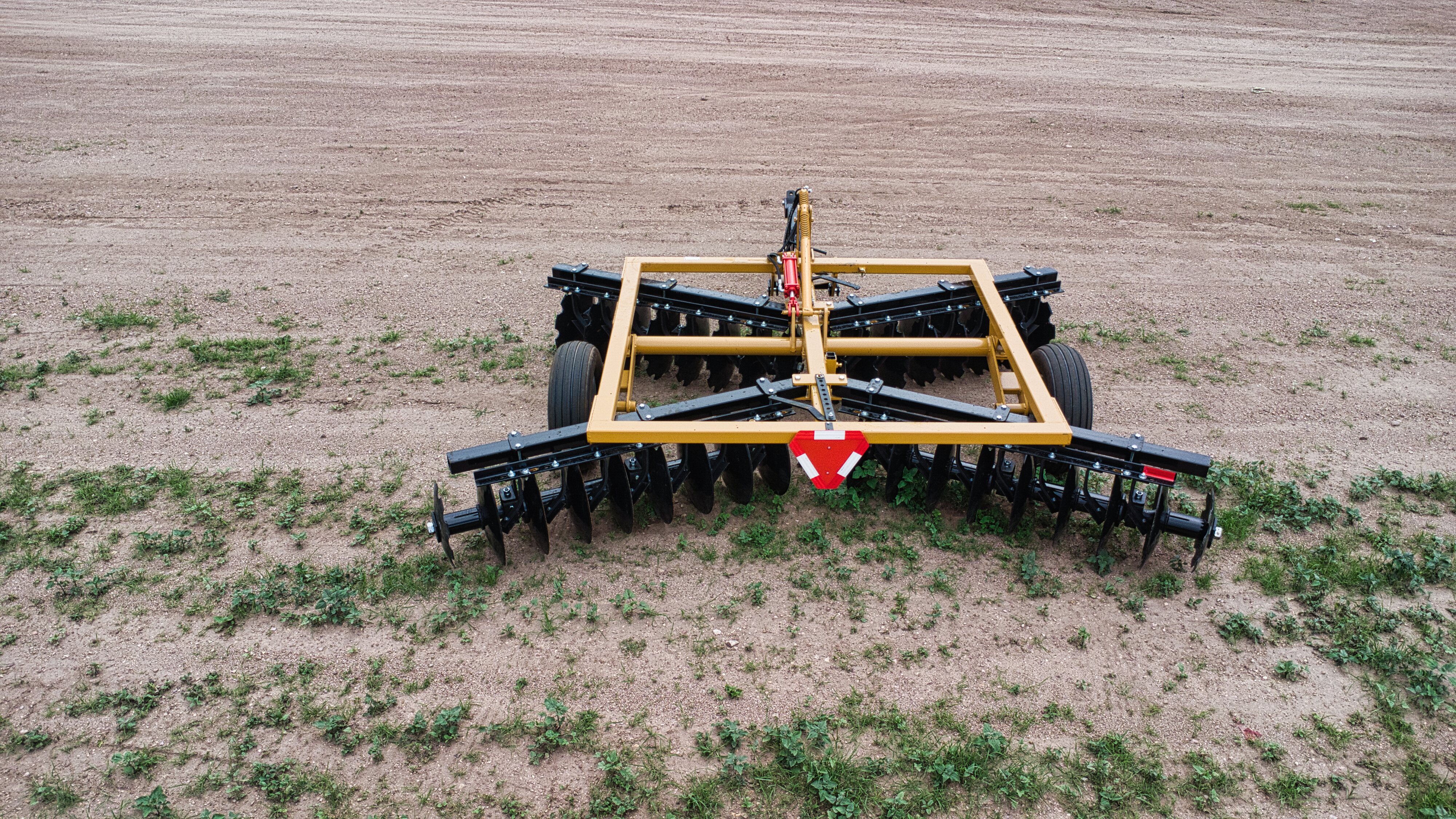

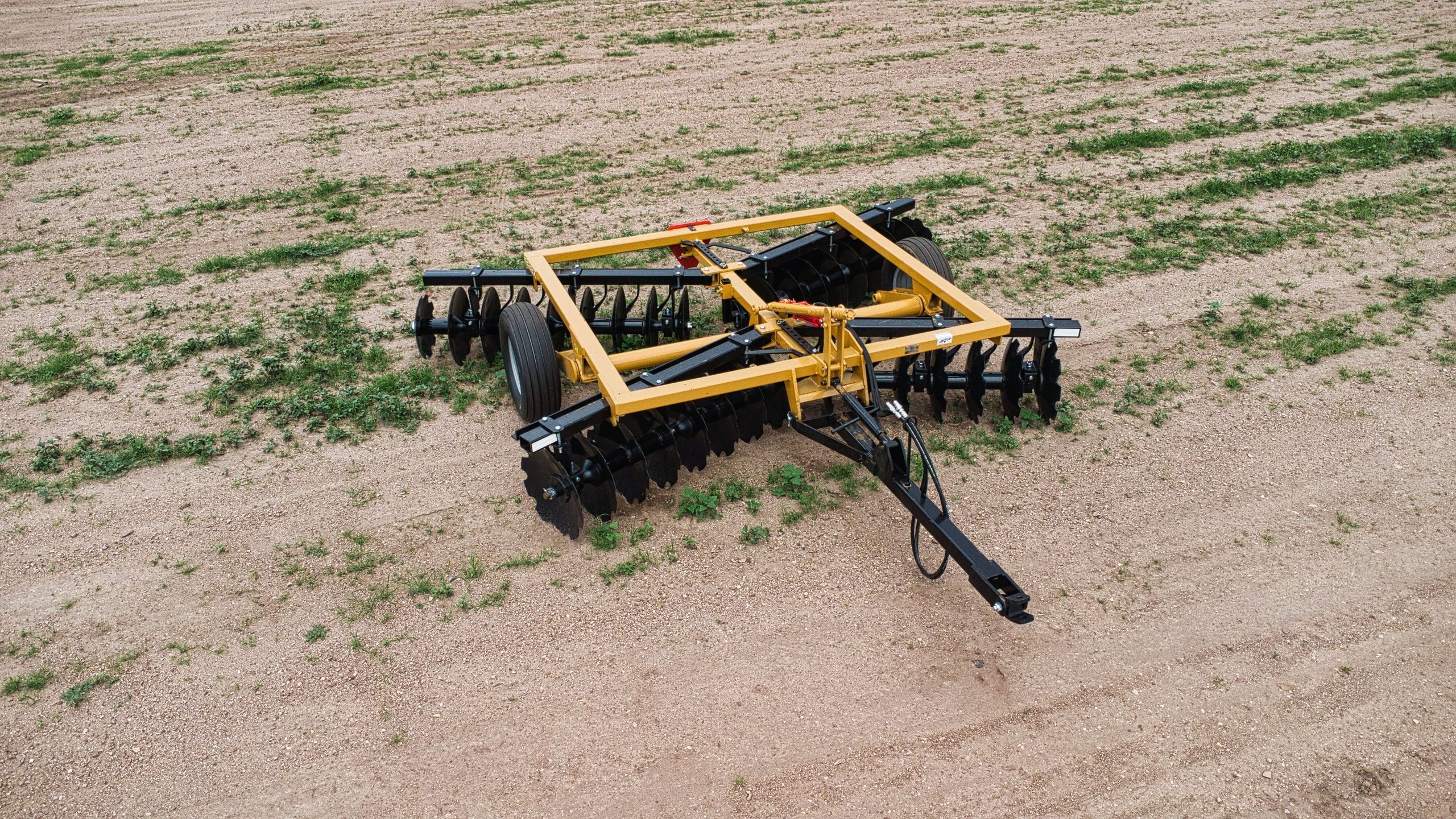

The 22” pull-type disc harrow is built for larger fields and higher productivity. With transport wheels and hydraulic adjustment, it allows for easier movement and better control in the field.. This model is designed for operators who need more working width, deeper penetration, and consistent performance across longer runs.
