Specifications
| Feature | Description |
|---|---|
| Type | Hydraulic rear blade |
| Width | 9 ft |
| Cutting edge | ½" × 6", high-carbon steel, reversible |
| Moldboard | 19" high, 5/16" thick, reinforced steel |
| Rotation | 360°, pin-lock system |
| Tilt | 8" end-to-end ≈ 4.2° |
| Hydraulics | 1 × 3"x10" piston, 1 × 3"x8" piston, 4 connections |
| Hitch type | 3-point, Category II & III |
| Tractor power required | 110 HP |
| Weight | 480 kg / 1,058 lbs |
| Parking foot | Included |

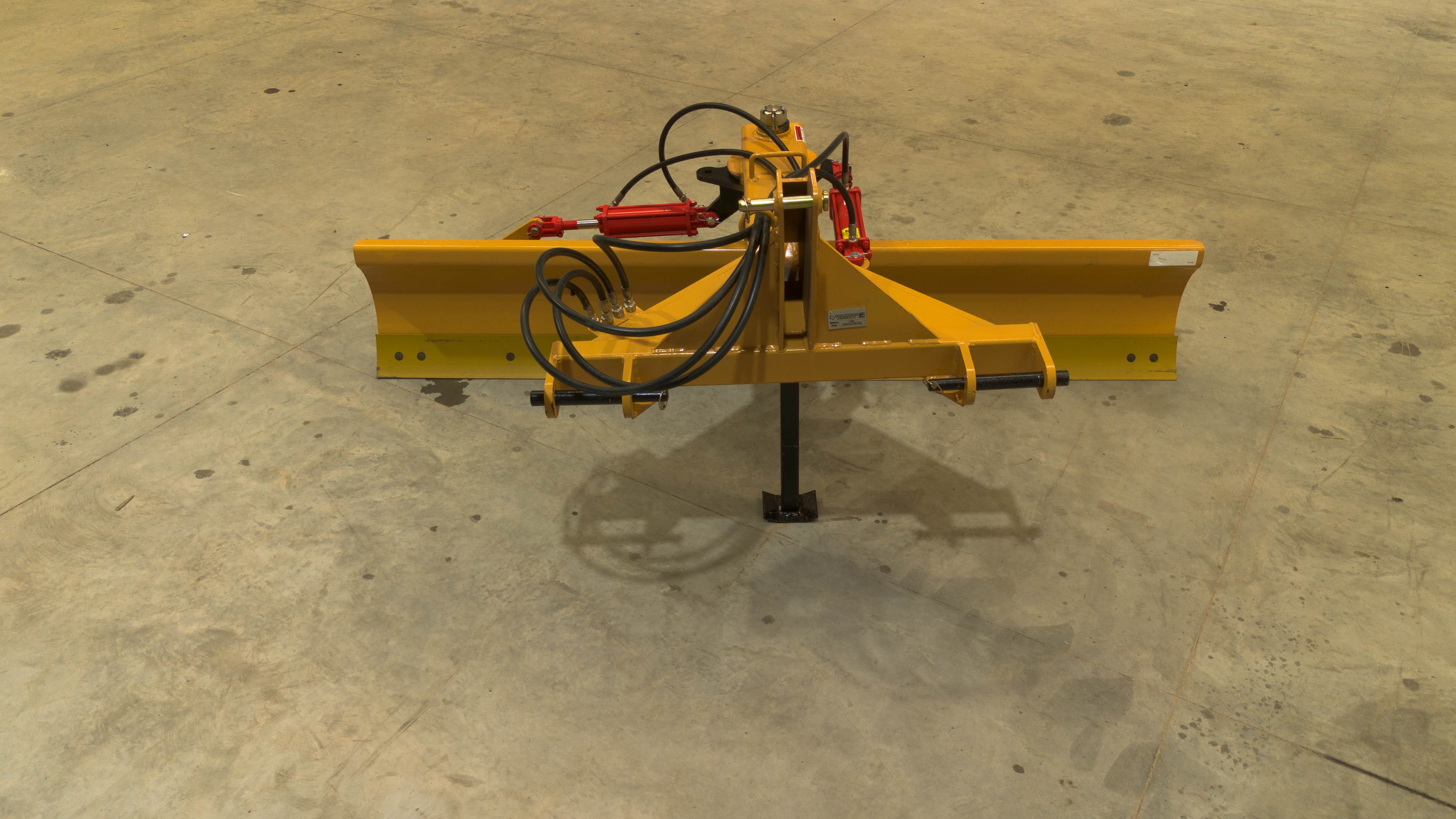

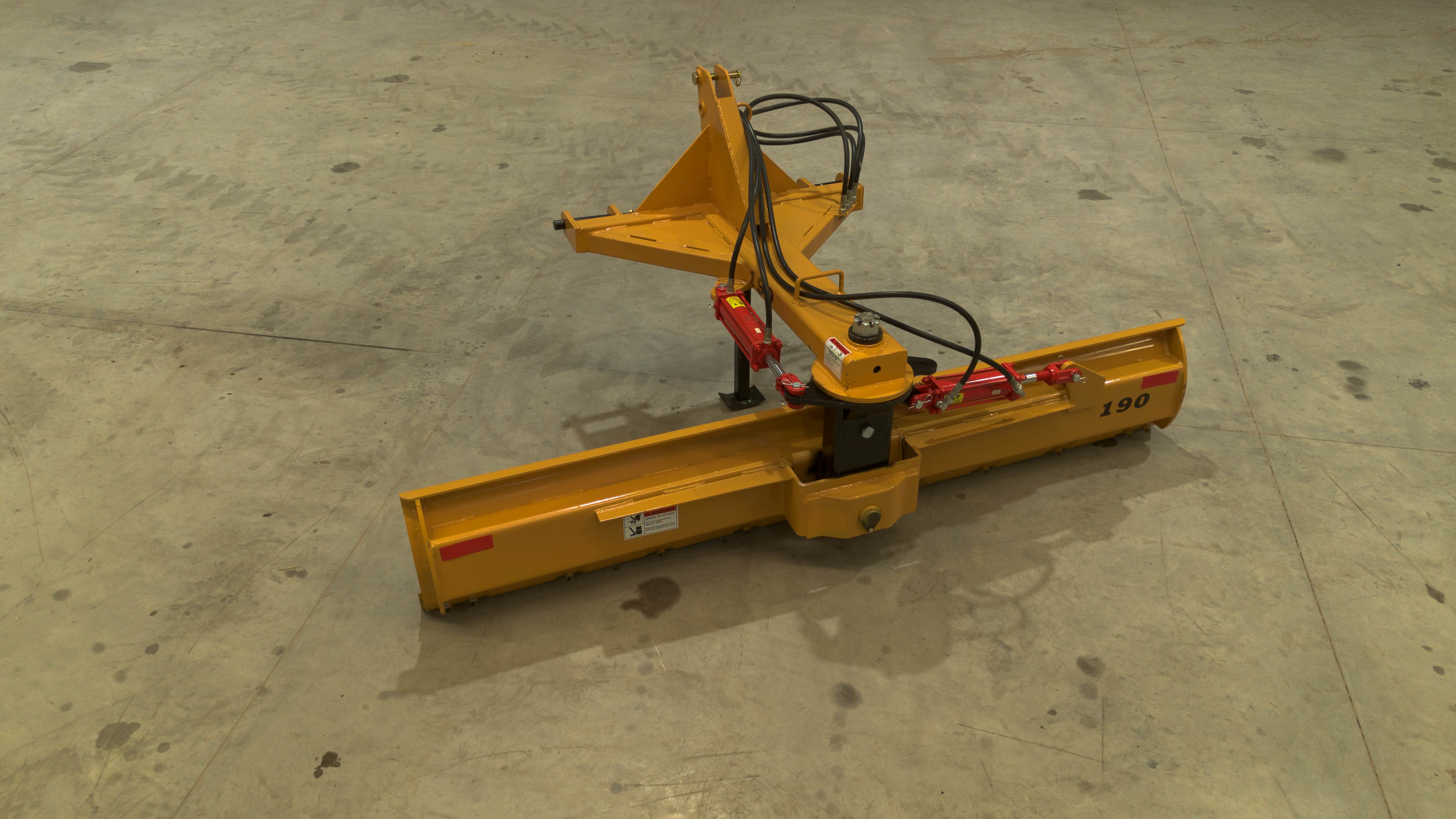

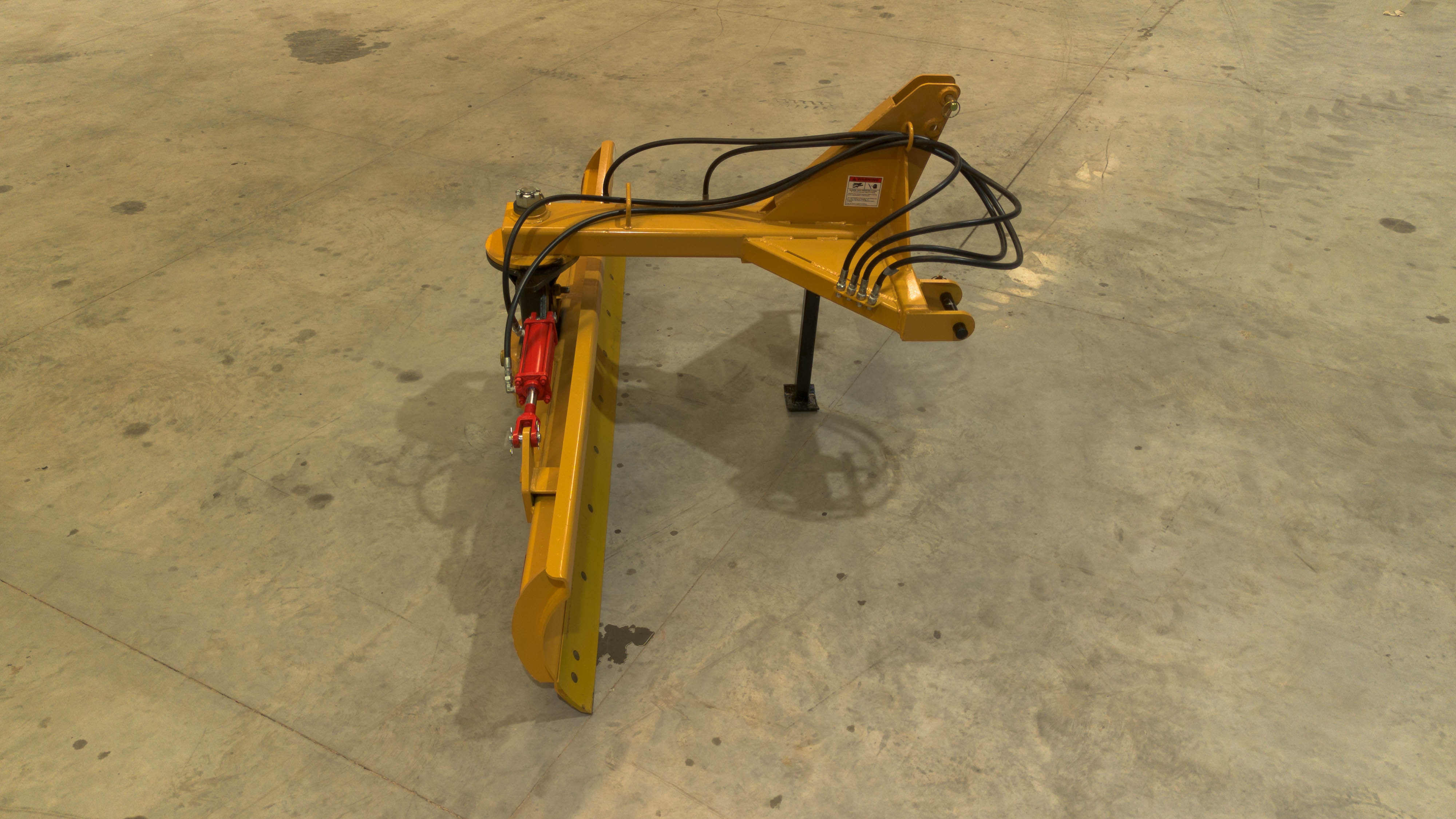

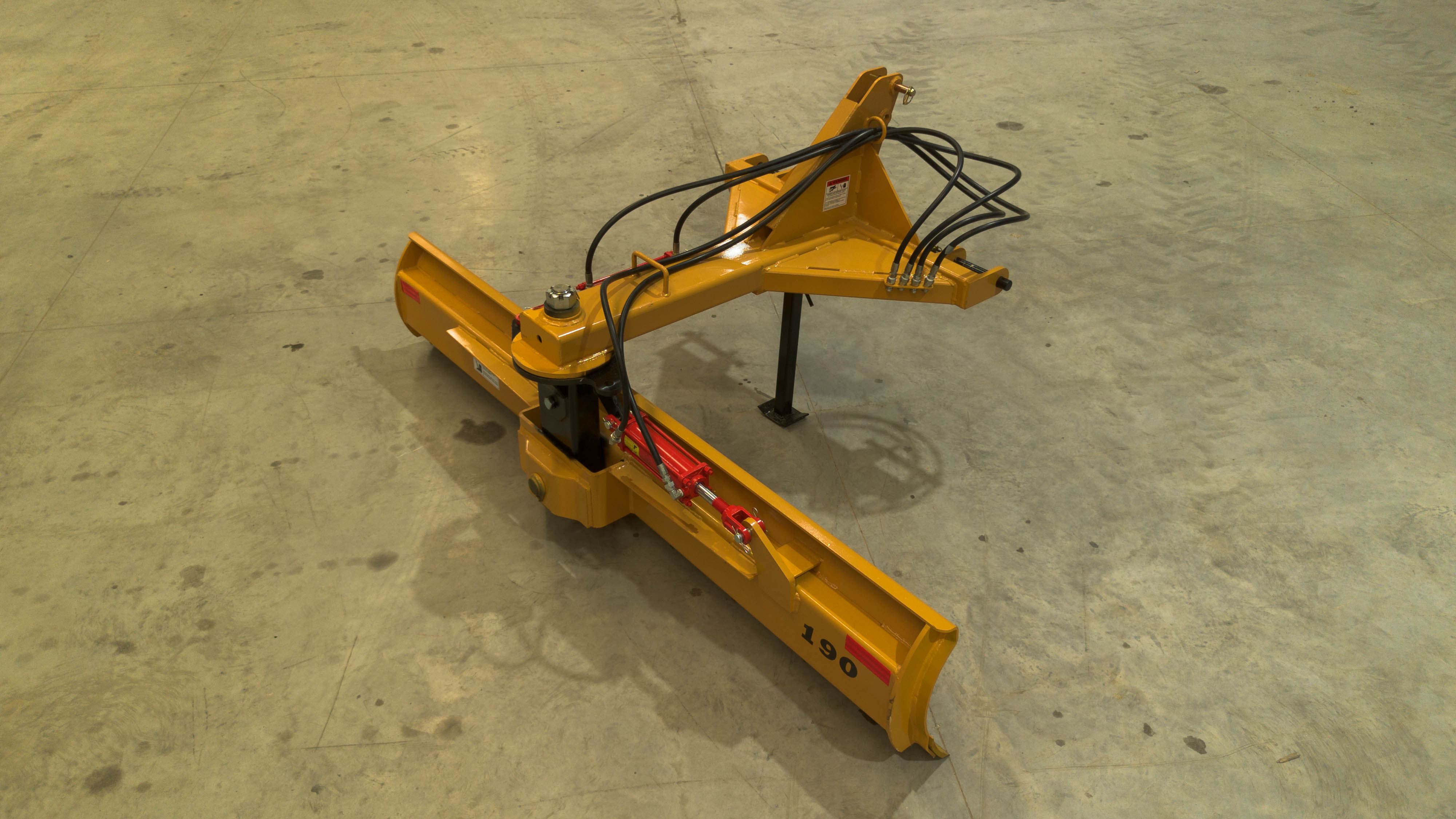

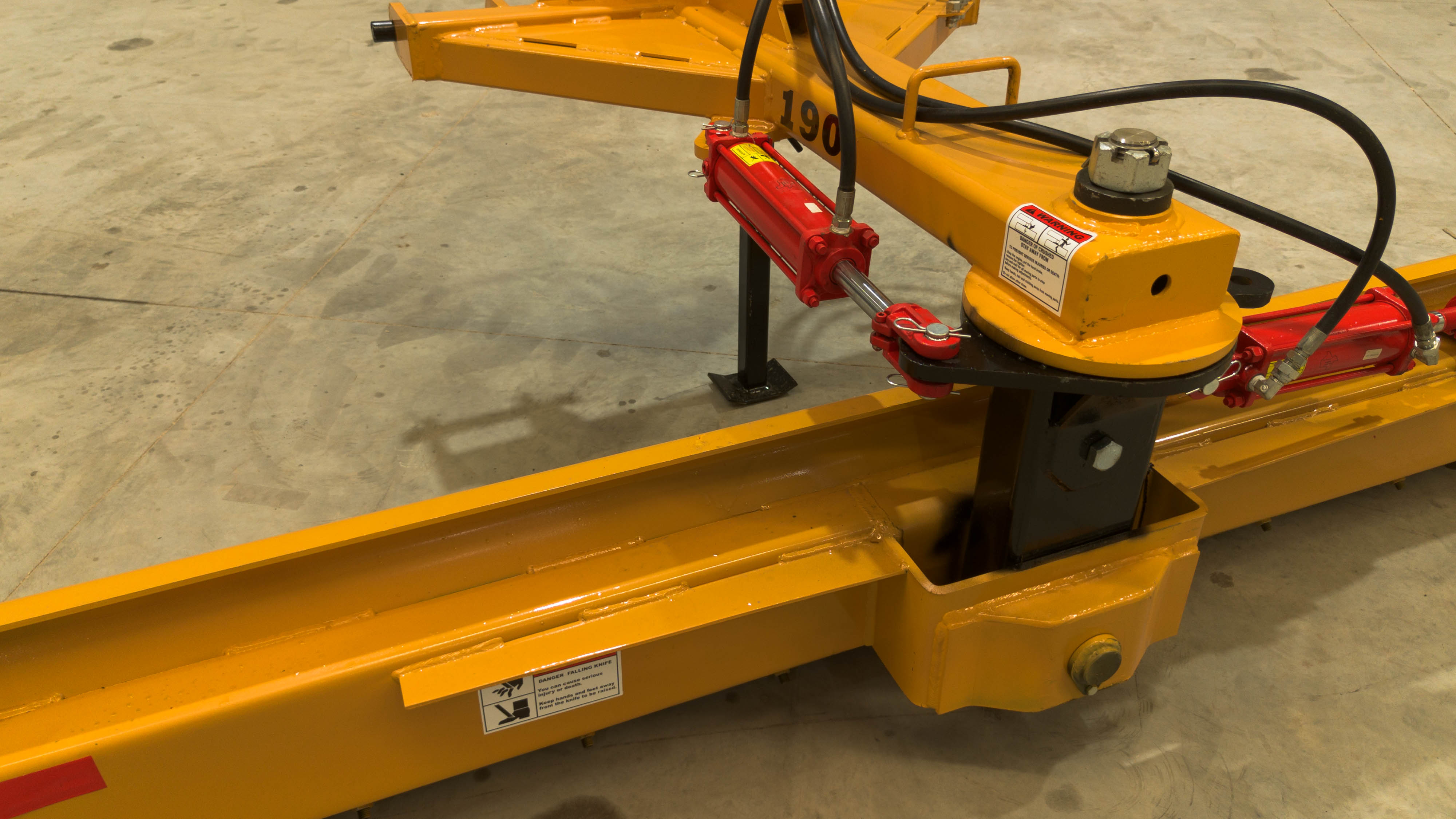

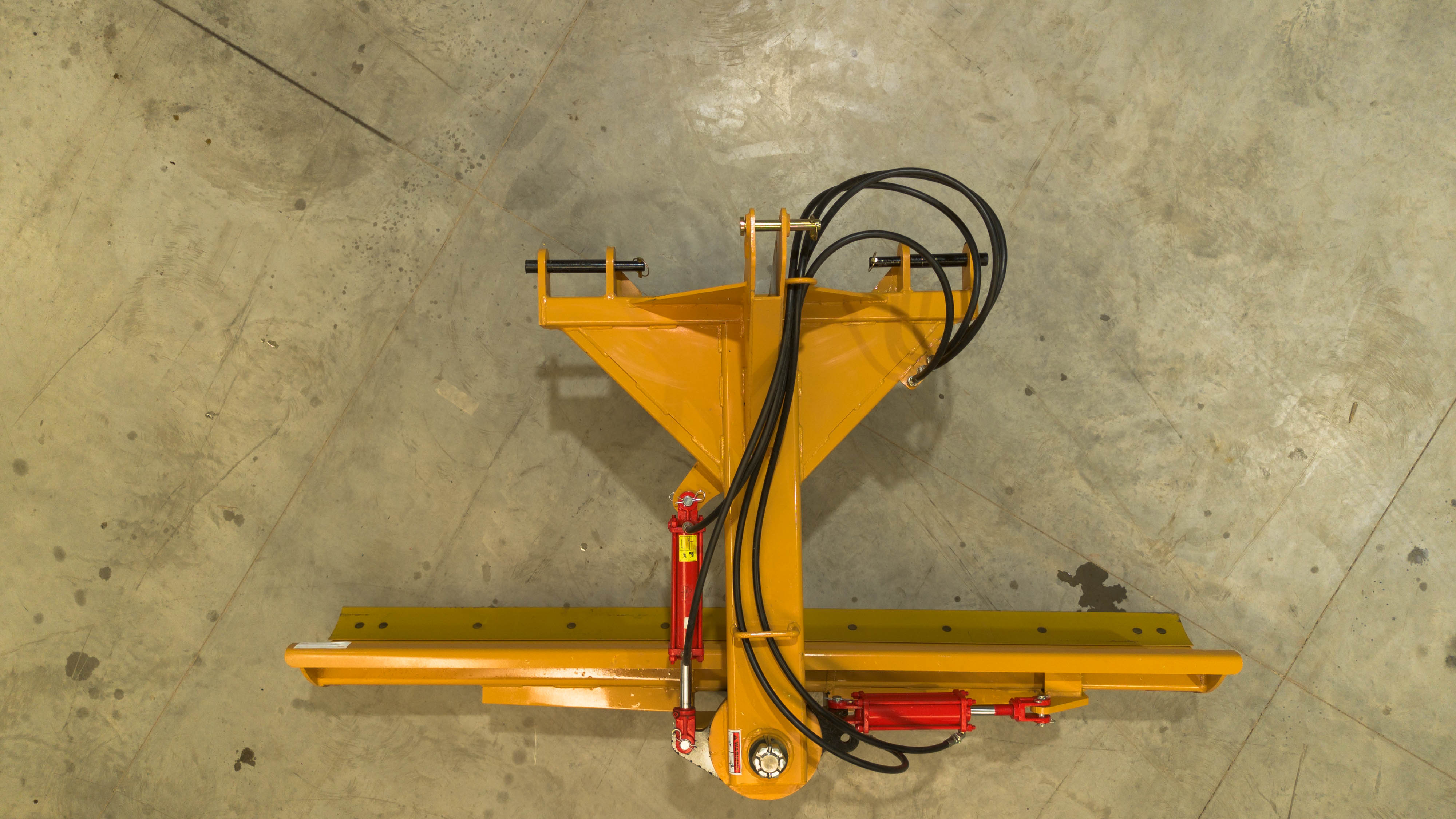

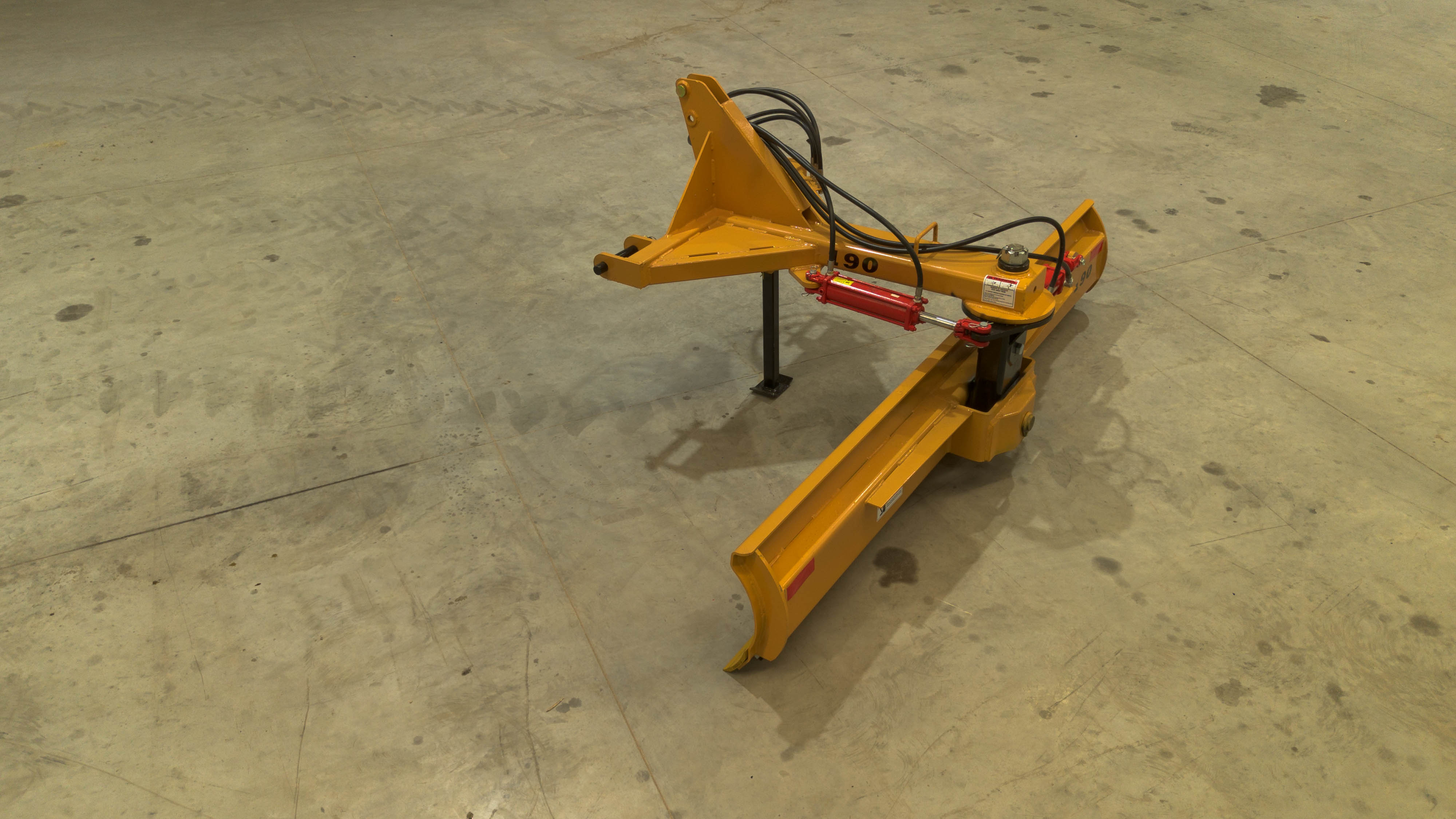

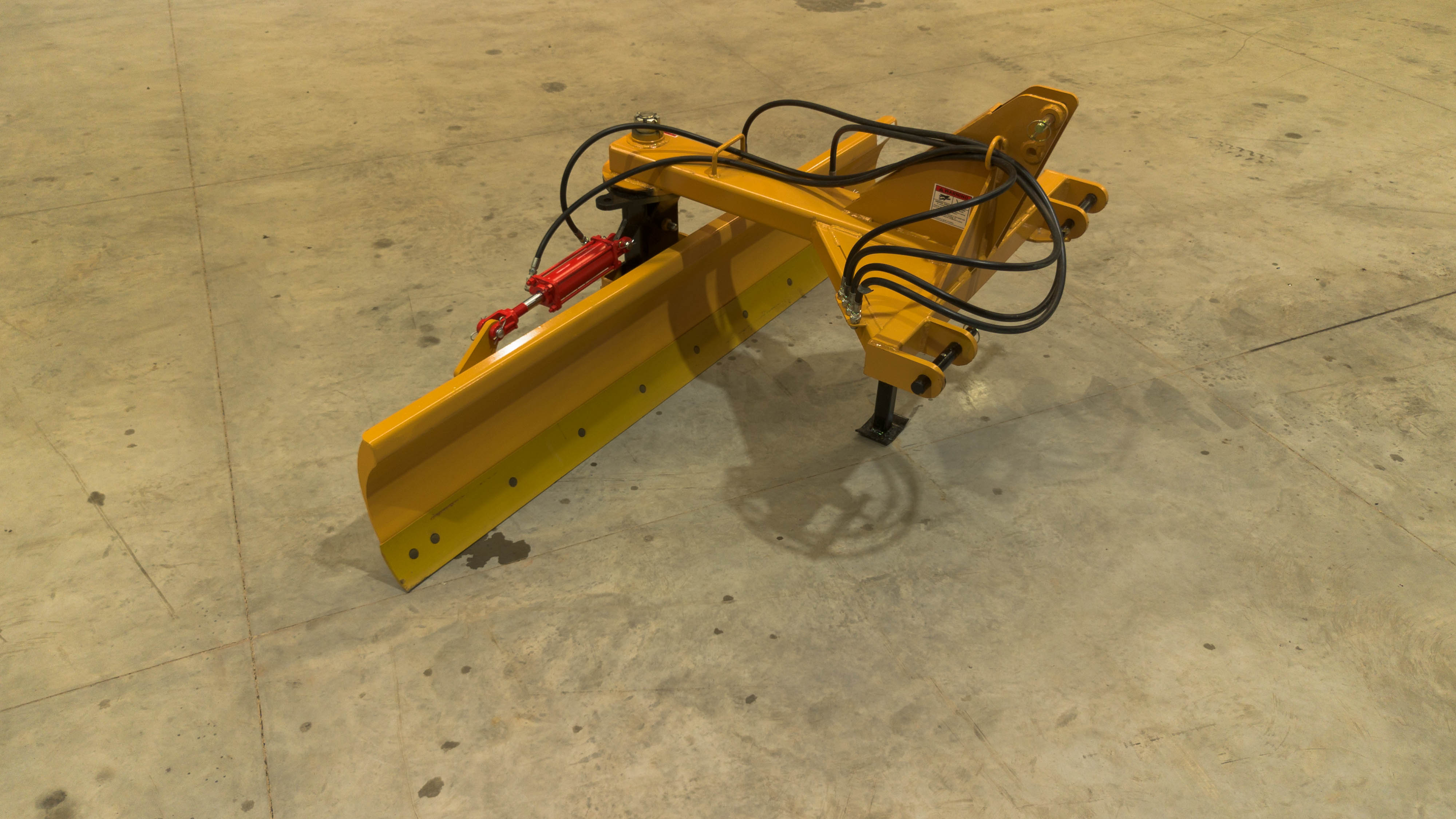

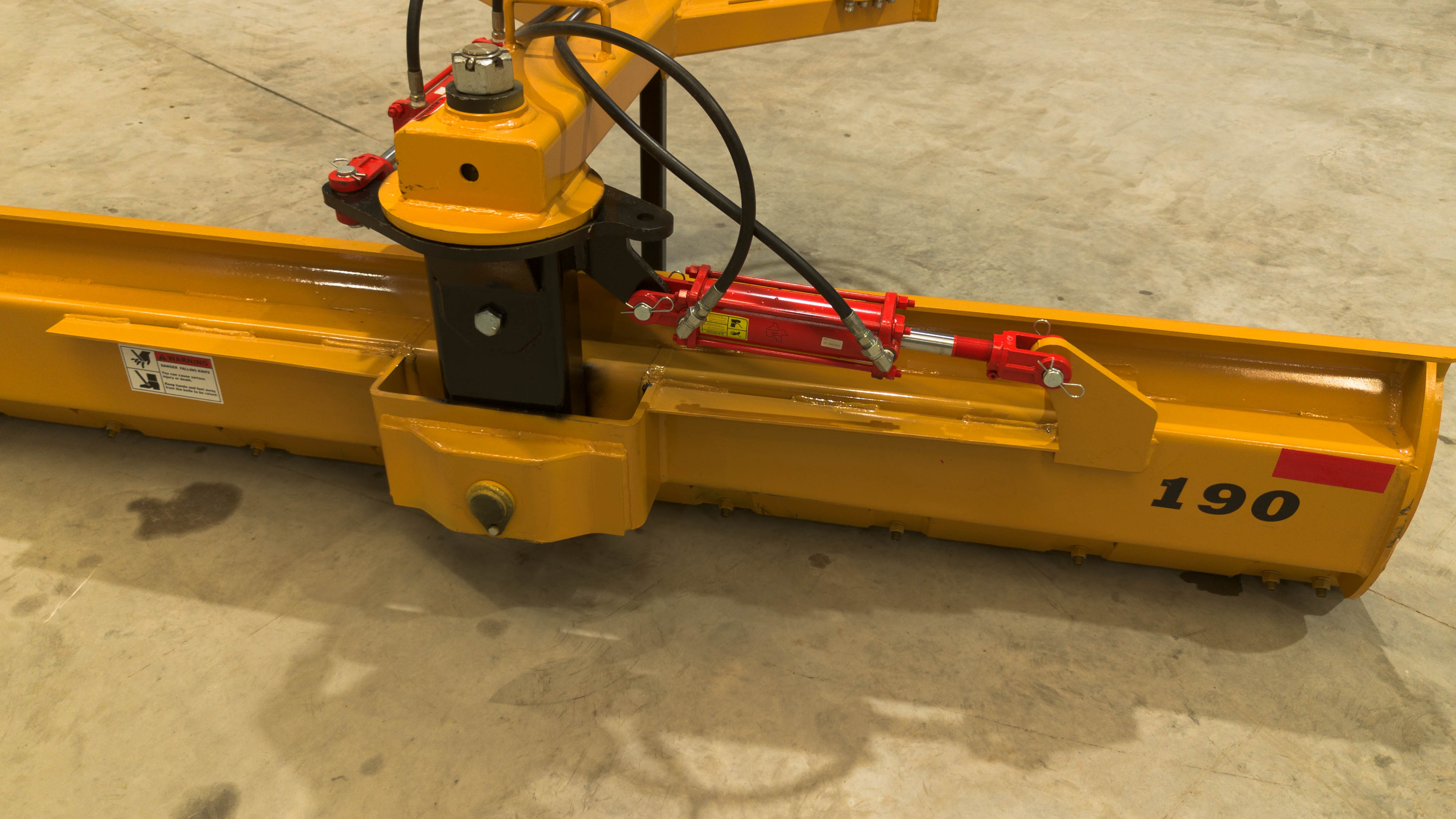

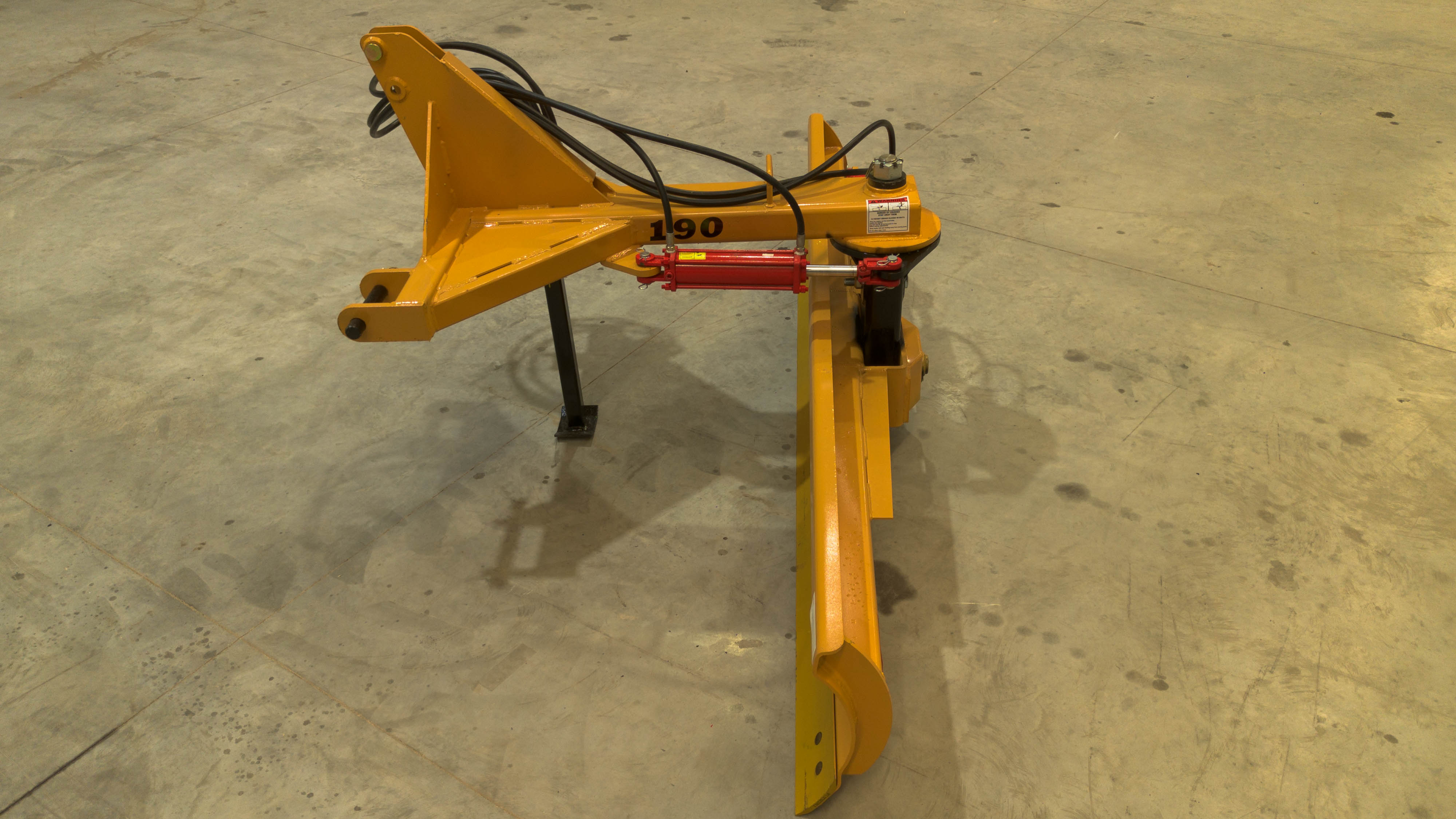

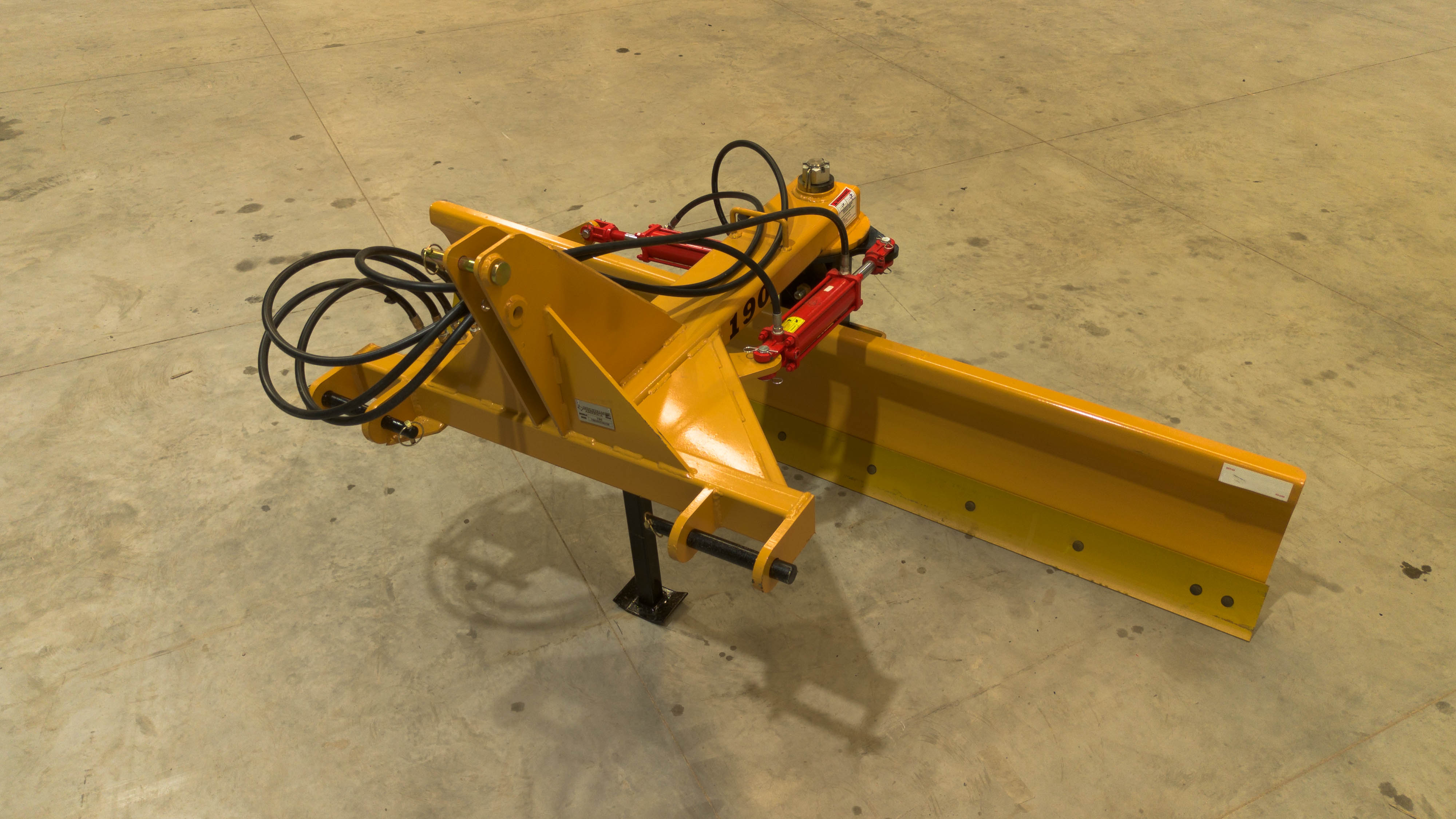

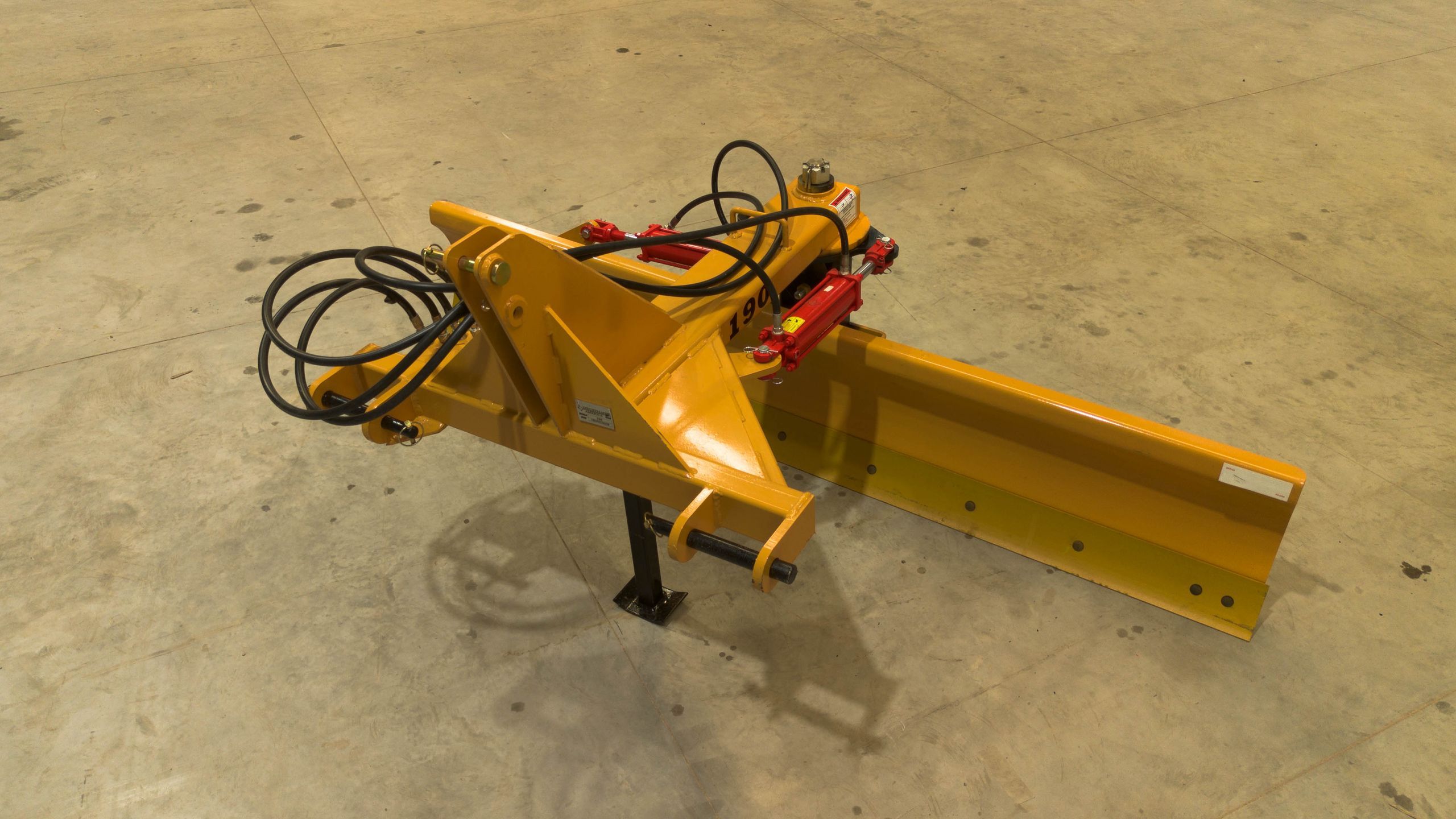

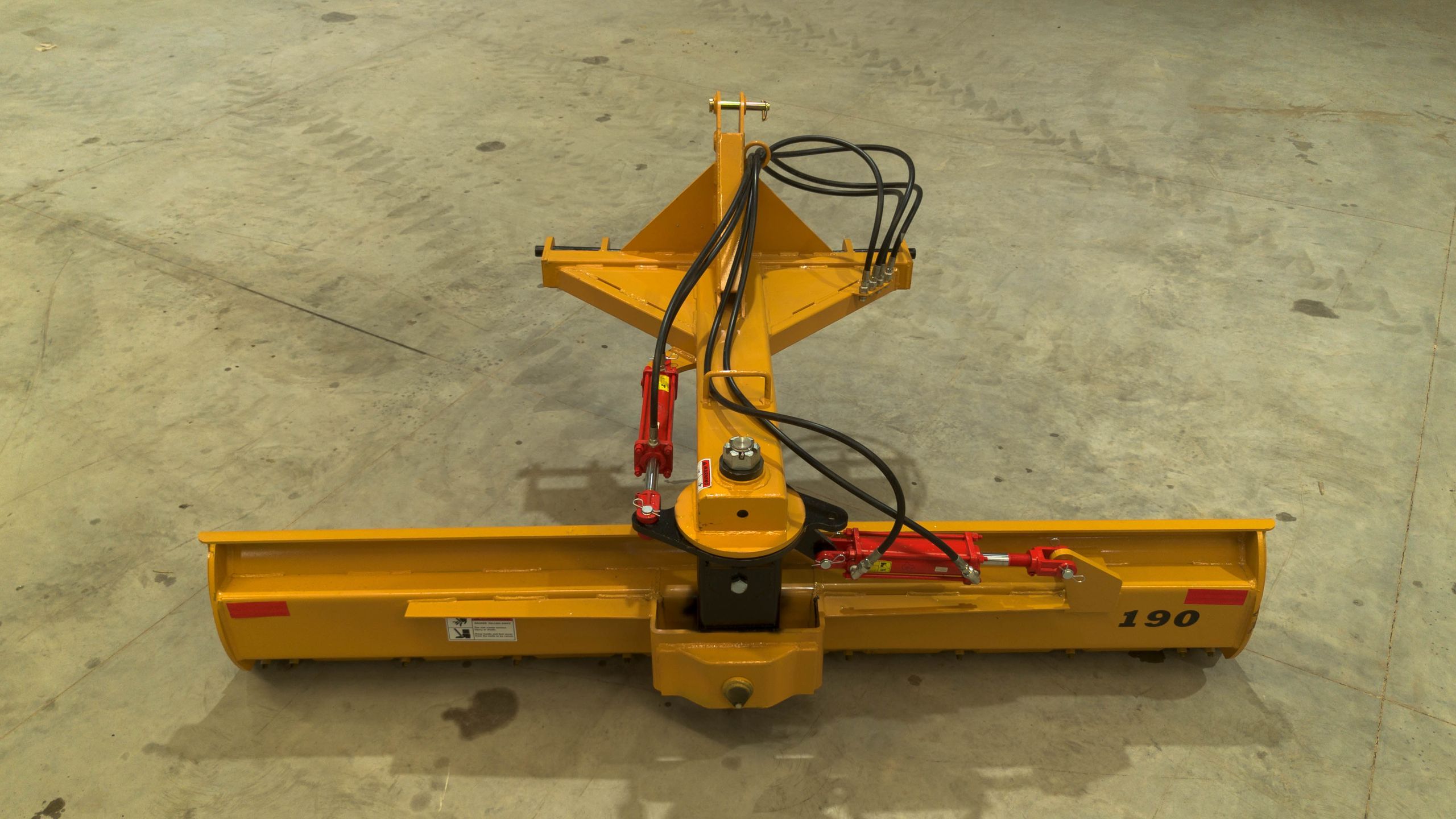

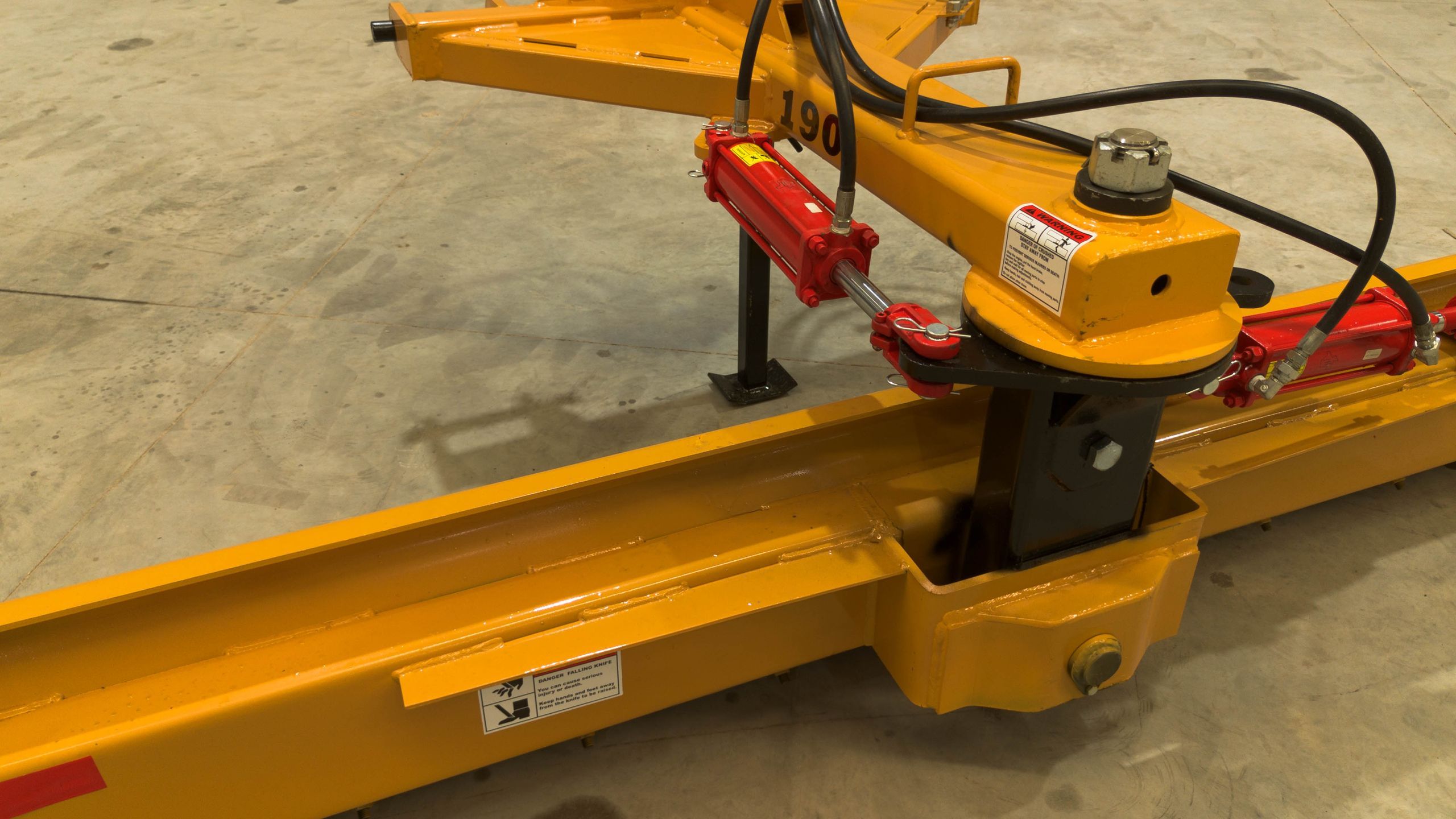

The 190 is a 9-ft hydraulic rear blade for tractors up to 110 HP. With a durable moldboard and reversible high-carbon cutting edge, it delivers reliable performance on tough soil and uneven terrain. Hydraulic tilt and a pin-lock rotation system let operators adjust the blade quickly for any grading or snow removal task.
