Specifications
| Feature | Description |
|---|---|
| Feed Type | Hay |
| Feeding Spaces | 34 |
| Total Width | 104" |
| Feeder Width | 82" |
| Total Length | 35 ft |
| Feed Space | 82"×24 ft |
| Weight | 1,260 kg |
| Pan Depth | 11" with drain holes on each end |
| Pan Material | 11-gauge steel |
| Frame | 2.5" + square tubing |
| Slant Bars / Inner Tubes | 1.75" round |
| Hitch Type | Telescopic gooseneck (extends 45") |
| Steering / Dolly | Front dolly with 2 wheels |
| Axle Configuration | Front & rear 7,000 lb spindles |
| Tires | ST235/80 R16 |
| Wheel Count | 4 |
| Finish / Color | Red powder coat |
| Feed Types Supported | Round or square hay bales |

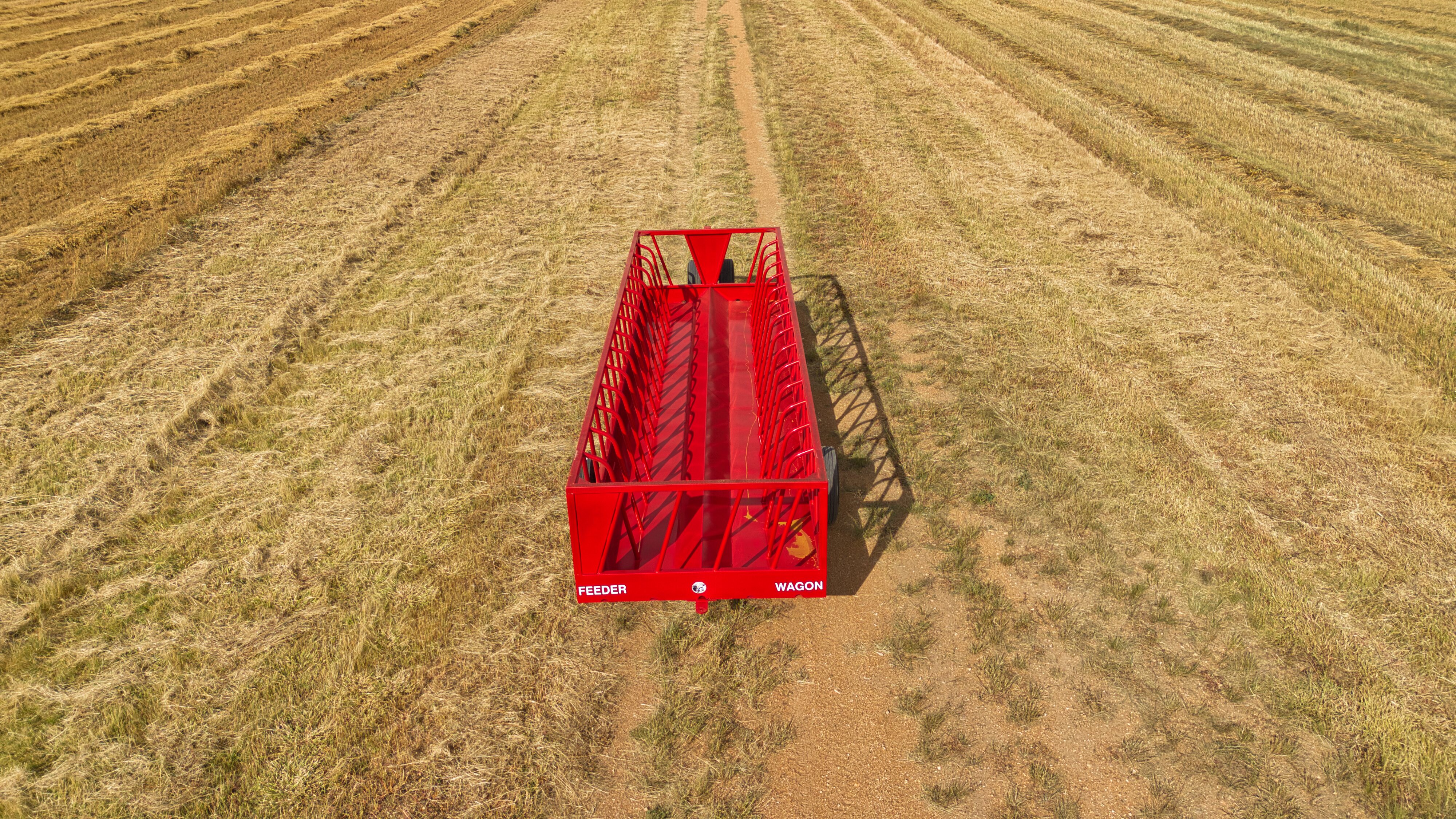

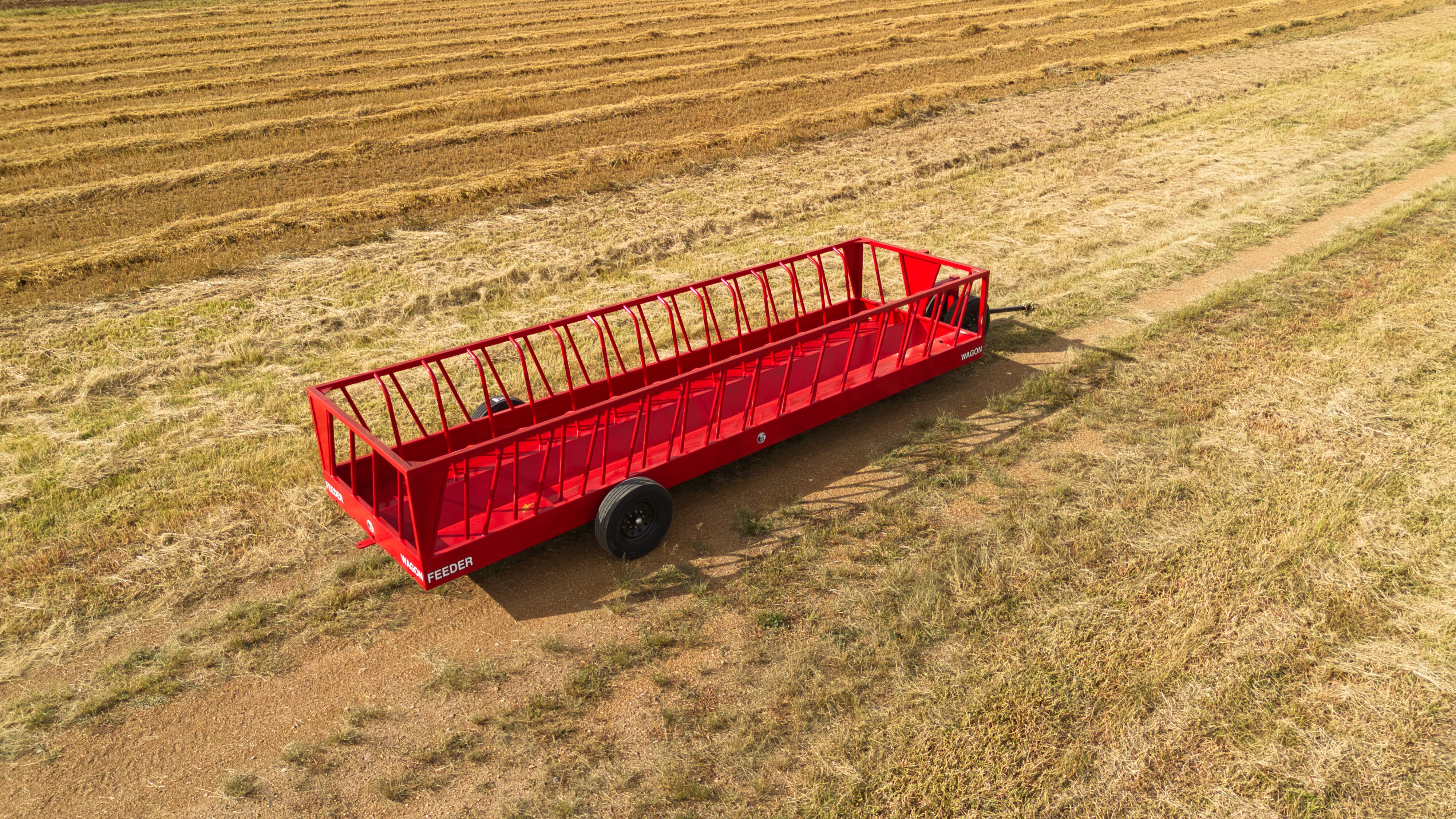

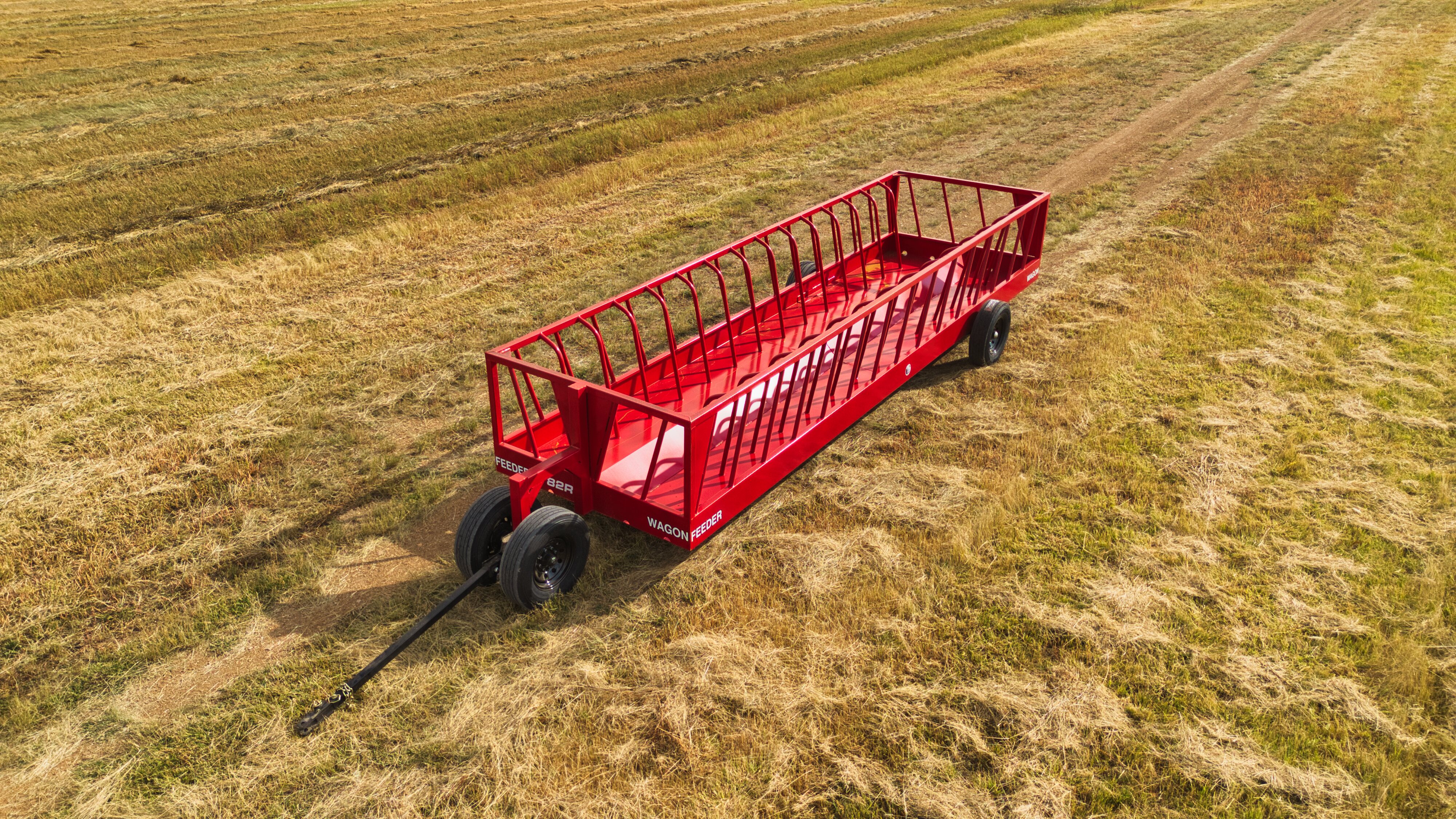

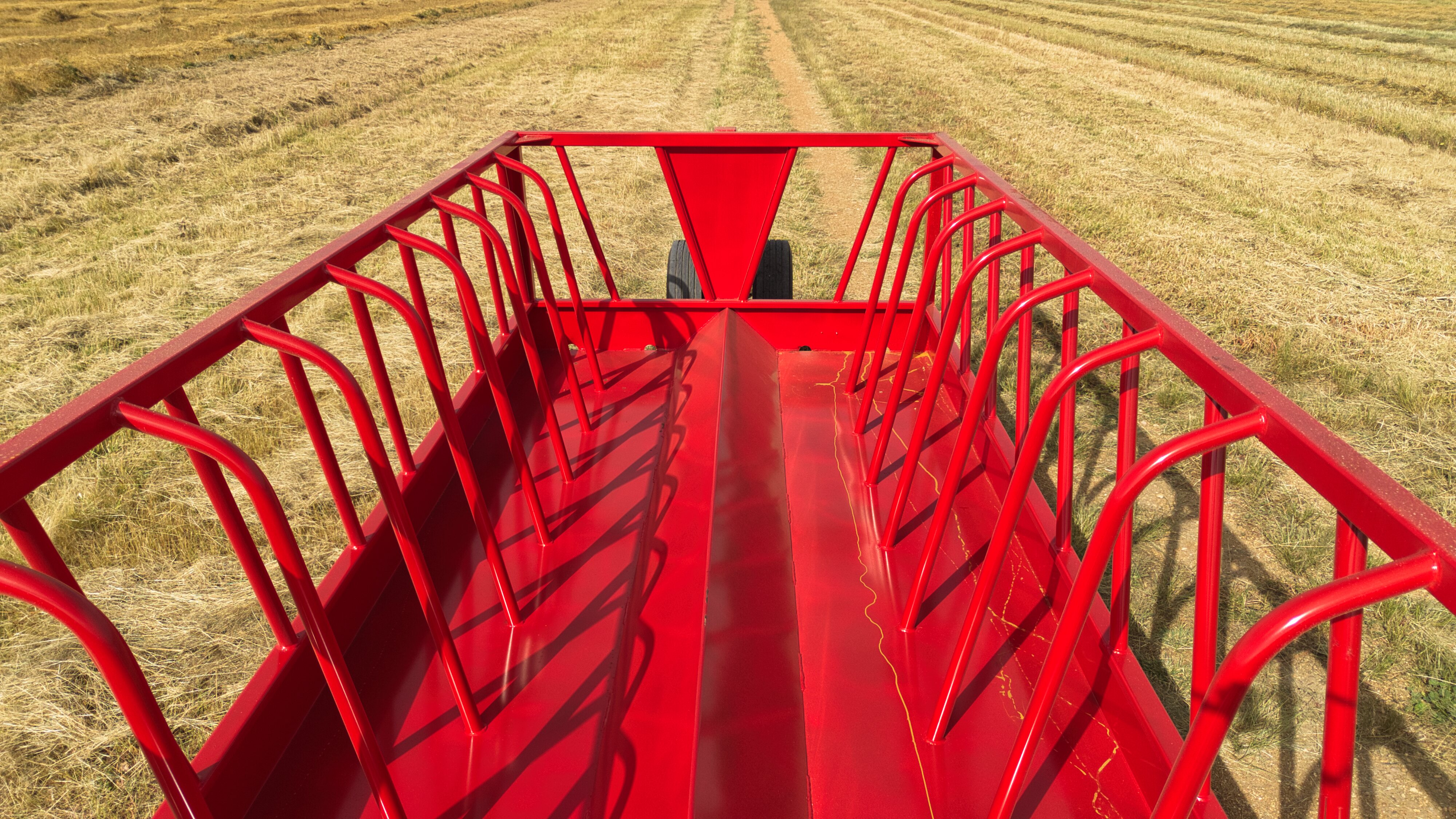

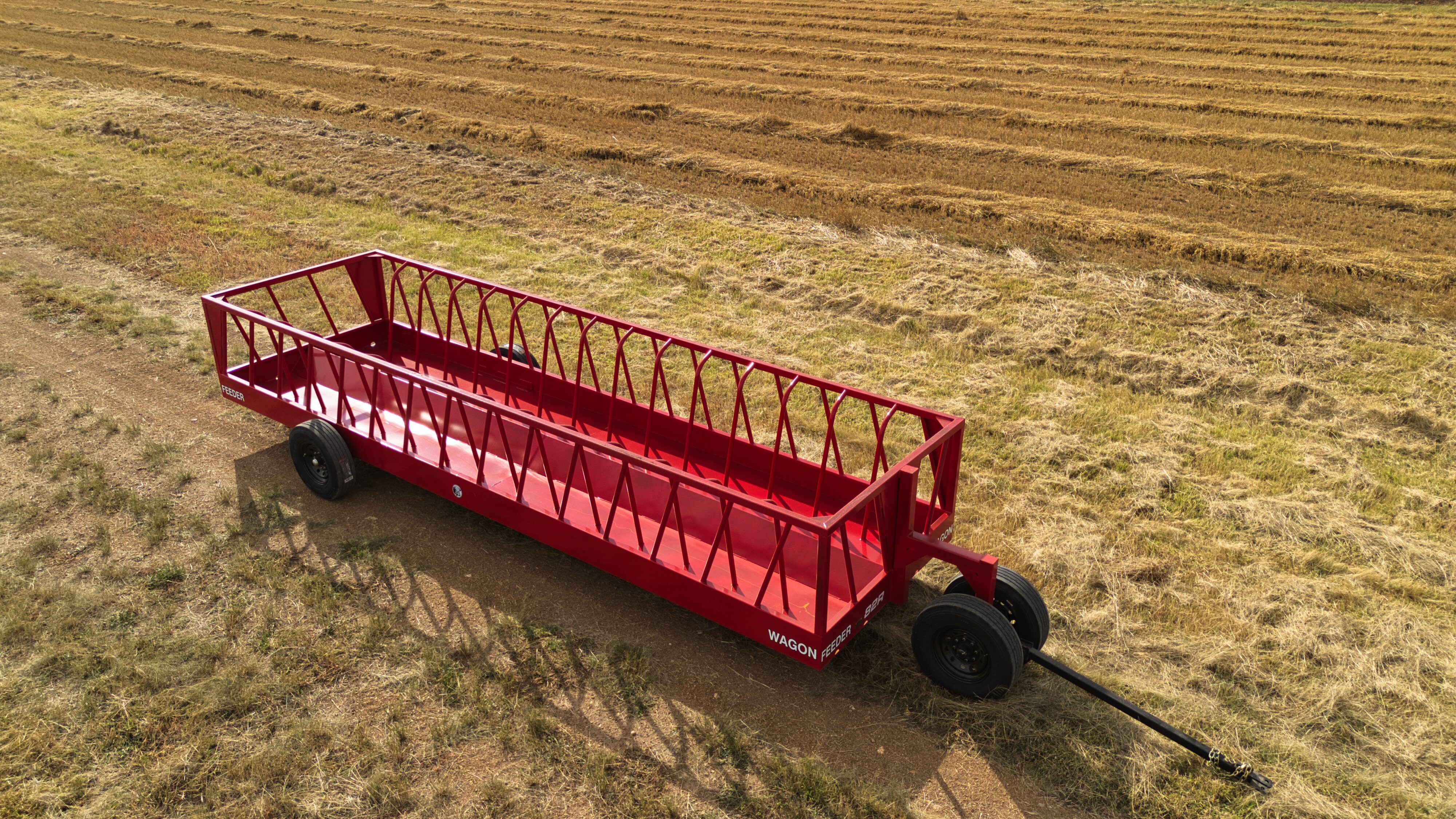

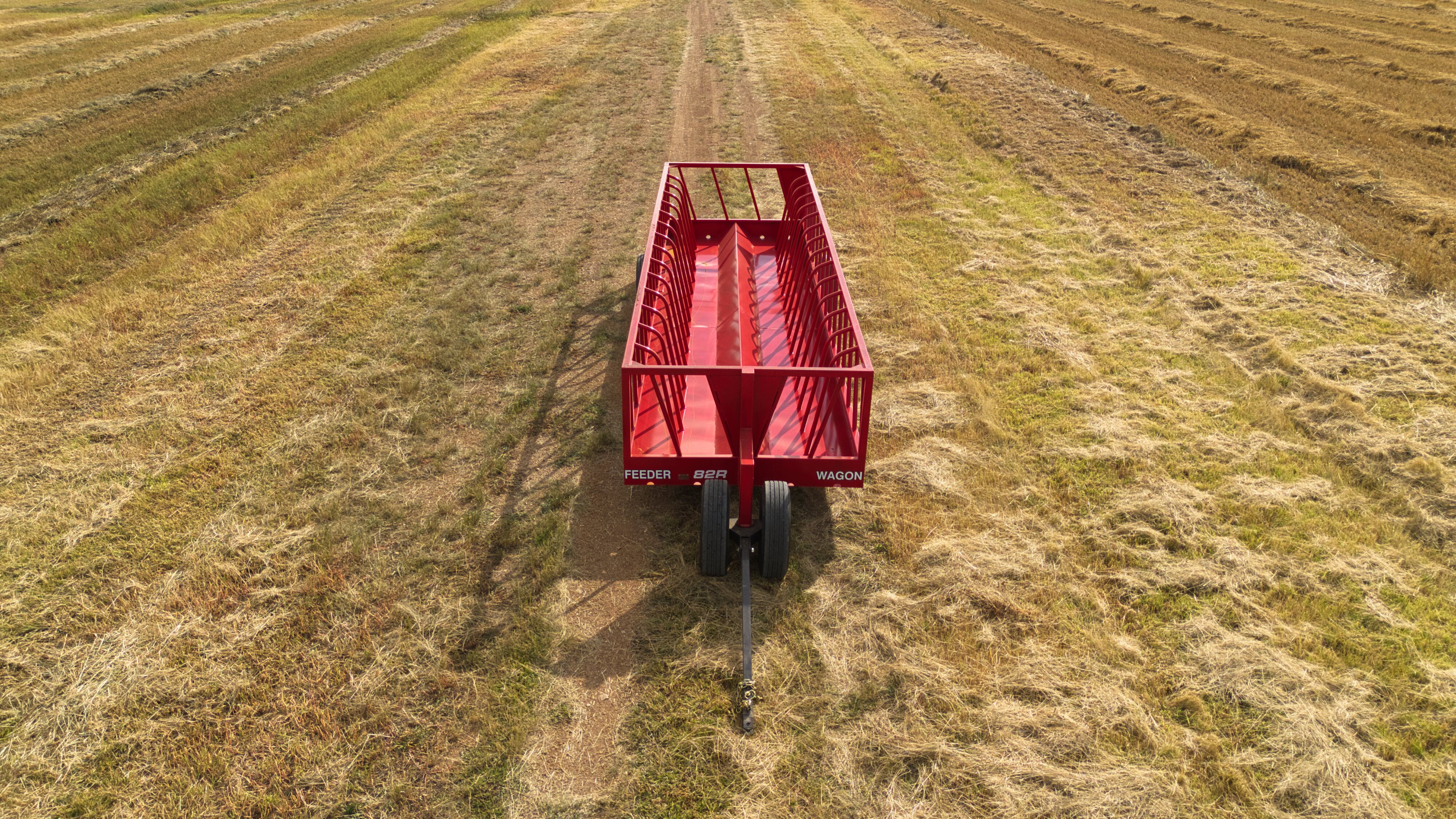

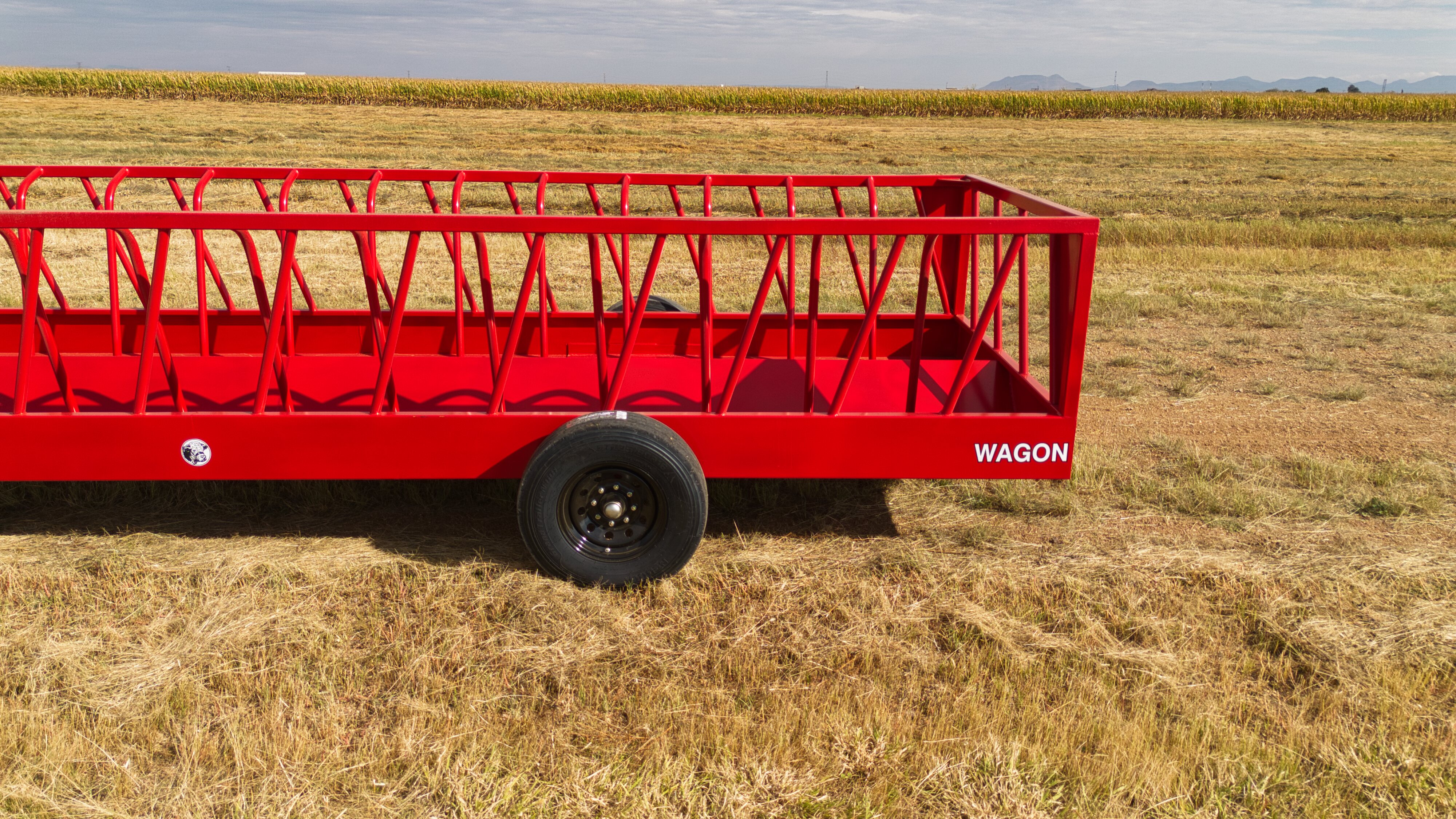

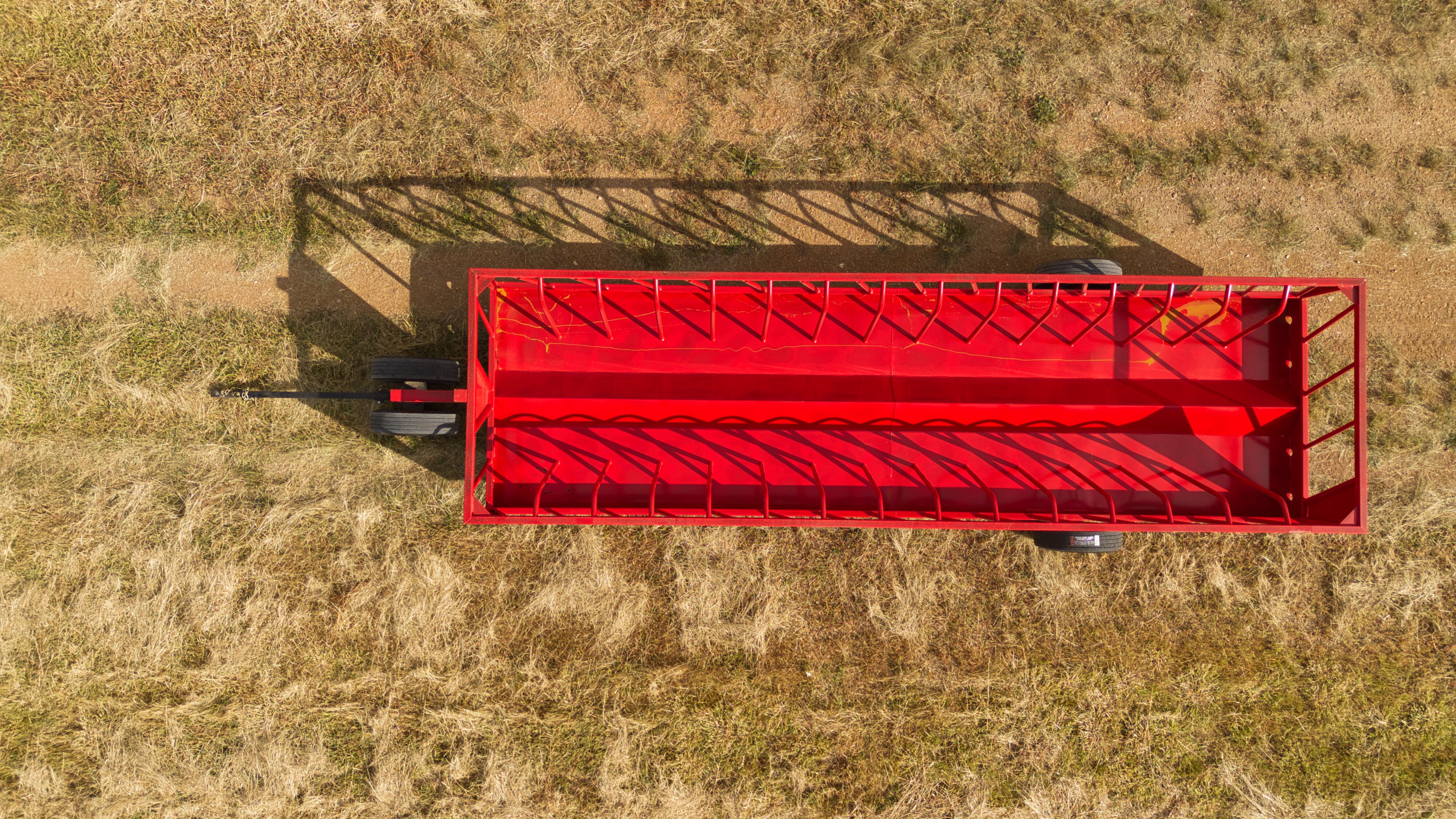

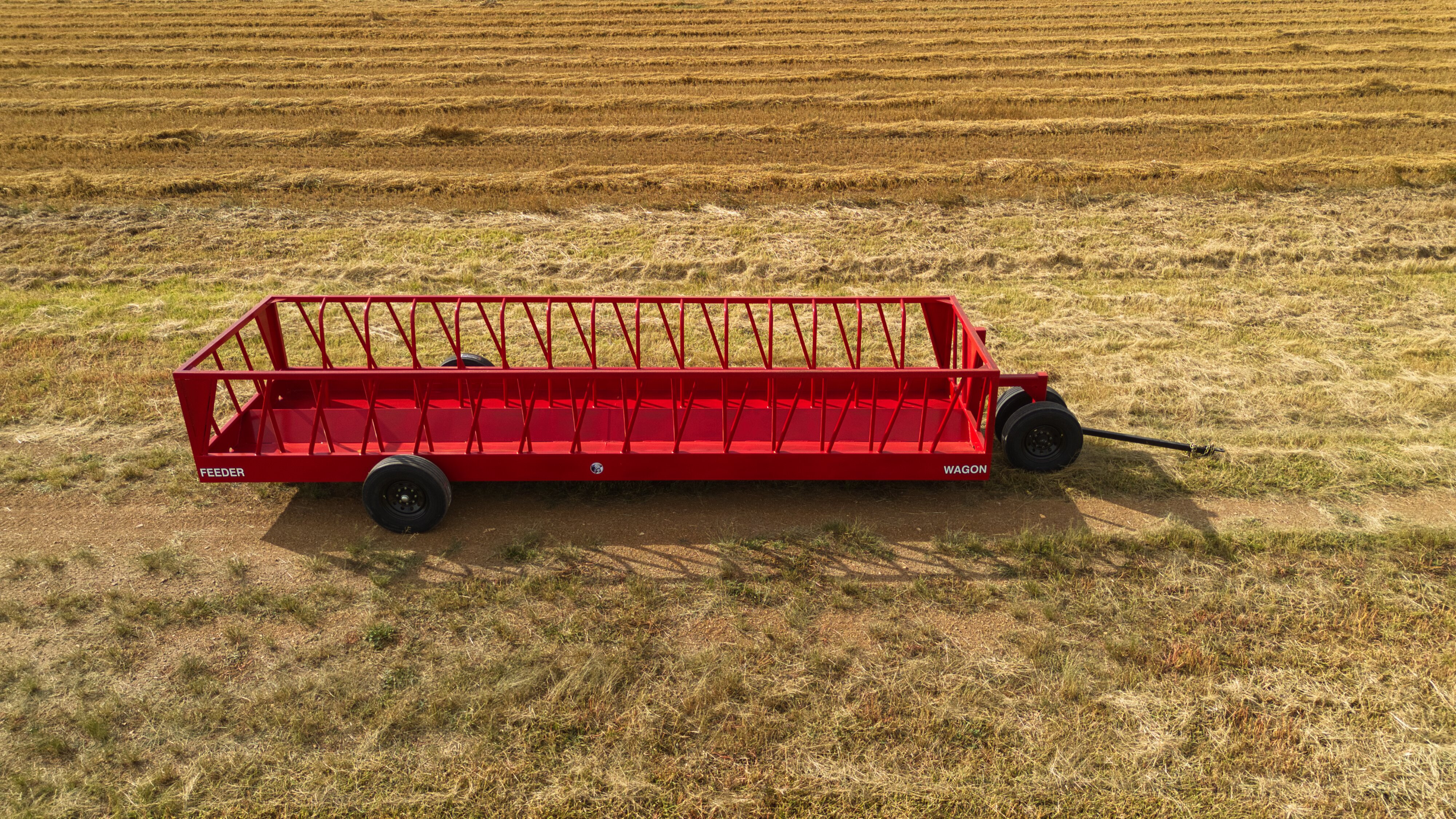

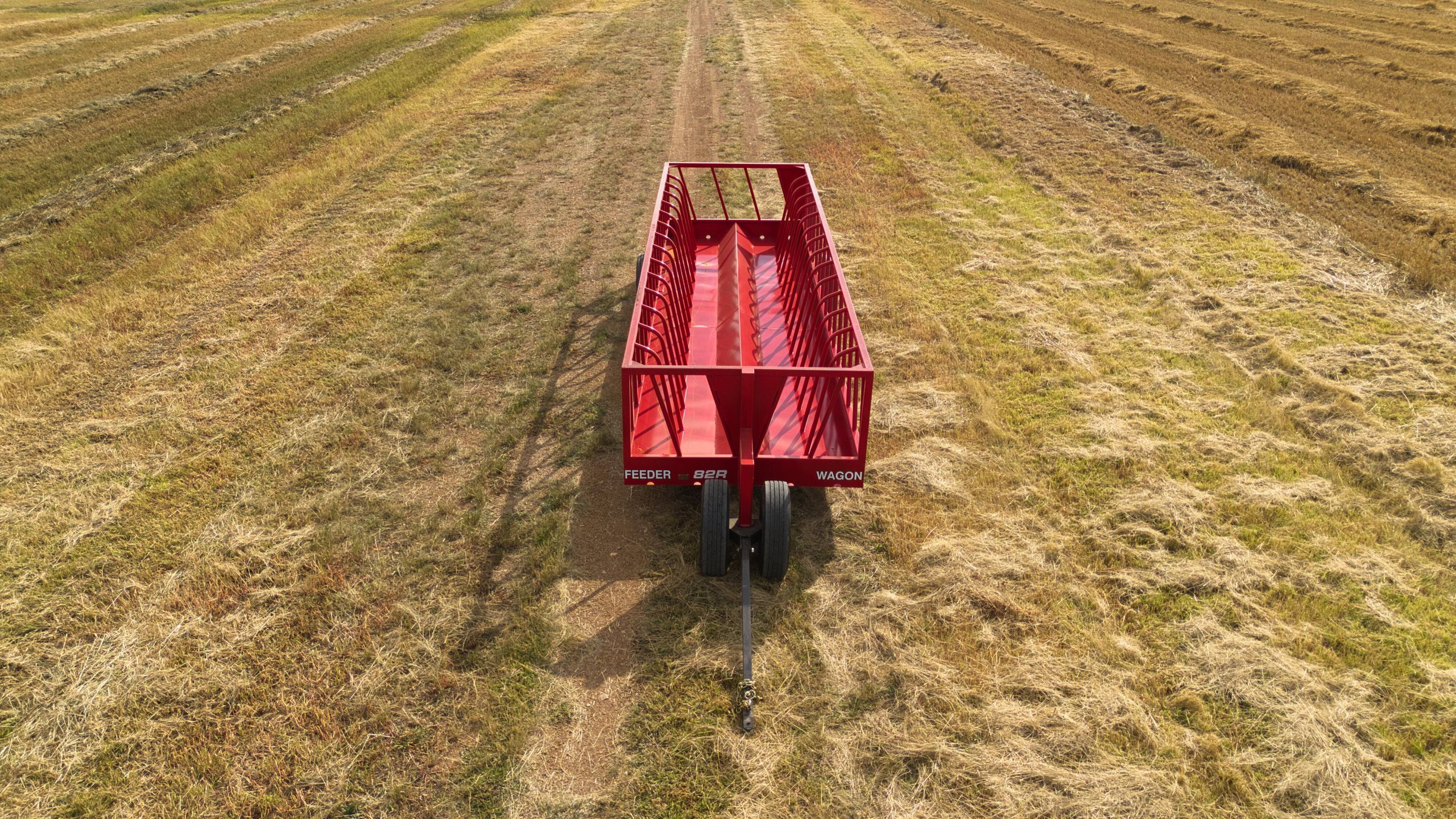

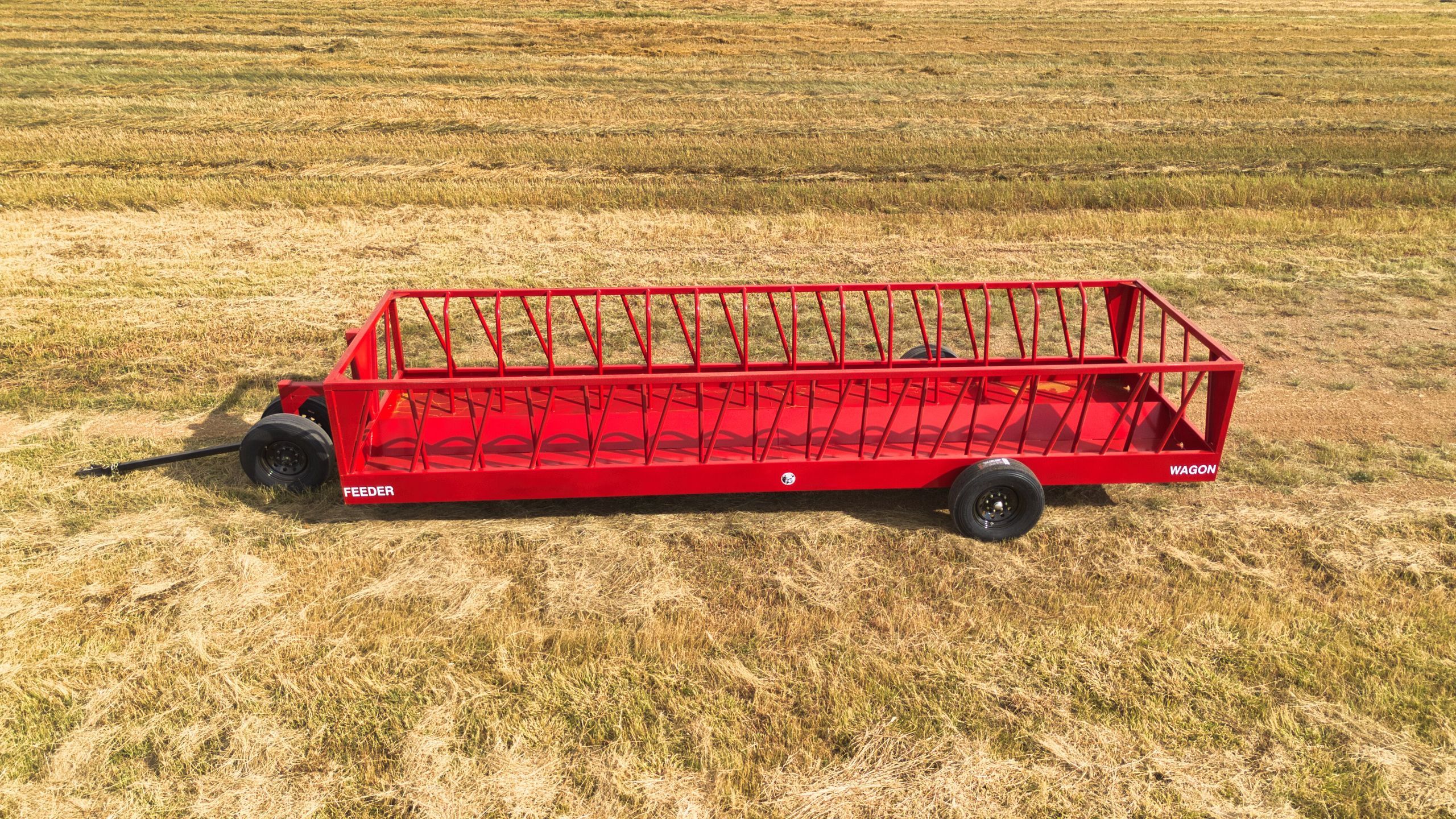

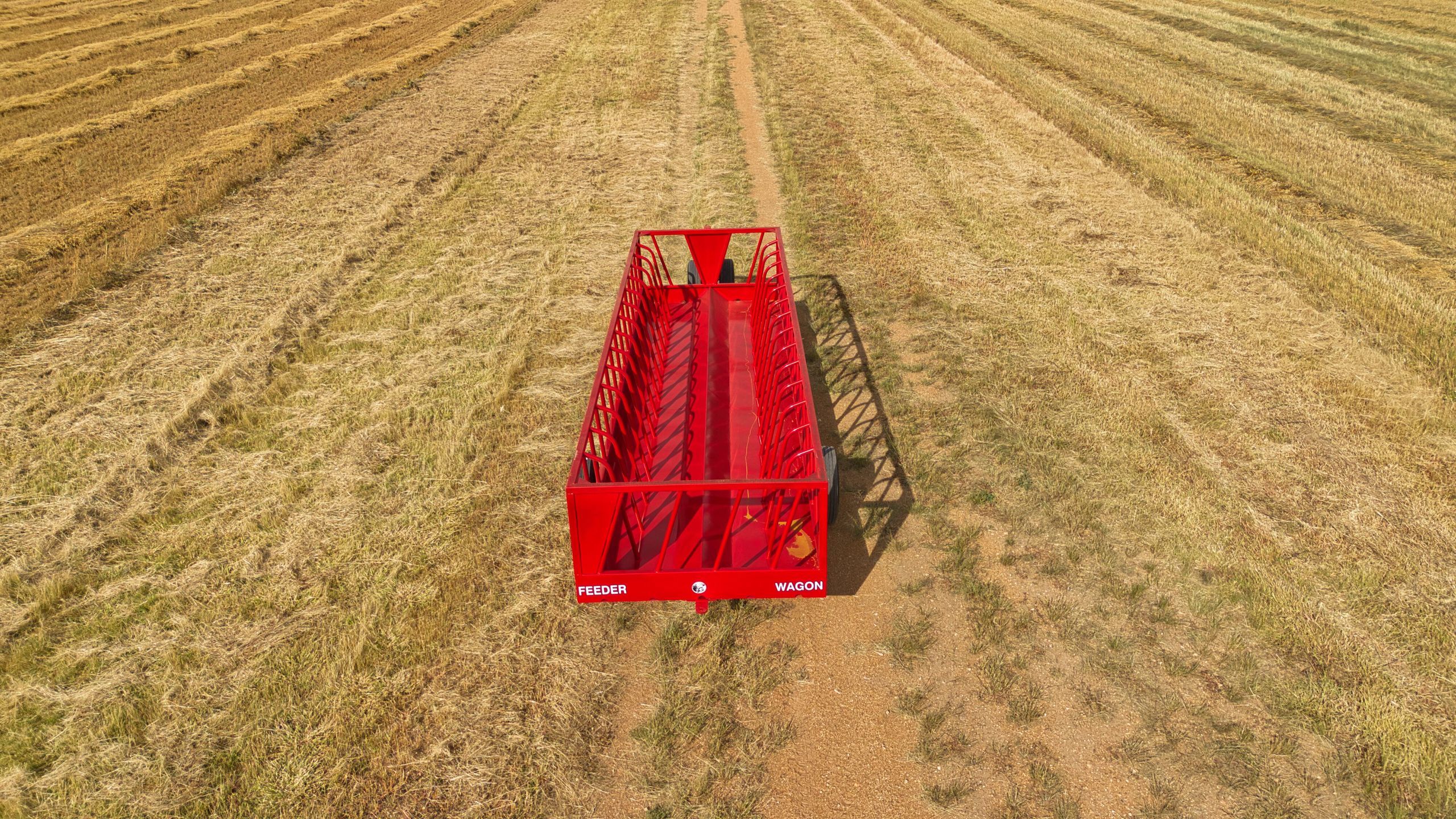

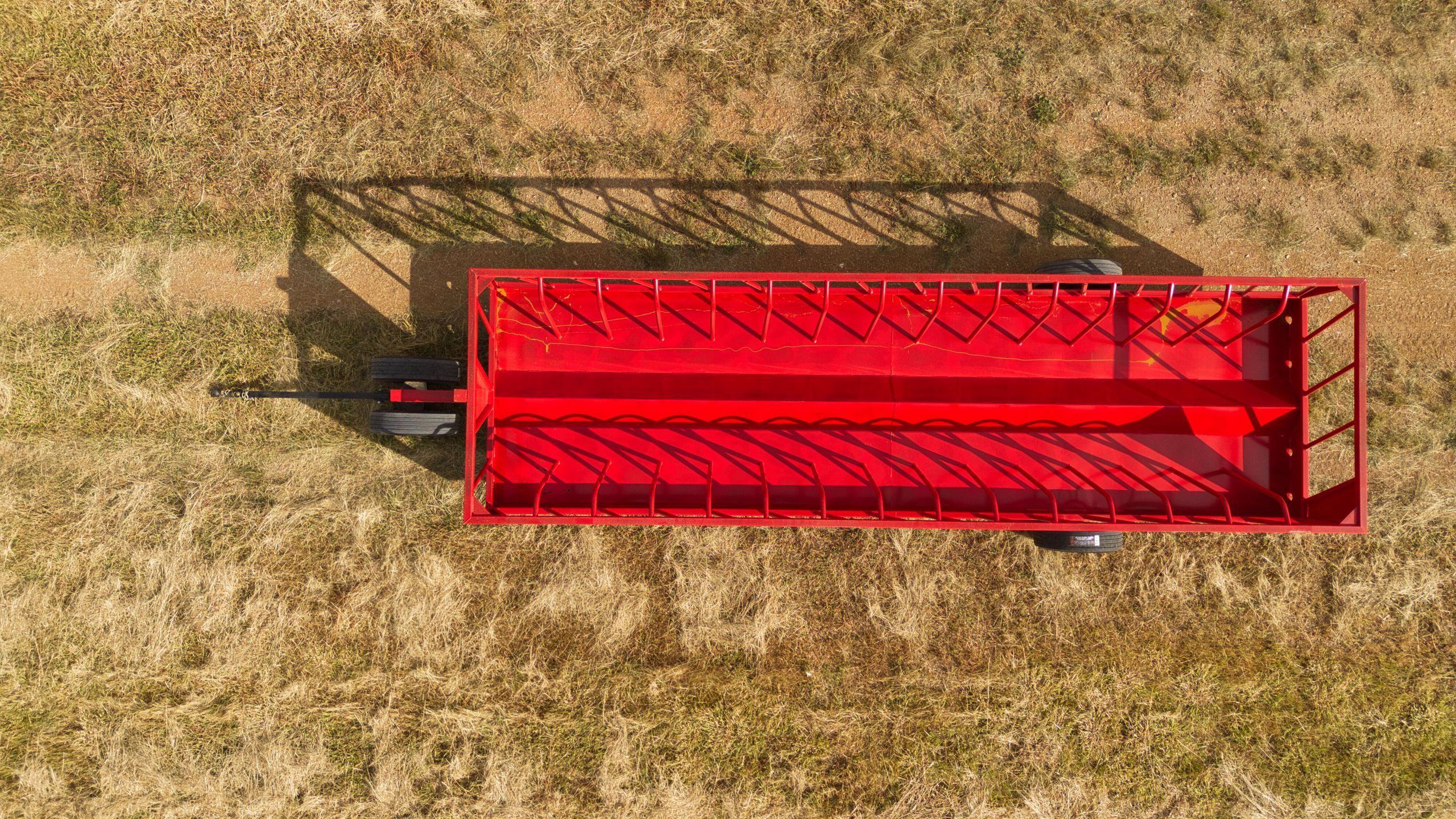

The 82R Hay Feeder Wagon is built for simplicity, durability, and efficient feeding of large hay bales. It features a compact front dolly with a mini gooseneck and a 45-inch telescopic hitch, allowing tight turning and easy towing in feedlots or barns. The 11-gauge steel pan with drain holes and a center feed angle ensures that hay slides smoothly to both sides for even distribution. Its reinforced 2.5" square tubing frame and 1.75" round slant bars provide exceptional strength and resistance to deformation. Ideal for livestock operations feeding hay in round or square bale form.
