Specifications
| Feature | Description |
|---|---|
| • Weight | 2,083 kg |
| • Working Width | 14 ft |
| • Transport Width | 12 ft |
| • Transport Length | 19 ft |
| • Moldboard Size | 14' × 30" (2 × 7' high-strength steel sections) |
| • Cutting Edge | 2 × 7' × 6" × ½", reversible, double bevel hardened steel |
| • Hitch | Pull-type, lunette ring (pintle hitch compatible) |
| • Tire Size | 14L-16.1 12PR implement tires |
| • Spindle Size | 2.5 in |
| • Wheel Hubs | 8-bolt |
| • Hydraulic Circuits Required | 4 |
| • Blade Swing Cylinders | 2 × 5×24 in |
| • Tilt Cylinder | 1 × 4×8 in |
| • Raise/Lower Cylinder | 1 × 4×10 in |
| • Rear Steer Cylinder | 1 × optional 3×8 in |
| • Weight Box | 45 × 32 × 12 in |
| • Horsepower Required | 130–140 HP |
| • Blade Angle Range | 0°–45° left/right |
| • Cutting Depth | Adjustable with wheel lift, up to ~2 in (soil dependent) |
| • Side Plates | Adjustable for box scraper function |

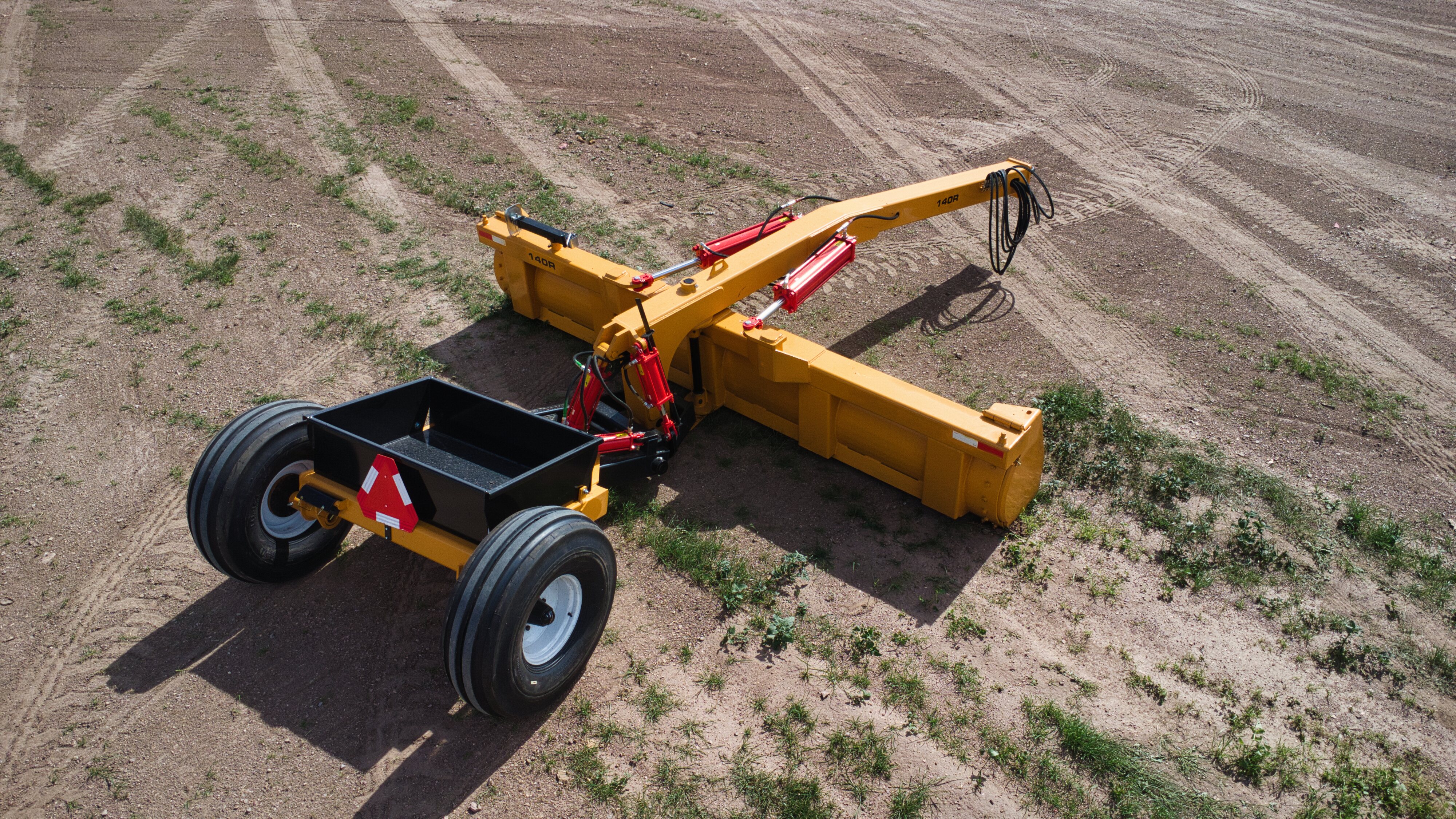

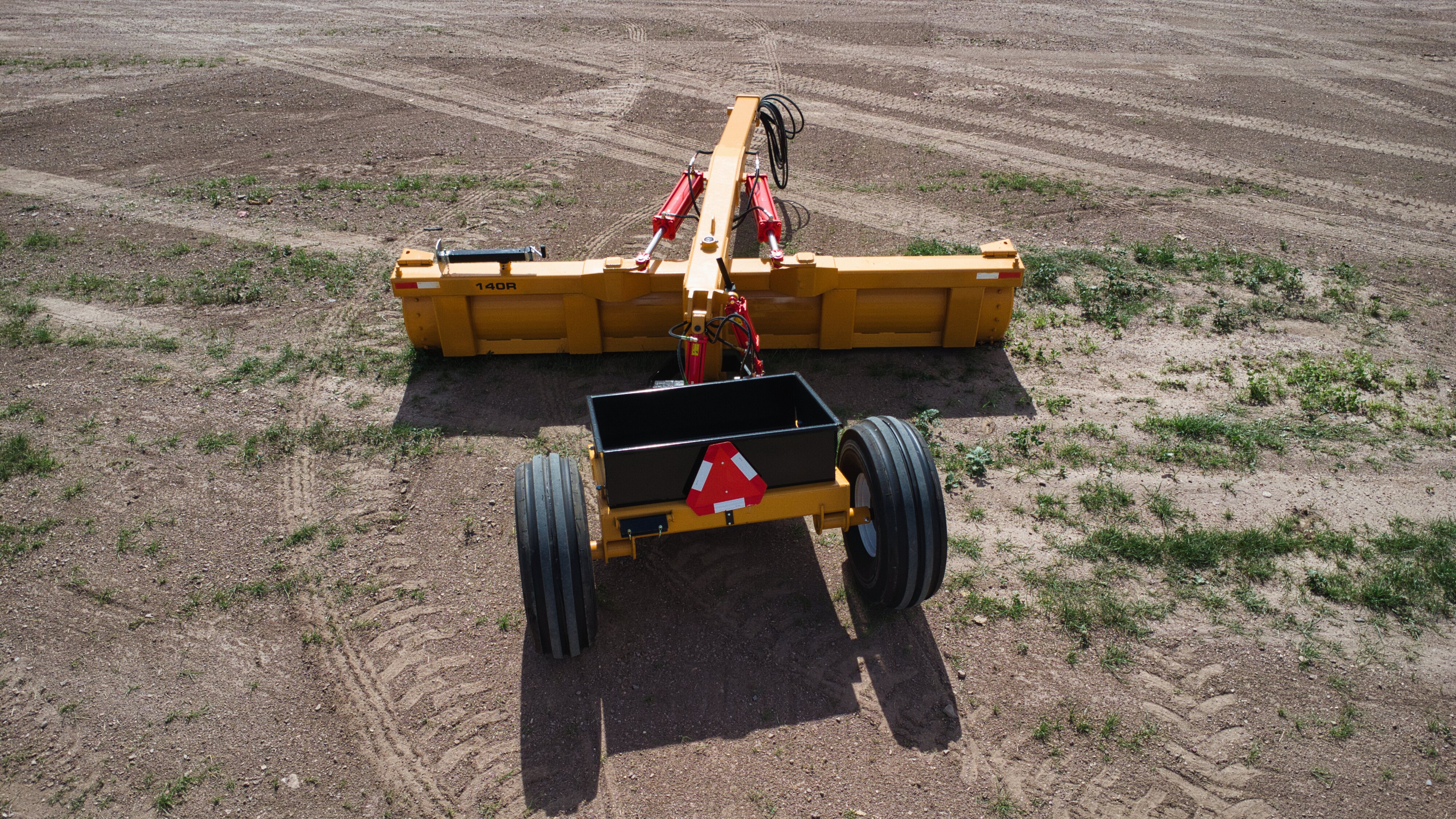

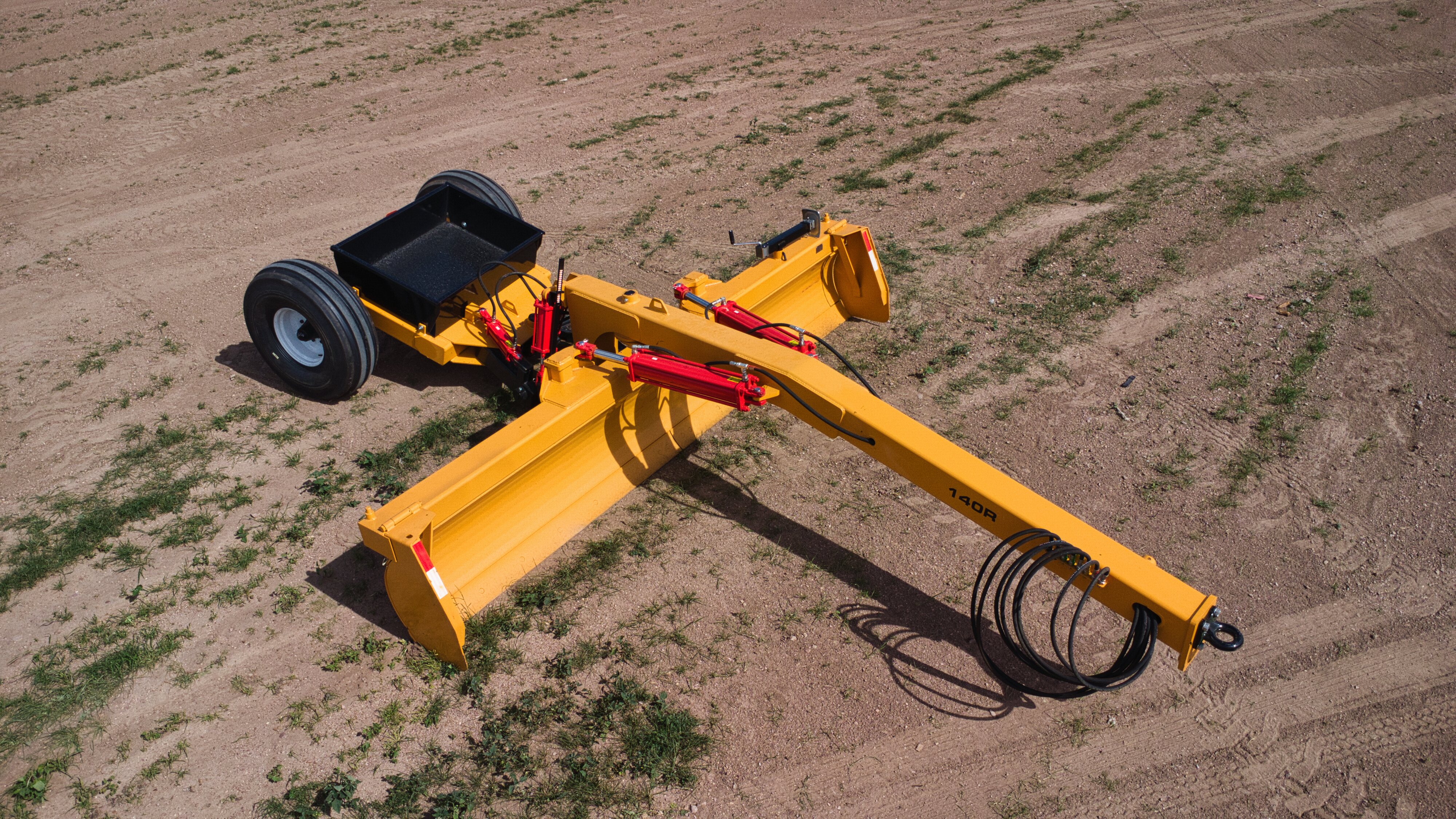

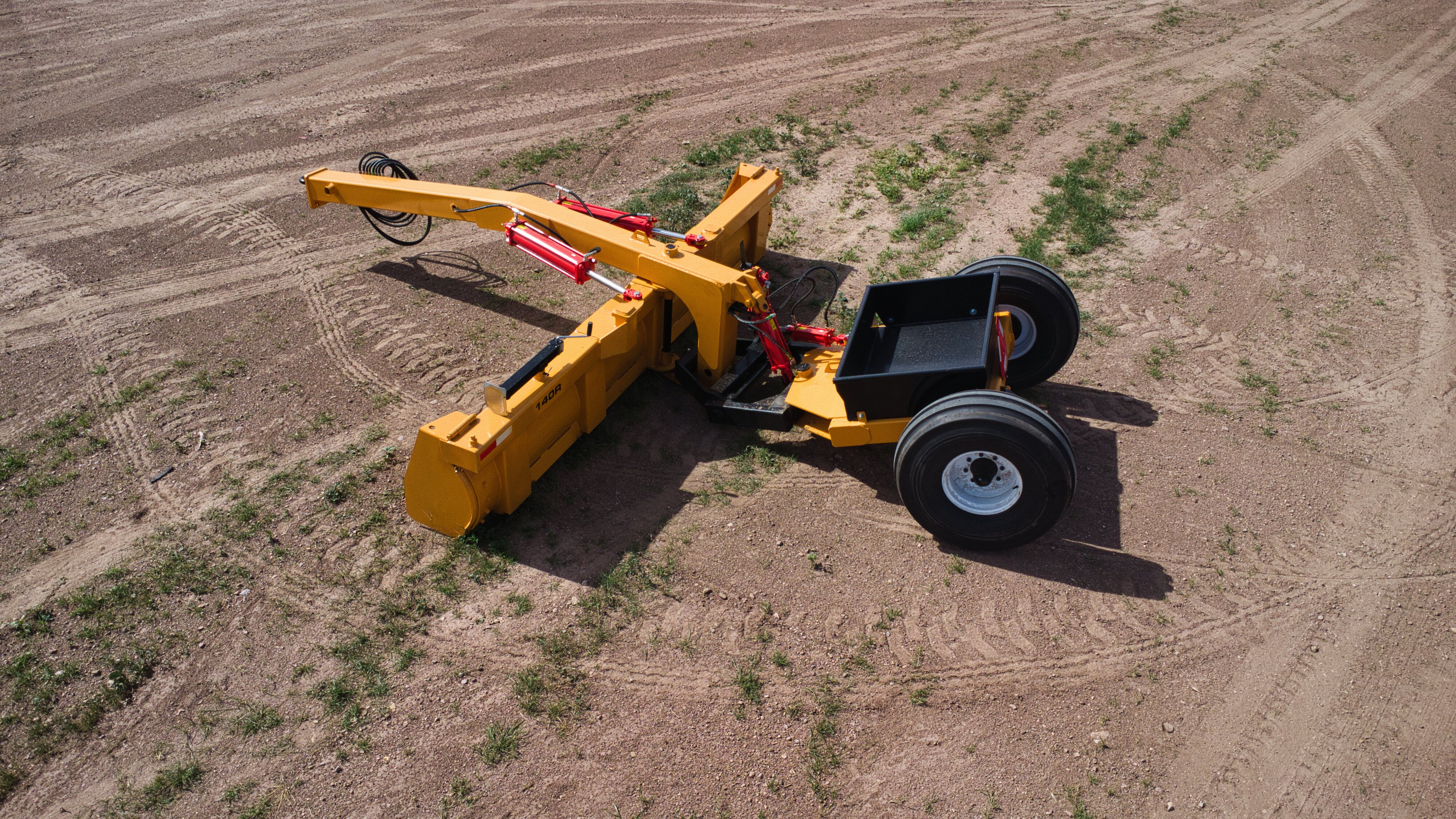

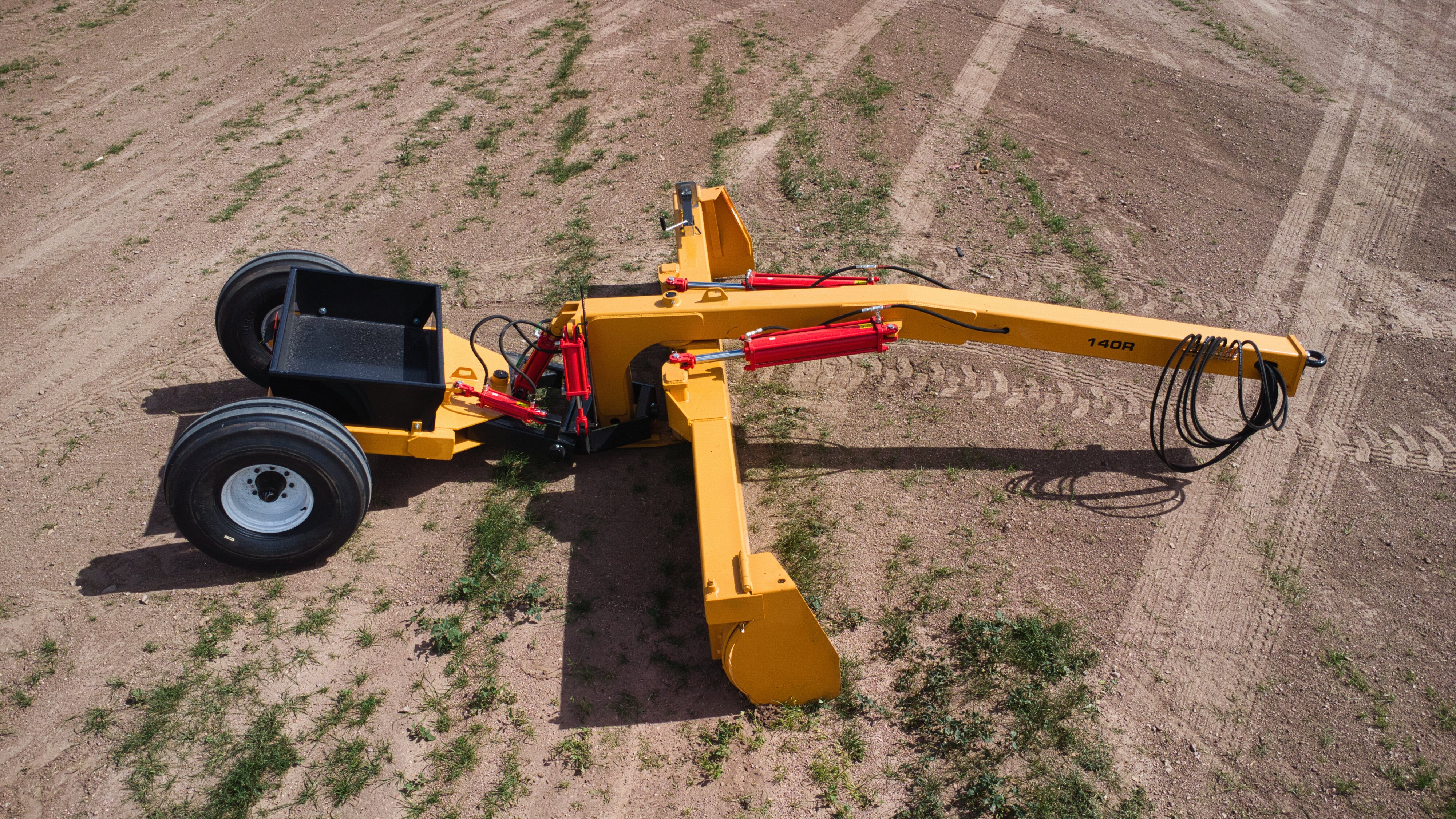

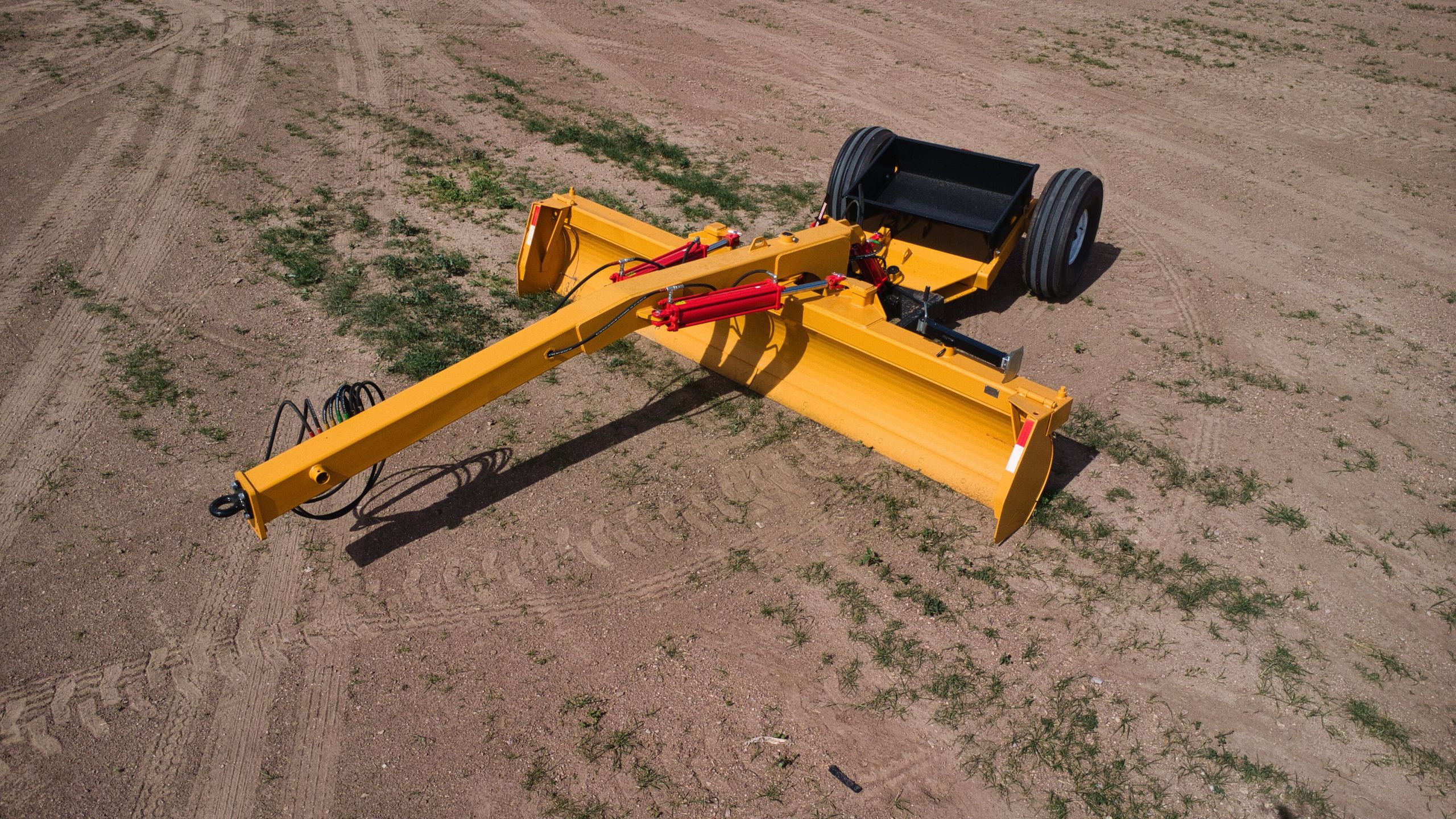

With a 14 ft moldboard and reinforced dual cutting edges, the 140R is designed for demanding jobs. Built to pair with 130–140 HP tractors, it handles road construction, ditch shaping, and land leveling with ease. Adjustable side plates add box scraper versatility, while its robust hydraulic system provides precise blade control.
