Specifications
| Feature | Description |
|---|---|
| Type | Single-row round bale hauler (M-series) |
| Application | Farm and ranch bale transport |
| Frame | Powder-coated square-tube gooseneck (9.5 ft) |
| Bale Capacity | 8 × 62" round bales |
| Cradle Length | 42 ft |
| Total Length | 51.5 ft (incl. gooseneck) |
| Dumping System | Manual side-tip with lever bar |
| Axles | Tandem 2 × 7,000 lb |
| GAWR | 7,000 lb |
| GVWR | 14,000 lb |
| Jacks | 1 × 12k |
| Brakes | Standard electric brakes with breakaway system |
| Safety | Safety chains included |
| Tires | 4x 235/80R 16PLY, 16" rims,(single) |
| Shipping Weight | 3,638 lb |

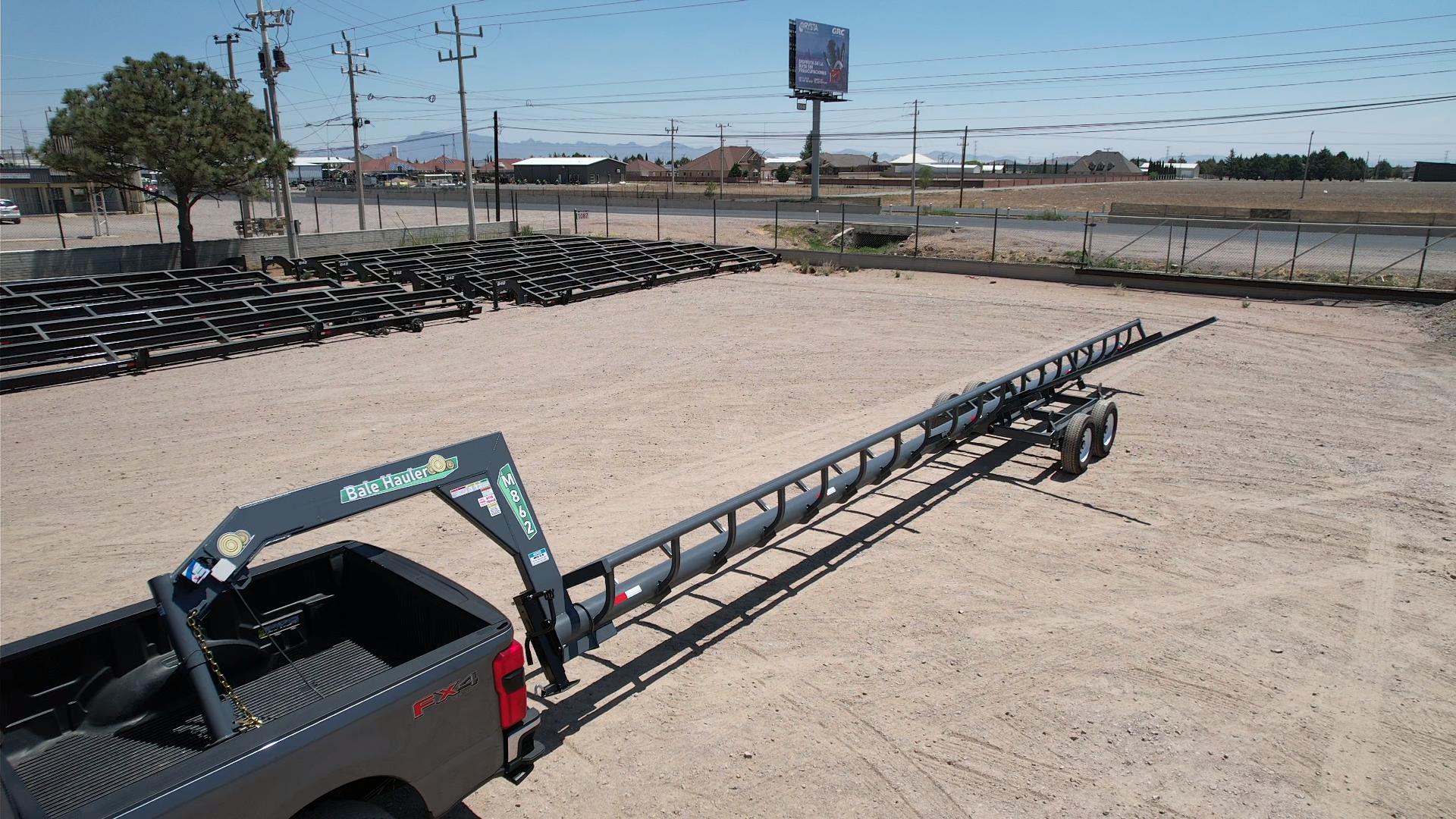

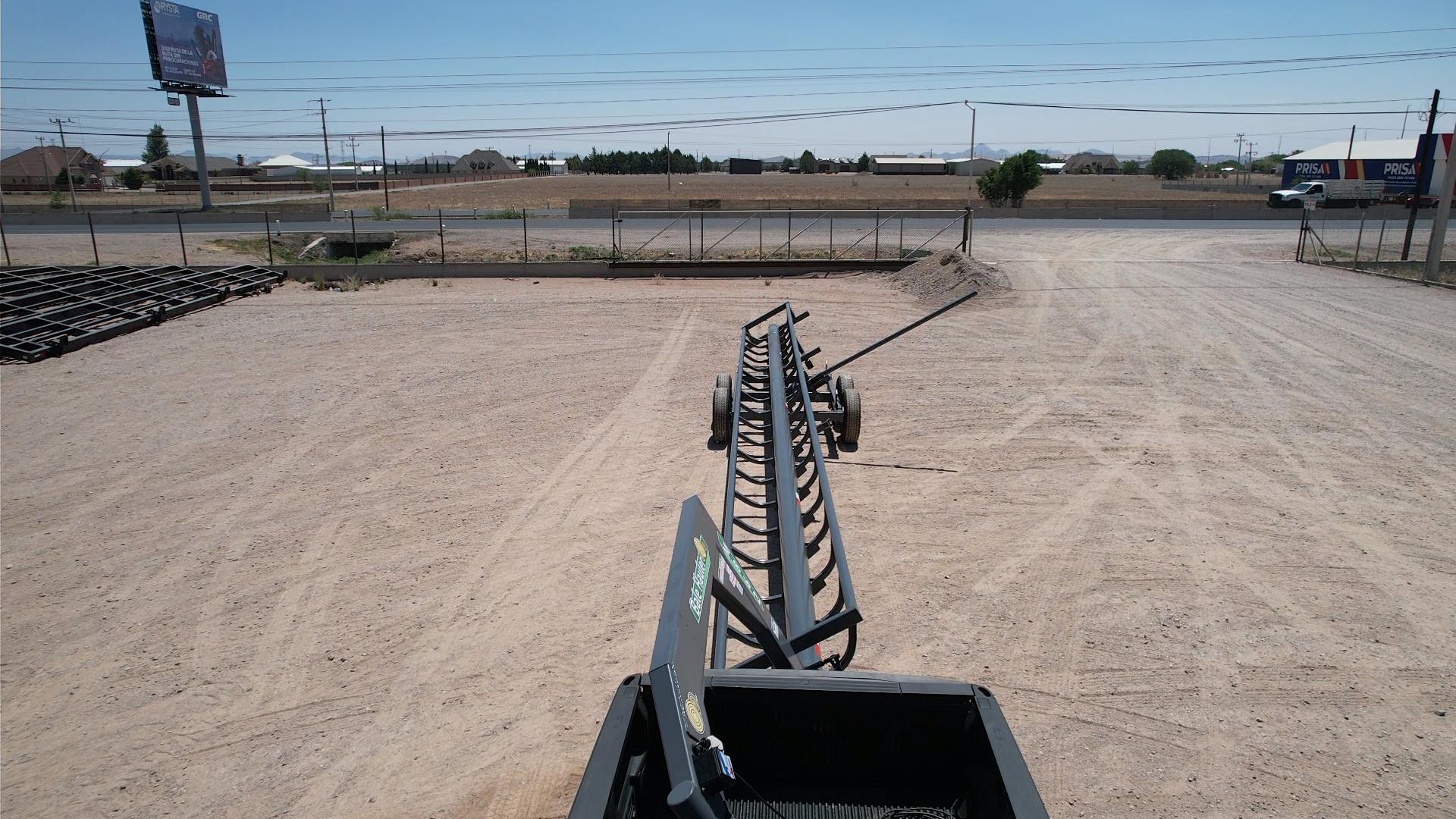

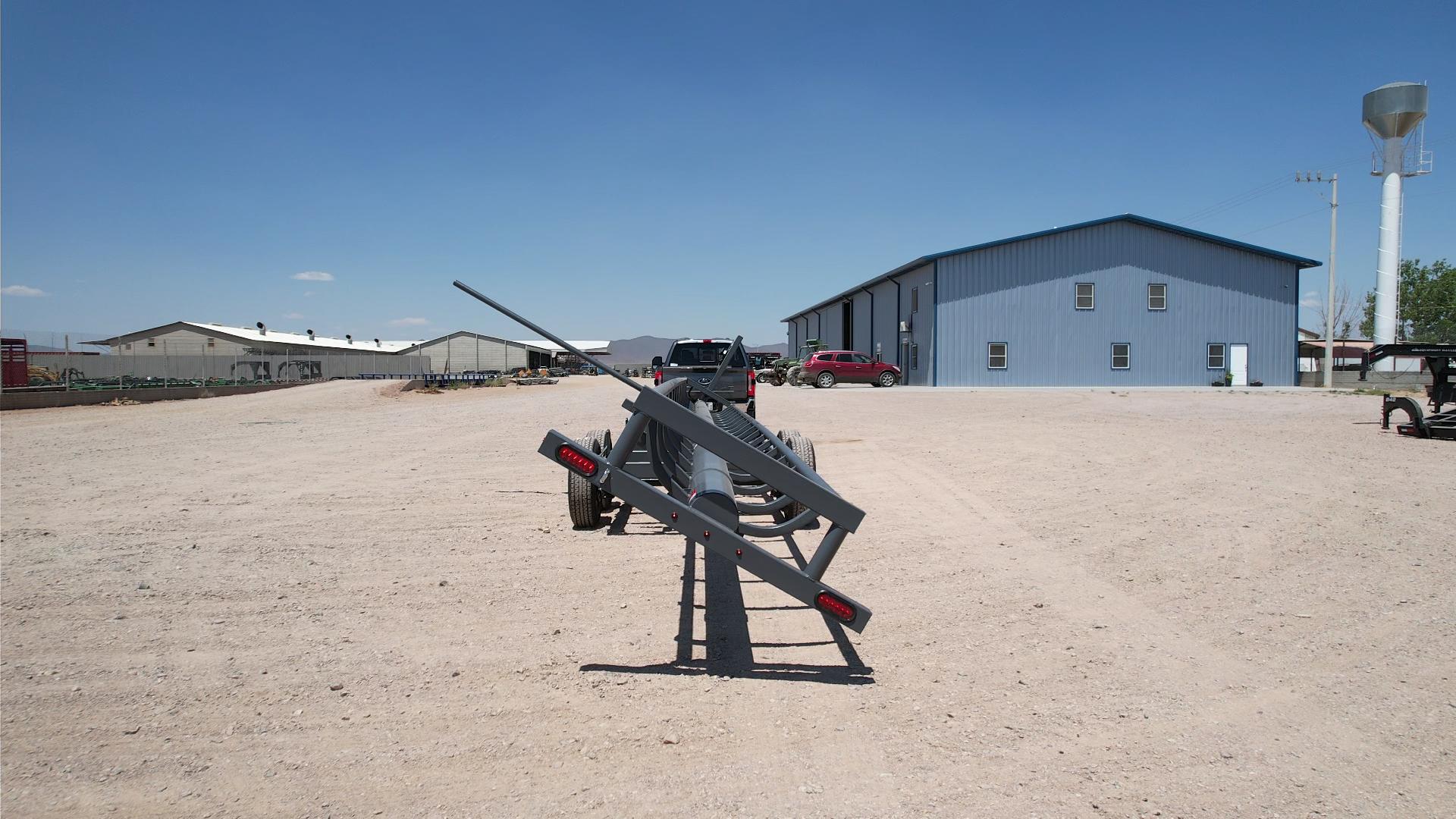

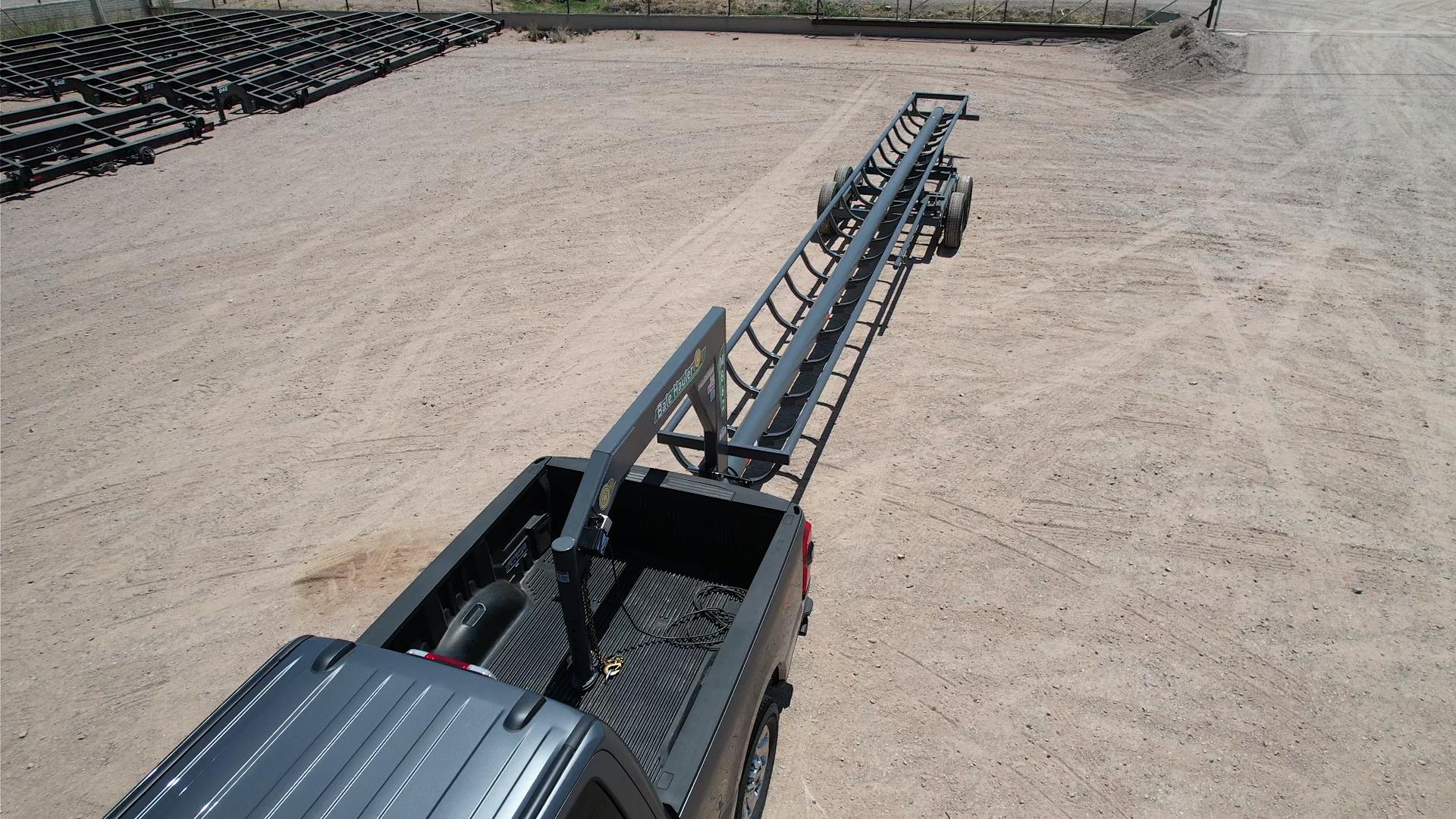

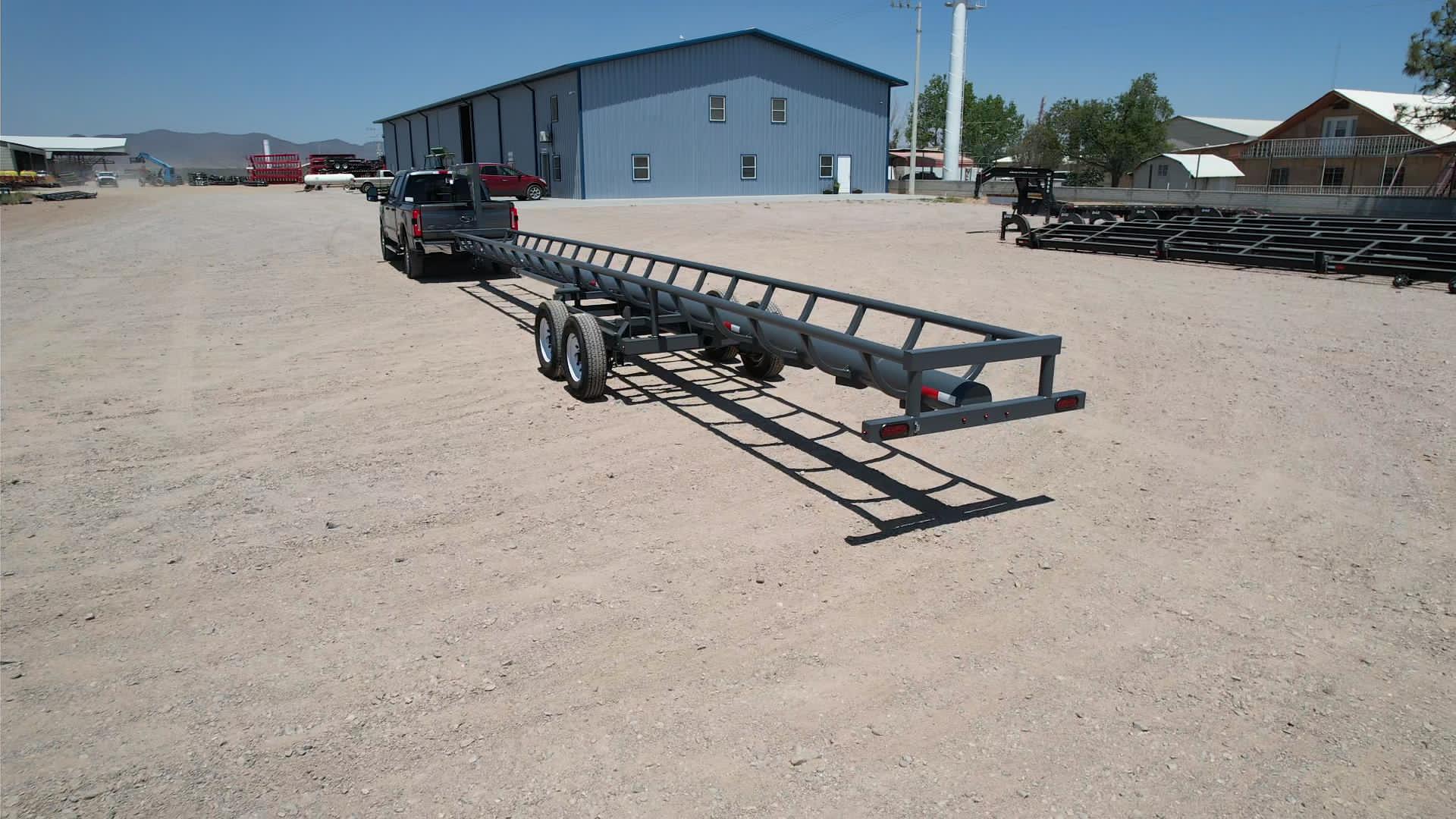

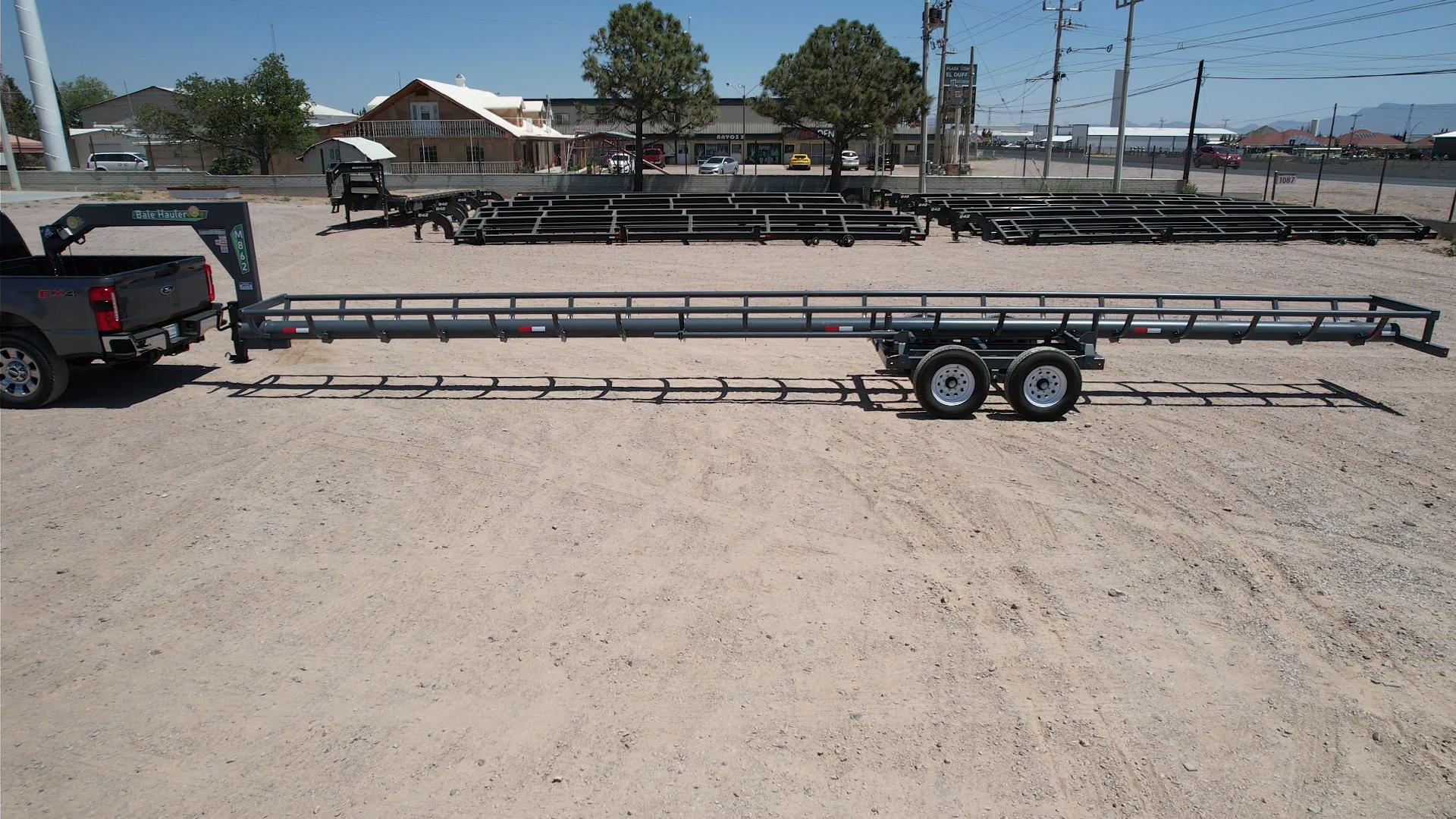

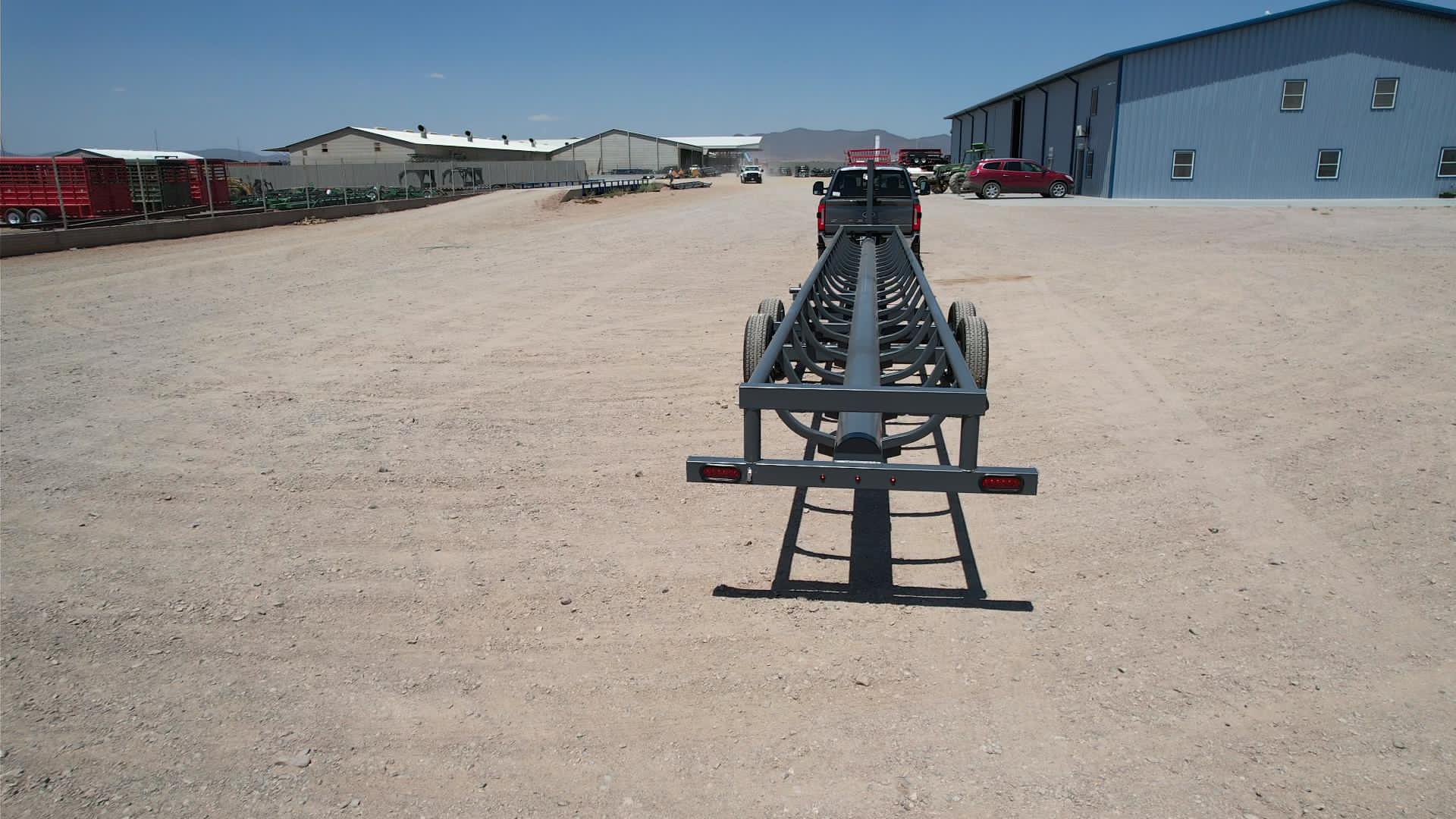

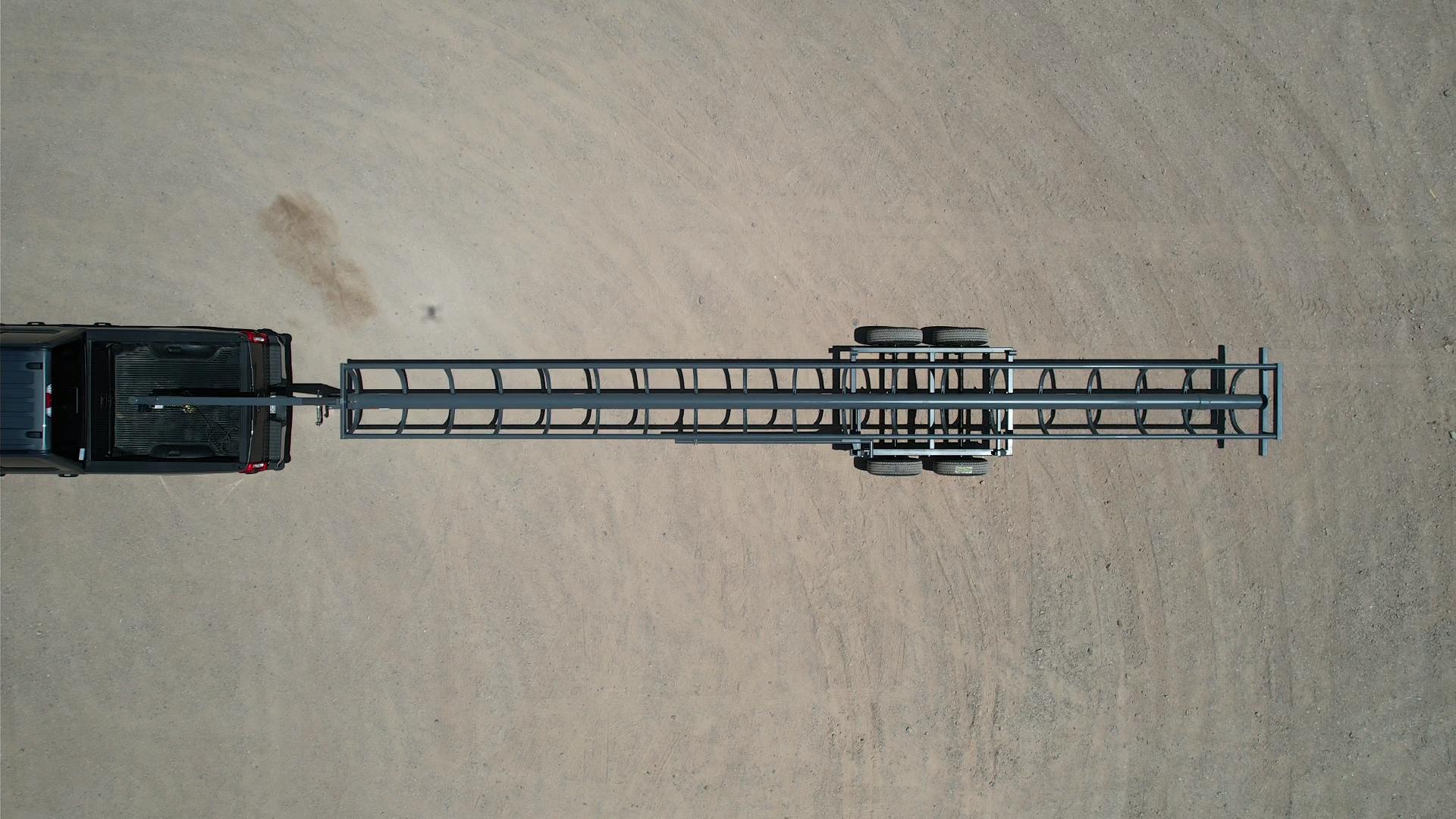

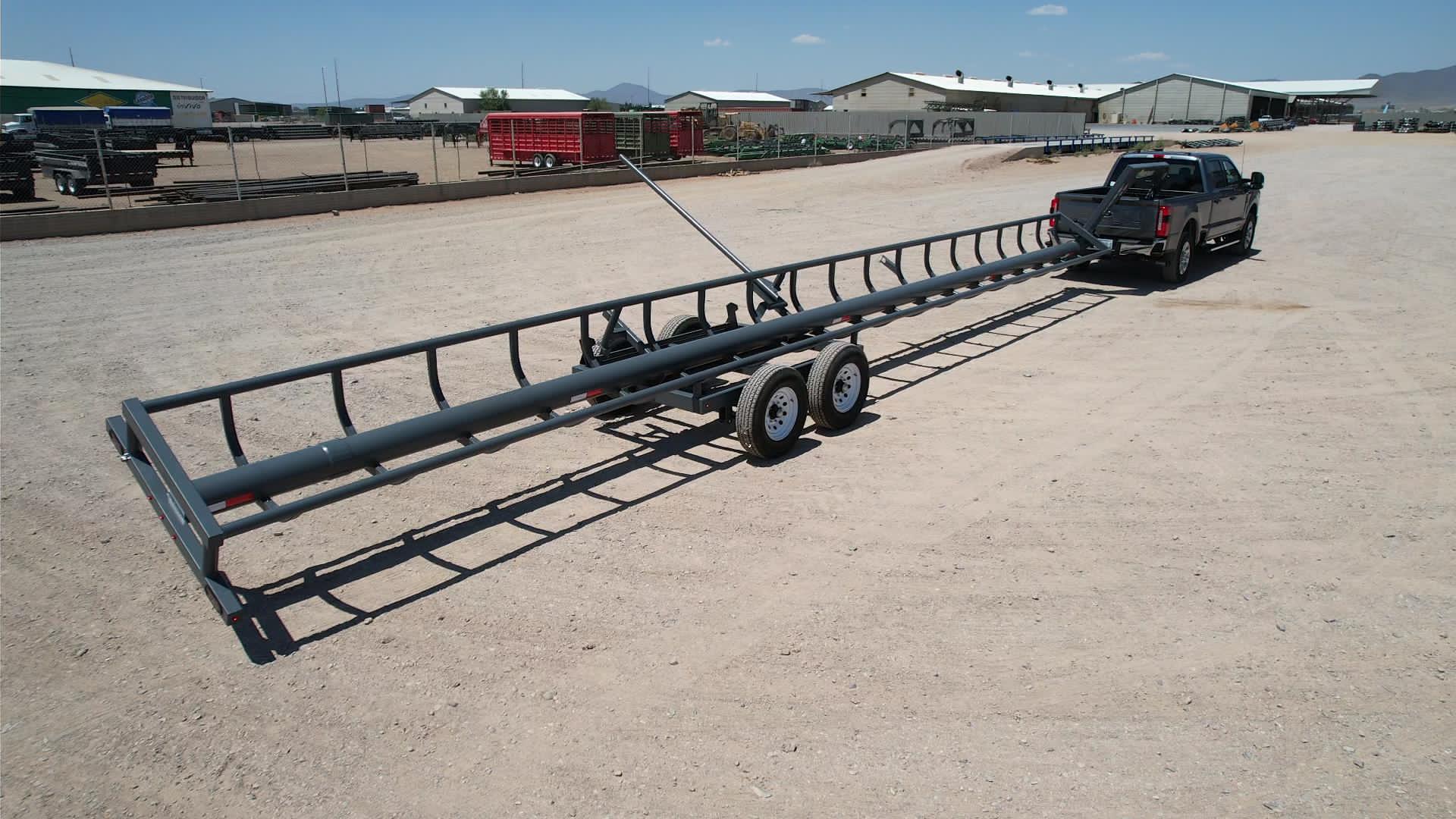

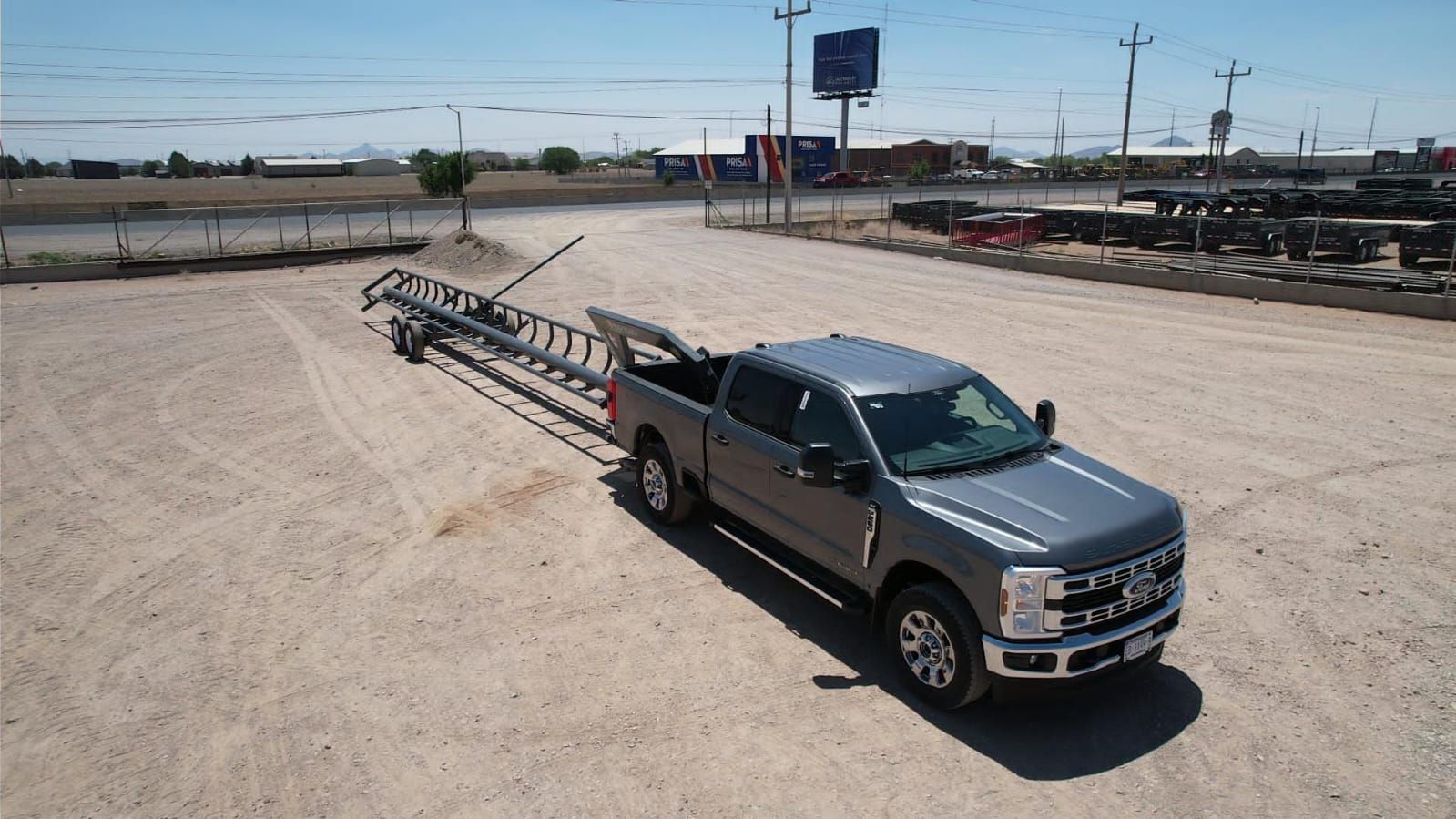

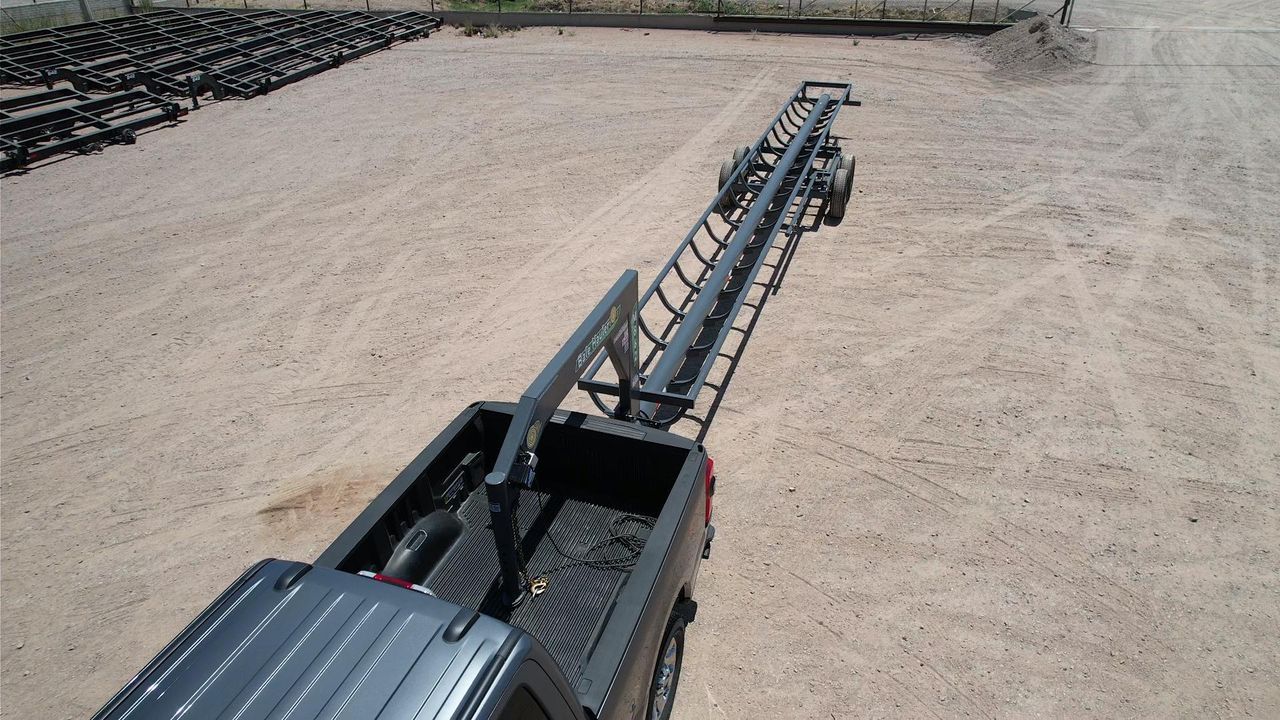

The M862 offers dependable hauling for 8 round bales up to 62" wide. Designed for farms that need a simple, reliable solution, the M-series features a manual side-tip unloading system — the entire frame tips to the side, and the operator resets it easily with a lever bar. This straightforward design reduces hydraulic maintenance while keeping the frame strong and efficient.
