Specifications
| Feature | Description |
|---|---|
| Type | 3-point hitch ripper |
| Number of shanks | 5 |
| Shank spacing | Adjustable, 32" |
| Shank type | Rigid |
| Shank size | 7" × 36", high-strength steel |
| Maximum working depth | 20" |
| Working width | 11'2" |
| Frame type | Heavy-duty, reinforced |
| Replaceable wear parts | Shanks and tips |
| Hitch category | Cat II |
| Depth control | Manual with tractor or optional gauge wheels (extra) |
| Total weight | 680 kg / 1,499 lbs |
| Transport width | 11'8" |

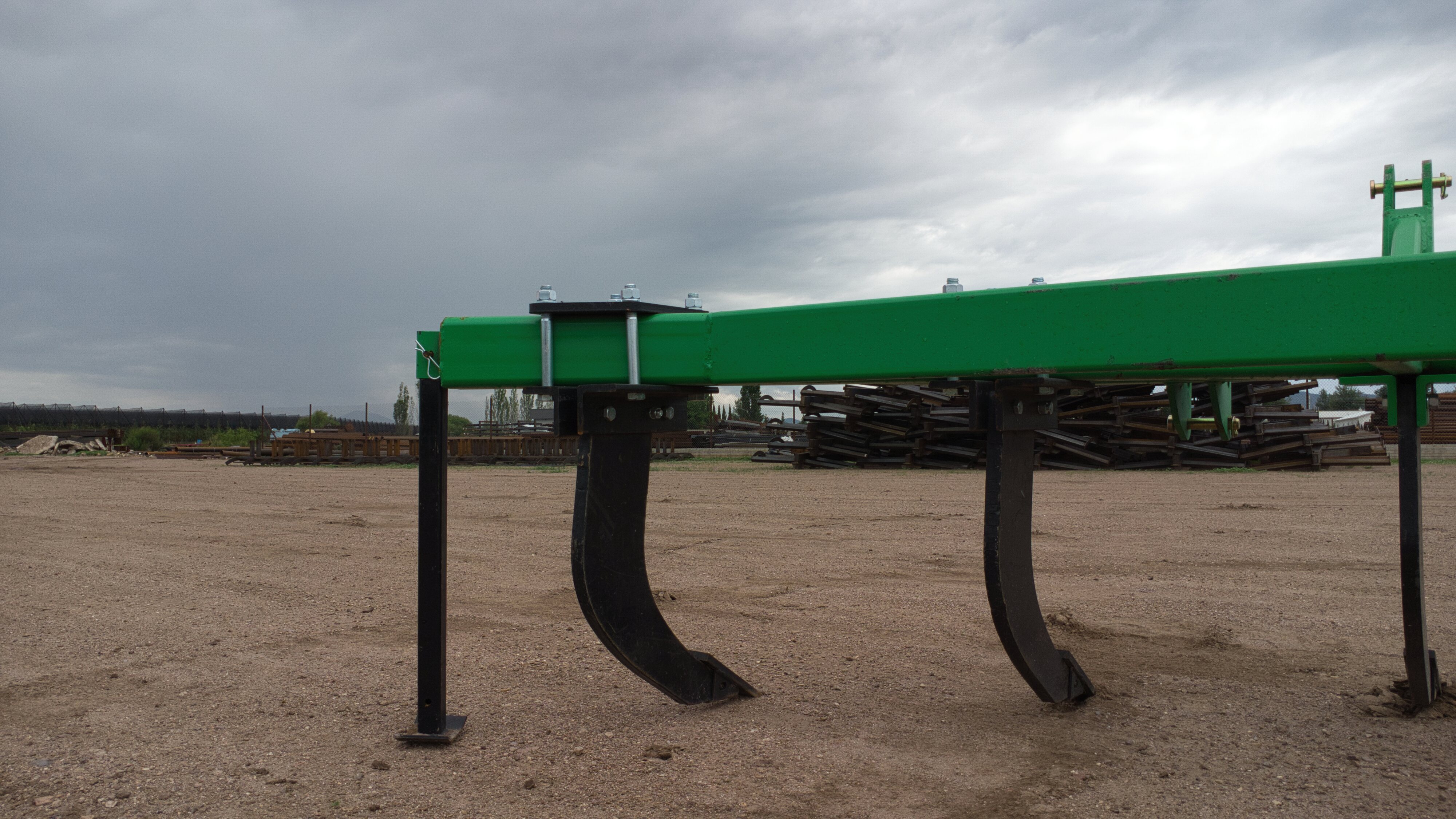

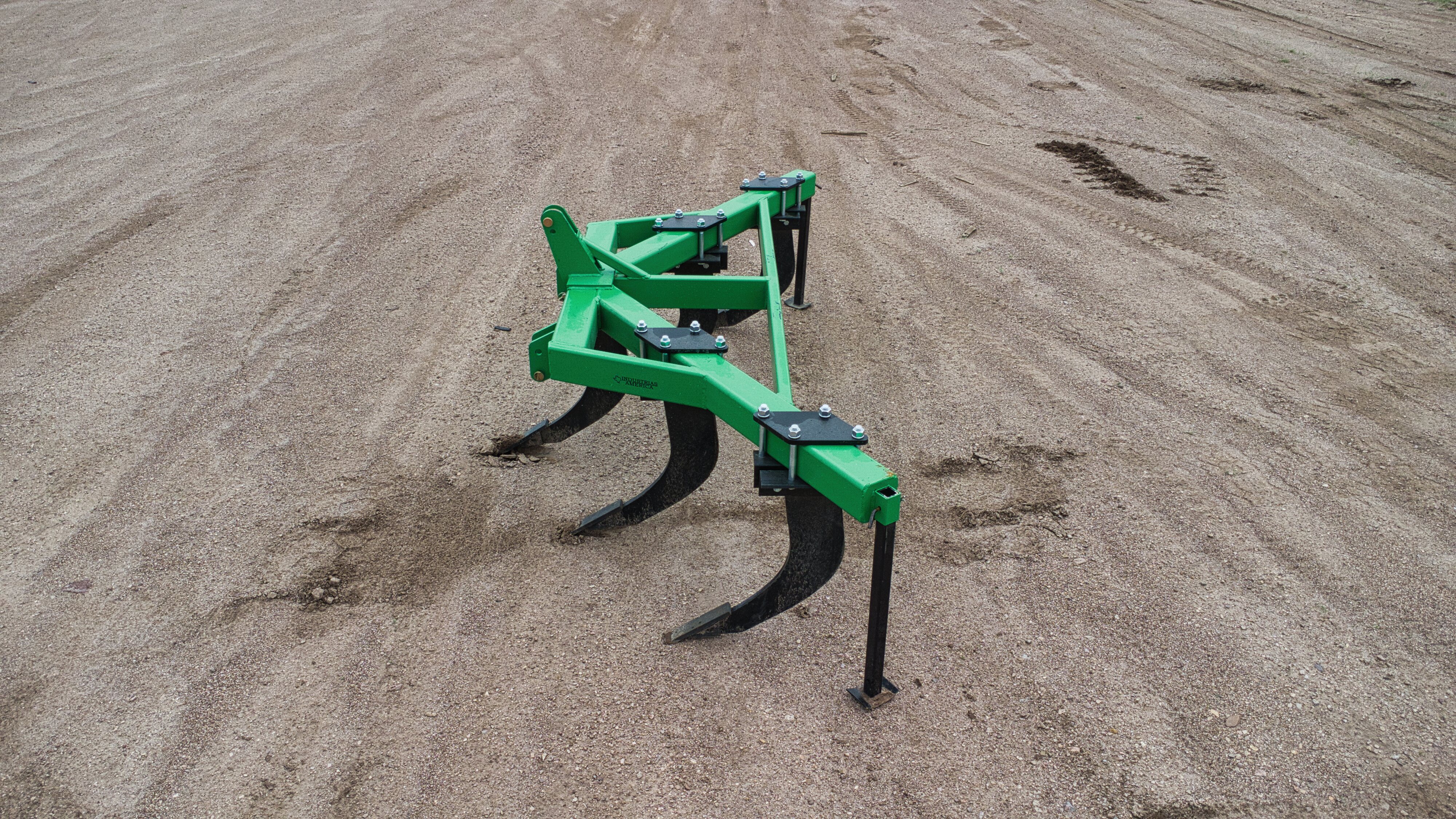

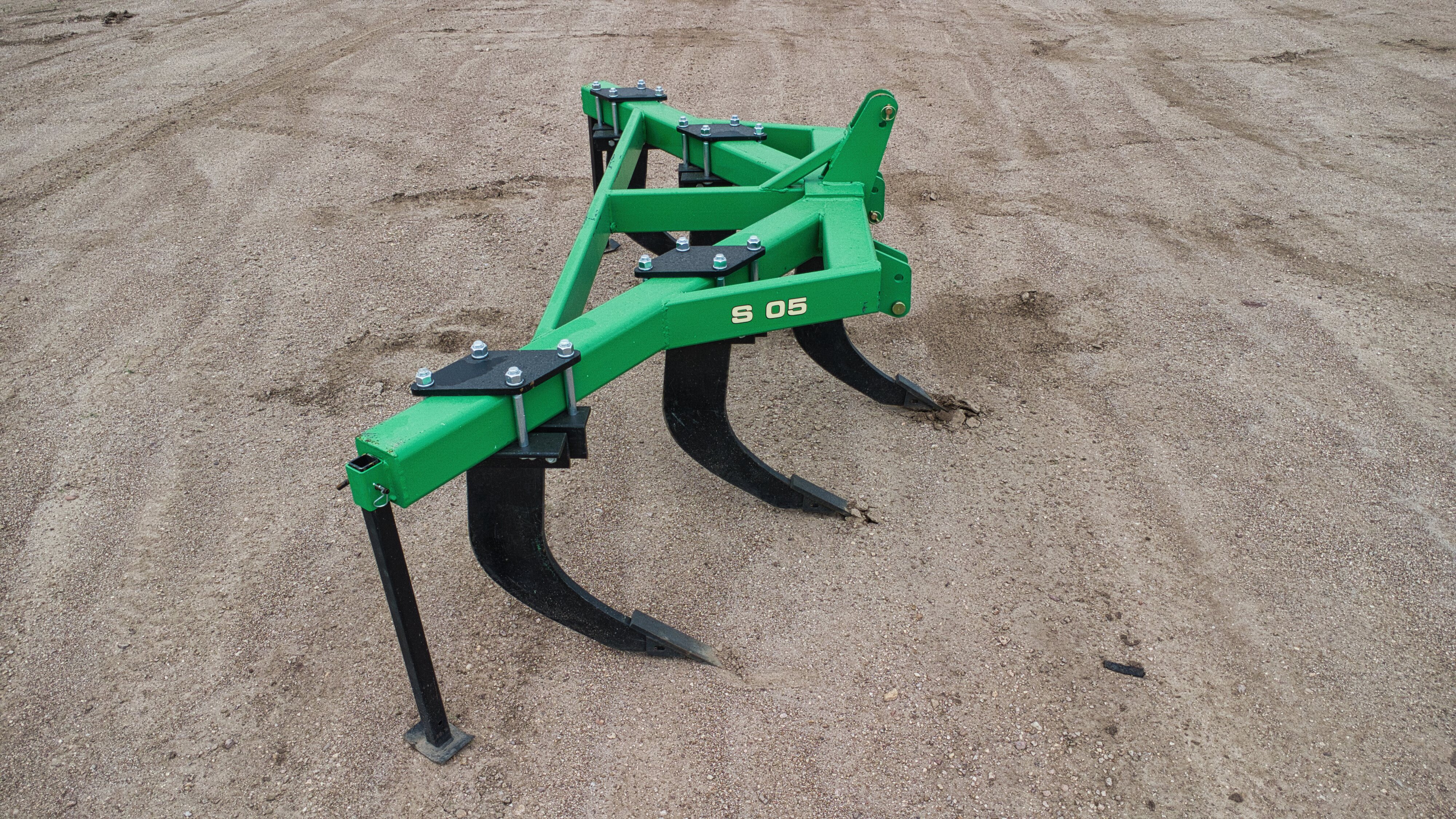

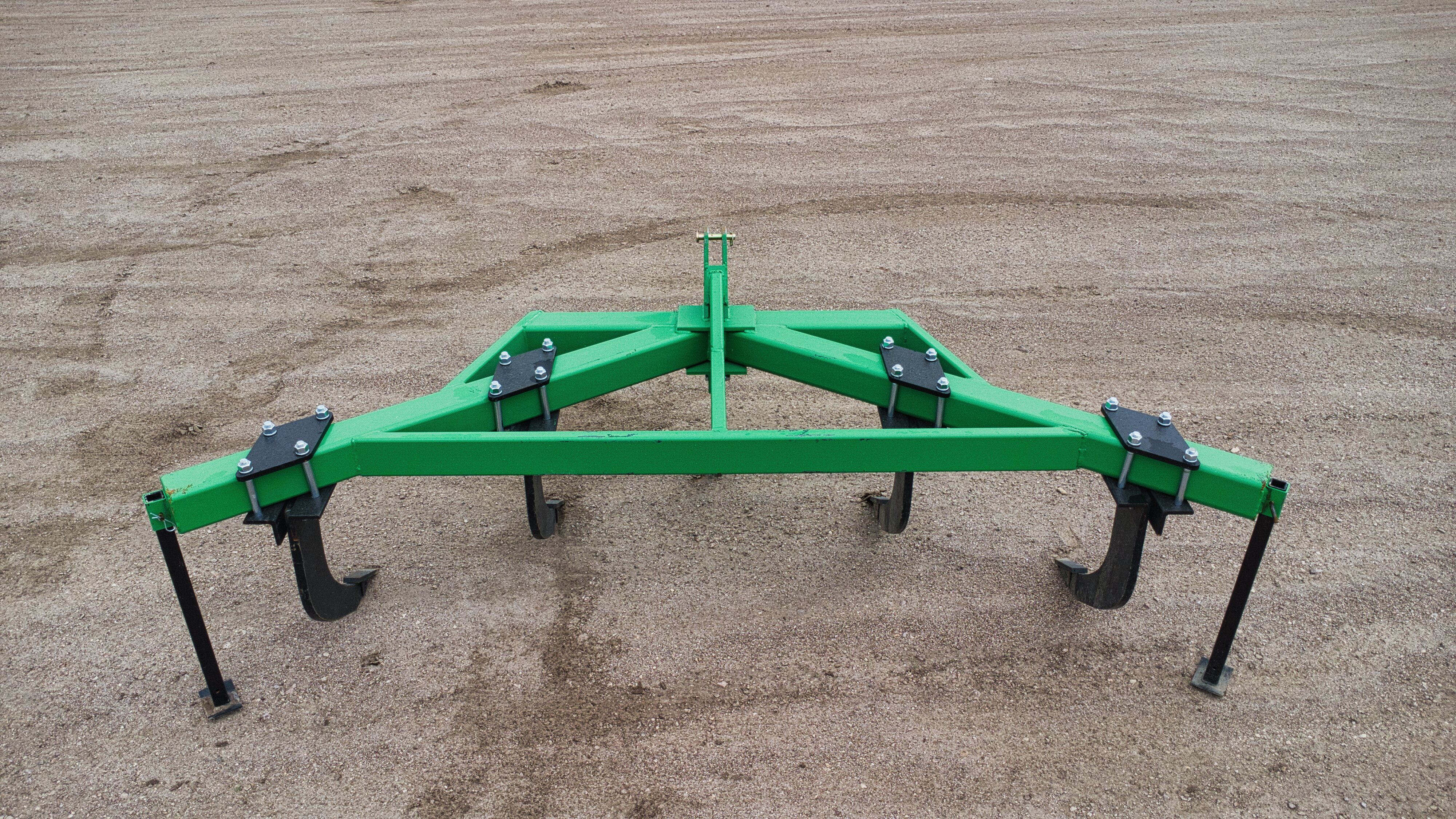

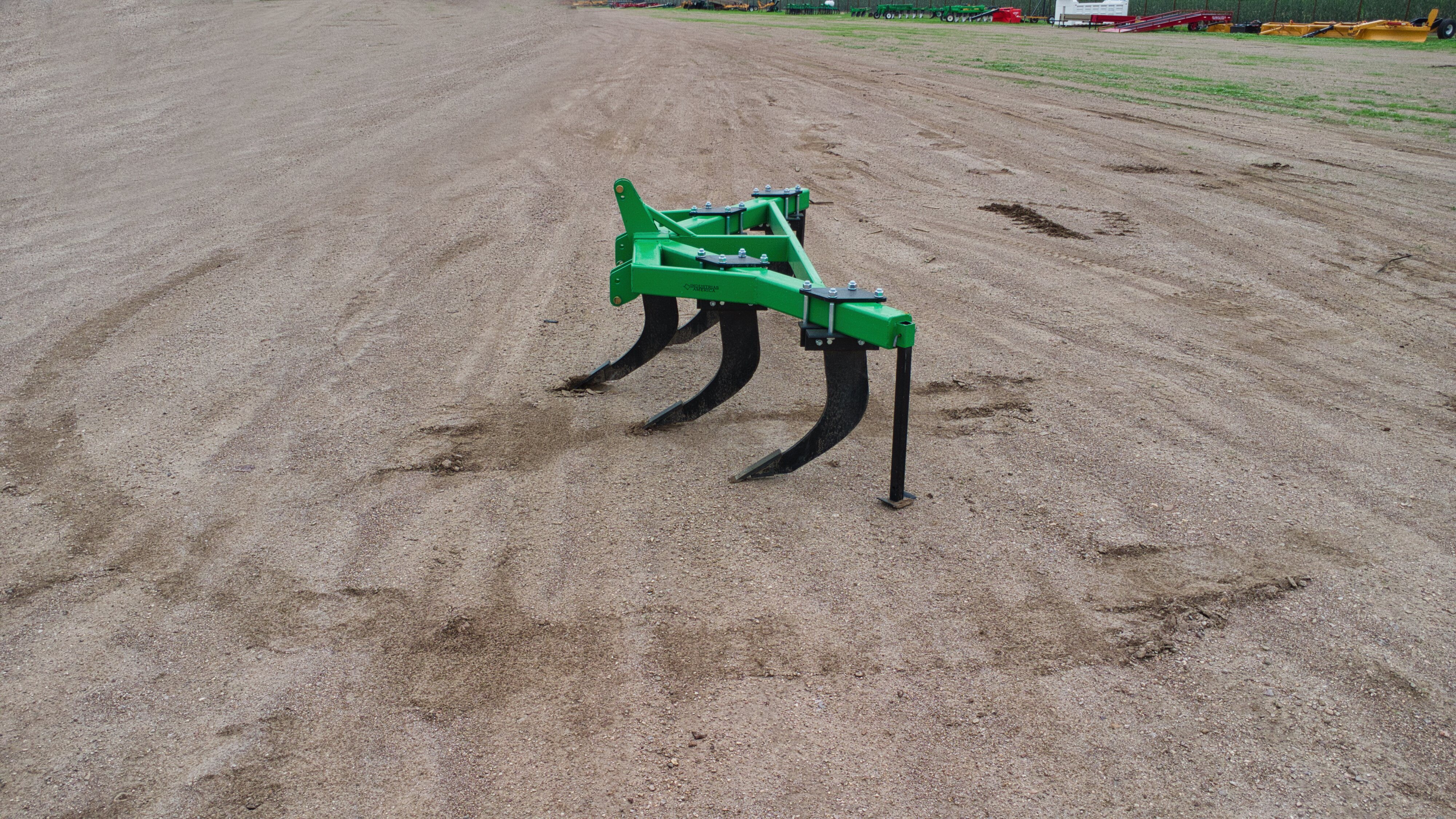

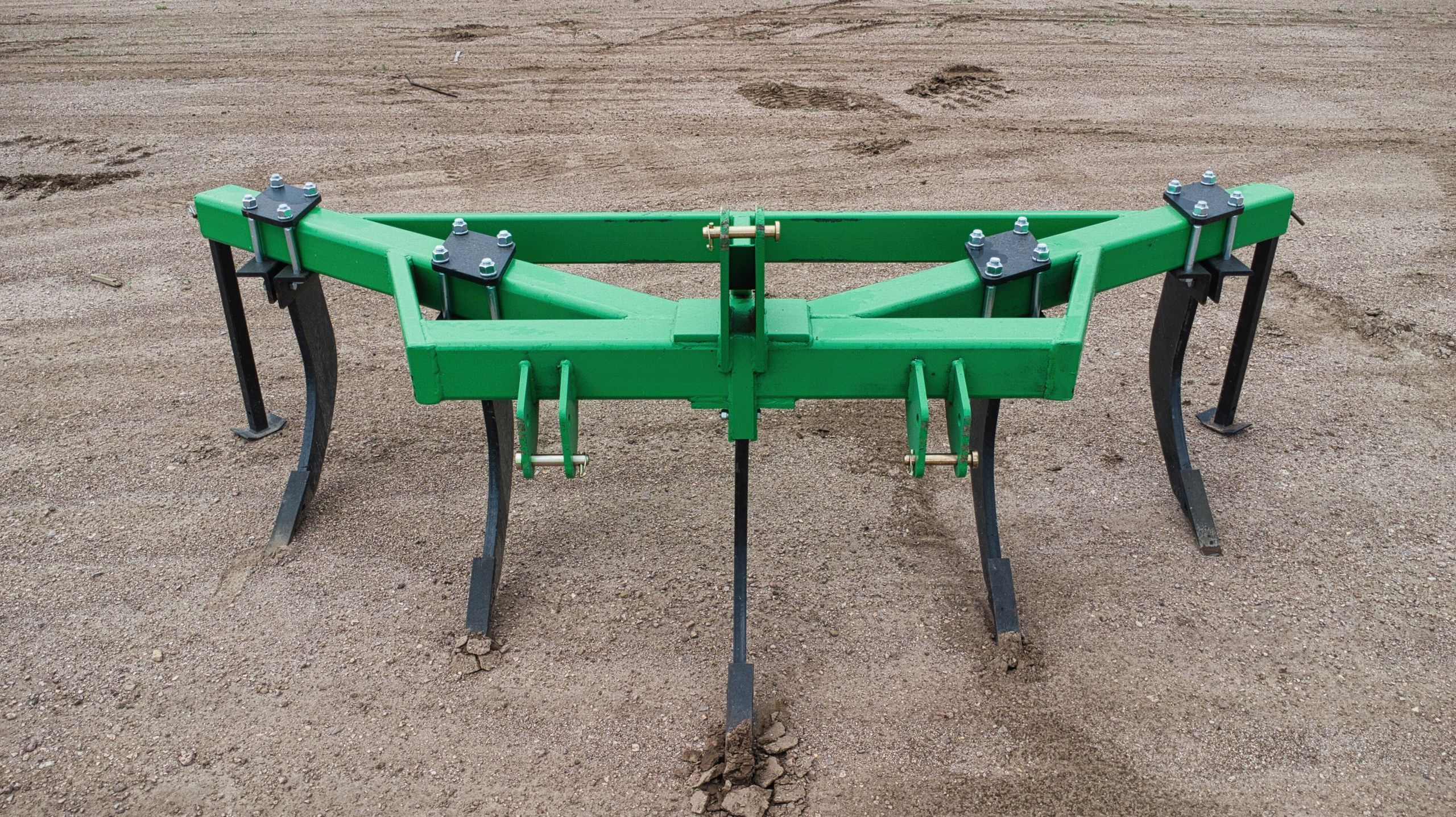

The S05 is a 5-shank ripper for tractors from 120–130 HP. Its reinforced high-strength steel frame and rigid shanks work up to 20" deep for efficient soil loosening and deep tillage. Adjustable shank spacing and optional gauge wheels allow precise depth control. Replaceable tips simplify maintenance and maximize uptime.
