Specifications
| Feature | Description |
|---|---|
| Type | 3-point ripper |
| Number of shanks | 9 |
| Shank spacing | Adjustable, 18" |
| Shank type | Rigid |
| Shank size and material | 9" × 36", high-strength steel |
| Maximum working depth | 20" (50 cm) |
| Working width | 15' |
| Frame | Heavy-duty, reinforced steel |
| Replaceable wear parts | Shanks and tips |
| Hitch category | Cat III |
| Depth control | Manual or optional gauge wheels |
| Total weight | 2,200 kg / 4,850 lbs |
| Transport width | 15' |

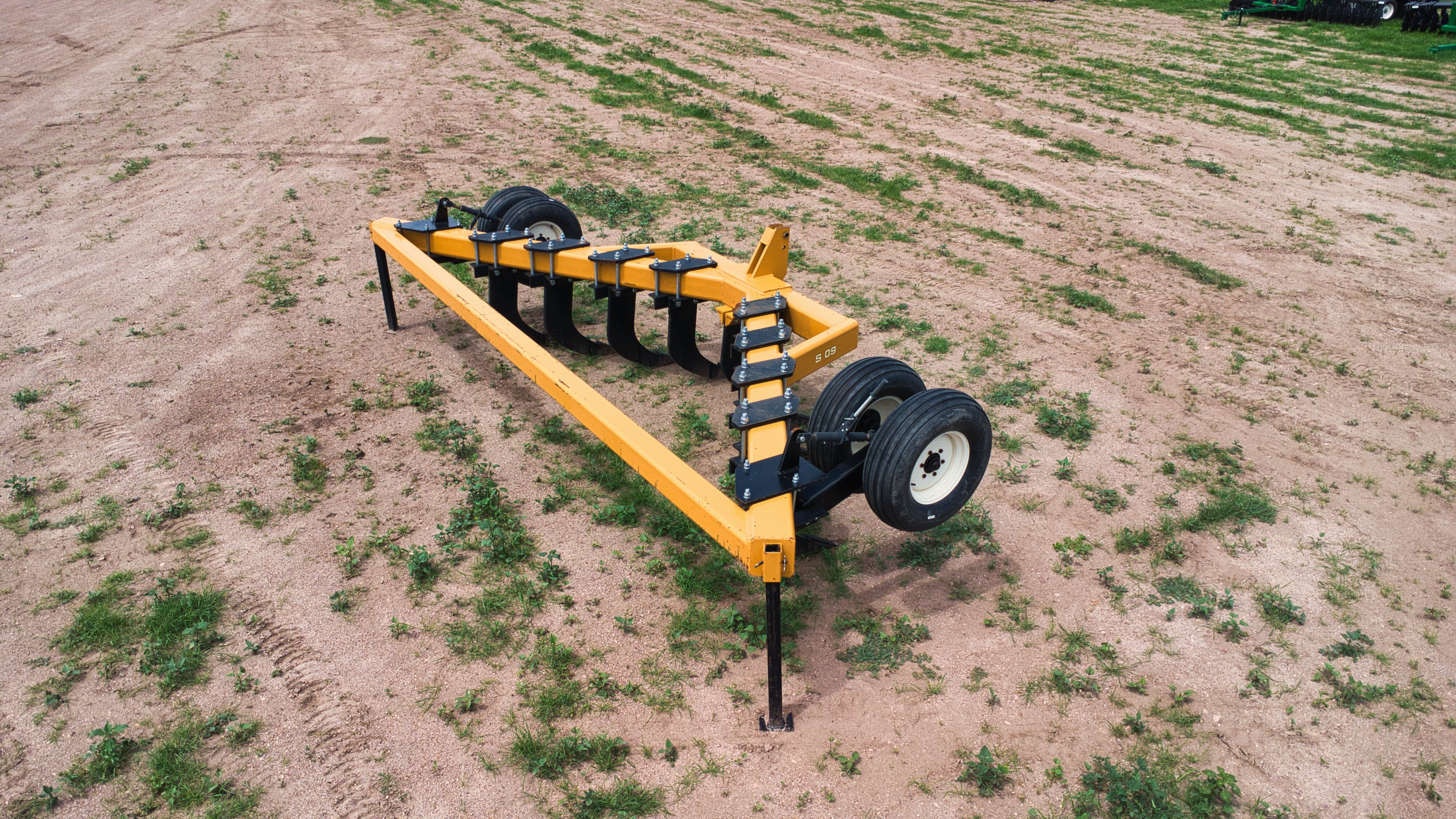

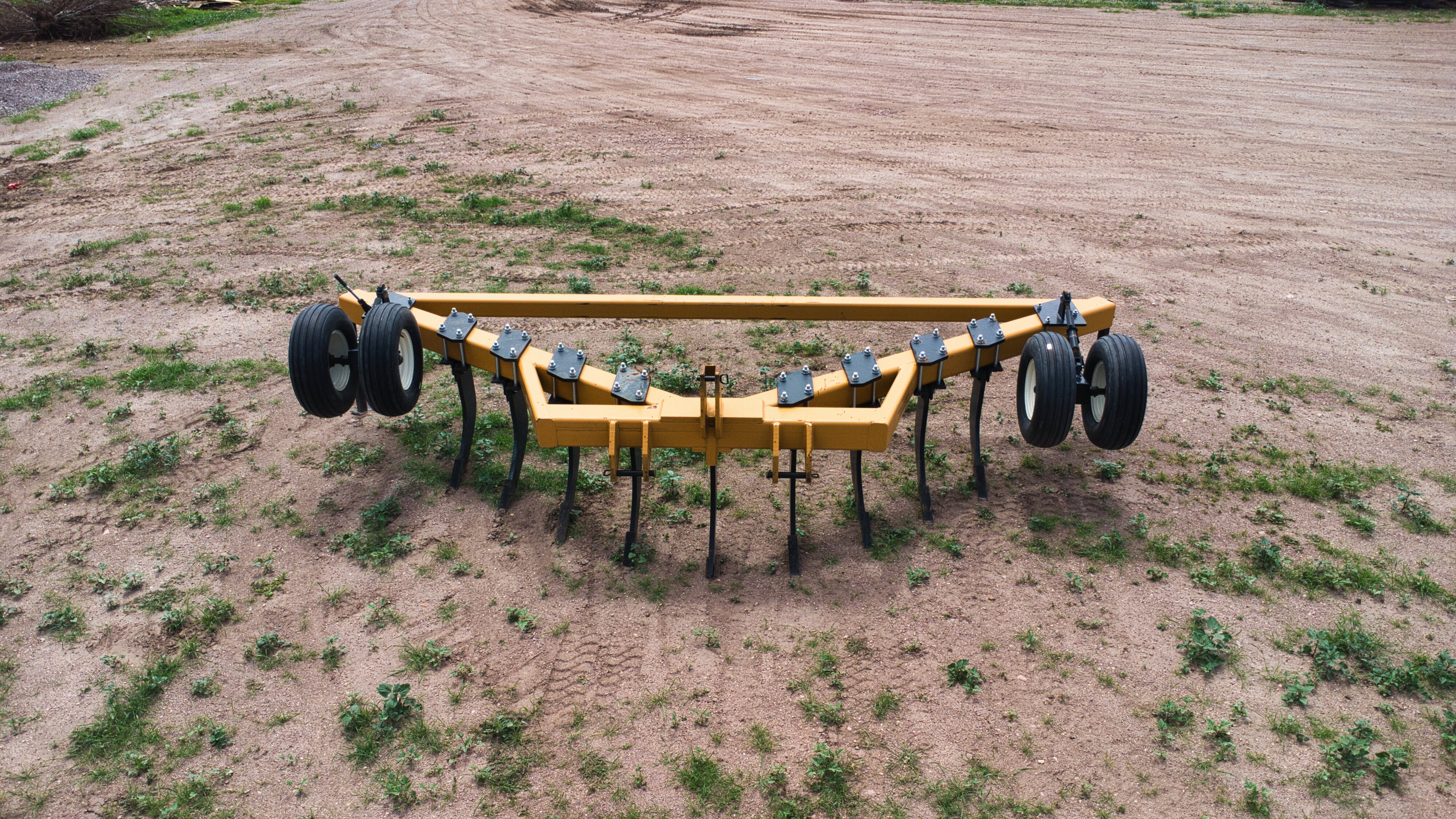

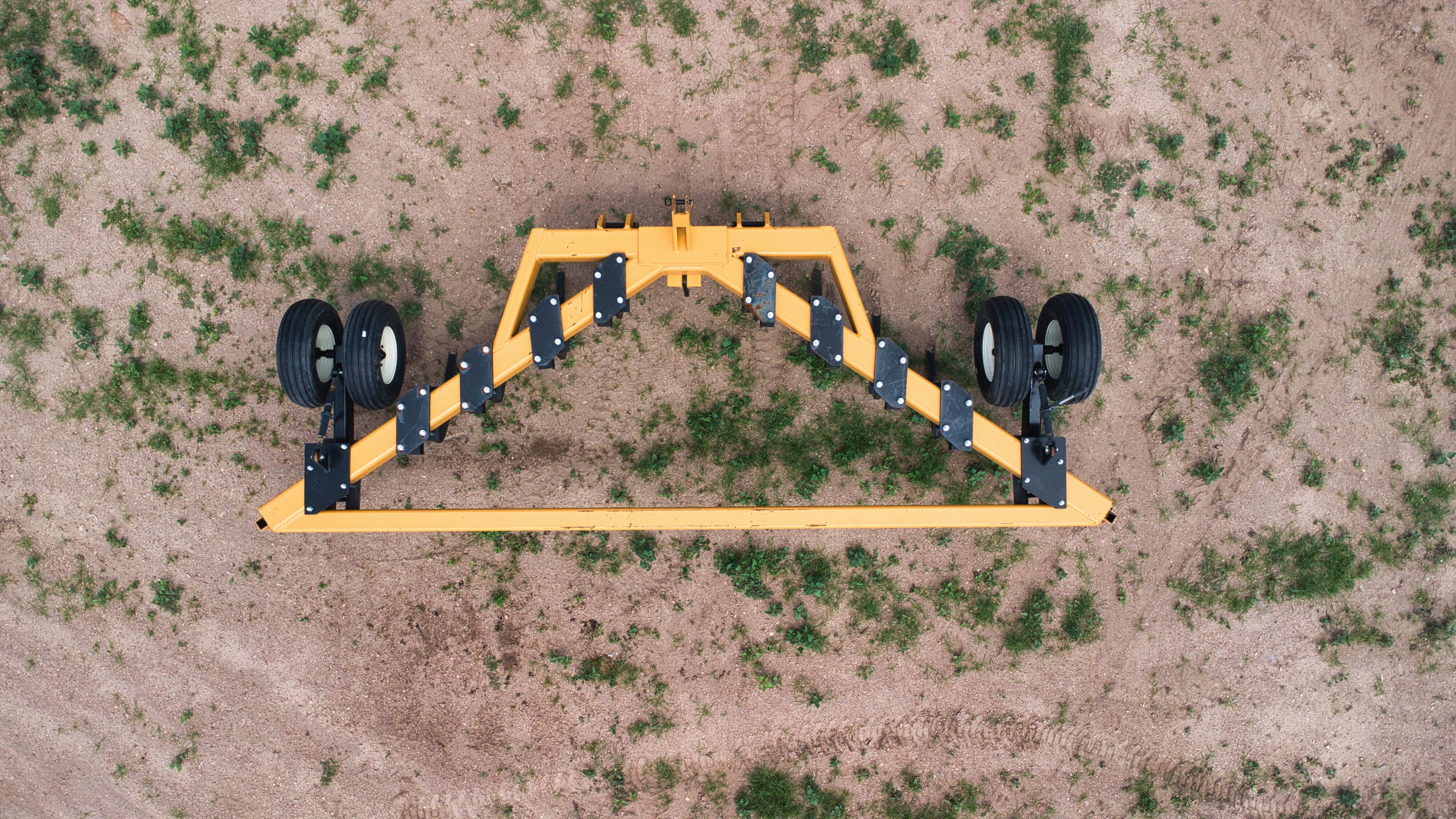

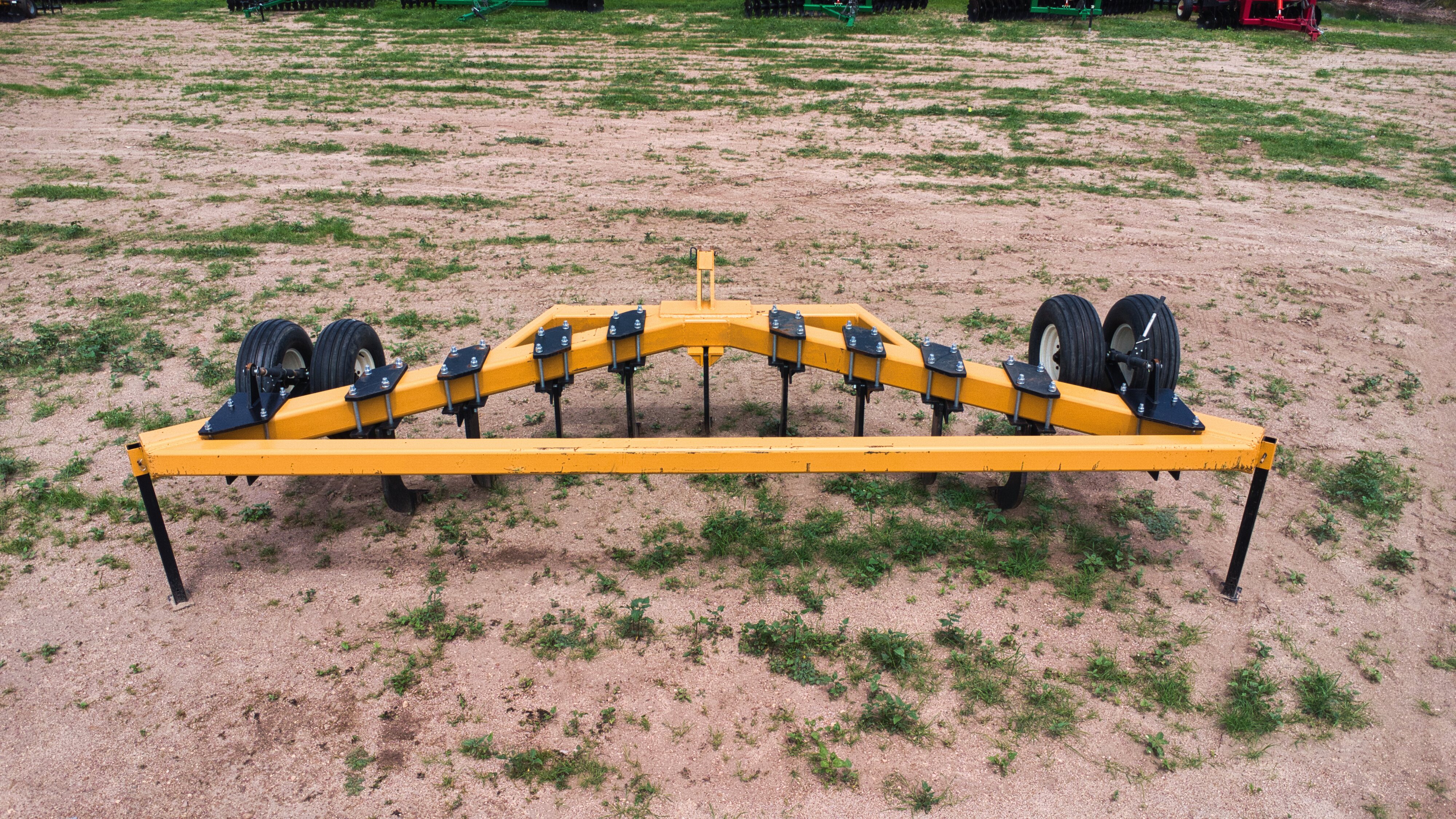

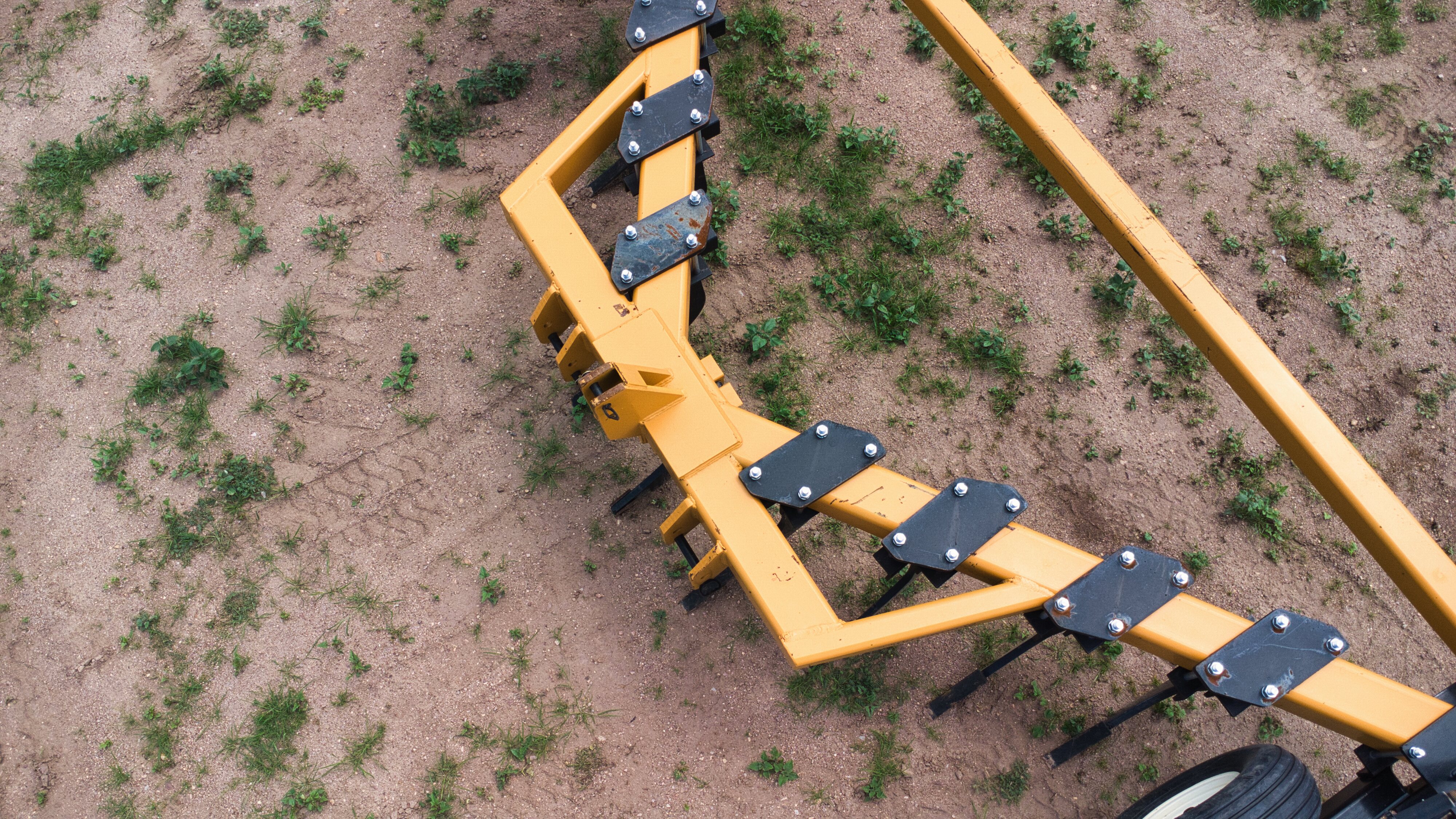

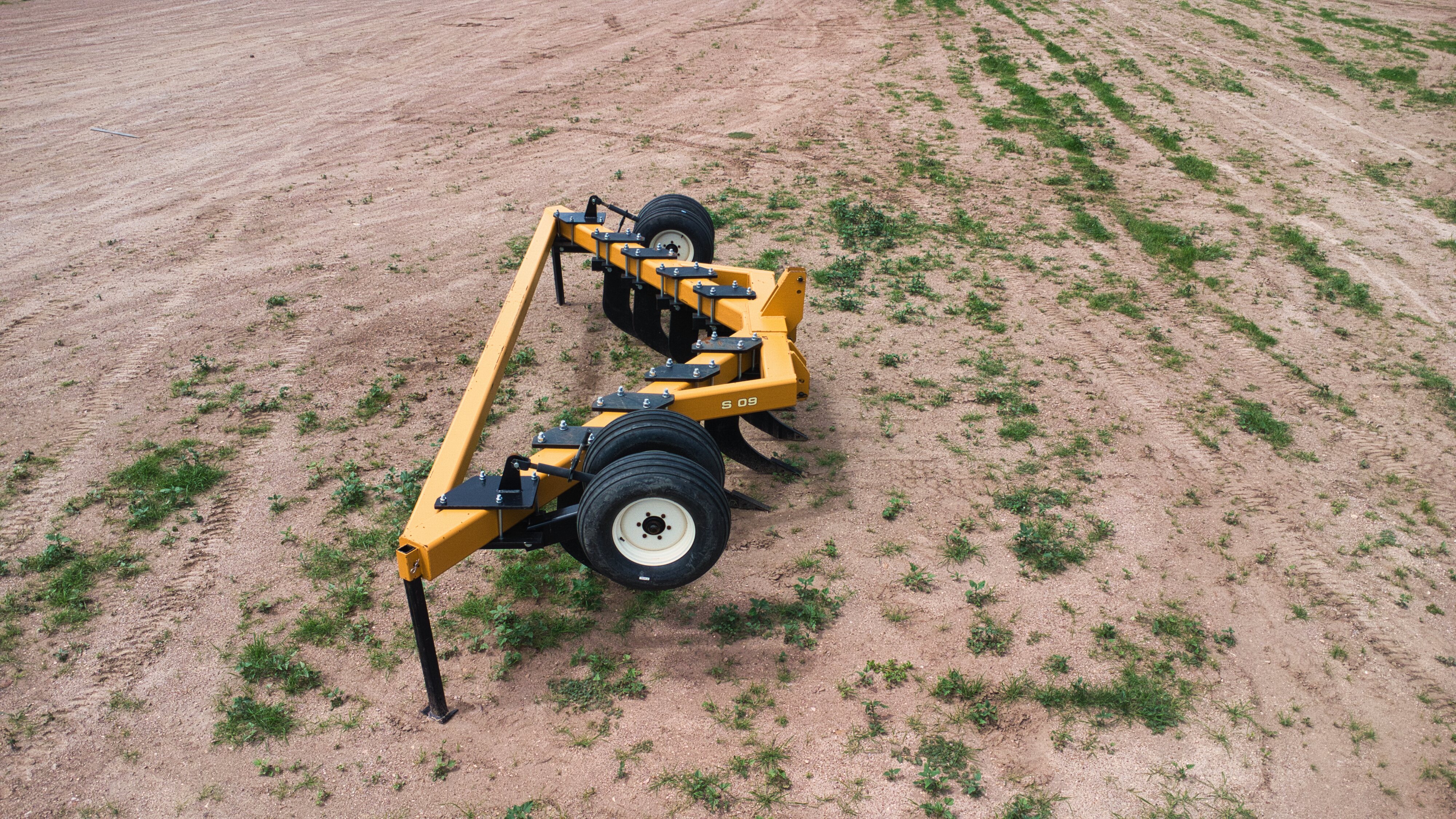

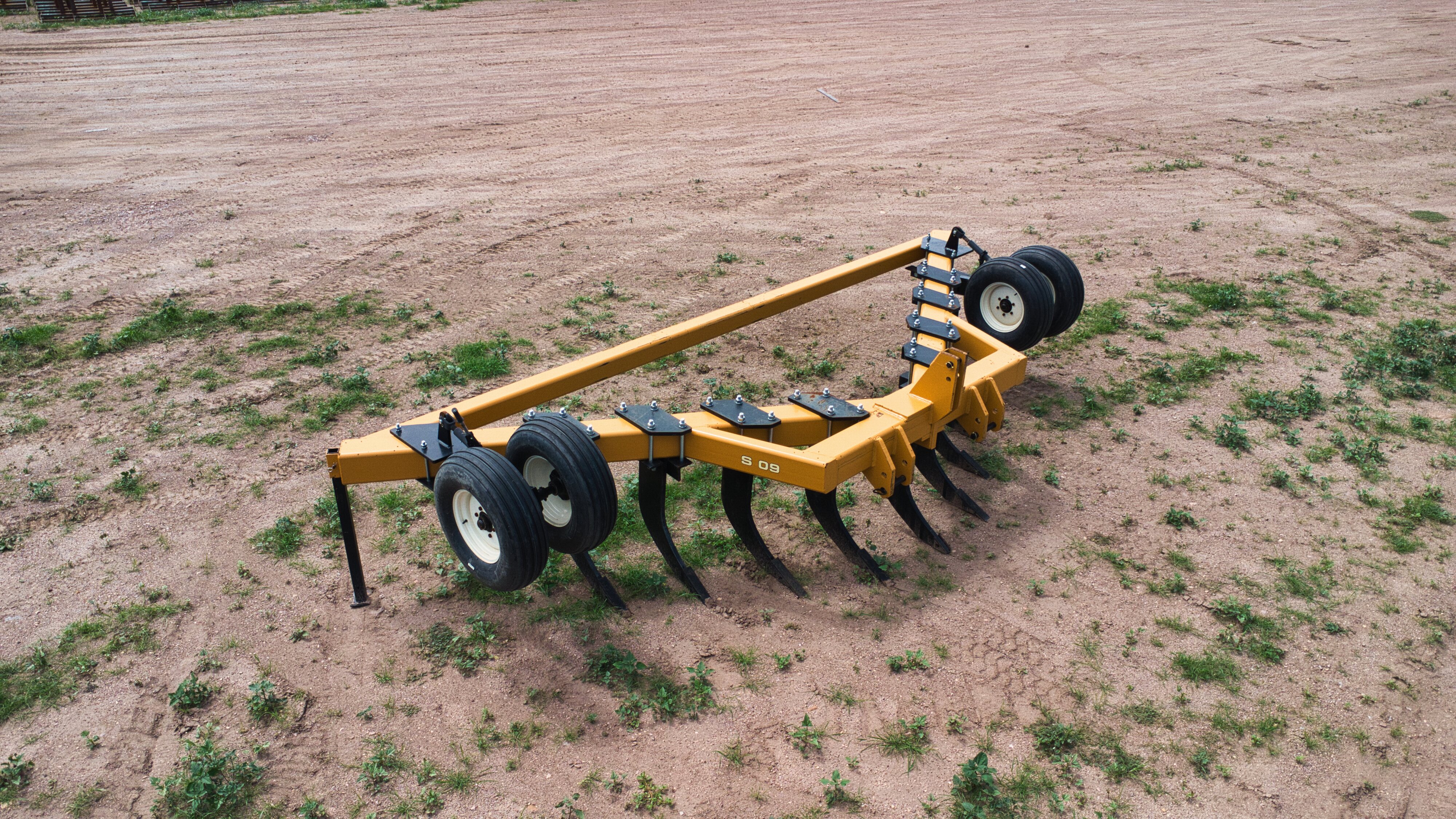

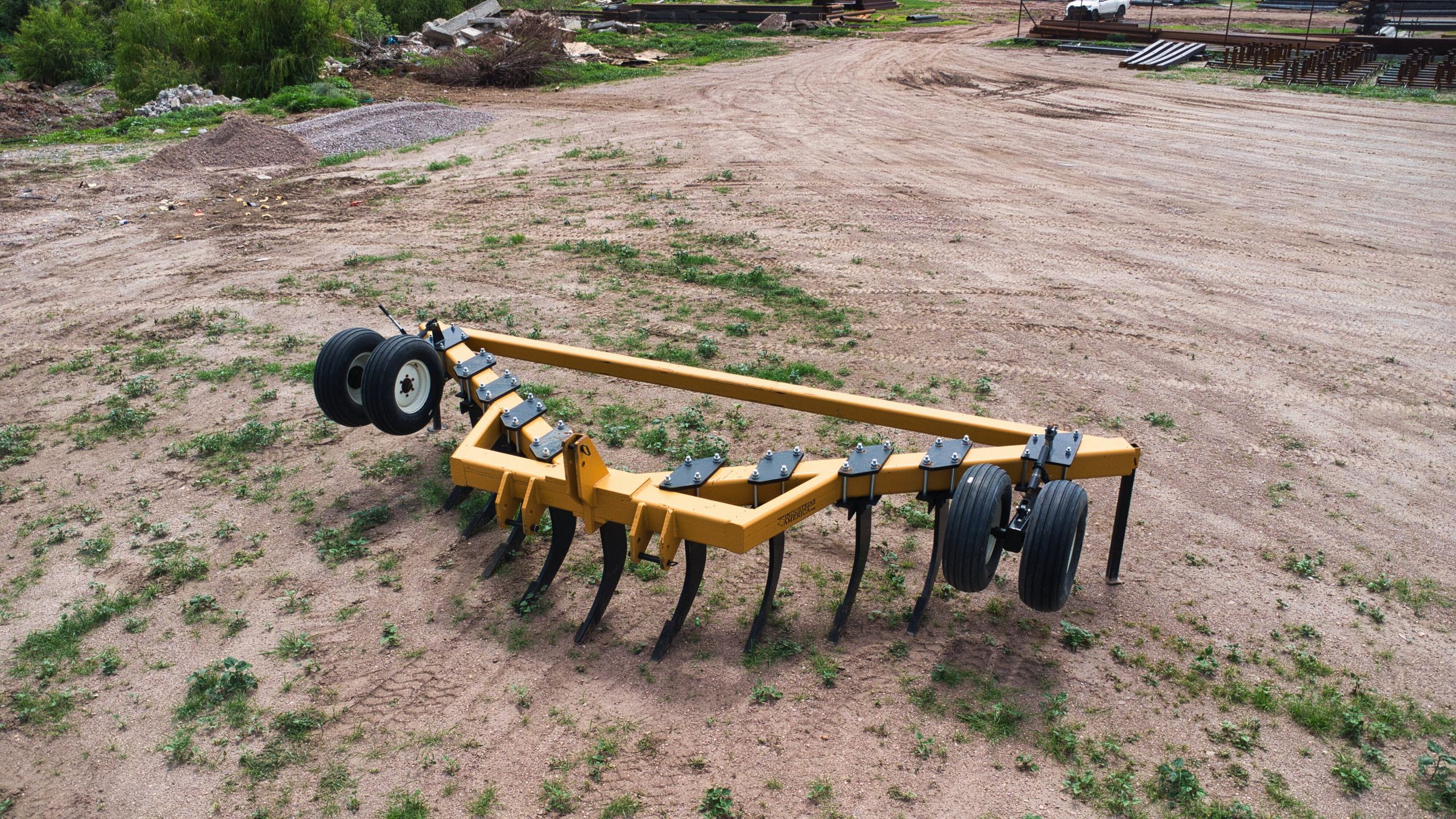

The S09 is a 9-shank ripper designed for tractors from 220 to 240 HP. Its high-strength steel frame and rigid shanks provide deep penetration up to 20" (50 cm), ideal for breaking hardpan and improving soil aeration. Adjustable shank spacing ensures uniform coverage and field efficiency. Replaceable tips reduce downtime and extend the life of the machine, making it reliable for demanding work.
