Specifications

FeatureDescription
SeriesF (Standard)
OptionalTilt
ModelsF07, F08
Working Width7 ft (F07), 8 ft (F08)
Moldboard Height22 in
Weight368 kg (F07), 391 kg (F08)
Hitch TypePin-through hitch
Cylinder Quantity1
Cylinder Size1 × 2" × 8"
Hydraulic Connectors2
Cutting EdgeHardened steel, reversible 6"x1/2"
Moldboard MaterialHigh-strength steel
Blade TypeBox blade
Tire TypeST255/75R15
Recommended Horsepower50–70 HP (F07), 60–80 HP (F08)

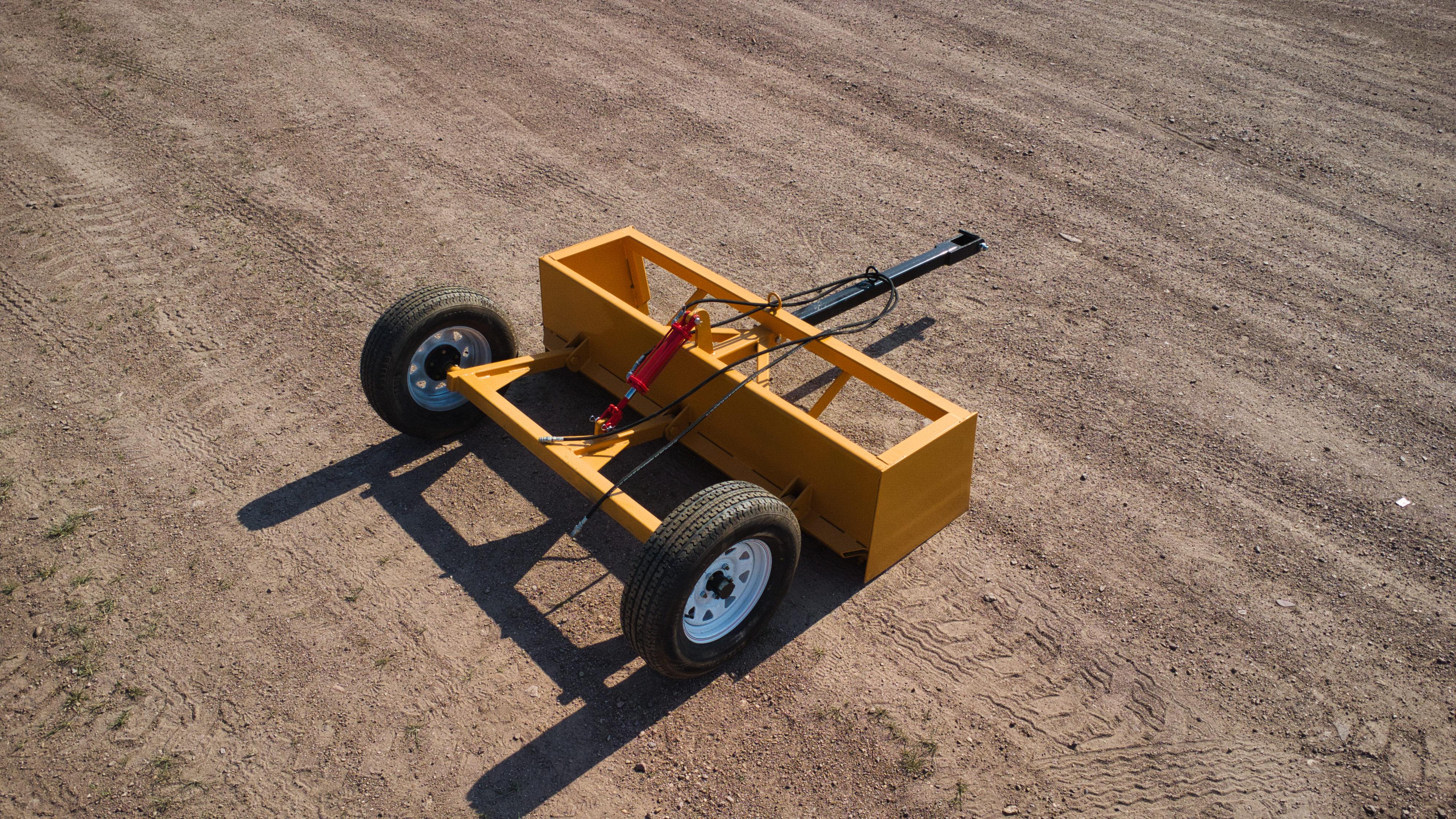

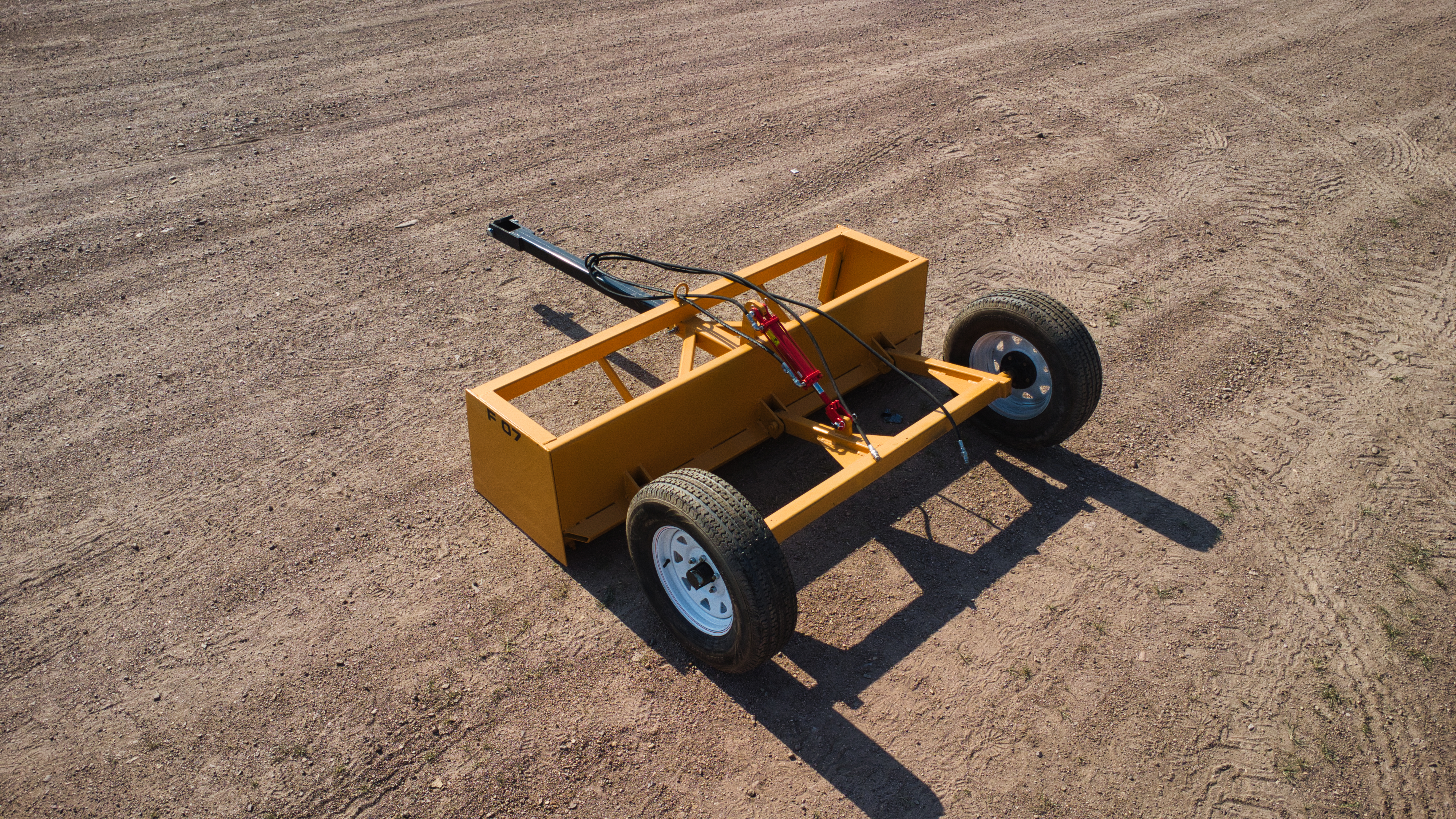

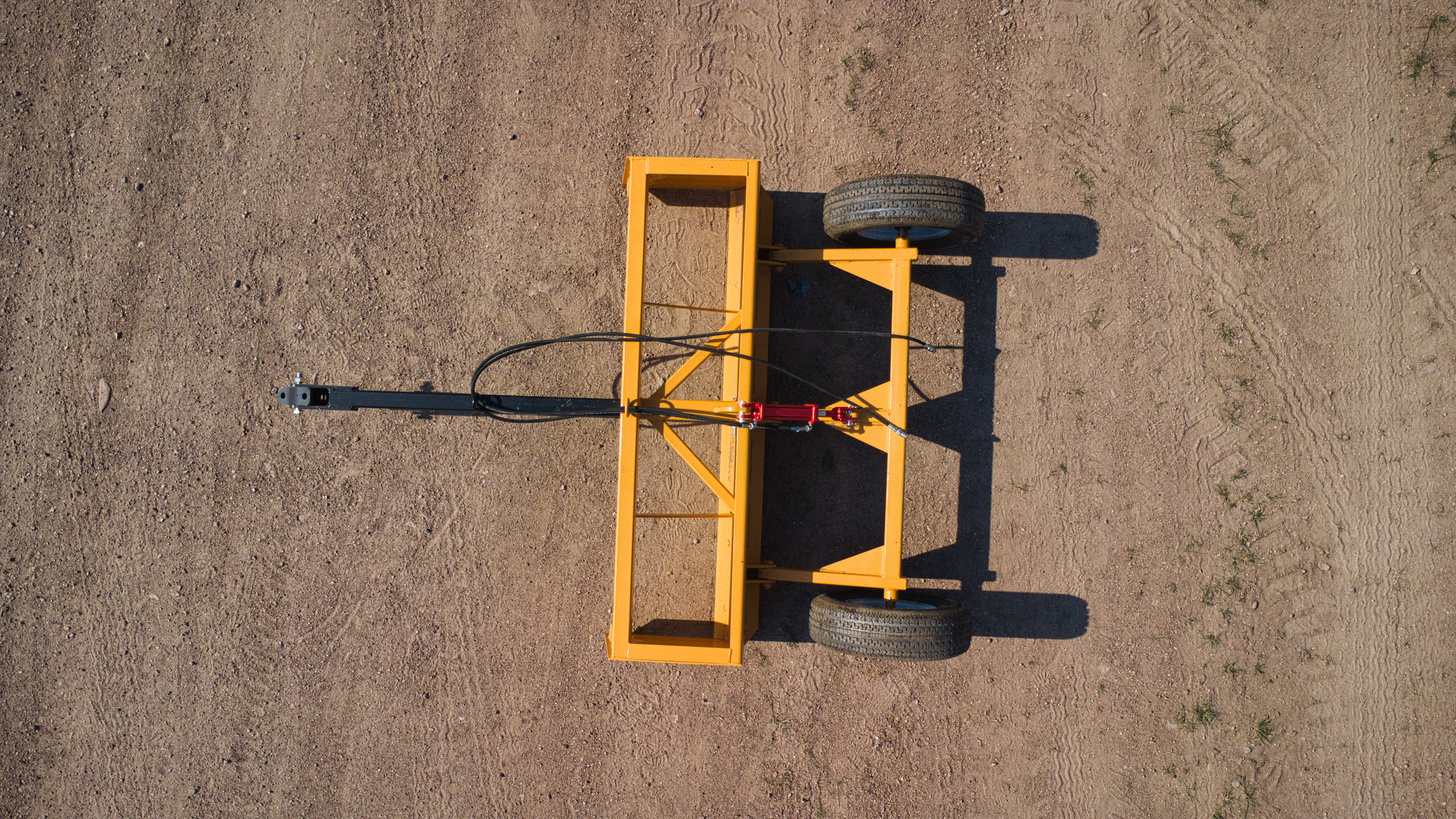

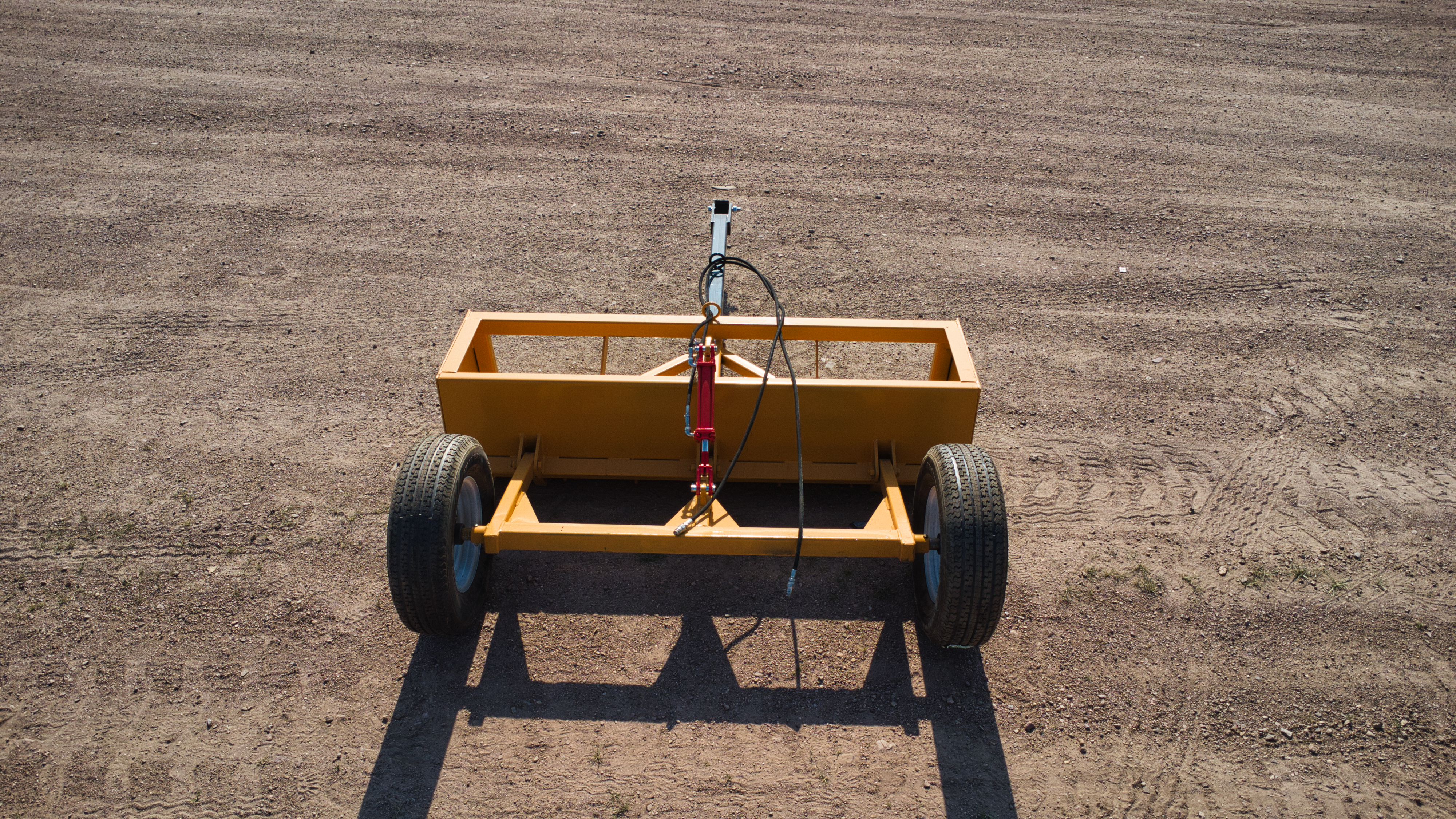

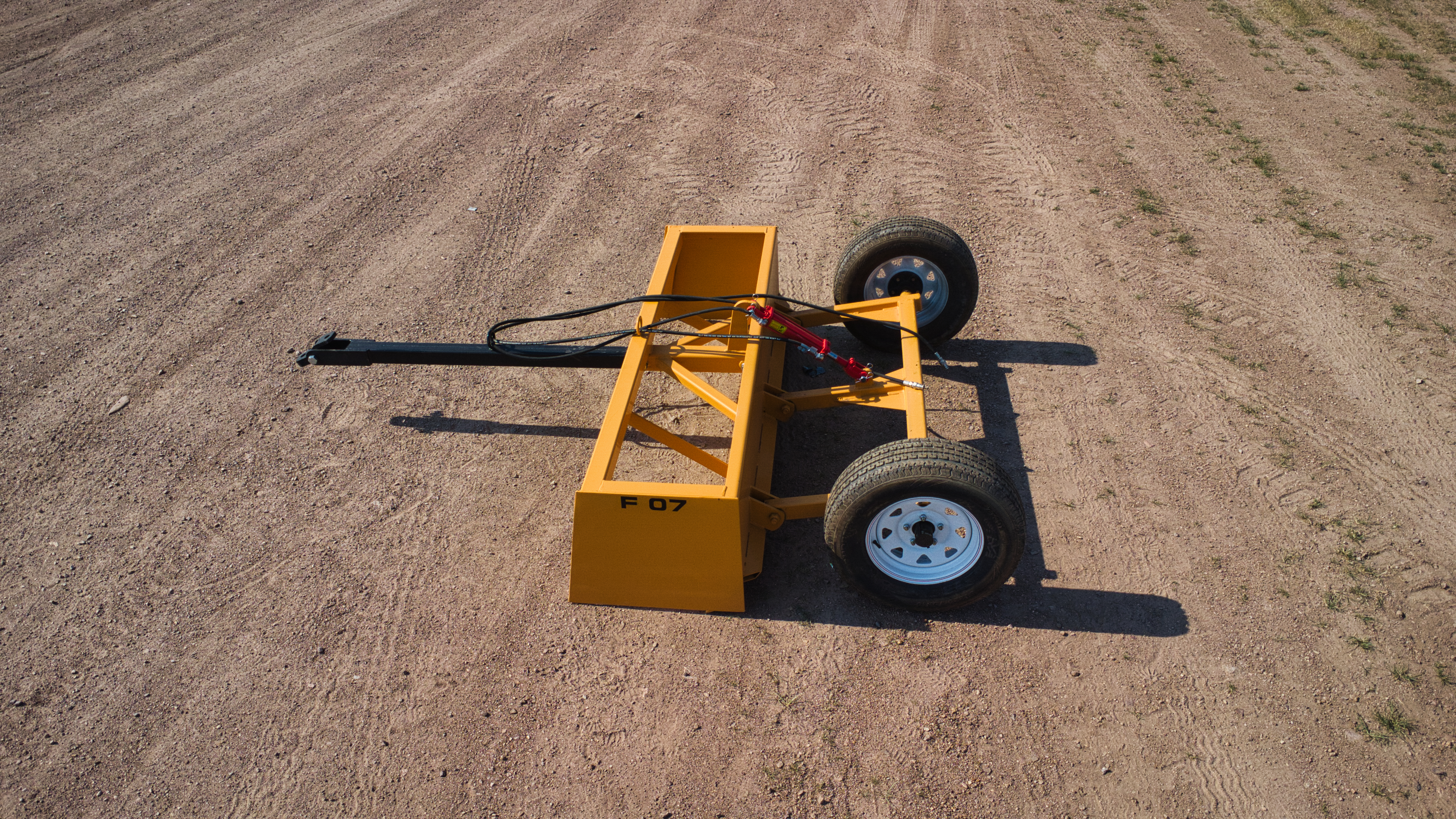

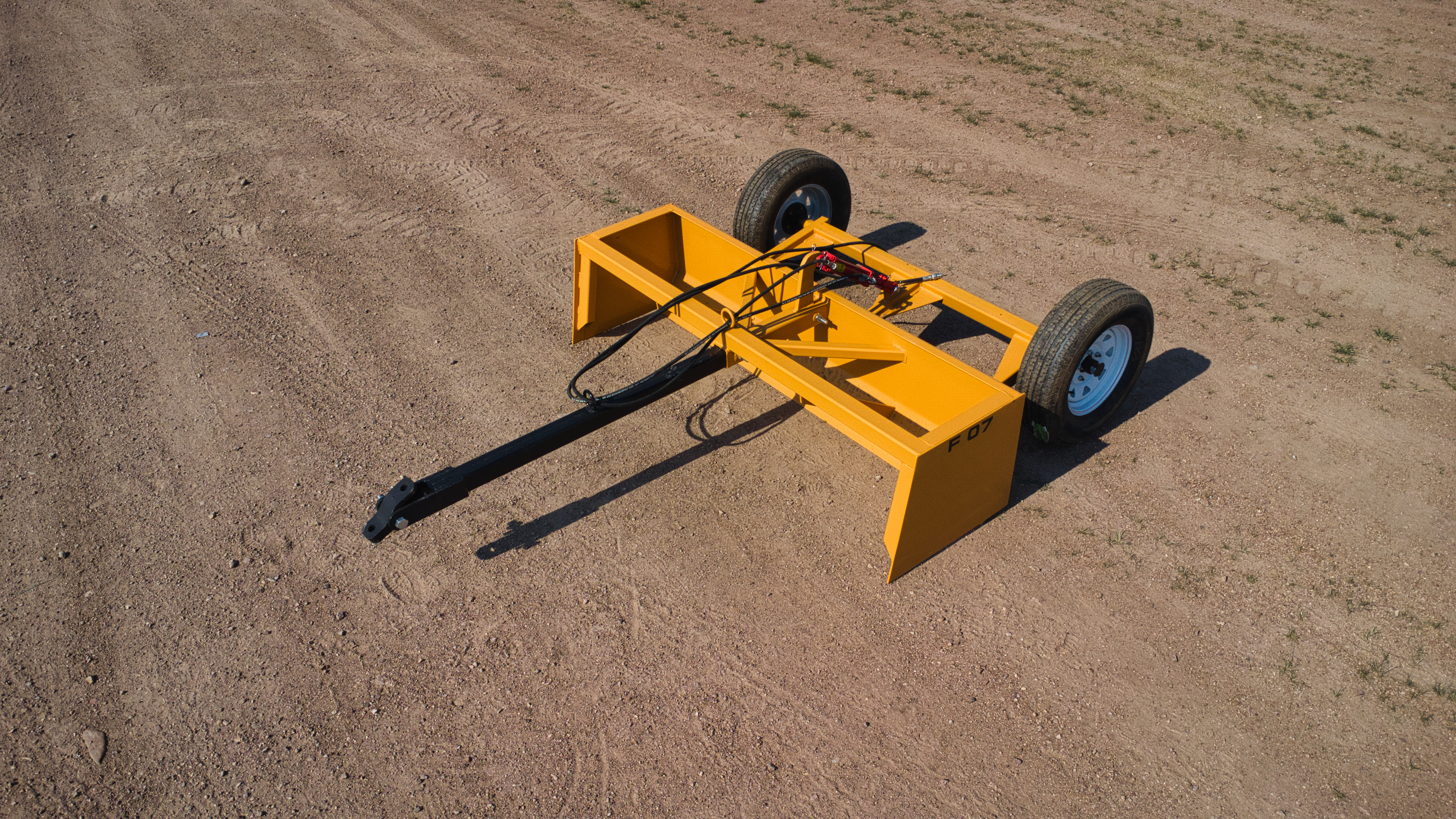

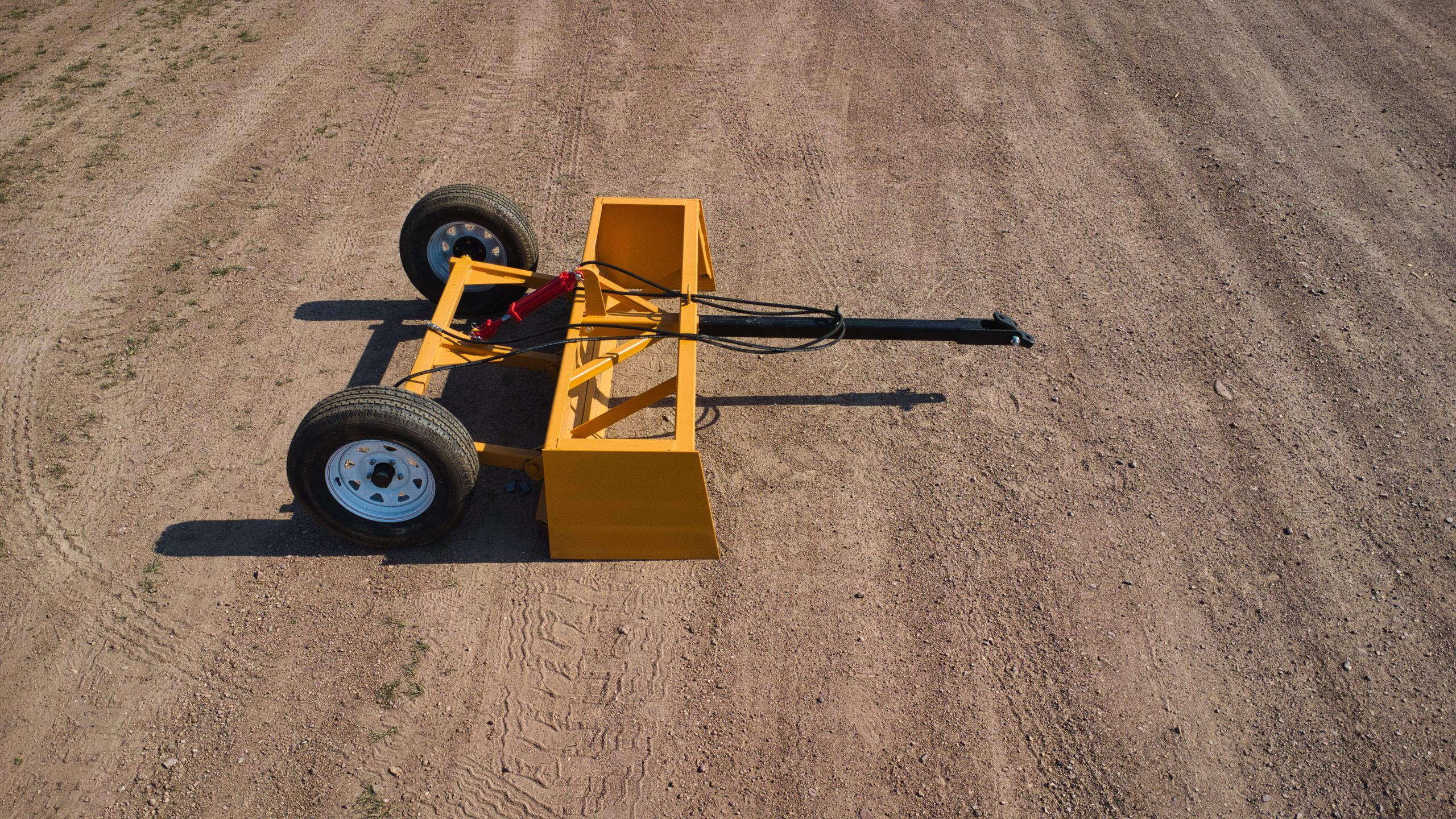

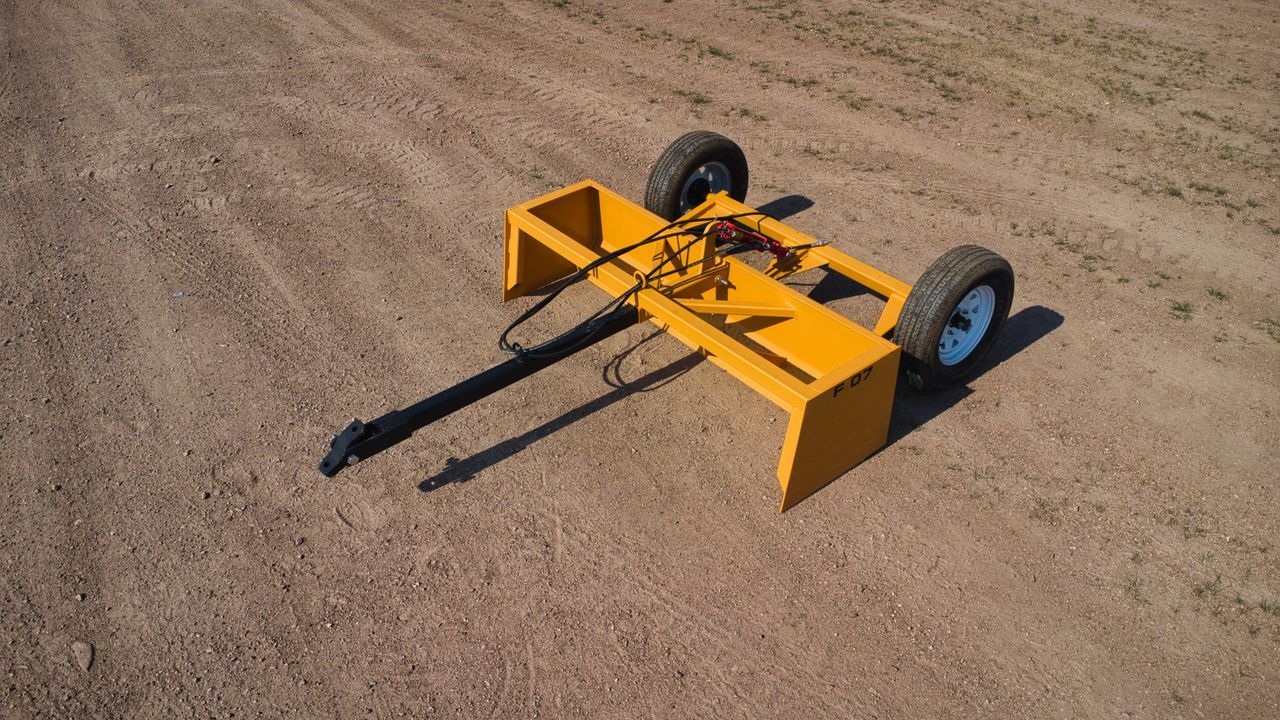

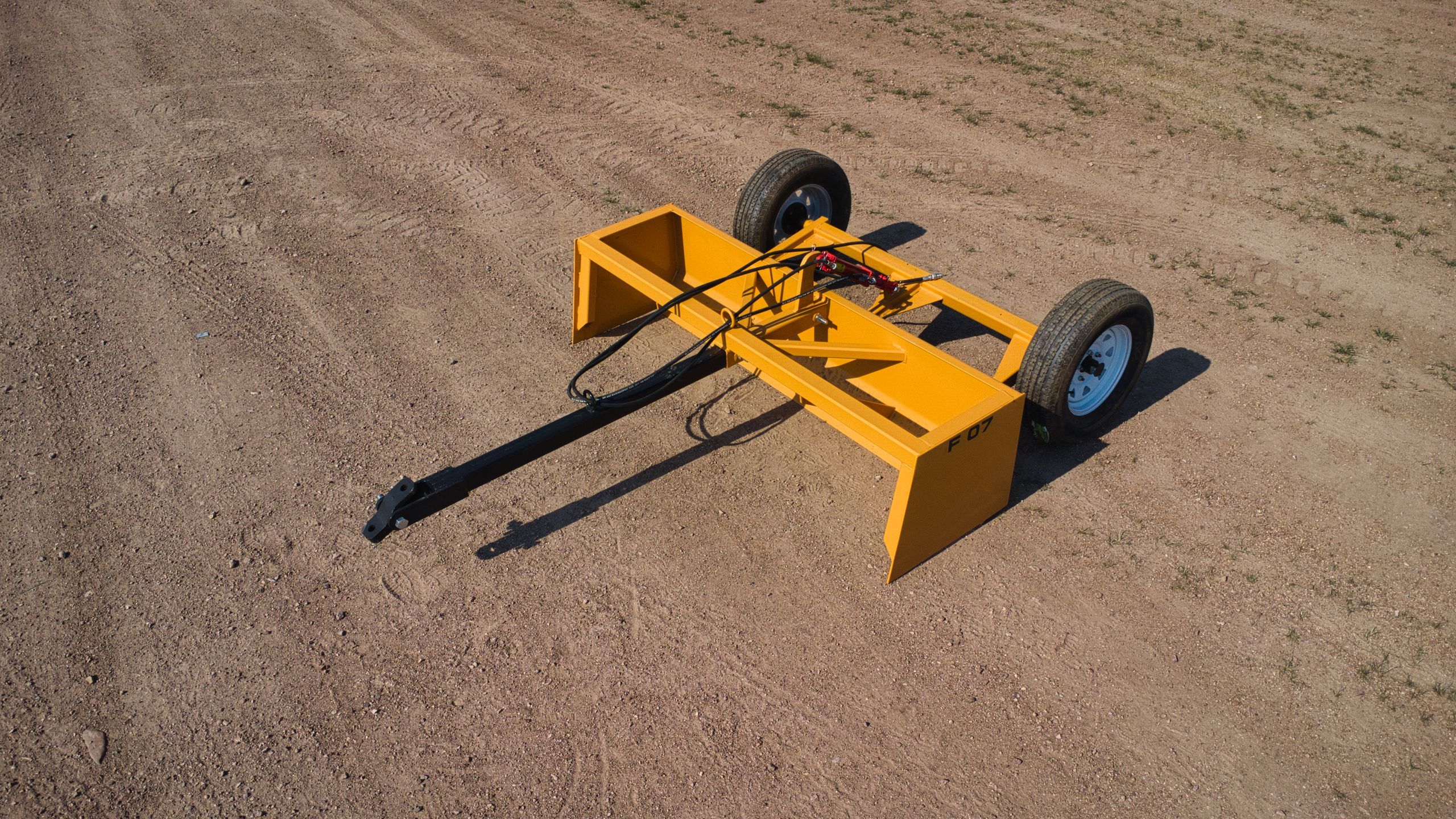

The F07 and F08 Box Blades are compact, pull-type grading tools built for everyday farm and ranch work. With a lighter frame and simple hydraulic control, they’re ideal for maintaining roads, leveling small fields, and spreading material without overloading smaller tractors. Both models feature a 22-inch high moldboard made from high-strength steel and a reversible hardened cutting edge for long service life. A single hydraulic cylinder allows easy raise and lower control from the tractor seat, while the pin-through hitch makes hookup quick and straightforward. These box blades are a practical choice for operators who need dependable grading performance in a simpler, economical package.

×
