Specifications
| Feature | Description |
|---|---|
| Series | F (Standard) |
| Optional | Tilt |
| Models | F10, F12 |
| Working Width | 10 ft (F10), 12 ft (F12) |
| Moldboard Height | 27 in |
| Weight | 520 kg (F10), 576 kg (F12) |
| Hitch Type | Pin-through hitch |

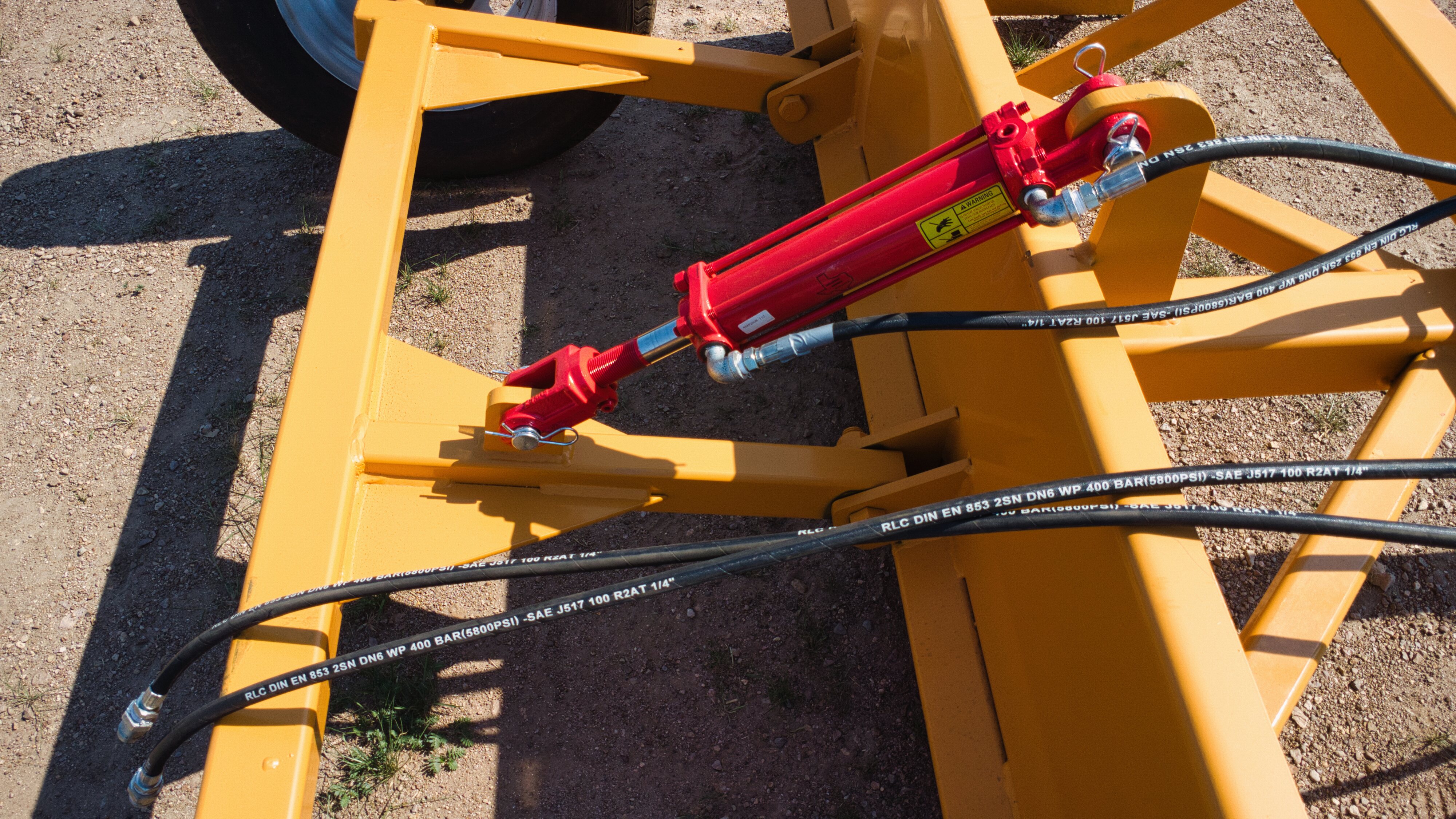

| Cylinder Quantity | 1 |
| Cylinder Size | 1 × 2" × 8" |
| Hydraulic Connectors | 2 |
| Cutting Edge | Hardened steel, reversible 6"x1/2" |
| Moldboard Material | High-strength steel |
| Blade Type | Box blade |
| Tire Type | ST255/75R15 |
| Recommended Horsepower | 80–100 HP (F10), 90–110 HP (F12) |

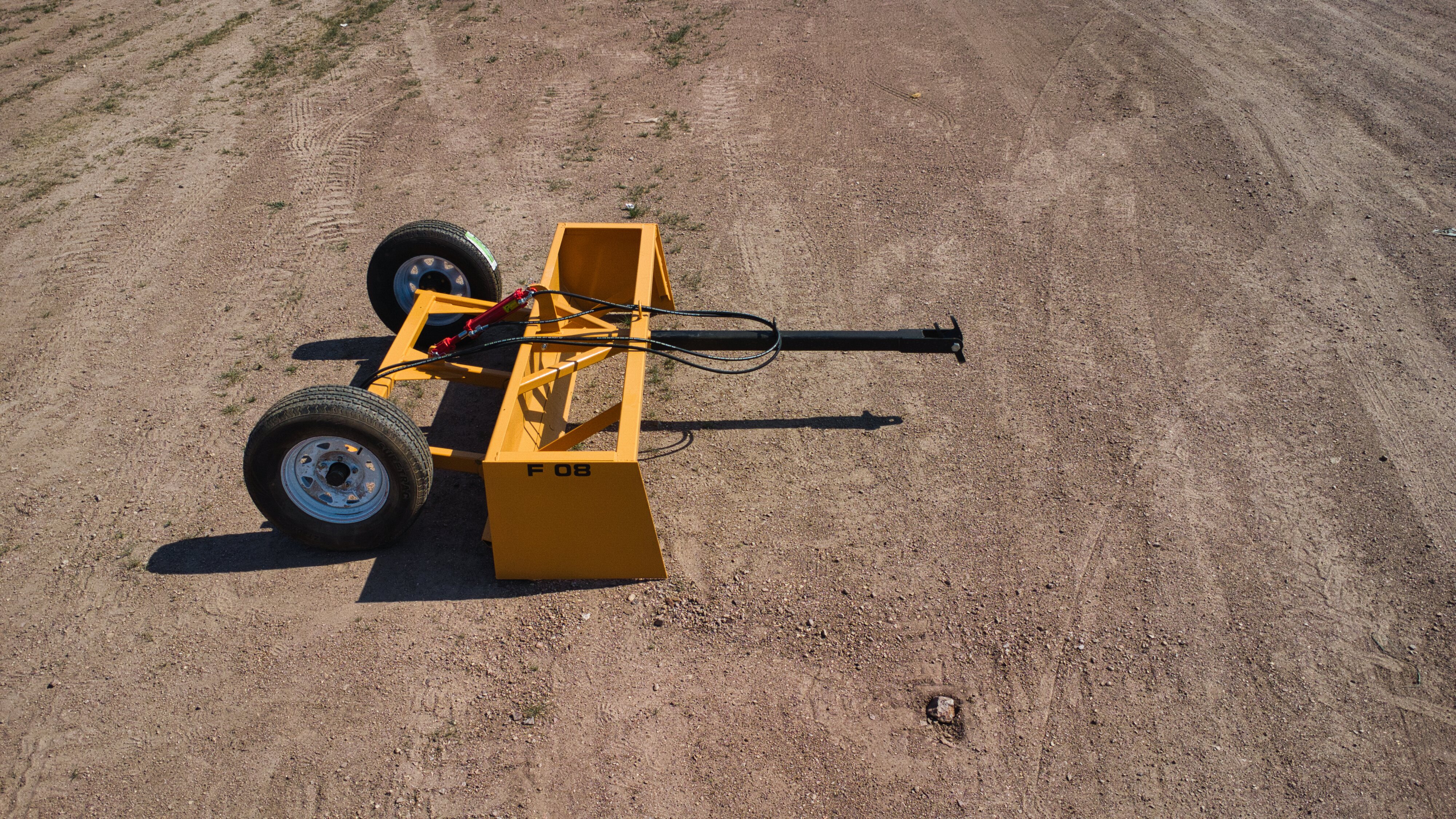

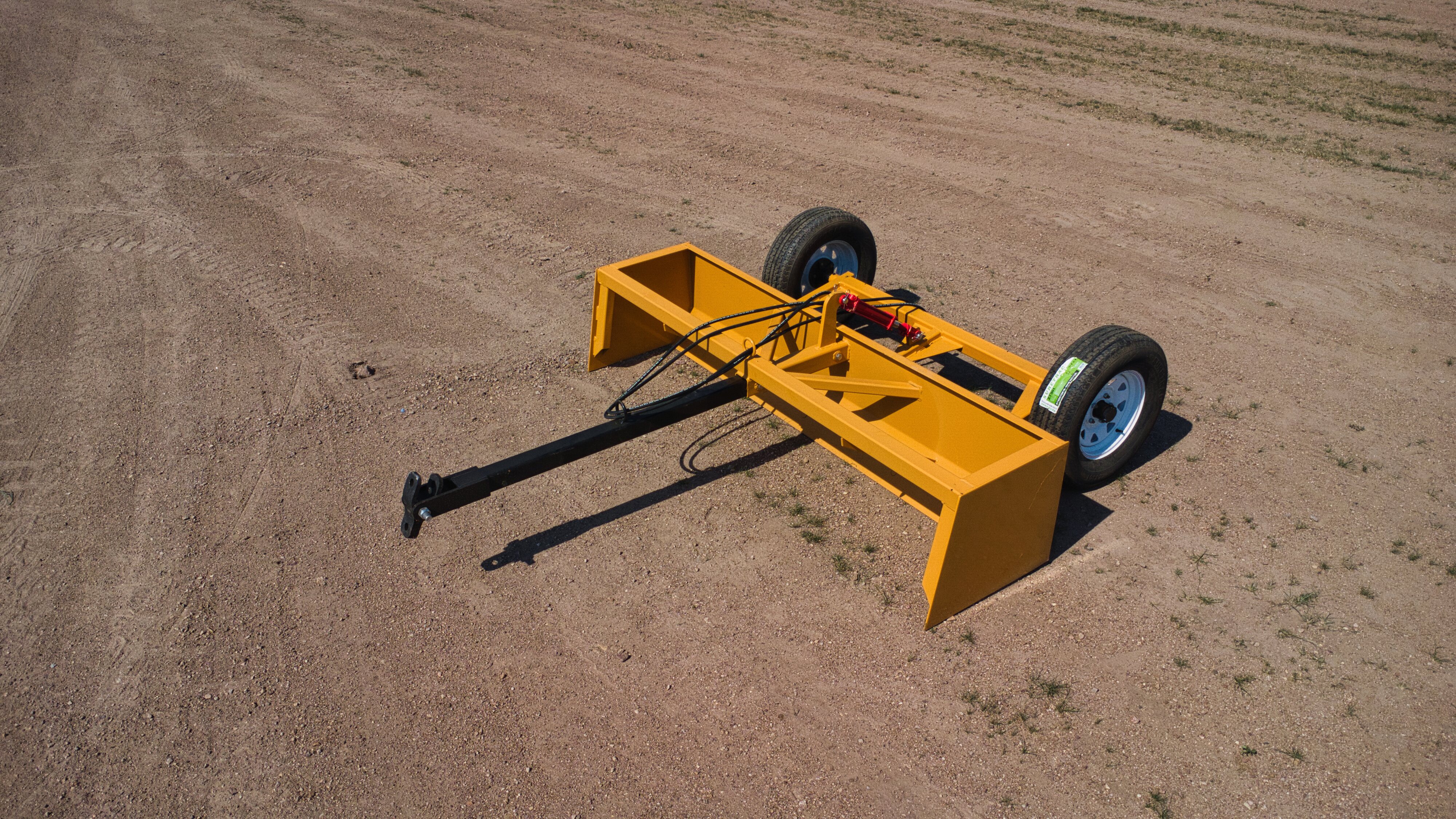

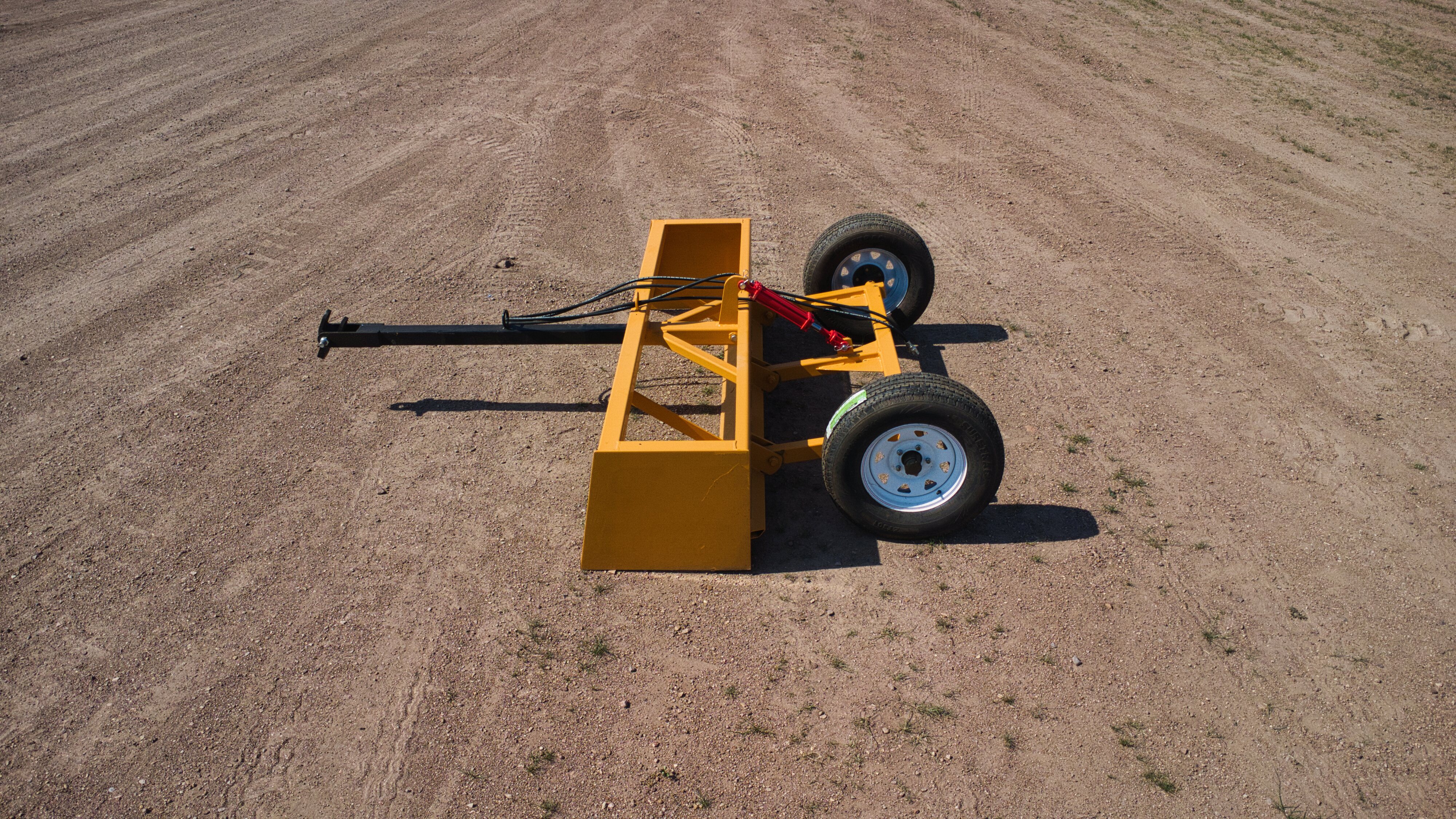

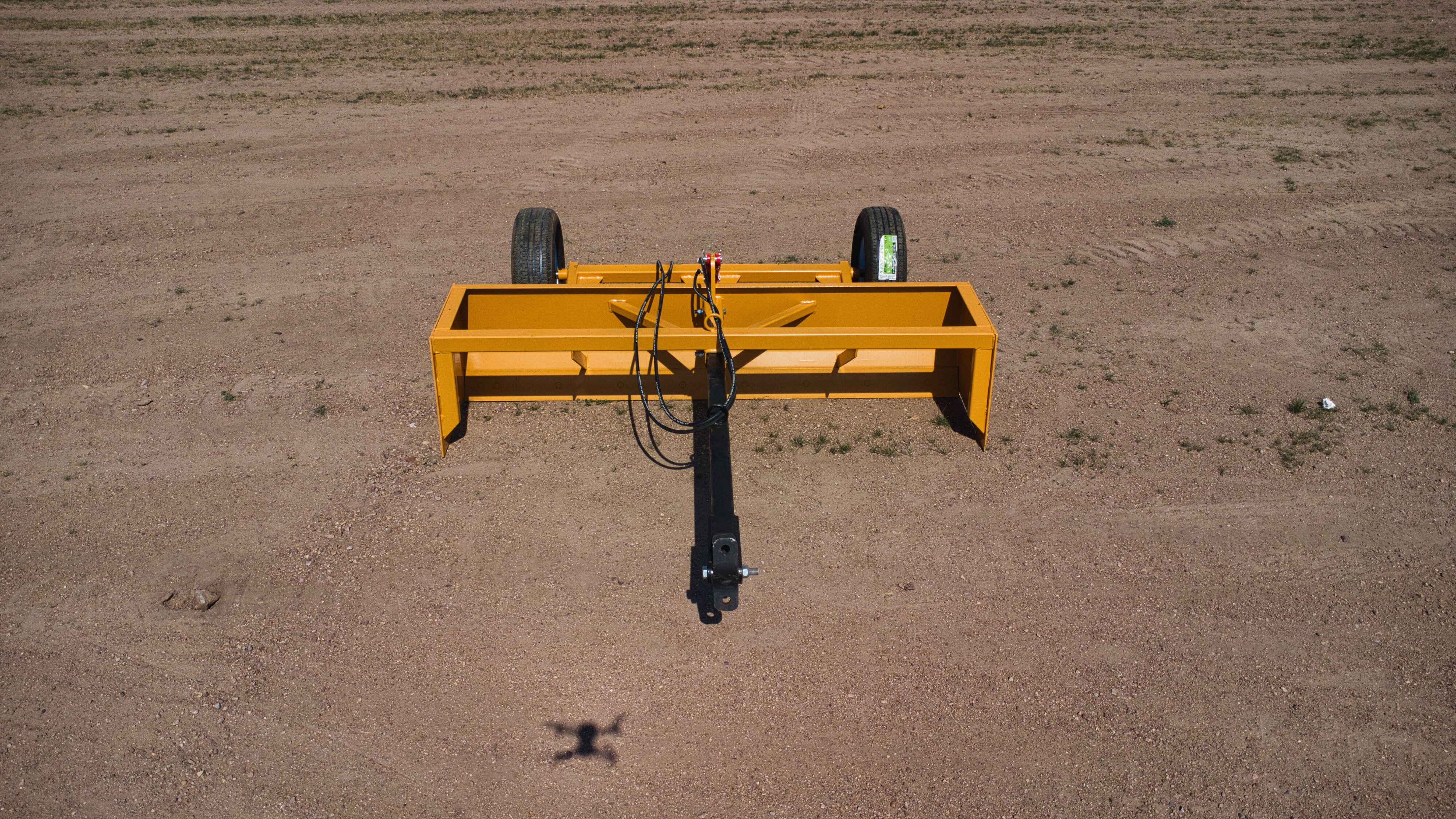

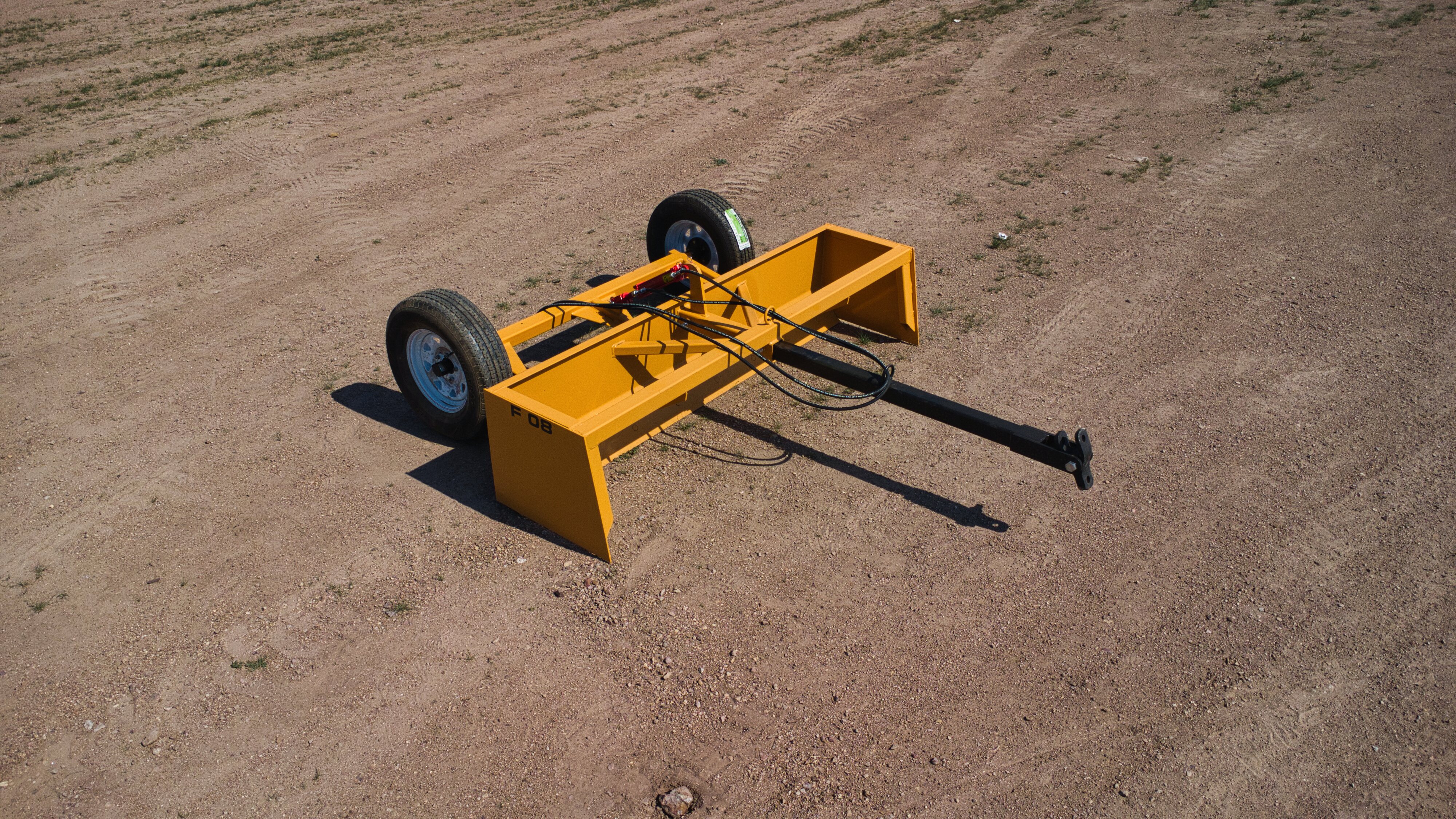

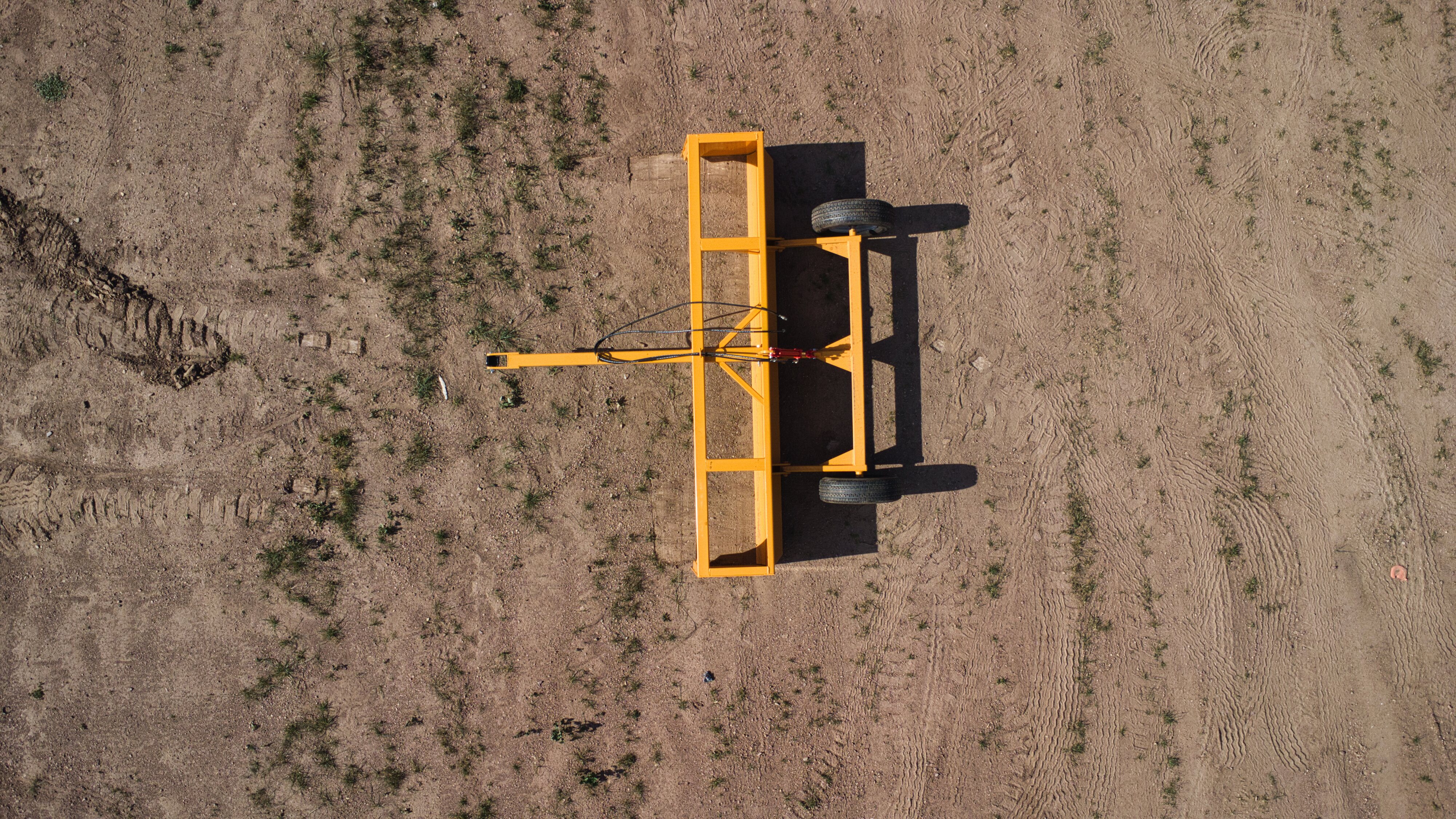

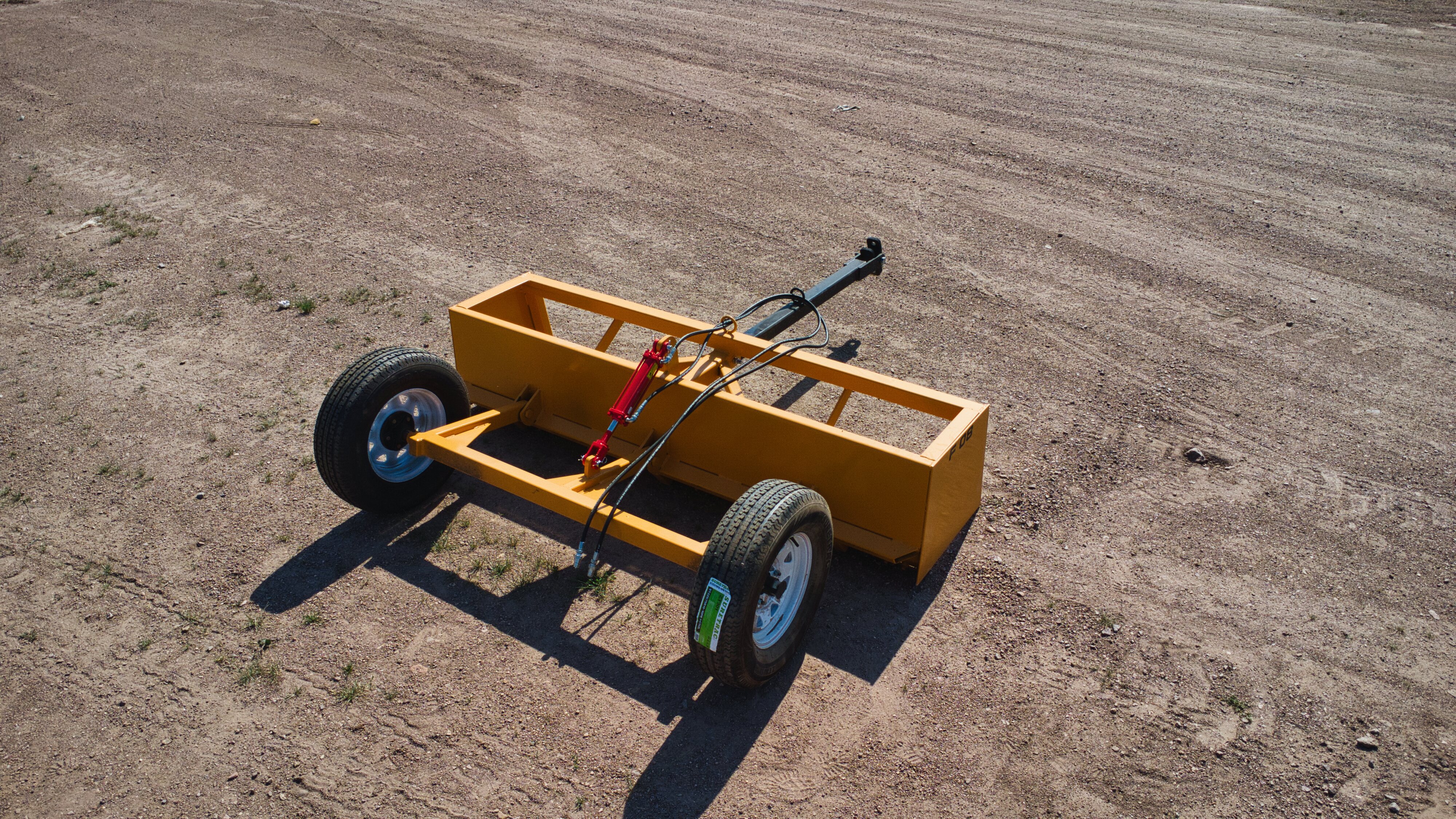

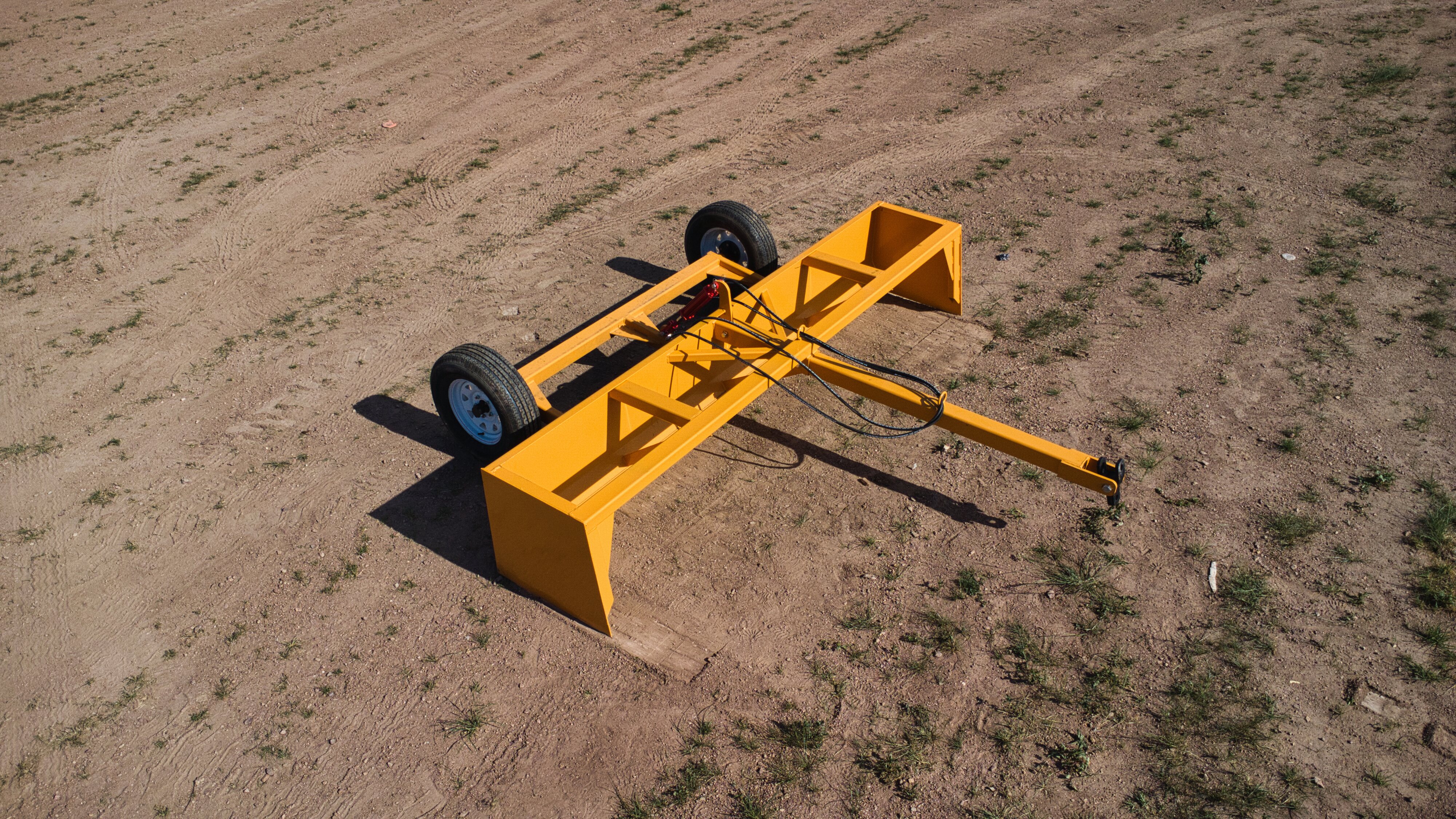

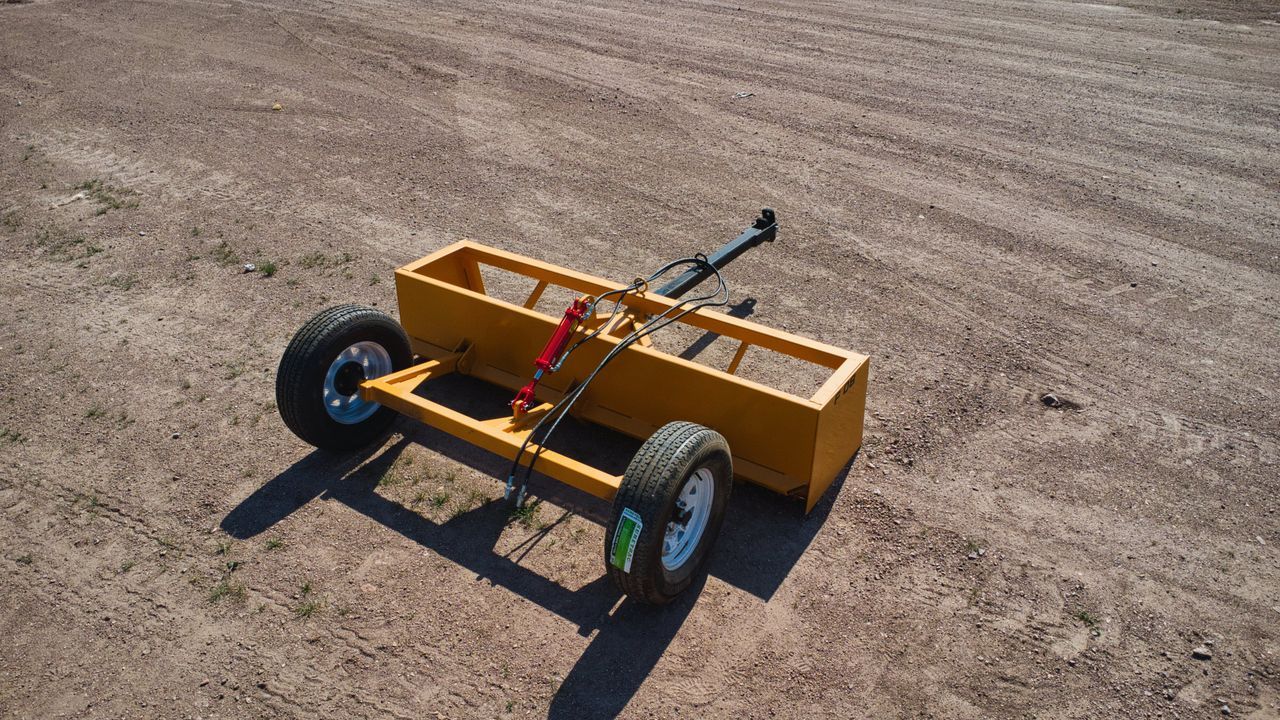

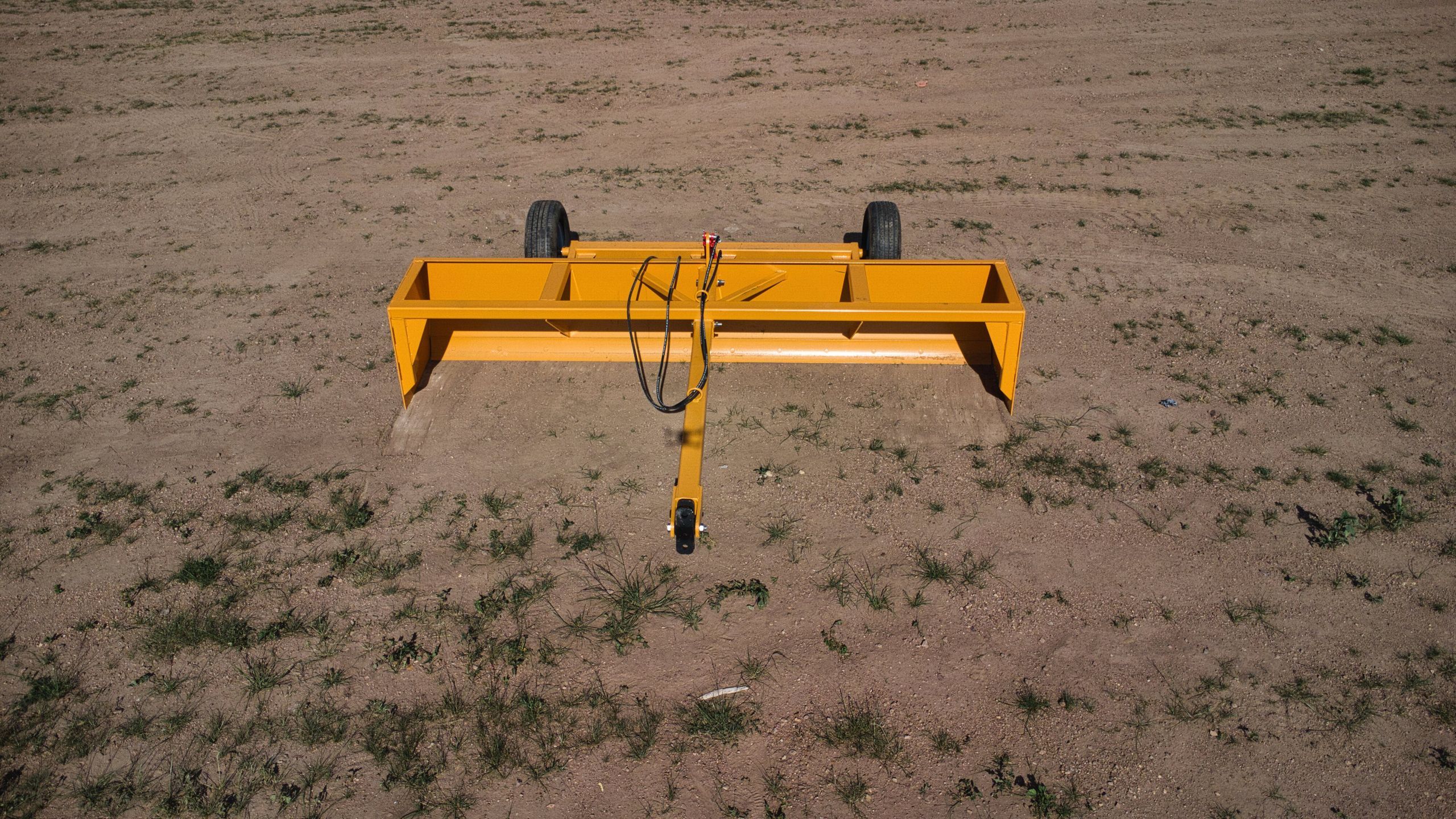

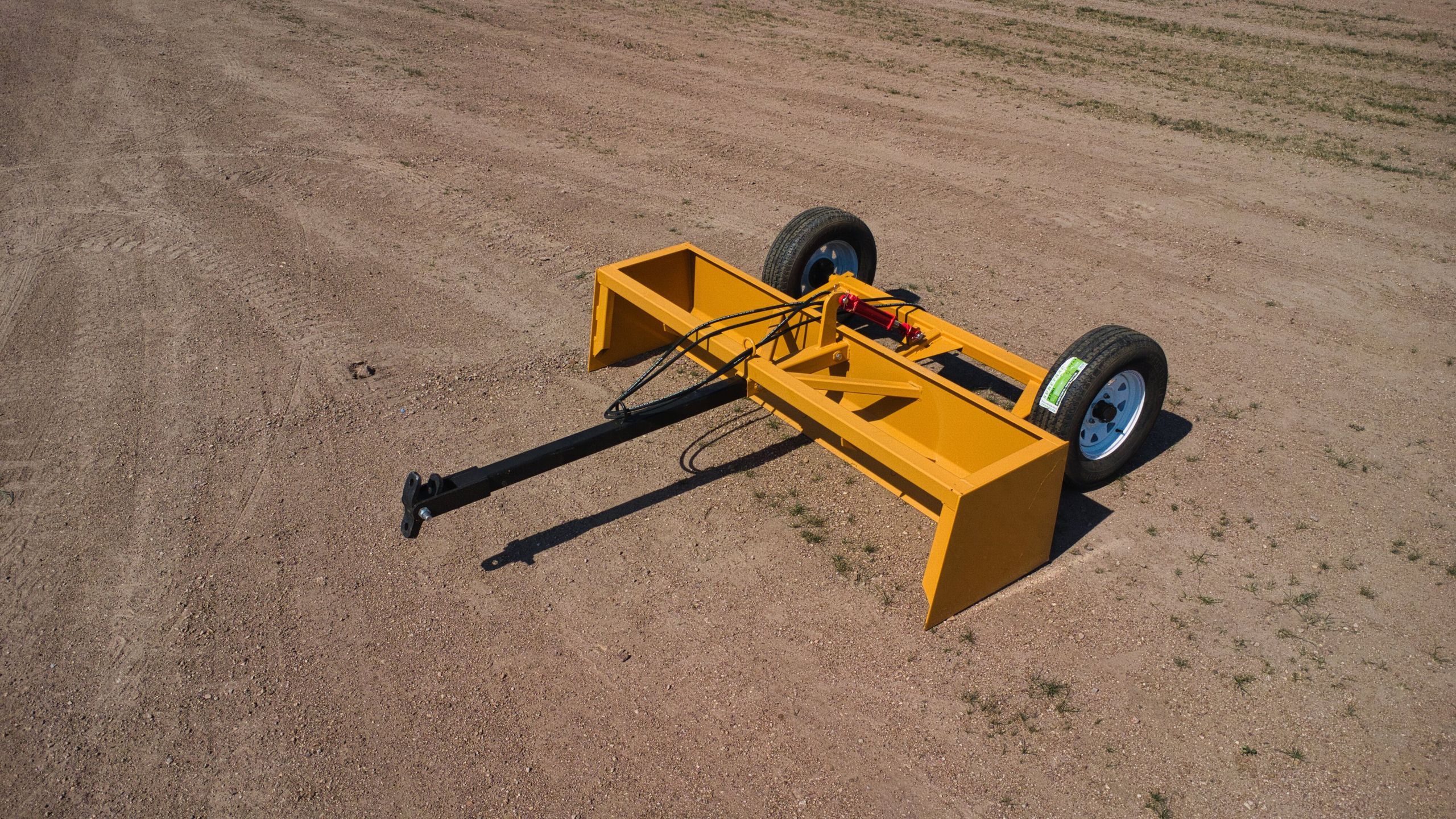

The F10 and F12 Box Blades are designed for operators who need more working width and capacity while keeping the simplicity of a standard pull-type box blade. With a taller 27-inch moldboard, these models handle heavier material loads and provide better control when leveling roads, fields, and construction sites. They use the same single hydraulic lift cylinder and pin-through hitch design, keeping operation and maintenance simple. The hardened, reversible cutting edge ensures consistent grading performance and long wear life in dirt, gravel, and mixed material. These models are well suited for mid-size tractors and operators who want increased productivity without stepping up to a full heavy-duty hydraulic box blade.
