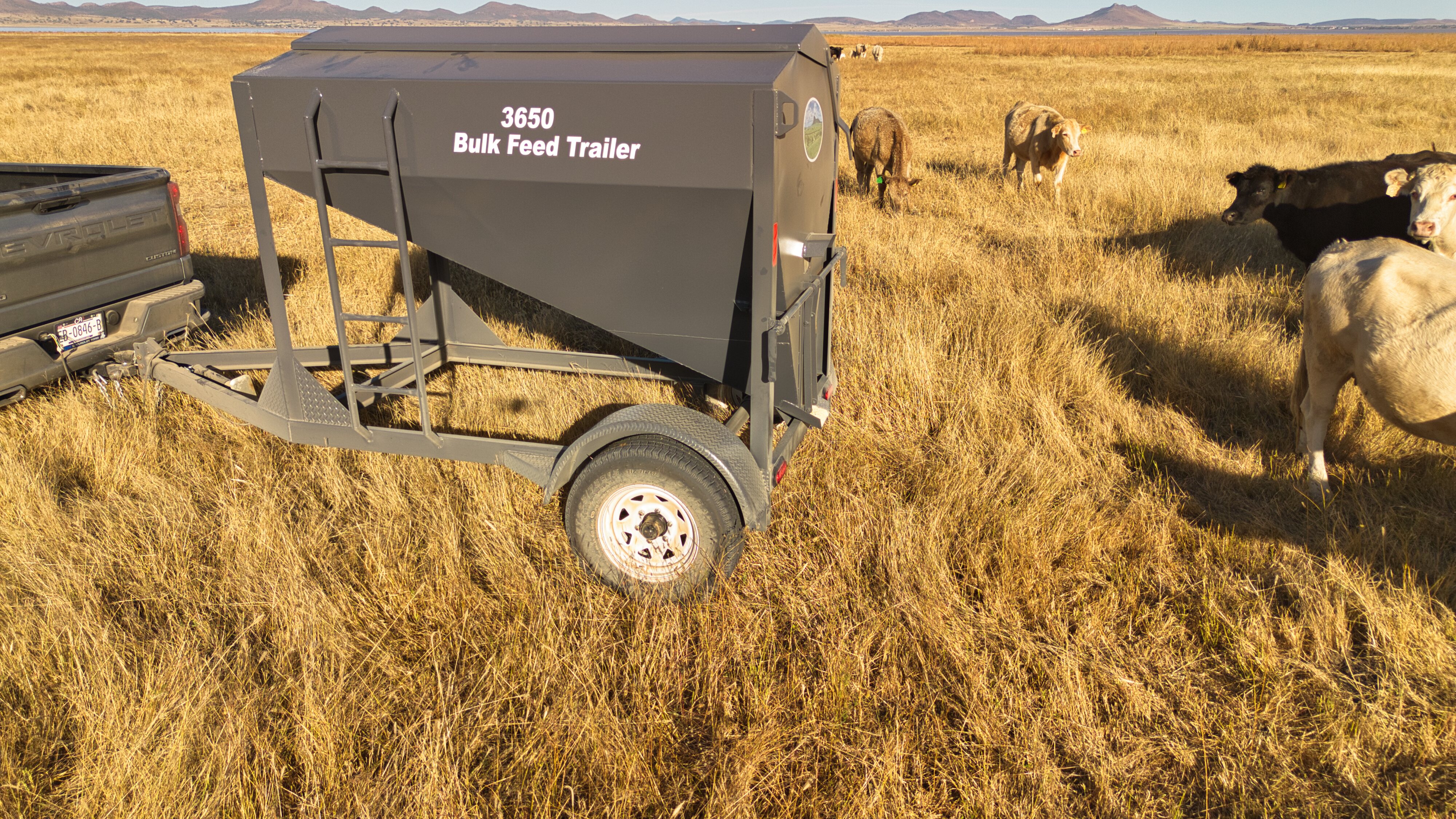

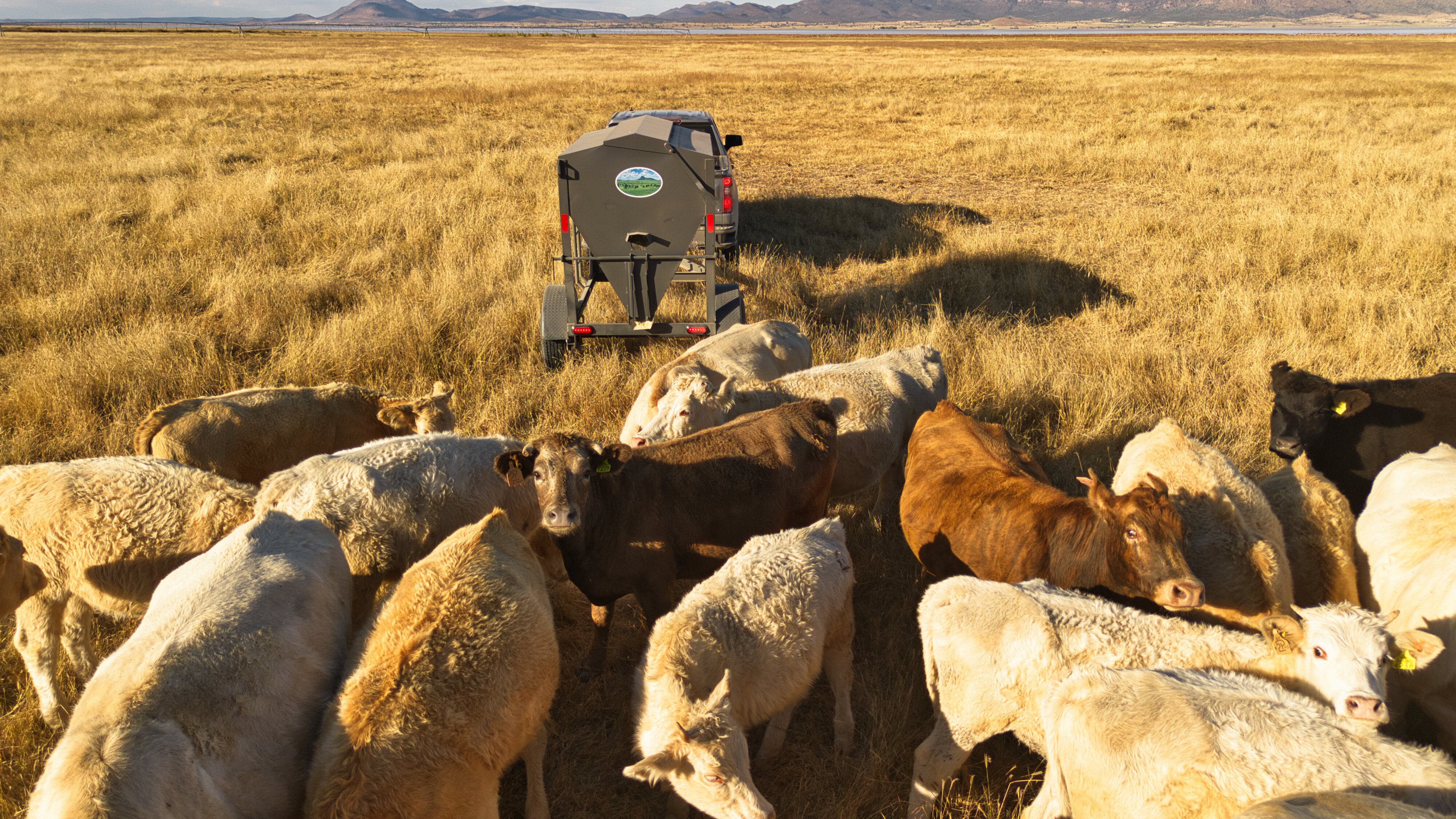

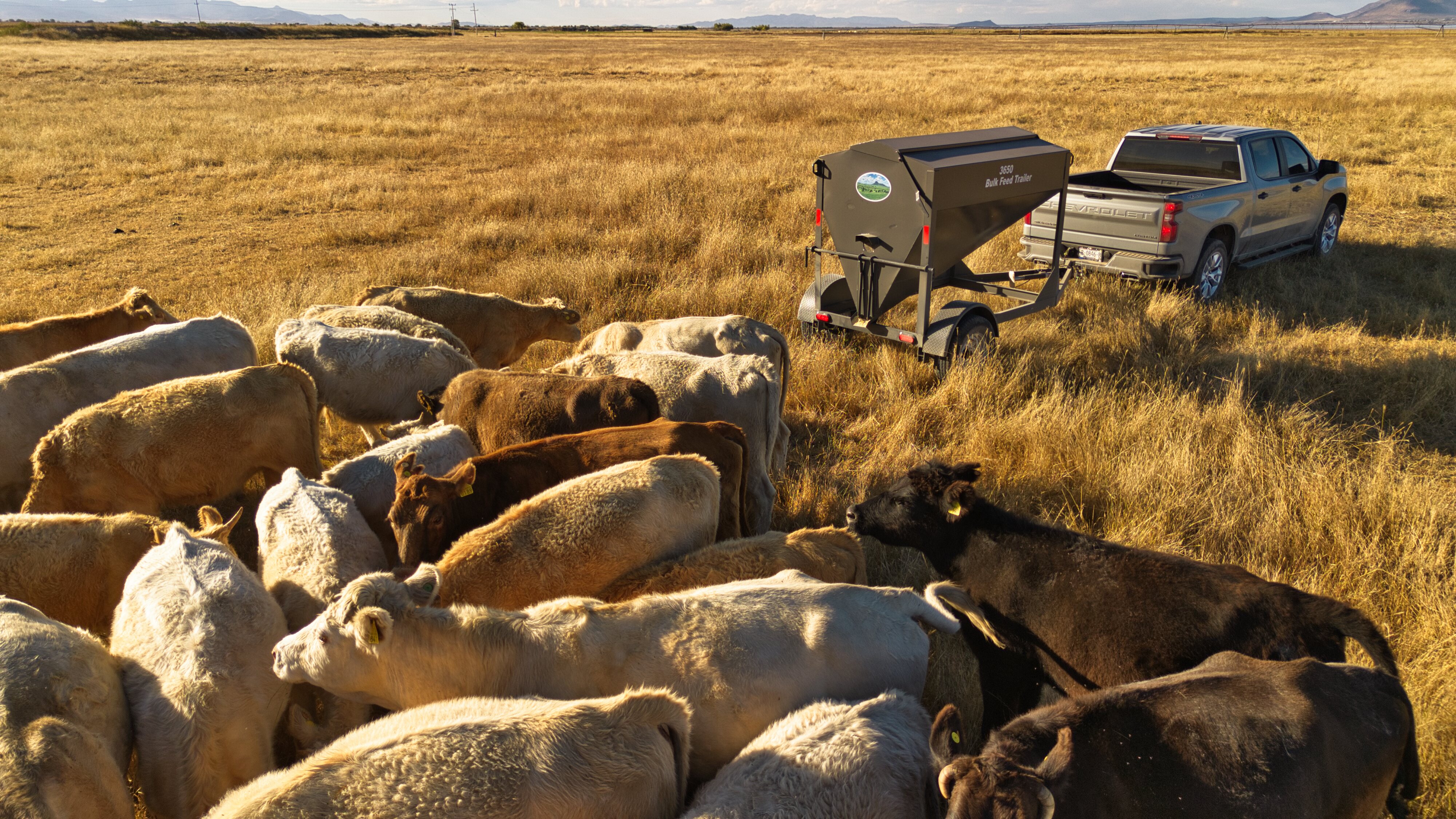

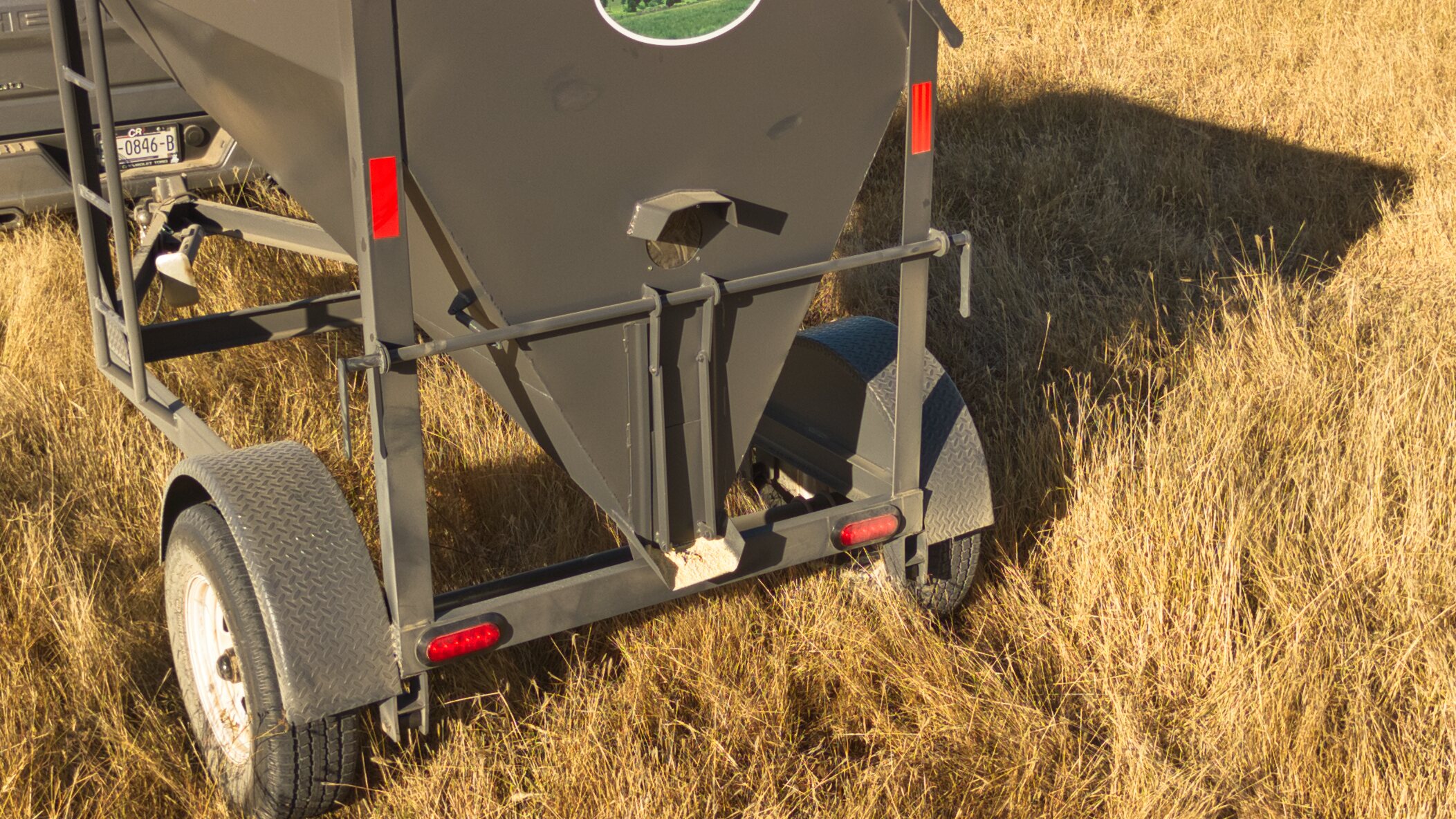

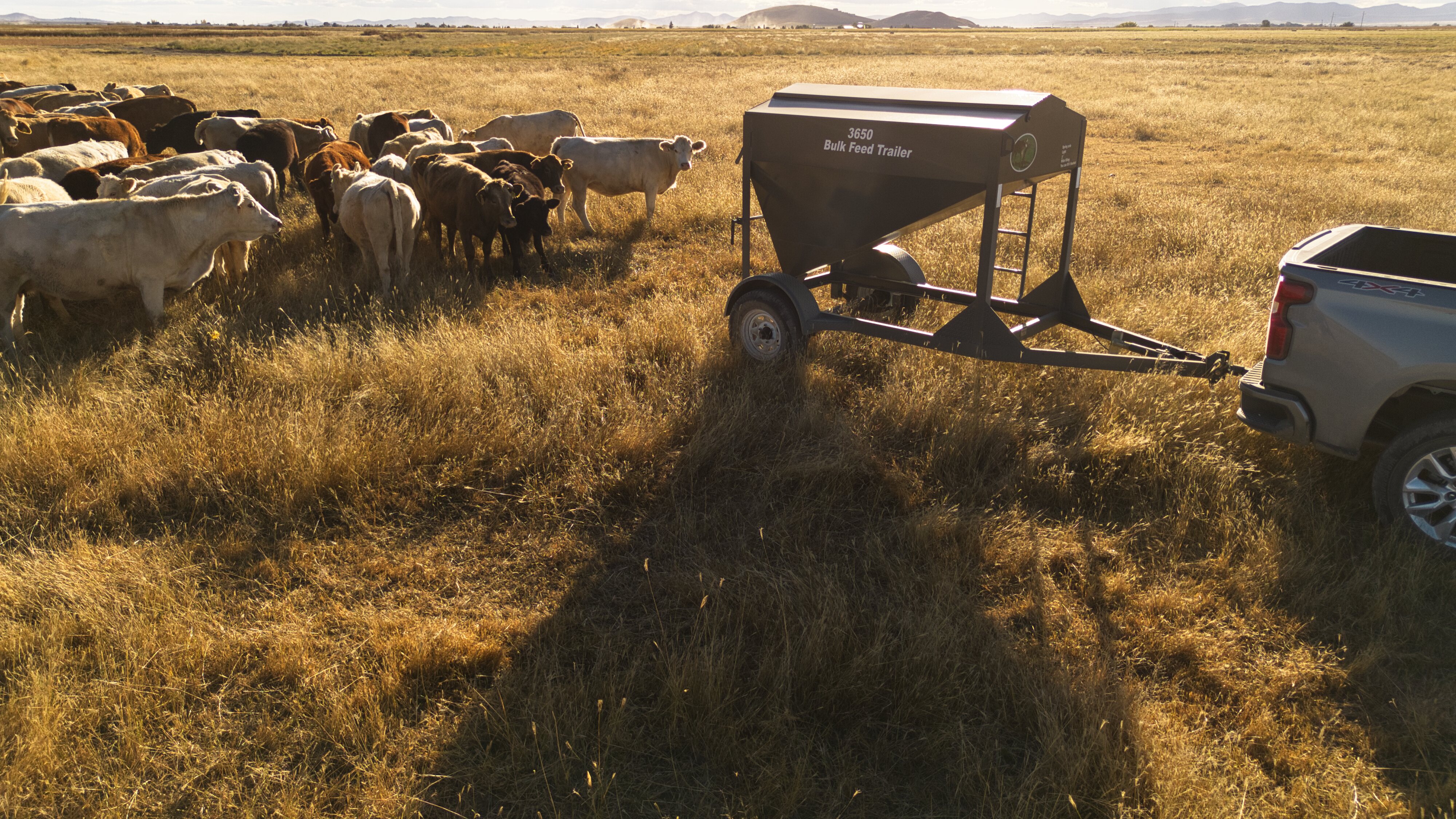

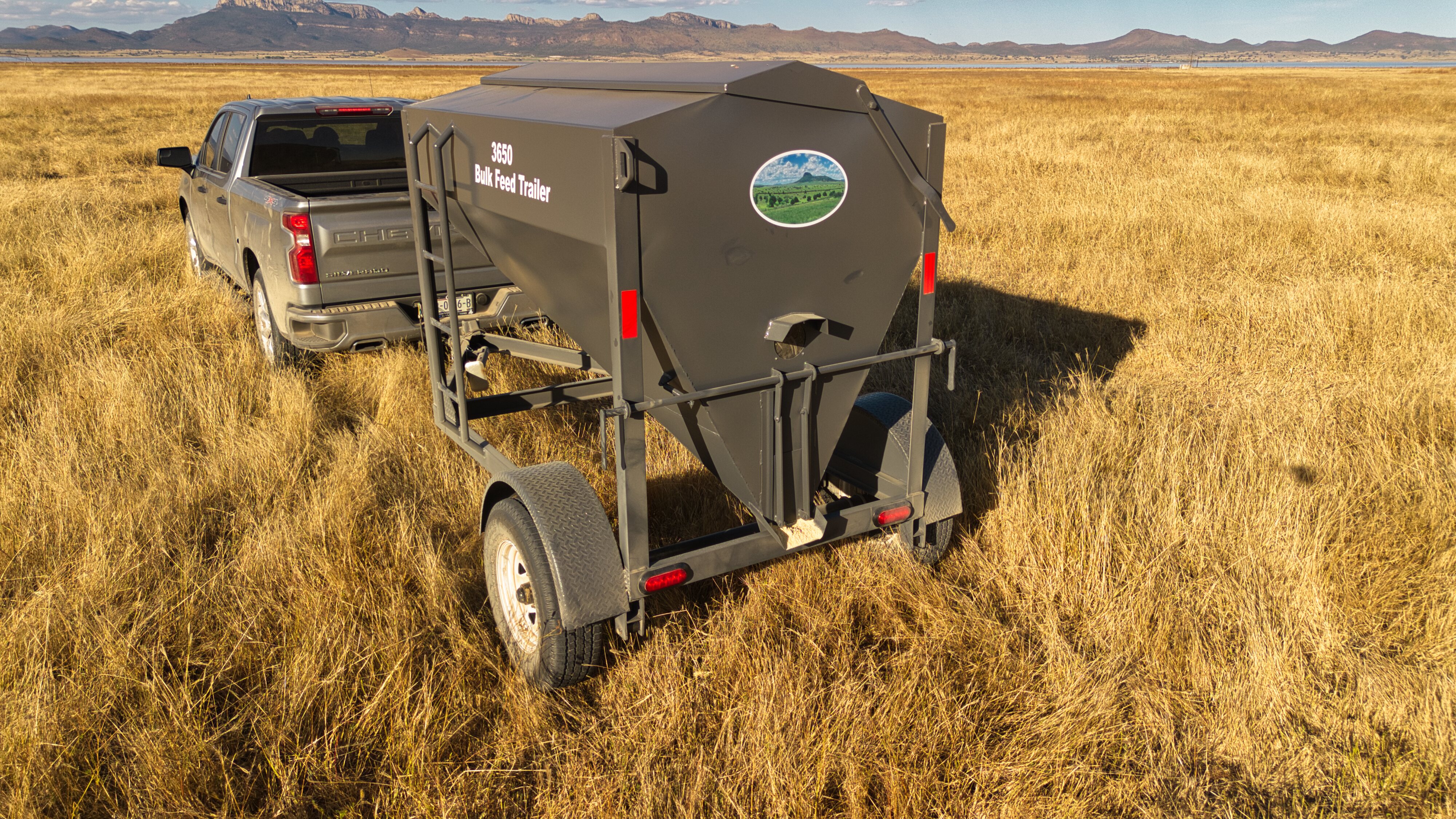

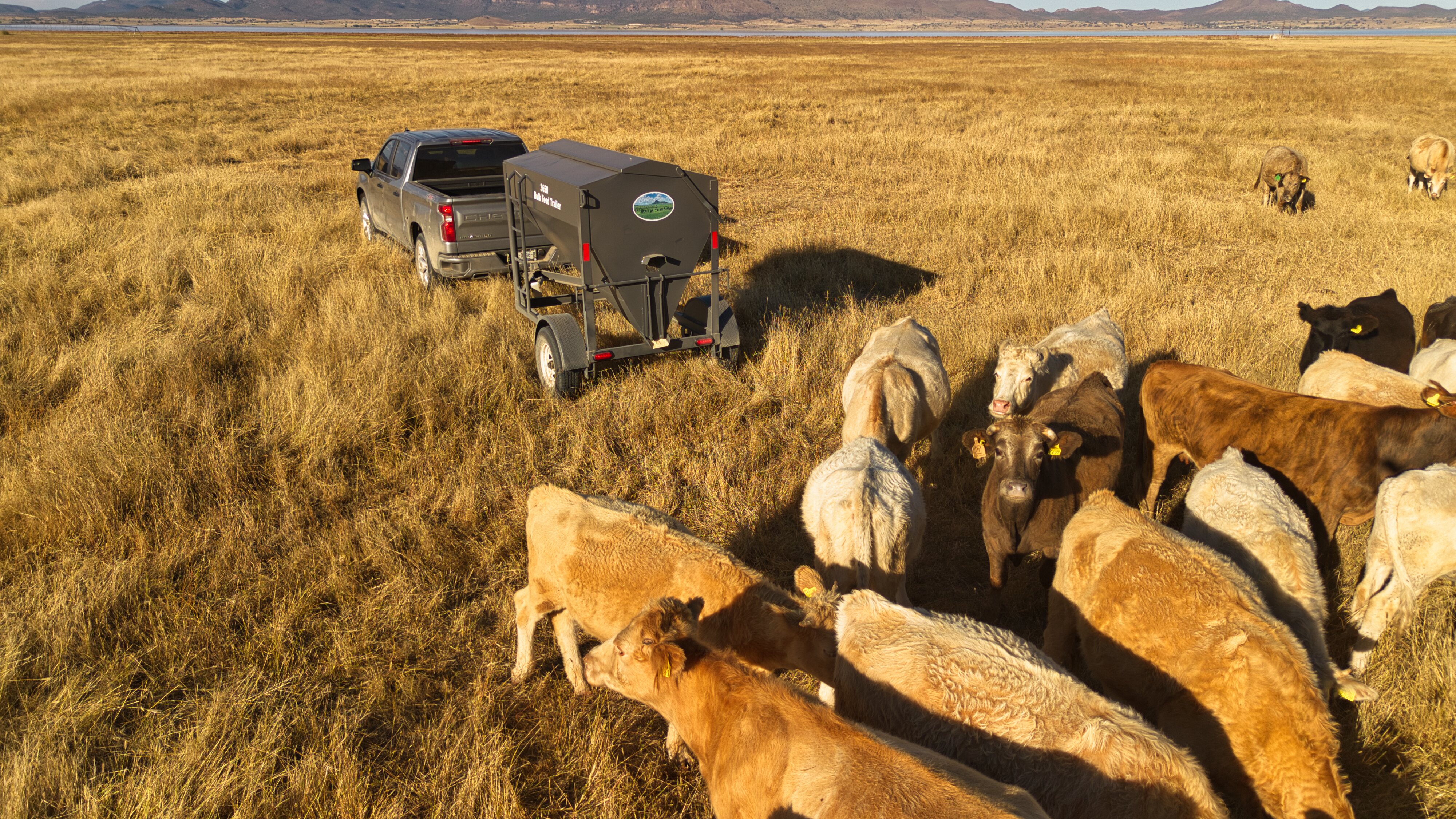

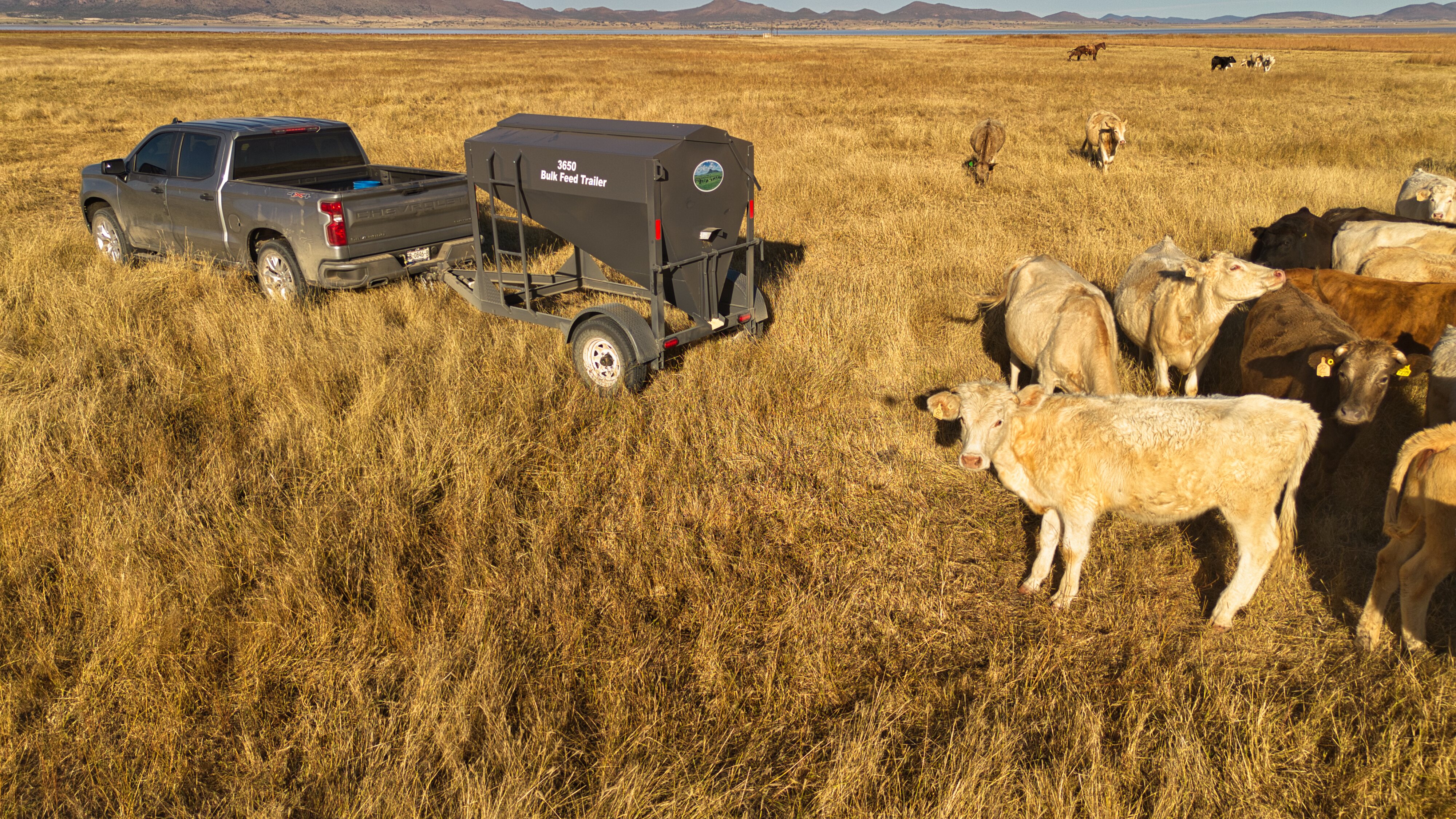

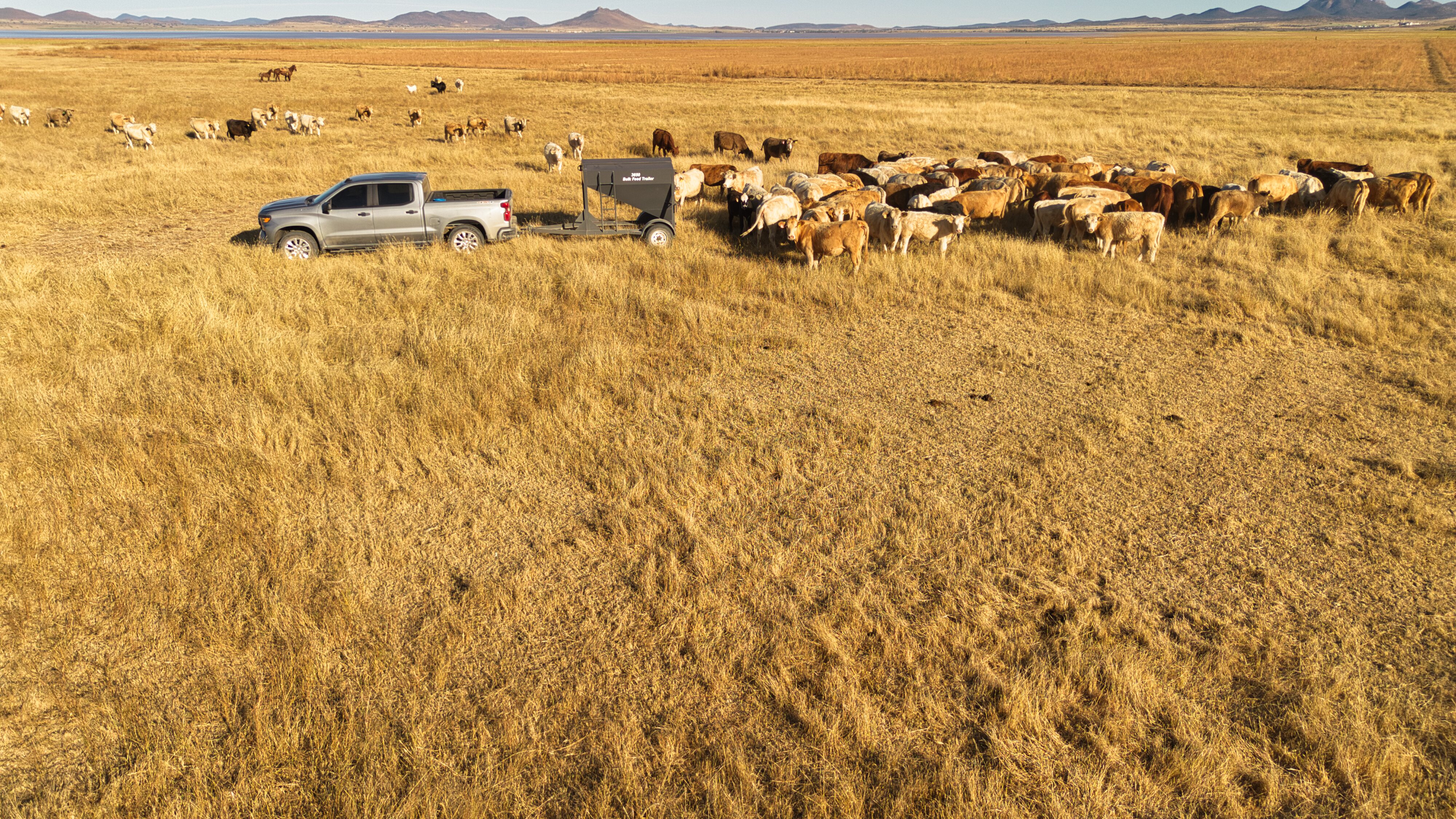

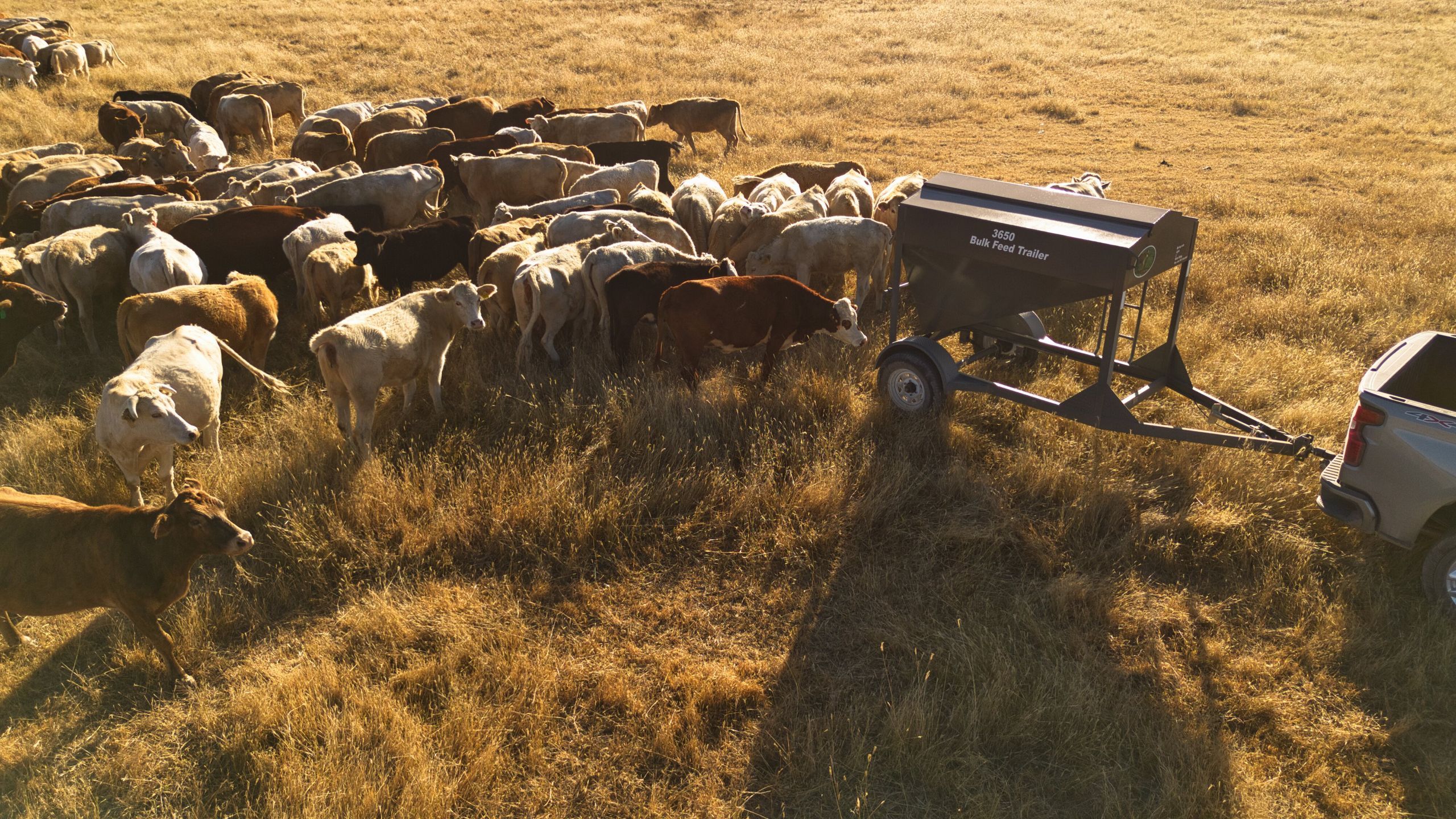

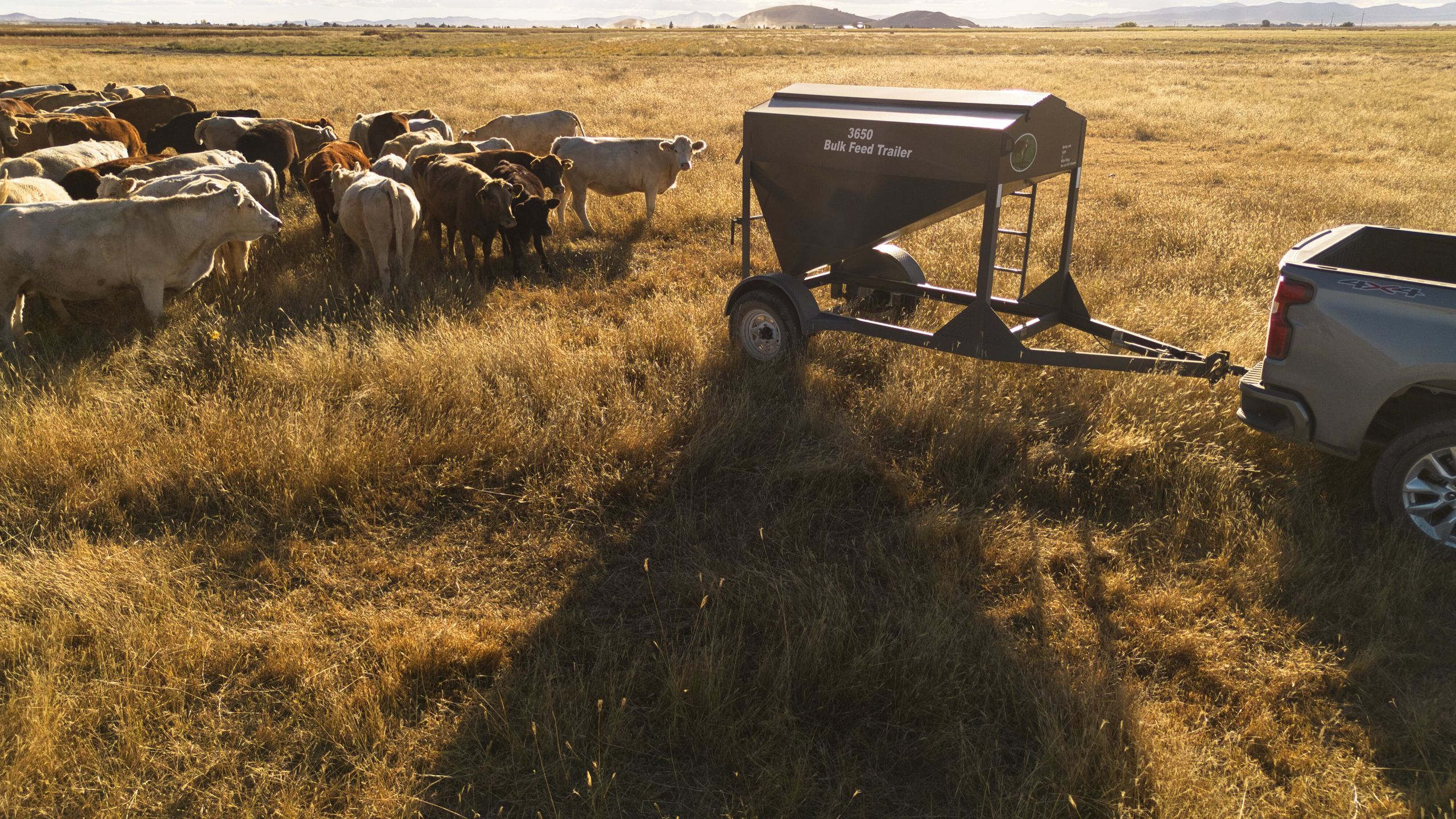

The 3650 Bulk Feed Trailer strikes the perfect balance between capacity and mobility. With an 80 cu ft hopper (holding about 3,650 lb of corn), this model handles mid-size operations with ease — delivering quick, consistent gravity flow feed discharge. The V-bottom hopper minimizes bridging and clogging, while the adjustable manual gate lets you fine-tune feed flow rate in seconds. Built from heavy-duty welded steel and finished with industrial-grade spray coating, it’s built to withstand years of rugged use. Standard features include a fixed ladder for access, leaf-spring suspension, and LED lighting for visibility in all conditions. With options like dual compartments and a metal top cover, the 3650 gives operators flexibility to adapt to different feed materials and herd sizes. Specification Application: Transporting and dispensing grain, pellets, or feed for livestock Capacity: 80 cu ft (≈ 3,650 lb of corn) Frame: Welded structural steel Hopper Design: V-bottom, single or optional dual compartment Finish: Industrial-grade spray finish Color Options: Standard Industrias America colors Gate Type: Manual slide gate with adjustable chute Discharge Height: 2 ft Suspension: Leaf-spring axle Axle Rating: 6,000 lb Tire Size: 16 in Wheels: 6-lug steel Hitch Type: 2-5/16 in ball Jack: Manual top-wind, 3,000 lb capacity Lighting: LED lights with reflective tape Wiring Harness: 4-pin Overall Length: 12 ft 9 in Overall Width: 72 in Overall Height: 7 ft 5 in Empty Weight: 504 lb
