Specifications
| Feature | Description |
|---|---|
| Type | Heavy-Duty Pull-Type Header Transport Wagon |
| Available Models | 2030, 2032, 2035, 2036, 2037, 2038, 2040, 2042, 2045, 2046, 2048, 2054 |
| Header Capacity Range | 30 ft to 54 ft |
| Approx. Overall Length Range | 38.5 ft to 62.5 ft |
| Overall Width | 116" |
| Model 2030 | 30 ft - Overall Length 38.5 ft - Approx. Weight 1,840 kg |
| Model 2032 | 32 ft - Overall Length 40.5 ft - Approx. Weight 1,880 kg |
| Model 2035 | 35 ft - Overall Length 43.5 ft - Approx. Weight 1,960 kg |
| Model 2036 | 36 ft - Overall Length 44.5 ft - Approx. Weight 1,990 kg |
| Model 2037 | 37 ft - Overall Length 45.5 ft - Approx. Weight 2,030 kg |
| Model 2038 | 38 ft - Overall Length 46.5 ft - Approx. Weight 2,030 kg |
| Model 2040 | 40 ft - Overall Length 48.5 ft - Approx. Weight 2,070 kg |
| Model 2042 | 42 ft - Overall Length 50.5 ft - Approx. Weight 2,140 kg |
| Model 2045 | 45 ft - Overall Length 53.5 ft - Approx. Weight 2,220 kg |
| Model 2046 | 46 ft - Overall Length 54.5 ft - Approx. Weight 2,260 kg |
| Model 2048 | 48 ft - Overall Length 56.5 ft - Approx. Weight 2,300 kg |
| Model 2054 | 54 ft - Overall Length 62.5 ft - Approx. Weight 2,450 kg |
| Approx. Weight Range | 1,840–2,450 kg |
| Main Frame | 8" × 4" structural steel |
| Frame Design | Inclined |
| Header Supports | 4 adjustable supports |
| Rear Axles | 2 fixed axles |
| Axle Rating | 7,000 lb each |
| Front Dolly | Swivel with plastic fenders |
| Dolly Capacity | 7,000 lb |
| Telescopic Hitch | Approx. 6.5 ft to 10.5 ft |
| Tires | ST235/80R16 |
| Standard Tire Rating | 10-ply |
| Optional Tires | 16-ply |
| Lighting | Rear lights |
| Reflective Markings | Included |
| Hitch | 1" clevis |
| Jack | Manual |
| Safety Chains | Included |
| Finish | Powder coat |
| Color Options | IA Red, Black, or Green |
| Application | Transporting large combine headers from 30 ft to 54 ft |

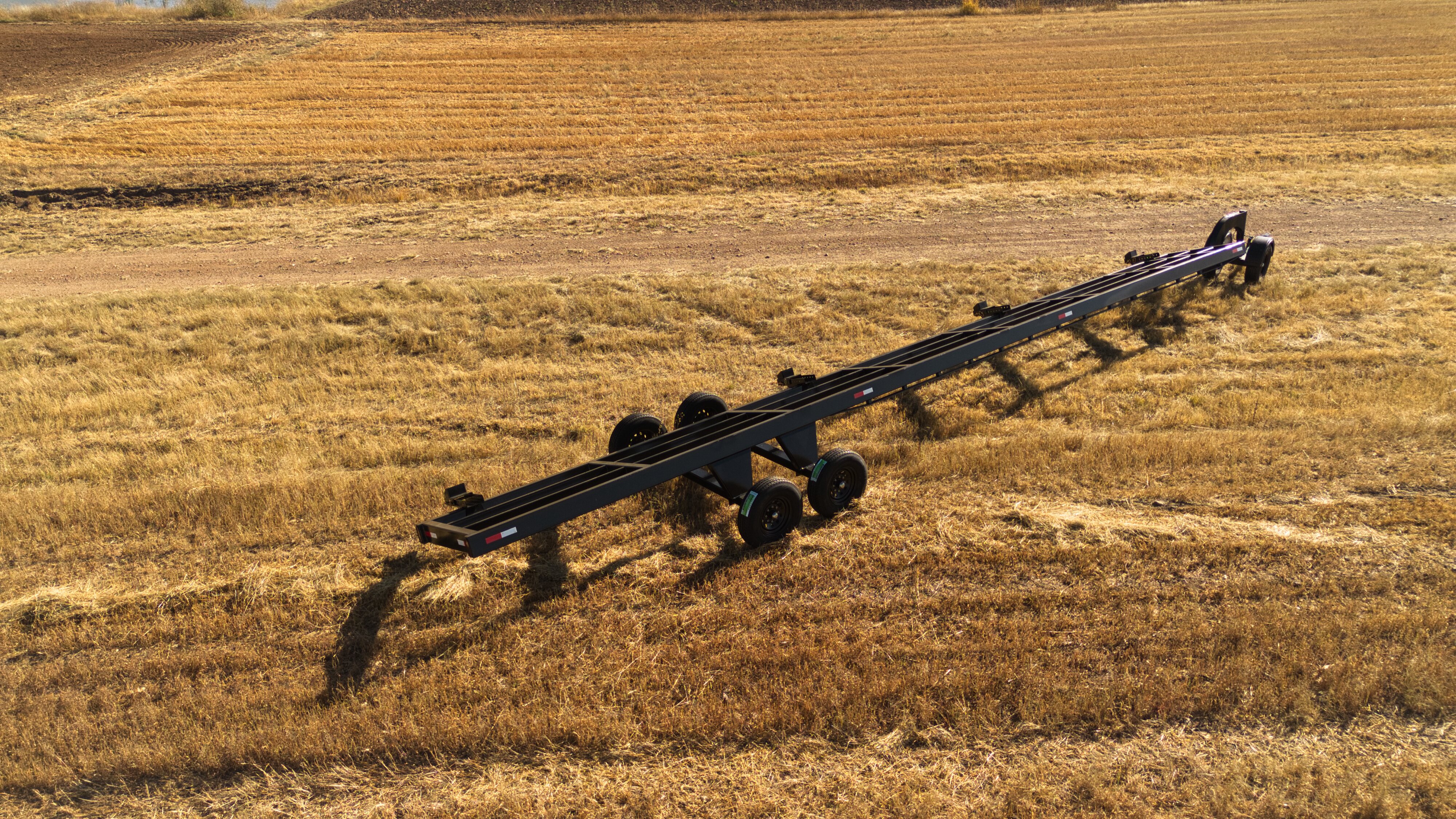

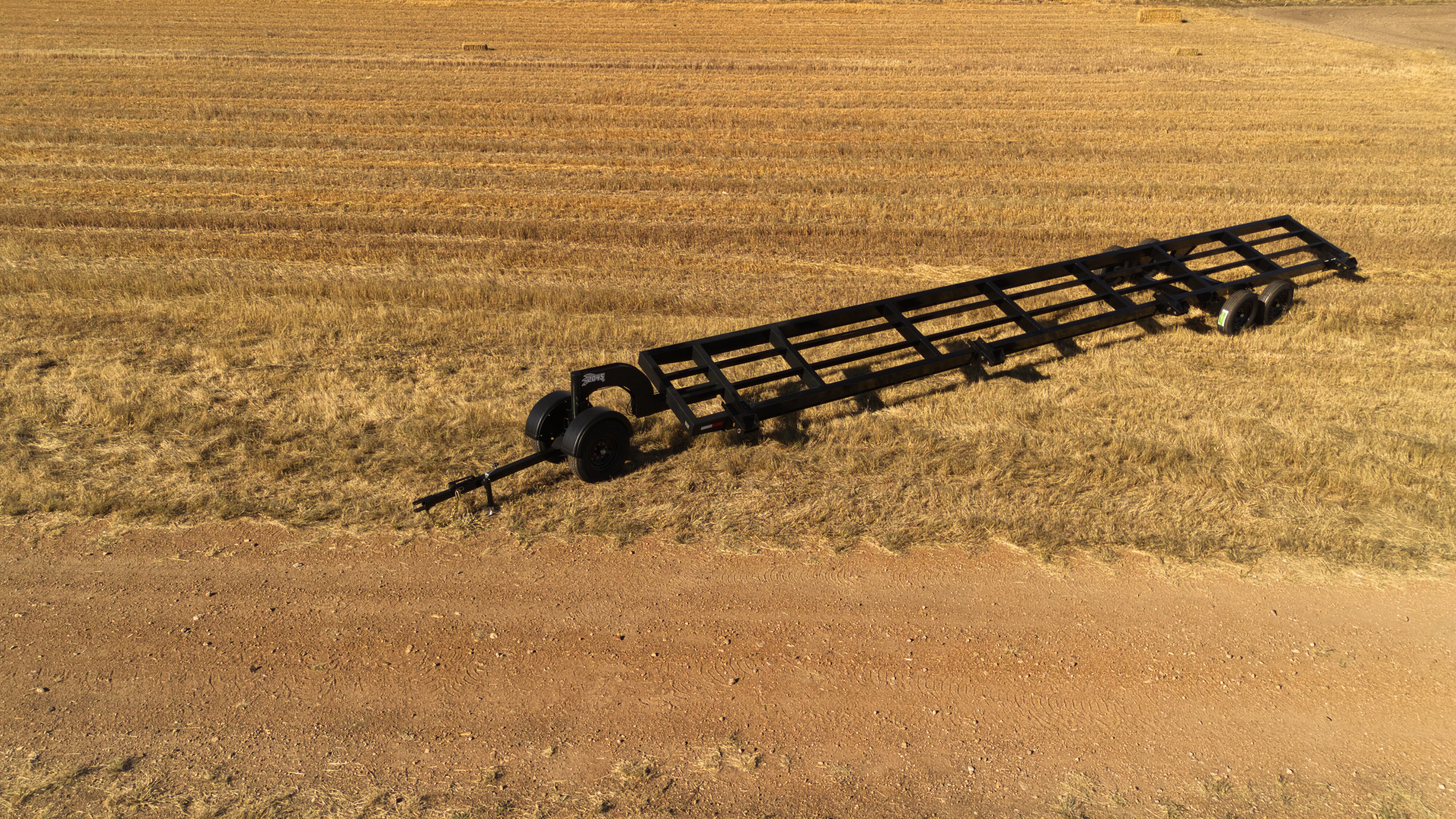

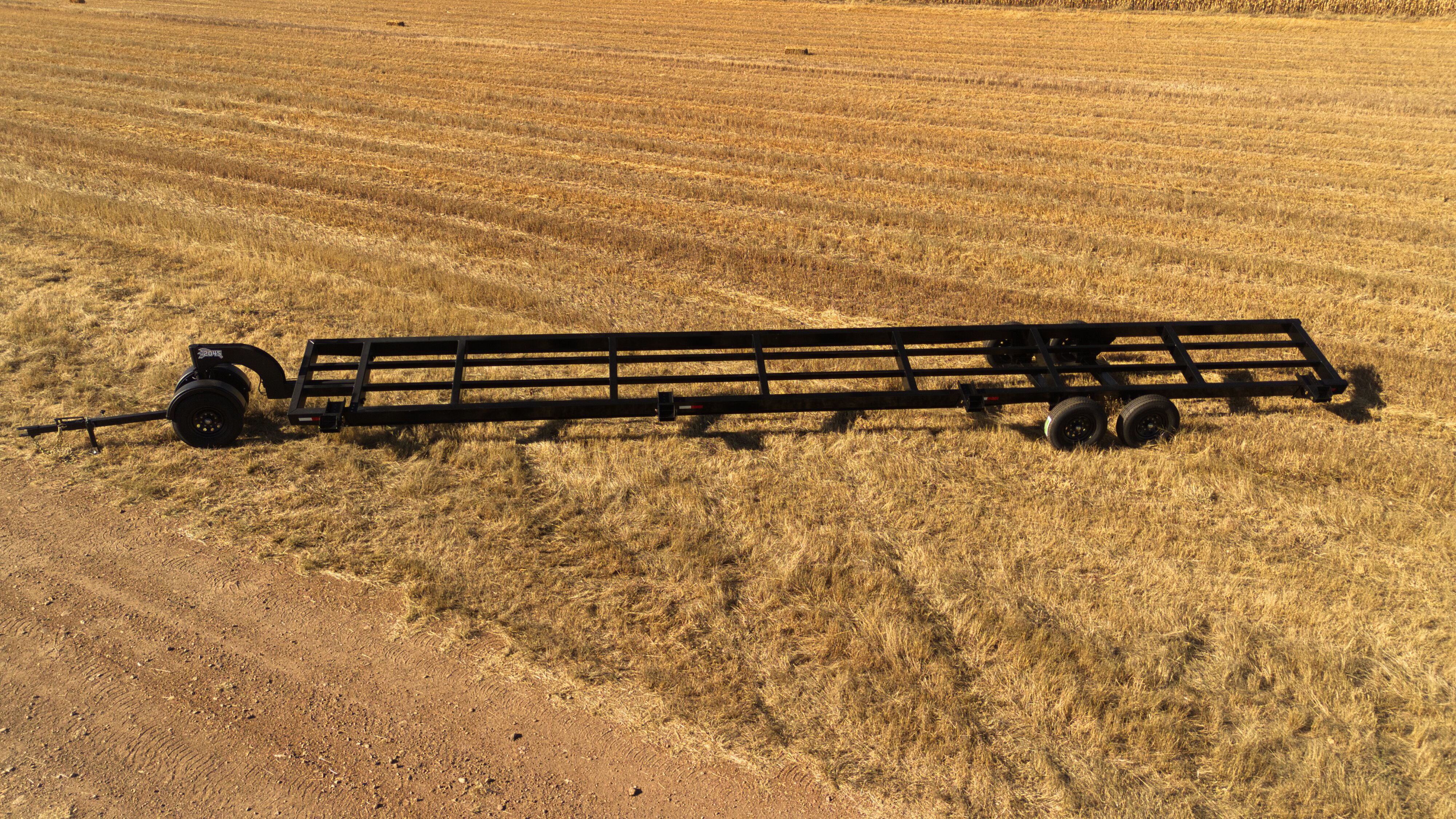

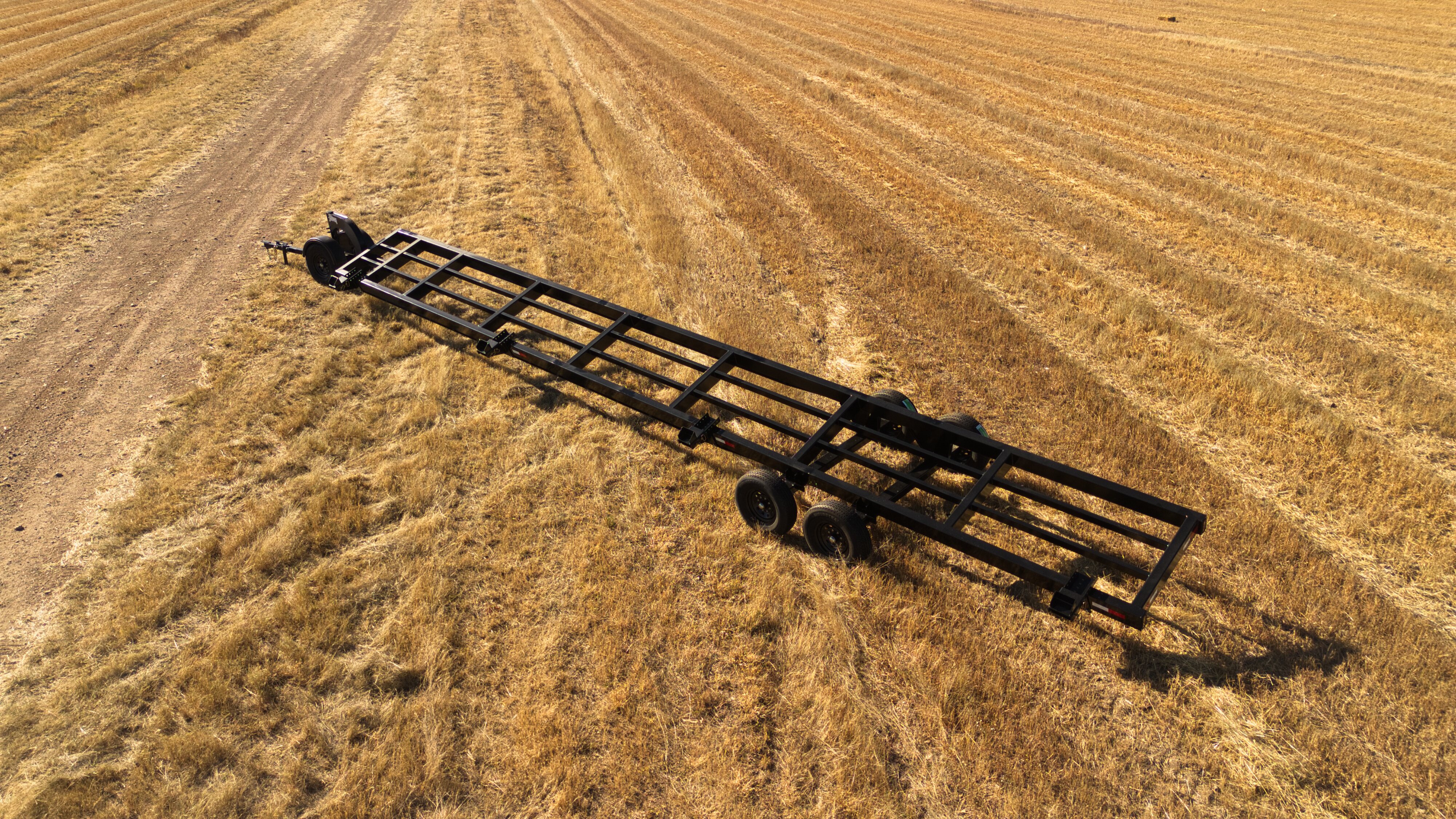

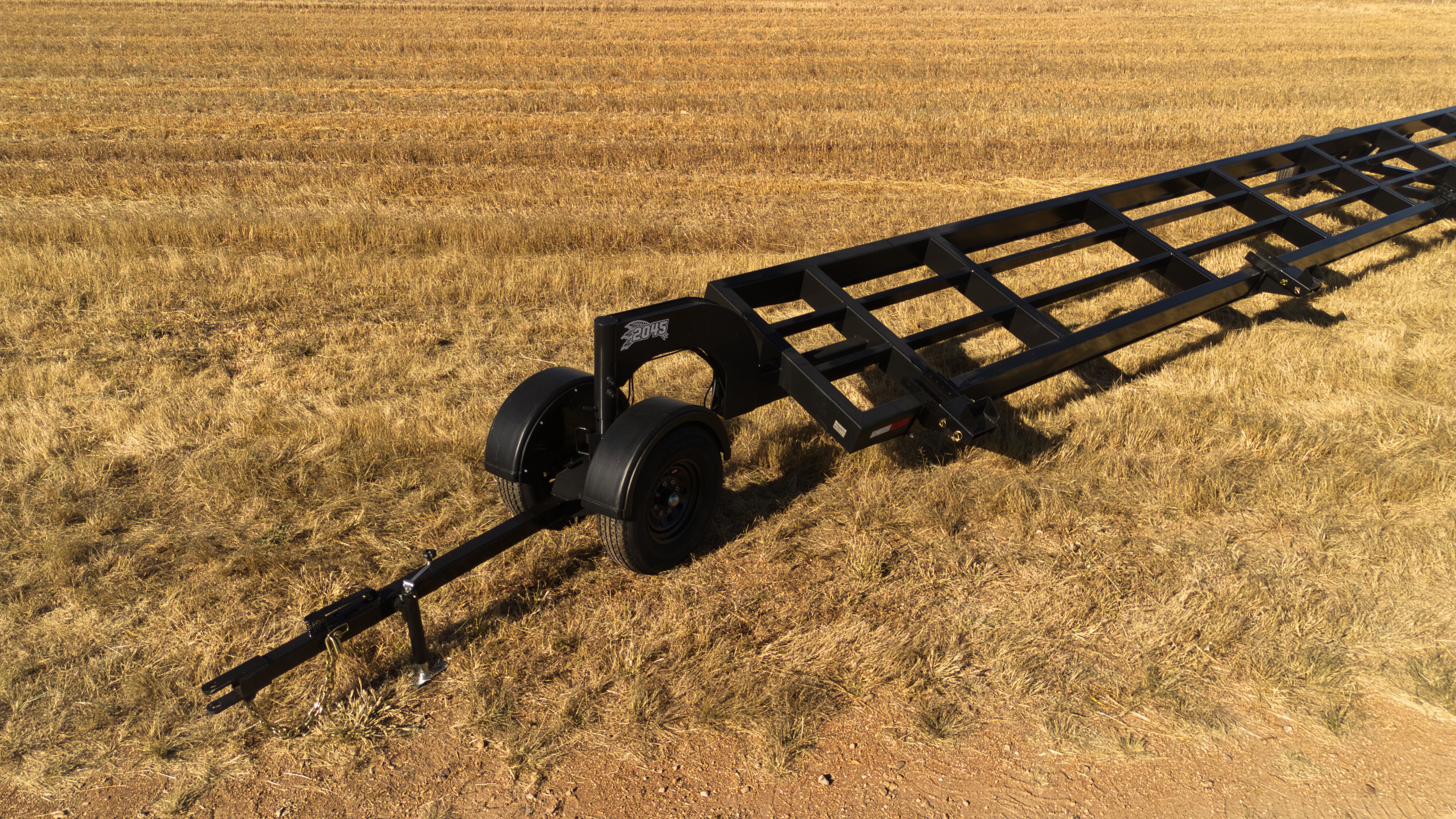

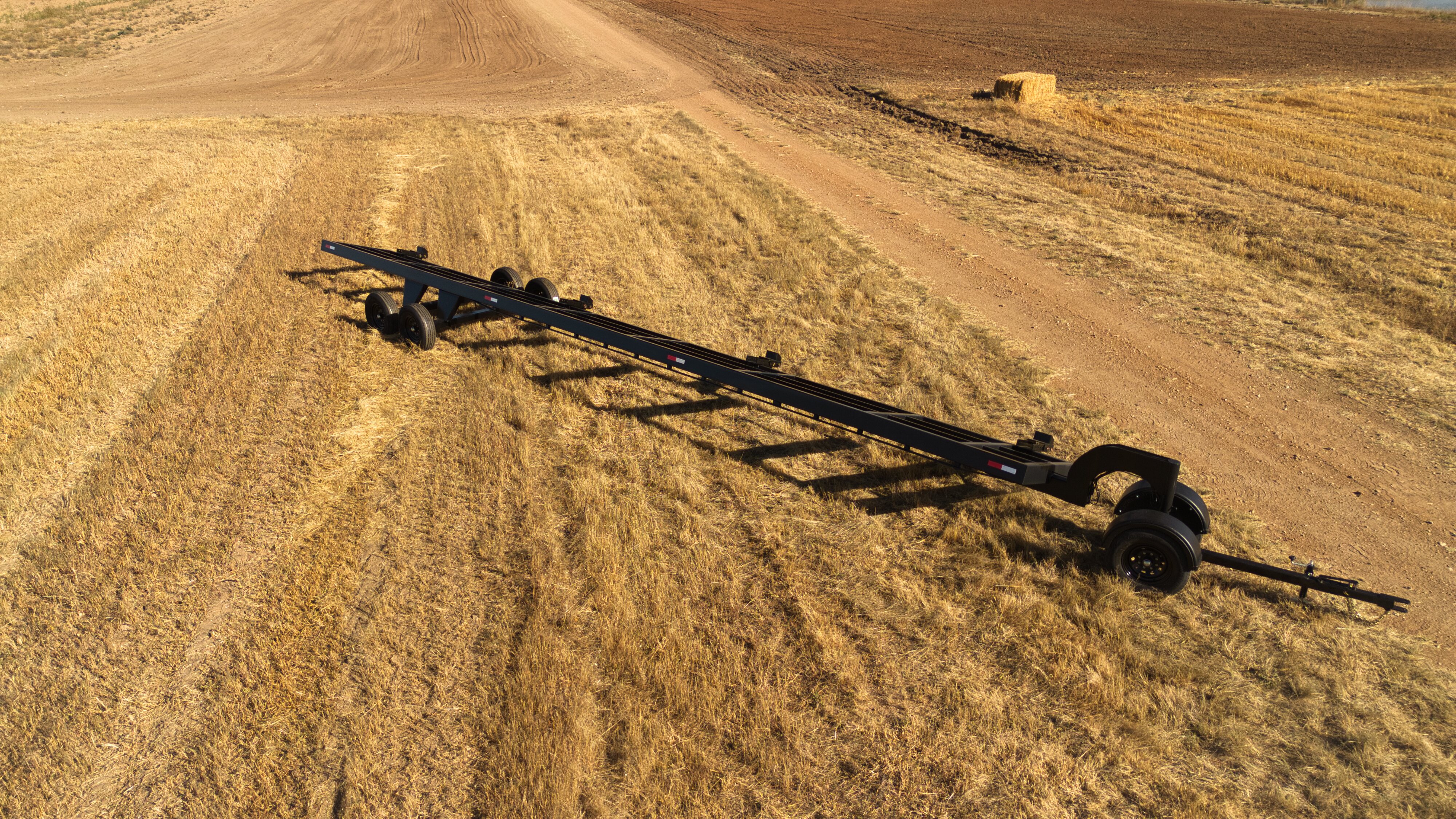

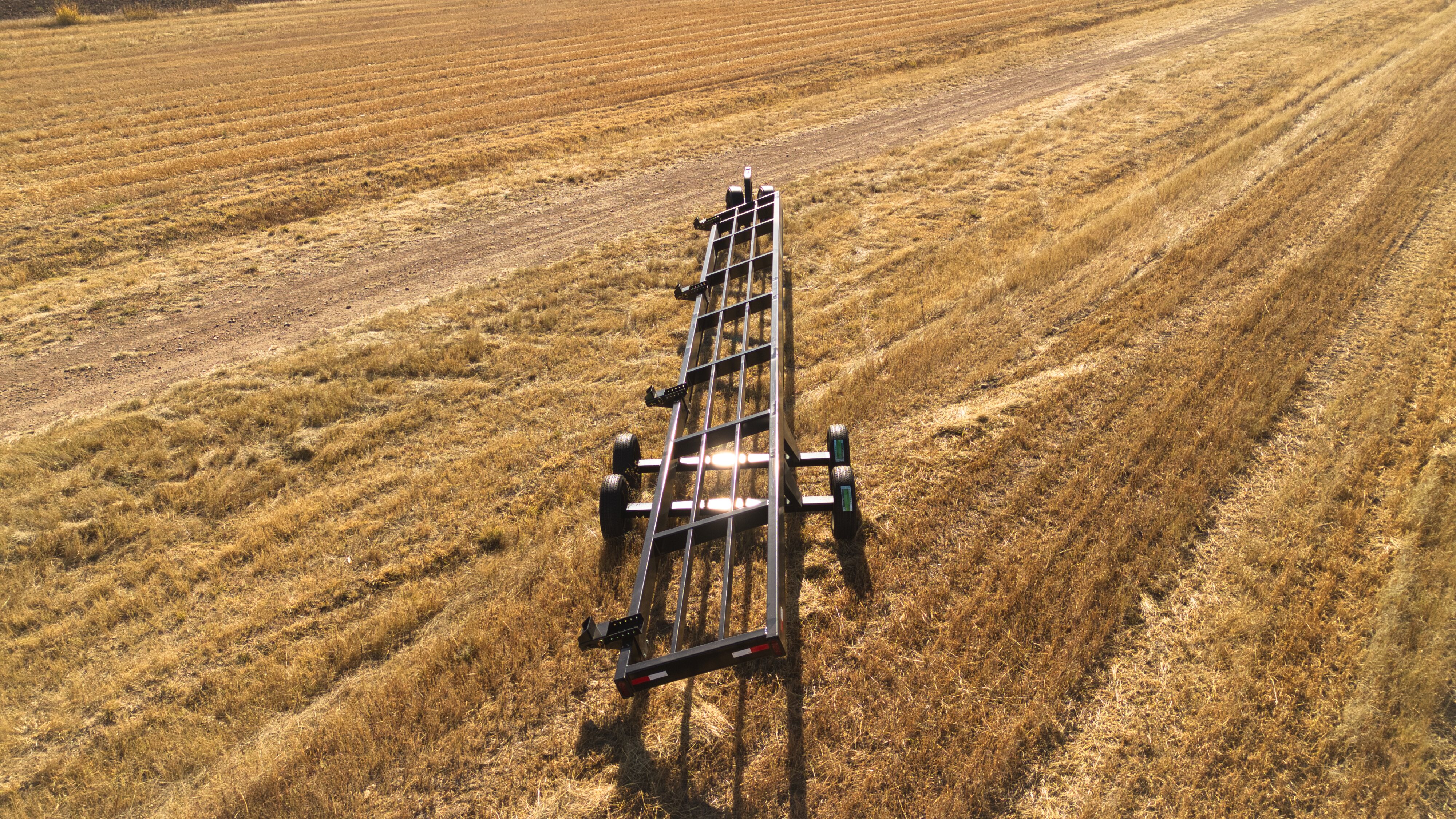

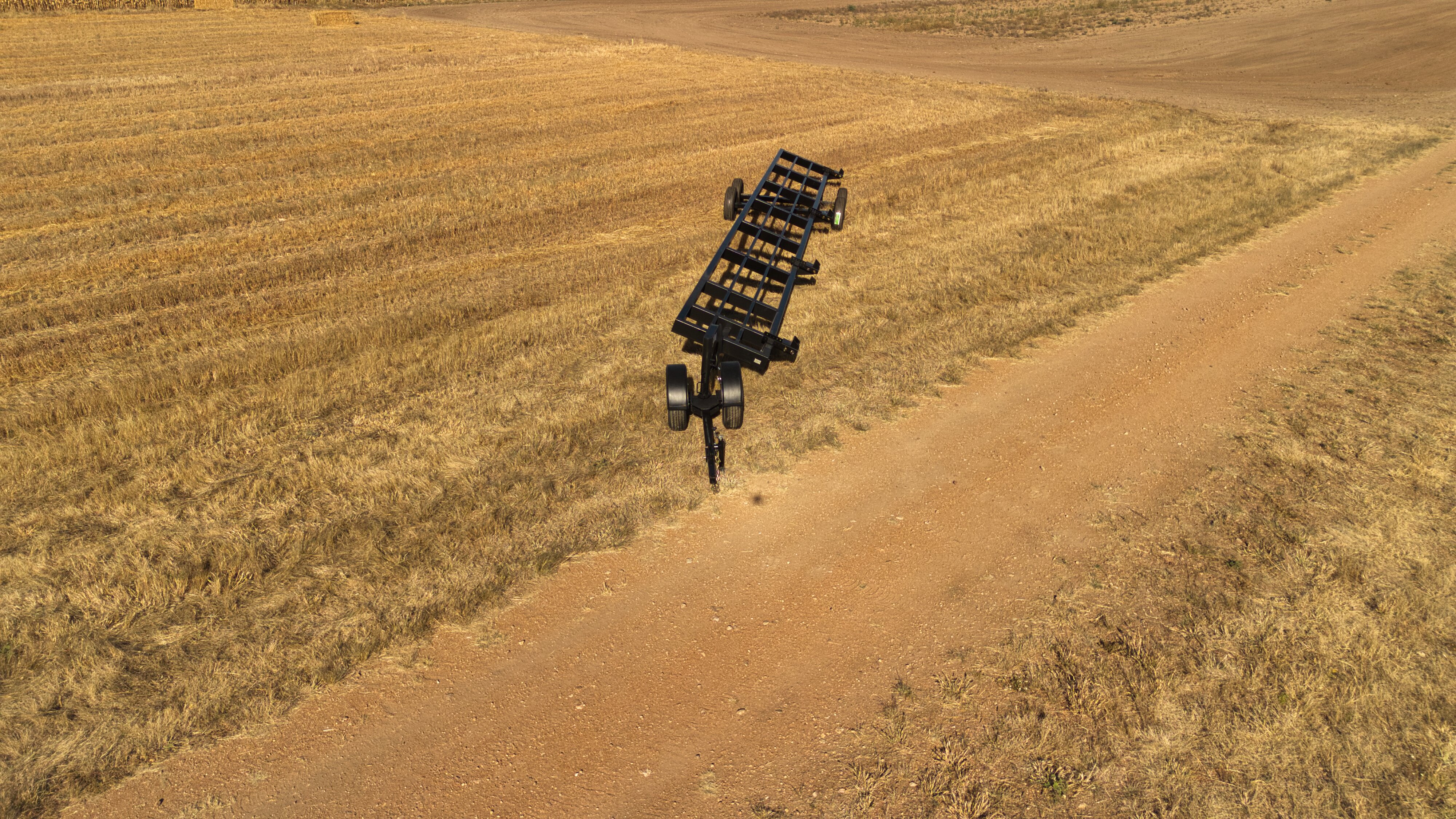

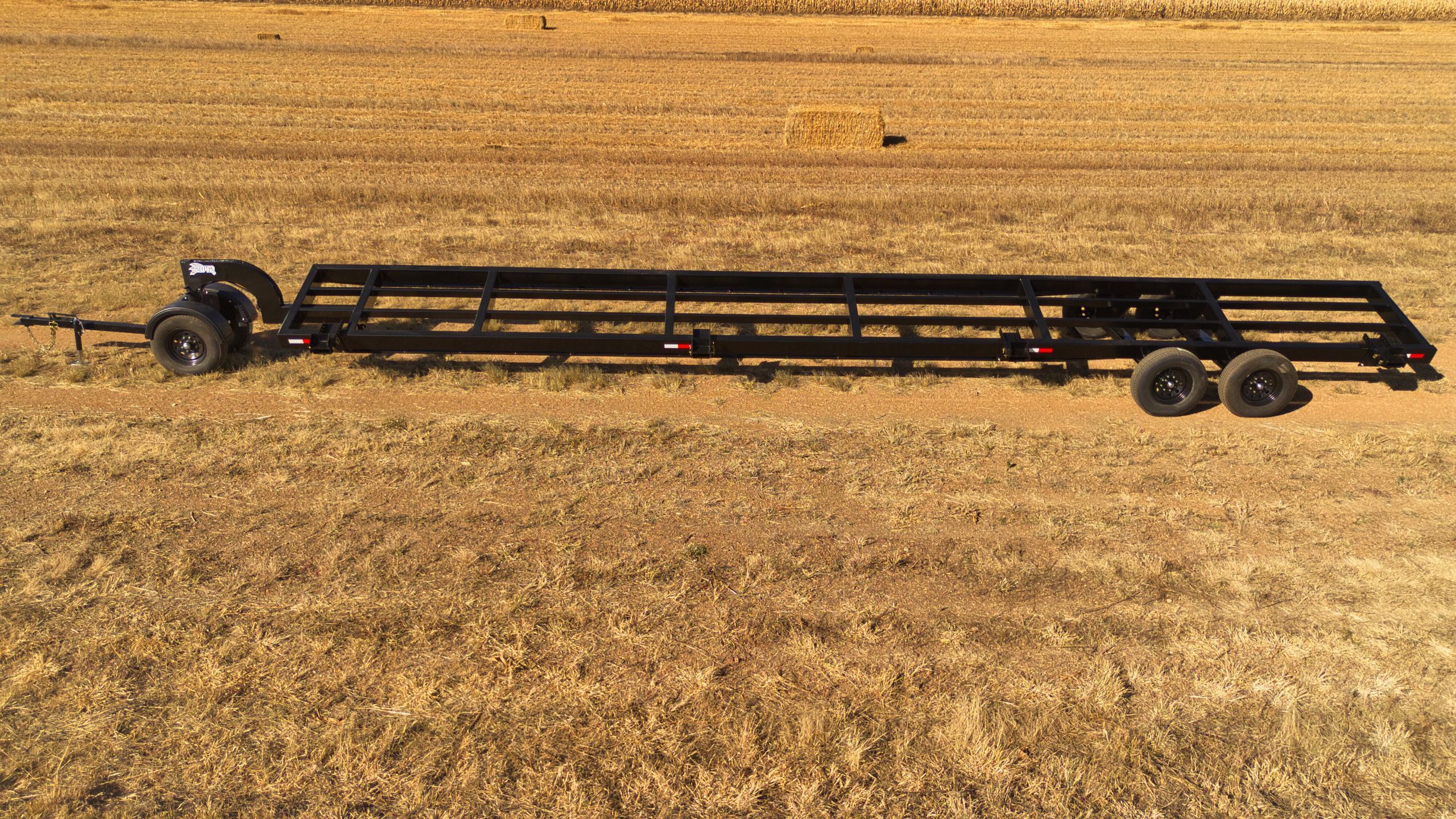

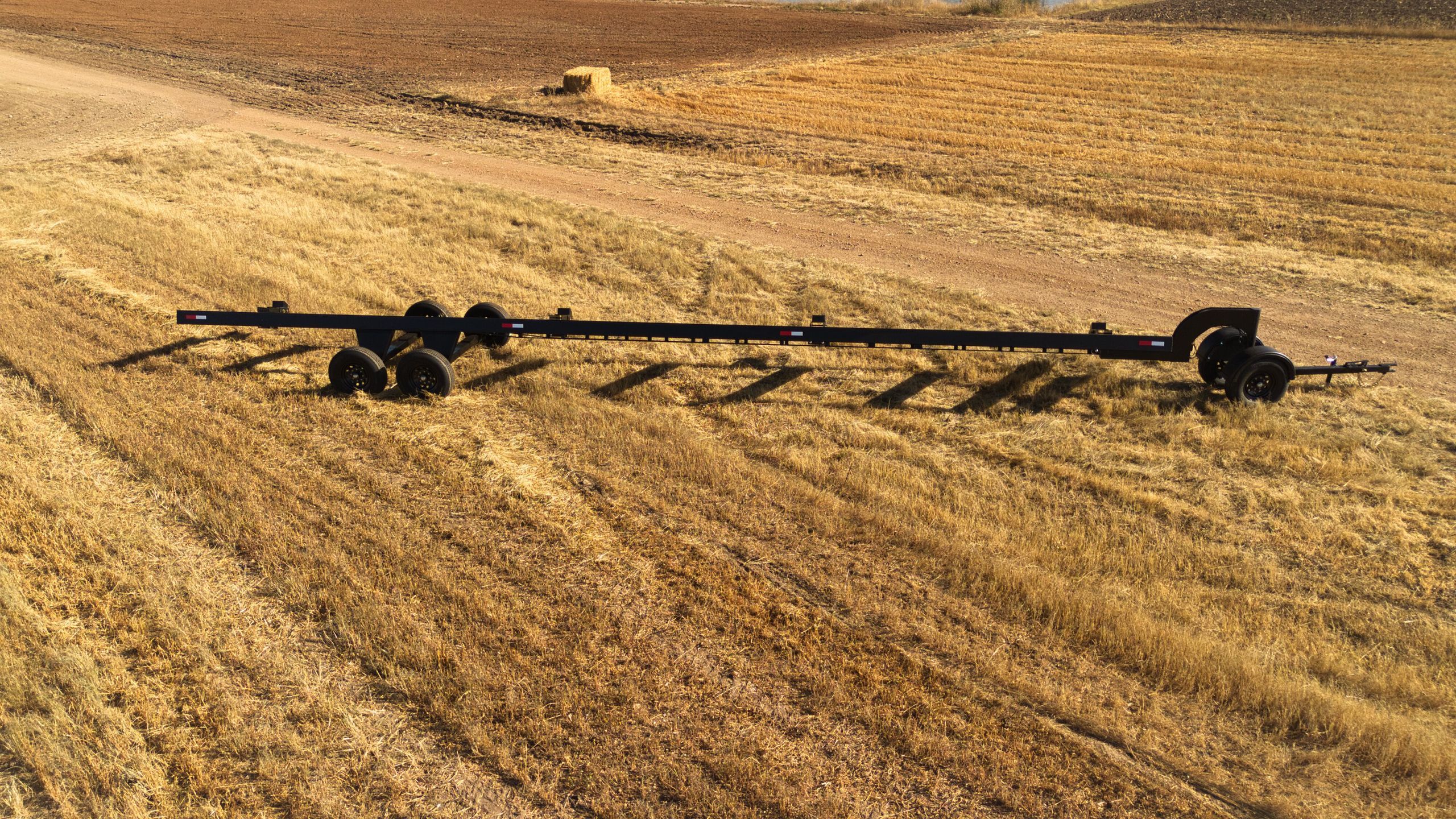

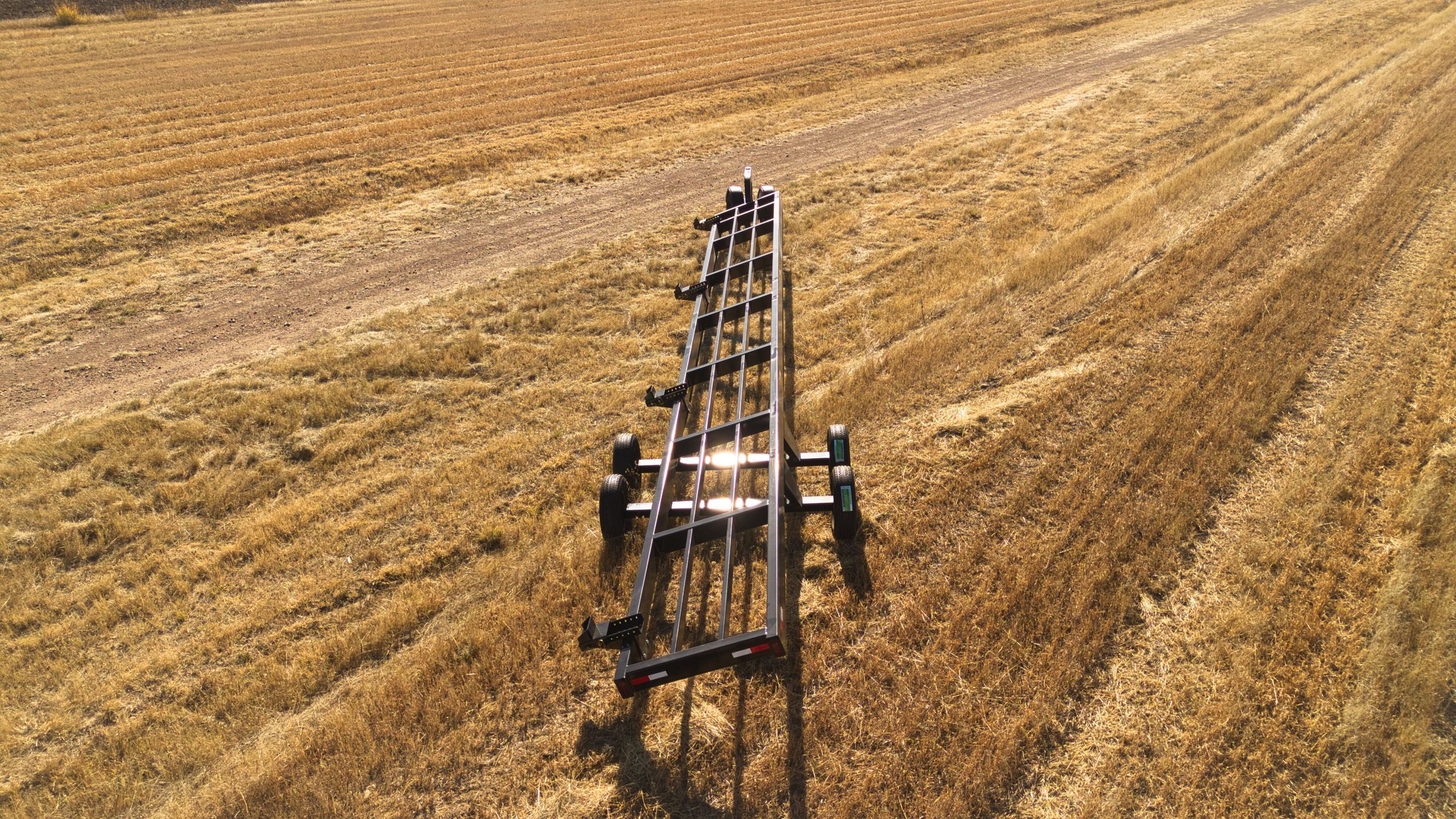

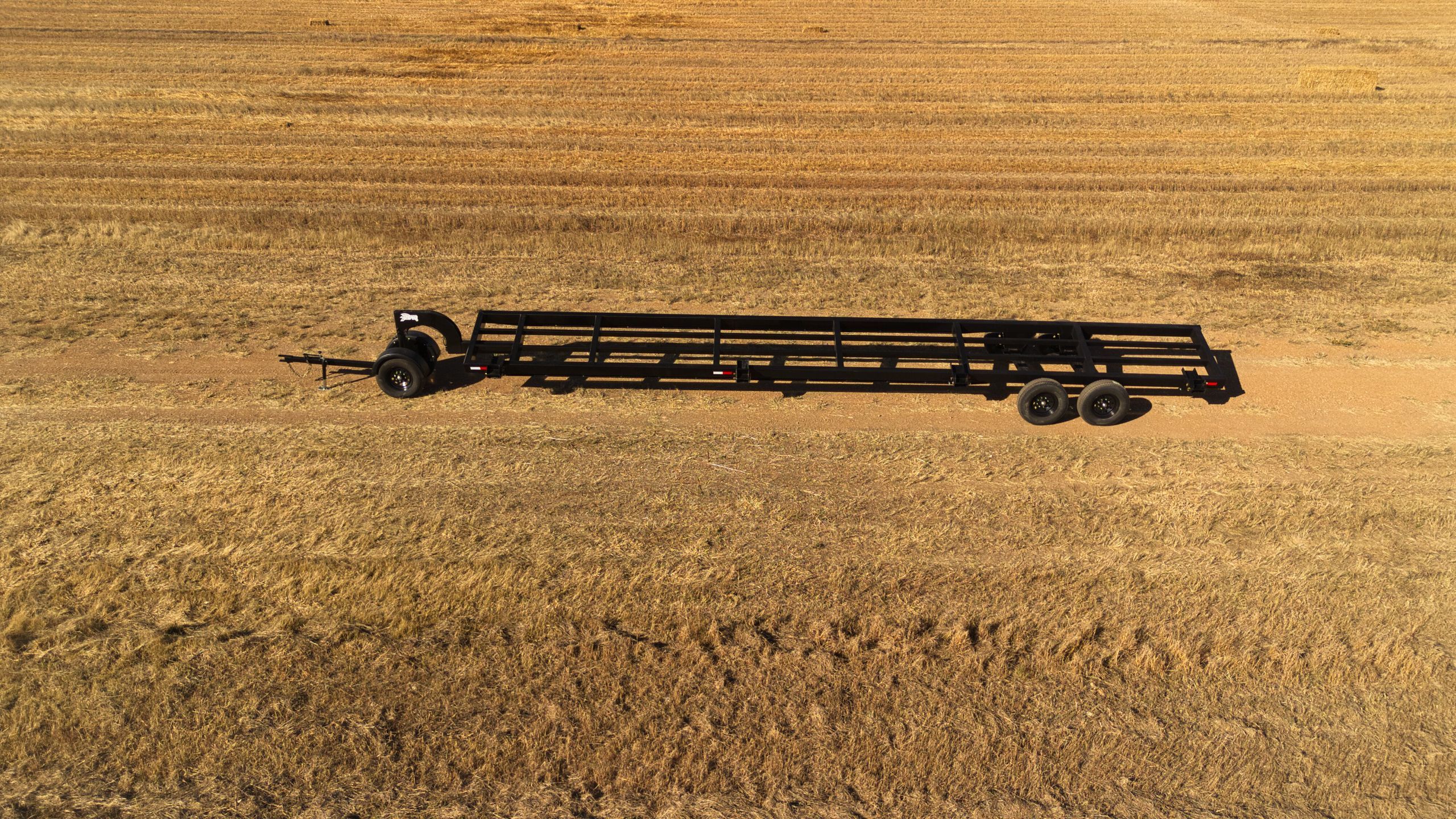

The 20 Series Header Wagons are designed for transporting long combine headers using a strong 8" × 4" steel frame, tandem 7,000 lb fixed rear axles, and a swivel front dolly. With models ranging from 30 ft to 54 ft of header capacity, the 20 Series offers one of the widest size ranges in the lineup. Its 116" overall width, adjustable header supports, rear lighting, and telescopic hitch provide a stable and practical platform for transporting large headers between fields and equipment yards throughout harvest season.
