Specifications

FeatureDescription
Header Capacity (ft)32
Total Length (ft)40.5 (including gooseneck, dolly, and telescopic hitch)
Overall Width (in)95
Frame MaterialSteel
Main Frame Size8x4
Incline Frame DesignIncline
Number of Brackets4
Bracket TypeAdjustable
Axle TypeTorsion
Axle Quantity2
Axle Rating (lbs)6,000 each
Dolly TypeSwivel front dolly with plastic fenders and 6.5'–10.5' telescopic hitch
Dolly Axle Rating (lbs)7,000
Suspension TypeTorsion
Wheel / Tire SizeST235/80R16
Tire Ply Rating10-ply (16-ply optional)
BrakesYes (electric)
Brake Axle(s)1 axle
LightsRear lights
Shipping Weight lbs3,784 lbs
GVWR (lbs)19,000

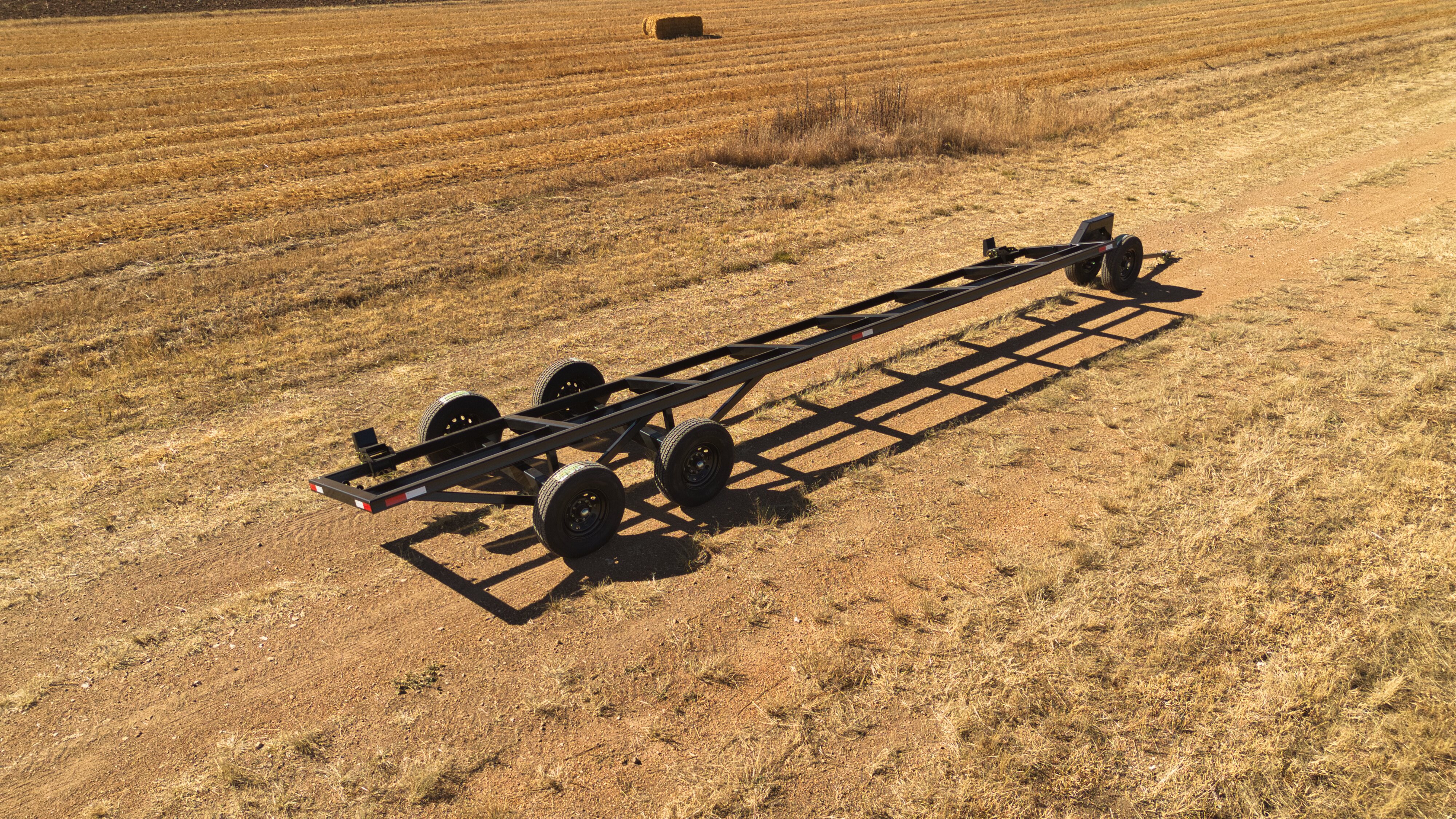

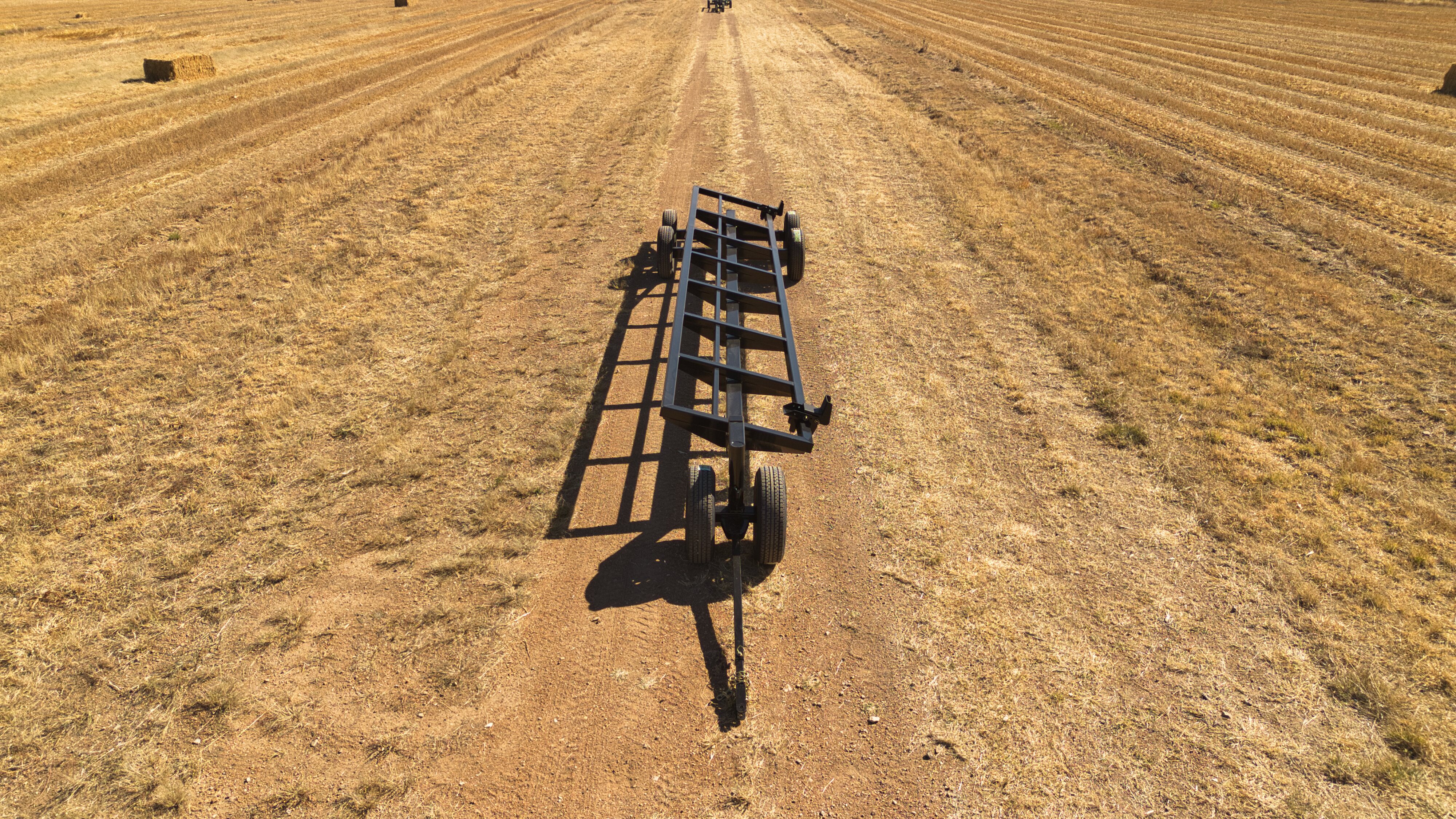

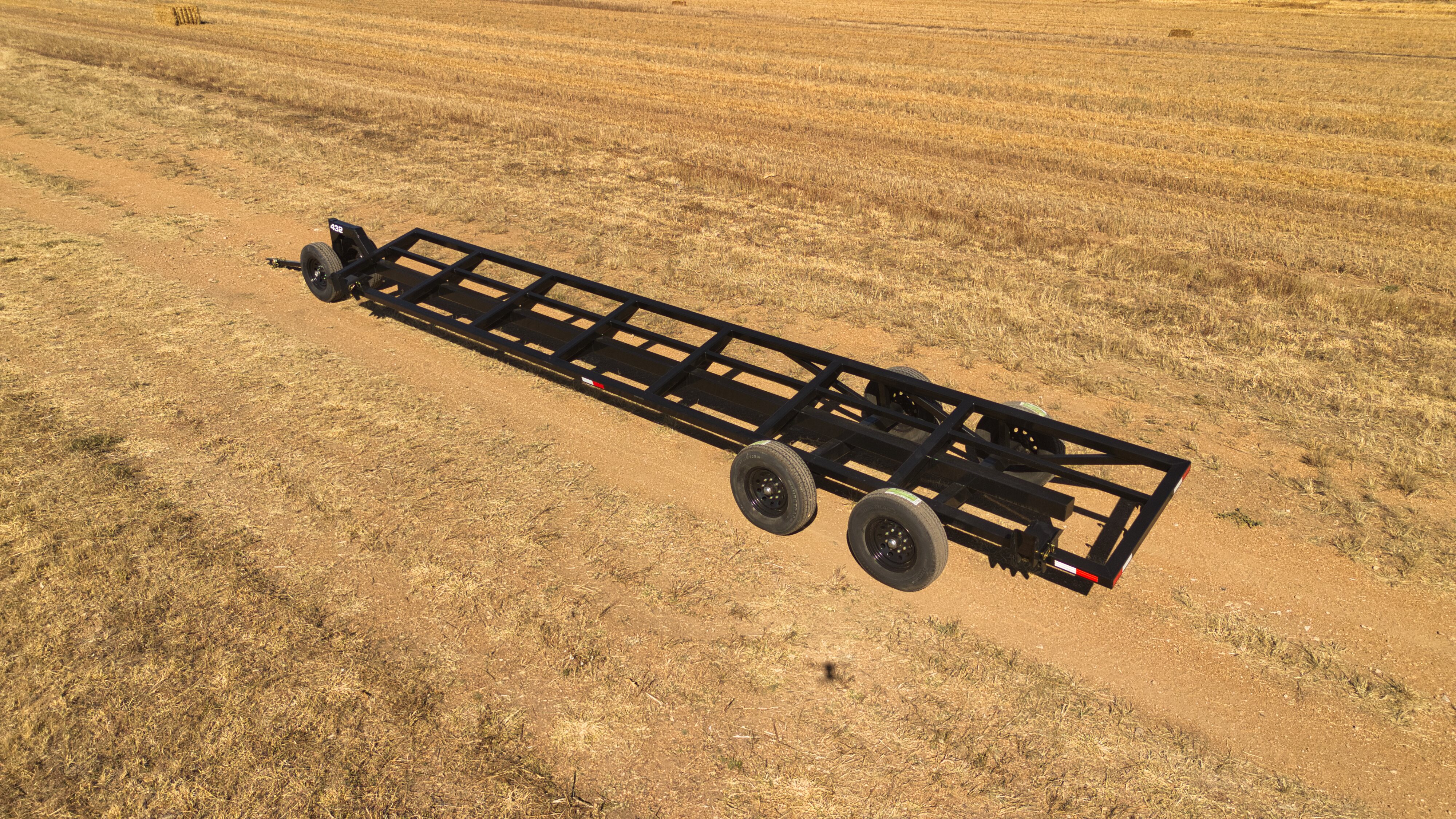

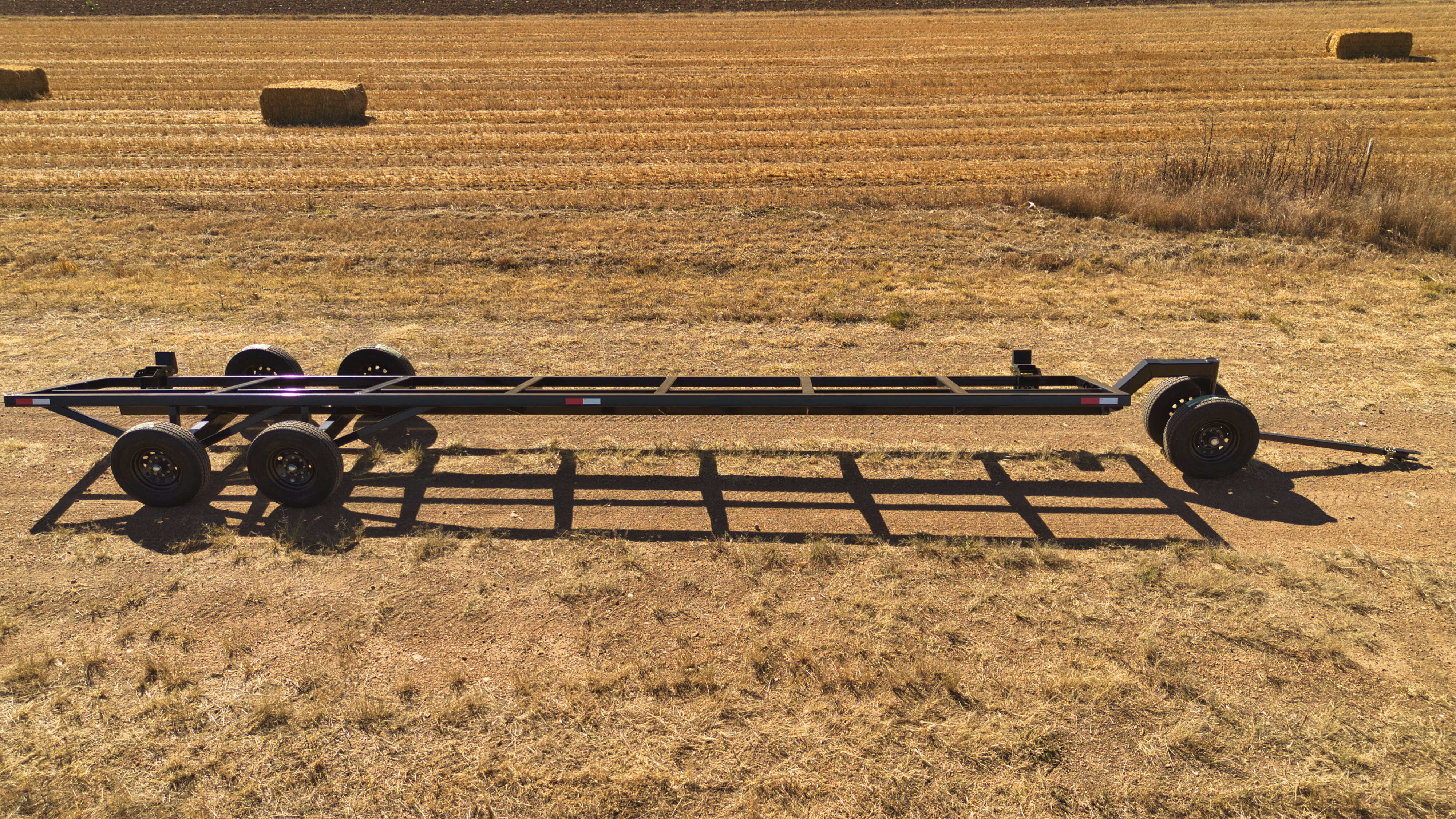

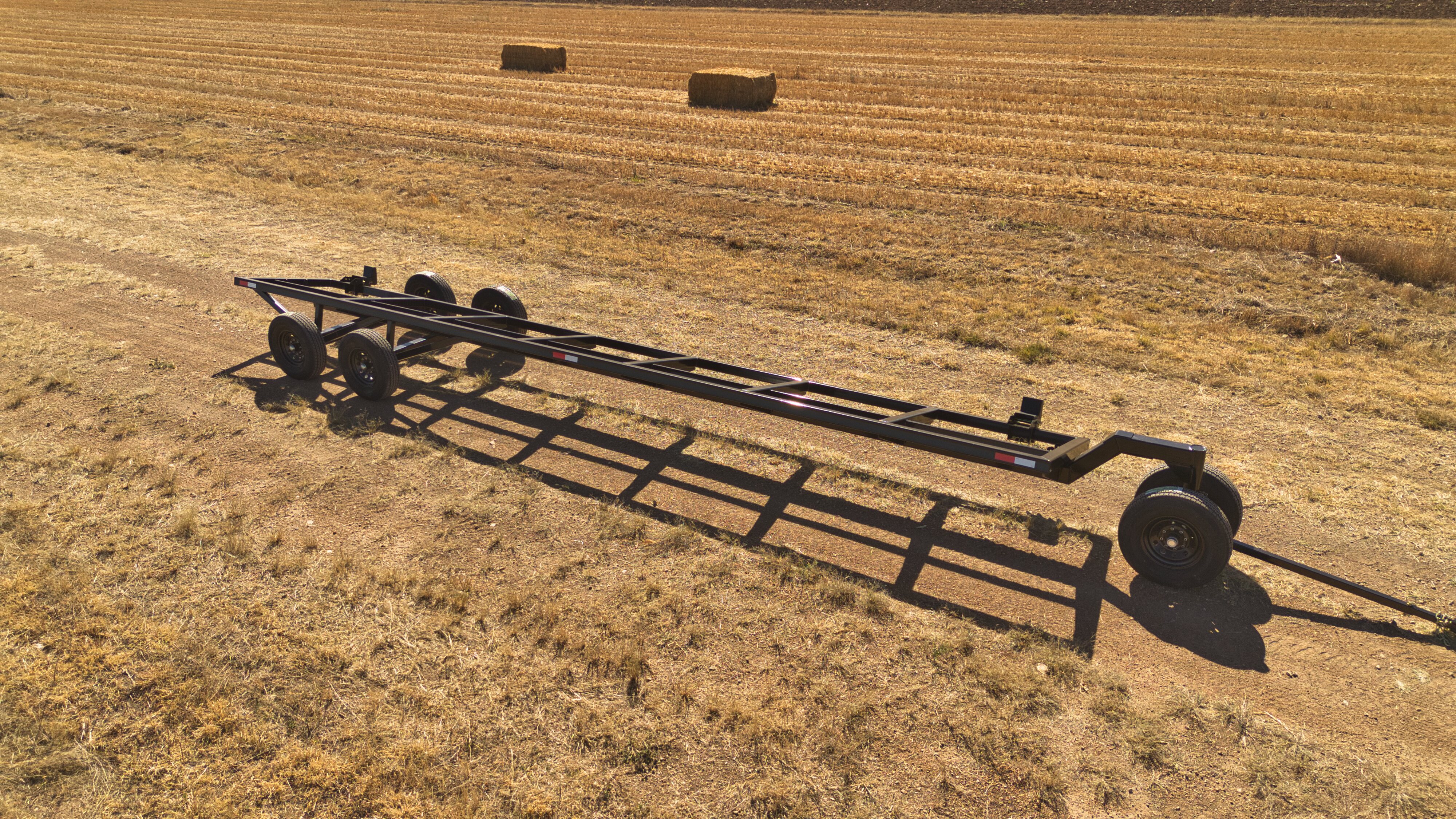

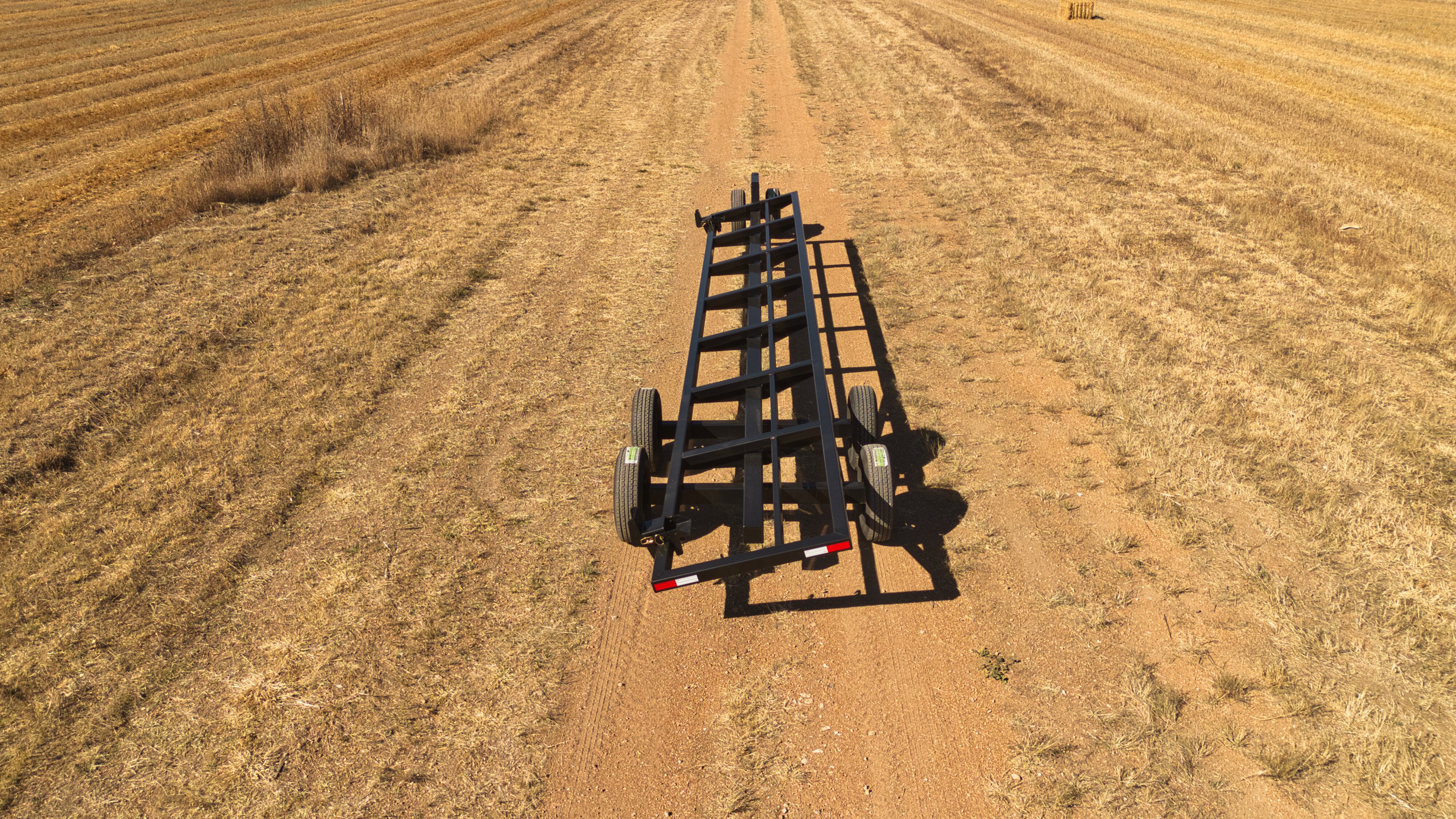

The 832 is a workhorse for 32’ heads, combining the strength of an 8x4 frame with the smooth ride of torsion axles. It’s built with commercial-style details but sized right for typical row-crop and small grain headers. With four adjustable brackets, you can dial in support for rigid, flex, or draper heads so the weight is carried on the frame instead of the feeder house. On the road, the torsion suspension and electric brakes on one axle give you better control in stop-and-go traffic or when dropping down into ditches and approaches. The front dolly, plastic fenders, and telescopic hitch give you enough maneuverability to back into tight sheds or hook up at odd angles in the yard. If you’re regularly hauling a 32’ head between farms or to the dealer, the 832 is a solid “hook it and go” solution.

×
