Specifications
| Feature | Description |
|---|---|
| Type | Heavy-Duty Pull-Type Header Transport Wagon |
| Available Models | 830, 832, 835, 836, 837, 838, 840, 842, 845, 848 |
| Header Capacity Range | 30 ft to 48 ft |
| Approx. Overall Length Range | 38.5 ft to 56.5 ft |
| Overall Width | 95" |
| Model 830 | 30 ft - Overall Length 38.5 ft - Approx. Weight 1,640 kg |
| Model 832 | 32 ft - Overall Length 40.5 ft - Approx. Weight 1,720 kg |
| Model 835 | 35 ft - Overall Length 43.5 ft - Approx. Weight 1,880 kg |
| Model 836 | 36 ft - Overall Length 44.5 ft - Approx. Weight 1,880 kg |
| Model 837 | 37 ft - Overall Length 45.5 ft - Approx. Weight 1,940 kg |
| Model 838 | 38 ft - Overall Length 46.5 ft - Approx. Weight 1,980 kg |
| Model 840 | 40 ft - Overall Length 48.5 ft - Approx. Weight 2,050 kg |
| Model 842 | 42 ft - Overall Length 50.5 ft - Approx. Weight 2,110 kg |
| Model 845 | 45 ft - Overall Length 53.5 ft - Approx. Weight 2,200 kg |
| Model 848 | 48 ft - Overall Length 56.5 ft - Approx. Weight 2,290 kg |
| Approx. Weight Range | 1,640–2,290 kg |
| Main Frame | 8" × 4" structural steel |
| Frame Design | Inclined |
| Header Supports | 4 adjustable supports |
| Rear Axles | 2 torsion axles |
| Axle Rating | 6,000 lb each |
| Brakes | Electric brakes on 1 axle |
| Front Dolly | Swivel with plastic fenders |
| Dolly Capacity | 7,000 lb |
| Telescopic Hitch | Approx. 6.5 ft to 10.5 ft |
| Tires | ST235/80R16 |
| Standard Tire Rating | 10-ply |
| Optional Tires | 16-ply |
| Lighting | Rear lights |
| Reflective Markings | Included |
| Hitch | 1" clevis |
| Jack | Manual |
| Safety Chains | Included |
| Finish | Powder coat |
| Color Options | IA Red, Black, or Green |
| Application | Transporting large combine headers from 30 ft to 48 ft |

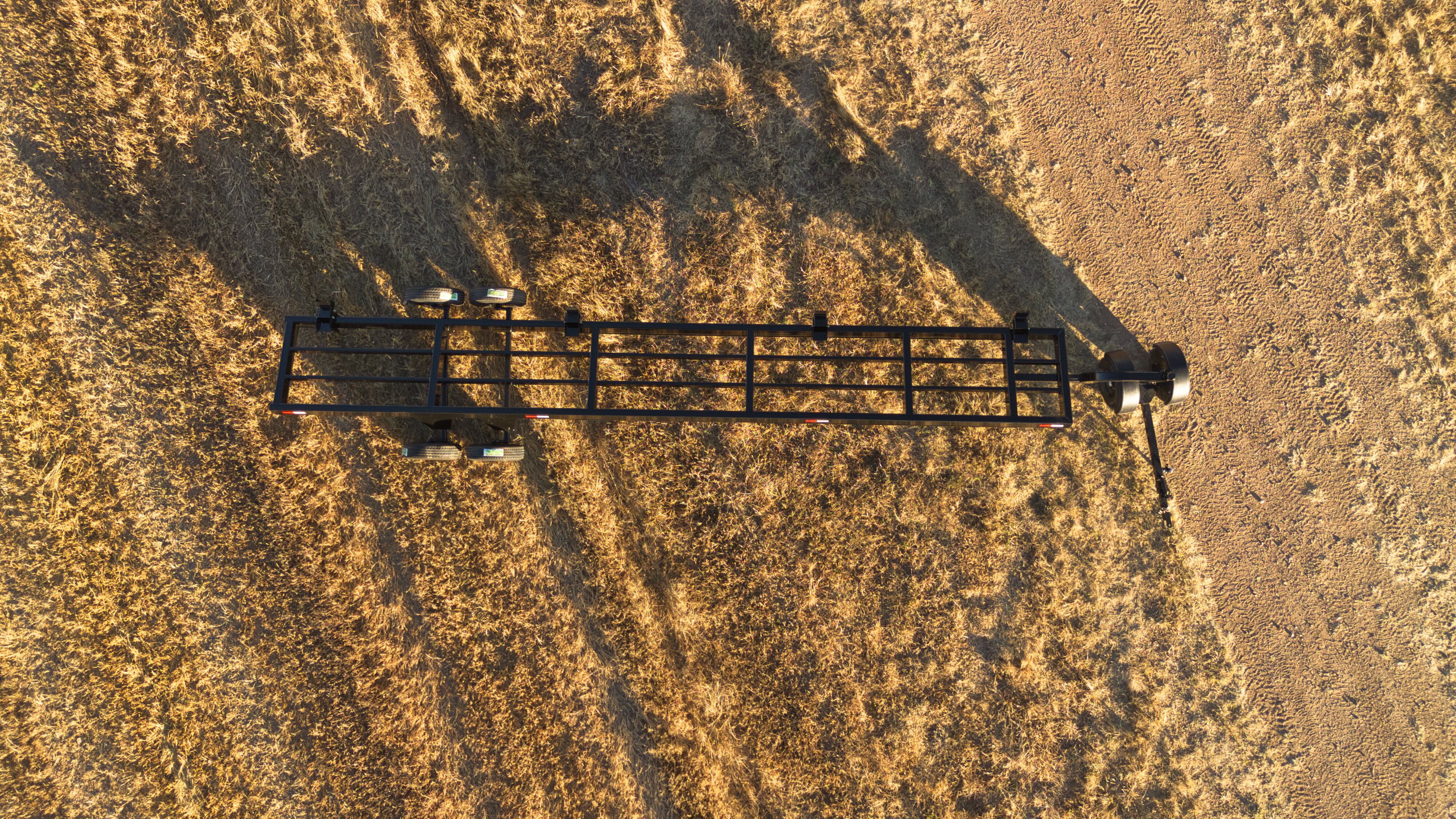

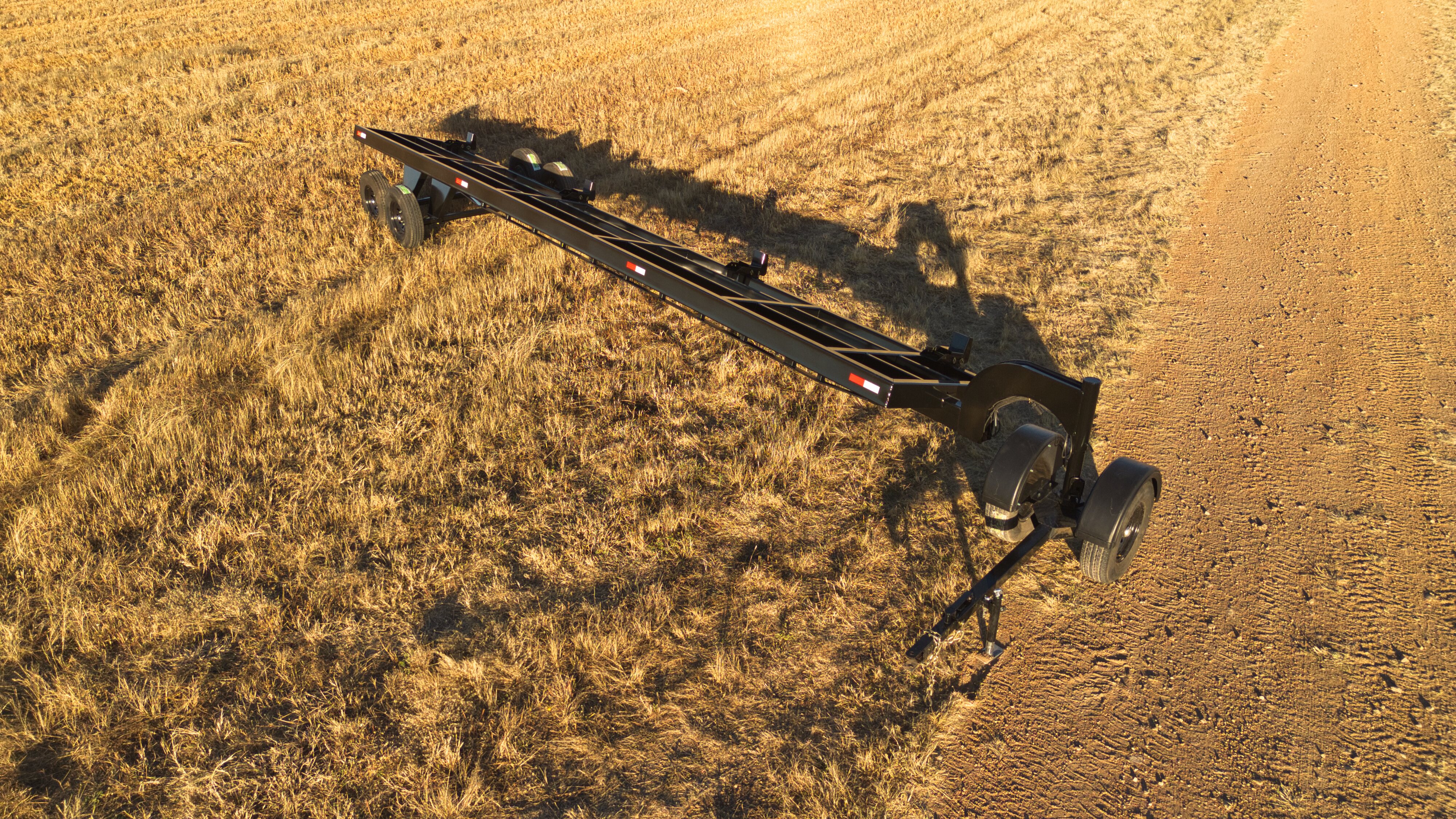

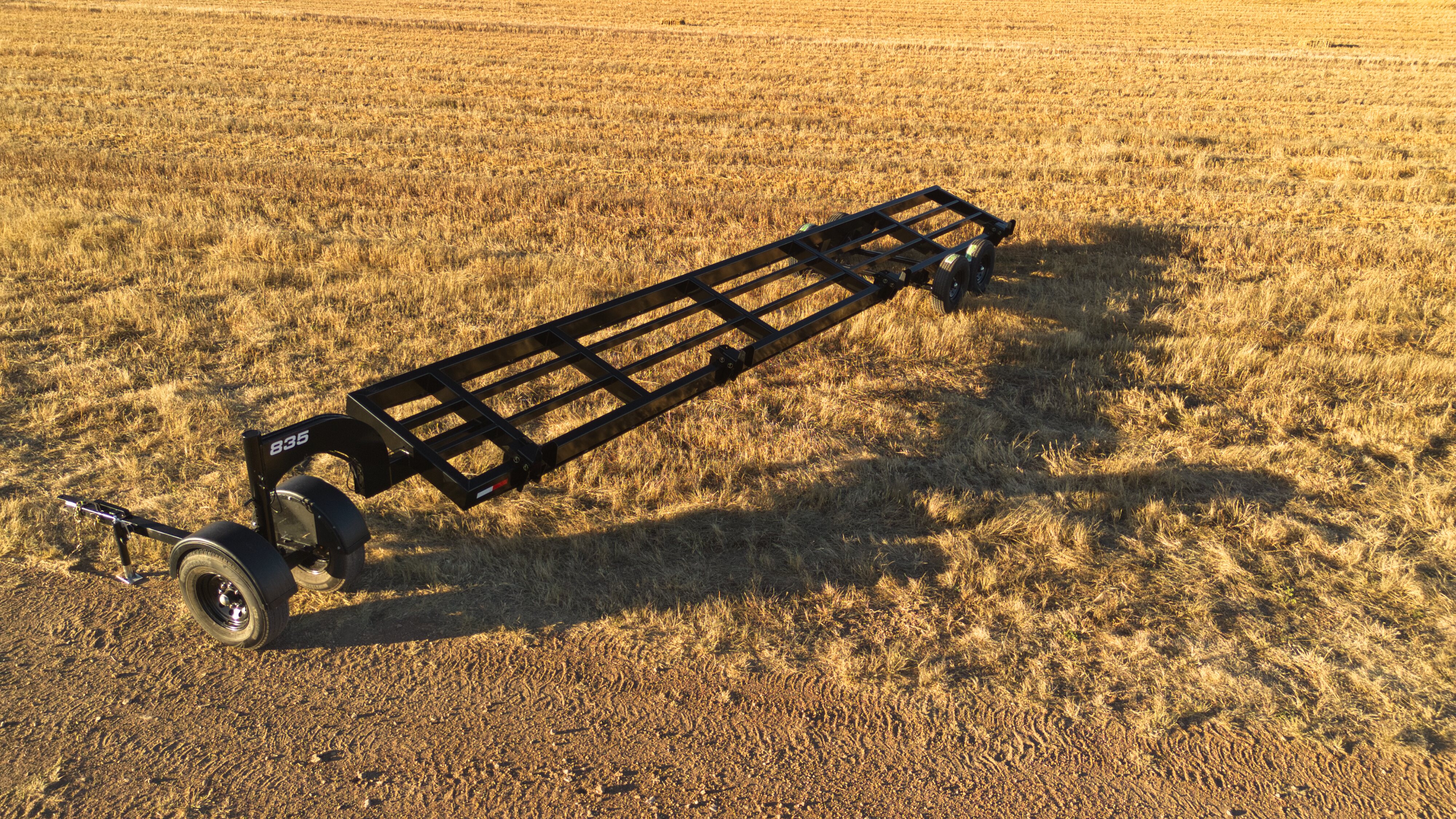

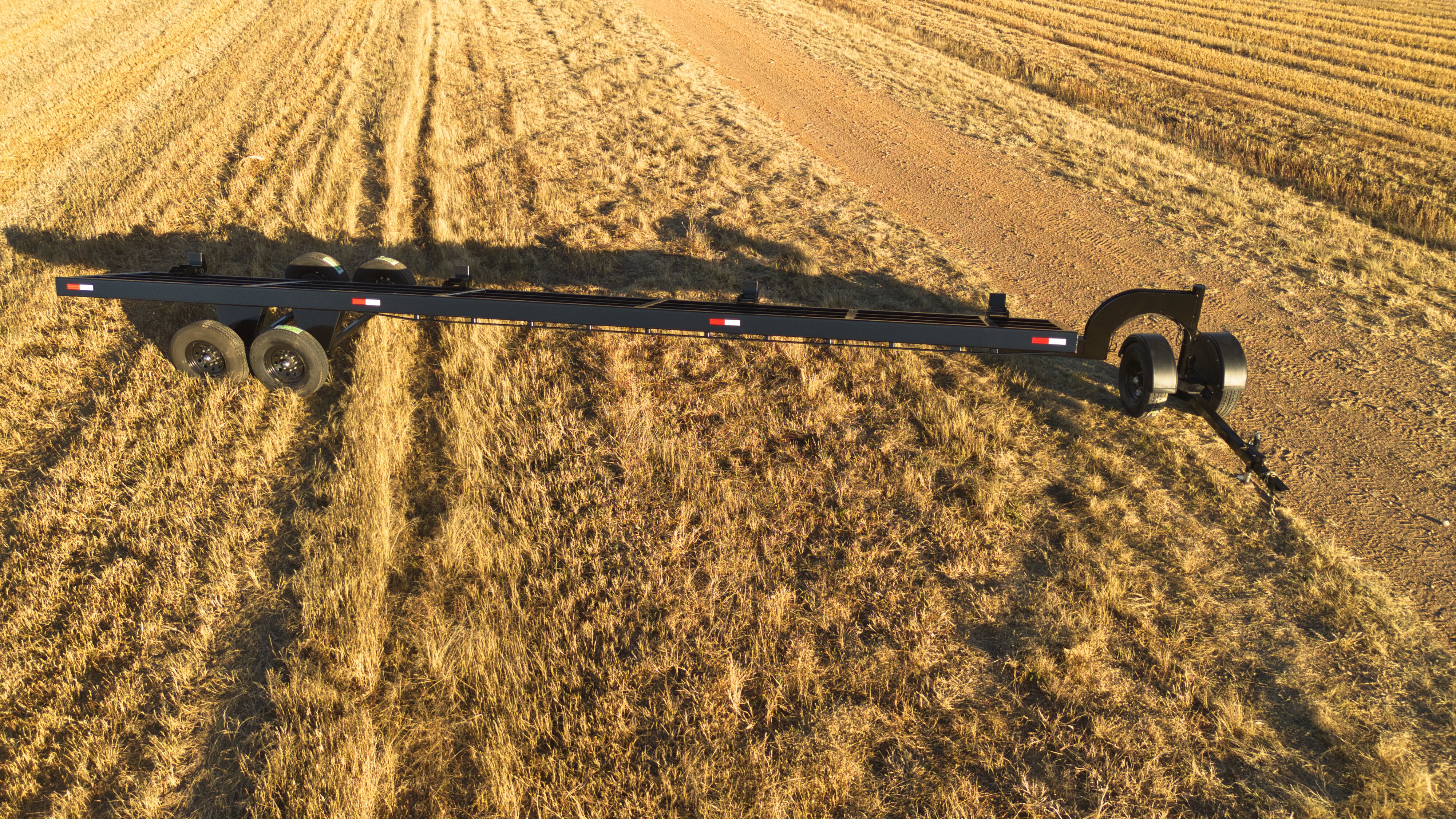

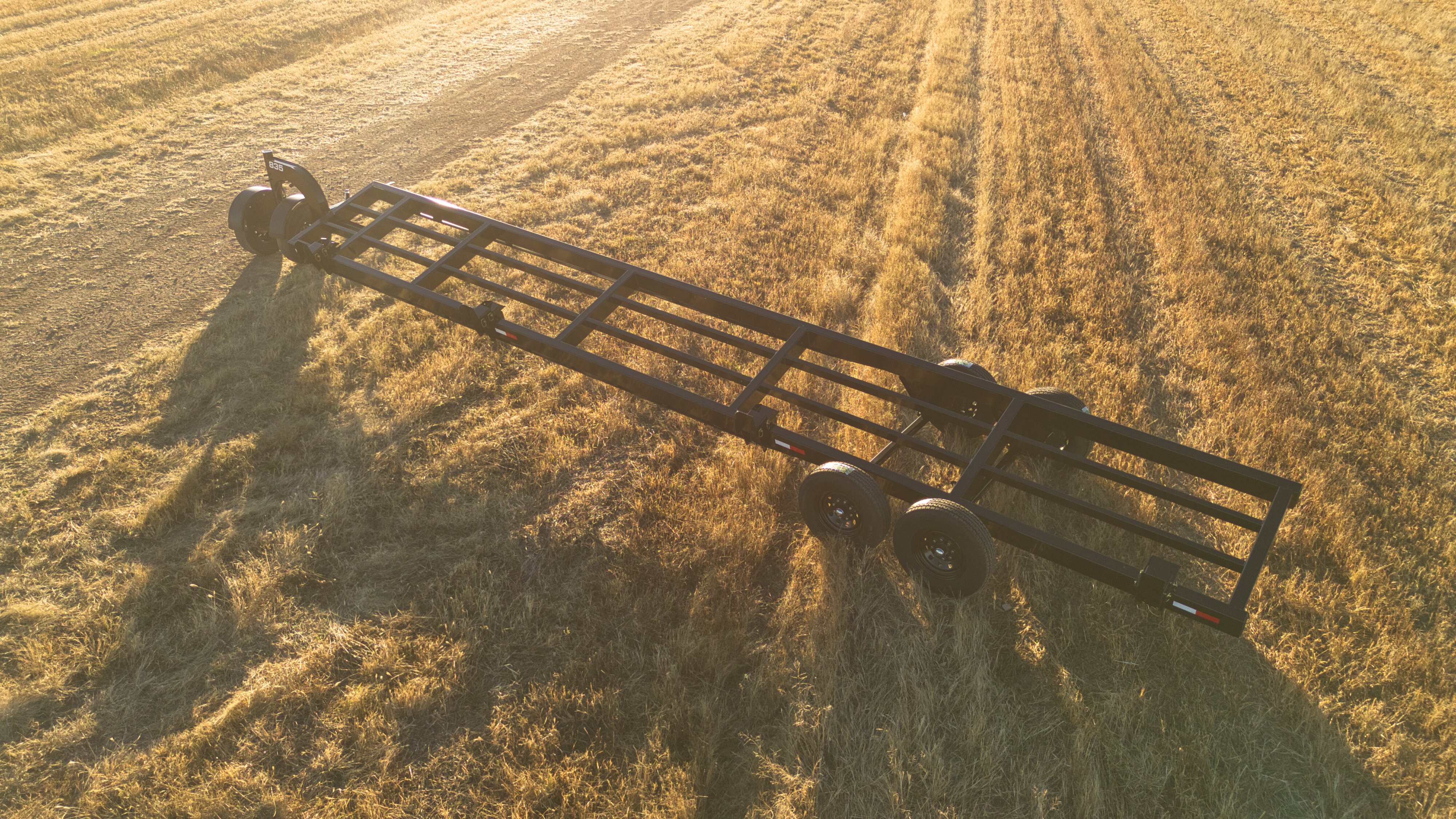

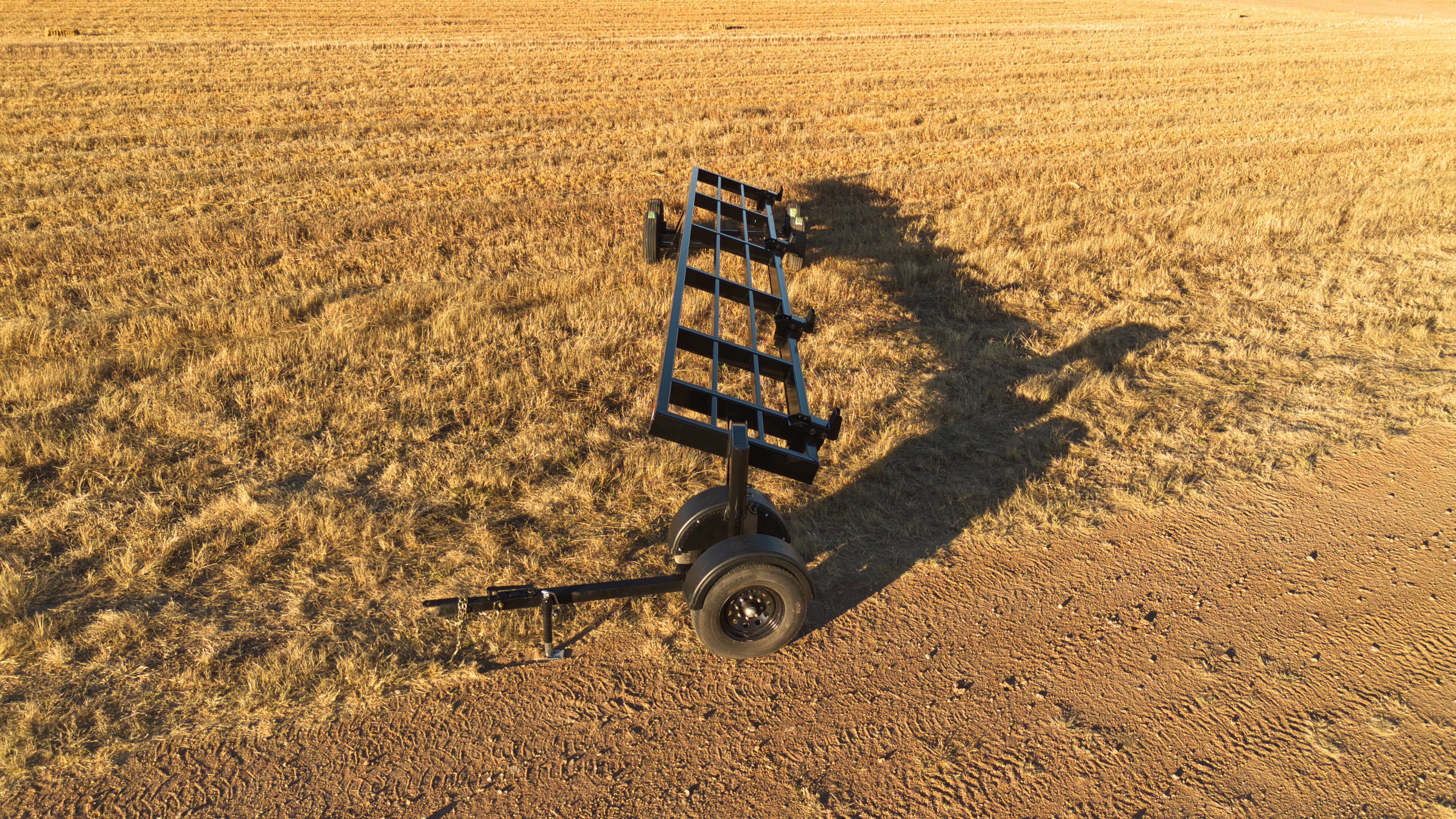

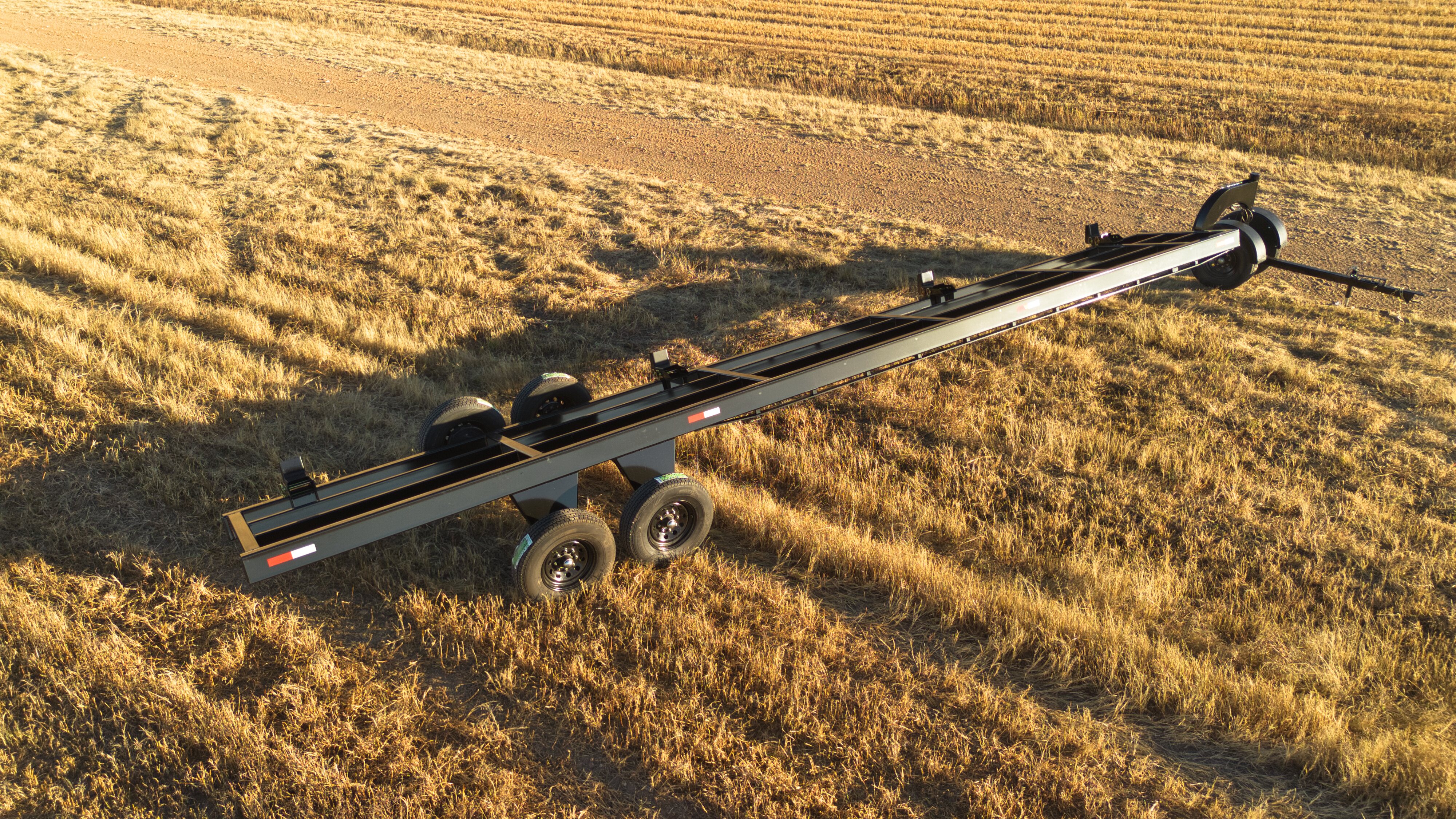

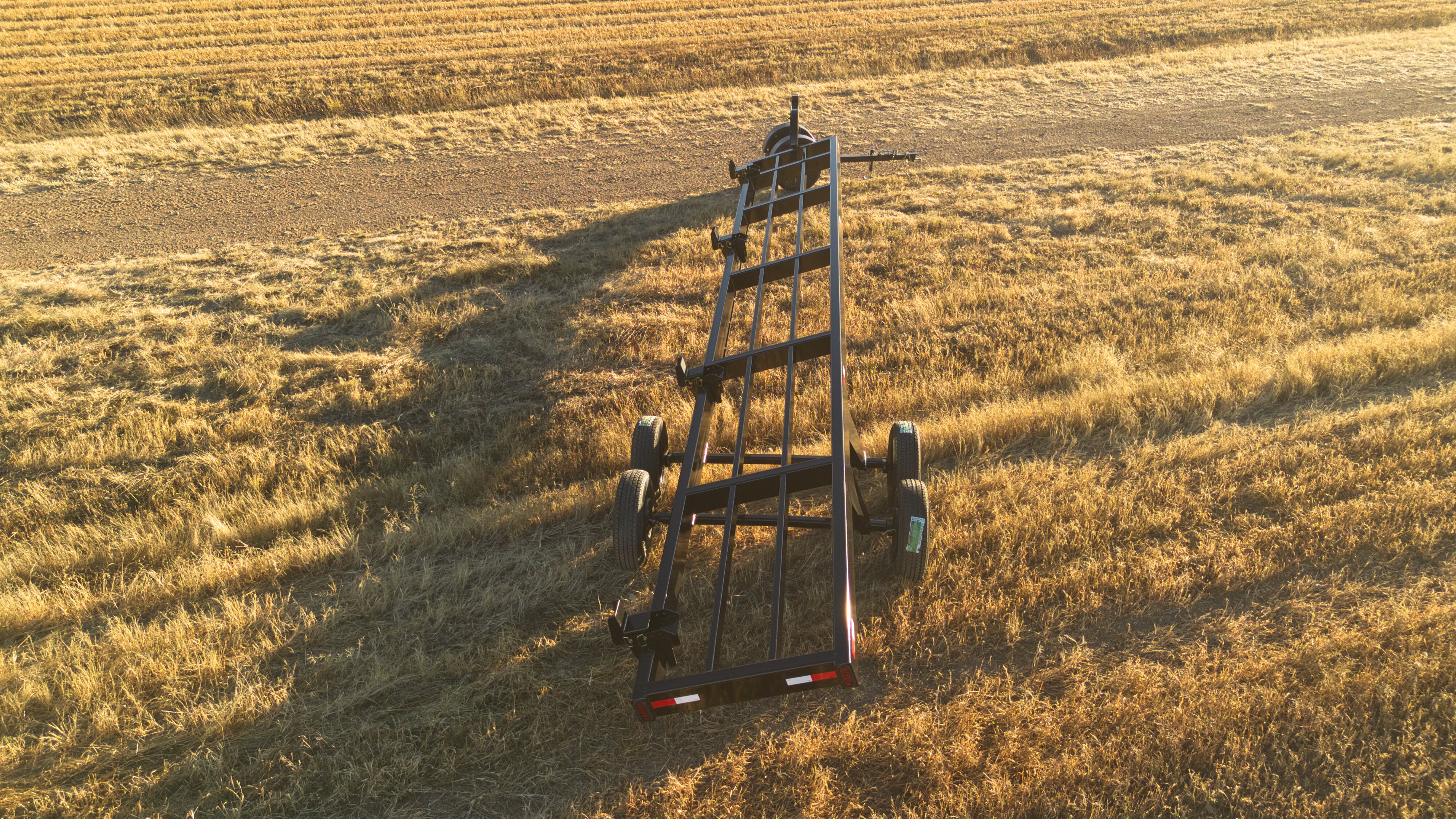

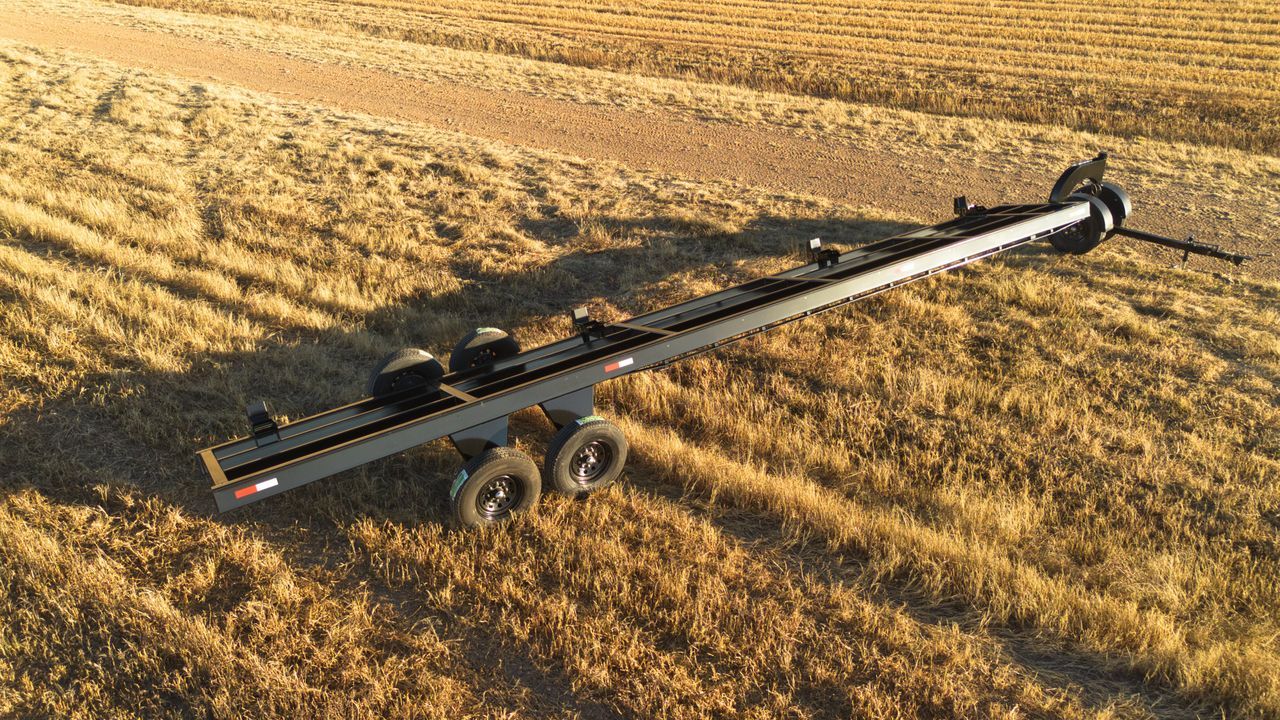

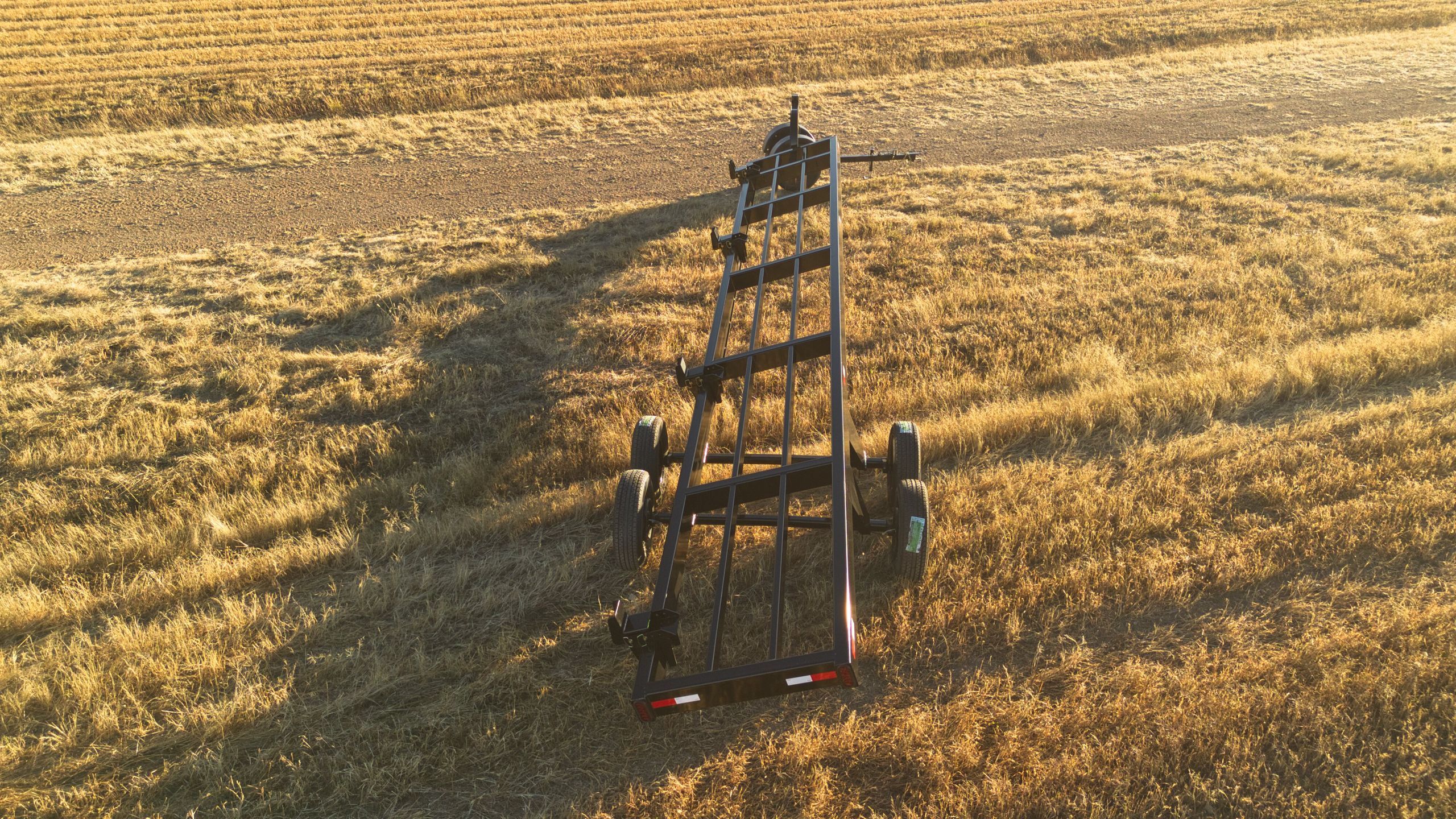

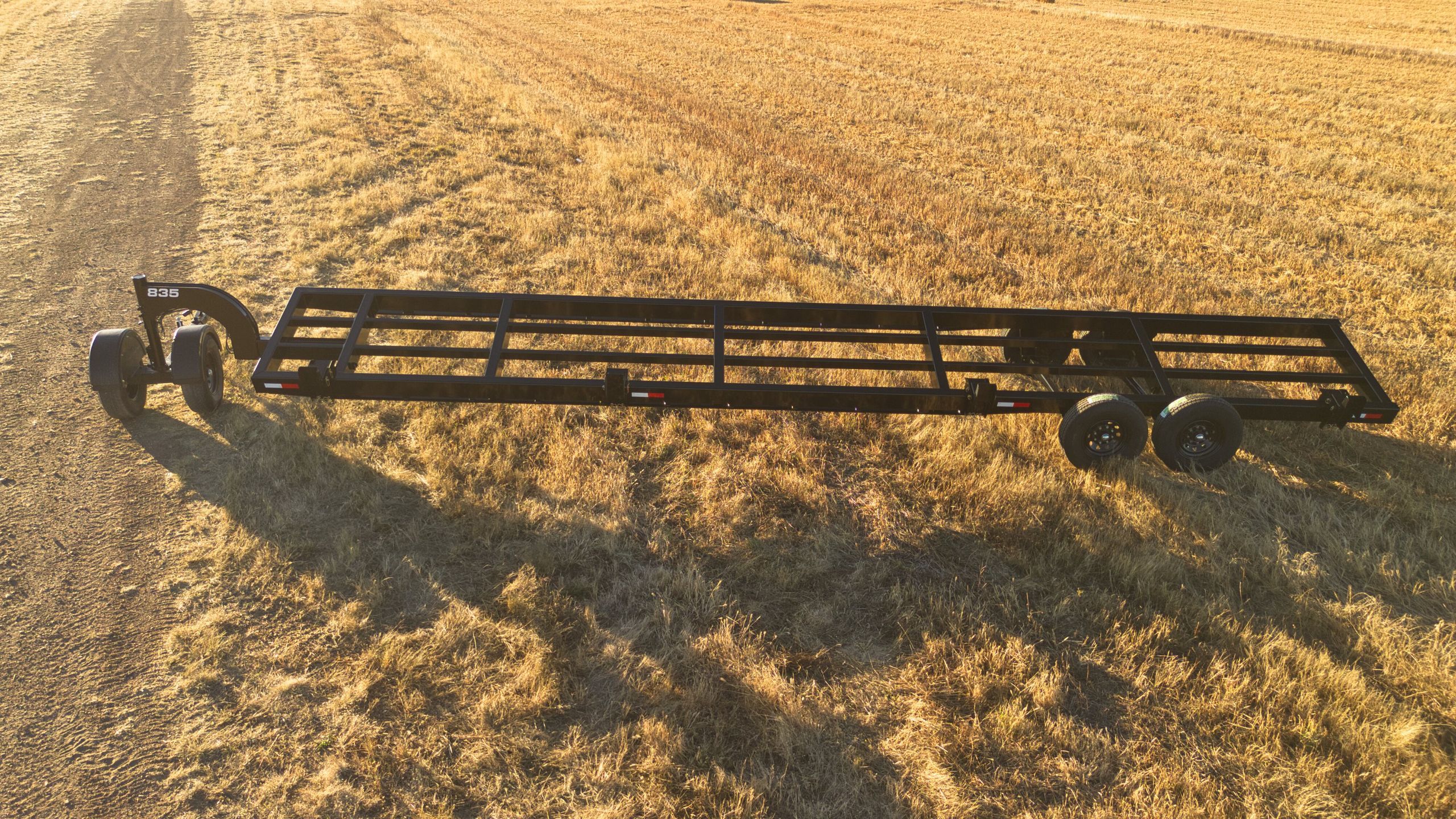

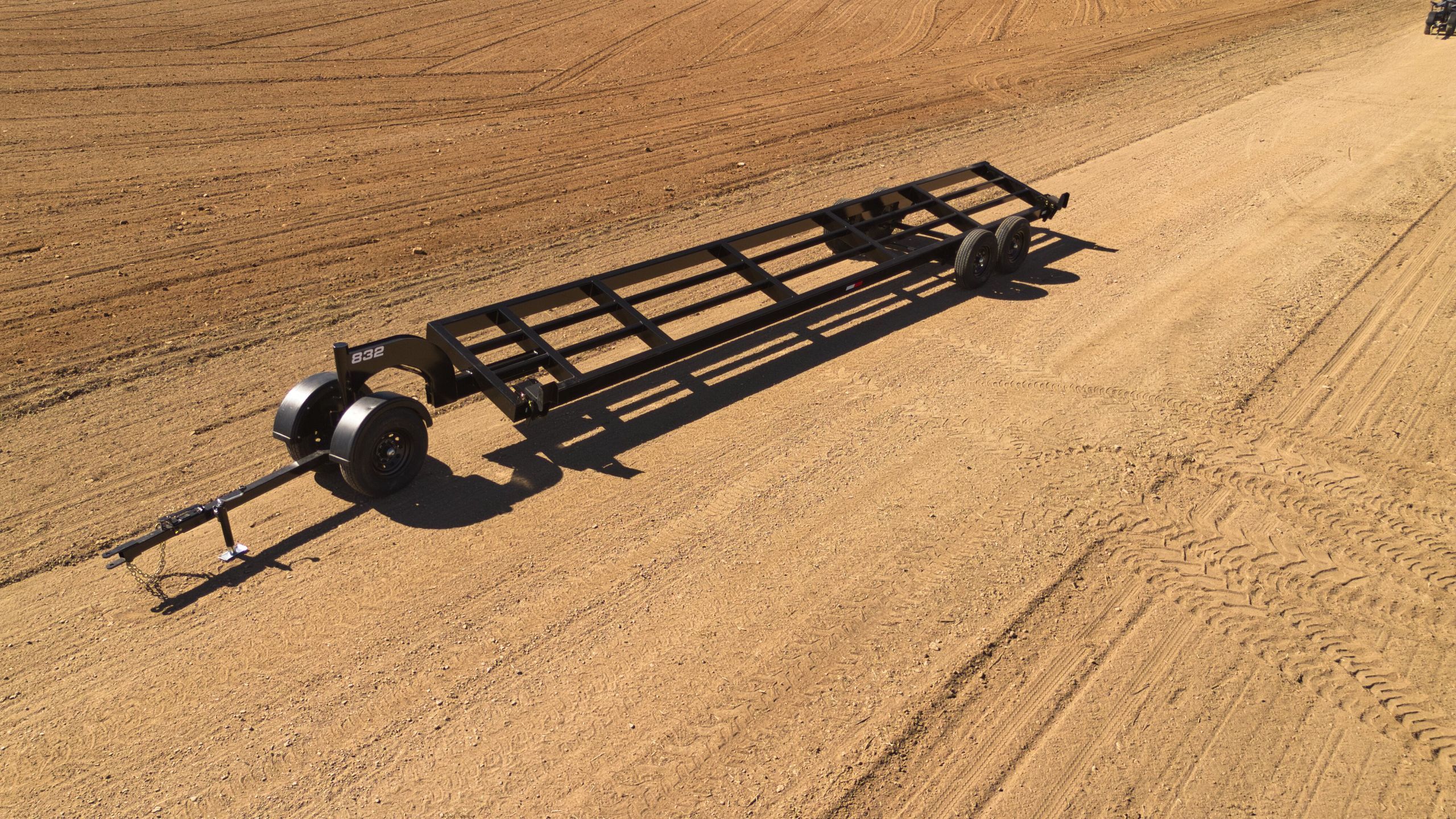

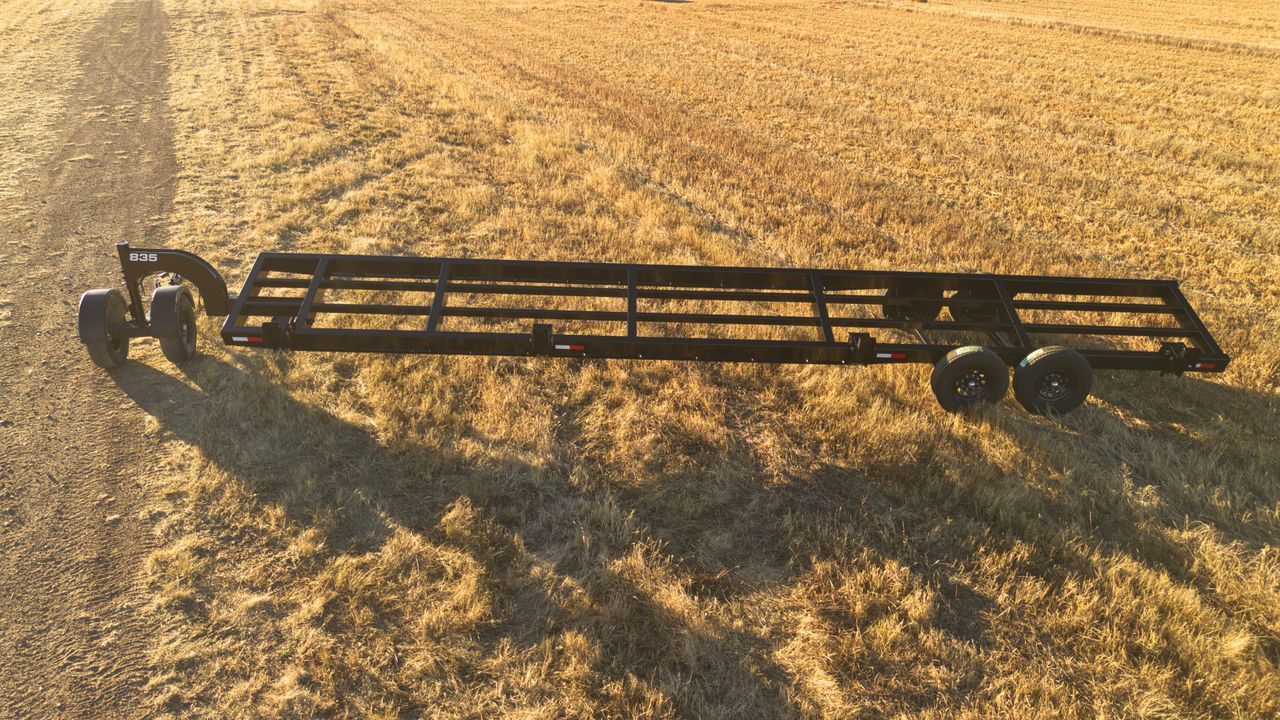

The 8 Series Header Wagons are built for transporting larger combine headers with a reinforced 8" × 4" steel frame and tandem torsion axles for increased stability. With models ranging from 30 ft to 48 ft of header capacity, the series provides a strong and consistent platform for different harvesting setups. Adjustable header supports, a swivel front dolly, electric brakes, rear lighting, and a telescopic hitch make the 8 Series well suited for moving large headers between fields, farm roads, and equipment yards.
