Specifications

FeatureDescription
Header Capacity (ft)37
Total Length (ft)45.5 (including gooseneck, dolly, and telescopic hitch)
Overall Width (in)116
Frame MaterialSteel
Main Frame Size8x4
Incline Frame DesignIncline
Number of Brackets4
Bracket TypeAdjustable
Axle TypeFixed
Axle Quantity2
Axle Rating (lbs)7,000 each

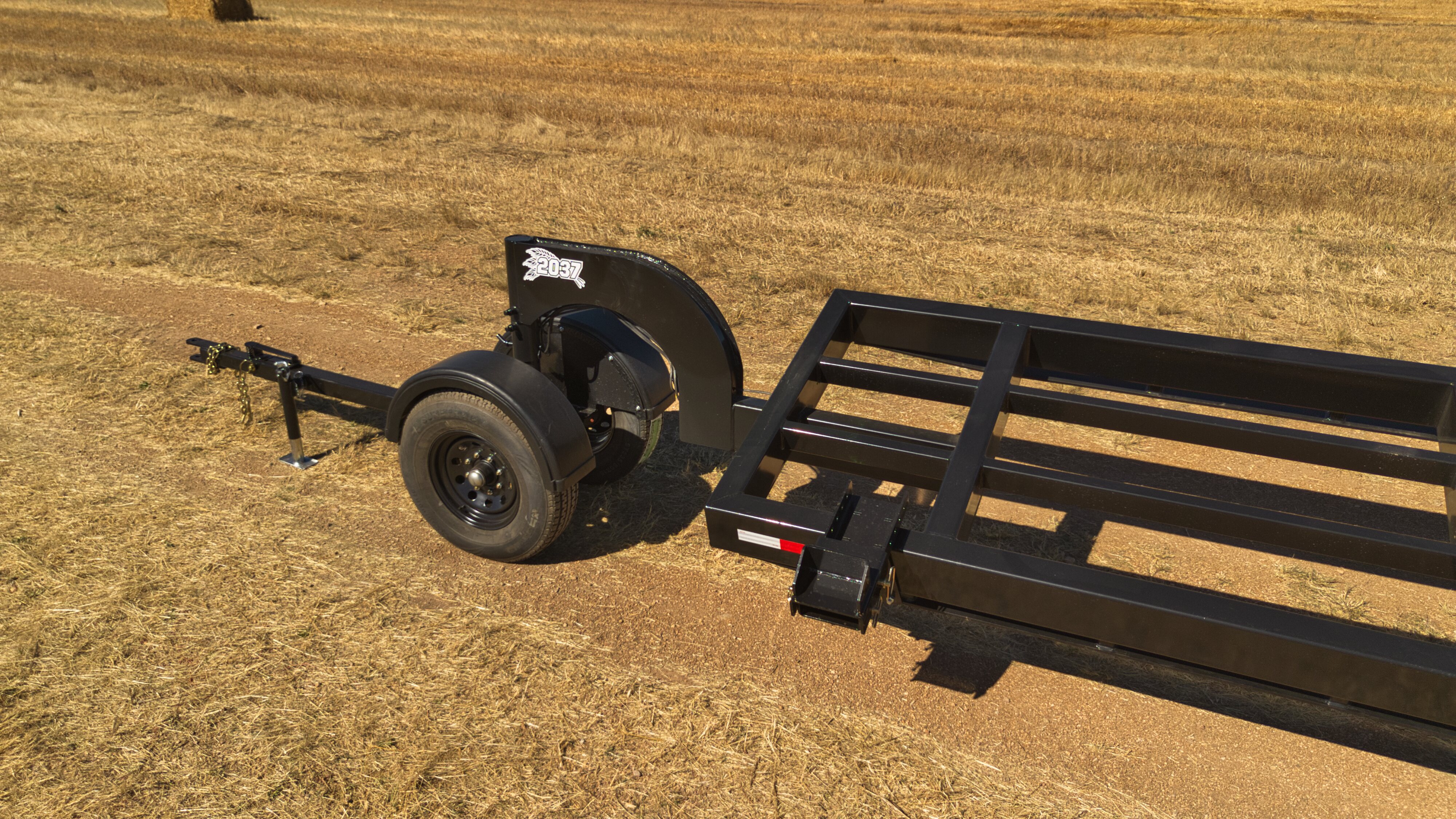

Dolly TypeSwivel front dolly with plastic fenders and 6.5'–10.5' telescopic hitch
Dolly Axle Rating (lbs)7,000
Wheel / Tire SizeST235/80R16
Tire Ply Rating10-ply (16-ply optional)
BrakesNone
LightsRear lights
Shipping Weight lbs/ 4,466 lbs
GVWR (lbs)21,000

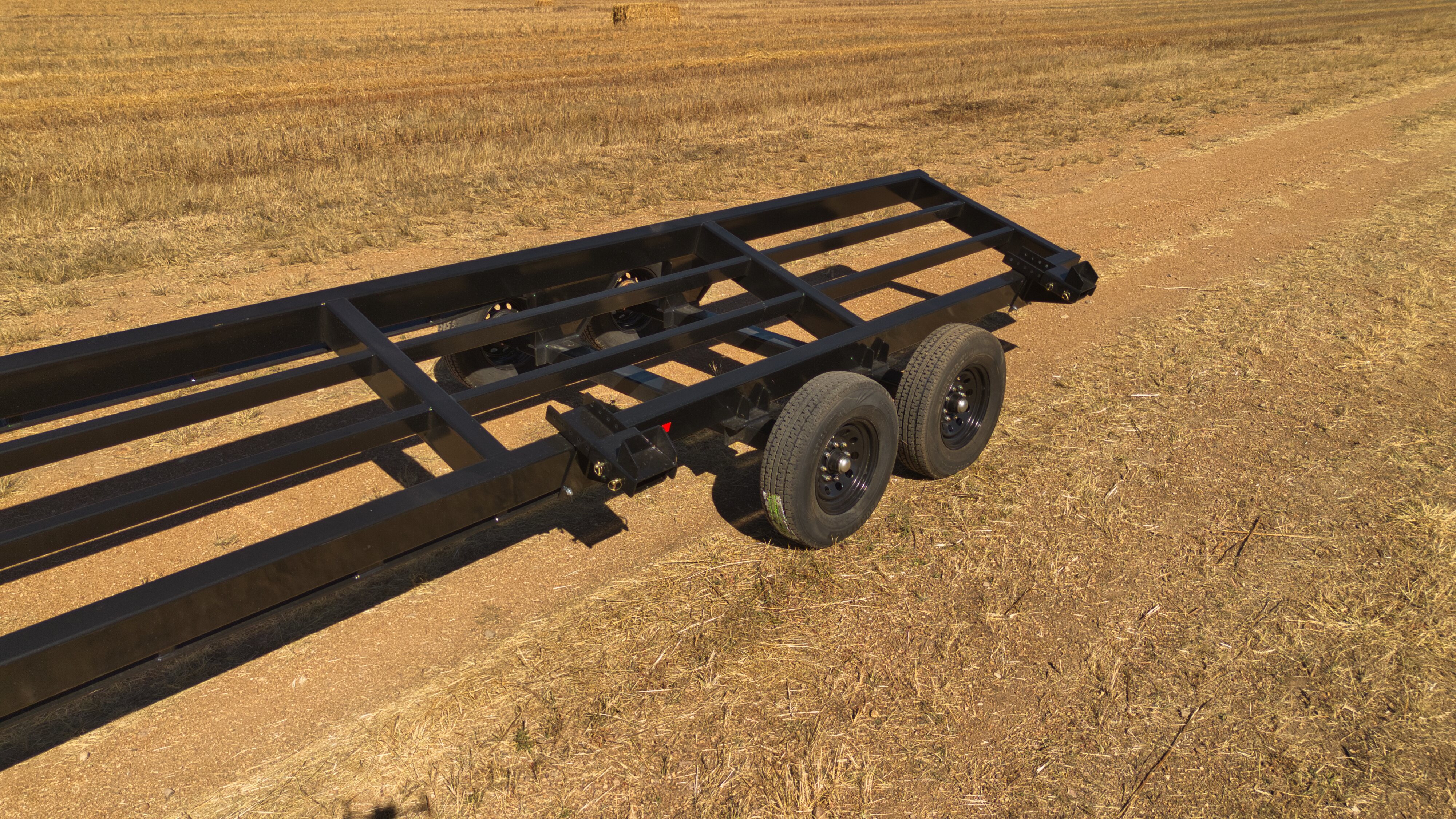

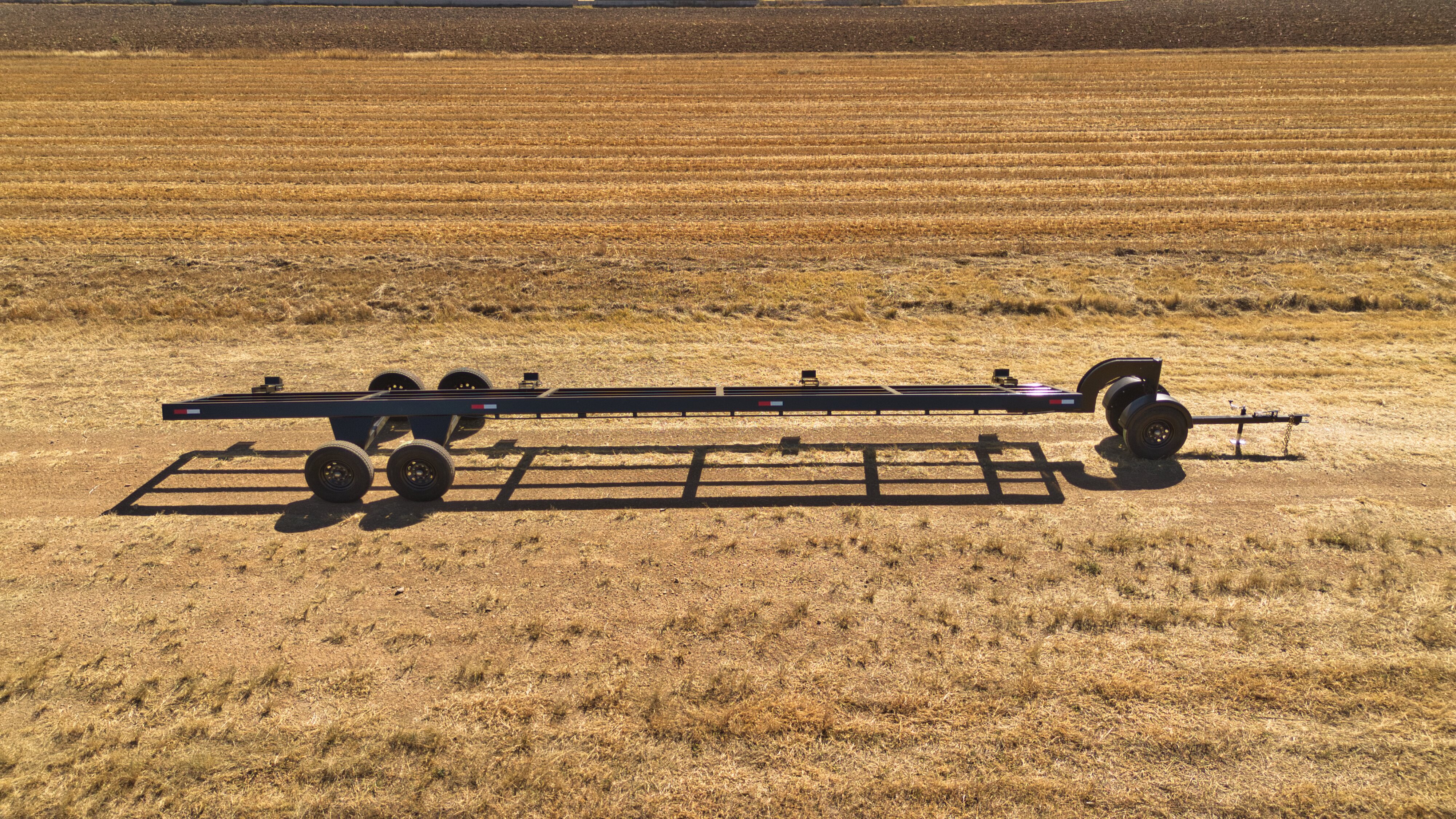

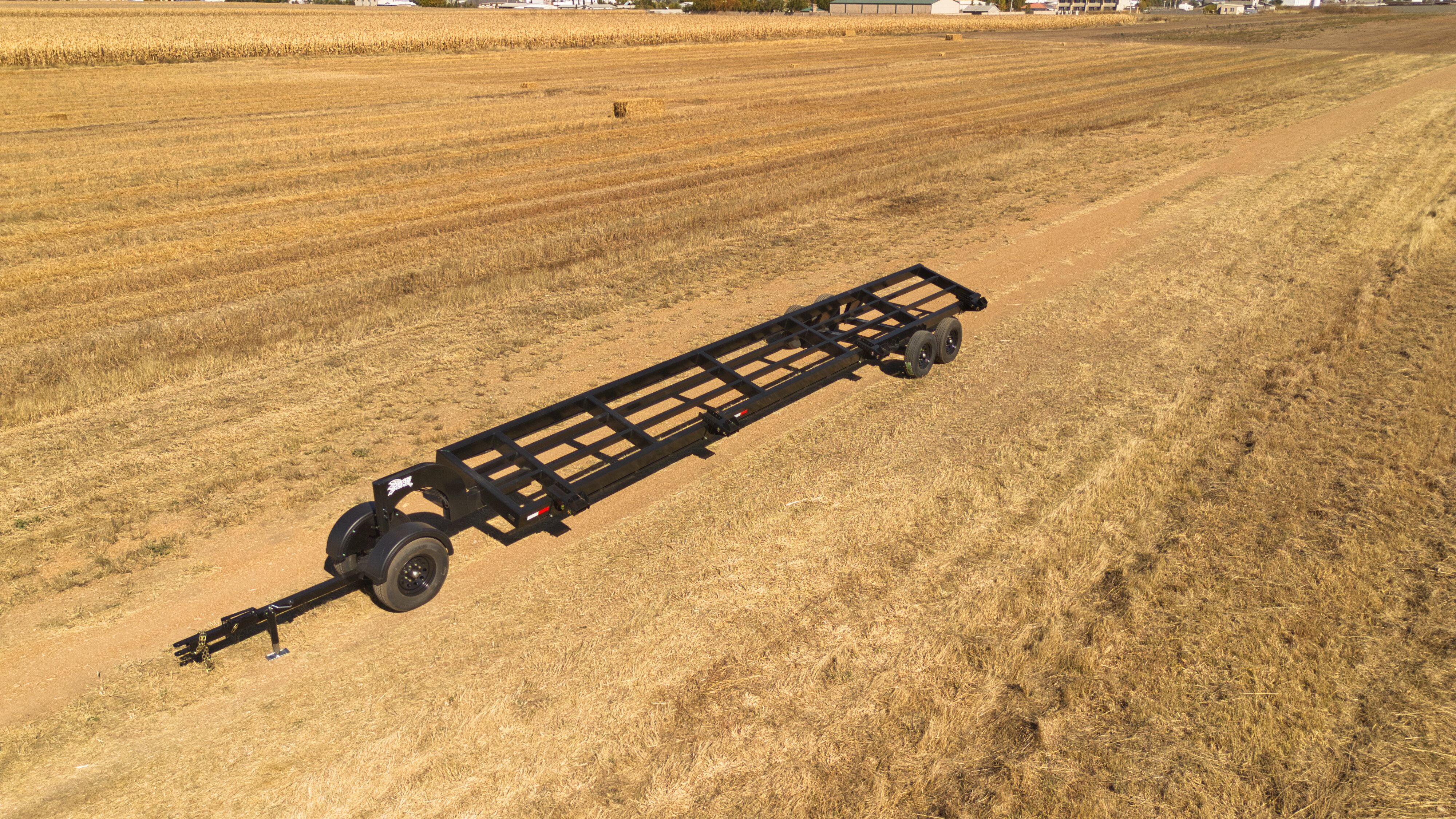

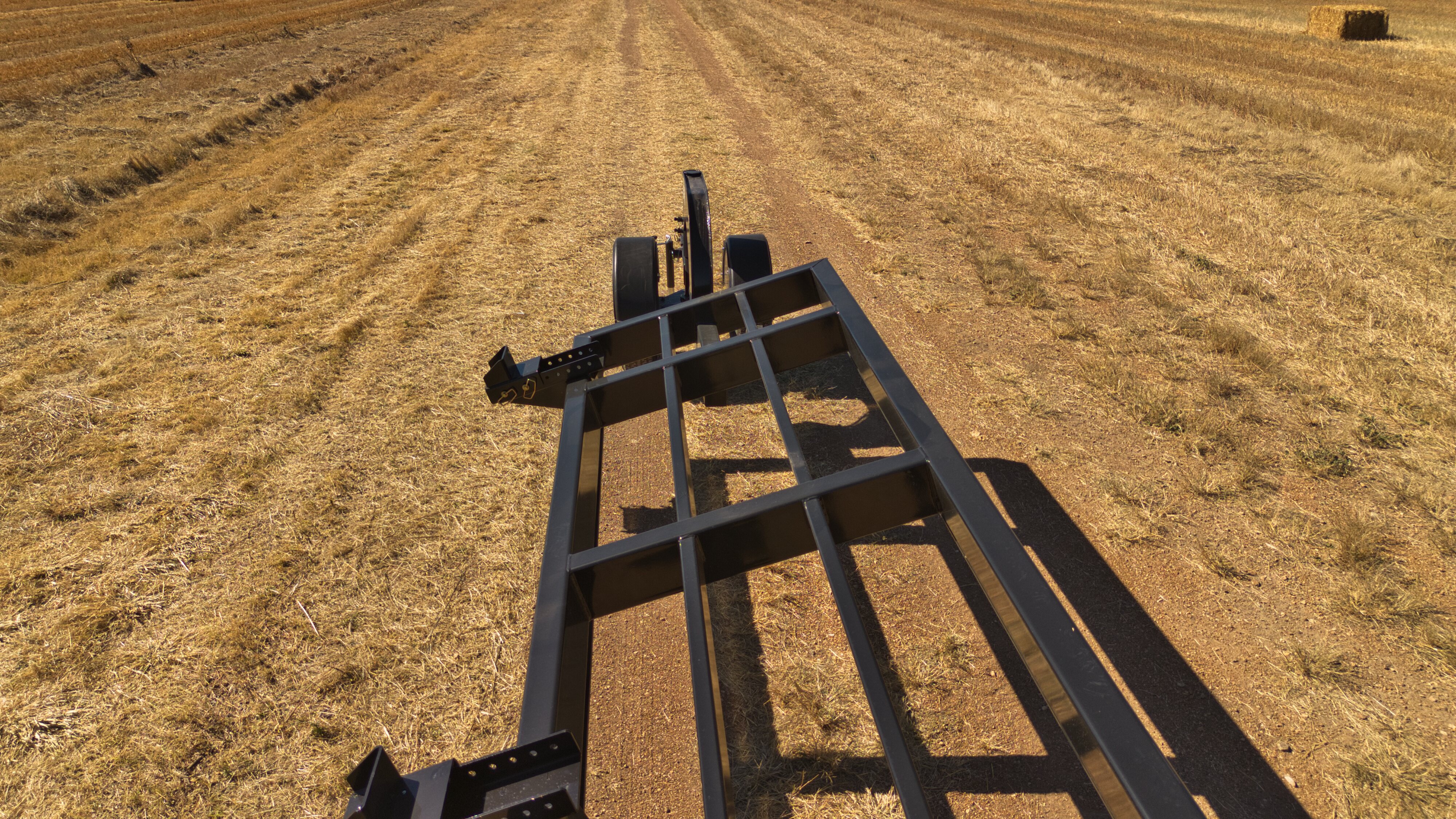

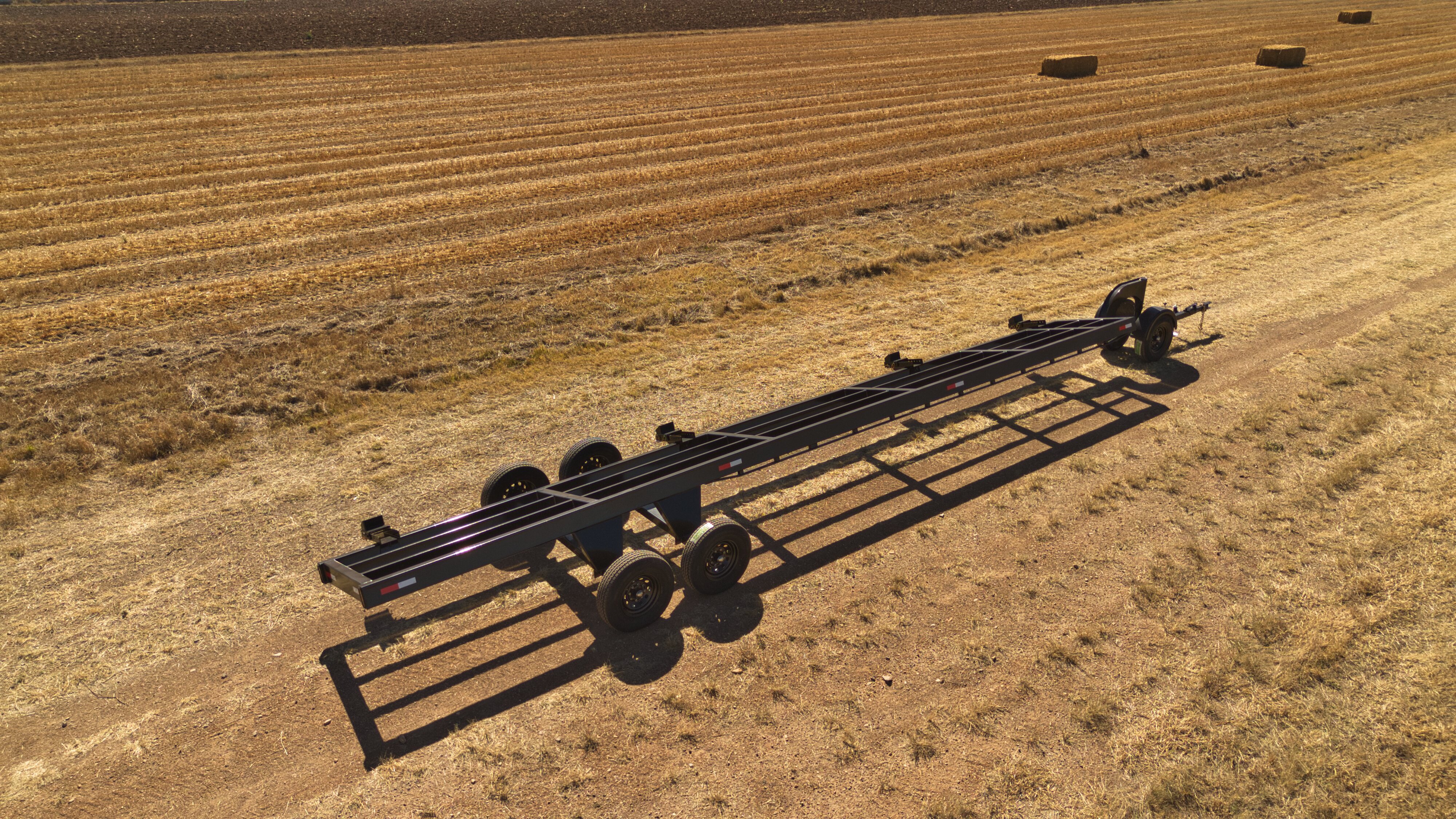

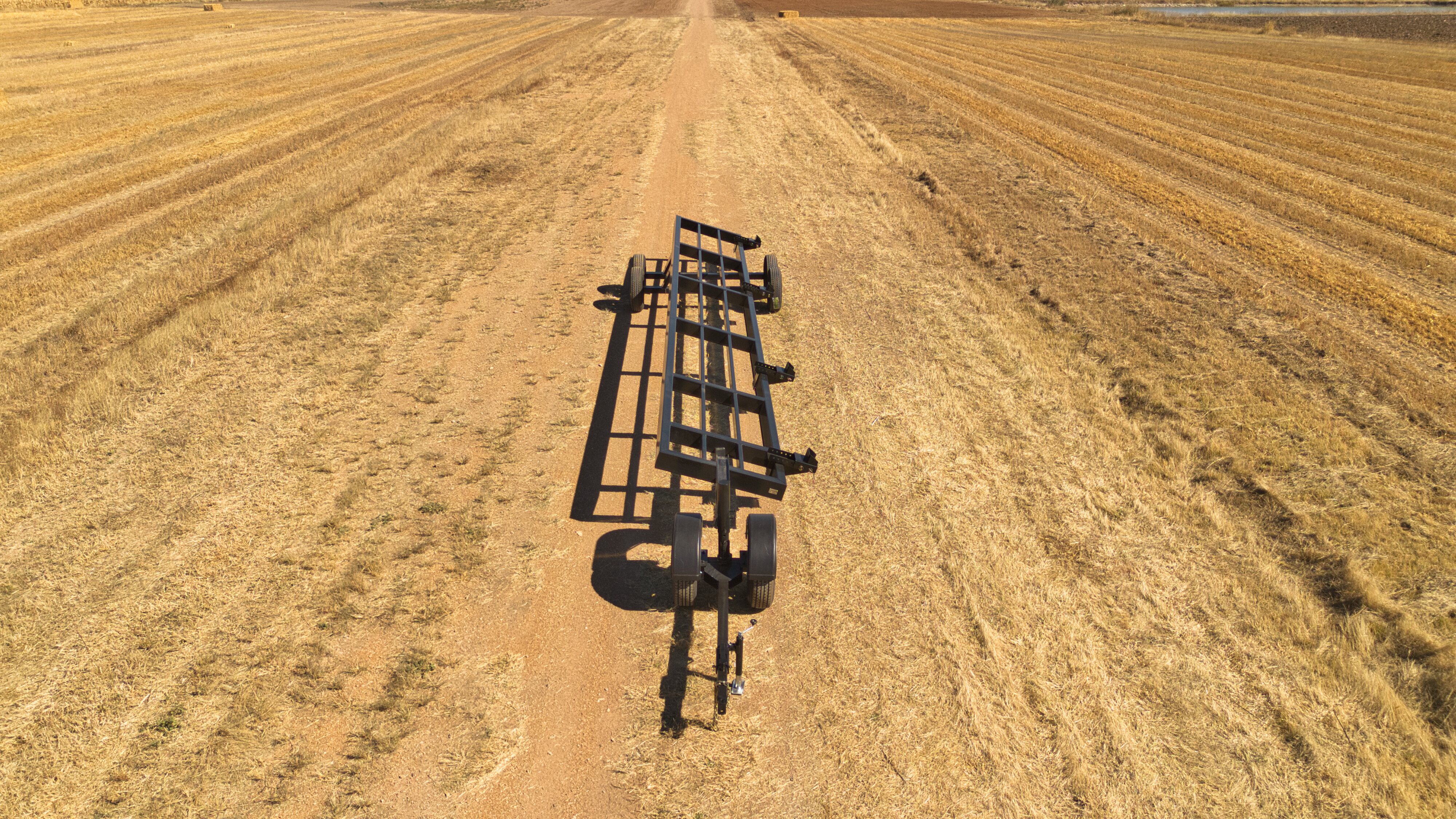

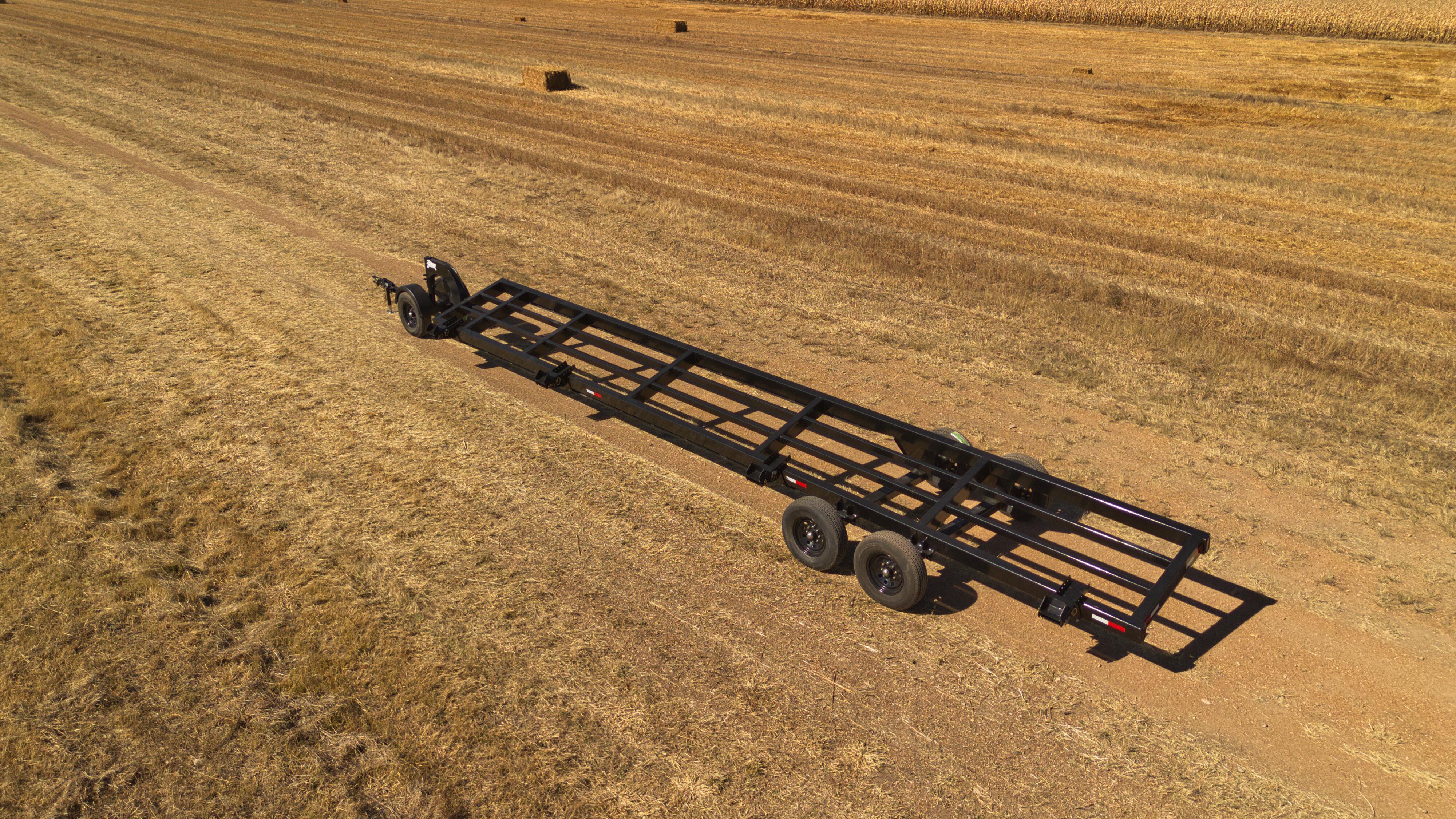

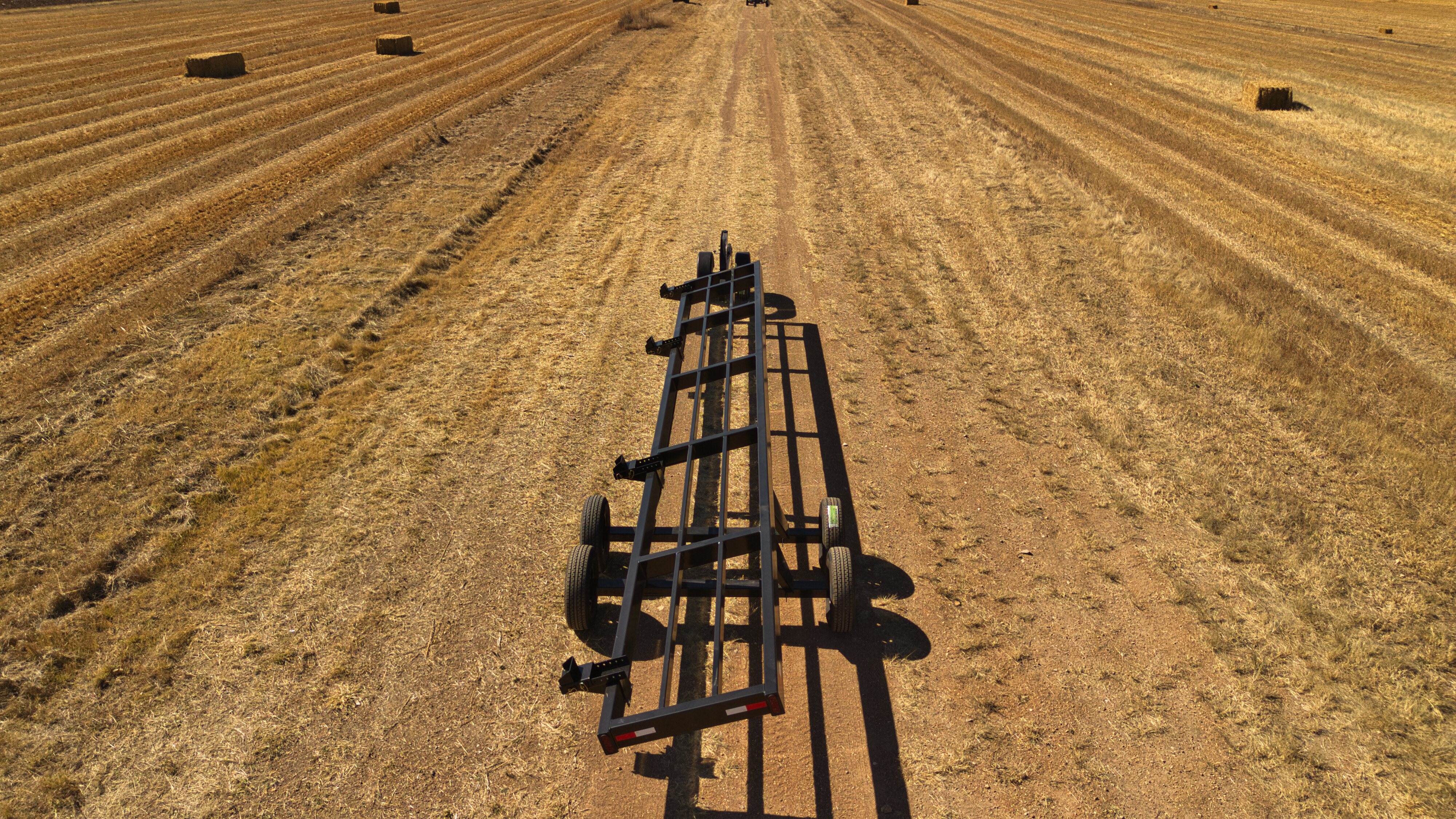

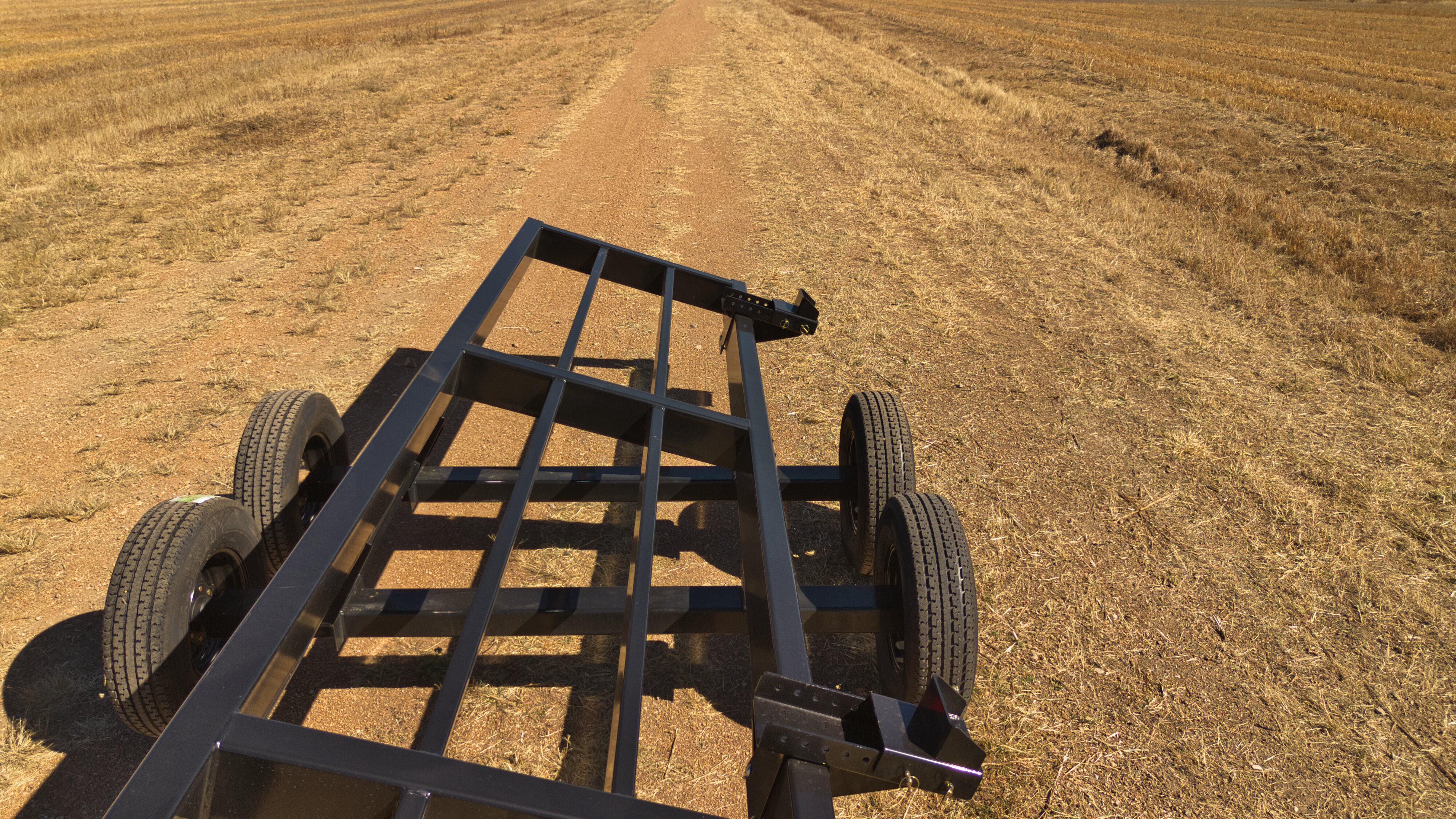

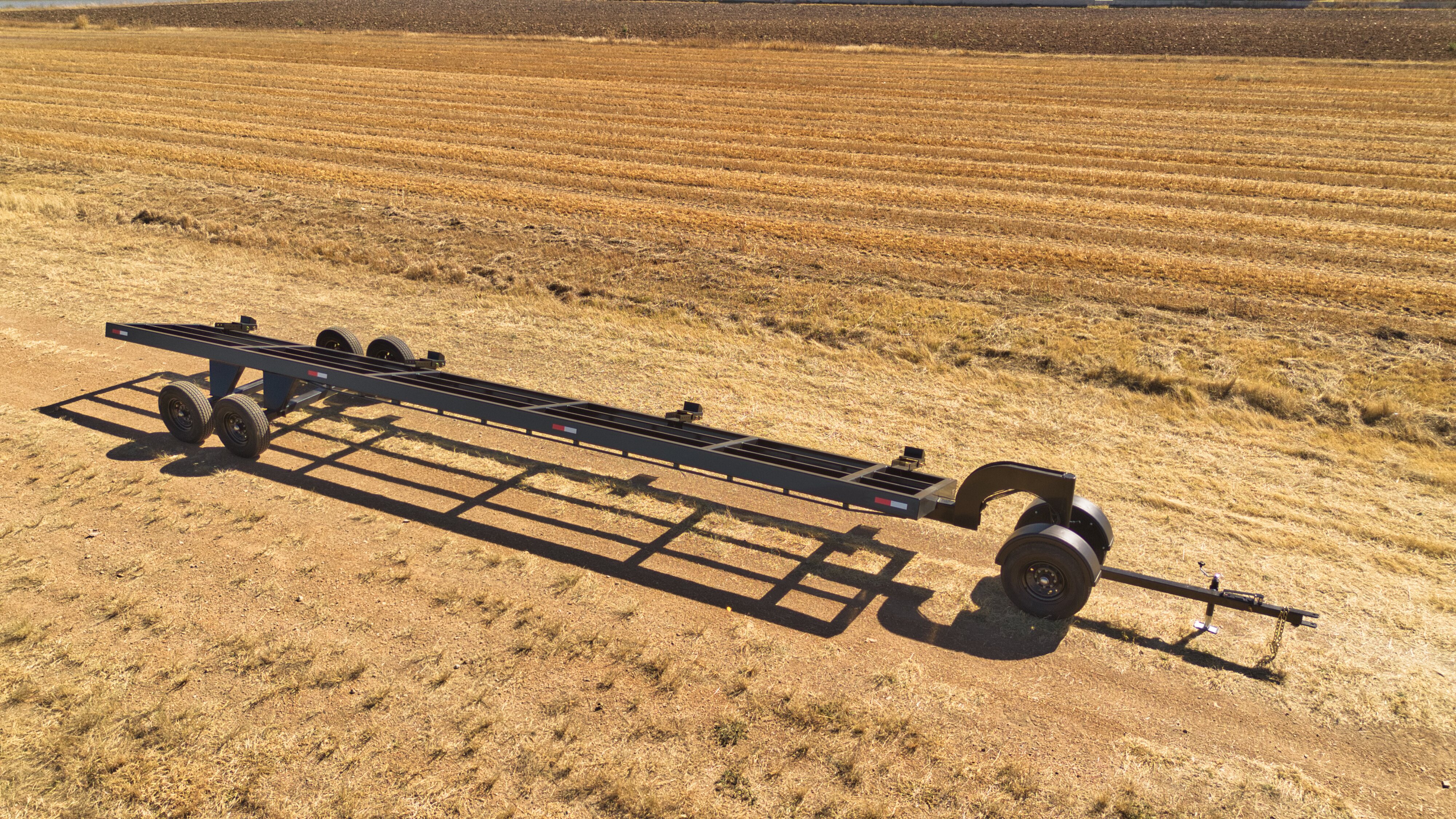

The 2037 is a fixed-axle 20-Series header trailer built for 37’ heads and customers who want the strength of an 8x4 frame with simple, rugged running gear. Dual 7k axles handle larger platforms, while the front swivel dolly and telescopic hitch keep the trailer maneuverable in tight yards and approaches. This trailer is ideal for growers who don’t need brakes on the wagon but still expect stability and durability on longer hauls. Rear lighting, adjustable brackets, and plastic fenders give it a more polished, ready-for-the-road feel than a basic “farmshop” header cart.

×
