Specifications
| Feature | Description |
|---|---|
| Type | Hydraulic rear blade |
| Width | 7 ft |
| Cutting edge | ½" × 6", high-carbon steel, reversible |
| Moldboard | 19" high, 5/16" thick, reinforced steel |
| Rotation | 360°, pin-lock system |
| Tilt | 8" end-to-end ≈ 5.4° |
| Hydraulics | 1 × 3"x10" piston, 1 × 3"x8" piston, 4 connections |
| Hitch type | 3-point, Category II & III |
| Tractor power required | 110 HP |
| Weight | 437 kg / 963 lbs |
| Parking foot | Included |

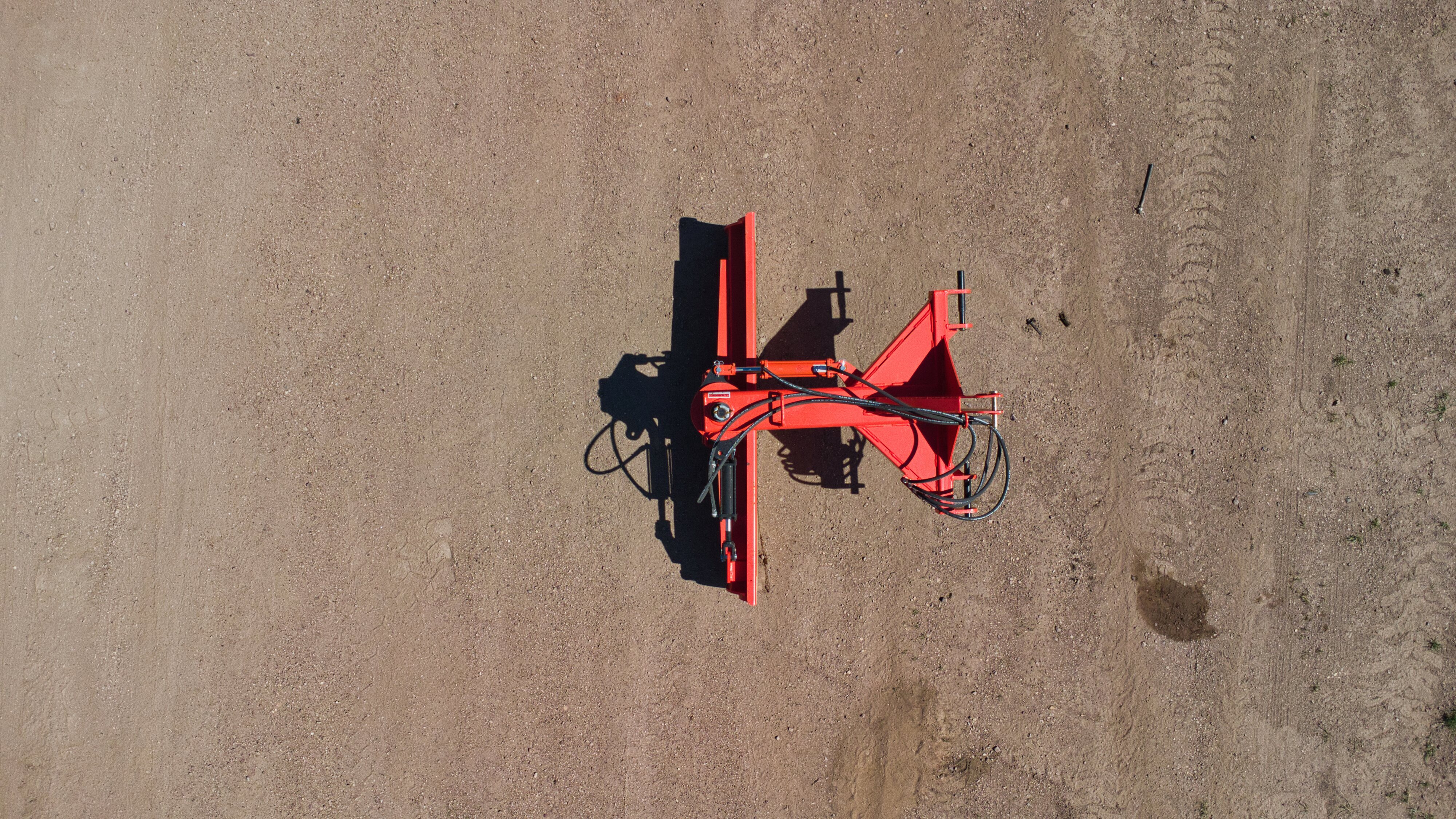

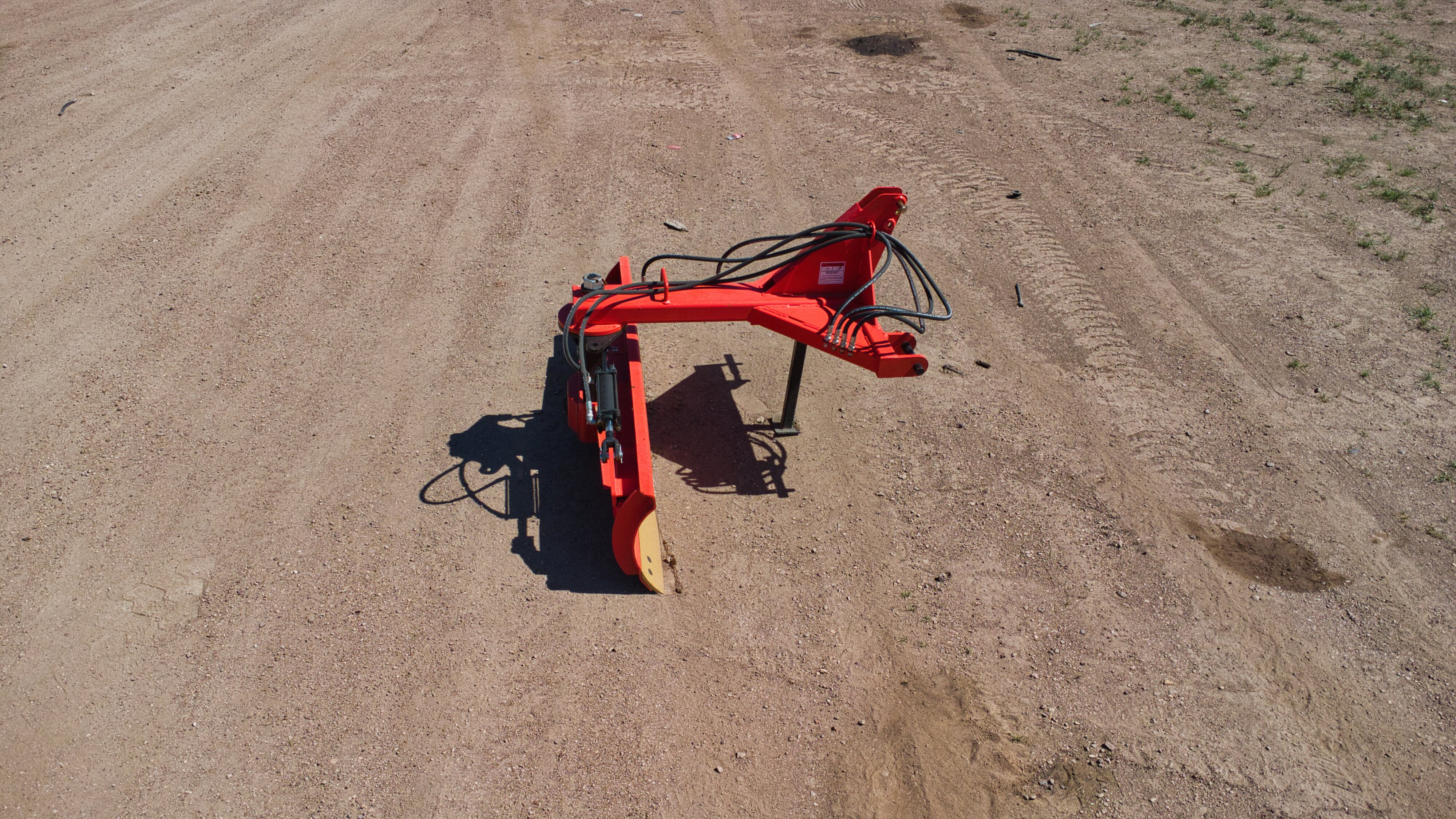

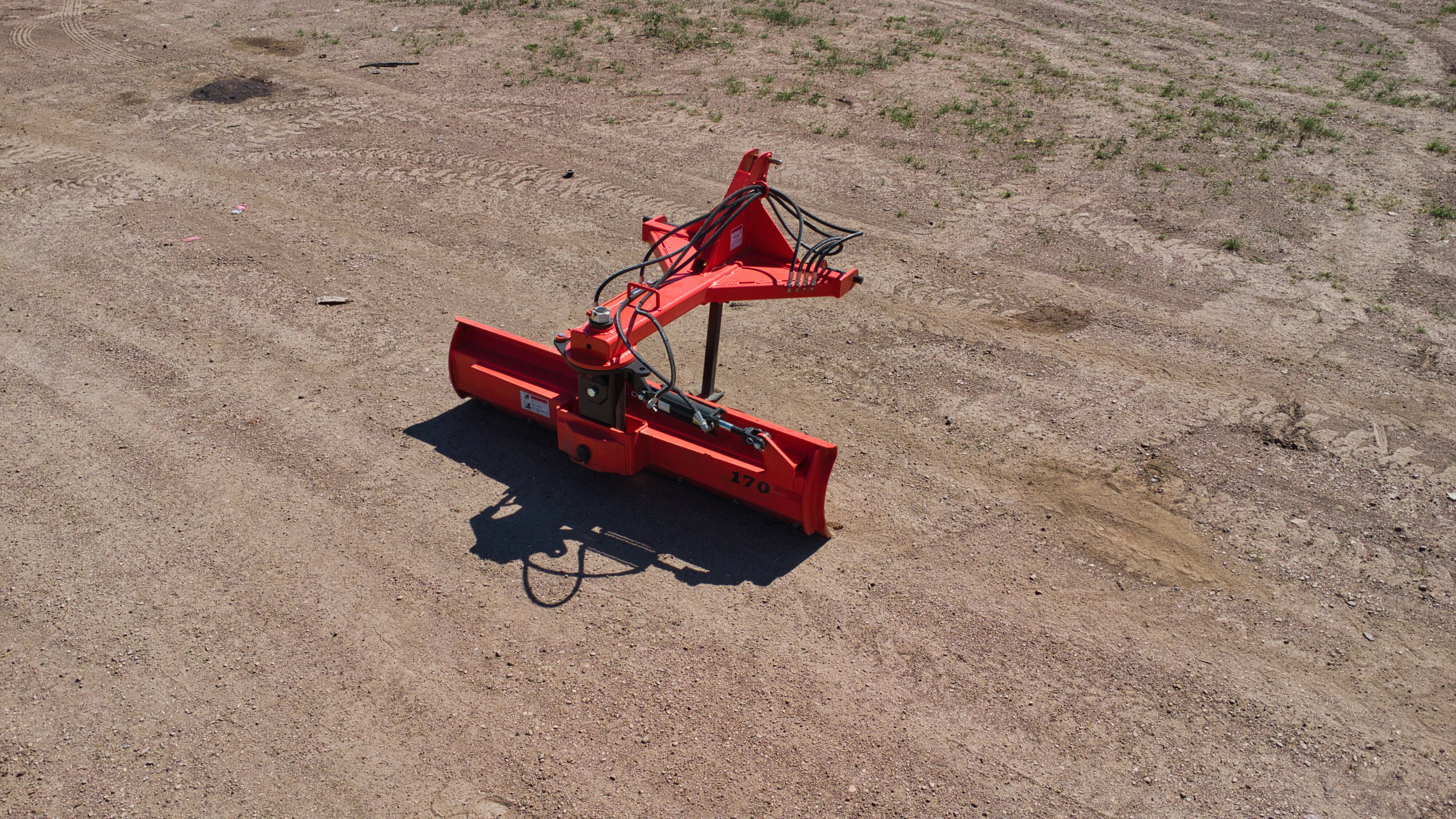

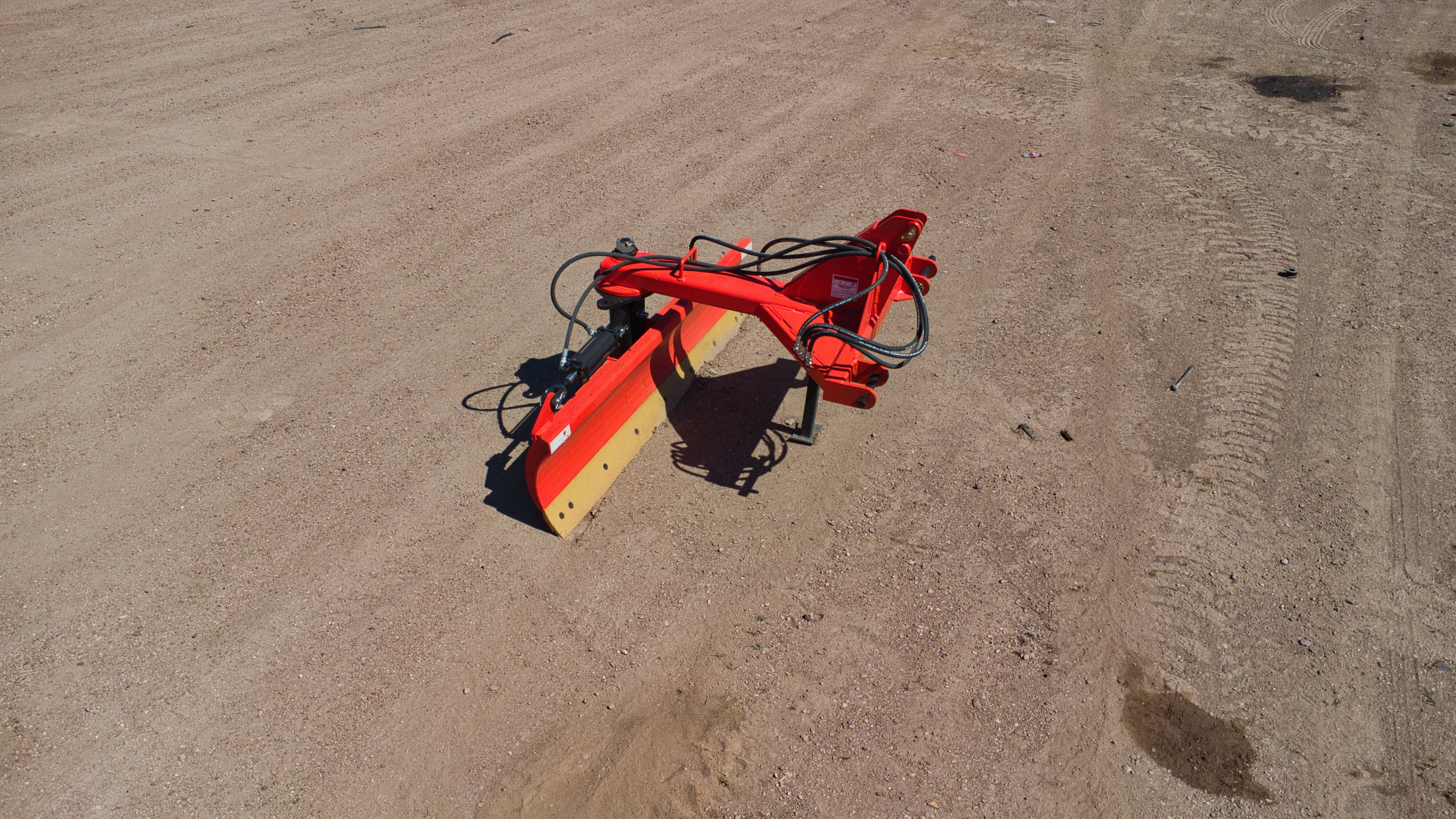

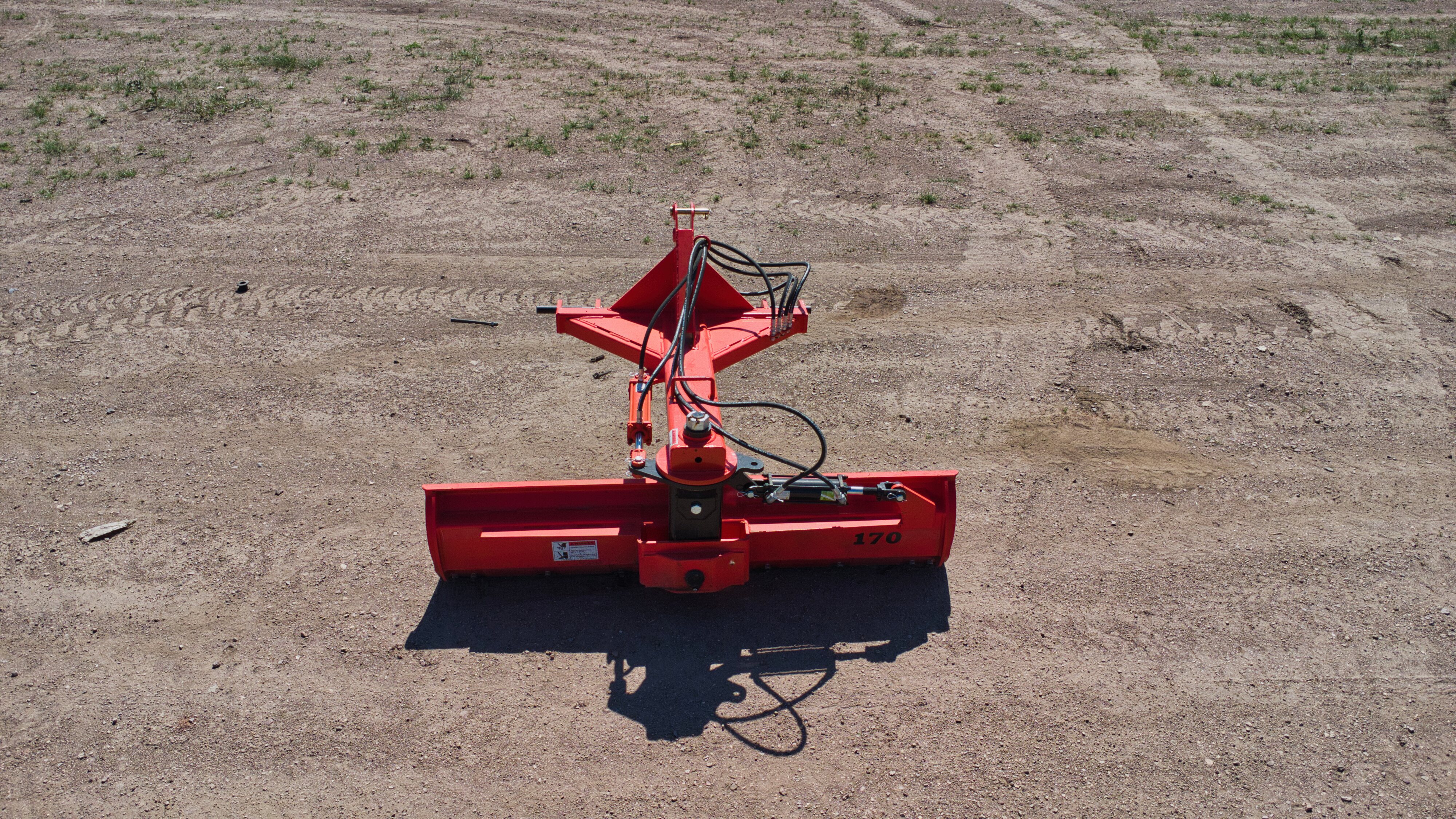

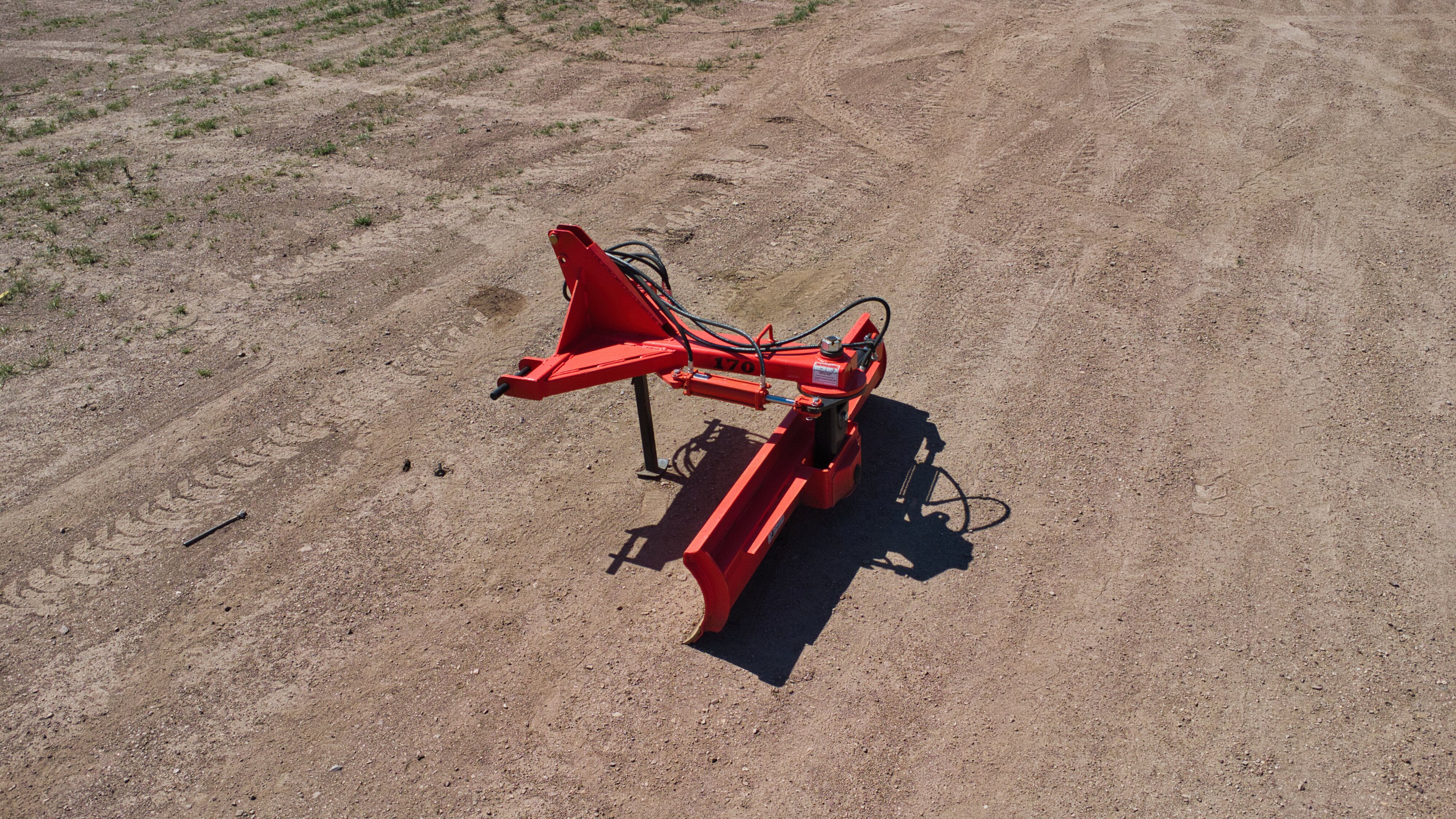

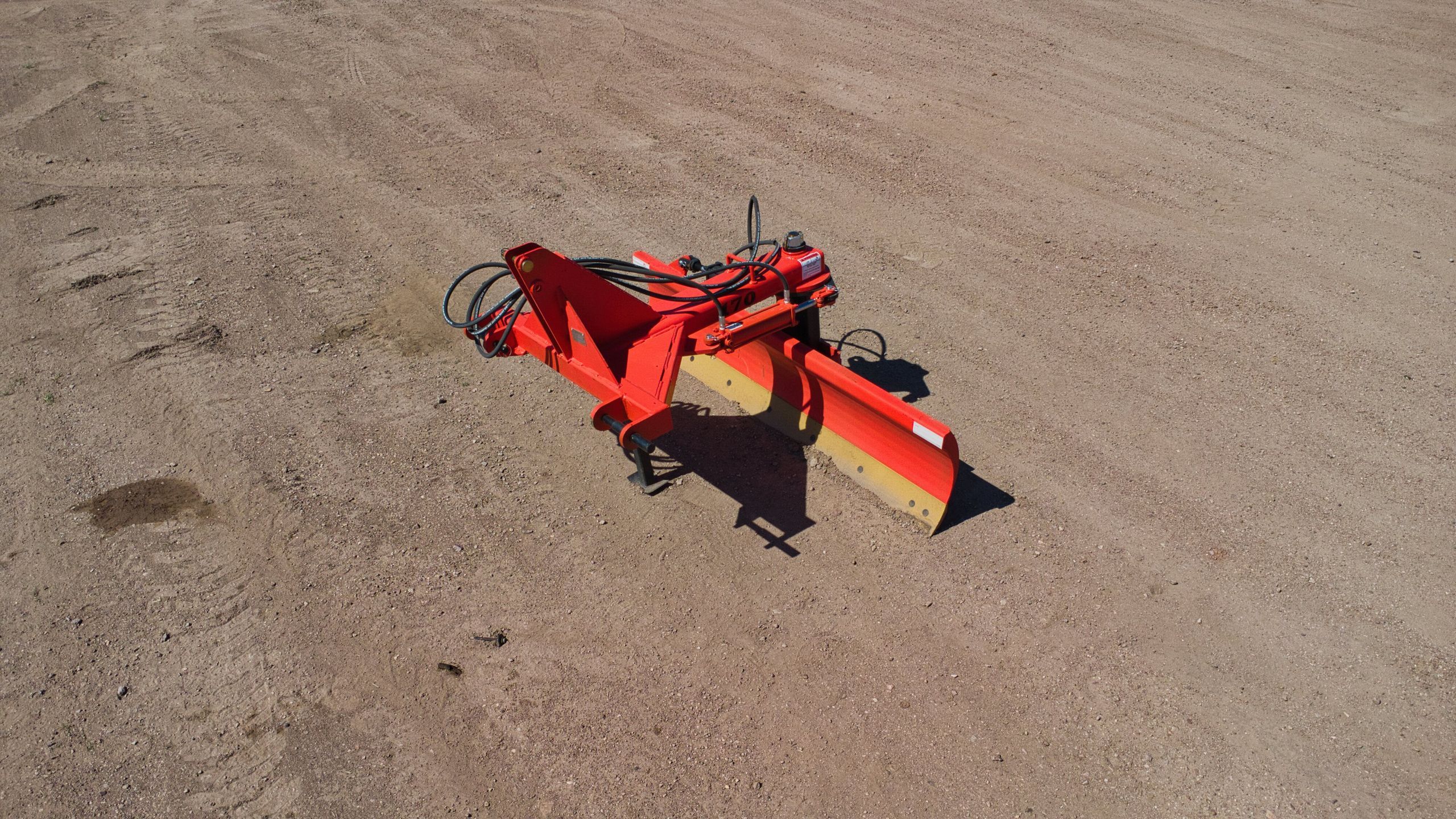

The 170 is a 7-ft hydraulic rear blade for tractors up to 110 HP. Compact yet tough, it features a reinforced moldboard and reversible cutting edge. Hydraulic tilt and 360° pin-lock rotation provide operators with full control for grading, ditching, or clearing snow.
