Specifications
| Feature | Description |
|---|---|
| Trailer Type | Gooseneck |
| Load Type | Deckover |
| Deck Length | 32 ft |
| Deck Width | 102 in |
| Overall Length | 40 ft |
| Overall Width | 102 in |
| Deck Material | Pine |
| Deck Finish | Stained |
| Trailer Weight | 7,988 lb |
| Load Capacity | 12,012 lb |
| GVWR | 20,000 lb |
| Axle Count | 2 |
| Axle Rating | 10,000 lb each |
| Axle Type | Straight |
| Suspension | Leaf spring |
| Brakes | Electric |
| Tire Size | 235/80R16 |
| Wheel Type | Steel |
| Spare Tire Mount | Yes |
| Deck Type | Dovetail |

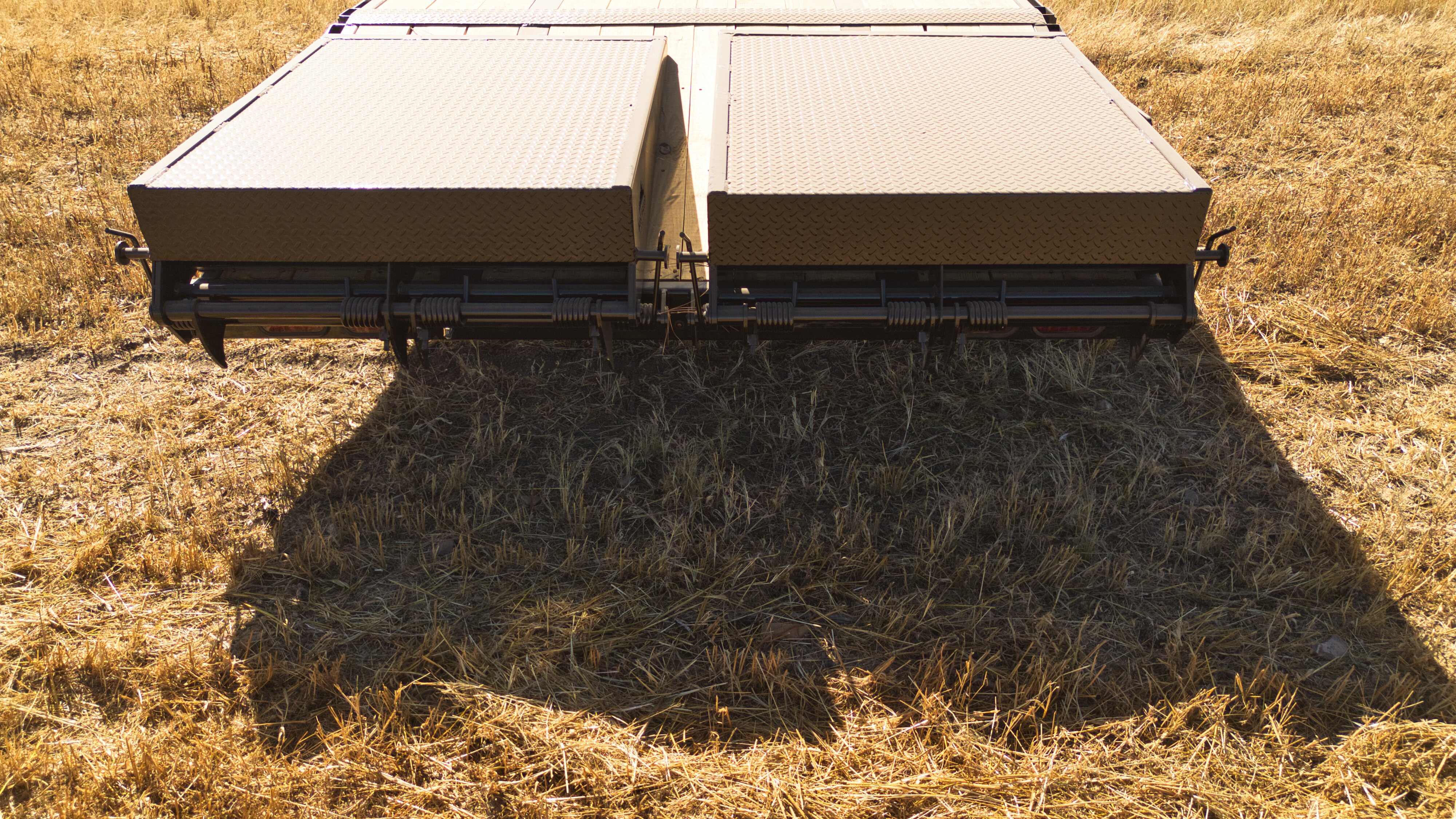

| Ramps | Flip-over, 6 ft |
| Rub Rails | Yes |
| Toolbox | Lockable |
| Lighting | LED, DOT approved |
| Coupler | Gooseneck 2-5/16" |
| Jack | Dual drop-leg |
| Finish | Powder coat |
| Notes | Mid-size gooseneck model |

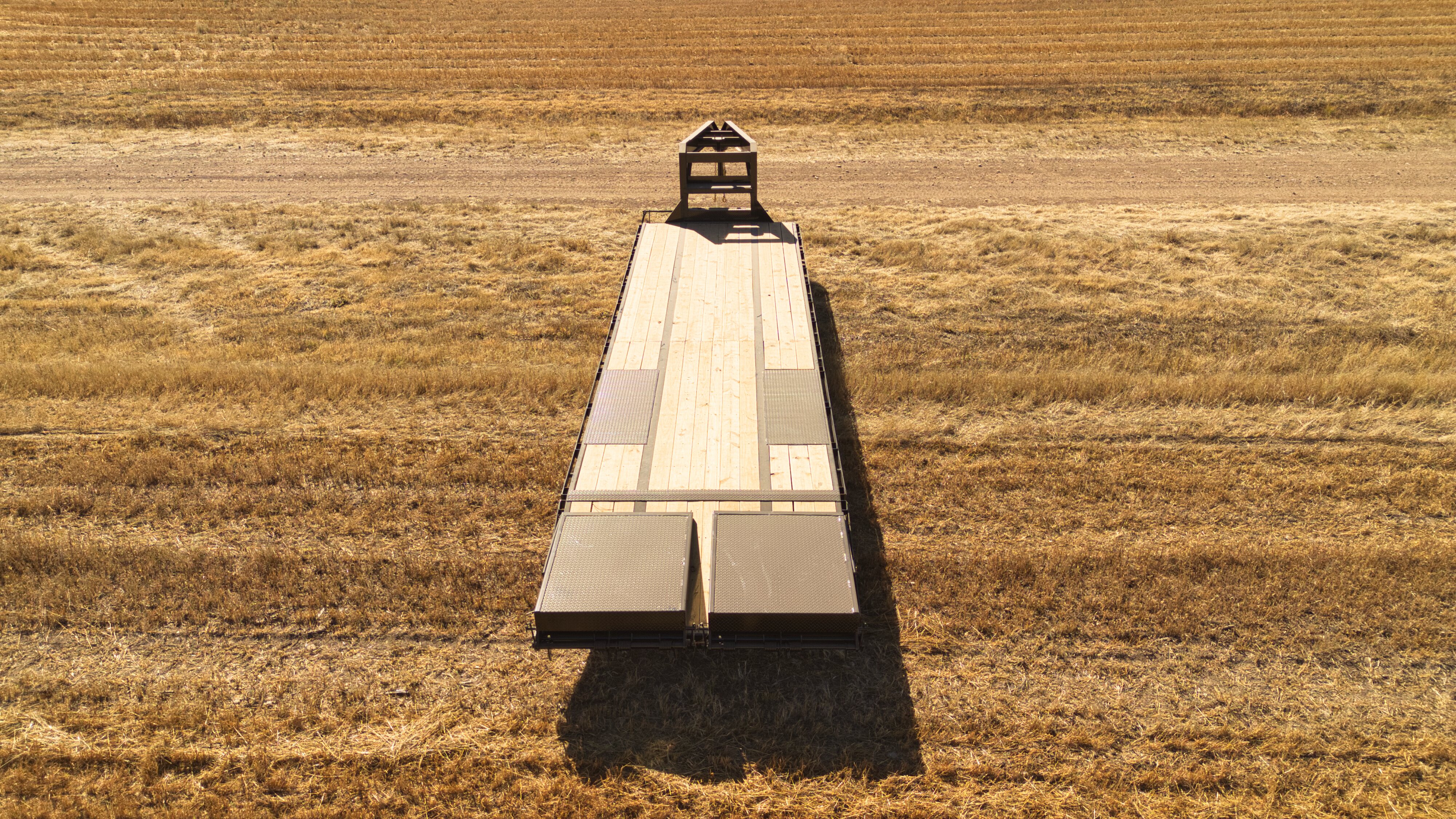

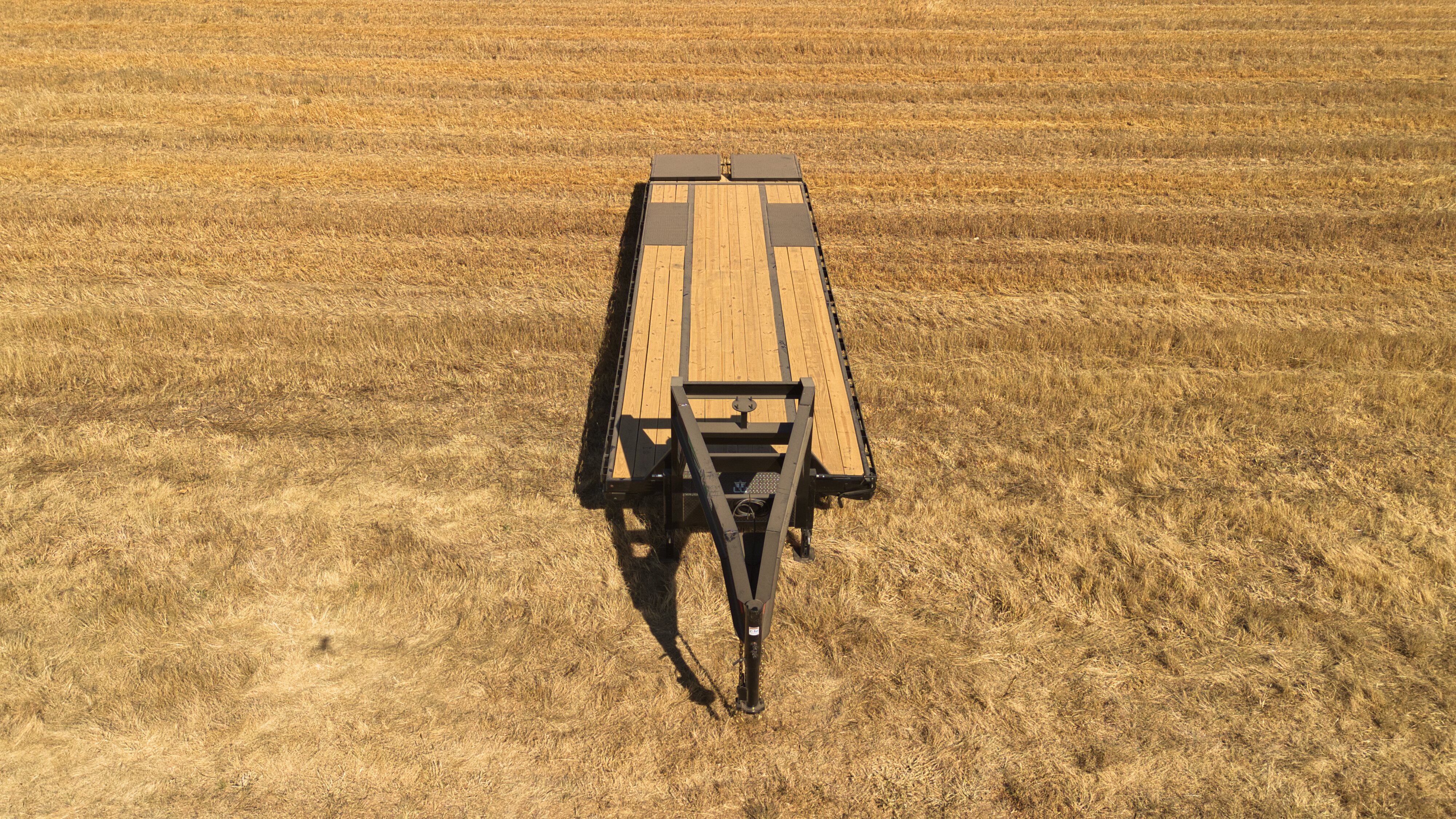

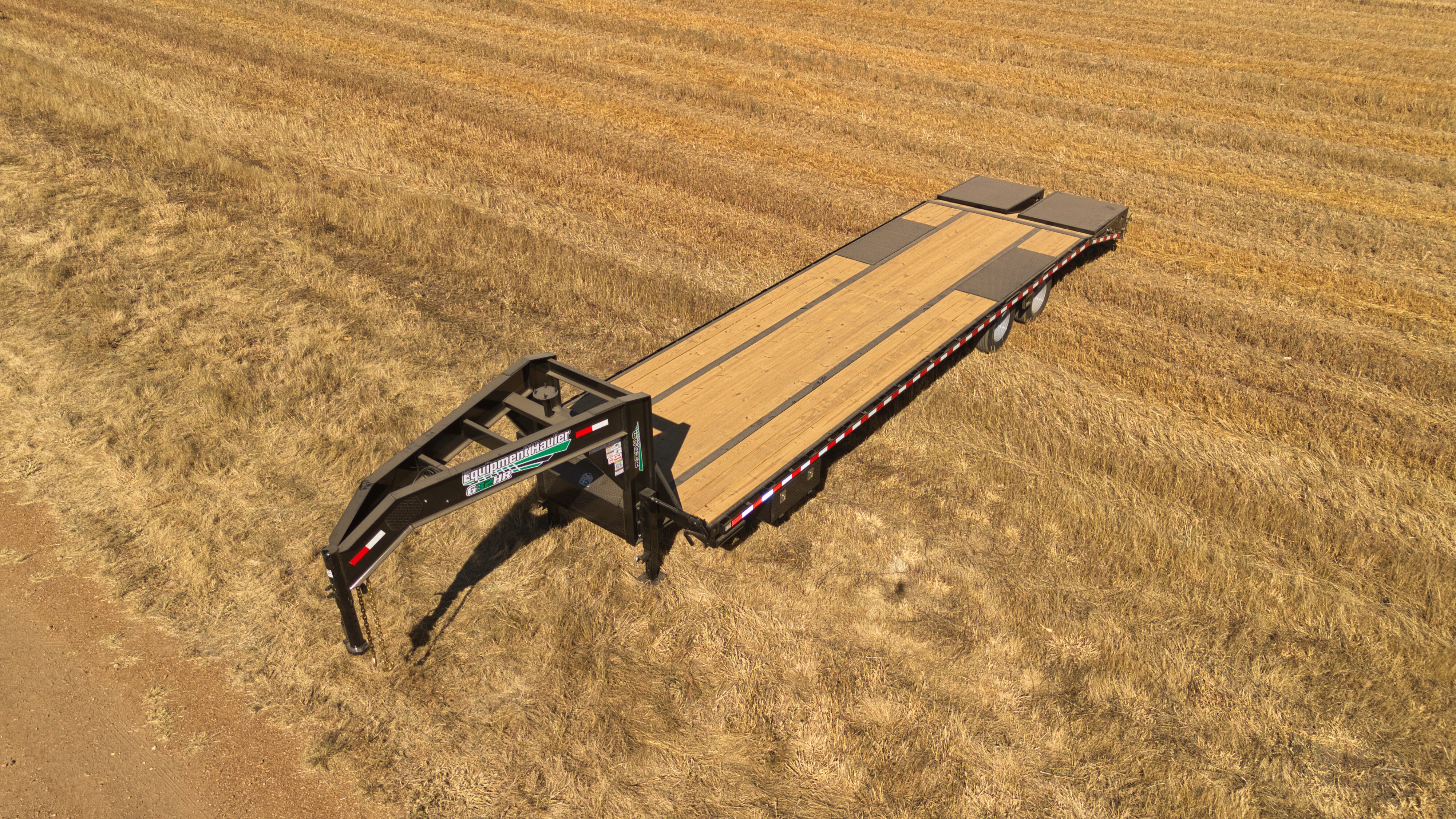

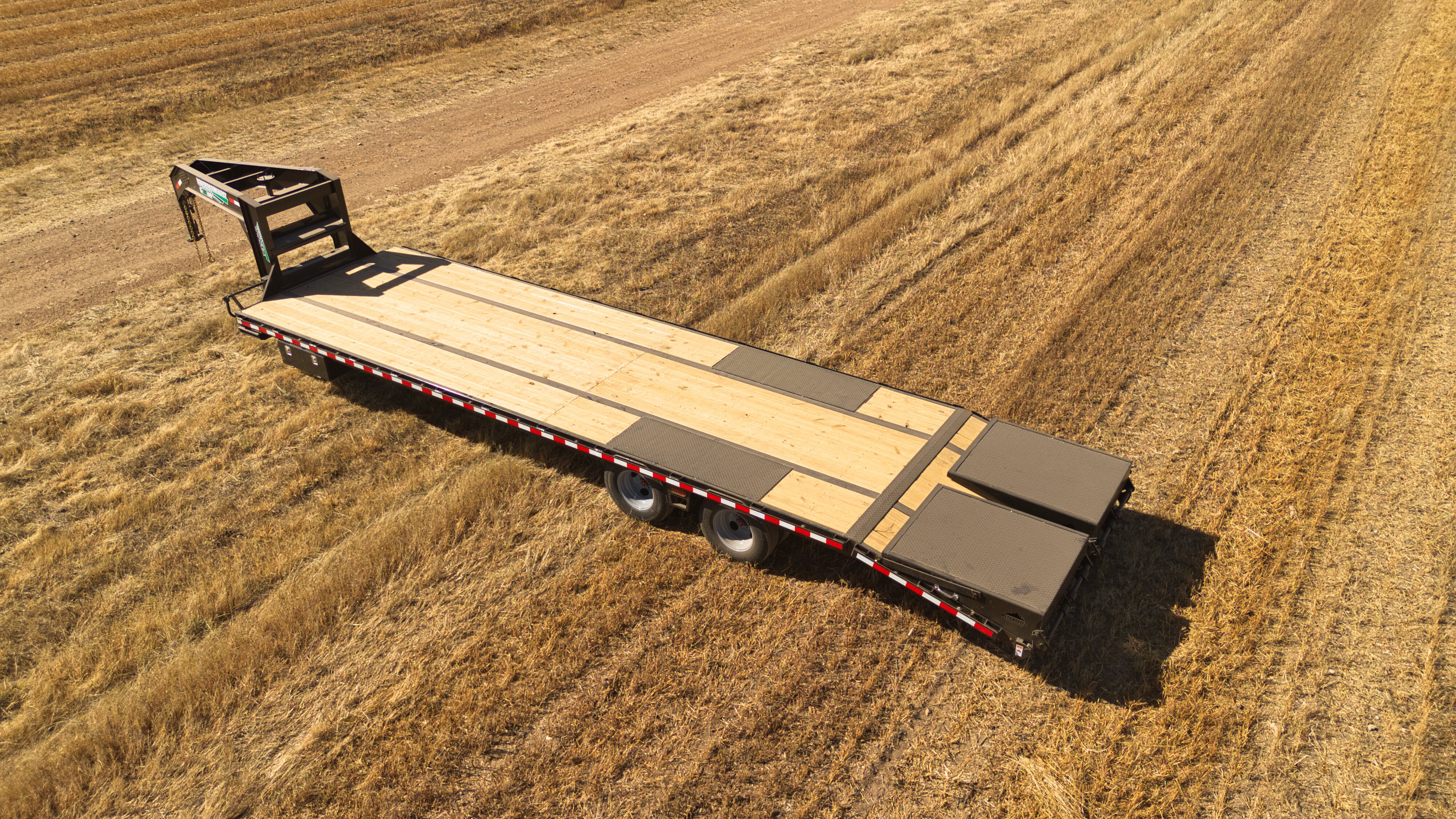

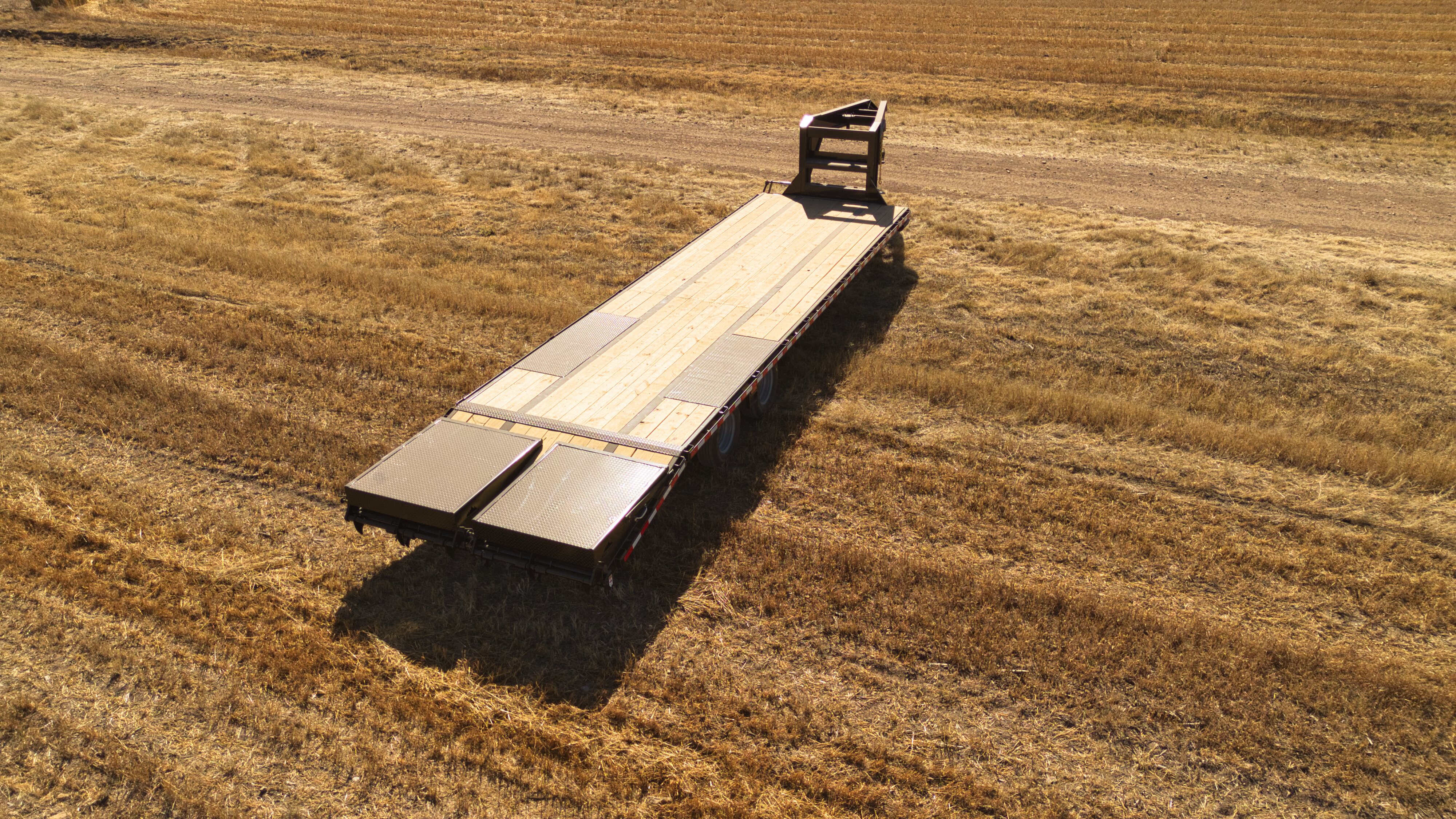

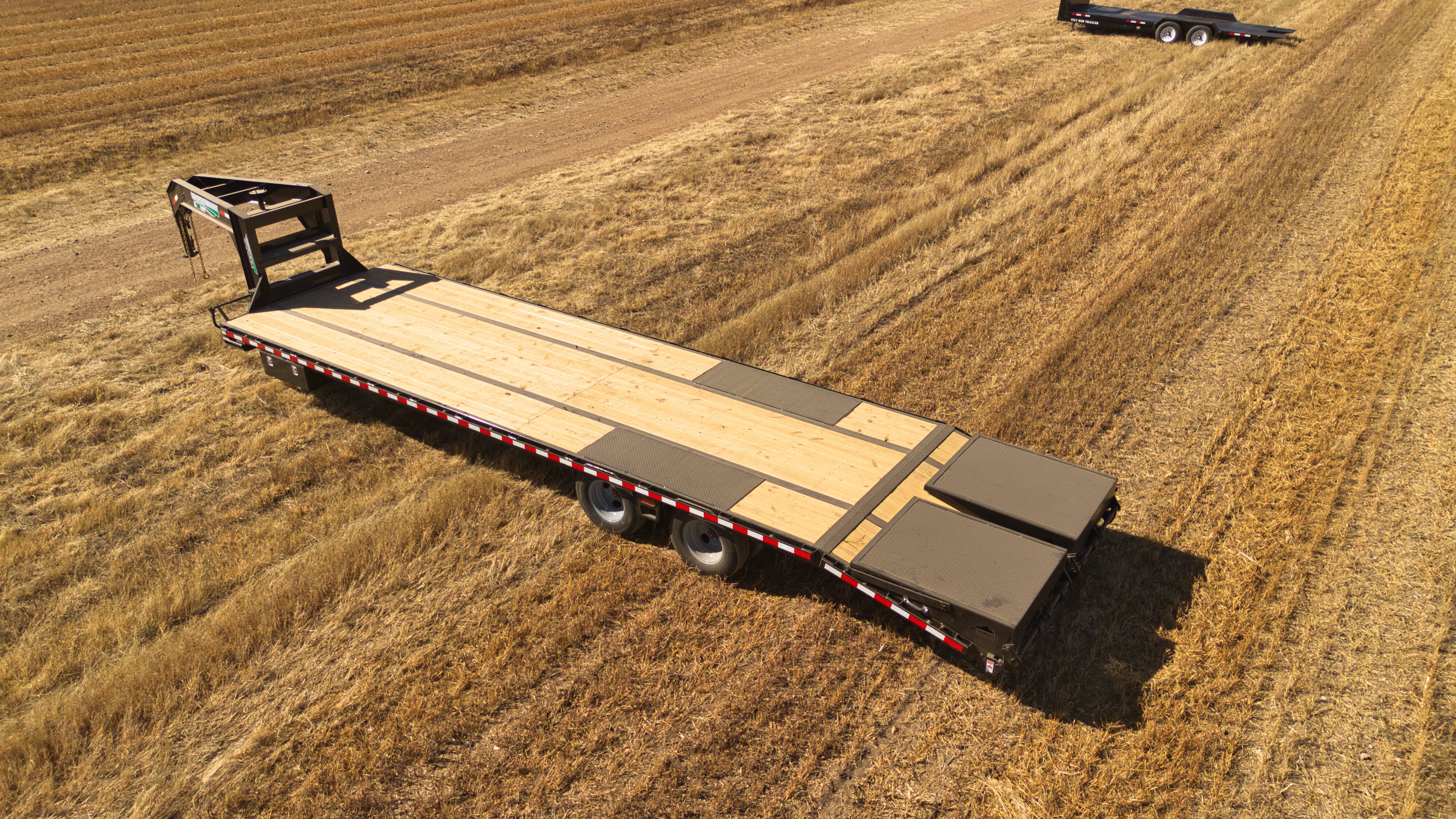

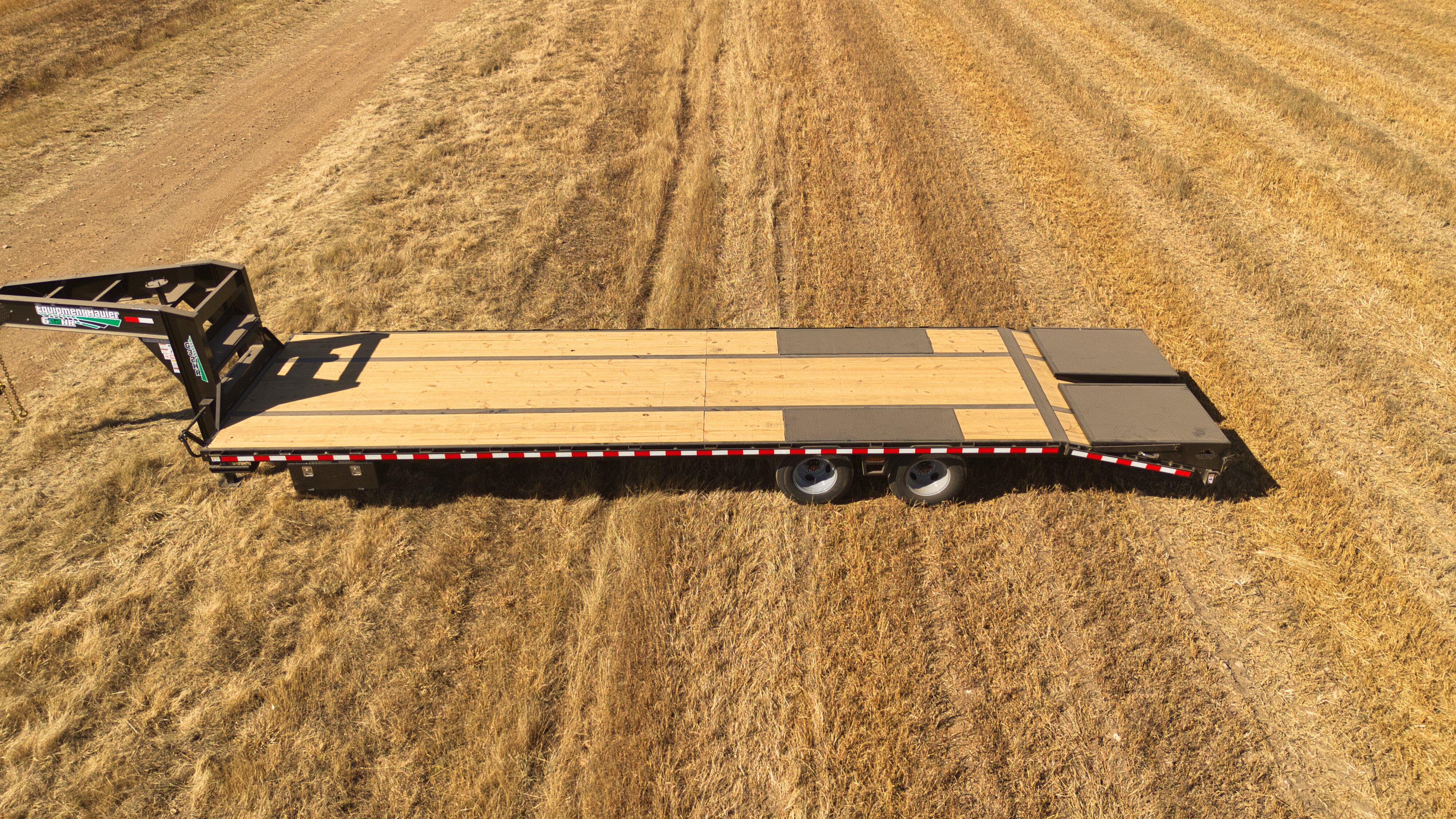

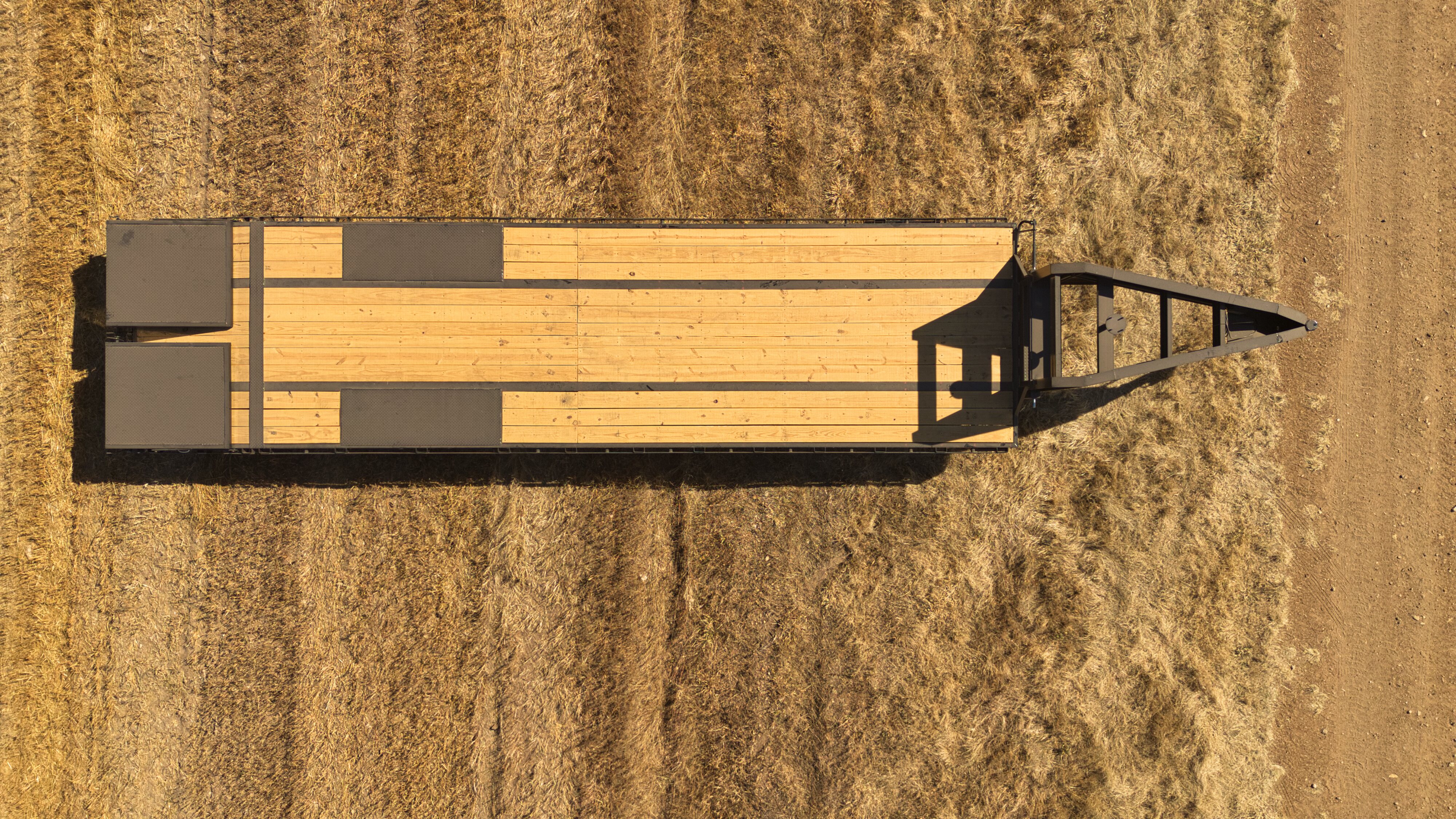

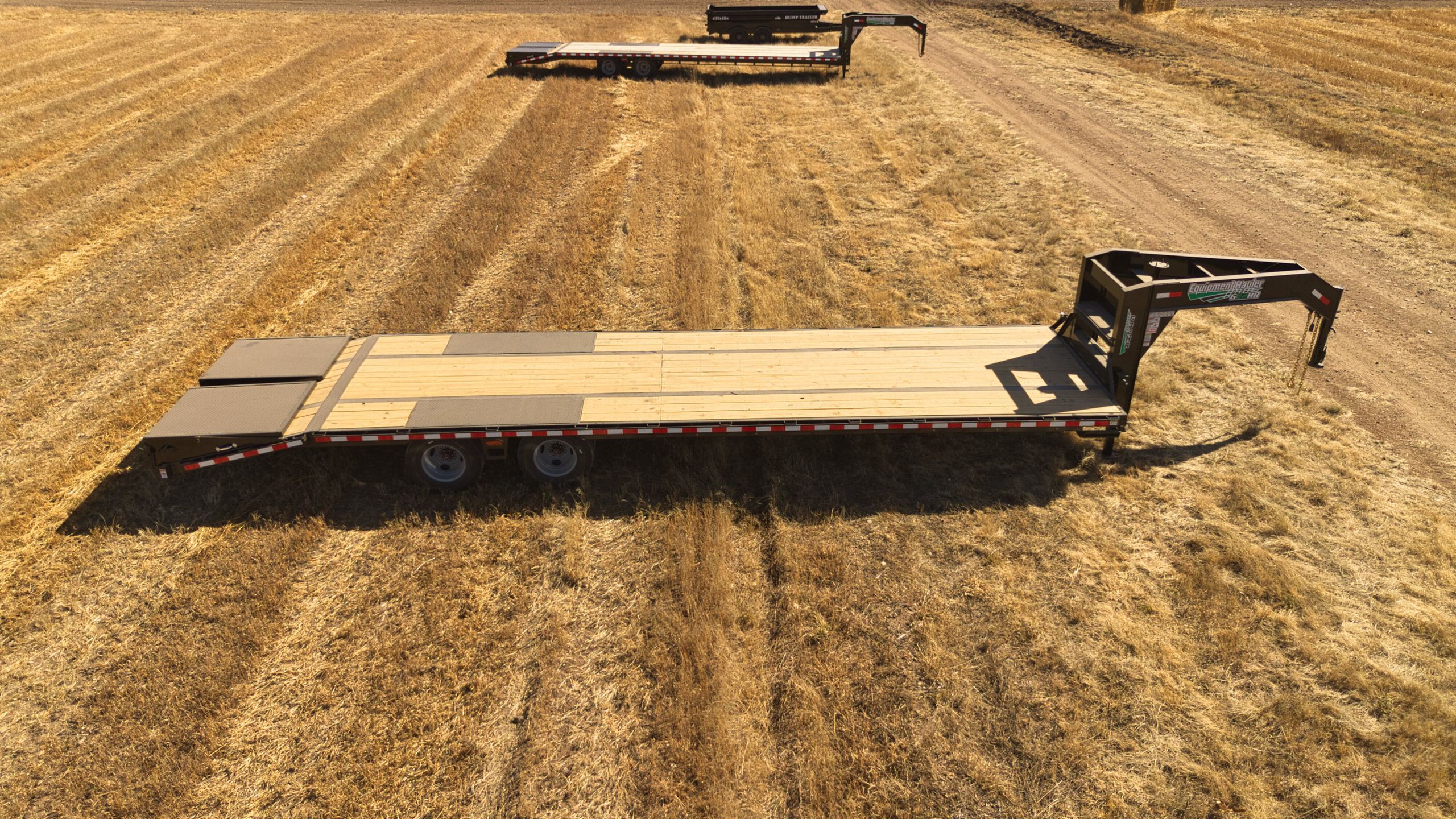

The G32HR is a mid-size gooseneck deckover trailer built for hauling equipment, machinery, and materials that require a full-width, obstruction-free deck. Its 32-foot deck provides plenty of room for skid steers, tractors, pallets, and jobsite loads, while the deckover design keeps loading simple and flexible. This trailer is designed for everyday use with a strong frame, tandem 10K axles, and flip-over ramps for straightforward equipment loading. It’s a solid choice for operators who want capacity, balance, and dependable road manners without stepping into an oversized trailer.
