Specifications
| Feature | Description |
|---|---|
| Series | HD Tilt |
| Models | 08F HD, 10F HD, 12F HD, 14F HD |
| Working Width | 8 ft, 10 ft, 12 ft, 14 ft |
| Moldboard Height | 34 in |
| Weight | |
| 08F HD | 837 kg |
| 10F HD | 886 kg |
| 12F HD | 993 kg |
| 14F HD | 1070 kg |
| Hitch Type | Pin trough hitch |
| Cylinder Quantity | 3 |
| Cylinder Sizes | (2 × 3"×8"), (1 × 2"×8") |
| Hydraulic Connectors | 4 |
| Cutting Edge | Hardened steel, reversible 6"x1/2" |
| Moldboard Material | High-strength steel |
| Blade Type | Box blade |
| Tire Type | 11L15 (8 ft), 11L16 (10 ft), 11L17 (12 ft), 11L18 (14 ft) |
| Blade Angle Range | ±30–35° |
| Cutting Depth Range | 6–10 in |
| Recommended Horsepower | |
| 08F HD | 70–90 HP |
| 10F HD | 90–110 HP |
| 12F HD | 110–130 HP |
| 14F HD | 130–160 HP |

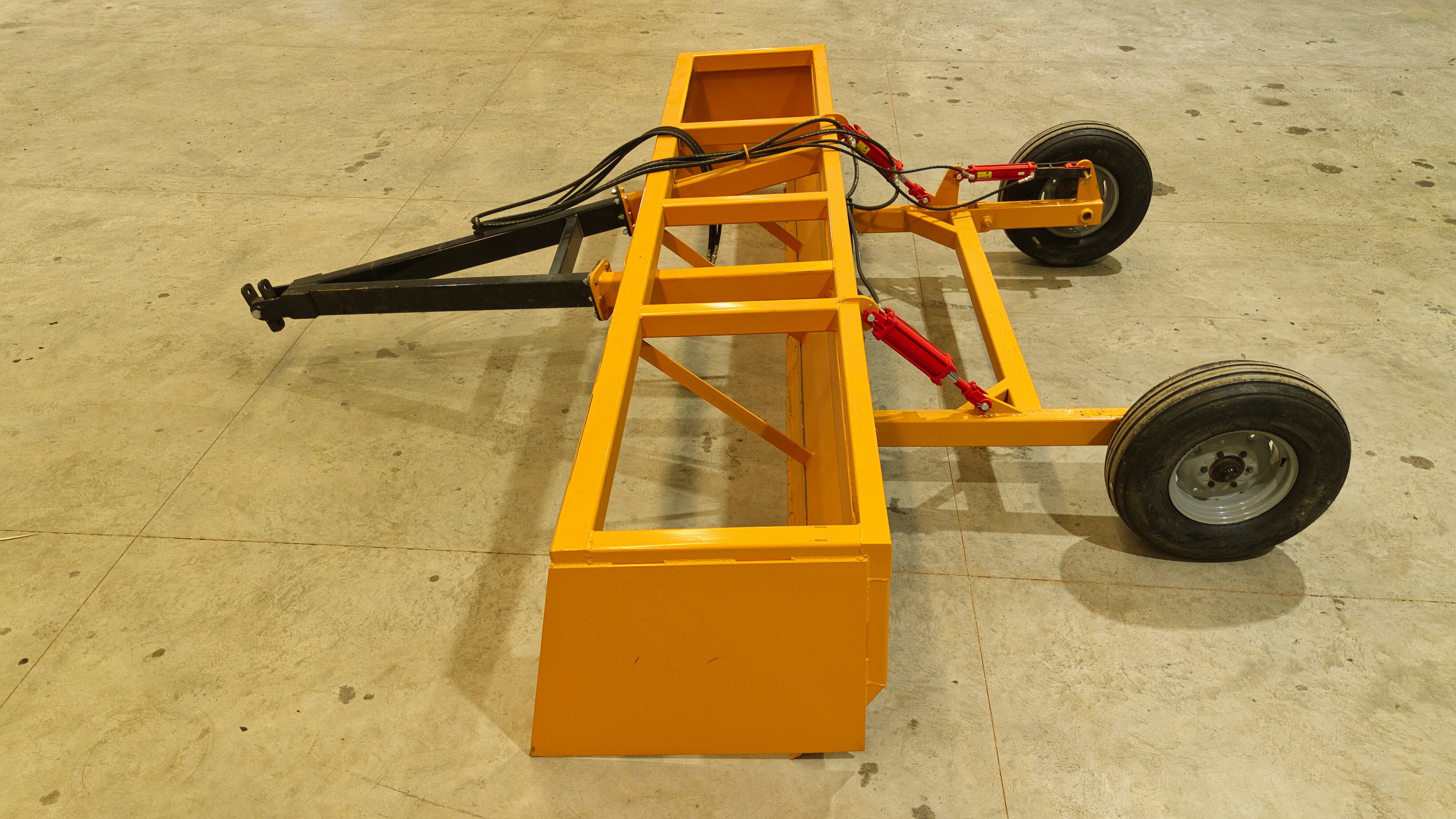

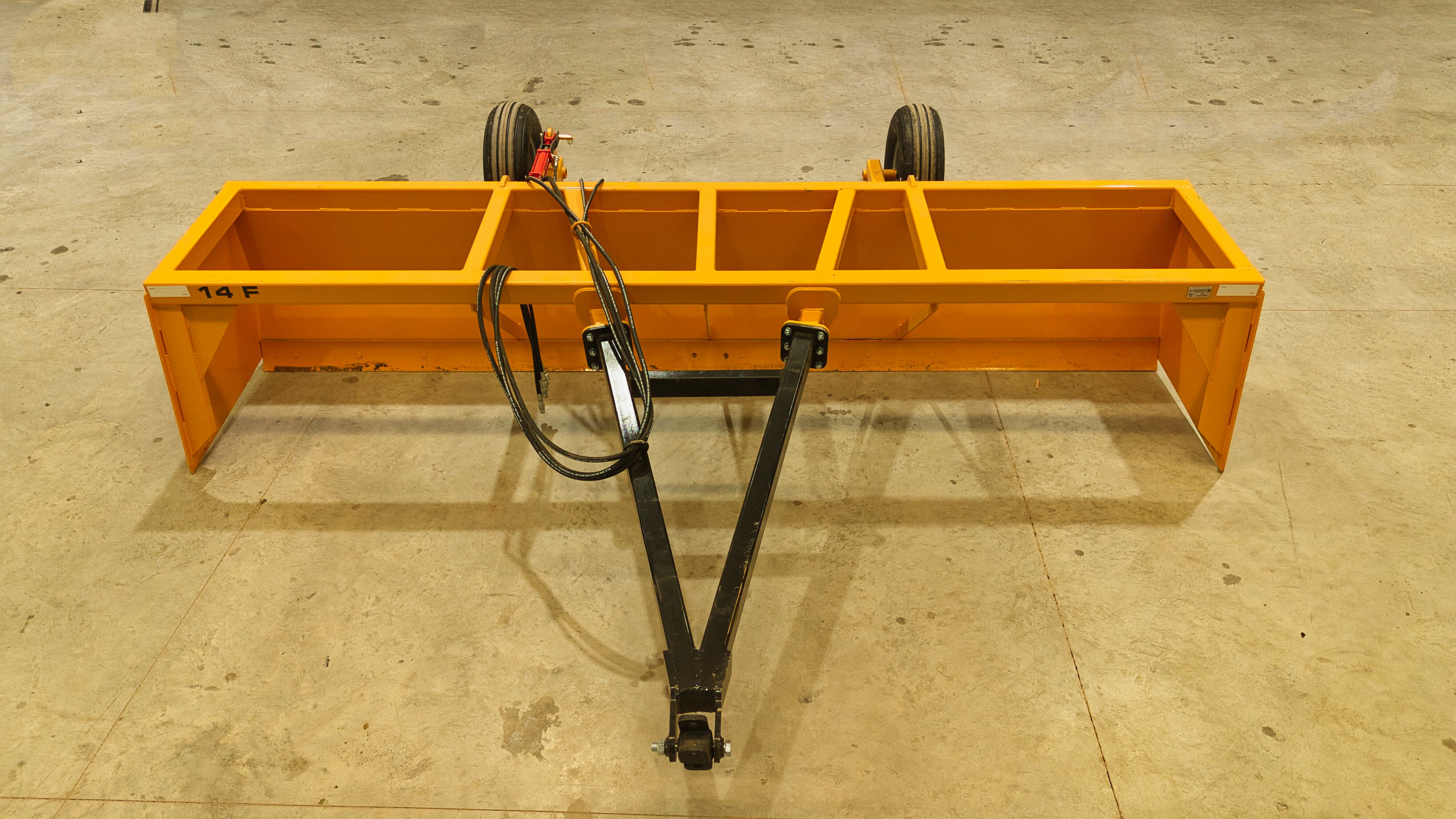

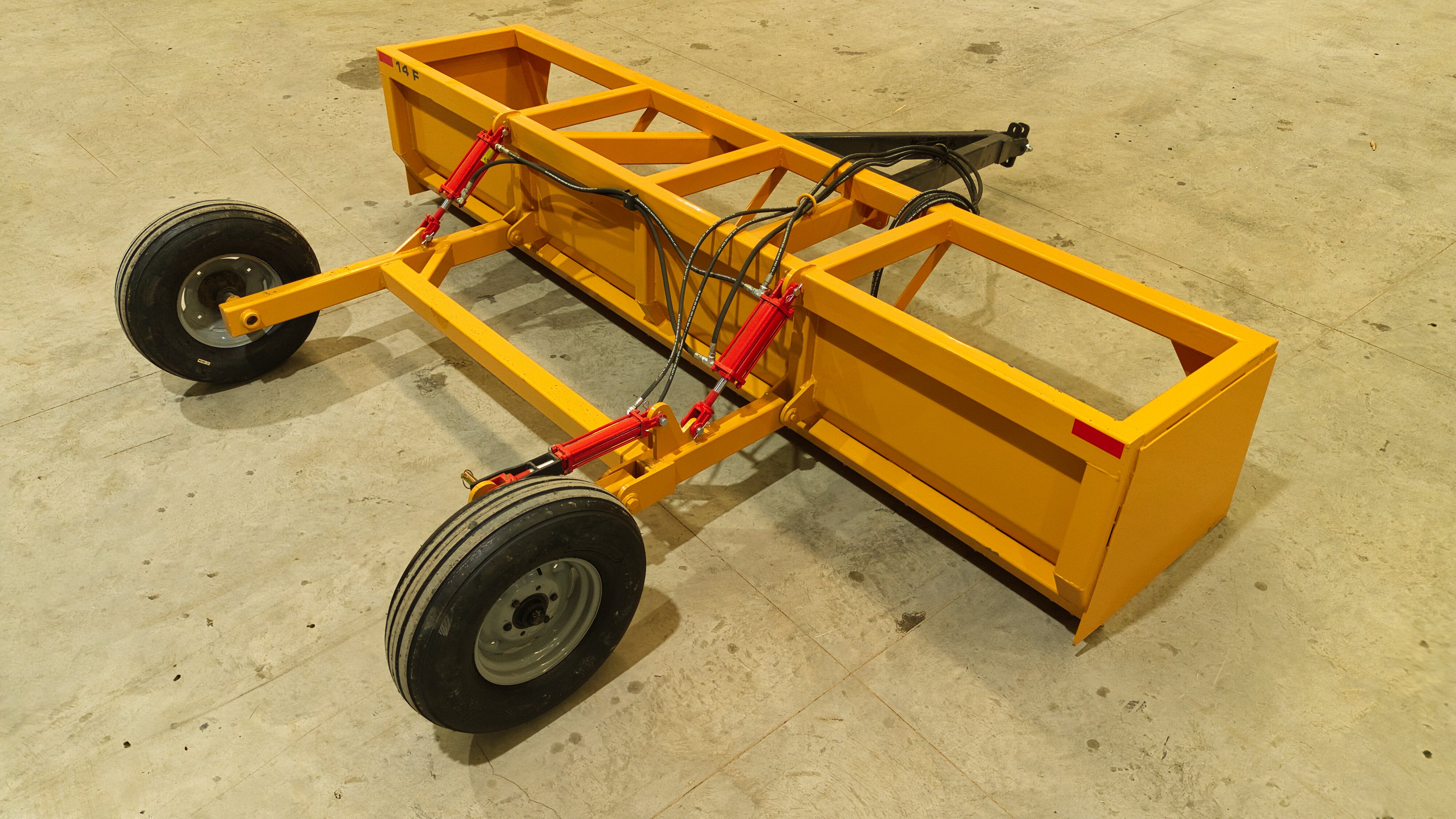

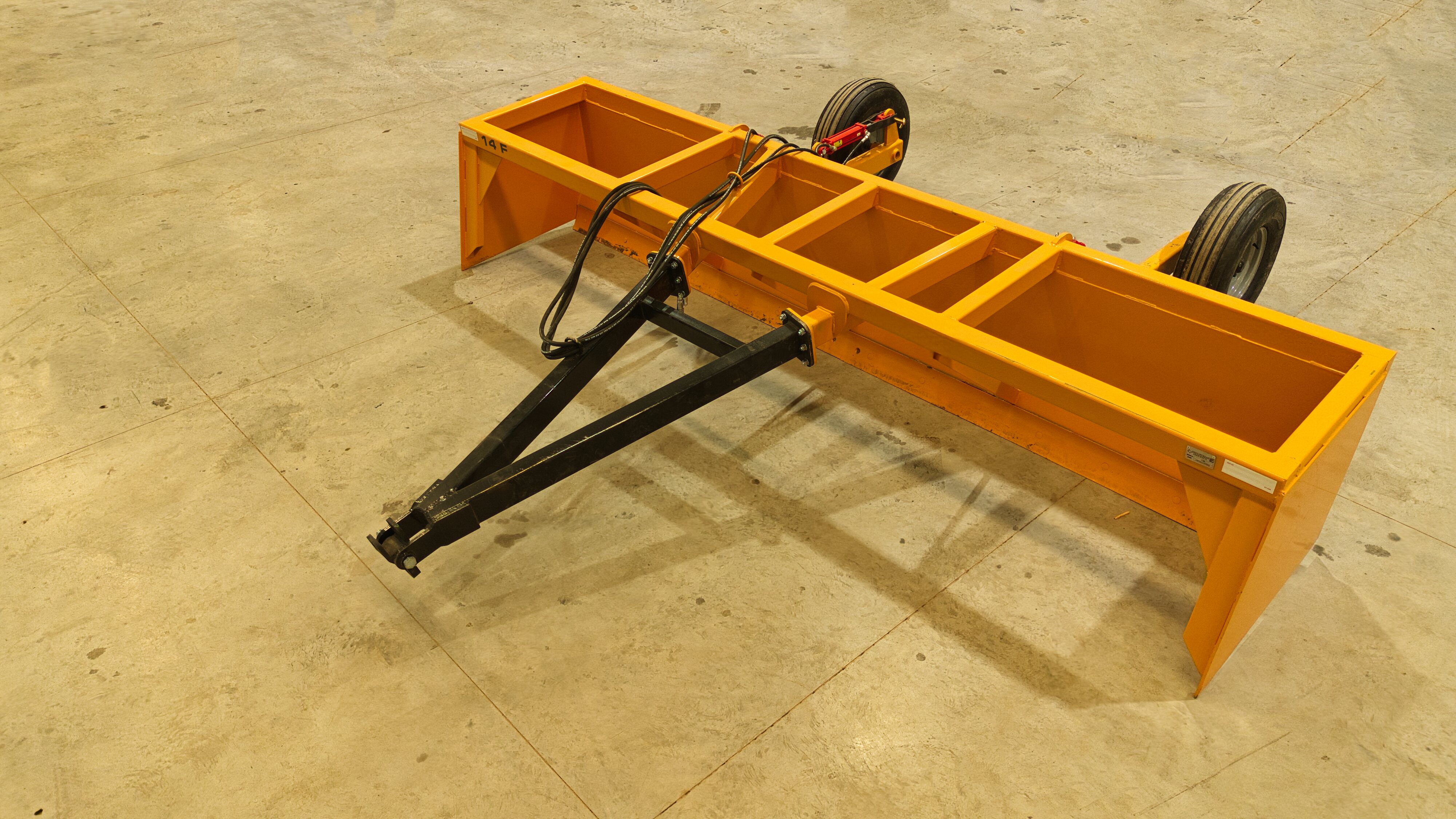

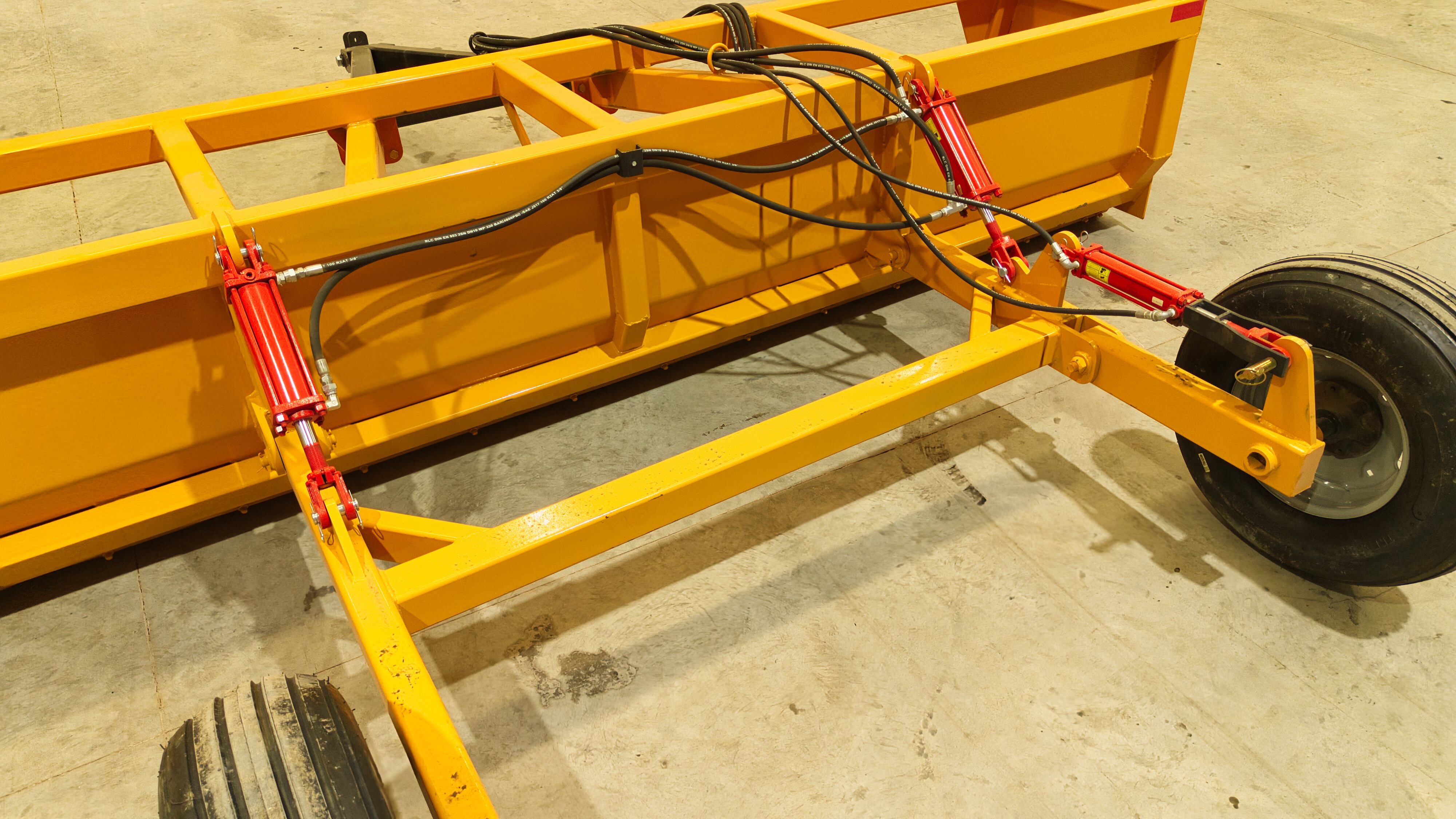

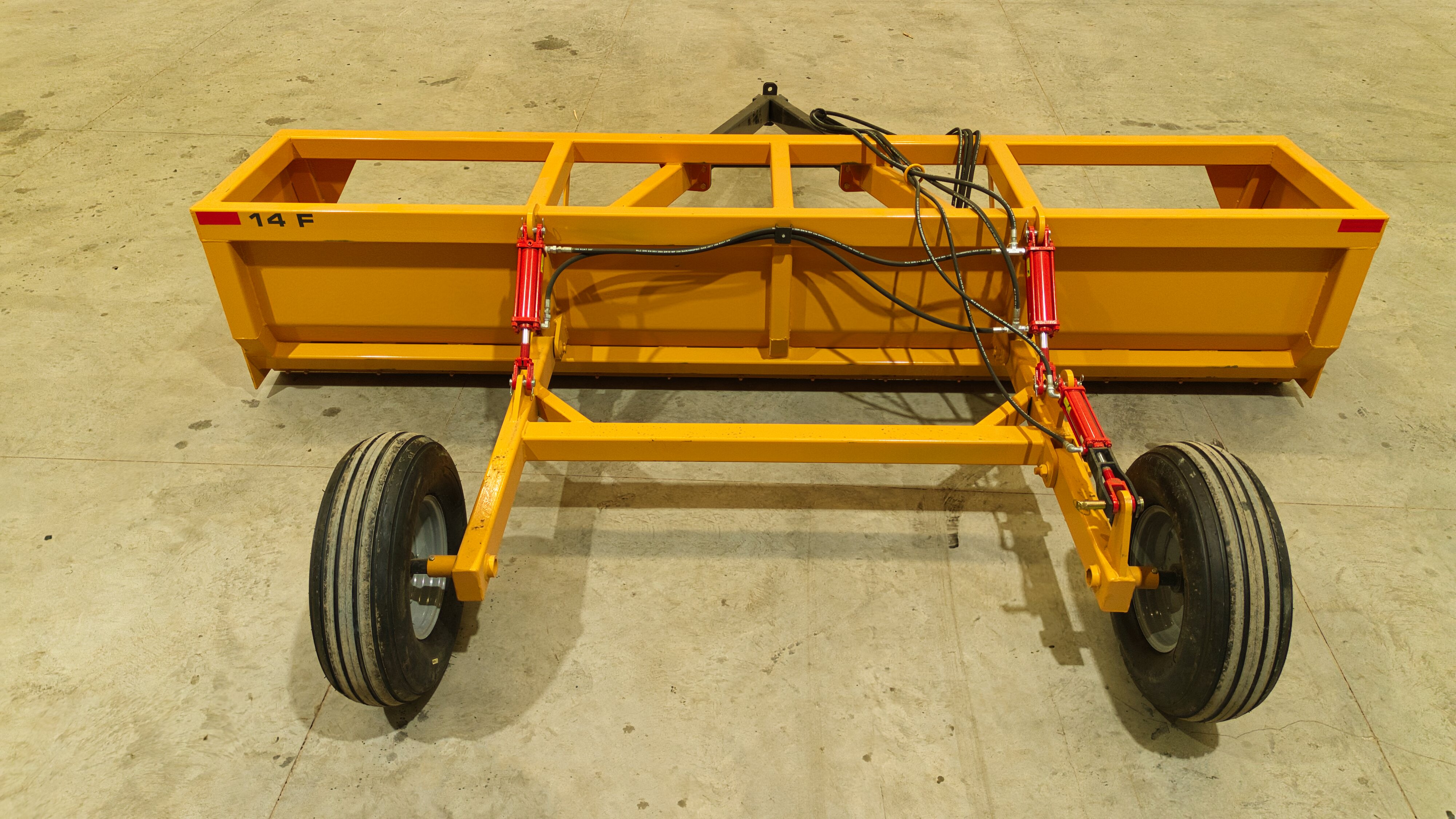

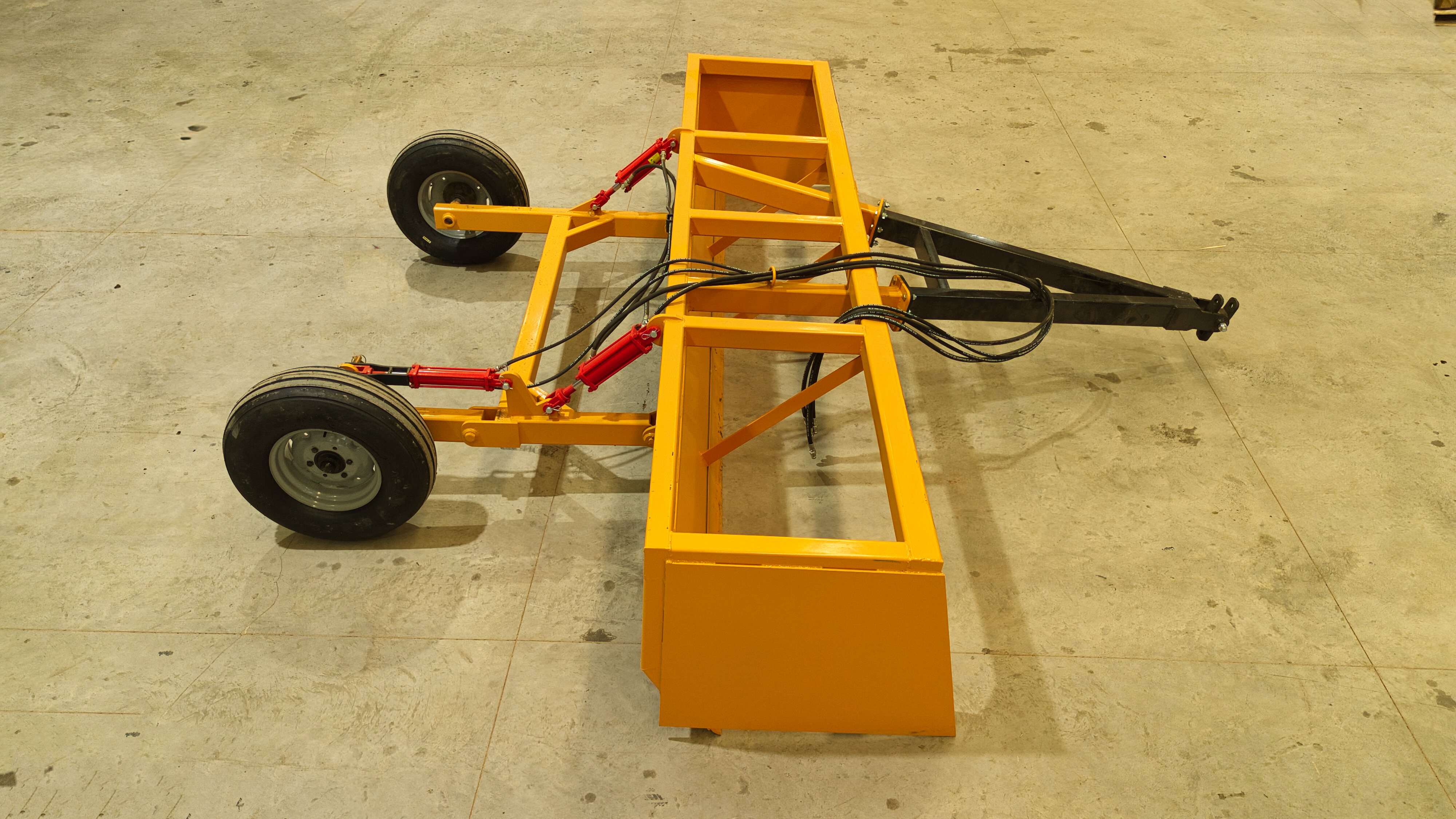

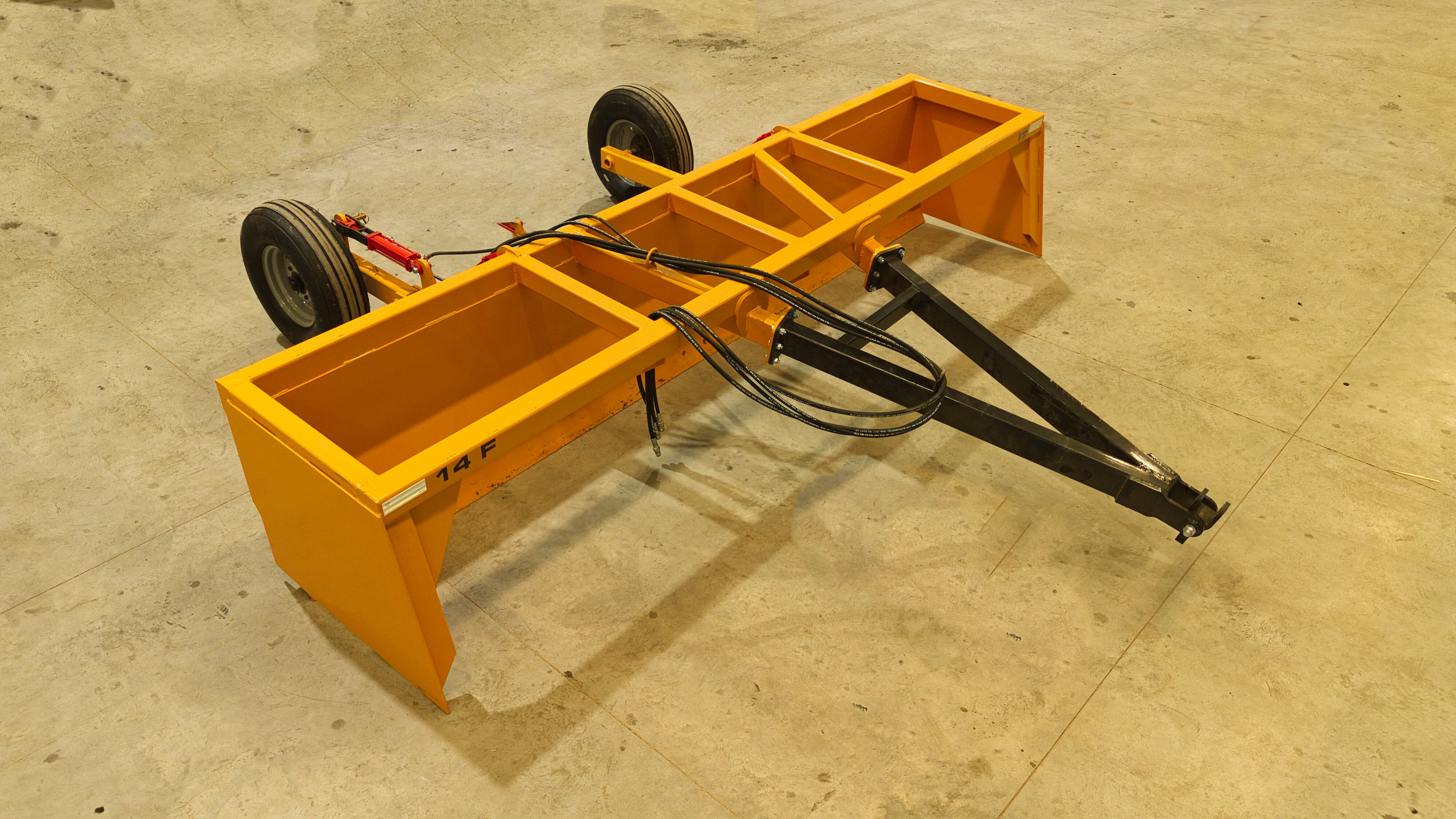

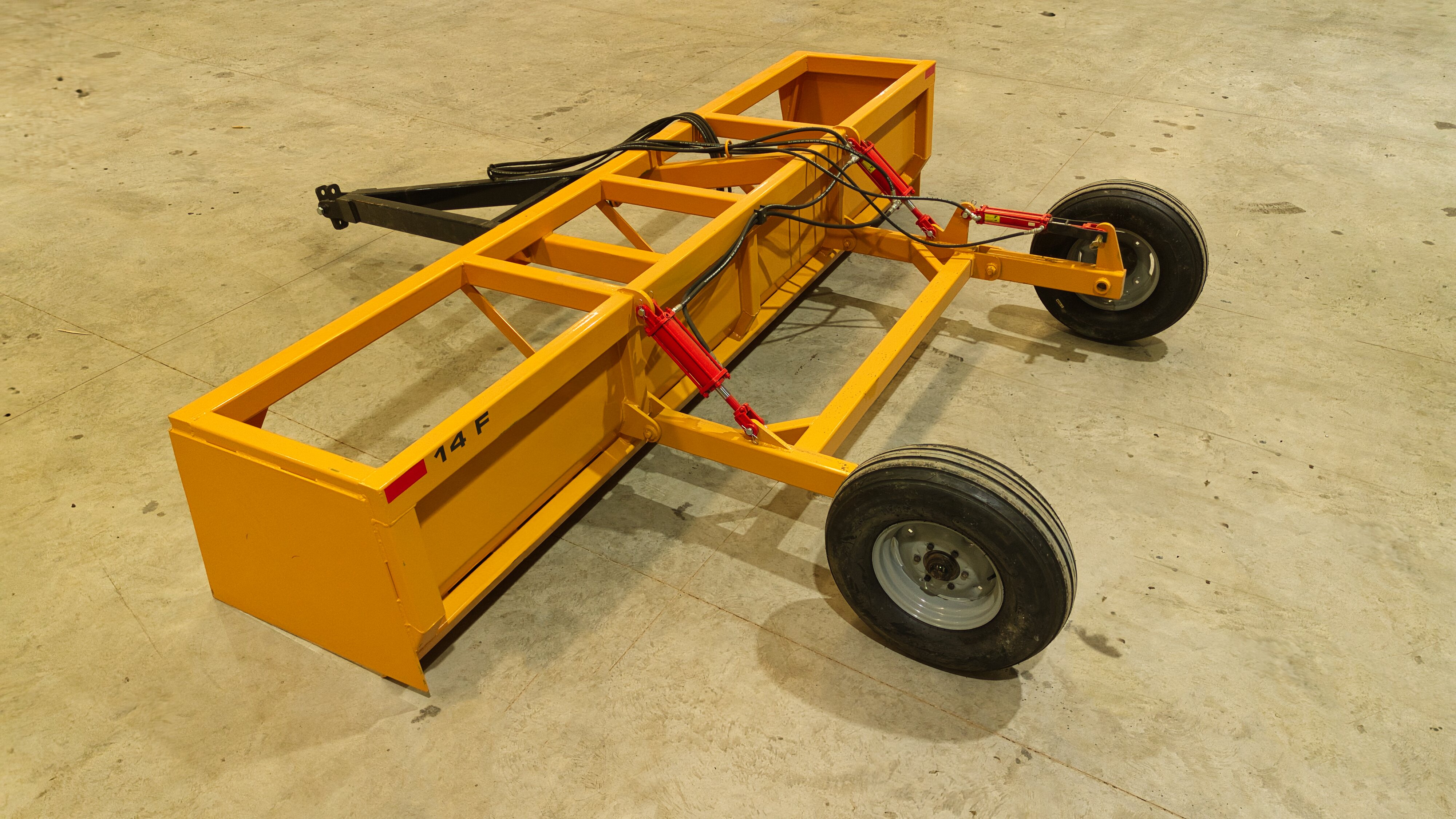

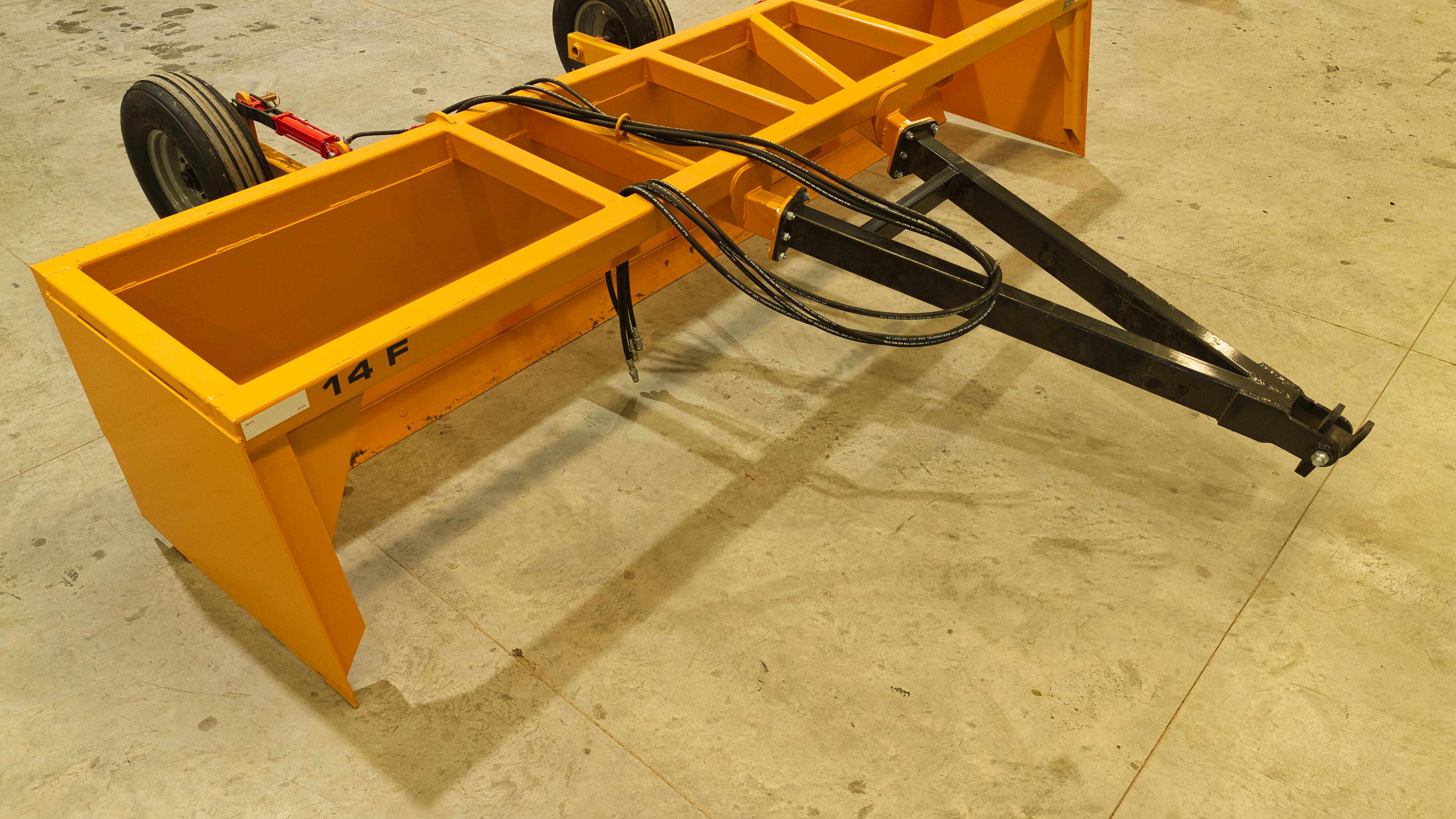

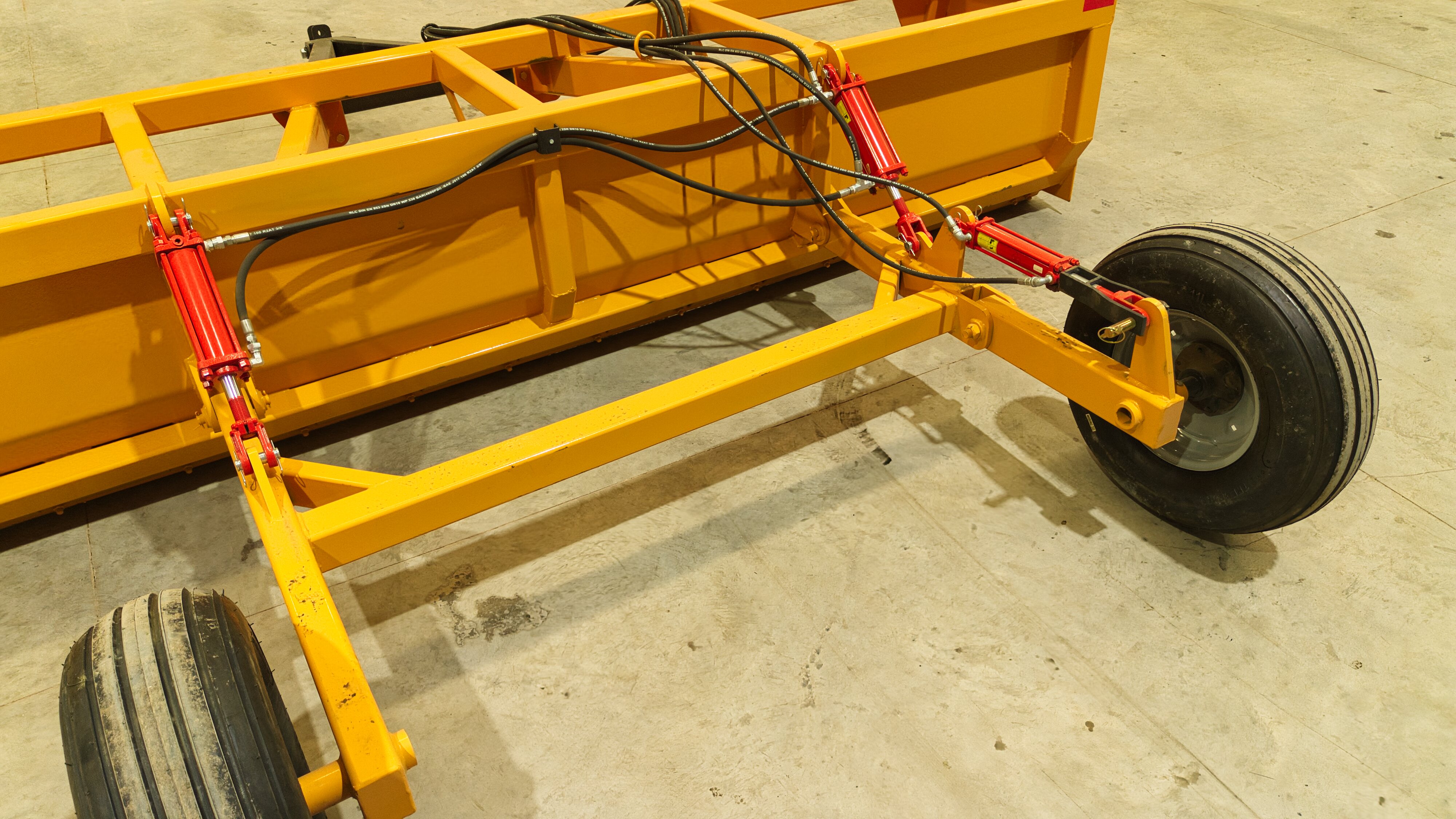

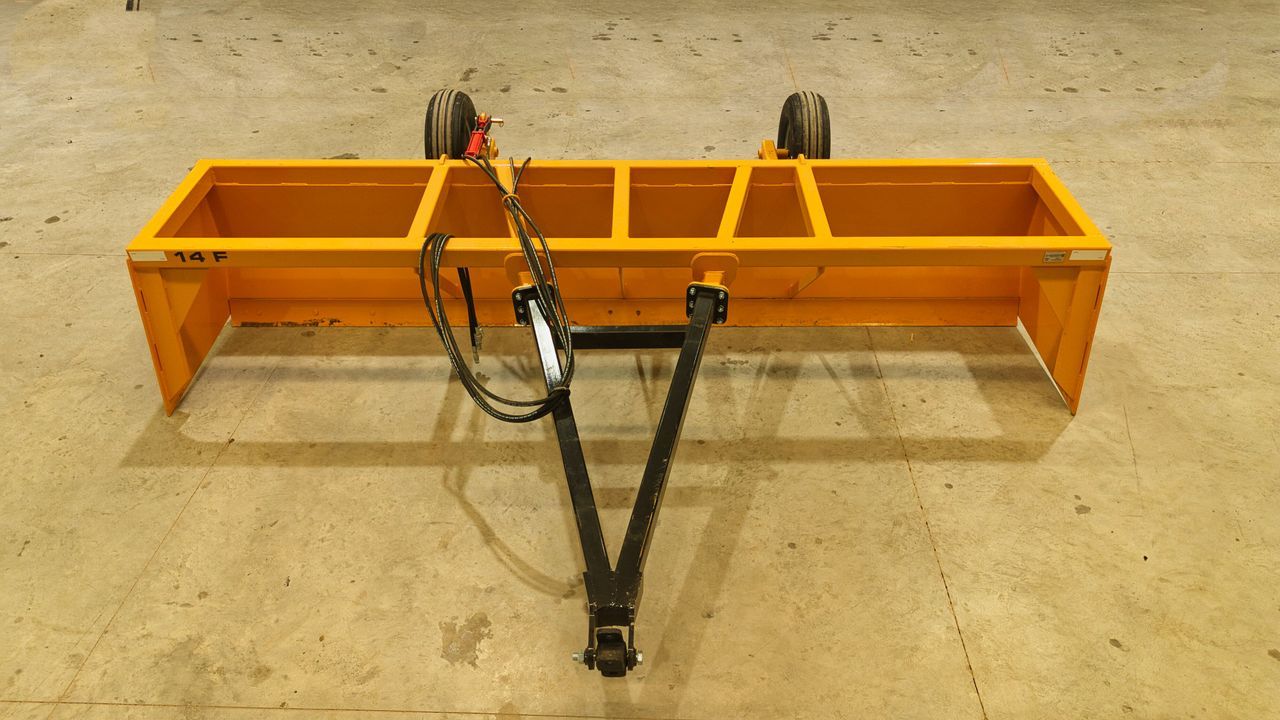

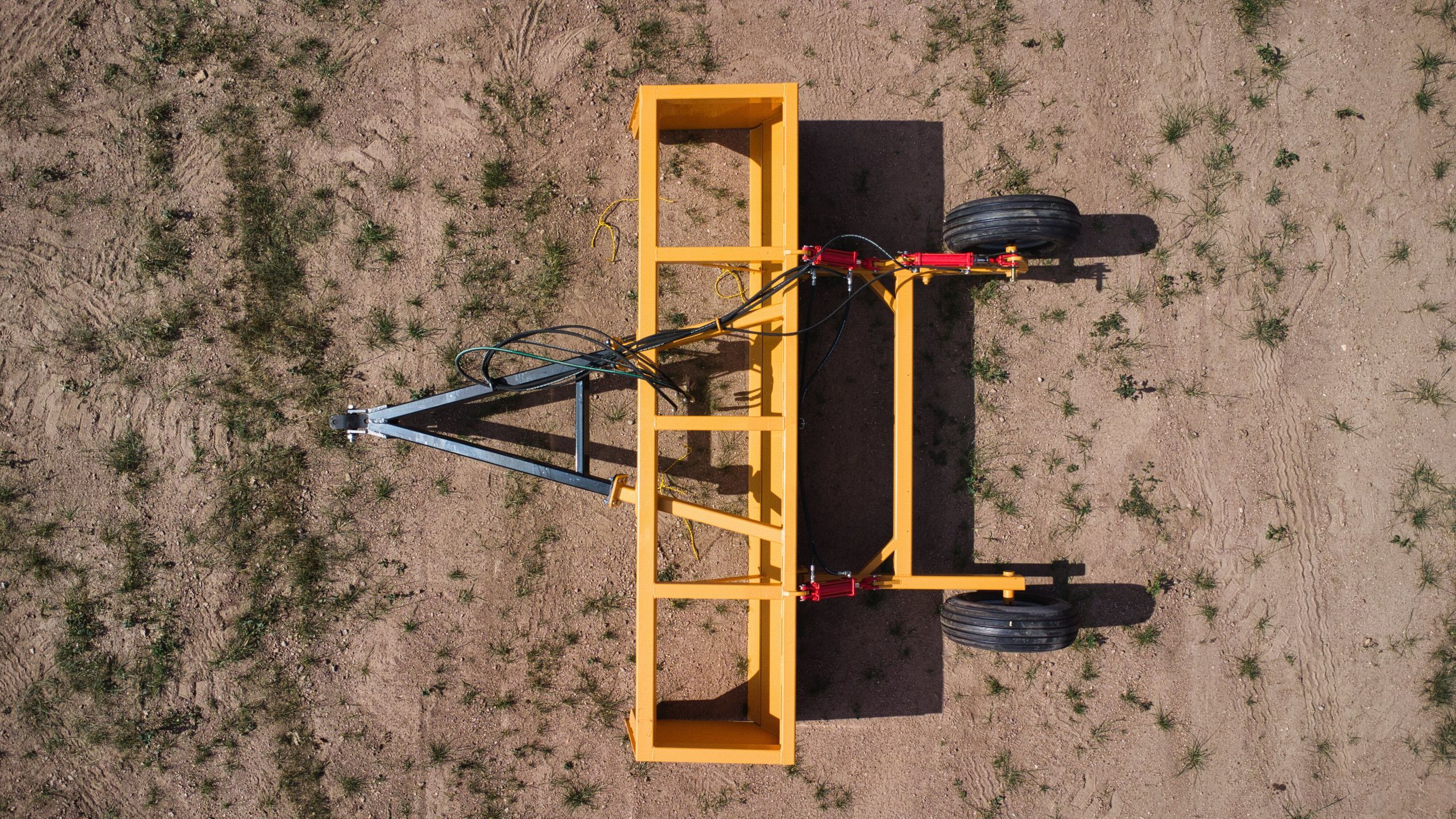

The HD Series Box Blades are built for serious grading, road construction, and heavy farm use. These are true commercial-grade pull-type box blades, featuring a tall 34-inch moldboard, heavy frame construction, and full hydraulic control for precise blade positioning. Each HD model uses three hydraulic cylinders—two for blade angle control and one for raise/lower—allowing the operator to cut, carry, and spread material efficiently from the cab. The pin trough hitch provides strength and articulation for larger tractors, while implement tires support stable operation in rough conditions. If you need maximum control, durability, and productivity, the HD Series is designed to handle demanding workloads day after day.
