Specifications
| Feature | Description |
|---|---|
| Type | Mounted reversible disc plough |
| Frame | Reinforced steel |
| Number of discs | 5 |
| Disc diameter | 28" |
| Disc thickness | 1/4" |
| Disc material | Boron steel |
| Disc spacing | 24" |
| Working width | 2' |
| Working depth | Adjustable, typically 10–12" |
| Gang angle | Adjustable, 0°–25° left or right |
| Bearings | Heavy-duty, sealed type |
| Guide disc | Included |
| Hitch type | 3-point, Category II |
| Hydraulics | 1 × 3"x8" piston, 2 couplings |
| Tractor power required | 100–110 HP |
| Working speed | 5–6 km/h |
| Weight | 850 kg |
| Soil suitability | Heavy soils, hard or stony conditions |

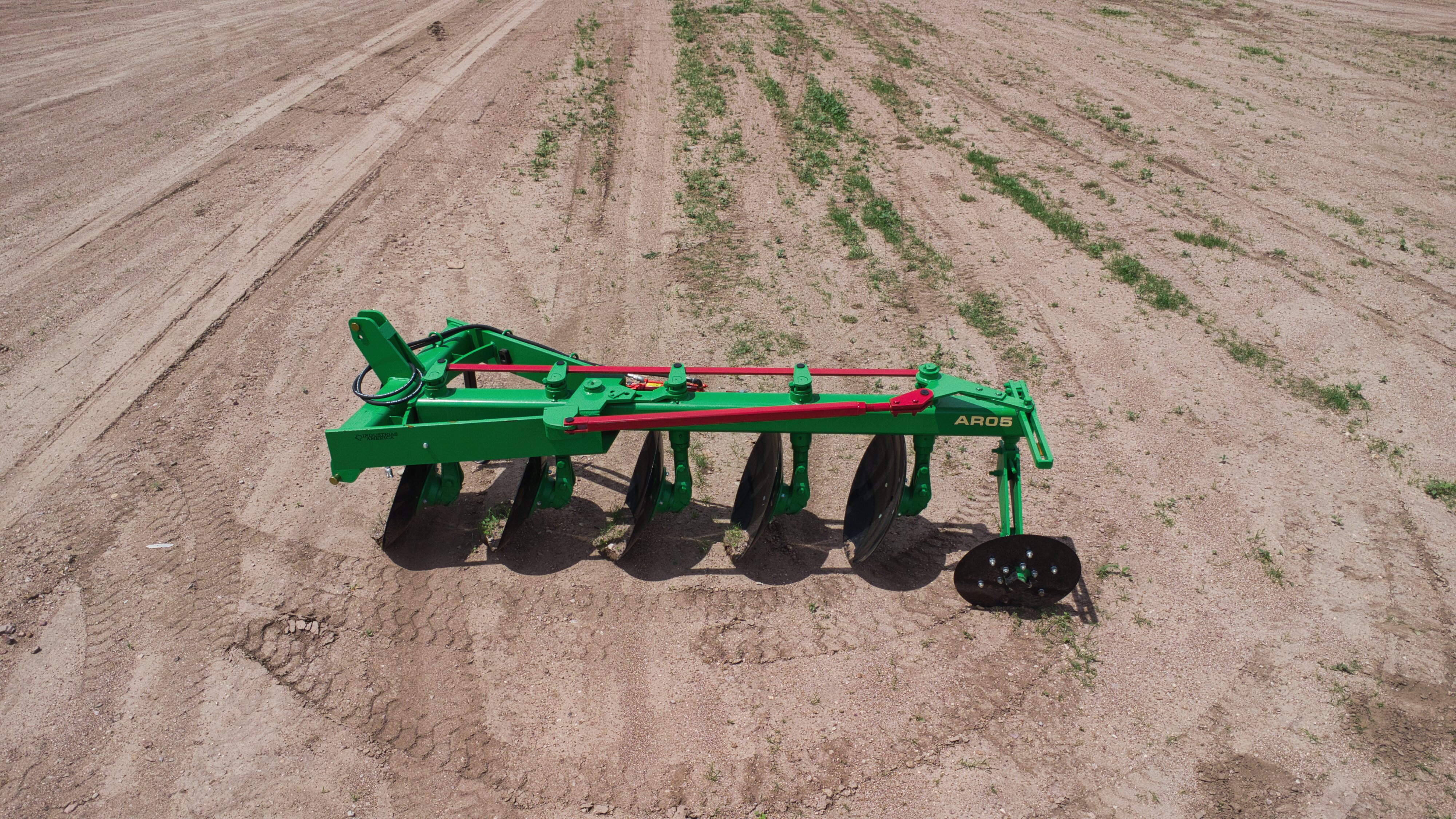

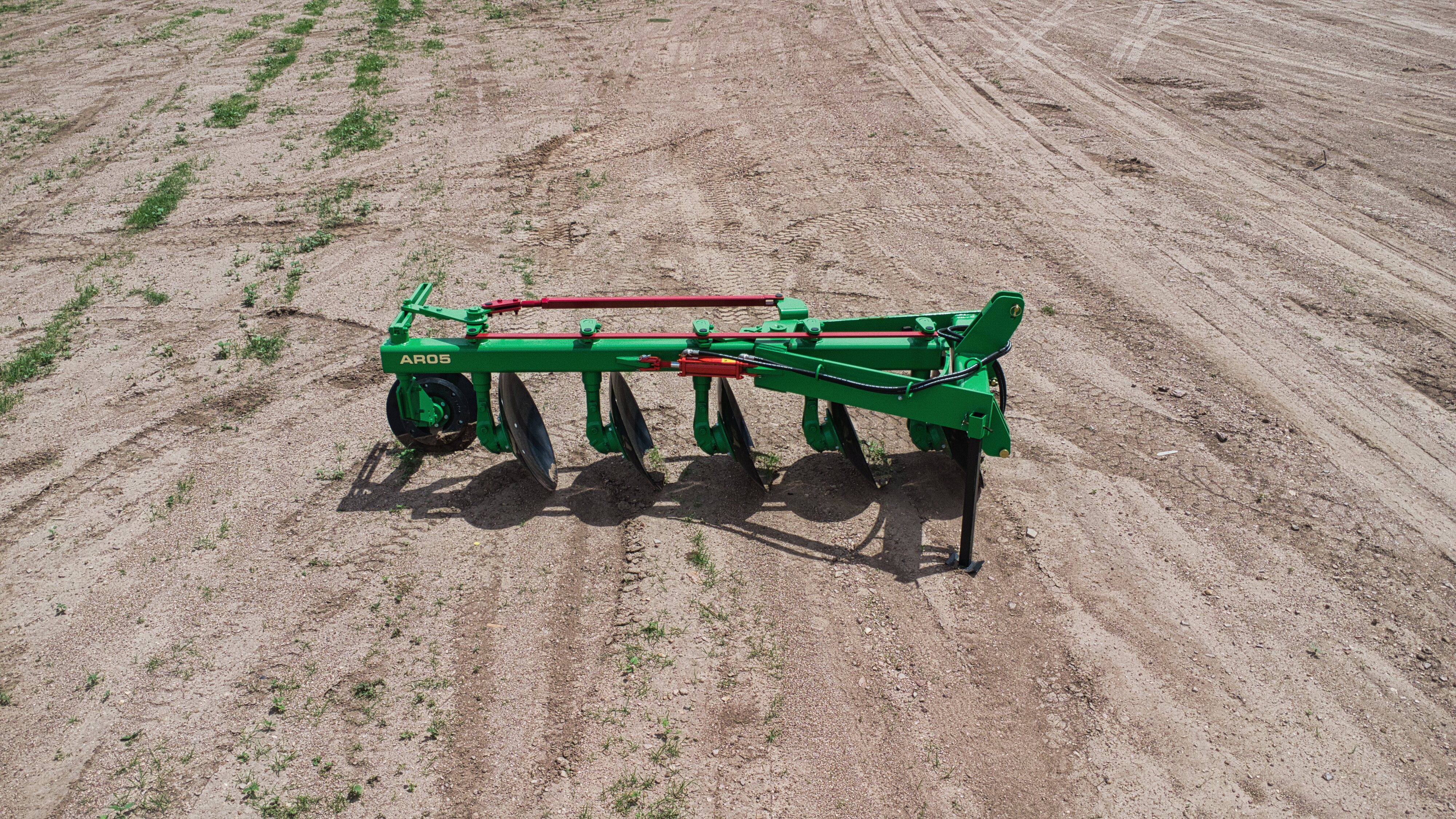

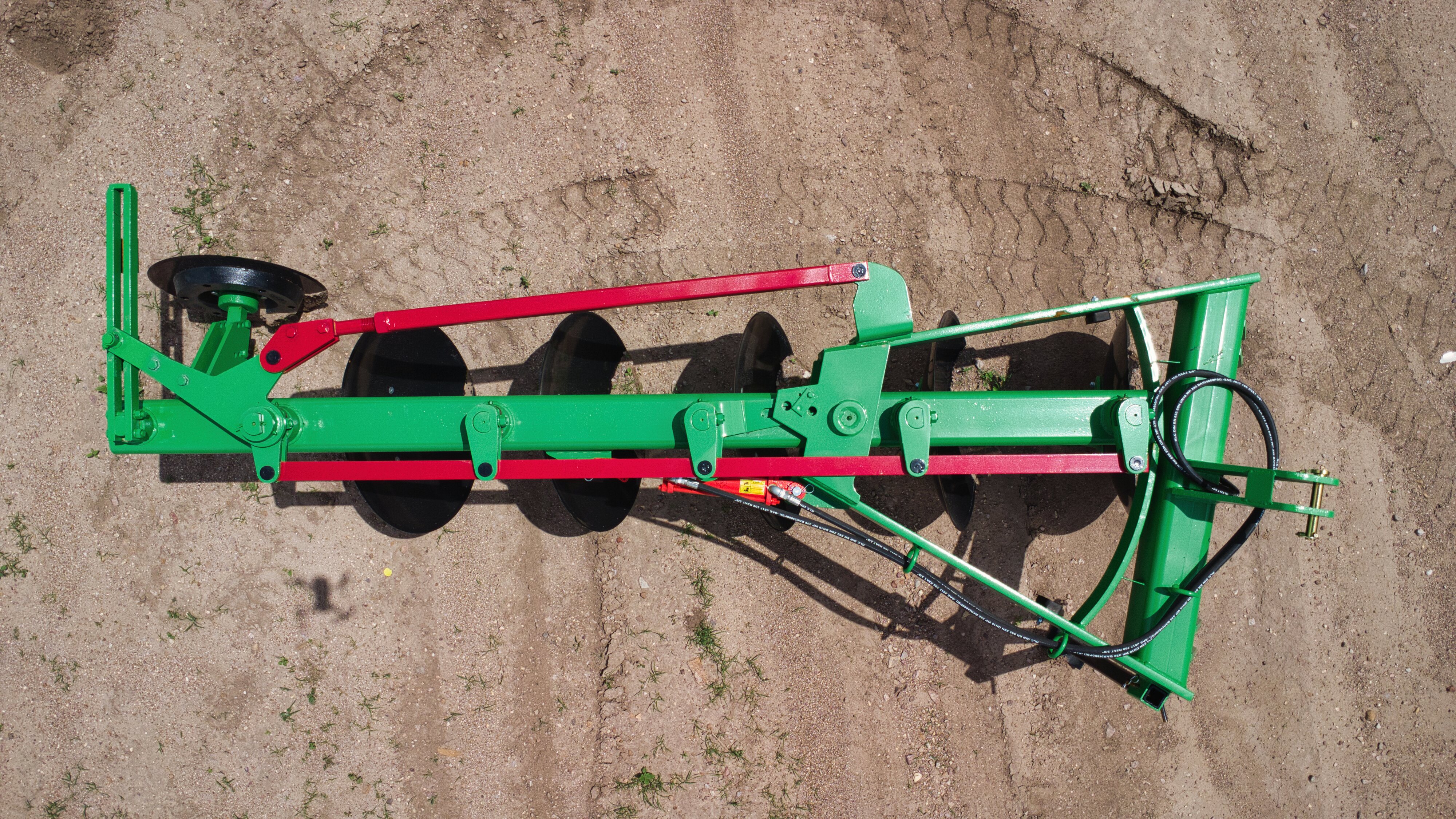

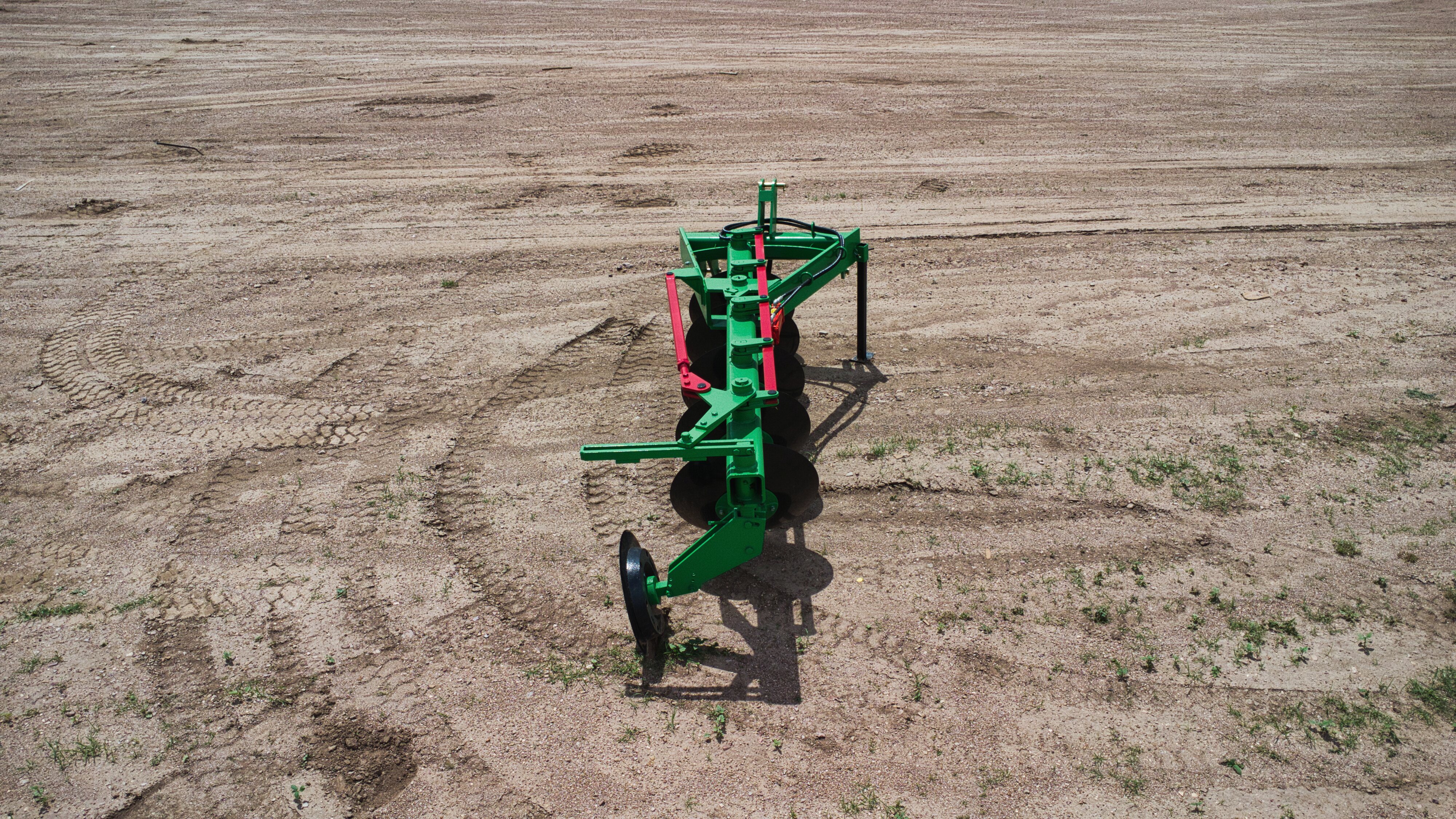

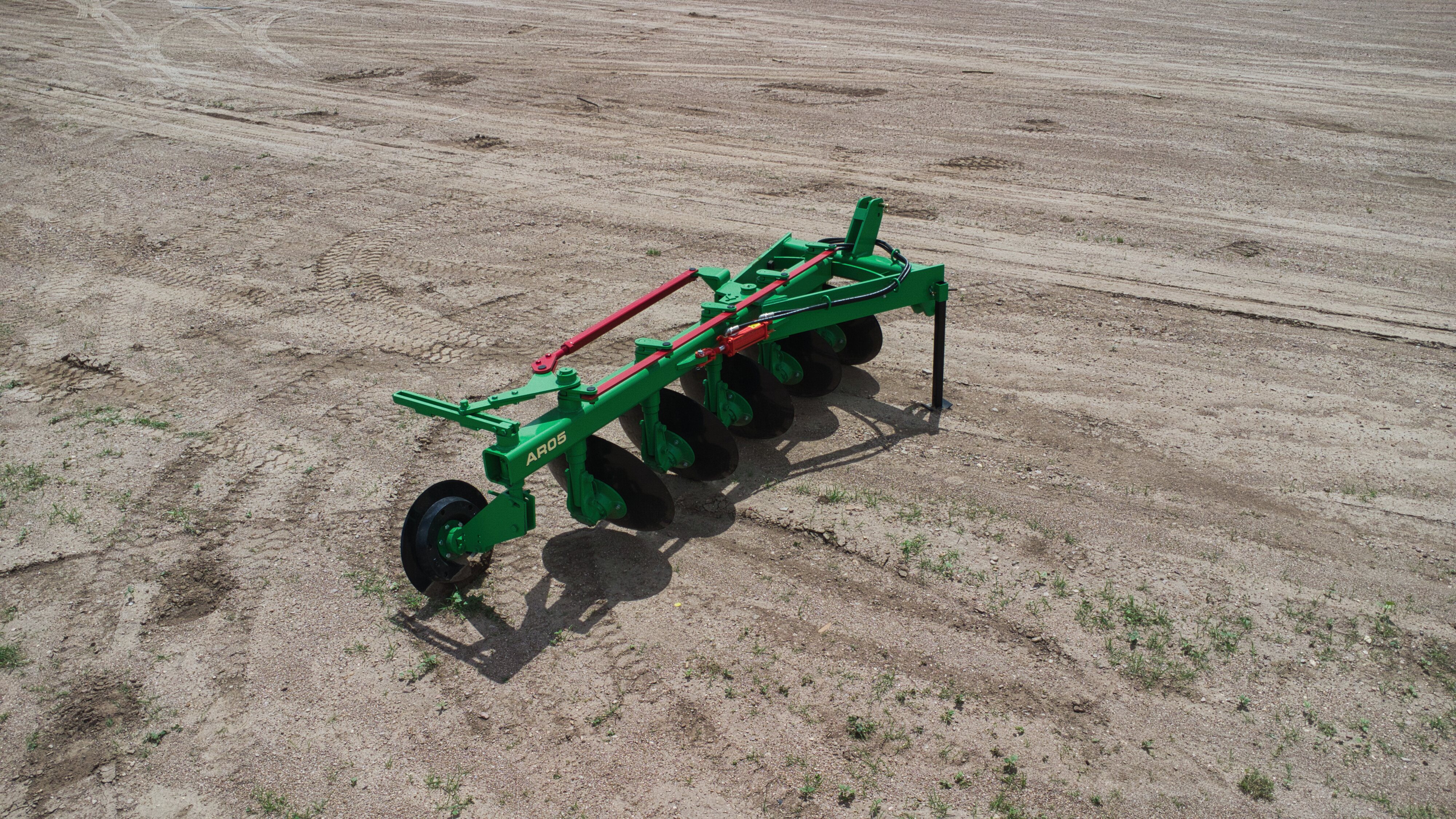

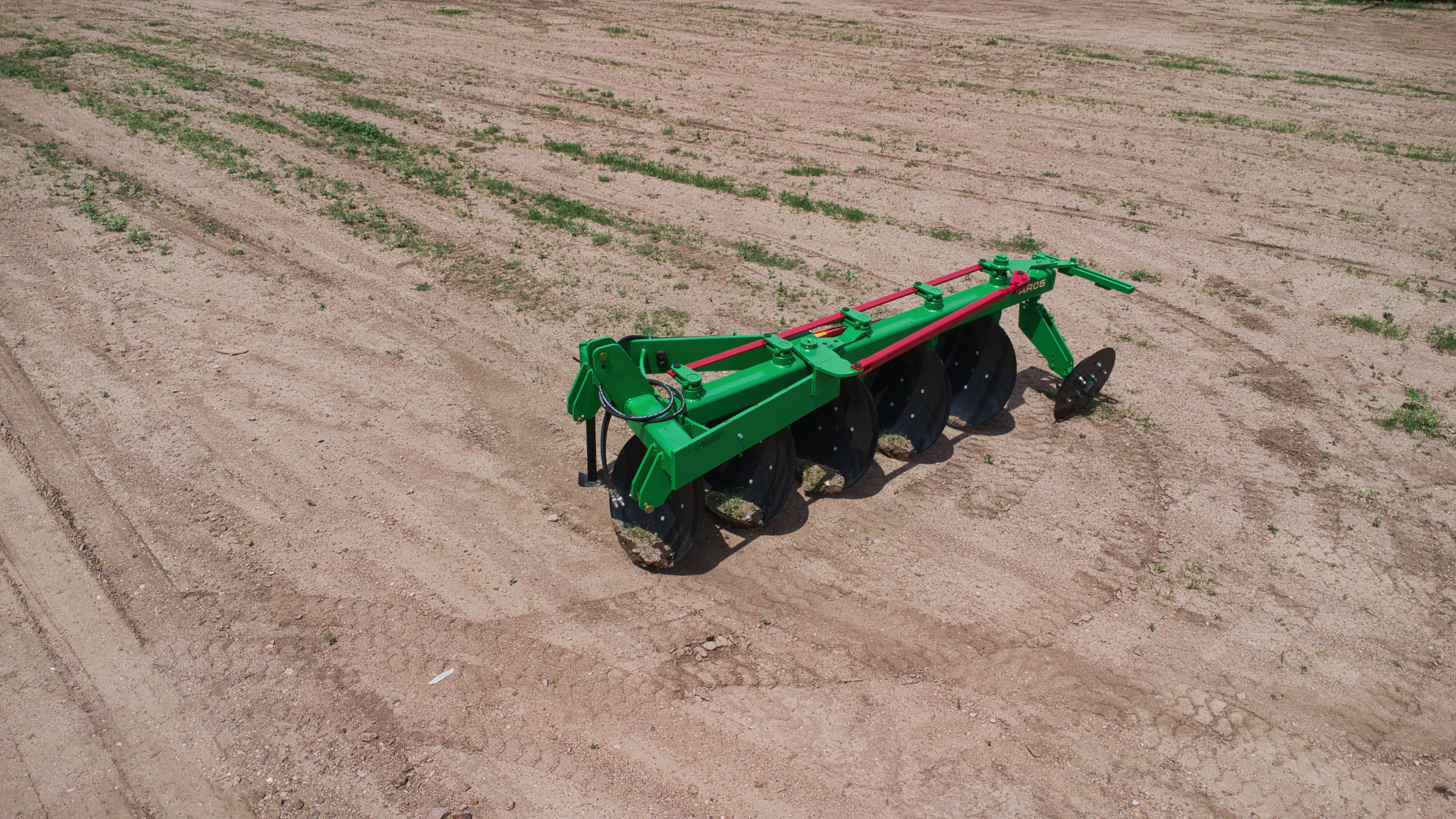

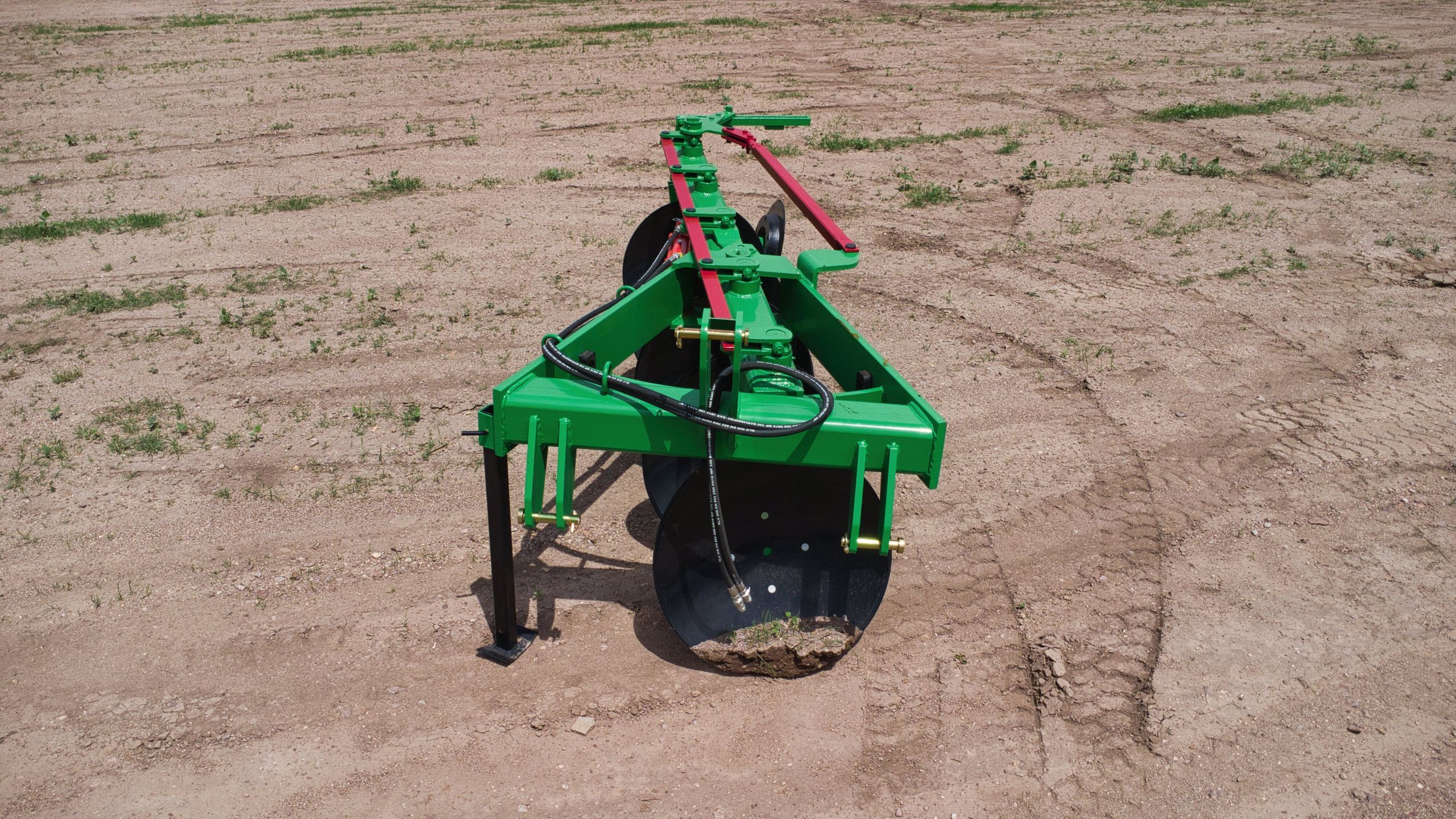

The AR05 is a 5-disc mounted reversible plough, designed for tractors from 100–110 HP. Built with a reinforced steel frame and equipped with 28" boron steel discs, it delivers reliable performance in heavy soils. Adjustable gang angle, furrow width, and working depth allow operators to achieve precise tillage. A guide disc is included for stability during operation.
