Specifications

FeatureDescription
Working Width84”–120”
Overall Width88”–124”
Overall Length196”
Overall Height33”
Number of Blades2
Blade Size6” x ½”
Blade TypeReversible / Replaceable
Blade Spacing3
Moldboard Thickness¼”
Moldboard Height14”
Main Frame4” x 6” Structural Tubing
Hitch TypePin Hitch (Ball / Clevis / Pintle Options)
TiresST225/75R15
Number of Tires2
Hydraulic Cylinder3” x 8”
Hydraulic AdjustmentYes
Adjustable ScarifiersYes

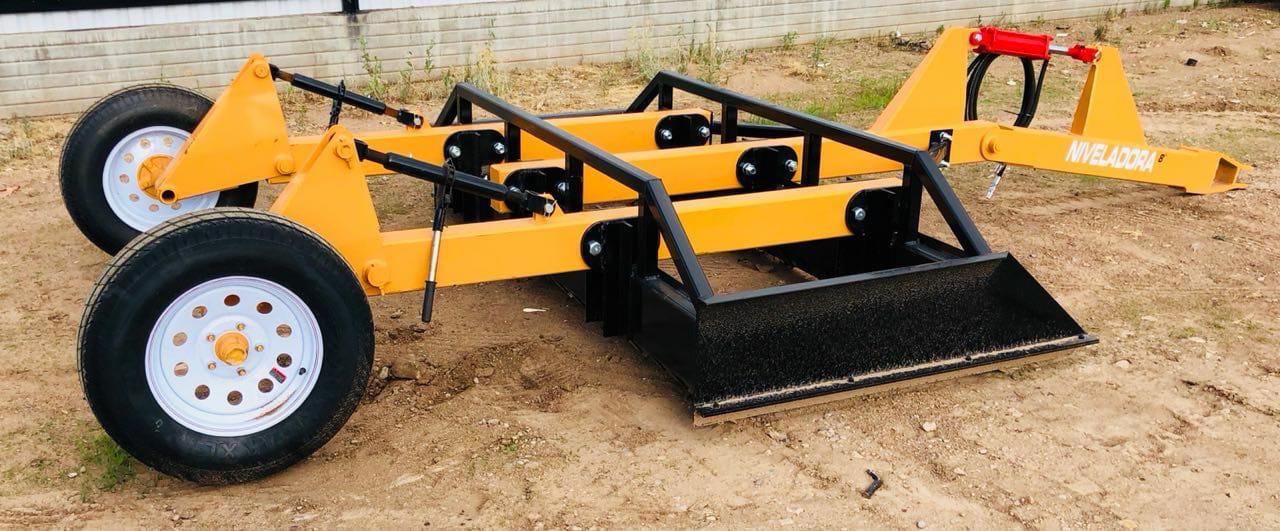

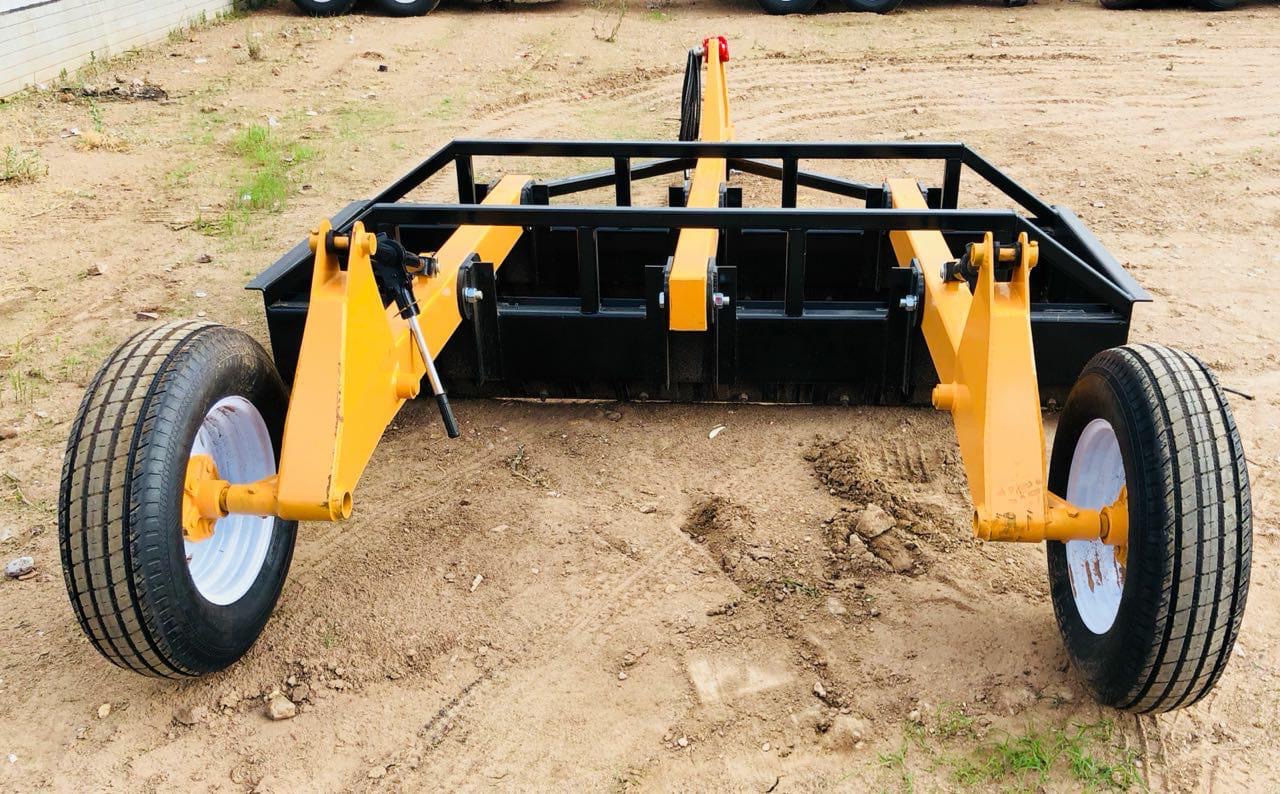

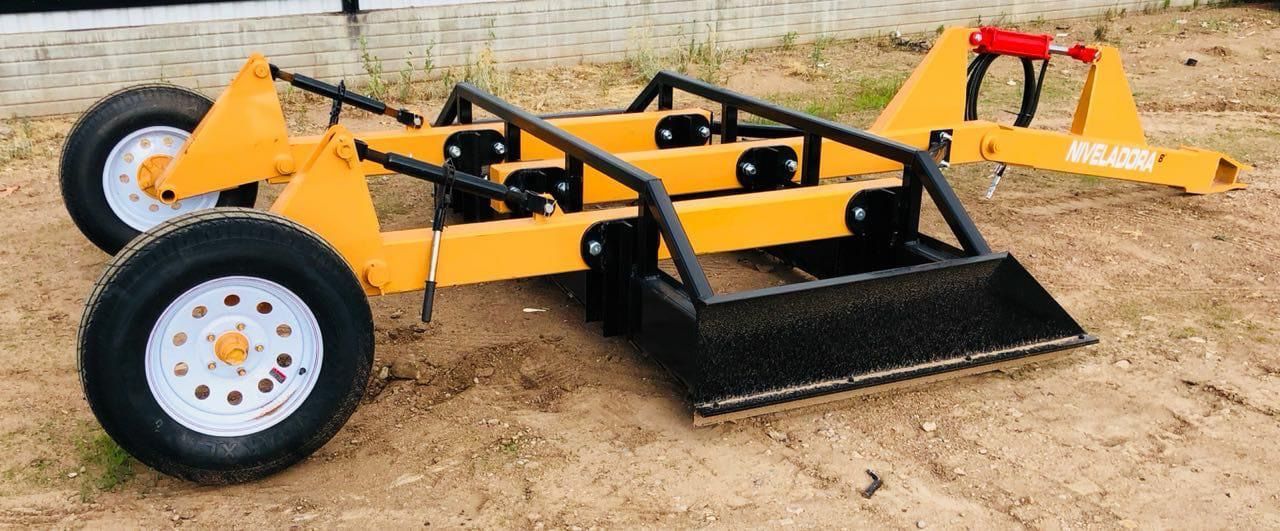

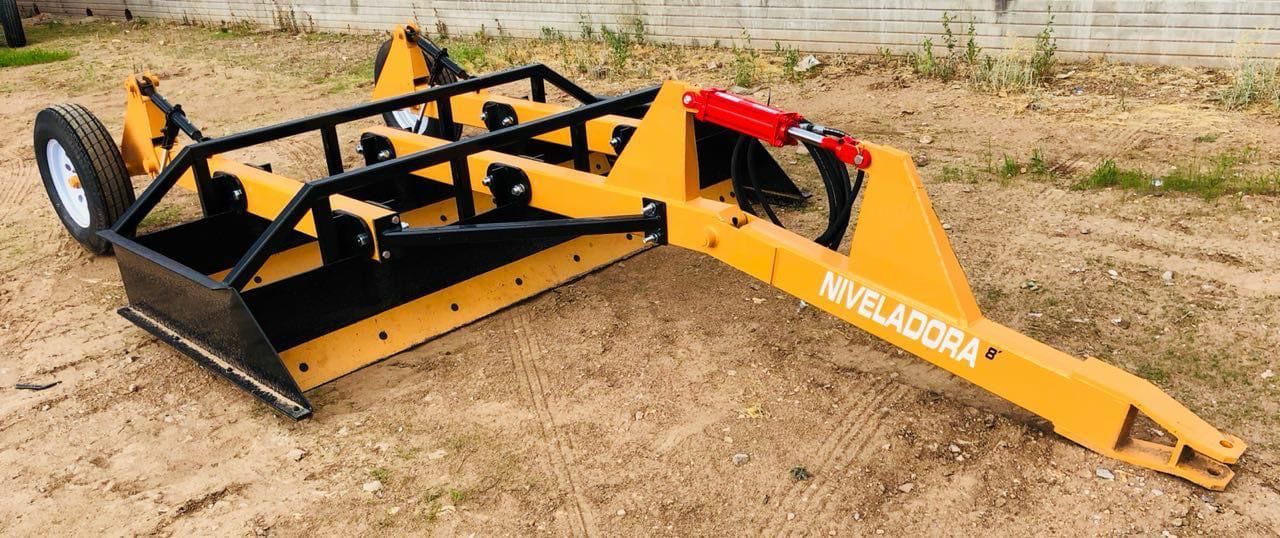

The Industrias America 7’, 8’, and 10’ Land Planes are built for dependable maintenance of ranch roads, farm lanes, and gravel driveways. These models offer strong cutting performance in a compact, easy-to-manage design. Equipped with two 6” x ½” reversible cutting blades, they cut and redistribute material evenly for a smooth finish. The ¼” moldboard with 14” height keeps gravel flowing consistently without clogging. A 4” x 6” structural main frame provides strength without unnecessary weight. The two implement tires offer good maneuverability and stable transport between job sites. These models are ideal for property owners, farmers, and general maintenance work where durability and simplicity matter.

×
