Specifications
| Feature | Description |
|---|---|
| Type | 3-point disc harrow (V-frame) |
| Hitch Category | Cat I / II |
| Disc Diameter | 18” |
| Disc Thickness | 1/8” |

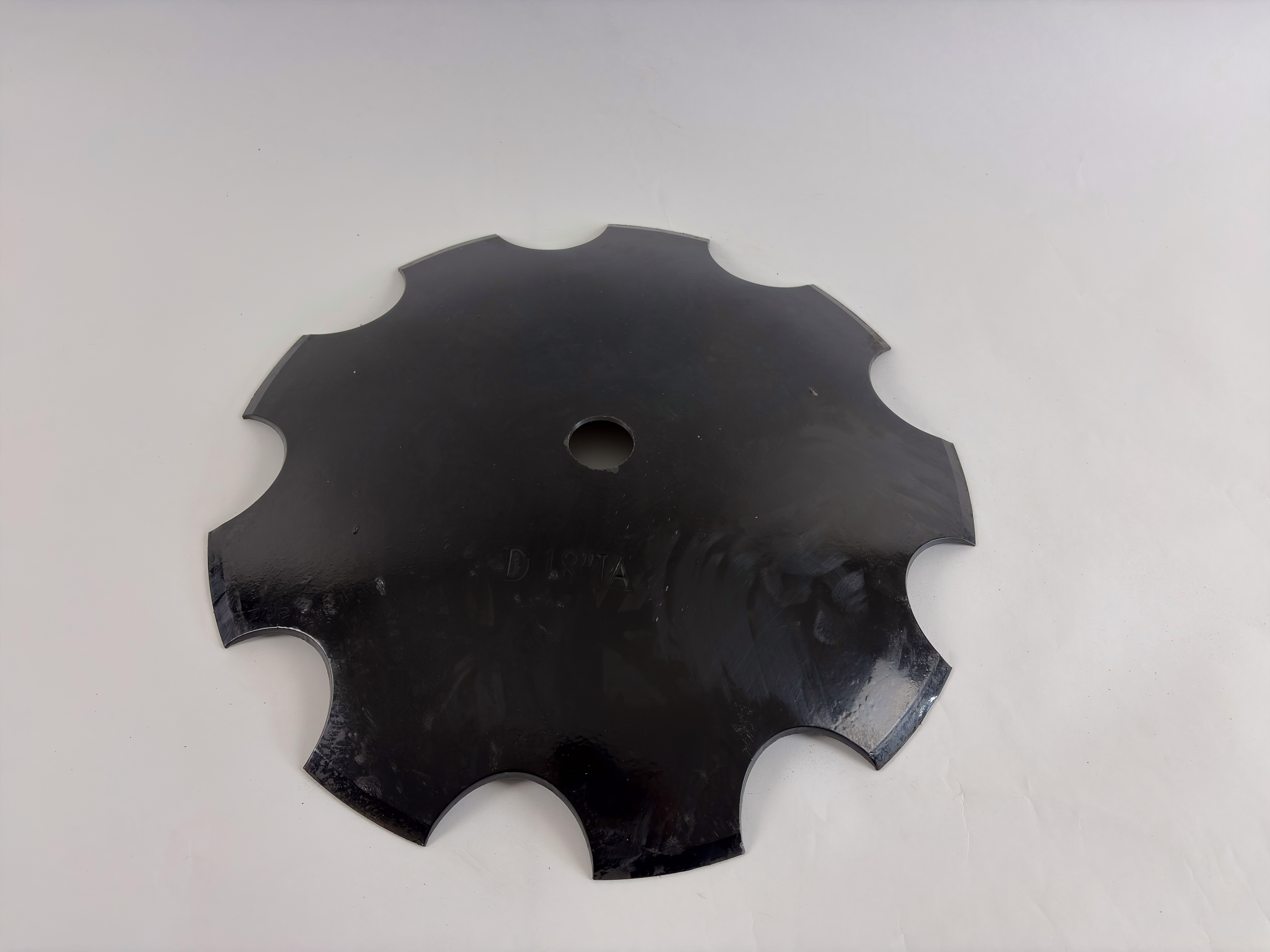

| Disc Type | Plain or notched |
| Disc Material | Carbon steel |
| Disc Spacing | 7.5” |
| Number of Discs | 10, 12, 14, 16 |
| Working Width | Approx. 37.5” – 60” |
| Gang Angle | Adjustable |
| Frame | 2.5” × 2.5” × 3/16” steel tubing |

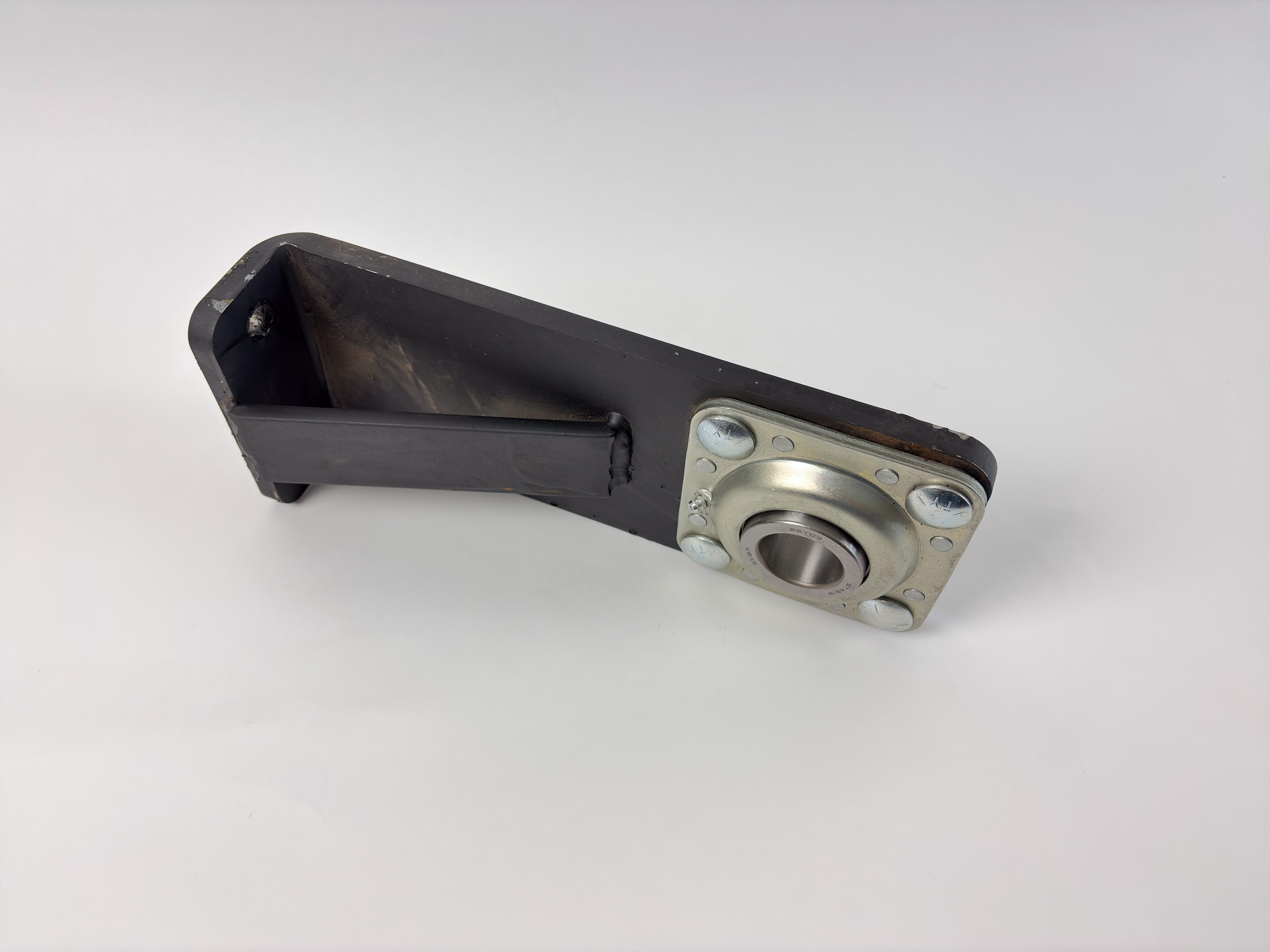

| Bearings | Sealed (ST491B type on some models) |
| Scrapers | Optional |
| Transport | No wheels |
| Jack | Not required (rests on ground) |
| Recommended HP | 30–55 HP |
| Soil Type | Light to medium |
| Residue Handling | Low to moderate |

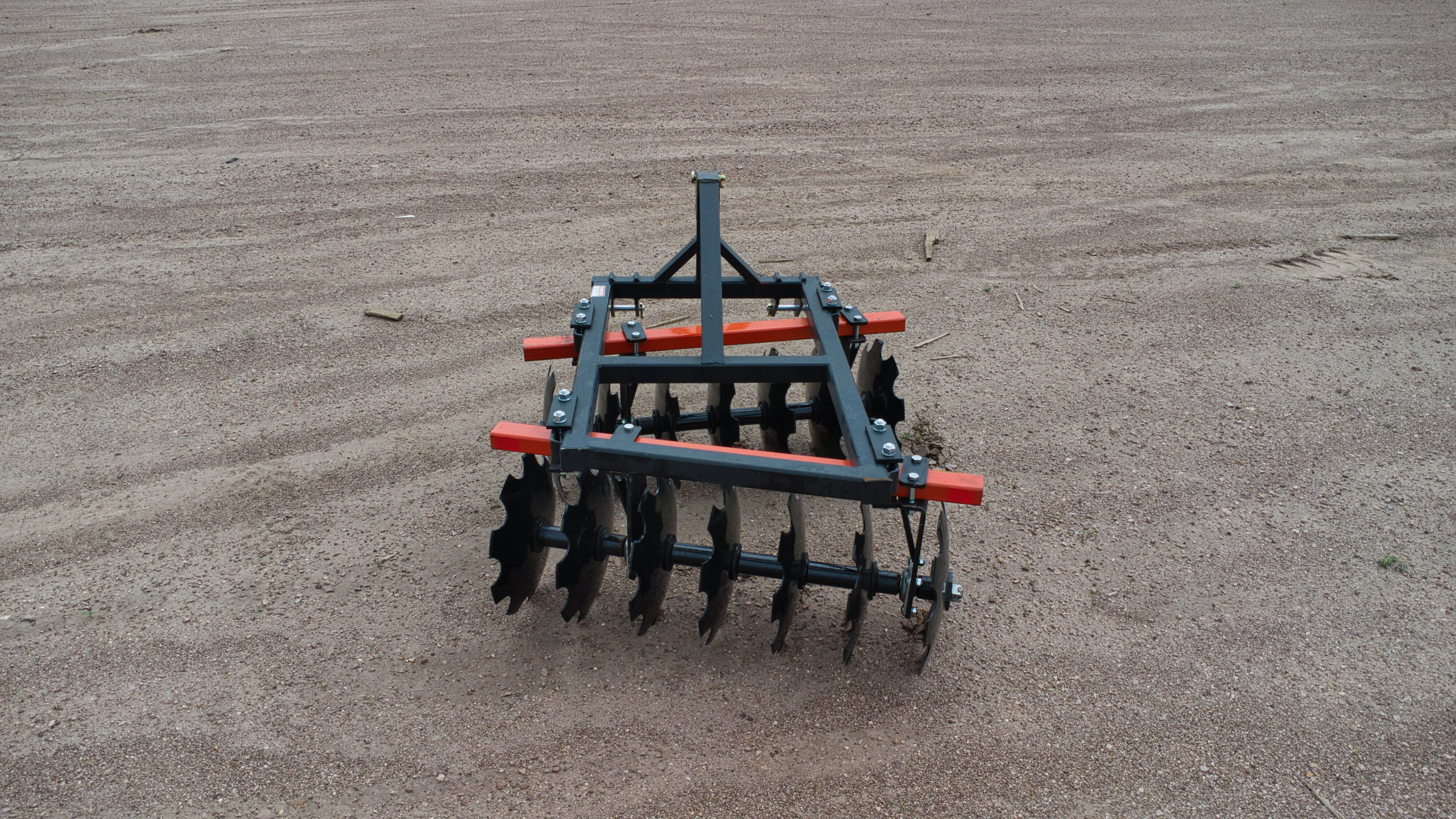

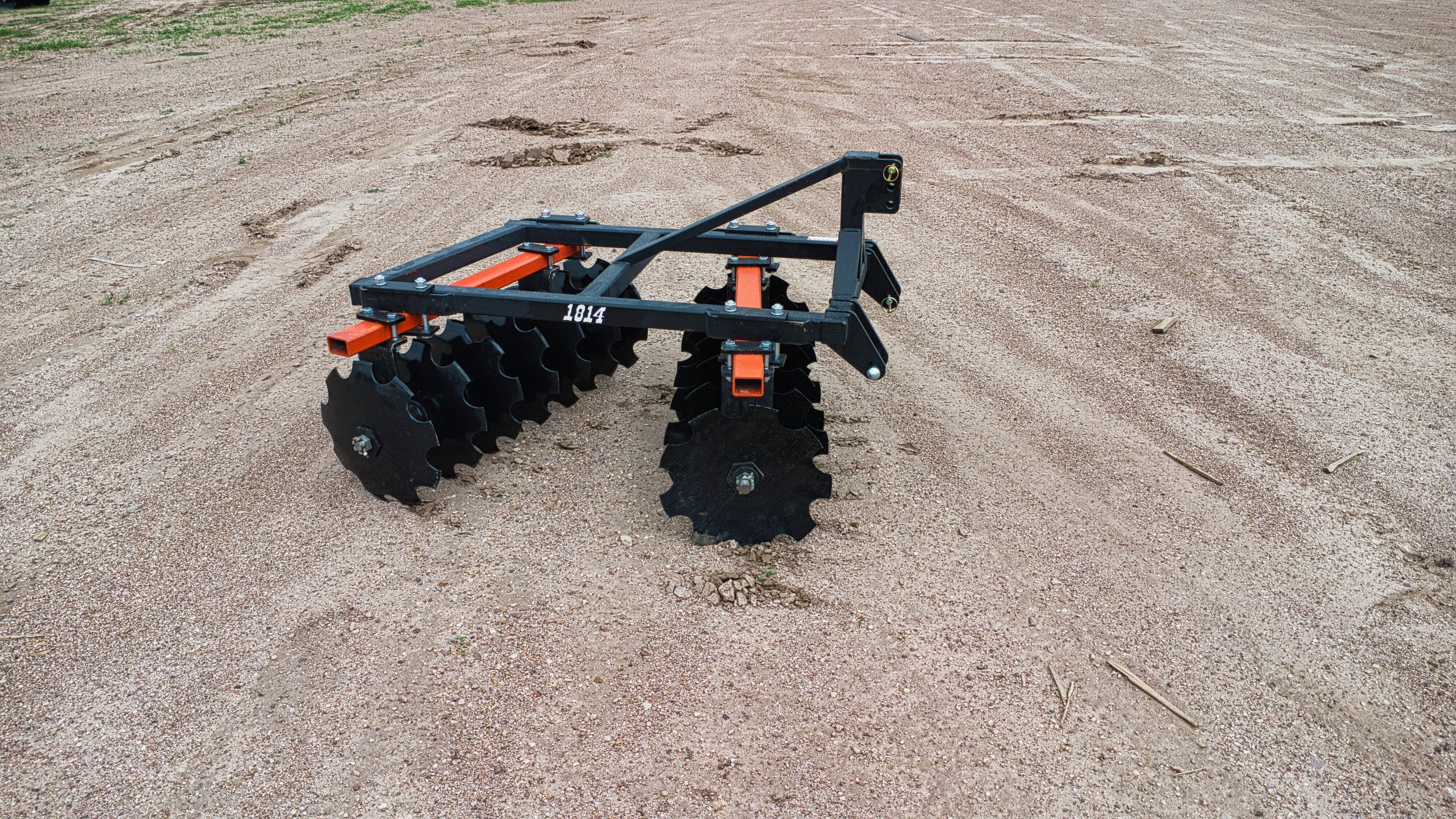

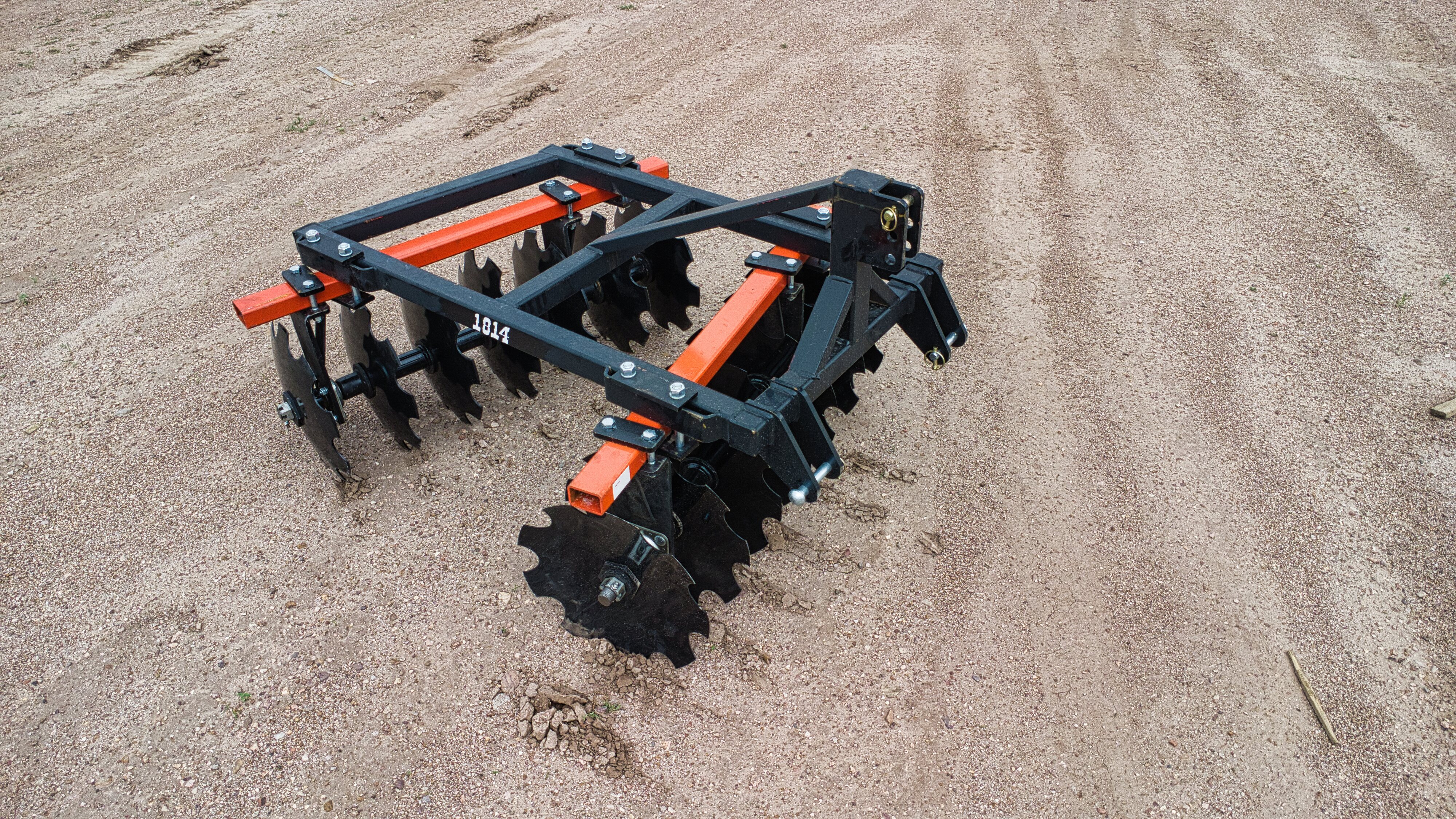

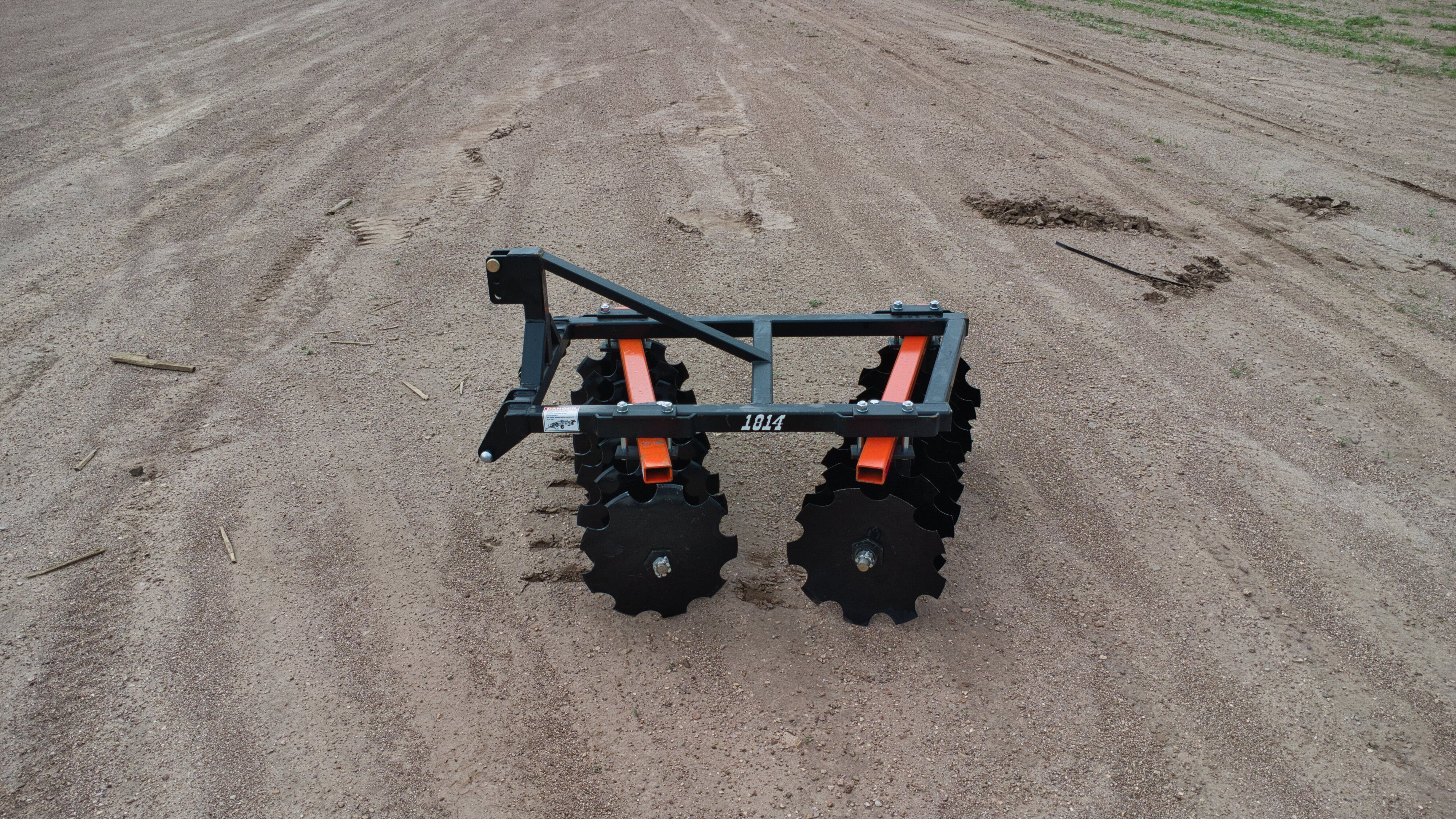

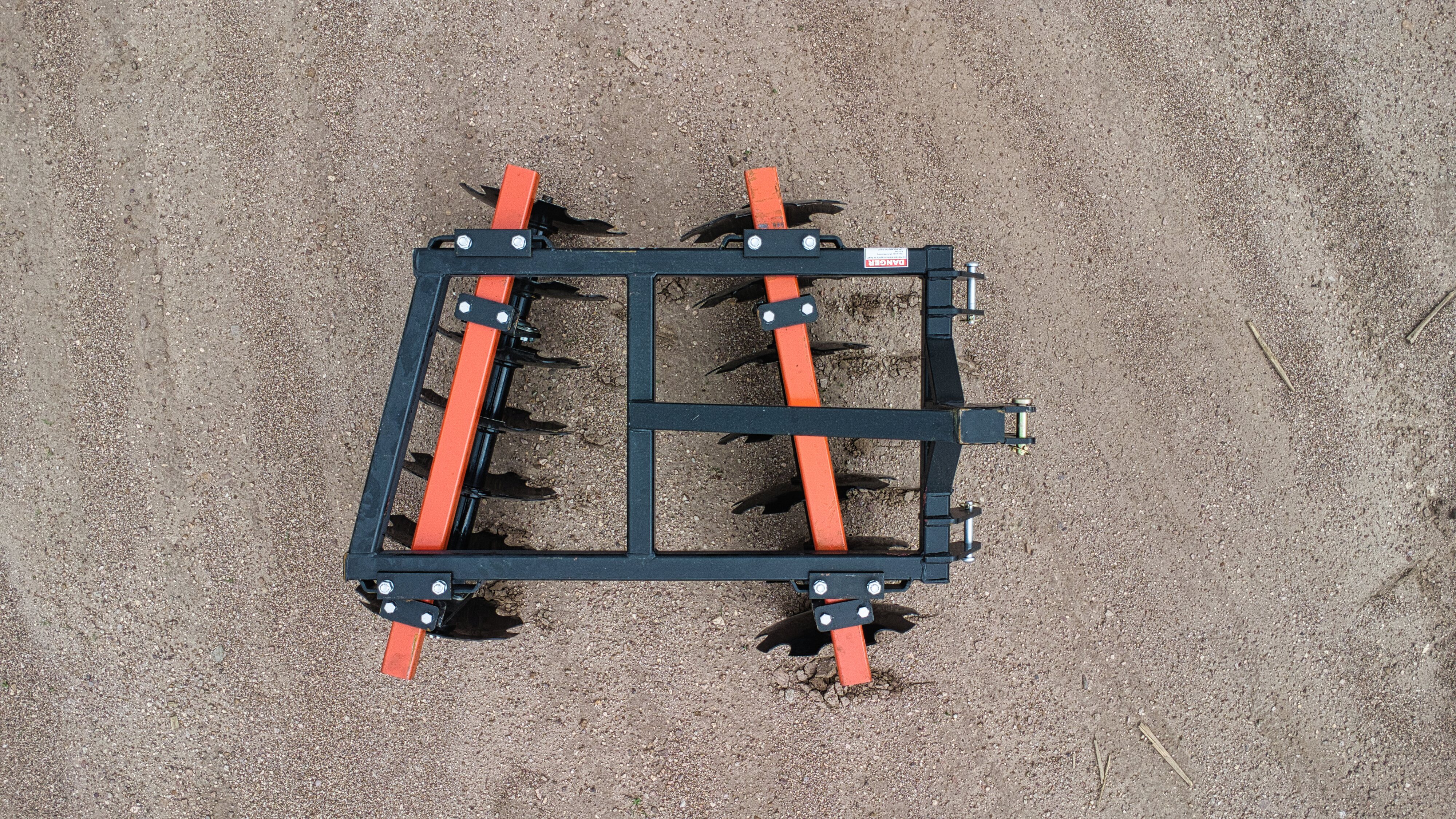

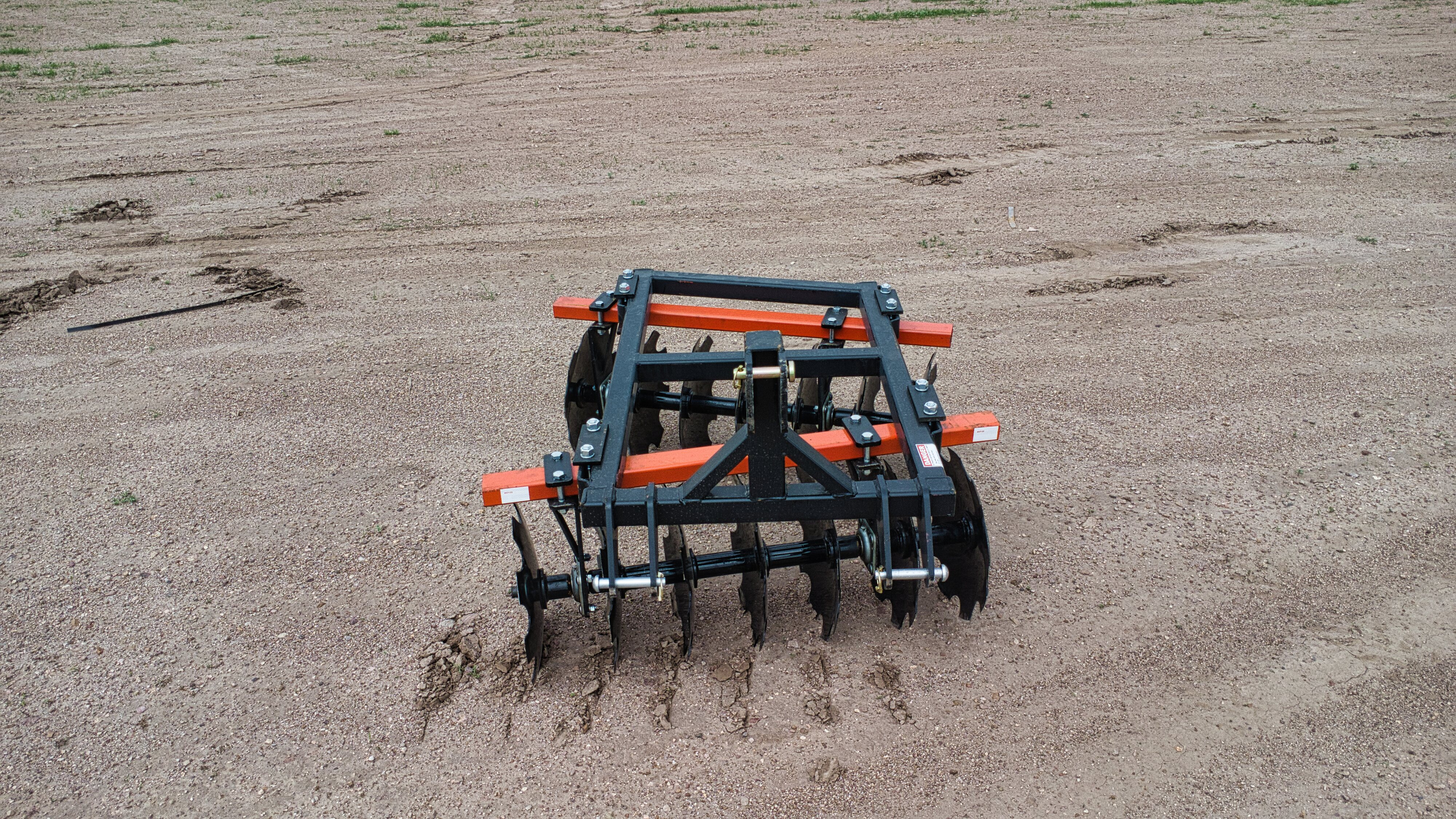

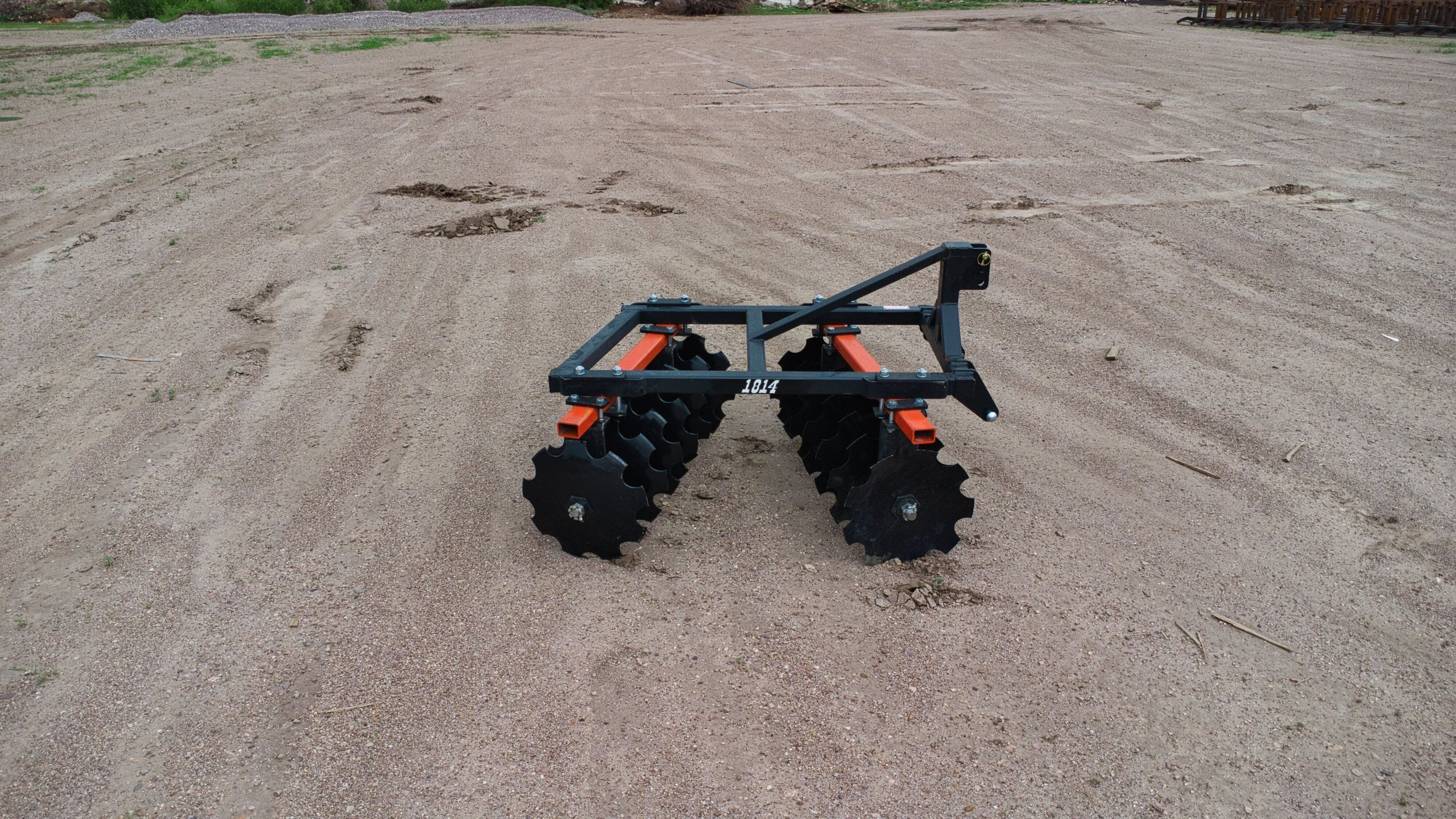

Built for smaller tractors and lighter field work, the 18” V-type disc harrow is a simple, reliable tool for breaking soil and managing light residue. Its compact frame makes it easy to handle in tight areas like orchards, small fields, and row crops. The adjustable gang angle allows you to control how aggressive the cut is, giving you flexibility depending on soil conditions. With a lightweight but durable frame, it’s a practical option for everyday field maintenance without overloading your tractor.
