Specifications
| Feature | Description |
|---|---|
| Type | 3-point hitch mover (heavy-duty) |
| Application | Heavy dense brush, extended use |
| Tractor Requirement | 60–150 HP |
| Cutting Widths | 8 ft 19" Blades, 10 ft 25" Blades, 12 ft 30" Blades, 14 ft 25" Blades |
| Cutting Height | Adjustable 3–15 in |

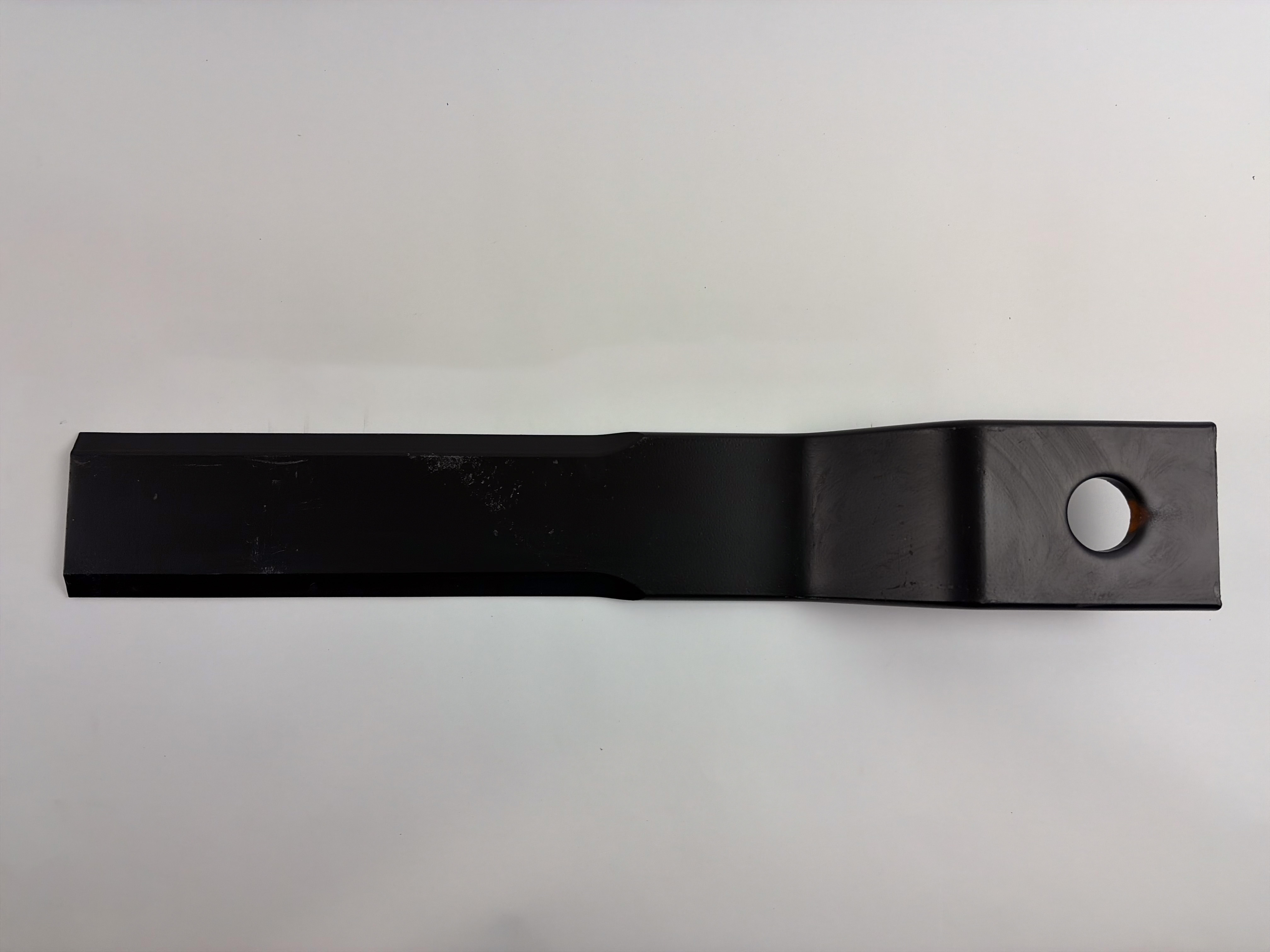

| Blades | 4 rotary blades |
| Blade Speed | ~788 rpm |

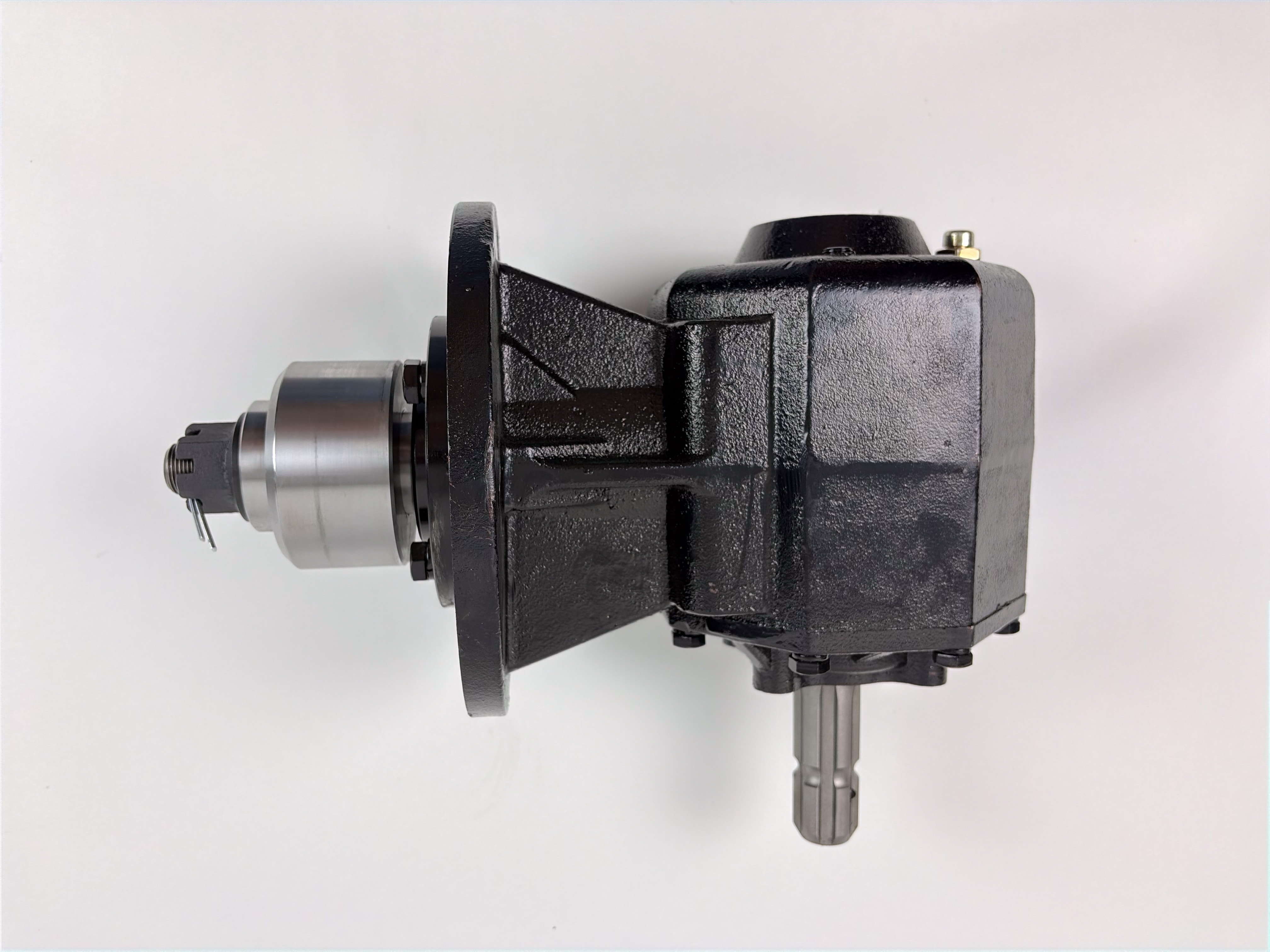

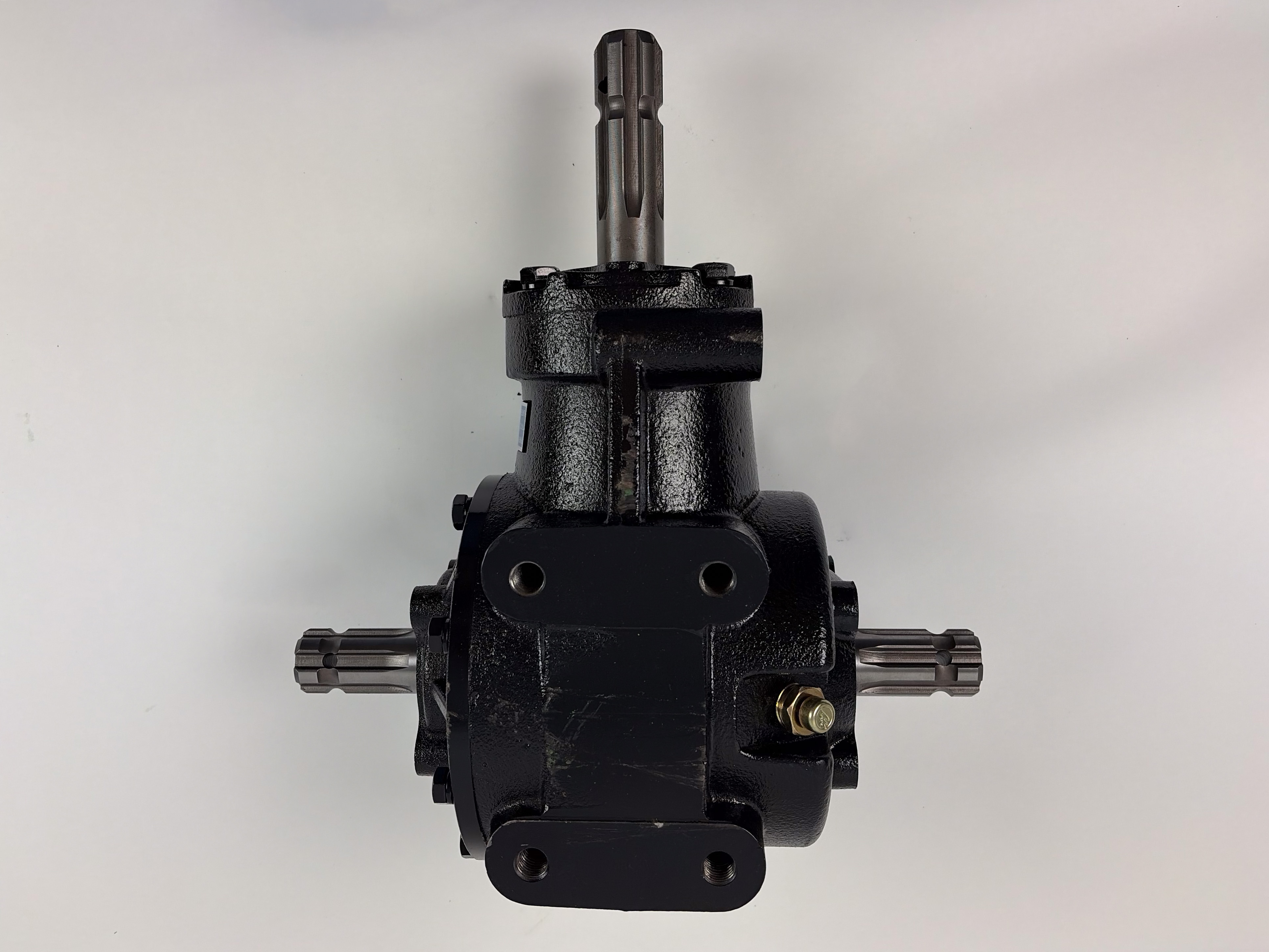

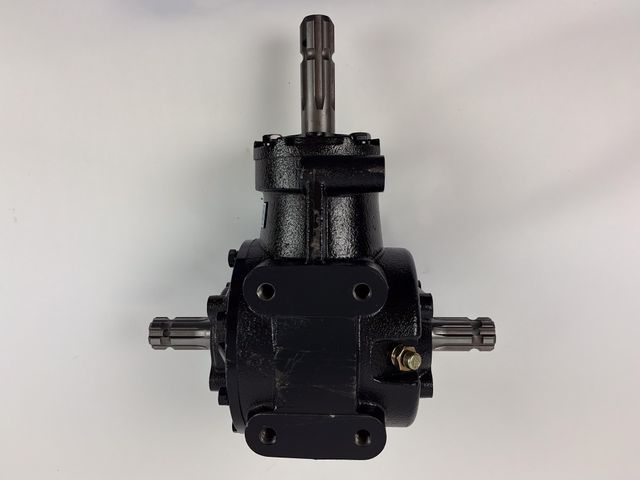

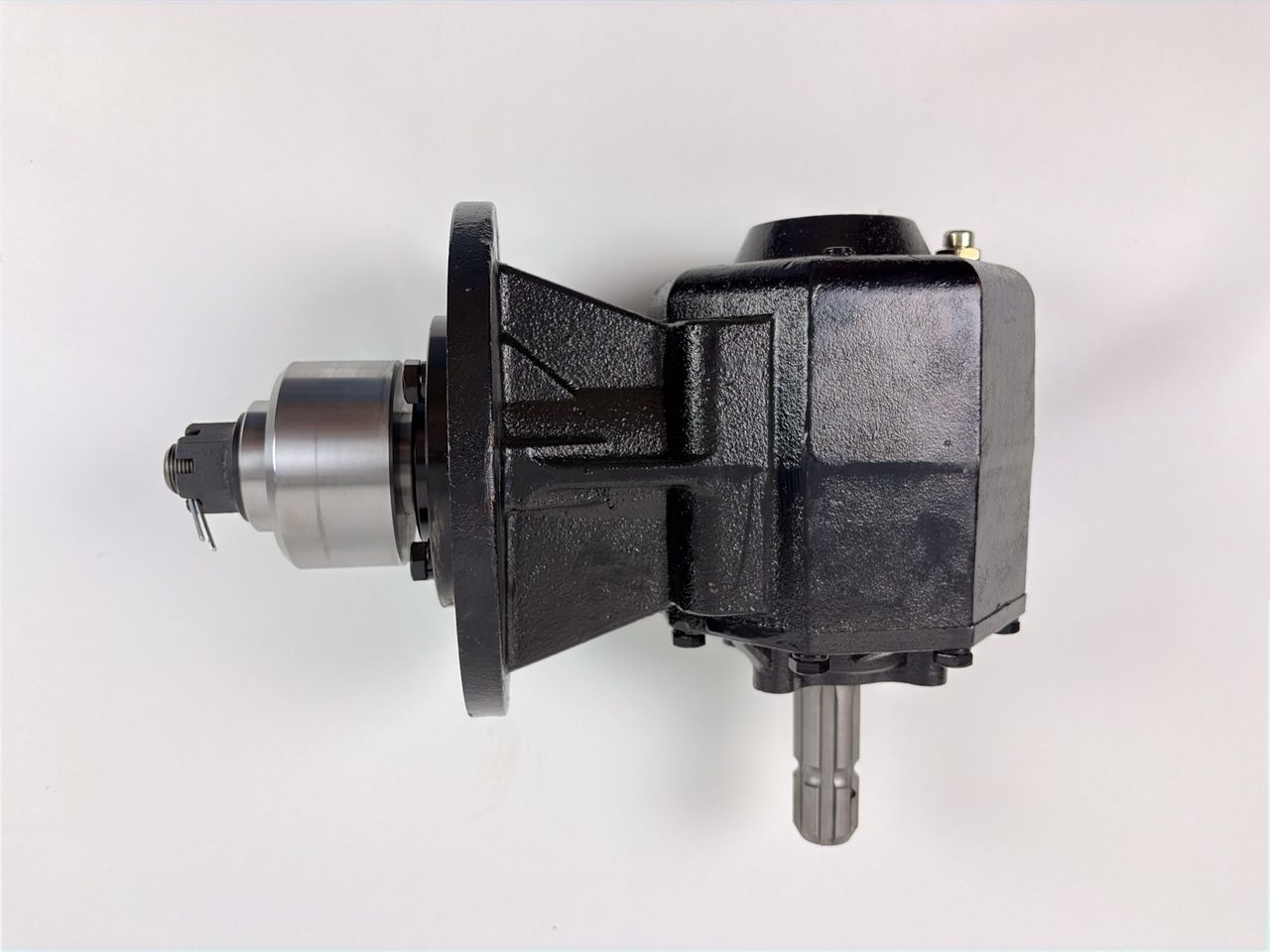

| Gearbox Rating | 60–90 HP |
| PTO Speed | 540 rpm |
| Transmission Ratio | 1 × 1.46–1.5 |

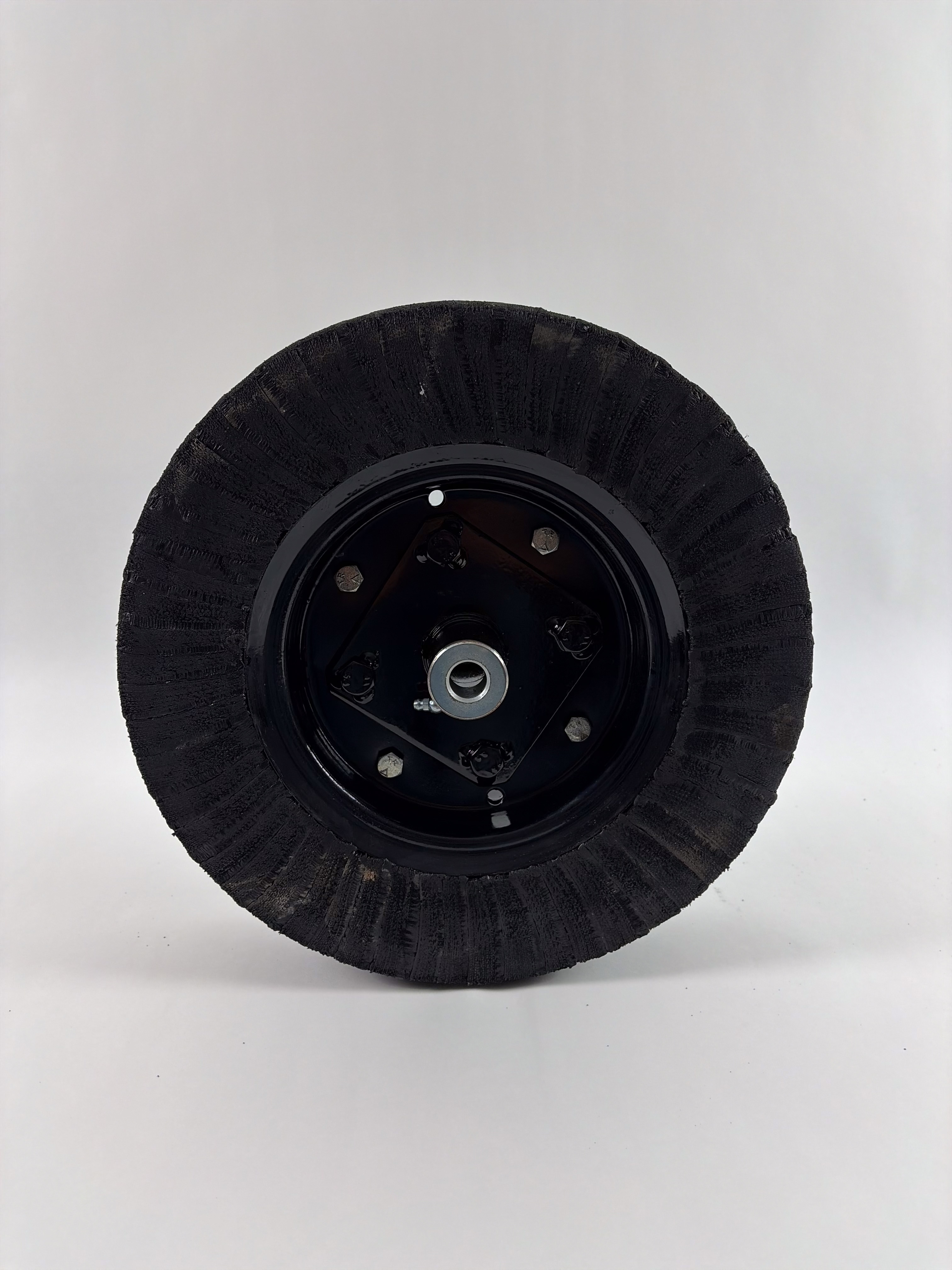

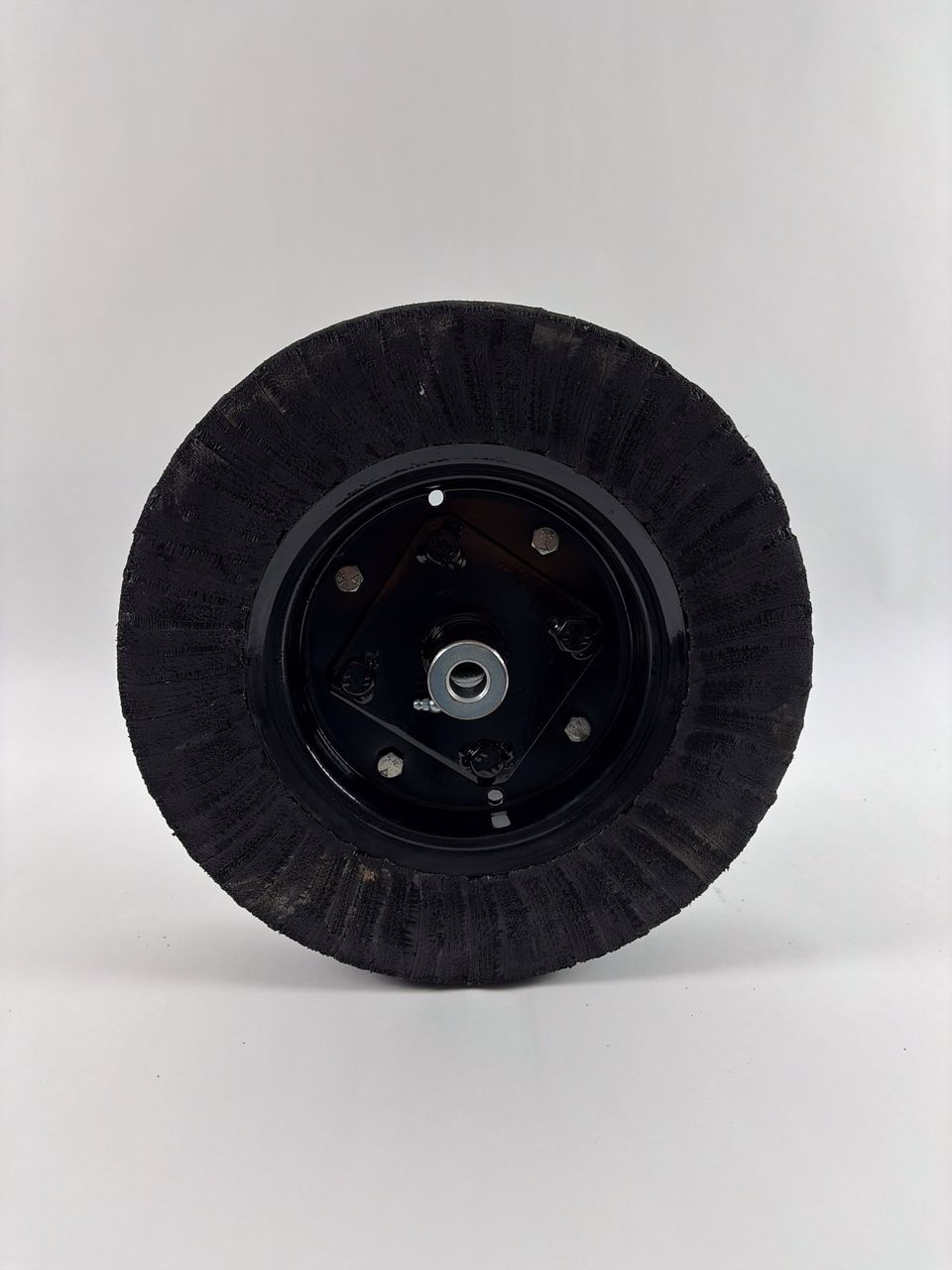

| Wheels | 15” solid rubber |
| Frame | Heavy-duty reinforced steel |
| Safety | PTO guard, optional debris chains |
| Maintenance | Grease points, heavy-duty components |

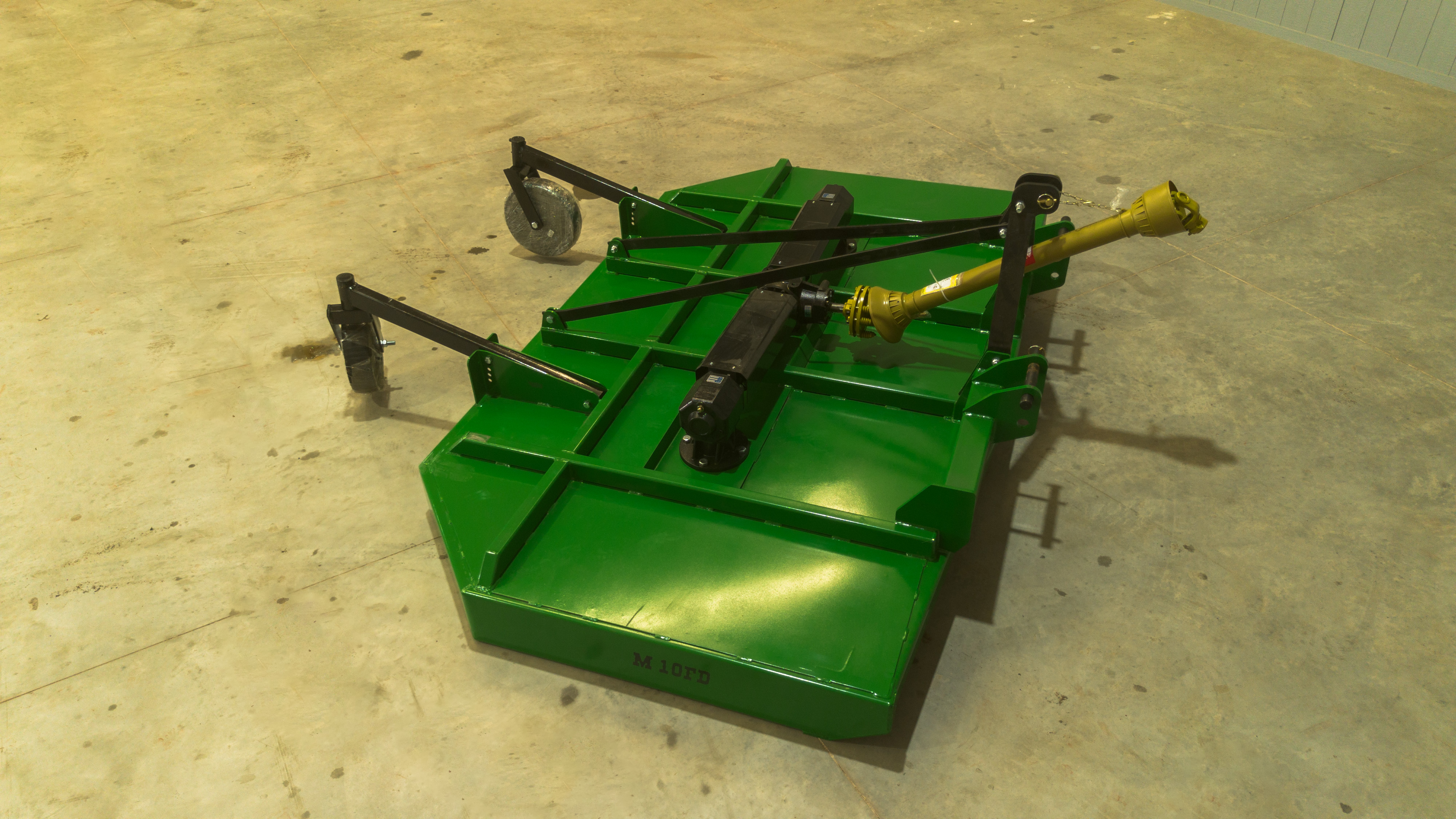

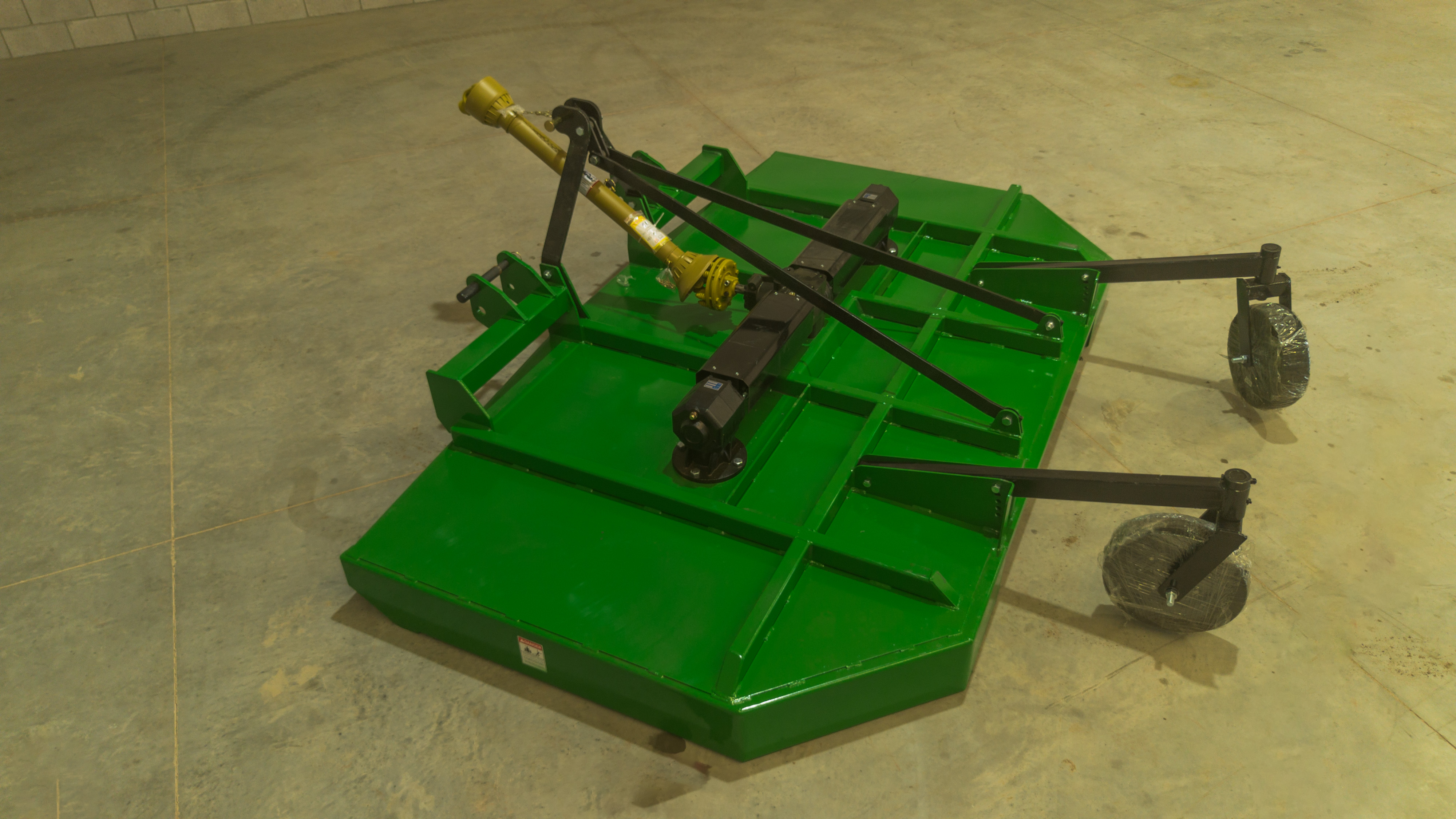

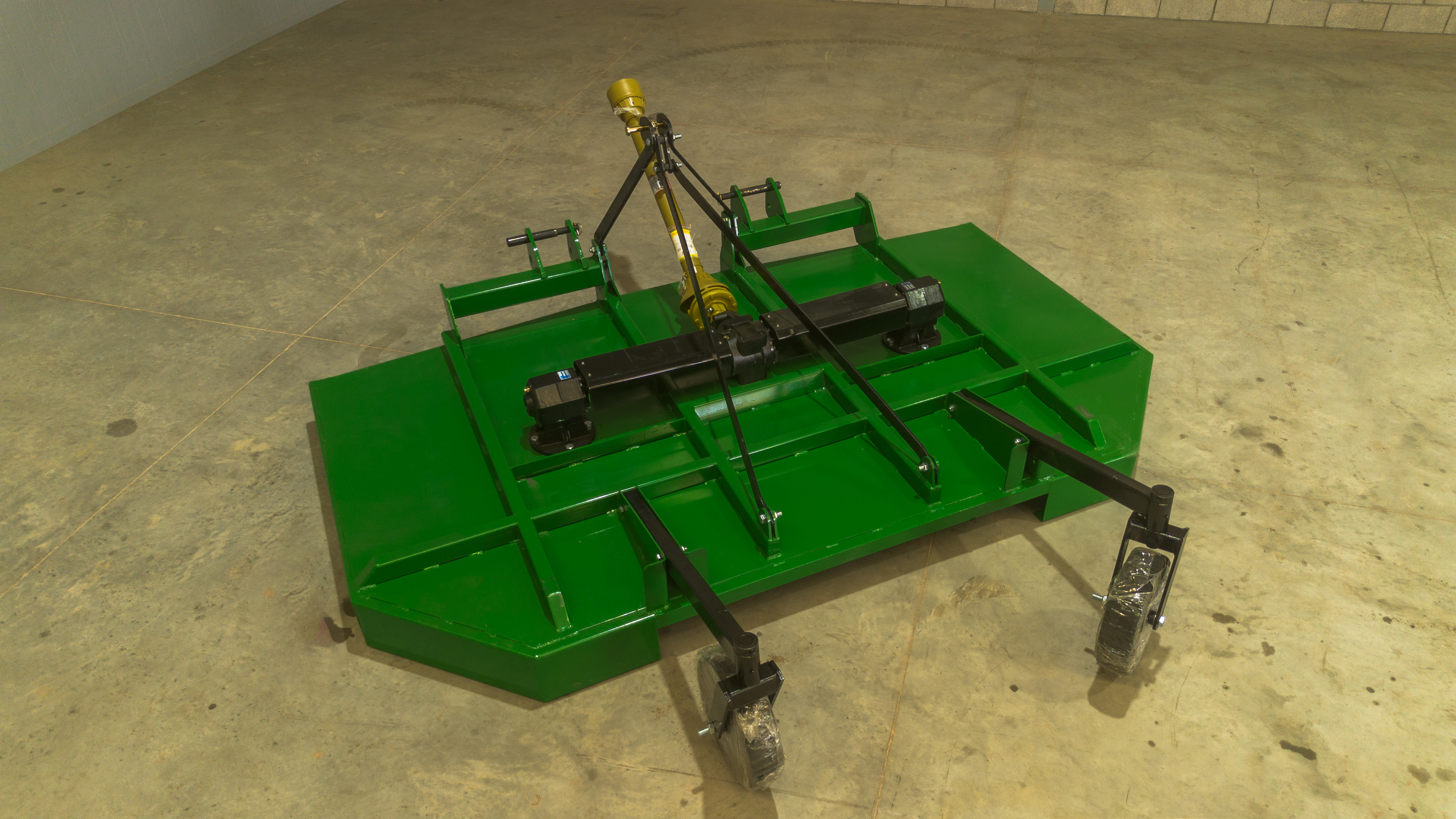

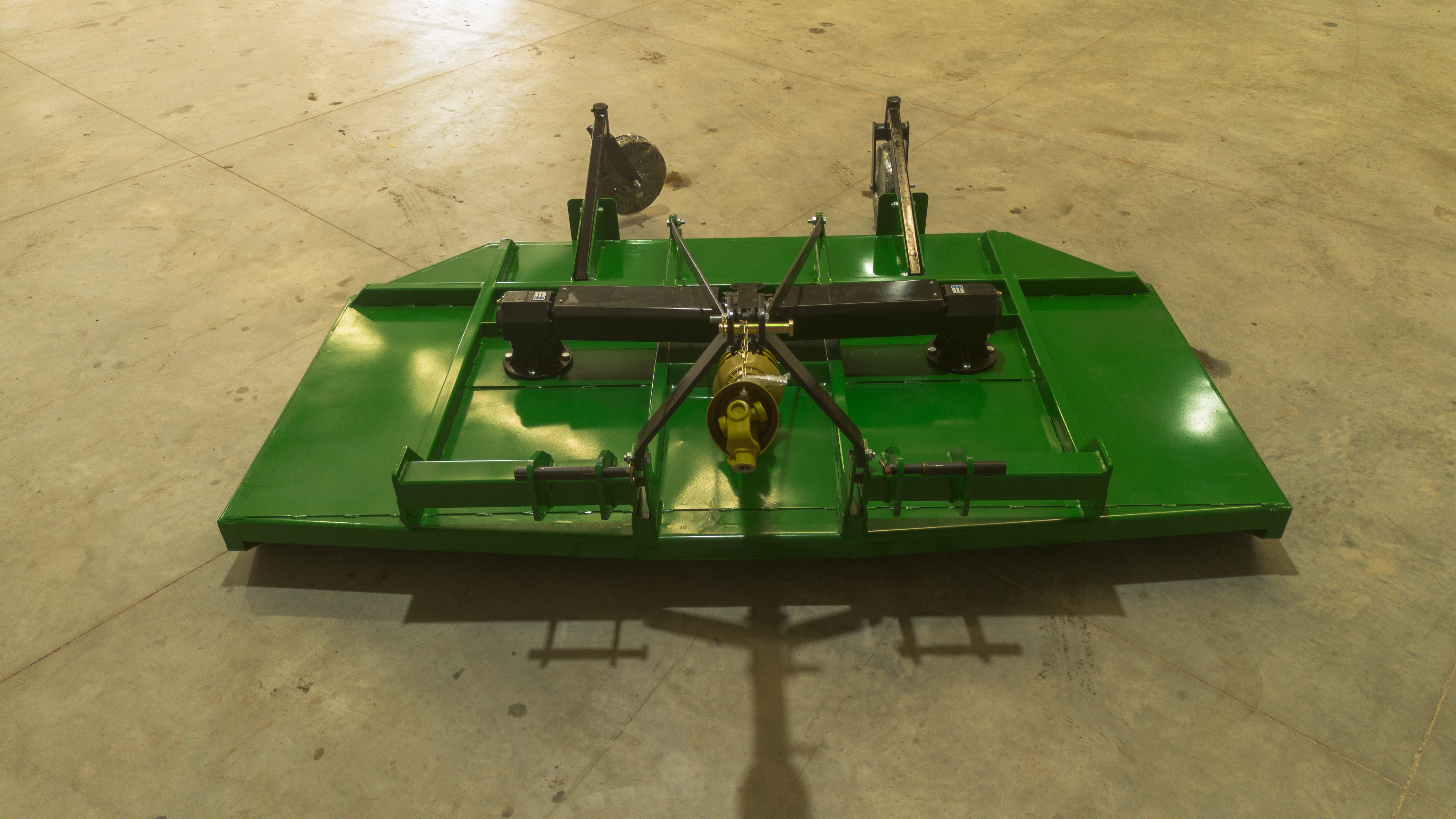

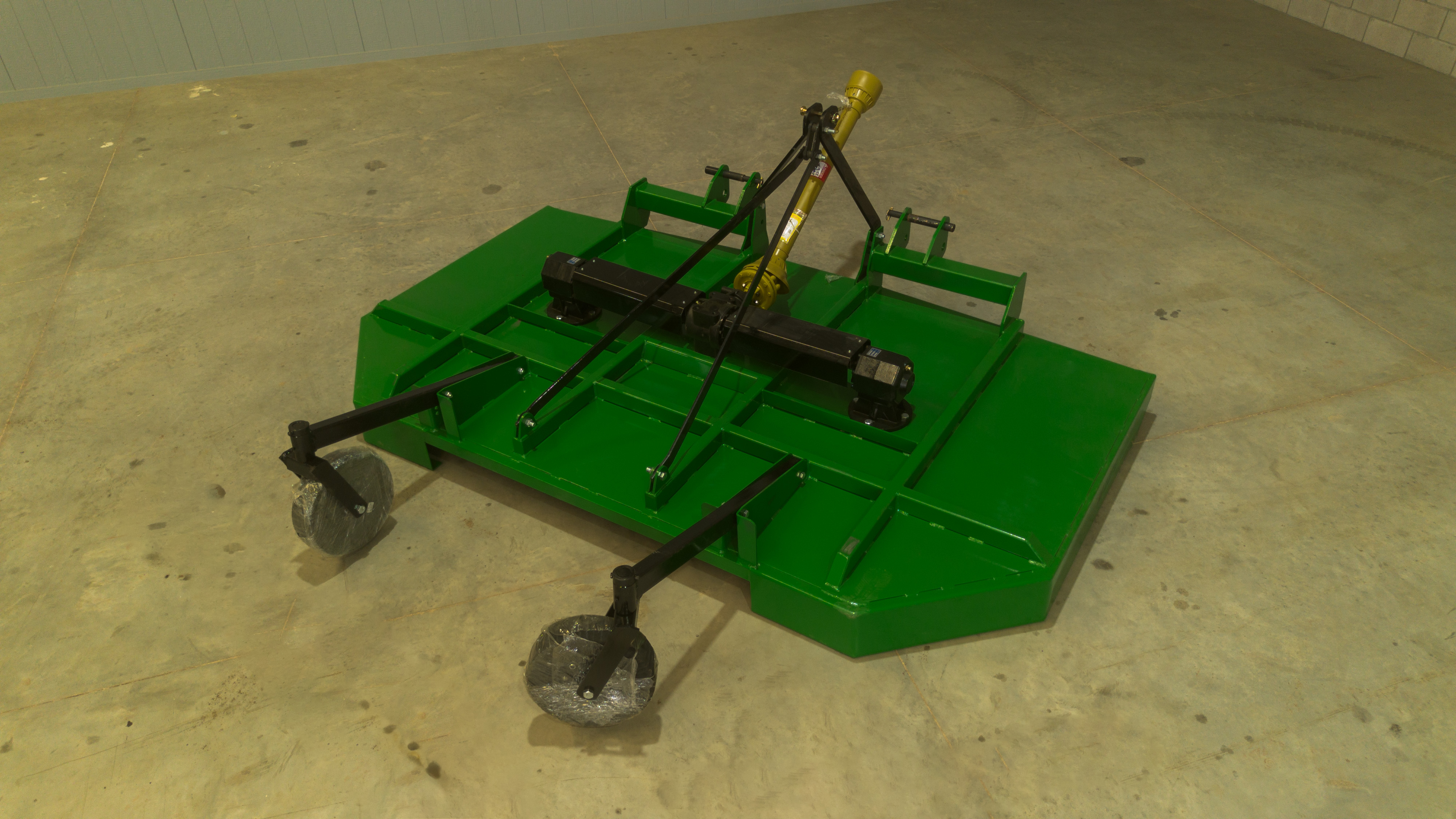

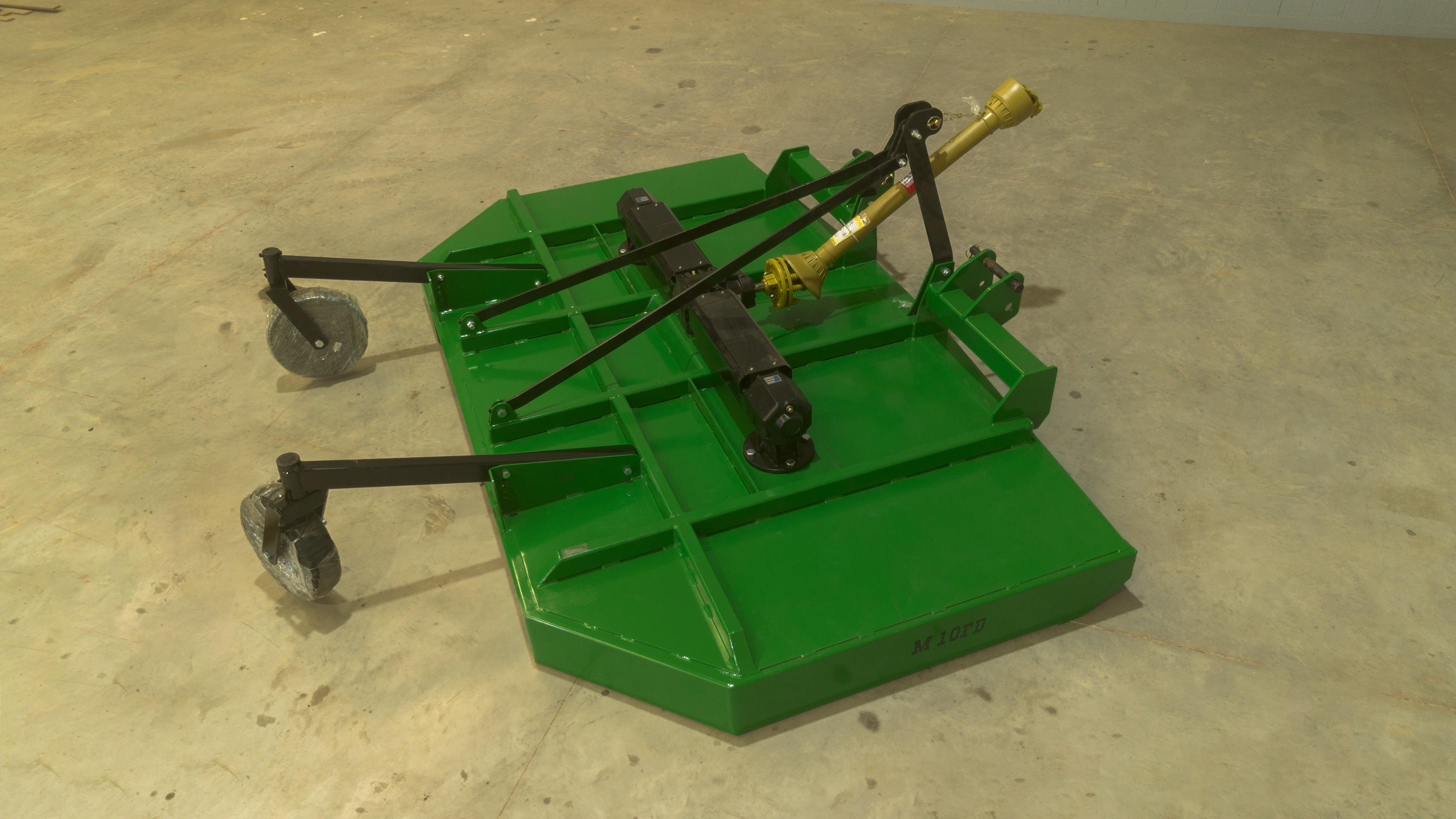

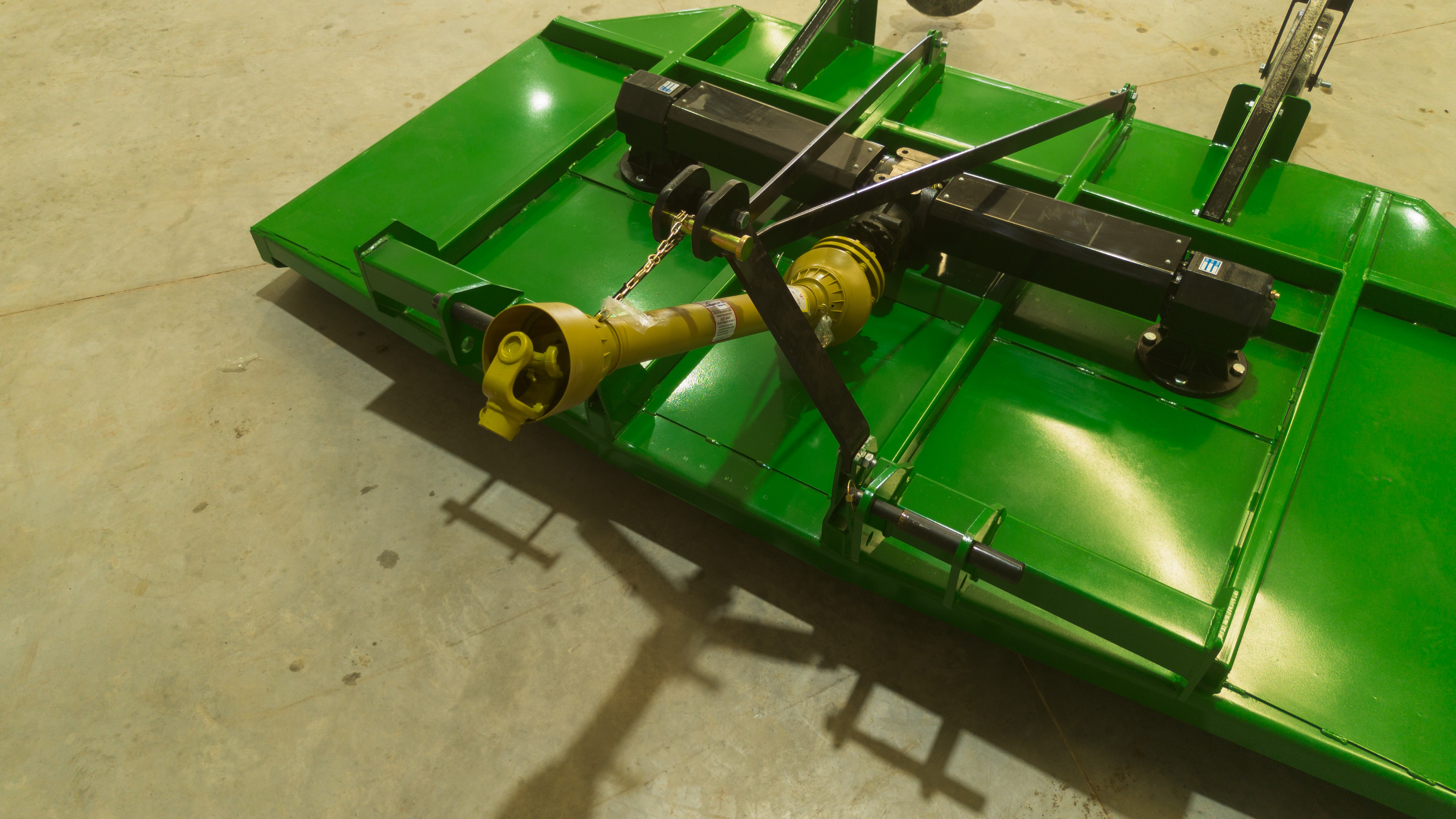

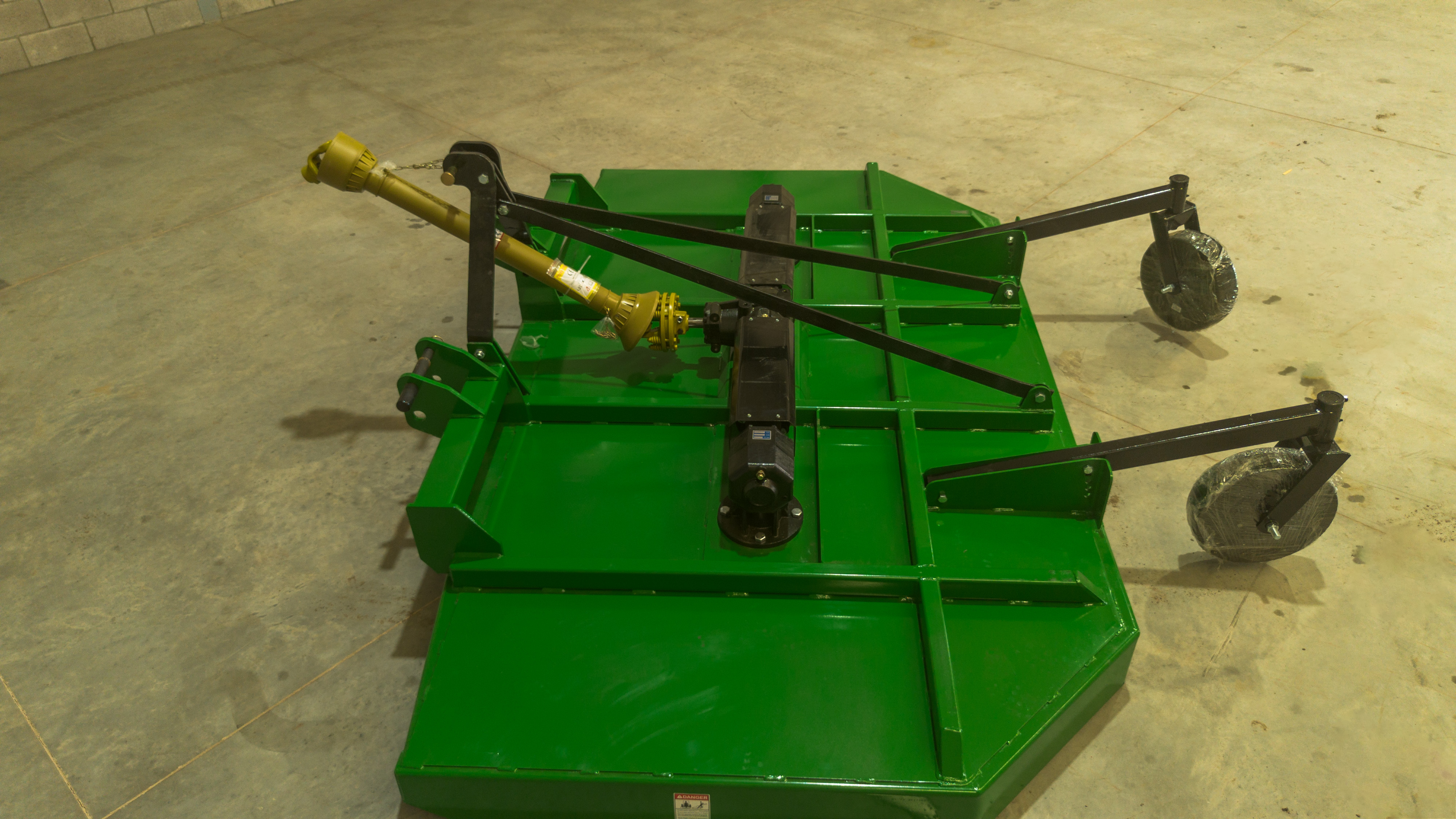

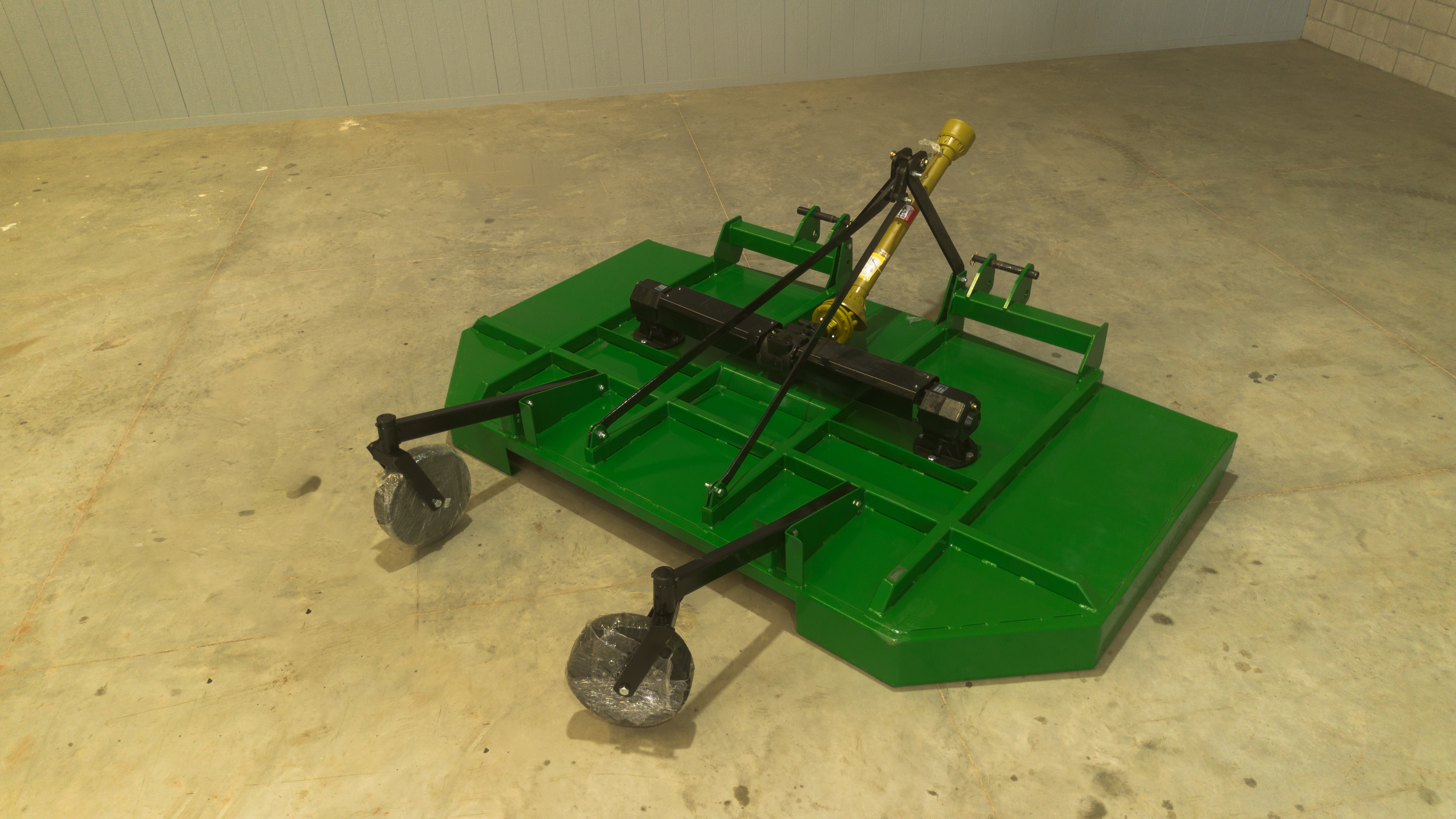

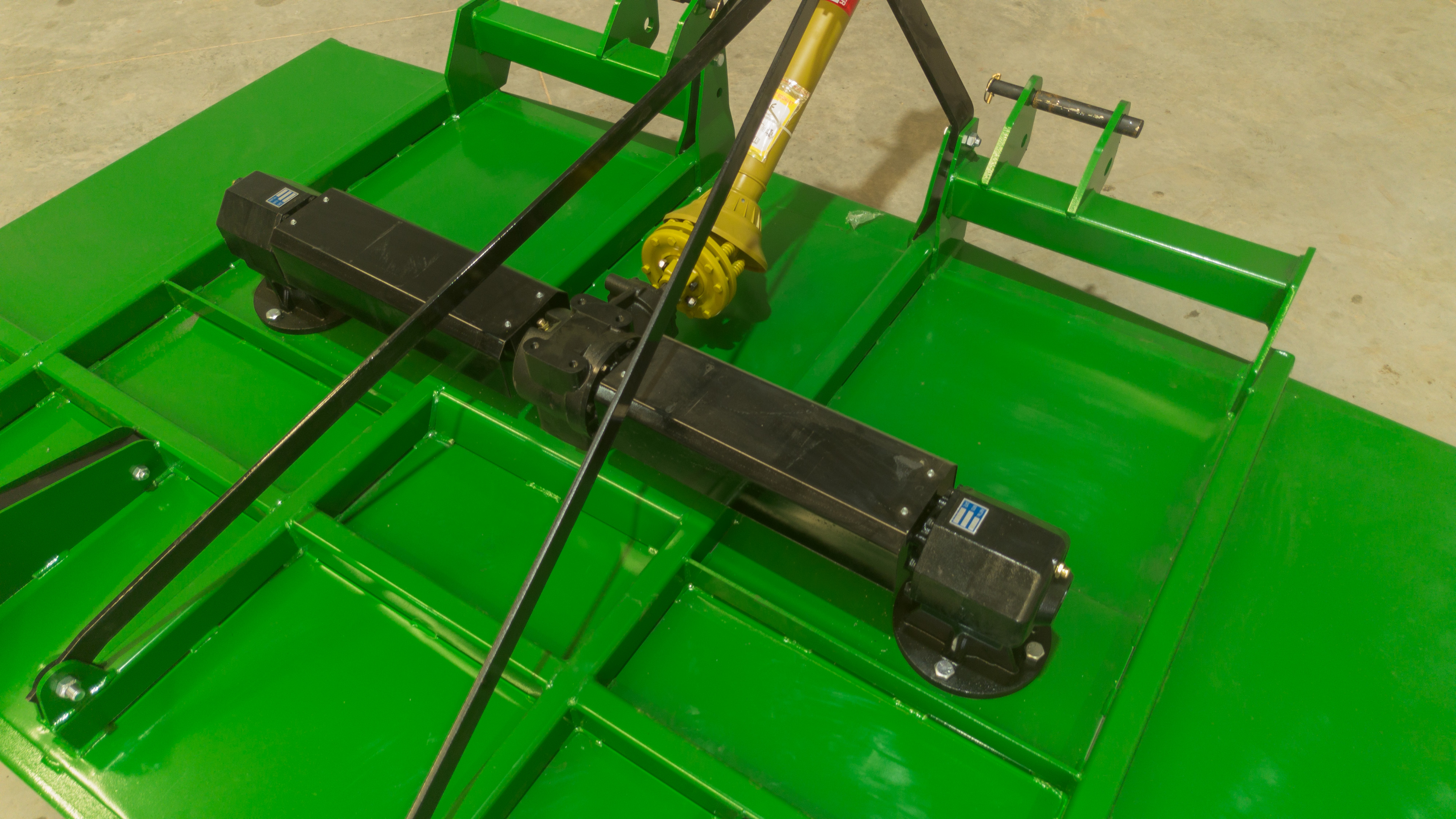

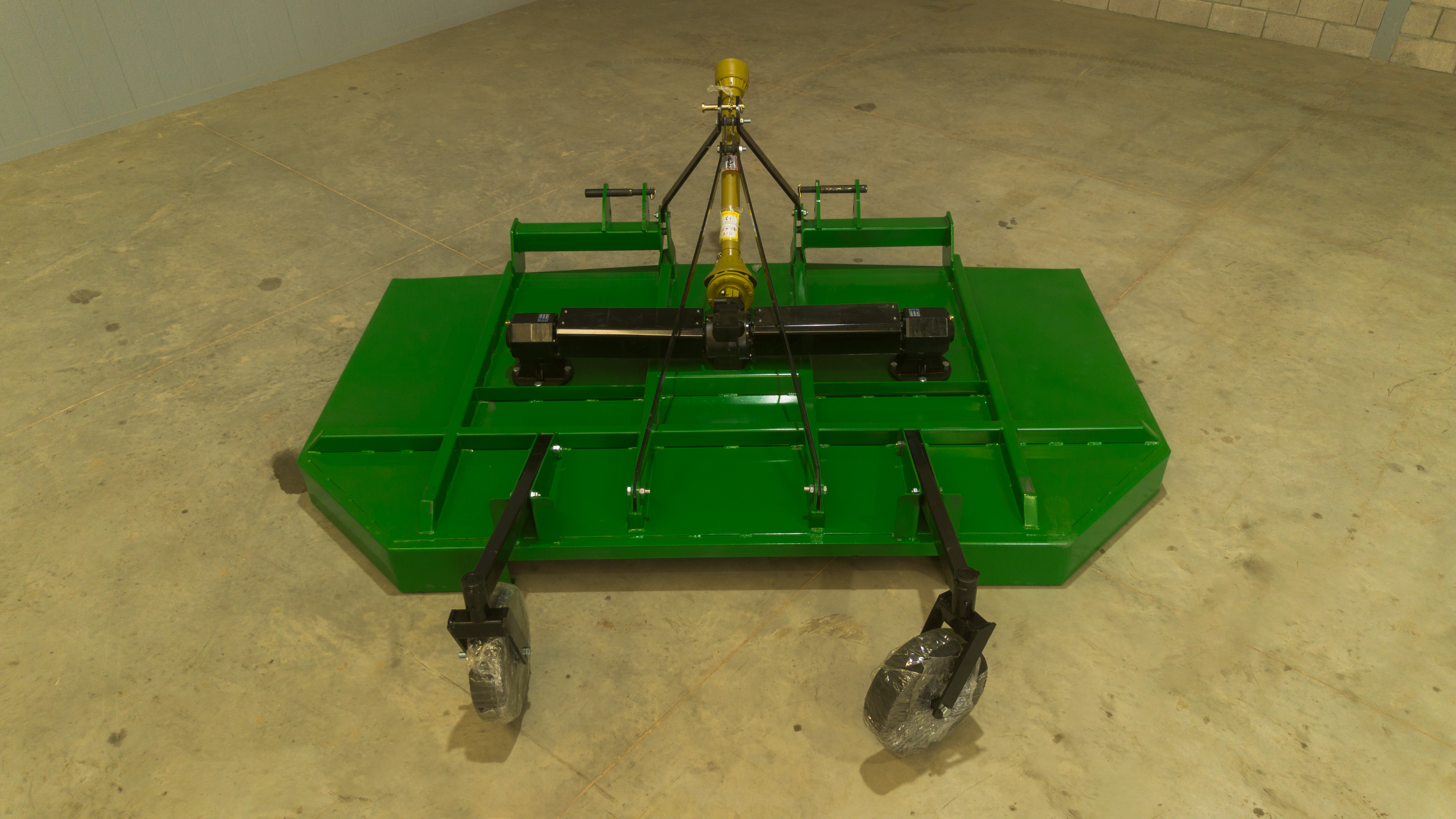

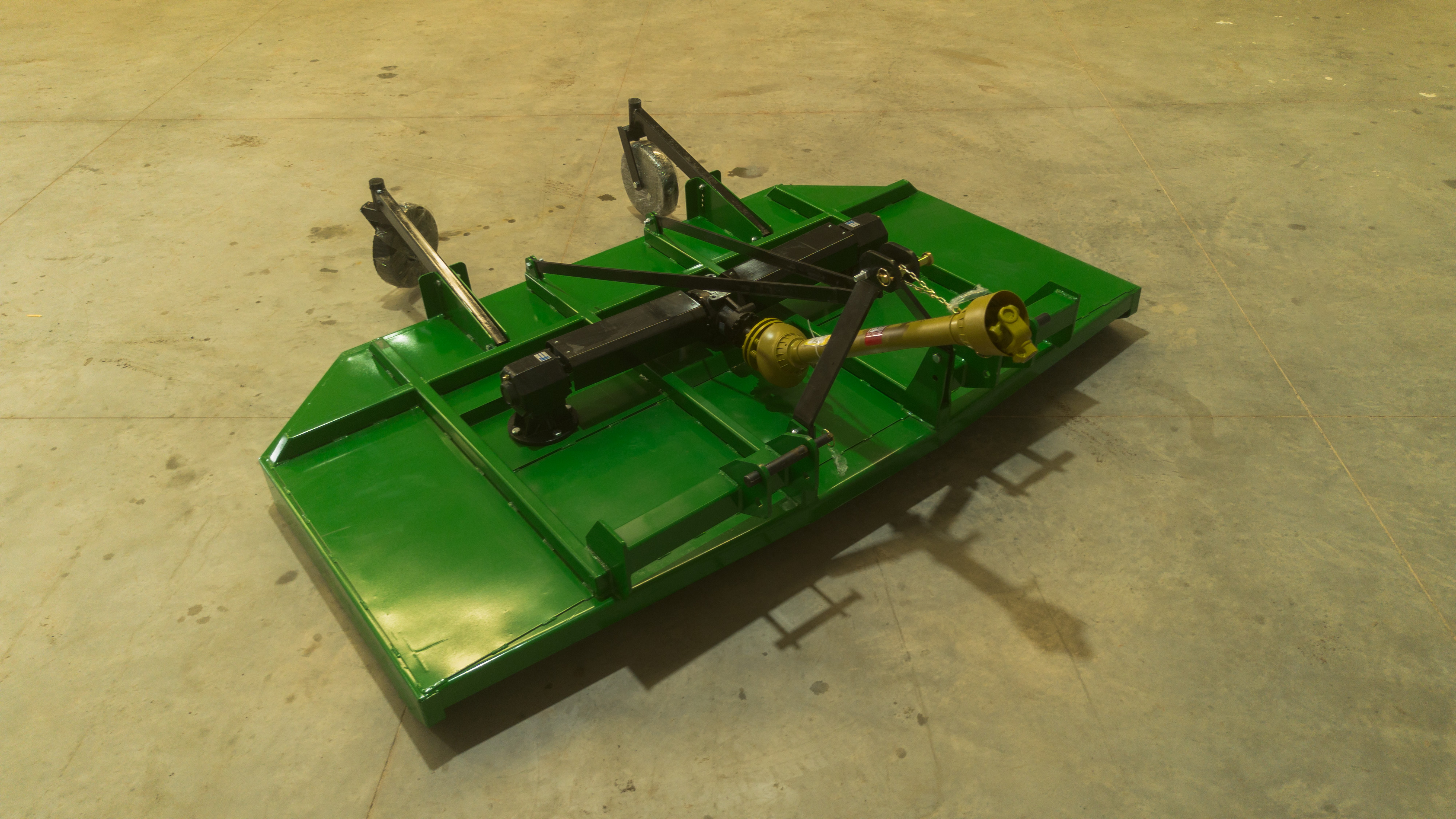

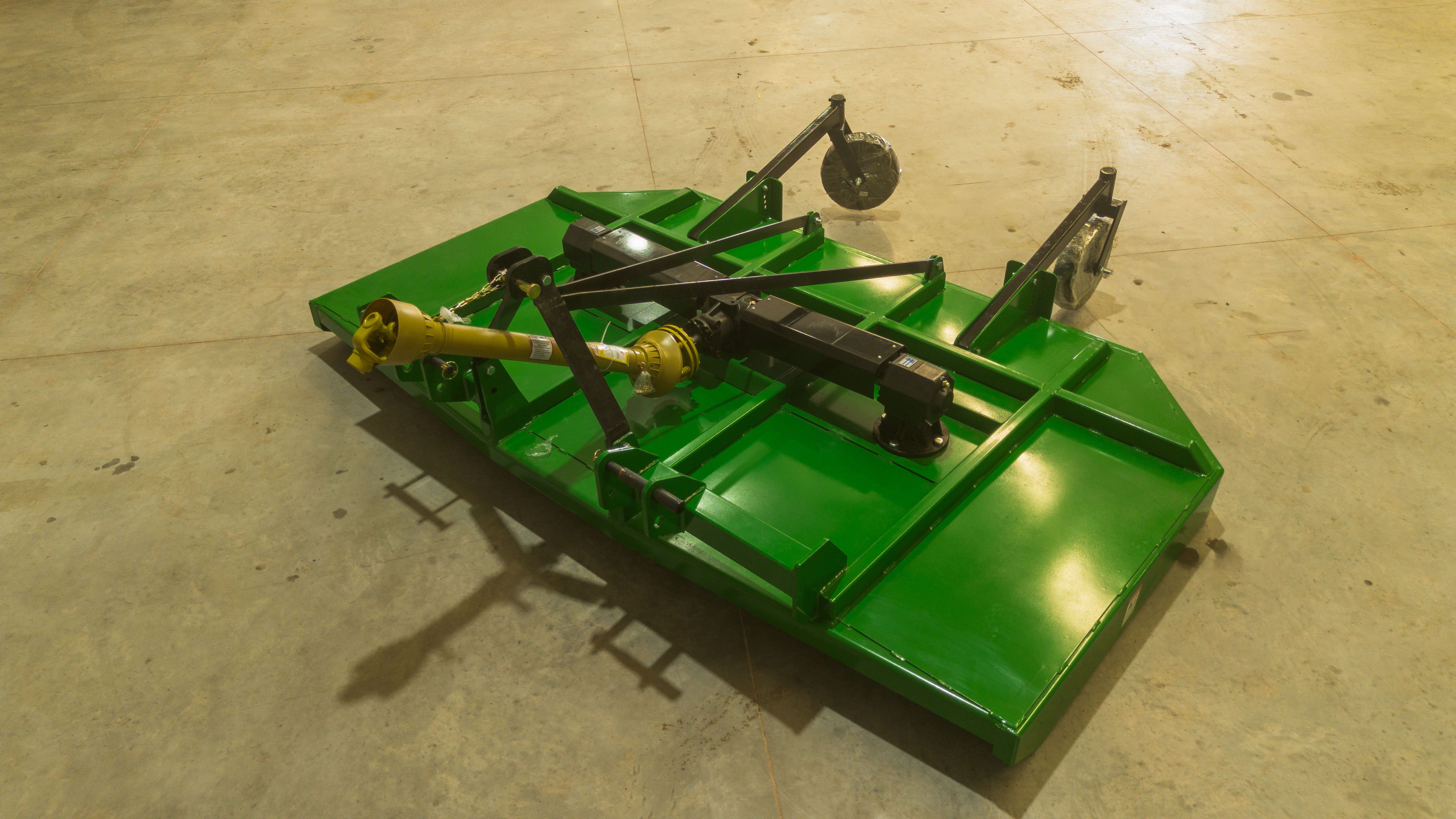

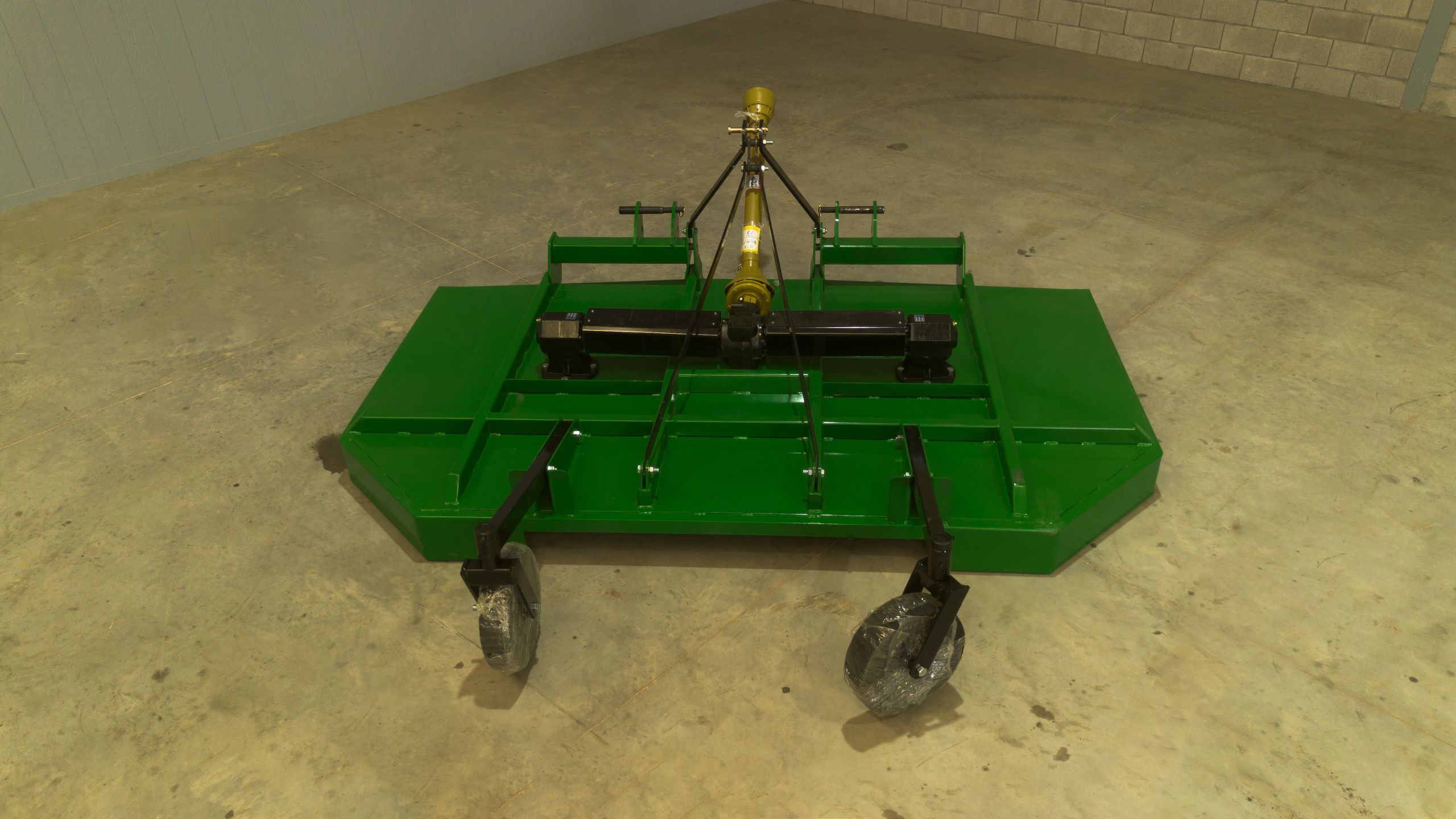

The FD Series is built for tougher conditions where standard mowers fall short. With a reinforced frame and higher structural strength, these movers are designed to handle thicker vegetation, heavier residue, and longer working hours. They maintain the simplicity of a 3-point setup while offering increased durability, making them a strong choice for commercial users, contractors, and farmers working in demanding environments.
