Specifications
| Feature | Description |
|---|---|
| Header Capacity (ft) | 36 |
| Total Length (ft) | 44.5 (including gooseneck, dolly, and telescopic hitch) |
| Overall Width (in) | 95 |
| Frame Material | Steel |
| Main Frame Size | 8x4 + adjustable 4x4 |
| Incline Frame Design | Adjustable incline |
| Number of Brackets | 4 |
| Bracket Type | Adjustable (Draper / Standard / Elevated options) |
| Axle Type | Torsion |
| Axle Quantity | 2 |
| Axle Rating (lbs) | 6,000 each |

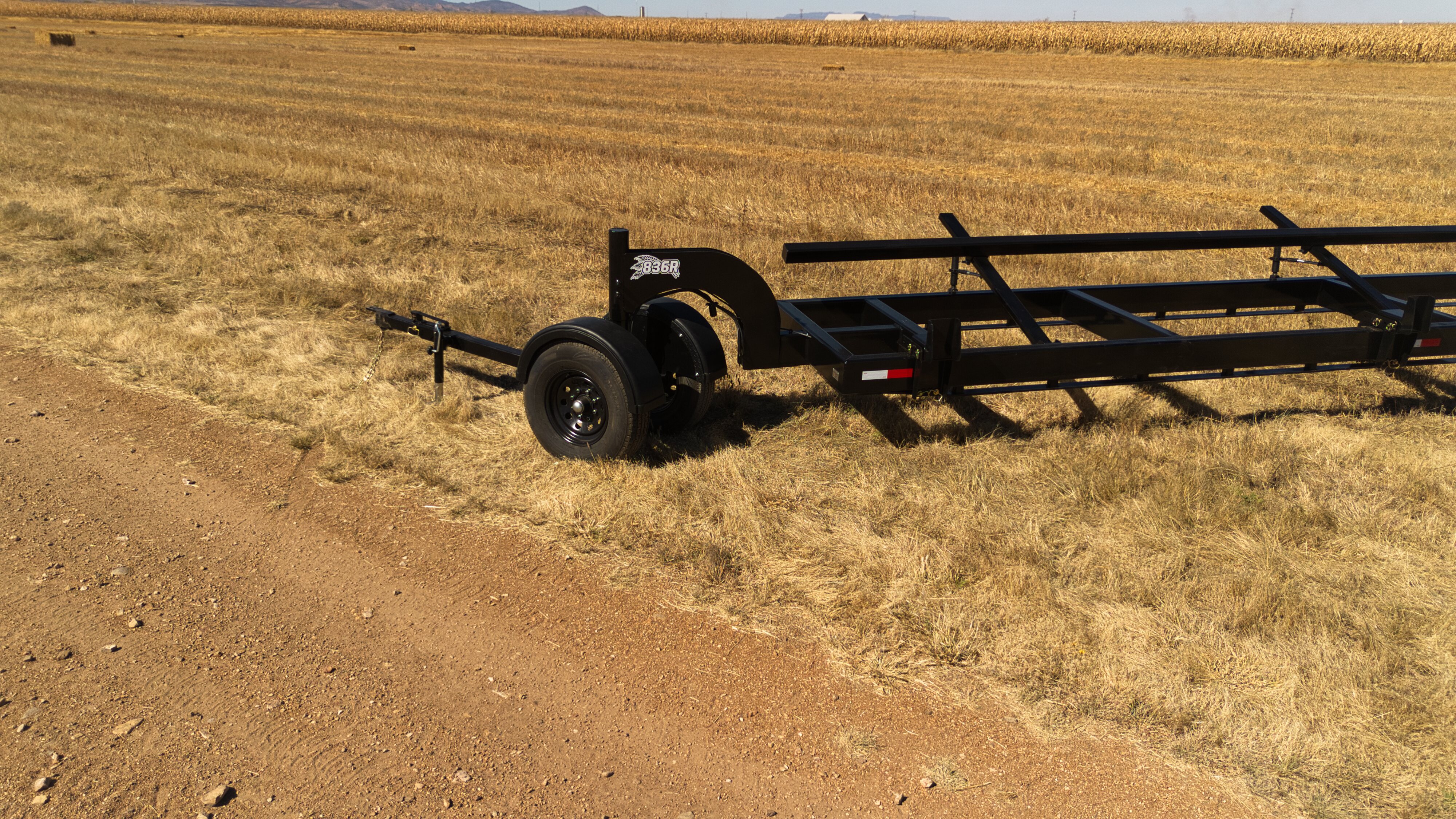

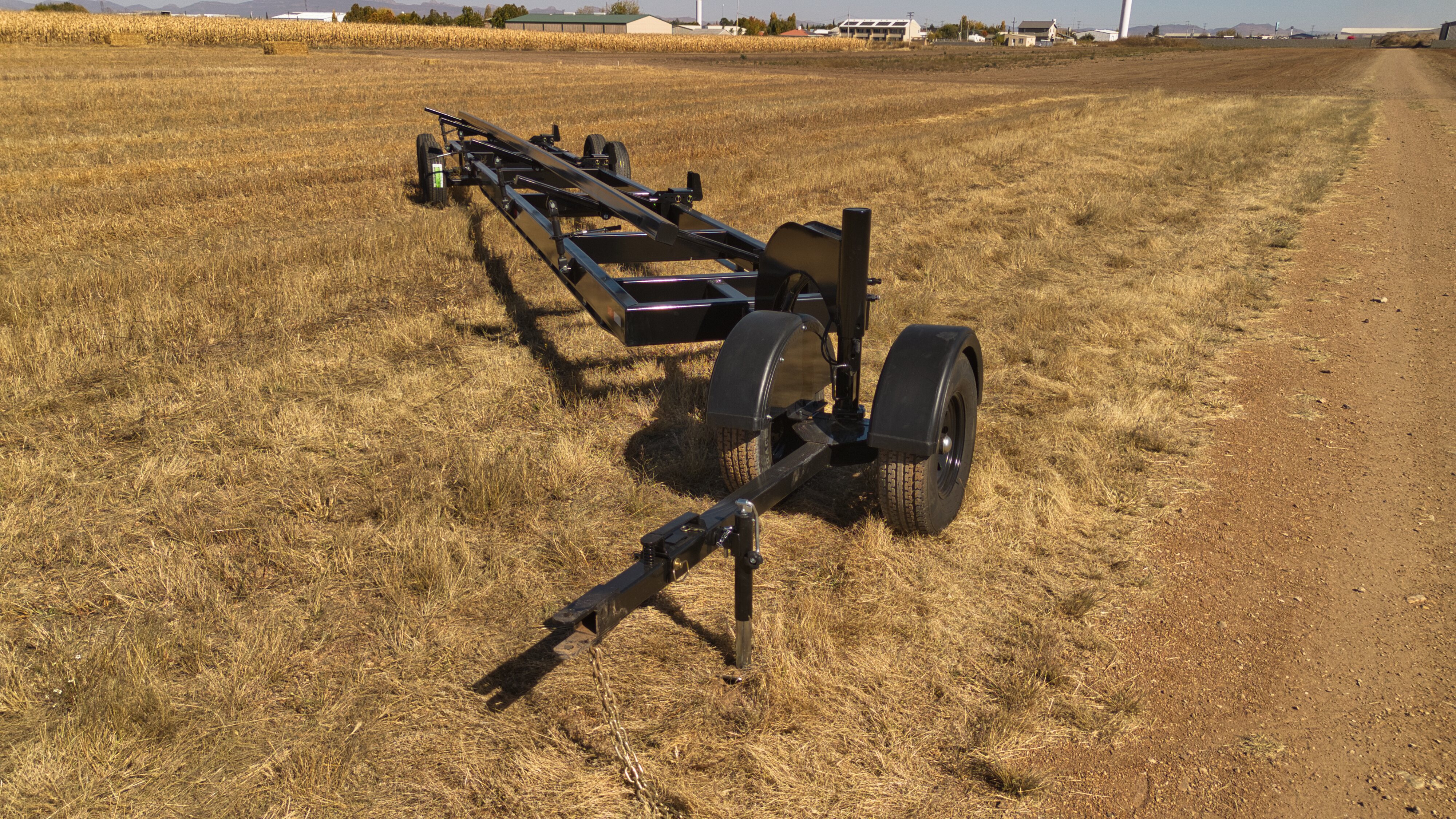

| Dolly Type | Swivel front dolly with plastic fenders and 6.5'–10.5' telescopic hitch |
| Dolly Axle Rating (lbs) | 7,000 |
| Suspension Type | Torsion |
| Wheel / Tire Size | ST235/80R16 |
| Tire Ply Rating | 10-ply (16-ply optional) |
| Brakes | Yes (electric) |
| Brake Axle(s) | 1 axle |
| Lights | Rear lights |
| Shipping Weight lbs | 4,620 lbs |
| GVWR (lbs) | 19,000 |

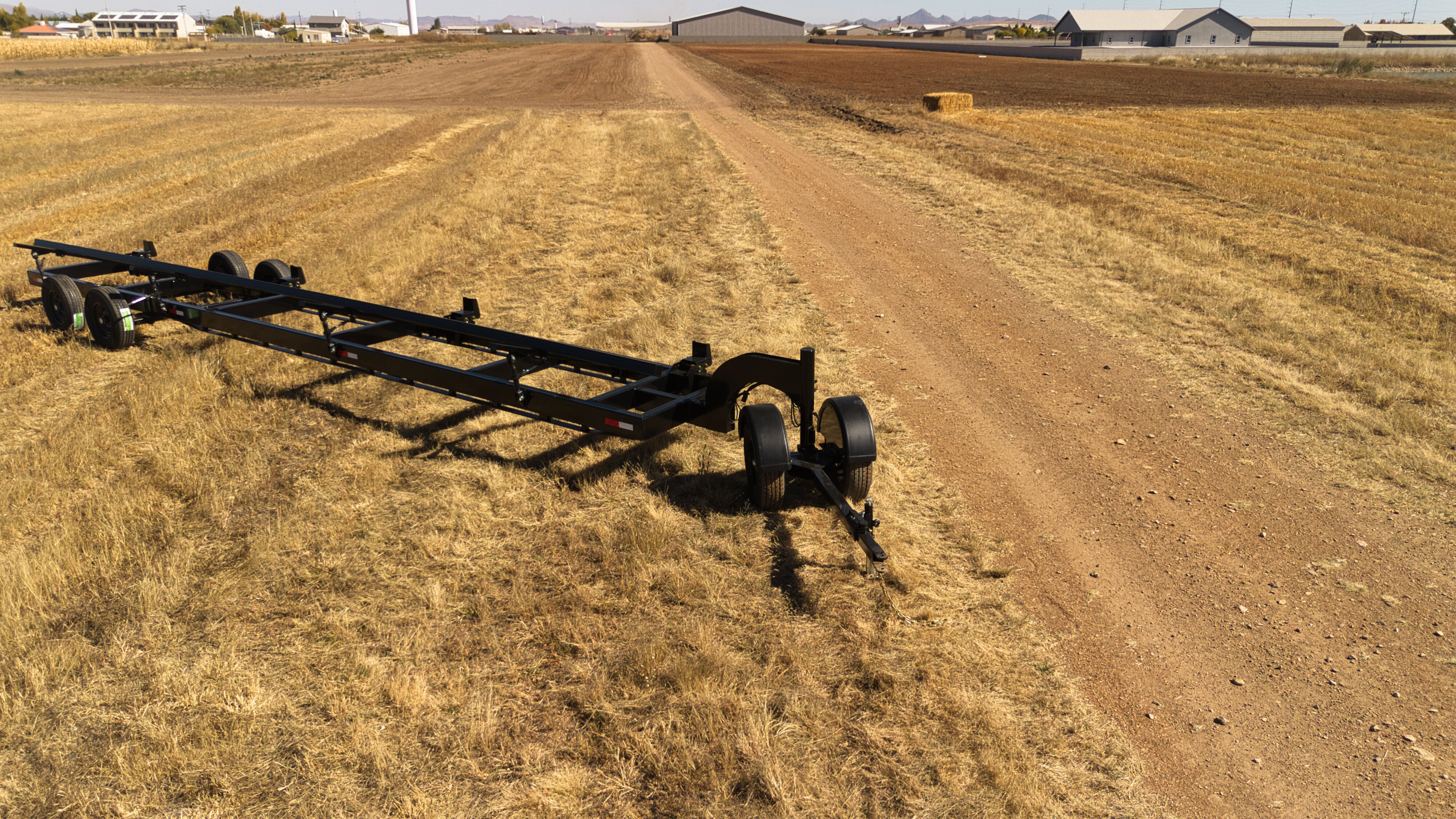

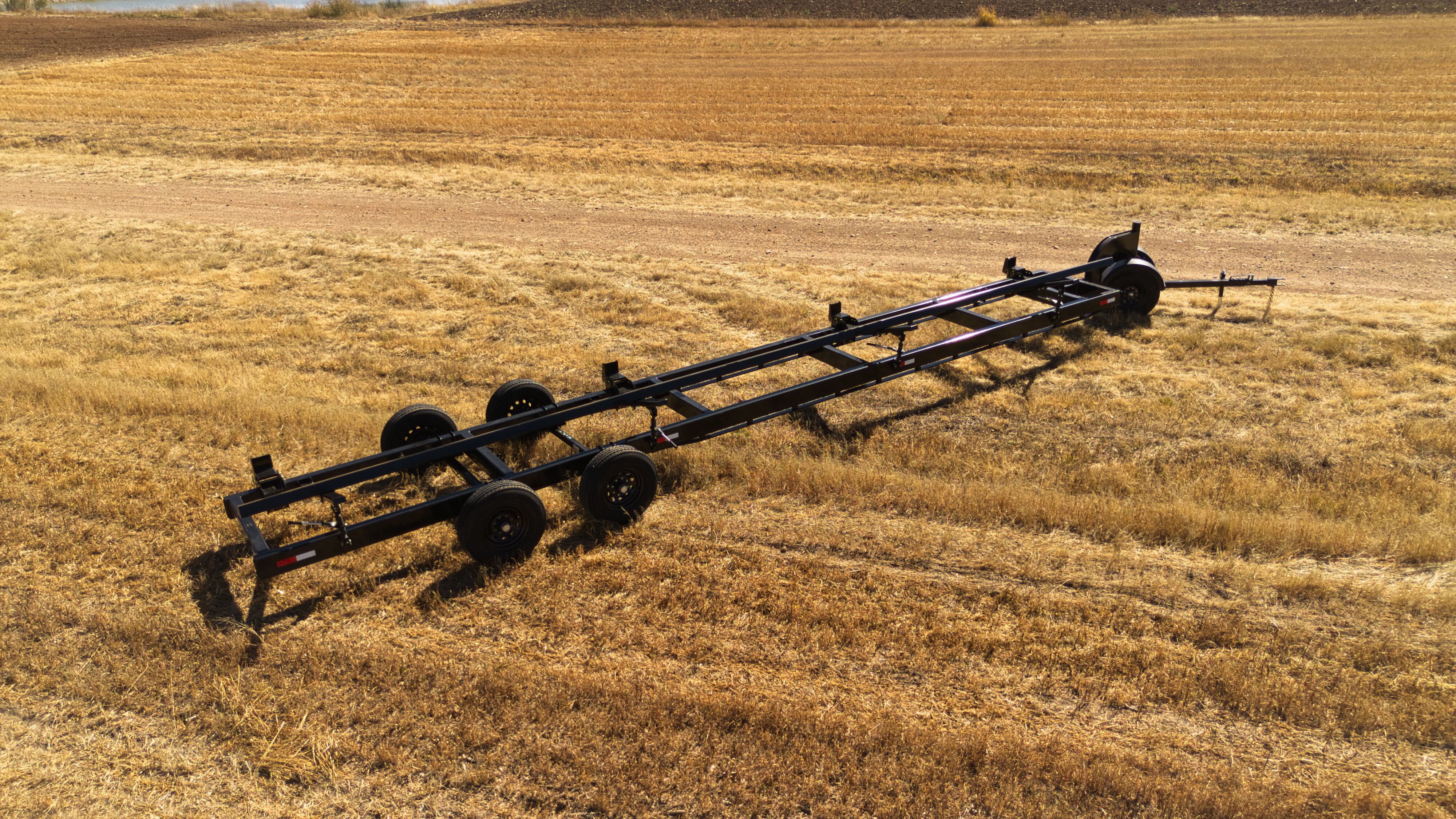

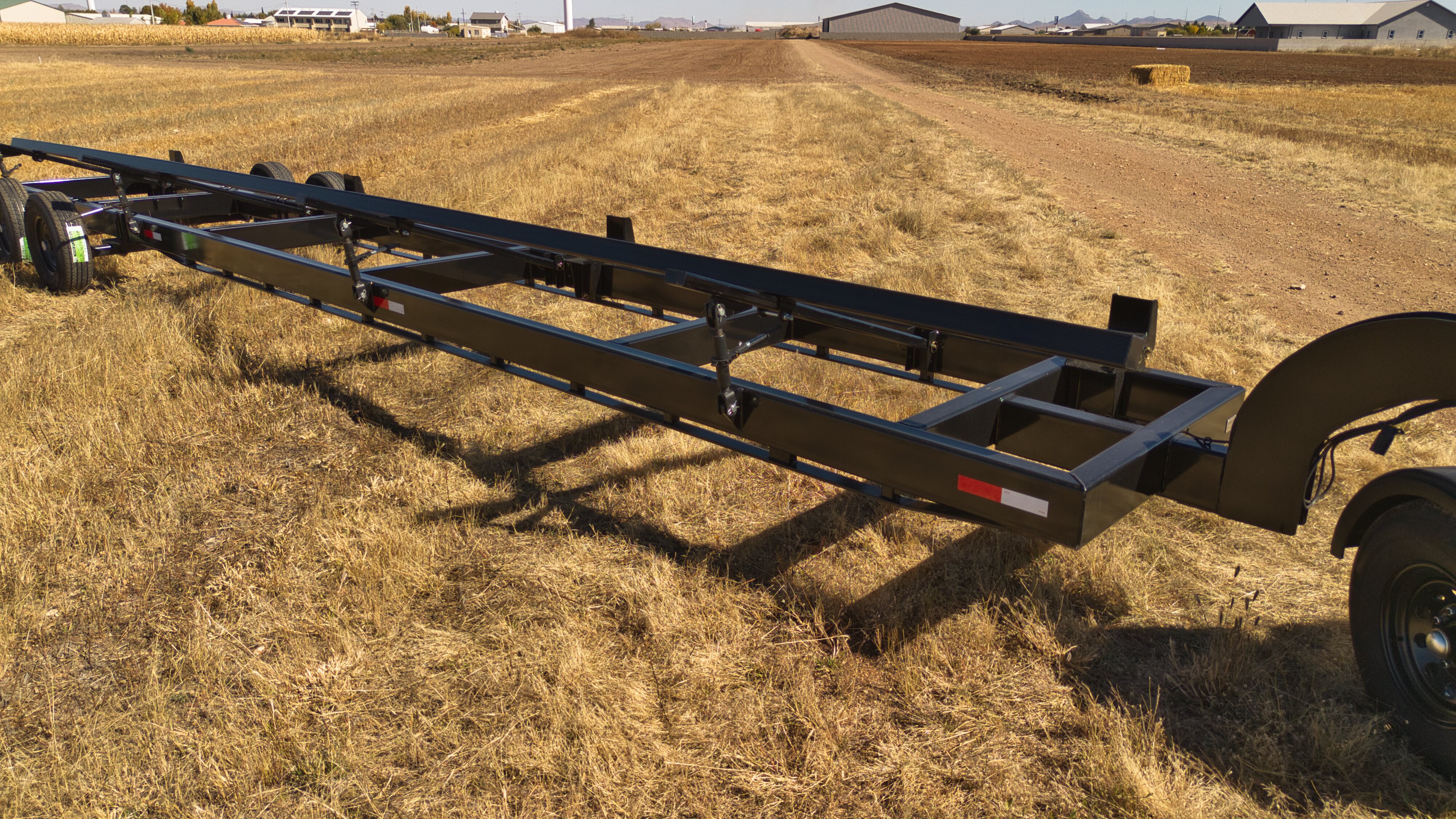

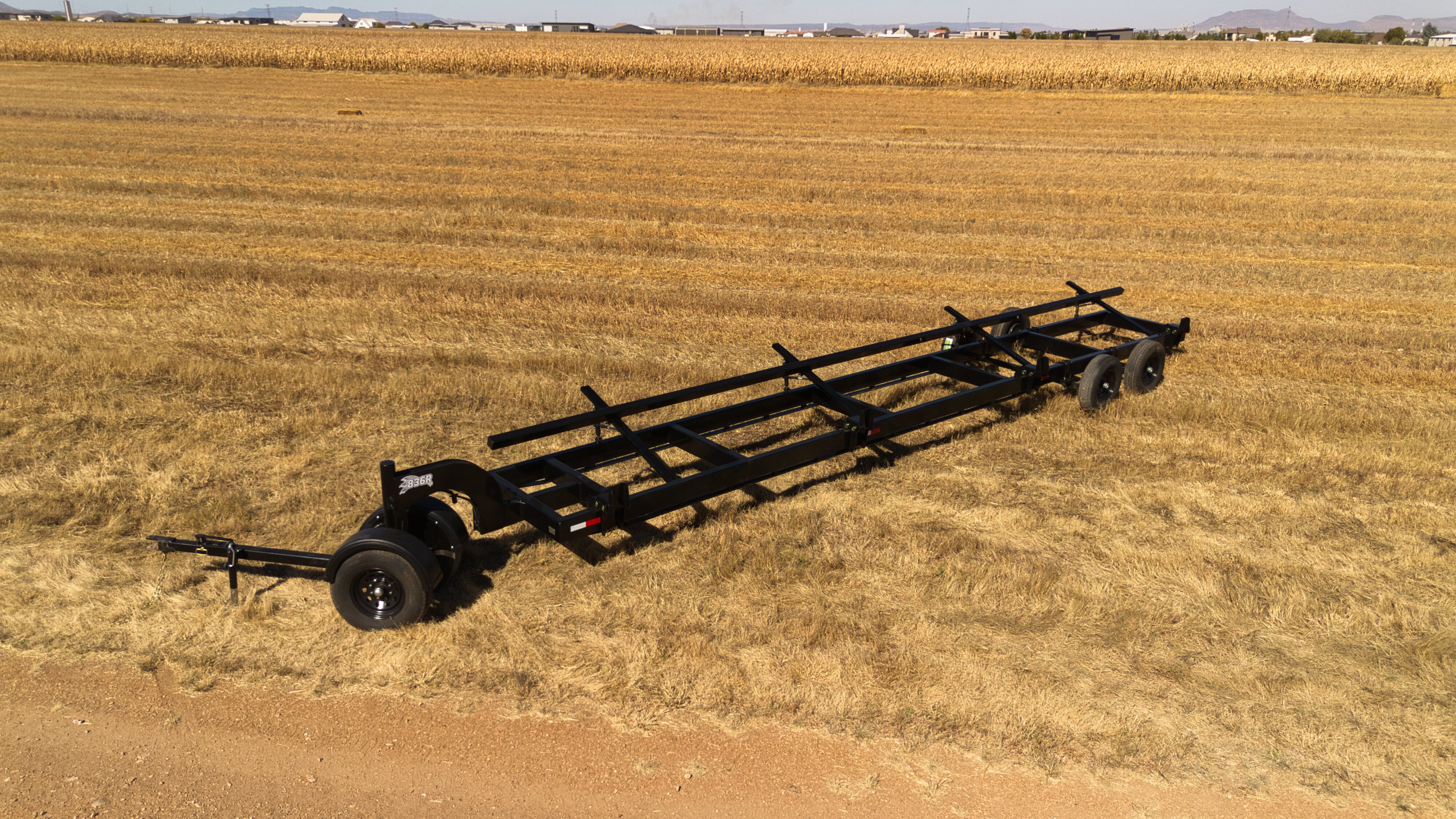

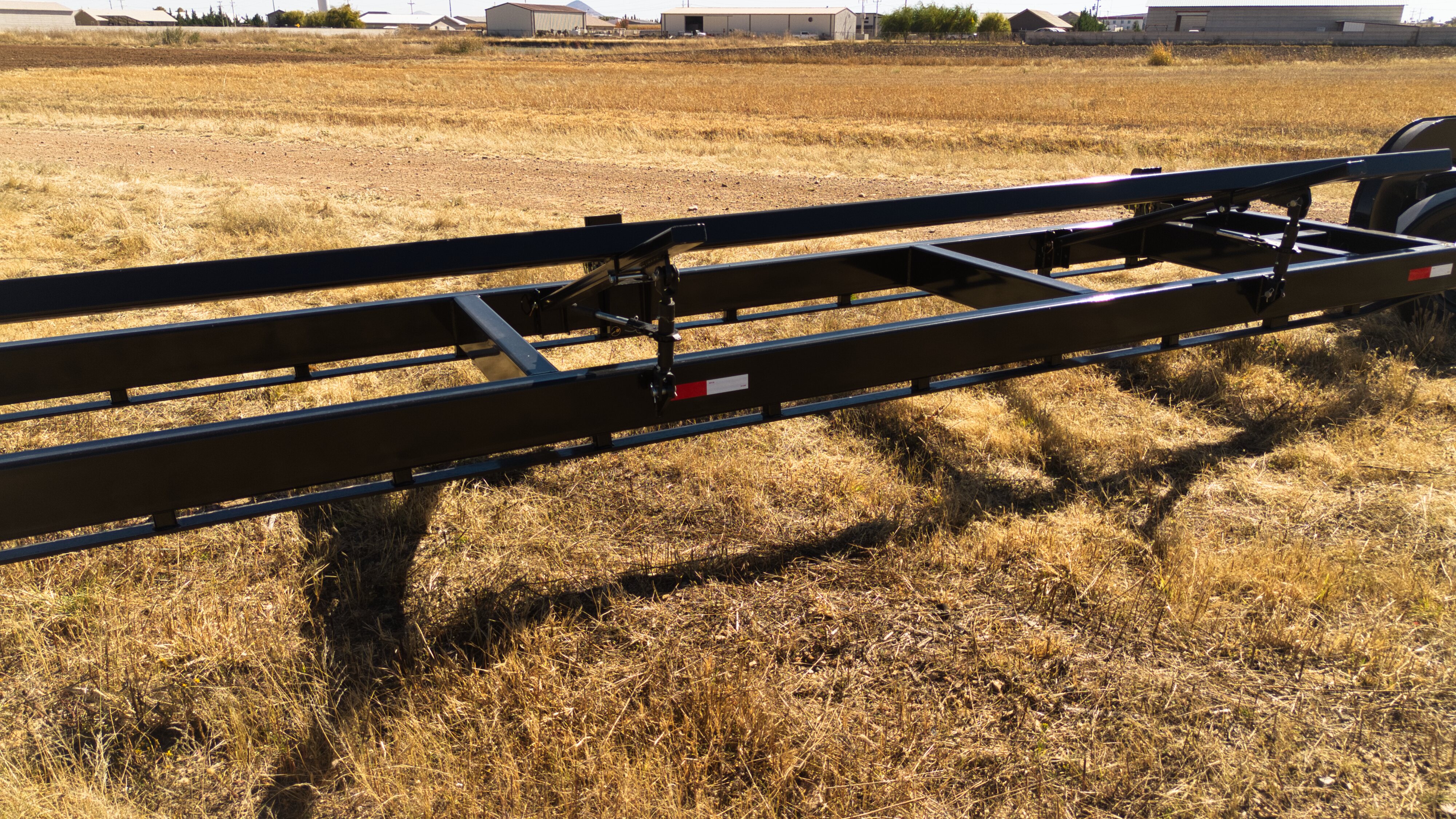

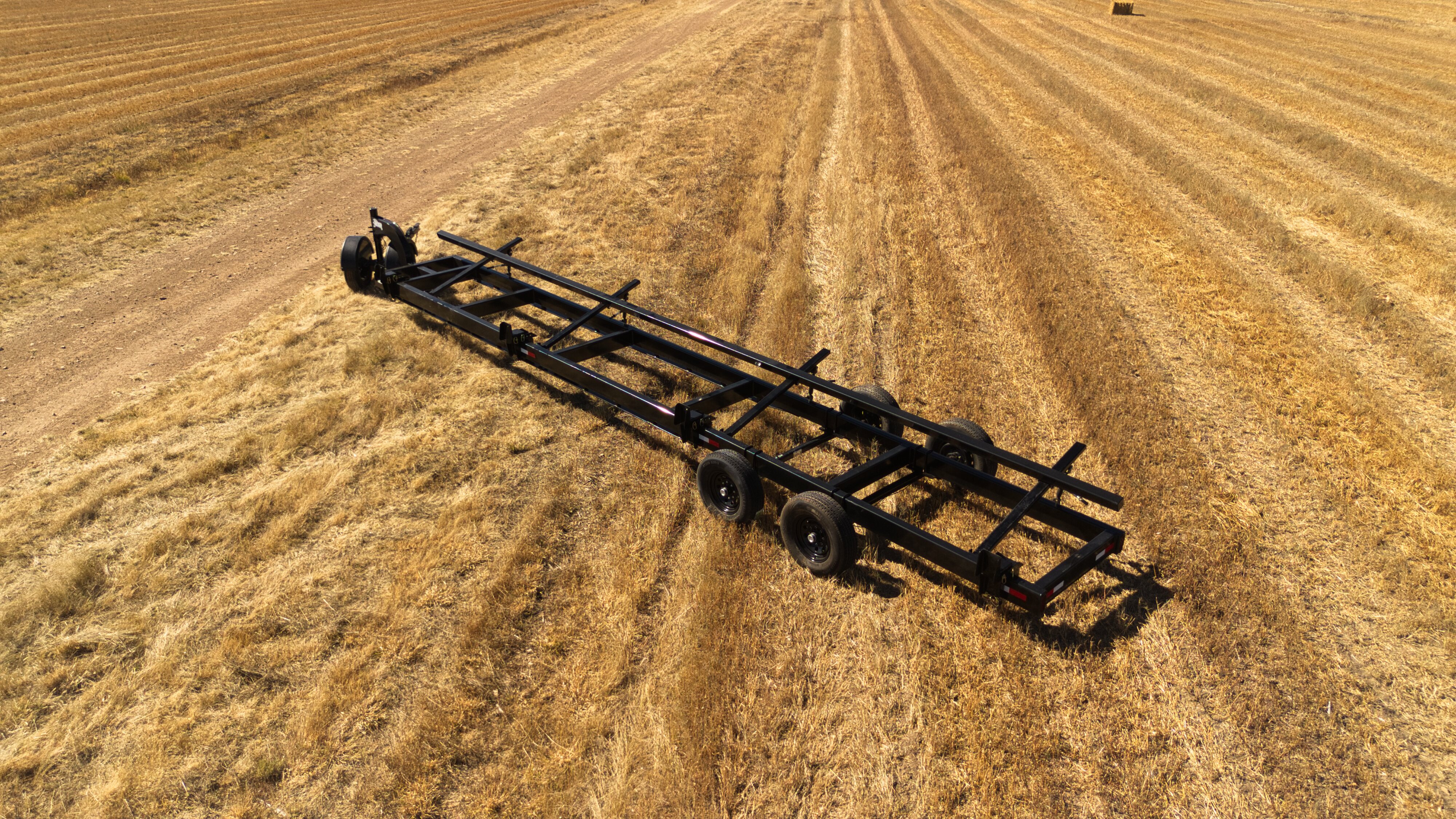

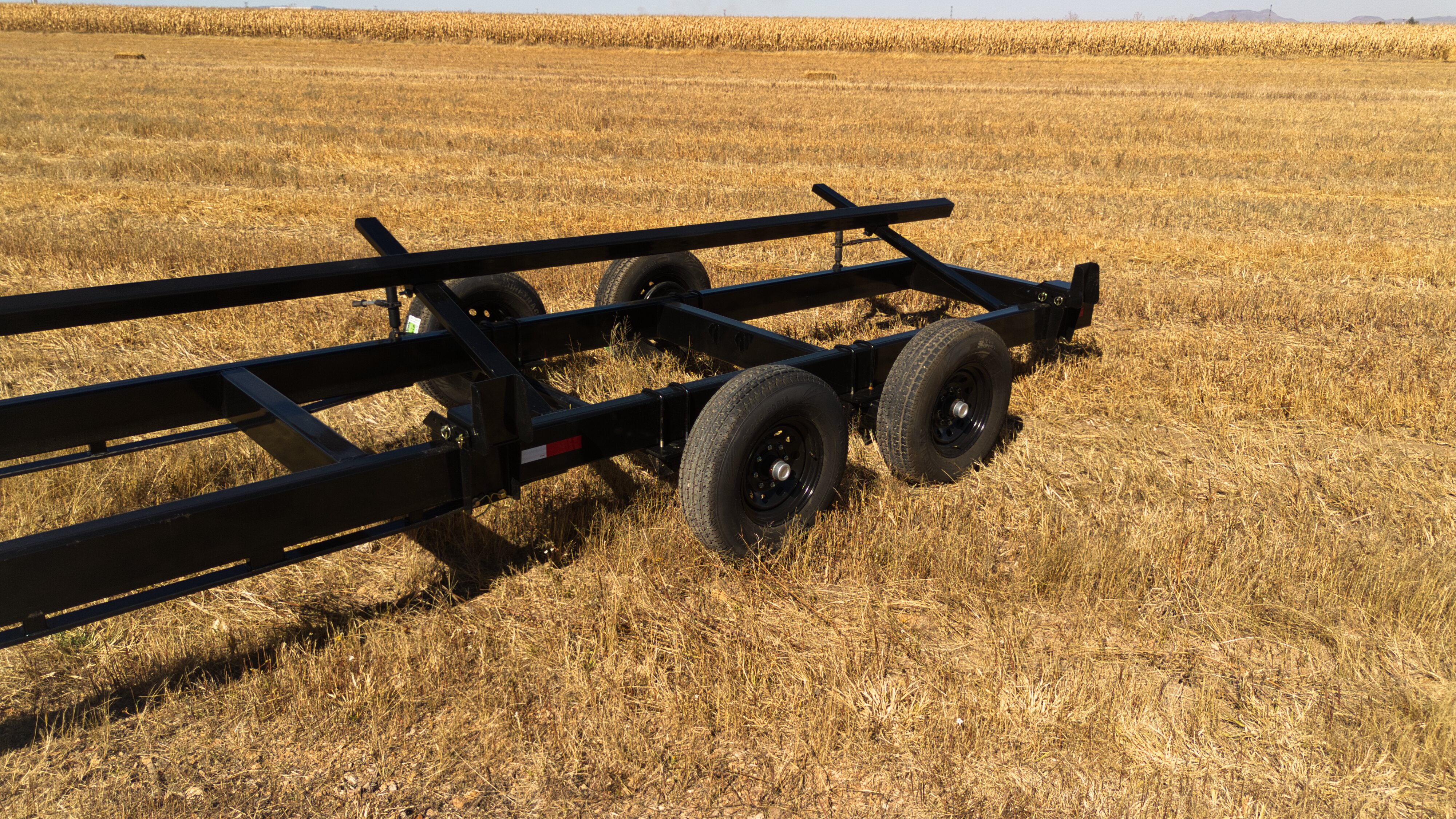

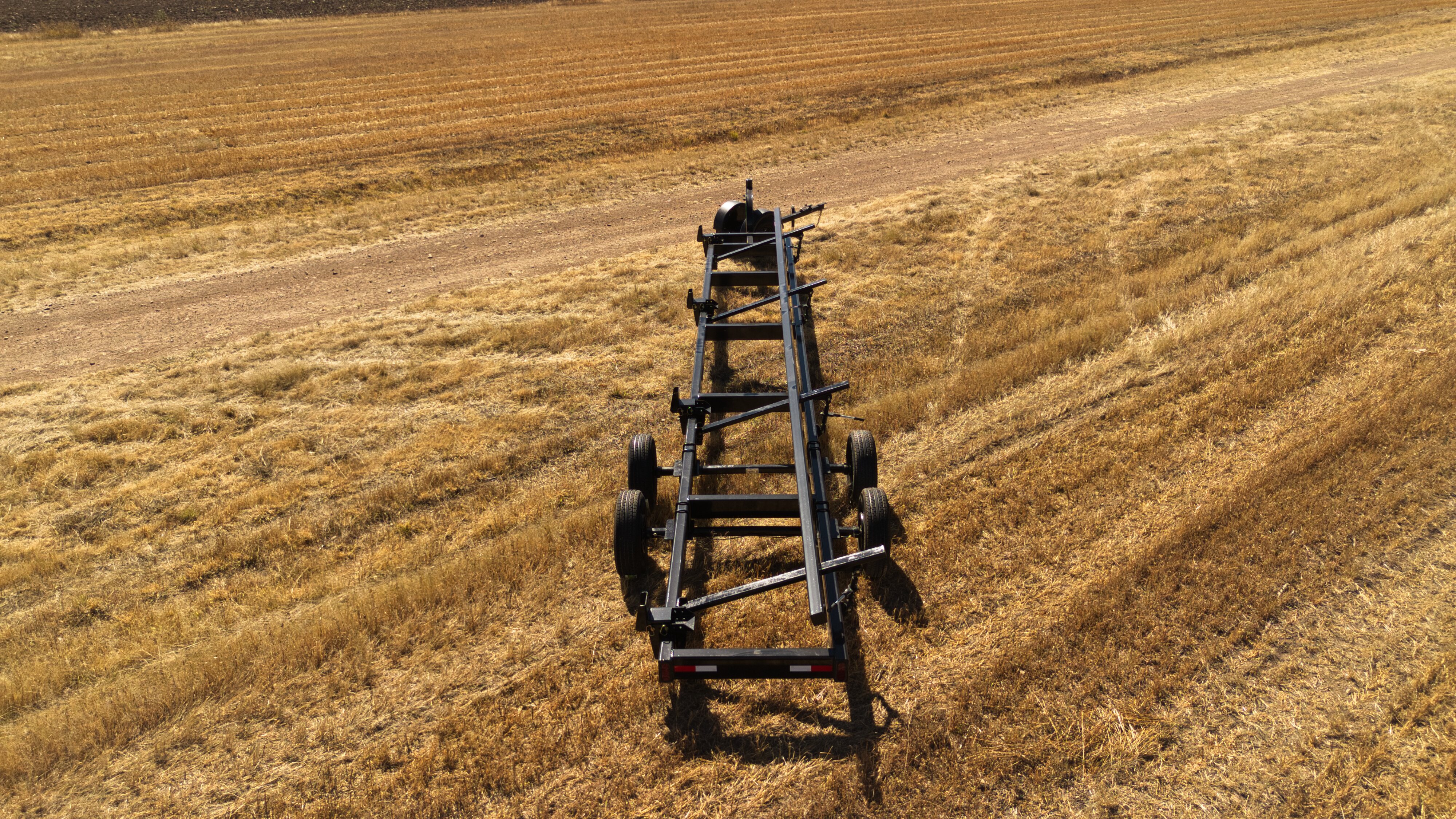

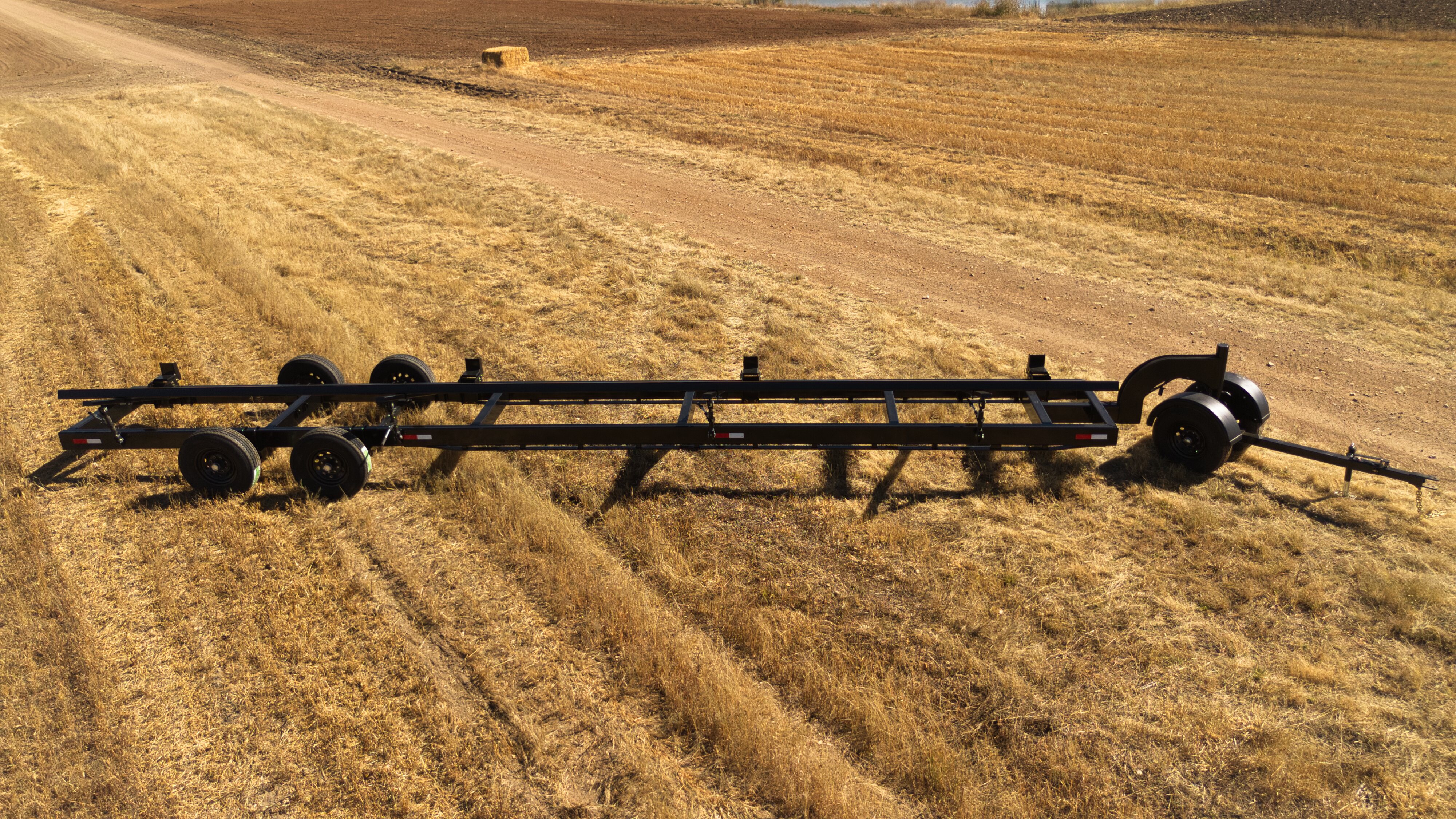

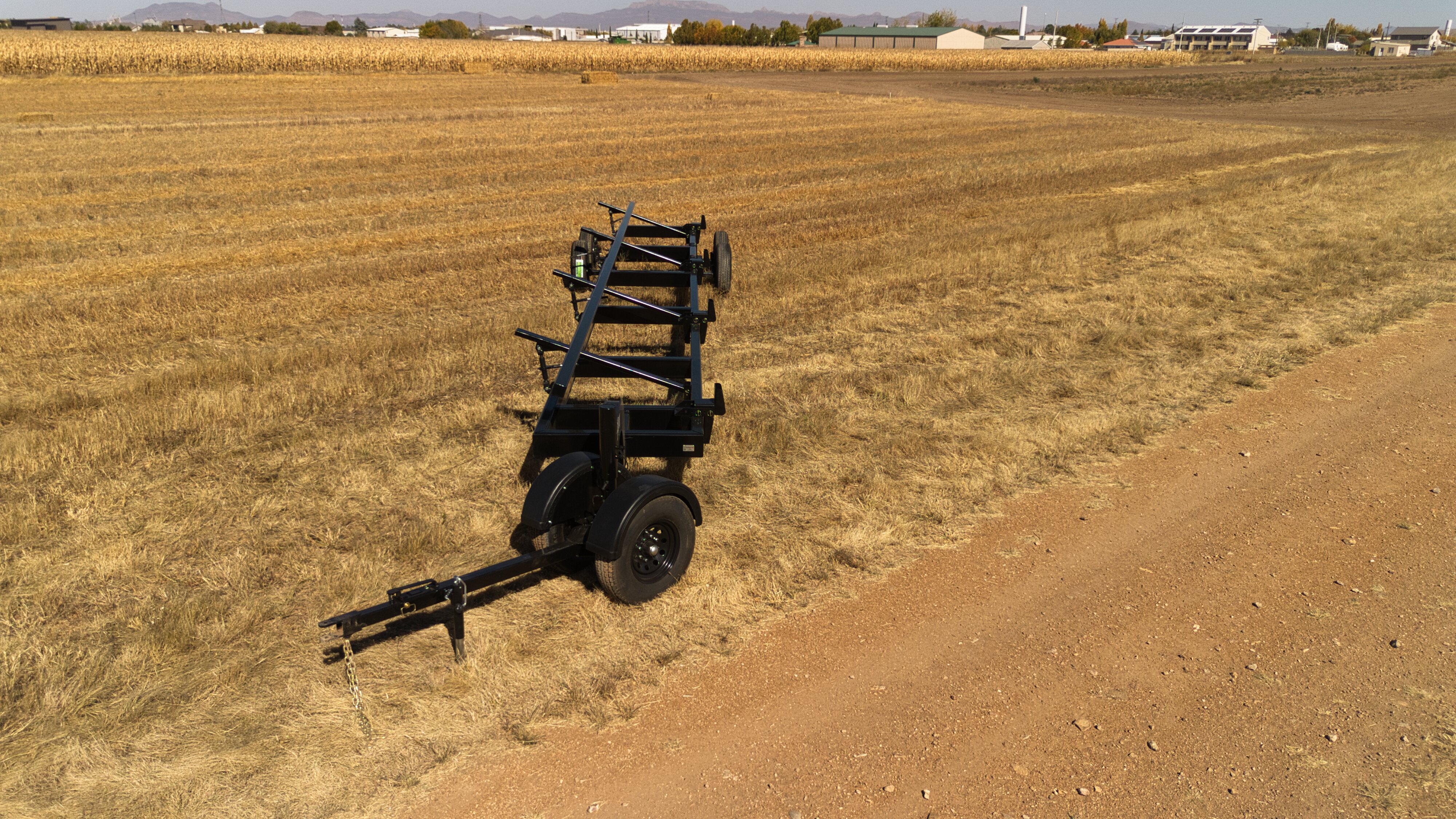

The R36 takes the adjustable-incline concept and stretches it out for 36’ headers, giving you more capacity without sacrificing handling. This wagon is aimed at serious operators who are putting a lot of acres under 30'+ drapers and need a trailer that keeps that header planted and stable. The adjustable 4x4 top rail lets you change how the header sits, whether you’re hauling a heavy draper or a lighter rigid head, so you’re not flexing or twisting the frame just to make it fit. Dual 6k torsion axles soak up washboards, field approaches, and farm-yard ruts, while the big front dolly with telescopic hitch makes it much easier to hook up on uneven ground or when lining up to a truck at an angle. Electric brakes on one axle help hold the train on hills and in highway traffic. For growers who move heads long distances and want their equipment protected and truly road-ready, the R36 is a strong, practical choice.
