Specifications
| Feature | Description |
|---|---|
| Trailer Type | Gooseneck |
| Load Type | Deckover |
| Deck Length | 35 ft |
| Deck Width | 102 in |
| Overall Length | 43 ft |
| Overall Width | 102 in |
| Deck Material | Pine |
| Deck Finish | Stained |
| Trailer Weight | 8,686 lb |
| Load Capacity | 11,314 lb |
| GVWR | 20,000 lb |
| Axle Count | 2 |
| Axle Rating | 10,000 lb each |
| Axle Type | Straight |
| Suspension | Leaf spring |
| Brakes | Electric |
| Tire Size | 235/80R16 |
| Wheel Type | Steel |
| Spare Tire Mount | Yes |
| Deck Type | Dovetail |

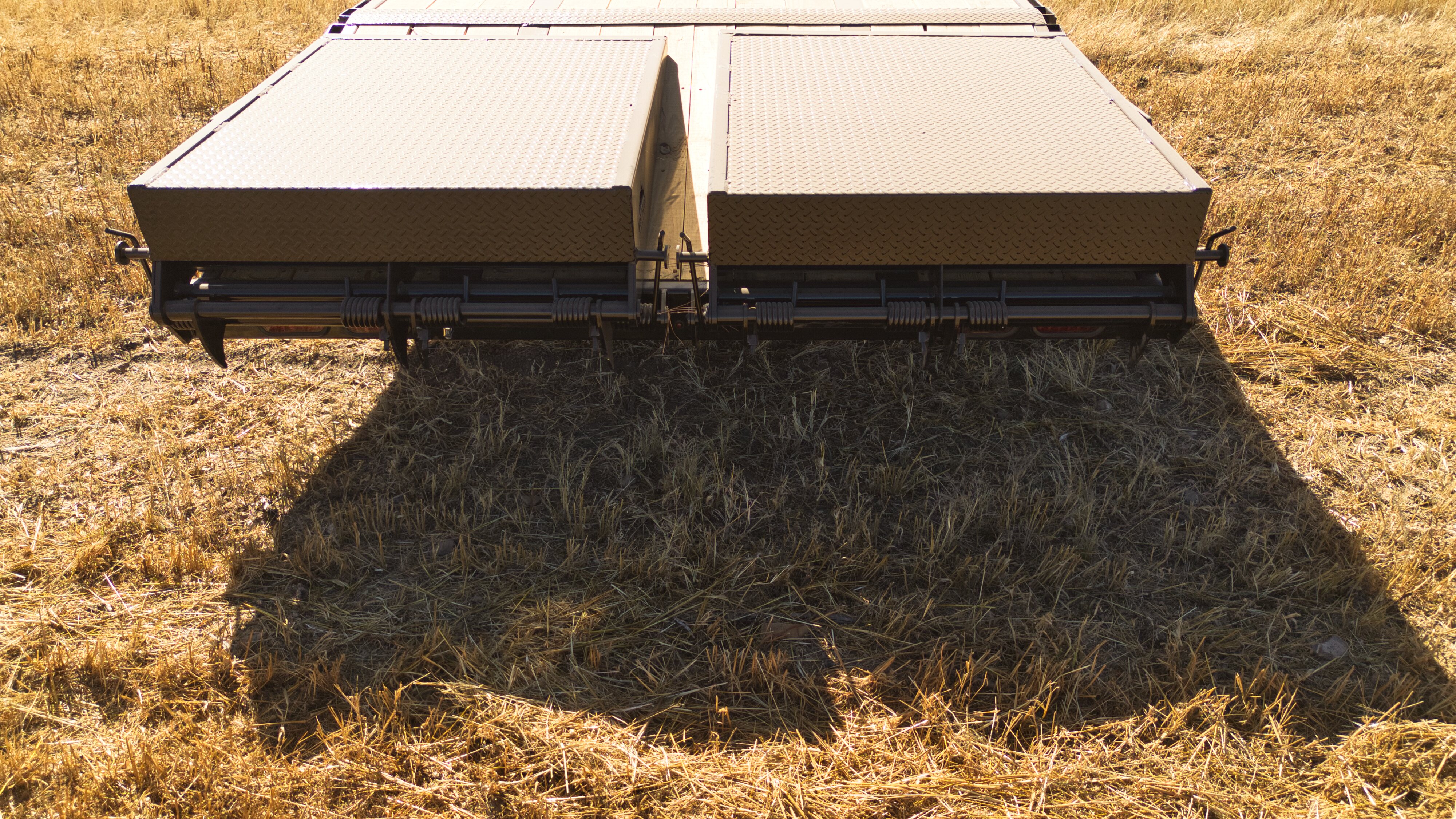

| Ramps | Flip-over, 6 ft |
| Rub Rails | Yes |
| Toolbox | Lockable |
| Lighting | LED, DOT approved |
| Coupler | Gooseneck 2-5/16" |
| Jack | Dual drop-leg |
| Finish | Powder coat |
| Notes | Heavy-duty model for machinery transport |

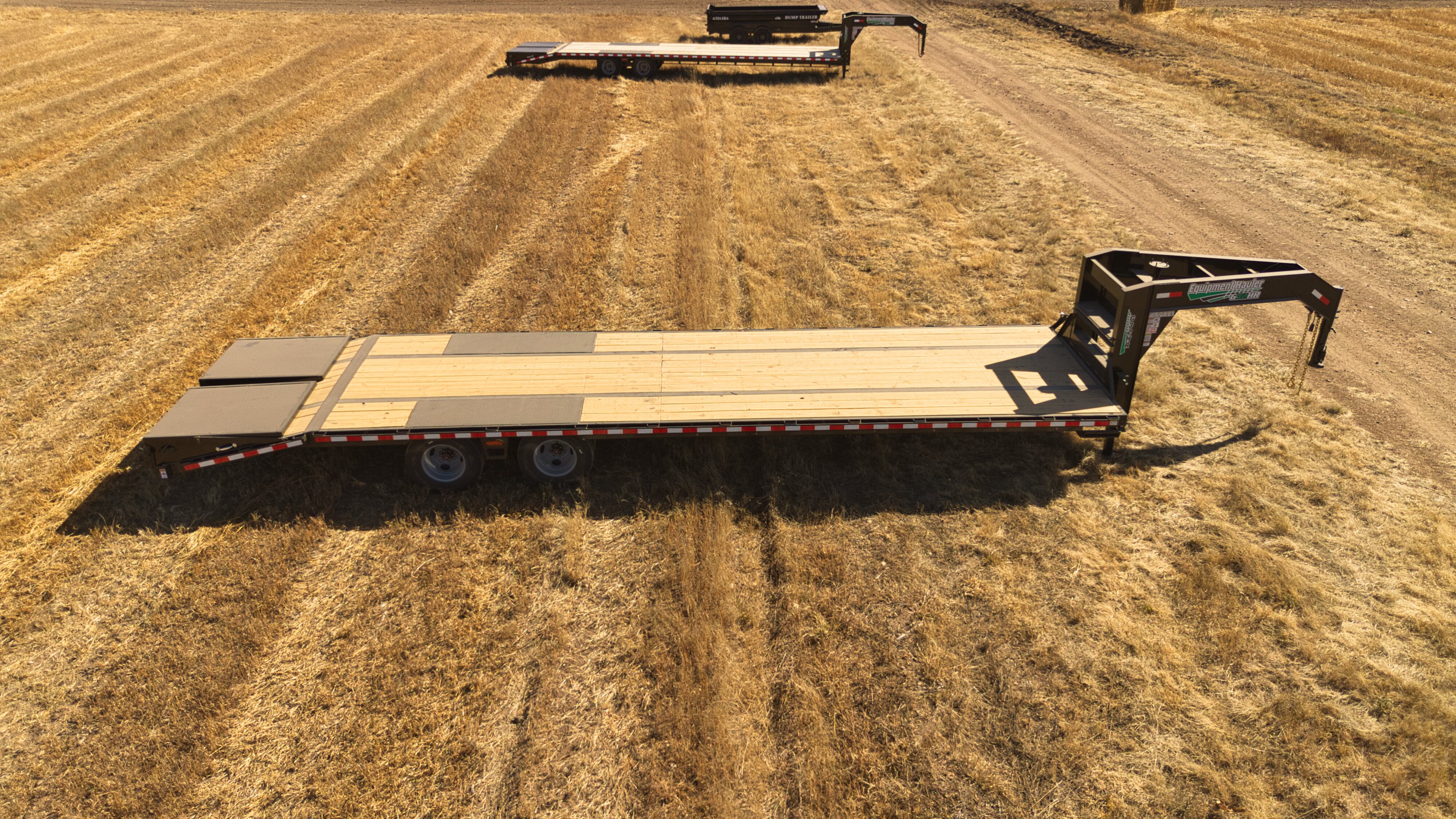

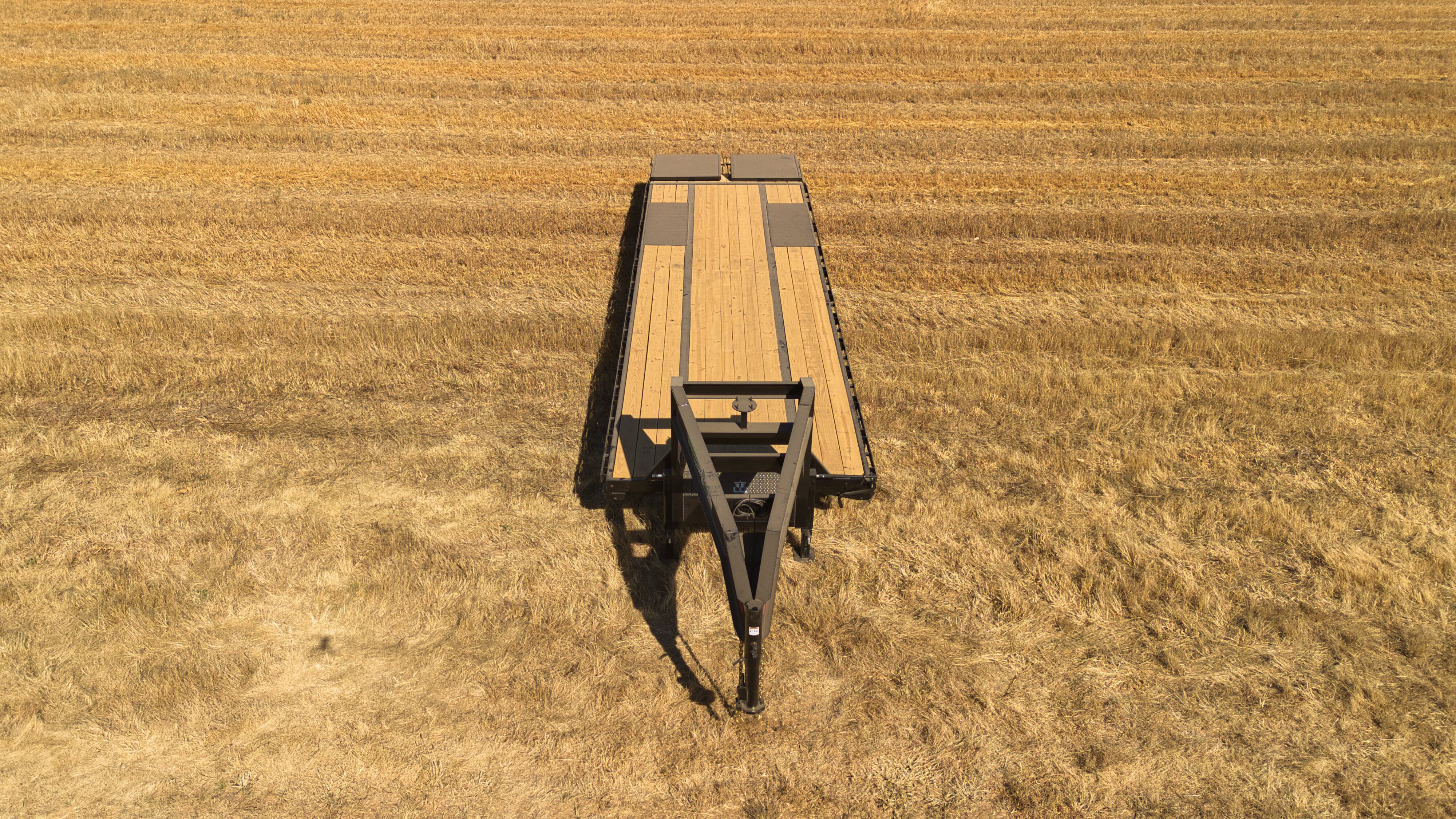

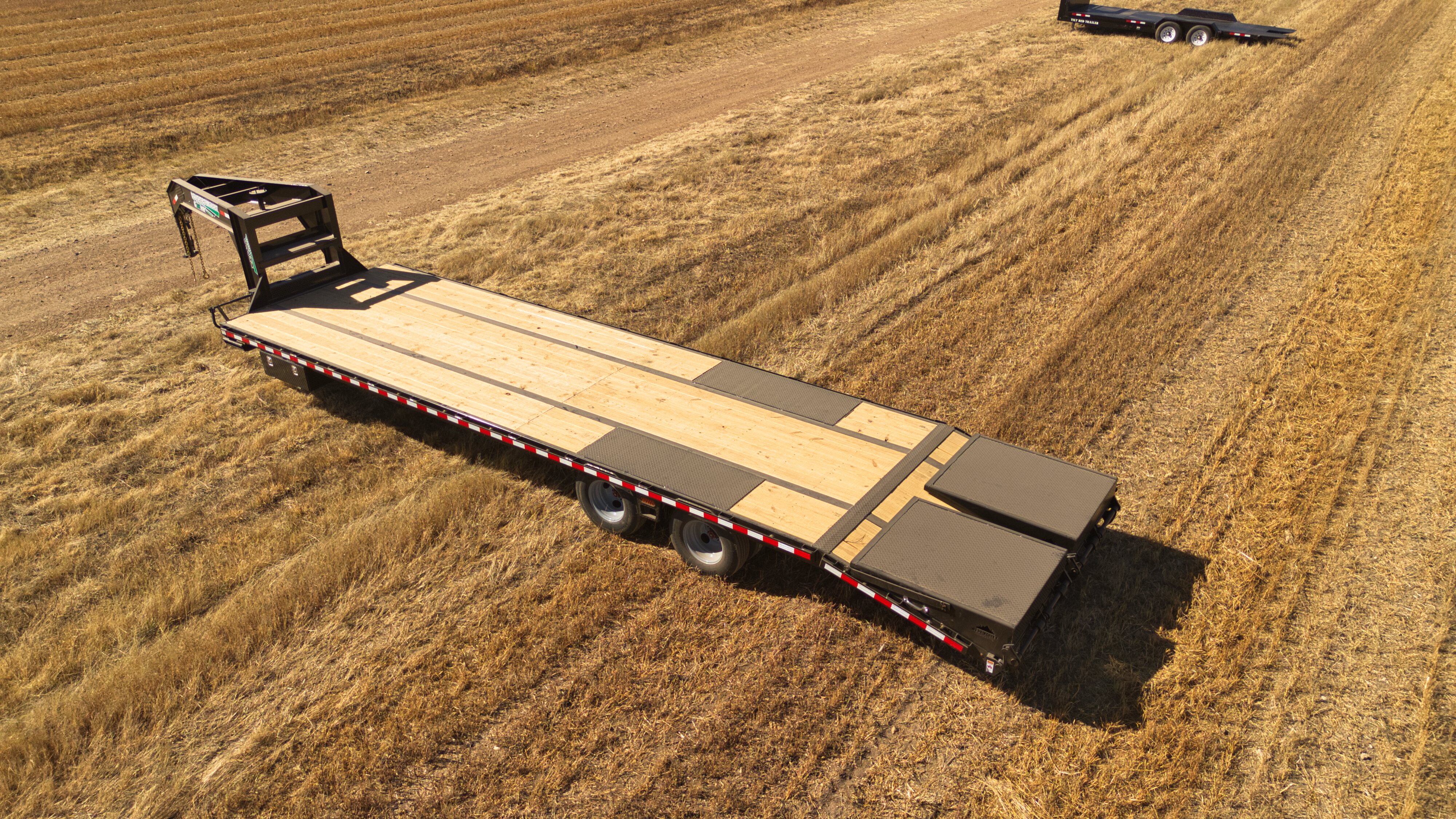

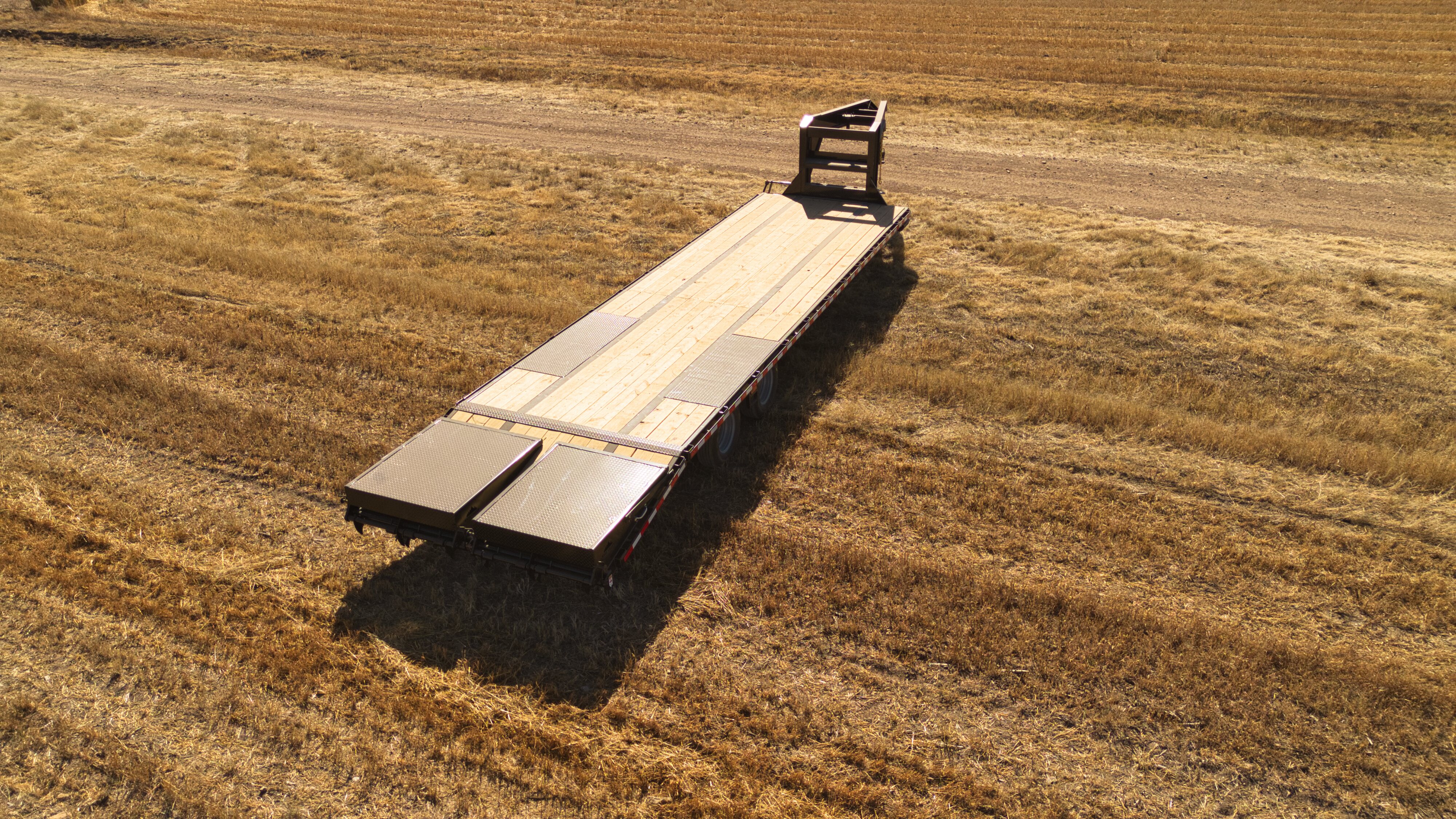

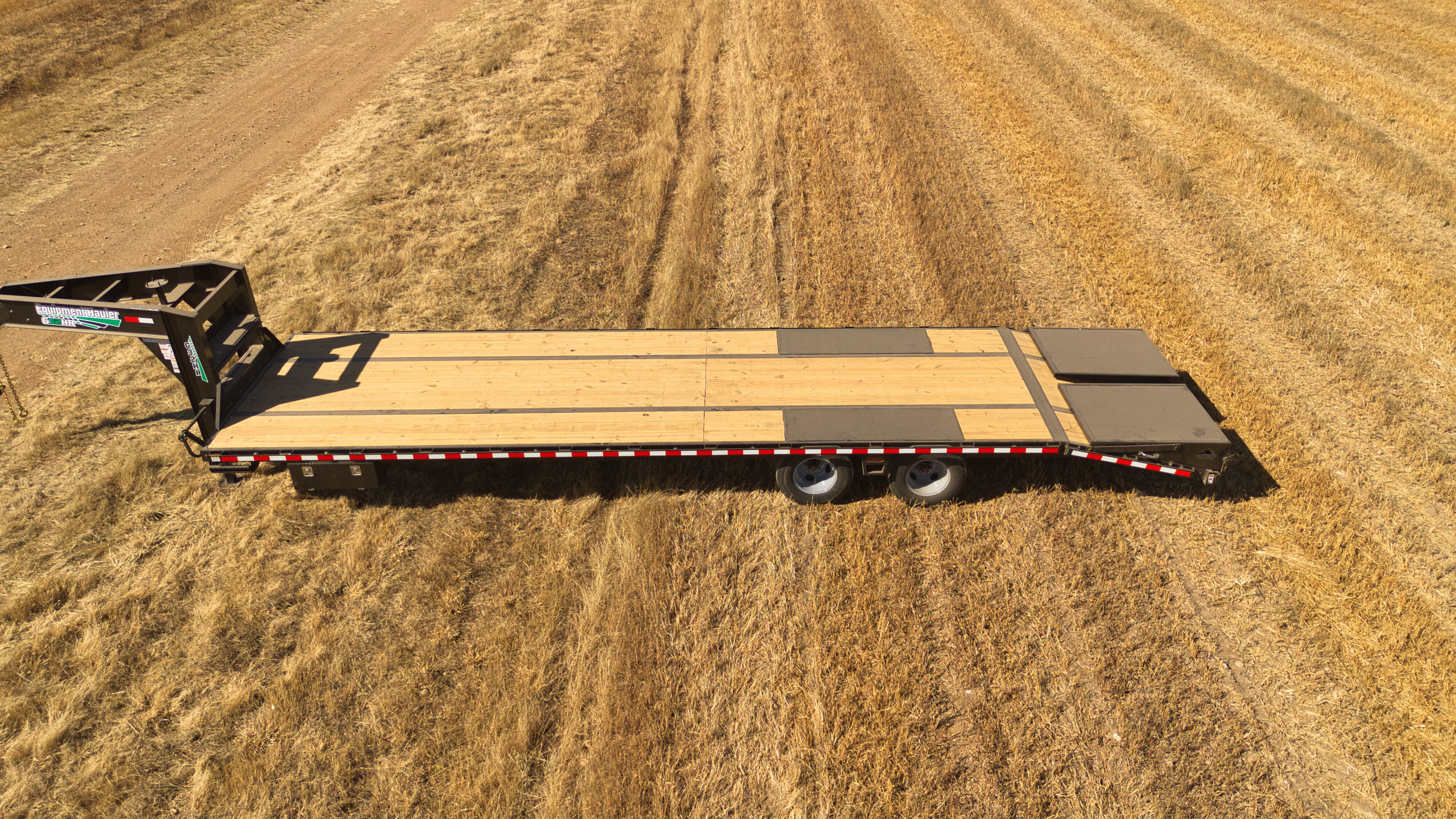

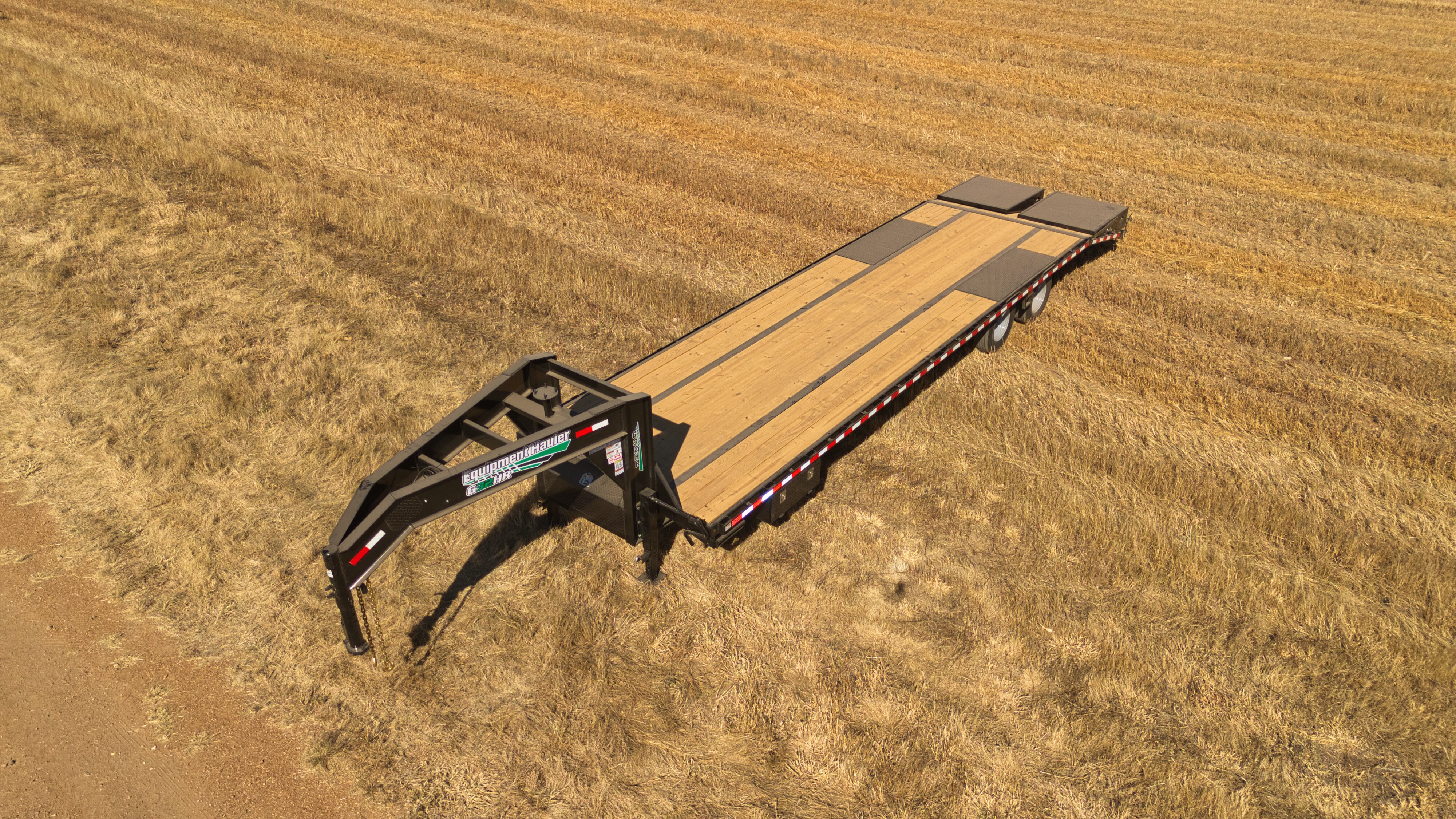

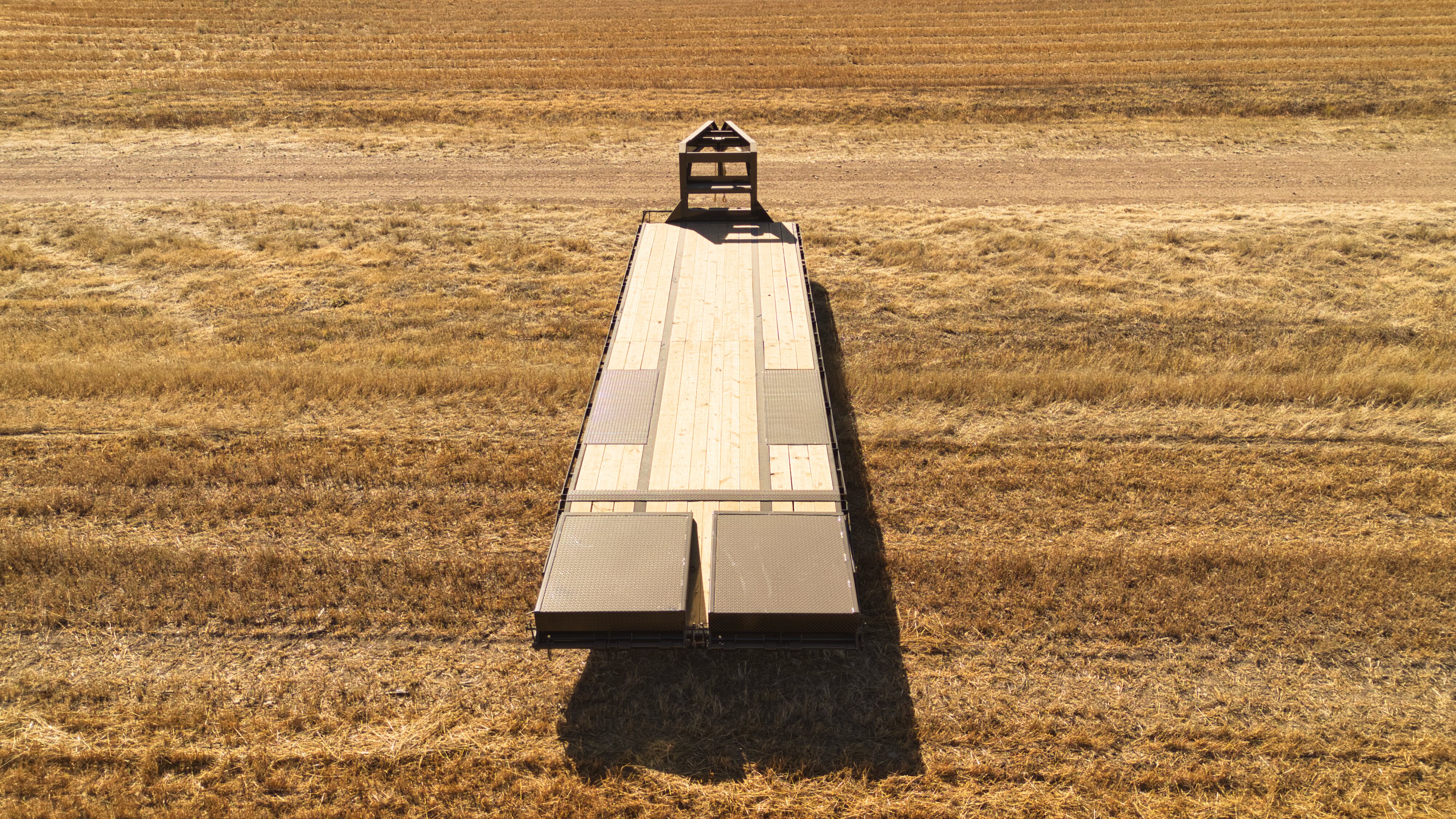

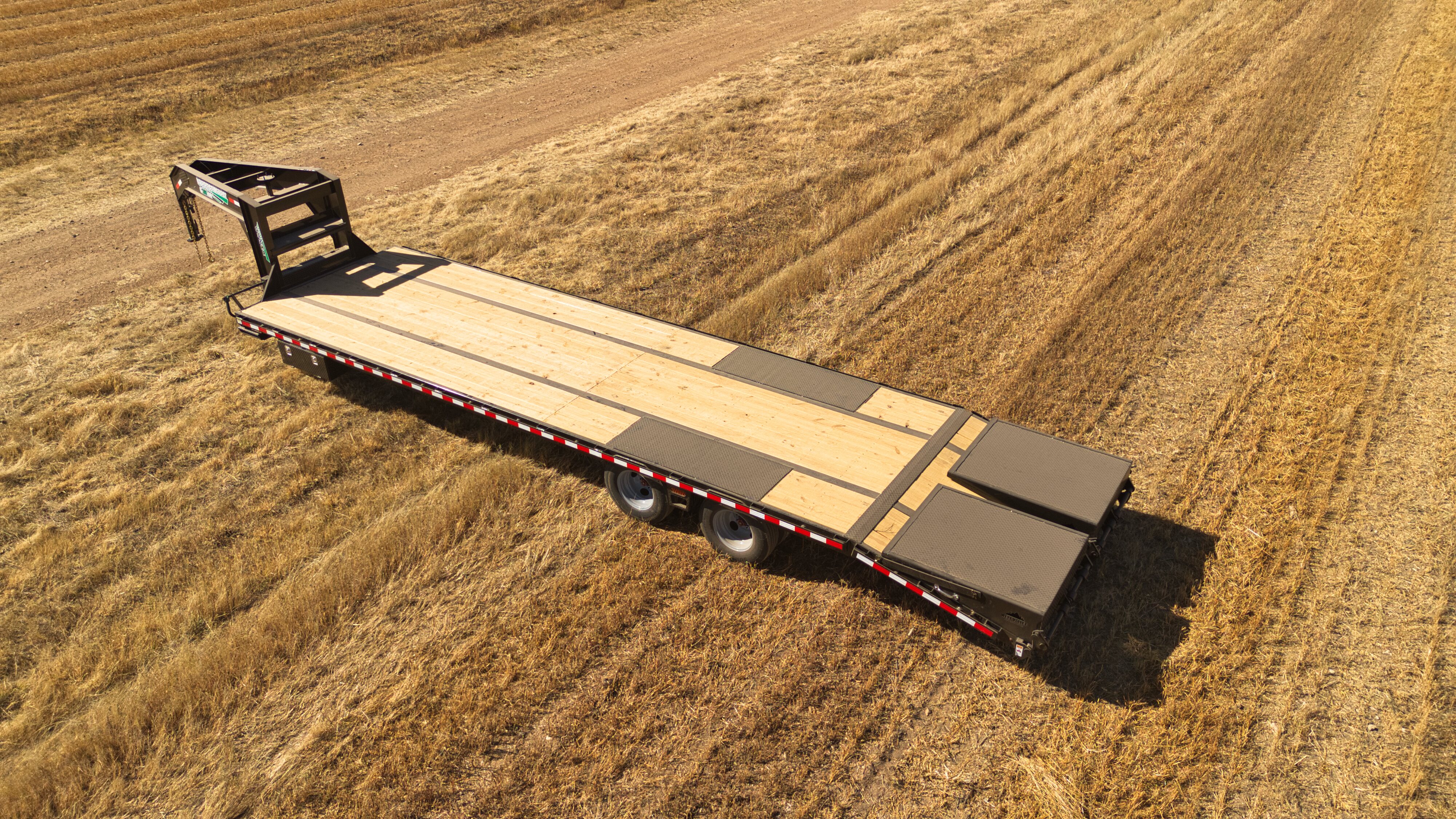

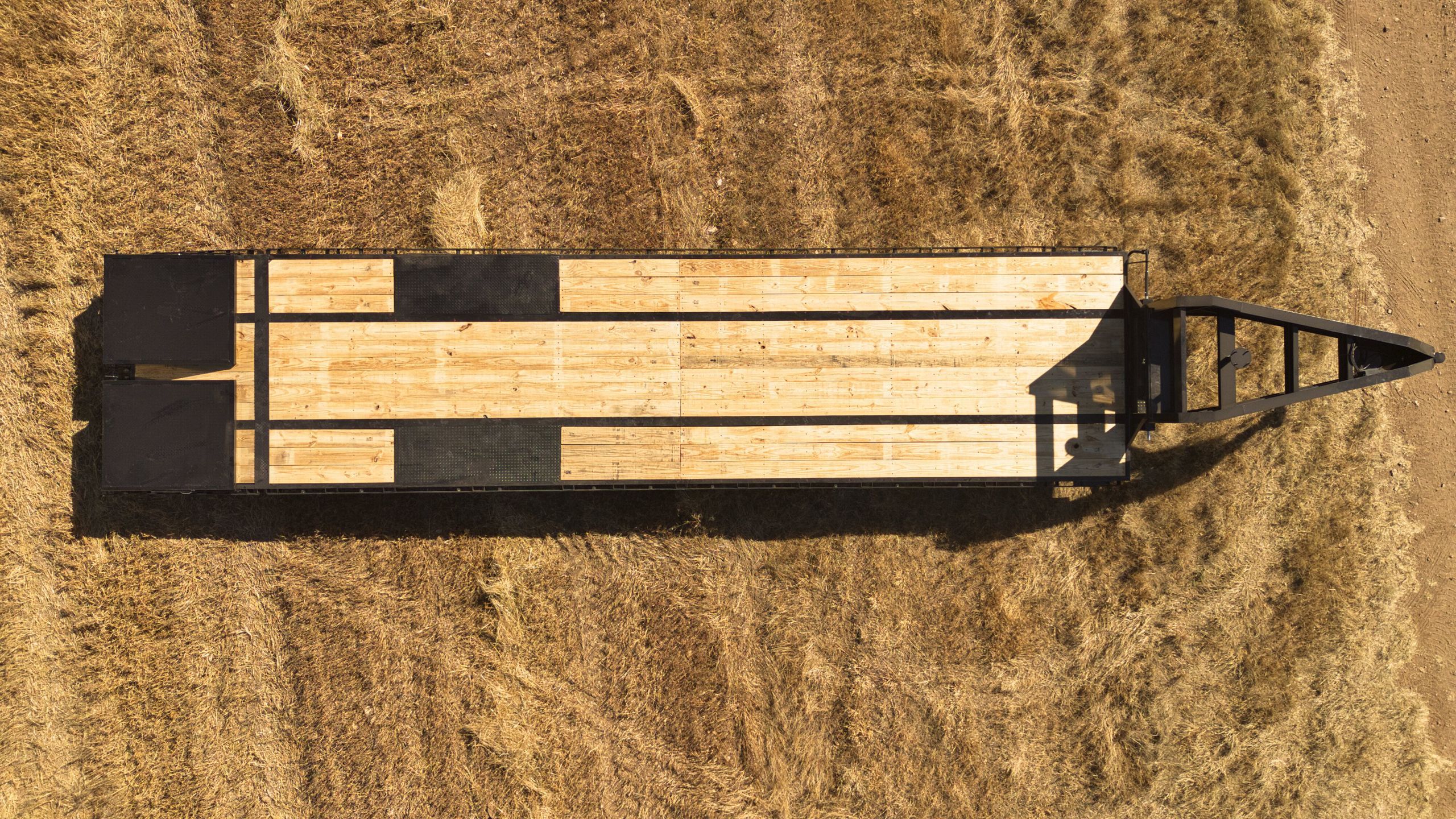

The G35HR is a heavy-duty gooseneck deckover trailer built for hauling larger and heavier equipment. With a 35-foot deck, it offers extra room for longer machines or multiple pieces of equipment, making it well suited for contractors, farmers, and commercial operators. An pine deck provides added durability for frequent loading, while tandem 10K axles and electric brakes give the trailer confident handling under load. This model is designed for operators who push their trailers hard and need a platform that holds up over time.
