Specifications
| Feature | Description |
|---|---|
| Bucket Type | Grapple Bucket |
| Compatible Equipment | Skid steer (aux hydraulics required) |

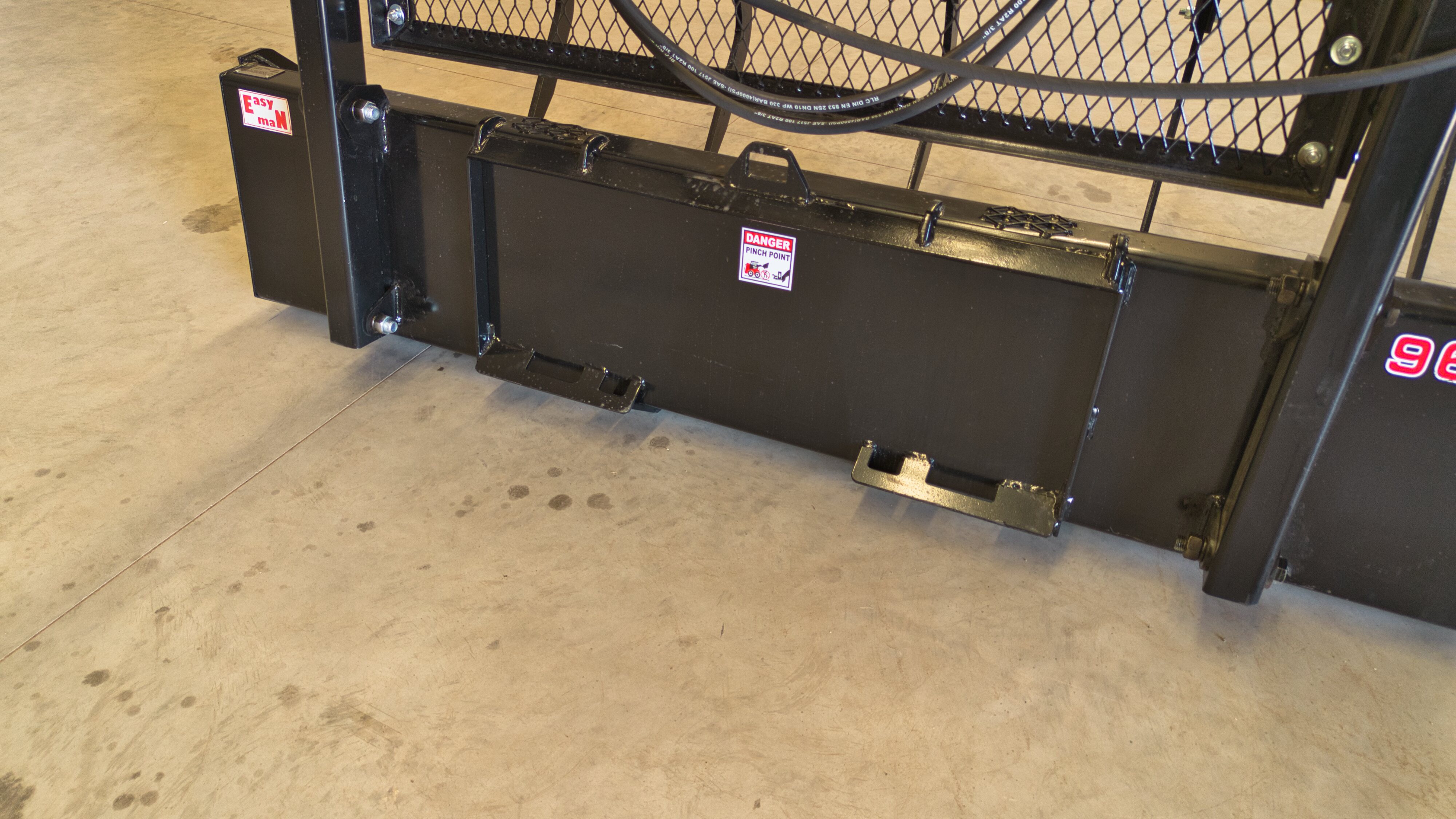

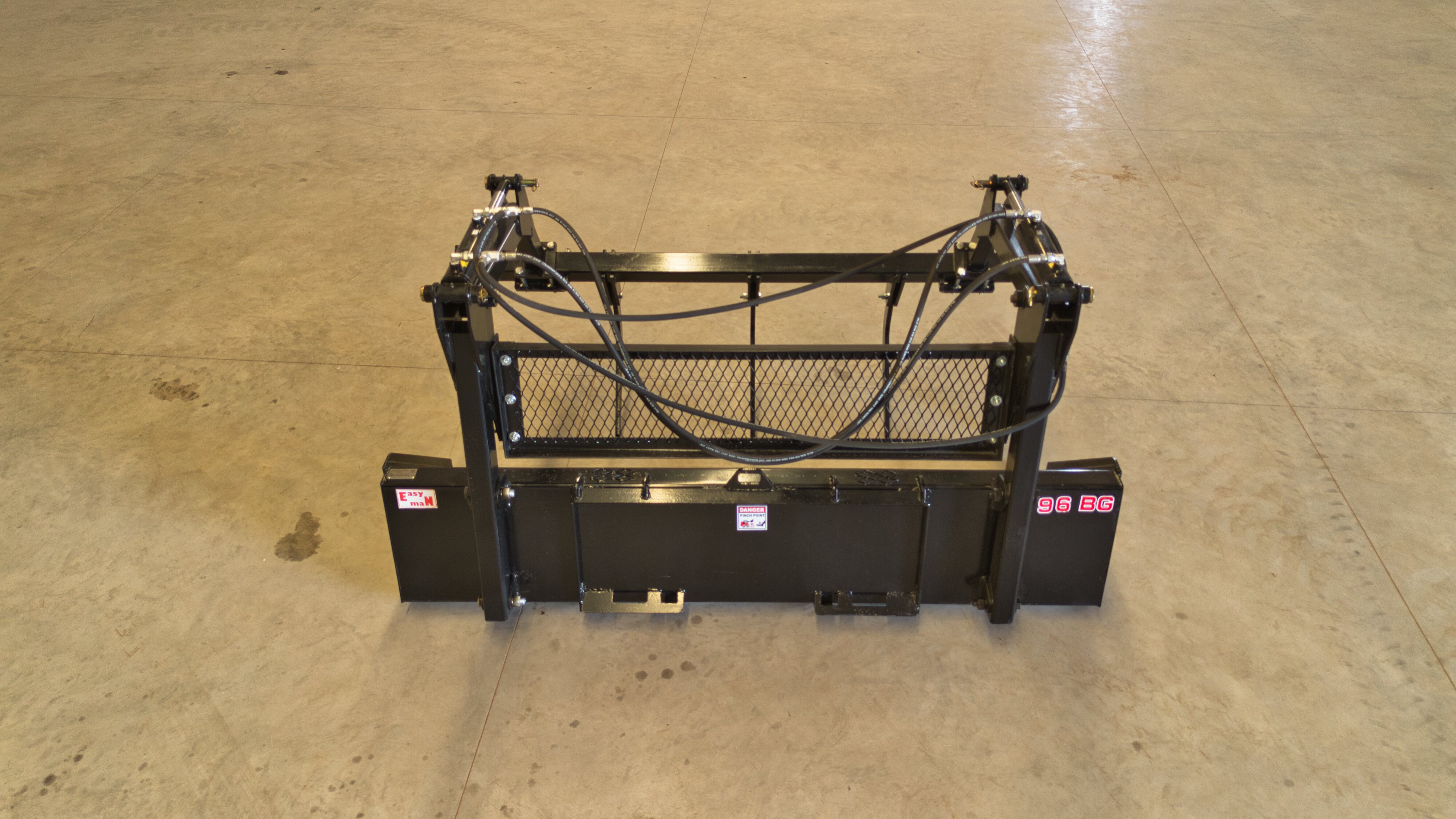

| Mount Type | Skid Steer Quick Attach (SSQA) |
| Available Widths | 72", 84", 96" |
| Bucket Body Height | 18 in |
| Depth | Same as standard skid steer bucket |
| Floor Thickness | 1/4 in |
| Backboard Thickness | 5/16 in |
| Cylinder Count | 2 |

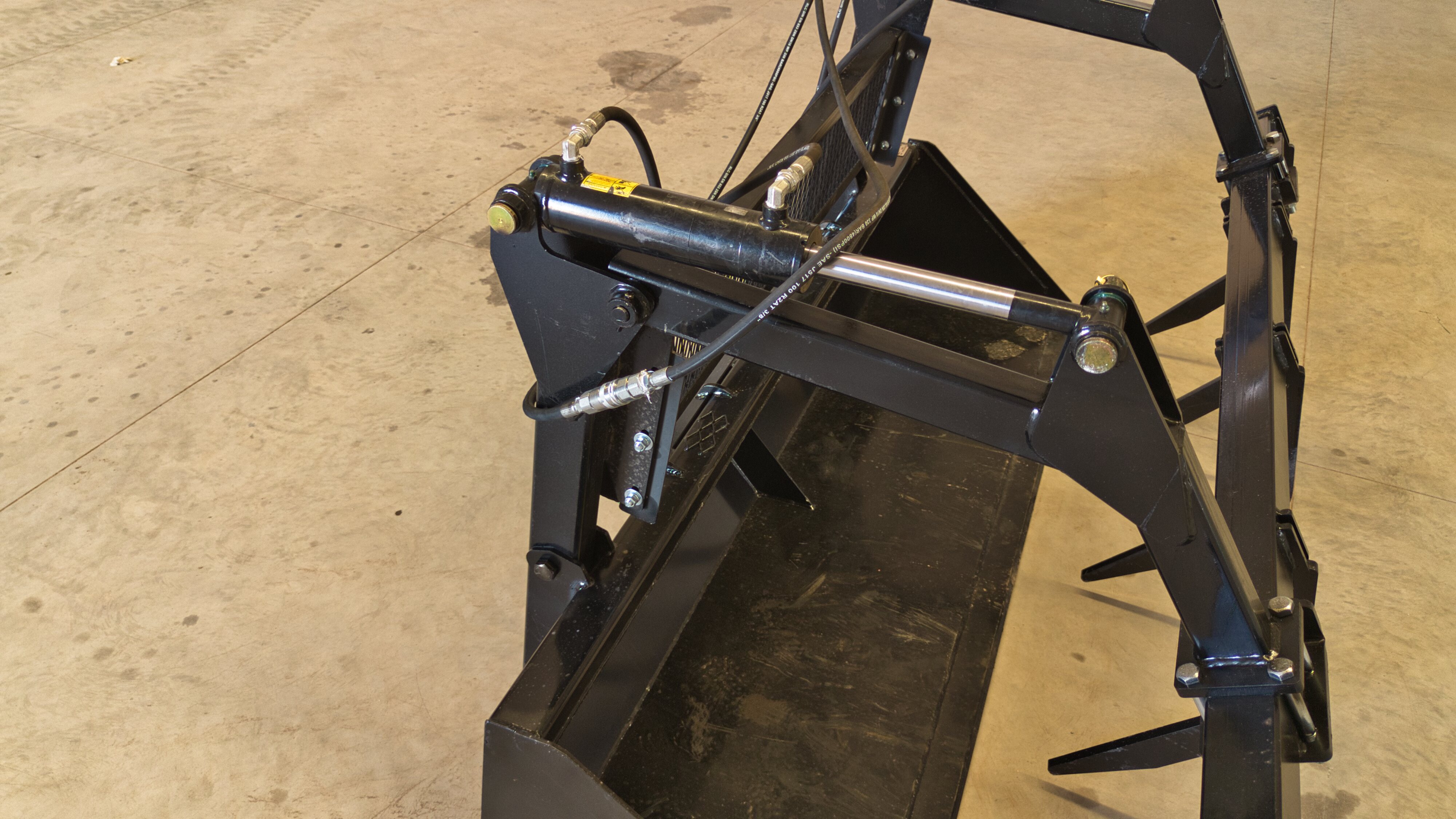

| Cylinder Size | 3" × 10" |
| Cutting Edge | Smooth edge |
| Reinforcements | Cross braces and structural gussets |
| Safety Features | Hose protection, lock pins |
| Maintenance | Grease zerks on pivots and cylinders |

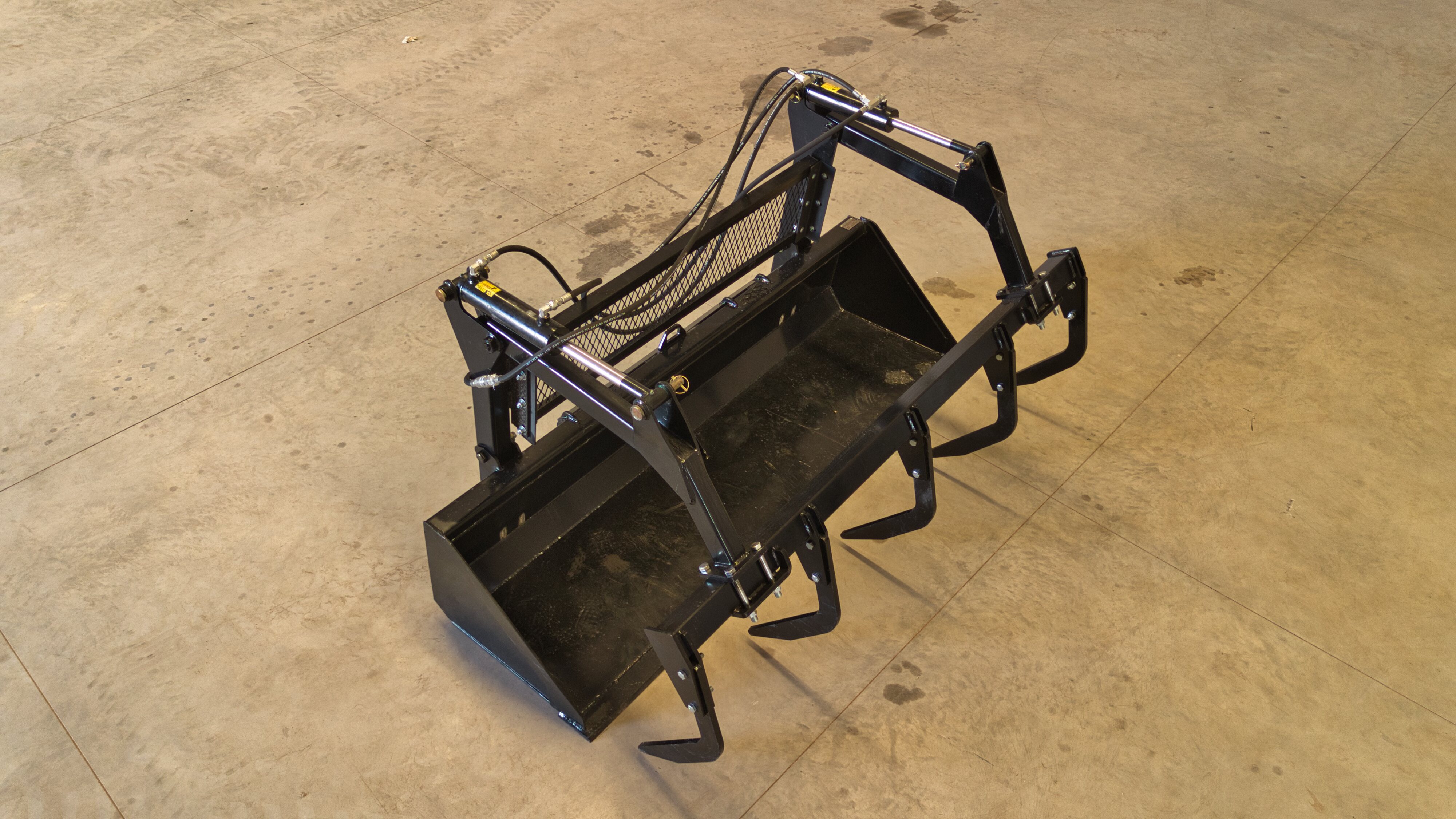

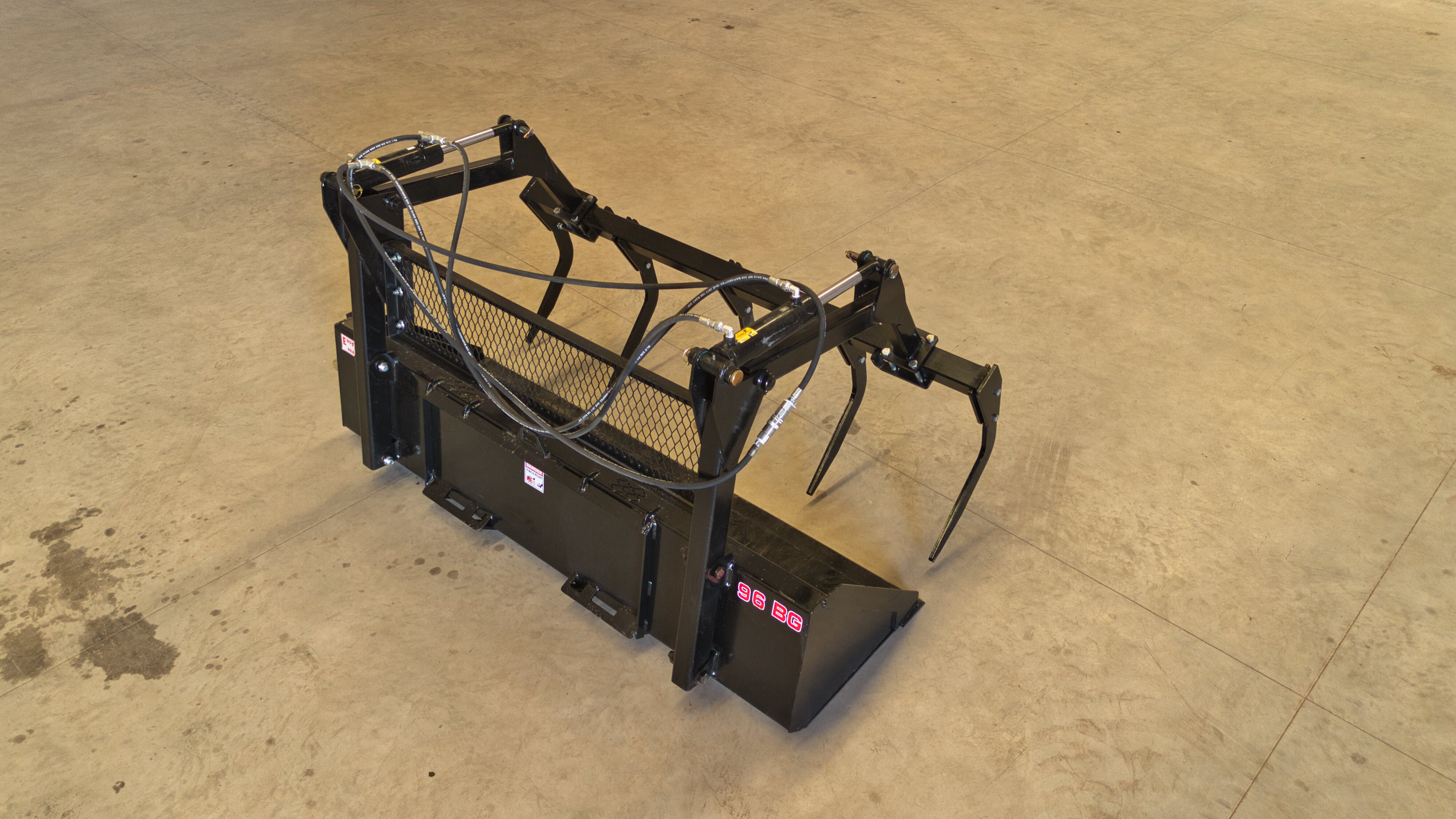

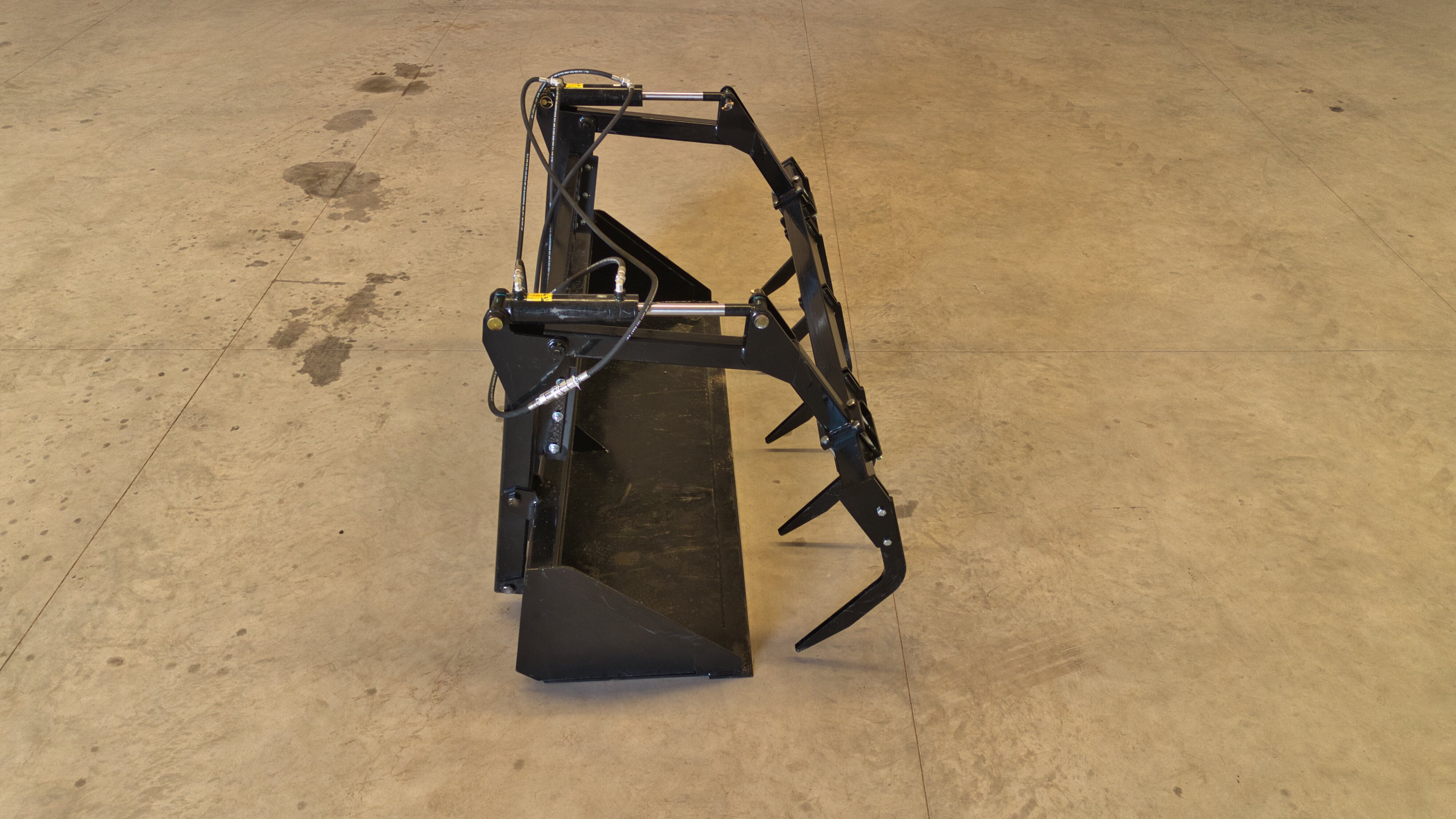

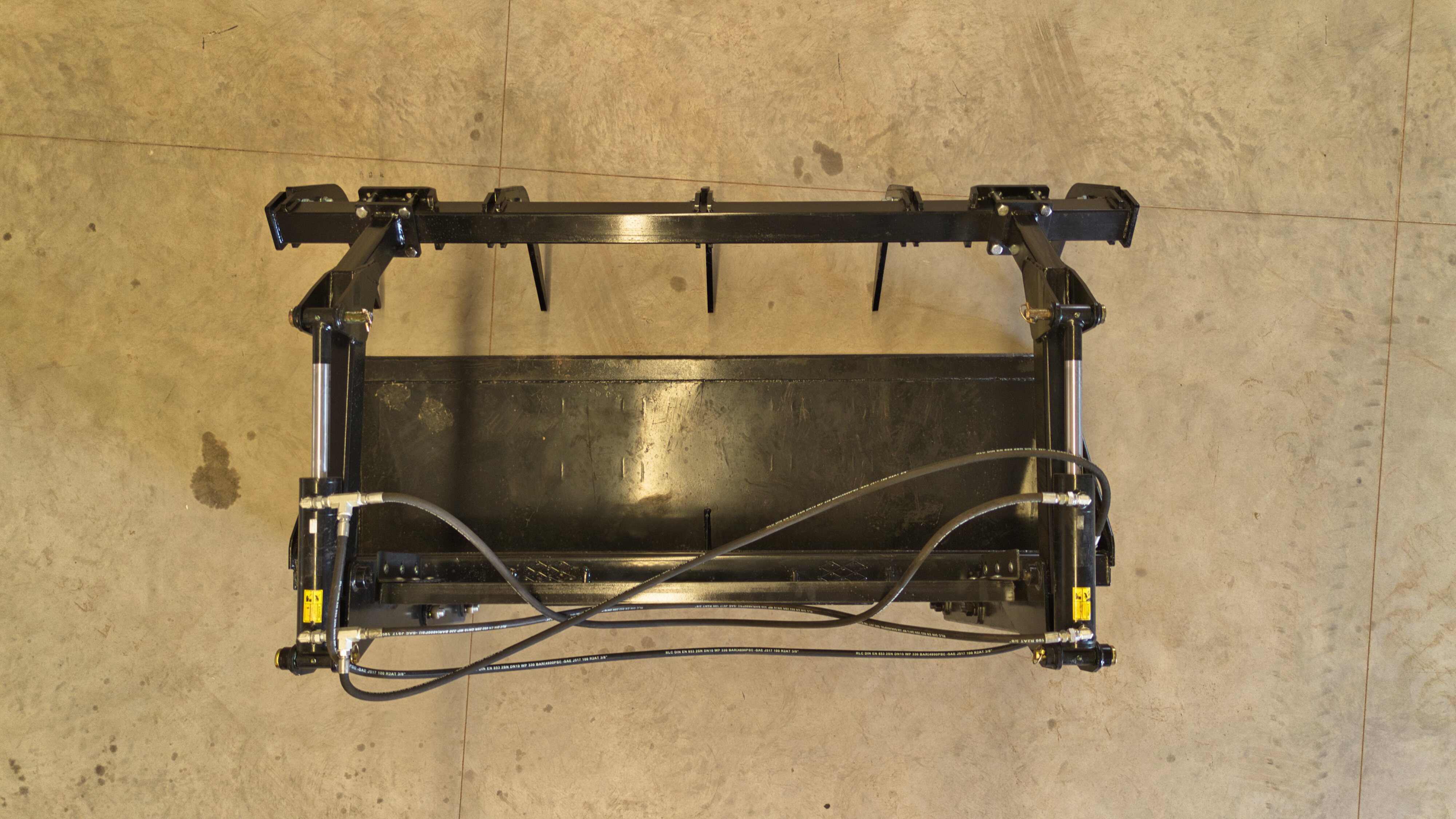

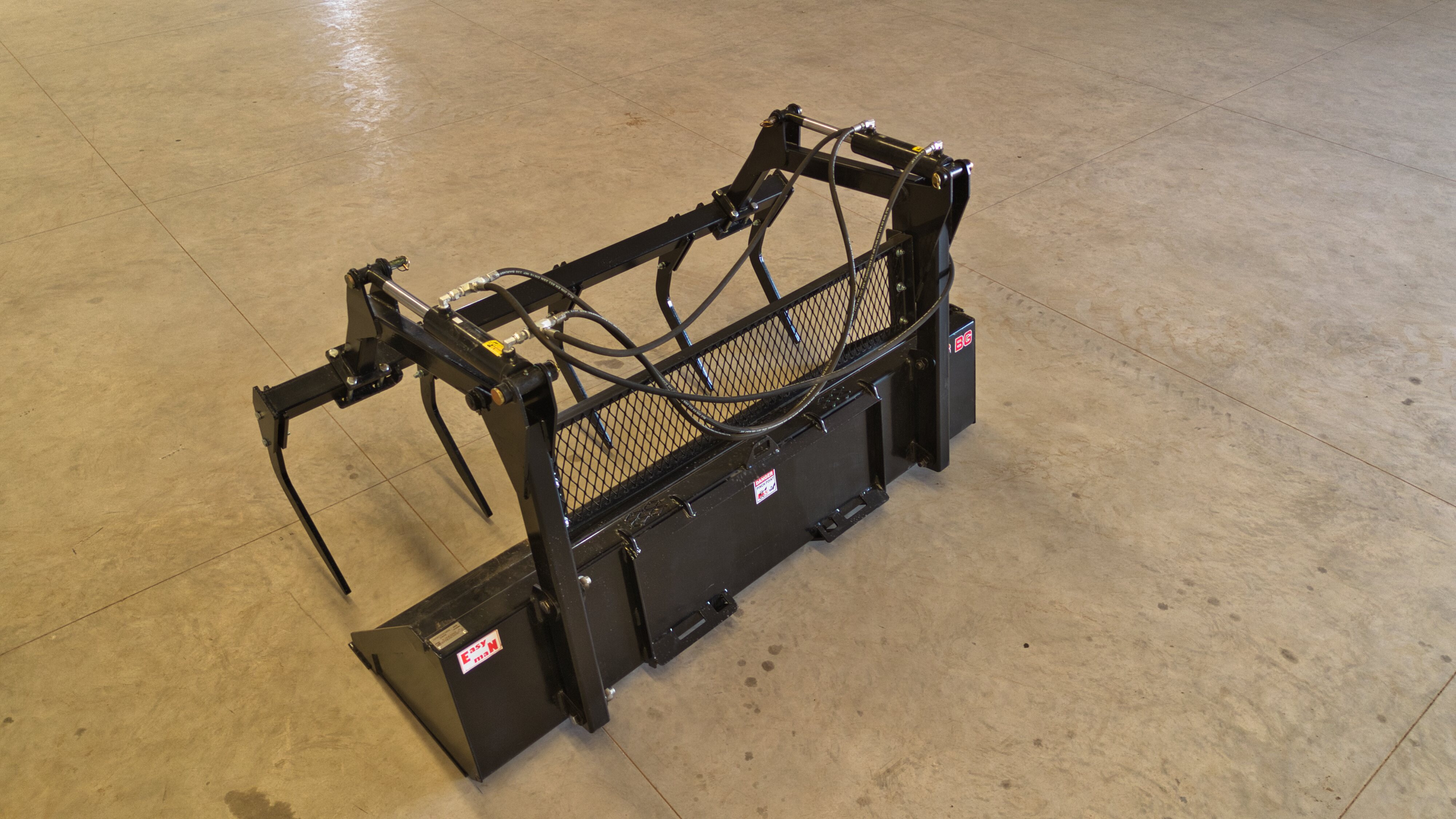

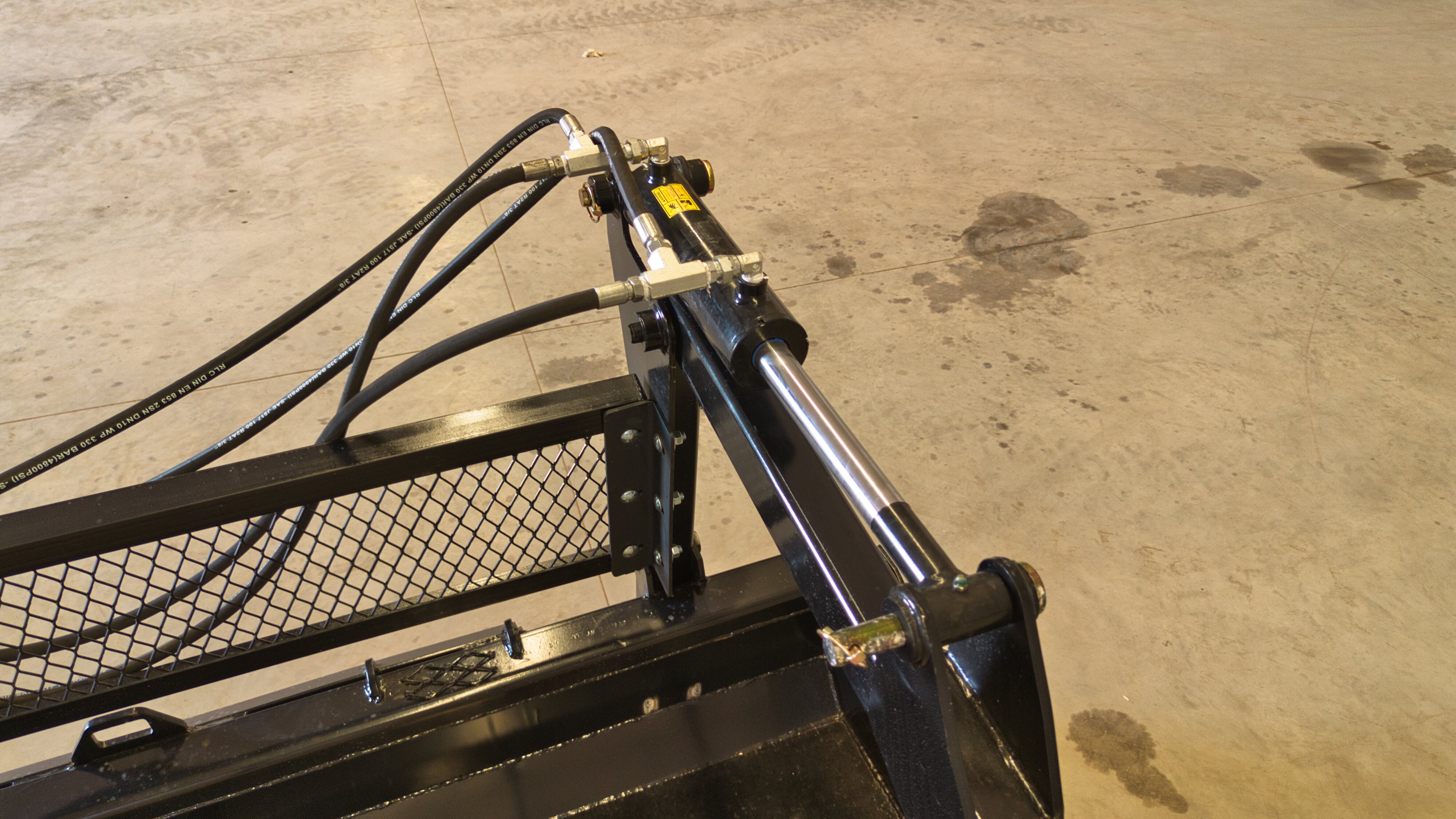

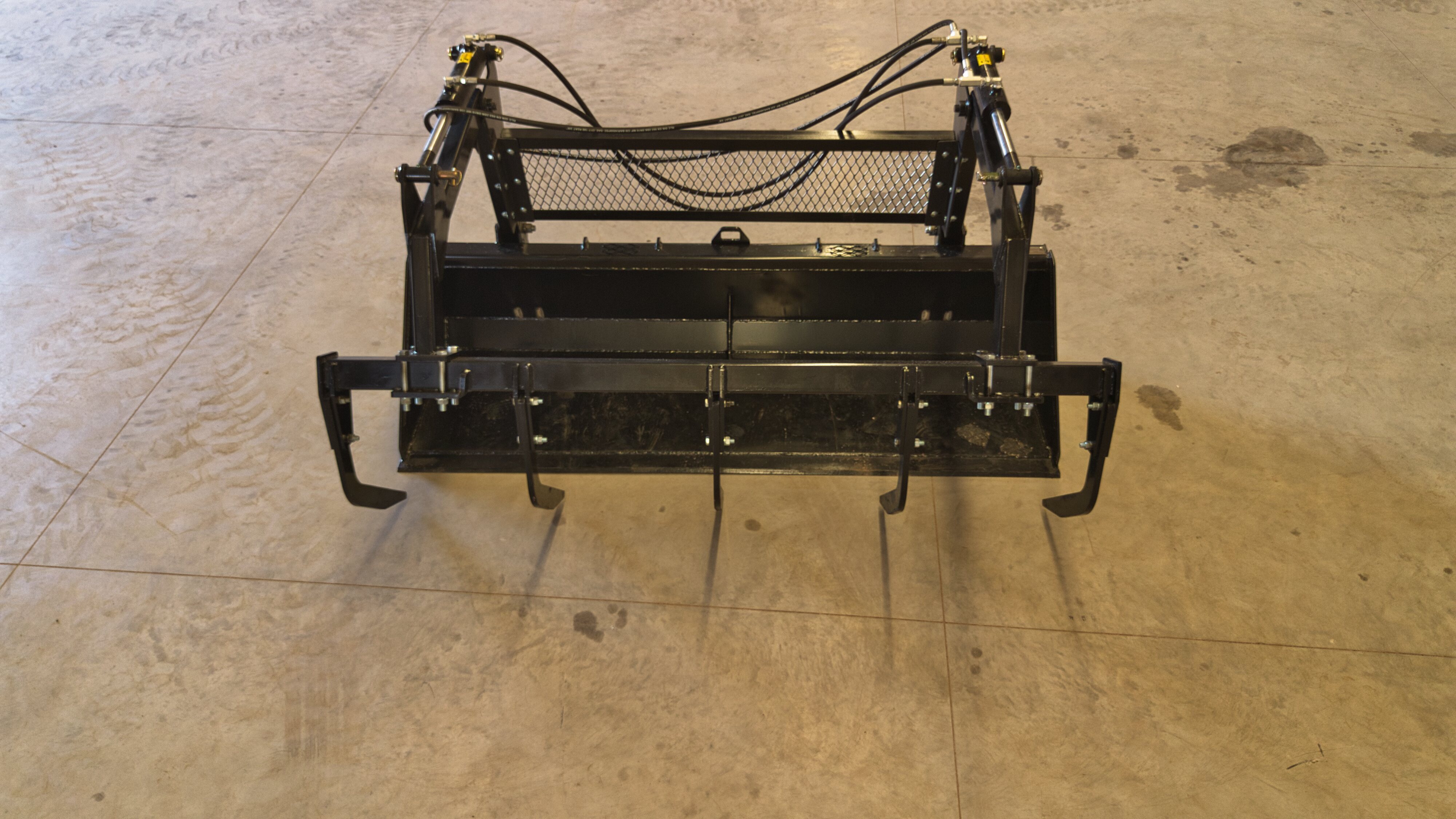

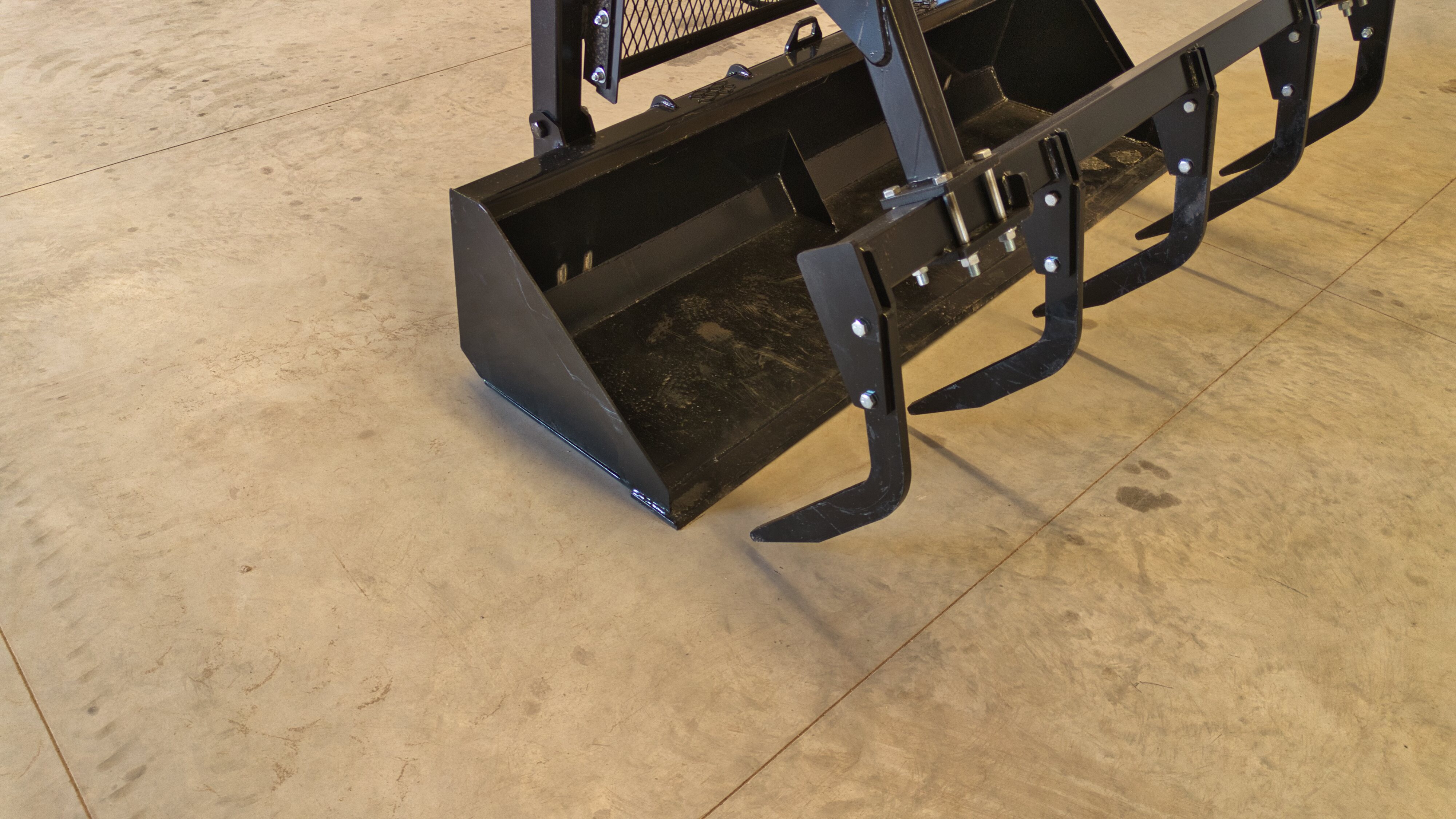

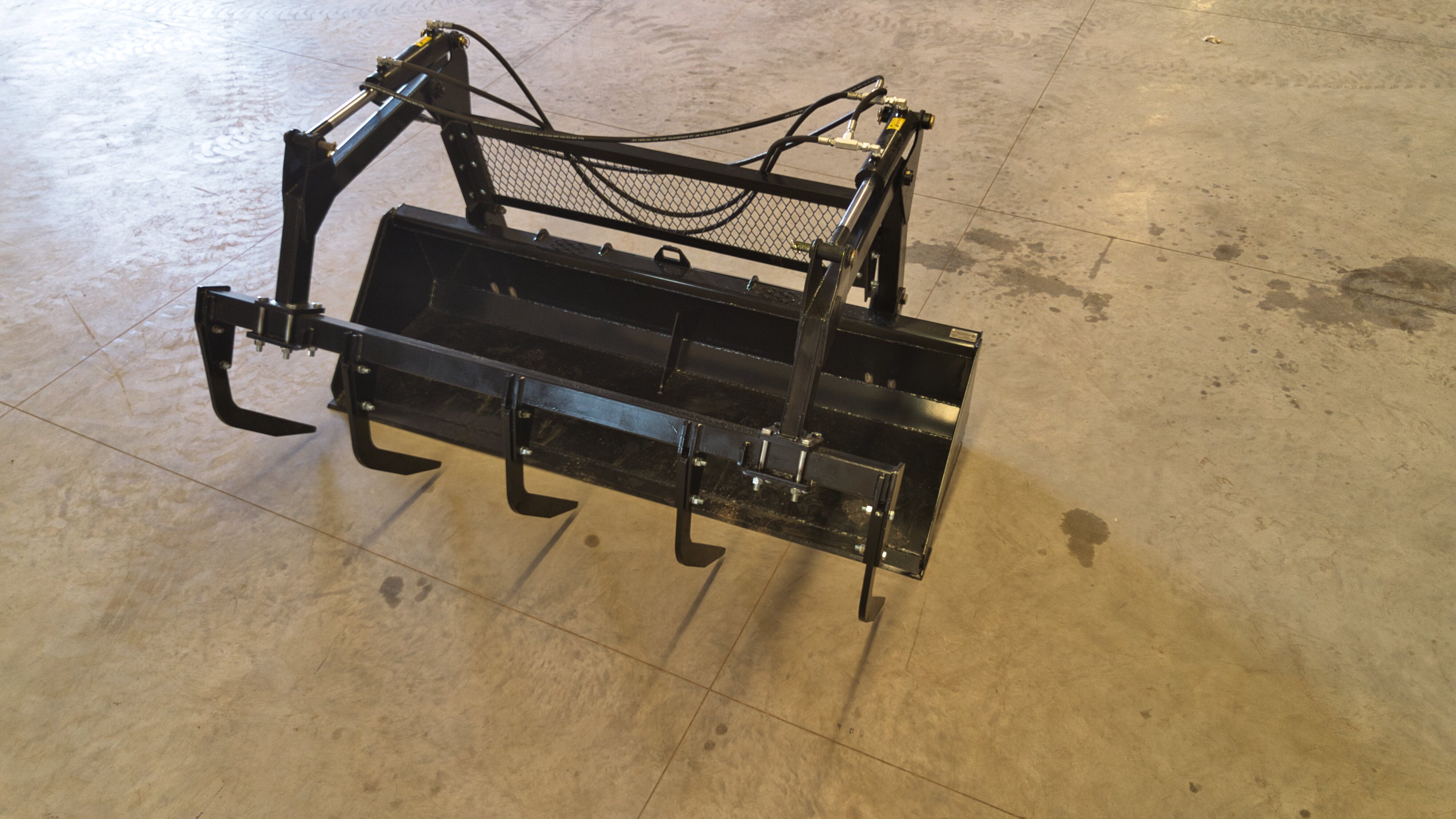

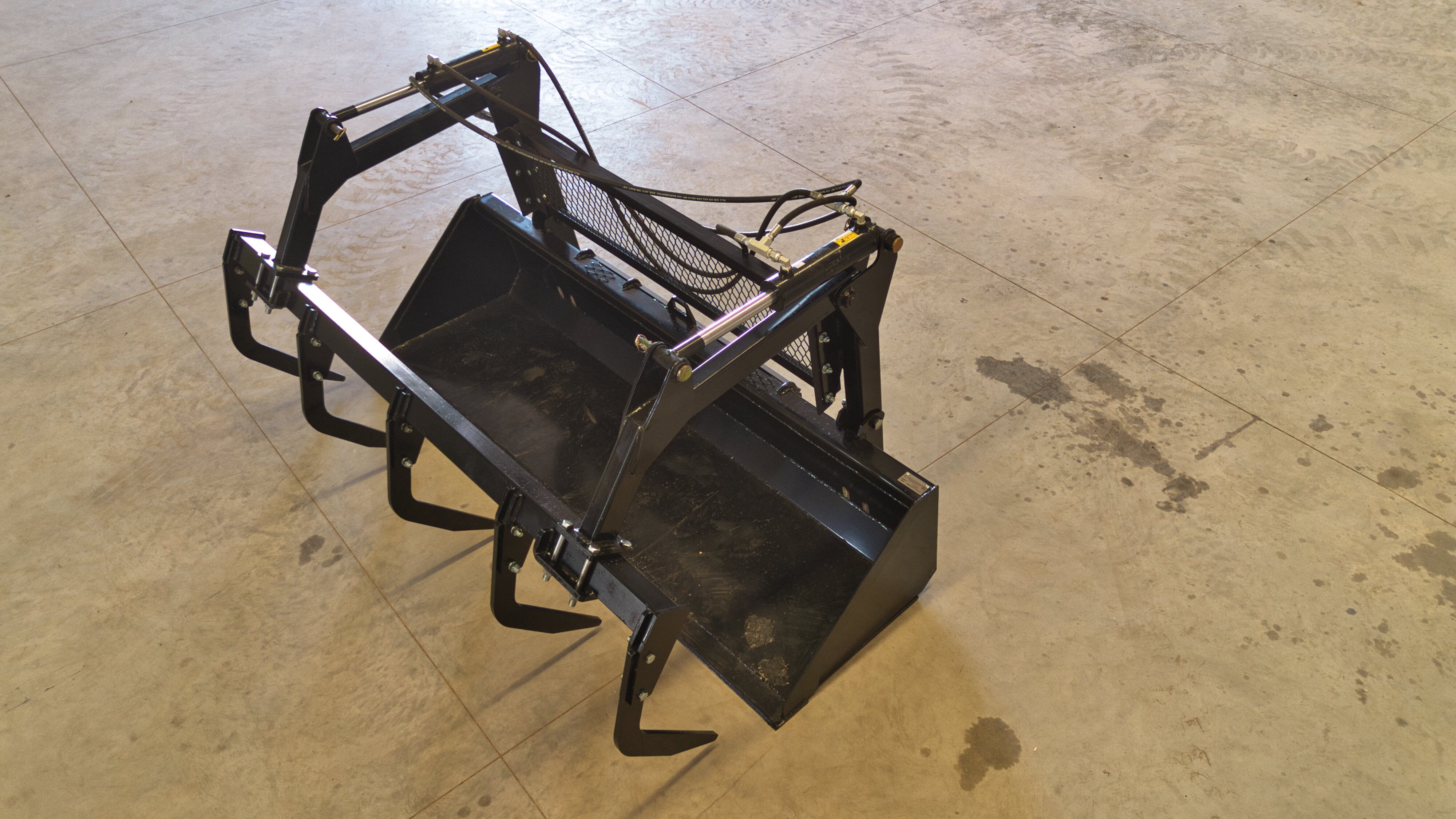

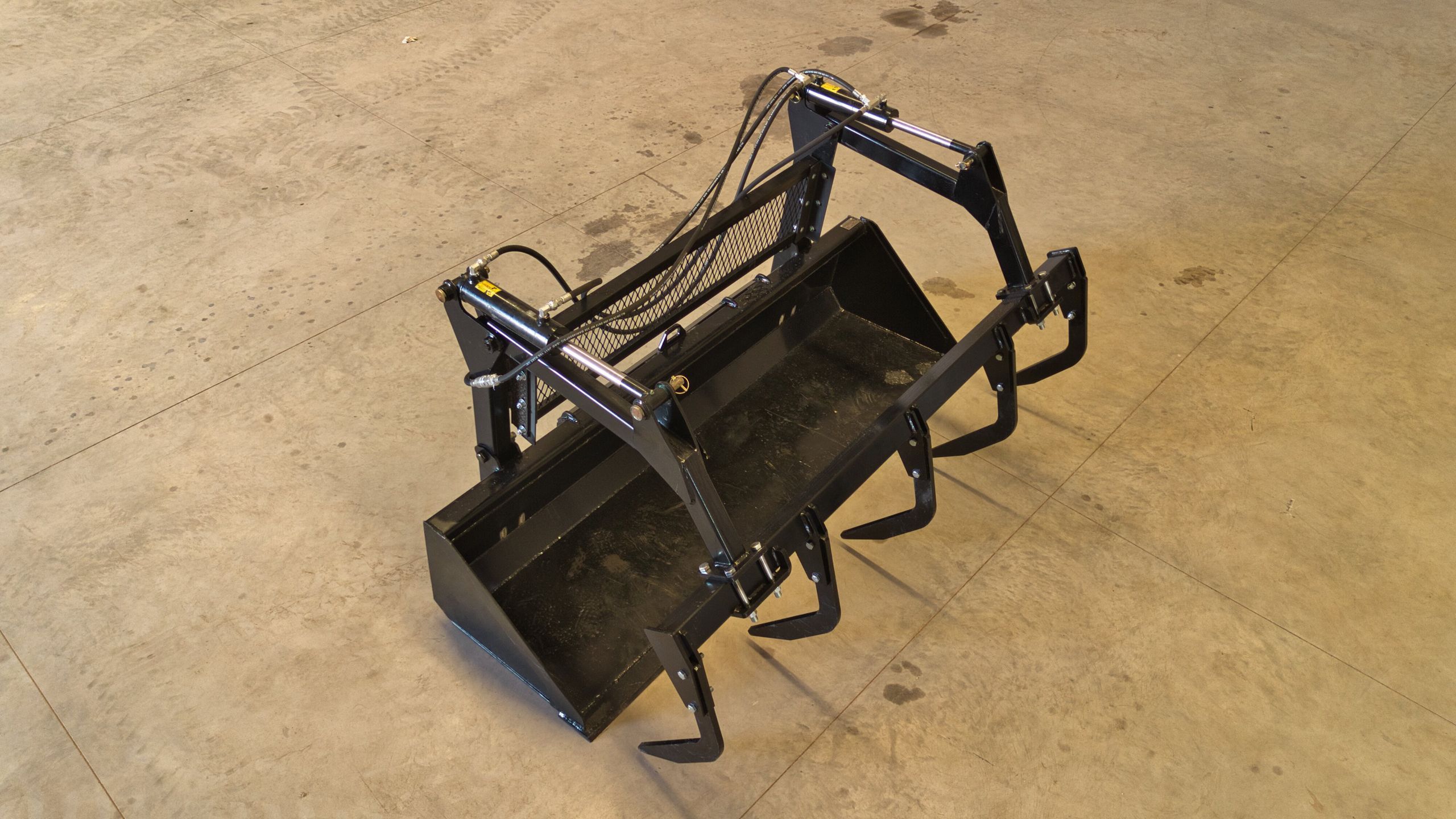

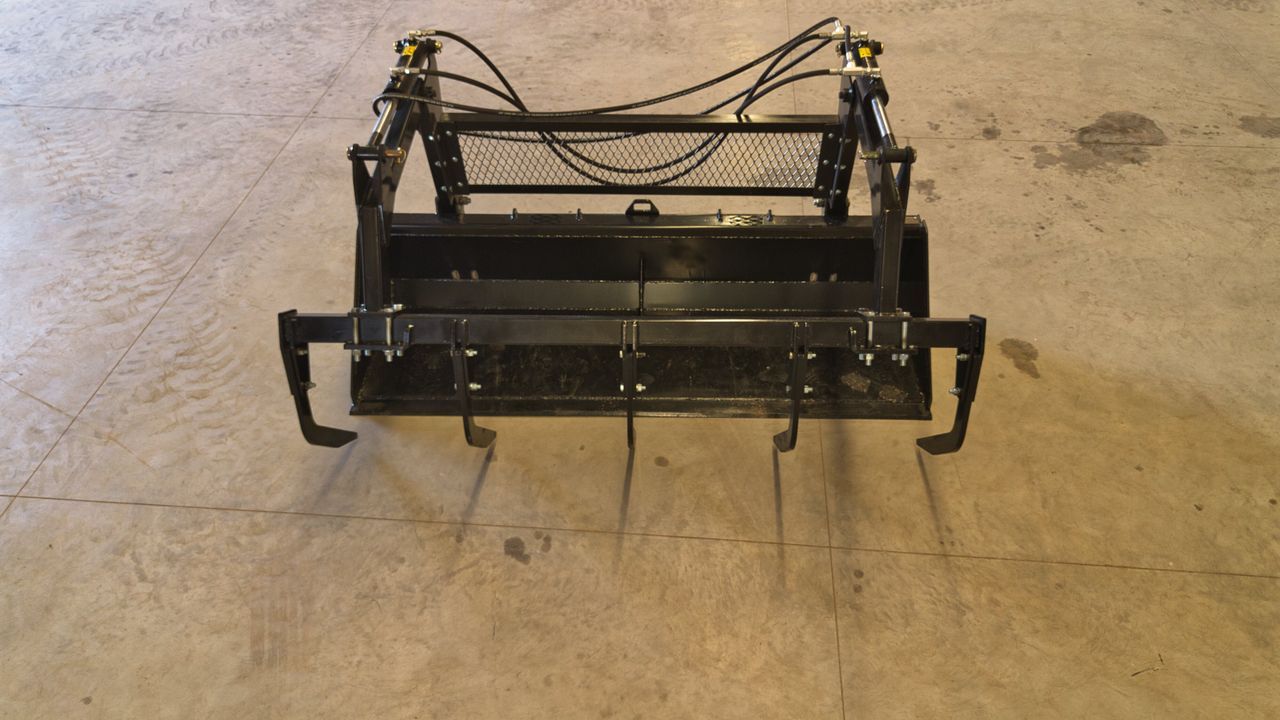

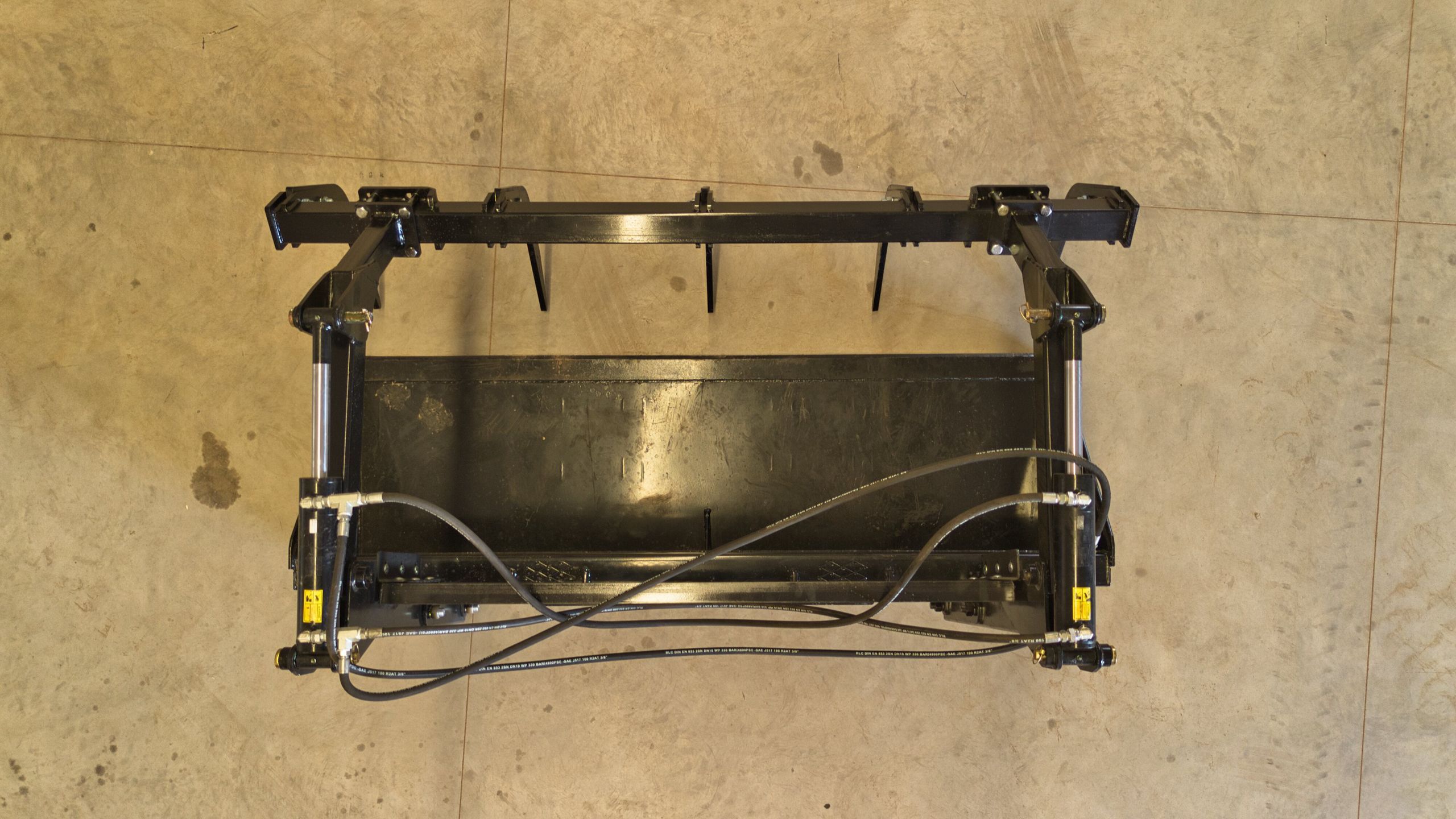

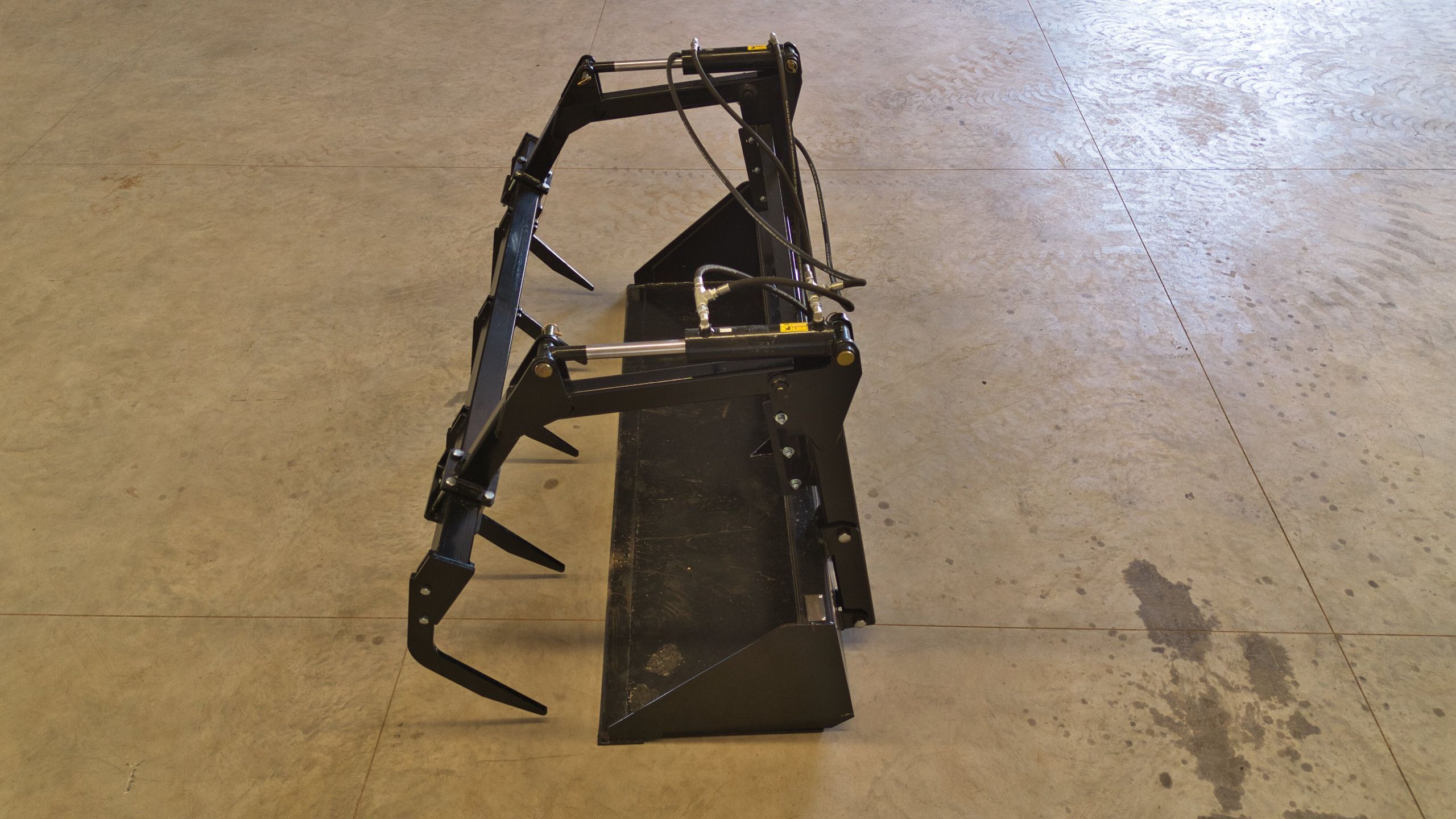

The Grapple Skid Steer Buckets are built for handling bulky and irregular materials such as brush, manure, silage, loose hay, and debris. Dual hydraulic grapples provide strong clamping force to keep loads secure during transport. The bucket body is built with a 1/4" floor and 5/16" backboard, while 3" × 10" hydraulic cylinders deliver reliable and consistent grapple action. Multiple width options allow you to match the bucket to your skid steer and application.
