Specifications
| Feature | Description |
|---|---|
| Type | Single-row round bale hauler (4 Series) |
| Bale Capacity | 16 4' round bales |
| Cradle Length | 32 ft |
| Total Length | ~41 ft |
| Width | 129" |
| Dumping System | Manual latch (hydraulic dump latch optional) |
| Axles | Tandem 2 × 10,000 lb (dual wheels) |
| GAWR | 10,000 lb |
| GVWR | 20,000 lb |
| Jacks | 2 × 12k manual jacks (hydraulic option available) |
| Brakes | Electric brakes with breakaway system |
| Tires | 8 x 235/80R 16, 16" rims (dual) |
| Shipping Weight | 5,467 lb |

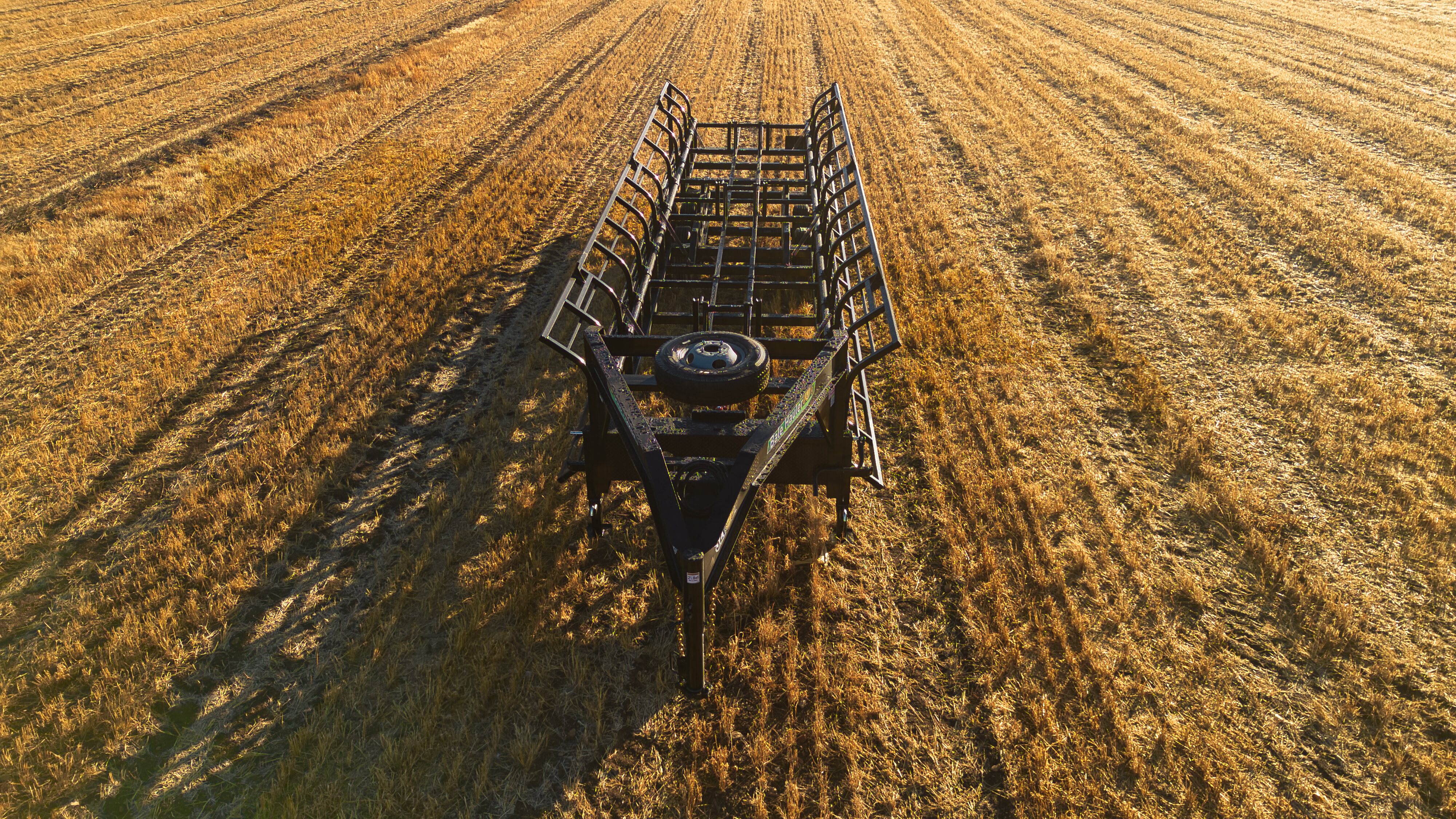

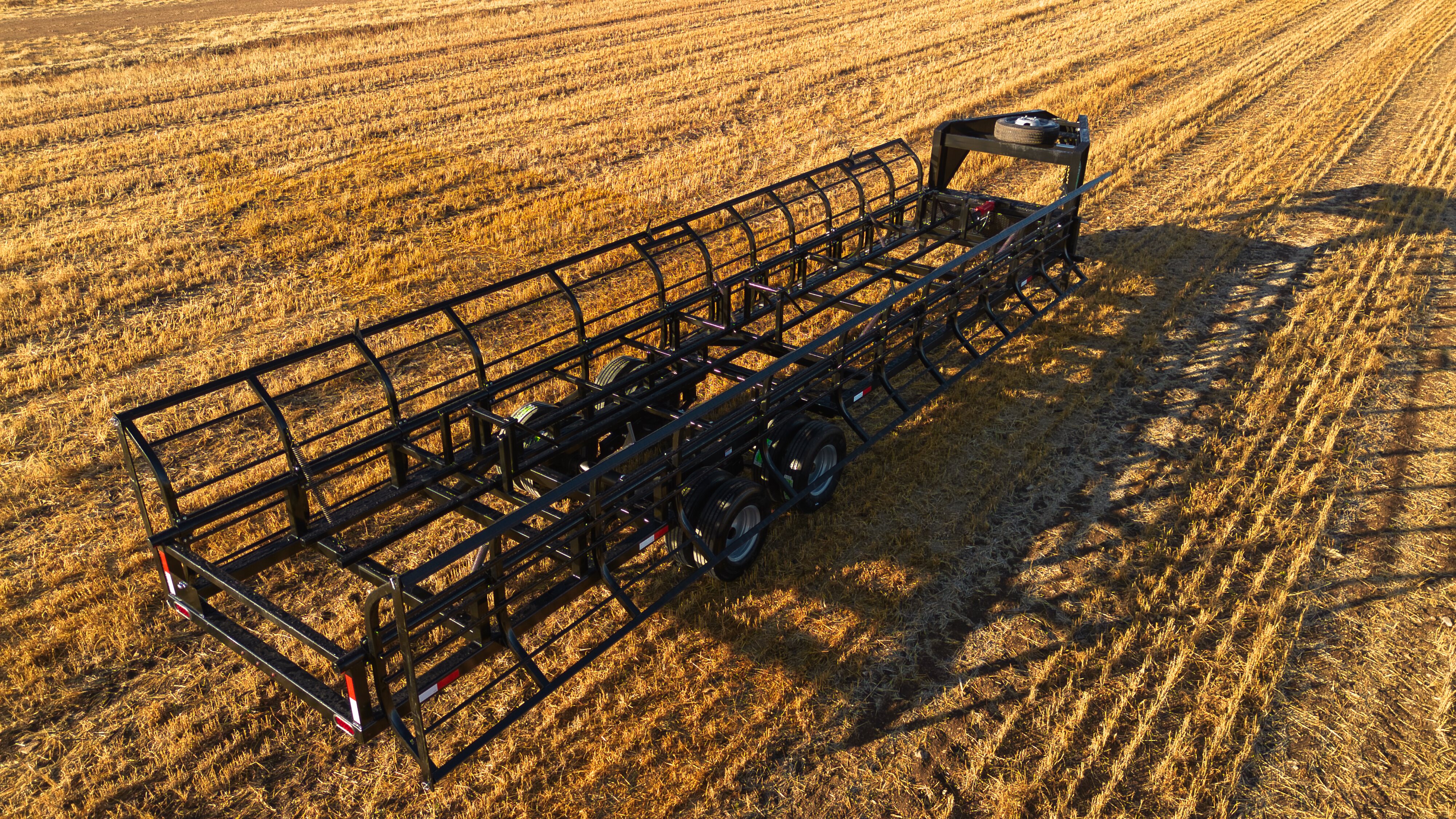

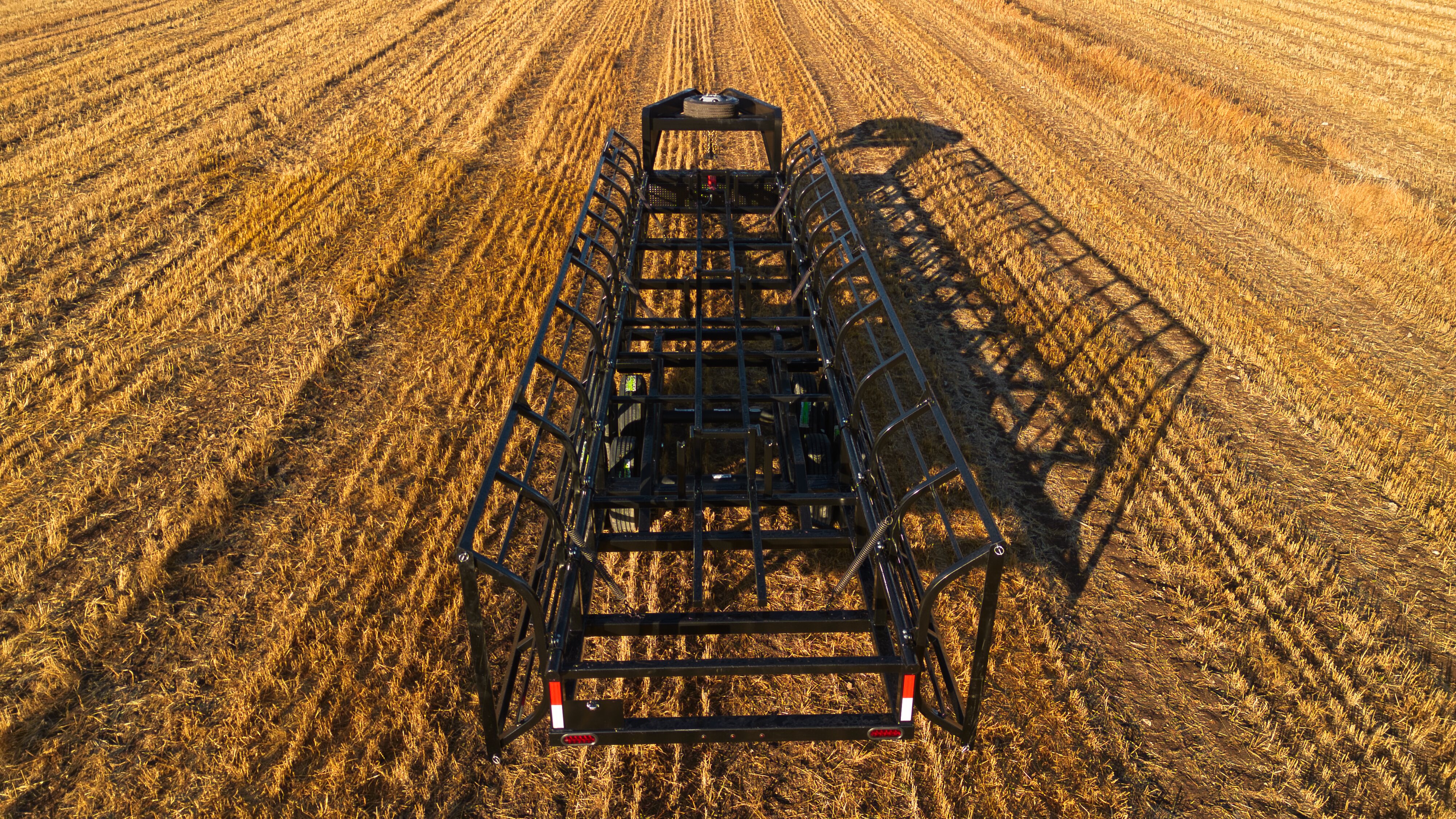

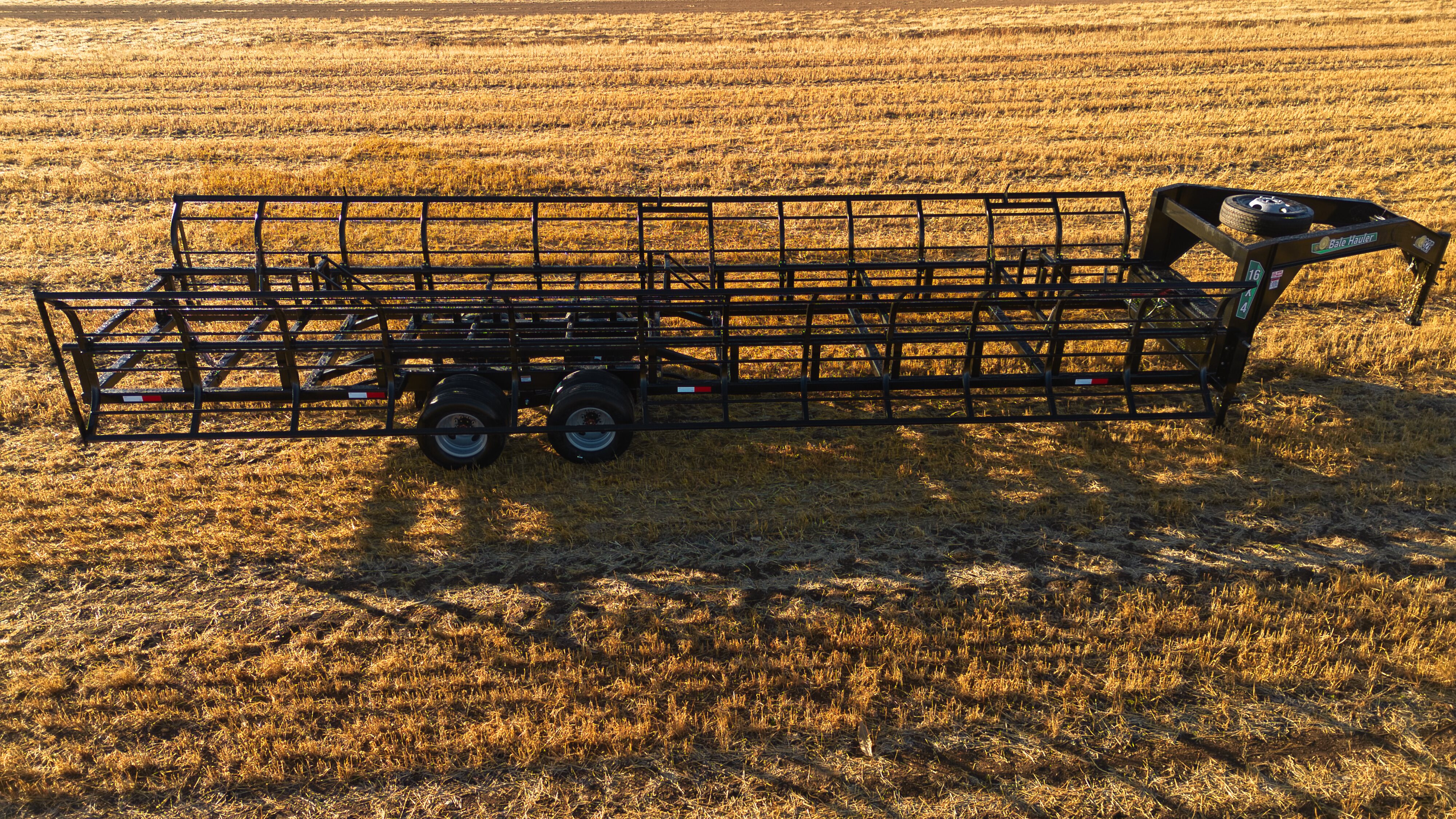

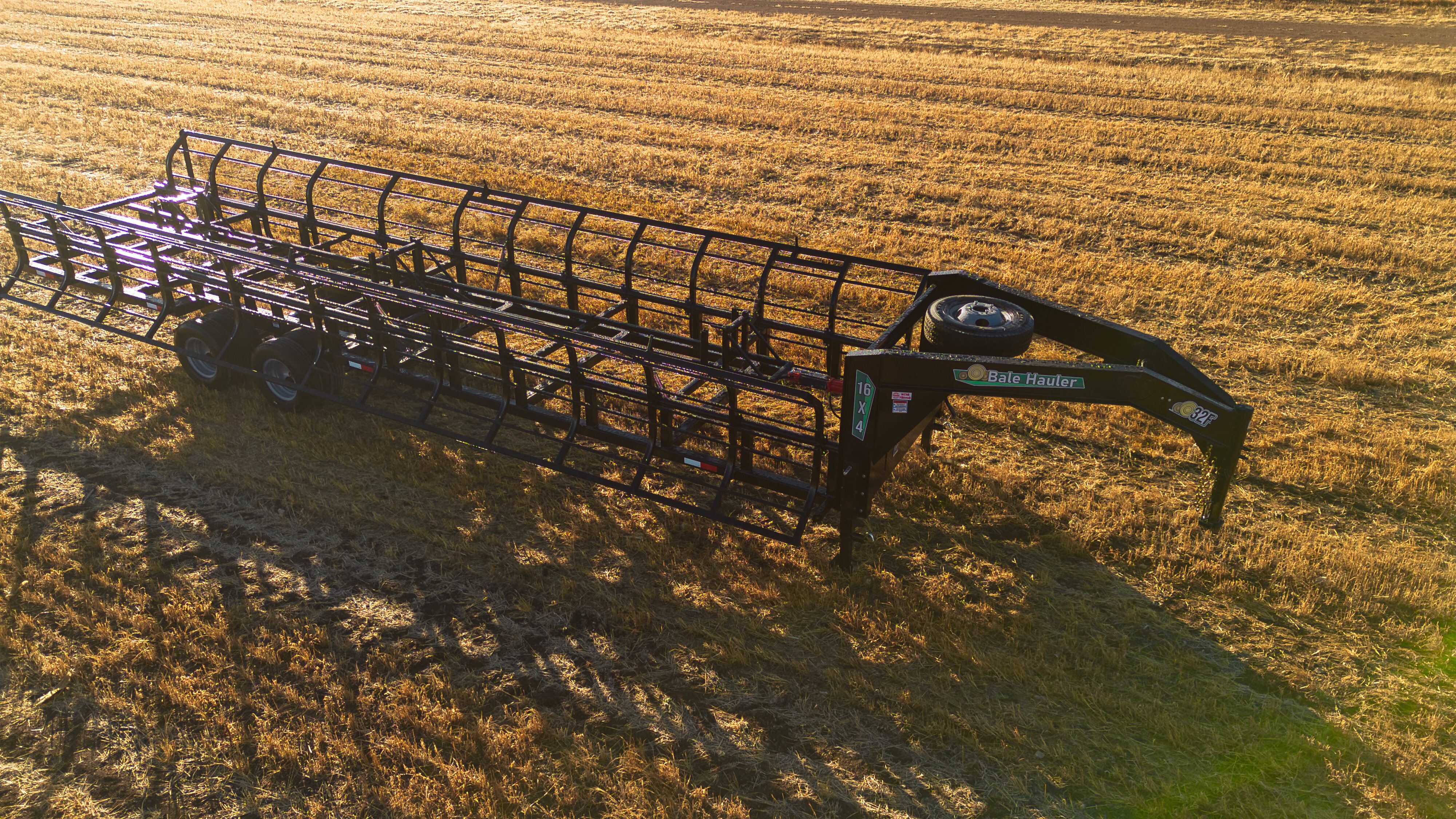

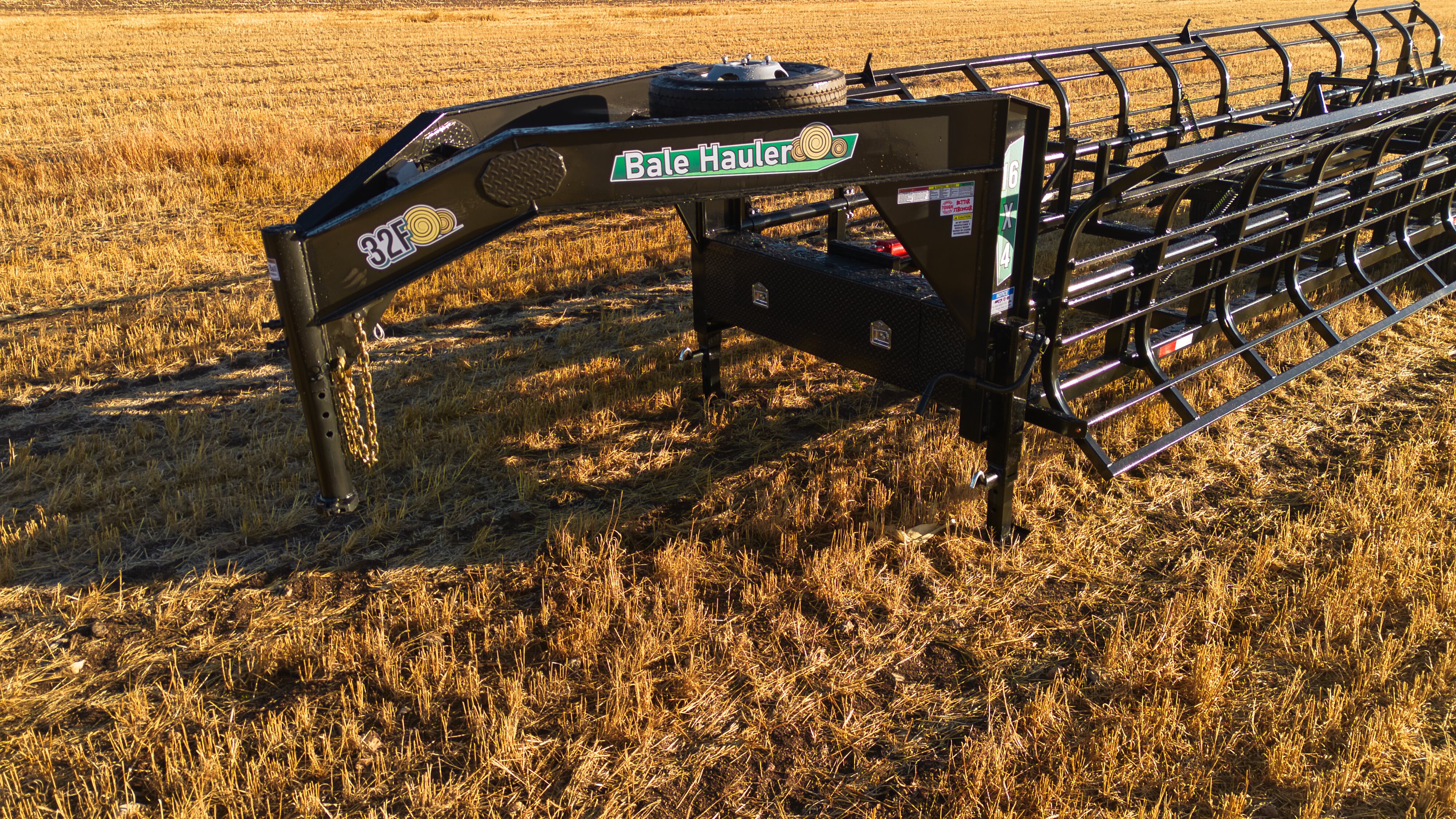

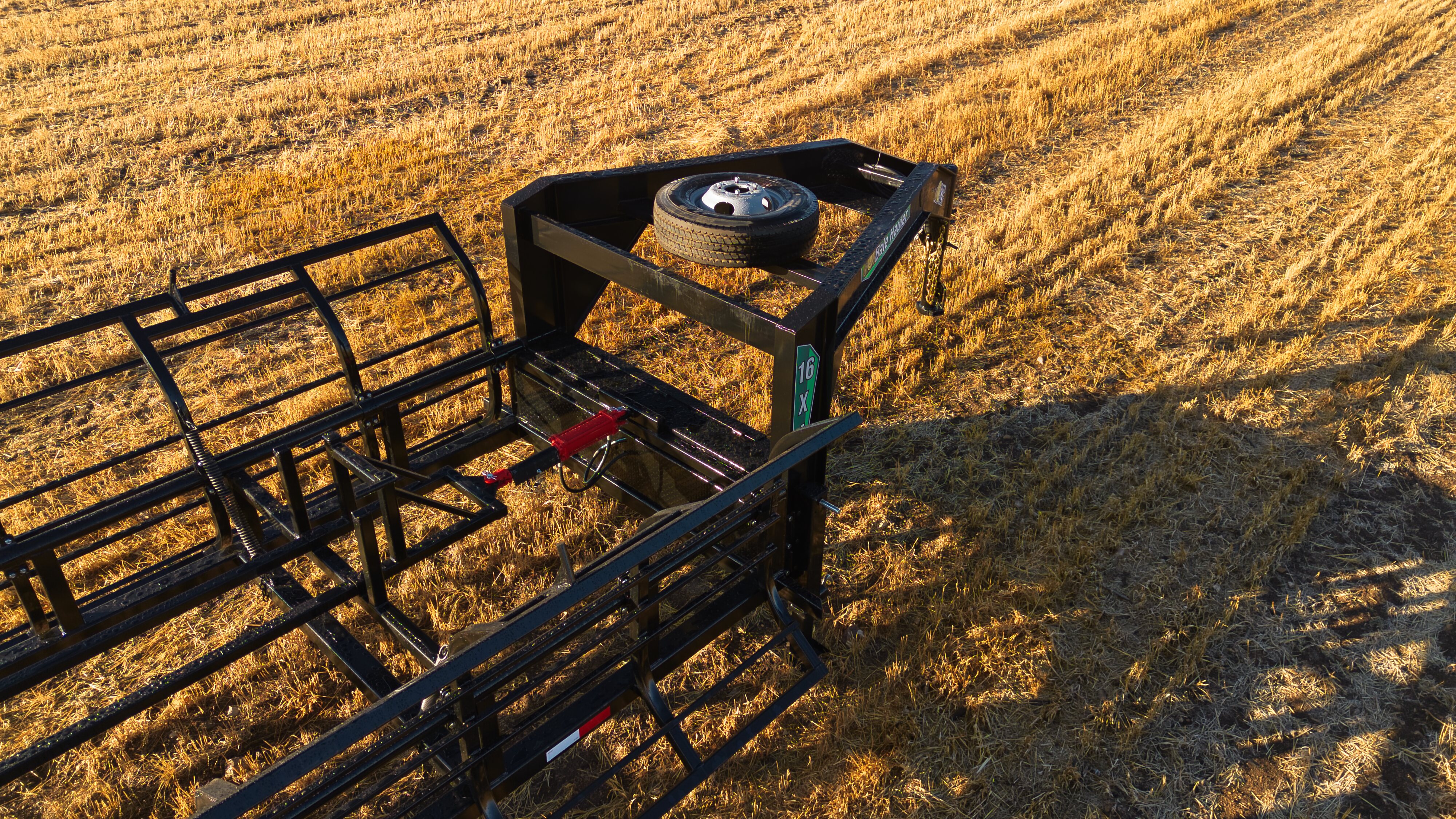

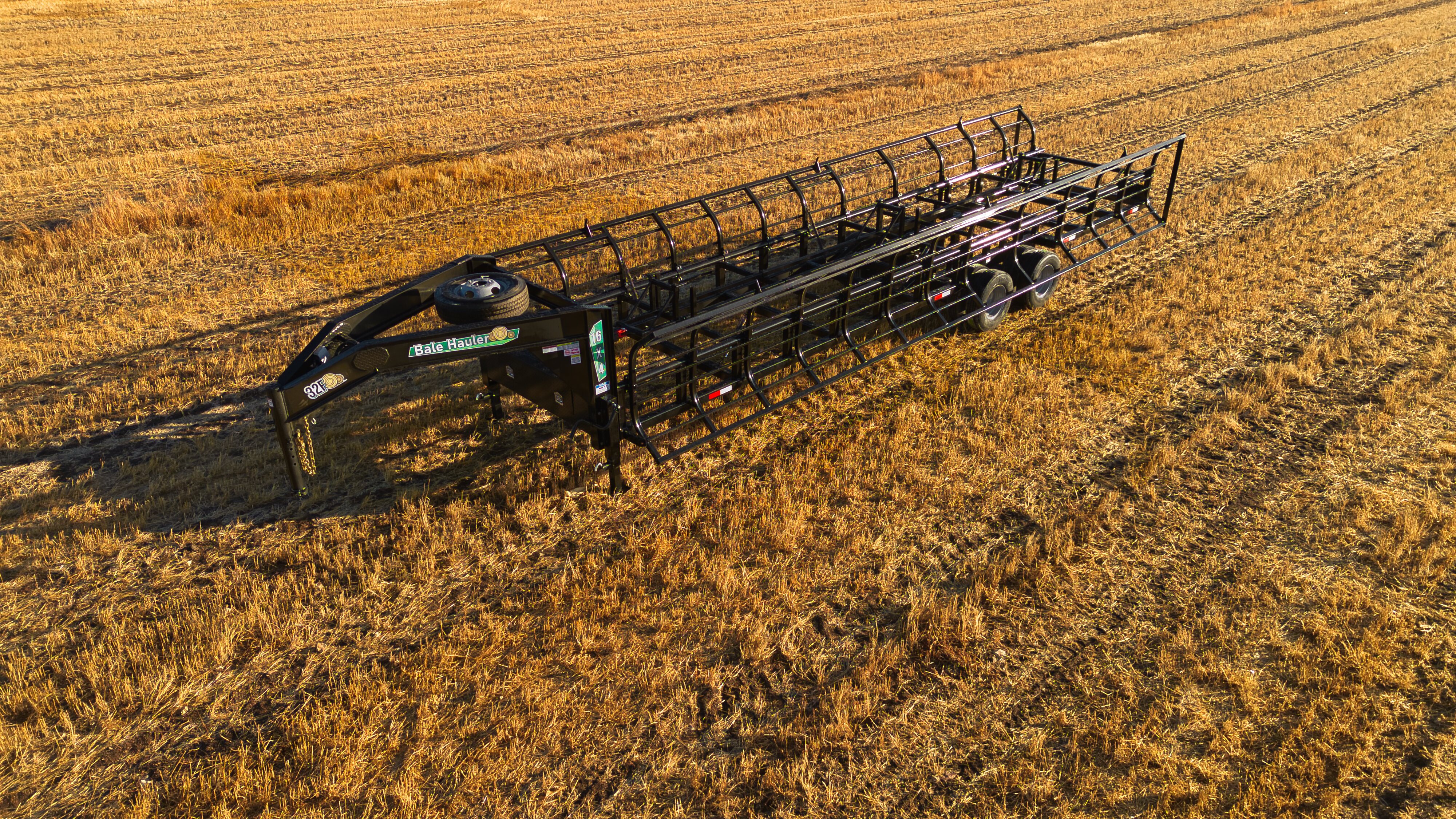

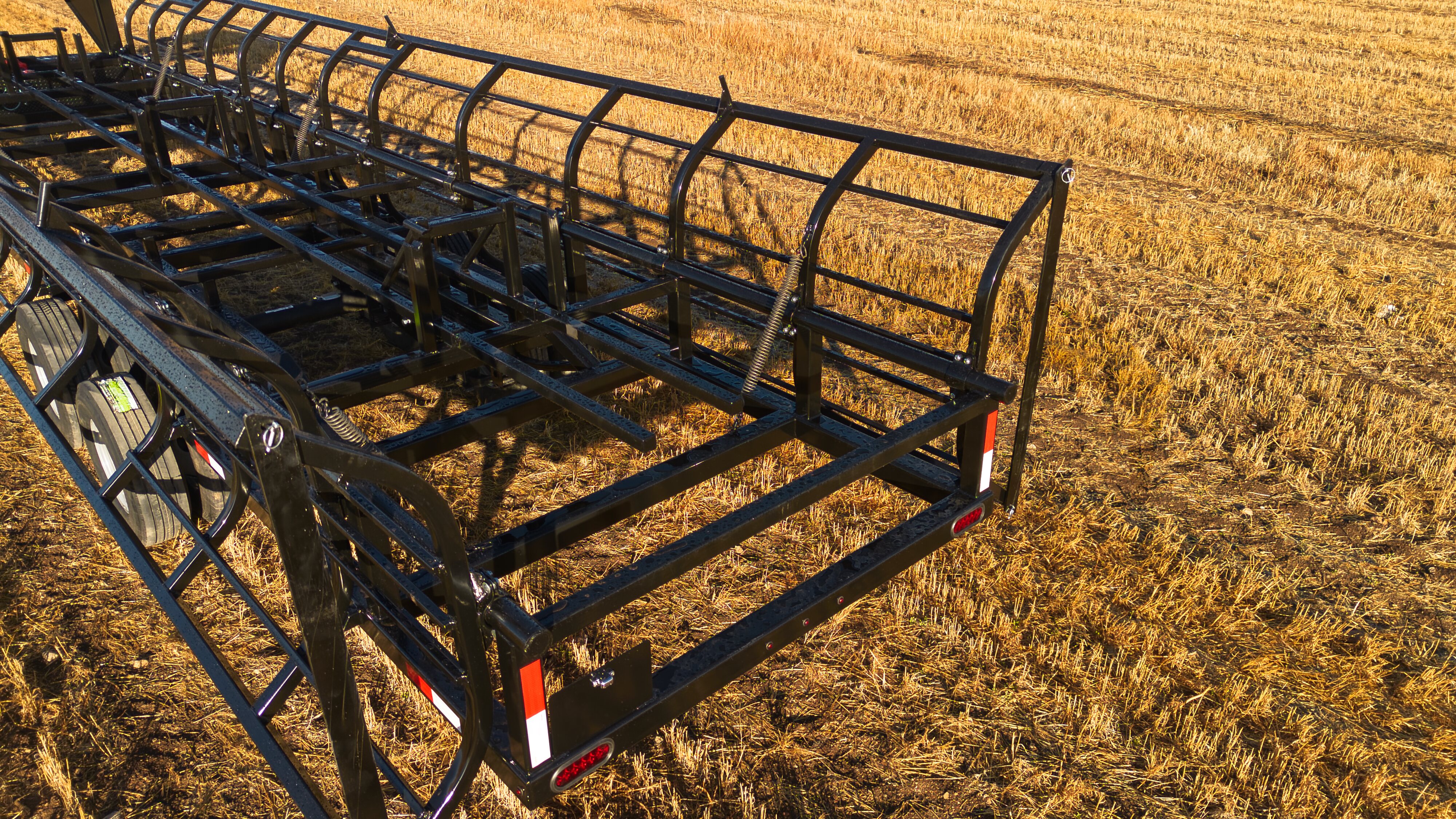

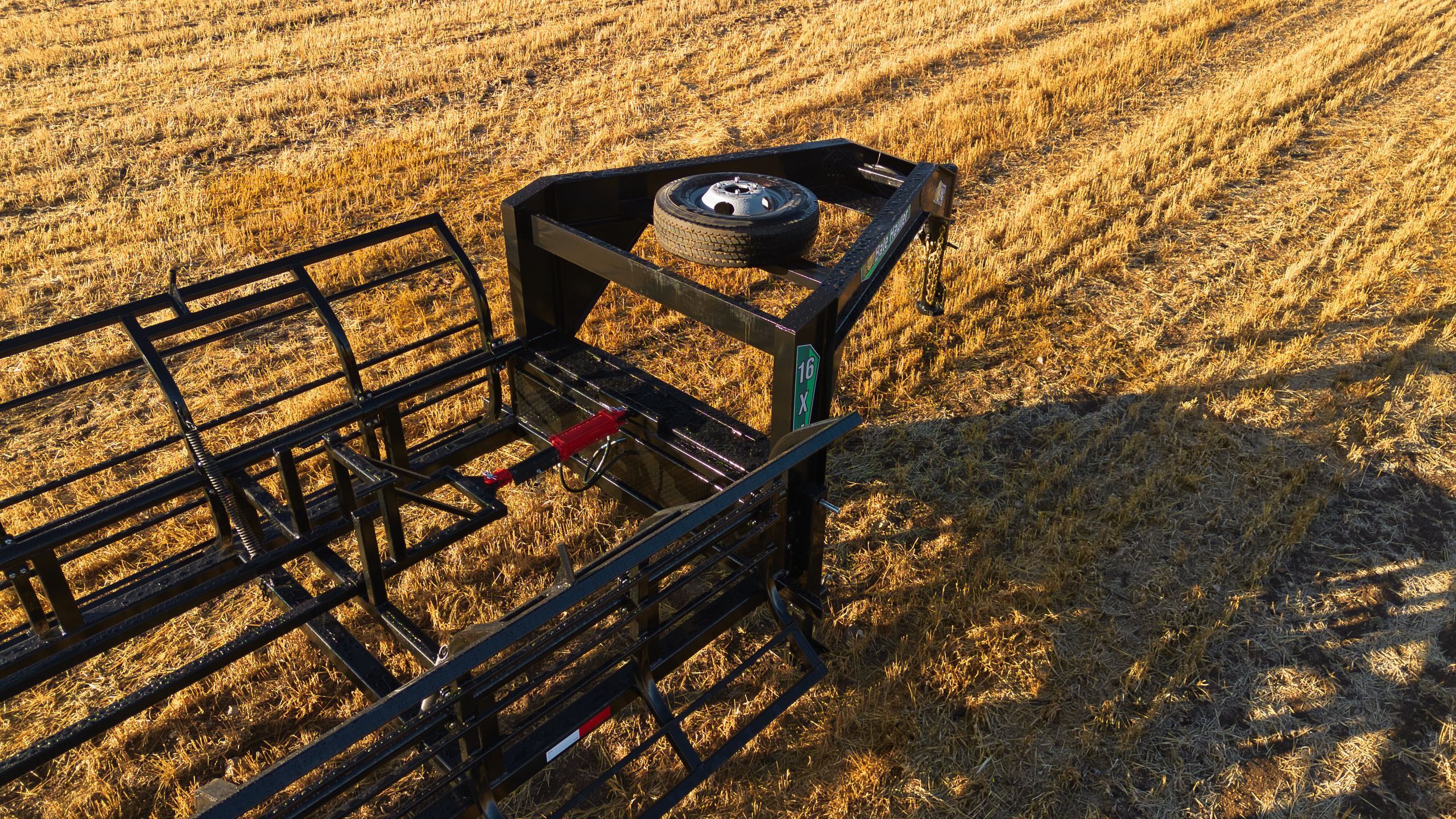

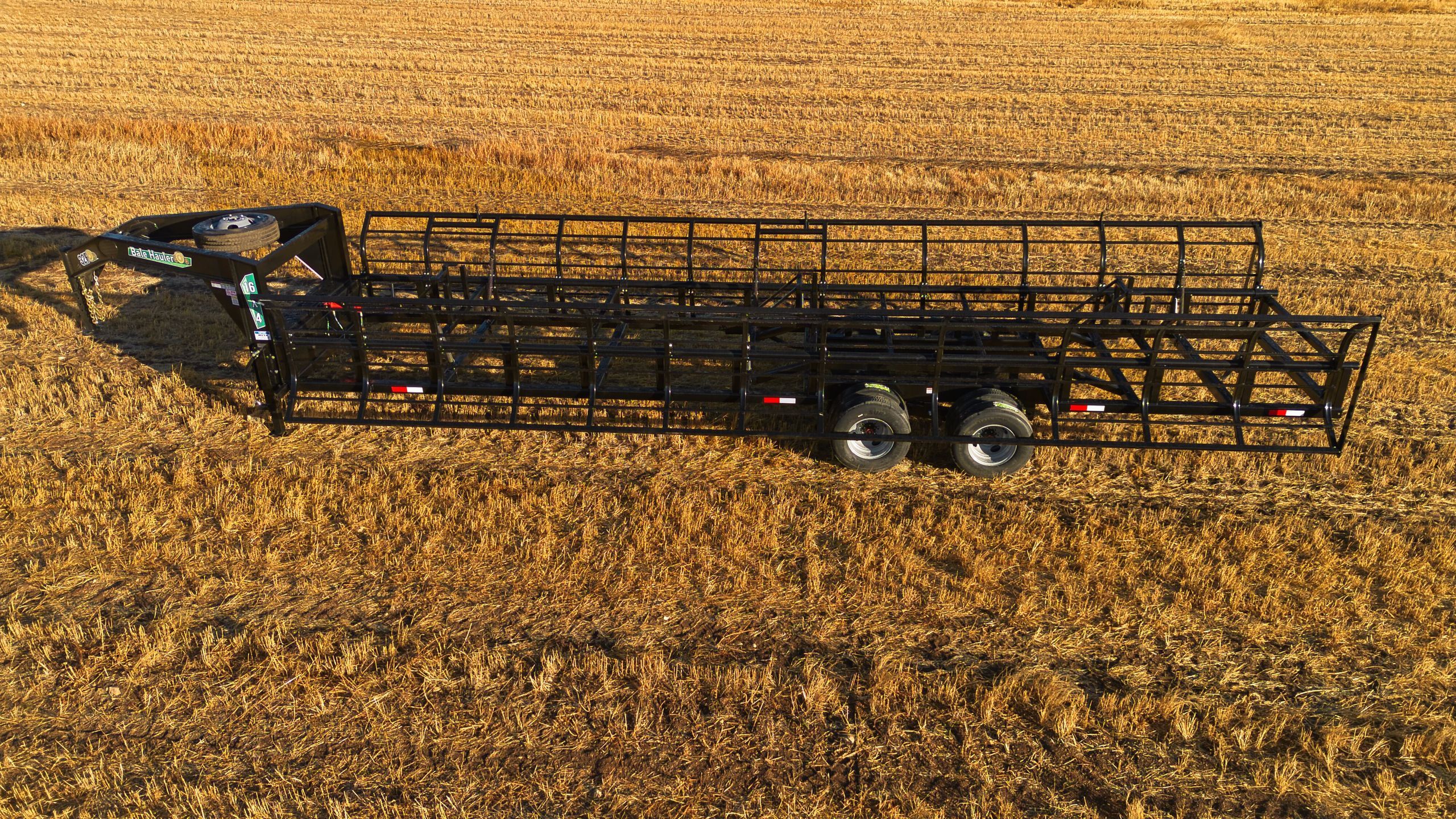

The 16X4 is built for 16 round bales with a 32 ft cradle, making it a versatile solution for farms that want heavy-duty hauling in a mid-size package. Its wide 129" stance, strong dual axles, and dependable dump system make it a workhorse in the field or on the road.
