Specifications
| Feature | Description |
|---|---|
| • Weight | 1,682 kg |
| • Working Width | 12 ft |
| • Transport Width | 10 ft |
| • Transport Length | 20 ft |
| • Moldboard Size | 12' × 30" (high-strength steel) |
| • Cutting Edge | 12' × 6" × ½", reversible, double bevel hardened steel |
| • Hitch | Pull-type, lunette ring (pintle hitch compatible) |
| • Tire Size | 14L-16.1 12PR implement tires |
| • Spindle Size | 2.5 in |
| • Wheel Hubs | 8-bolt |
| • Hydraulic Circuits Required | 4 |
| • Blade Swing Cylinders | 2 × 4×24 in |
| • Tilt Cylinder | 1 × 4×8 in |
| • Raise/Lower Cylinder | 1 × 4×10 in |
| • Rear Steer Cylinder | 1 × optional 3×8 in |
| • Weight Box | 45 × 32 × 12 in |
| • Horsepower Required | 120–130 HP |
| • Blade Angle Range | 0°–45° left/right |
| • Cutting Depth | Adjustable with wheel lift, up to ~2 in (soil dependent) |
| • Side Plates | Adjustable for box scraper function |
| • Optional Equipment | Scrapers, rear steer, flotation tires, LED road lights |

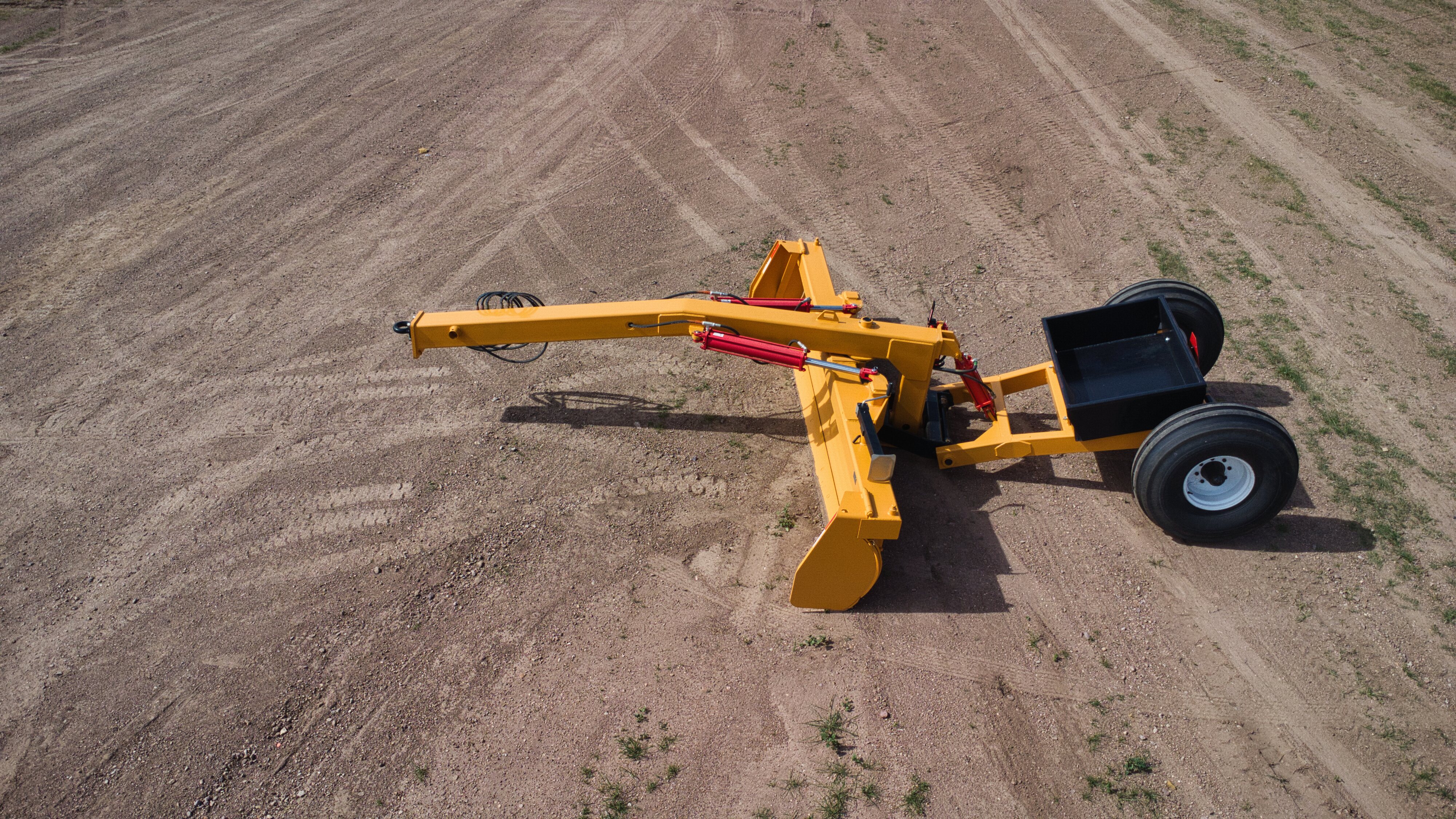

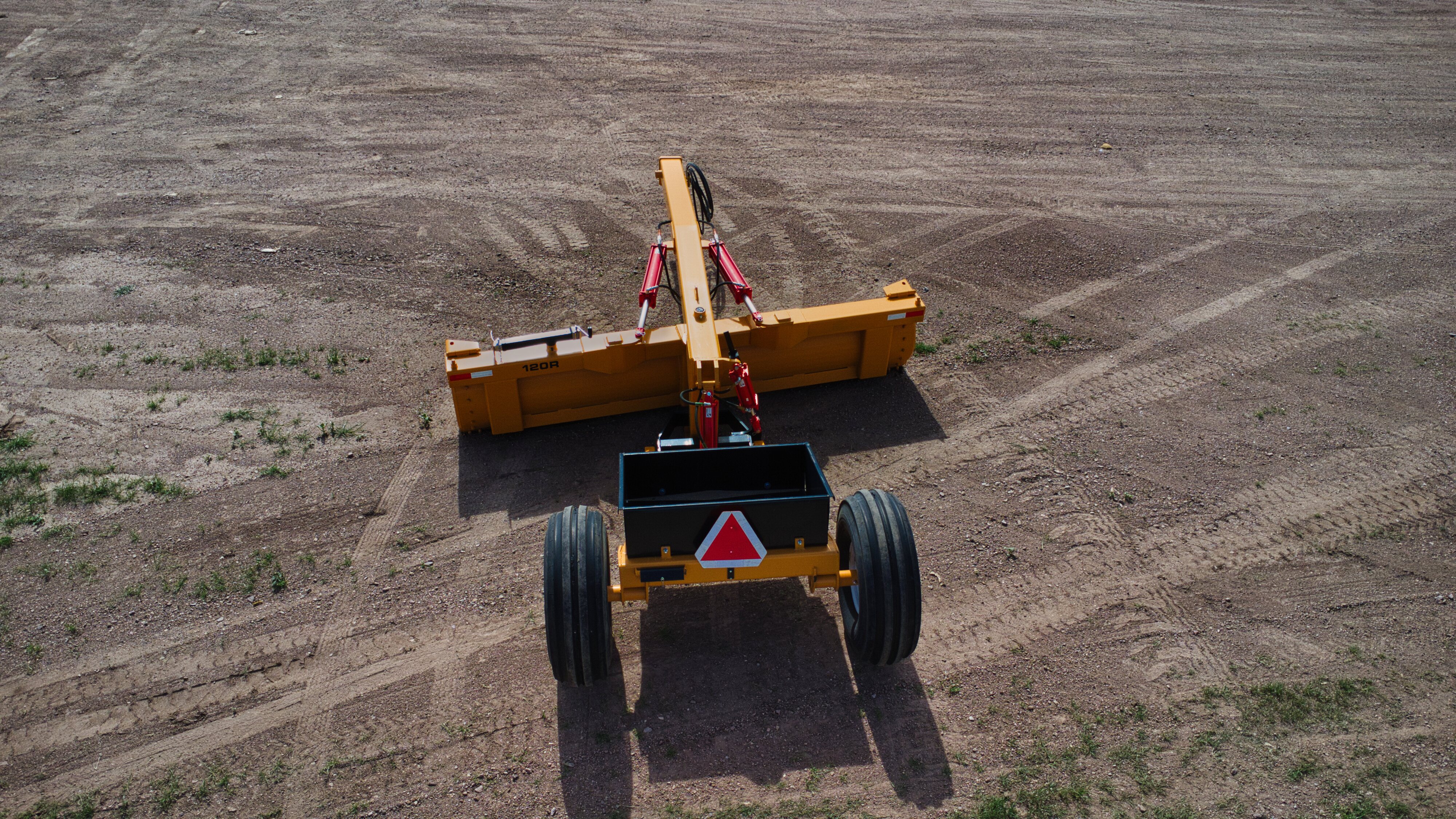

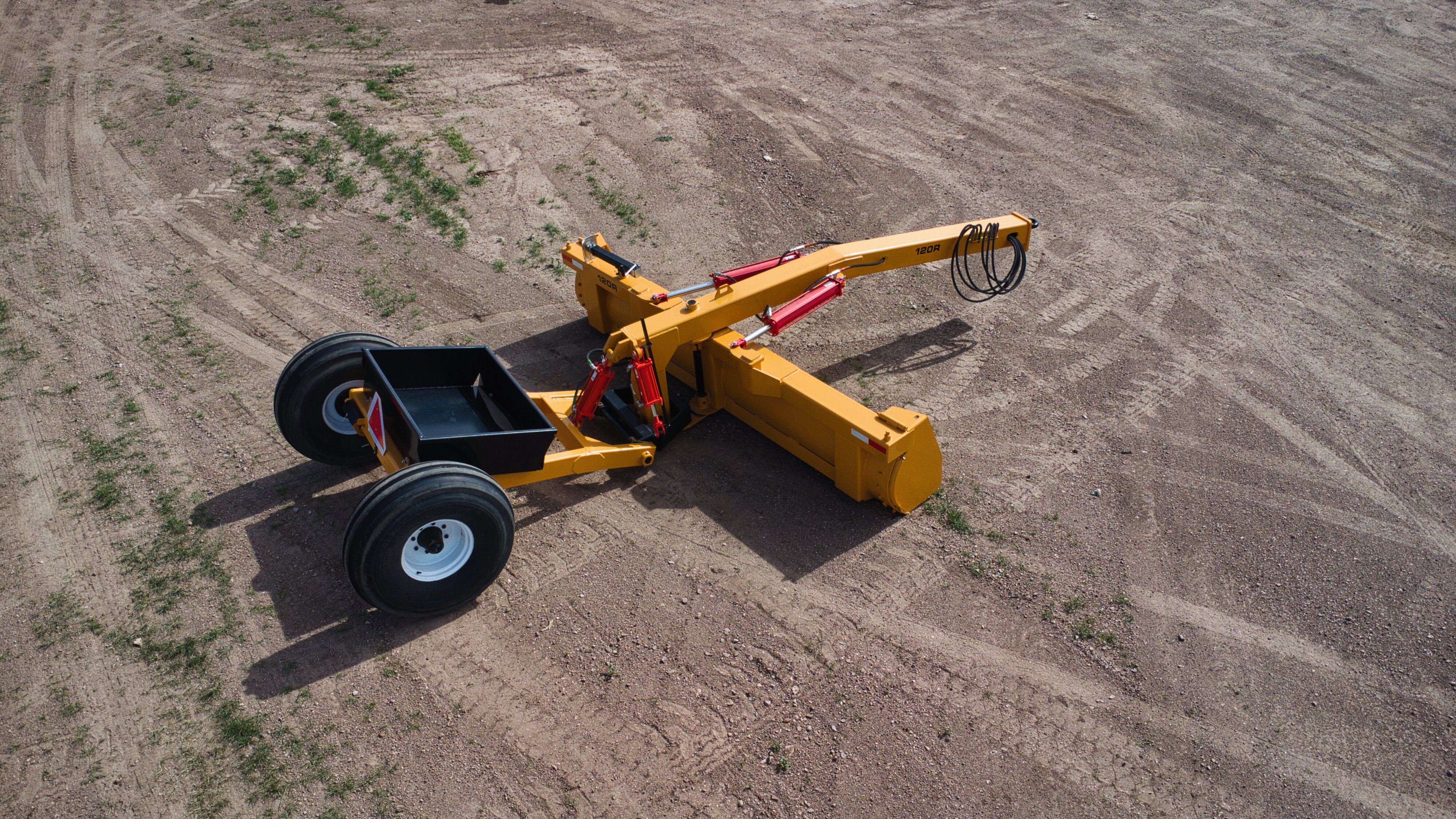

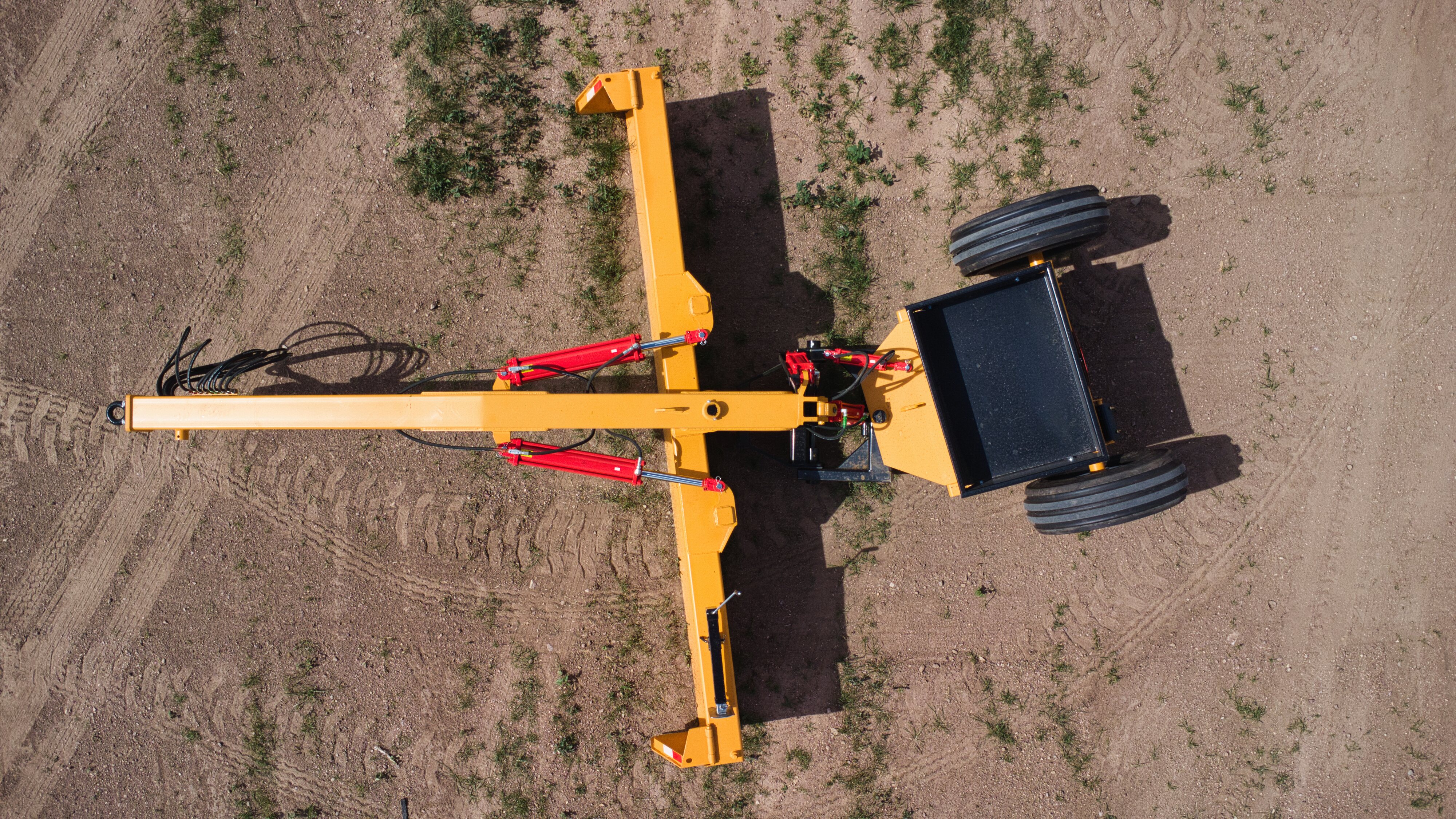

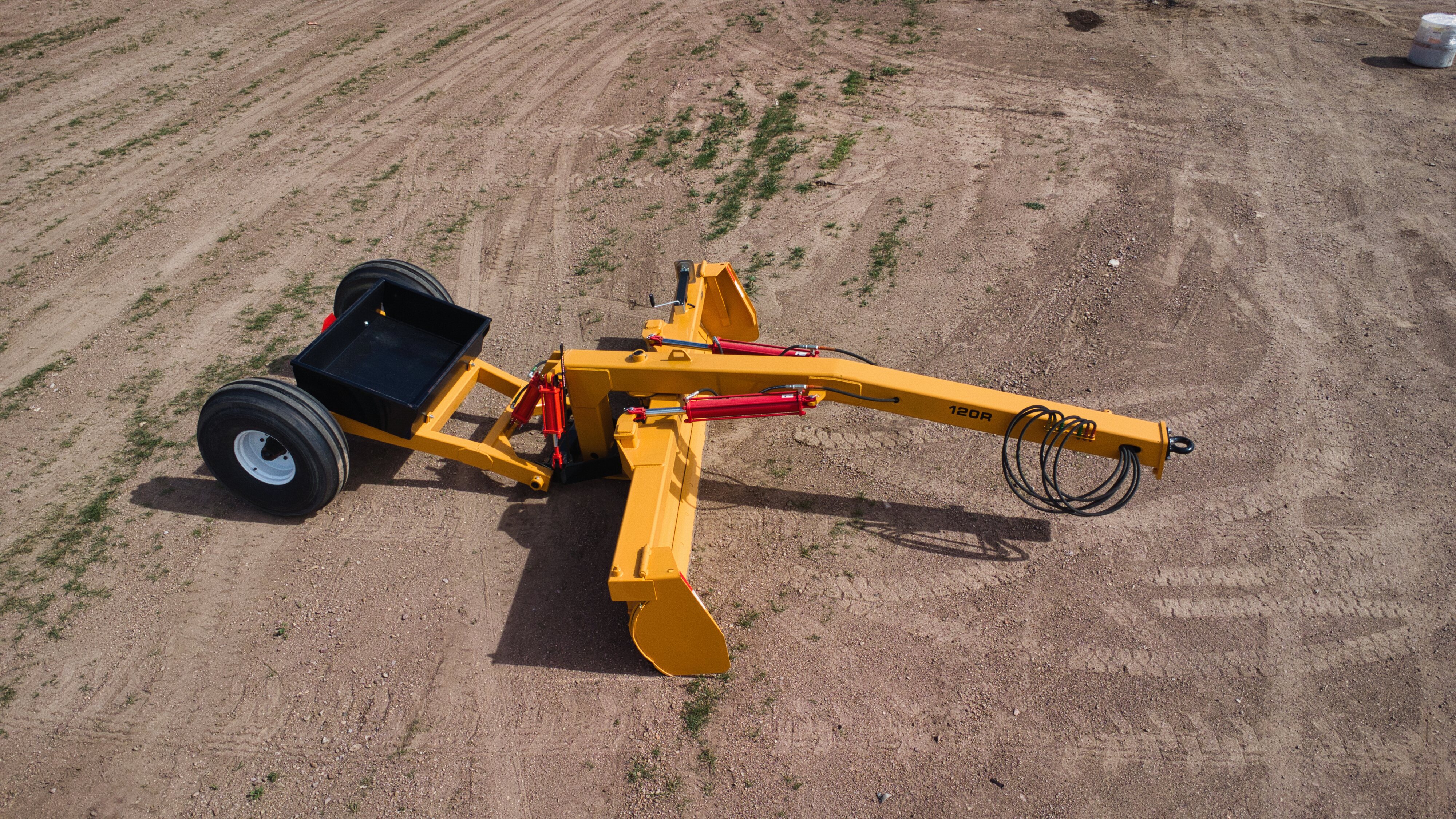

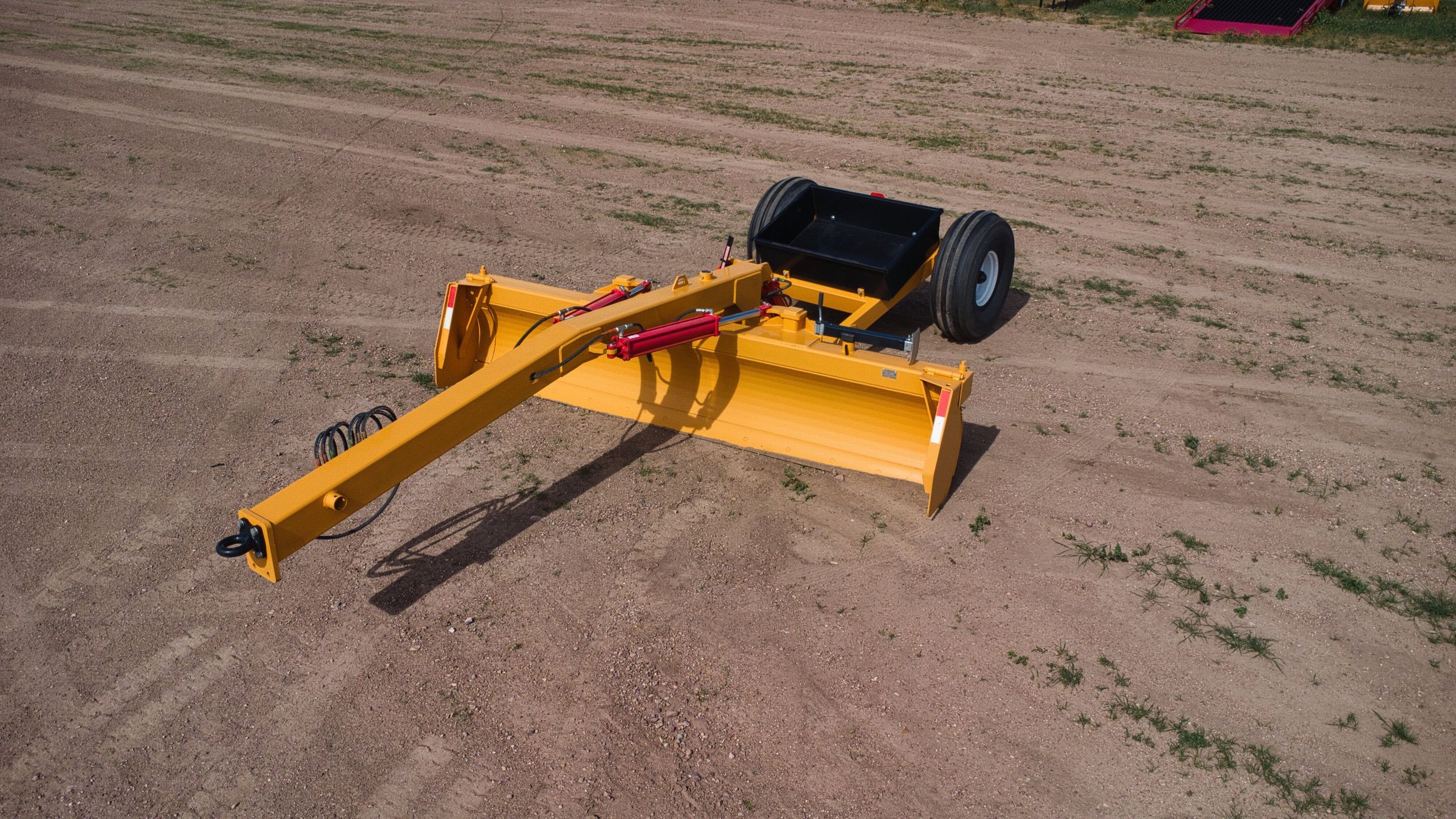

The 120R strikes a balance between size and versatility. With a 12 ft moldboard and the strength to pair with tractors up to 130 HP, it’s a favorite for road maintenance, land leveling, and field preparation. Adjustable side plates and a hydraulic 0°–45° blade swing make it a powerful, all-purpose grader.
