Specifications
| Feature | Description |
|---|---|
| Type | 3-point disc harrow (X-frame) |
| Hitch Category | Cat I / II |
| Disc Diameter | 18” |
| Disc Thickness | 1/8” |

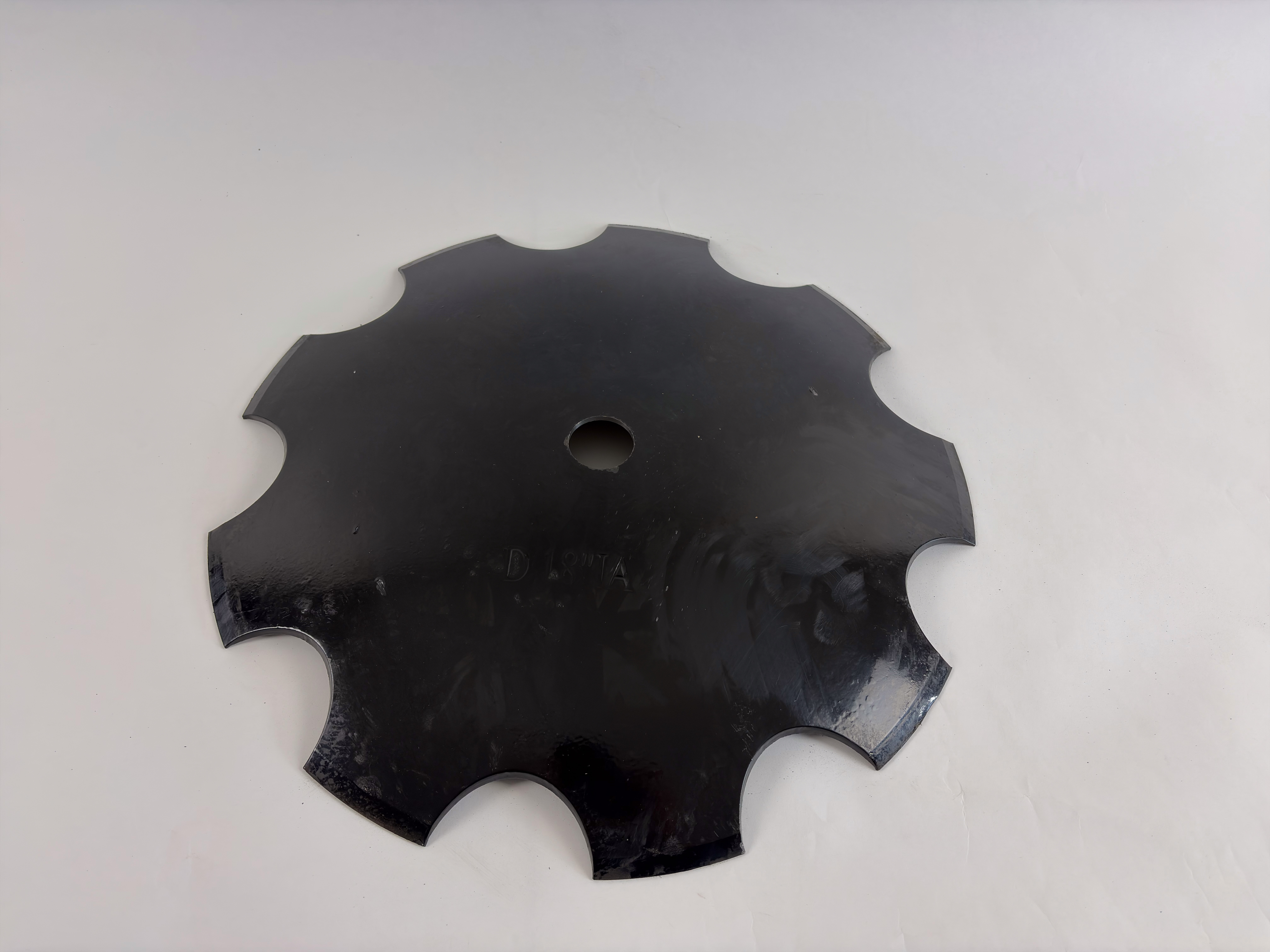

| Disc Type | Plain or notched |
| Disc Material | Carbon steel |
| Disc Spacing | 7.5” |
| Number of Discs | 16, 20, 24 |
| Working Width | Approx. 60” – 90” |
| Gang Angle | Adjustable |
| Frame | 2.5” × 2.5” × 3/16” steel tubing |

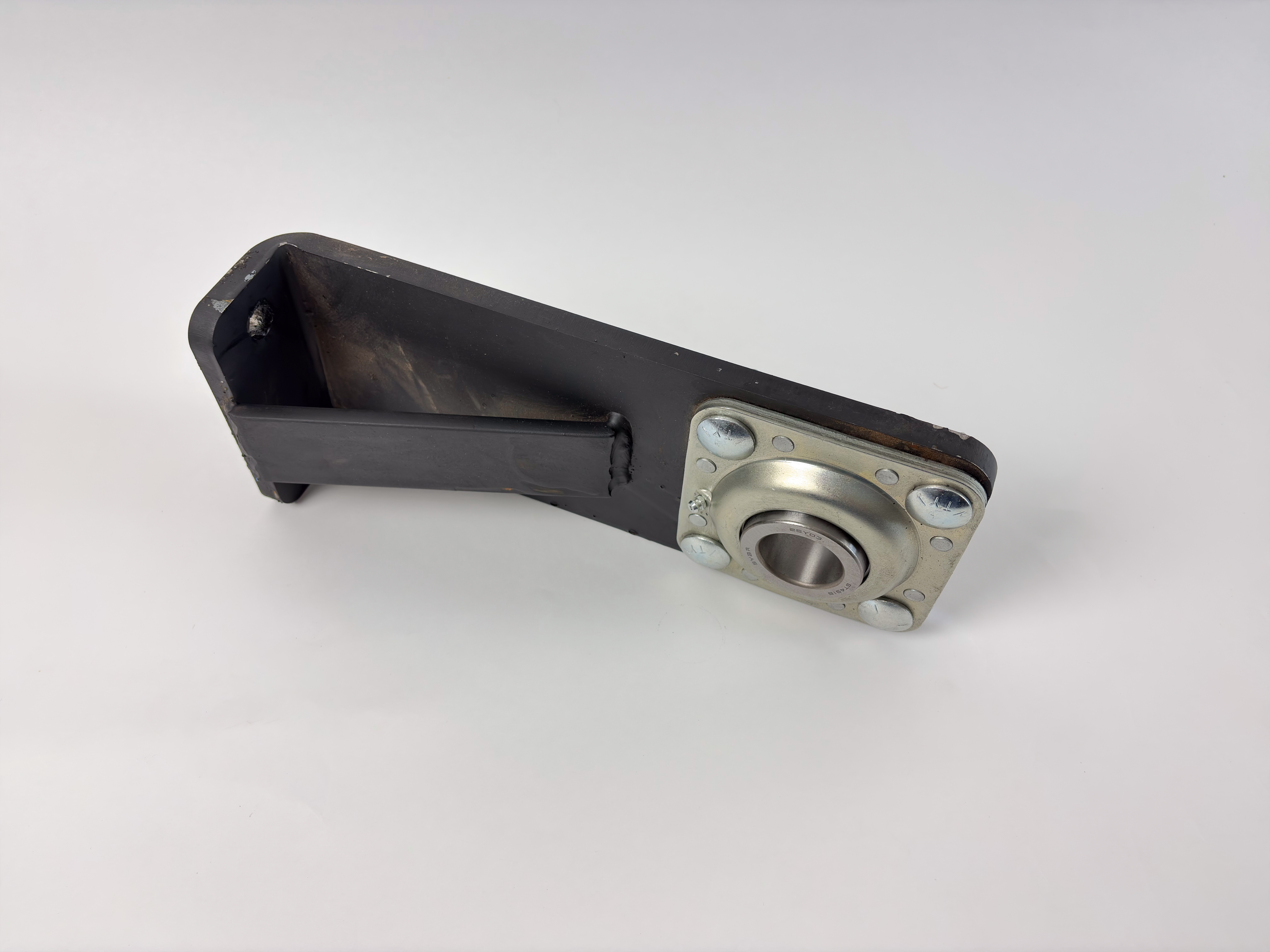

| Bearings | Sealed steel bearings |
| Scrapers | Optional |
| Transport | No wheels |
| Jack | Not required |
| Recommended HP | 45–70 HP |
| Soil Type | Light to medium |
| Residue Handling | Moderate |

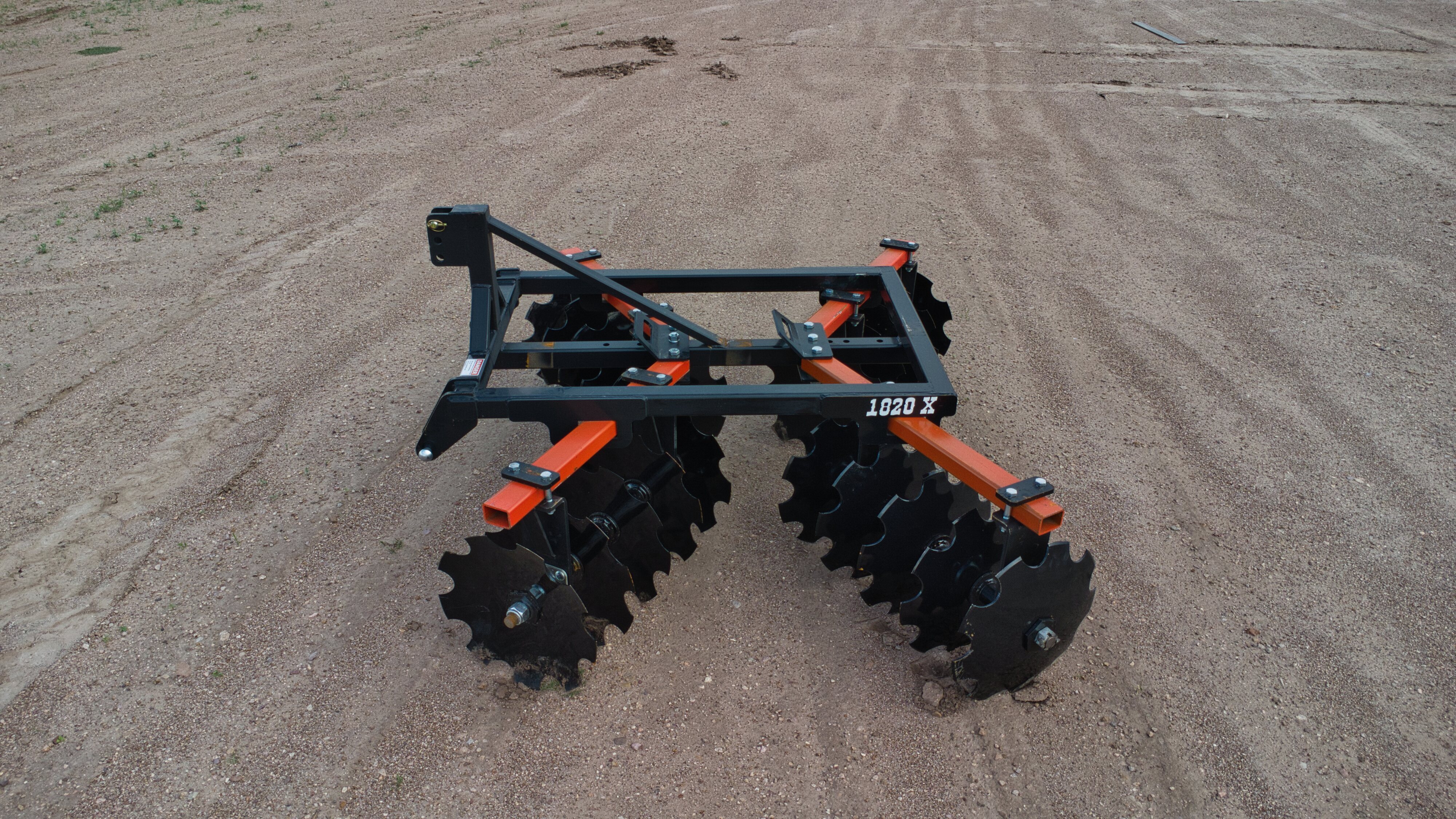

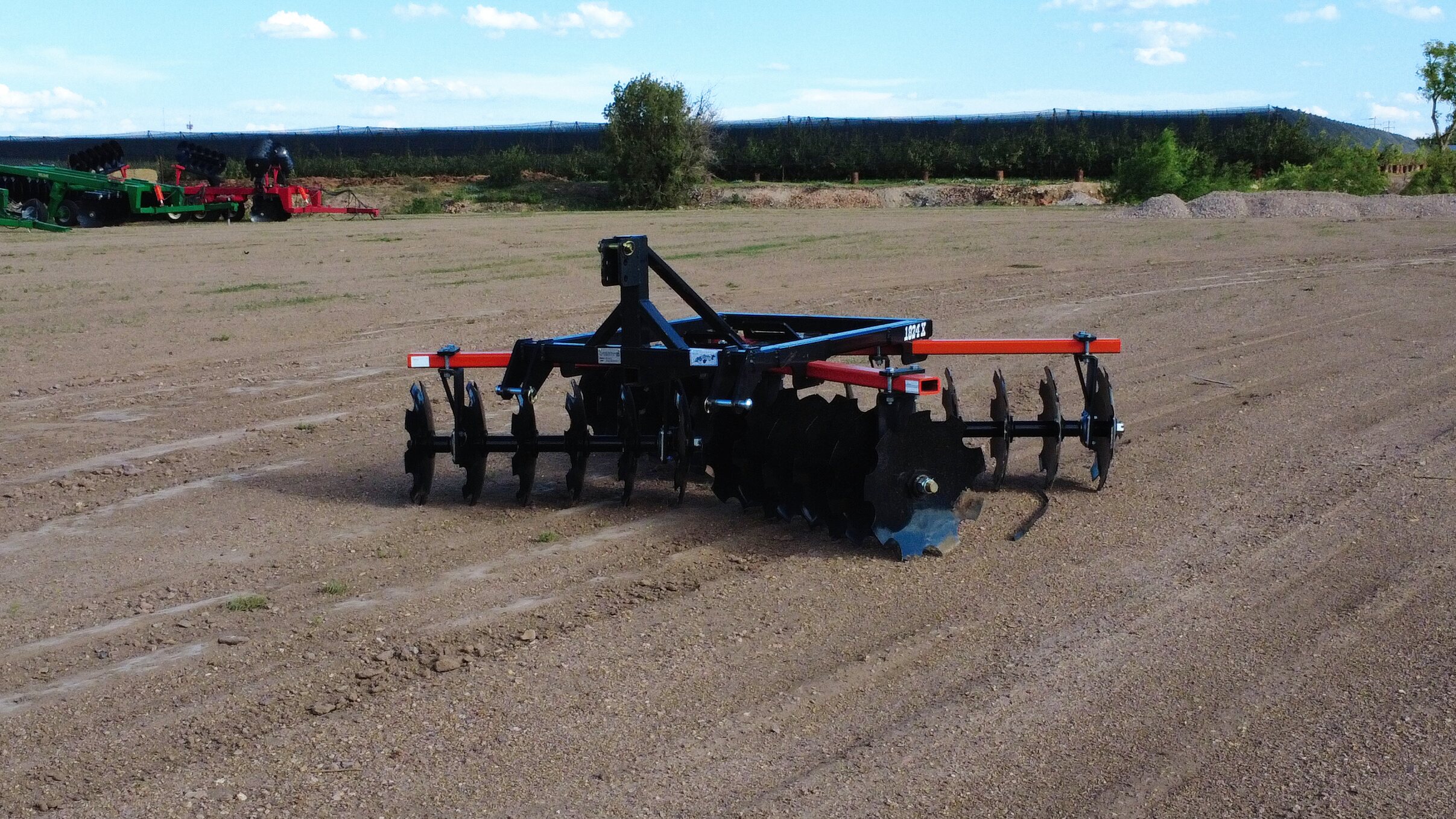

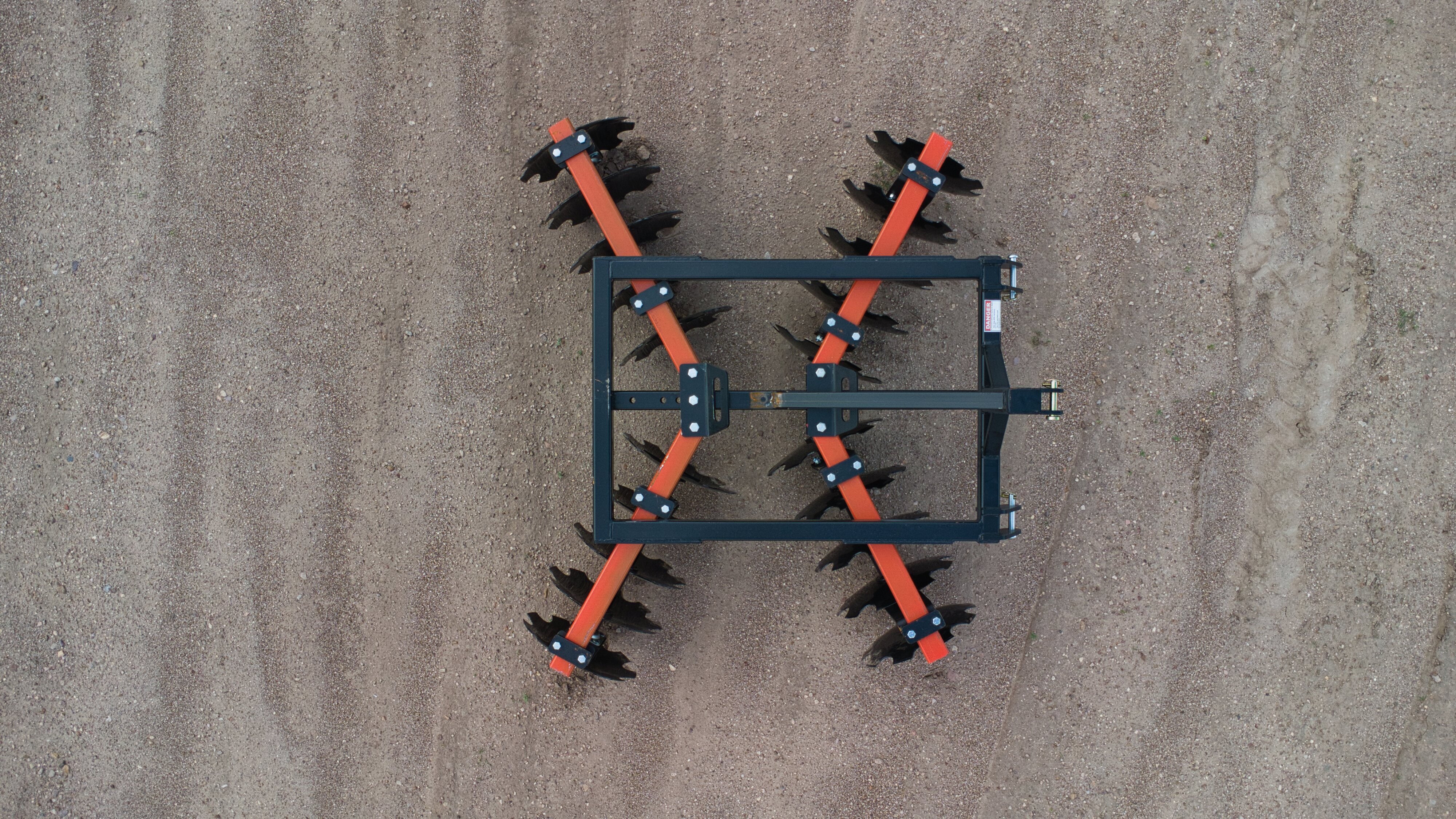

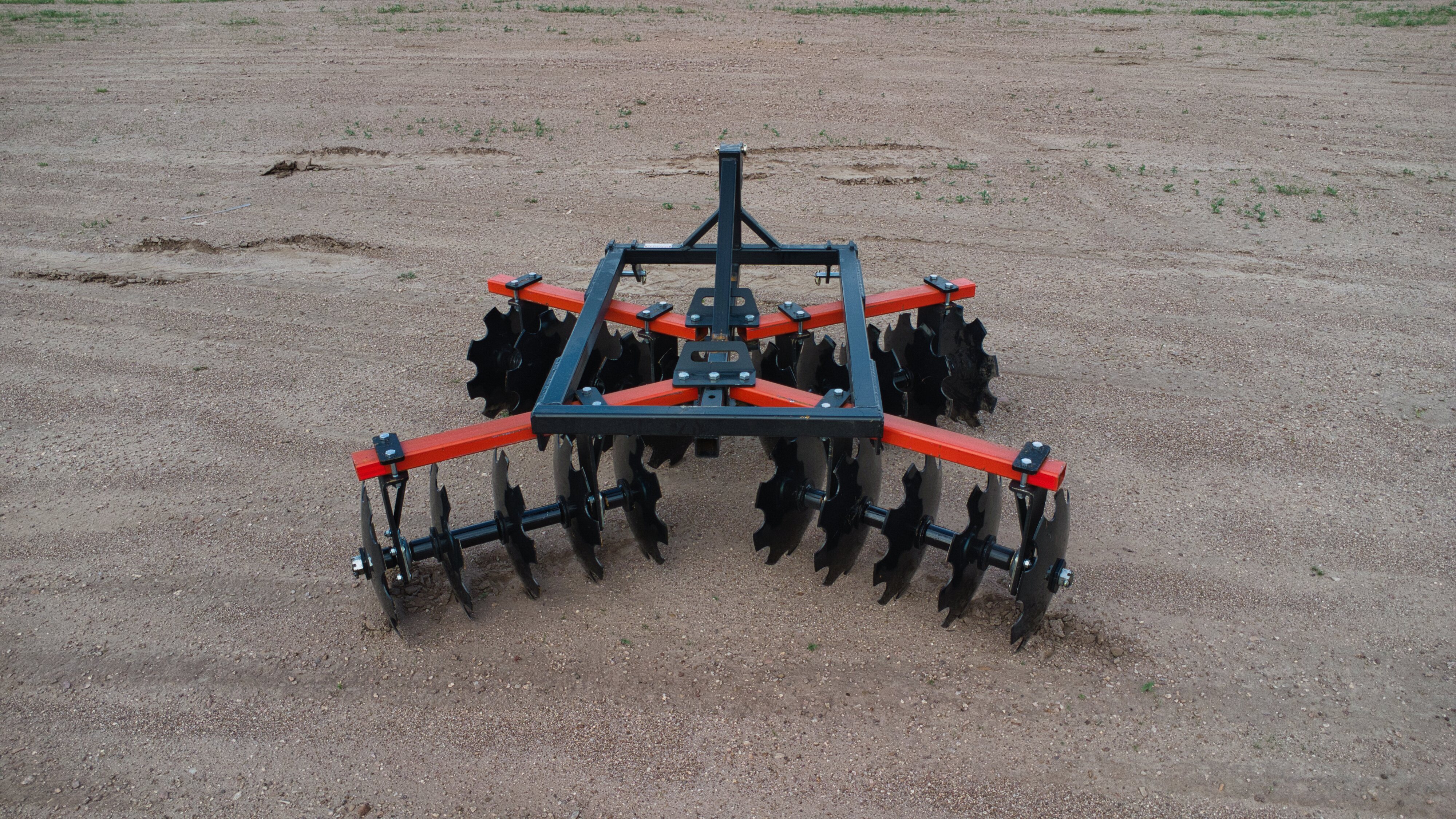

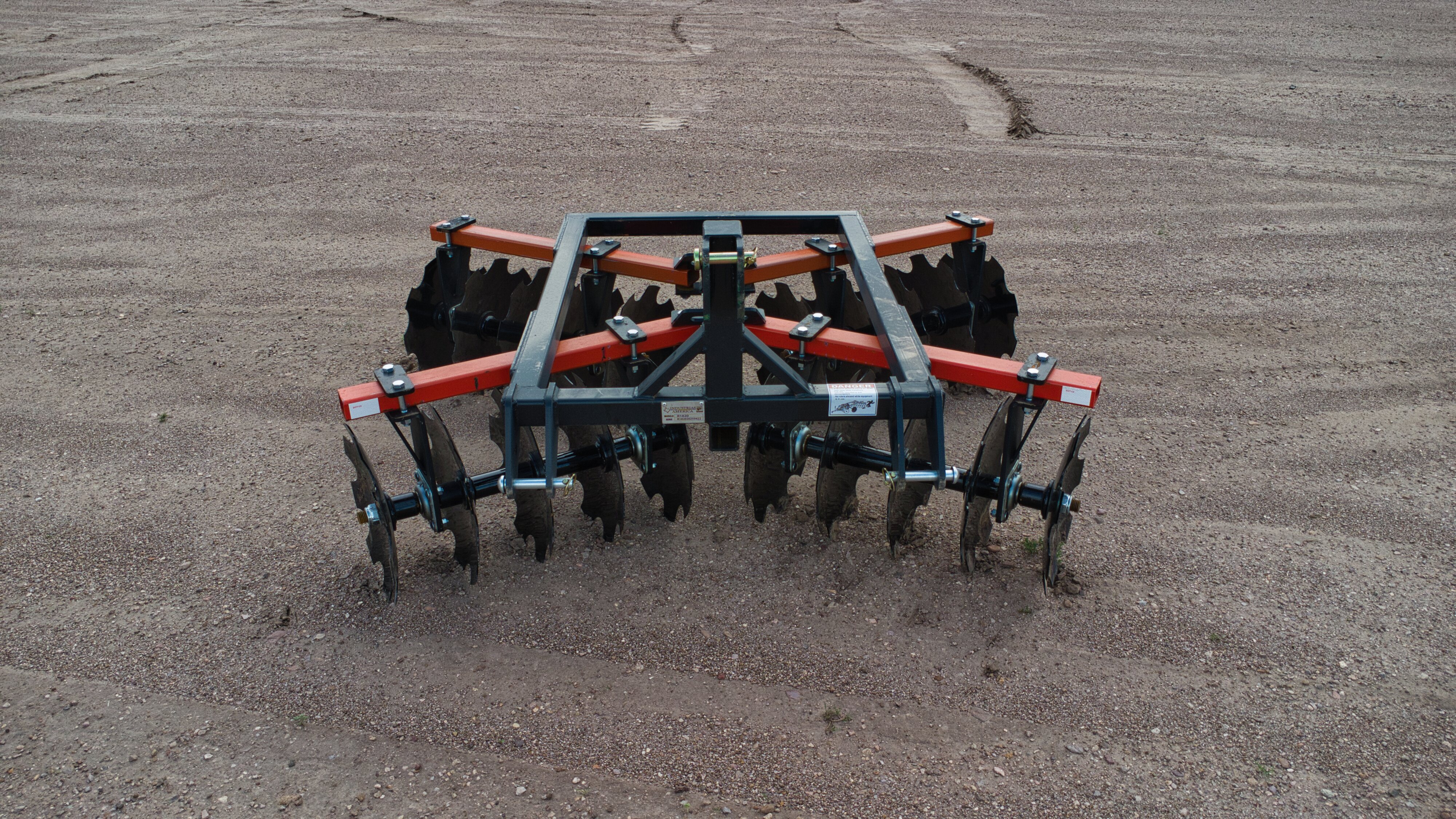

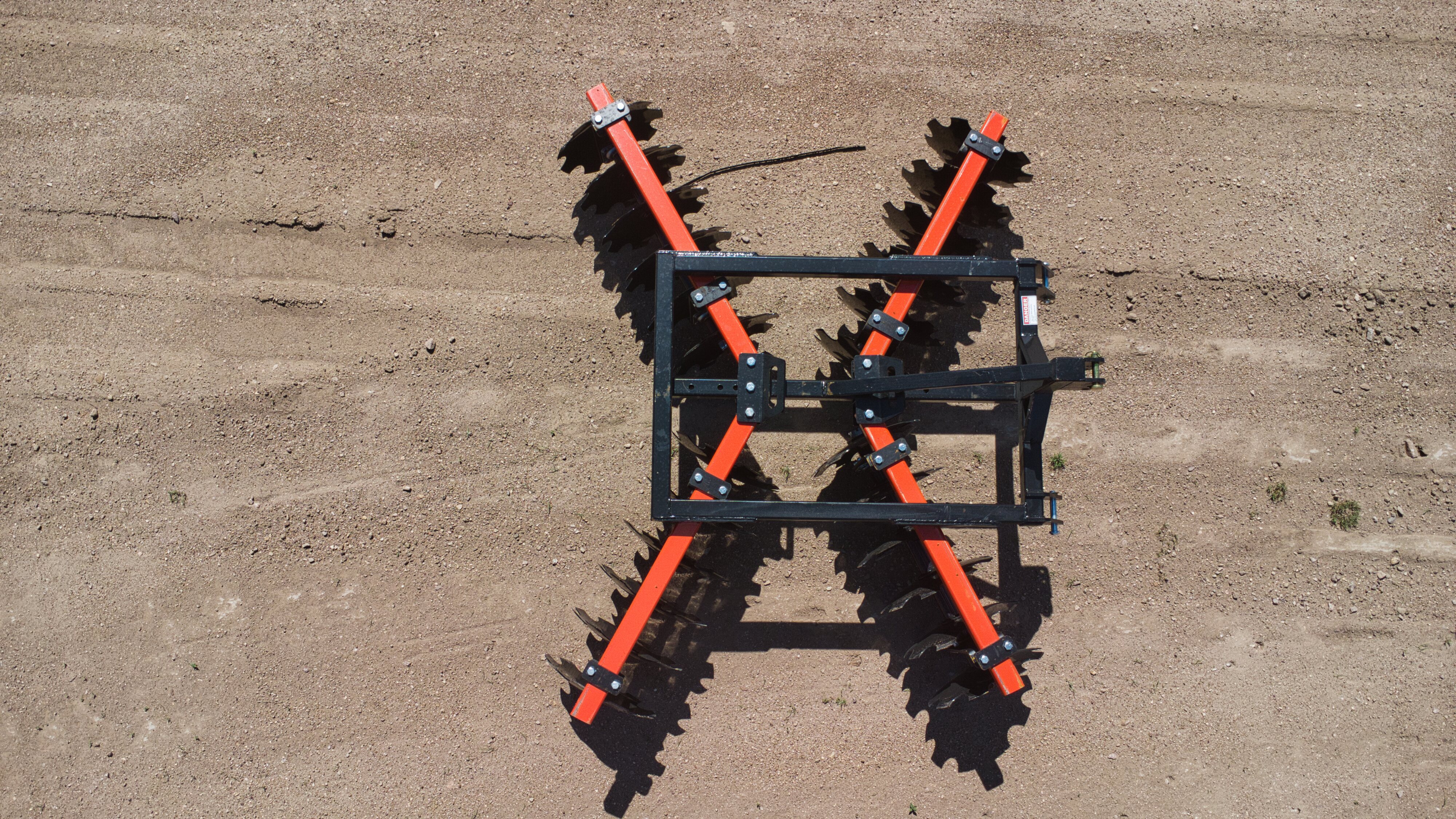

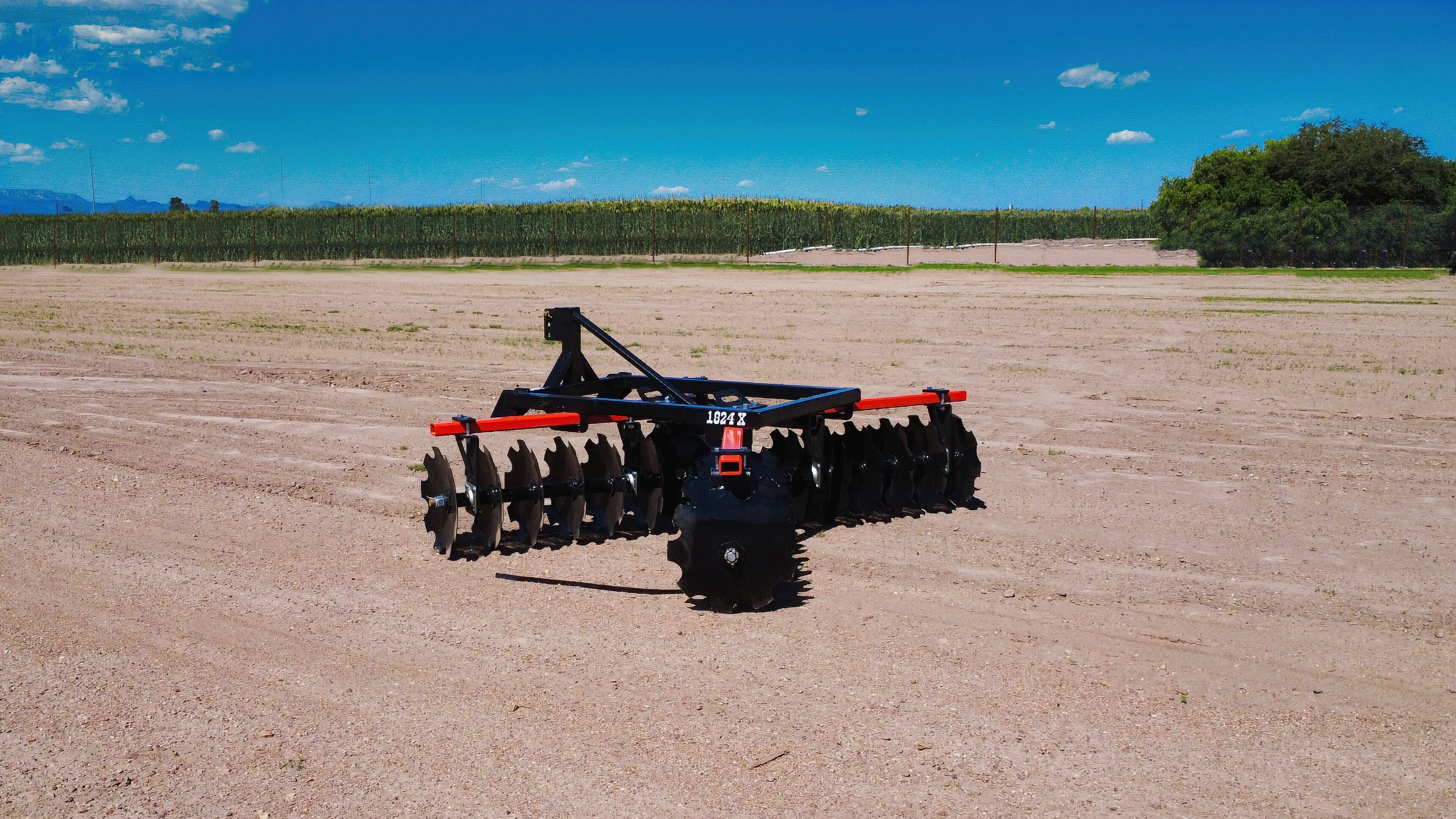

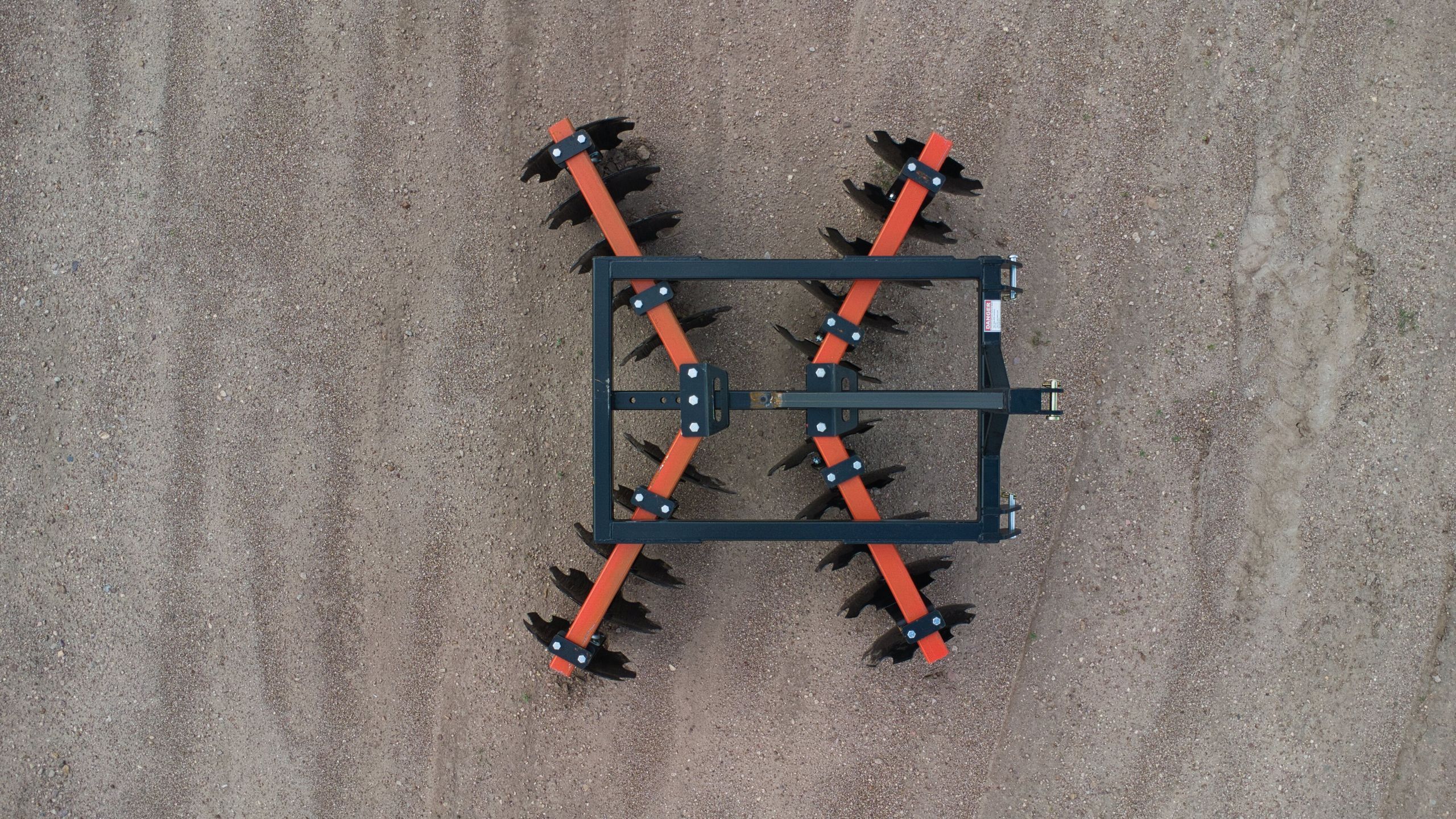

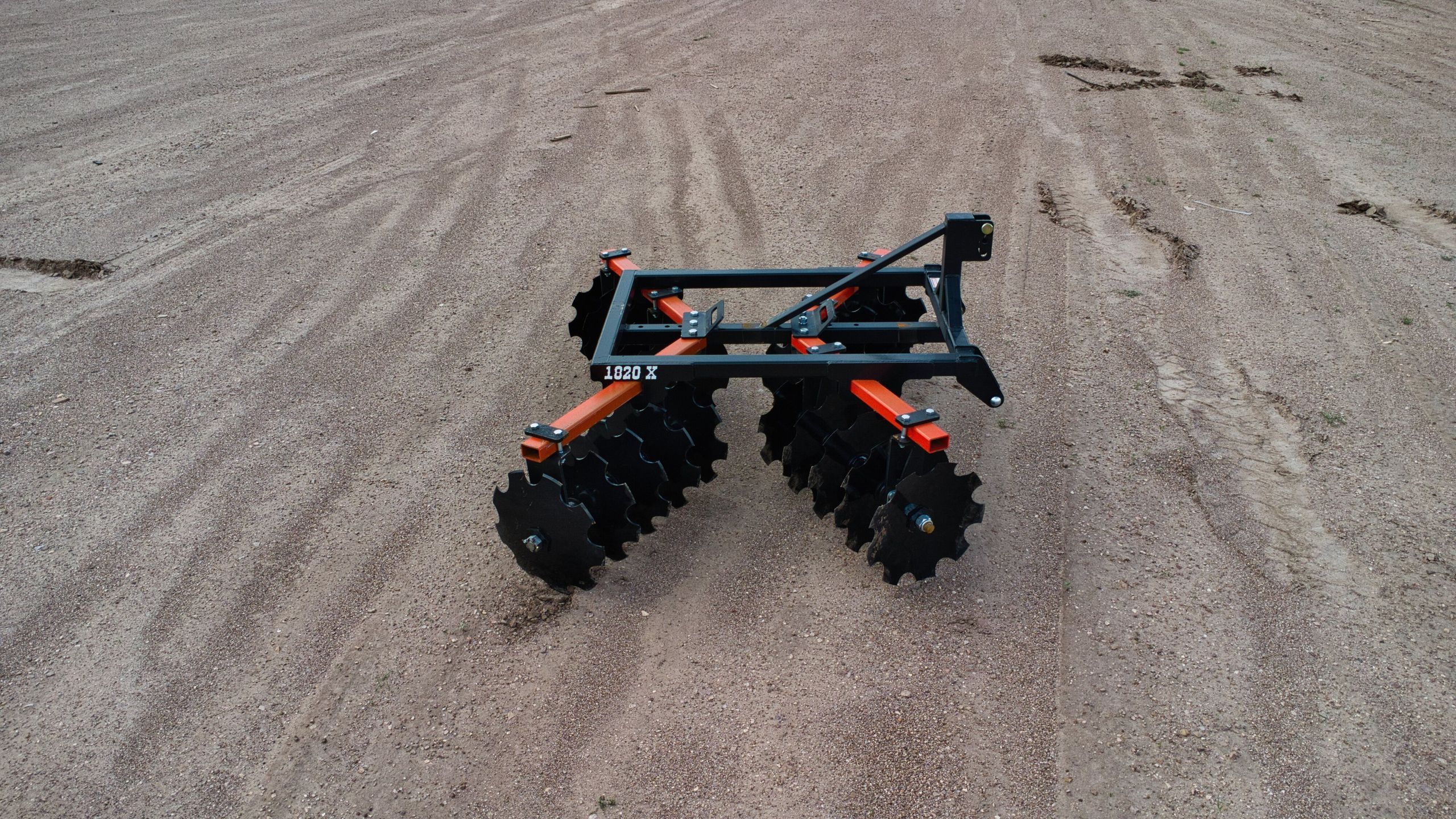

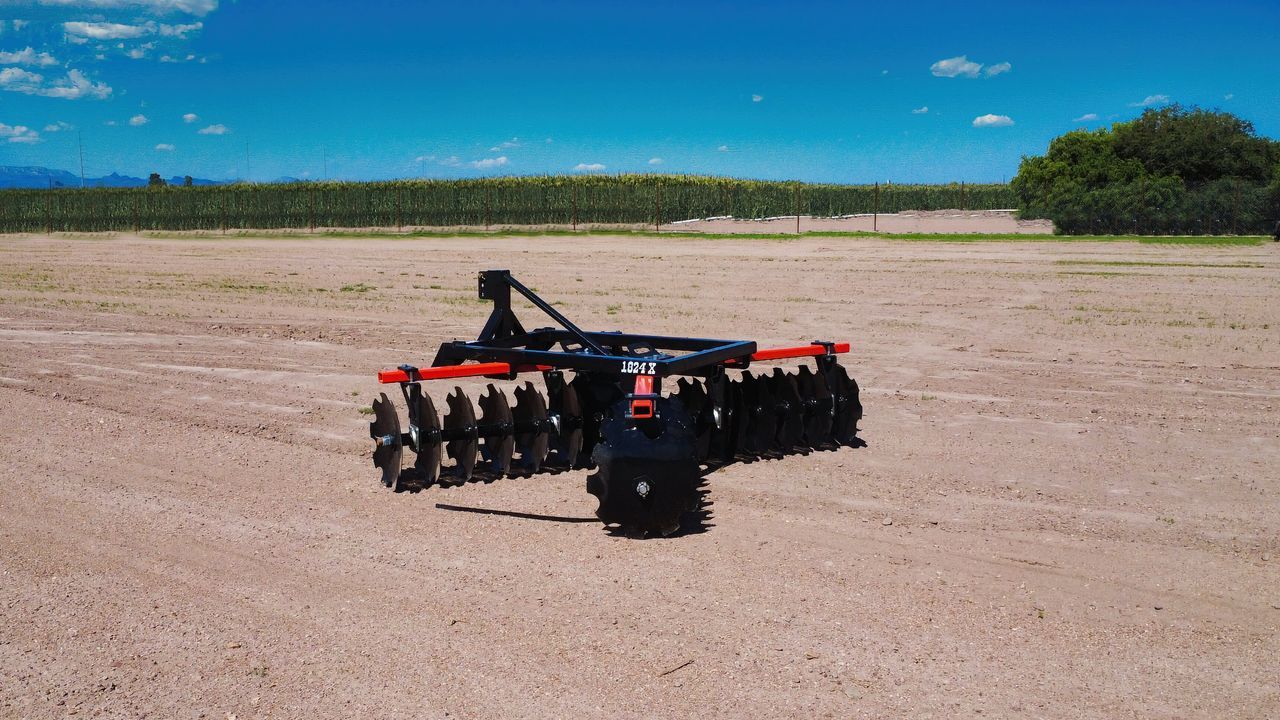

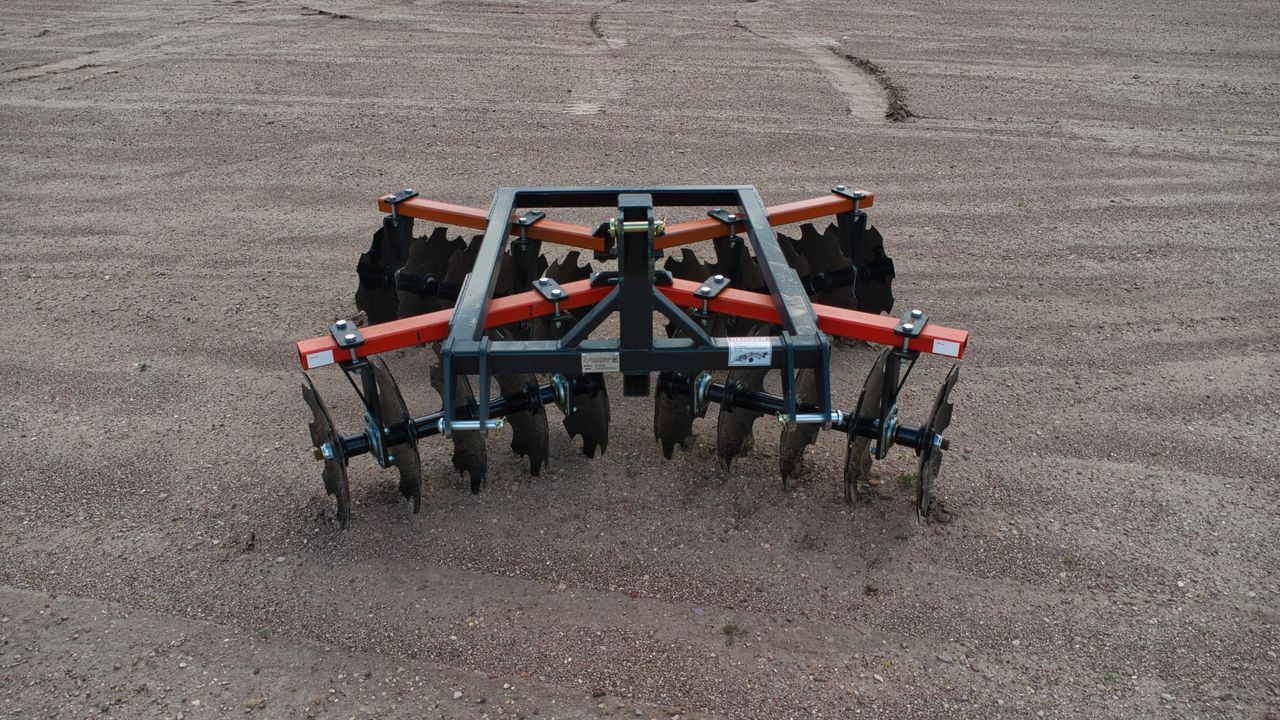

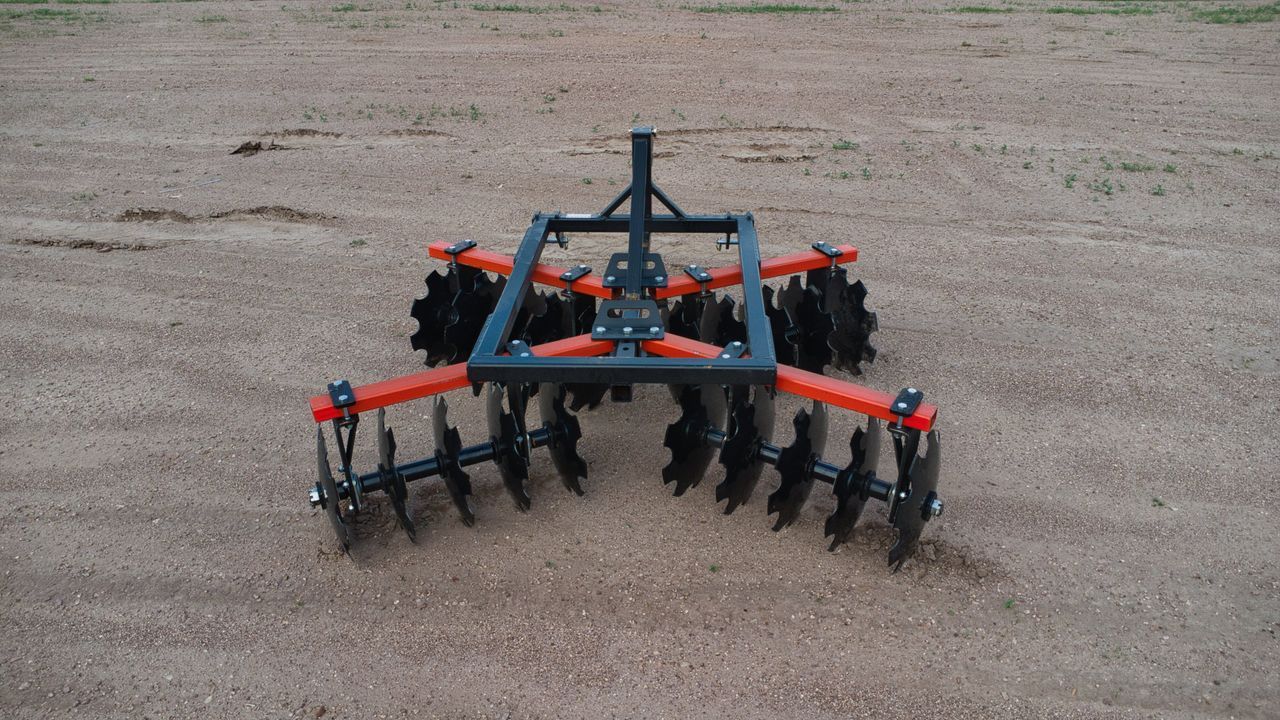

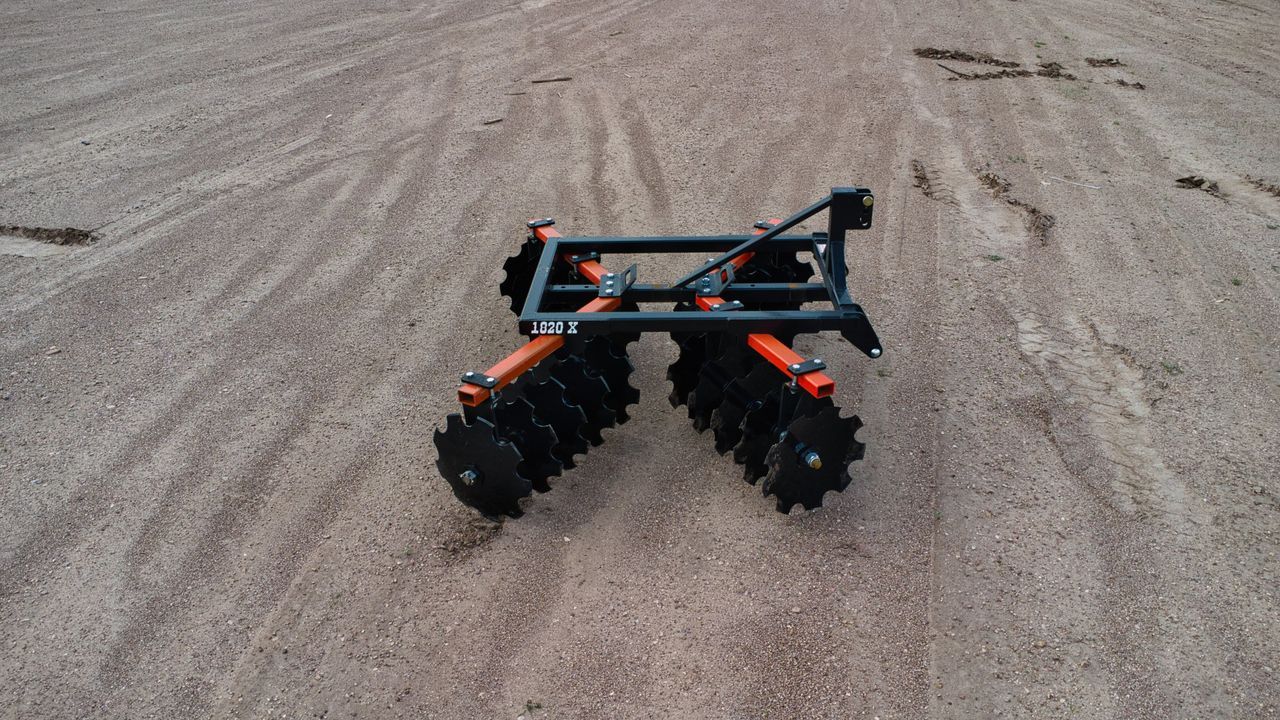

The 18” X-frame disc harrow provides better balance and more uniform cutting compared to a V-type, making it a good choice for more consistent field finishing. It’s still compact and easy to handle, but offers improved soil leveling and penetration. Ideal for small to mid-size operations, this model works well in light to medium soils where a clean, even finish matters. The X-frame design helps distribute weight more evenly across the gangs for better performance.
