Specifications
| Feature | Description |
|---|---|
| Feed Type | Hay |
| Feeding Spaces | 34 |
| Total Width | 104" |
| Feeder Width | 82" |
| Total Length | 35 ft |
| Feed Space | 82"×24 ft |
| Weight | 1,260 kg |
| Pan Depth | 11" |
| Pan Material | 11-gauge steel |
| Frame | 2.5" + square tubing |
| Slant Bars / Inner Tubes | 1.75" round |

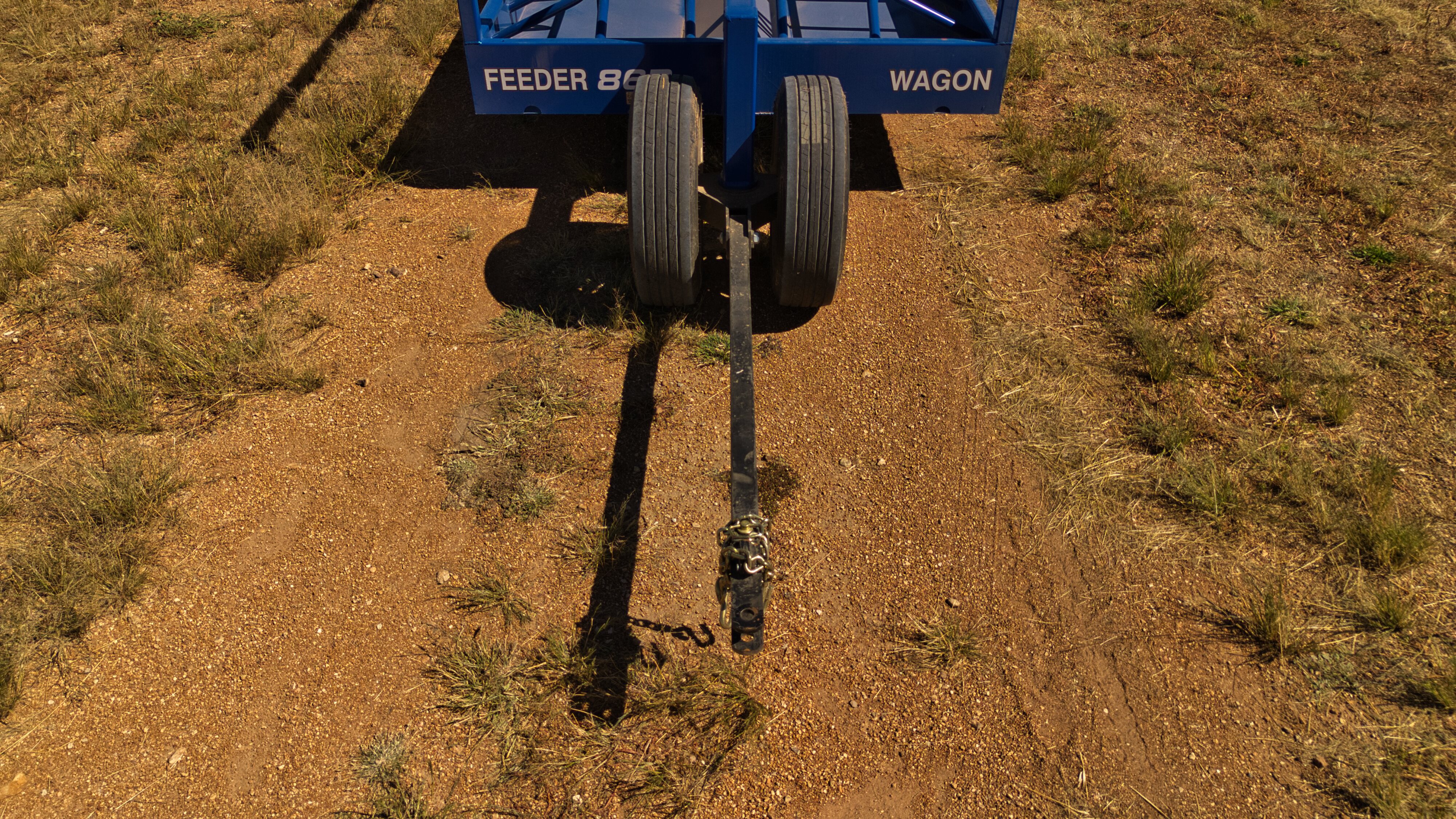

| Hitch Type | Telescopic gooseneck (extends 45") |
| Steering / Dolly | Front dolly with 2 wheels |
| Axle Configuration | Front & rear 7,000 lb spindles |
| Tires | ST235/80 R16 |
| Wheel Count | 4 |
| Finish / Color | Blue powder coat |
| Feed Types Supported | Round or square hay bales |

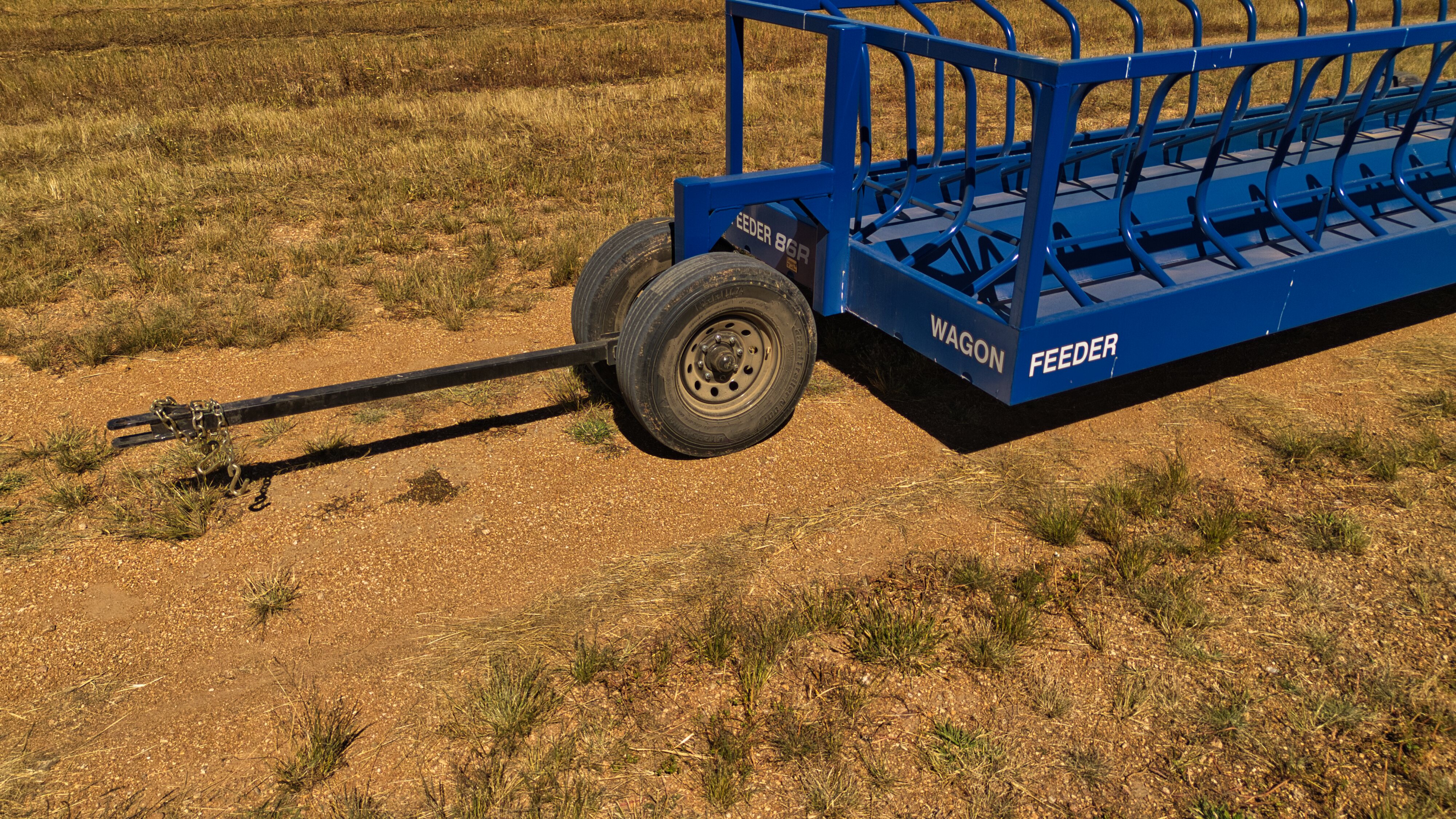

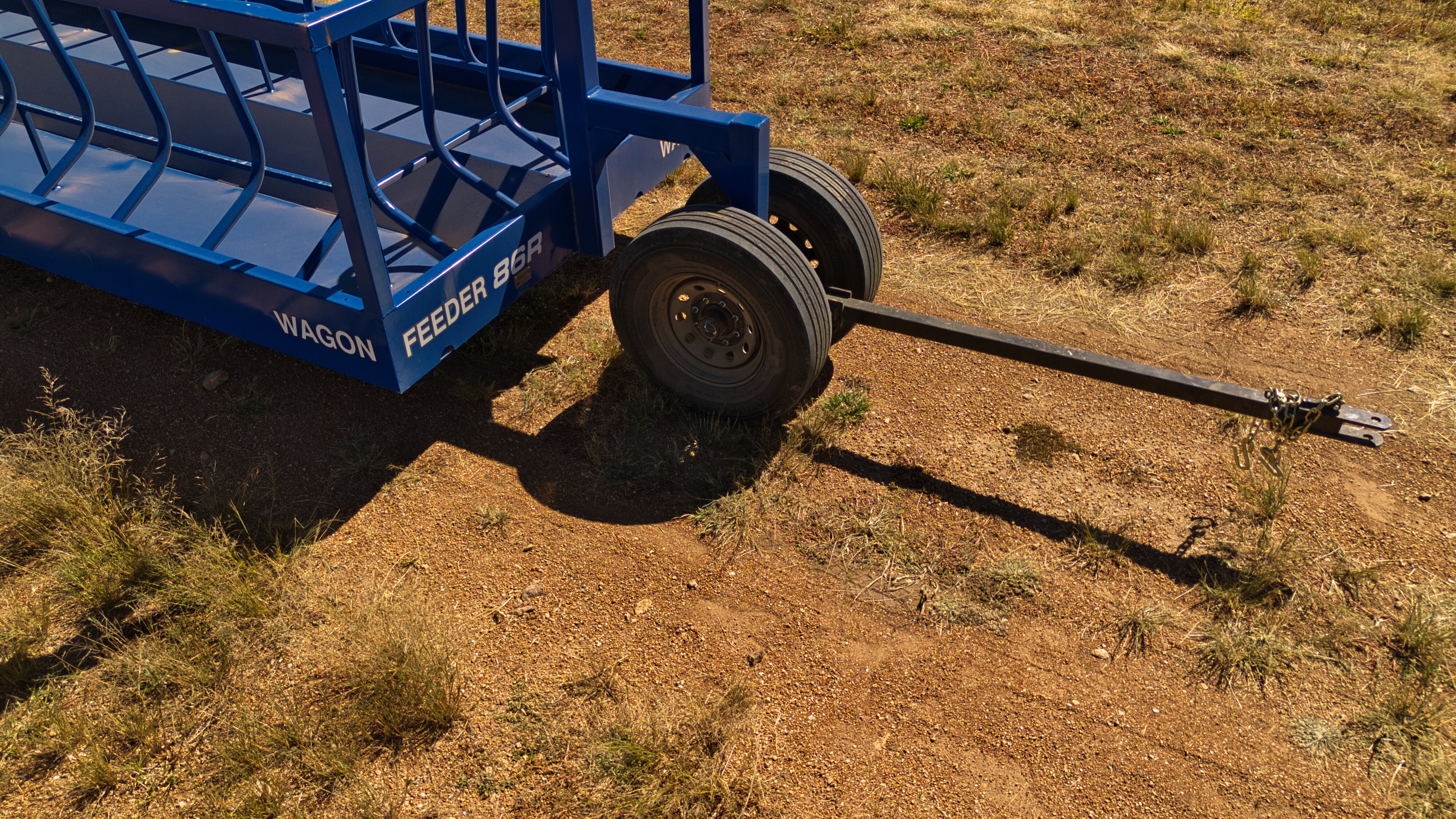

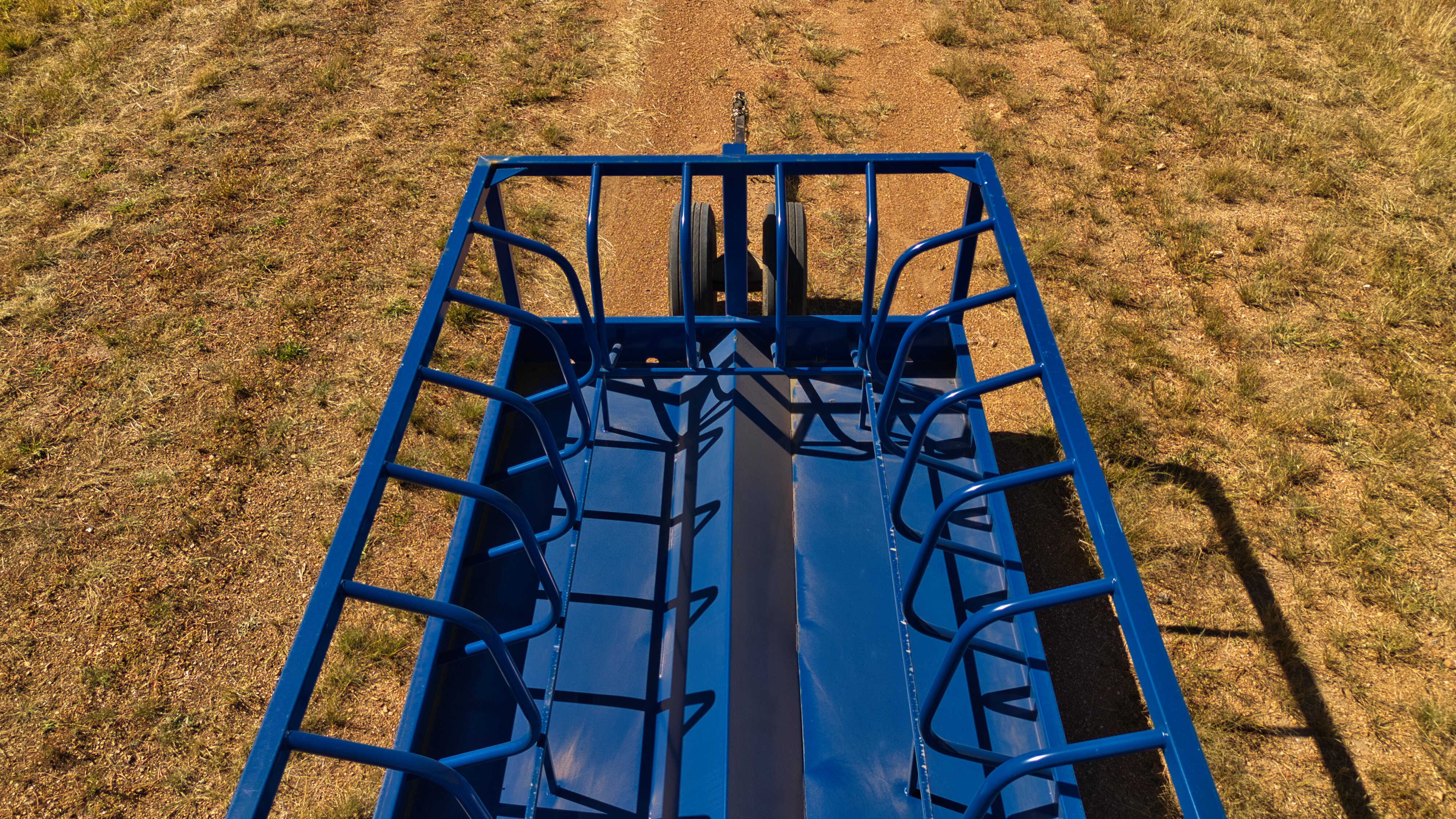

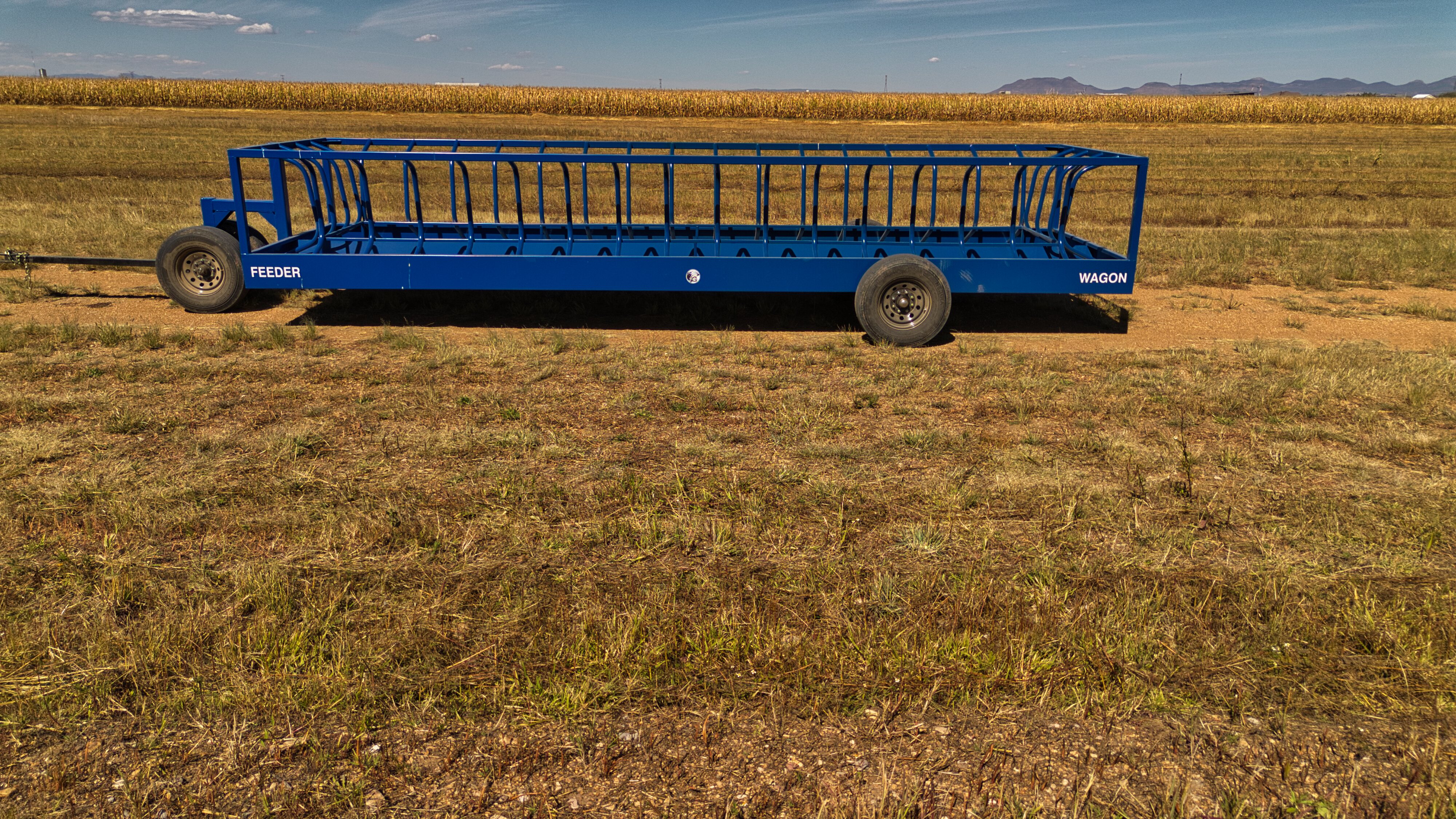

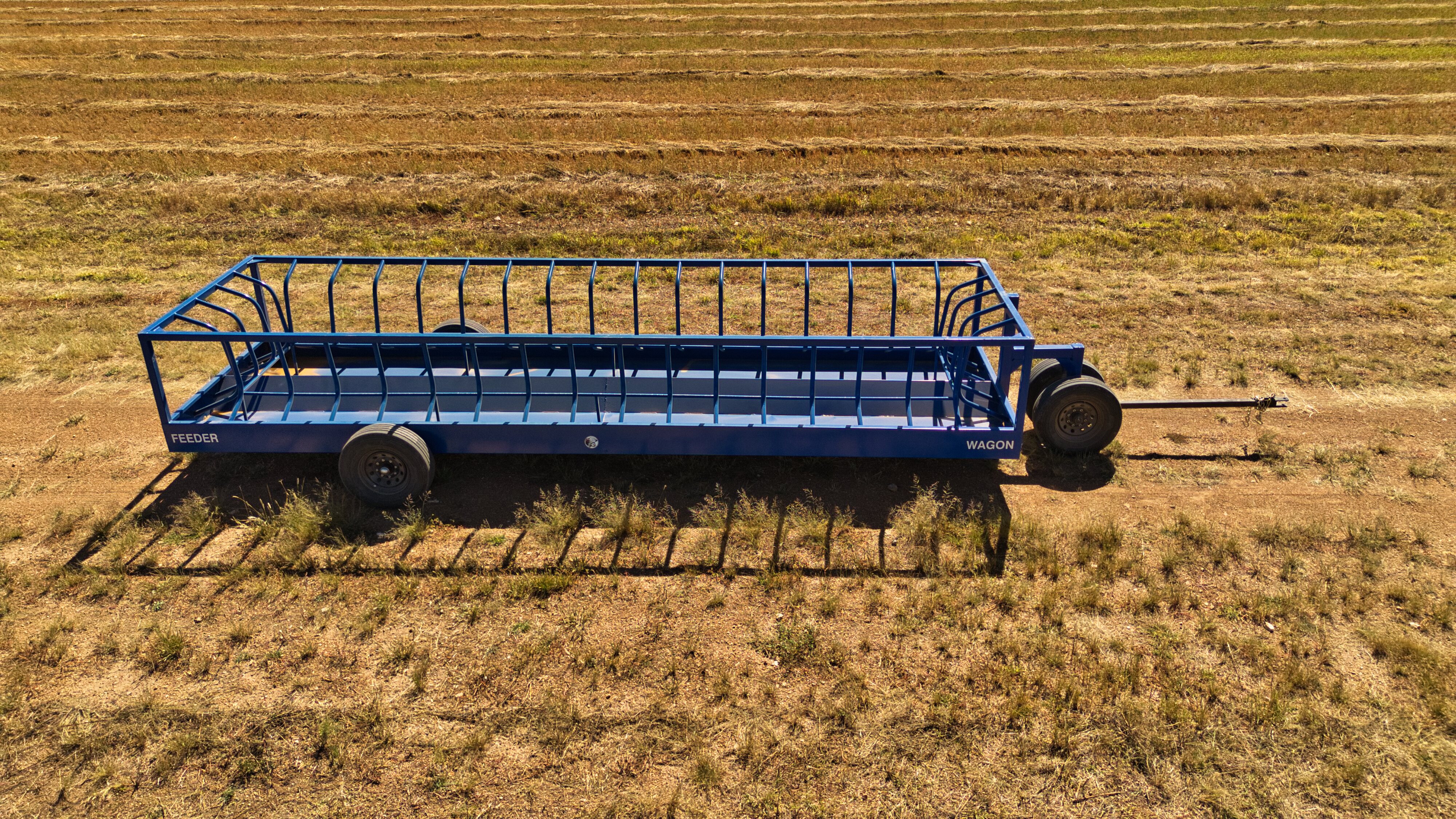

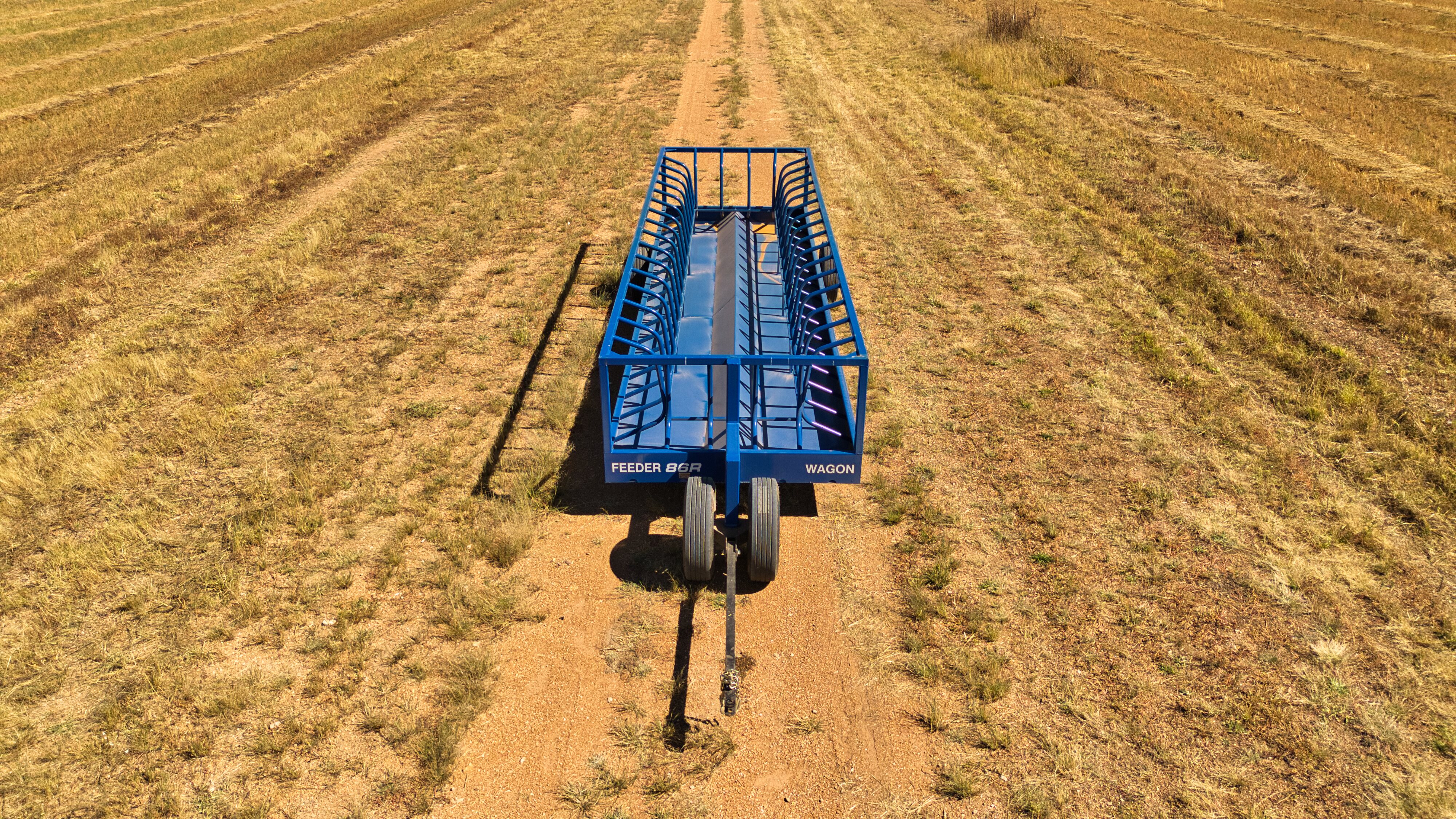

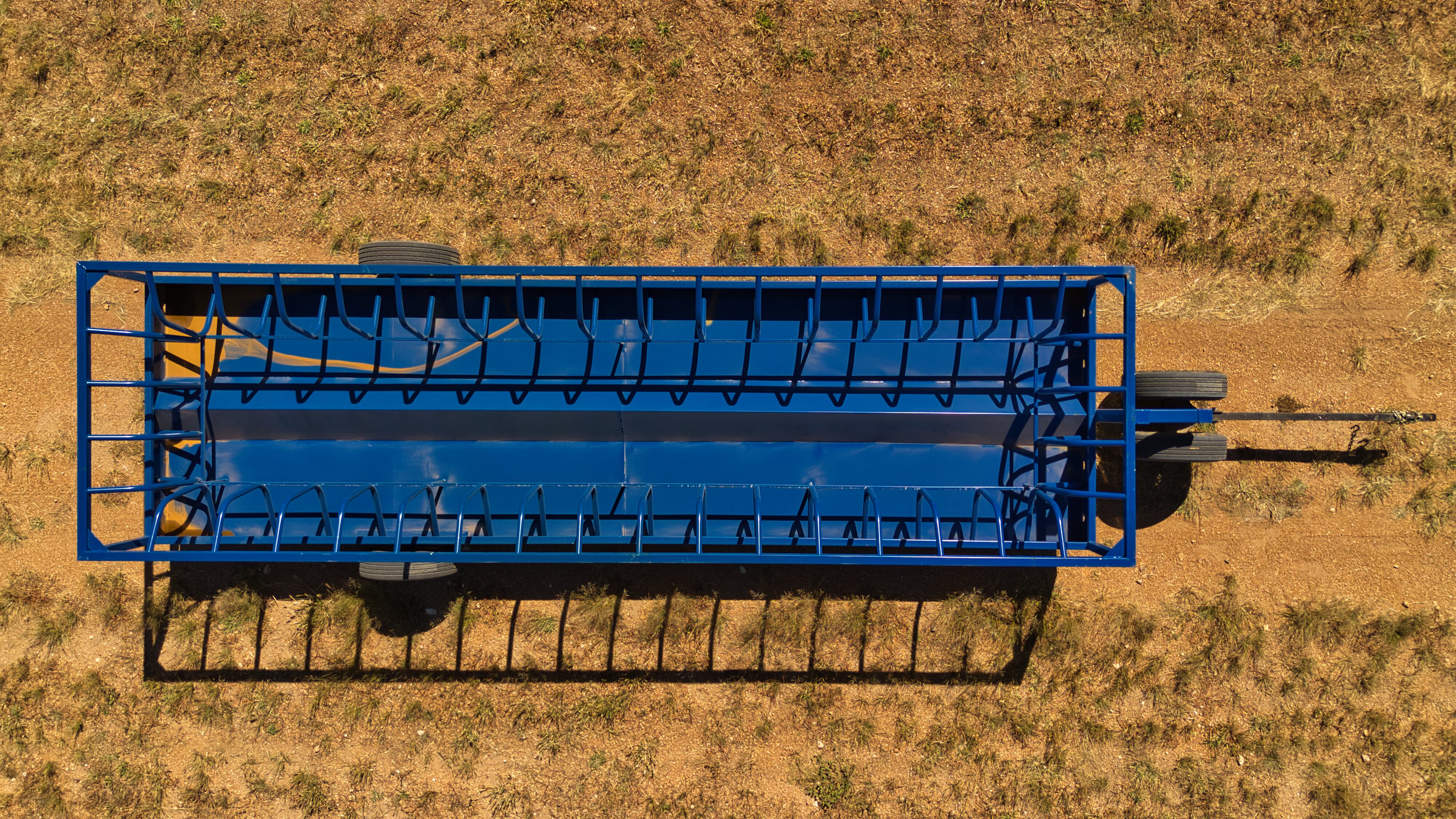

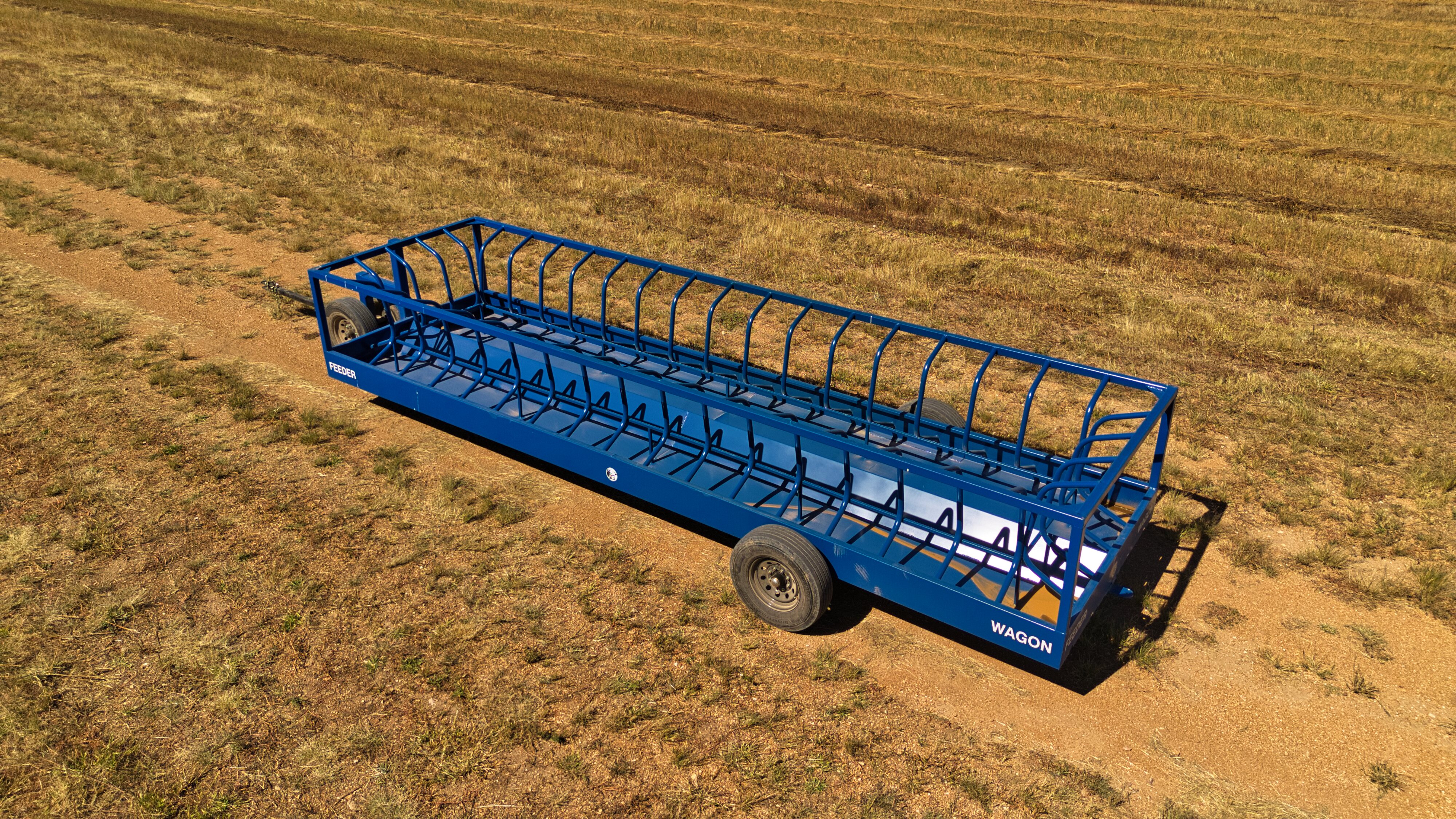

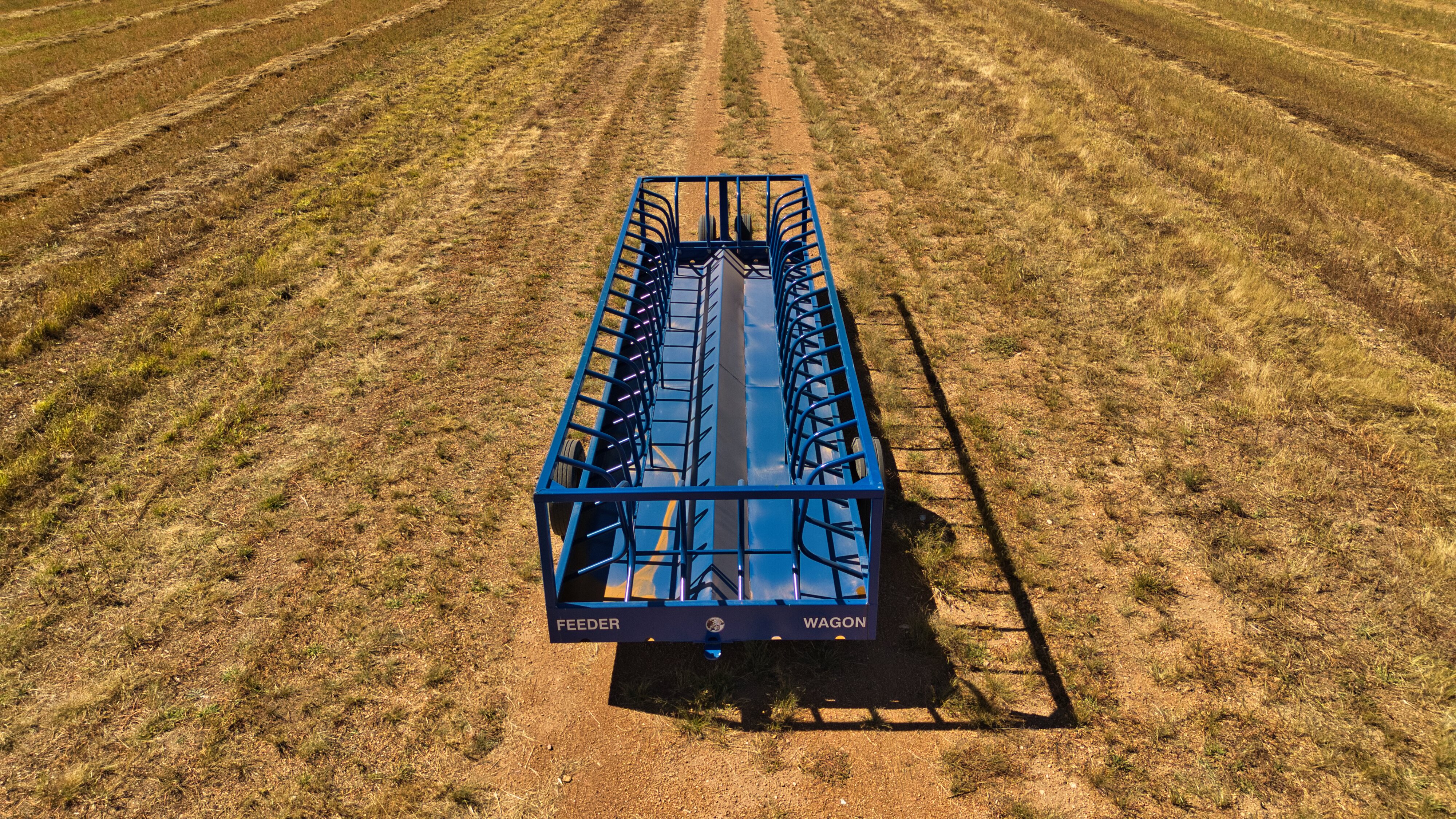

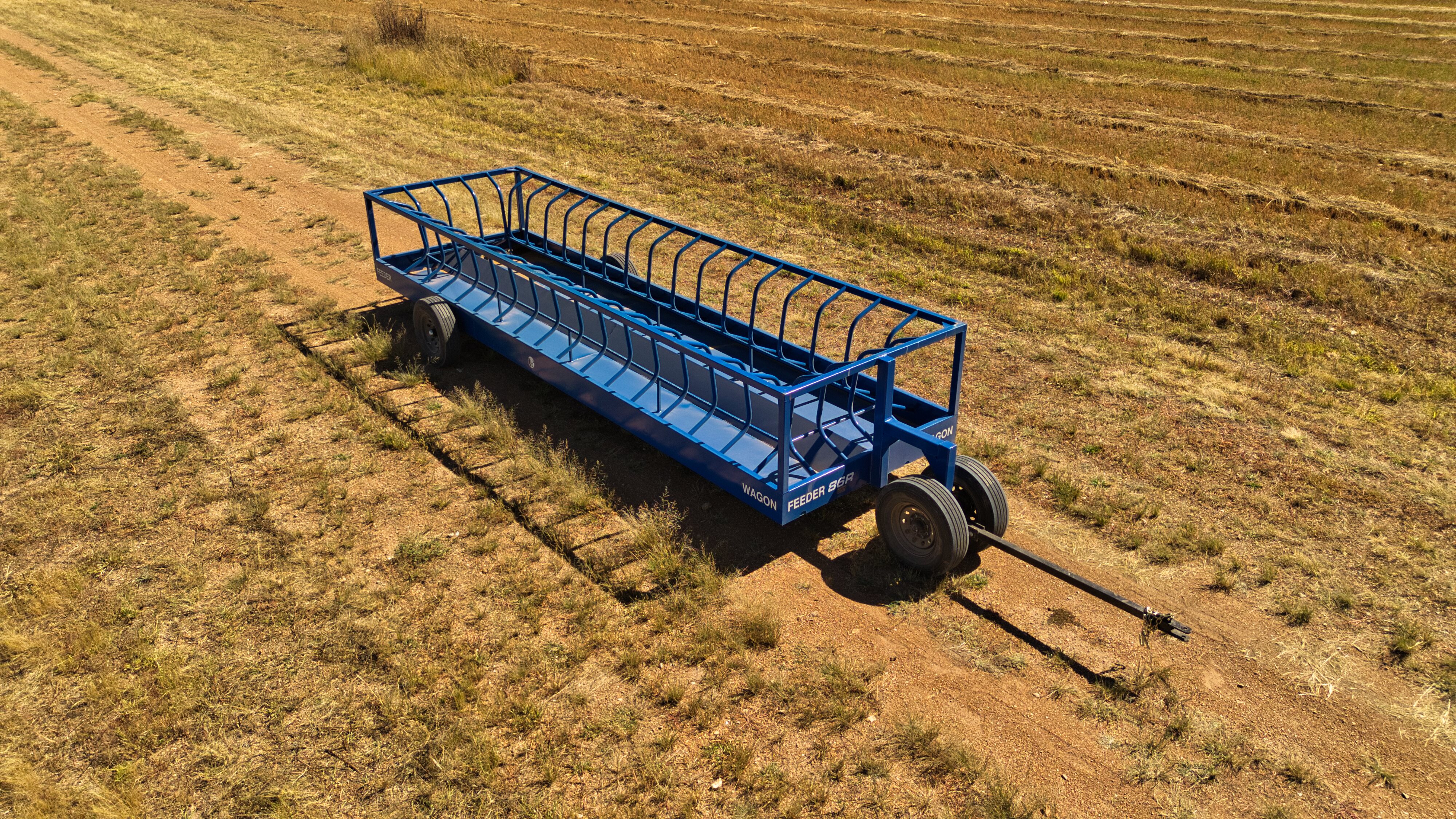

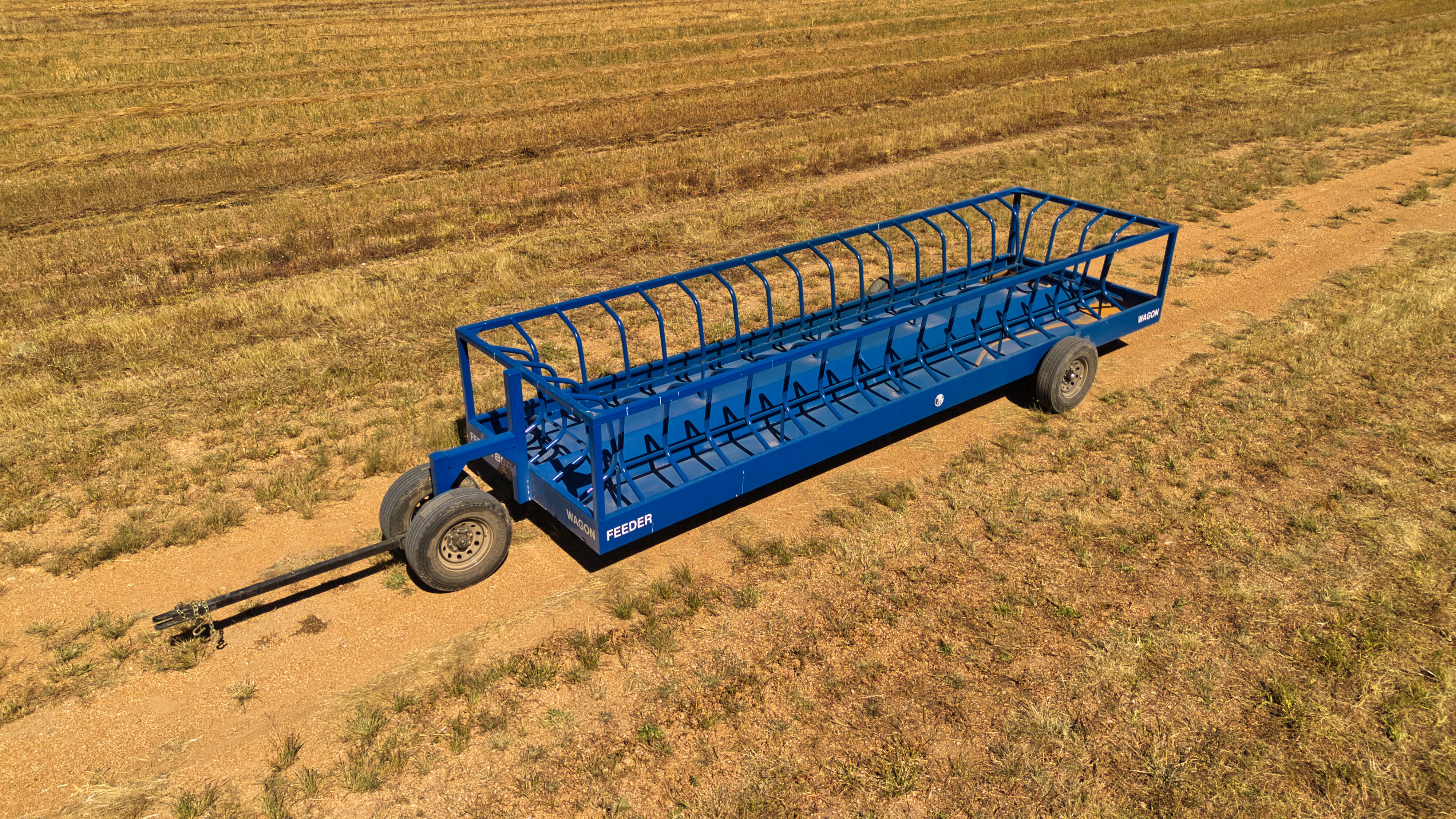

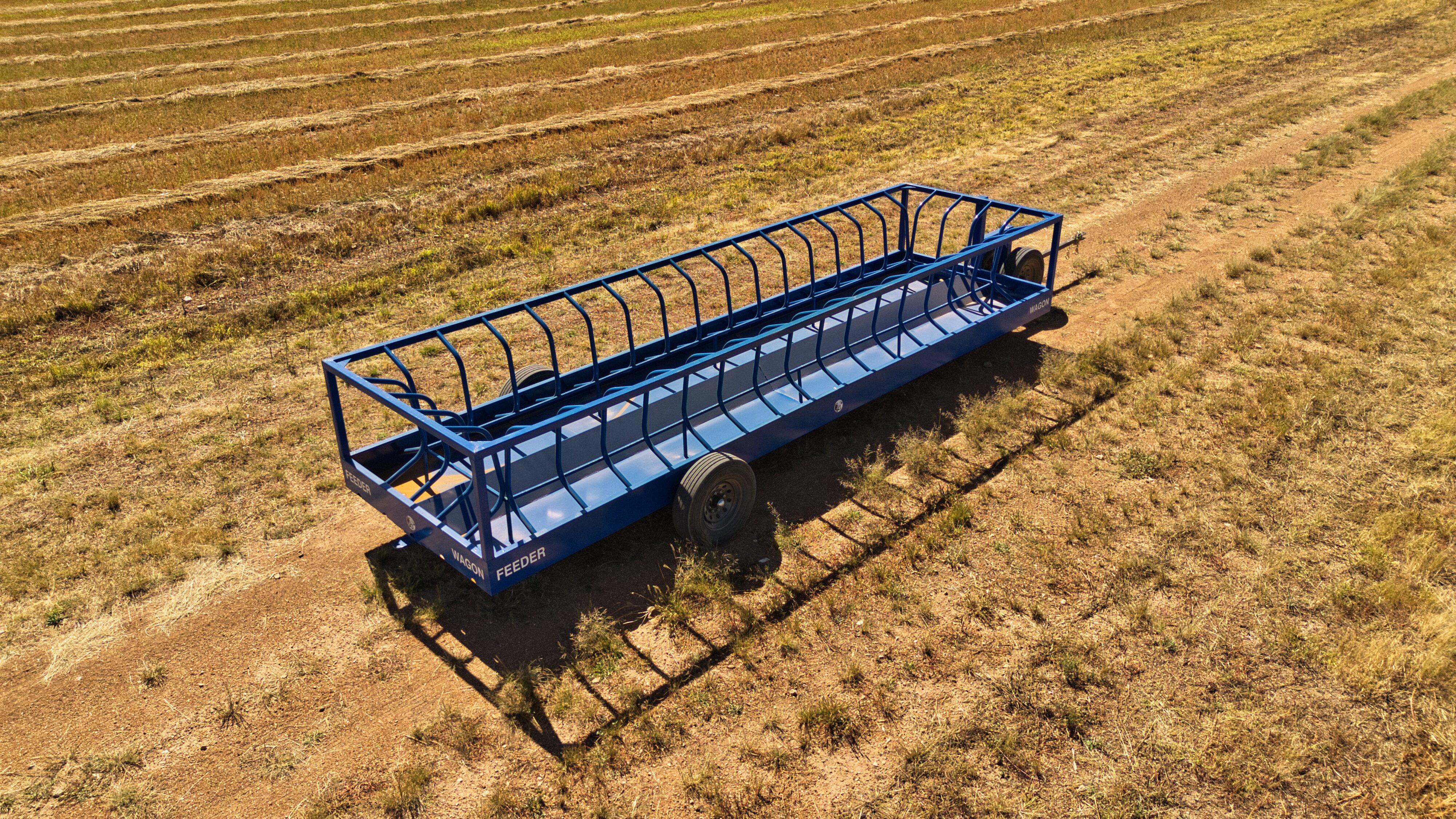

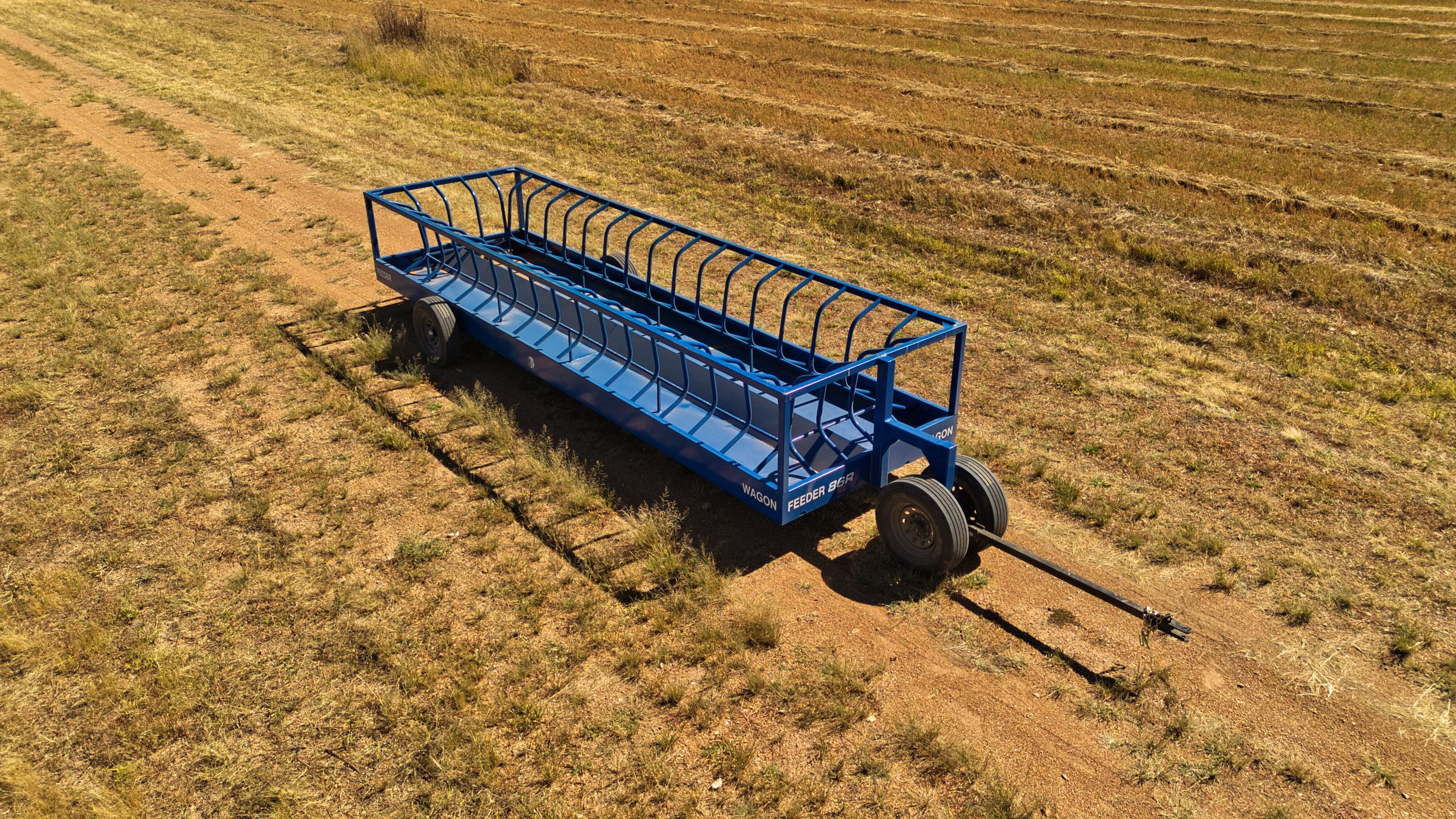

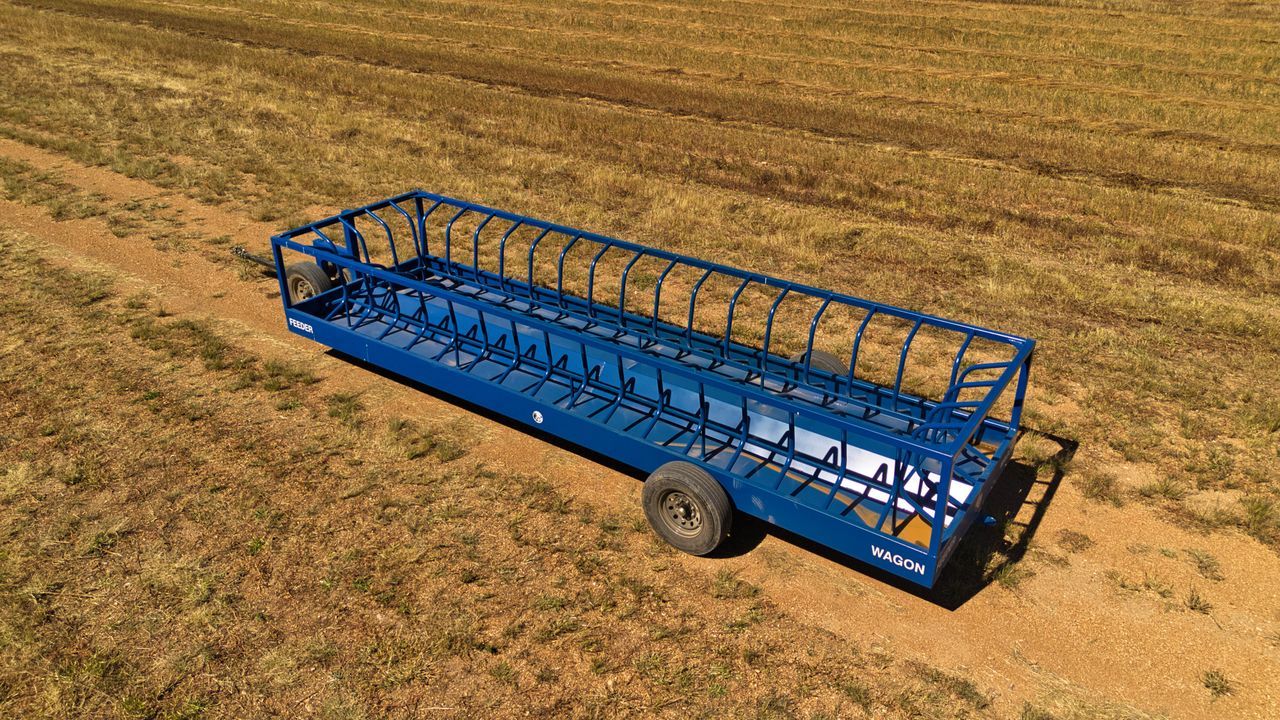

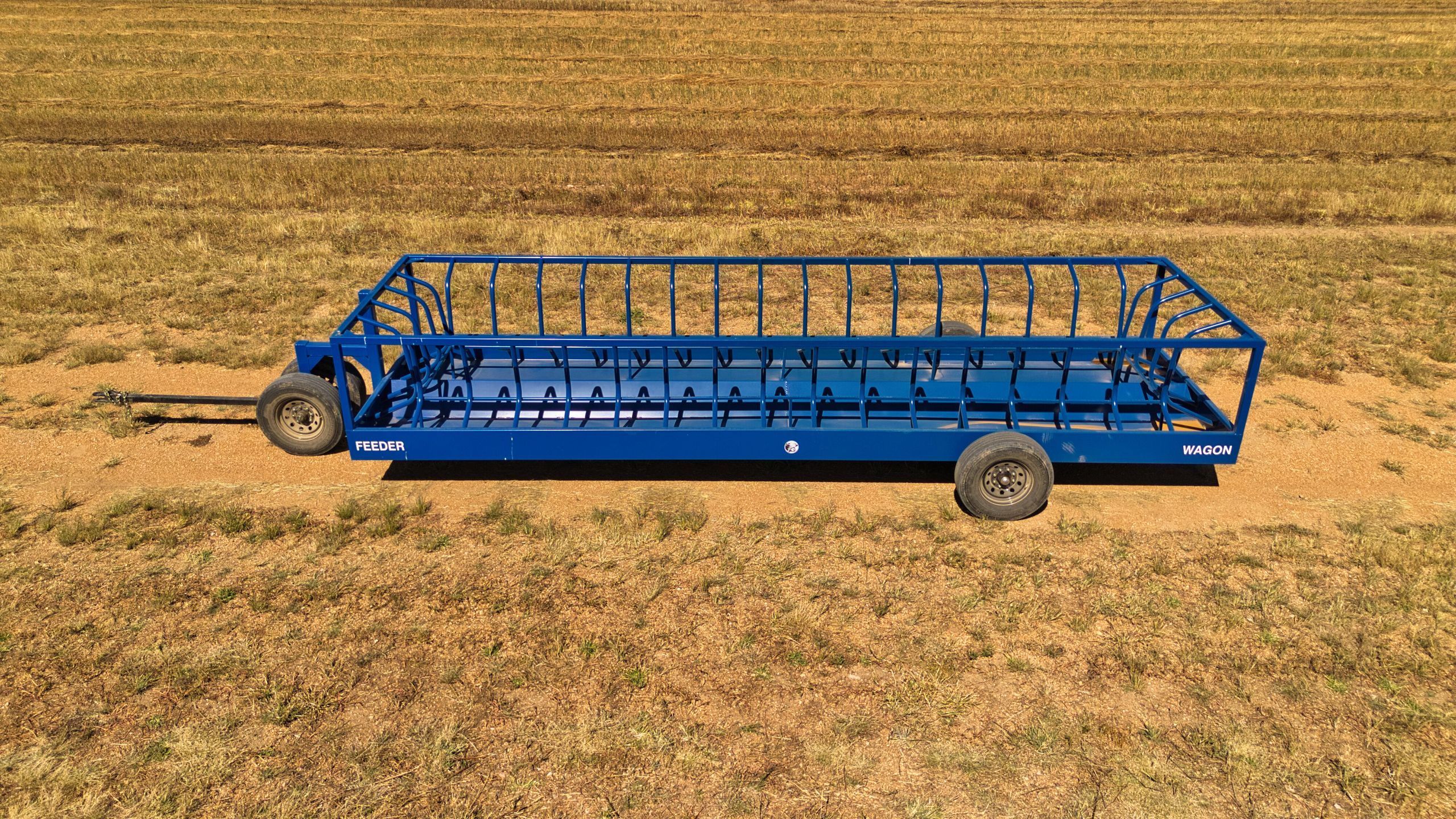

The 86R Hay Feeder Wagon provides the same proven design as the 82R, with a durable blue powder coat finish. It’s equipped with a compact front dolly, telescopic hitch, and a reinforced 11-gauge steel feeding pan. The flat bottom with a center ridge ensures hay flows naturally toward both sides, keeping feed accessible and reducing waste. Ideal for operators needing a reliable feeder with excellent mobility and long-lasting construction.
