Specifications
| Feature | Description |
|---|---|
| Header Capacity (ft) | 30 |
| Total Length (ft) | 38 (including gooseneck, dolly, and telescopic hitch) |
| Overall Width (in) | 95 |
| Frame Material | Steel |
| Main Frame Size | 4x4 |
| Incline Frame Design | Incline |
| Number of Brackets | 2 |
| Bracket Type | Adjustable |
| Axle Type | Fixed |
| Axle Quantity | 1 |
| Axle Rating (lbs) | 7,000 |
| Dolly Type | Swivel front dolly |
| Dolly Axle Rating (lbs) | 7,000 |
| Wheel / Tire Size | ST235/80R16 |
| Tire Ply Rating | 10-ply (16-ply optional) |
| Brakes | None |
| Lights | None |
| Shipping Weight lbs | 2,640 lbs |
| GVWR (lbs) | 14,000 |

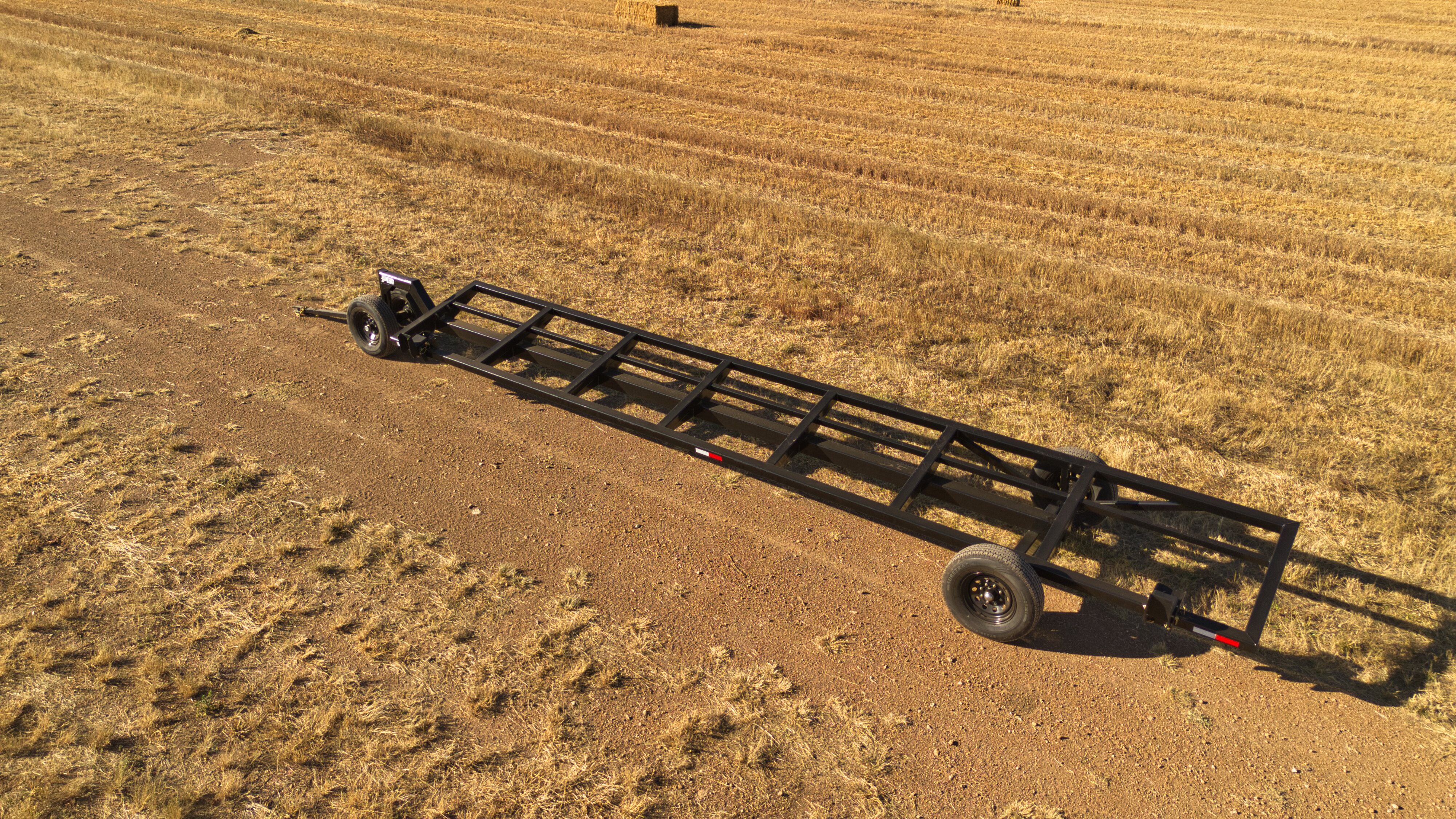

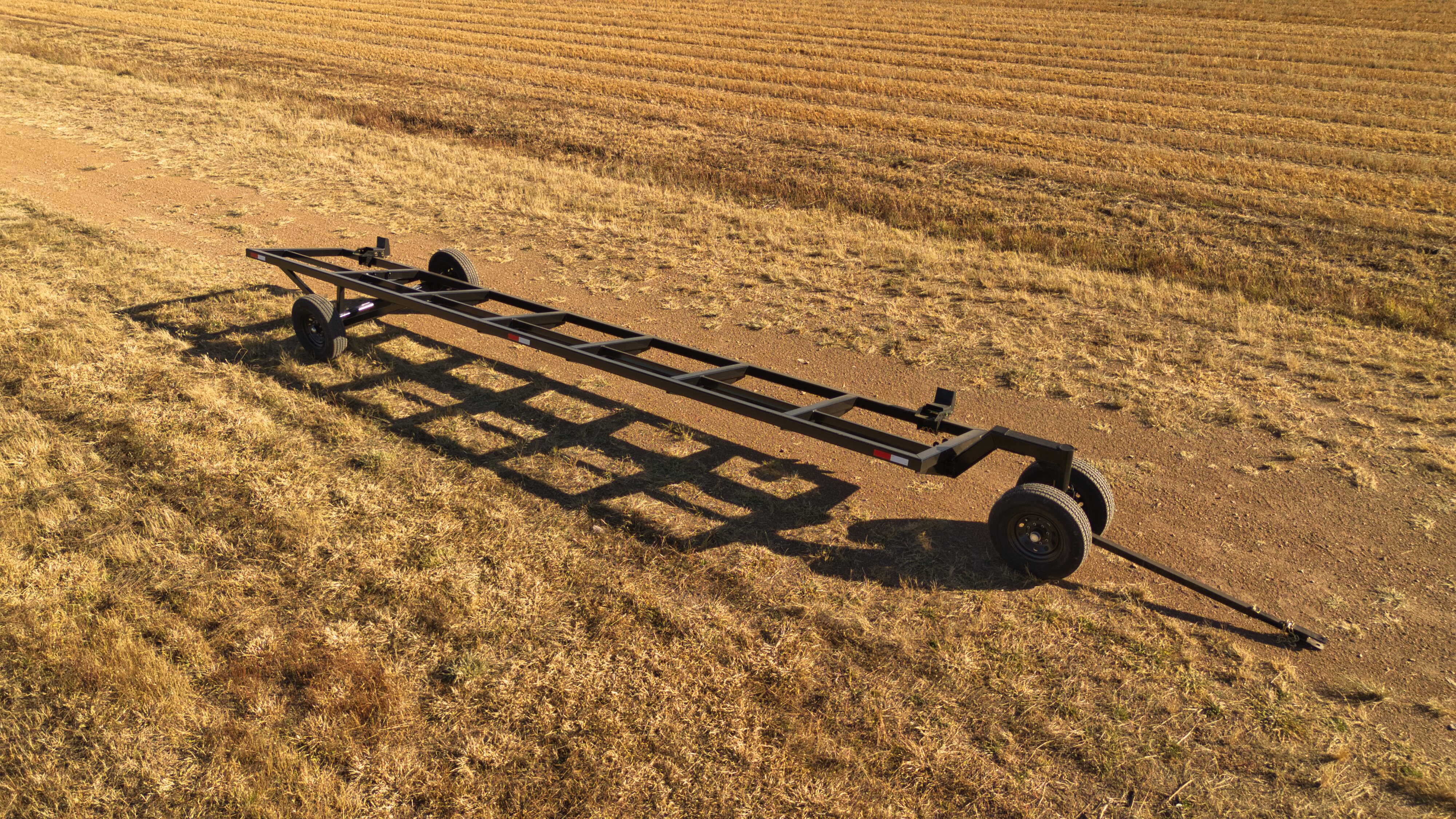

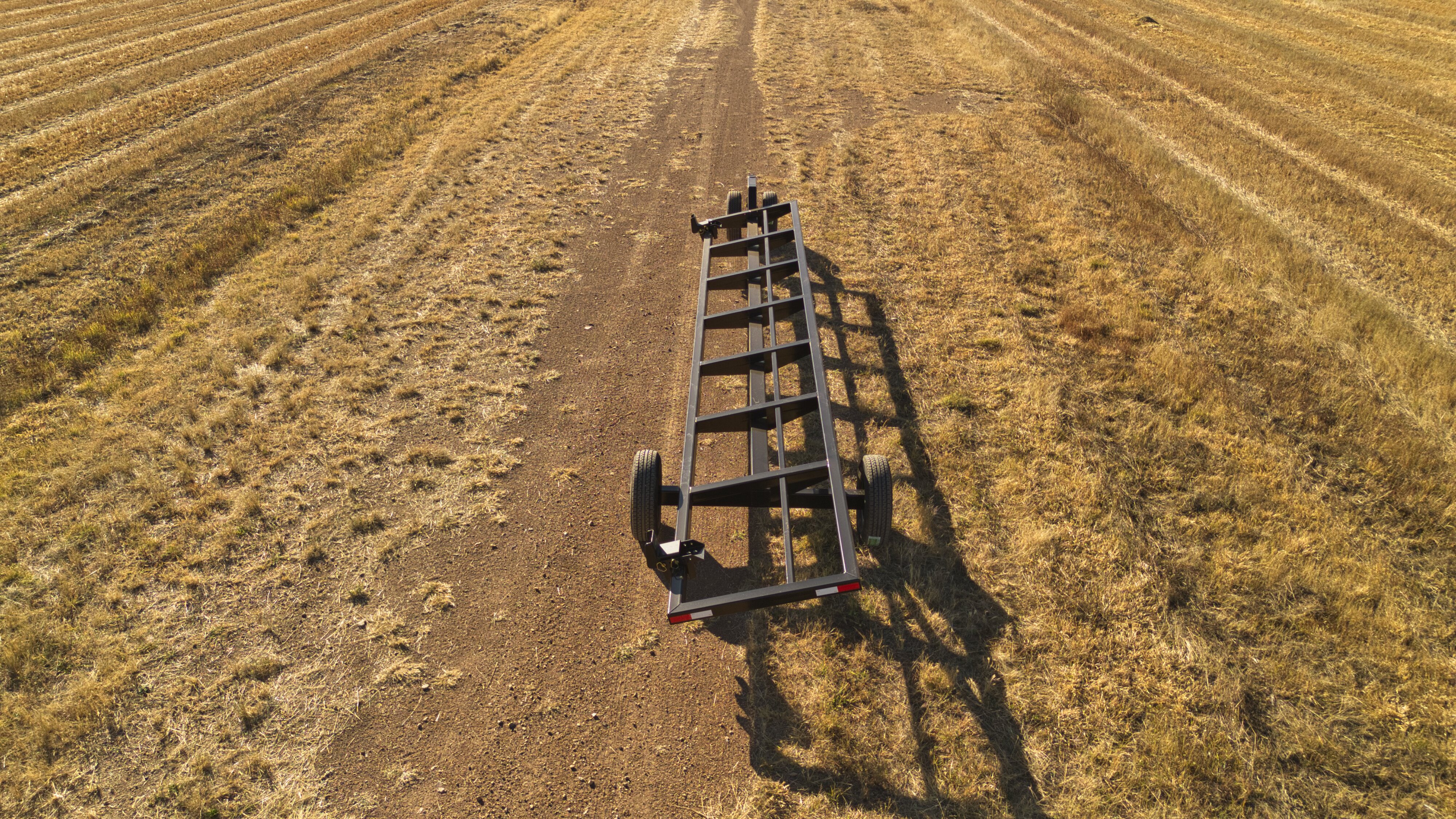

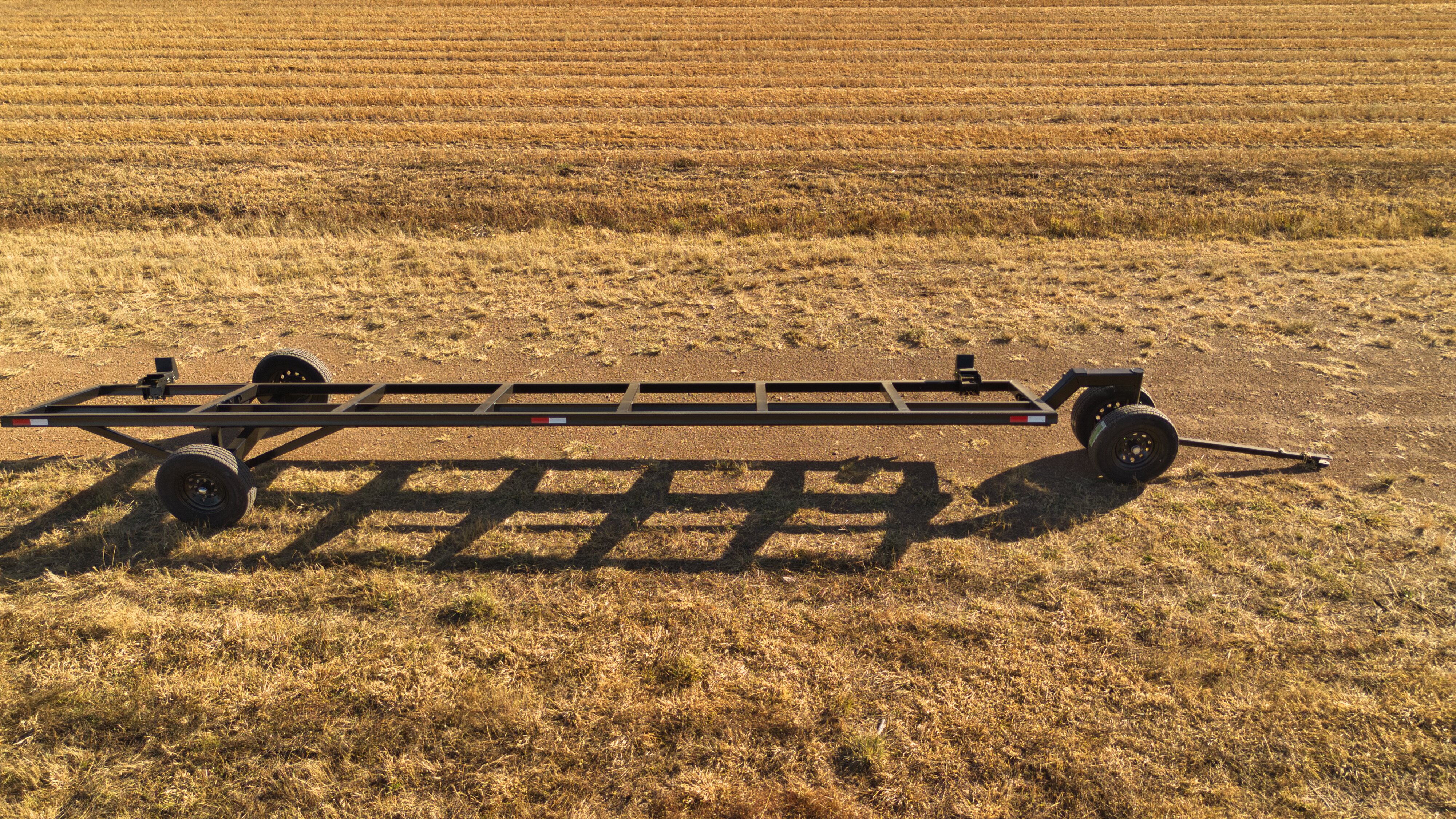

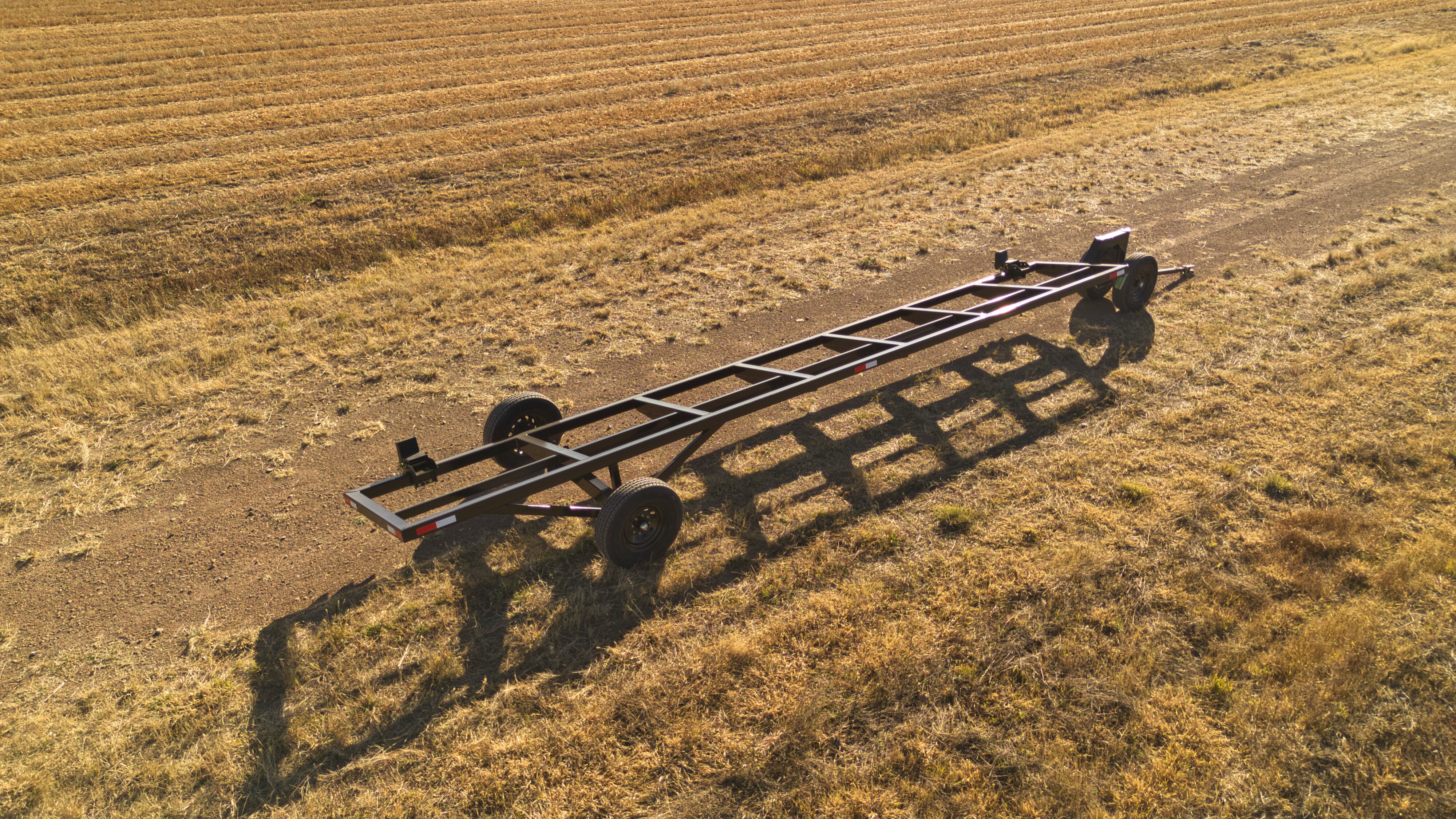

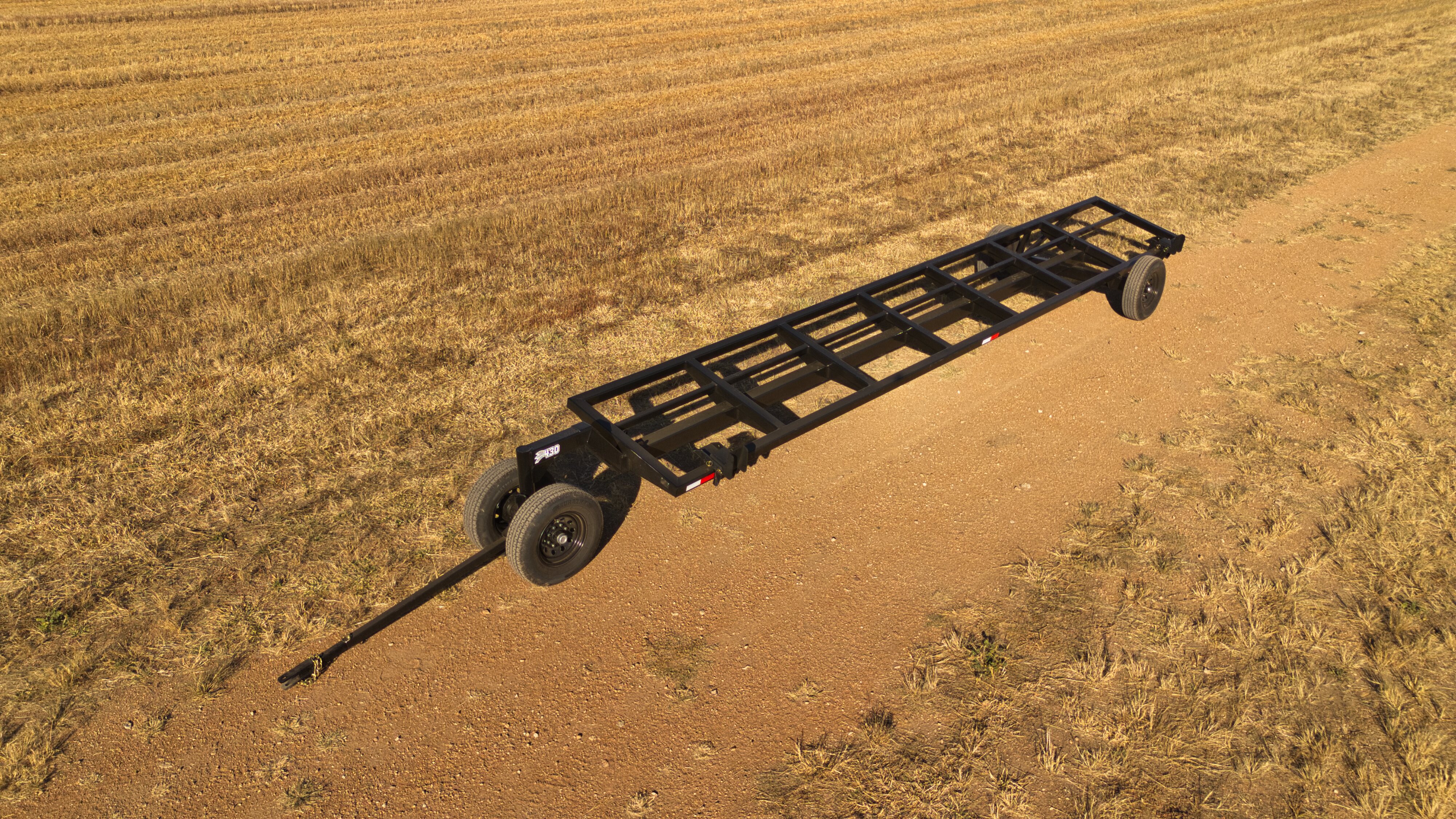

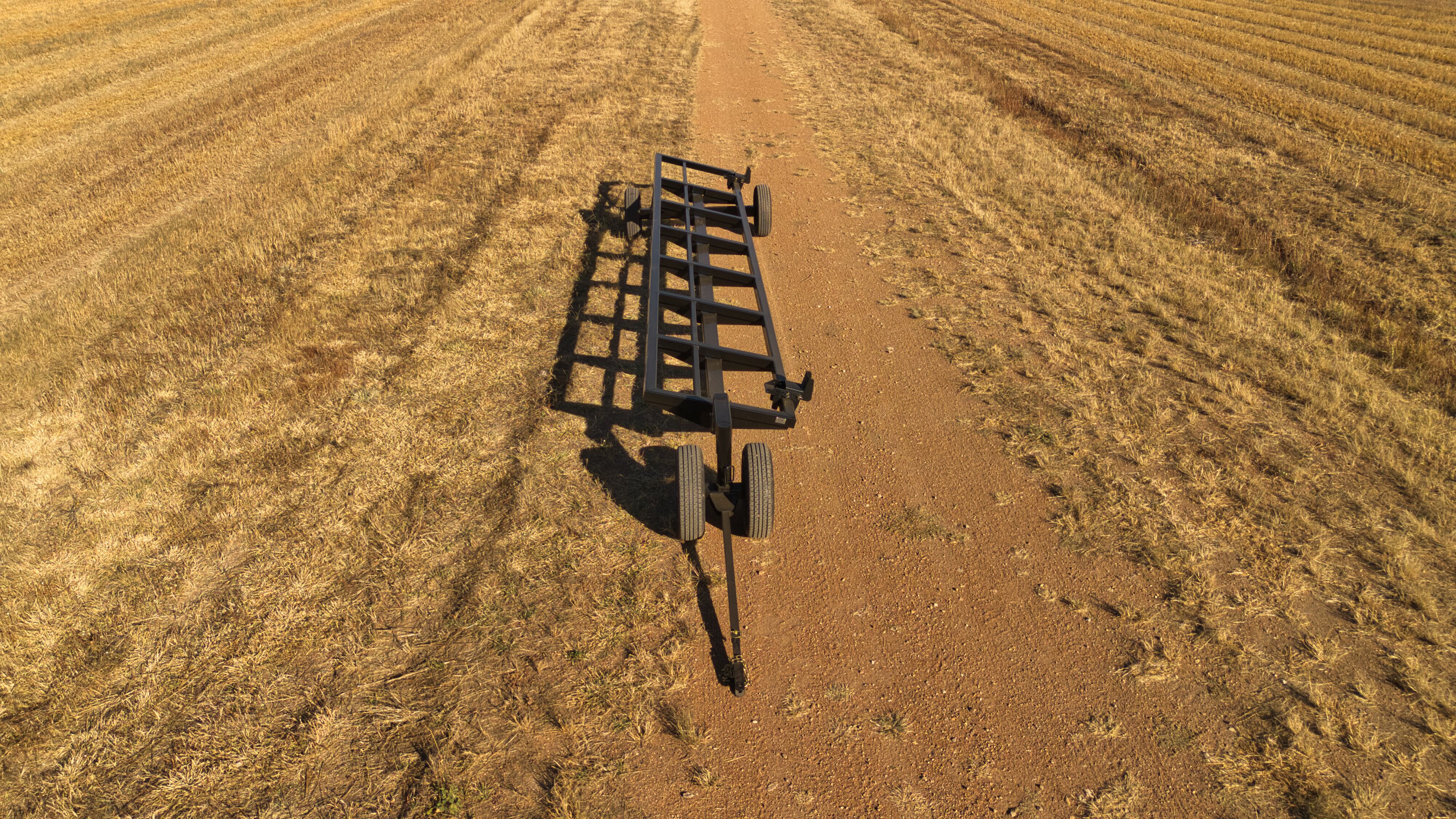

The 430 is a straightforward 30’ header trailer for producers who want reliability without a lot of extras. With a 4x4 incline frame, single 7k axle, and a swivel front dolly, it’s easy to maneuver in tight drives, binsites, and sheds. It’s a strong match for 30’ rigid, flex, or smaller draper heads that need a solid but simple ride. The adjustable brackets give you flexibility to position the header, and the telescopic hitch helps you hook on in less-than-perfect conditions. There are no lights or brake systems to maintain, making the 430 a low-maintenance option that still hauls your header securely.
