Specifications

FeatureDescription
Header Capacity (ft)35
Total Length (ft)43 (including gooseneck, dolly, and telescopic hitch)
Overall Width (in)95
Frame MaterialSteel
Main Frame Size4x4
Incline Frame DesignIncline
Number of Brackets4
Bracket TypeAdjustable
Axle TypeFixed
Axle Quantity2
Axle Rating (lbs)7,000 each
Dolly TypeSwivel front dolly
Dolly Axle Rating (lbs)7,000
Wheel / Tire SizeST235/80R16
Tire Ply Rating10-ply (16-ply optional)
BrakesNone
LightsNone
Shipping Weight lbs3,212 lbs
GVWR (lbs)21,000

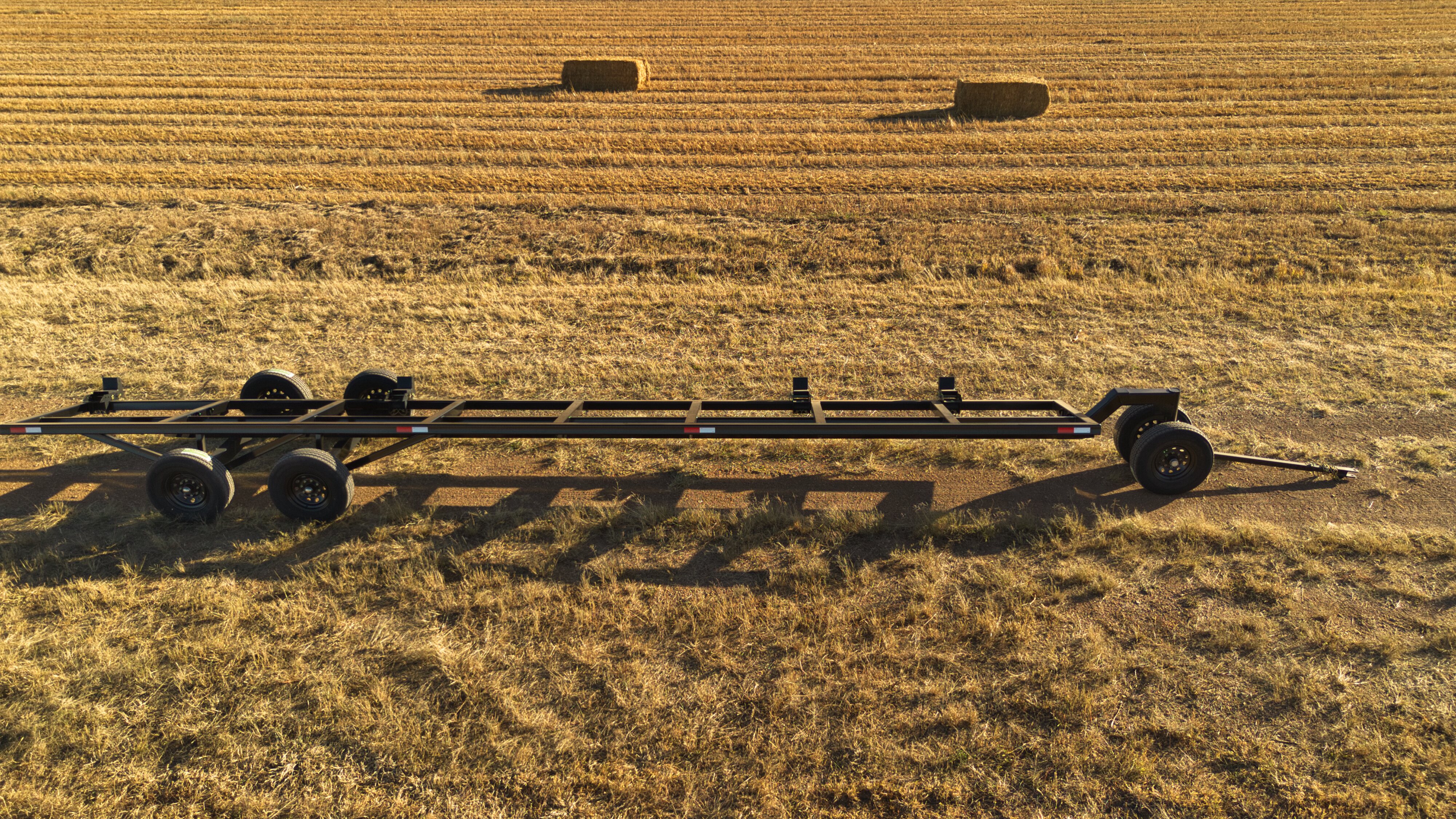

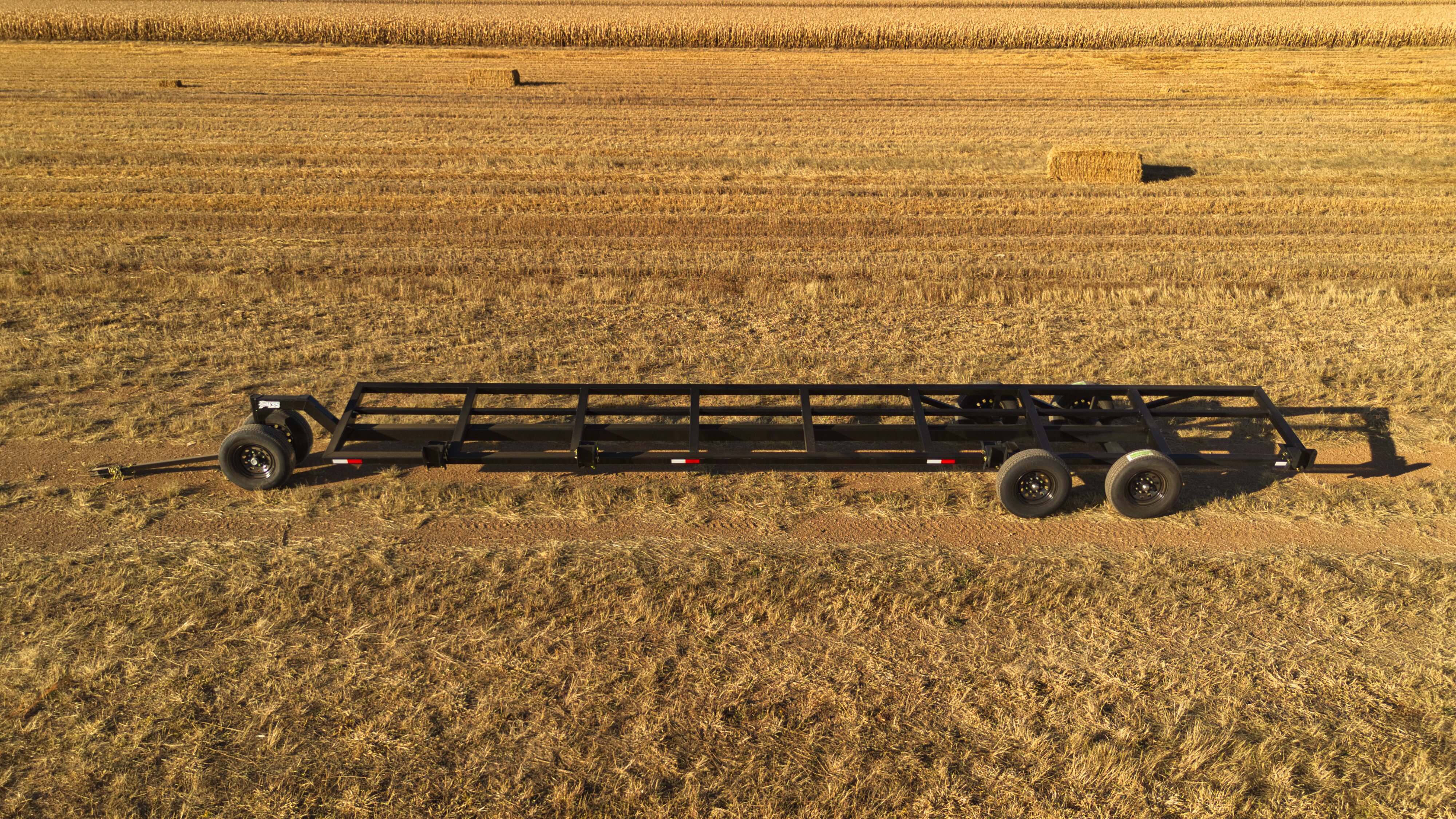

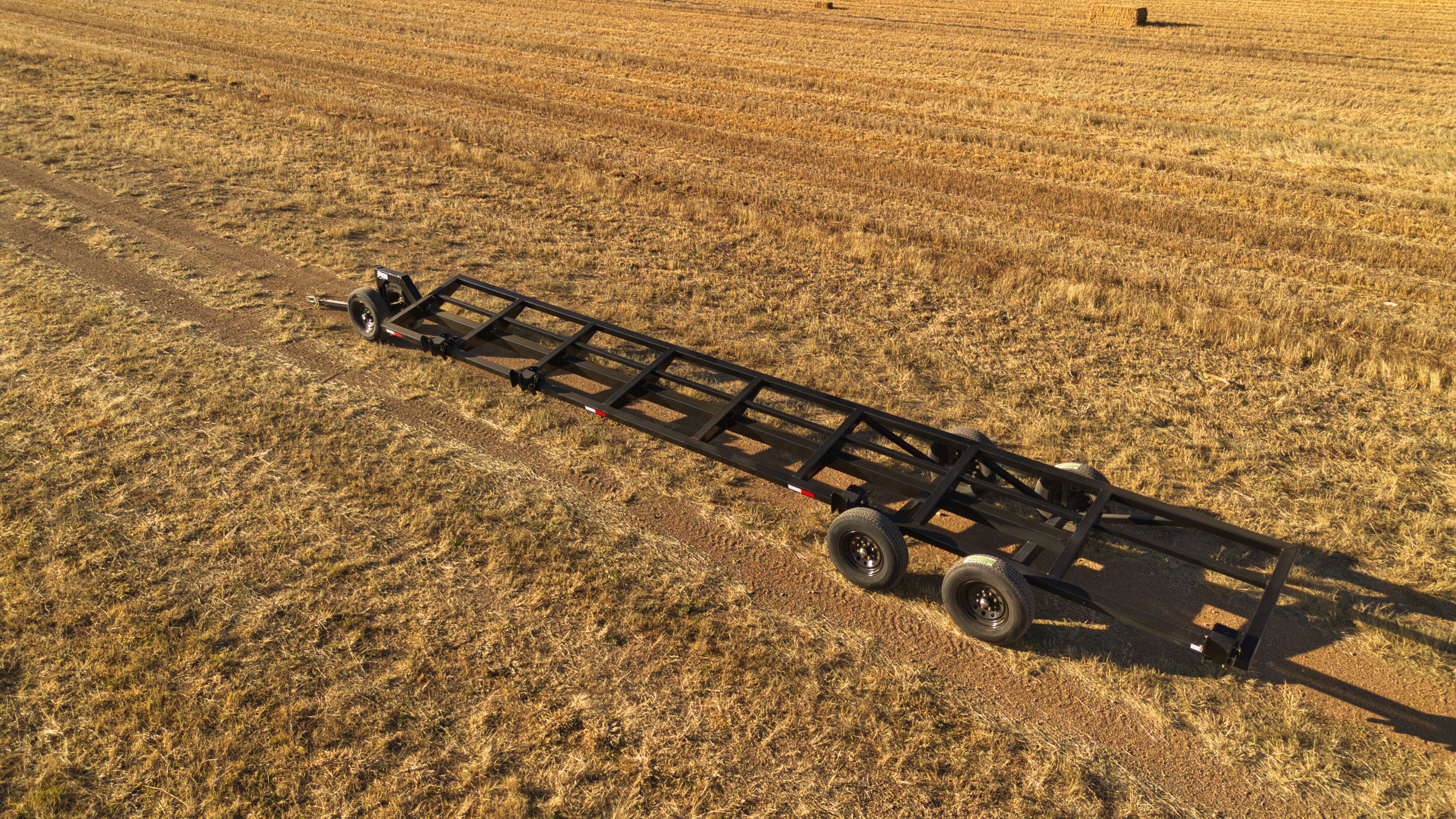

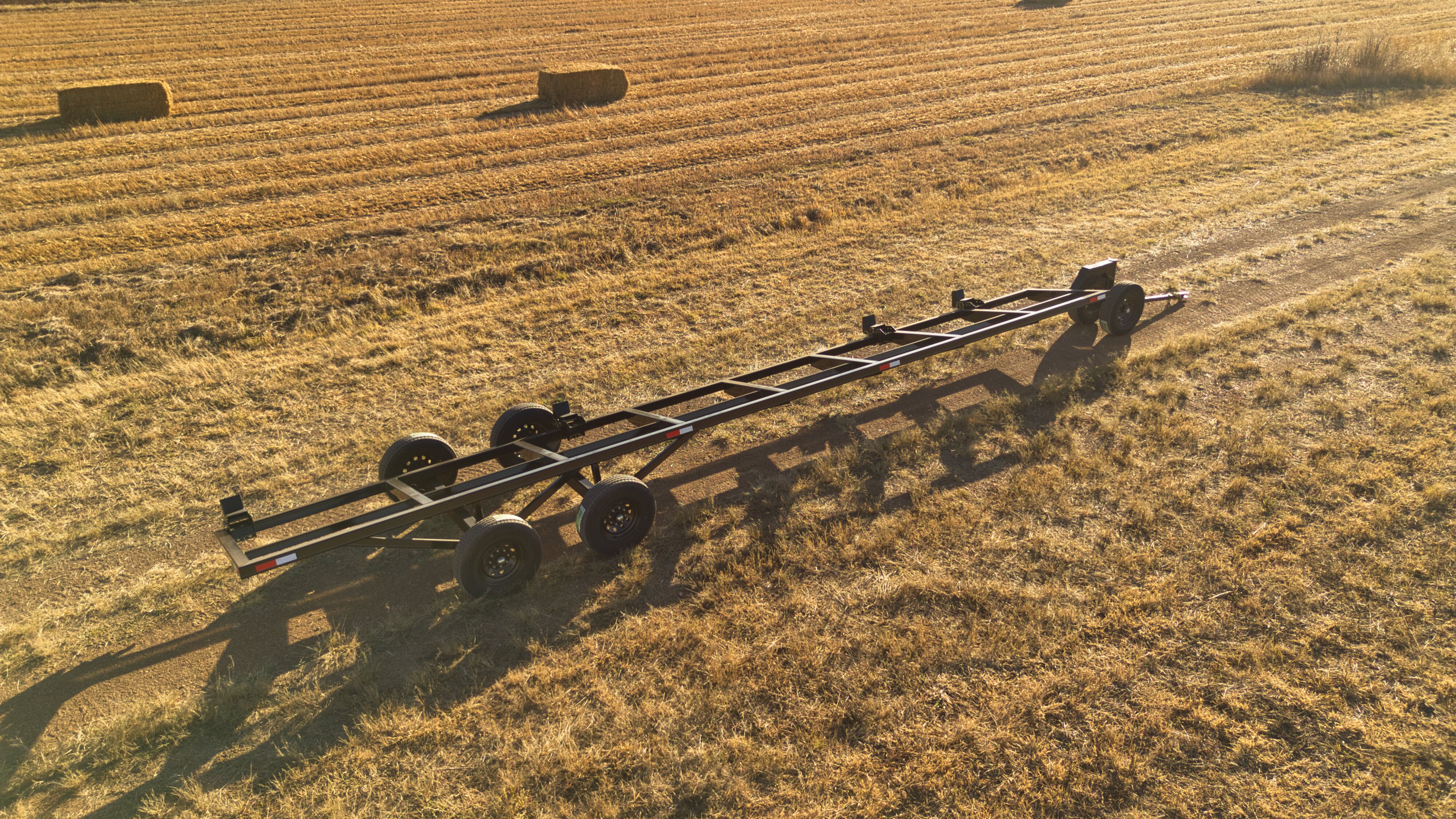

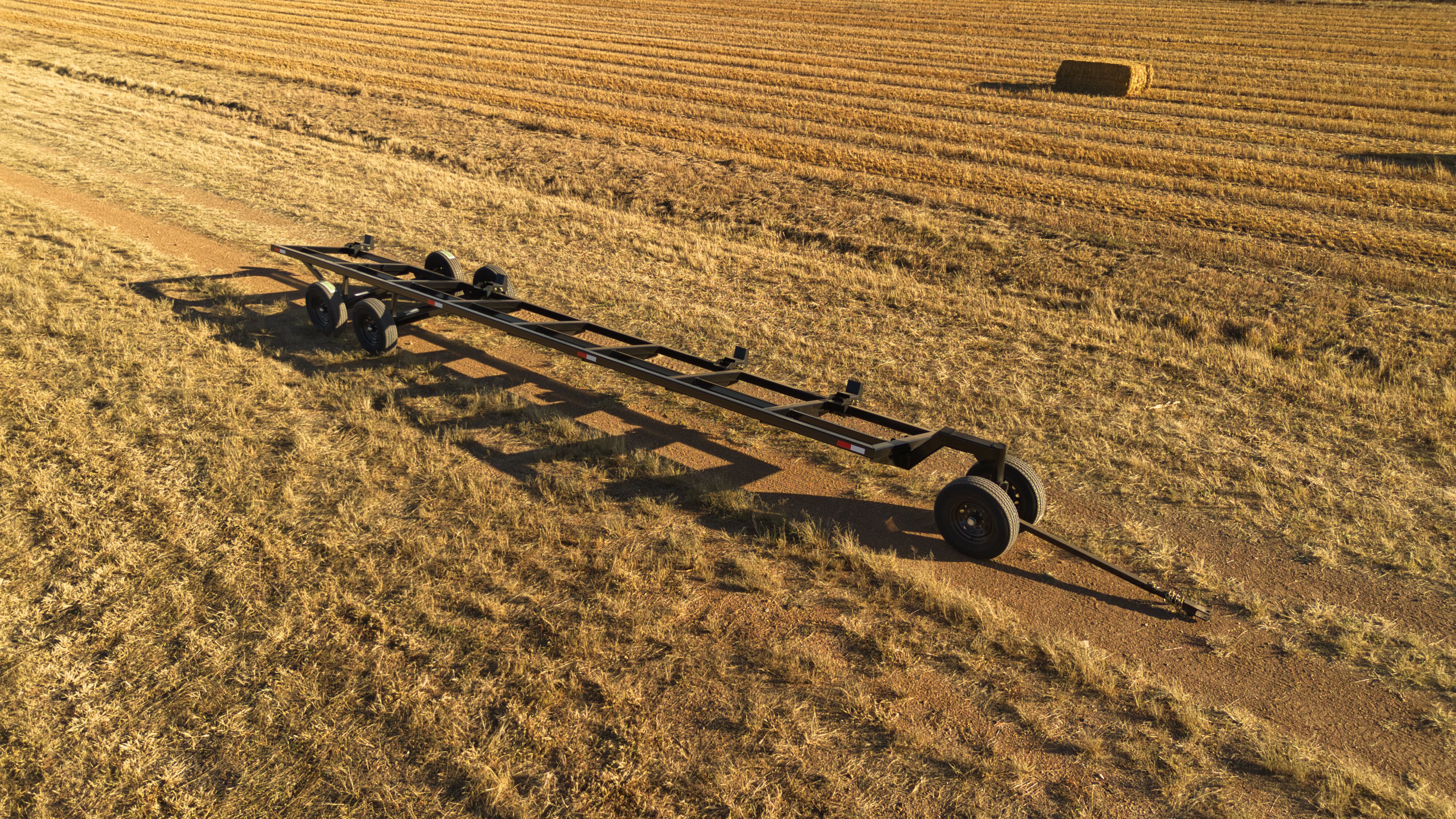

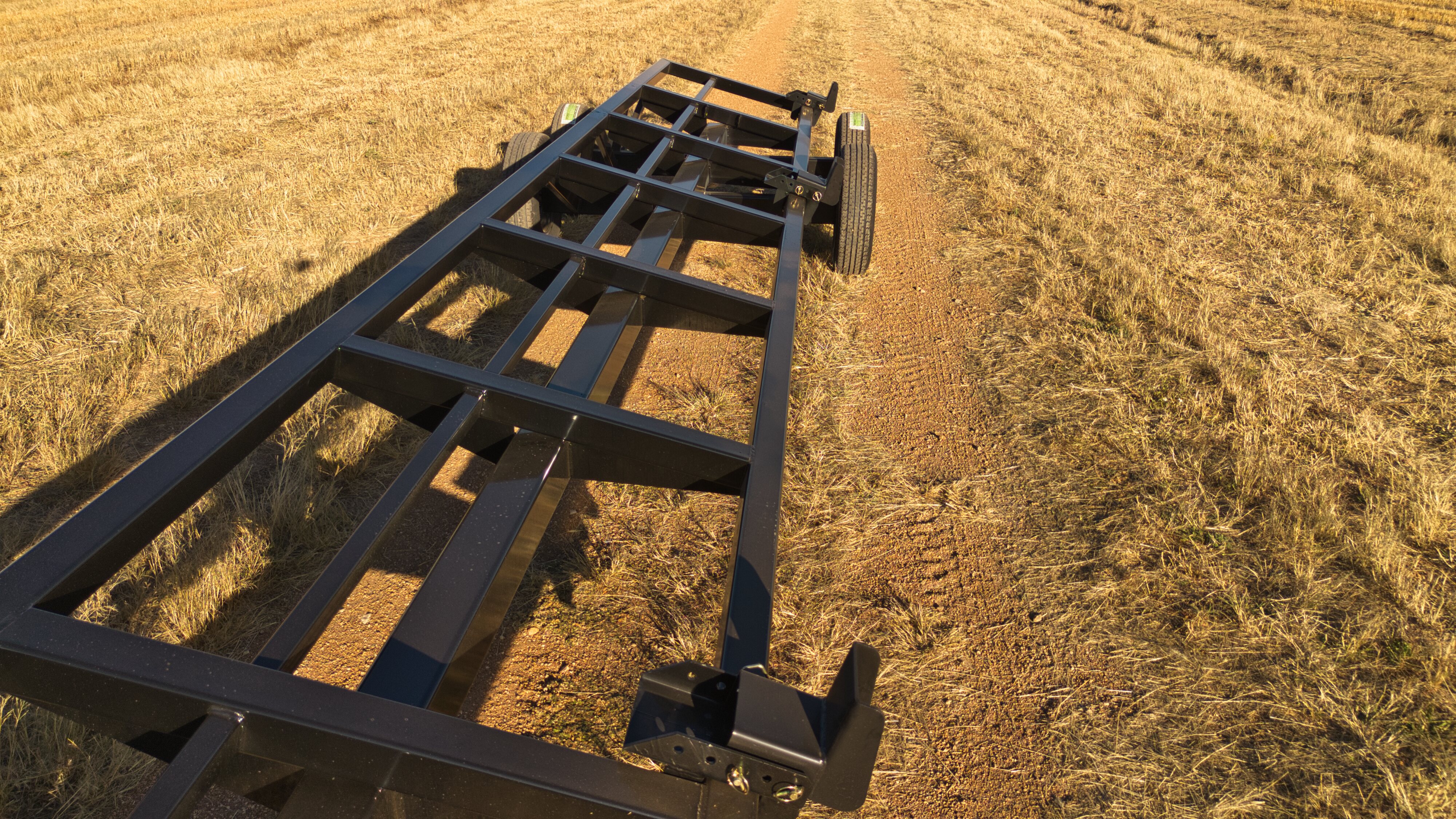

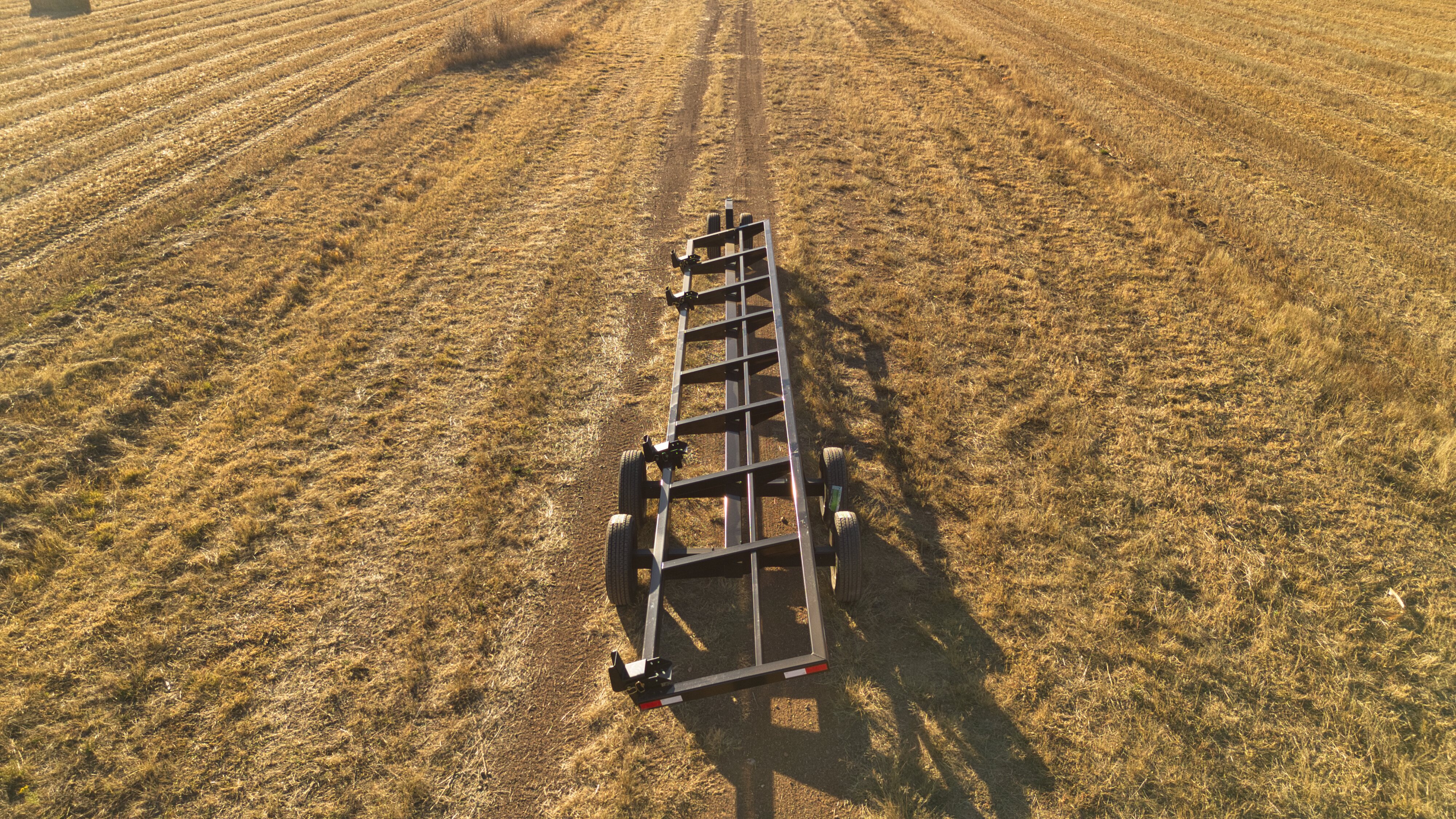

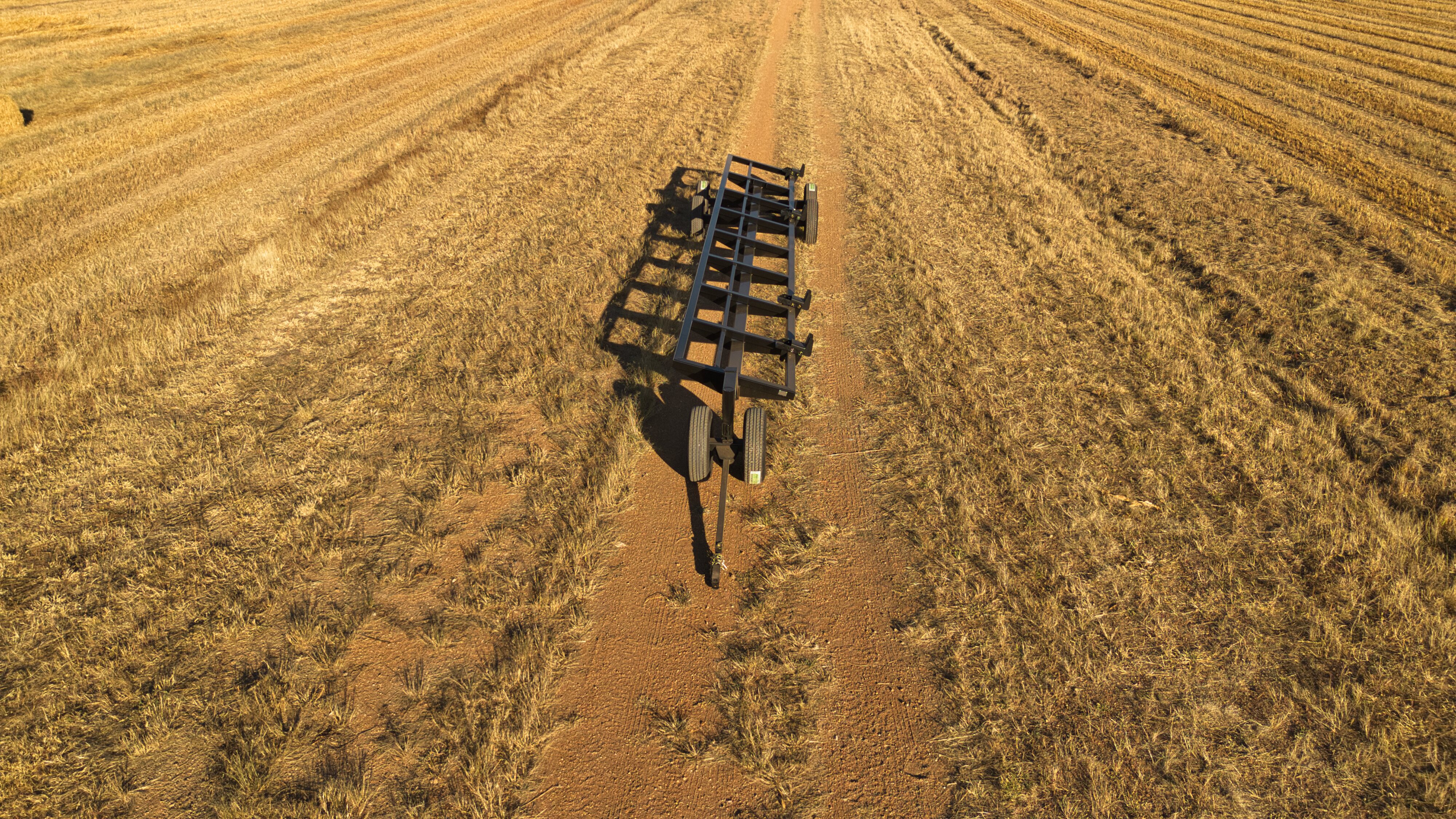

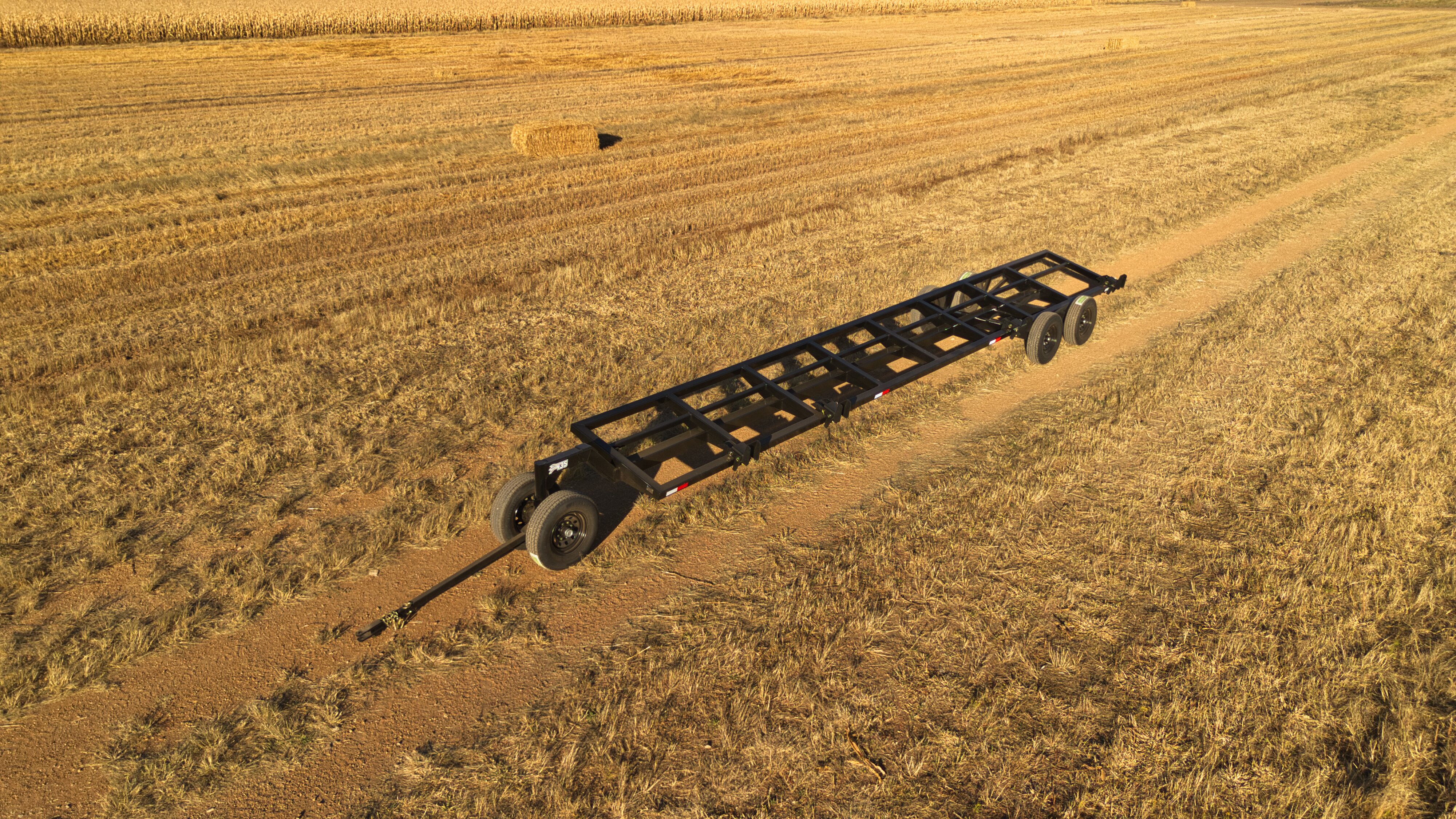

The 435 serves growers running 35’ headers who want the simplicity of fixed axles with the stability of a tandem-axle layout. The 4x4 incline frame and four adjustable brackets give plenty of support for larger rigid or flex heads without overcomplicating the design. The swivel dolly and telescopic hitch keep the trailer maneuverable in tight farmyards while still offering a comfortable towing experience behind a pickup. No brakes and no lights mean simple maintenance, but the build is still strong enough for everyday field-to-field moves.

×
