Specifications
| Feature | Description |
|---|---|
| Type | Single-row round bale hauler (S-series) |
| Application | Farm and ranch bale transport |
| Frame | Powder-coated full gooseneck (9 ft) |
| Bale Capacity | 9 × 48" round bales |
| Cradle Length | 36 ft |
| Total Length | 45 ft (incl. gooseneck) |

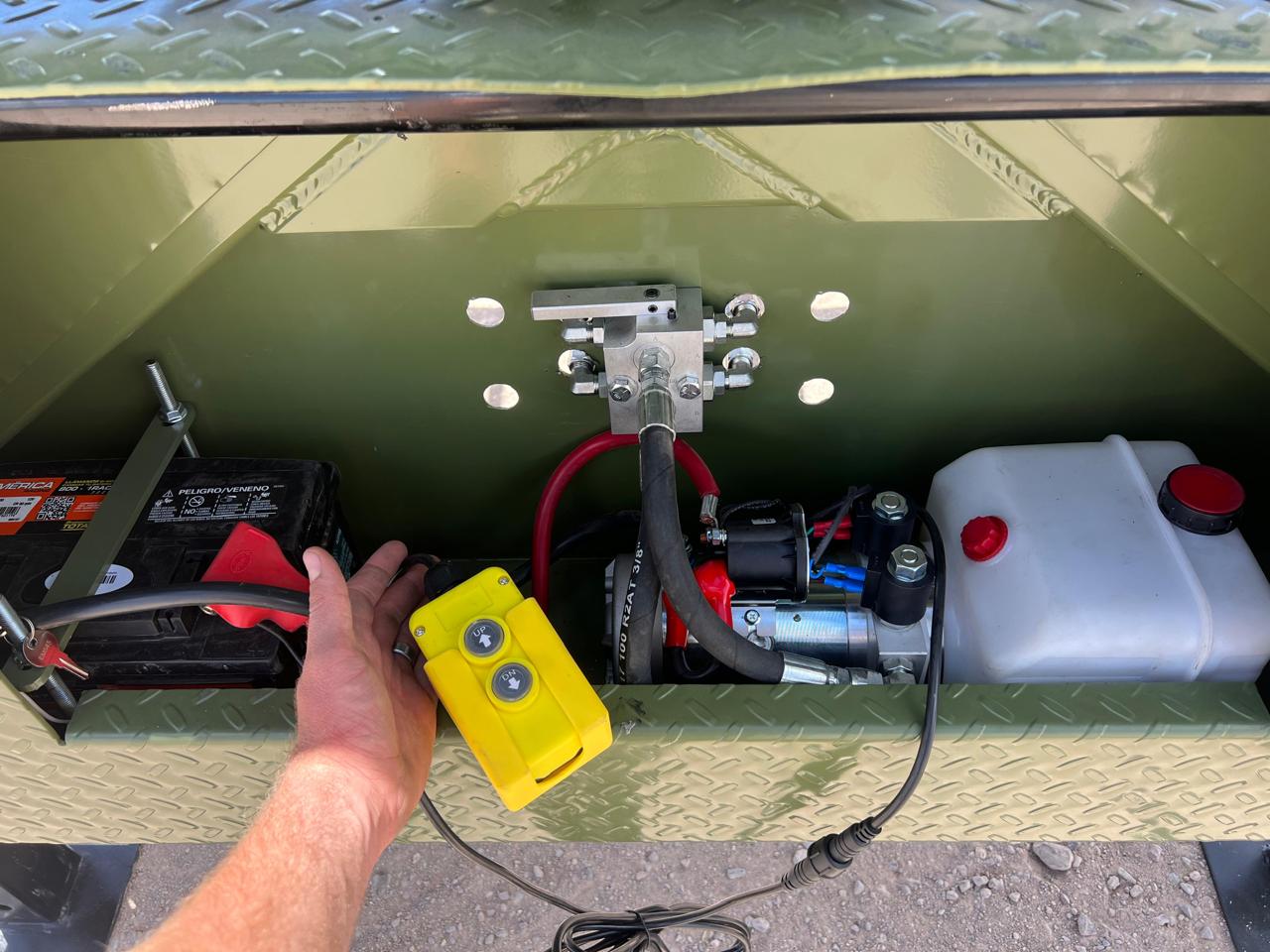

| Dumping System | Hydraulic side-tip |
| Axles | Tandem 2 × 7,000 lb |
| GAWR | 7,000 lb |
| GVWR | 14,000 lb |
| Jacks | 2 × 12k |
| Brakes | Standard electric brakes with breakaway system |
| Safety | Safety chains included |
| Tires | 4X 235/80R 16PLY, 16" rims, (single) |
| Shipping Weight | 5,115 lb |

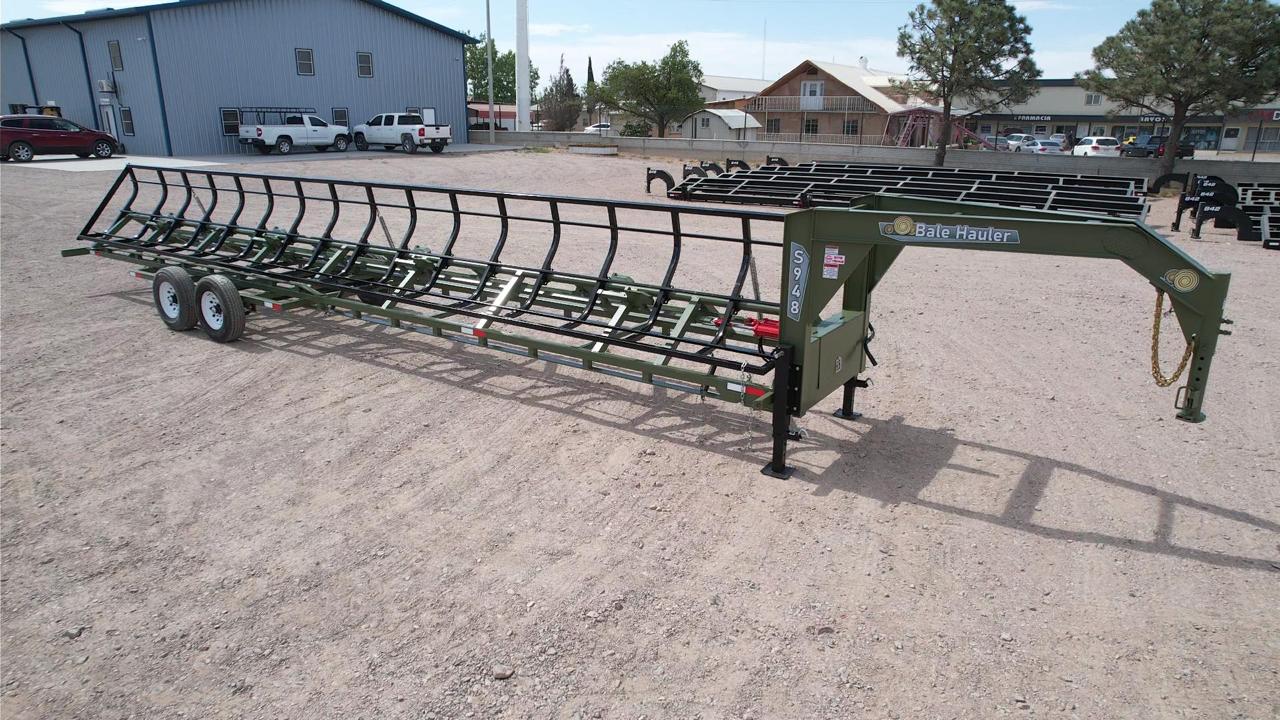

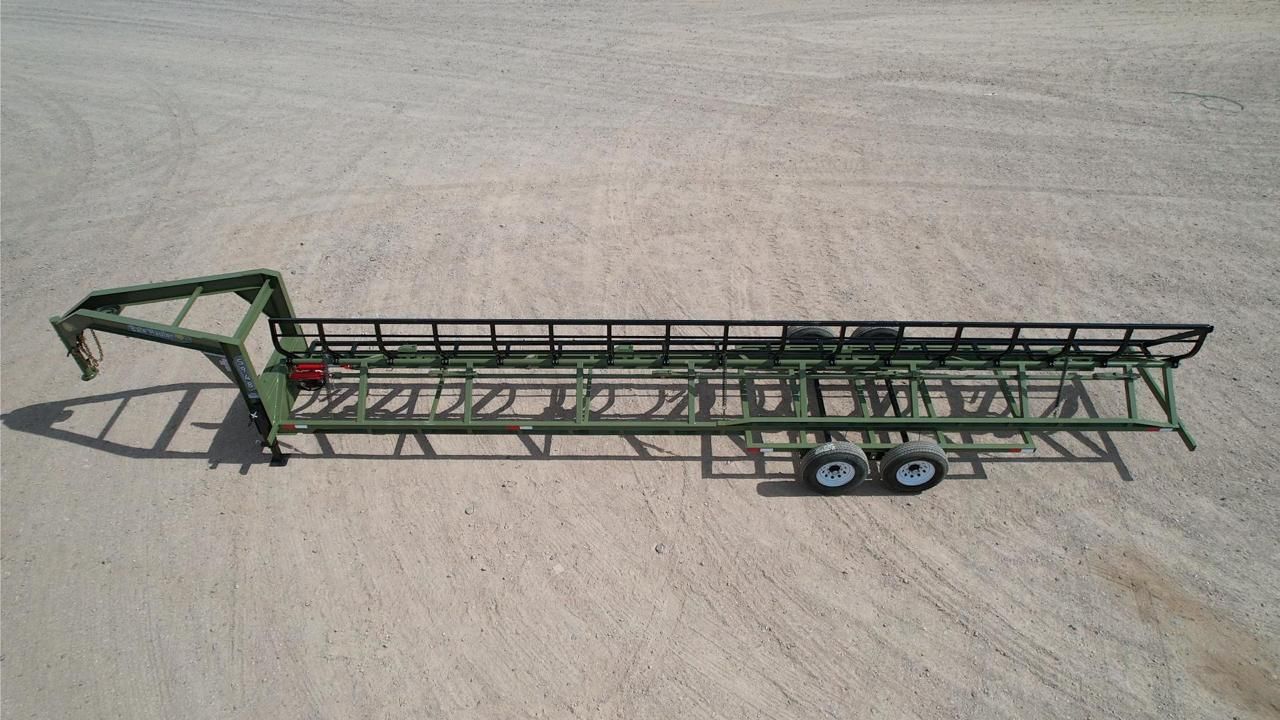

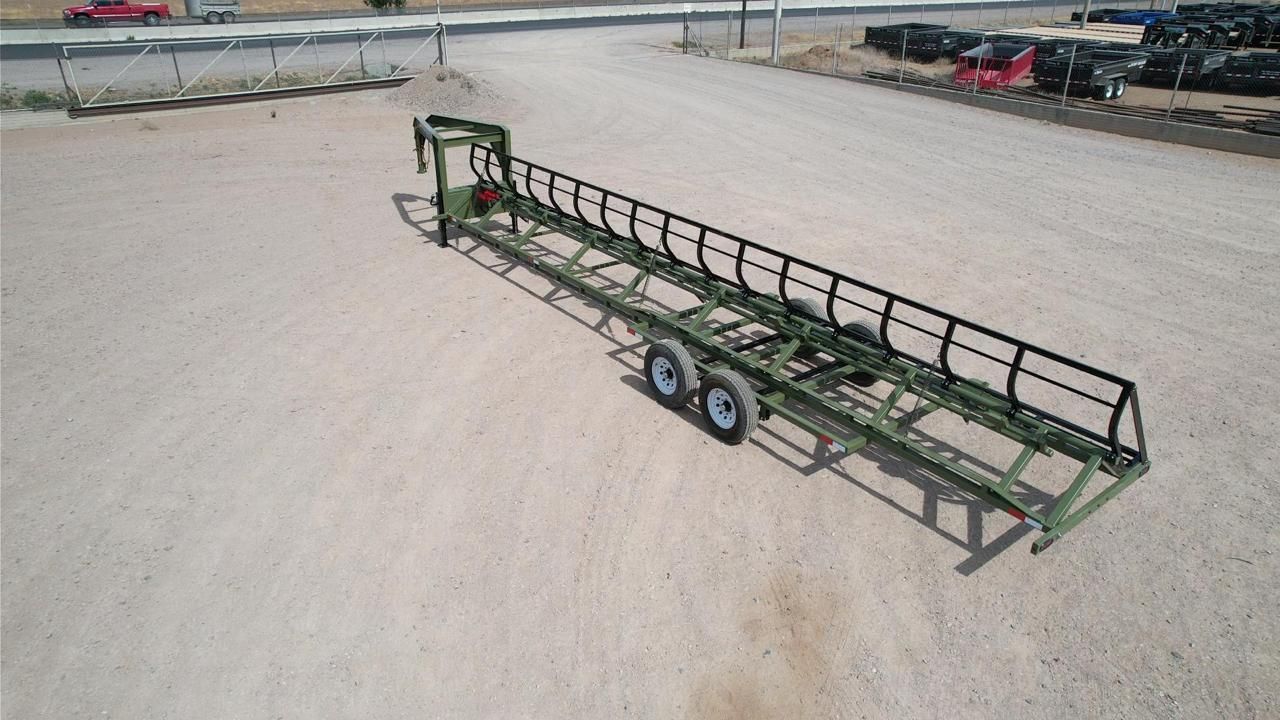

The S948 transports 9 round bales up to 48" wide. Its hydraulic side-tip system provides quick, low-effort unloading, while the full gooseneck frame and dual jacks deliver maximum durability and stability for heavy use.
