Specifications
| Feature | Description |
|---|---|
| Bed Size | 5’ × 10’ |
| Bed Volume | 2.1 cu yd |
| GVWR | 7,000 lb |
| Axles | 2 × 3,500 lb |
| Tires | 205/75R15 on 15" rims |
| Frame | 4" C-channel main frame |
| Floor / Walls | 8 ga floor, 10 ga walls |
| Hoist | Straight piston (bottom mount) |
| Hydraulic System | 12 V double-acting electric-hydraulic |
| Dump Angle | 50° |
| Suspension | Spring |
| Brakes | Electric |
| Jack | 7k manual |
| Coupler | 2-5/16" ball |
| Electrical | Sealed harness with breakaway kit |
| Lighting | DOT-approved LED package |
| Tarp System | Manual (62" × 14') |
| Finish | Sandblasted and powder-coated |
| Color | Black standard |
| Fenders | Heavy-duty steel |
| D-Rings | 4 welded |
| Options | Solar charger, spare tire mount, hydraulic jack |

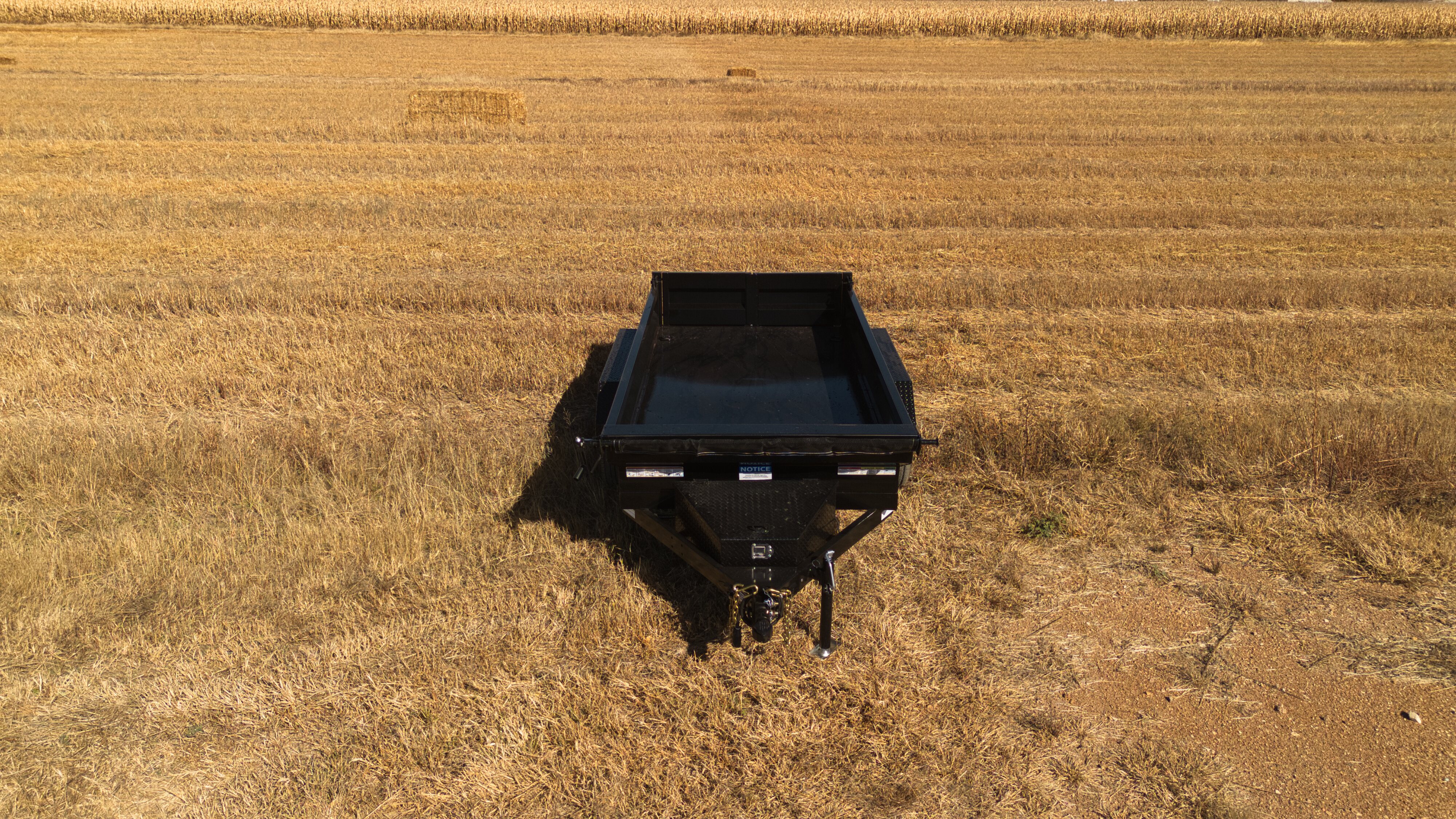

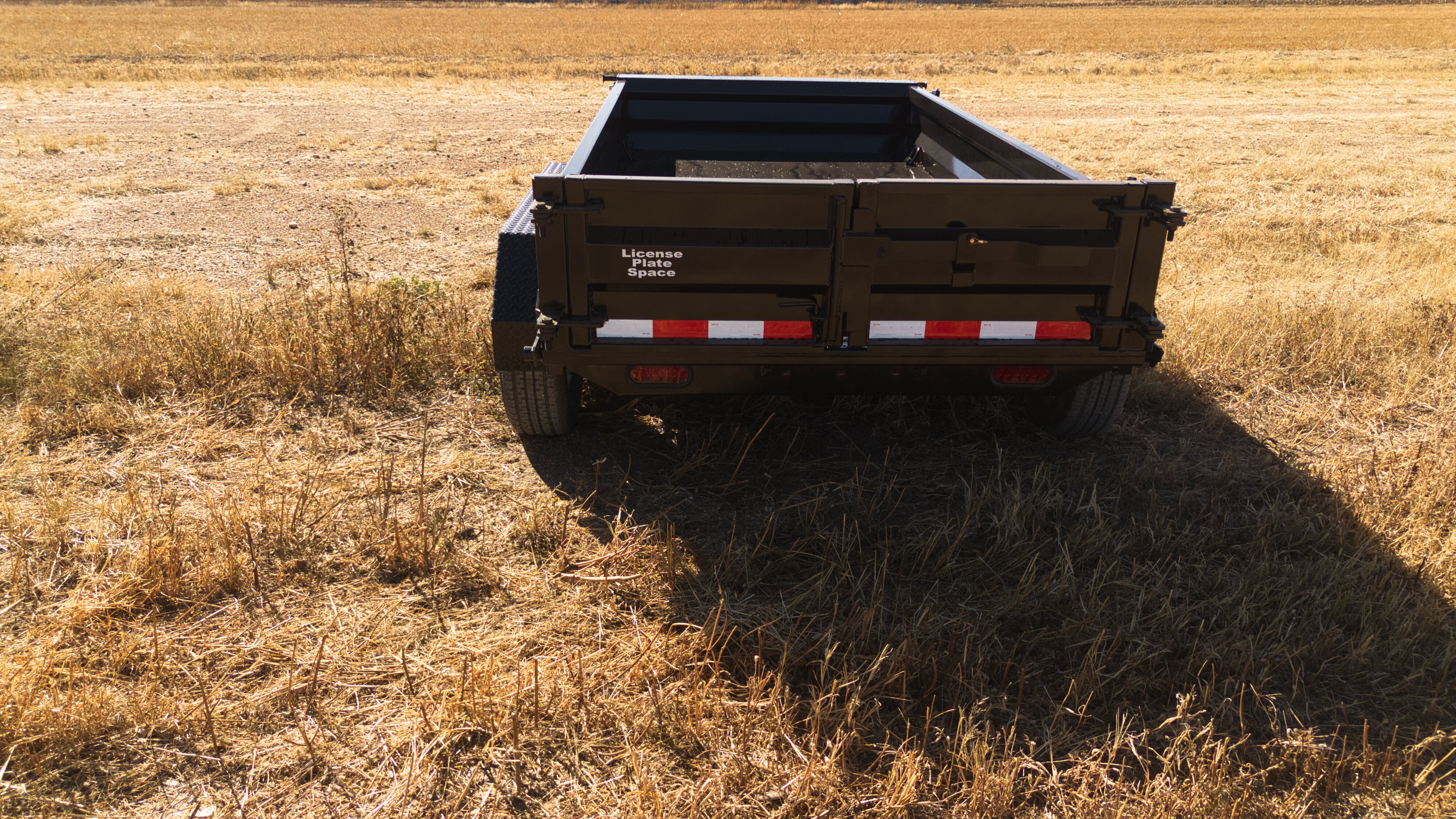

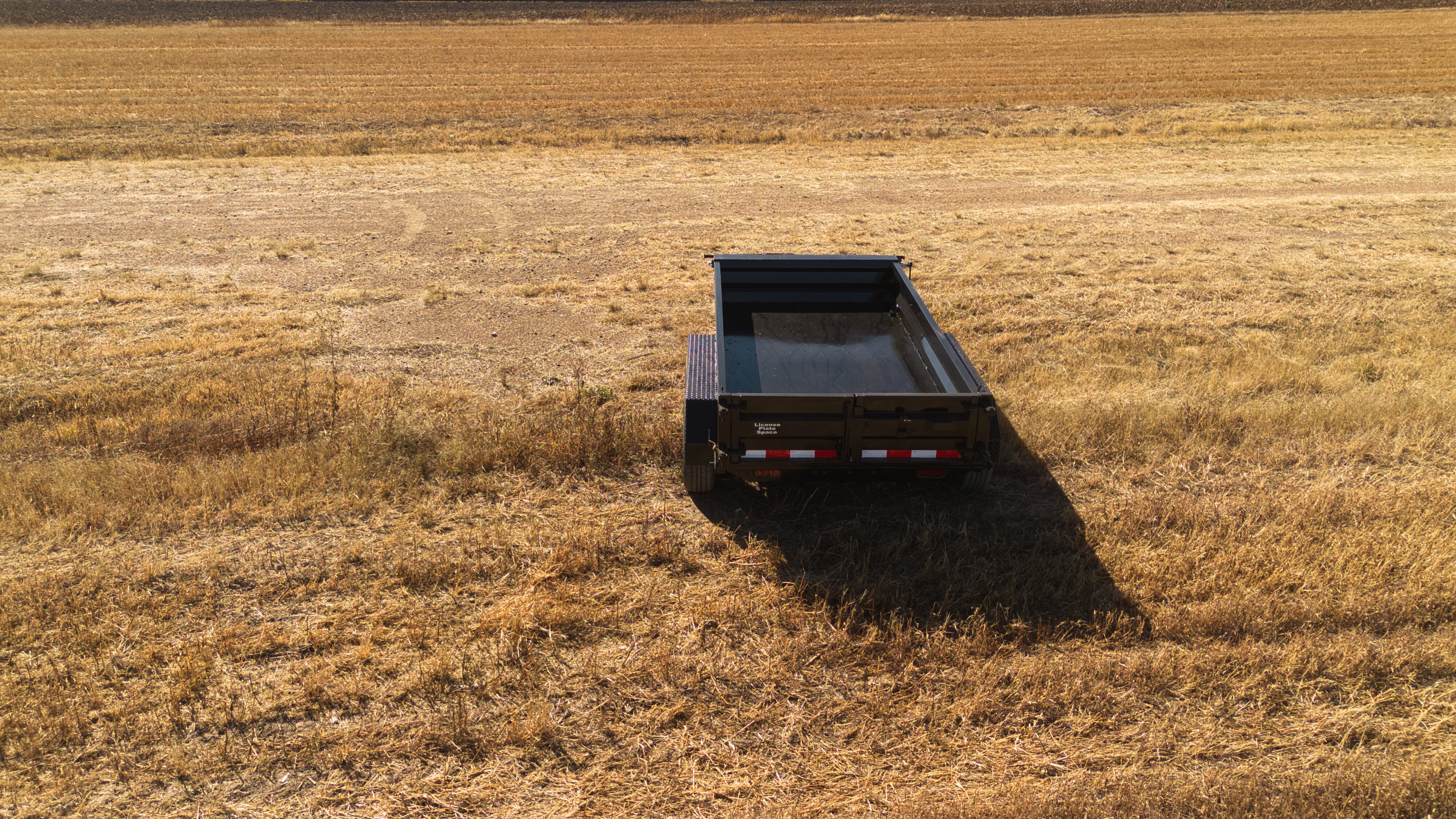

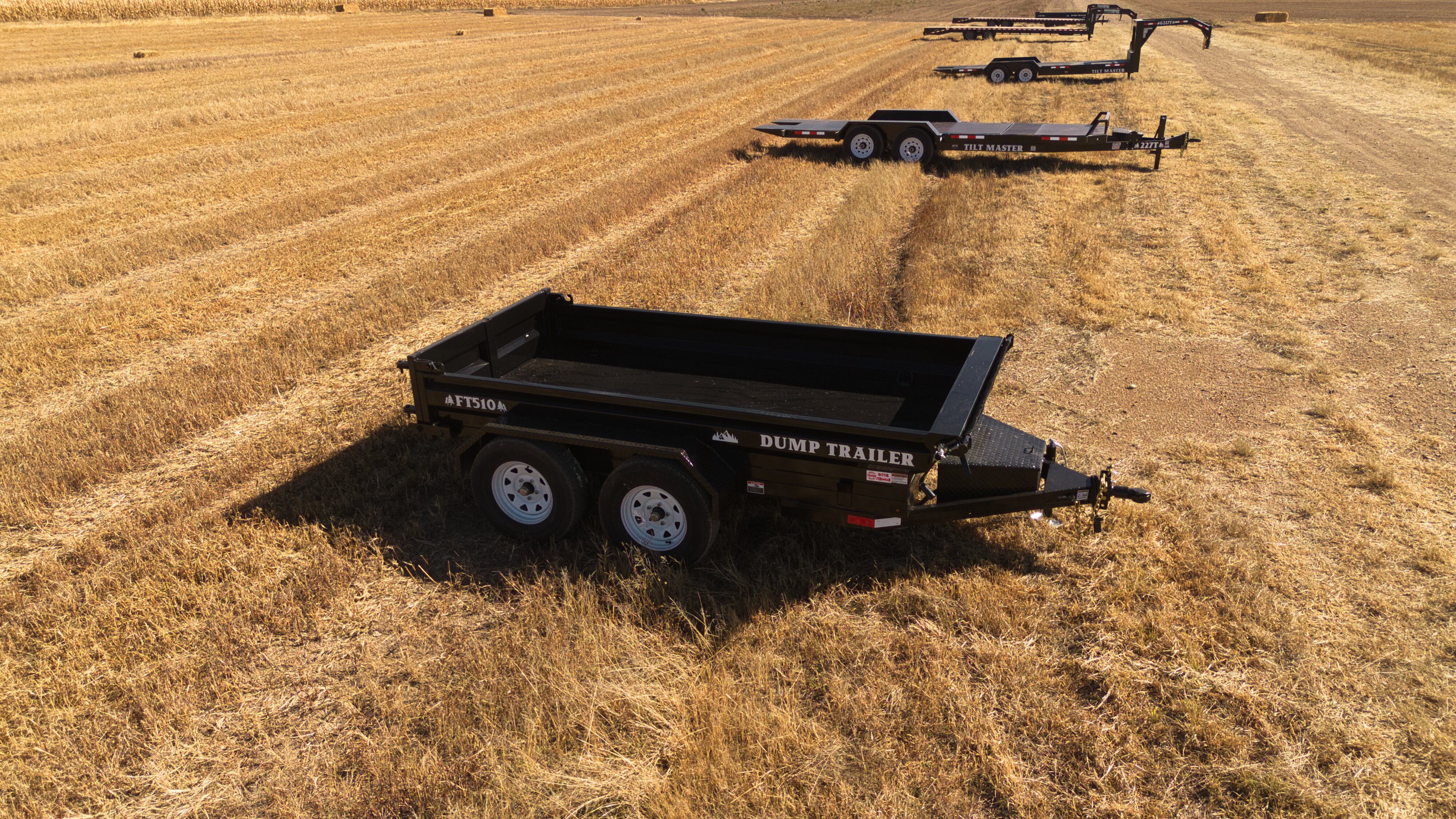

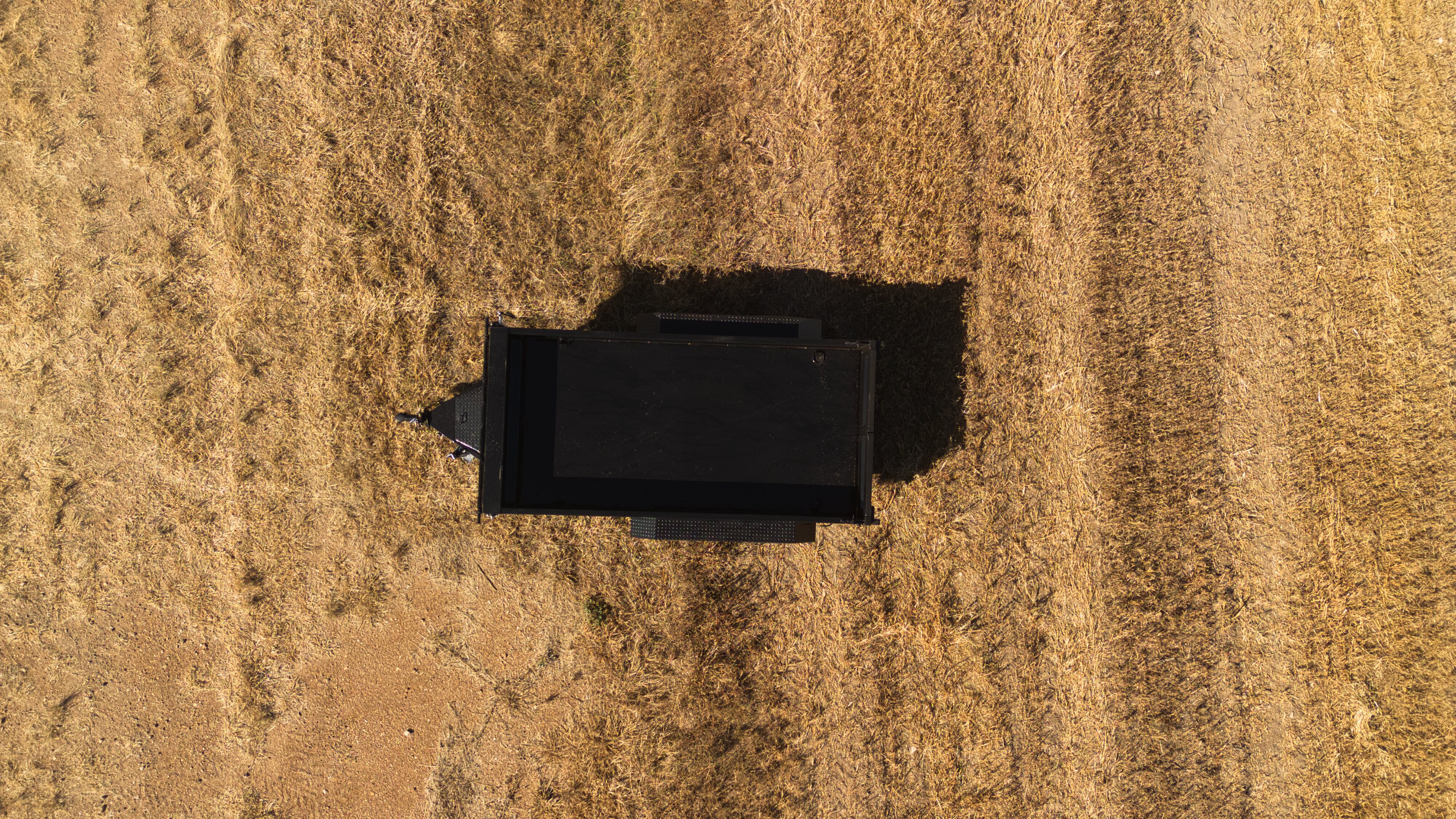

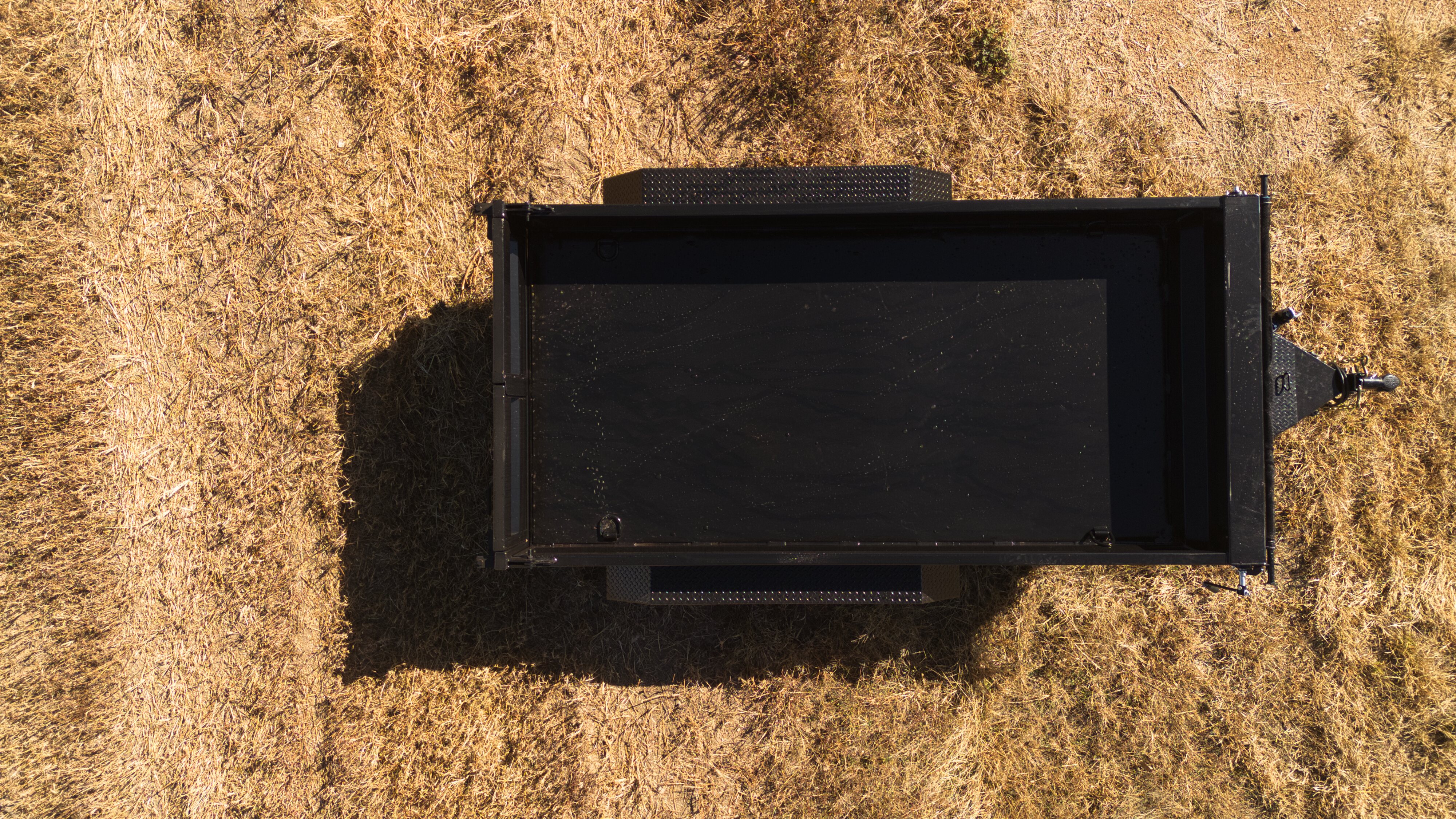

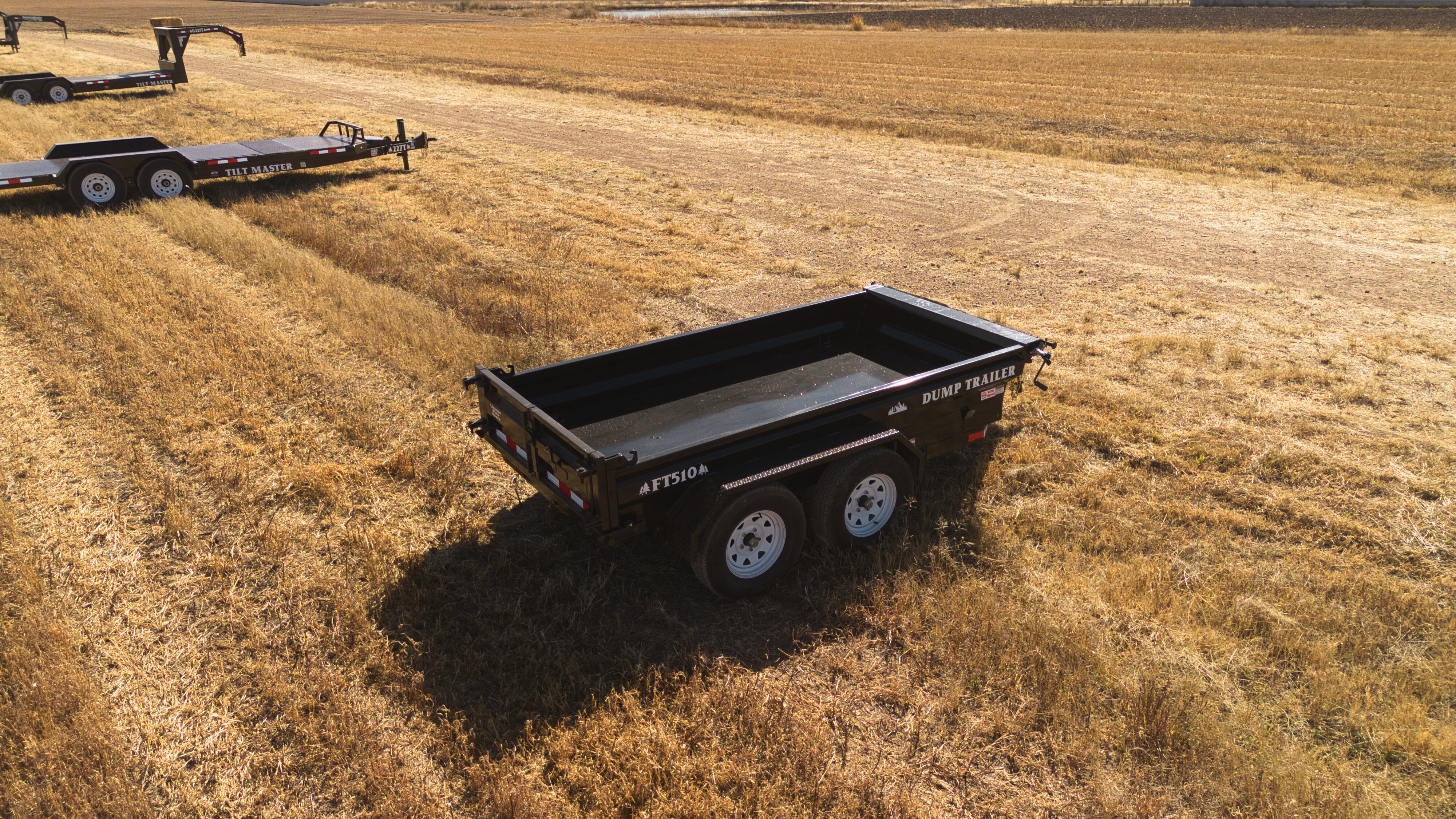

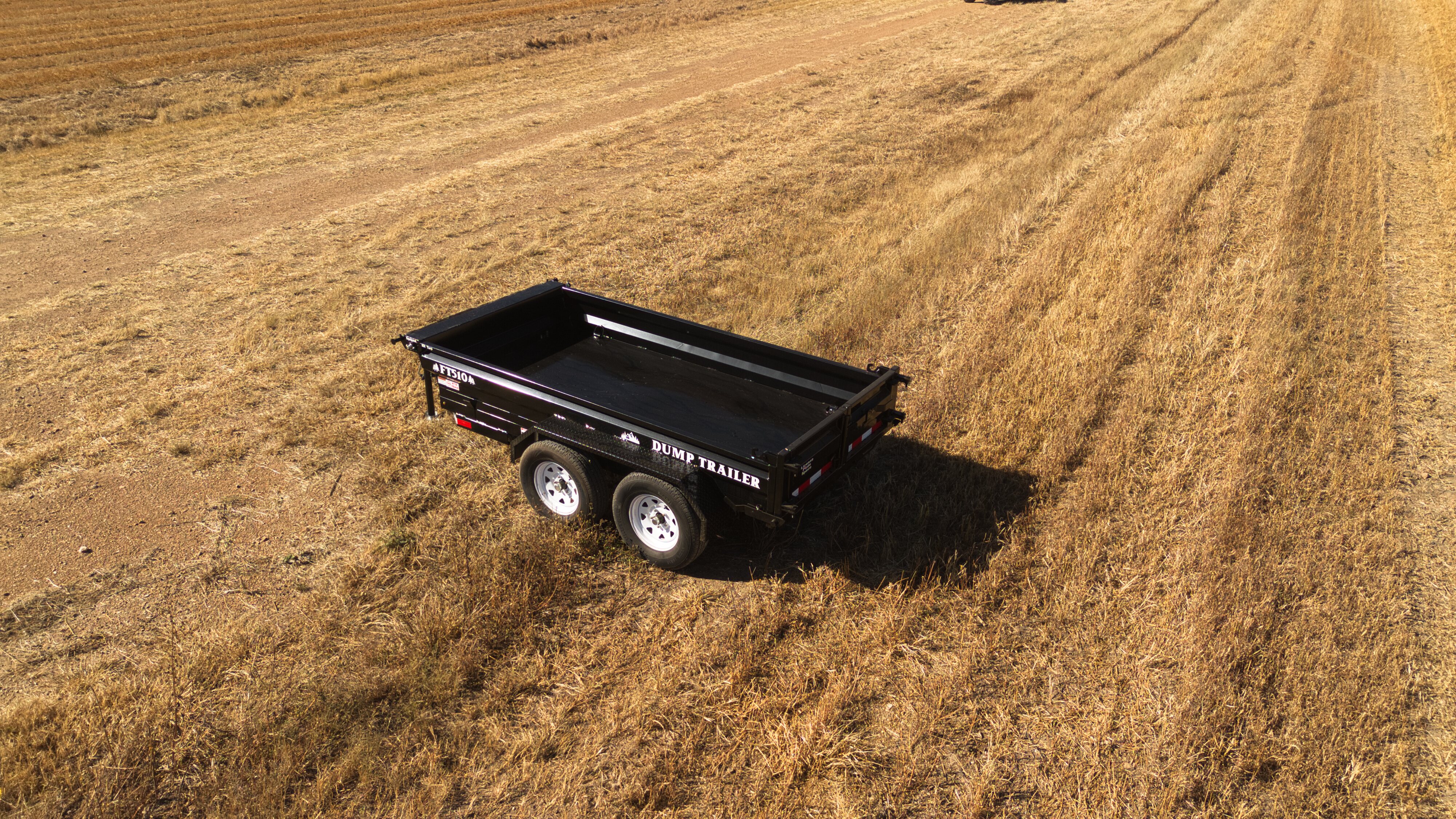

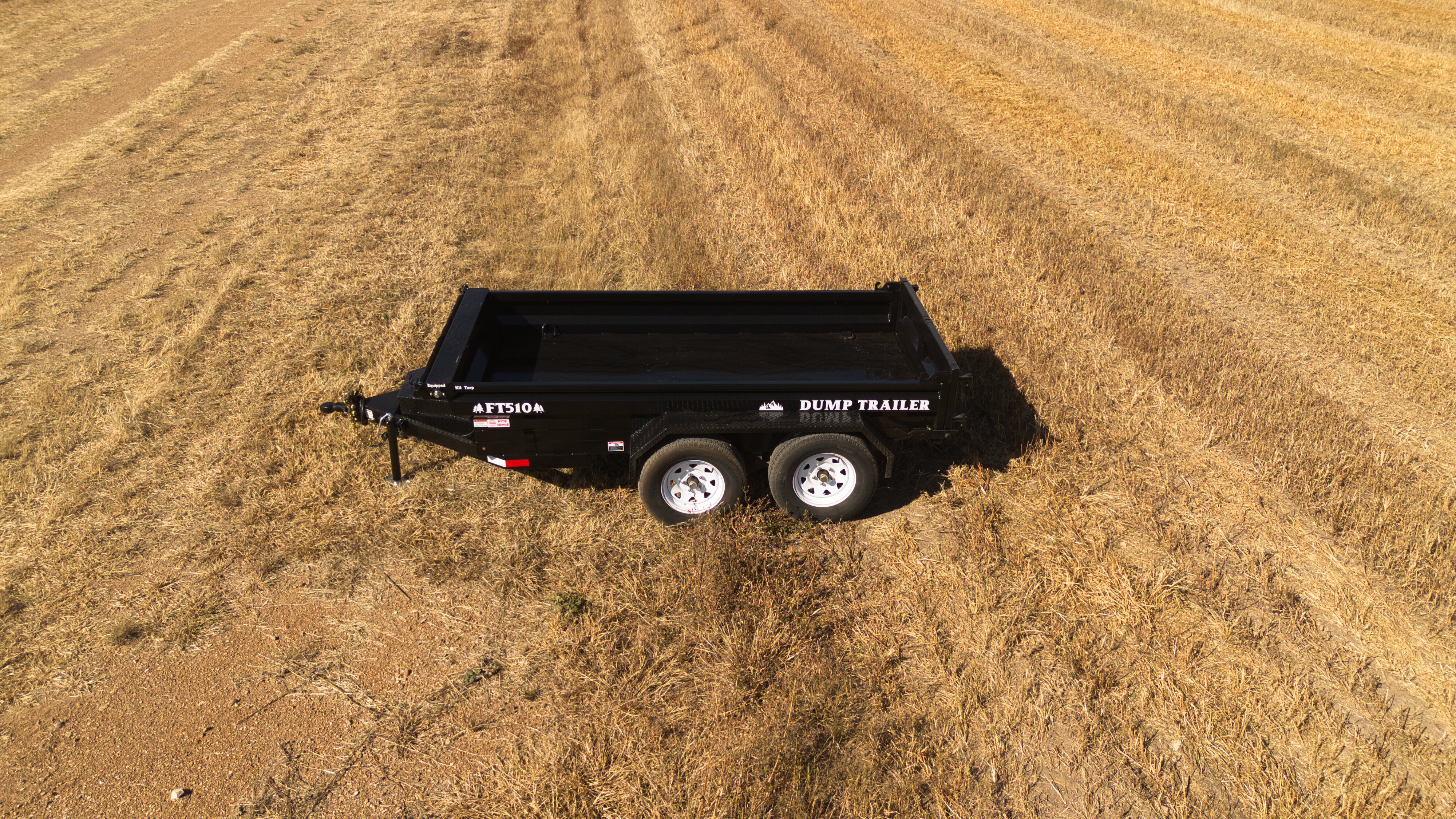

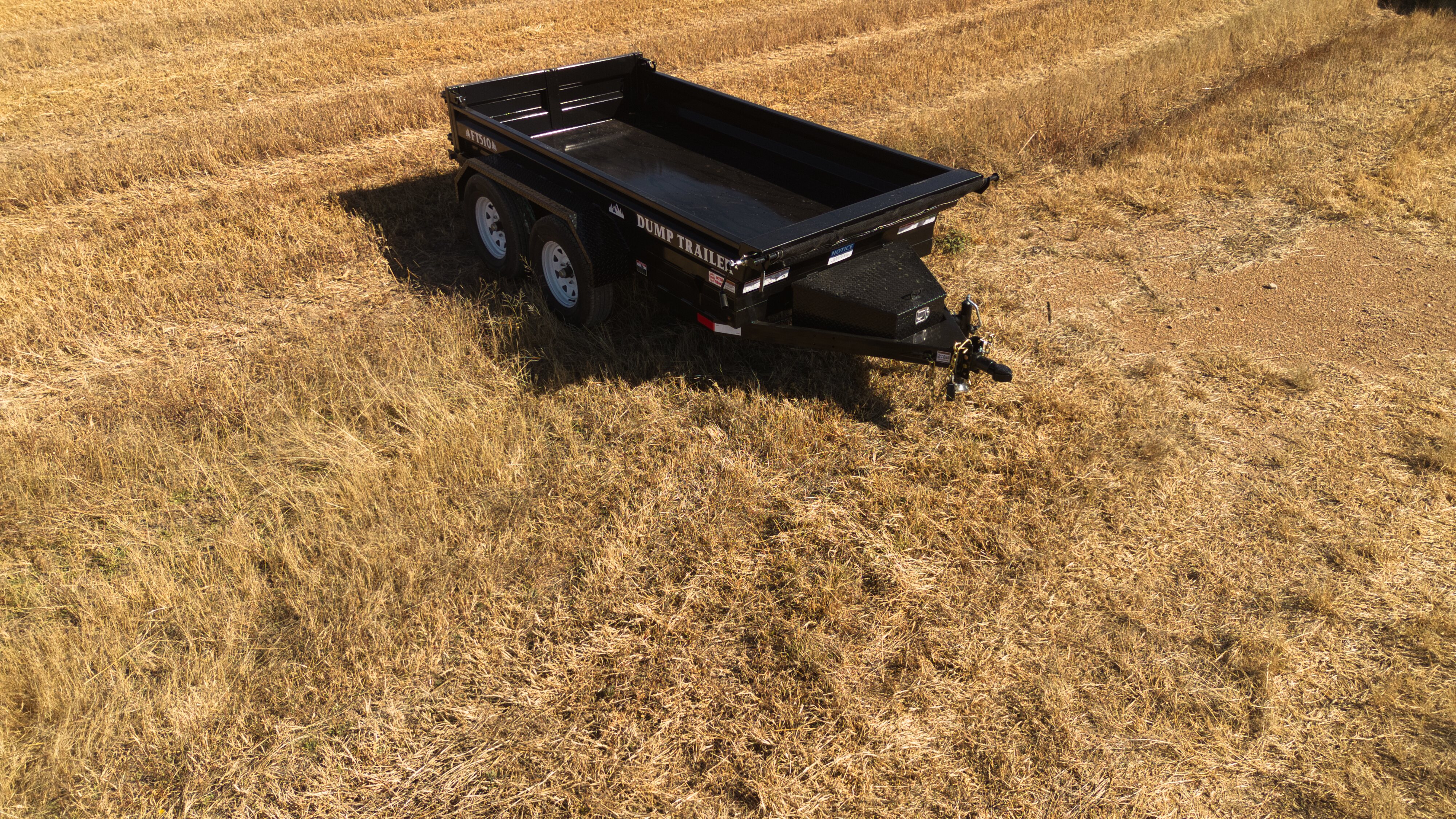

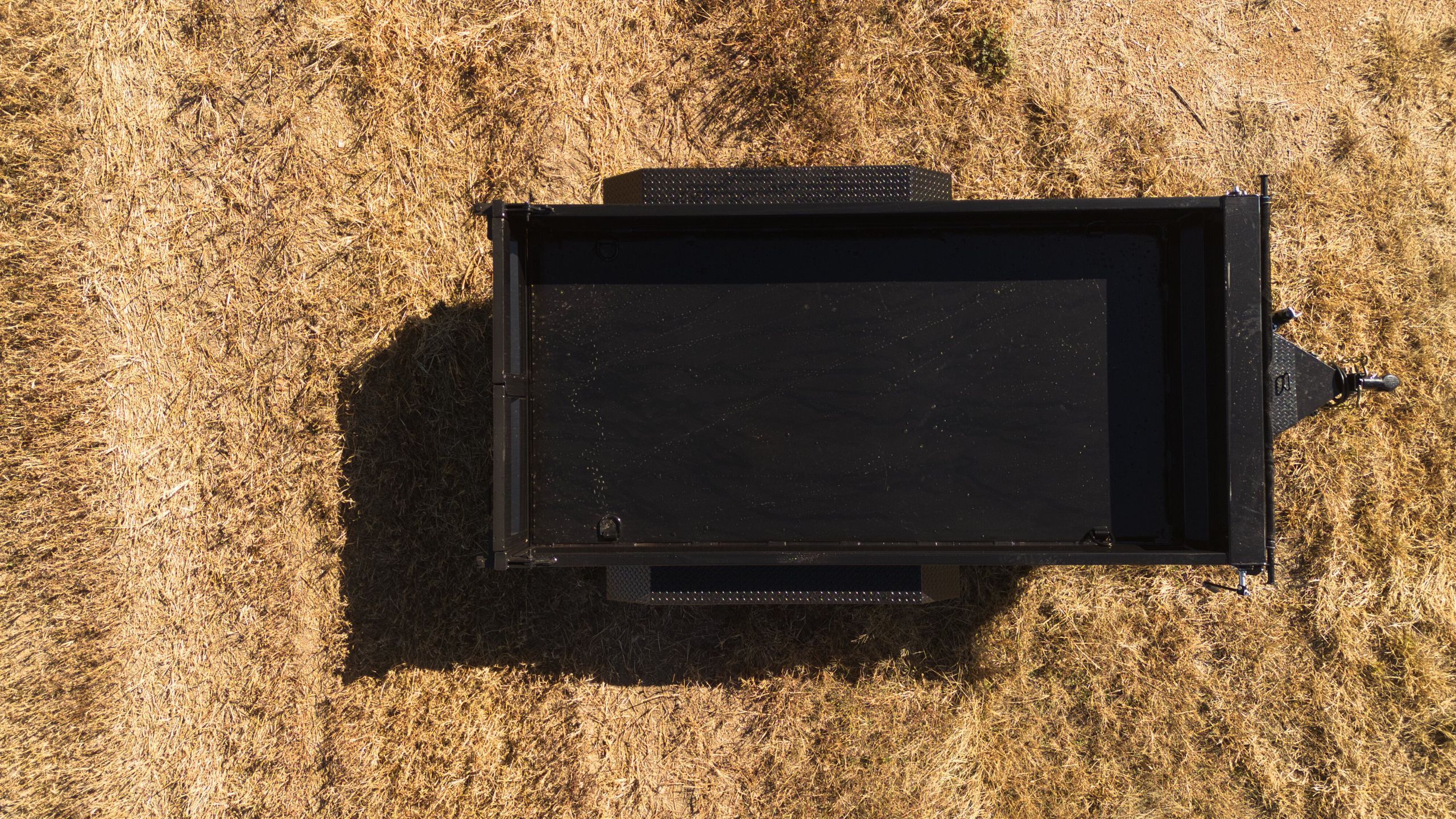

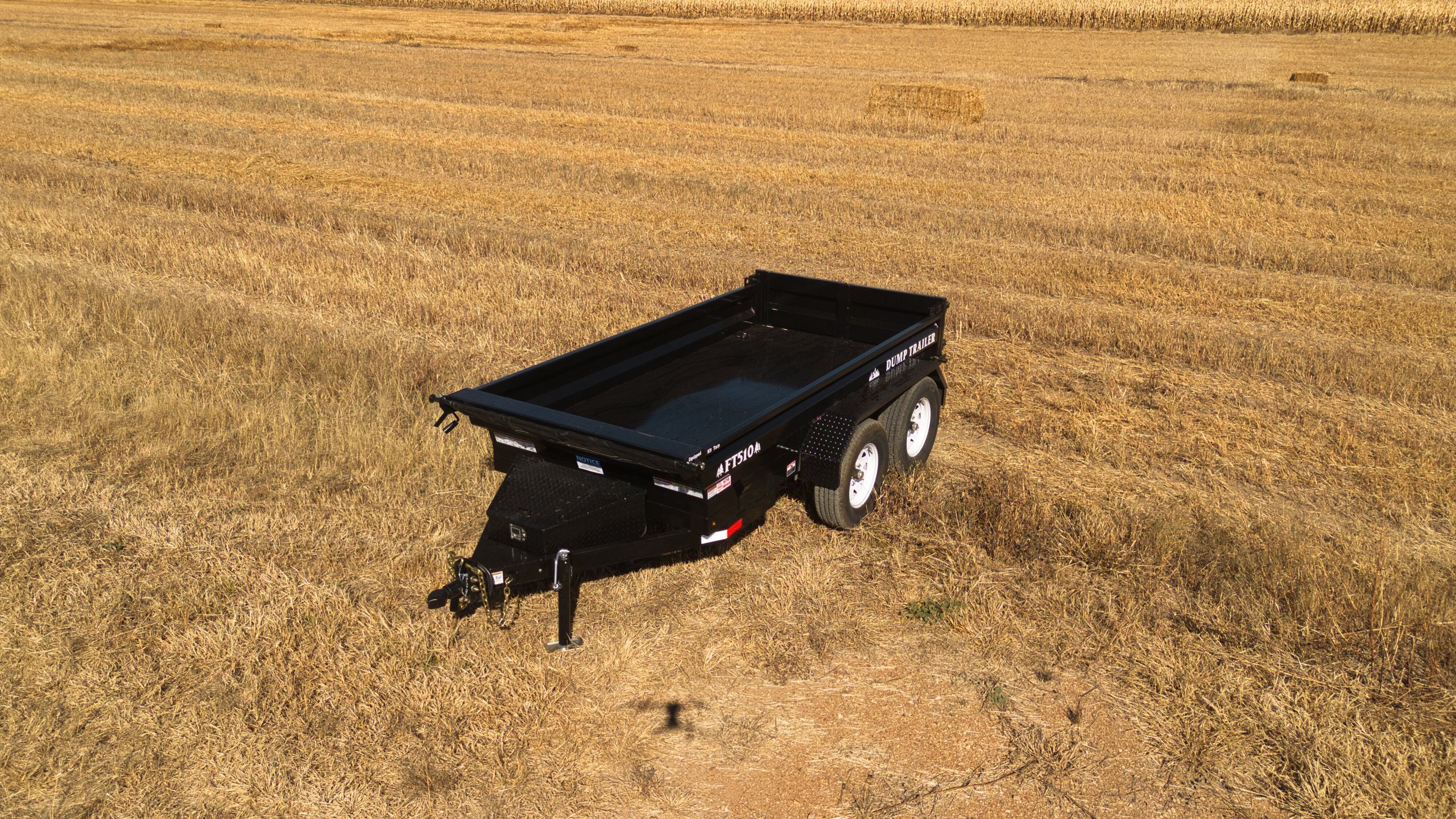

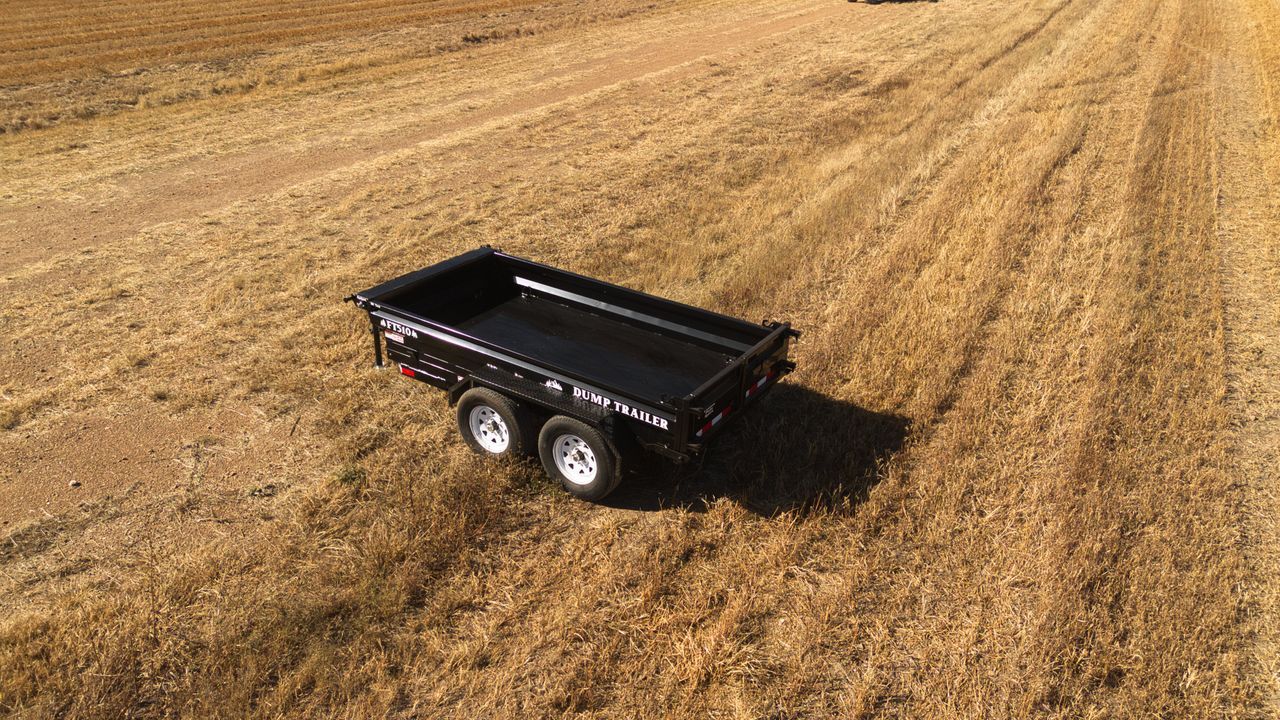

The FT510 is built for versatility and reliability in a compact size that’s easy to maneuver on farms, construction sites, and tight job areas. Its 5’×10’ bed, 7,000 lb GVWR, and 8-gauge steel flooring deliver rugged performance for everyday tasks — from hauling gravel and debris to moving equipment and materials. A powerful straight-piston hoist, electric brakes, and a durable powder-coat finish make it a long-lasting work partner.
