Specifications
| Feature | Description |
|---|---|
| Feed Type | Hay |
| Feeding Spaces | 34 |
| Total Width | 104" |
| Feeder Width | 82" |
| Total Length | 35 ft |
| Feed Space | 82"×24 ft |
| Weight | 1,260 kg |

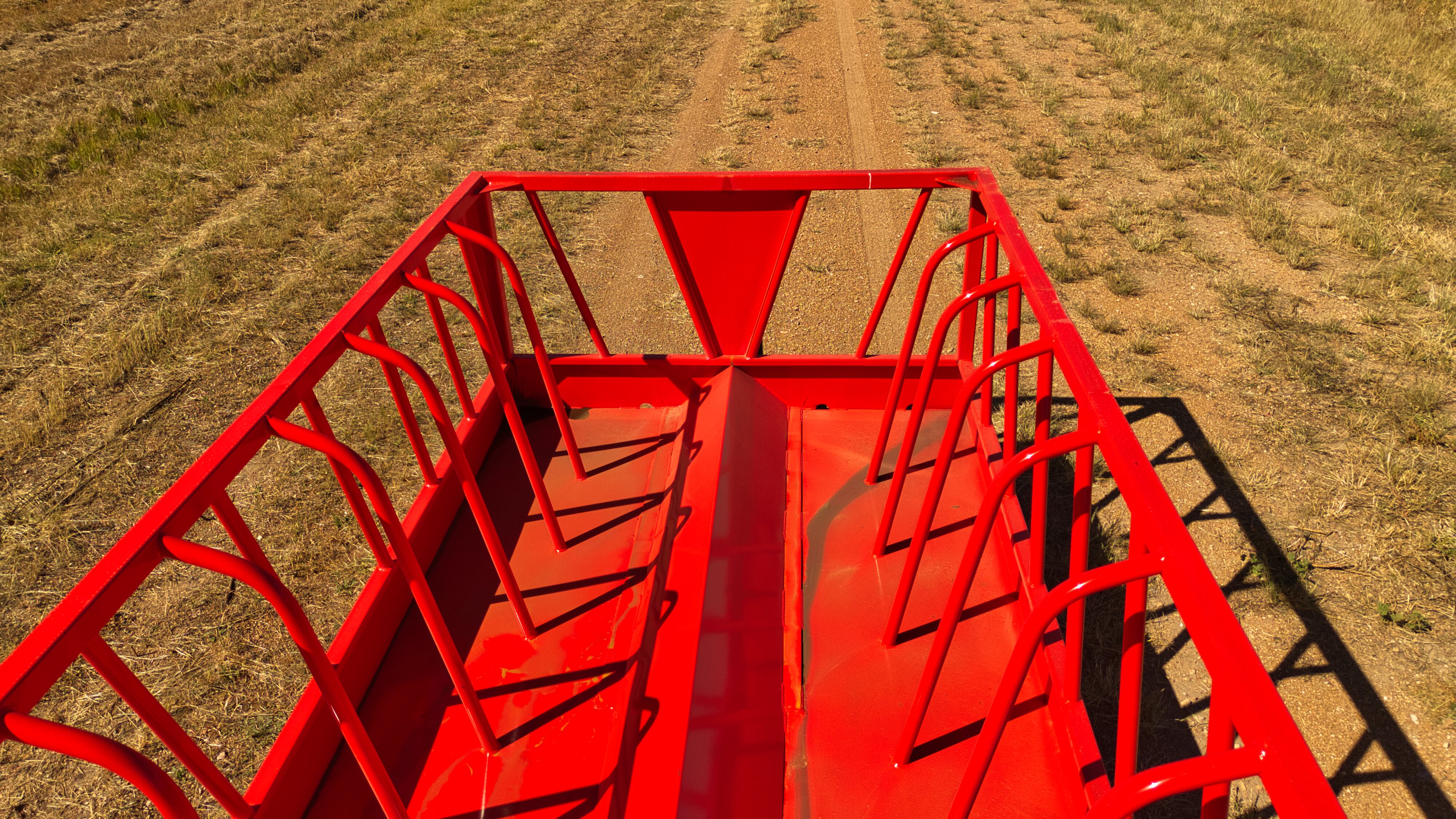

| Pan Depth | 11" |
| Pan Material | 11-gauge steel |
| Frame | 2.5" + square tubing |
| Slant Bars / Inner Tubes | 1.75" round |

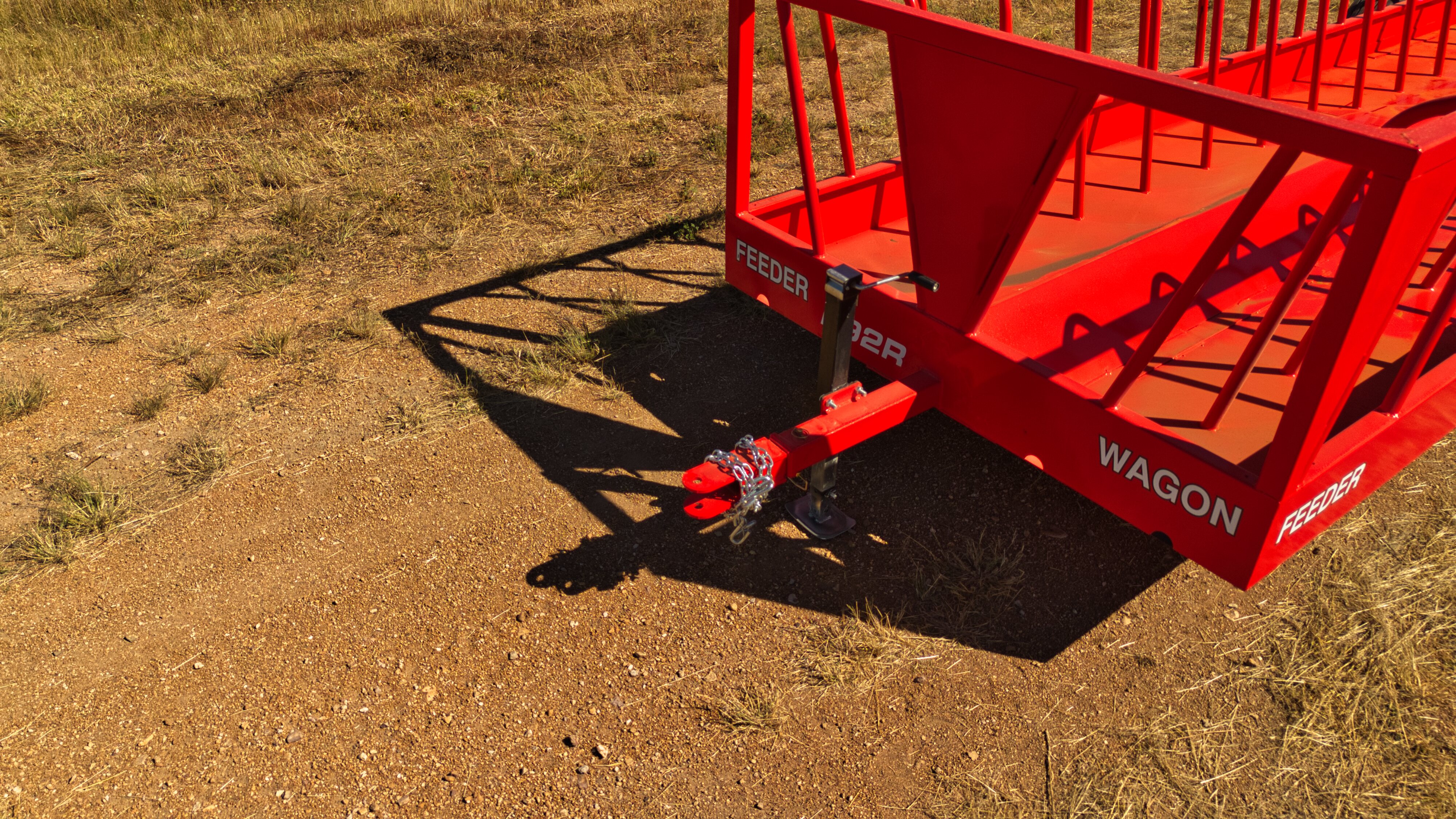

| Hitch Type | Fixed telescopic (extends 36") |
| Steering / Dolly | No dolly |
| Axle Configuration | Rear 7,000 lb spindle |
| Tires | ST235/80 R16 |
| Wheel Count | 2 |
| Finish / Color | Orange powder coat |
| Feed Types Supported | Round or square hay bales |

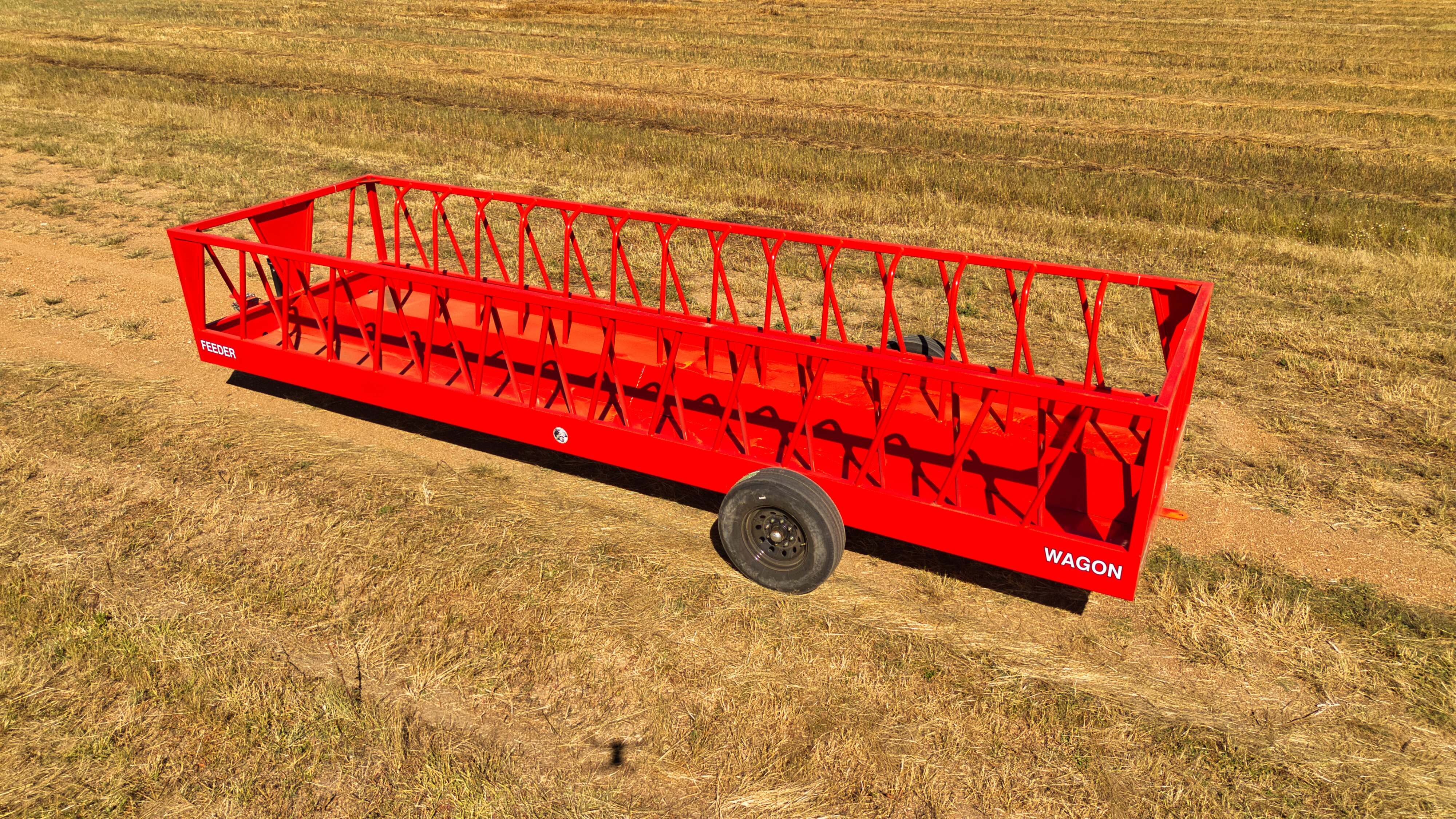

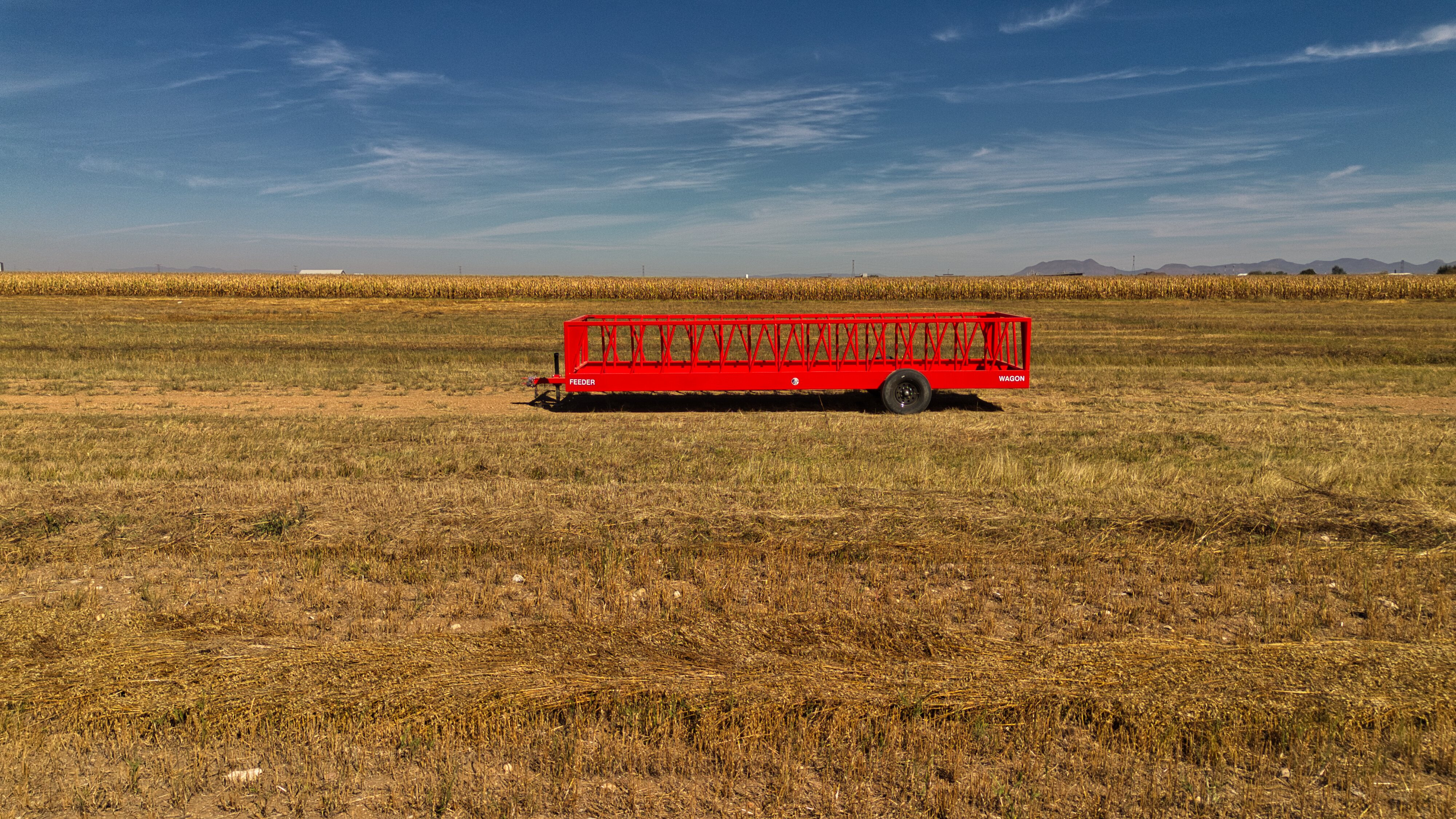

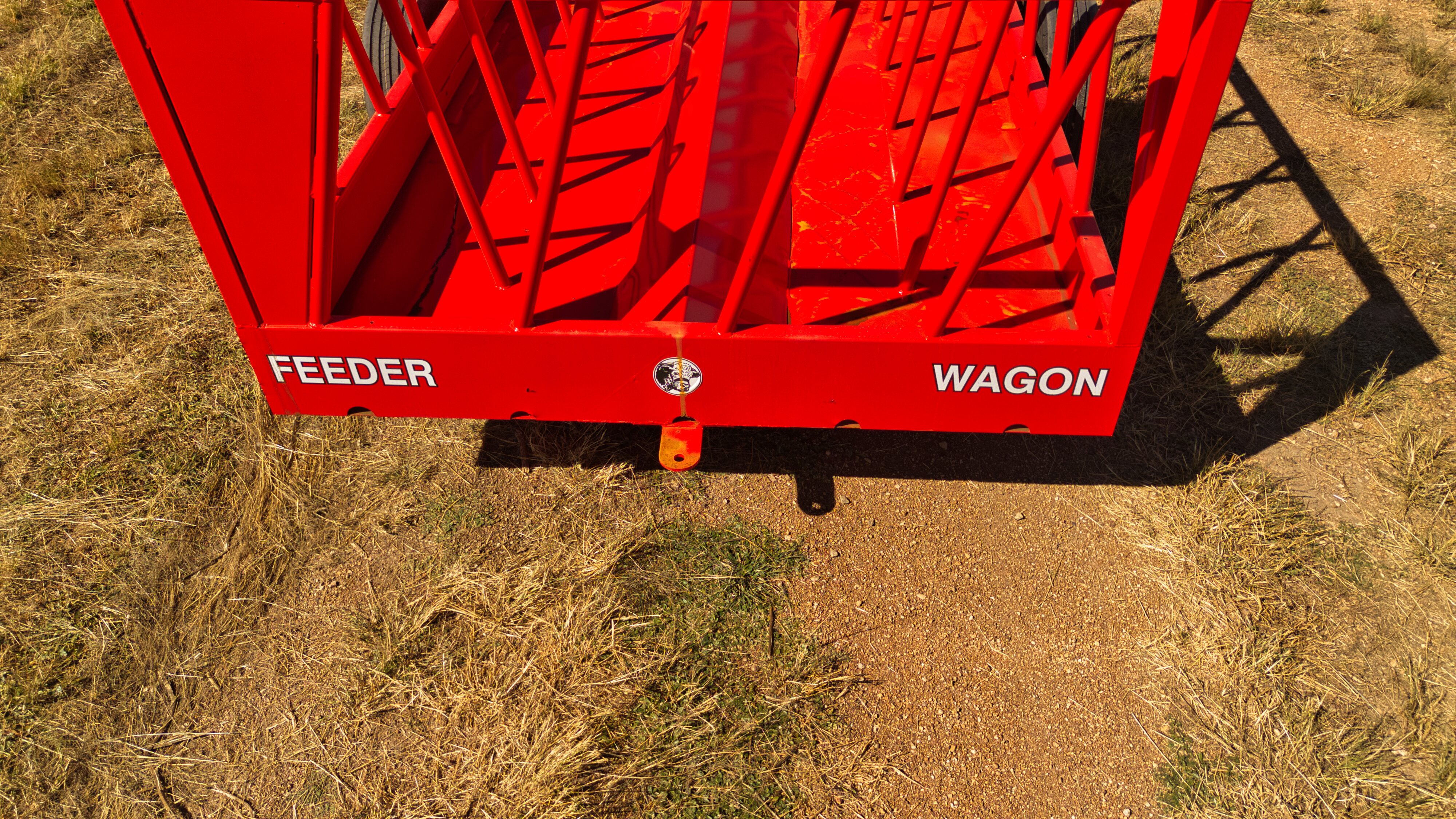

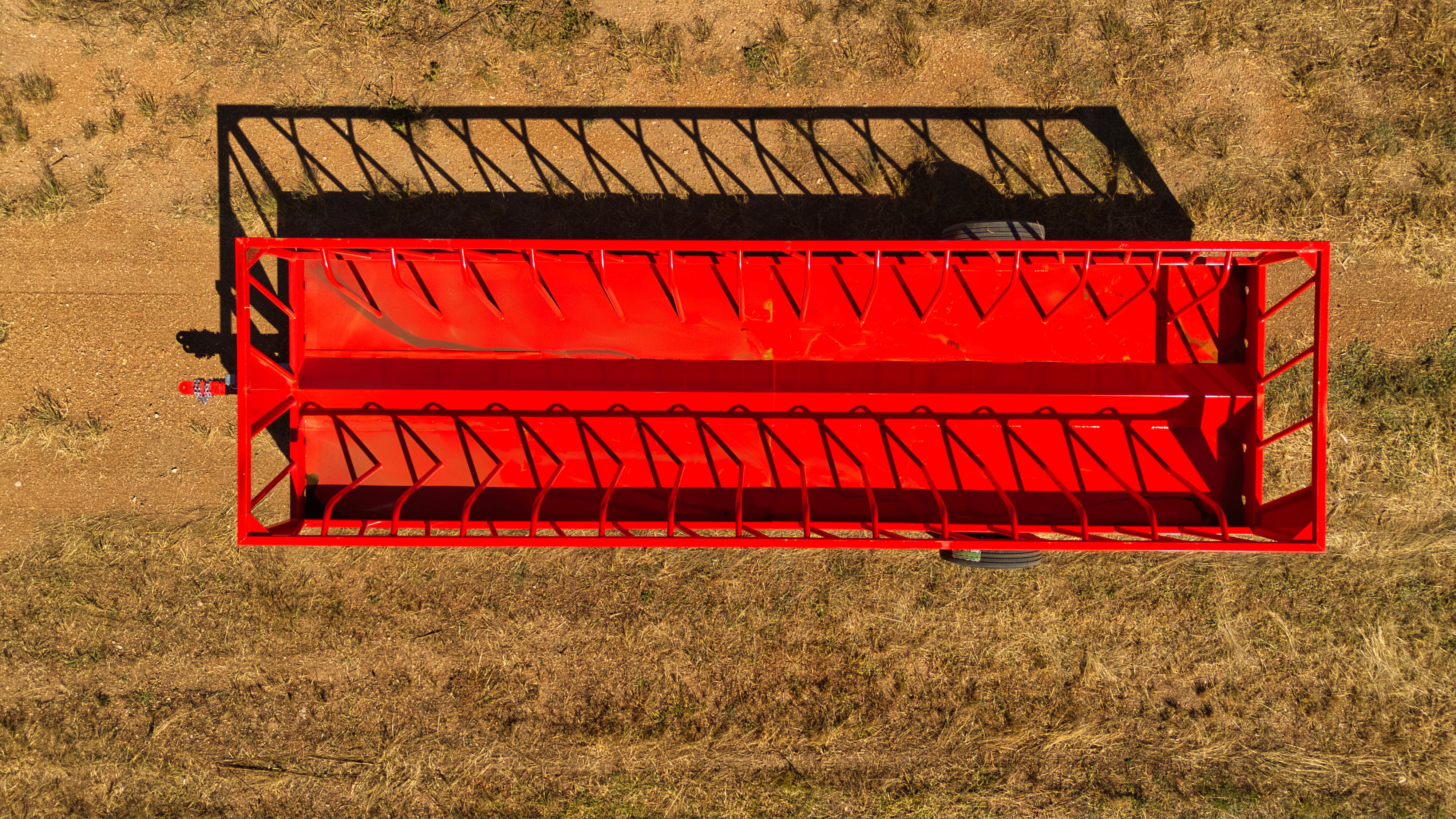

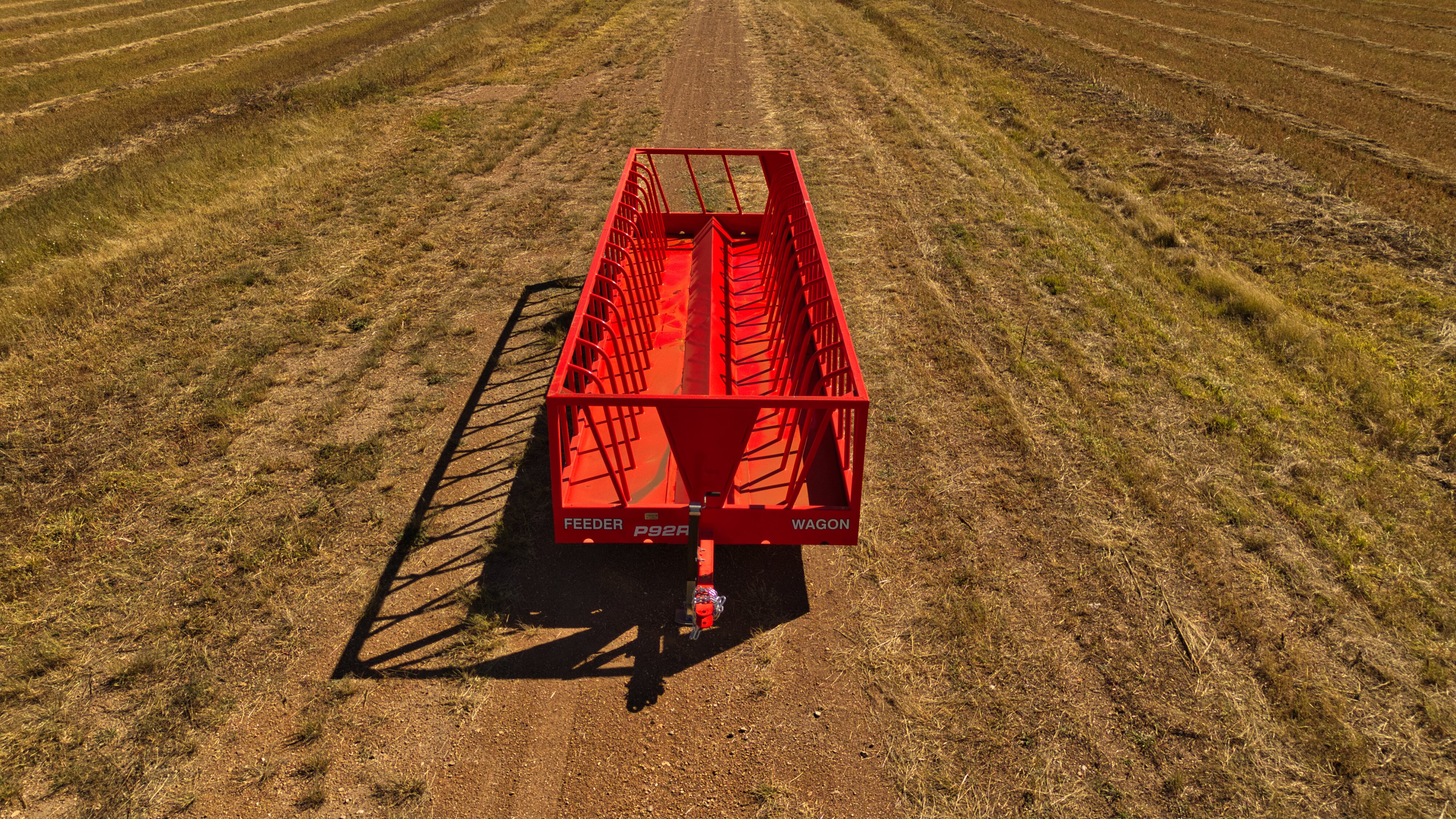

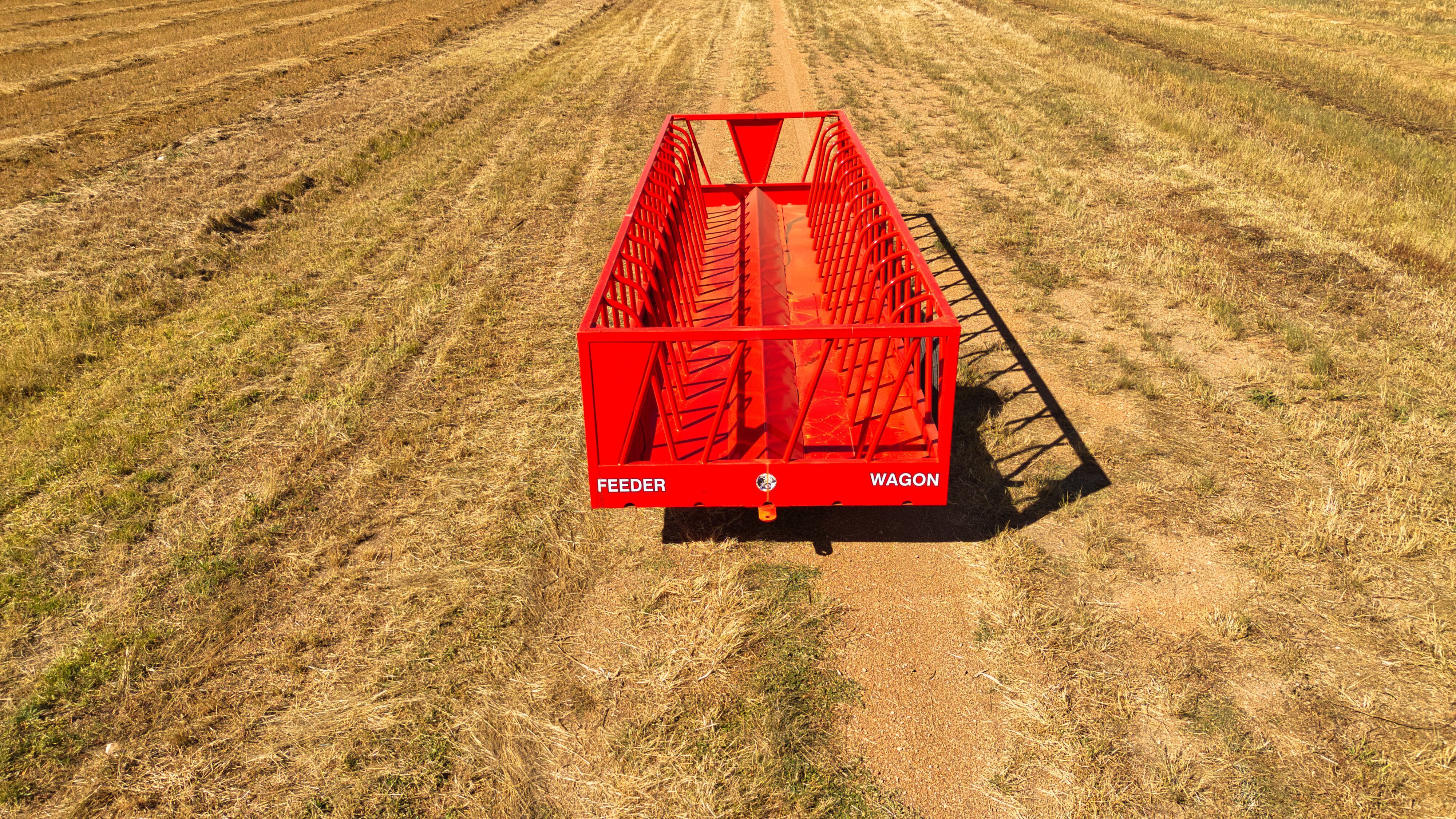

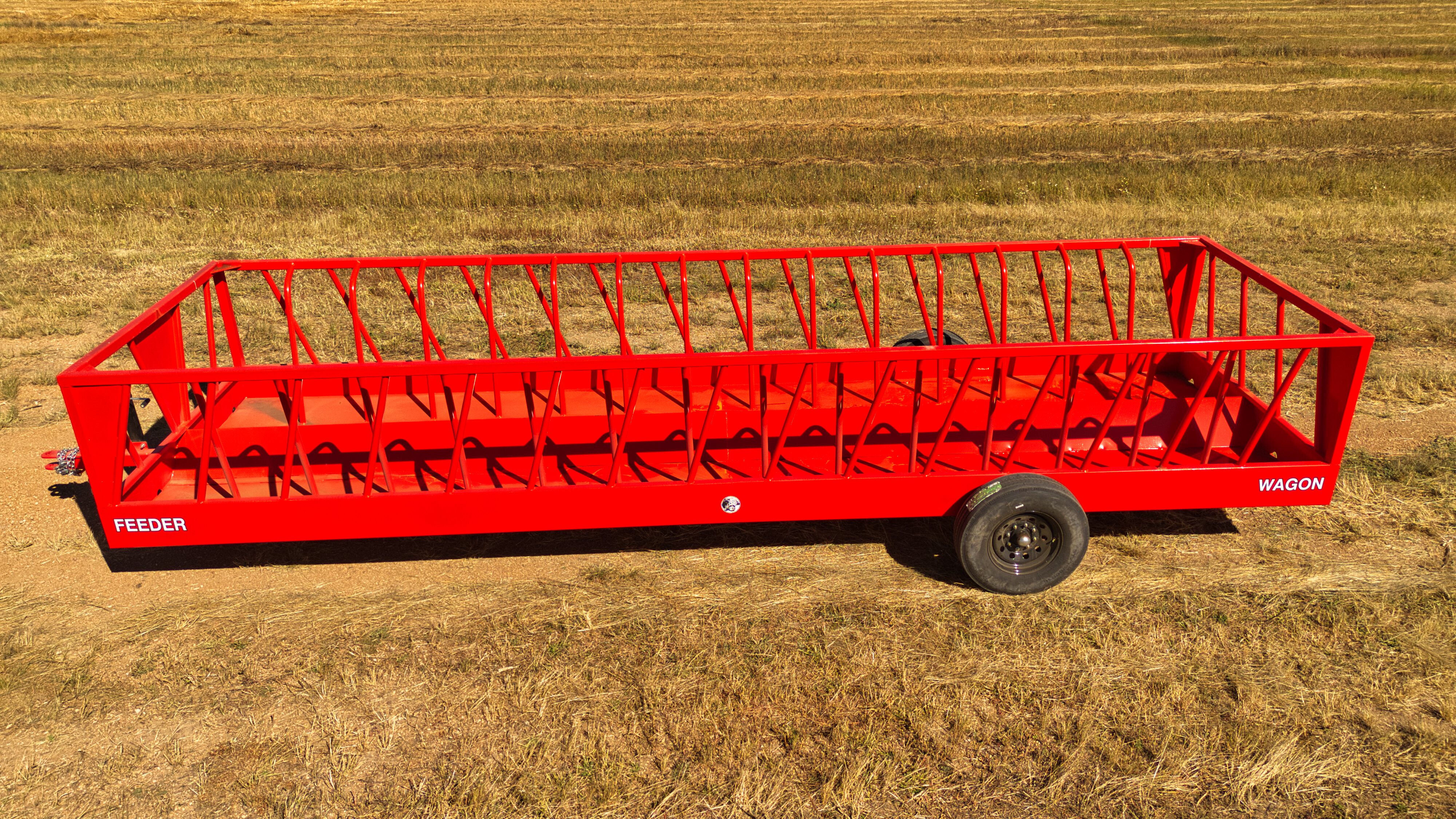

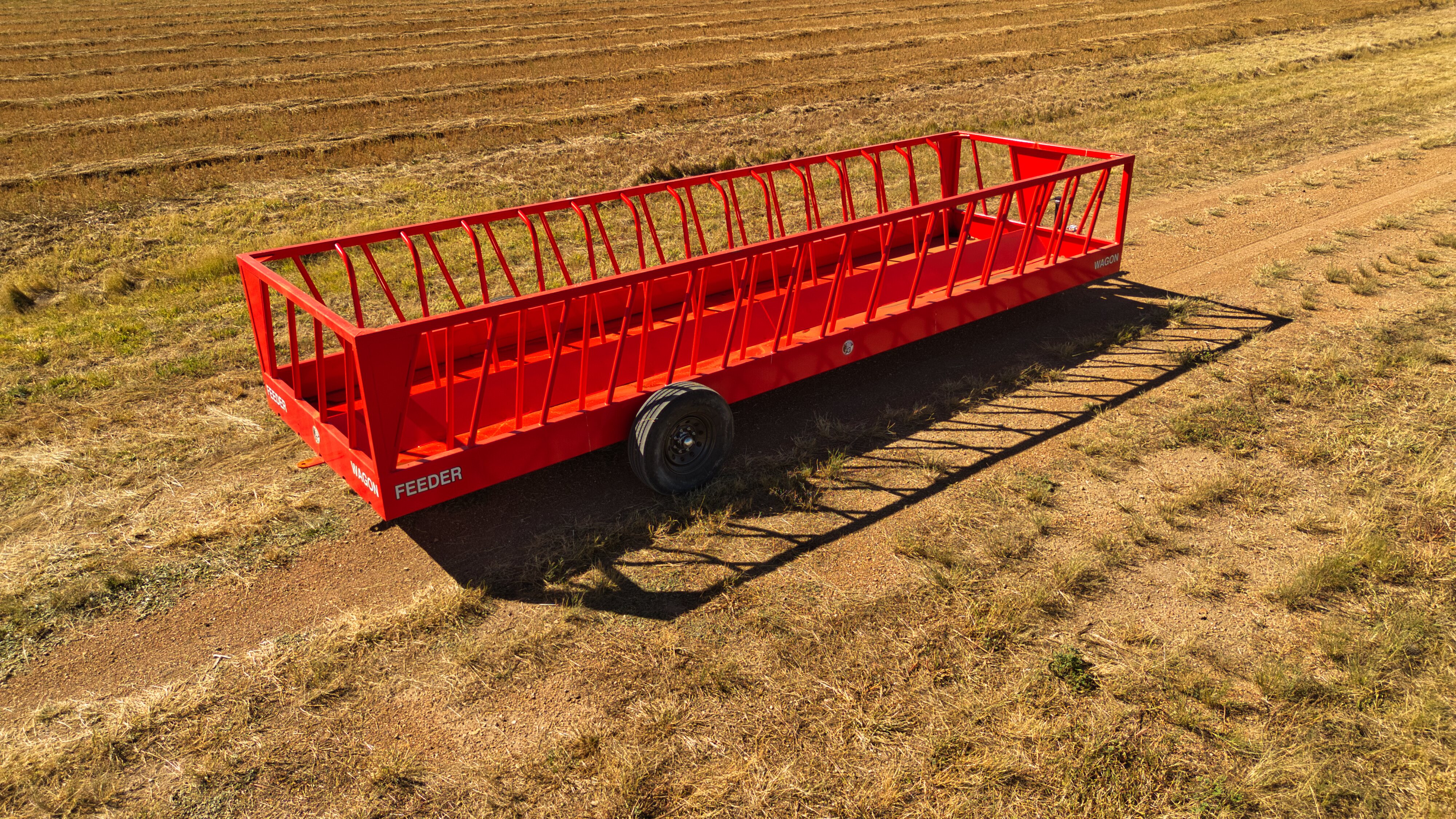

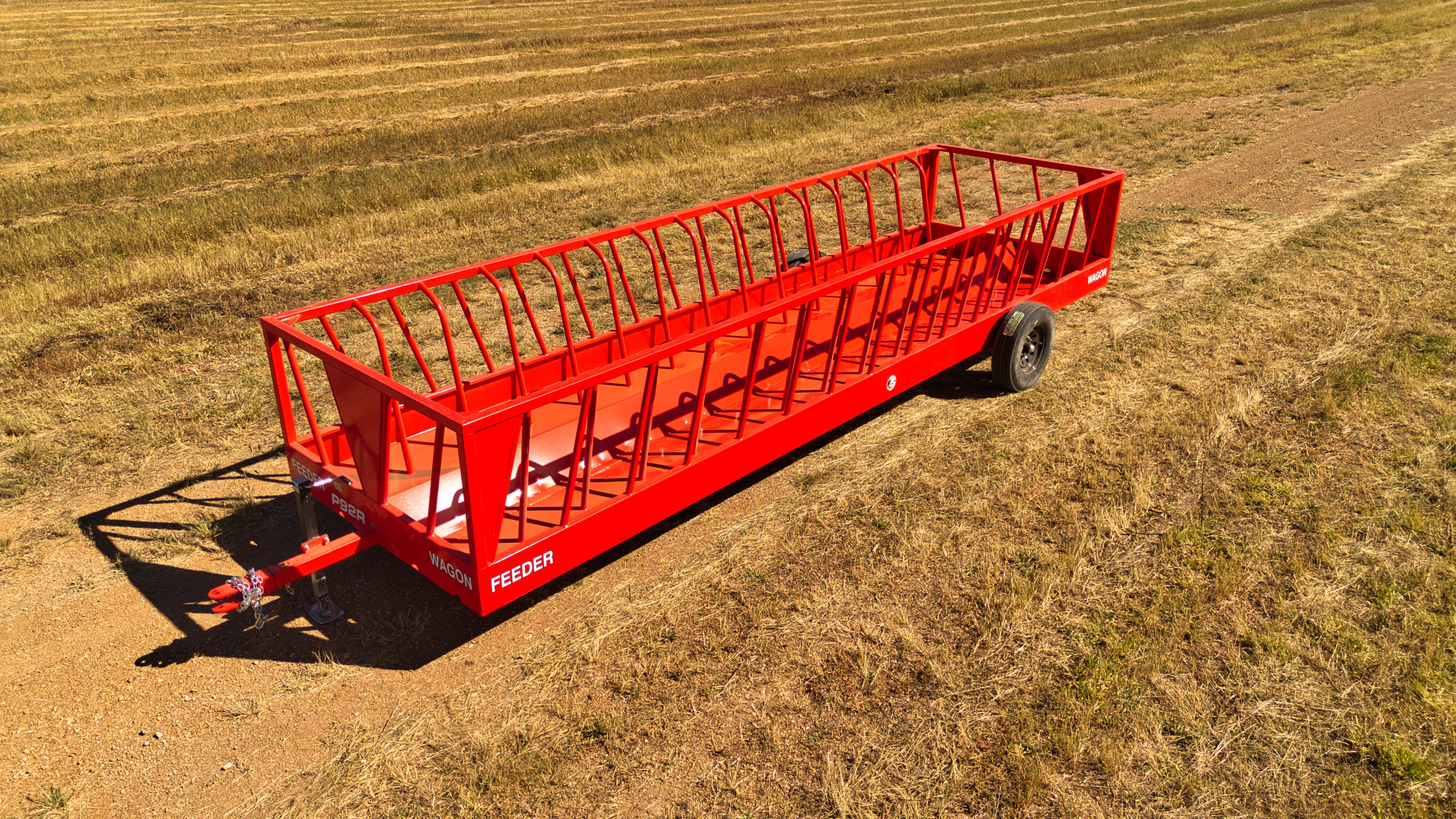

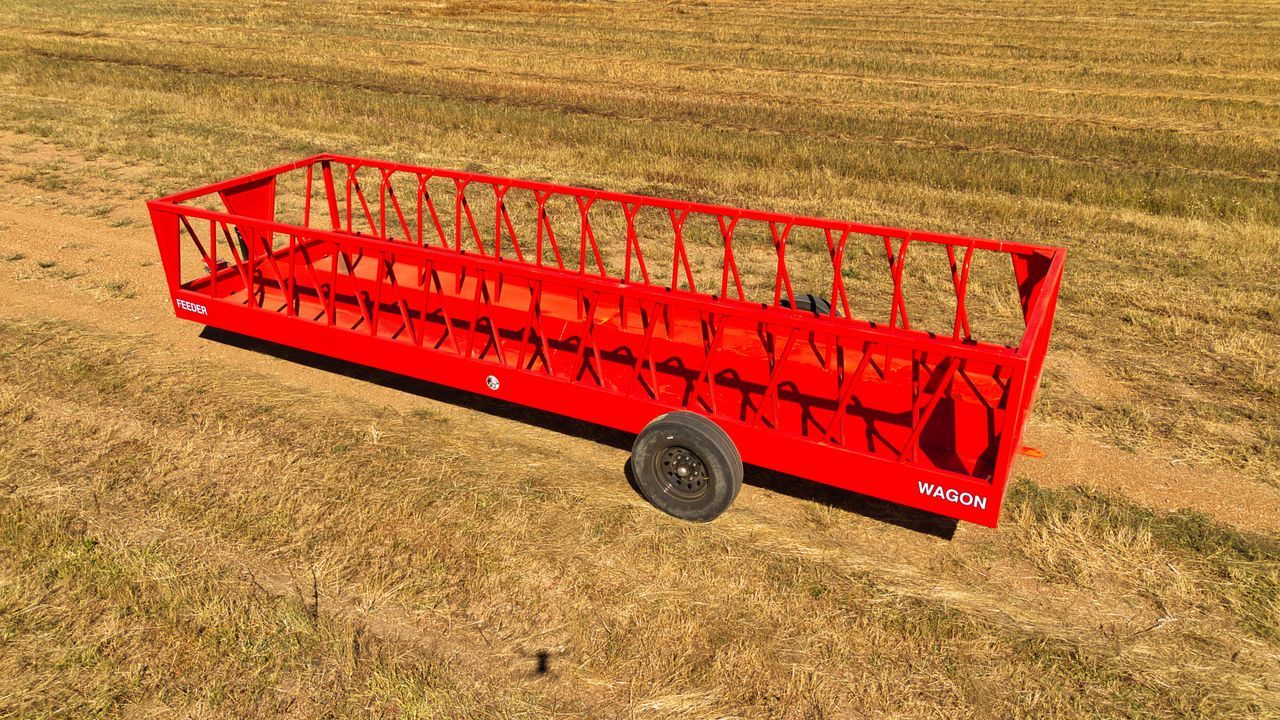

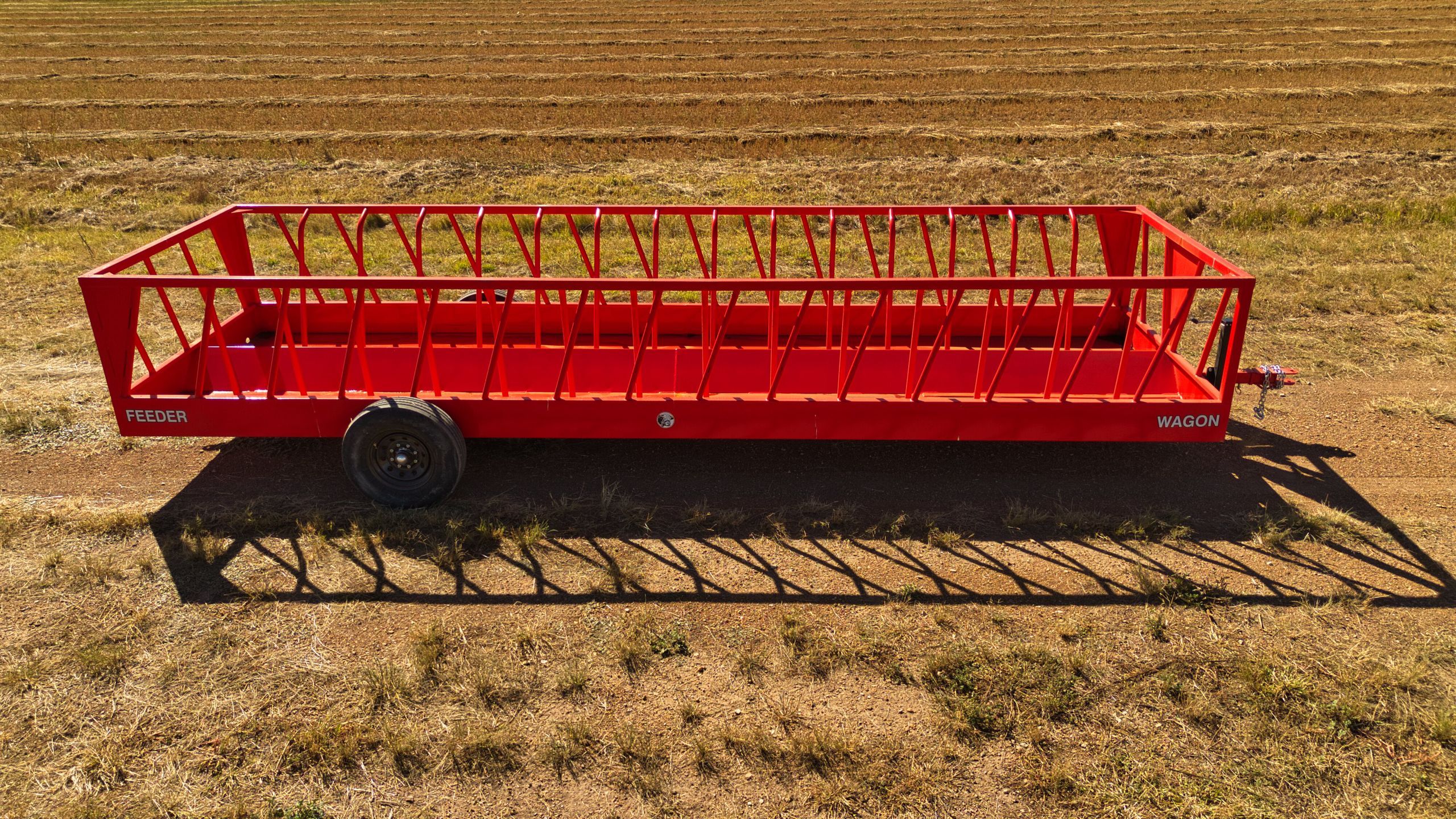

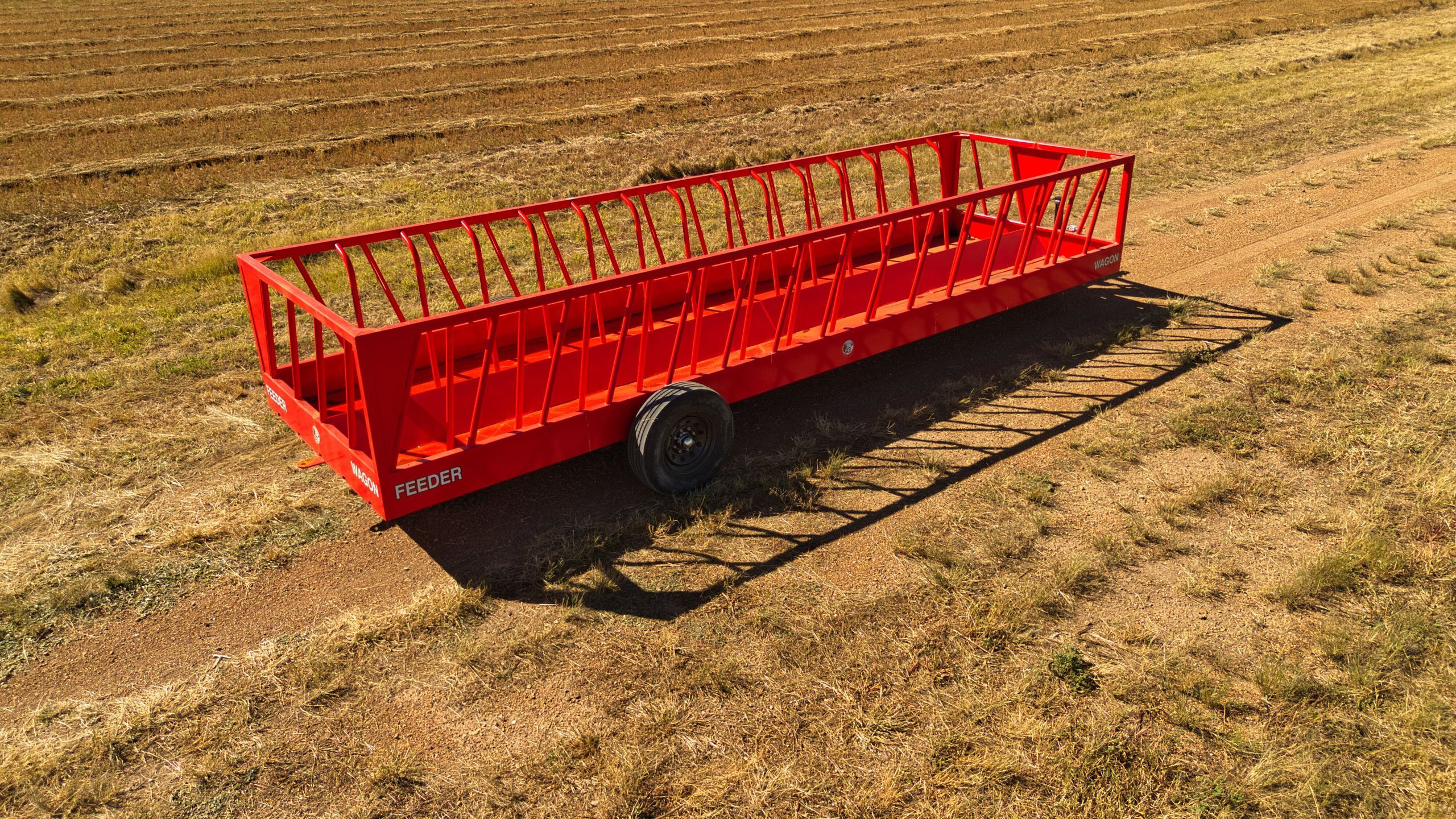

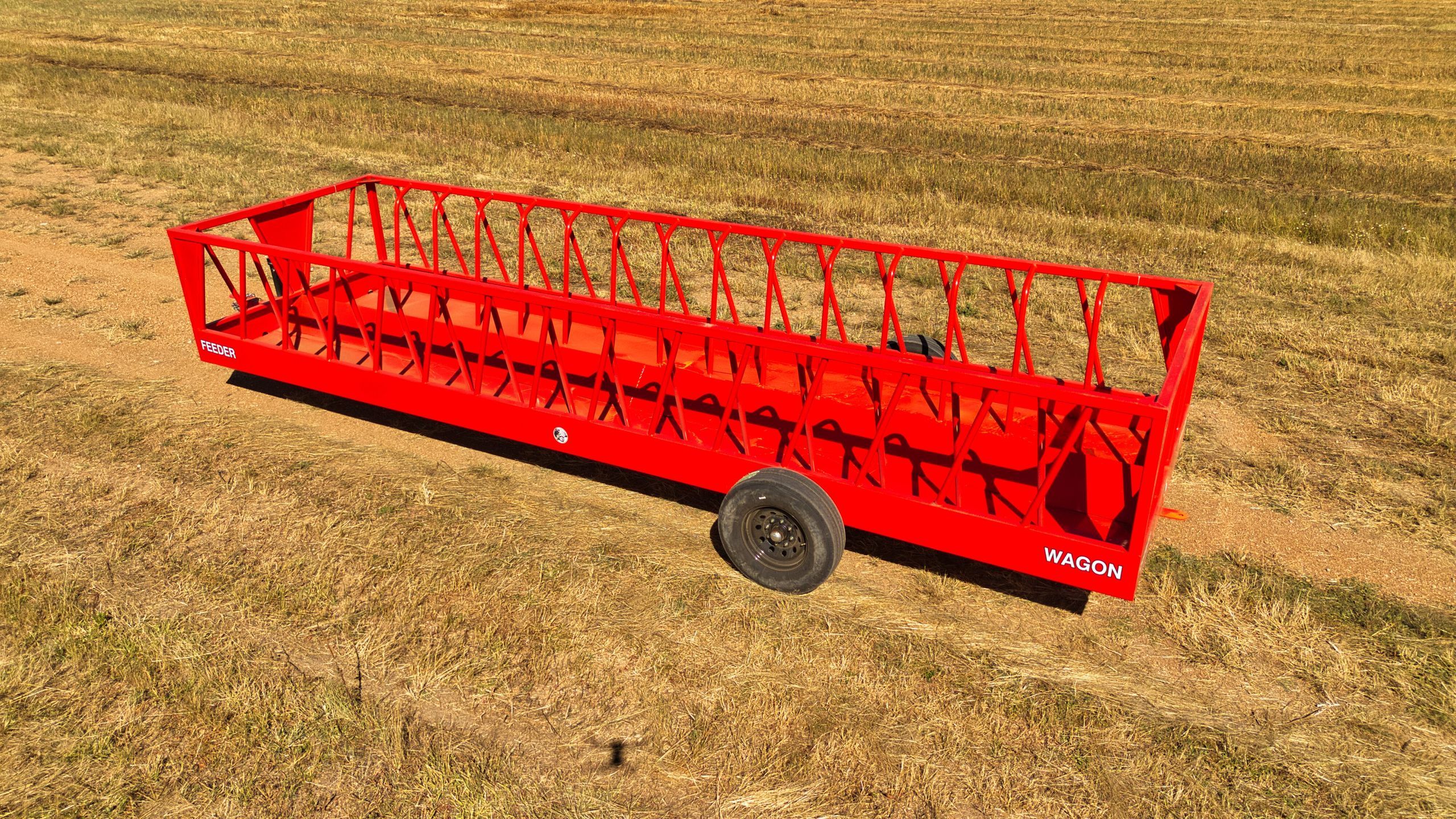

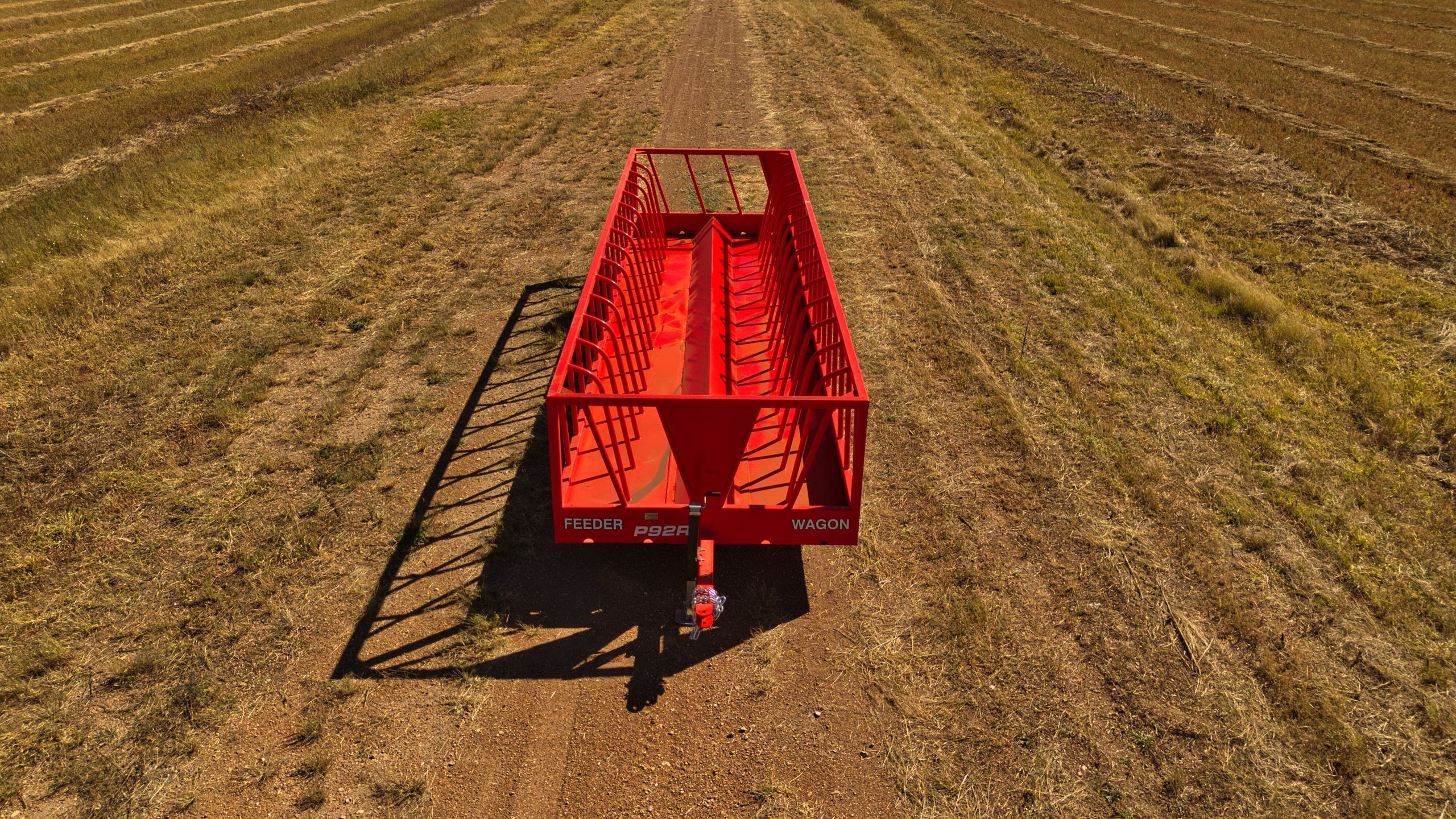

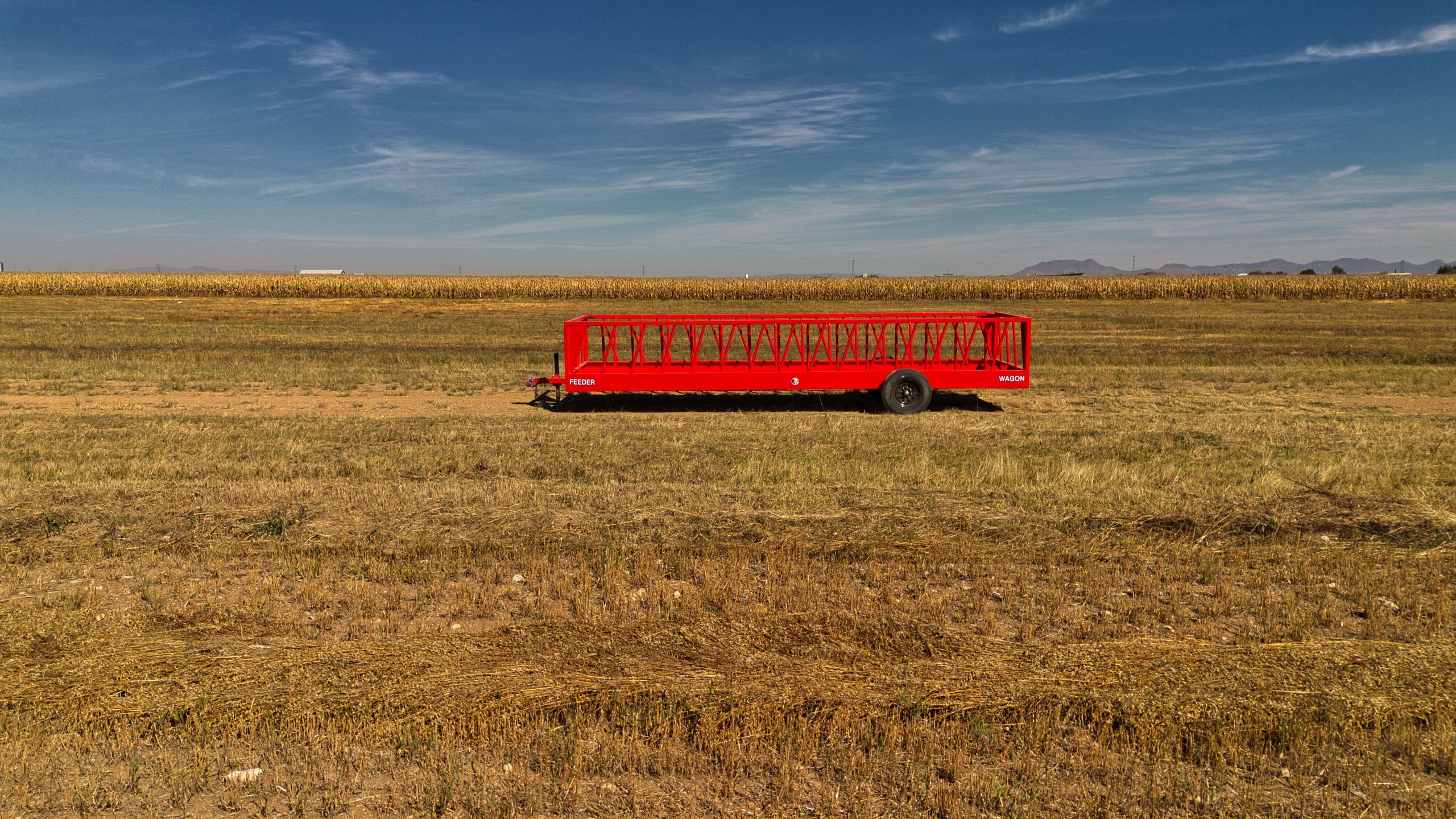

The P92R Hay Feeder Wagon offers the same heavy-duty frame and pan design as the 82R, but with a simplified two-wheel configuration and a fixed telescopic hitch that extends 36 inches. This setup eliminates the dolly, reducing weight and simplifying hookup for direct towing. It’s ideal for operations where the feeder remains in a consistent feeding area or only needs short-distance transport.
