Specifications
| Feature | Description |
|---|---|
| Type | 3-point disc harrow (X-frame) |
| Hitch Category | Cat II |
| Disc Diameter | 22” |
| Disc Thickness | 3/16” |
| Disc Type | Plain or notched |
| Disc Material | Carbon steel |
| Disc Spacing | 8” |
| Number of Discs | 16, 20, 24, 28 |
| Working Width | Approx. 64” – 112” |
| Gang Angle | Adjustable |
| Frame | 3” × 4” × 3/16” steel tubing |

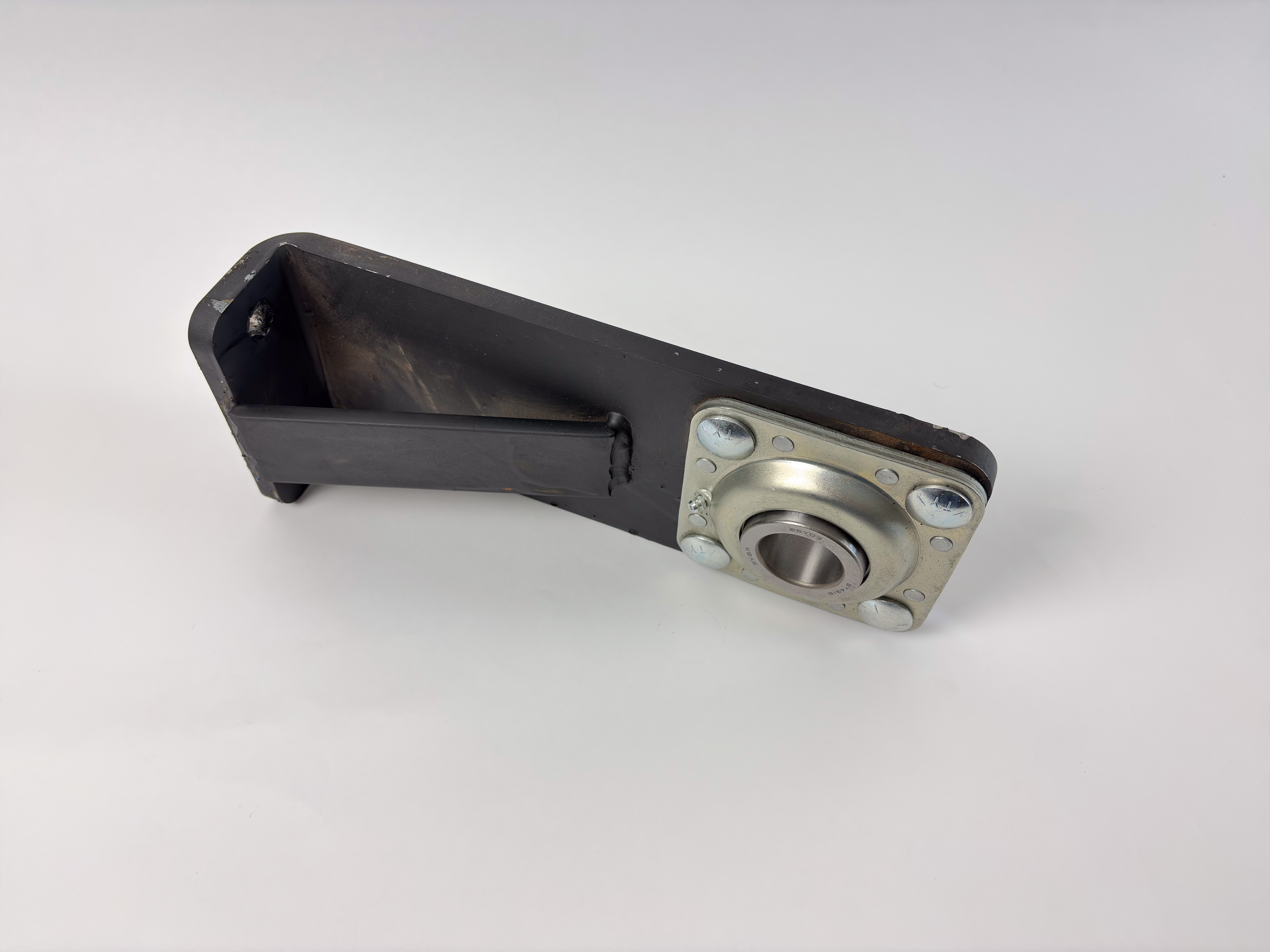

| Bearings | Sealed cast housings (heavy-duty setups available) |
| Scrapers | Included / adjustable |
| Transport | No wheels |
| Jack | Not required |
| Recommended HP | 75–135 HP |
| Soil Type | Medium to heavy |
| Residue Handling | Moderate to high |

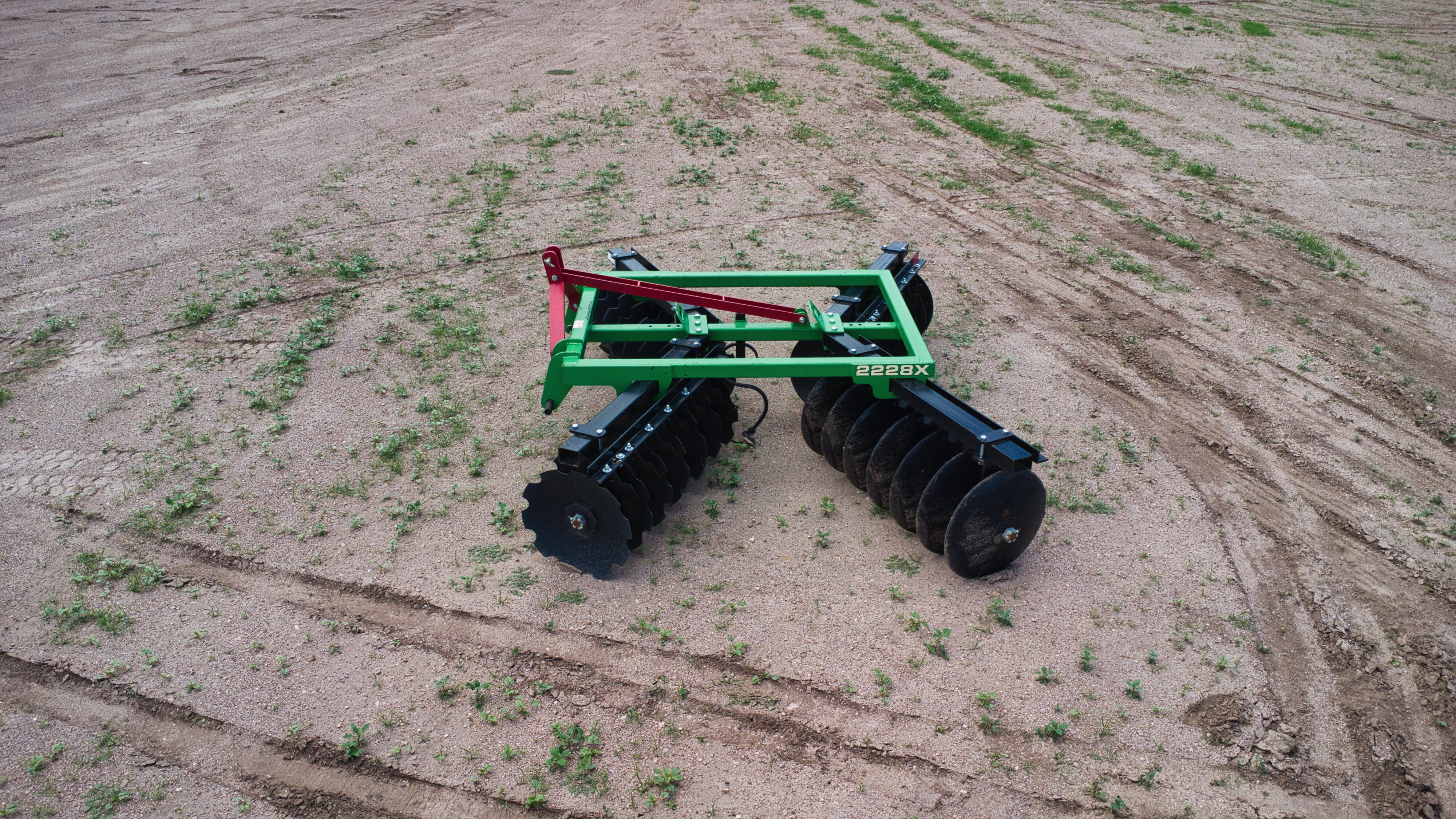

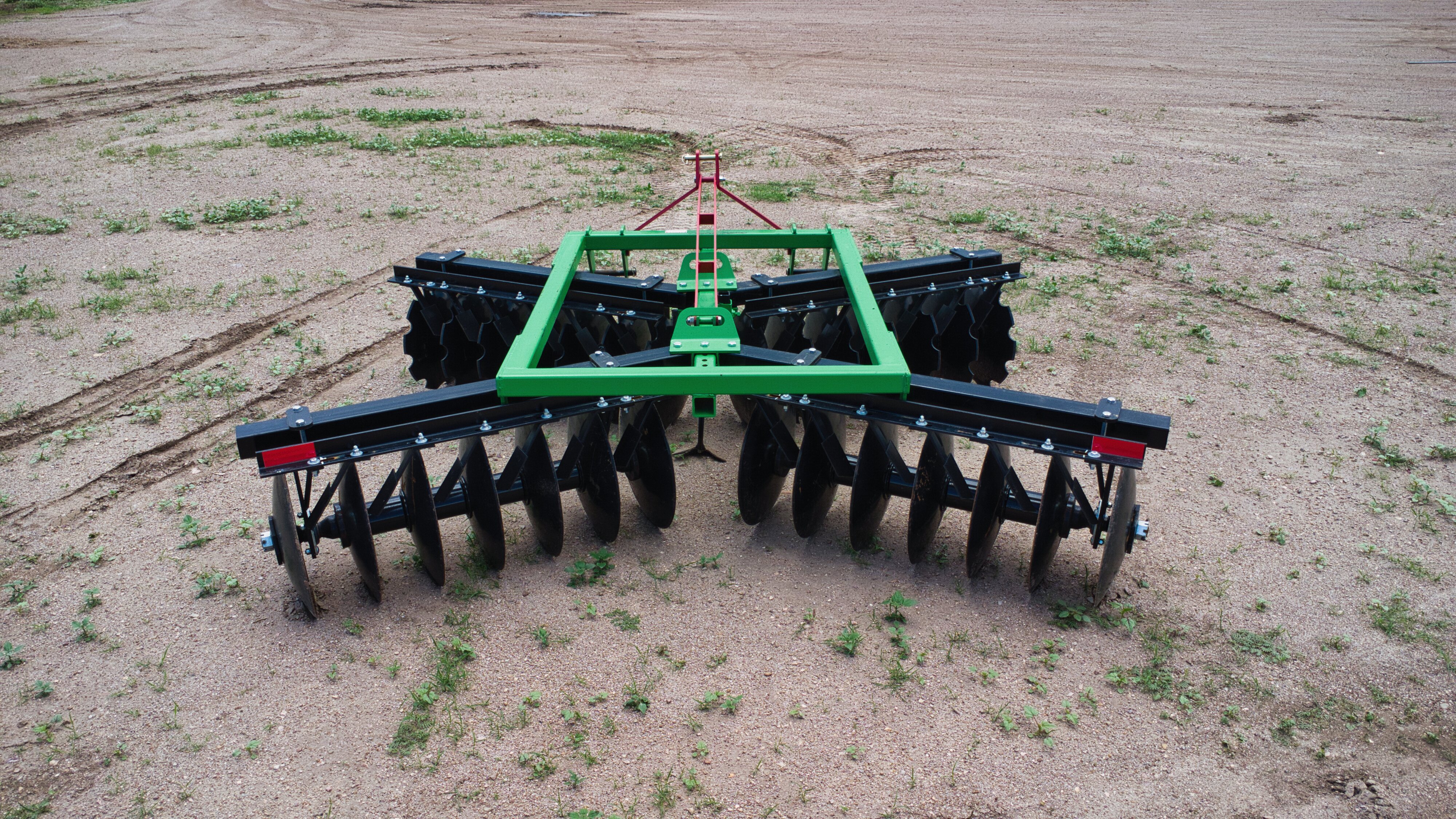

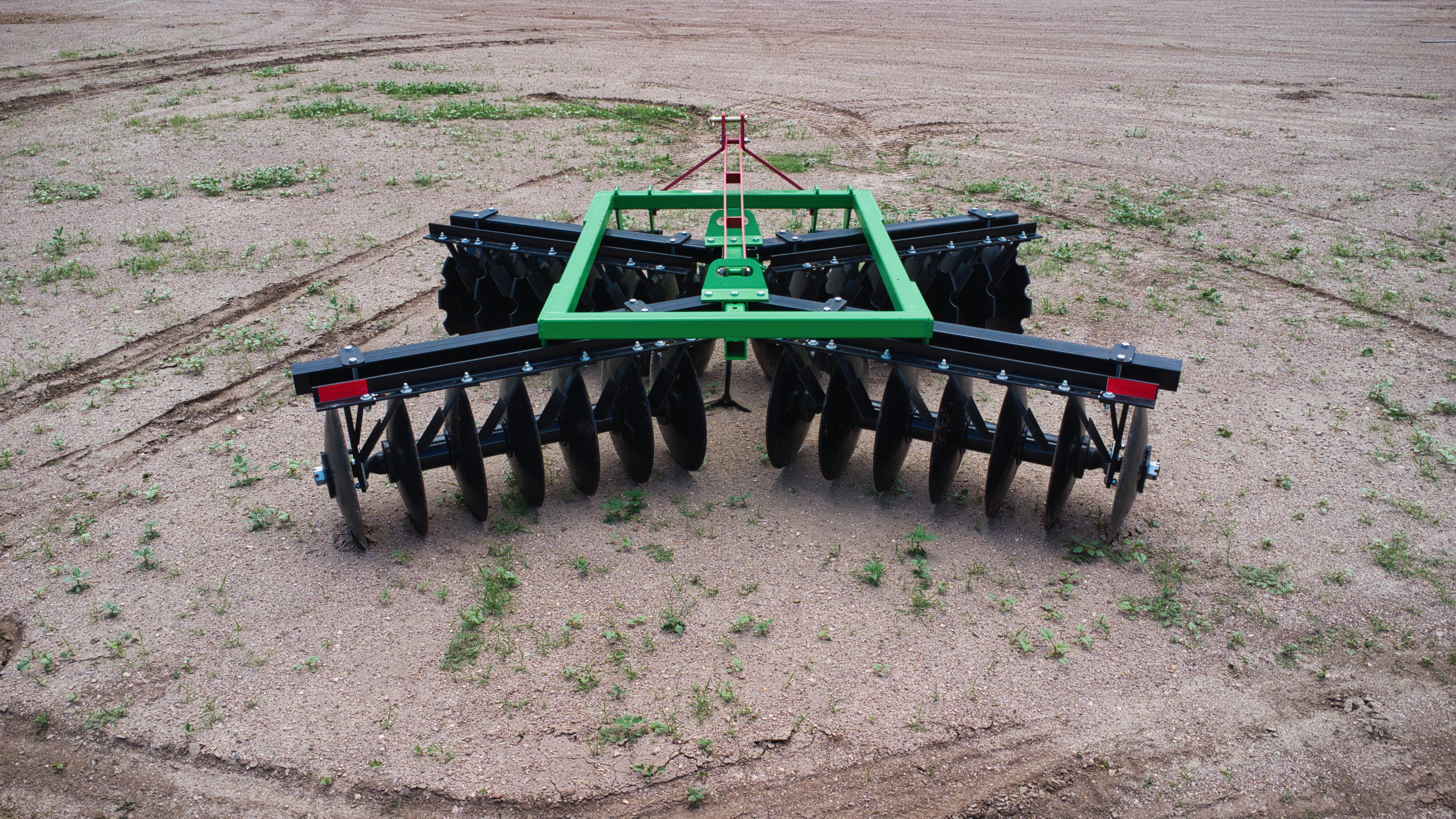

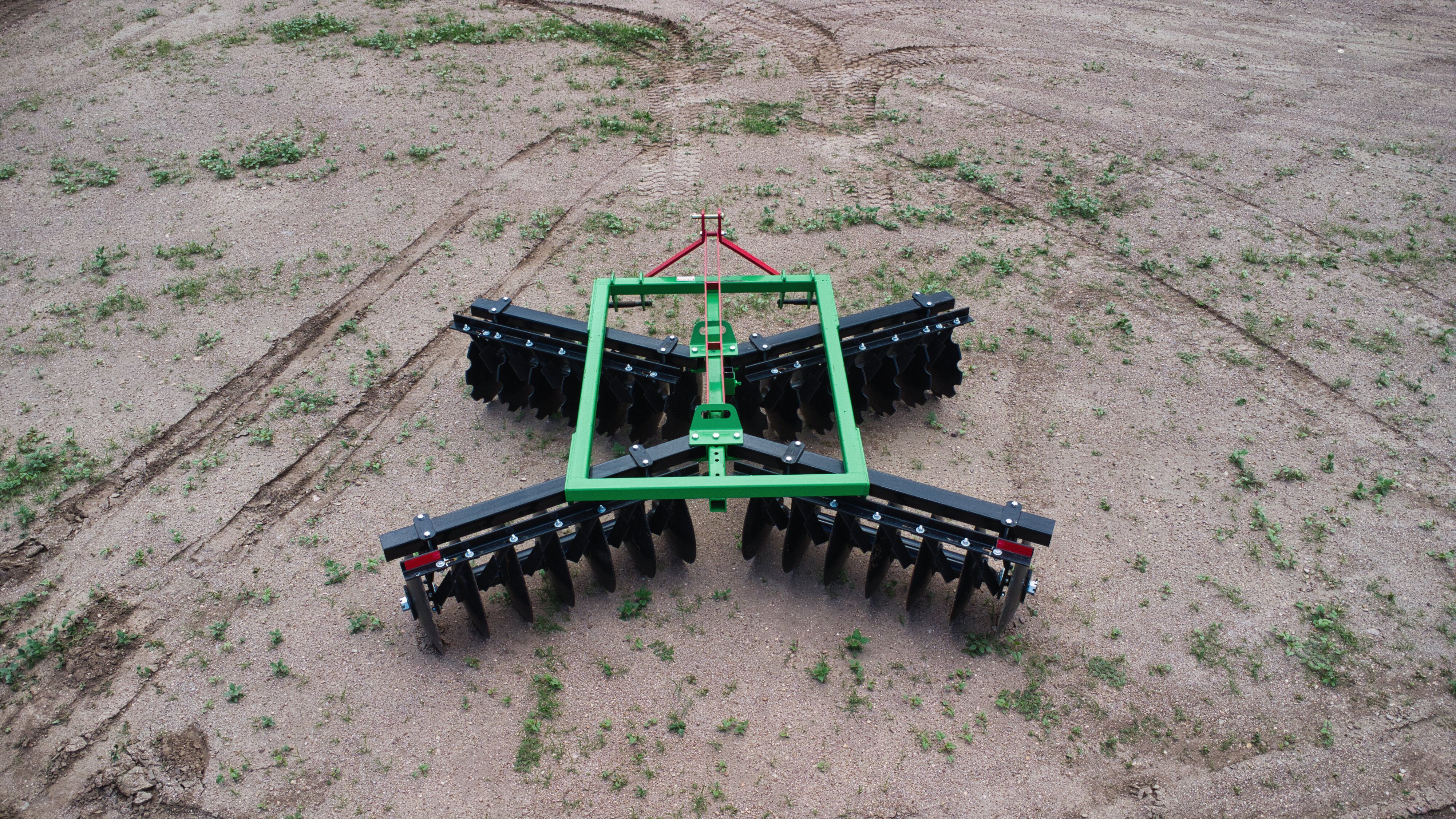

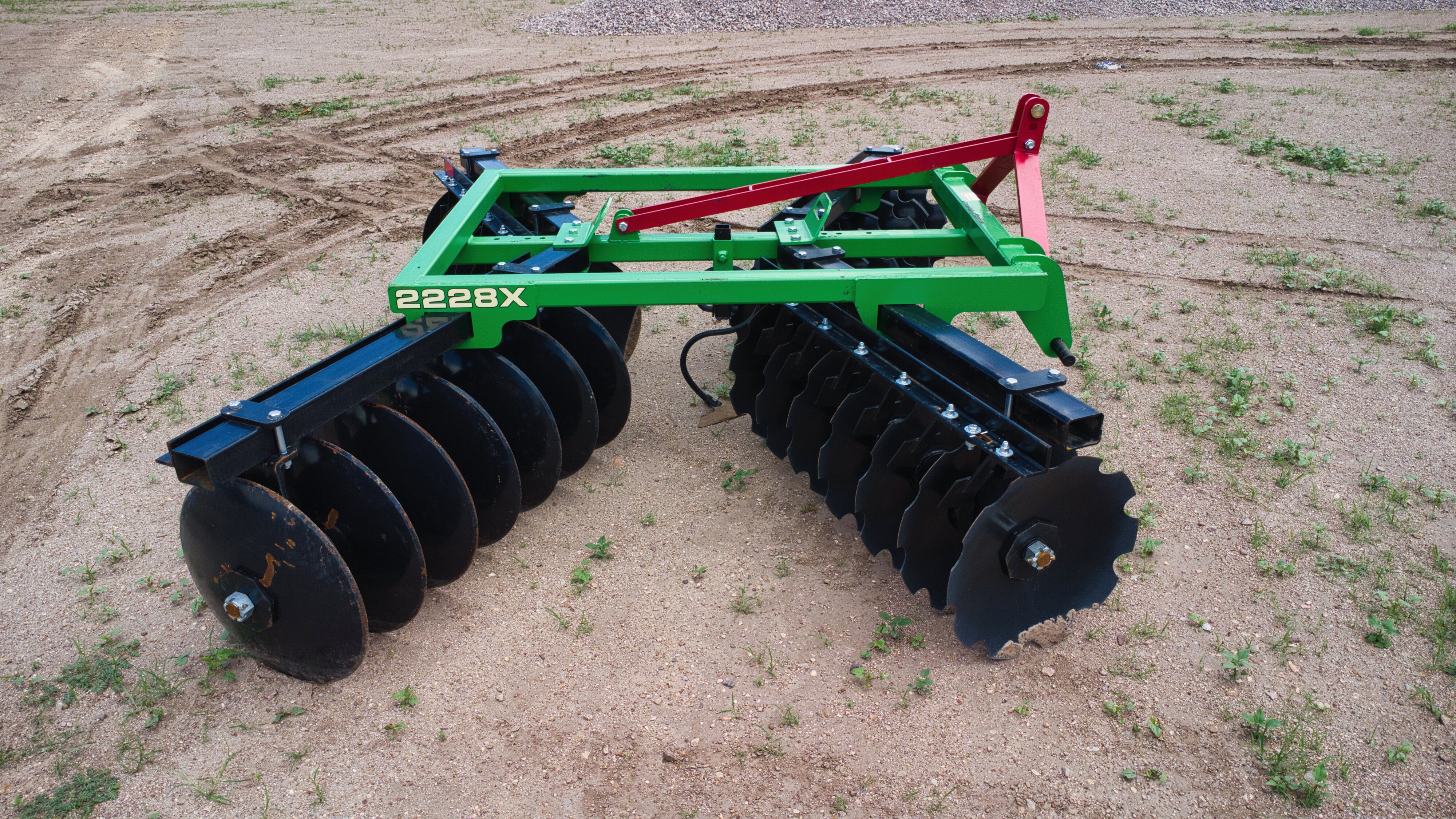

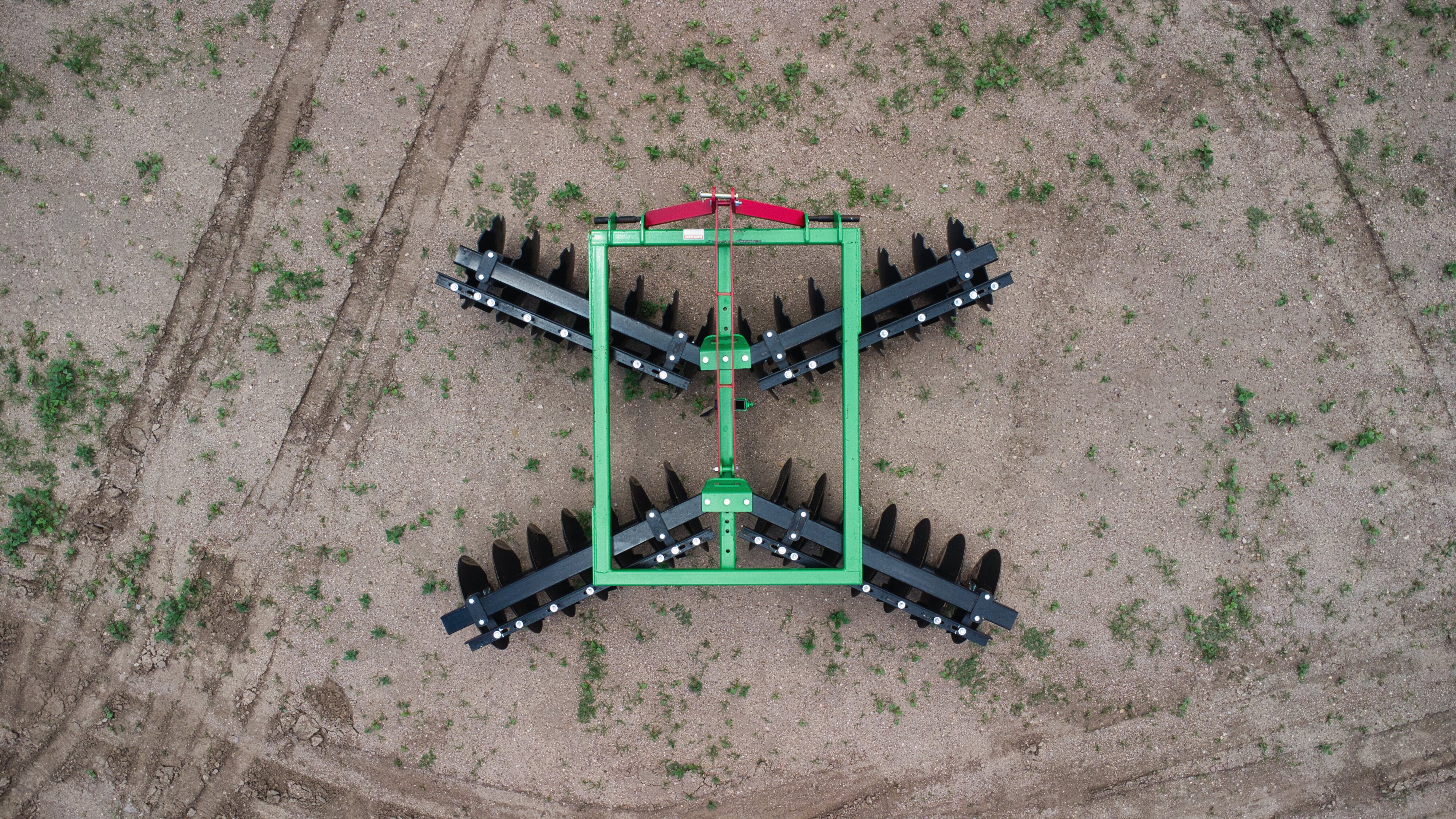

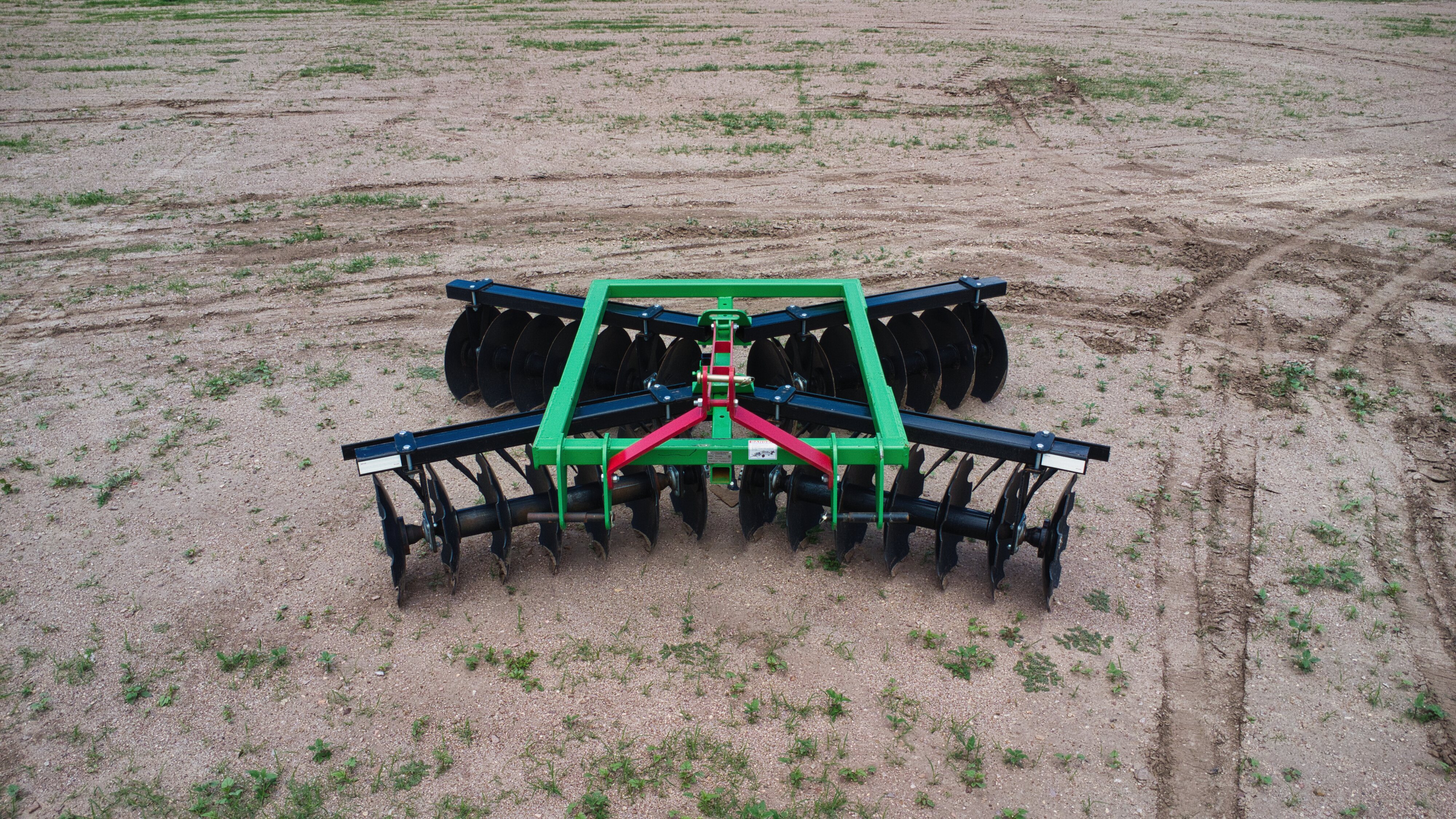

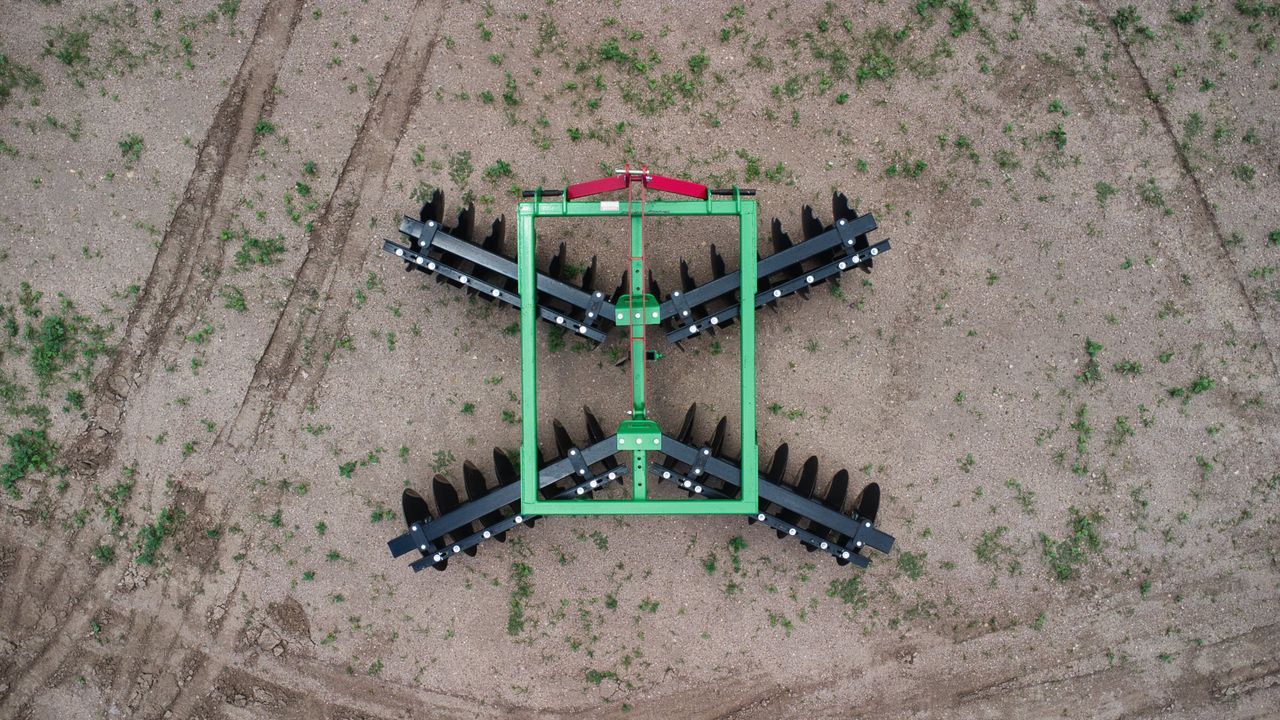

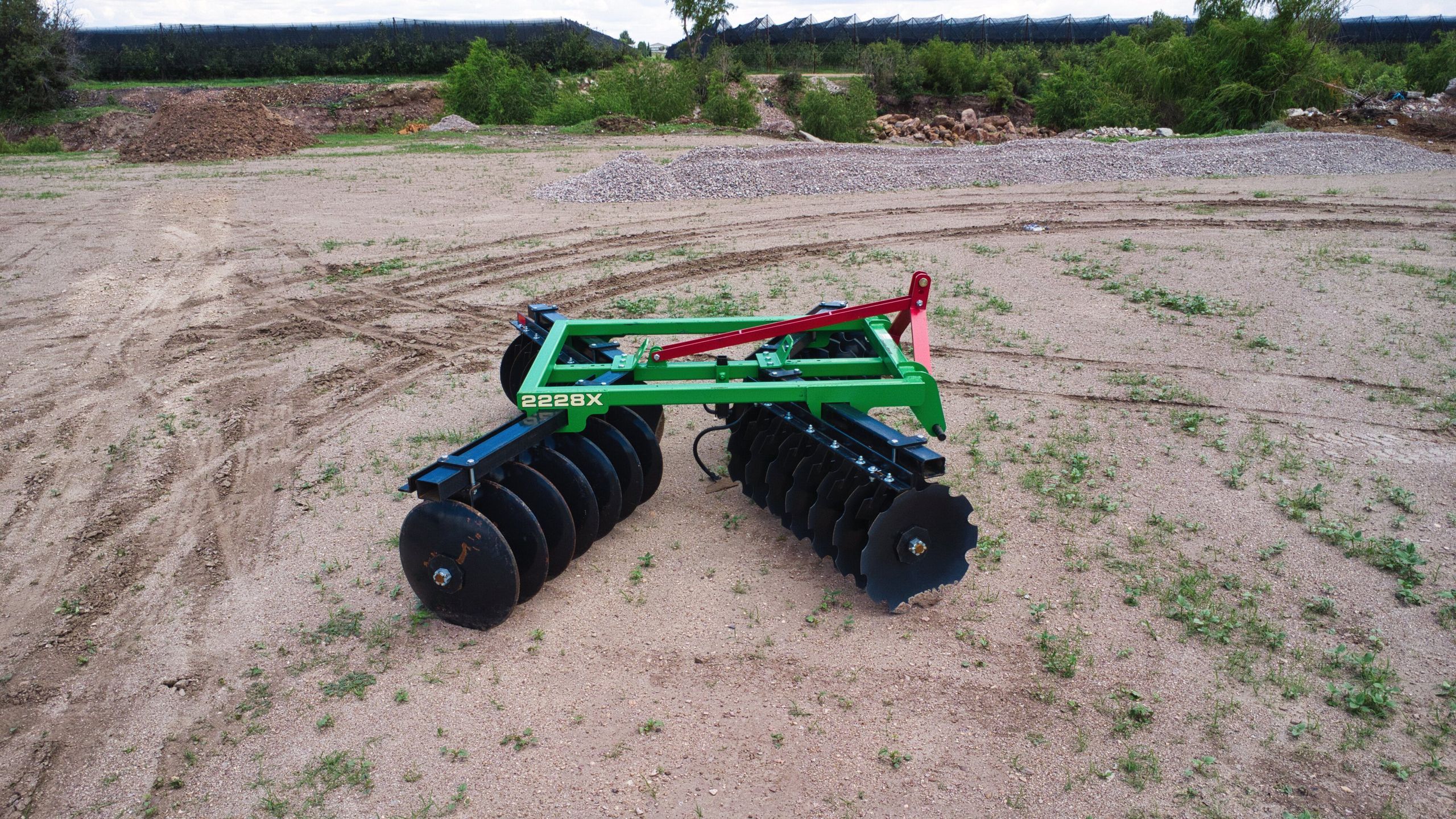

The 22” X-frame disc harrow offers better balance and more uniform soil finishing, making it ideal for operators looking for cleaner field results. The X configuration improves weight distribution, helping the discs maintain consistent ground contact. It’s a solid option for medium-duty applications where both penetration and leveling matter.
