Specifications
| Feature | Description |
|---|---|
| Type | Hydraulic rear blade |
| Width | 10 ft |

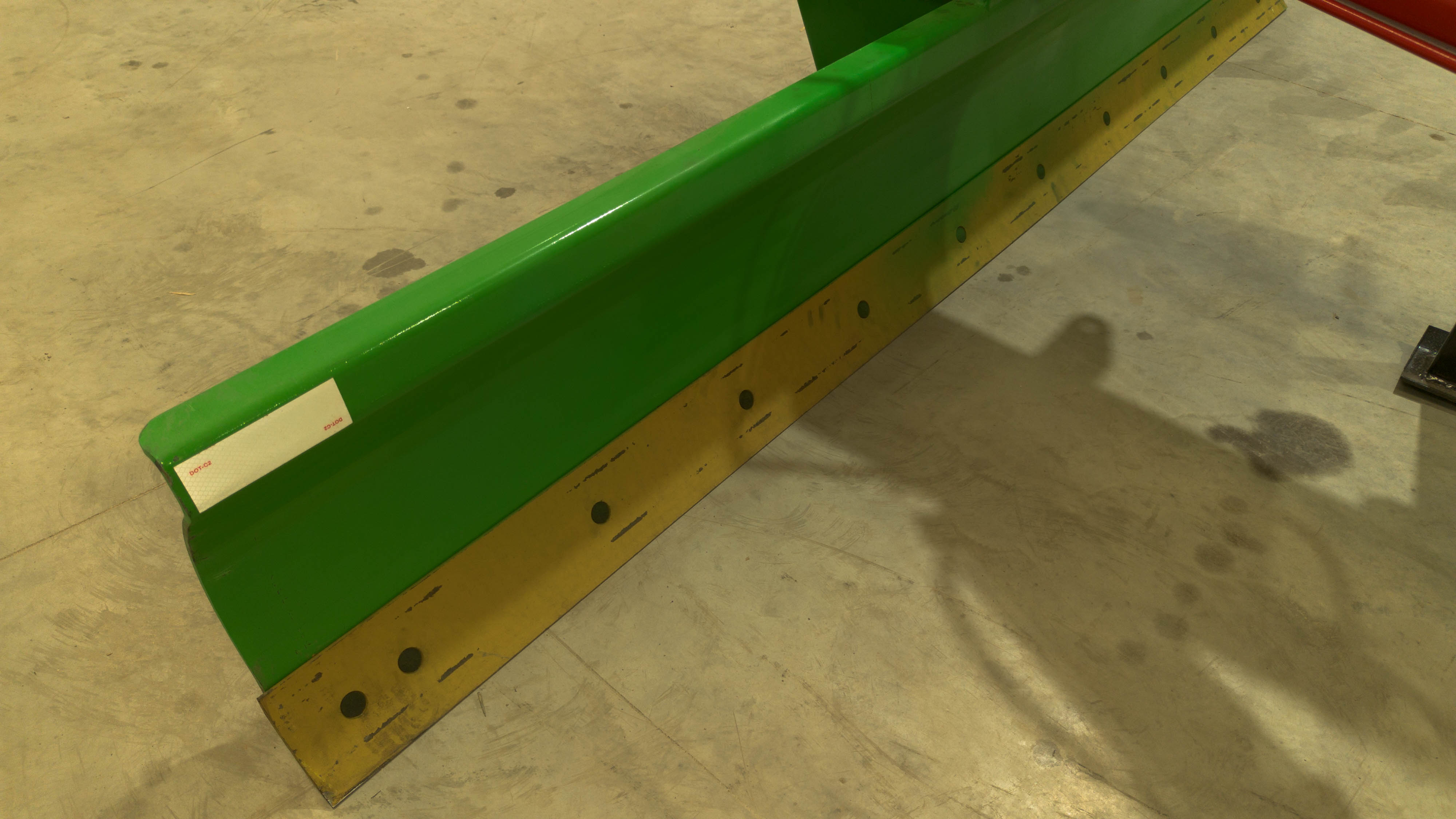

| Cutting edge | ½" × 6", high-carbon steel, reversible |
| Moldboard | 19" high, 5/16" thick, reinforced steel |

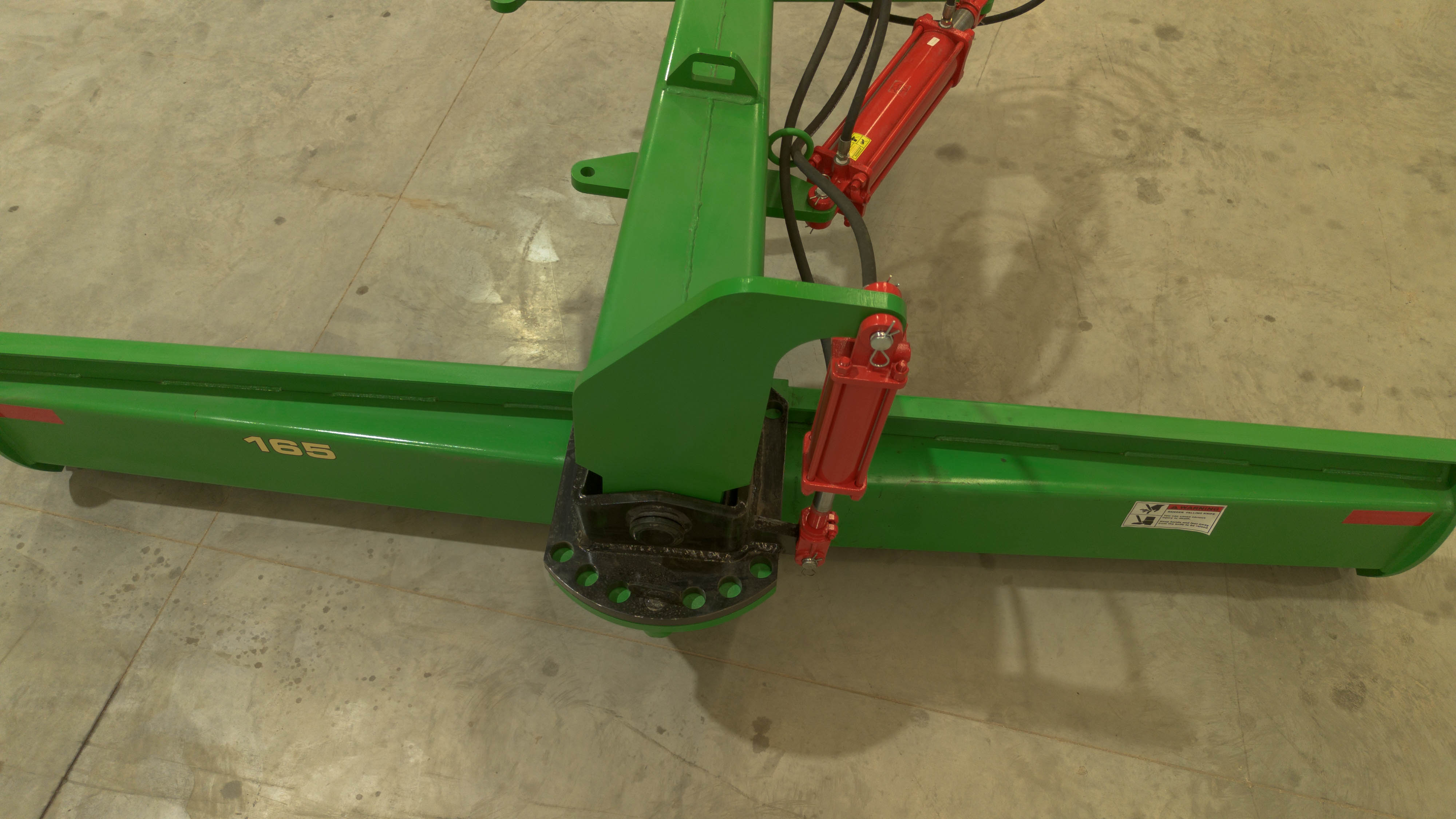

| Rotation | 360°, pin-lock system |
| Tilt | 8" end-to-end ≈ 3.8° |

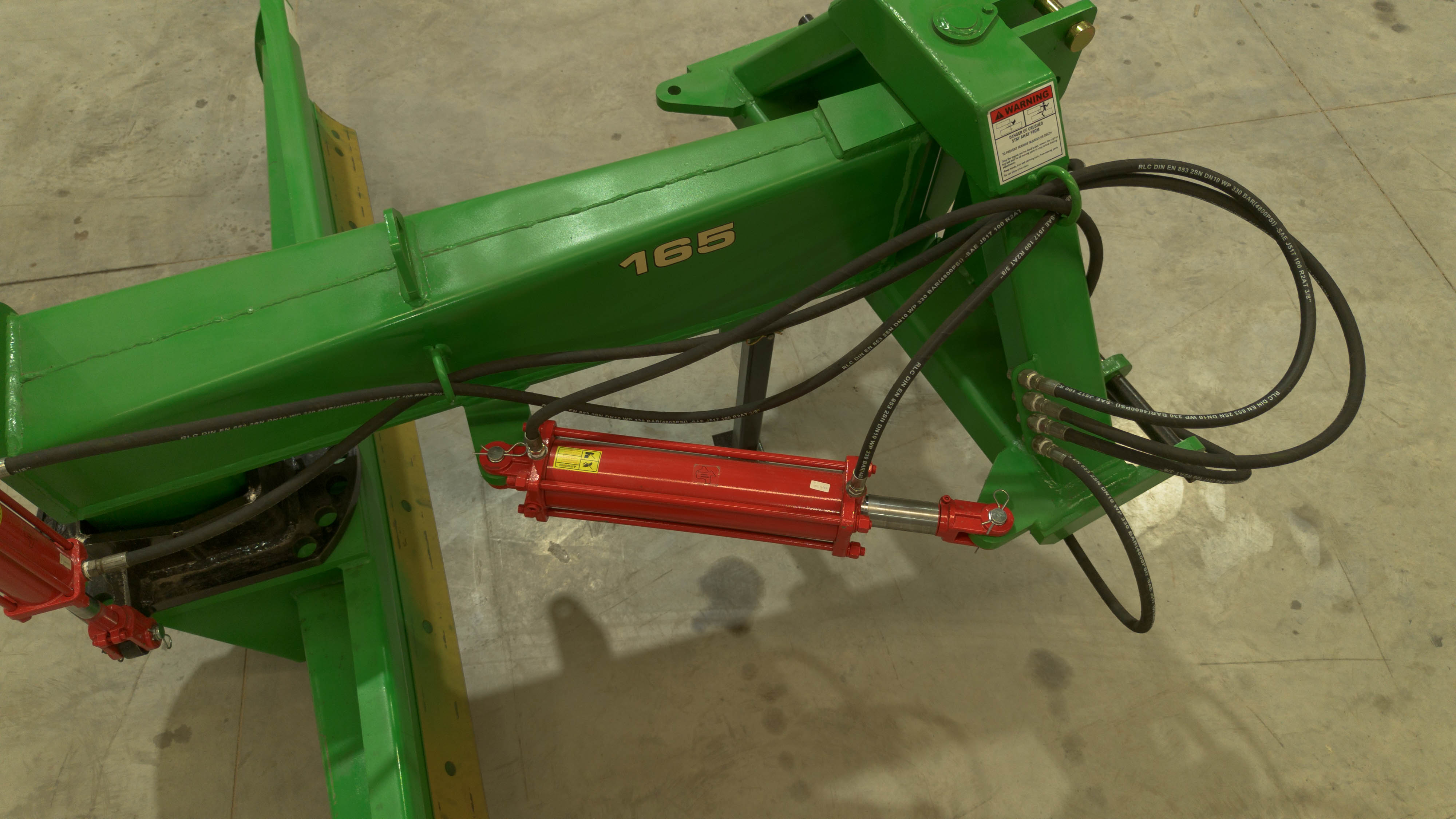

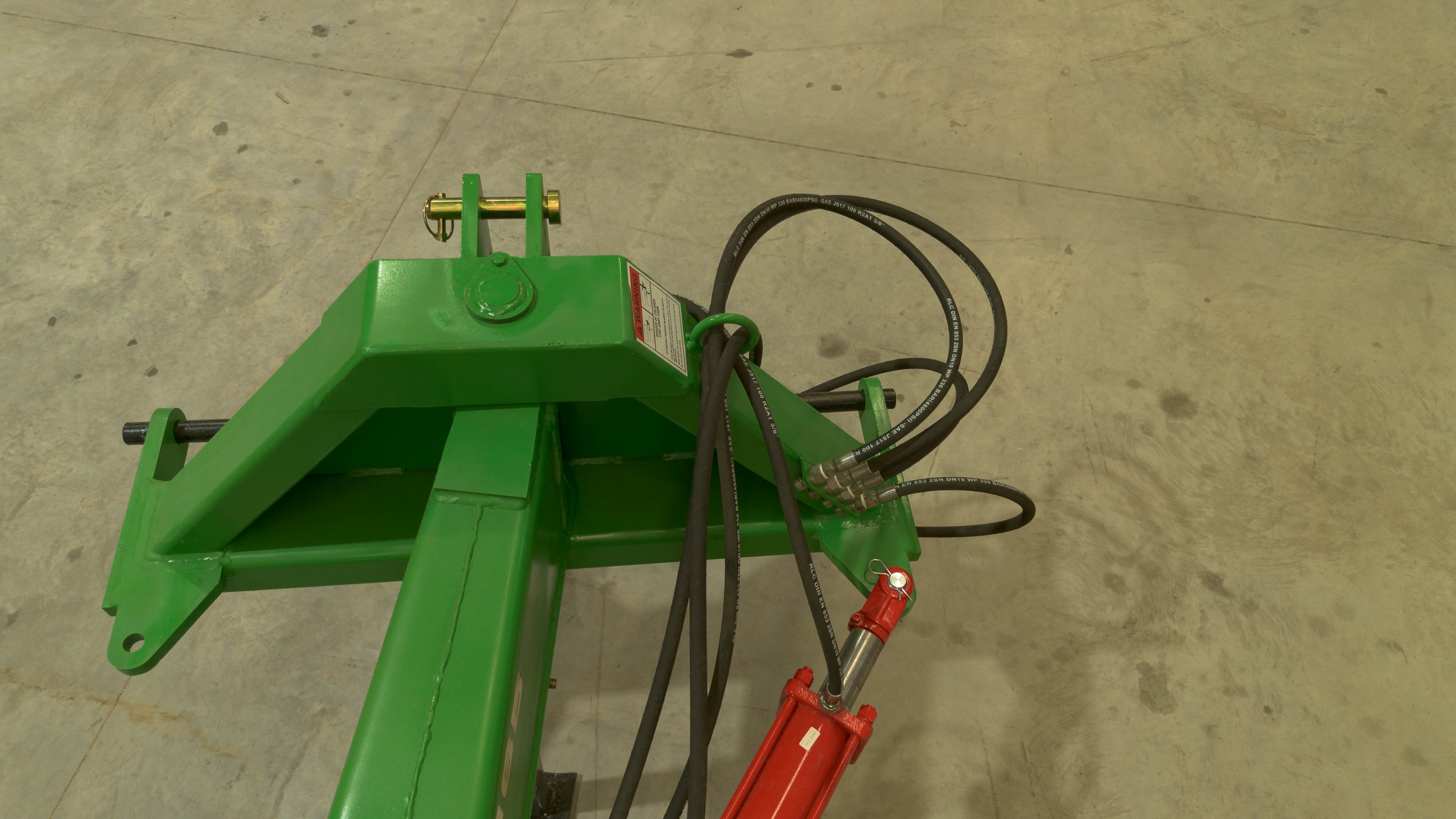

| Hydraulics | 1 × 3"x8" piston, 1 × 4"x16" piston, 4 connections |
| Hitch type | 3-point, Category II & III |
| Tractor power required | 180 HP |
| Weight | 745 kg / 1,641 lbs |

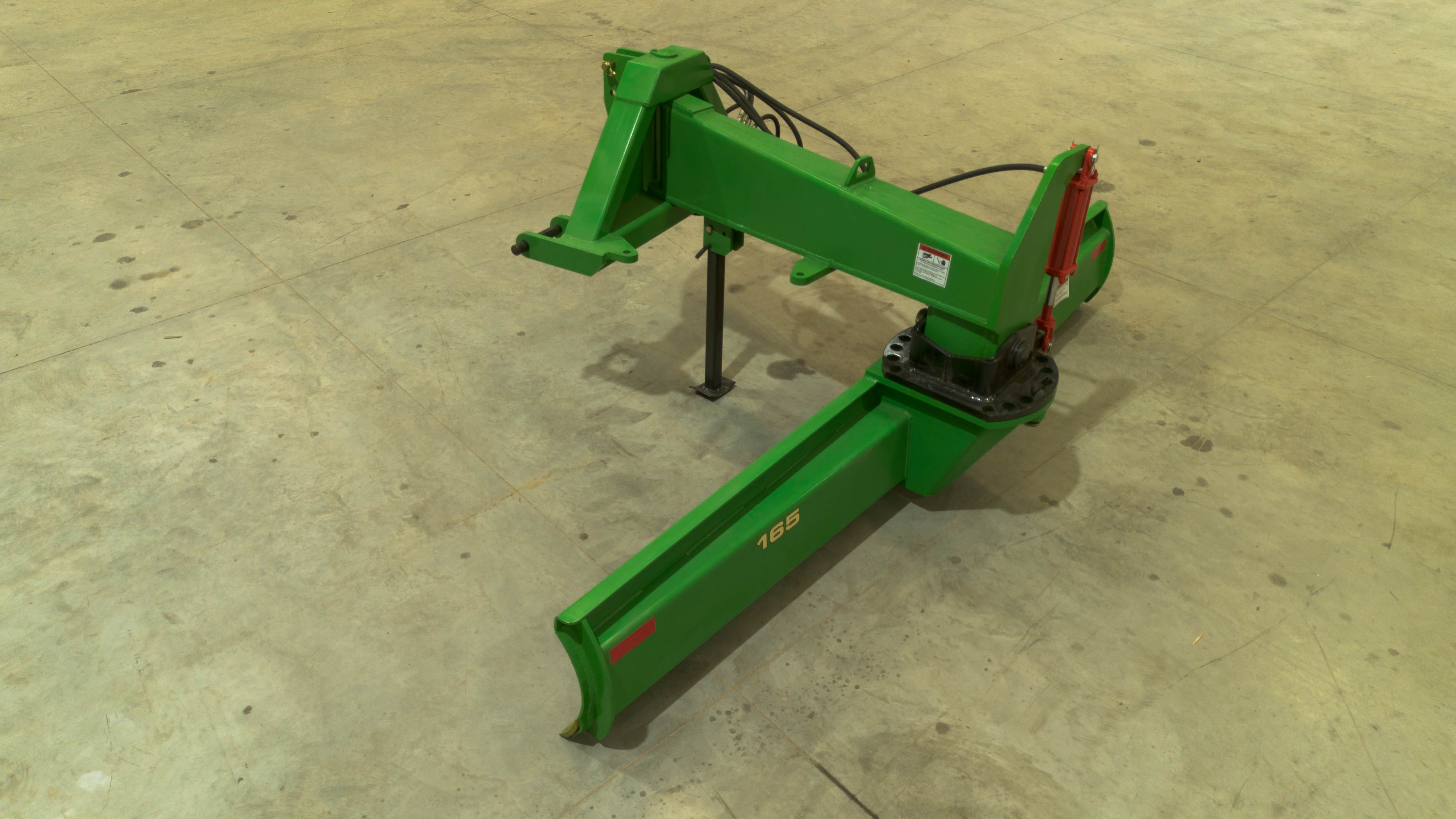

| Parking foot | Included |

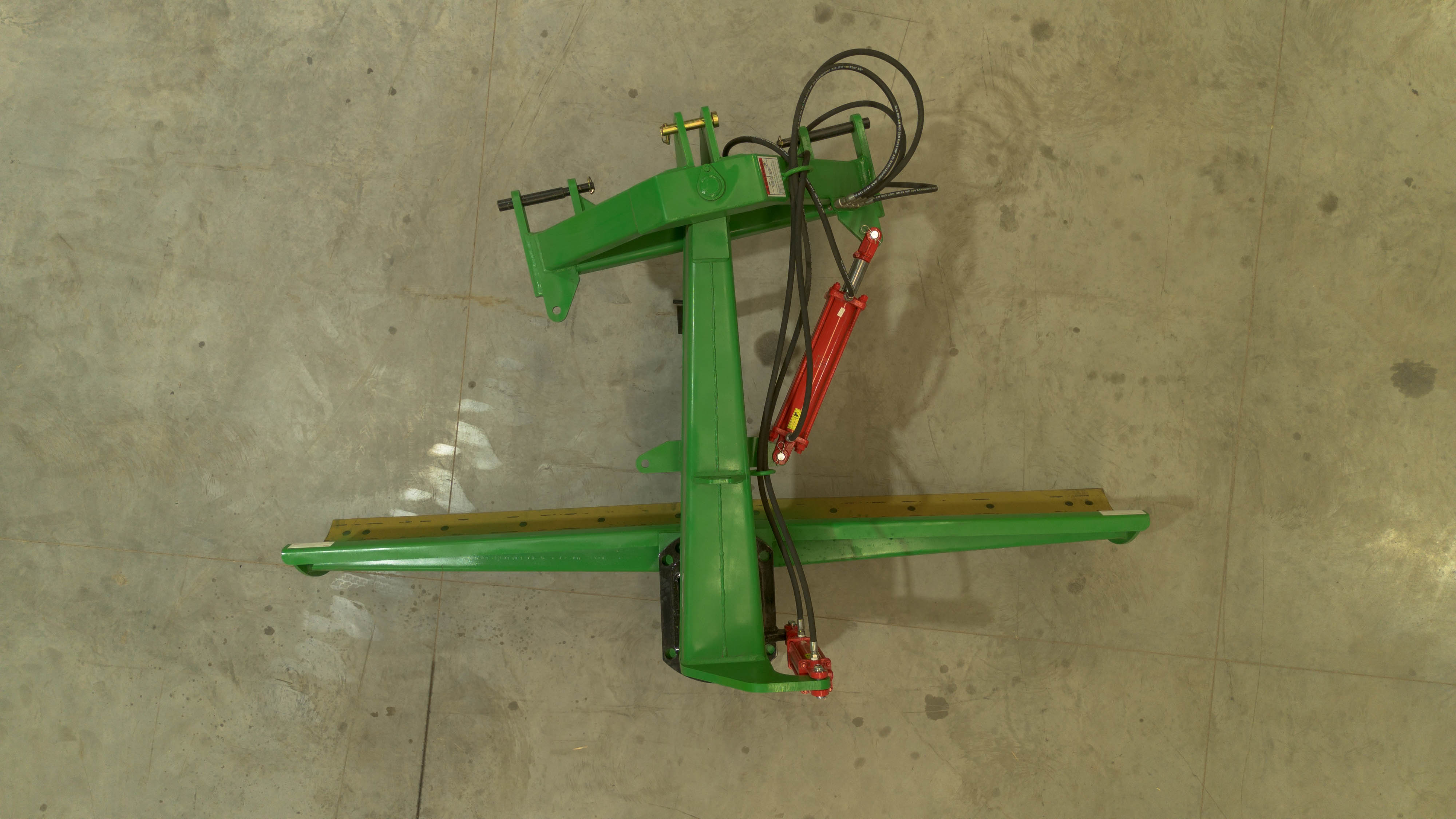

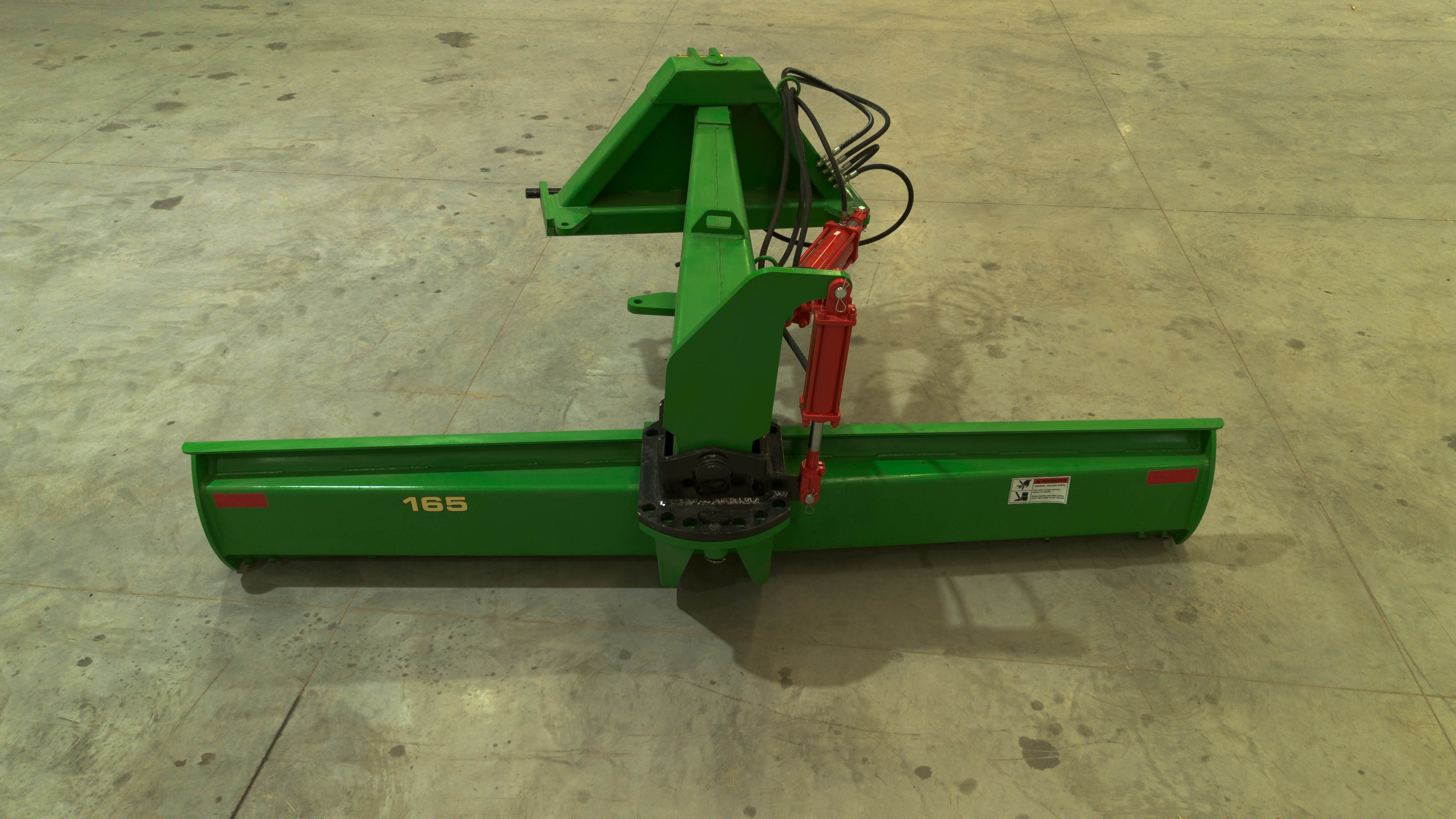

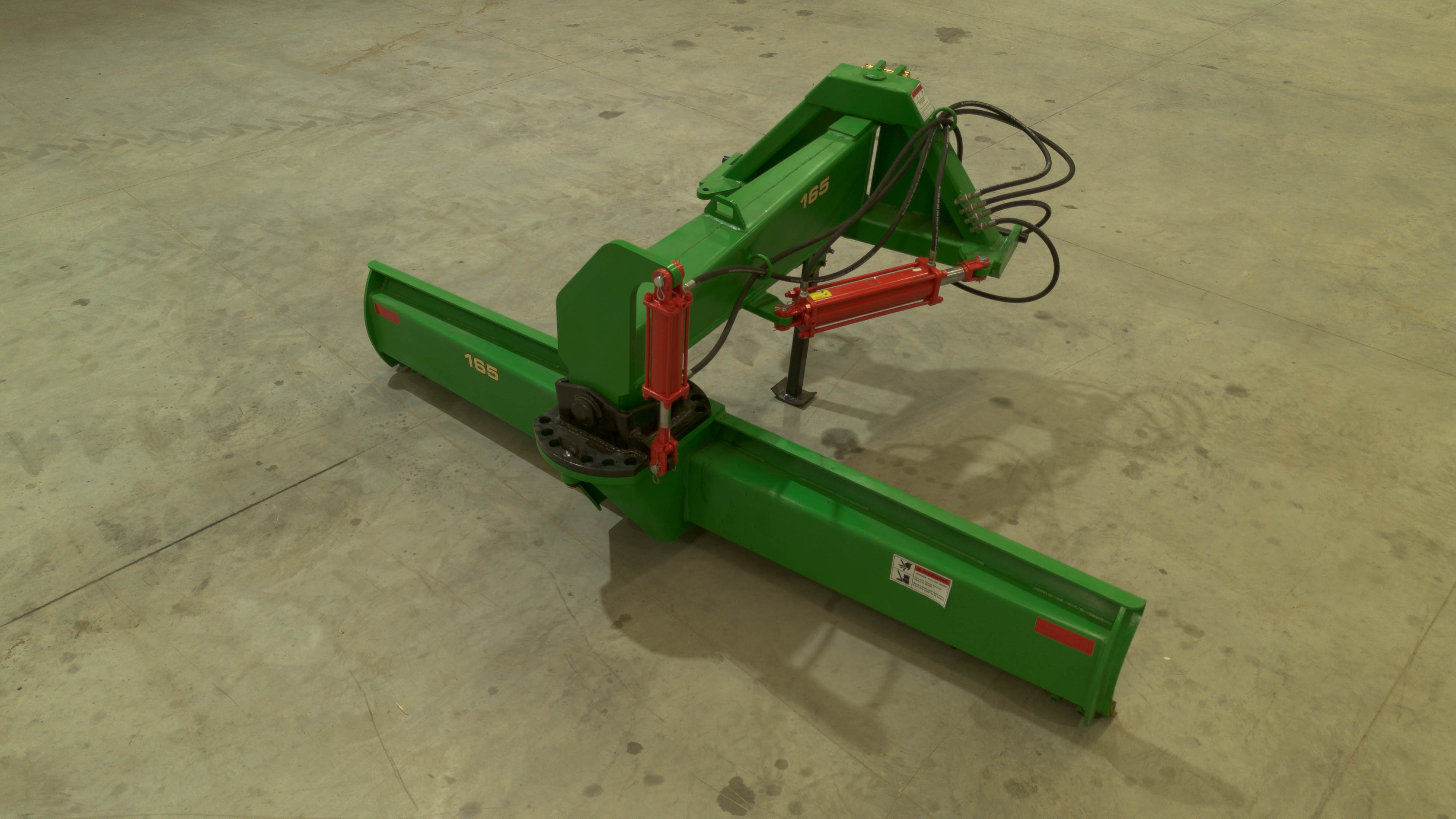

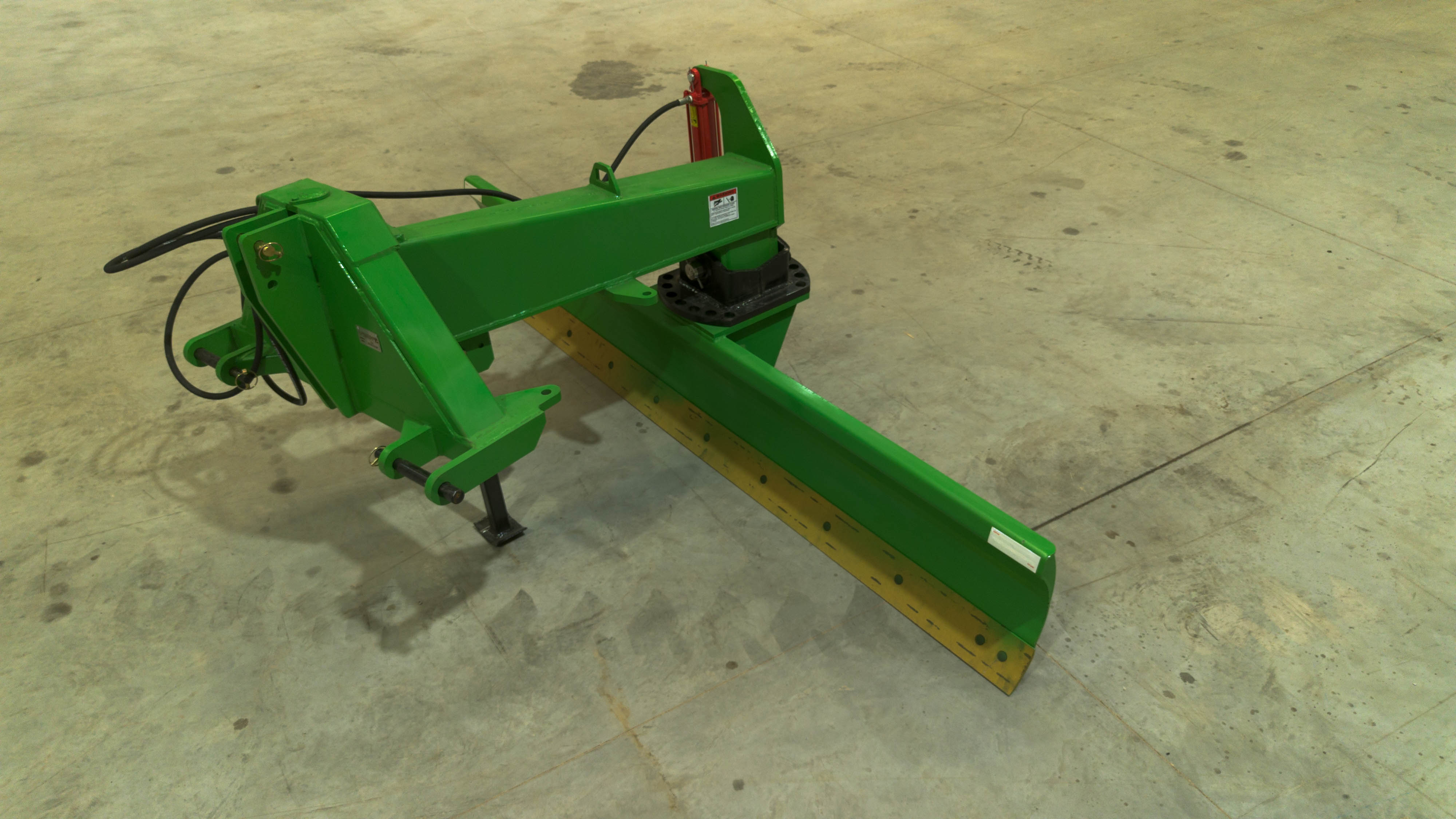

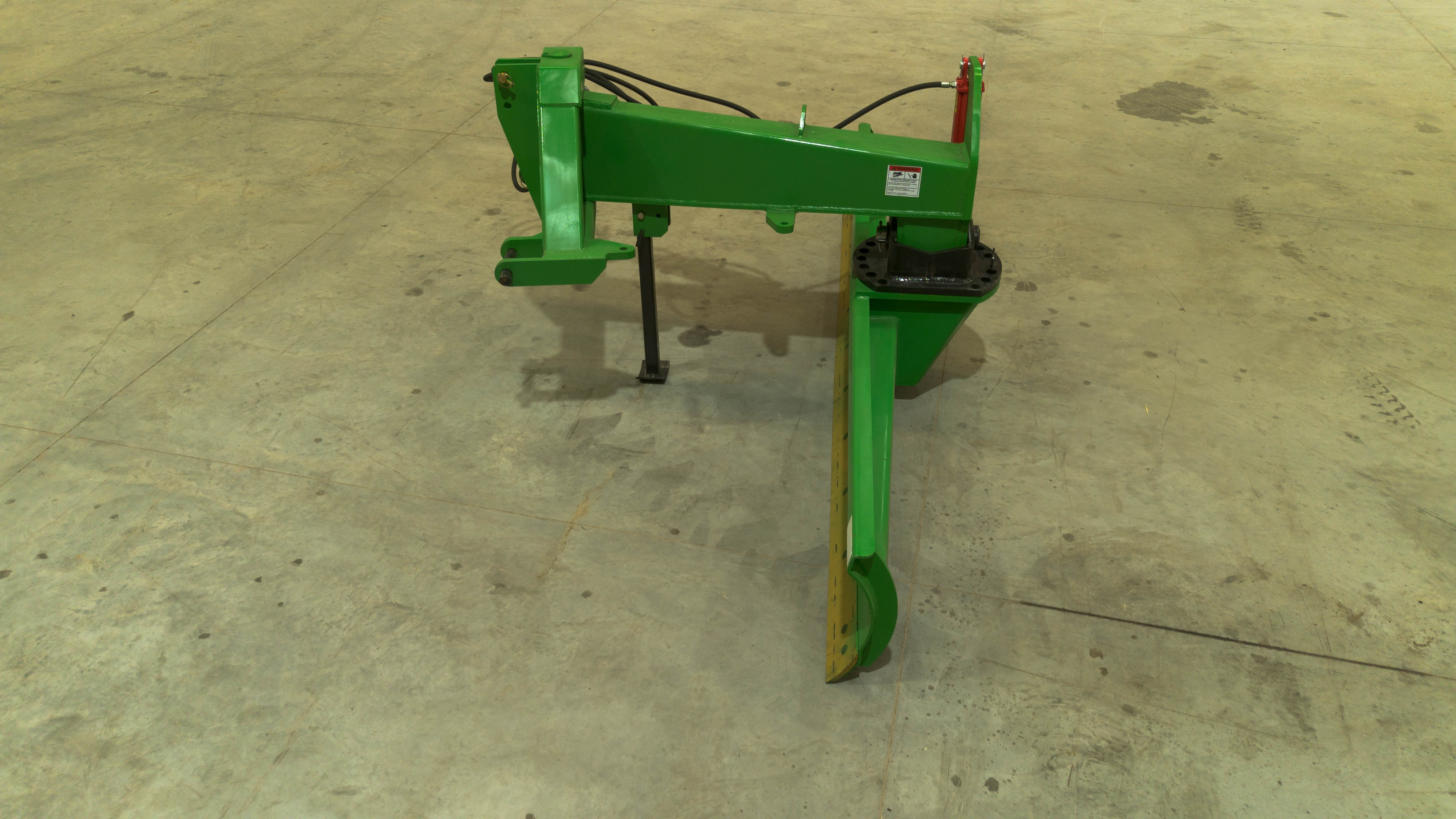

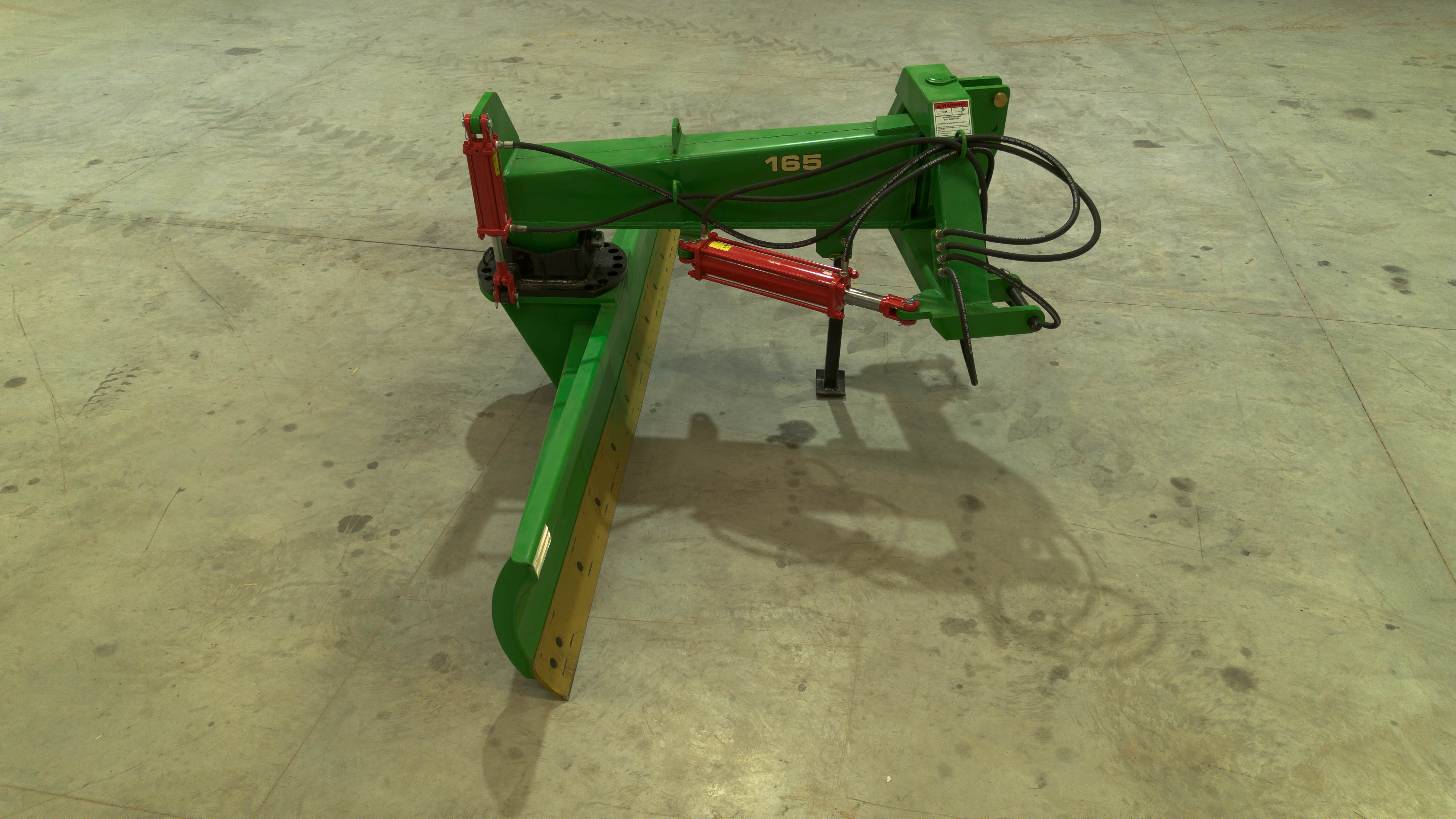

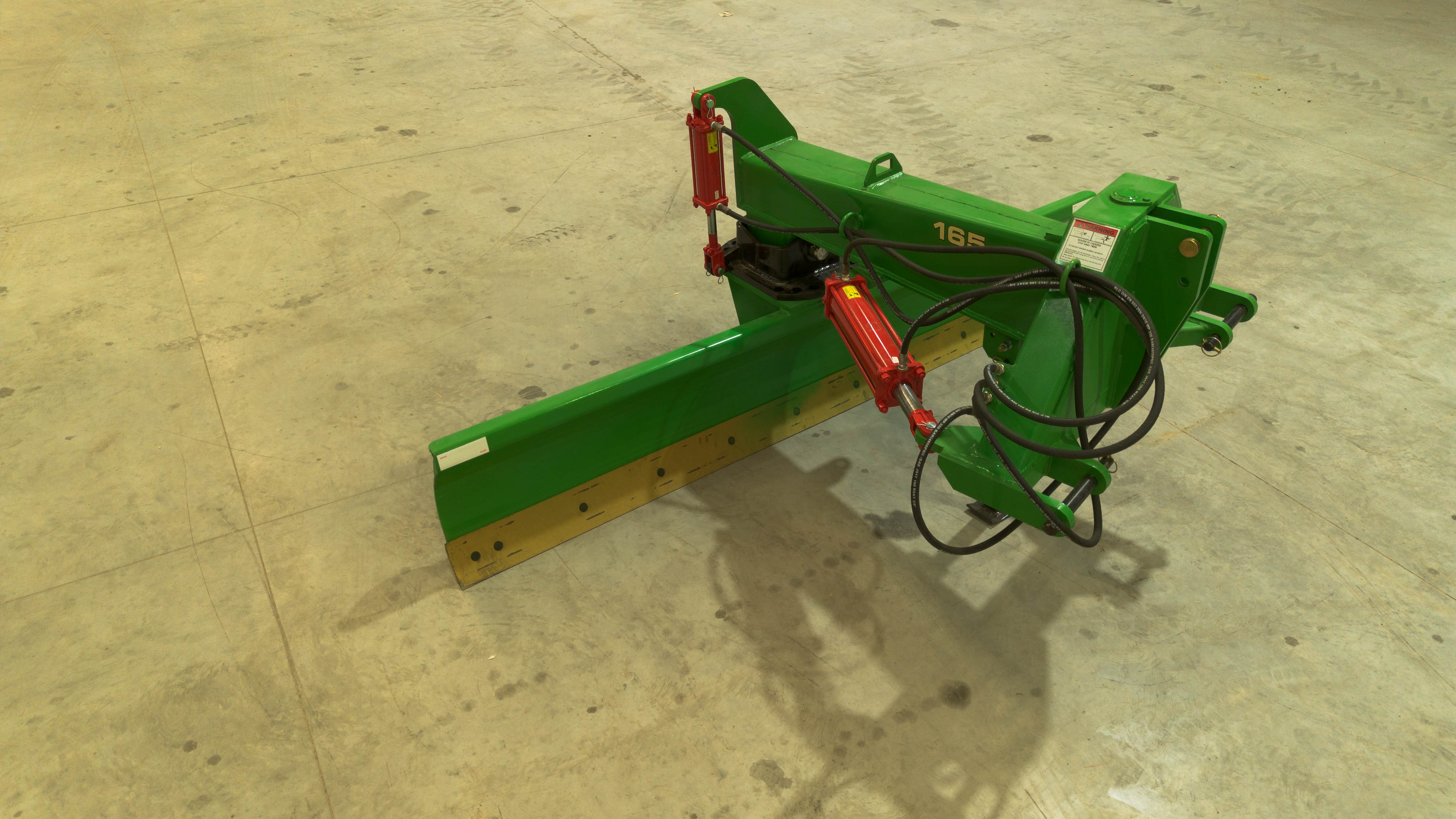

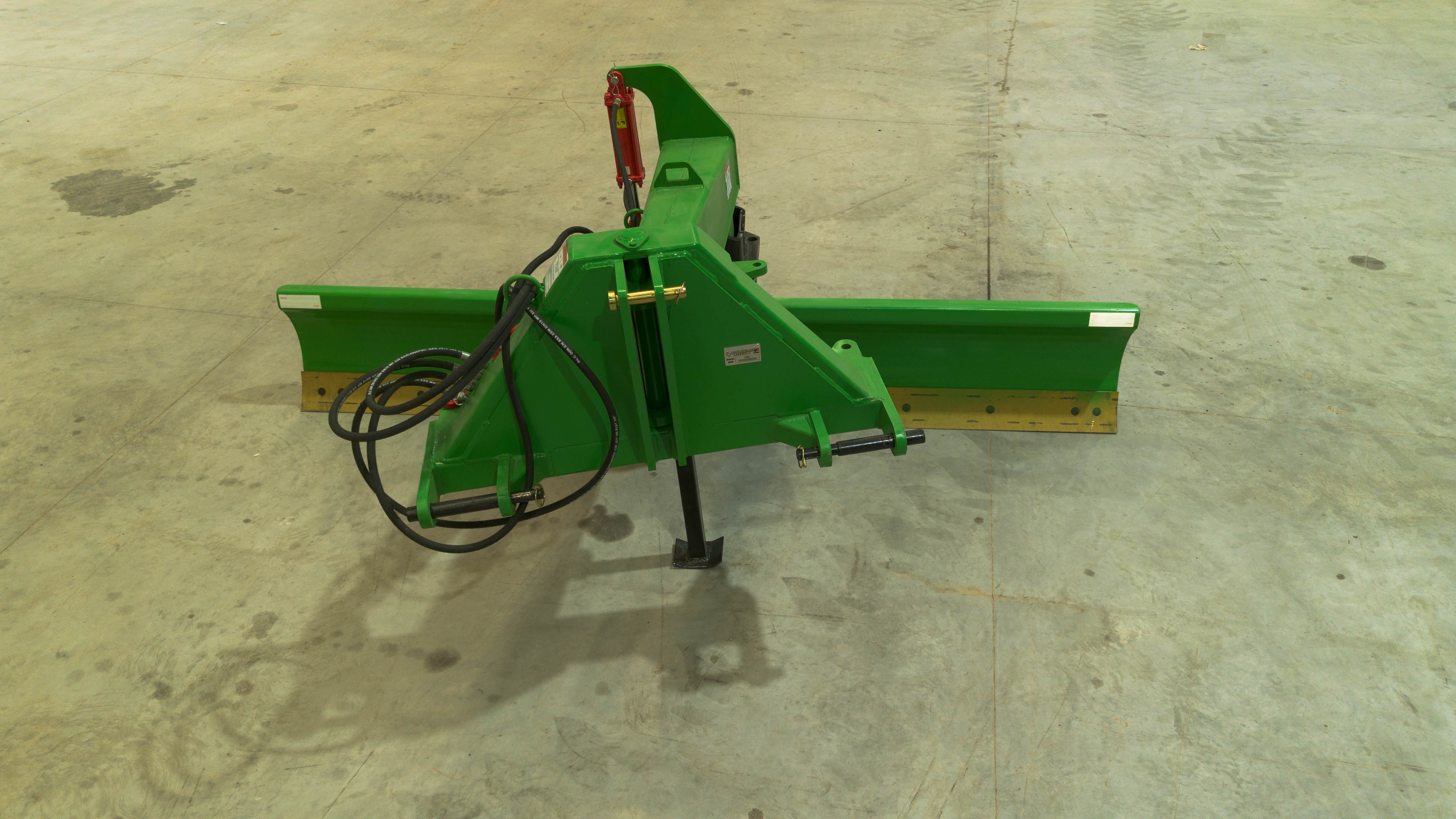

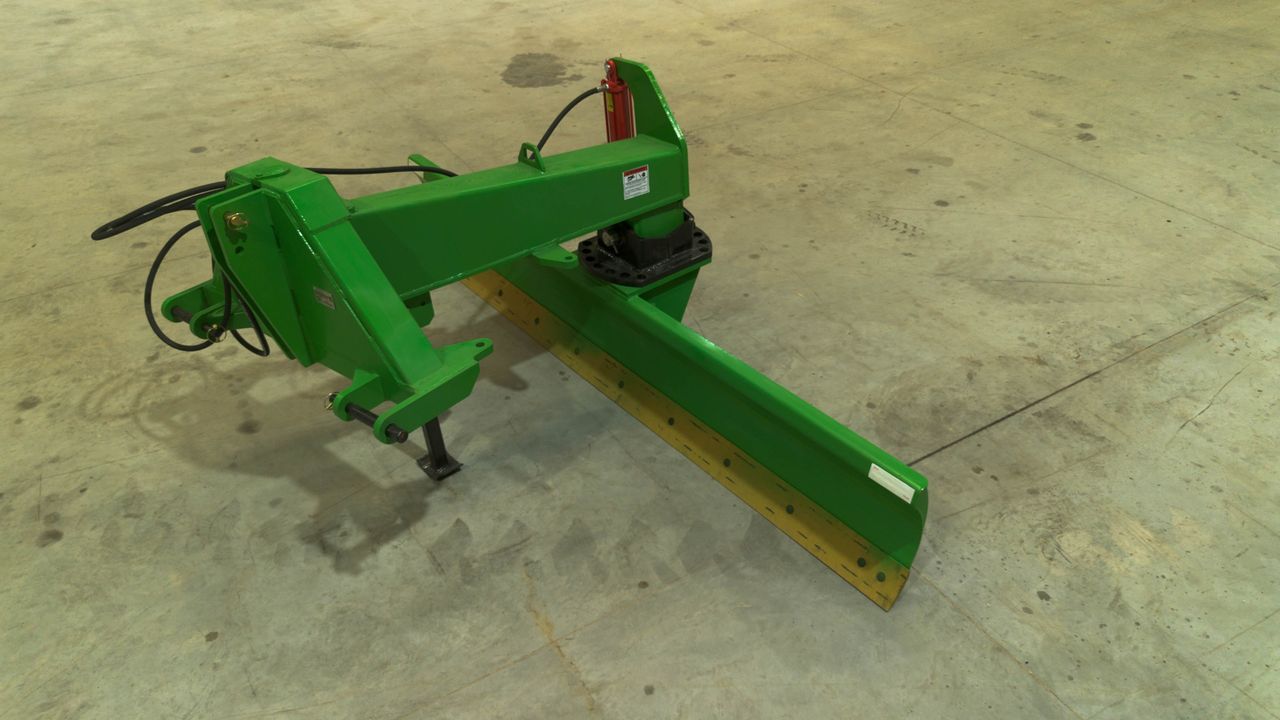

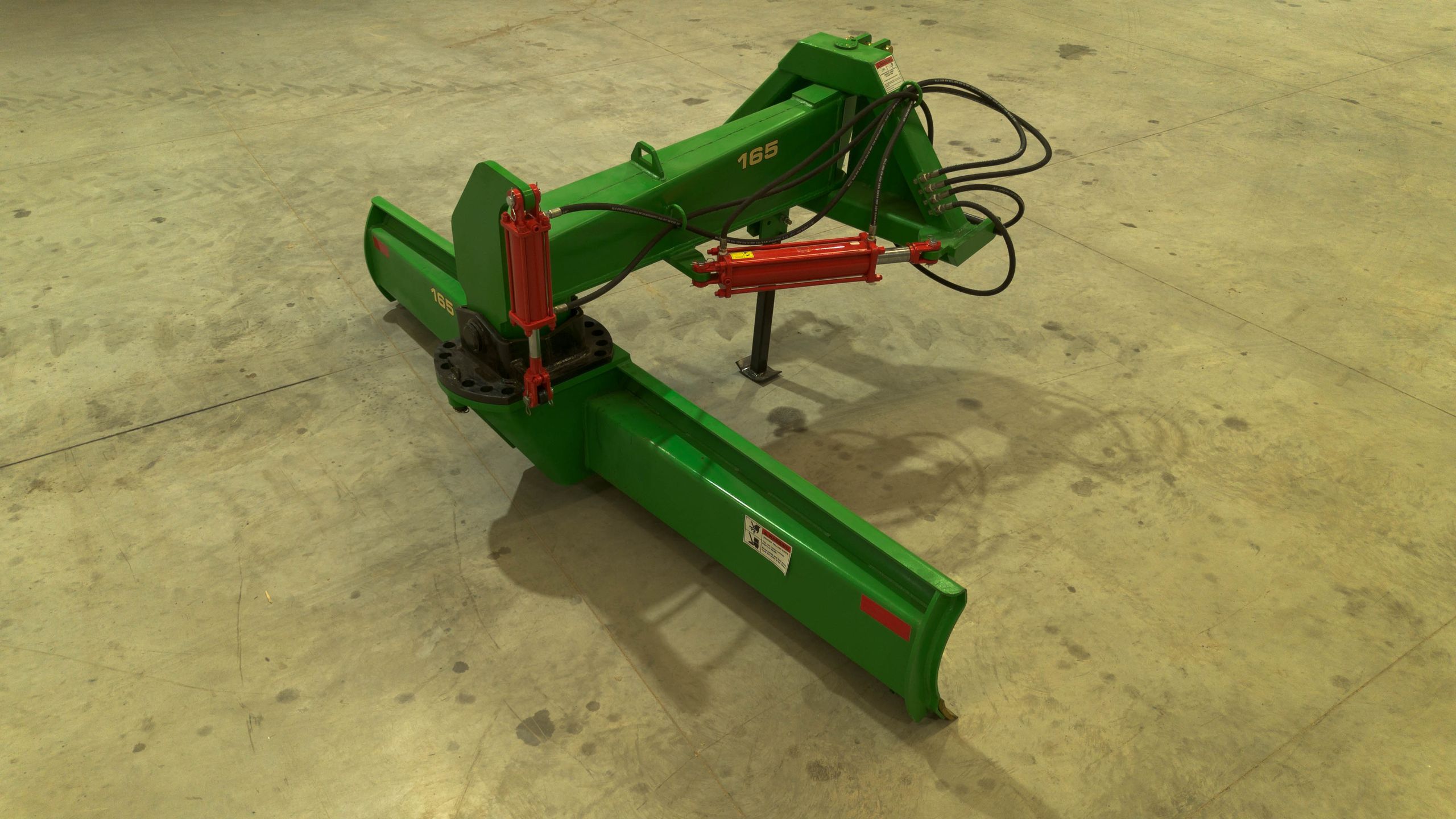

The 165 is a 10-ft hydraulic rear blade for tractors up to 180 HP, built for heavy-duty grading, ditching, snow removal, and road maintenance. Its reinforced steel moldboard and reversible high-carbon cutting edge ensure long-lasting durability. Hydraulic tilt and a pin-lock system allow full 360° rotation, giving operators precise control over grading angles. This blade handles the toughest conditions while remaining easy to adjust in the field.
