Specifications
| Feature | Description |
|---|---|
| Frame | Reinforced steel |
| Number of discs | 4 |
| Disc diameter | 28" |
| Disc thickness | 1/4" |
| Disc material | Boron steel |
| Disc spacing | 24" |
| Working width | 2' |
| Working depth | Adjustable, typically 10–12" |
| Gang angle | Adjustable, 0°–25° left or right |
| Bearings | Sealed, heavy-duty type |
| Guide disc | Included |
| Hitch type | 3-point, Category II |
| Hydraulics | 1 × 3"x8" piston, 2 couplings |
| Tractor power required | 90–100 HP |
| Working speed | 5–6 km/h |
| Weight | 730 kg |
| Soil suitability | Heavy soils, hard or stony conditions |

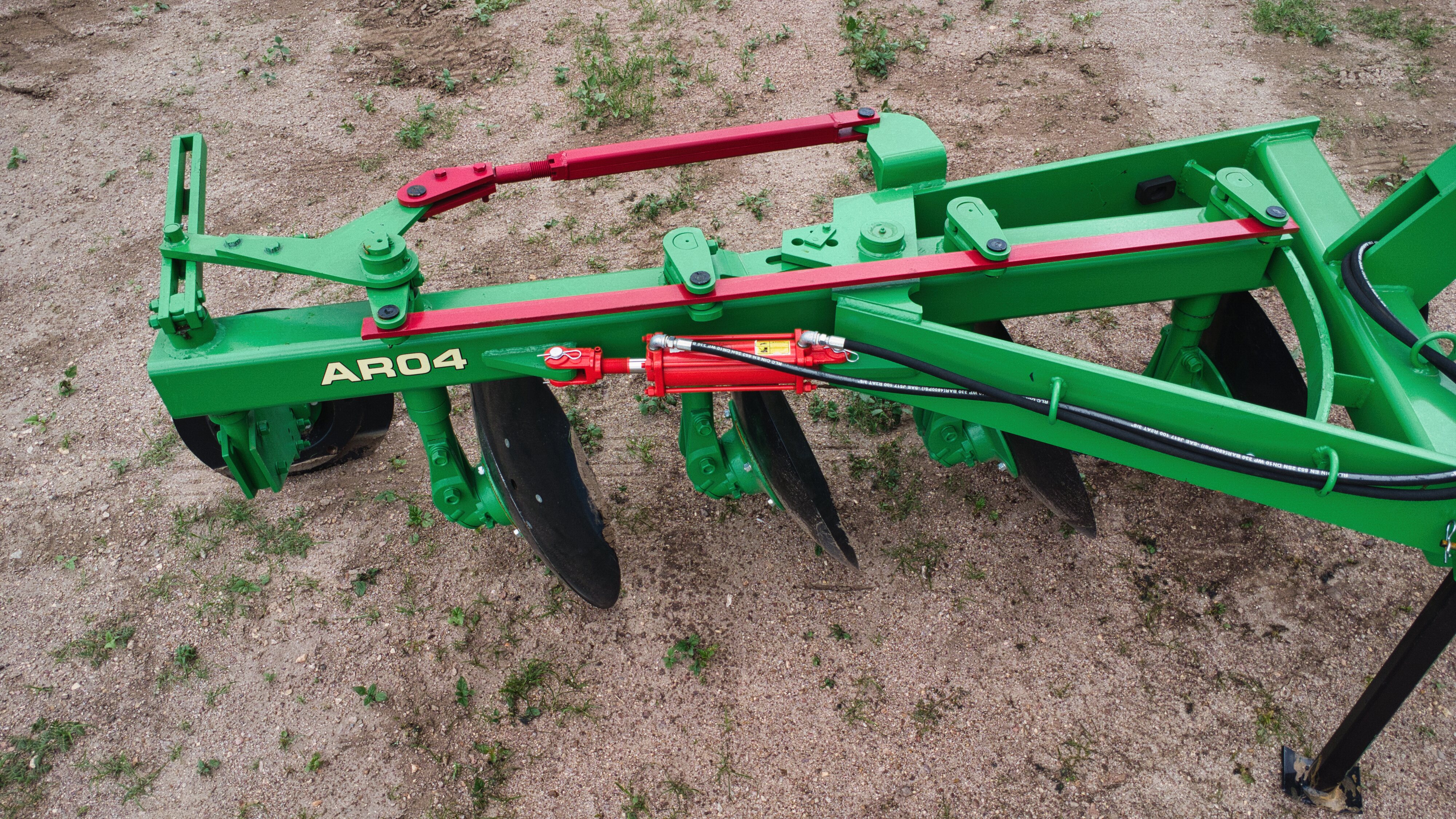

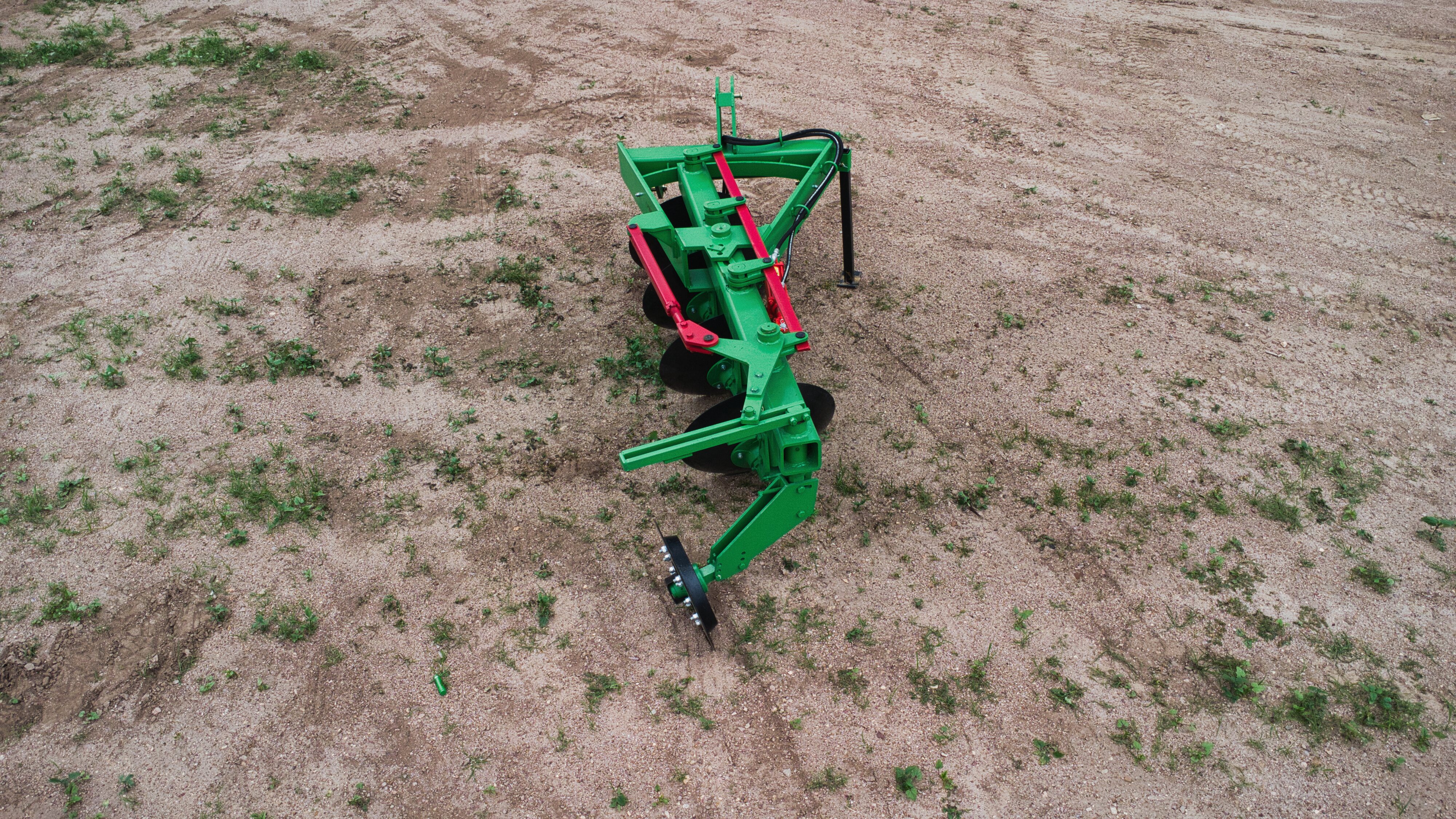

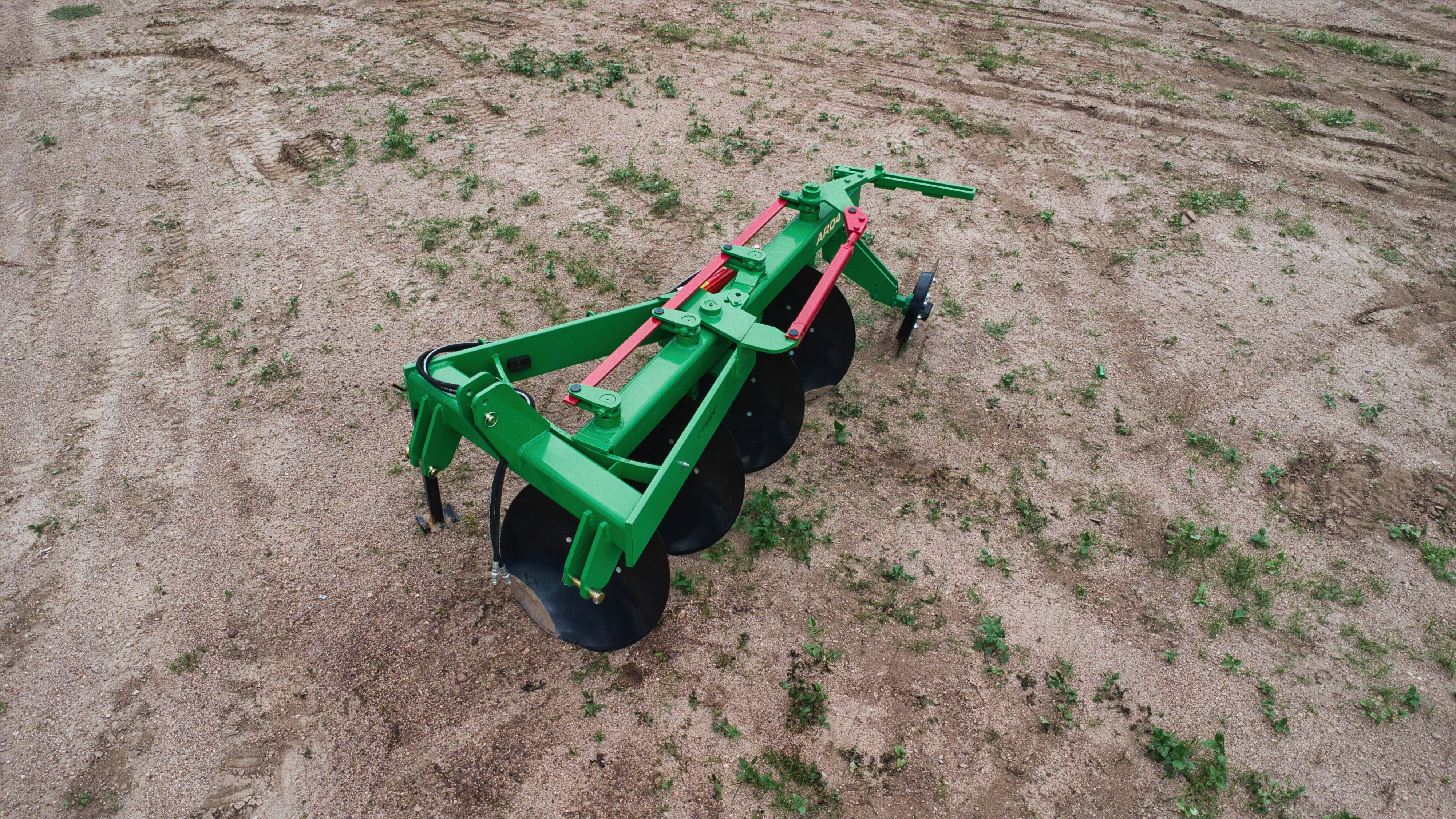

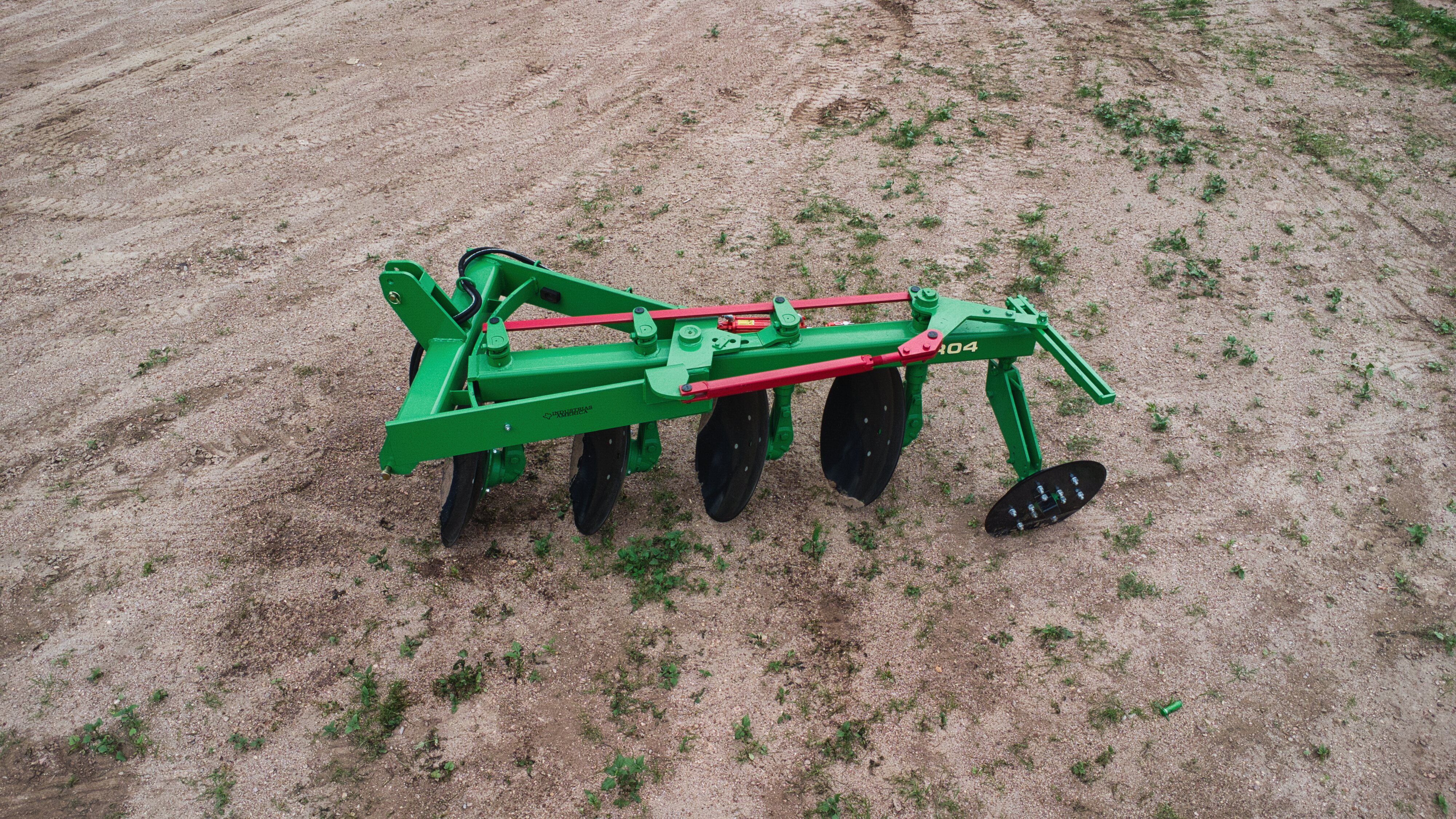

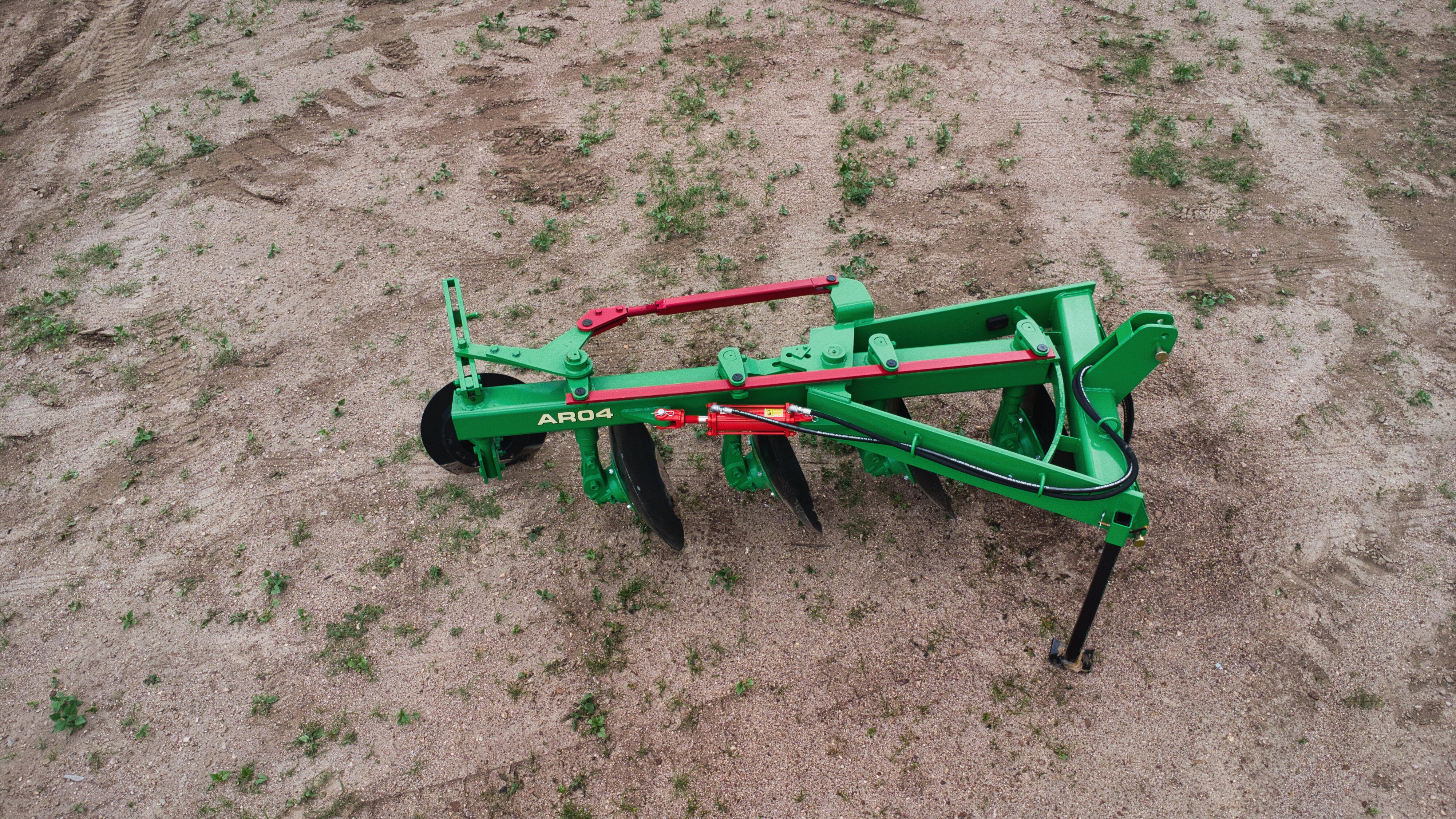

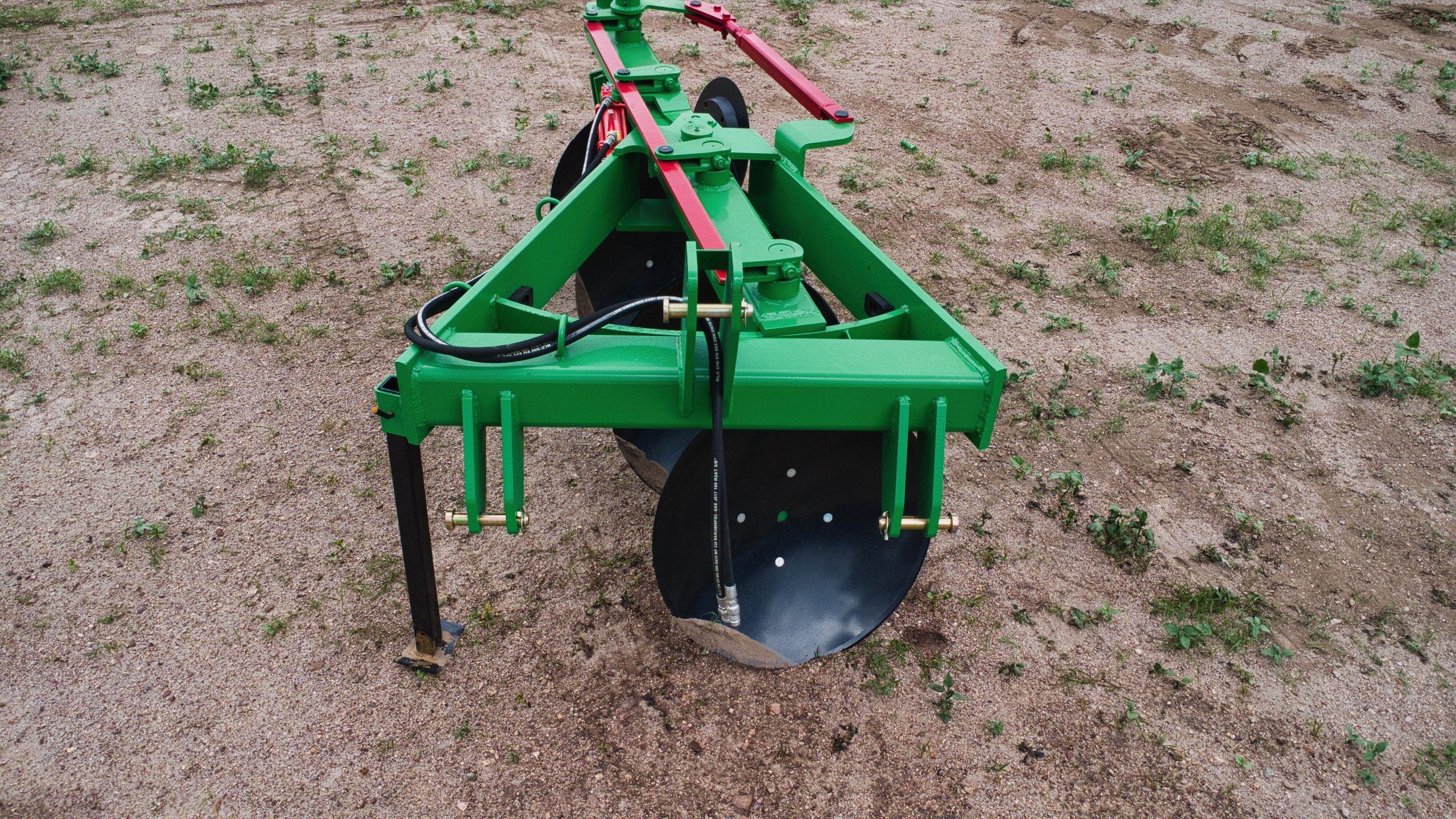

The AR04 is a 4-disc mounted reversible plough, designed for tractors from 90–100 HP. Built with a reinforced steel frame and heavy-duty 28" boron steel discs, it is ideal for primary tillage in heavy soils. The plough offers adjustable gang angle, furrow width, and depth, ensuring effective soil turning and residue incorporation. A guide disc is included for precise operation.
