Specifications
| Feature | Description |
|---|---|
| Weight | 2,267 kg |
| Working Width | 16 ft |
| Transport Width | 14 ft |
| Transport Length | 20 ft |
| Transport Clearance | 8 × 22 ft |
| Moldboard Size | 16' × 30" × 5/16" (2 × 8' high-strength steel sections) |
| Cutting Edge | 2 × 8' × 6" × ½", reversible, double bevel hardened steel |
| Hitch | Pull-type, lunette ring (pintle hitch compatible) |
| Tire Size | 14L-16.1 12PR implement tires |
| Spindle Size | 2.5 in |
| Wheel Hubs | 8-bolt |
| Hydraulic Circuits Required | 5 |

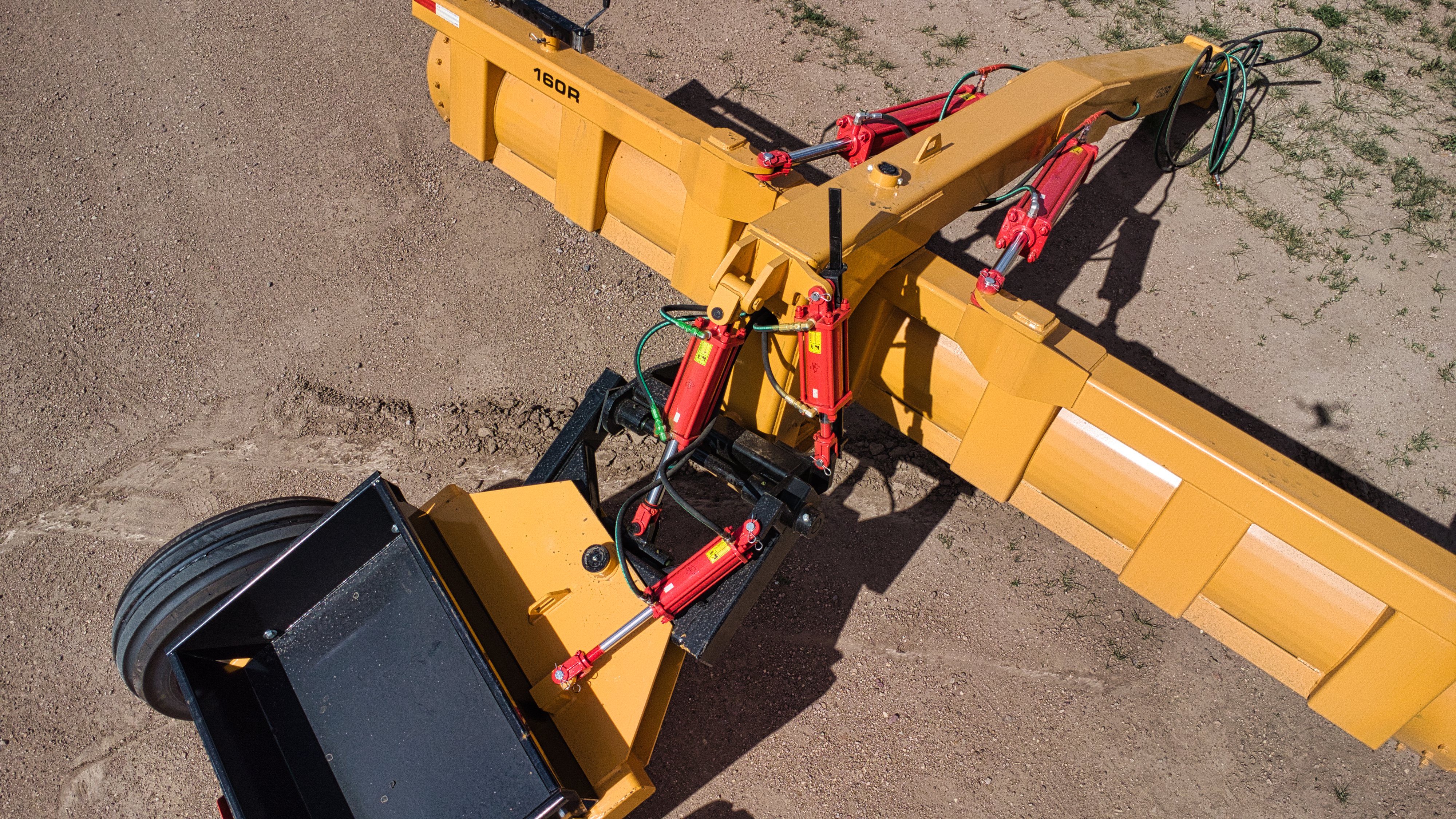

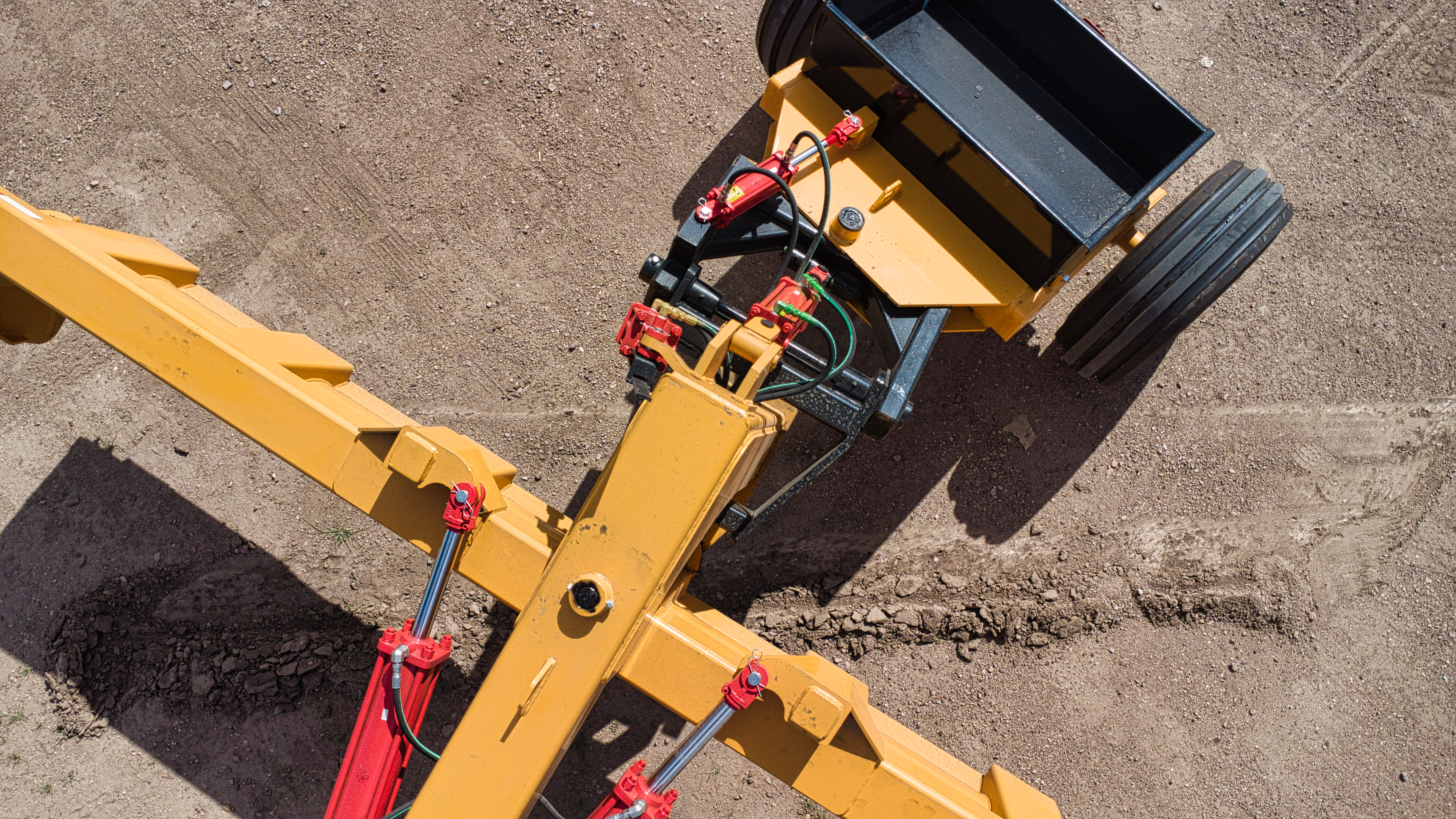

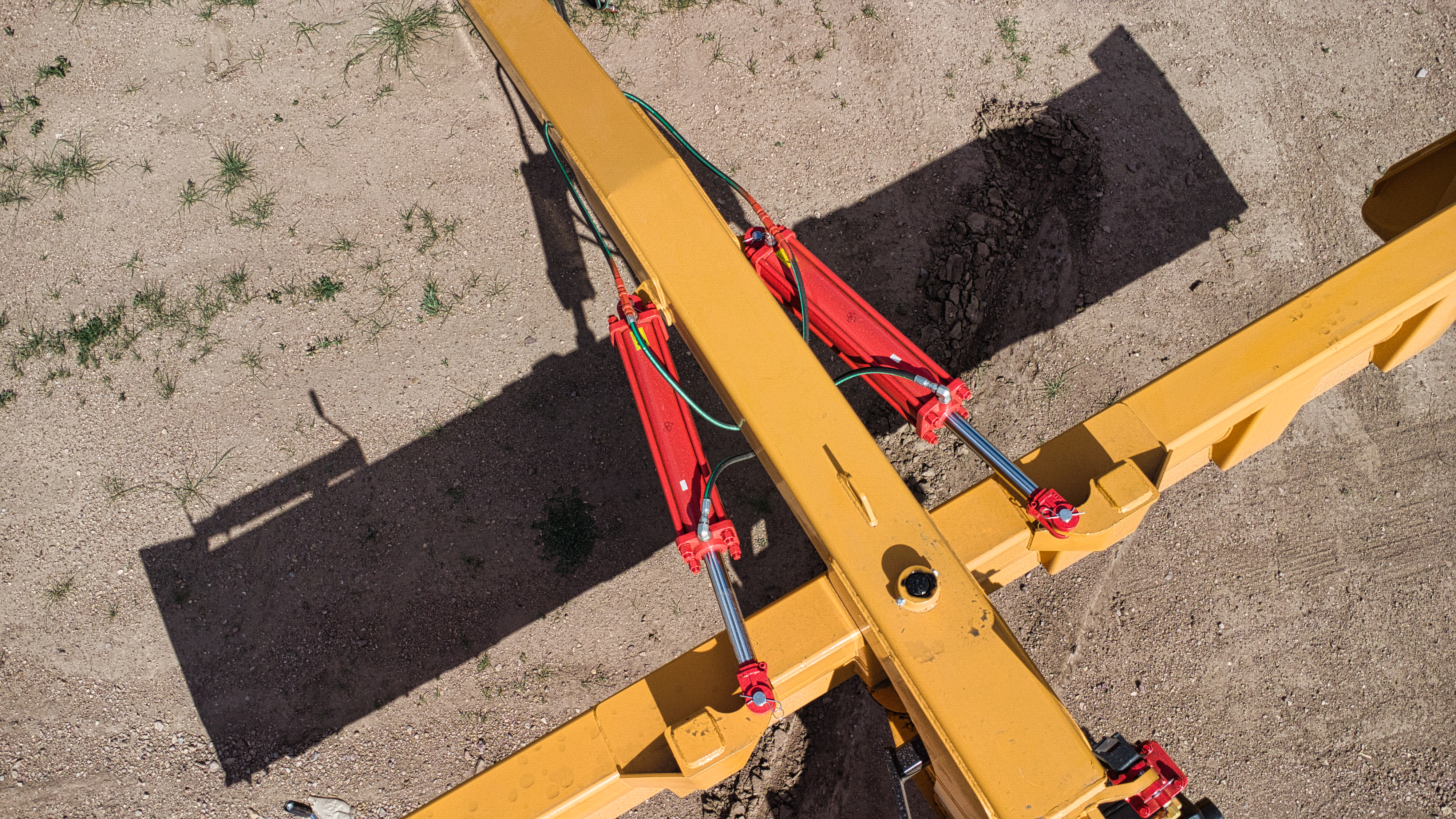

| Blade Swing Cylinders | 2 × 5×24 in |
| Tilt Cylinder | 1 × 4×8 in |
| Raise/Lower Cylinder | 1 × 4×10 in |
| Rear Steer Cylinder | 1 × 3×8 in |
| Weight Box | 45 × 32 × 12 in |
| Horsepower Required | 150–160 HP |
| Blade Angle Range | 0°–45° left/right |
| Cutting Depth | Adjustable with wheel lift, up to ~12 in (soil dependent) |
| Side Plates | Adjustable for box scraper function |
| Optional Equipment | Scrapers, rear steer, flotation tires, LED road lights |

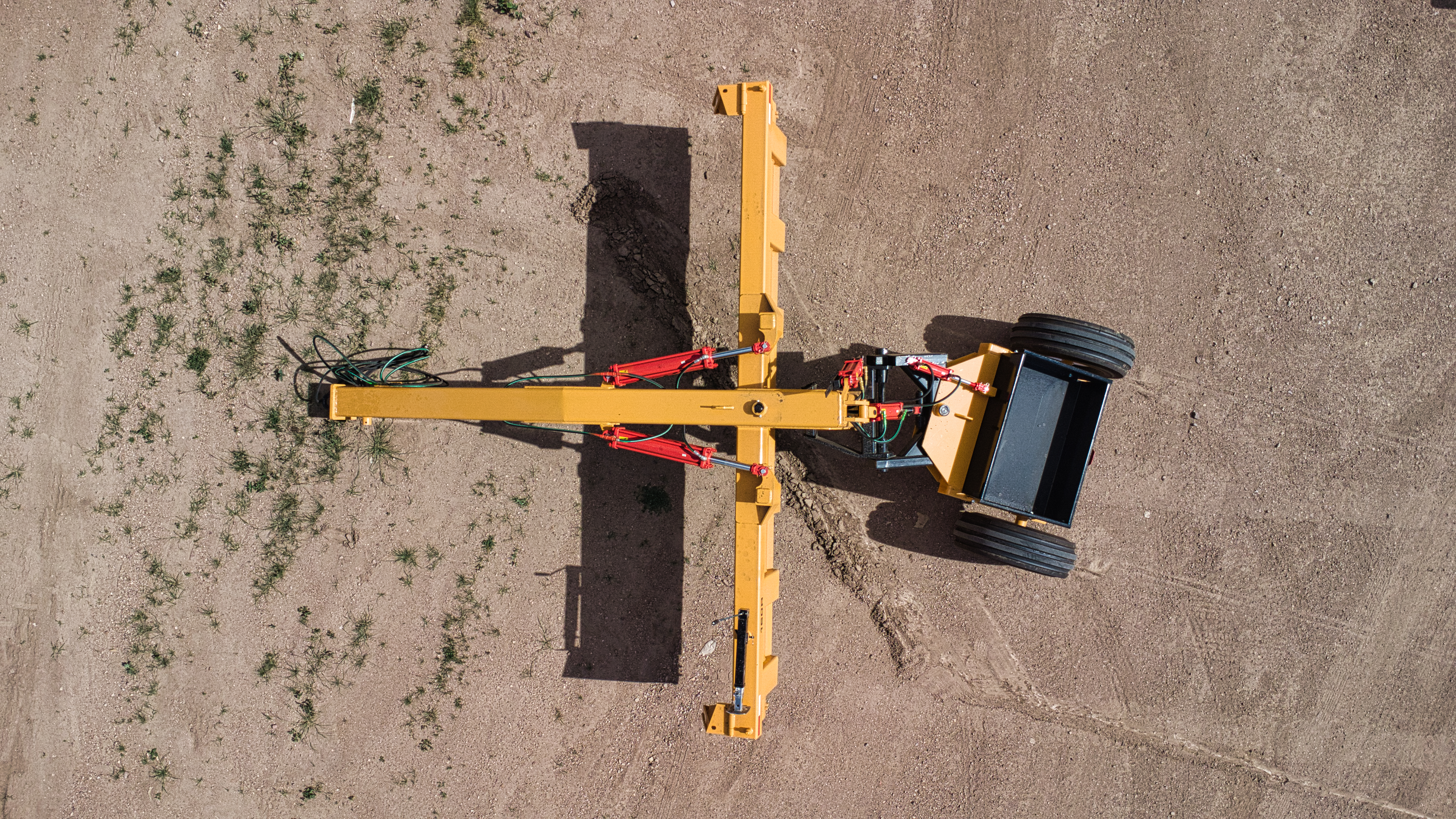

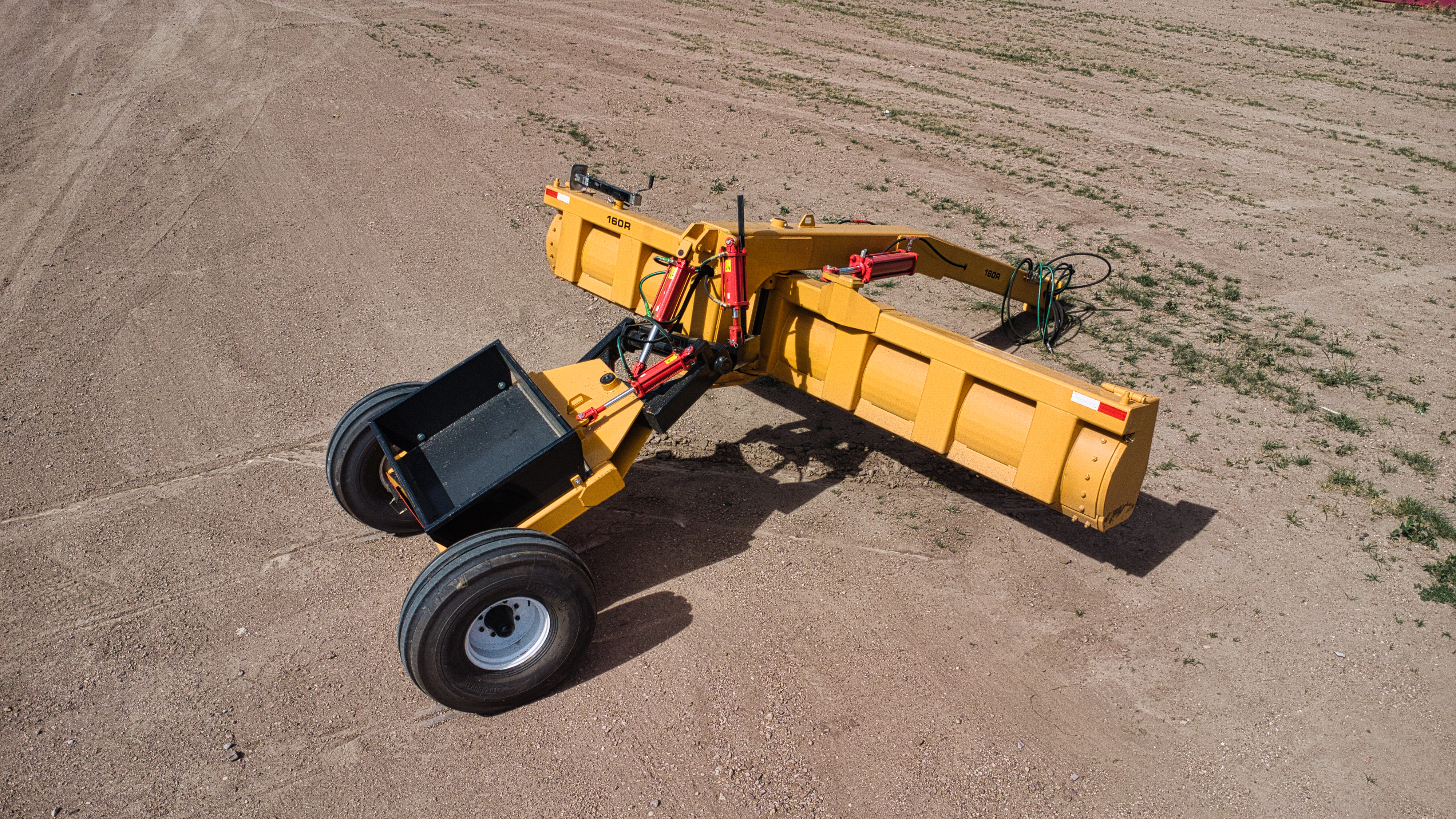

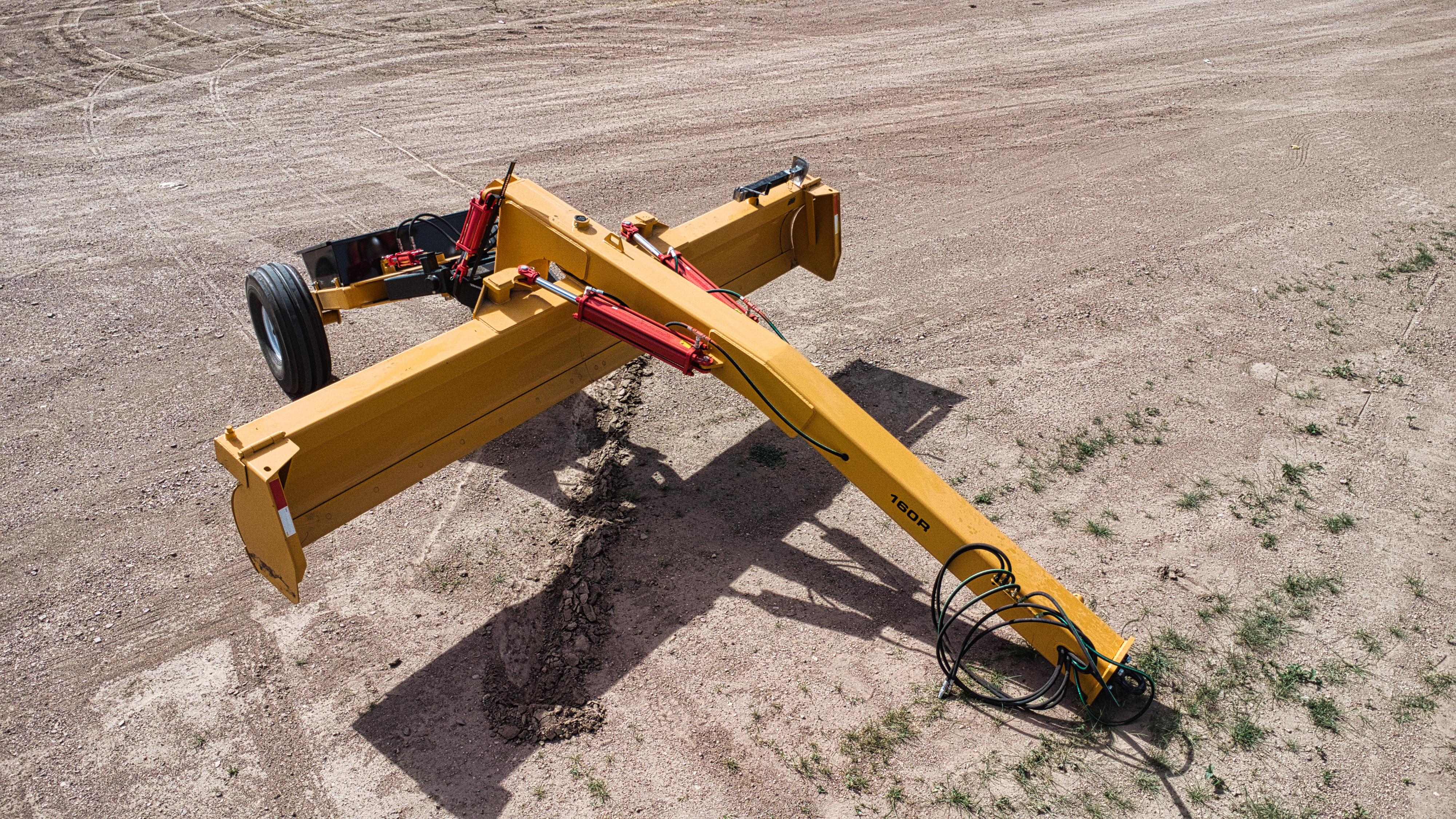

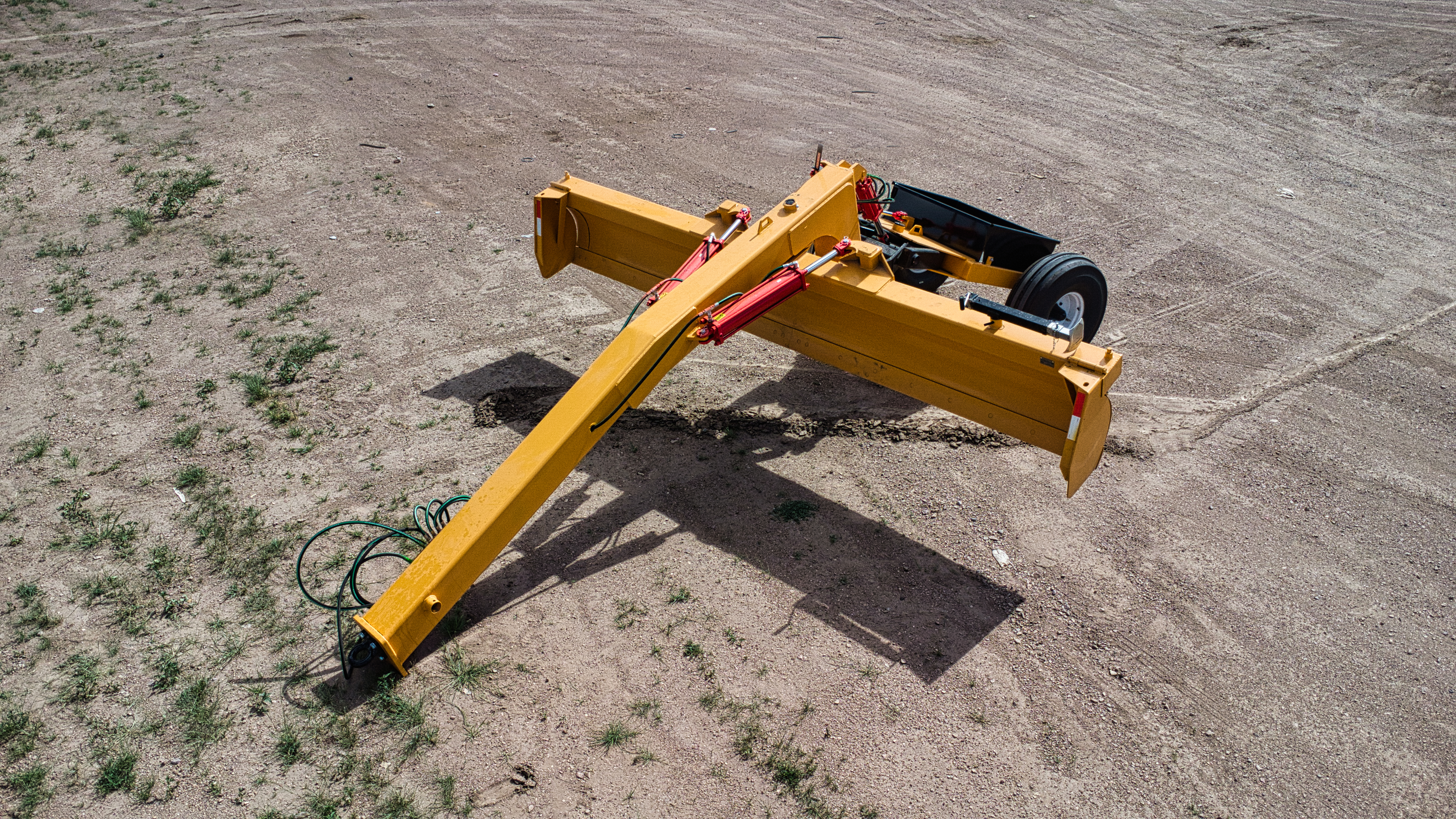

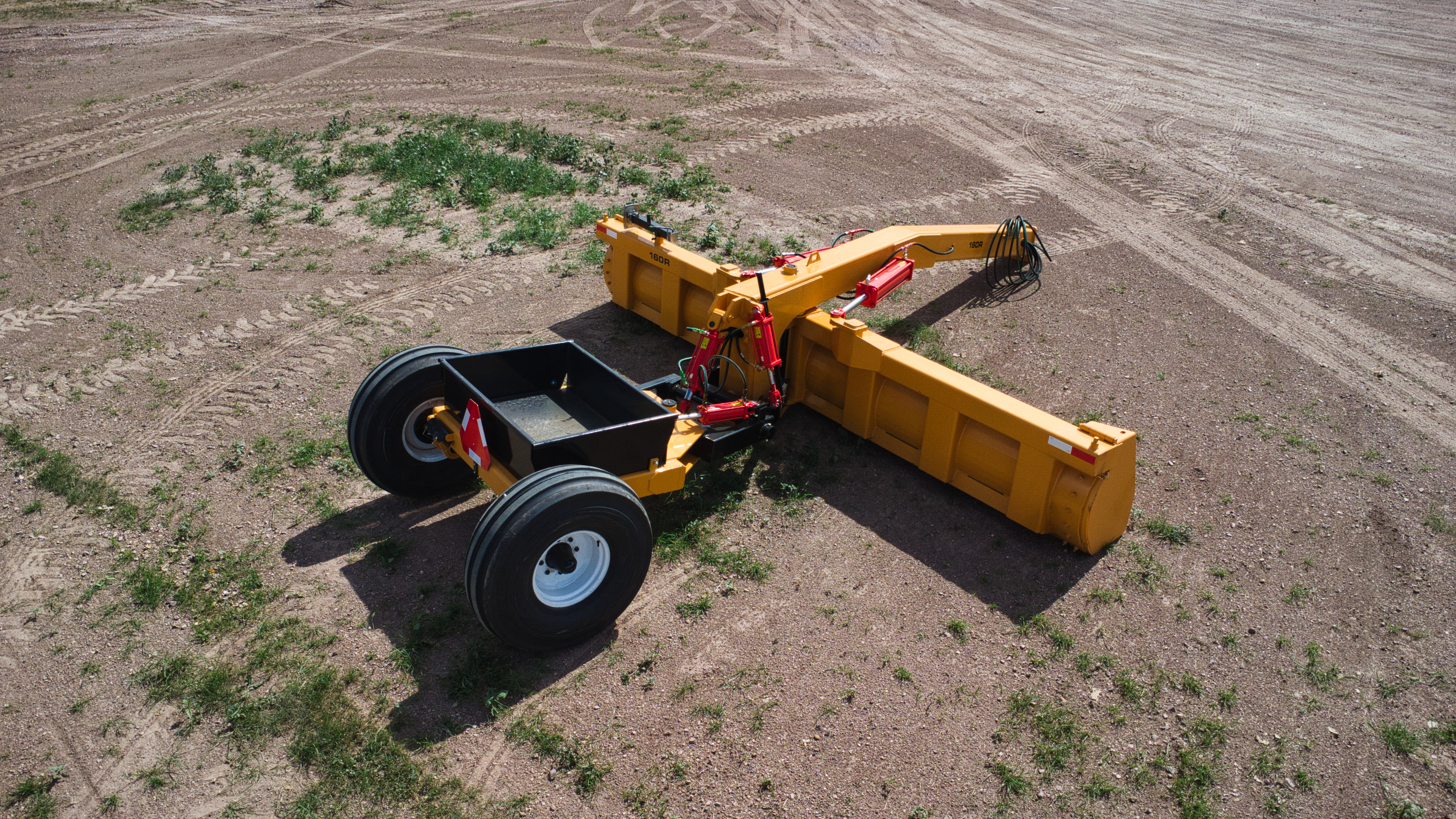

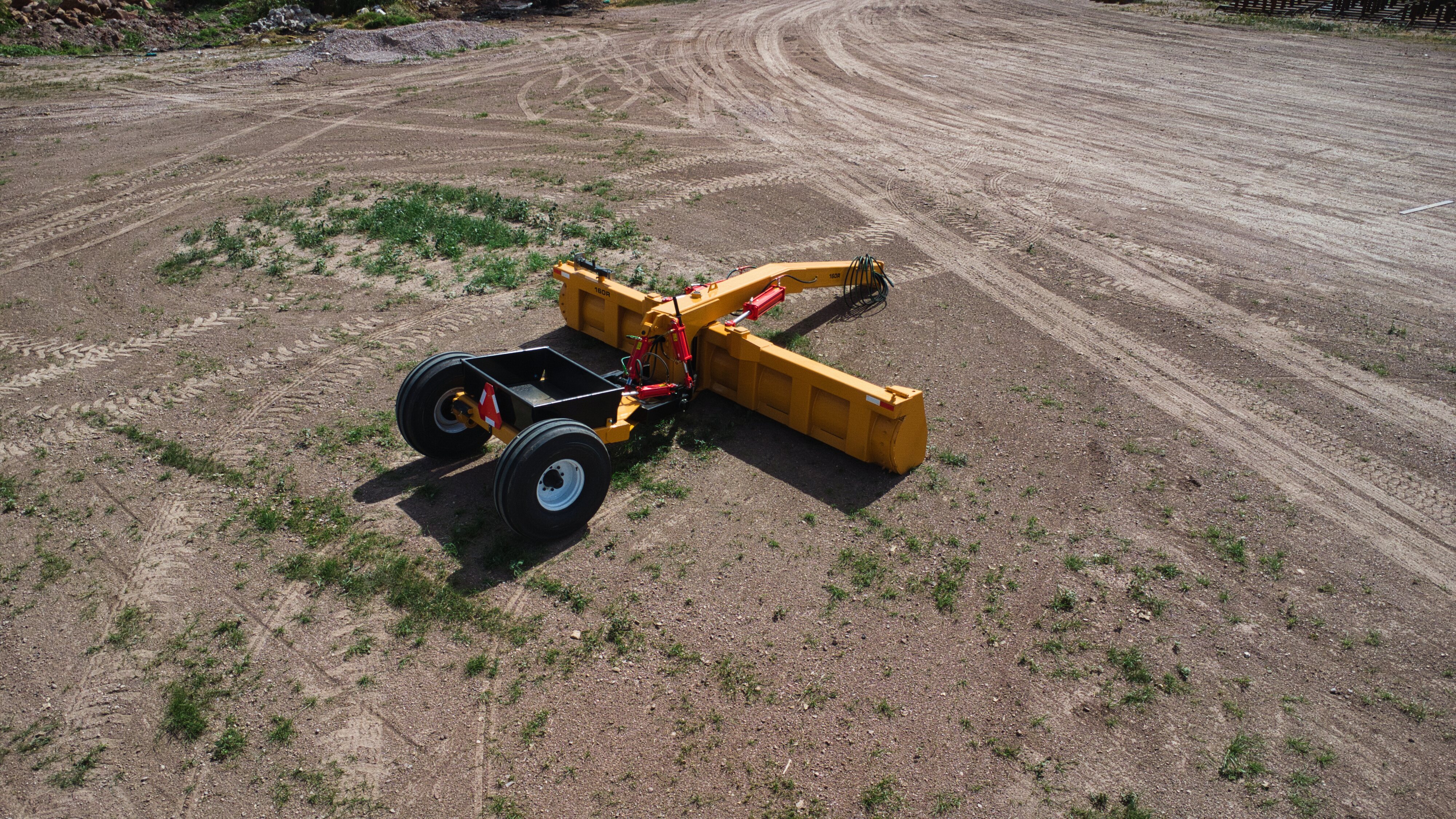

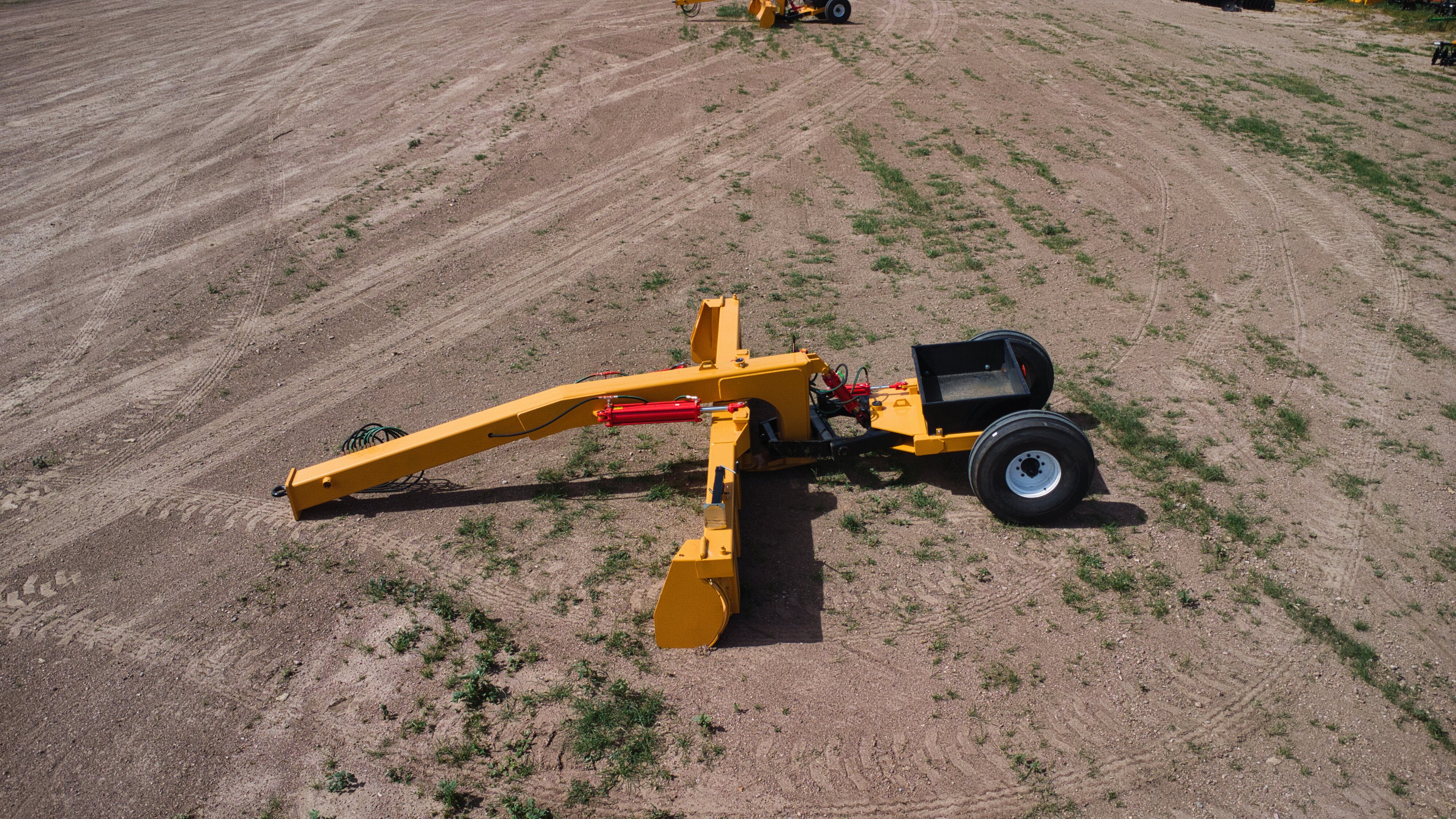

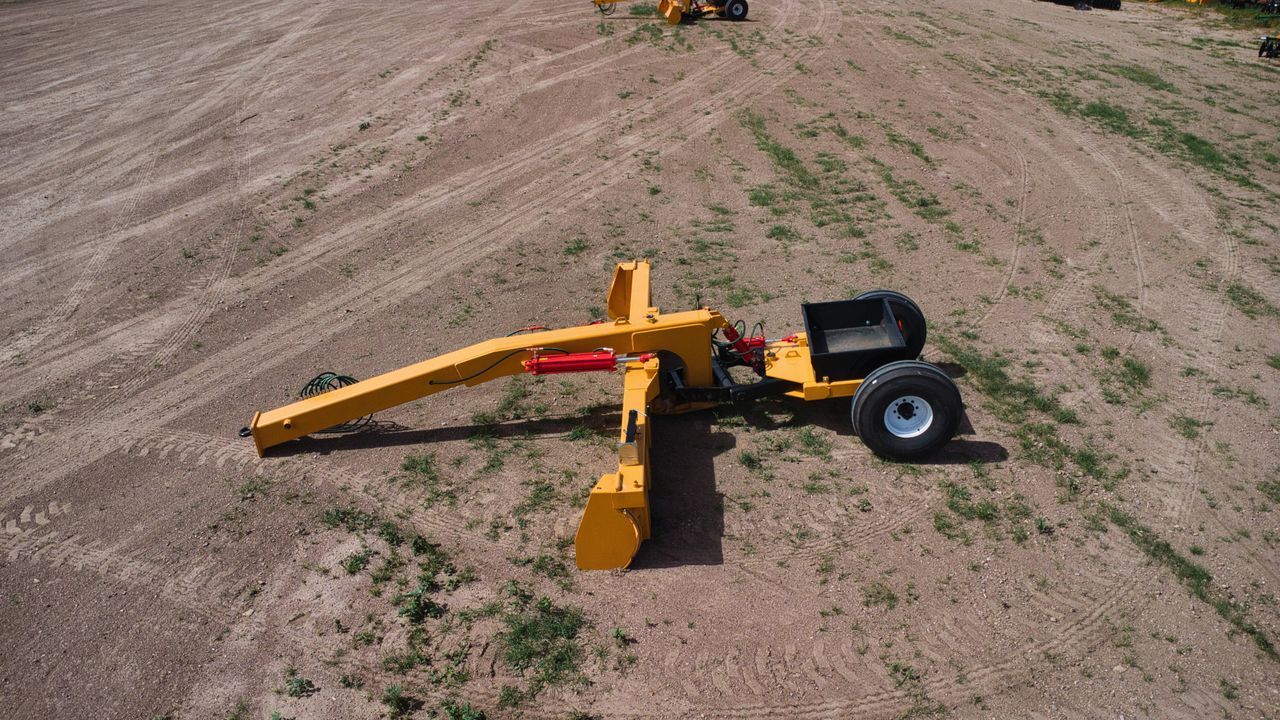

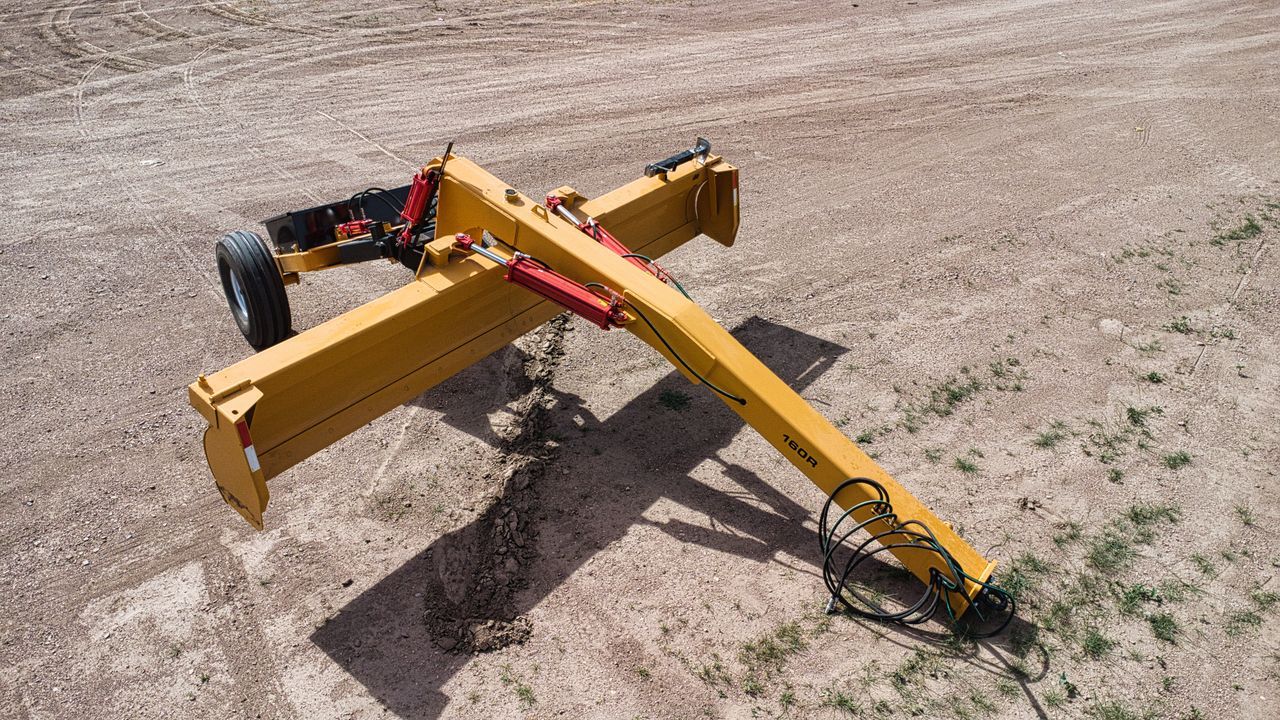

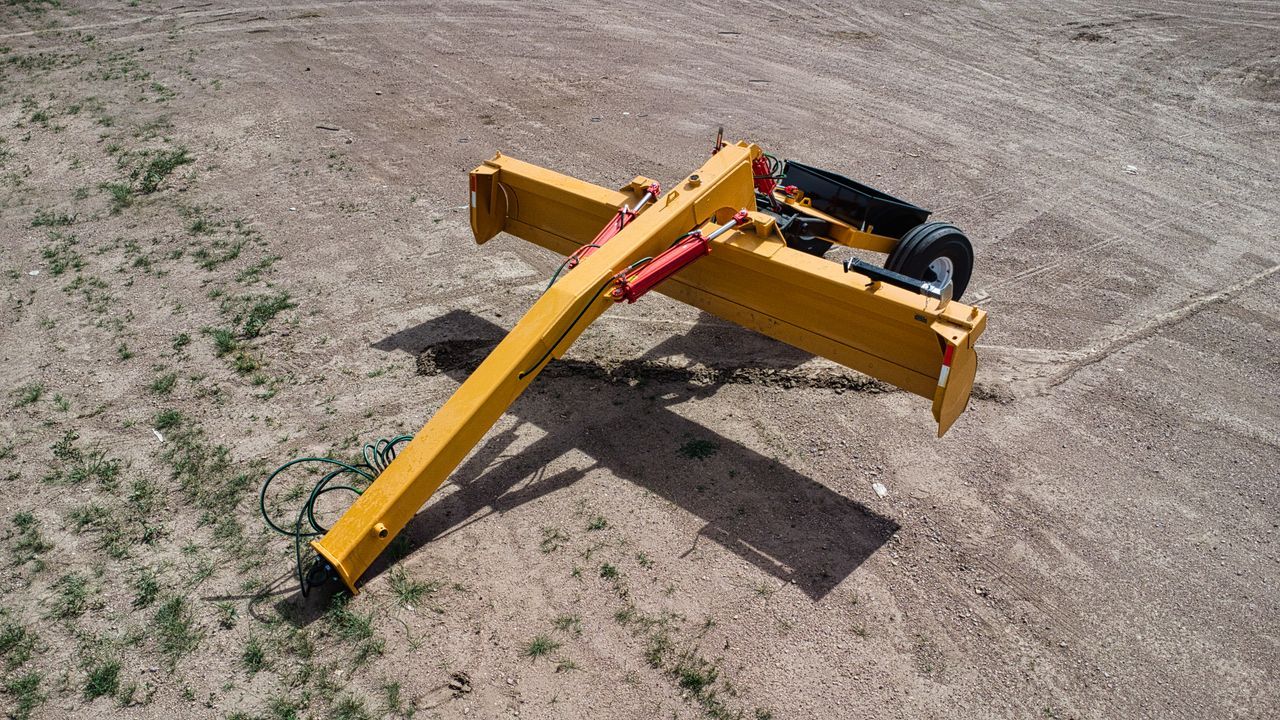

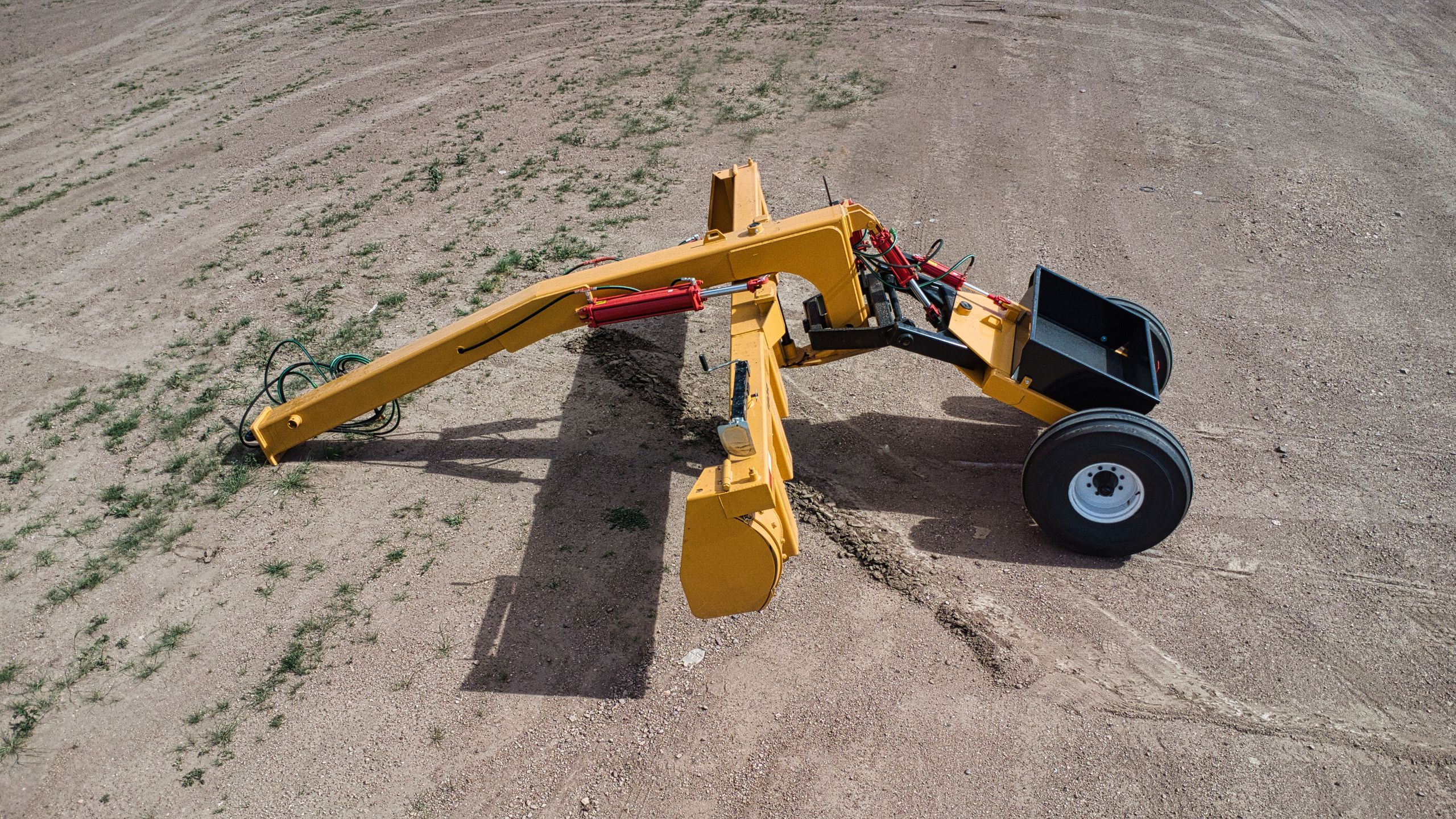

The largest model in the series, the 160R, is built for high-horsepower tractors (150–160 HP) and the toughest grading jobs. With a 16 ft moldboard, reinforced frame, and heavy-duty hydraulic system, it moves serious material. Adjustable side plates and a reversible hardened edge make it versatile enough for roads, fields, and large earthmoving projects.
