Specifications
| Feature | Description |
|---|---|
| Type | Hydraulic reversible / switch moldboard plow |
| Available Models | AR03, AR04, AR05, AR06, AR07, AR08, AR09, AR10 |
| Number of Bottoms | 3 to 10 |
| Working Width Range | 5 ft to 17 ft |
| Working Widths | 5', 6' 6", 8' 6", 10', 12', 13' 6", 15', 17' |
| In-Furrow Models | AR03, AR04, AR05 |
| On-Land Models | AR06, AR07, AR08, AR09, AR10 |

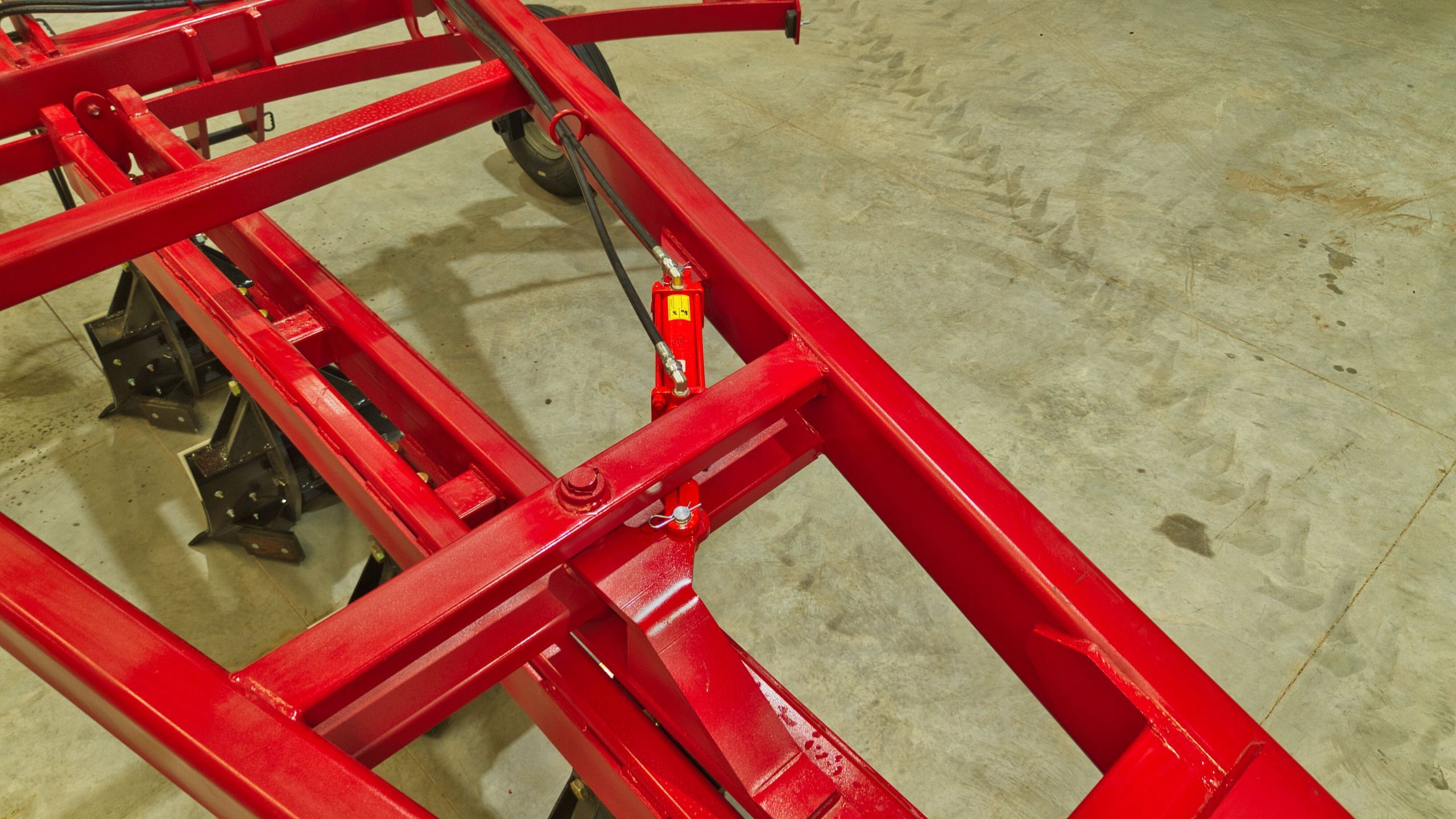

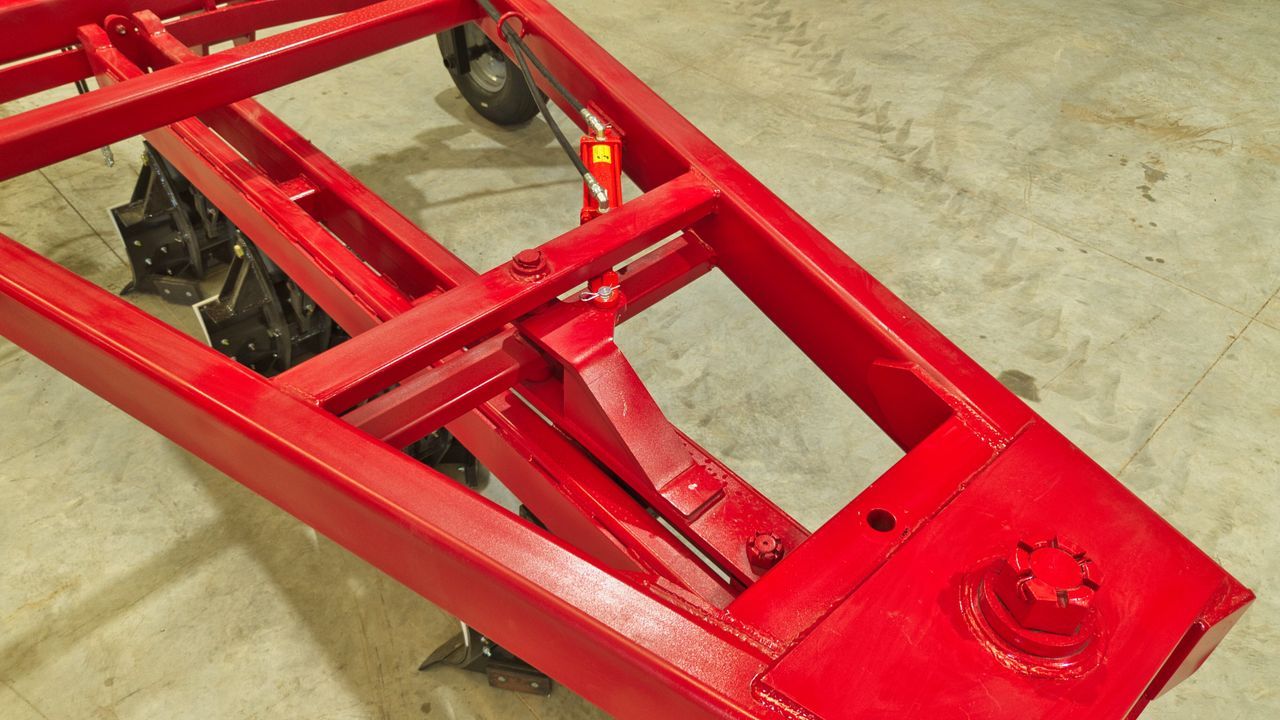

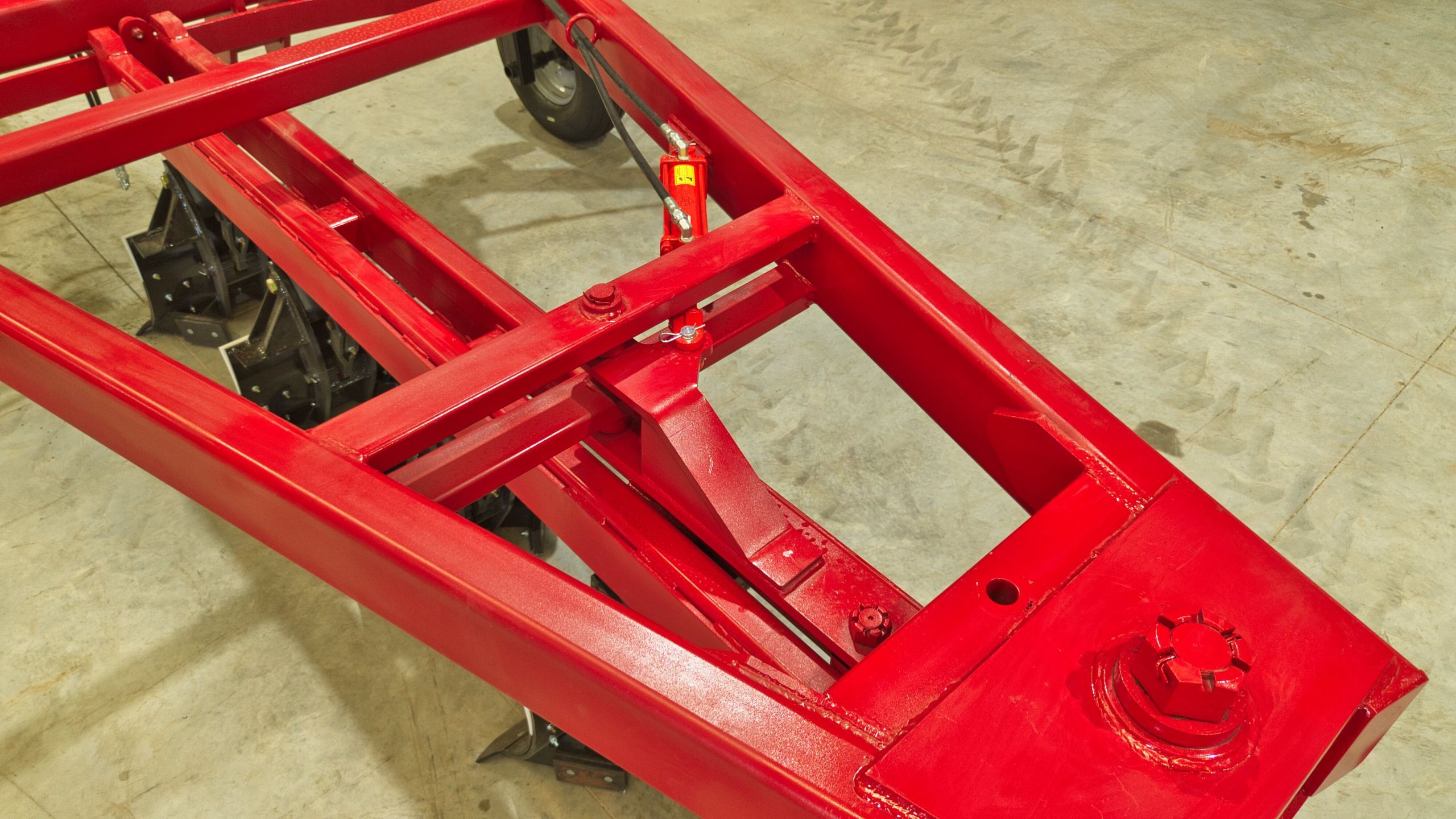

| Reversing System | Hydraulic swivel |
| Moldboard Type | Steel moldboard with replaceable bolt-on poly liner |

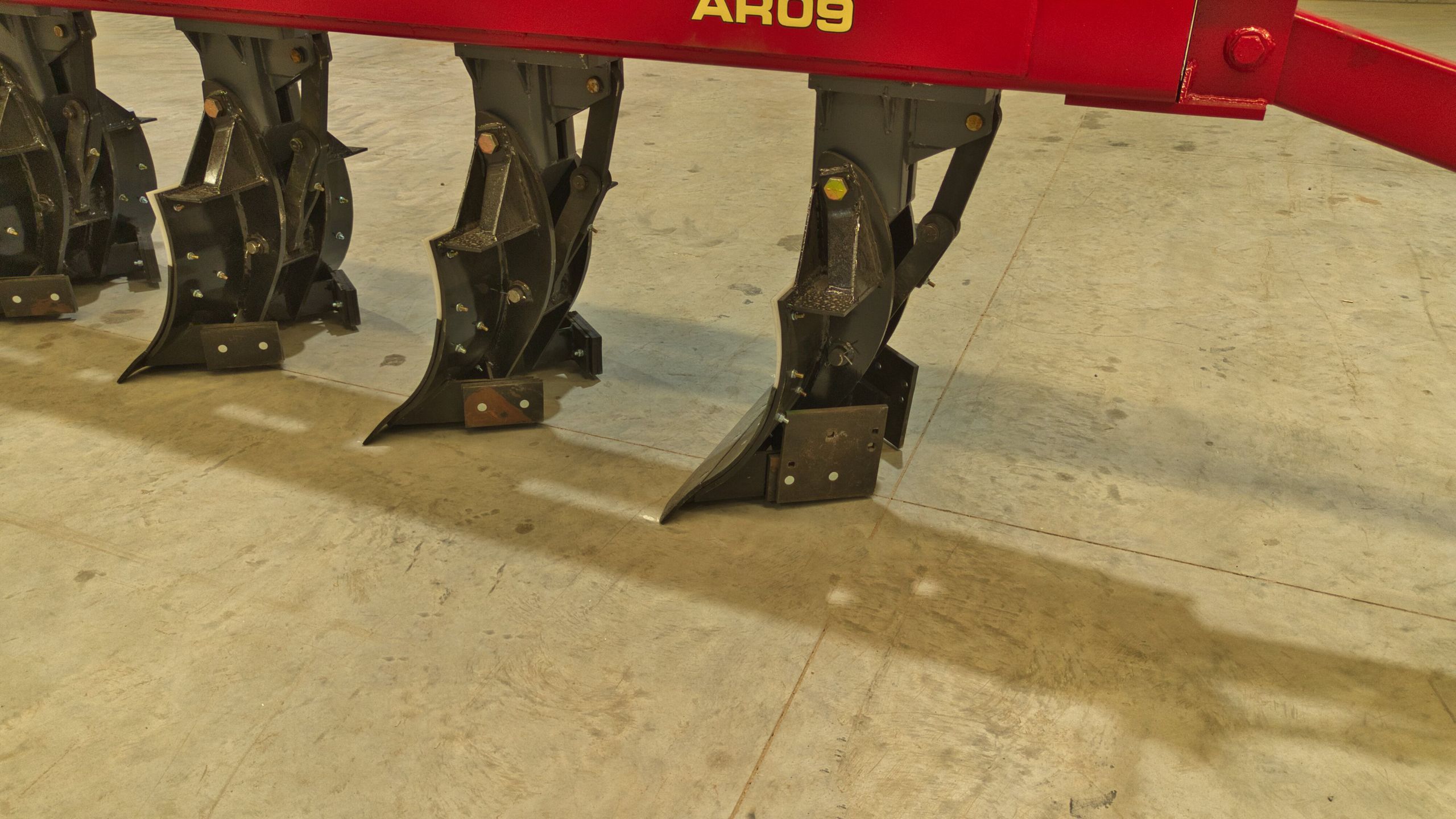

| Bottom Protection | Choice of spring or shear-bolt protection |
| Cutting Components | Replaceable steel shares and wear parts |

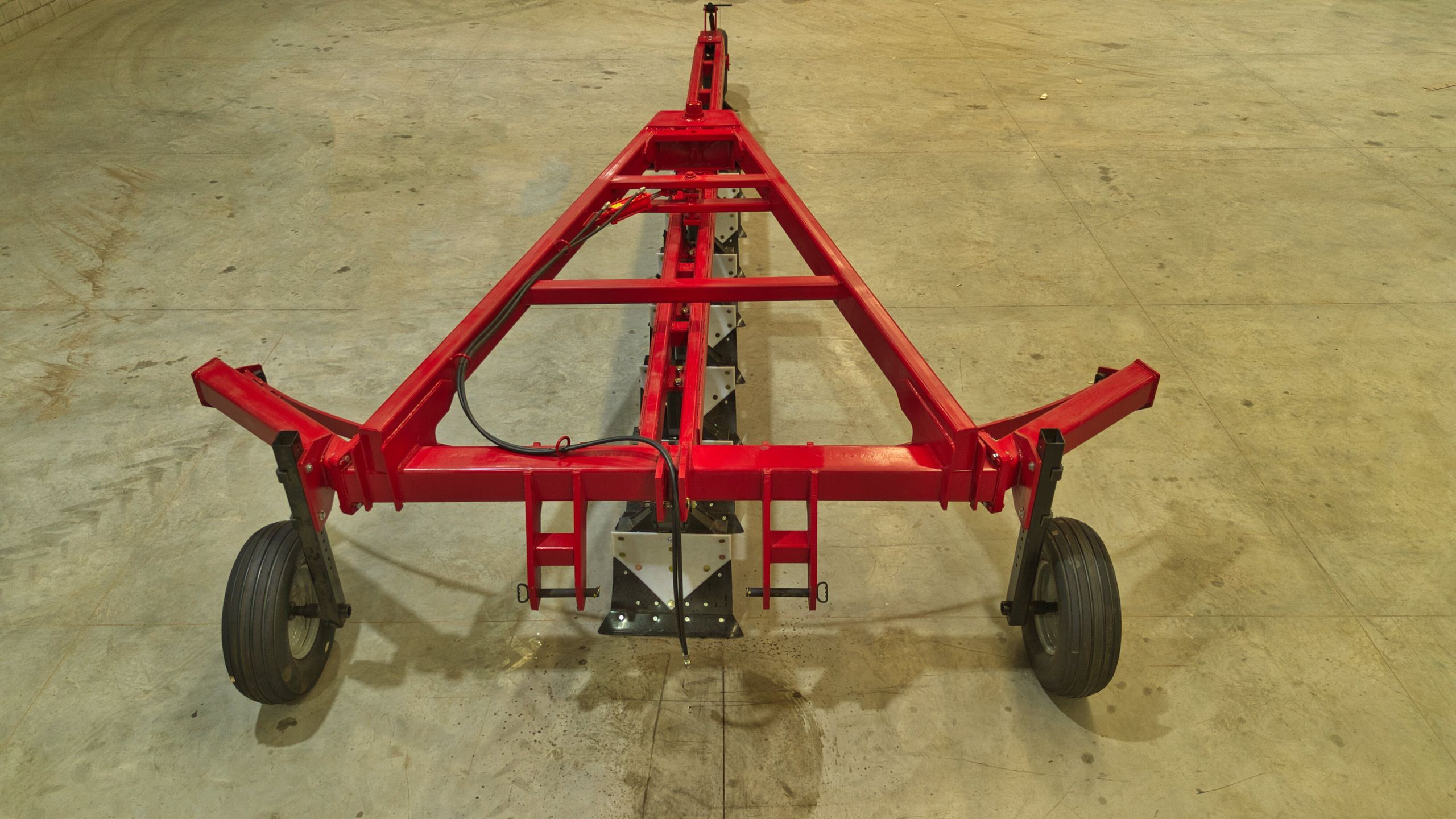

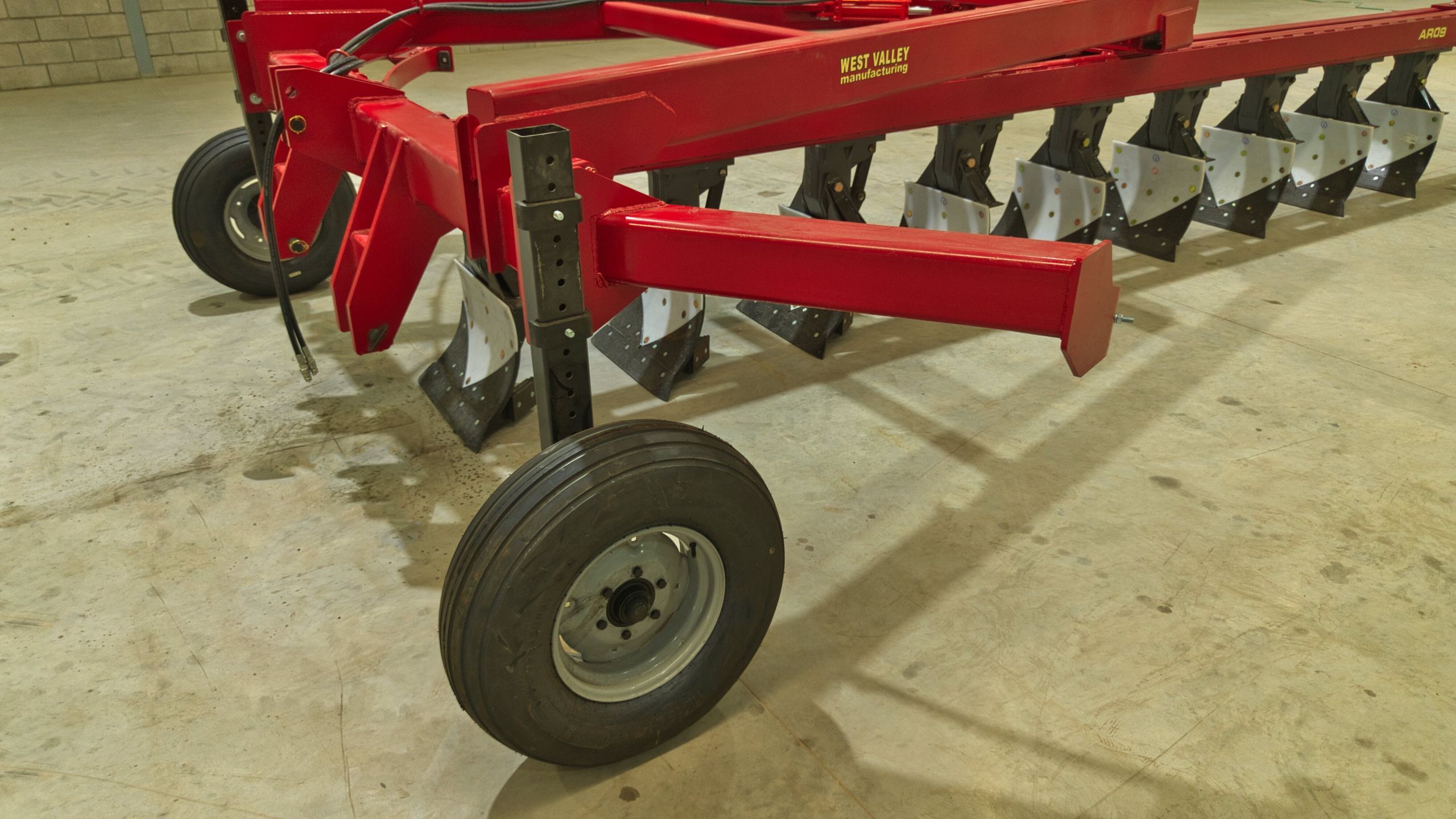

| Depth Control | Adjustable support / tail wheel |

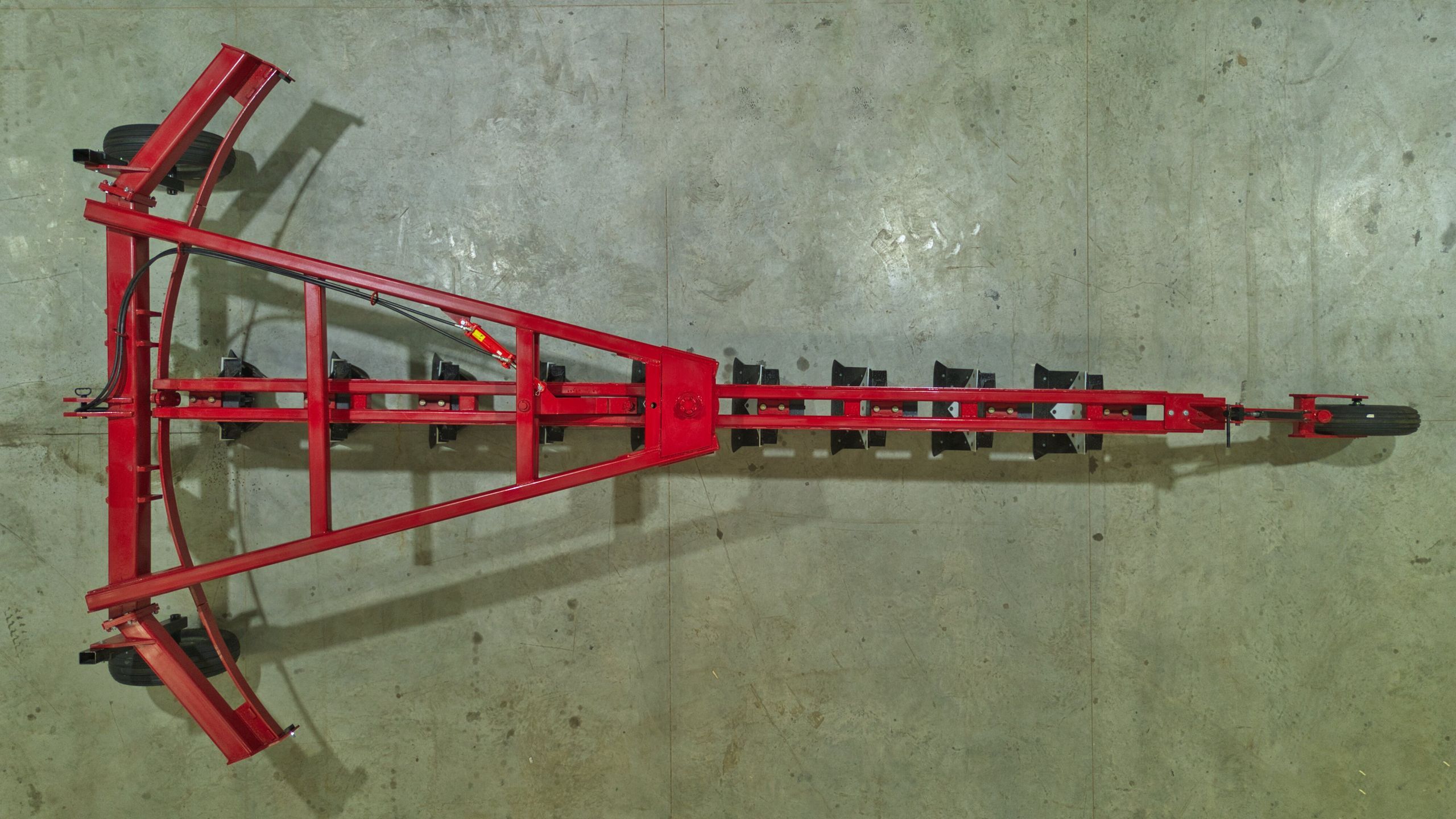

| Frame Construction | Heavy-duty welded structural steel |
| Approx. Cut per Bottom | ~20" |
| In-Furrow Approx. Weight Range | ~1,100–1,650 kg |
| On-Land Approx. Weight Range | ~2,050–3,550 kg |
| Application | Primary tillage, soil inversion, and crop residue incorporation |

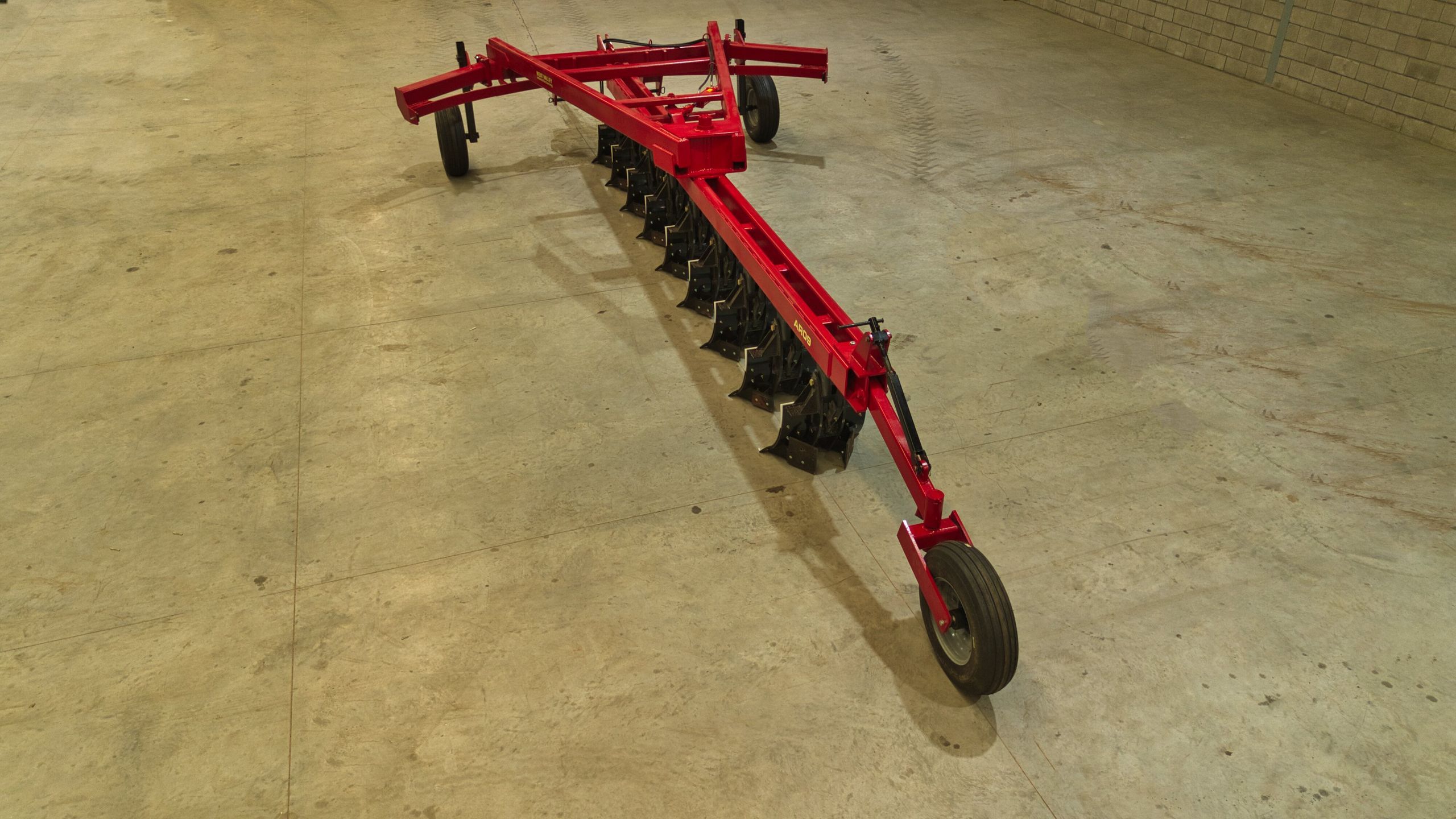

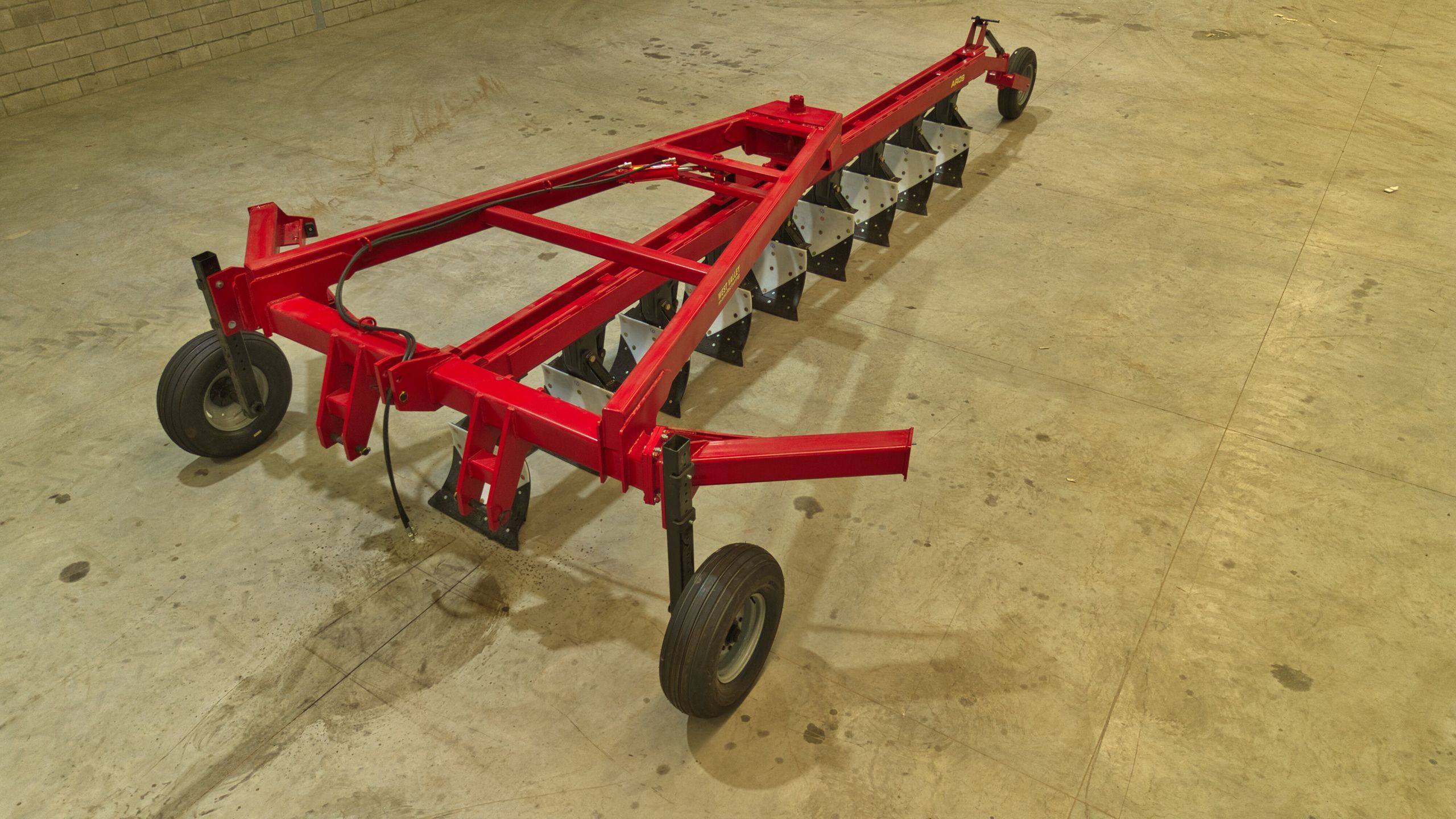

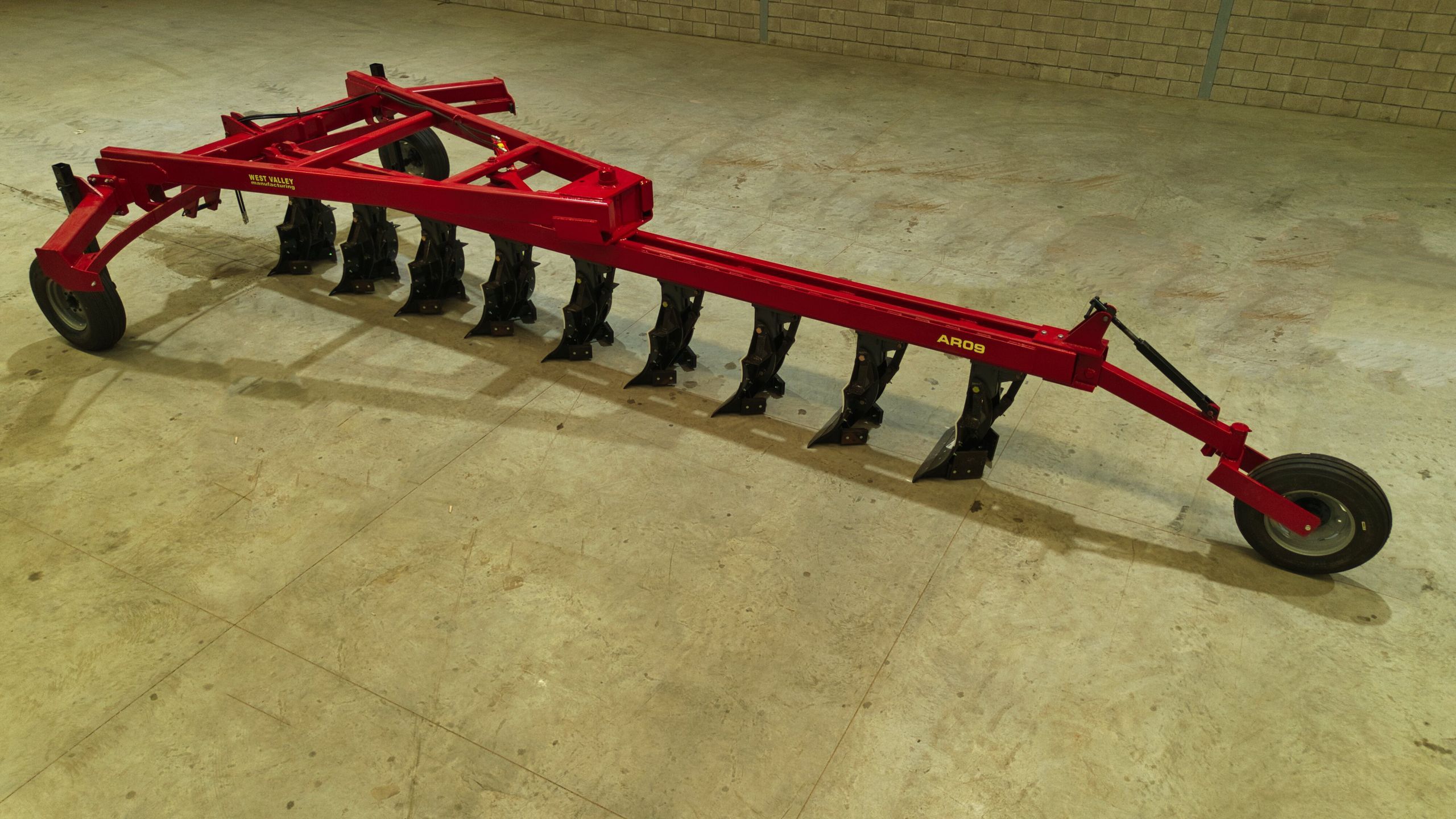

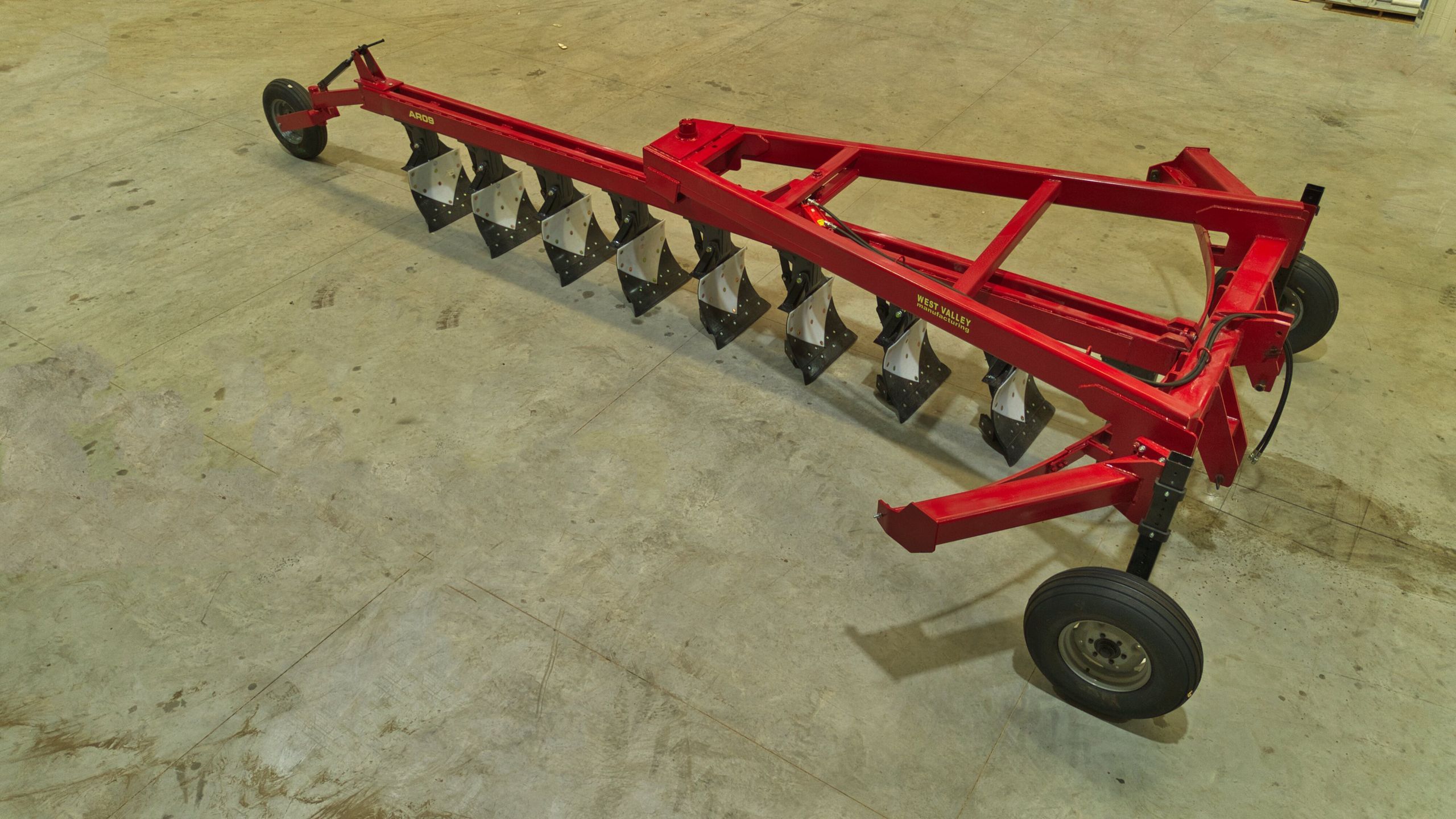

The AR Series Switch Plows are designed for primary tillage, providing a dependable solution for turning soil, incorporating crop residue, and preparing fields for planting. The lineup includes dedicated in-furrow models and on-land models to accommodate different tractor sizes and field requirements. A hydraulic swivel system allows the plow to reverse at the end of each pass, helping maintain consistent soil turnover and reduce unnecessary travel. Heavy-duty steel construction, replaceable poly moldboard liners, adjustable support wheels, and a choice of spring or shear-bolt bottom protection make the AR Series suitable for demanding field conditions.
