Specifications
| Feature | Description |
|---|---|
| Type | Perpendicular-load round bale wagon |
| Series | BP-Series |
| Model | B10P |
| Bale Capacity | 10 bales (base), up to 14 with optional cradle extension |
| Bale Orientation | Perpendicular to frame |

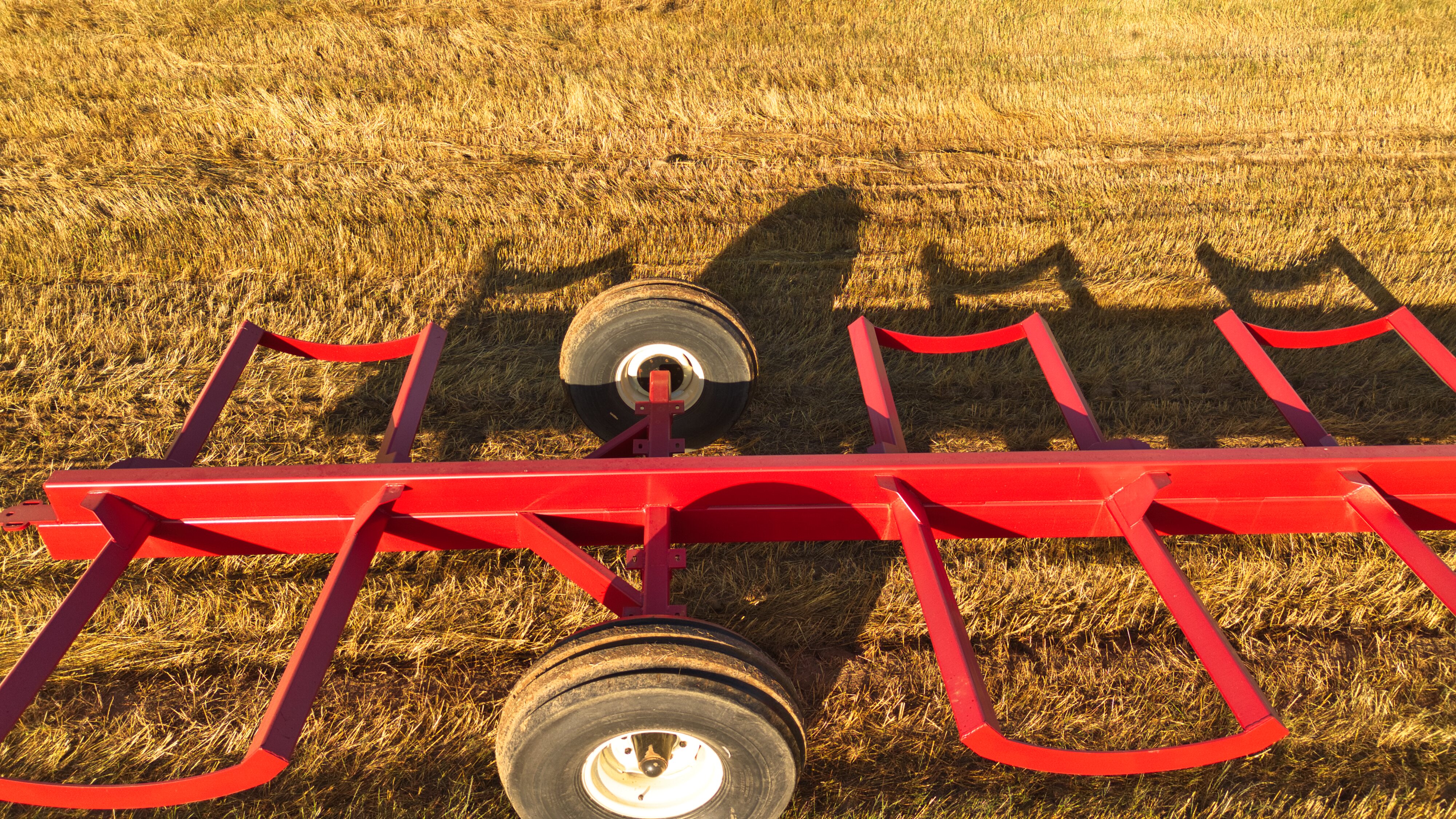

| Cradle Design | Tubular steel cradles with open spacing |

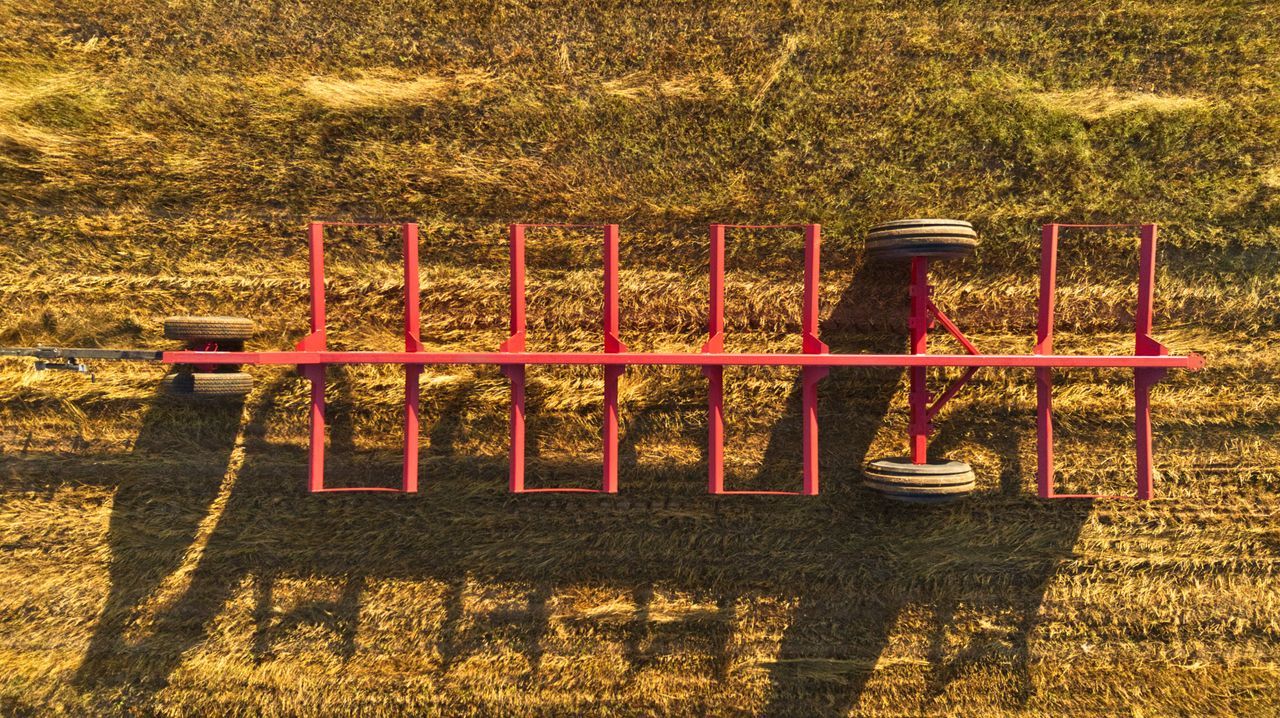

| Frame | Two 4"×8"×¼" high-strength tubular steel beams stacked vertically |
| Cradle Length | 32 ft (4 ft per cradle section) |
| Total Length | 32 ft + telescopic hitch (extends 80"–110") |
| Overall Width | 100 in |
| Loading / Unloading | Manual — using tractor loader or bale spear |

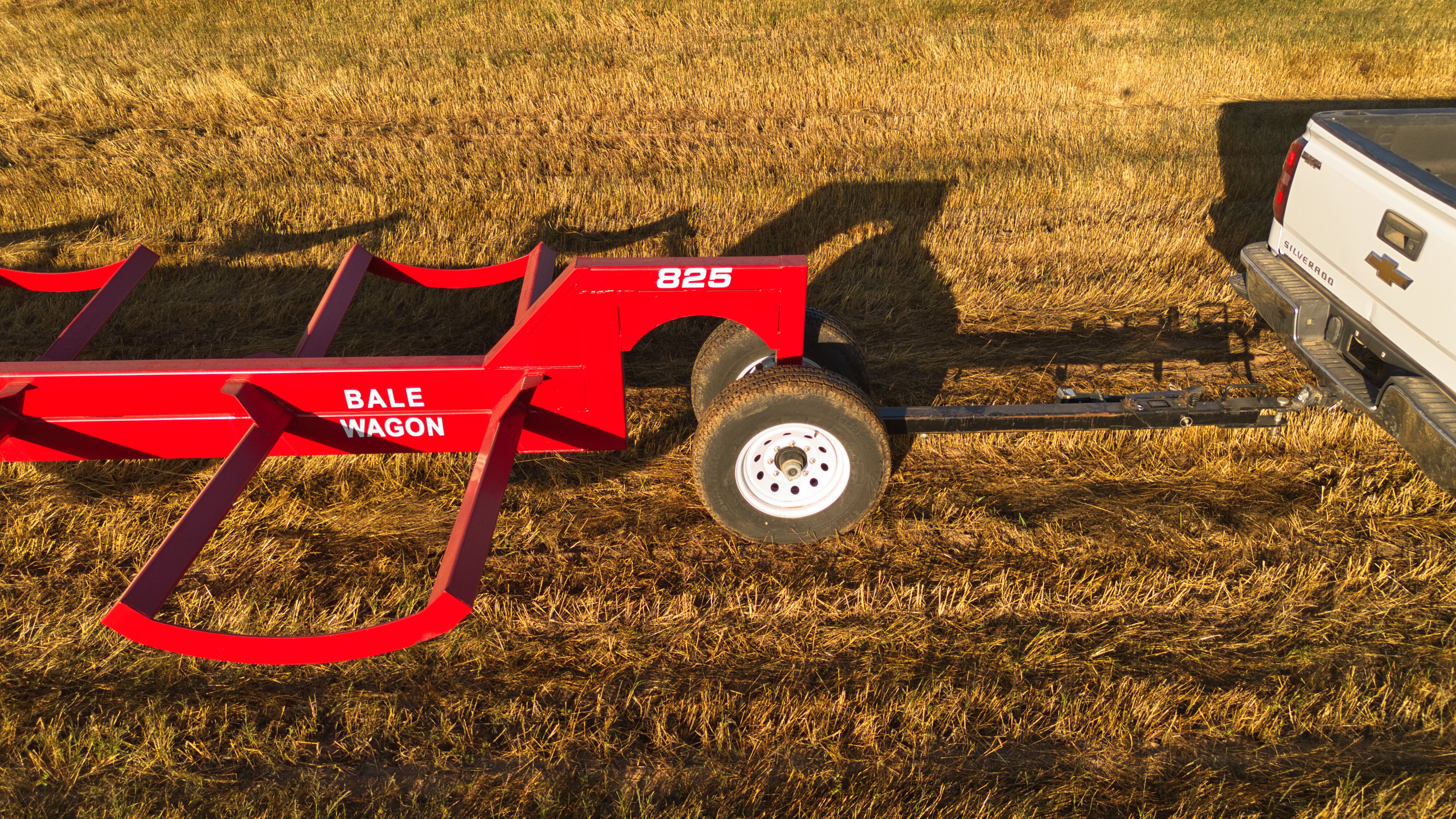

| Connection Type | Mini gooseneck to front dolly |
| Hitch Type | Telescopic pin-through hitch |
| Axles | Front dolly rated at 7,000 lb; rear hubs rated at 7,000 lb |
| GAWR | 7,000 lb per axle |
| GVWR | 14,000 lb |
| Jacks | 1 × 2,500 lb on telescopic hitch |
| Brakes | None (field use only) |
| Tires | Rear |
| Rims | 16" |
| Shipping Weight | 3,476 lb |
| Finish | Powder-coated red |
| Lighting / Reflective Tape | None (field-use only) |
| Safety Chains | Included |

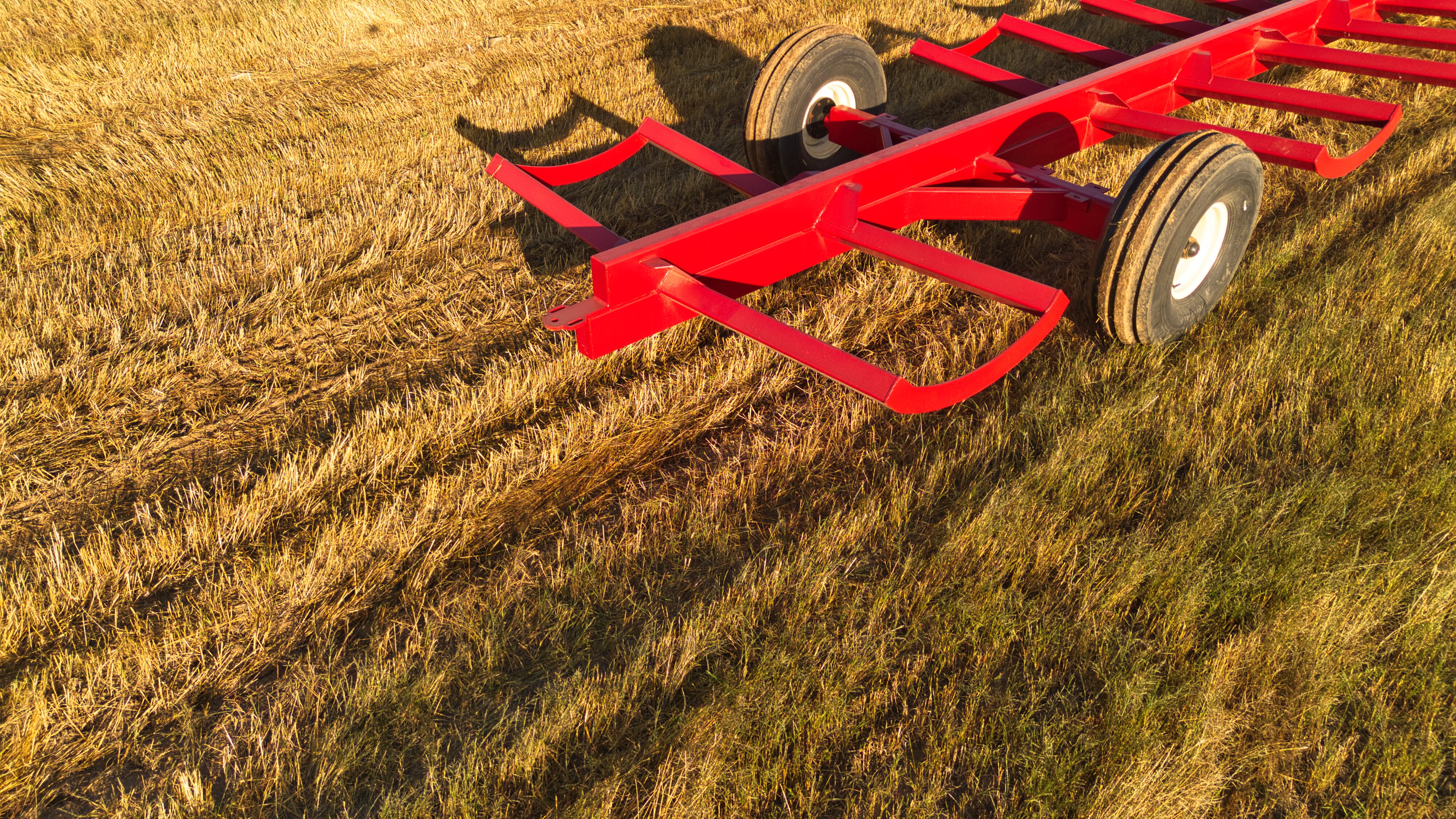

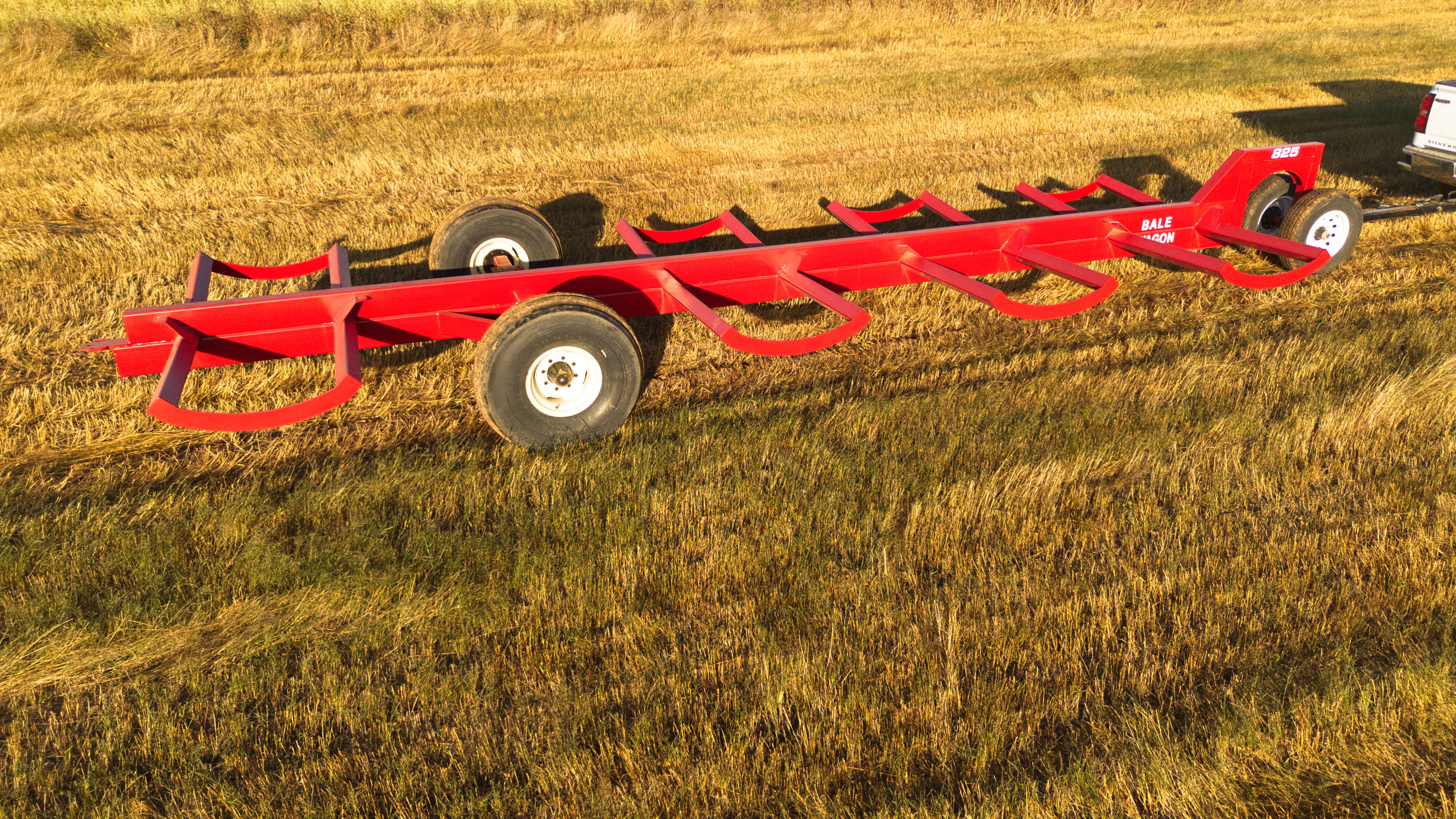

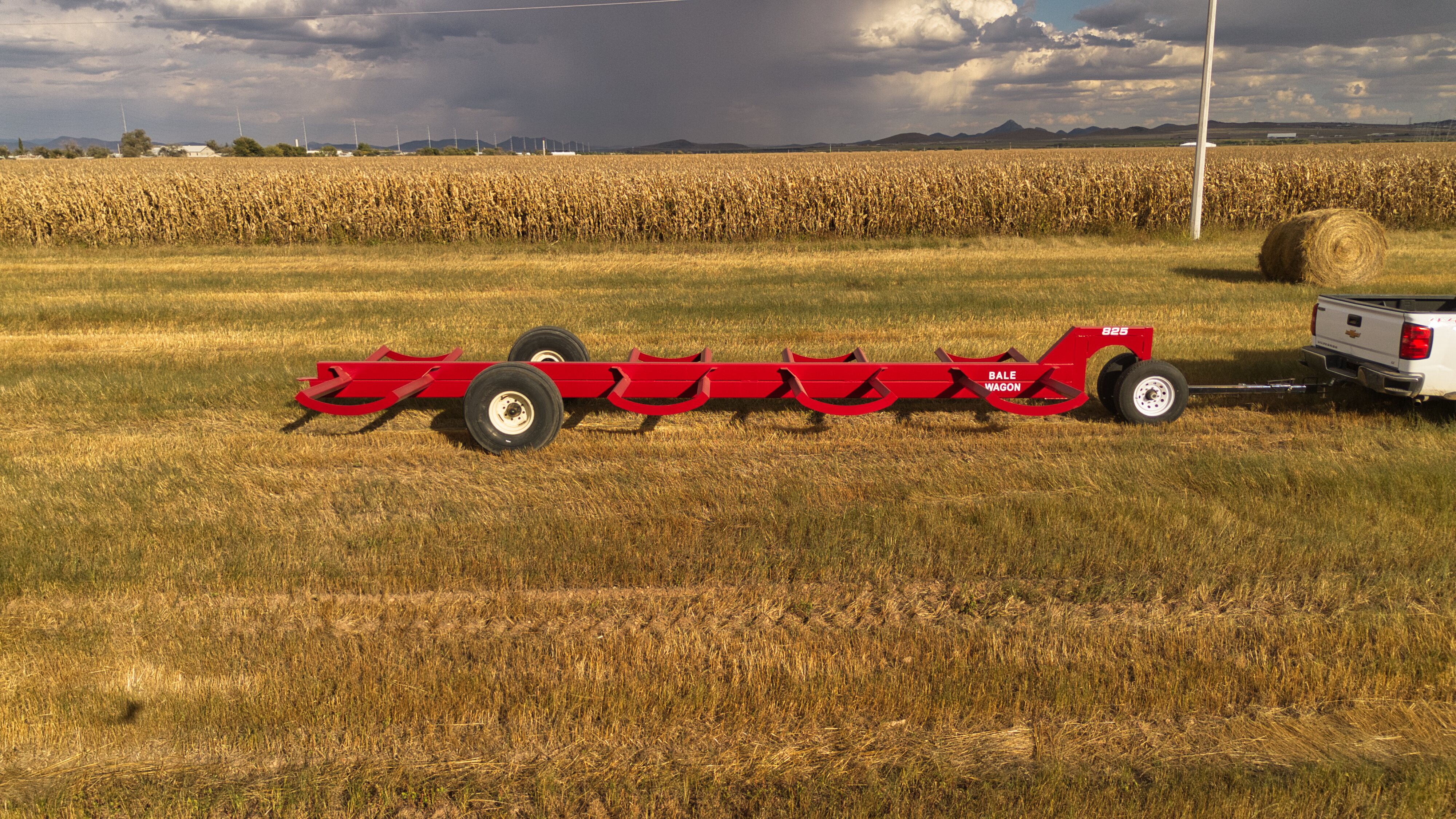

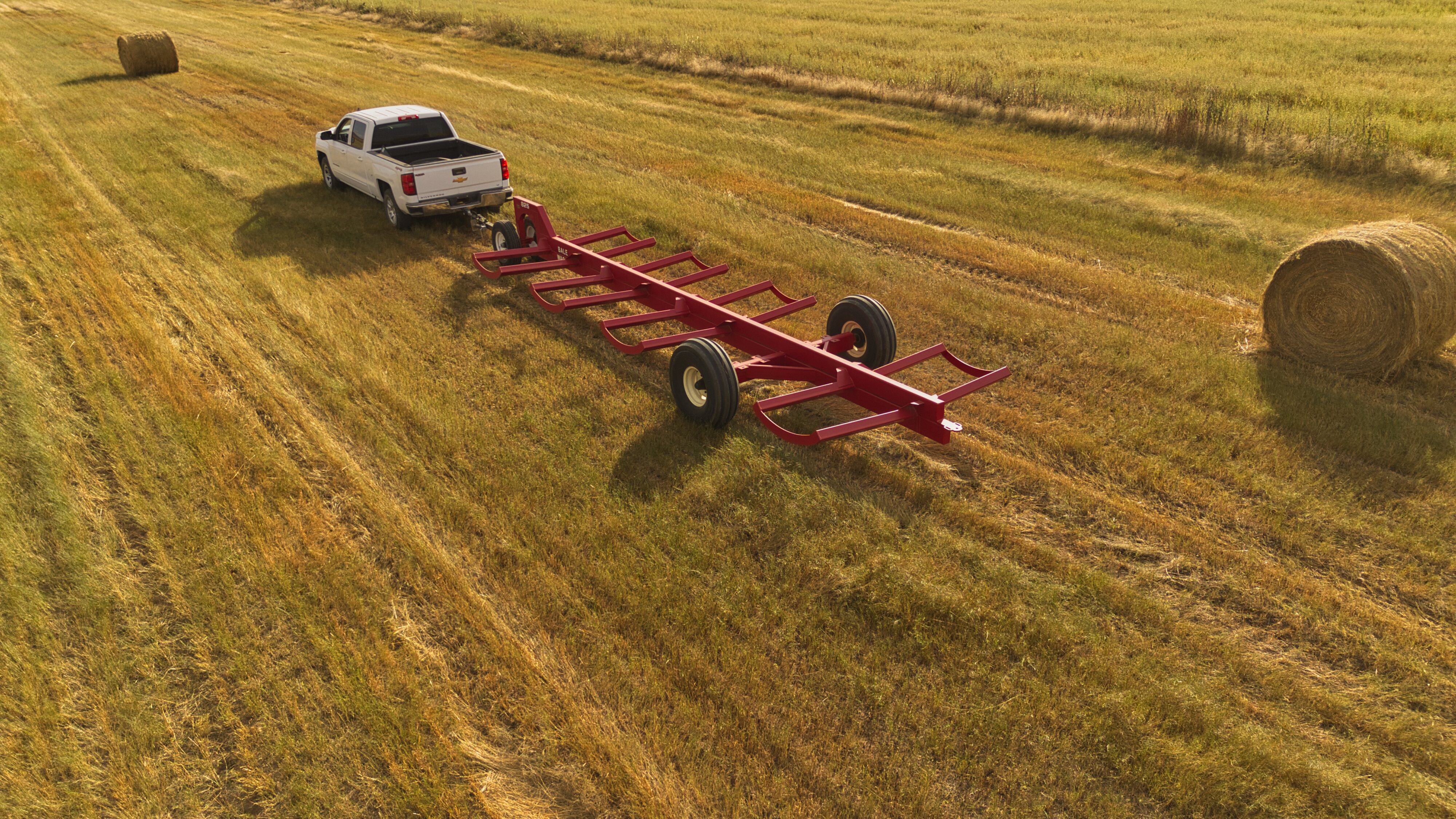

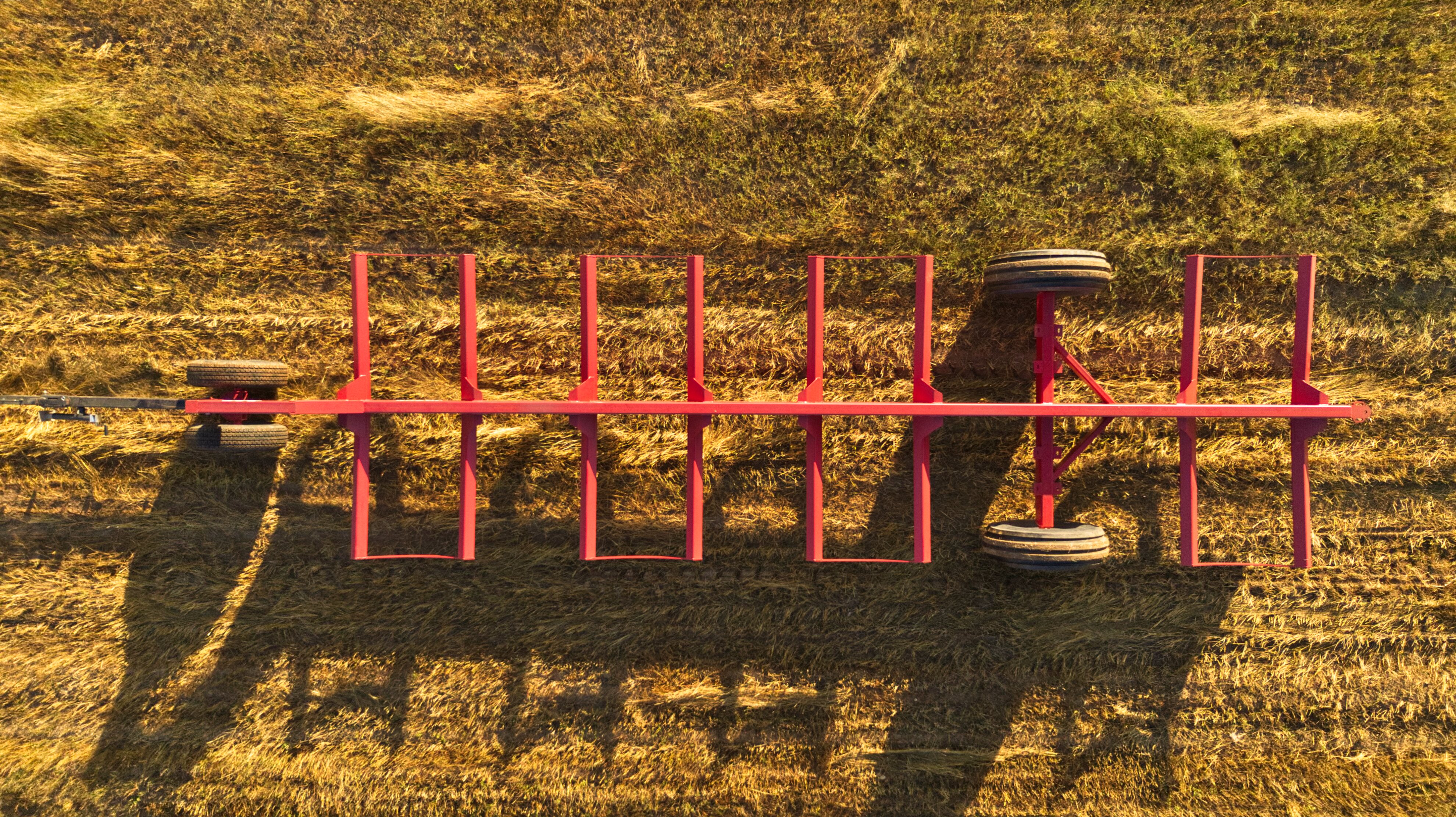

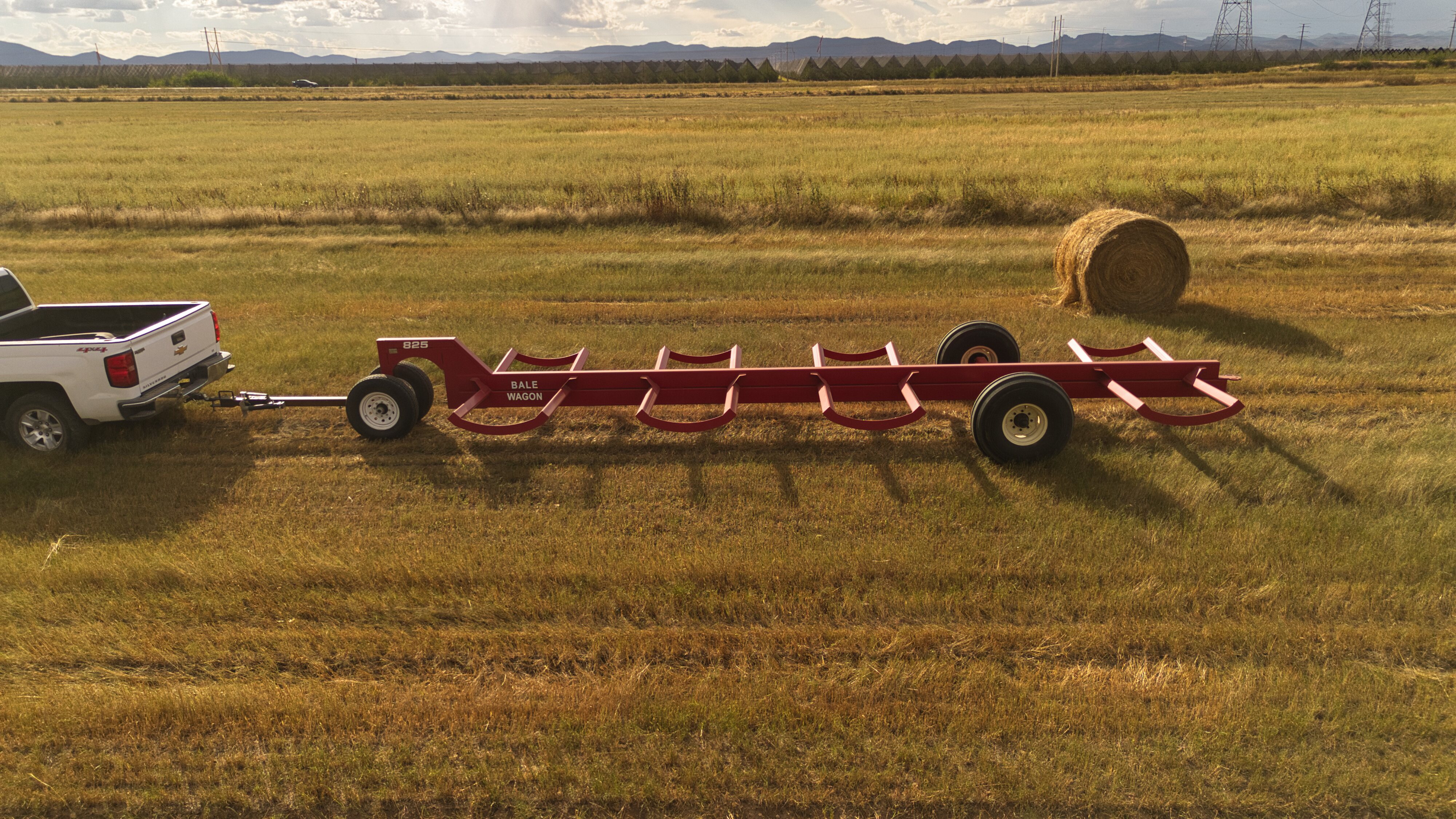

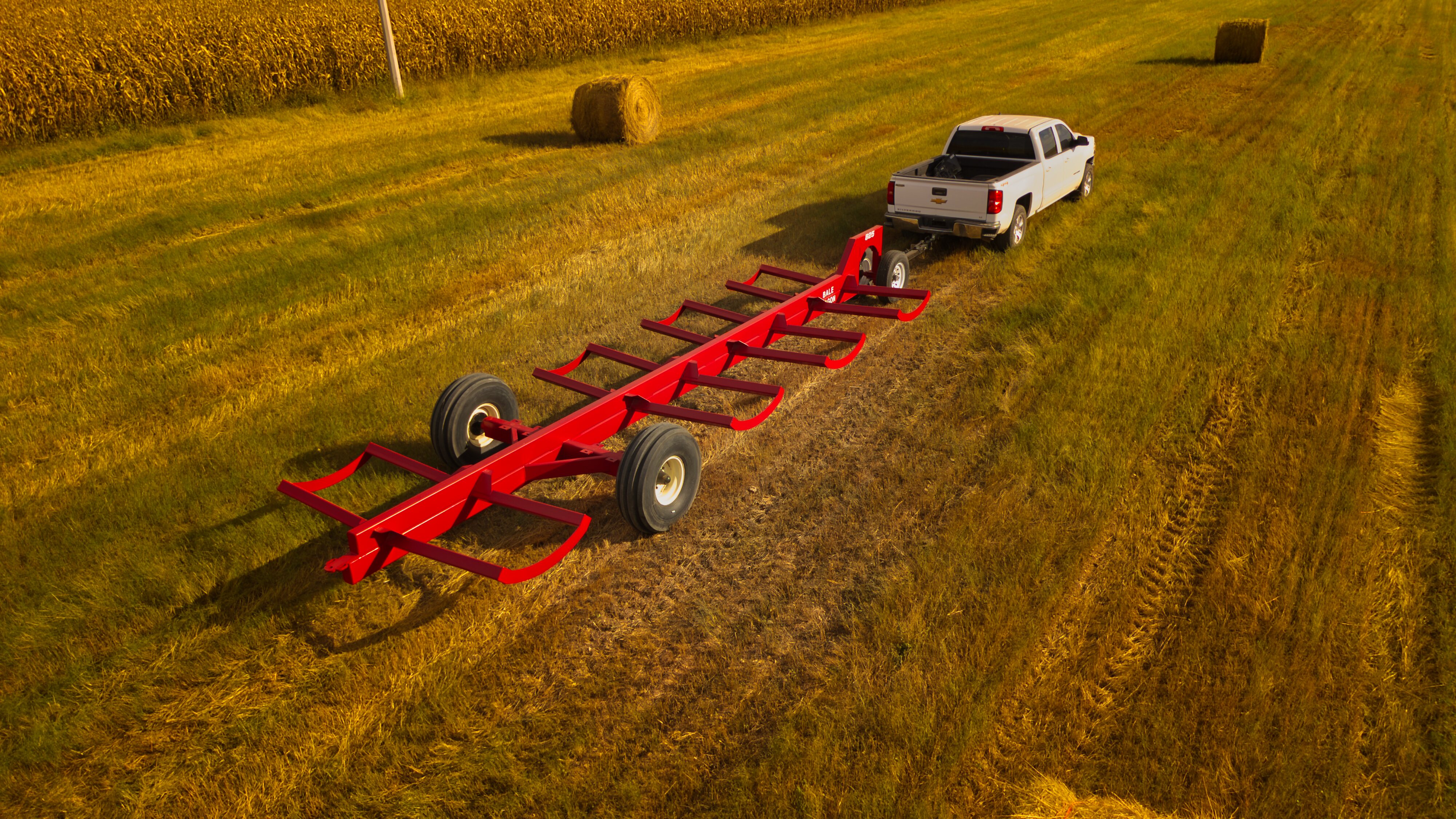

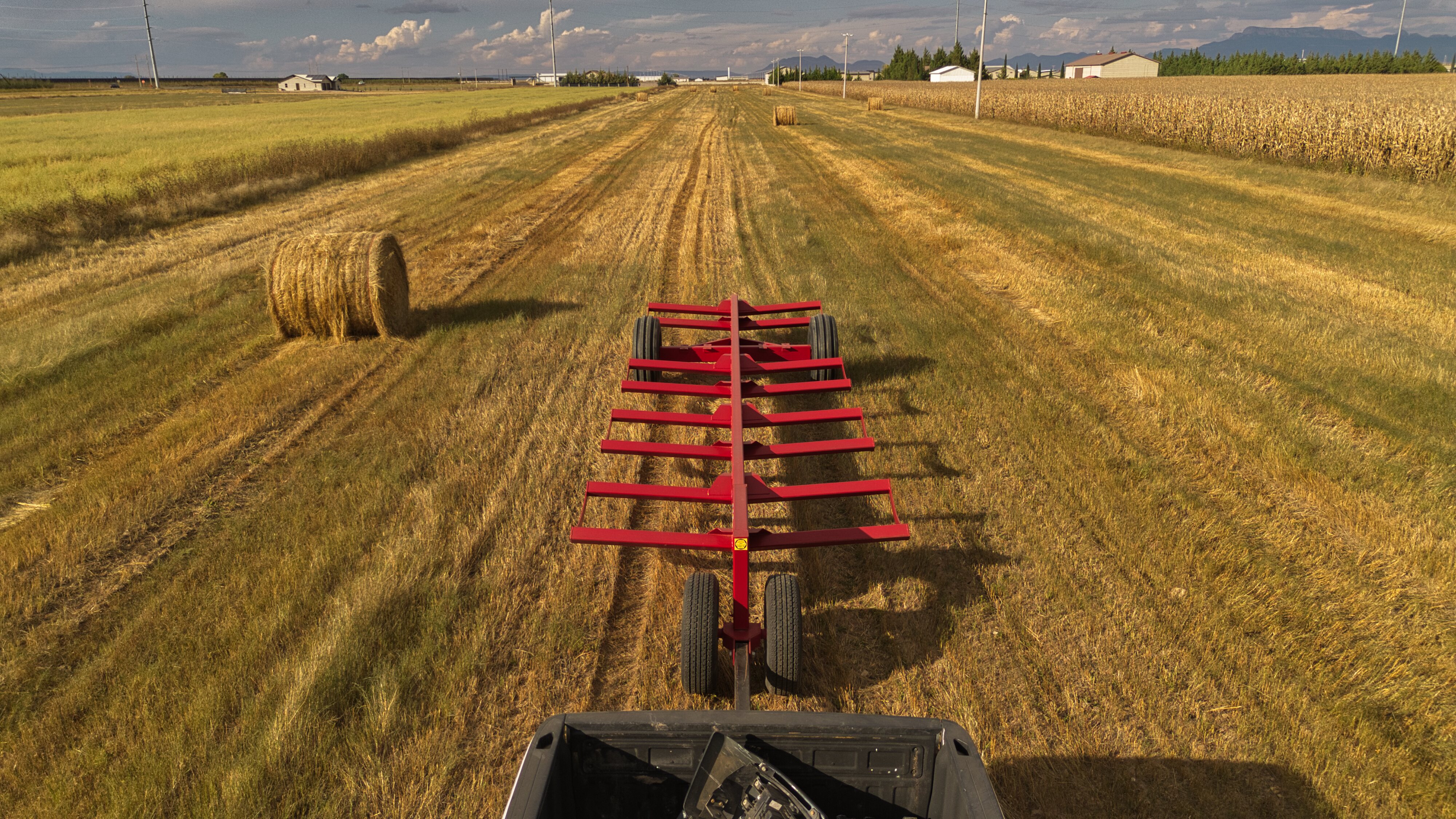

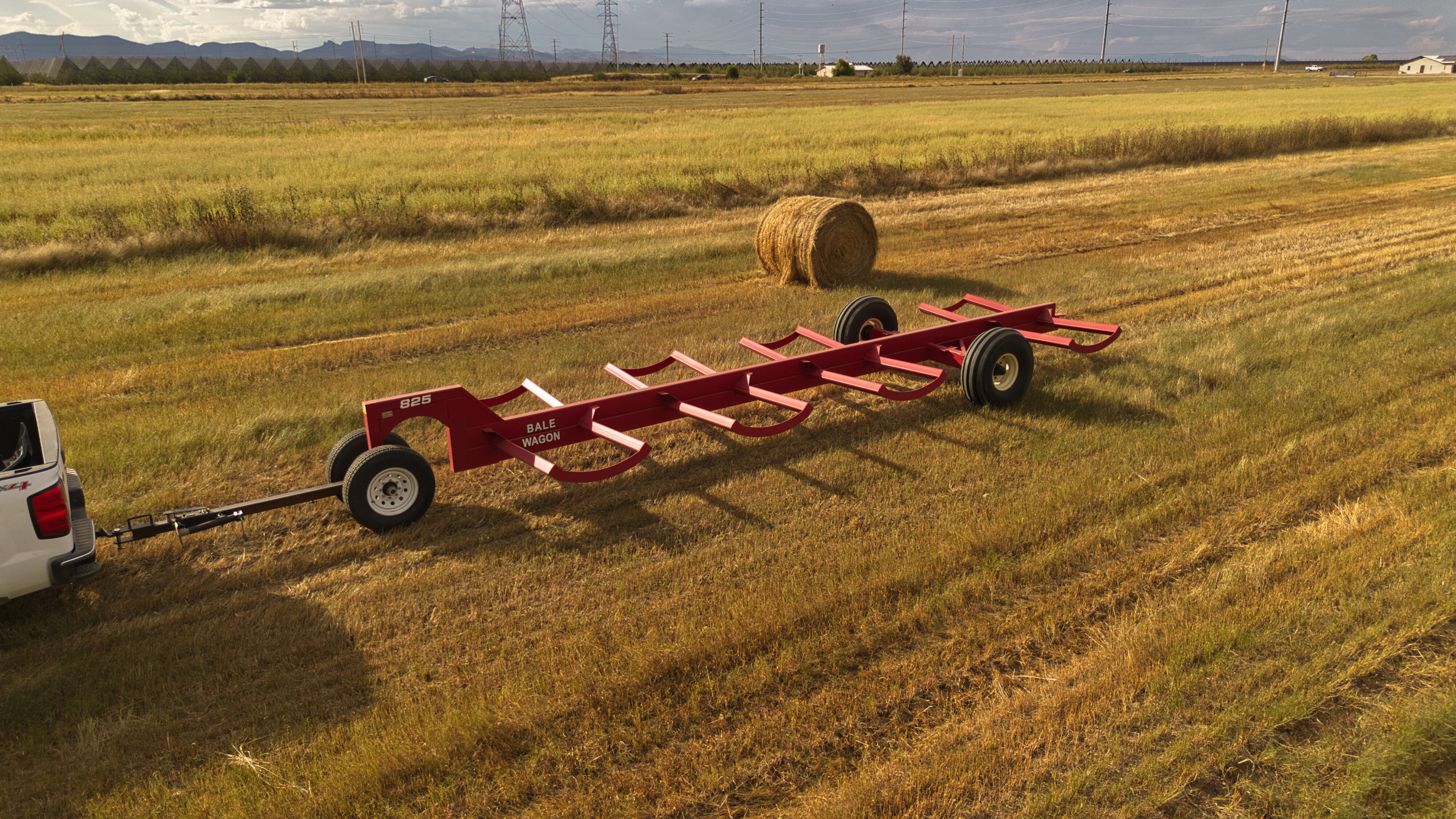

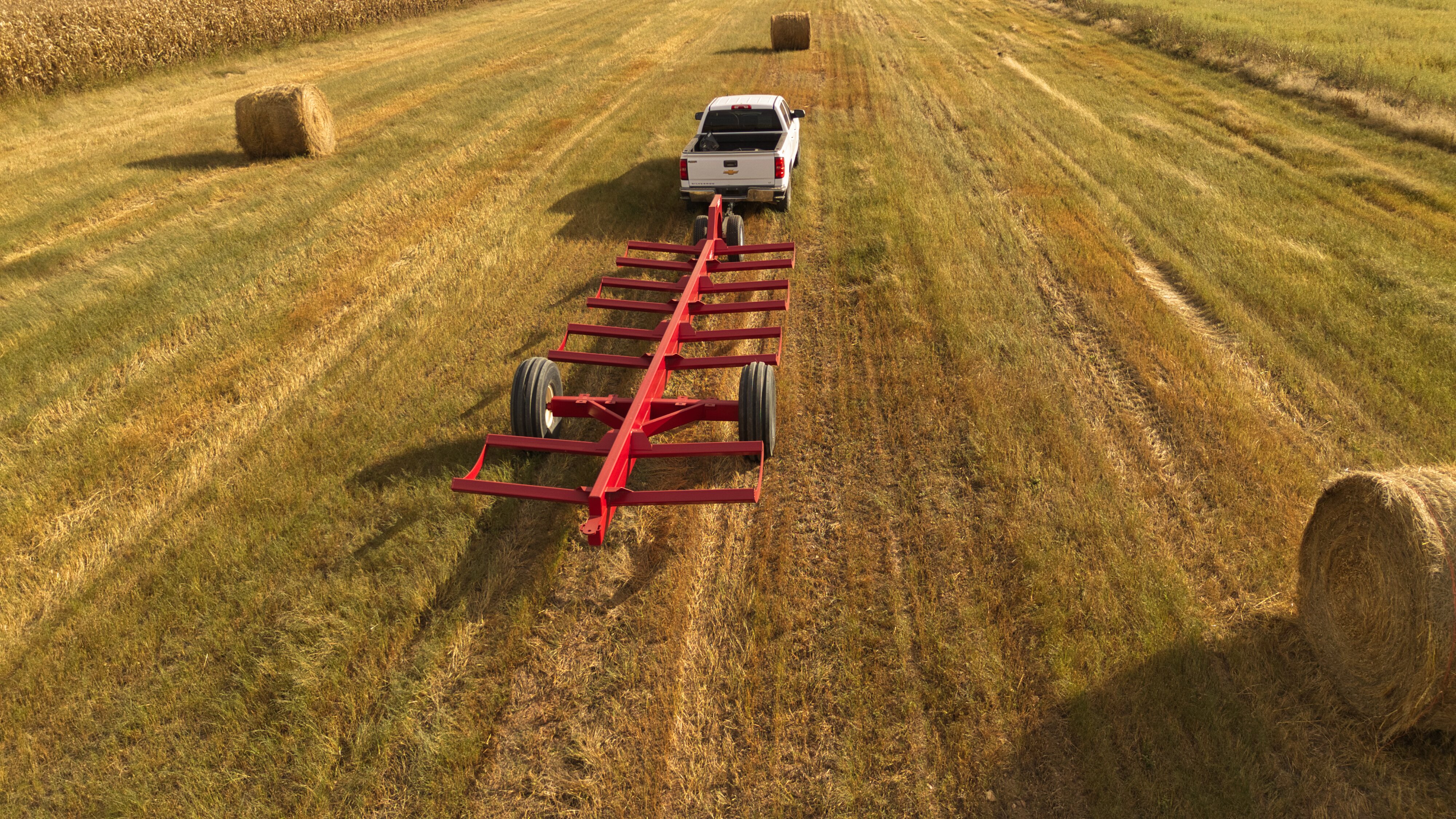

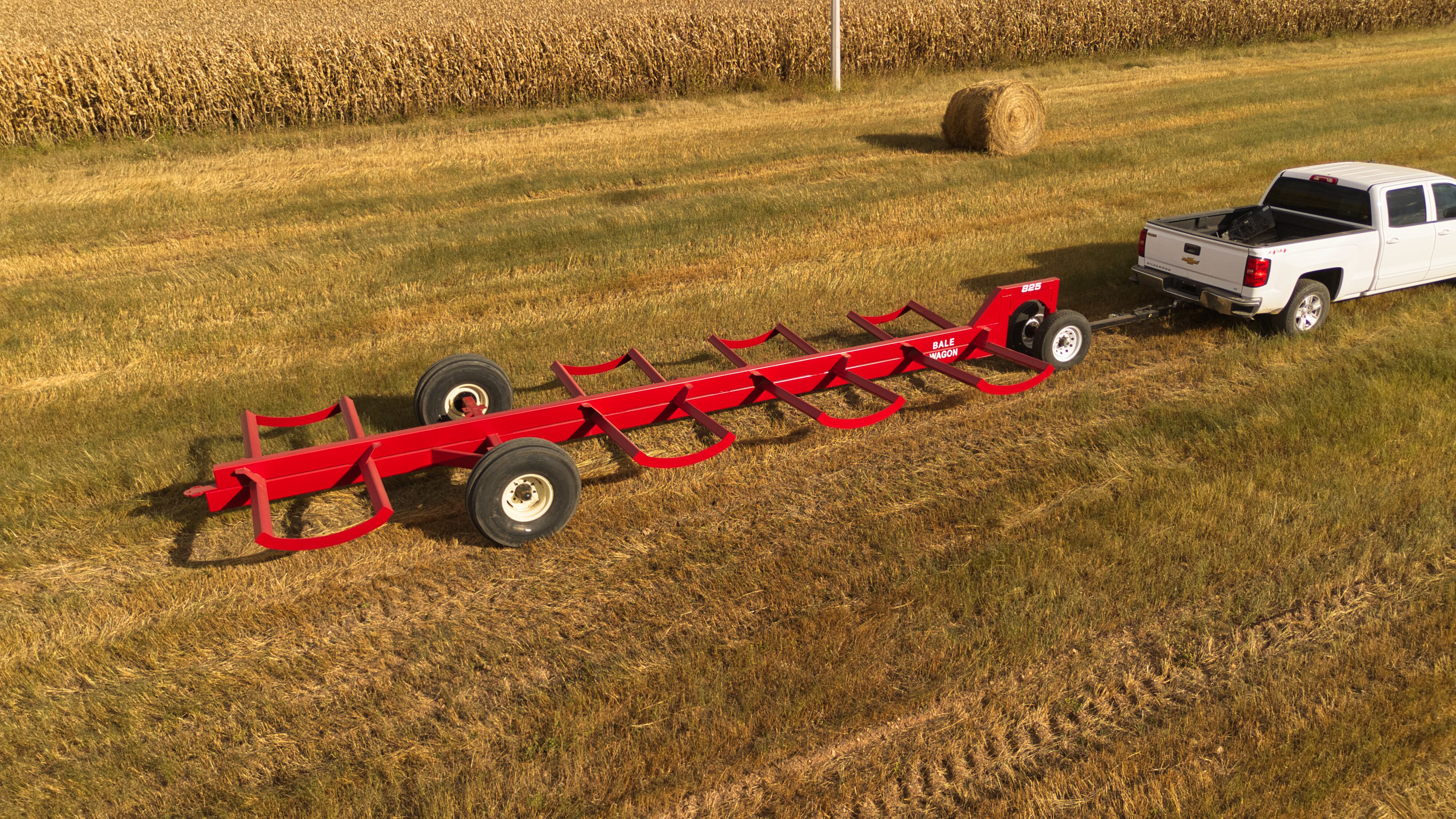

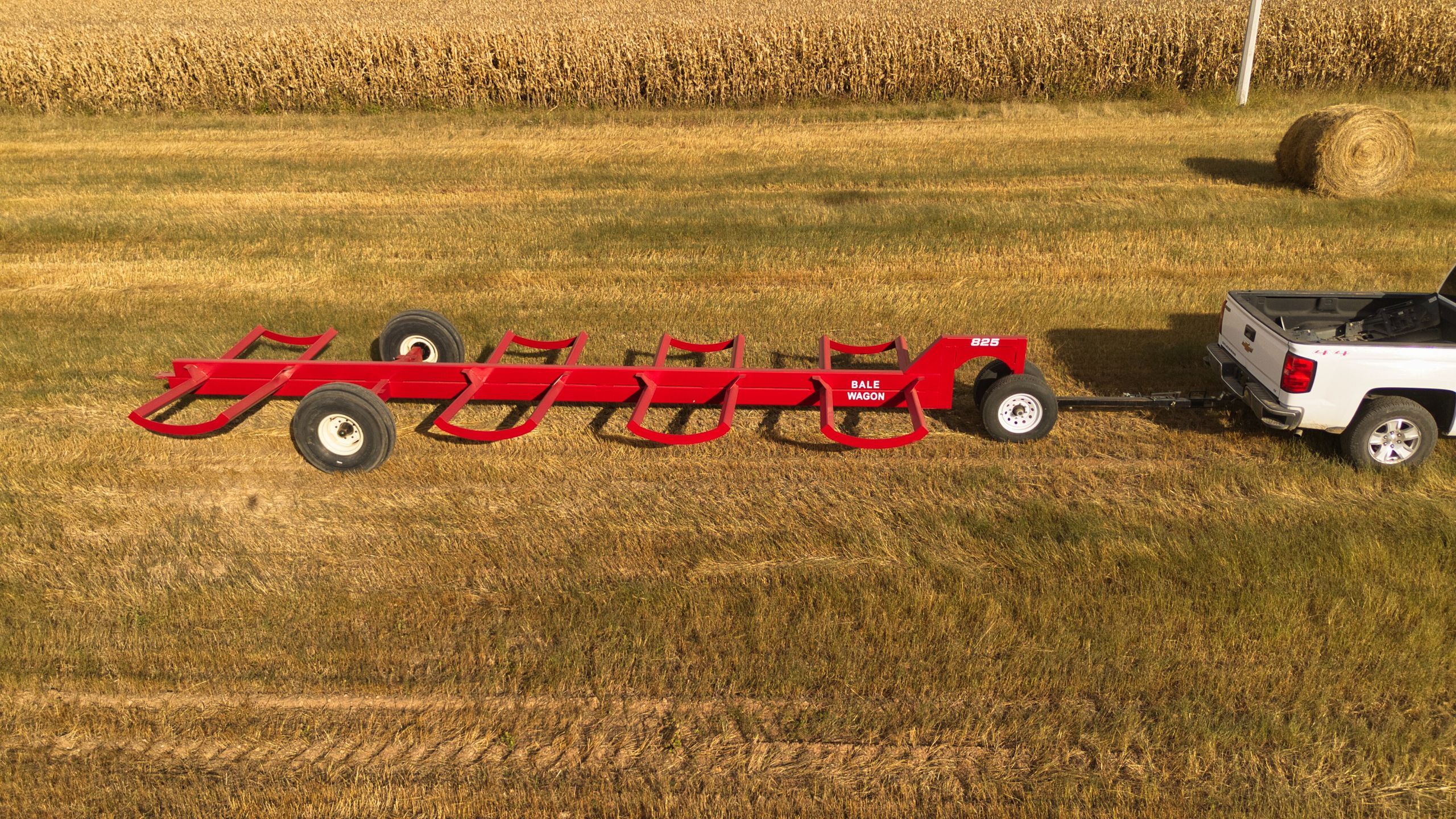

The Industrias America B10P is a perpendicular-load bale wagon built for efficient hay transport across the field. It’s engineered to carry 10 round bales on the lower row and up to 14 bales total when stacked using the optional over-wheel cradle extension. Built from two 4"×8" high-strength tubular steel beams stacked on top of each other, the B10P offers exceptional rigidity and frame durability for demanding field conditions. This simple, low-maintenance design has no hydraulics, lights, or brakes — keeping it lightweight, reliable, and easy to service. The wagon connects through a mini gooseneck and front dolly system using a telescopic pin-through hitch, the same proven setup used on Industrias America’s header and feeder wagons. Its manual roll-off system allows quick unloading by simply tilting or rolling the bales from the cradle, making it ideal for on-farm use and short-distance transport.
