Specifications
| Feature | Description |
|---|---|
| Header Capacity (ft) | 42 |
| Total Length (ft) | 50.5 (including gooseneck, dolly, and telescopic hitch) |
| Overall Width (in) | 116 |
| Frame Material | Steel |
| Main Frame Size | 8x4 |
| Incline Frame Design | Incline |
| Number of Brackets | 4 |
| Bracket Type | Adjustable |
| Axle Type | Fixed |
| Axle Quantity | 2 |
| Axle Rating (lbs) | 7,000 each |

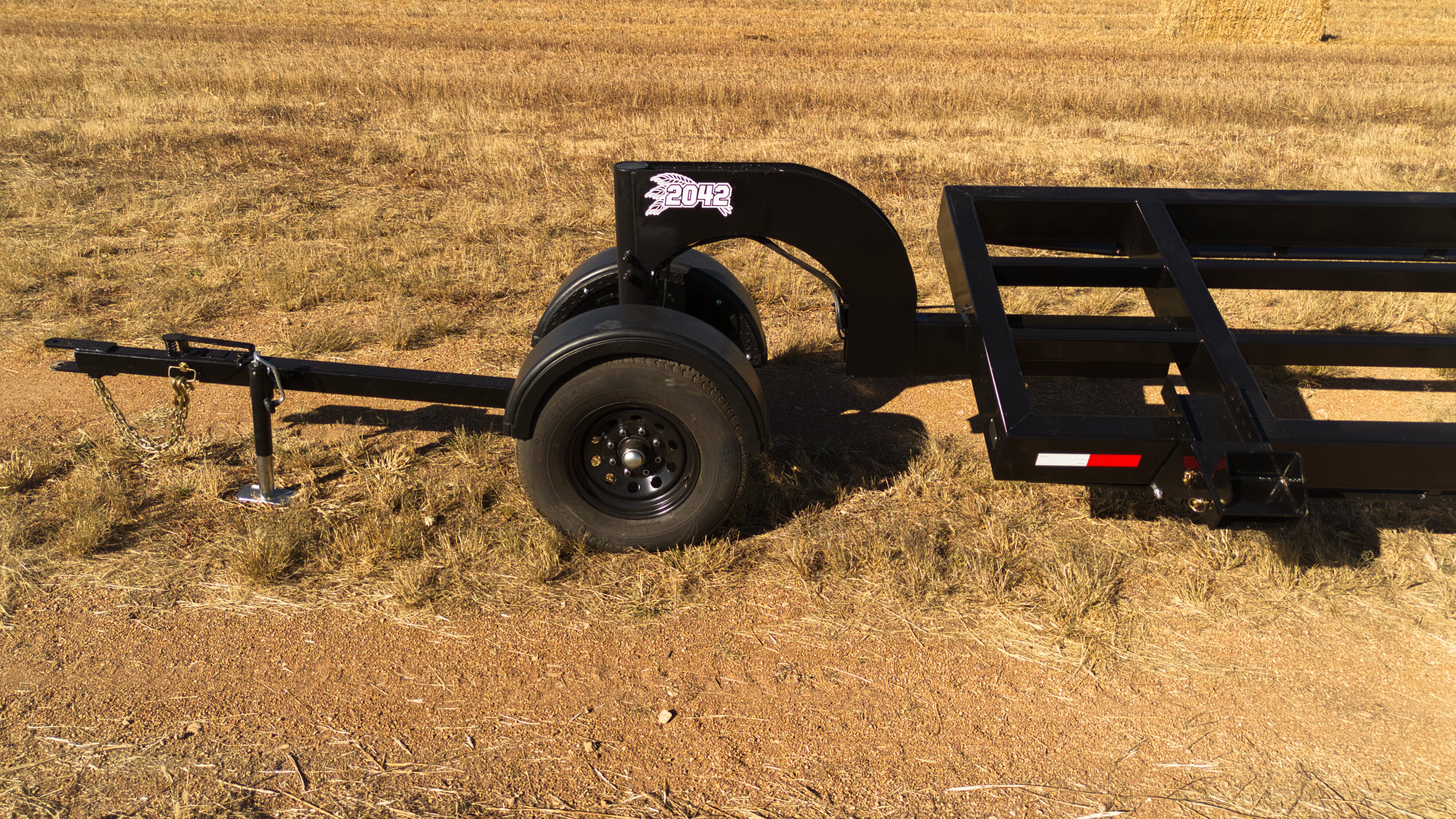

| Dolly Type | Swivel front dolly with plastic fenders and 6.5'–10.5' telescopic hitch |
| Dolly Axle Rating (lbs) | 7,000 |
| Wheel / Tire Size | ST235/80R16 |
| Tire Ply Rating | 10-ply (16-ply optional) |
| Brakes | None |
| Lights | Rear lights |
| Shipping Weight lbs | 4,708 lbs |
| GVWR (lbs) | 21,000 |

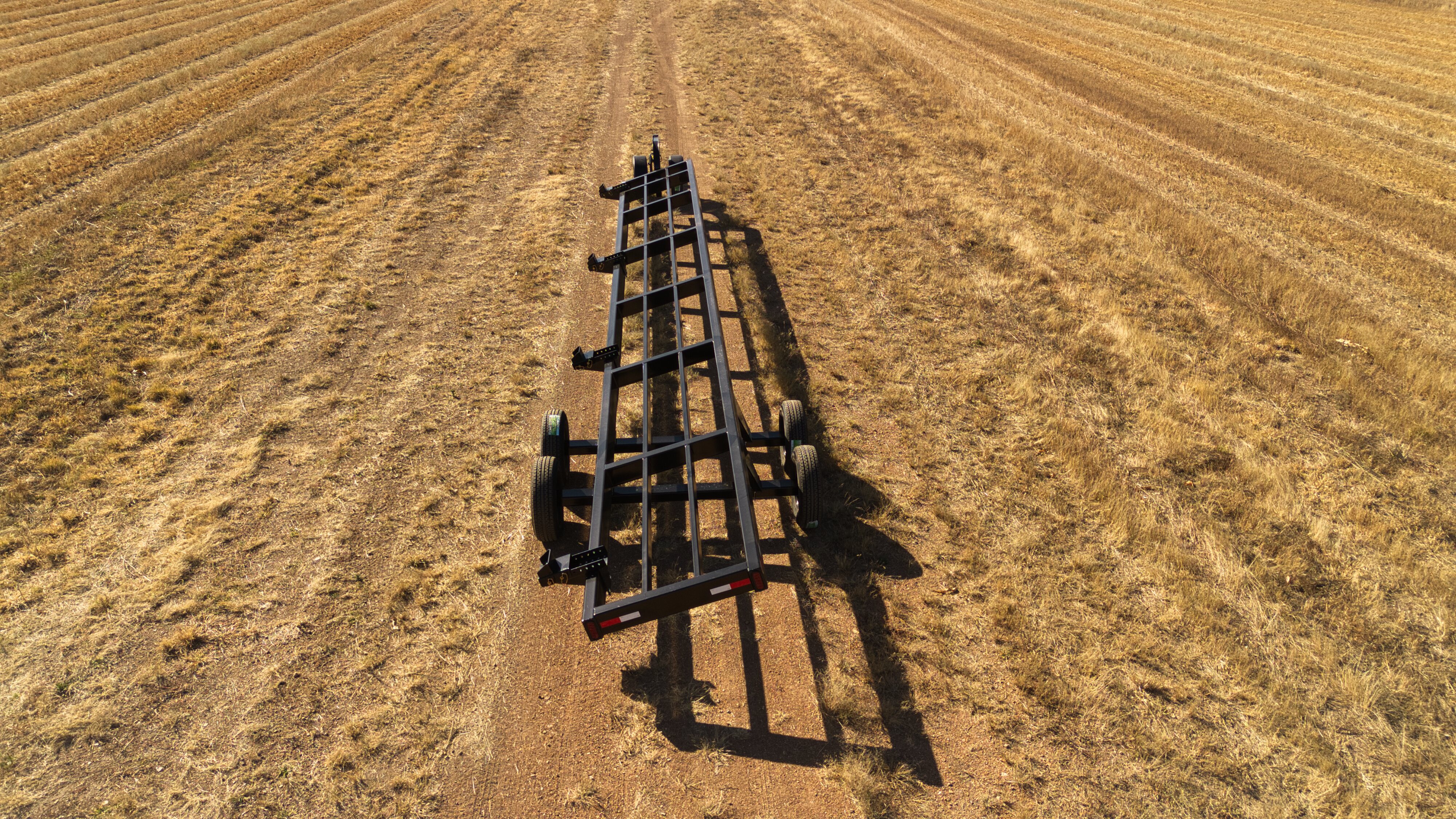

The 2042 adds a little more length to handle 42’ heads while keeping the same rugged 8x4 frame and dual 7k axles used throughout the 20-Series. It’s aimed at growers who need a “real” heavy trailer, not just a light cart stretched too far. With rear lights, plastic fenders on the dolly, and the telescopic hitch, it’s surprisingly easy to live with day to day, yet still stout enough for larger headers. Adjustable brackets ensure the header is supported properly without twisting the frame.
