Specifications
| Feature | Description |
|---|---|
| Model / Size | 0840 — 8’4” working width |
| Transport Width | 9’6” |
| Drum | 10” diameter steel drum with 40 loose-mounted cast iron notched rings (2.5” width) |
| Frame Construction | Heavy-duty tubular PTR steel, welded |
| Bearings | P210 sealed pillow block bearings |
| Weight | 890 kg (1,962 lb) |
| Weight per Foot | 106.8 kg/ft (235.5 lb/ft) |
| Recommended HP | 30–46 HP |
| Transport System | Hydraulic 3×8 cylinder with 2 × ST225/75R15 wheels |
| Optional Features | Gooseneck hitch (extra cost) |
| Finish | Industrial-grade powder coat |

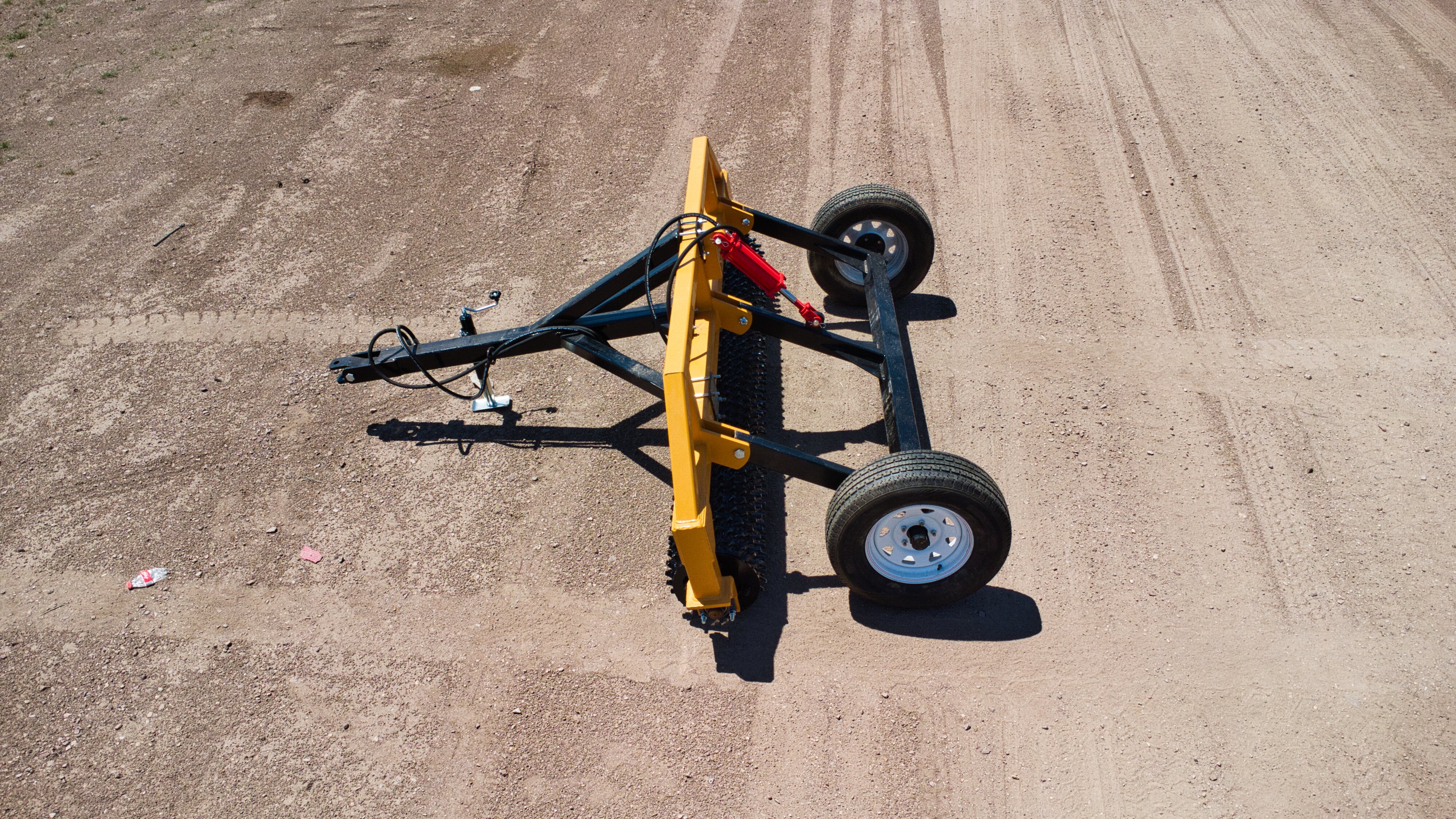

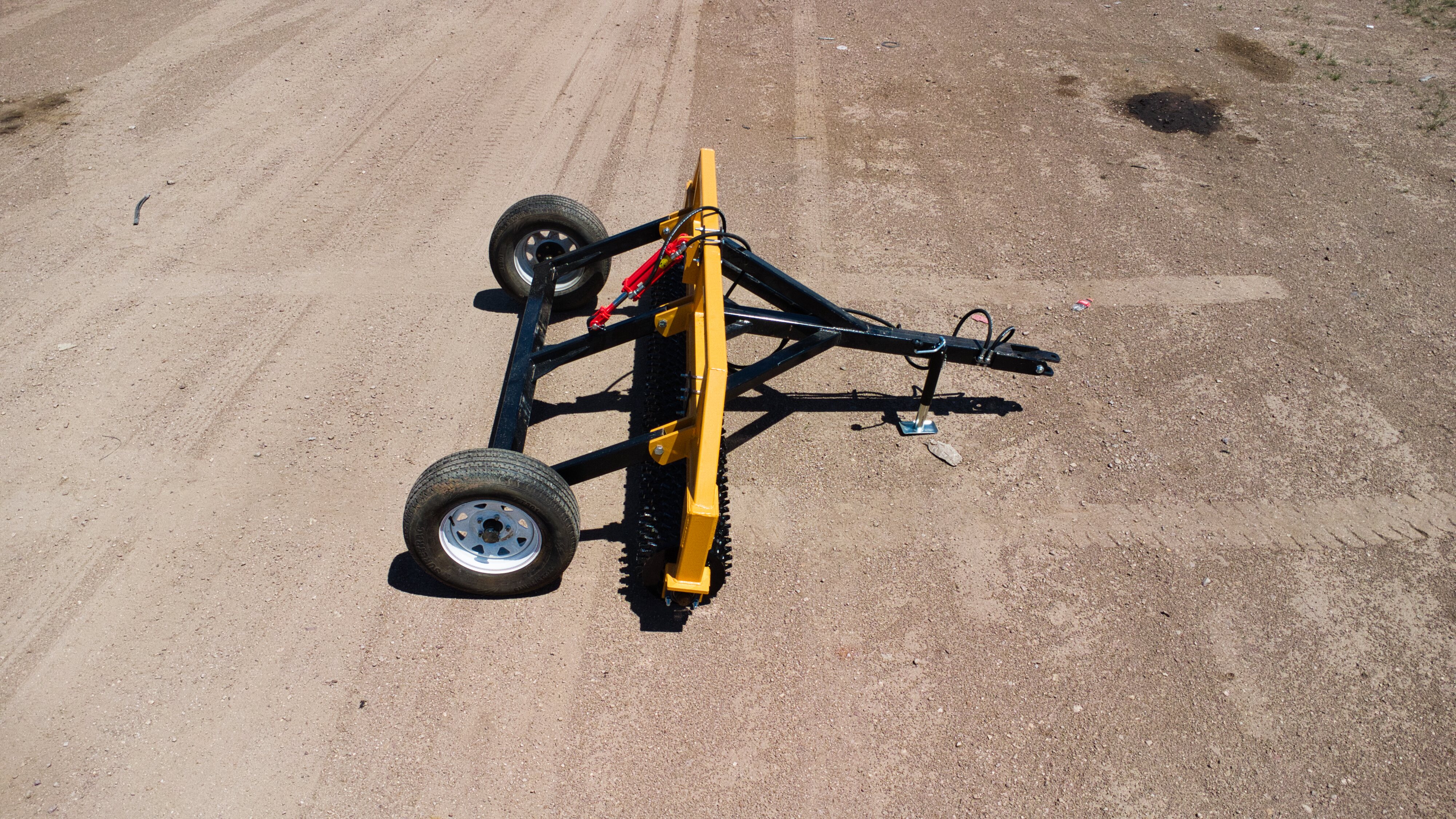

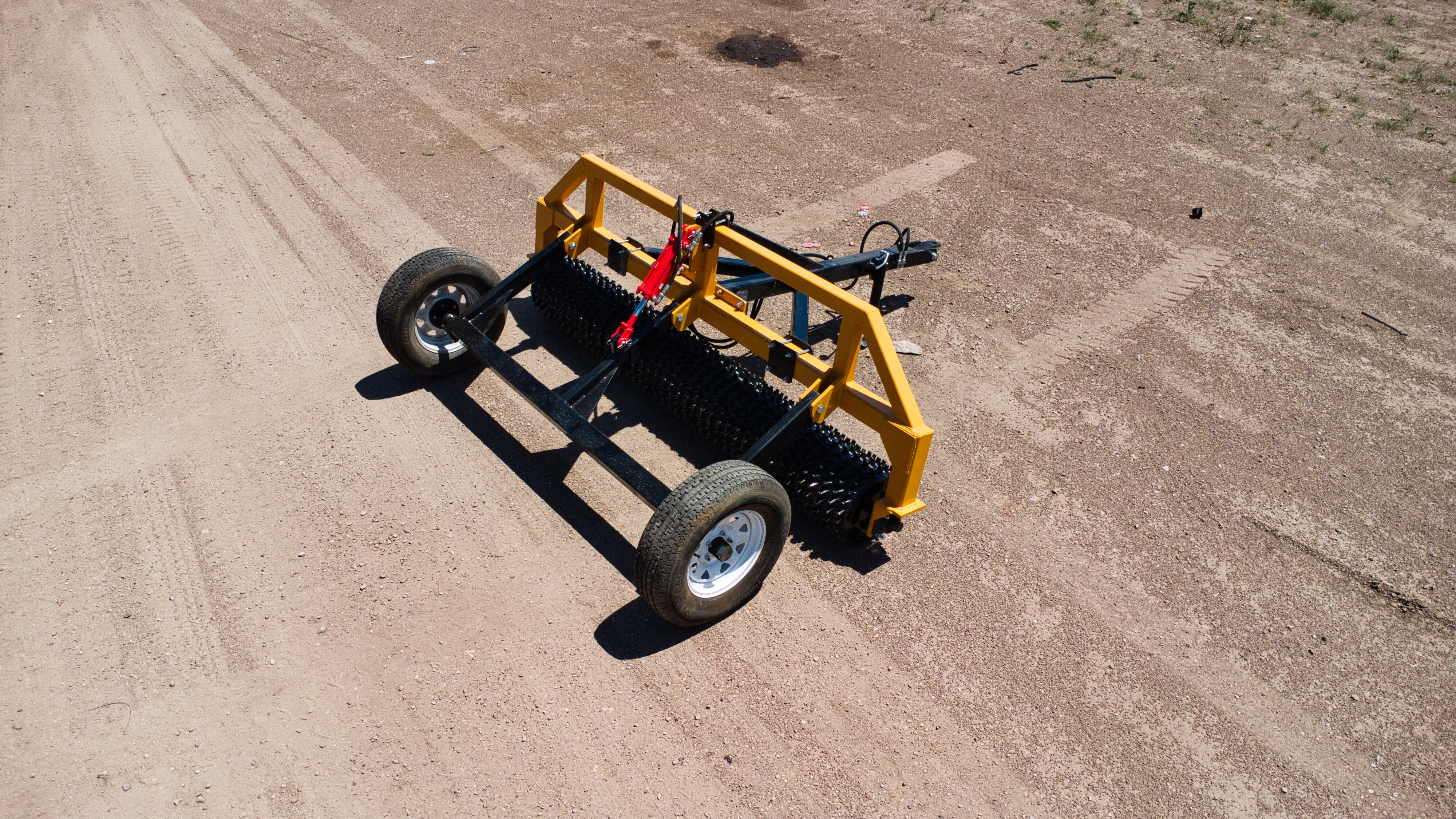

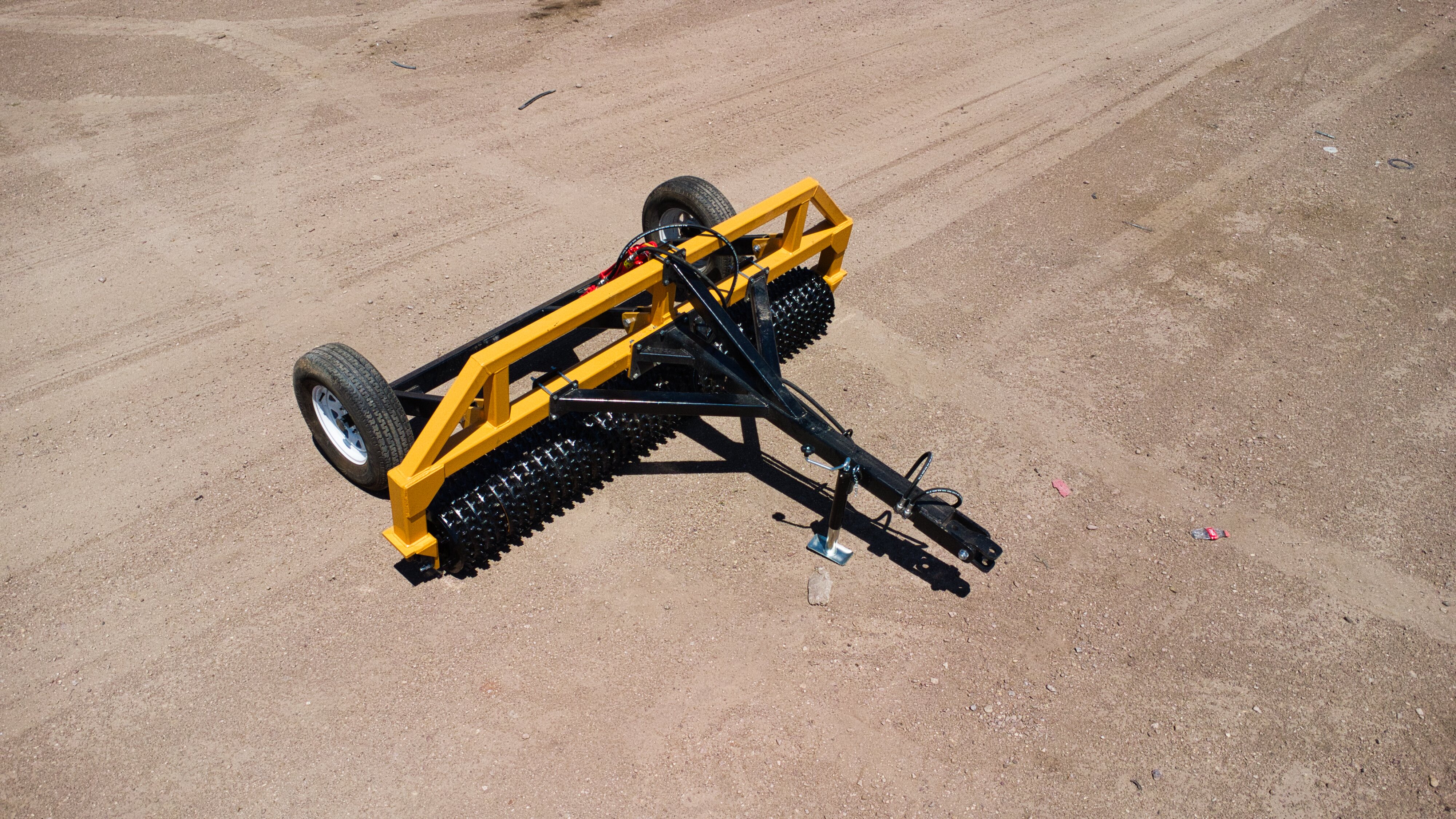

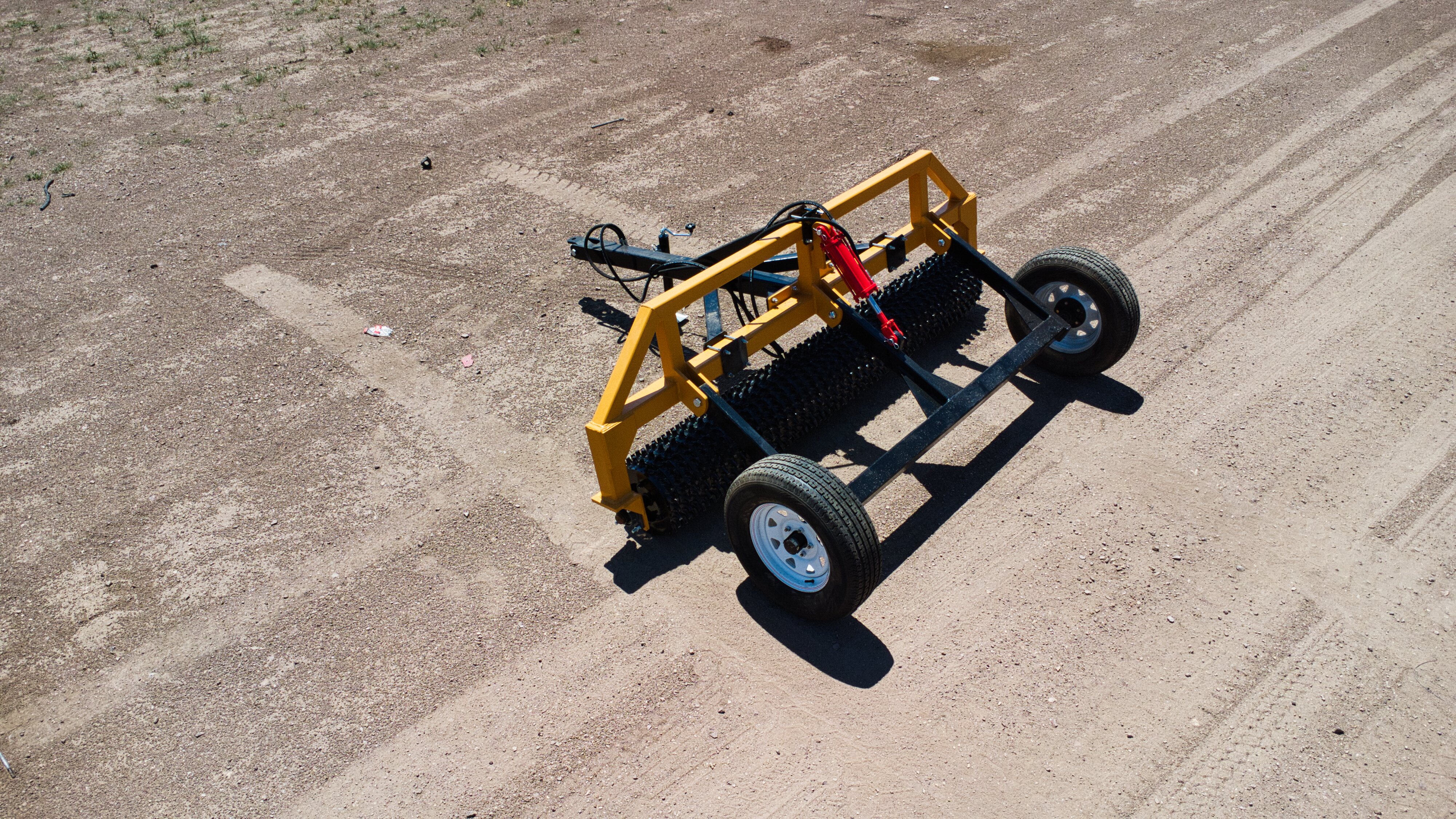

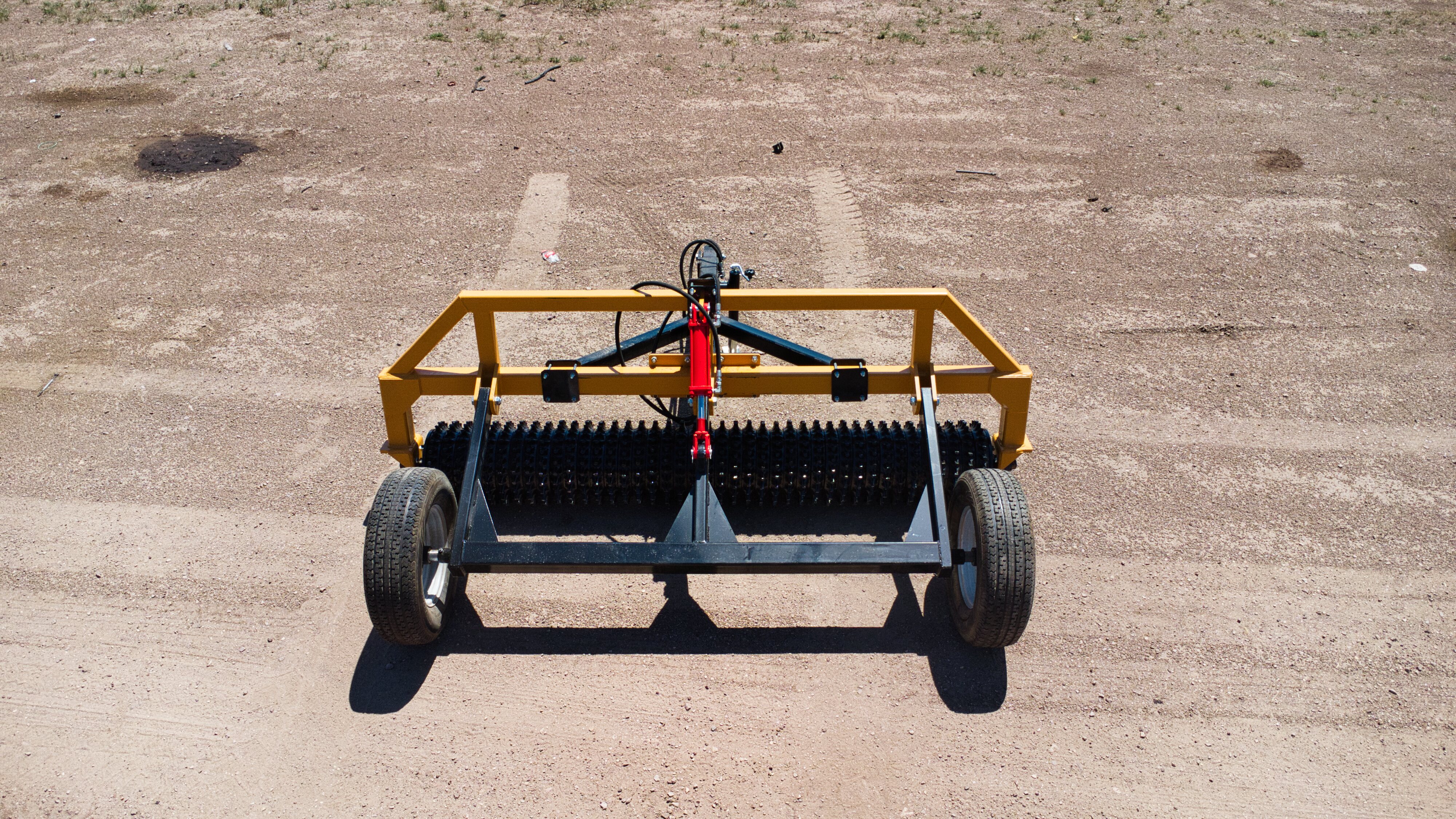

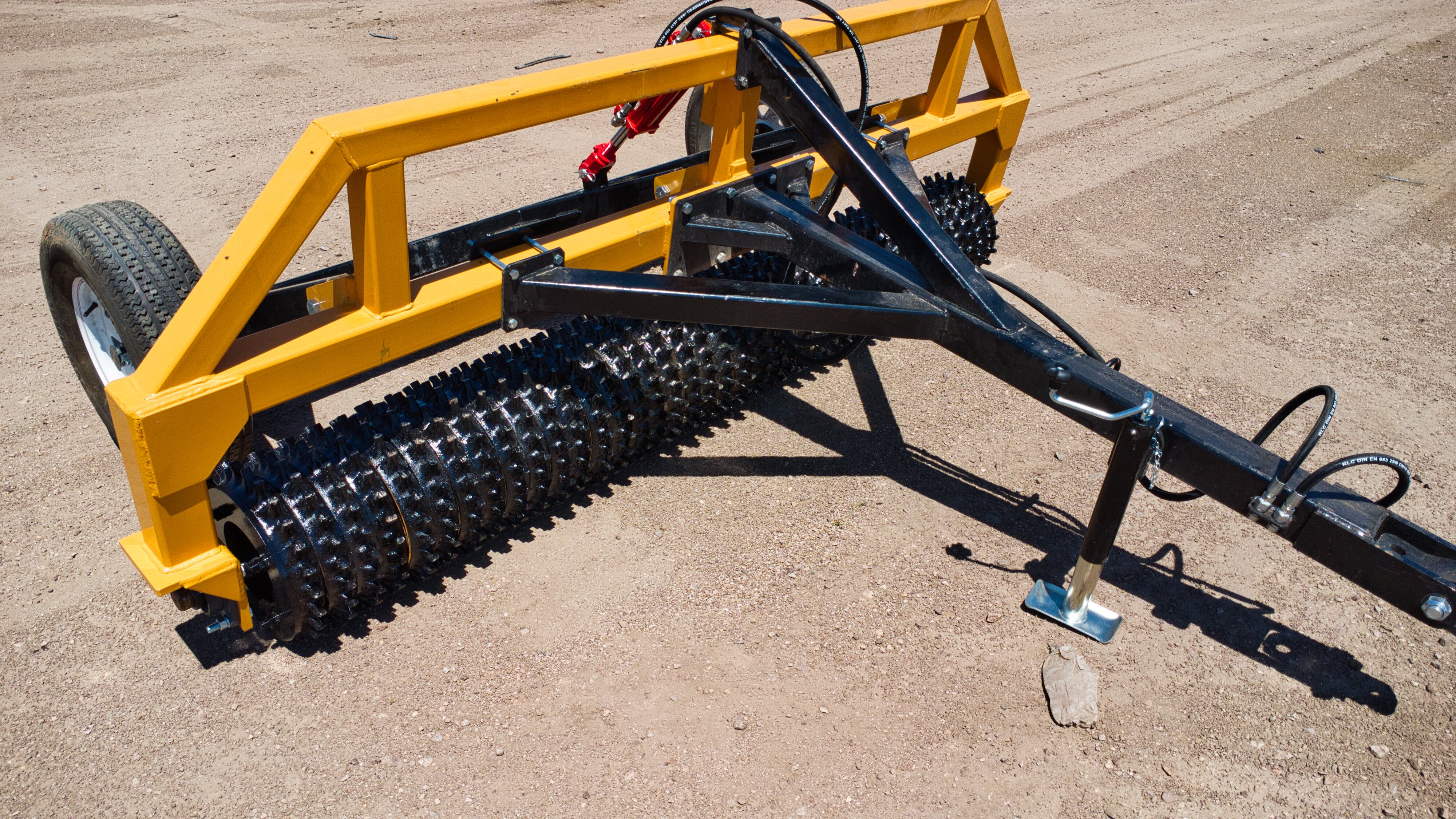

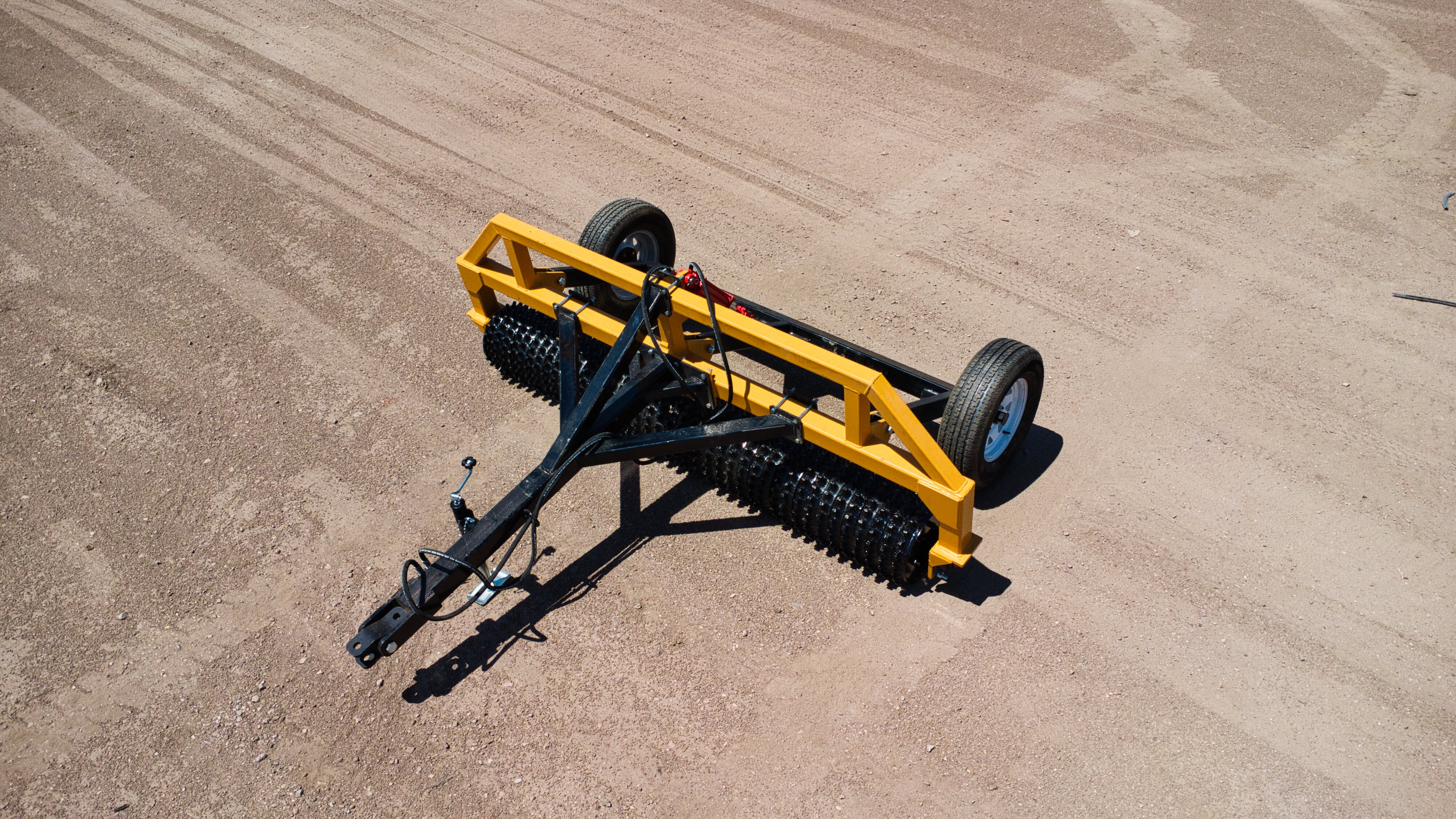

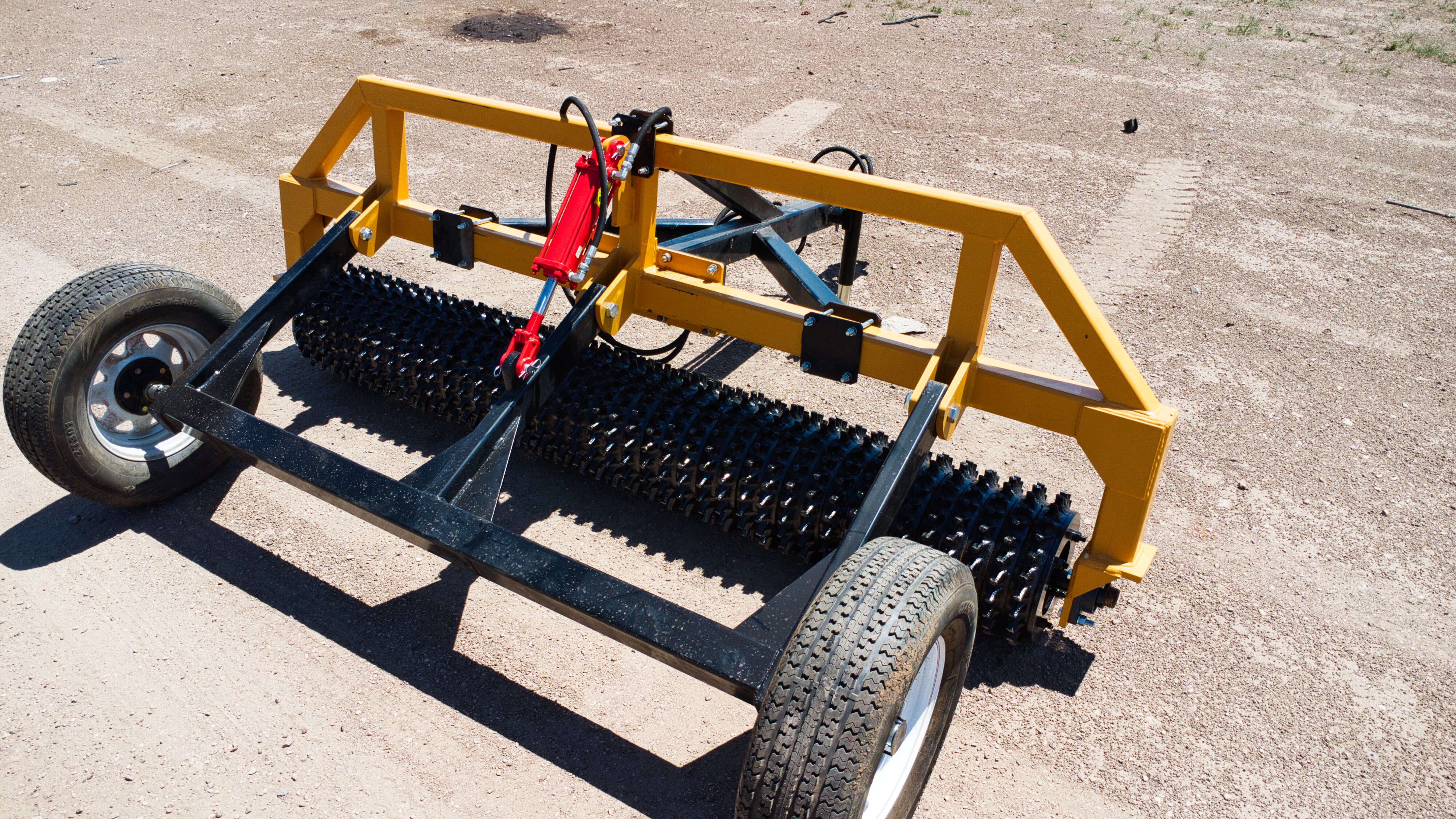

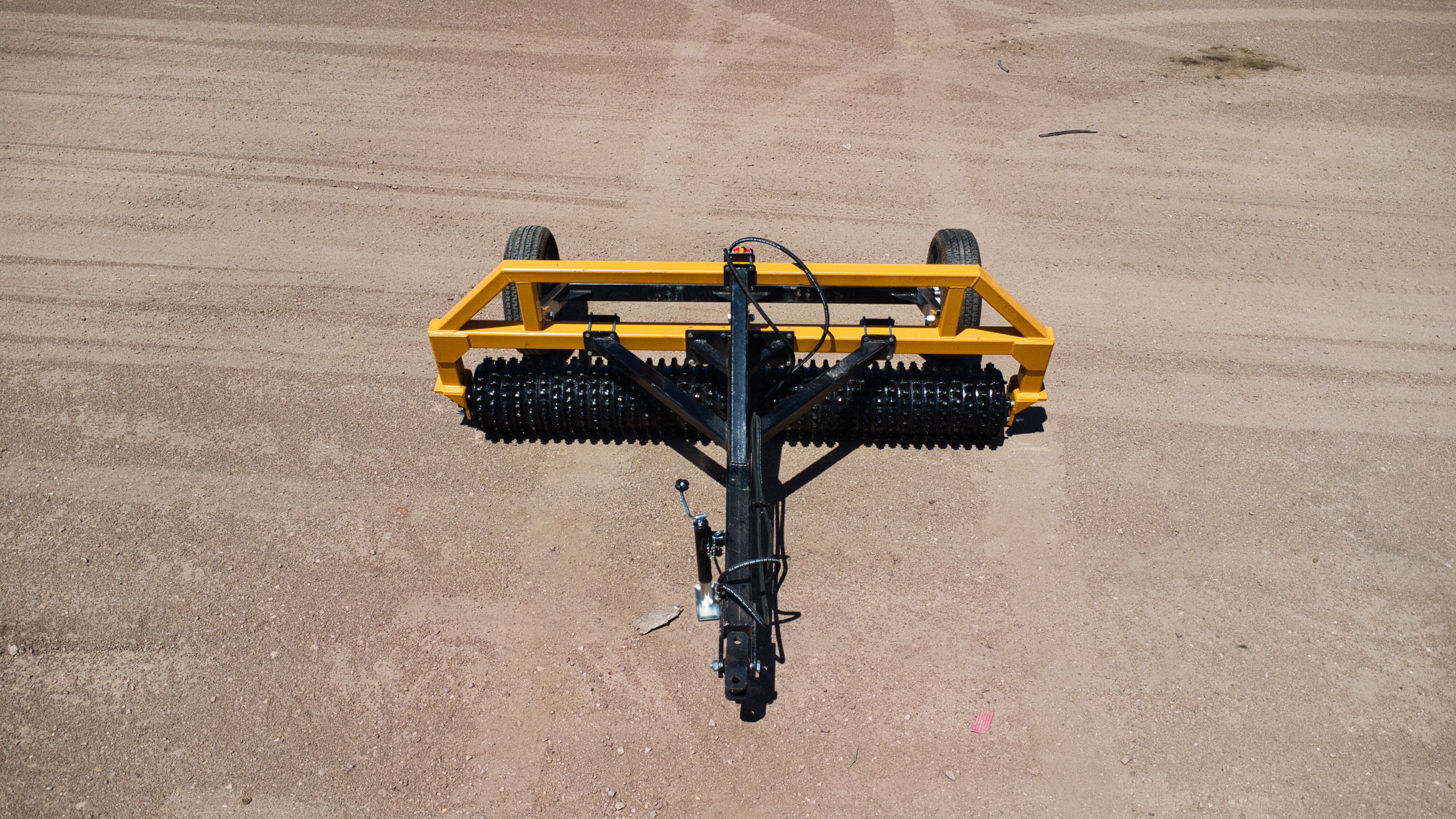

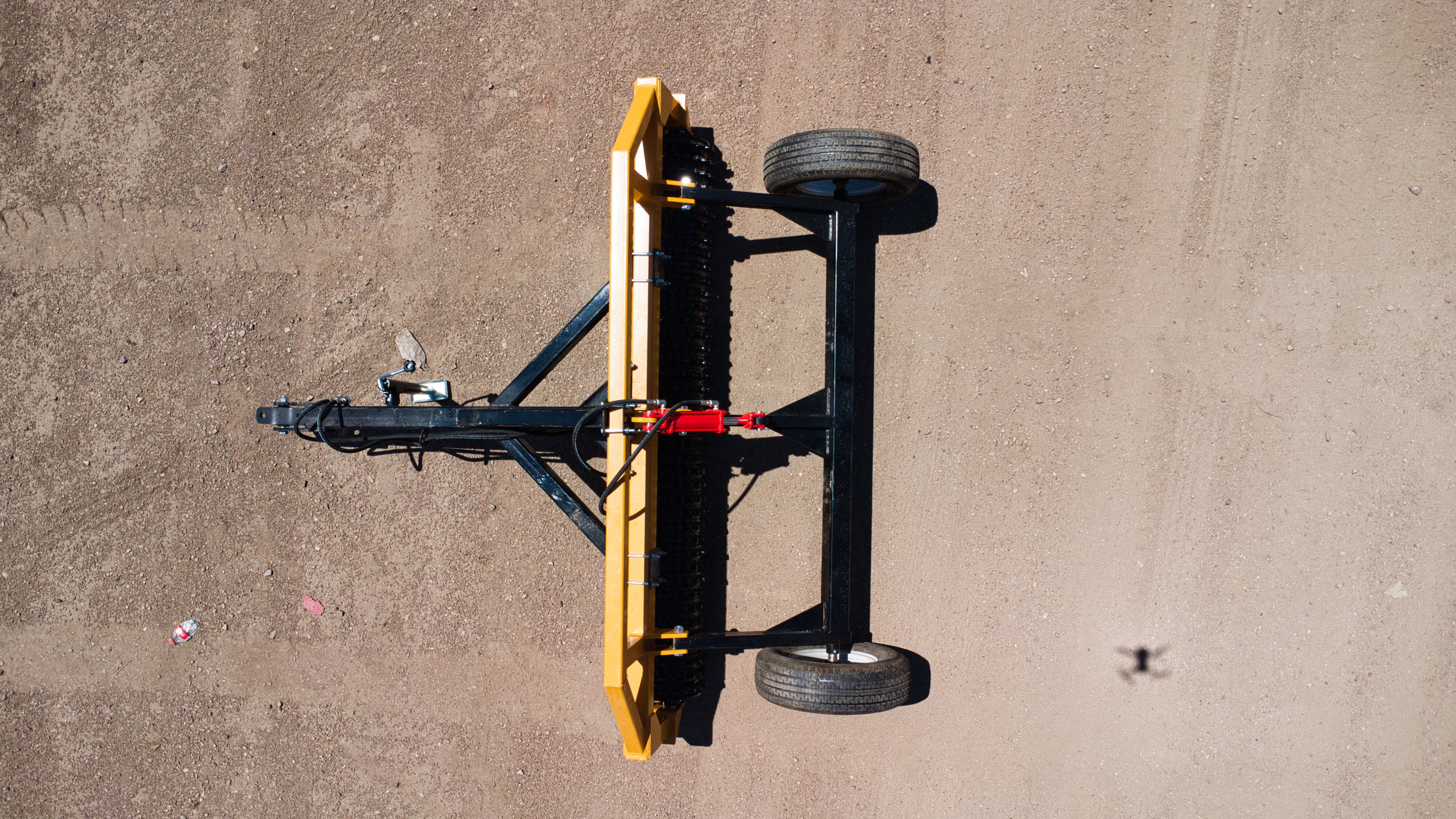

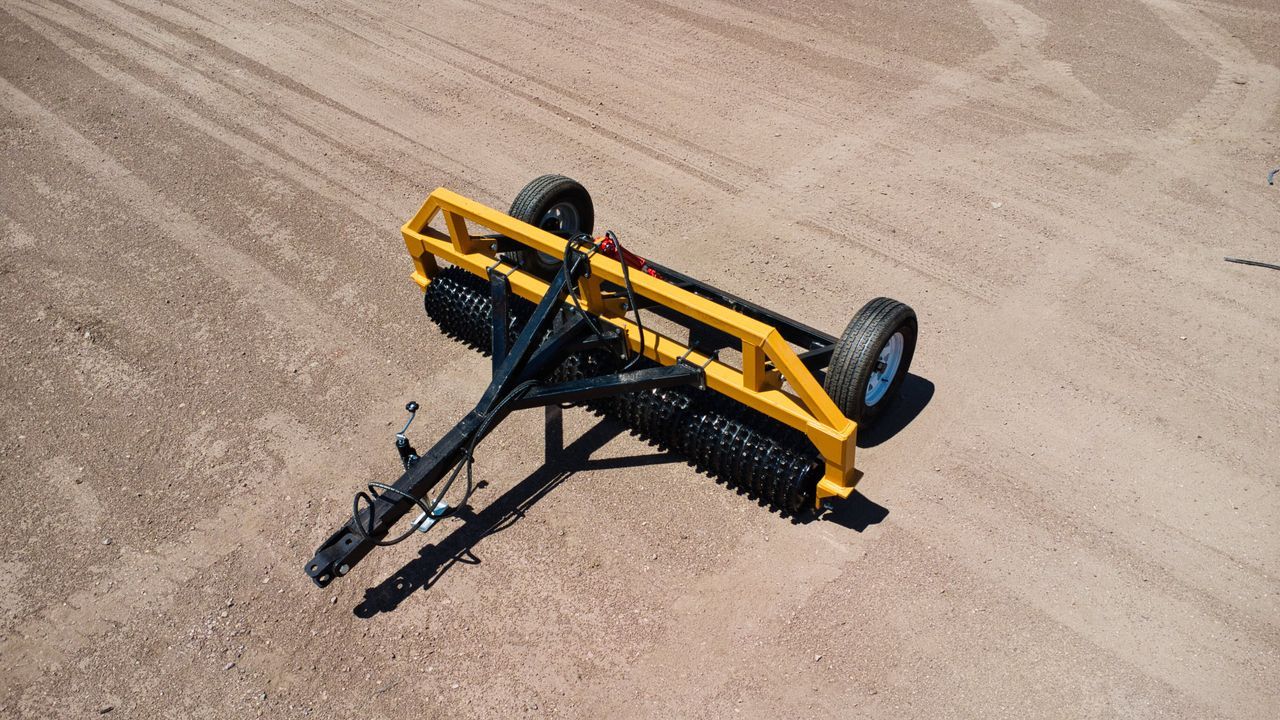

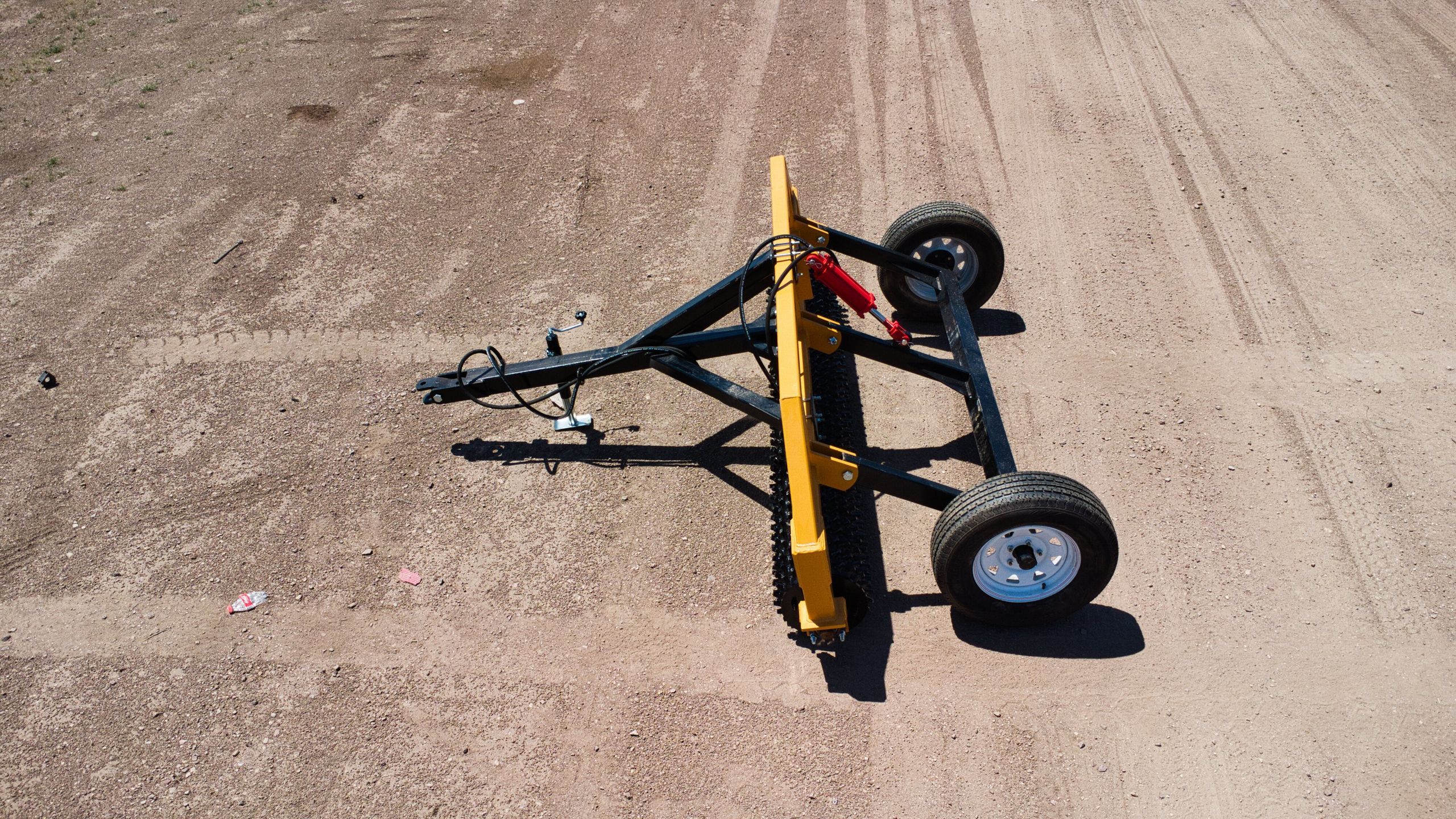

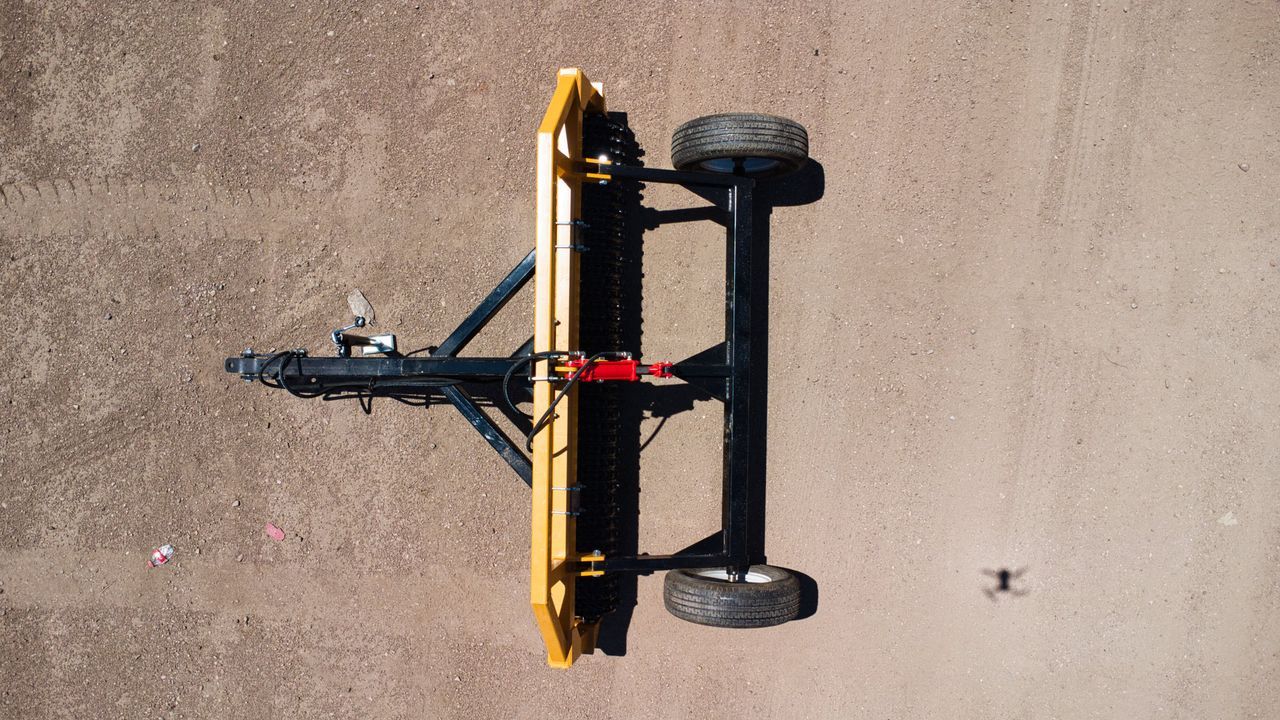

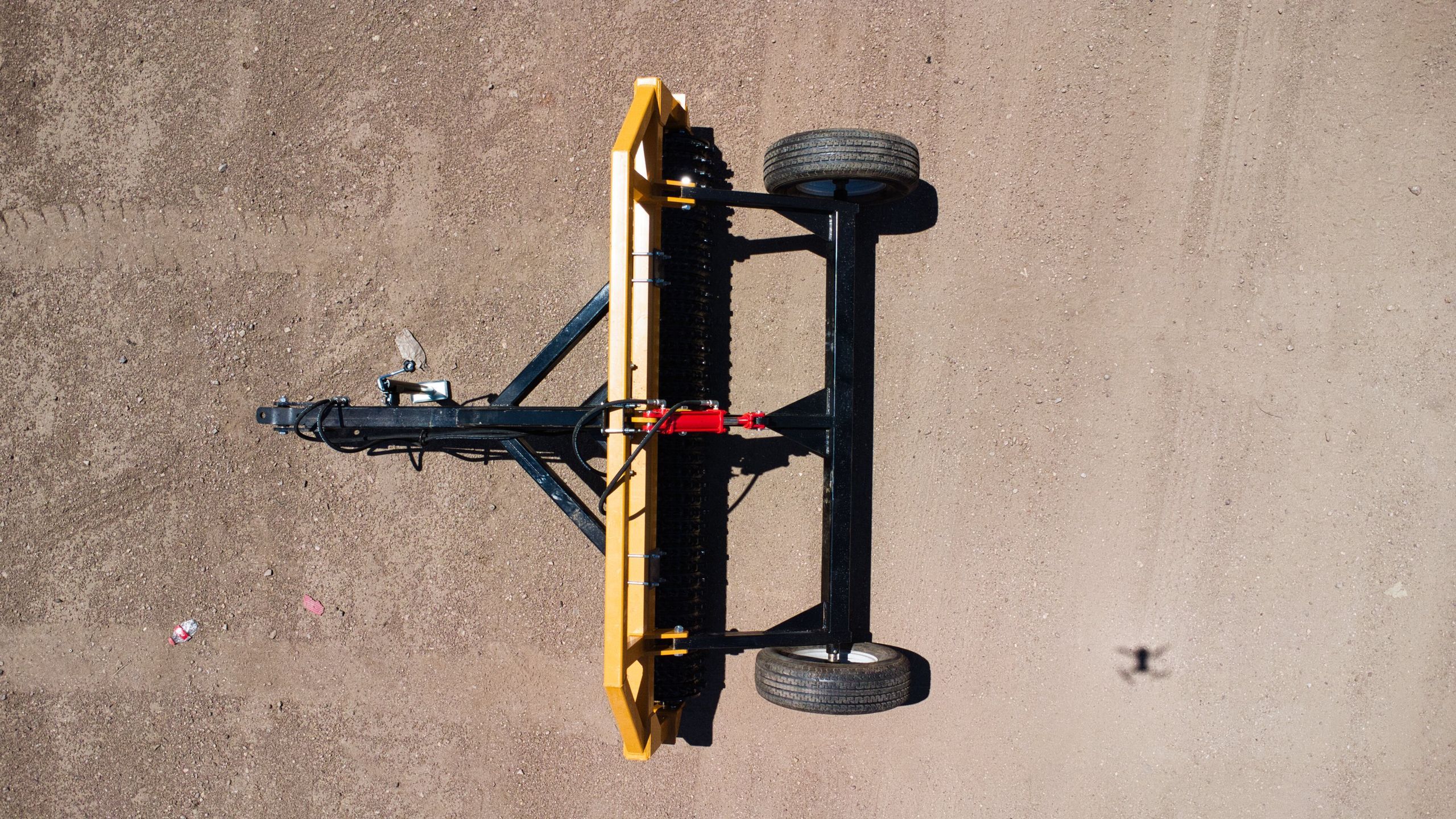

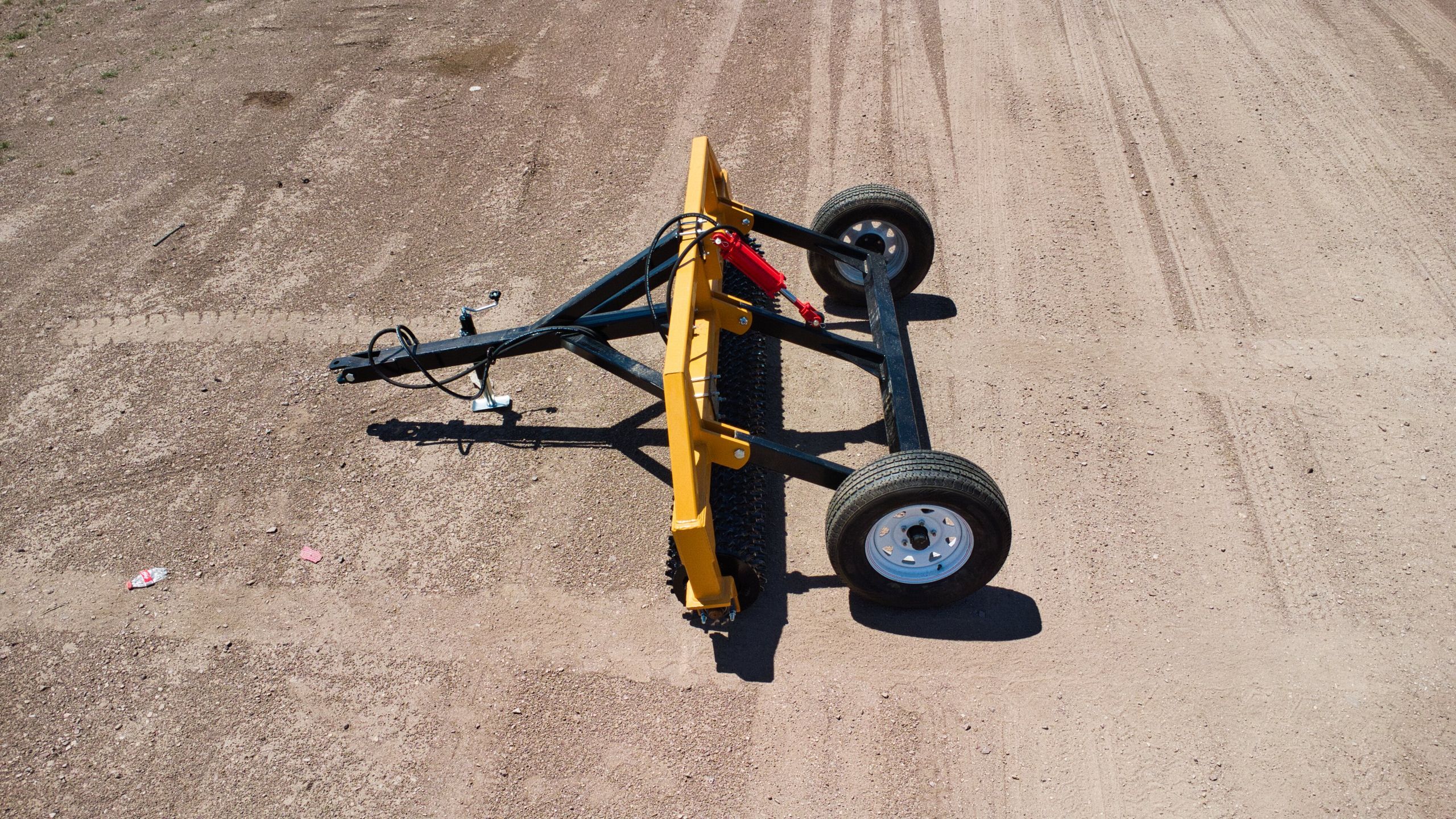

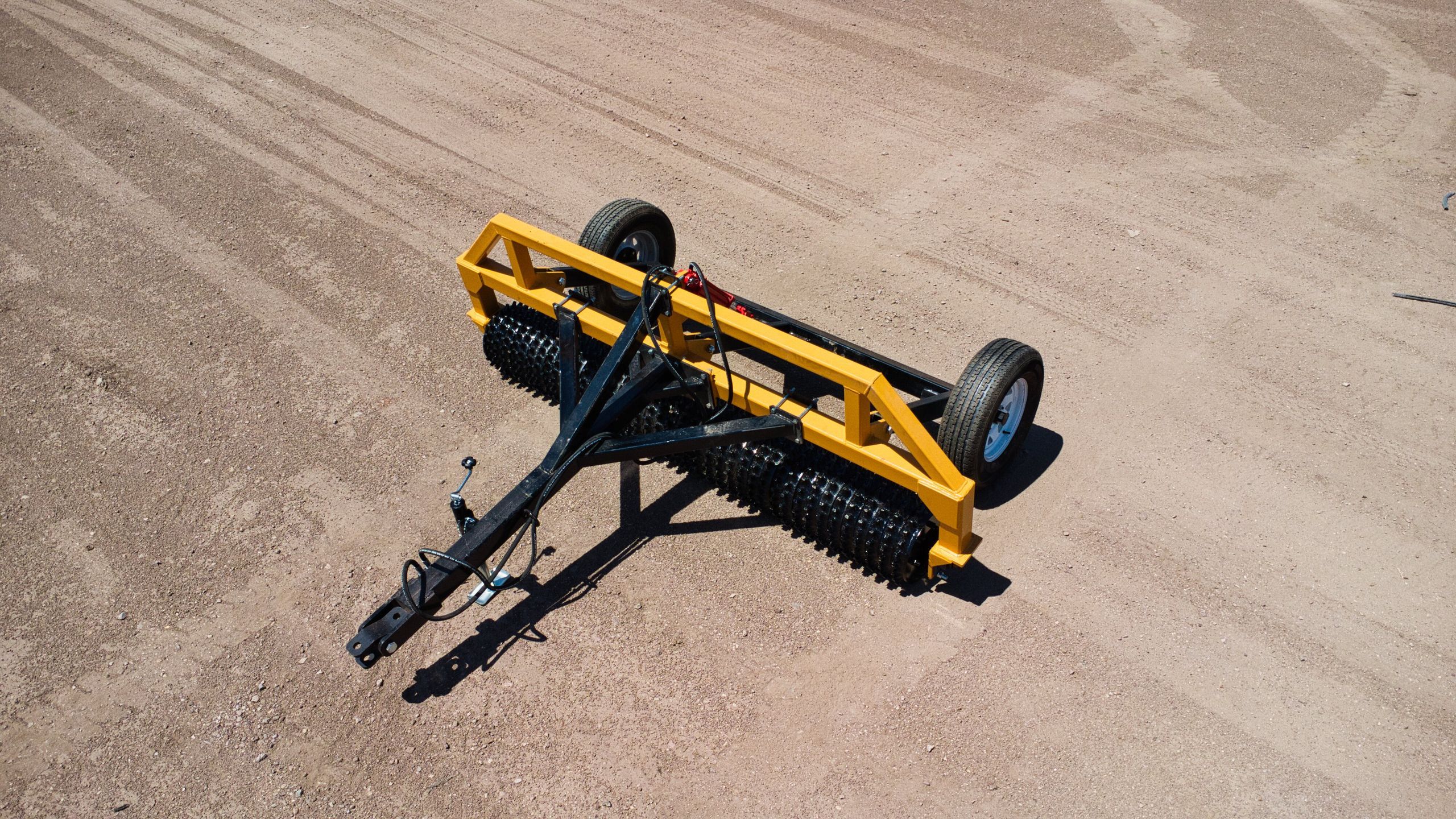

The Cultipacker 0840 is an 8’4” pull-type implement designed to provide consistent soil compaction and superior seed-to-soil contact. Its 10” heavy-duty steel drum, equipped with 40 loose-mounted notched cast-iron rings, effectively breaks clods and firms the seedbed for optimal germination. Hydraulic transport wheels with 3×8 cylinders and 2 × ST225/75R15 tires allow for easy movement between fields. The optional gooseneck connection is available for extra cost, enhancing road transport and maneuverability. Built with a durable PTR tubular steel frame and P210 sealed pillow block bearings, this model is ideal for mid-size tractors.
