Specifications
| Feature | Description |
|---|---|
| Type | Single-row round bale hauler (MB-Series) |
| Application | Mid-size bale hauling for farms and ranches |
| Bale Capacity | 6 round bales |
| Cradle Length | 23 ft |
| Total Length | 31 ft |
| Overall Width | 82 in |
| Frame | Tubular steel construction, powder-coated |
| Dump System | Manual with tube-lift assist |

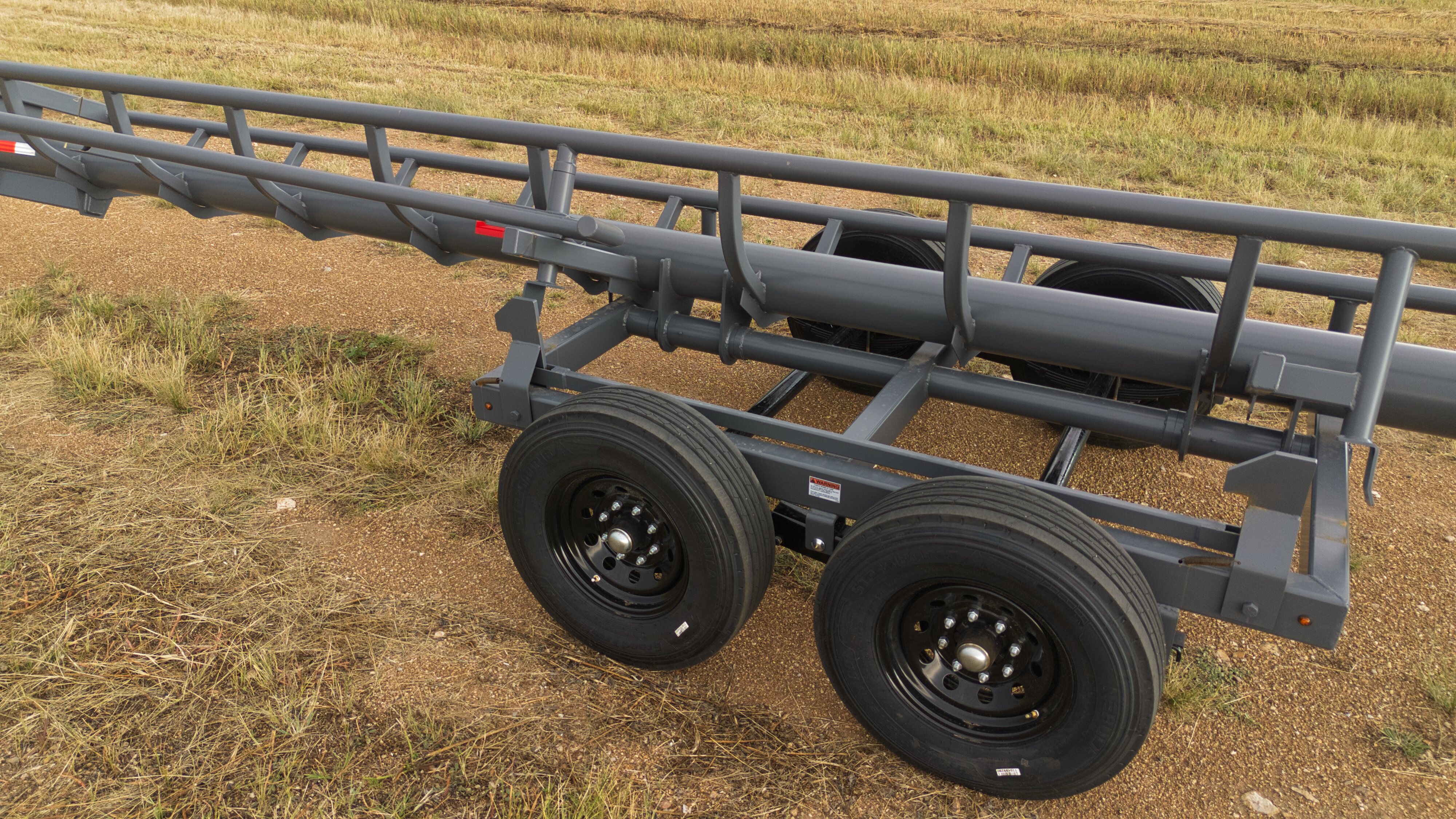

| Axles | 2 × 7,000 lb |
| GAWR | 7,000 lb |
| GVWR | 12,000 lb |
| Jacks | 1 × 12k manual |
| Brakes | Electric brakes with breakaway system |
| Tires | ST235/80 R16 |
| Rims | 16" |
| Shipping Weight | 1,312 kg (2,893 lb) |

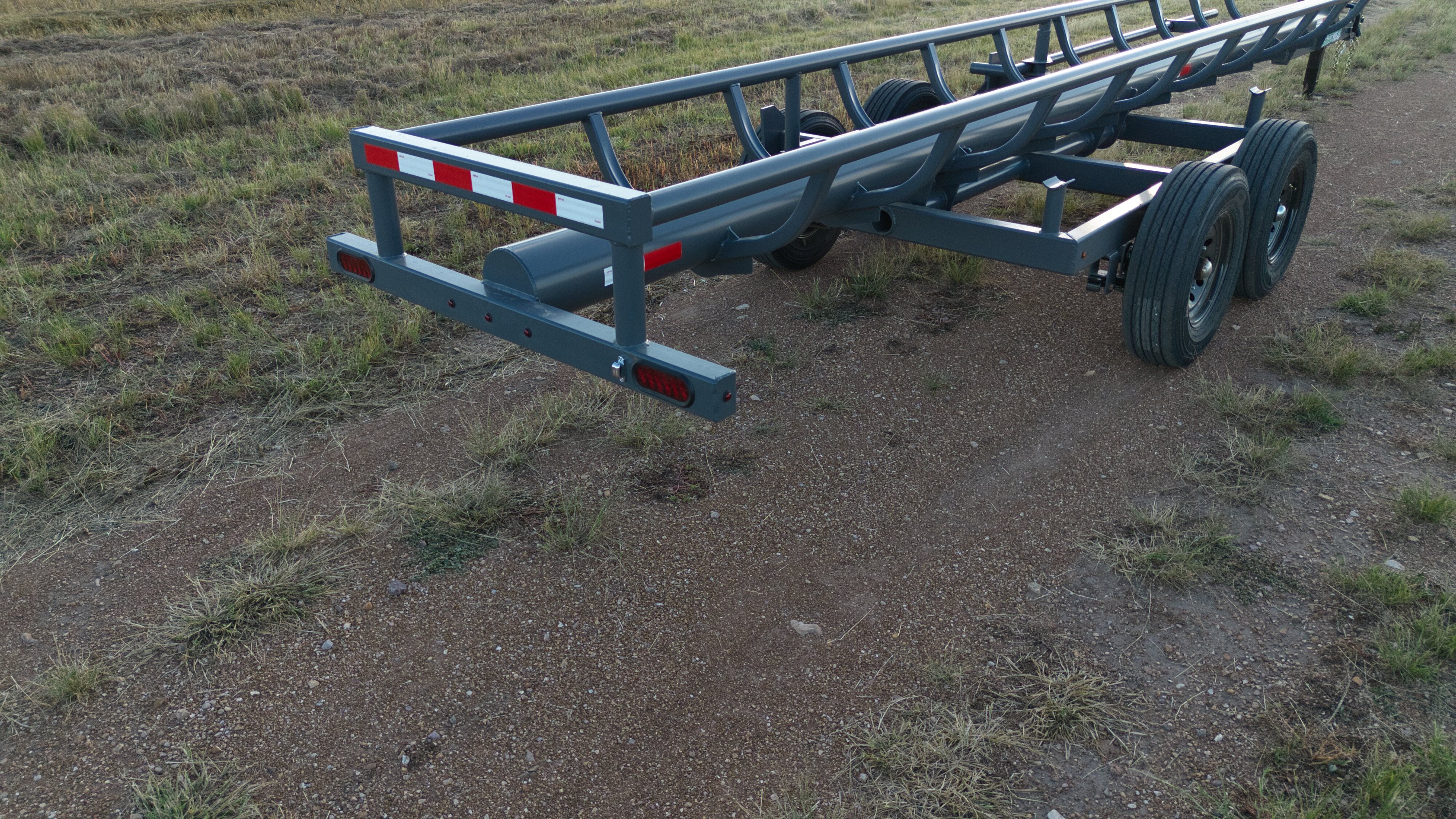

| Lighting | DOT-approved LED |
| Reflective Tape | Included |
| Finish | Powder-coated black |
| Safety Chains | Included |

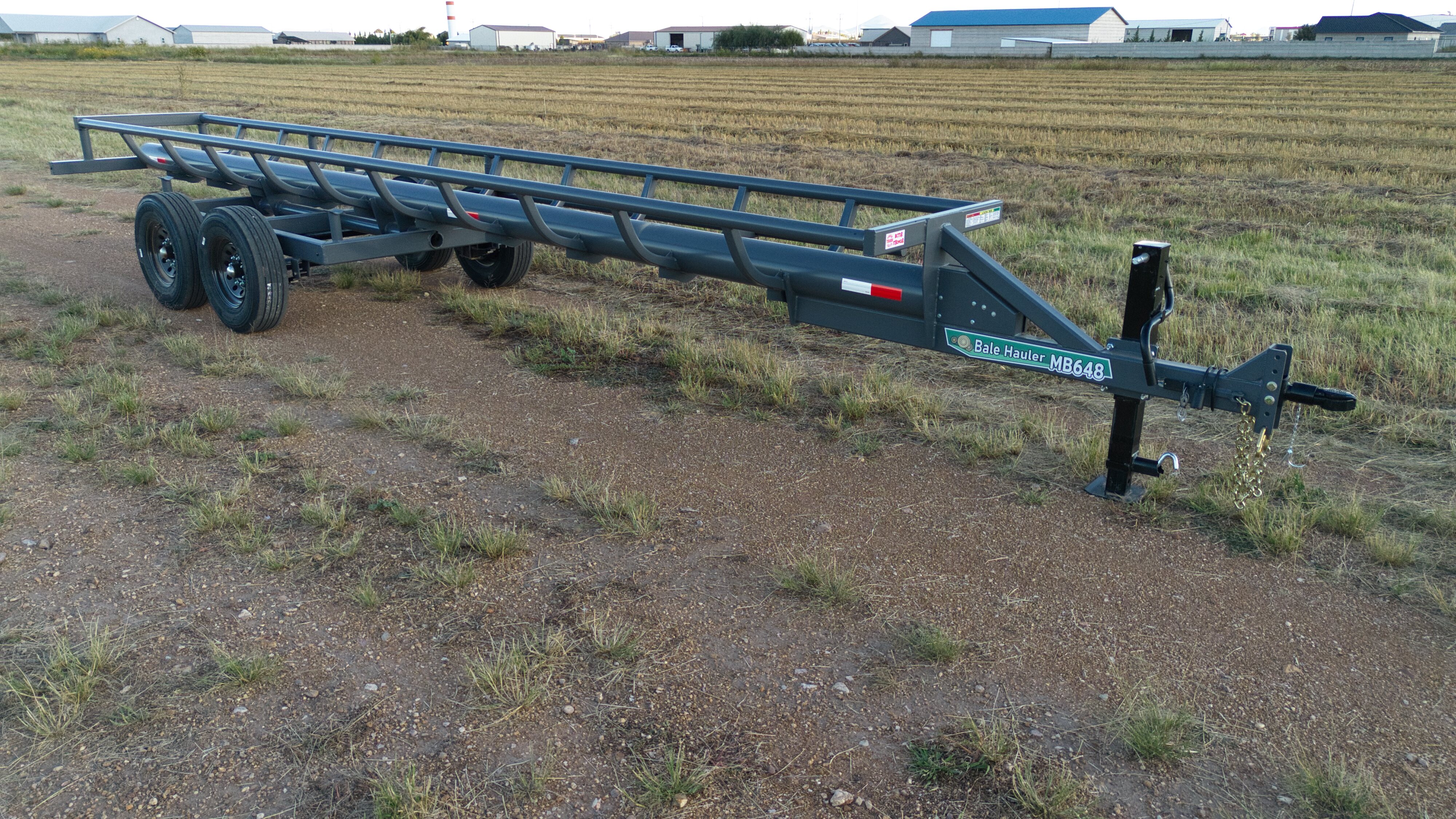

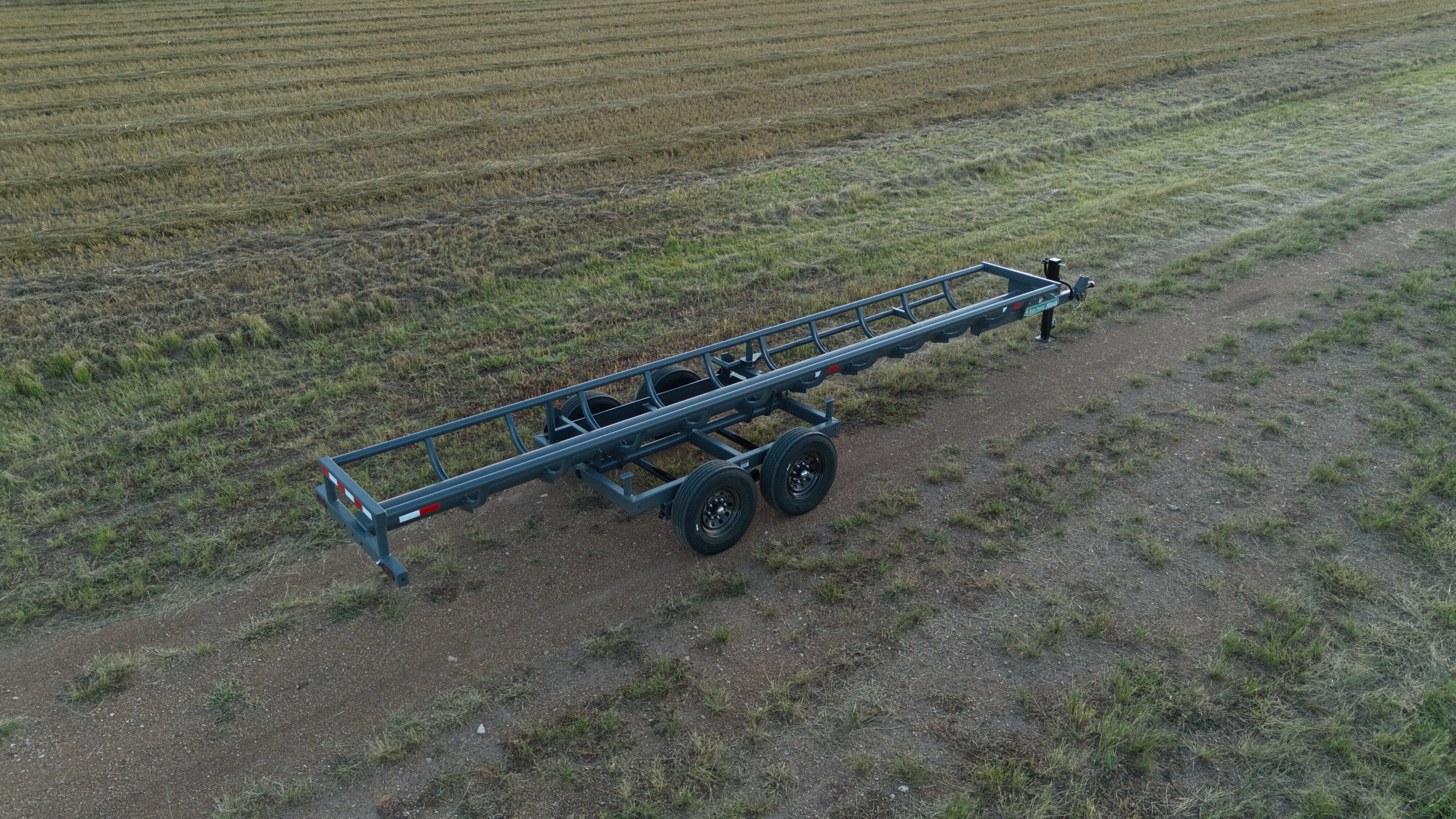

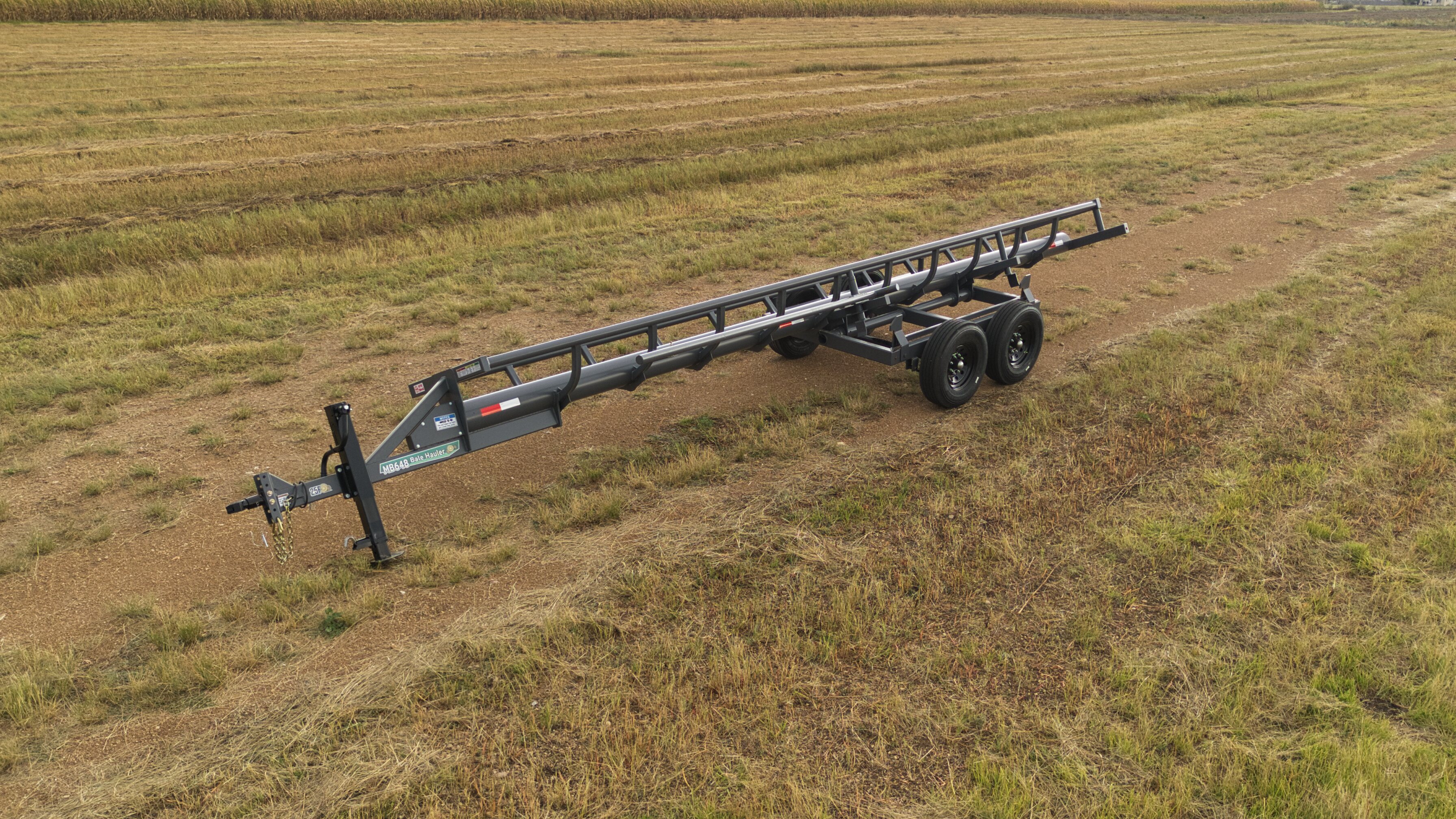

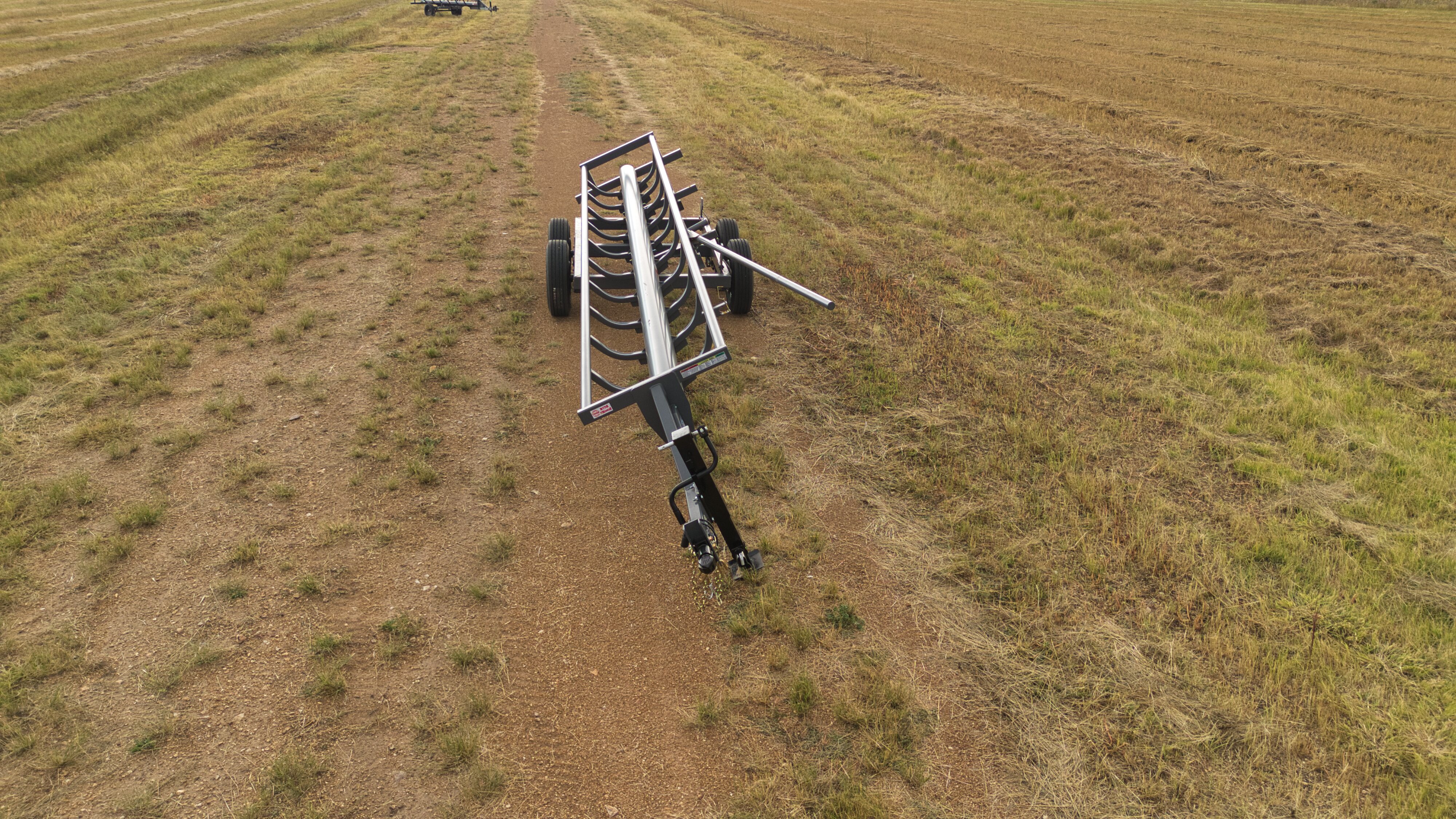

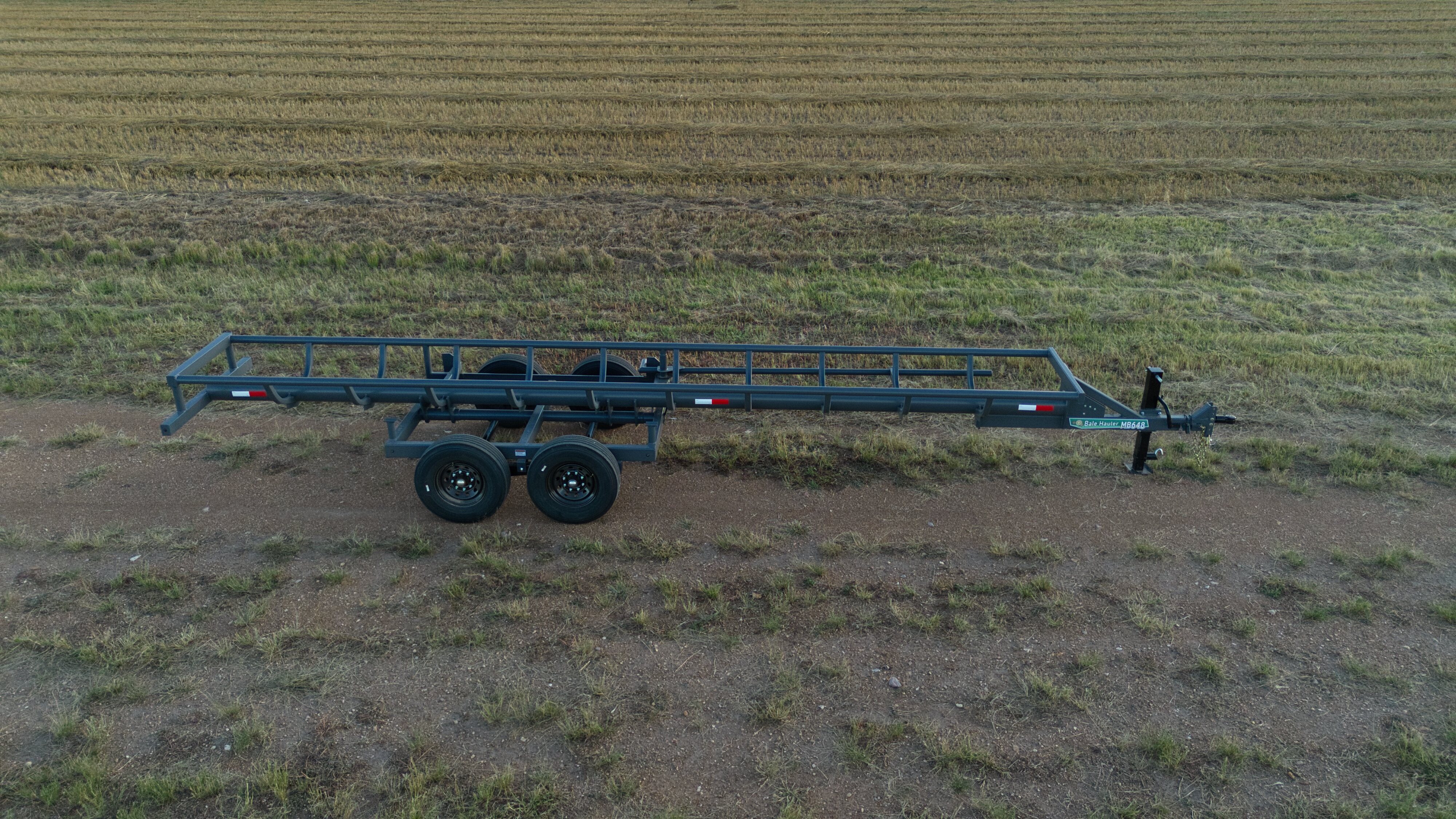

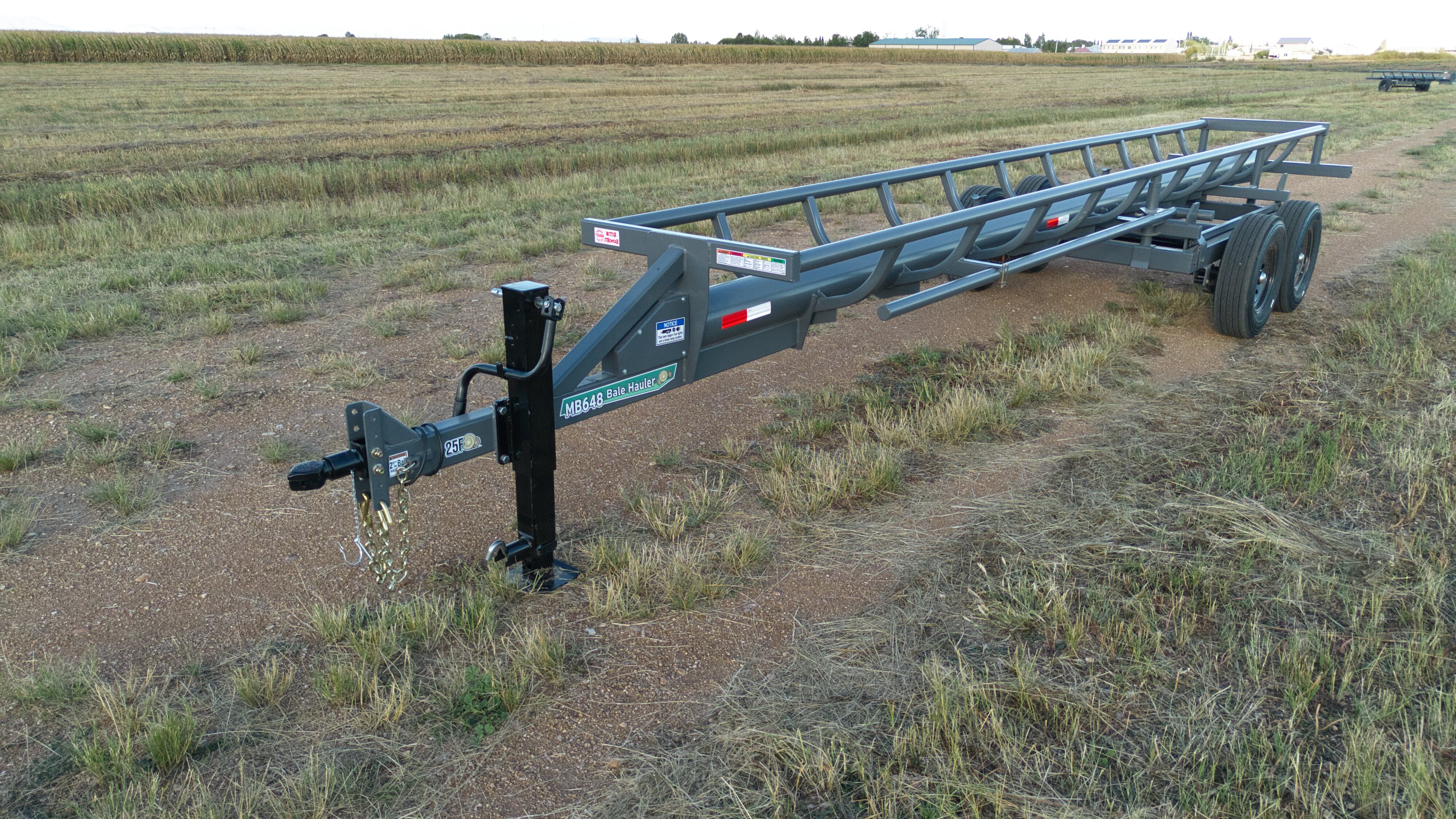

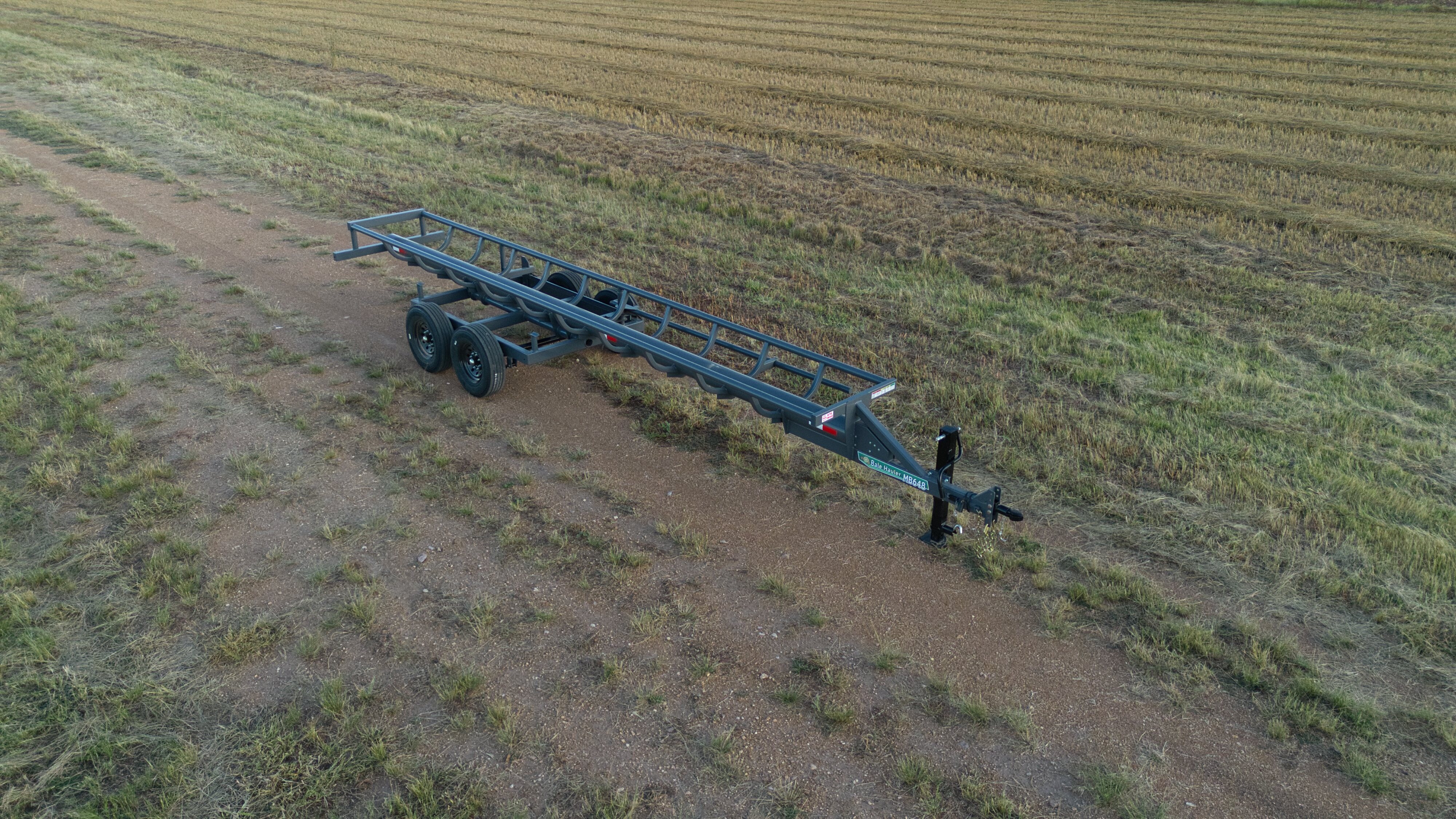

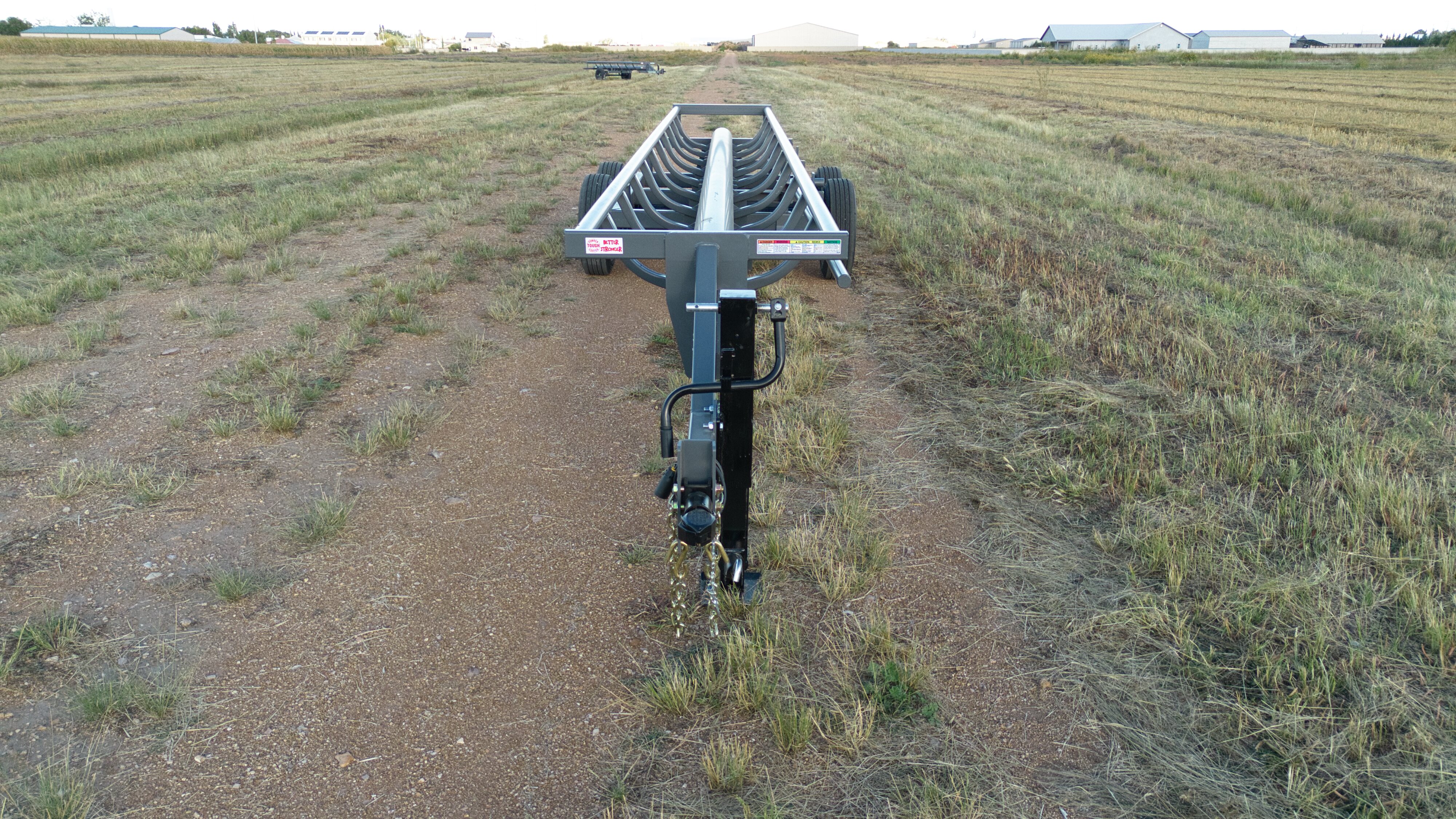

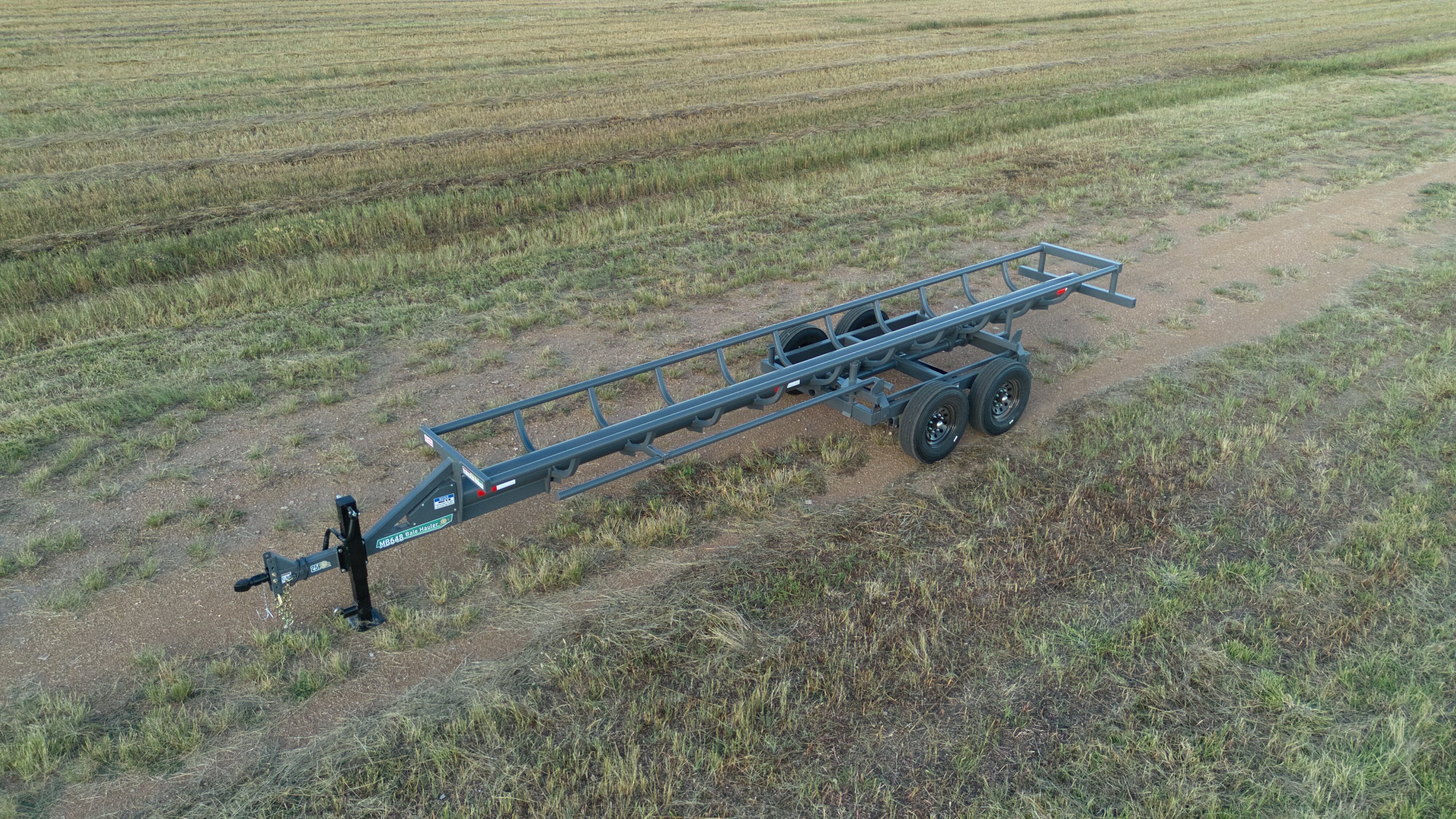

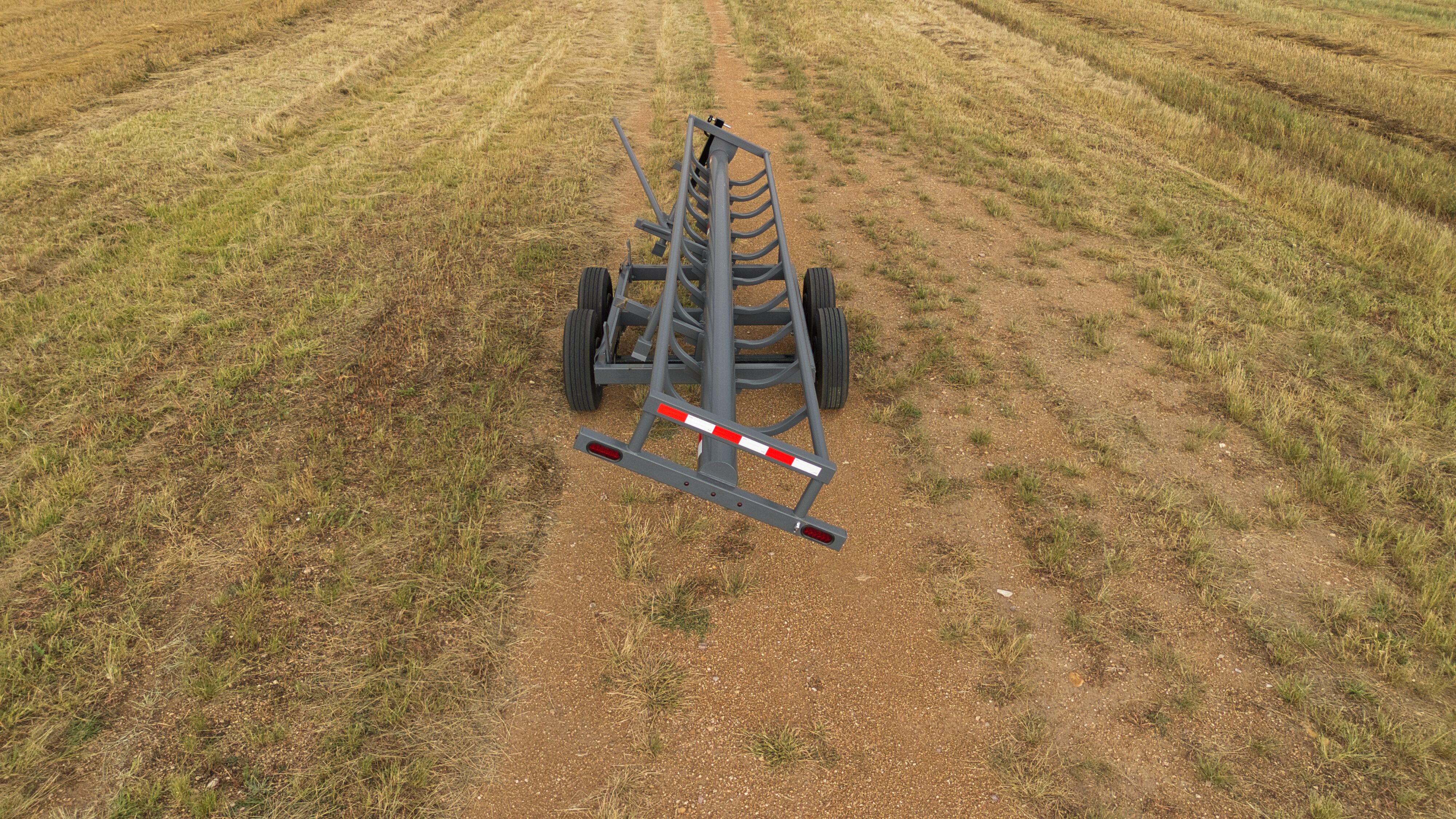

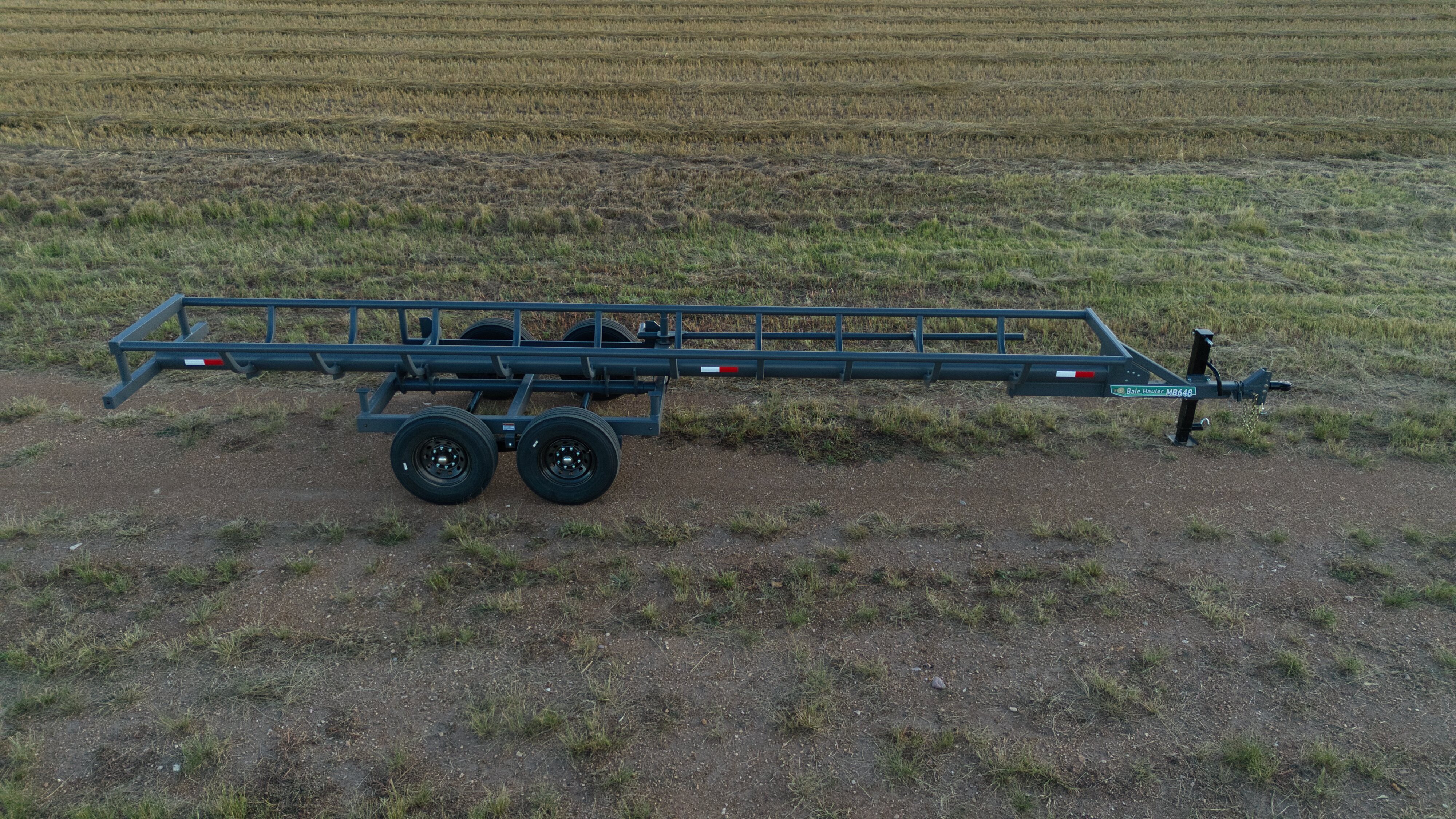

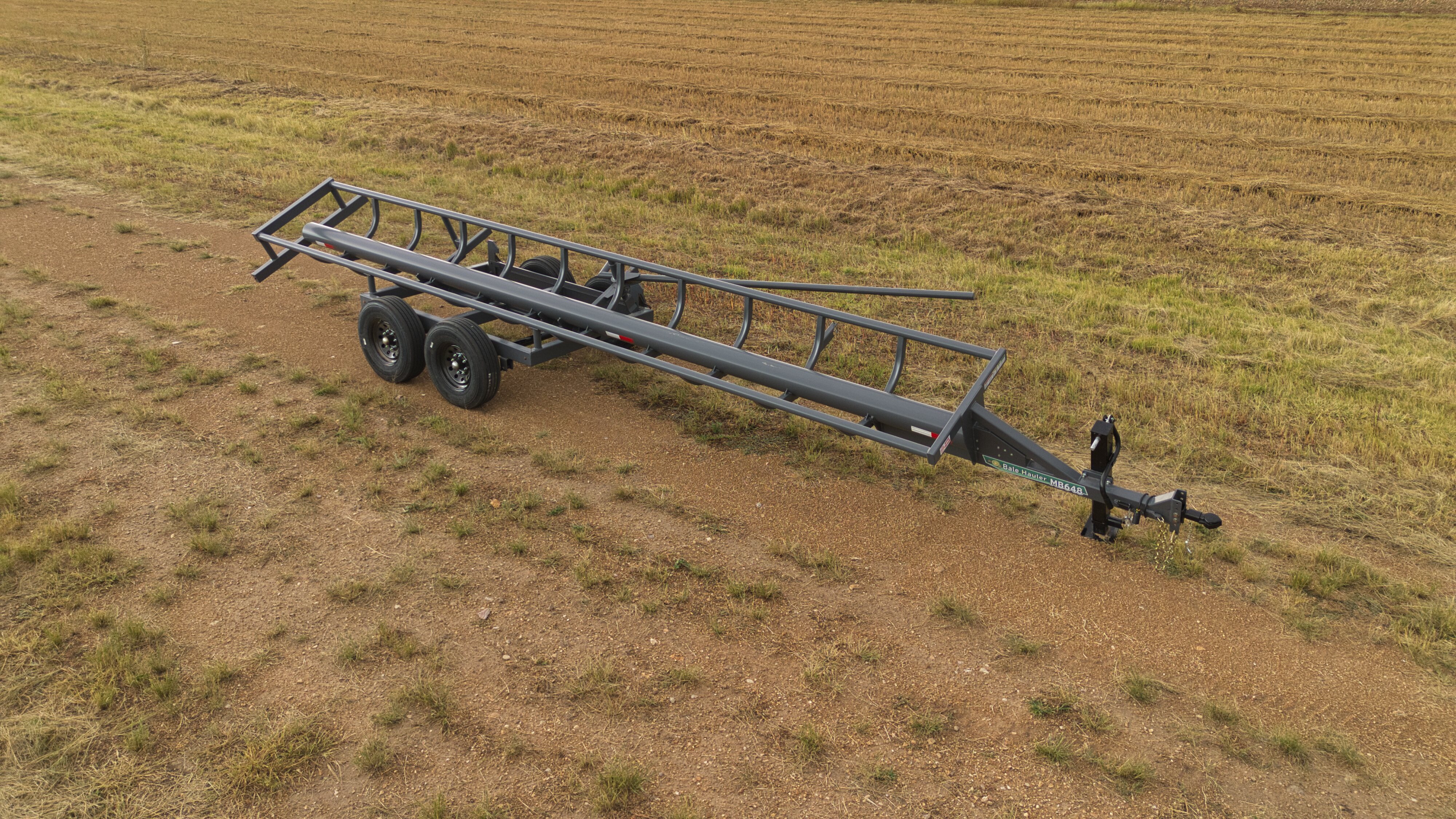

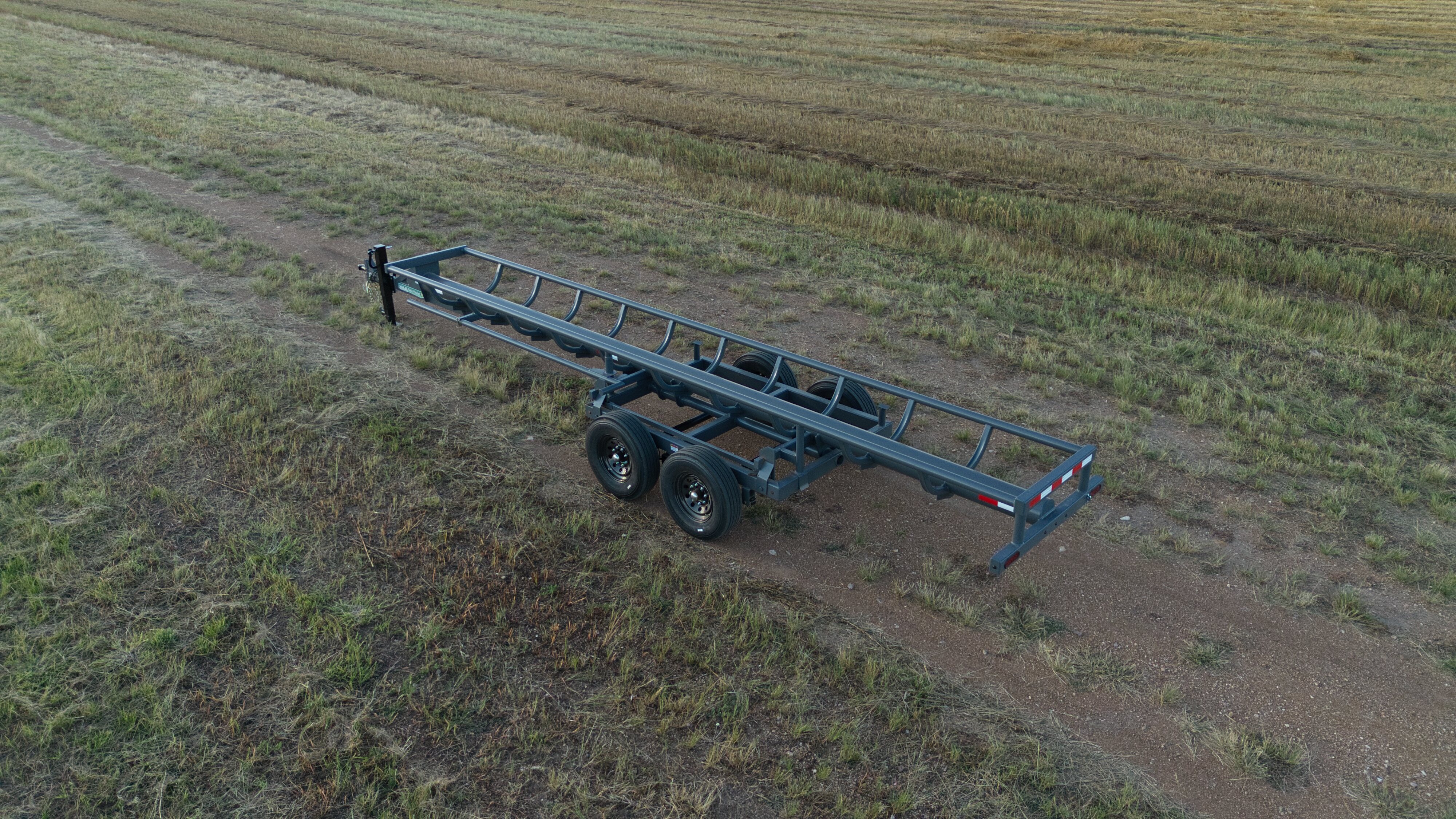

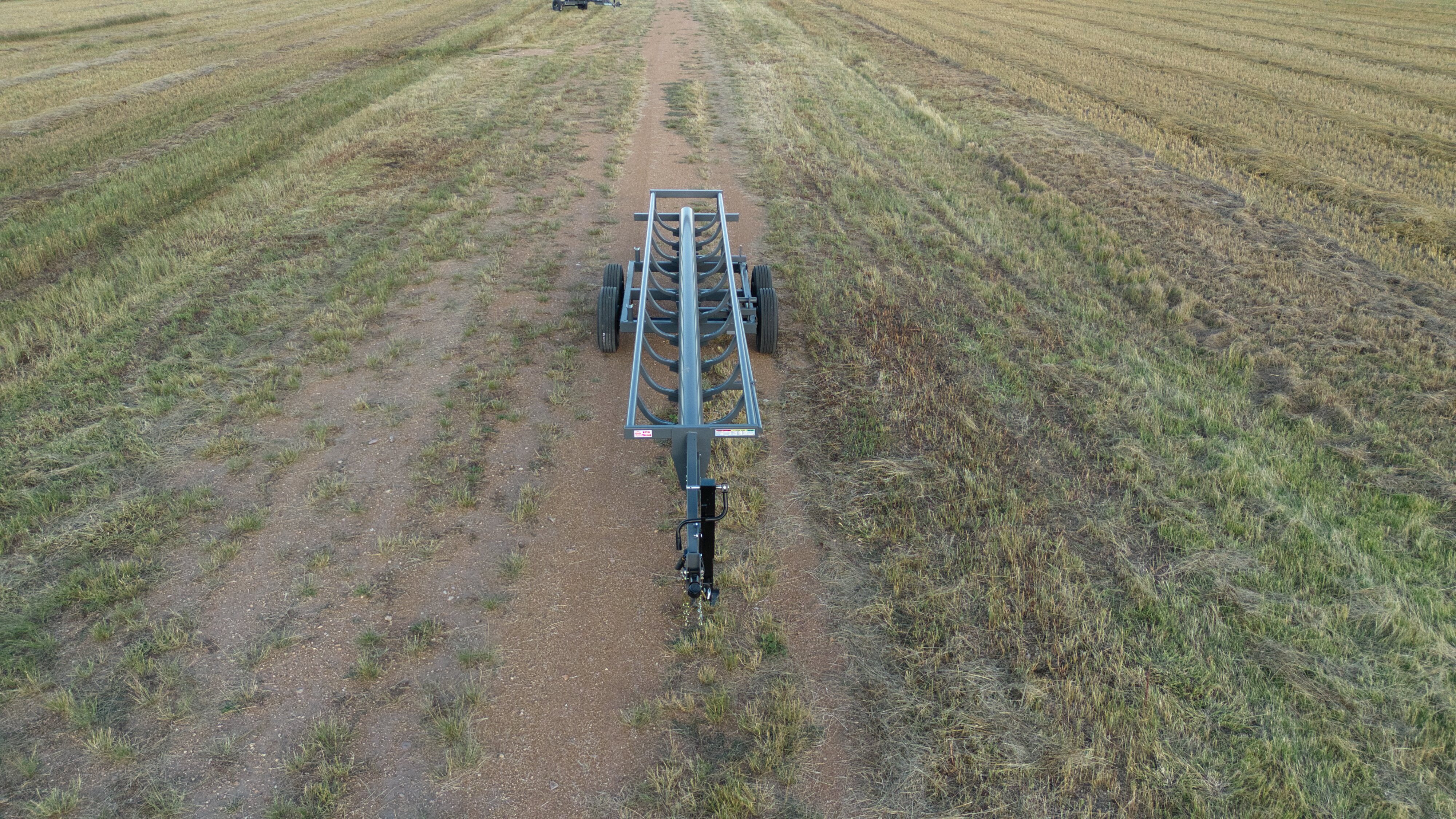

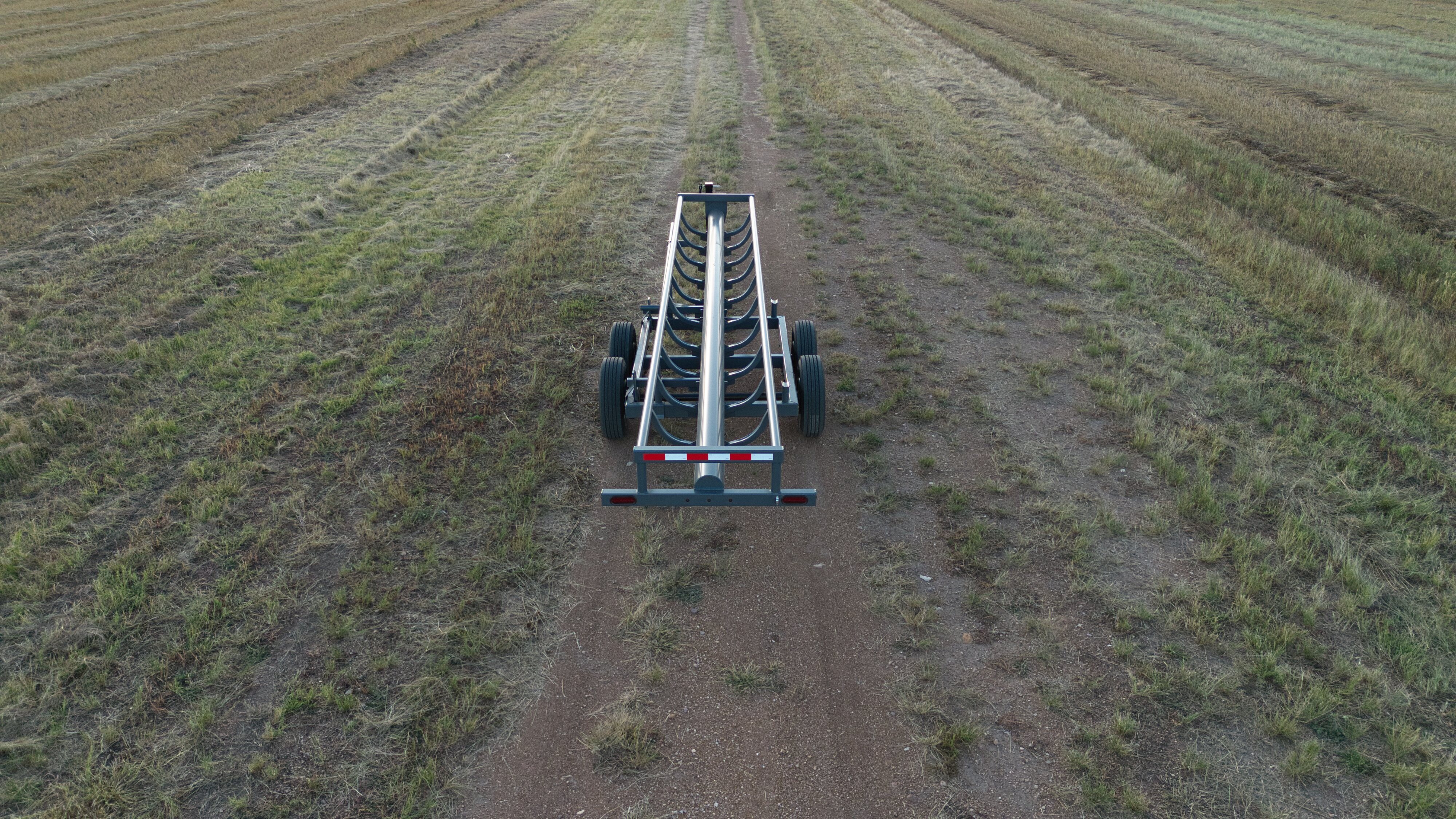

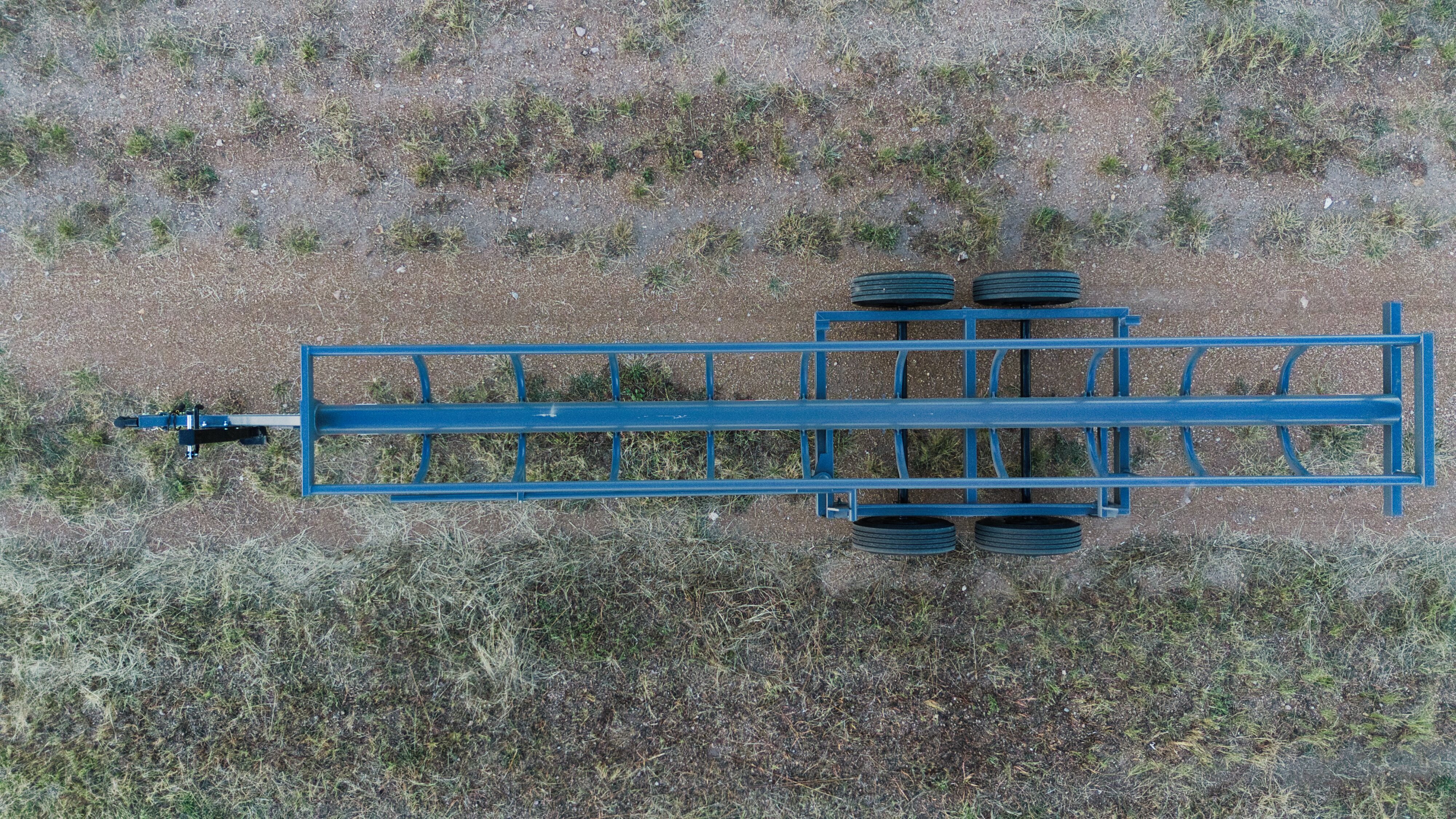

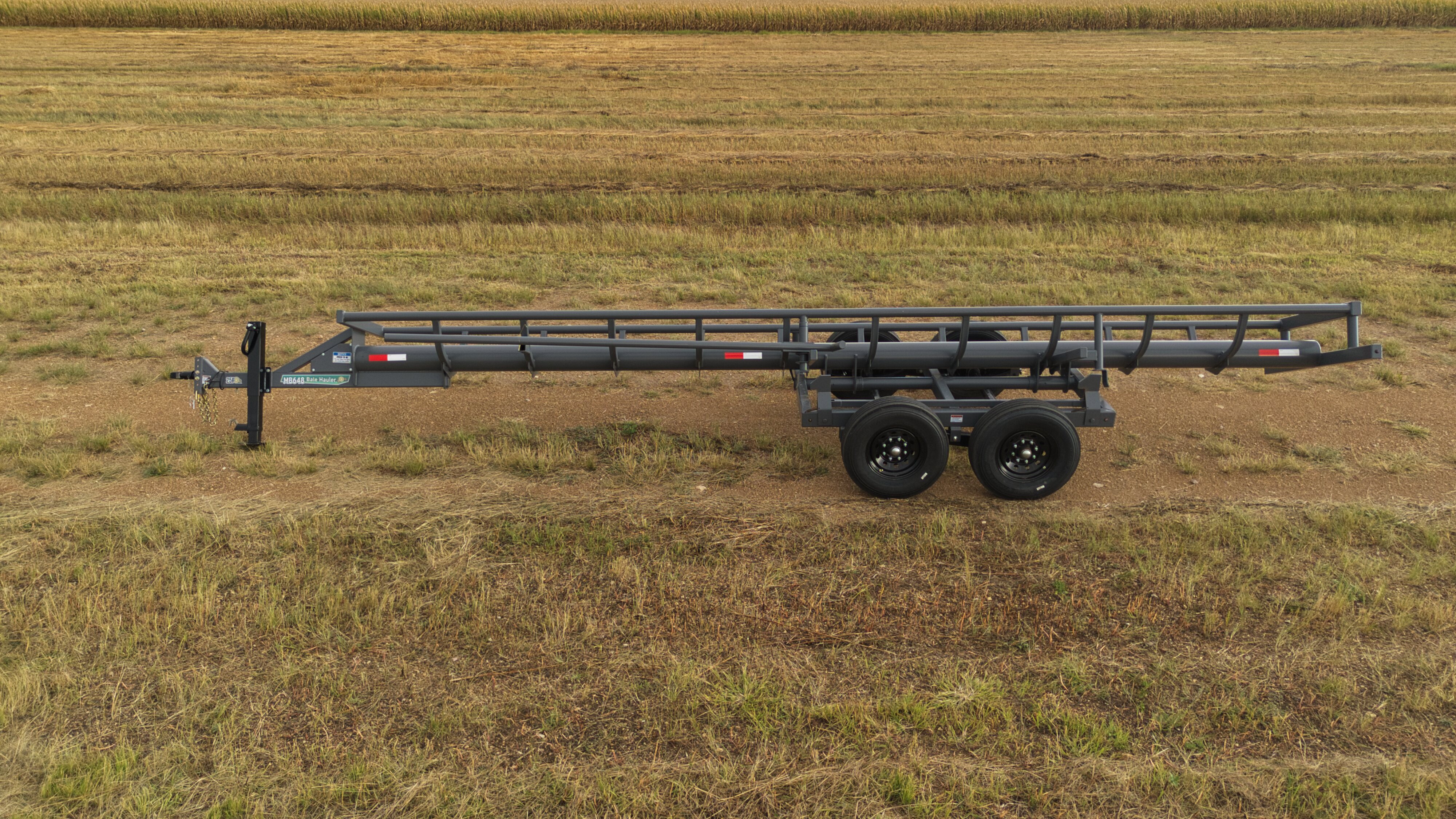

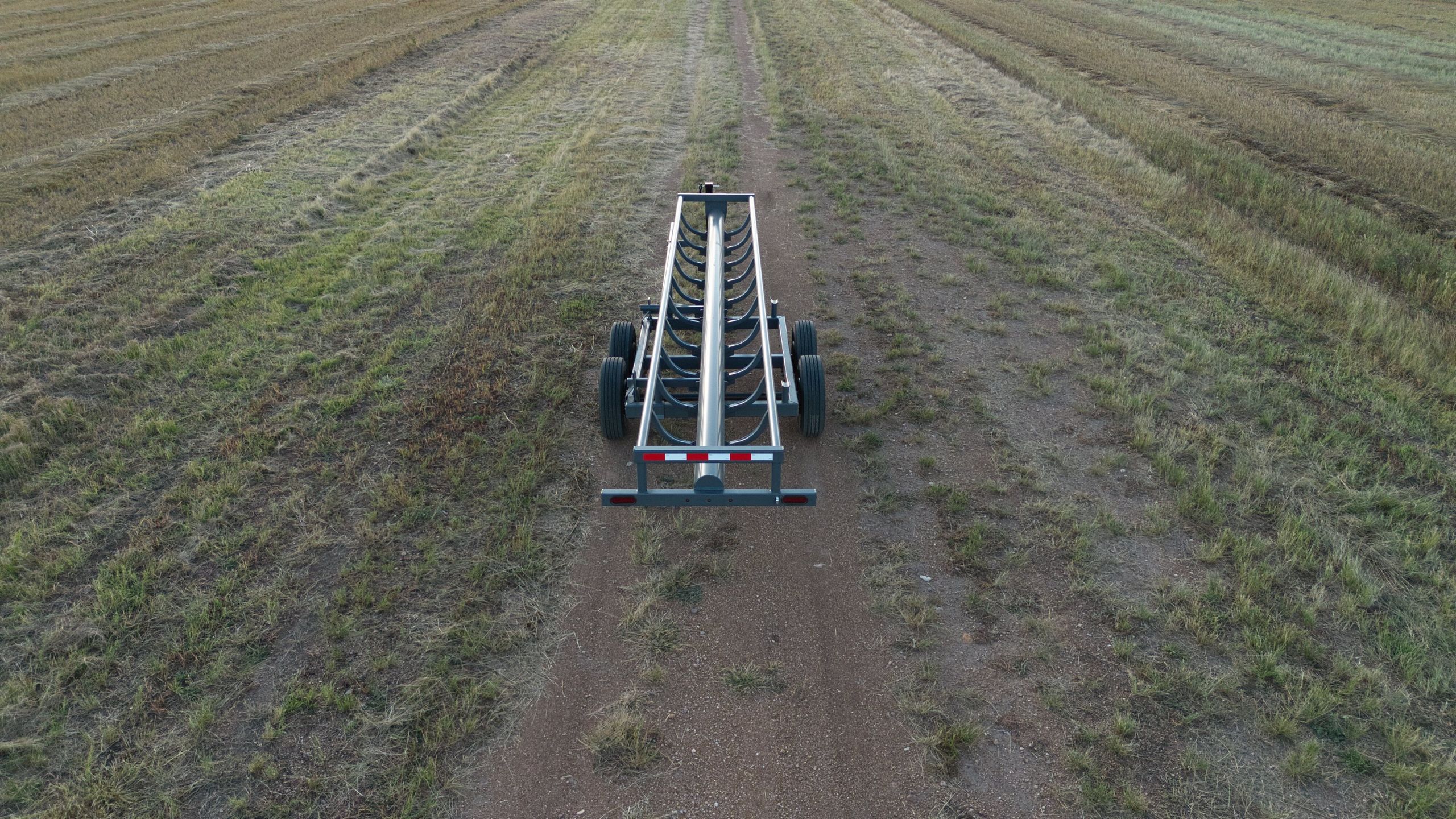

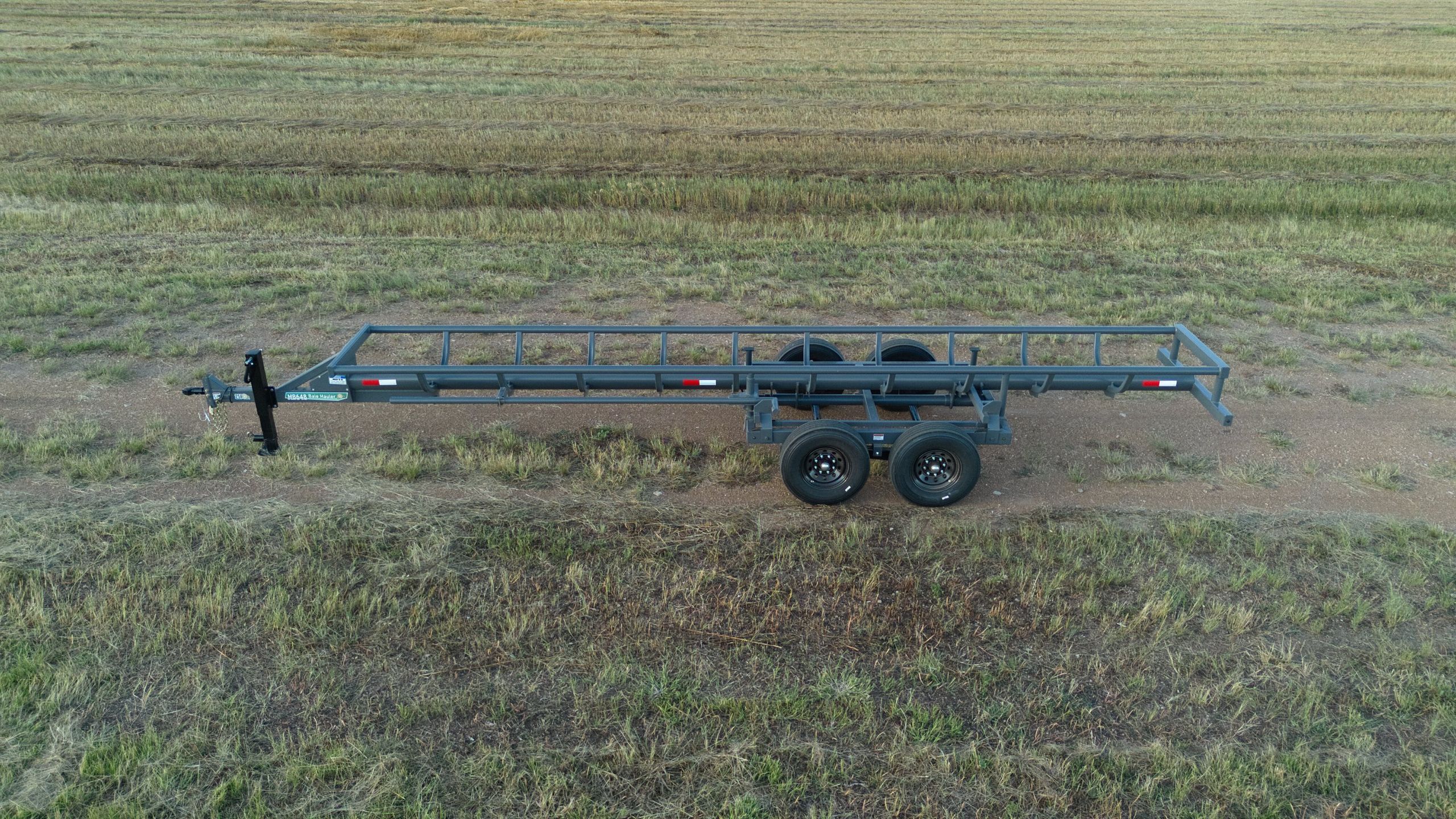

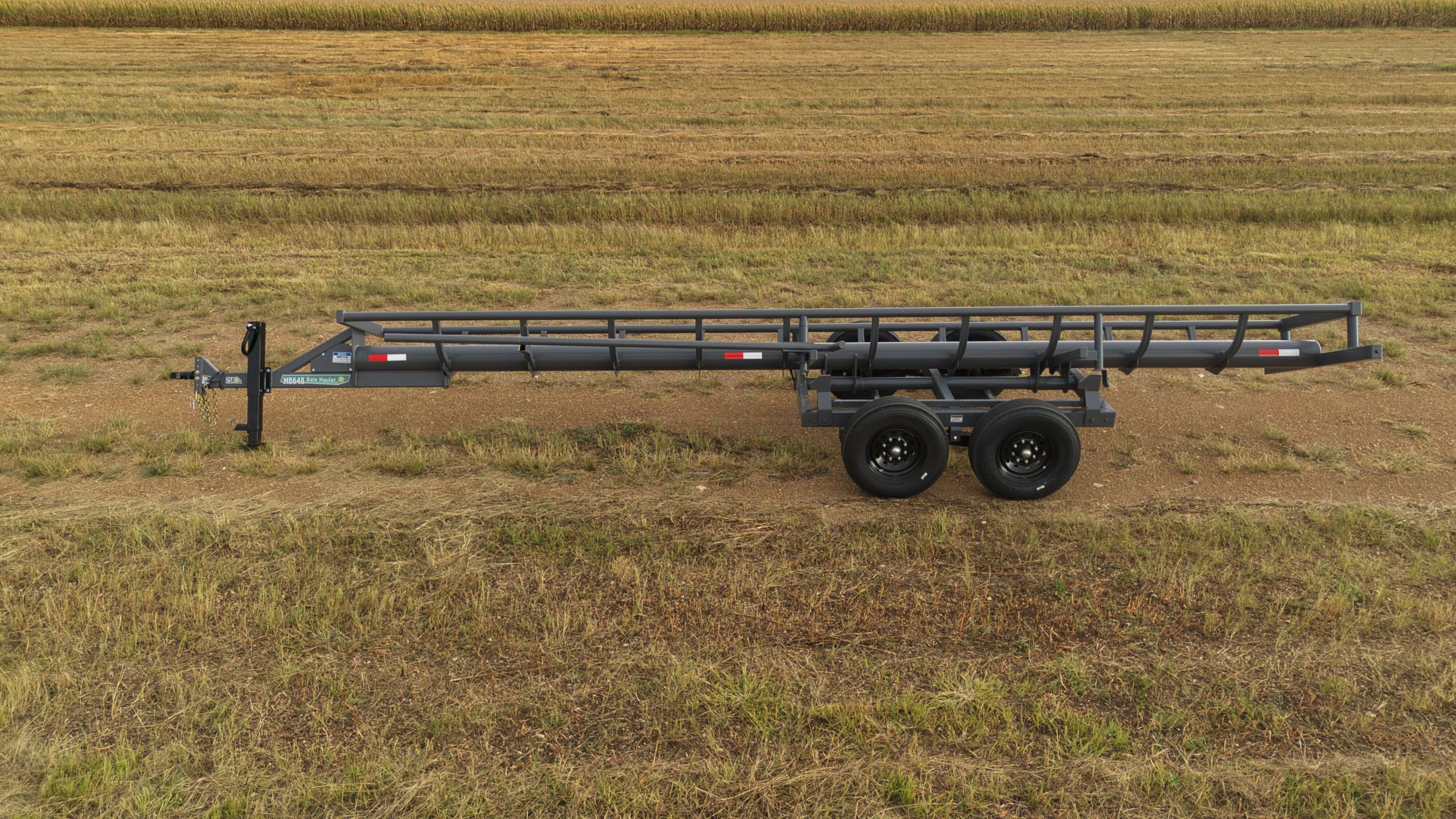

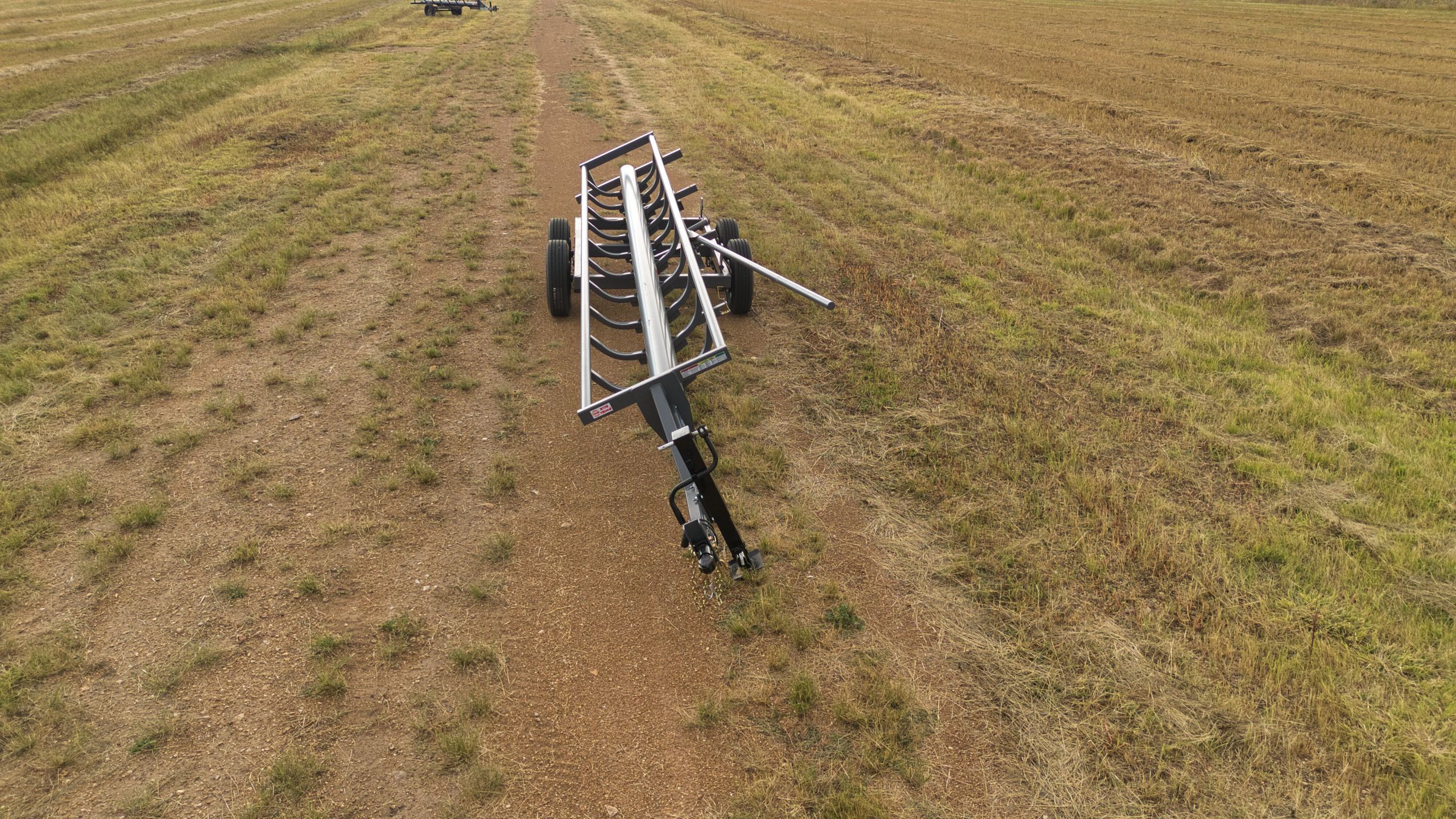

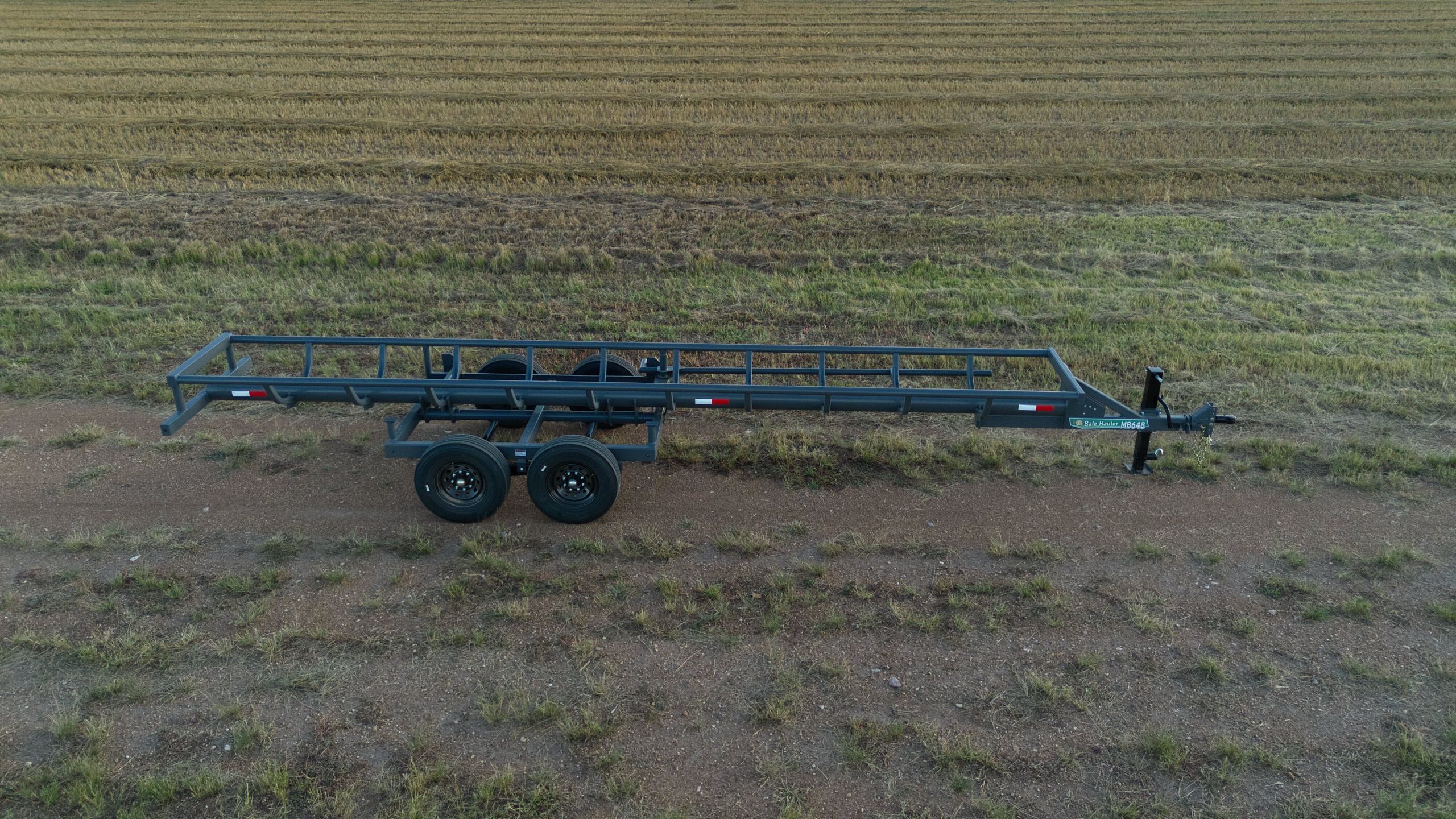

The MB648 is the perfect mid-size option for farmers who need more capacity while keeping a lightweight, easy-to-use design. With a 23 ft cradle and 6-bale capacity, it’s ideal for hauling hay efficiently between fields and storage areas. Its dual 7k axles, reliable manual tube-lift dumping system, and DOT-compliant lighting make it safe and practical for everyday use. The MB648 offers the same rugged tubular construction as larger models but remains maneuverable and easy to maintain. Type: Single-row round bale hauler (MB-Series) Application: Mid-size bale hauling for farms and ranches Bale Capacity: 6 round bales Cradle Length: 23 ft Total Length: 31 ft Overall Width: 82 in Frame: Tubular steel construction, powder-coated Dump System: Manual with tube-lift assist Axles: 2 × 7,000 lb GAWR: 7,000 lb GVWR: 12,000 lb Jacks: 1 × 12k manual Brakes: Electric brakes with breakaway system Tires: ST235/80 R16 Rims: 16" Shipping Weight: 1,312 kg (2,893 lb) Lighting: DOT-approved LED Reflective Tape: Included Finish: Powder-coated black
