Specifications
| Feature | Description |
|---|---|
| Type | Pull-Type Header Transport Wagon |
| Available Models | 420, 425, 430, 432, 435, 440, 441, 442 |
| Header Capacity Range | 20 ft to 42 ft |
| Approx. Overall Length Range | 28 ft to 50 ft |
| Overall Width | 95" |
| Model 420 | 20 ft - Overall Length 28 ft - Approx. Weight 960 kg |
| Model 425 | 25 ft - Overall Length 33 ft - Approx. Weight 1,030 kg |
| Model 430 | 30 ft - Overall Length 38 ft - Approx. Weight 1,200 kg |

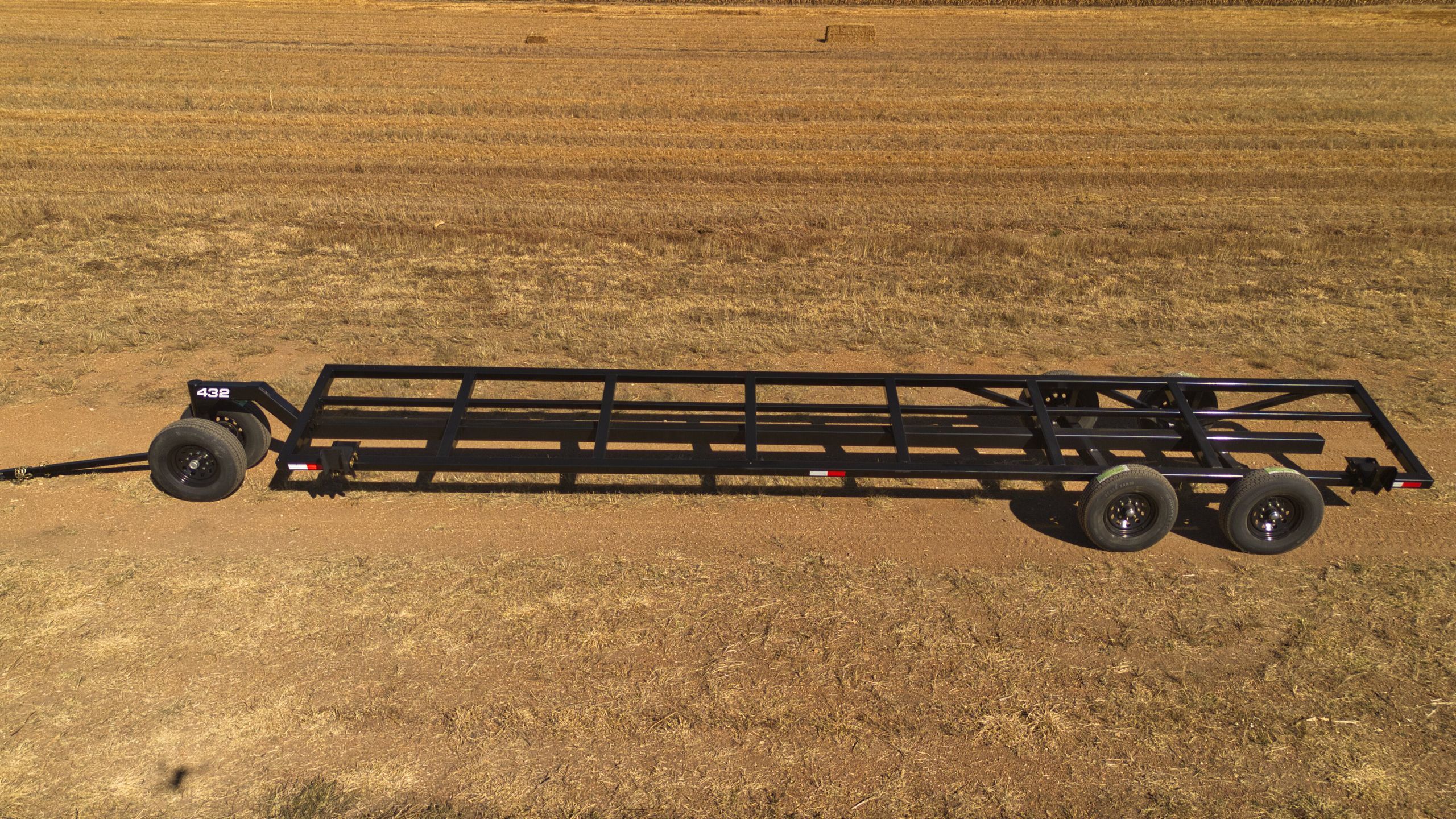

| Model 432 | 32 ft - Overall Length 40 ft - Approx. Weight 1,380 kg |
| Model 435 | 35 ft - Overall Length 43 ft - Approx. Weight 1,460 kg |
| Model 440 | 40 ft - Overall Length 48 ft - Approx. Weight 1,630 kg |
| Model 441 | 41 ft - Overall Length 49 ft - Approx. Weight 1,690 kg |

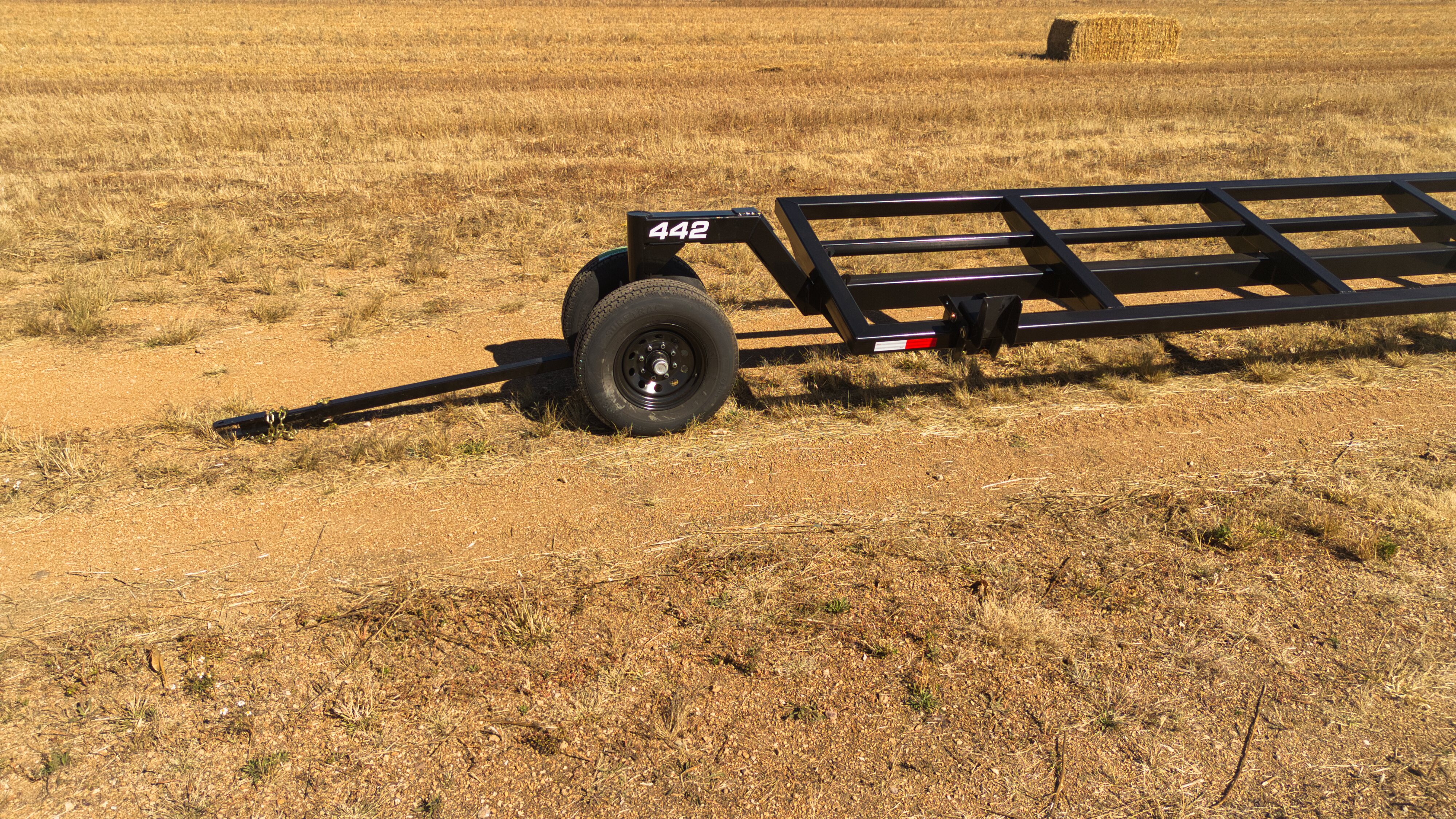

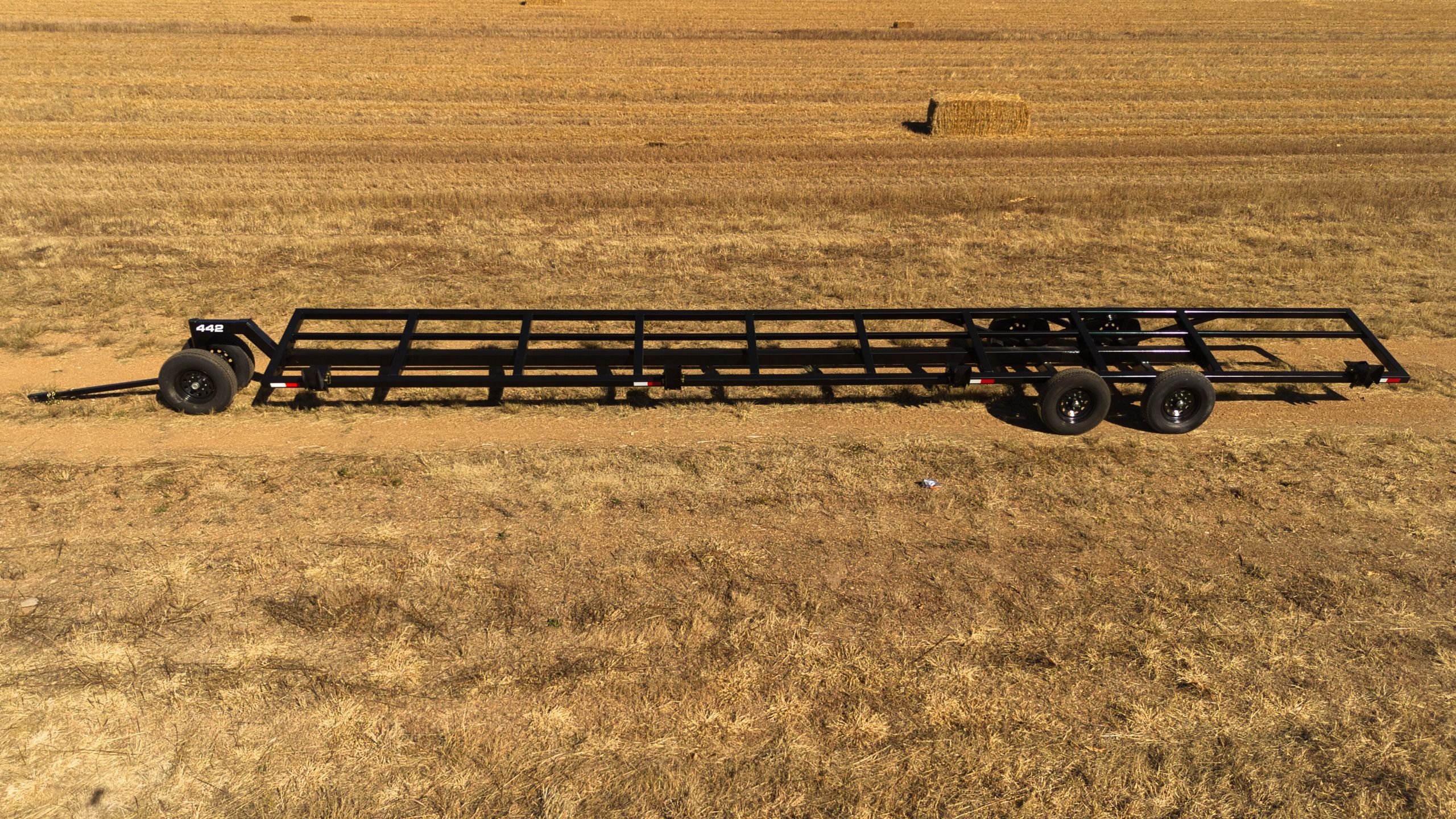

| Model 442 | 42 ft - Overall Length 50 ft - Approx. Weight 1,710 kg |
| Approx. Weight Range | 960–1,710 kg |
| Main Frame | 4" × 4" structural steel |
| Frame Design | Inclined |

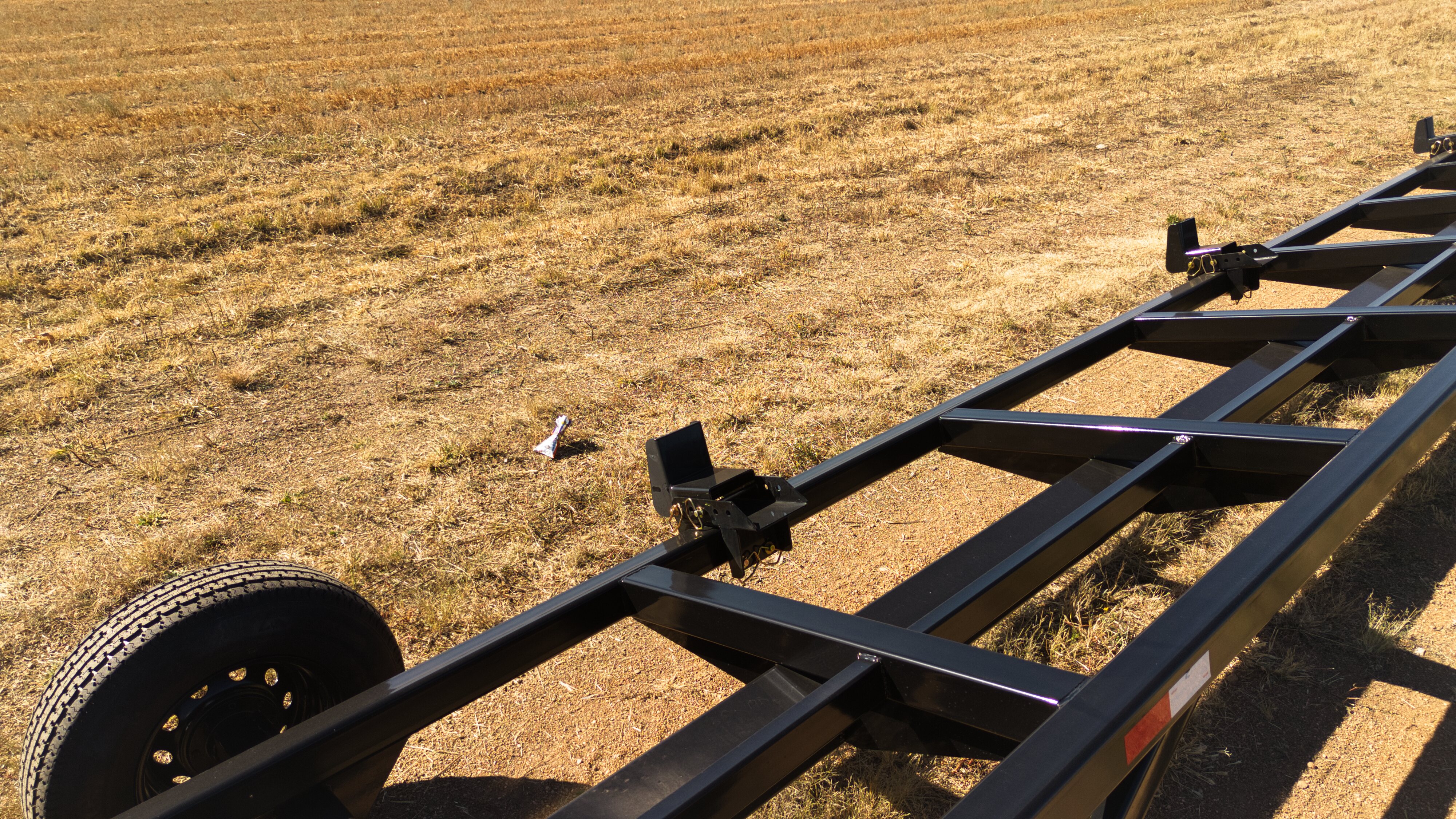

| Header Supports | Adjustable |
| Number of Supports | 2 or 4 depending on model |
| Rear Axles | Fixed |
| Axle Rating | 7,000 lb each |

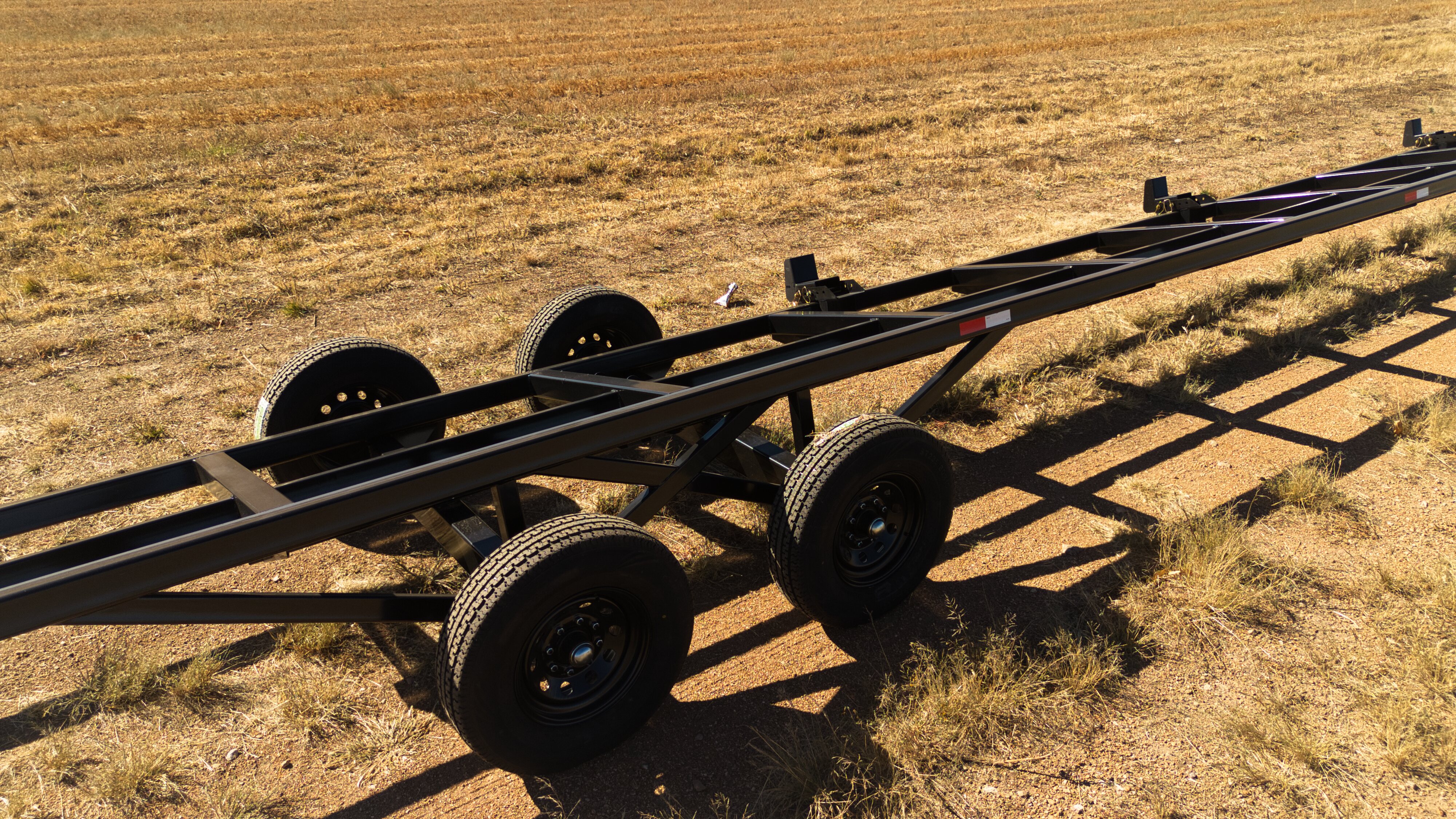

| Axle Quantity | 1 on smaller models / 2 on larger models |

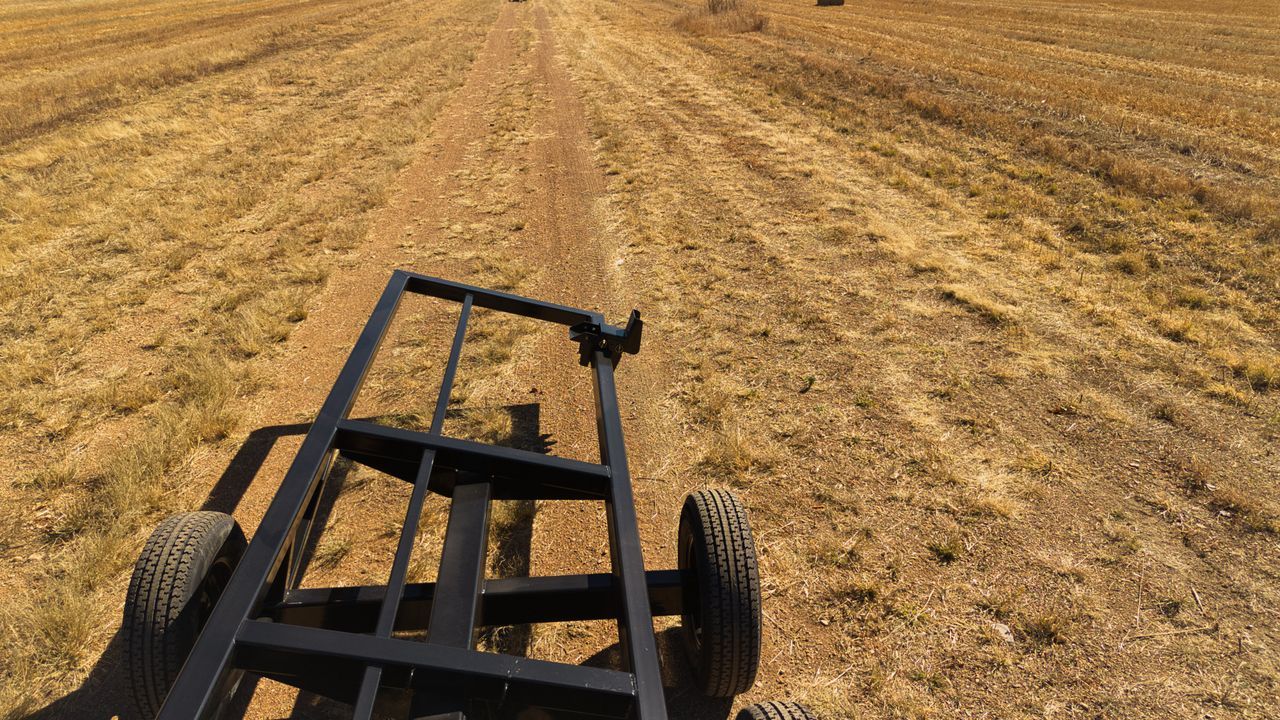

| Front Dolly | Swivel |
| Dolly Capacity | 7,000 lb |
| Tires | ST235/80R16 |
| Standard Tire Rating | 10-ply |
| Optional Tires | 16-ply |
| Brakes | Not included |
| Hitch | 1" clevis |
| Jack | Manual |
| Safety Chains | Included |
| Finish | Powder coat |
| Color Options | IA Red, Black, or Green |
| Application | Transporting combine headers from 20 ft to 42 ft |

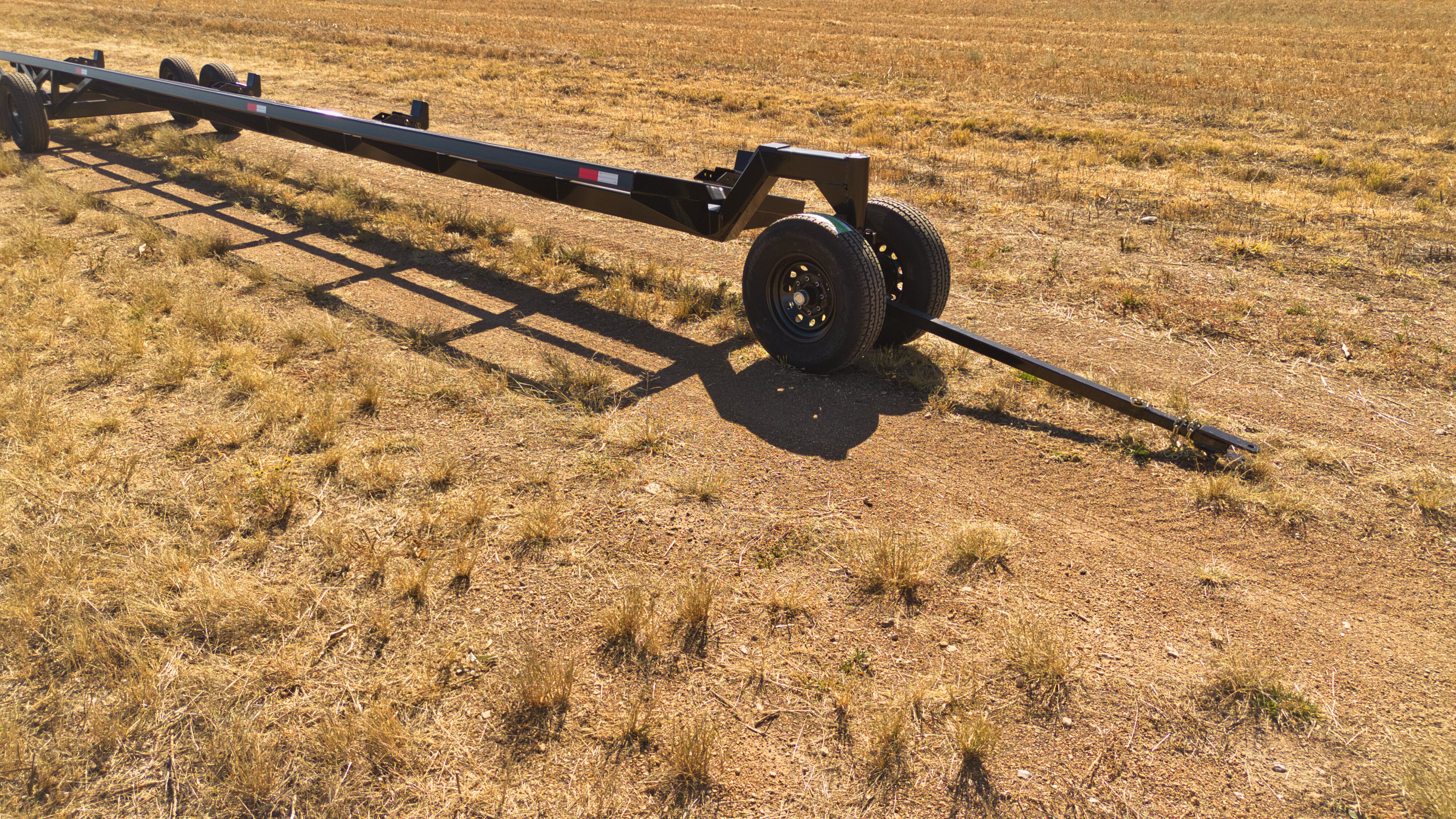

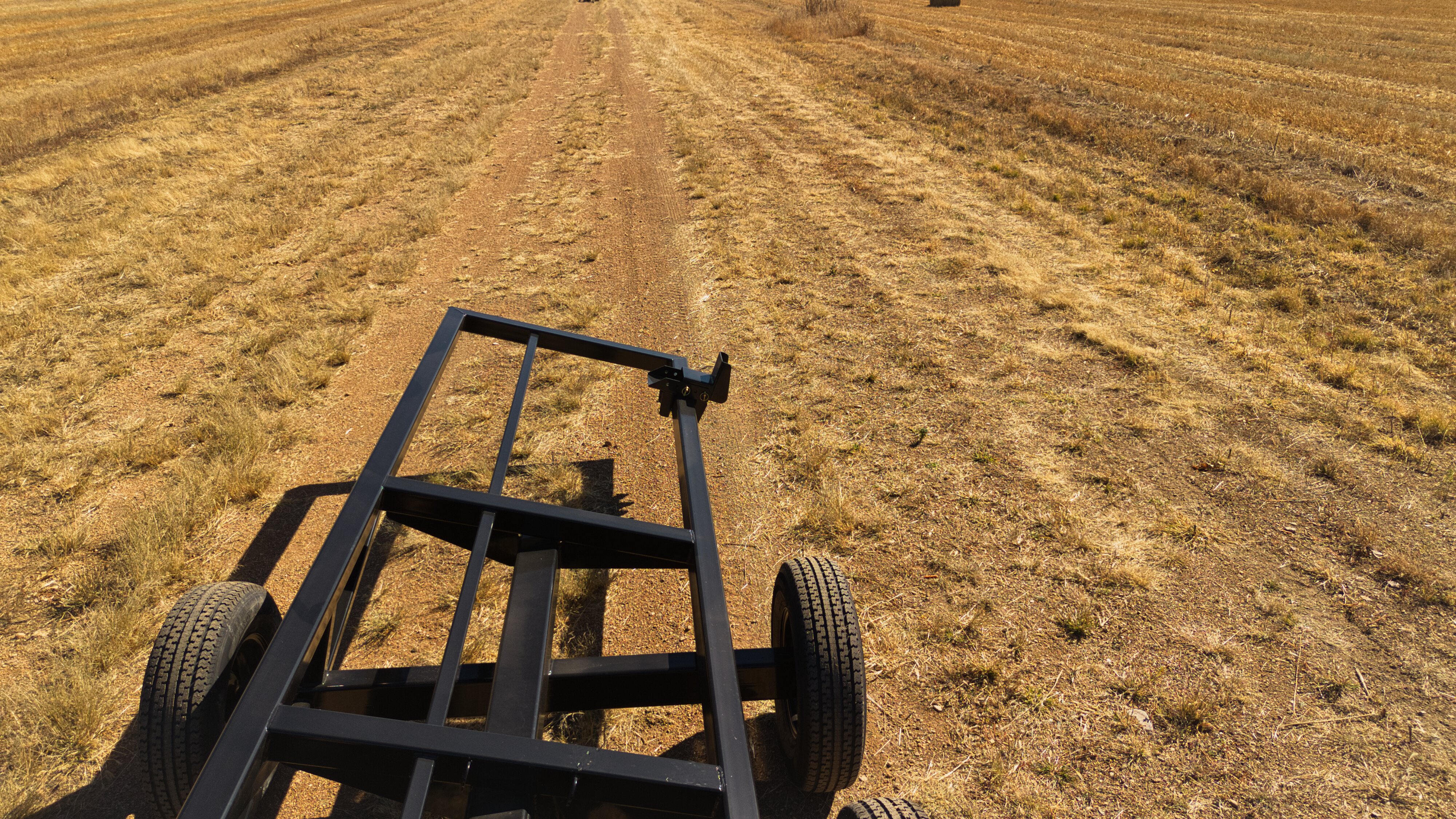

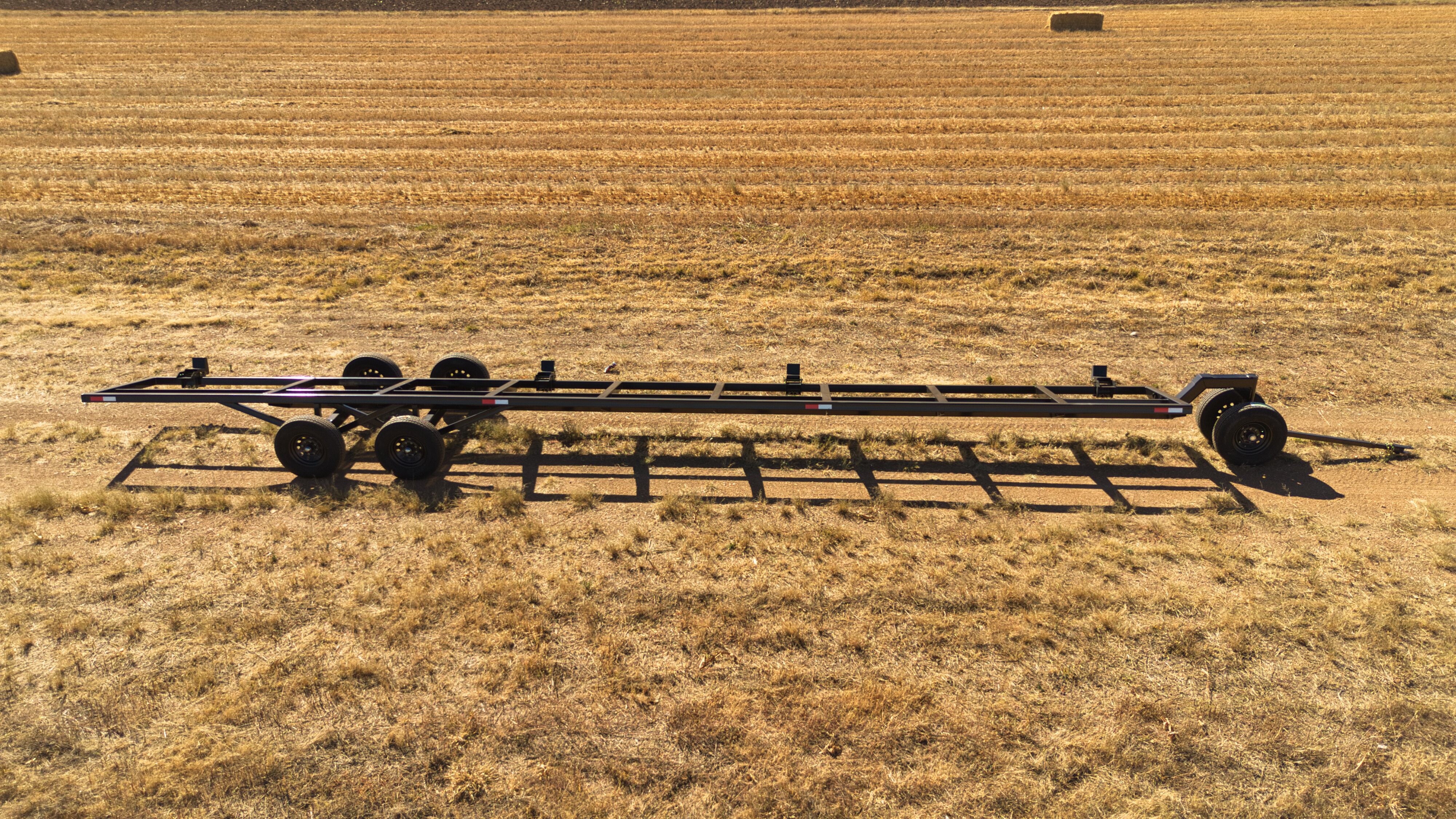

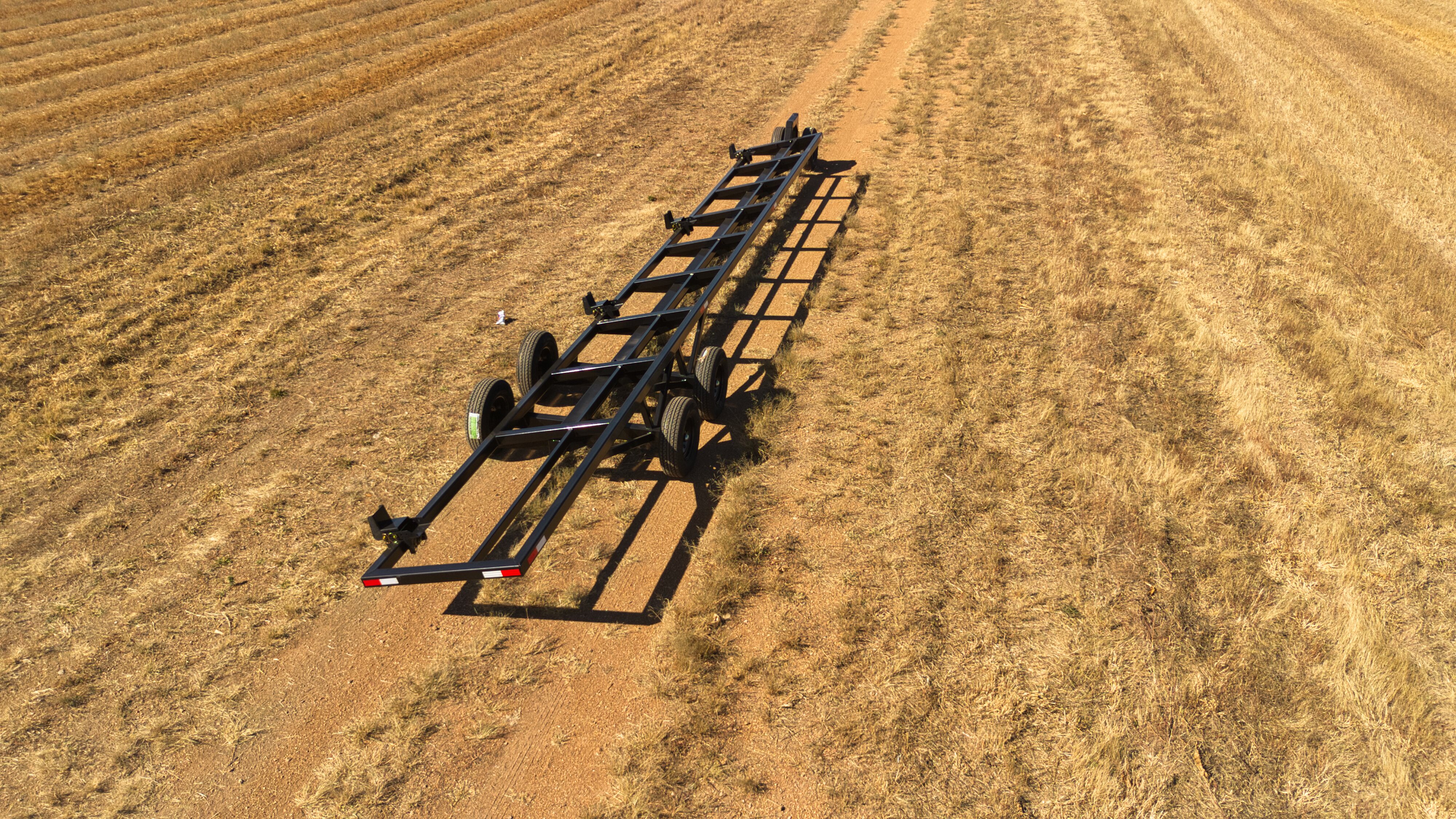

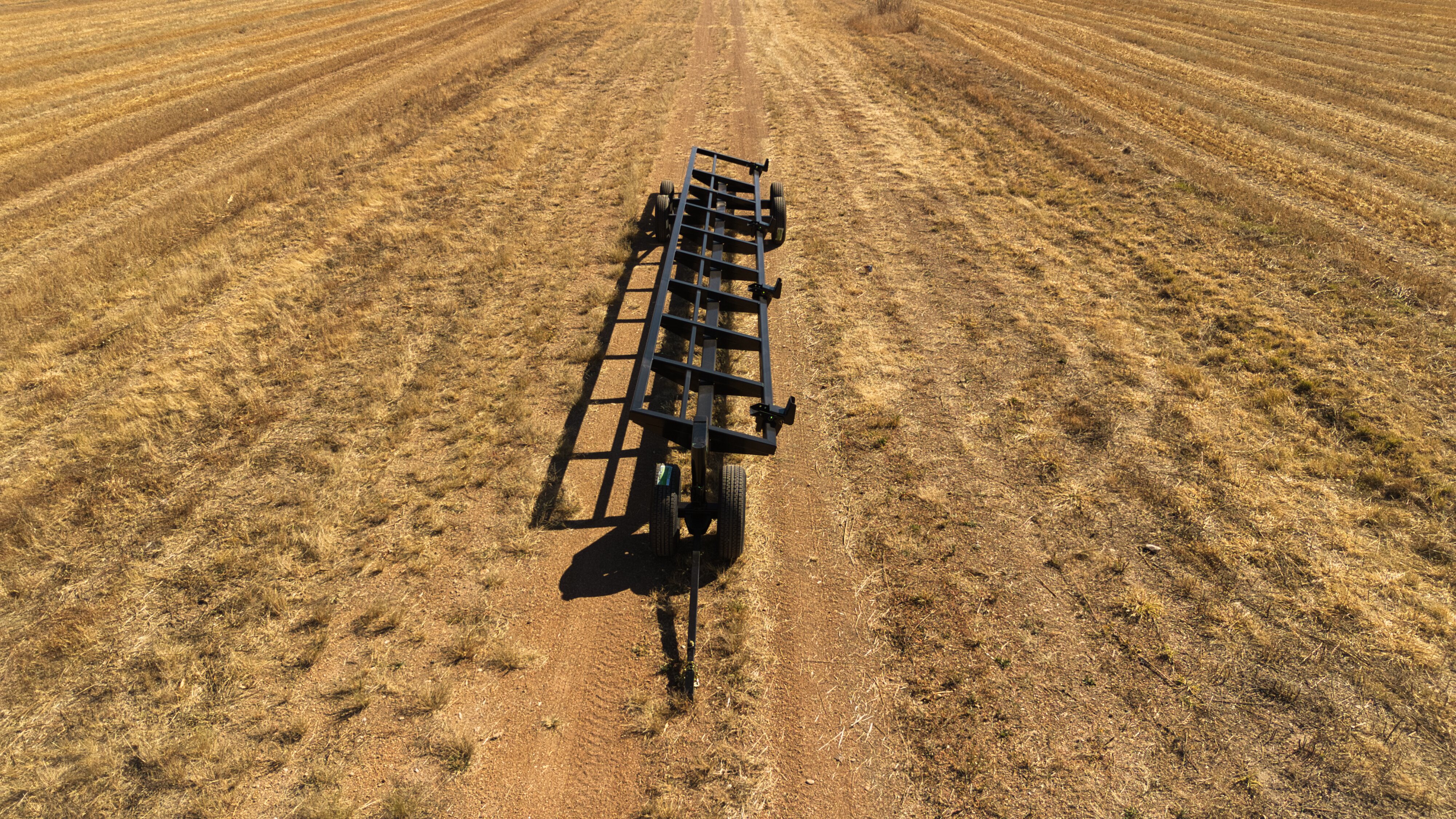

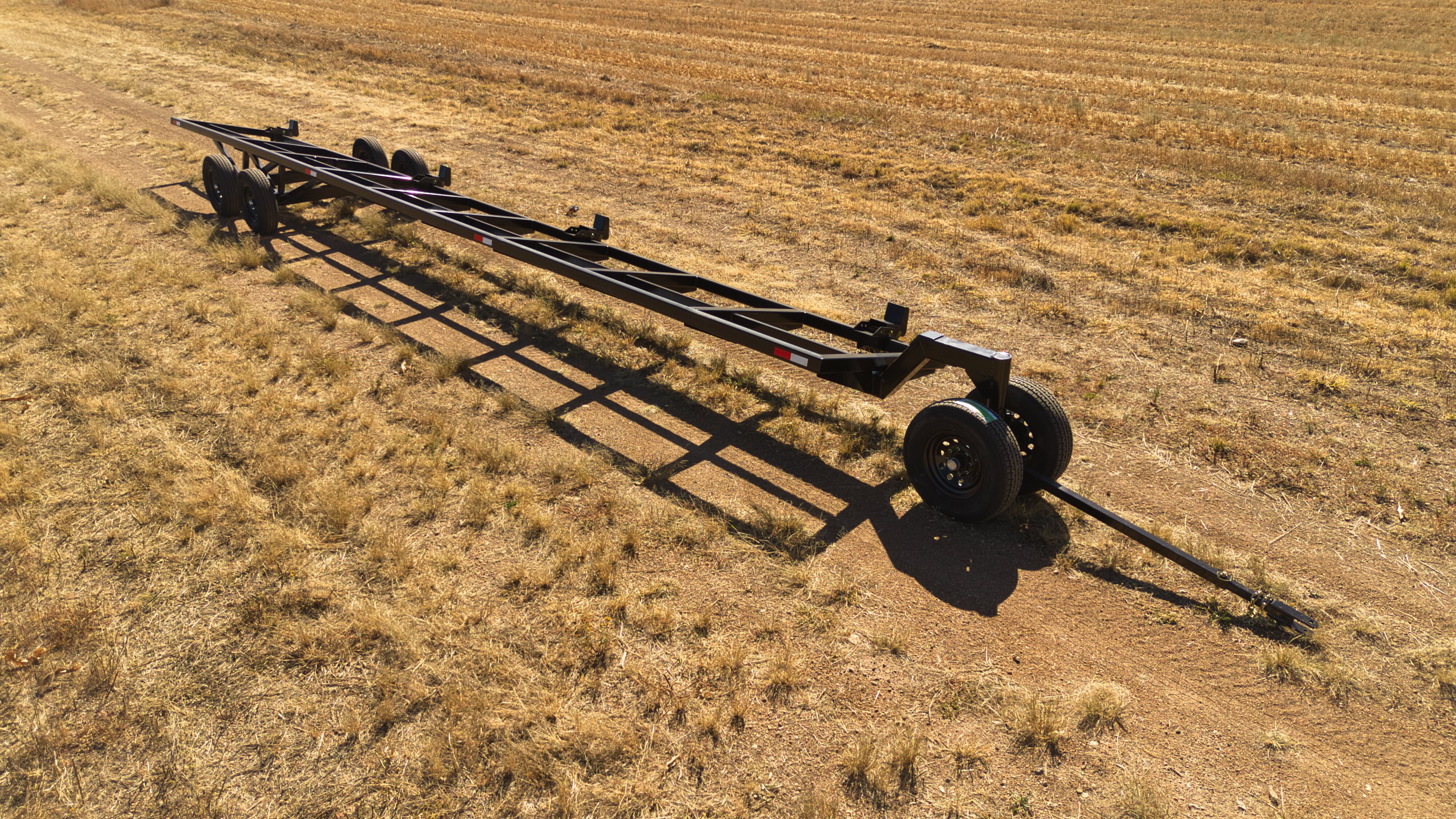

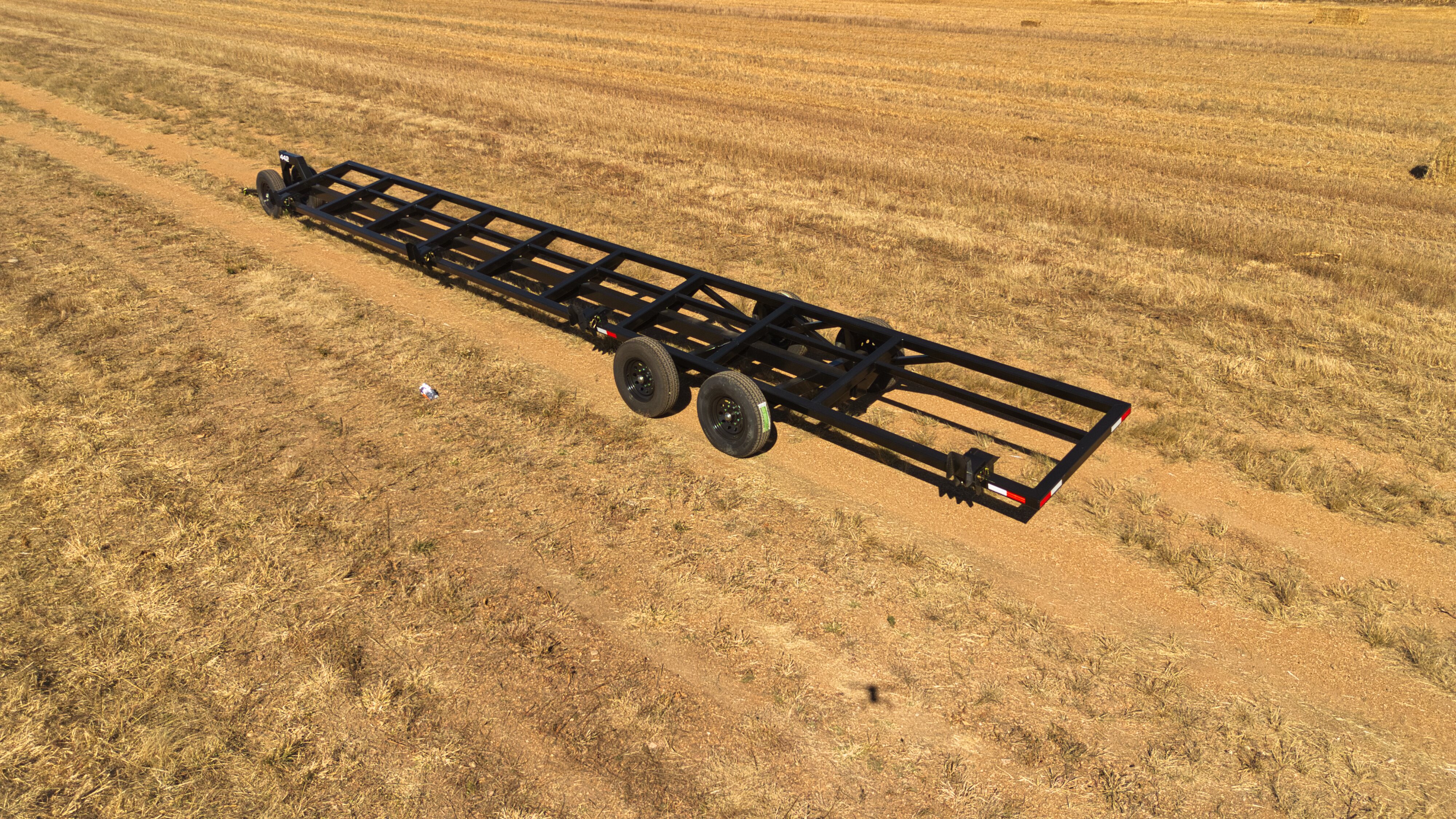

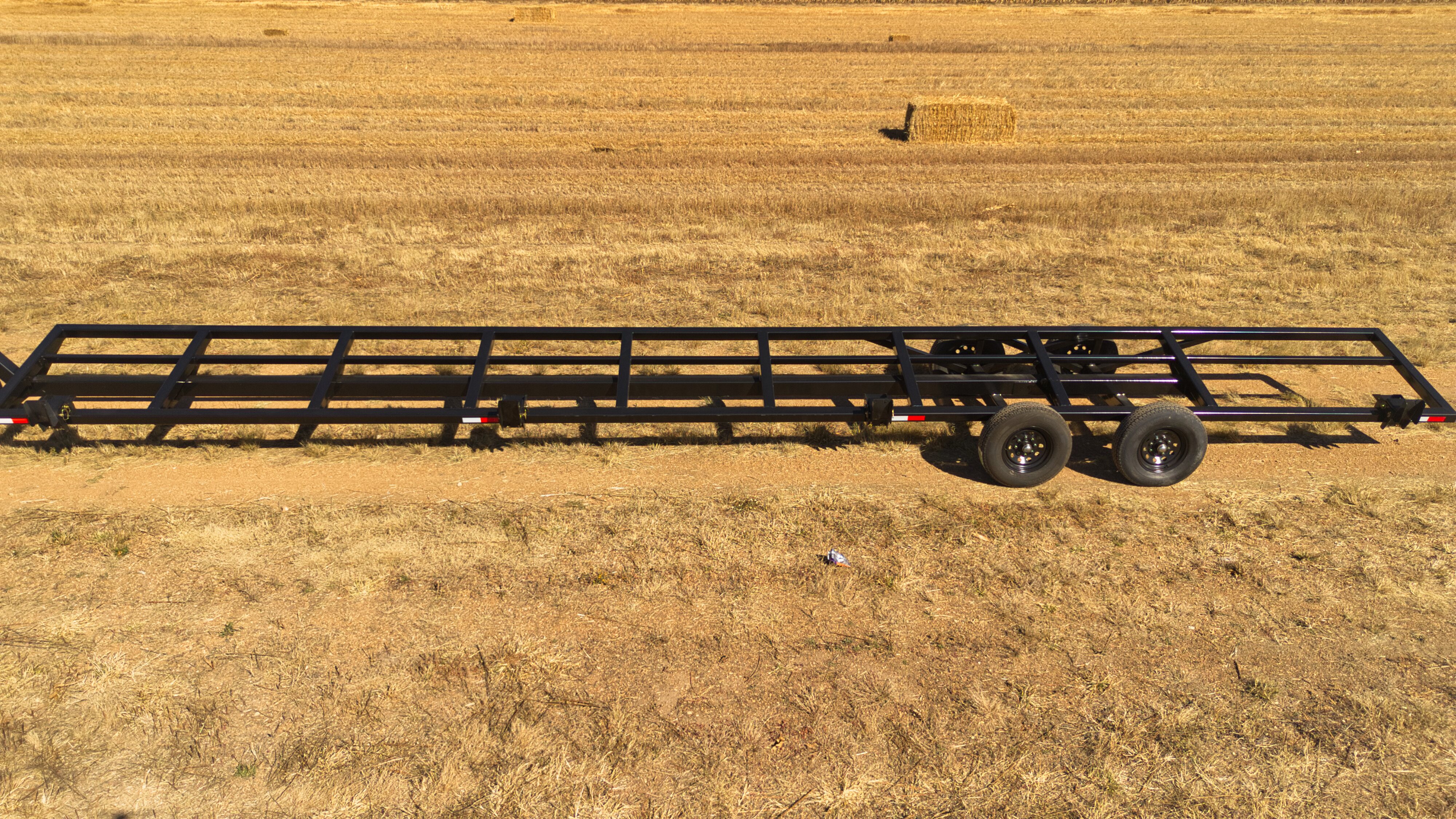

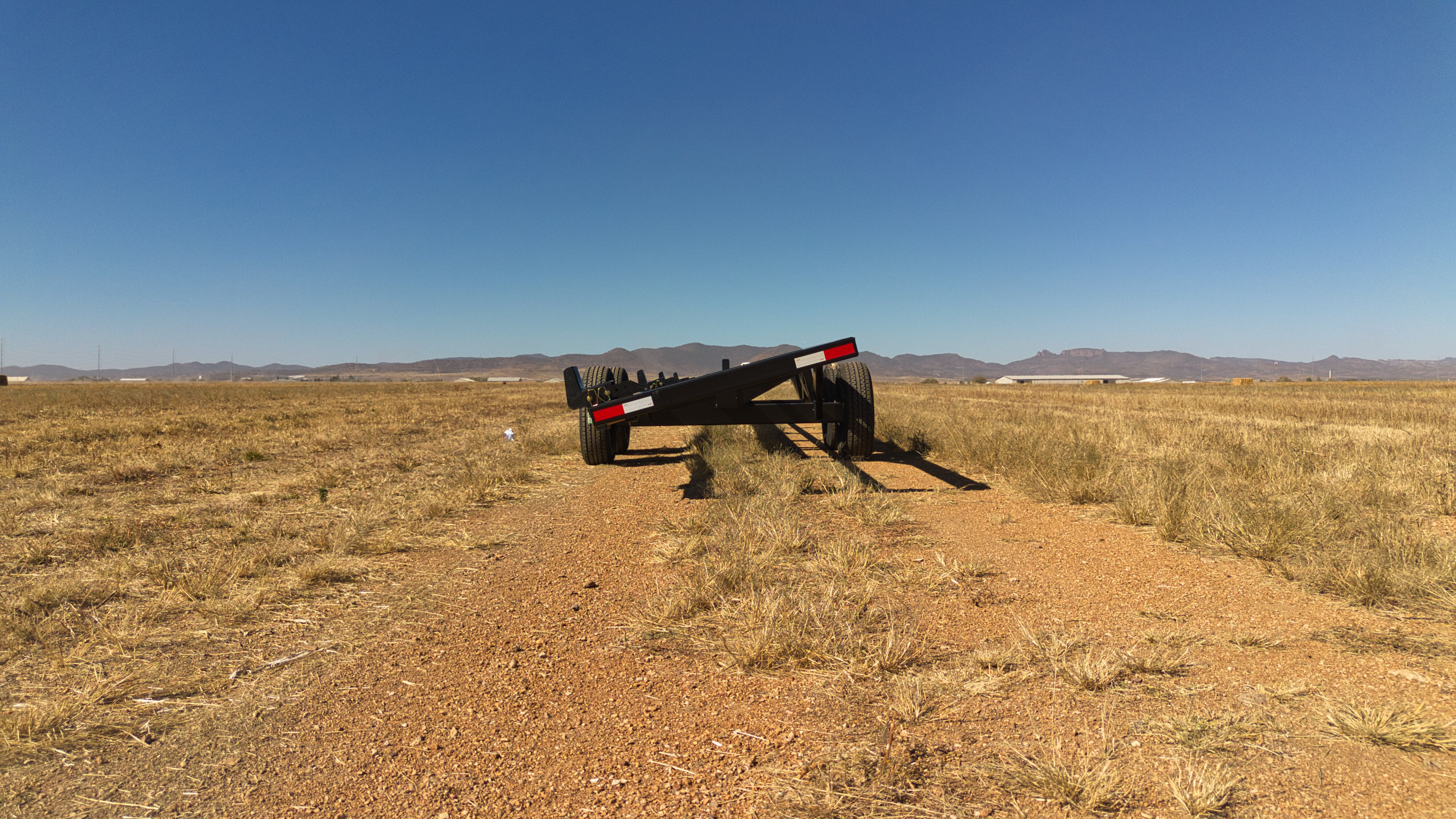

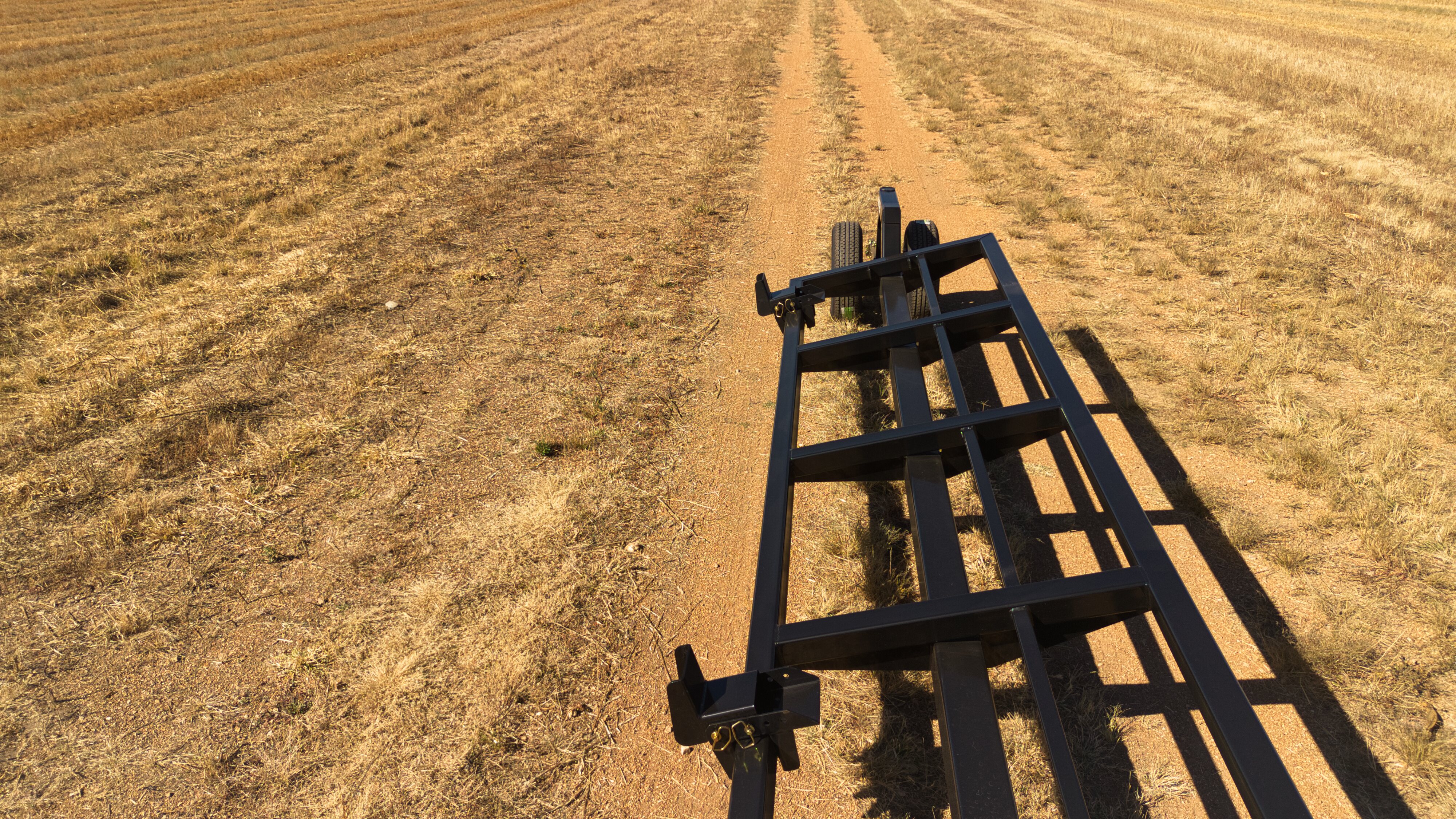

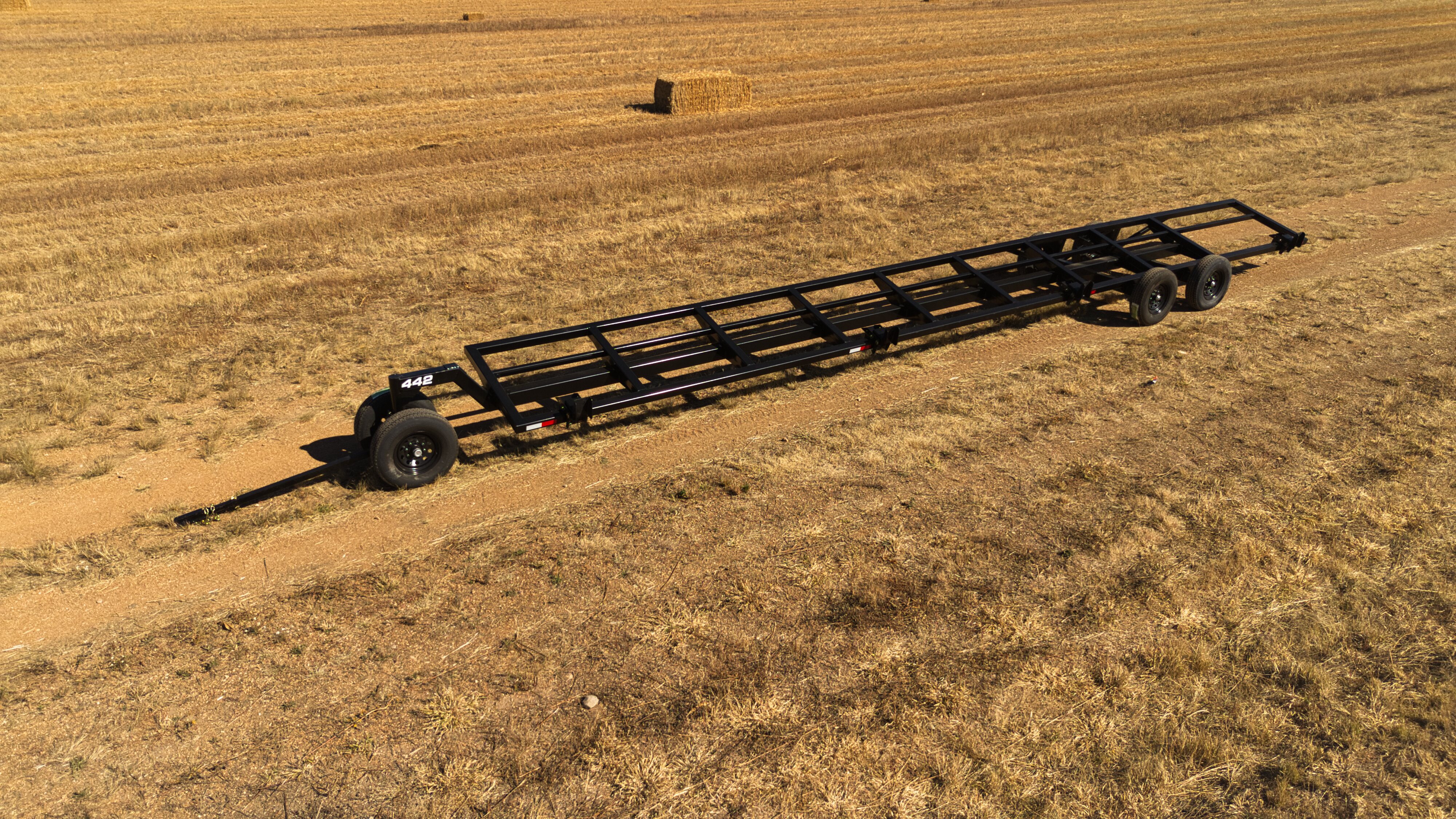

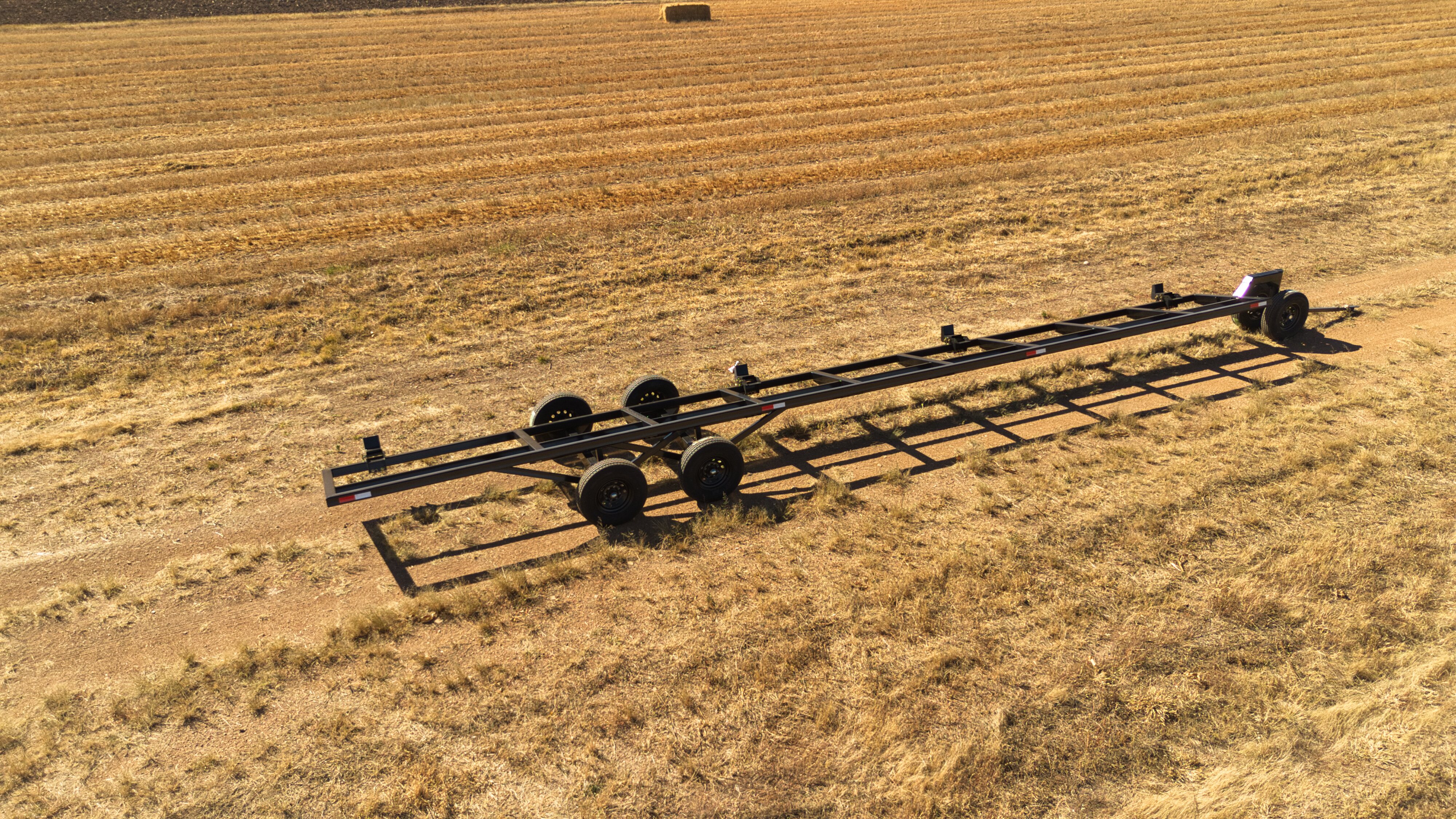

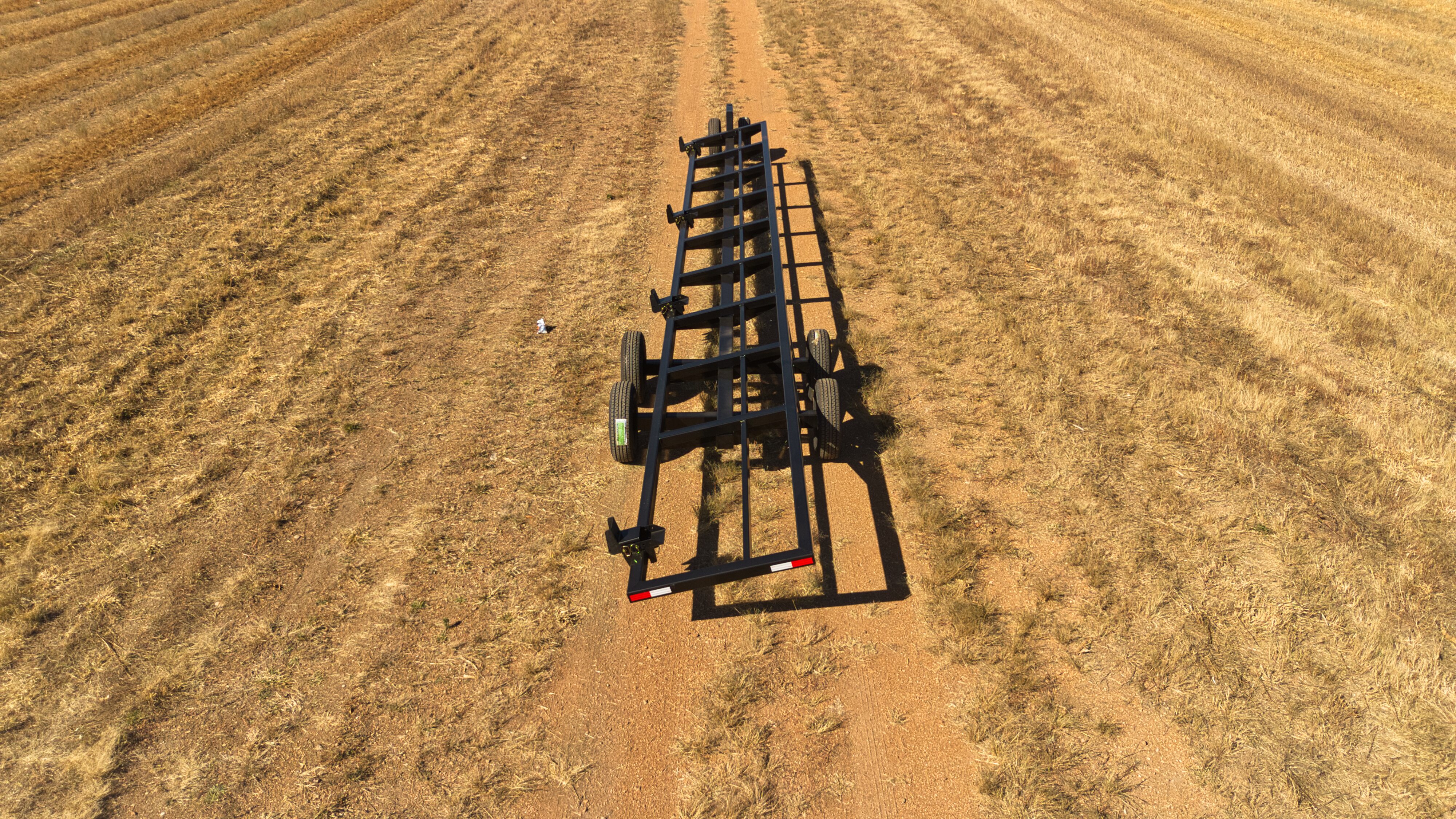

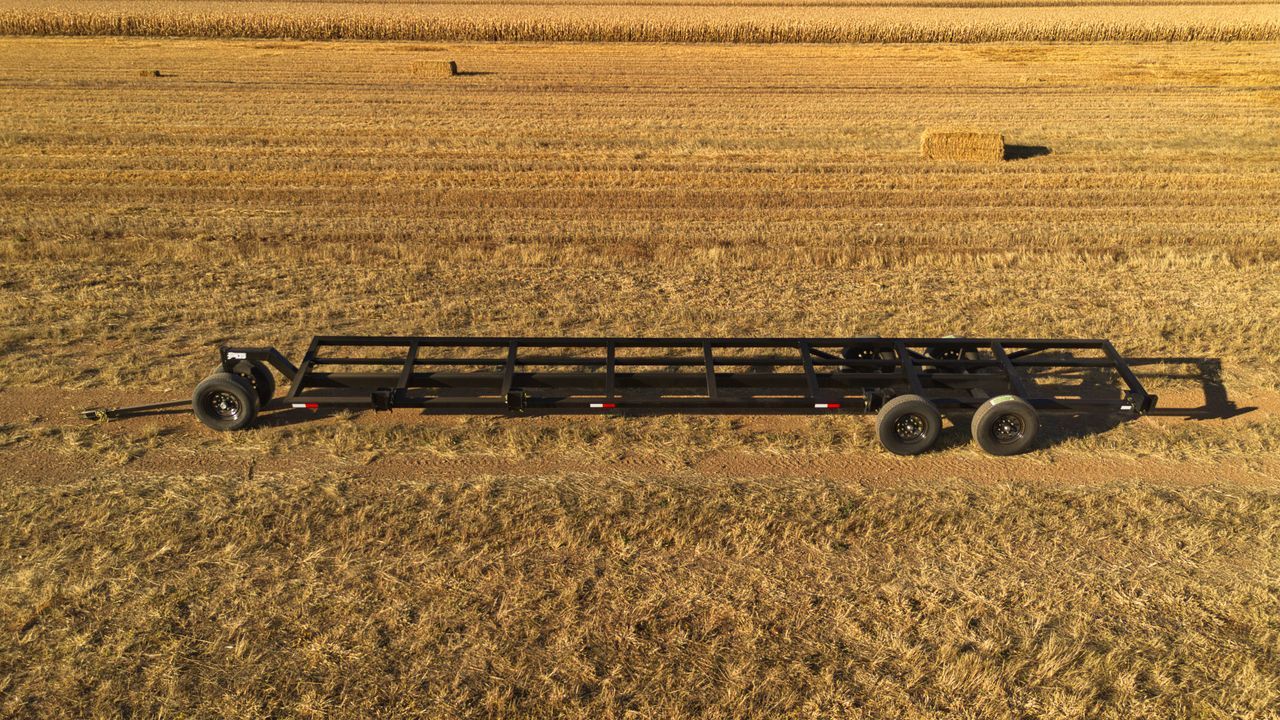

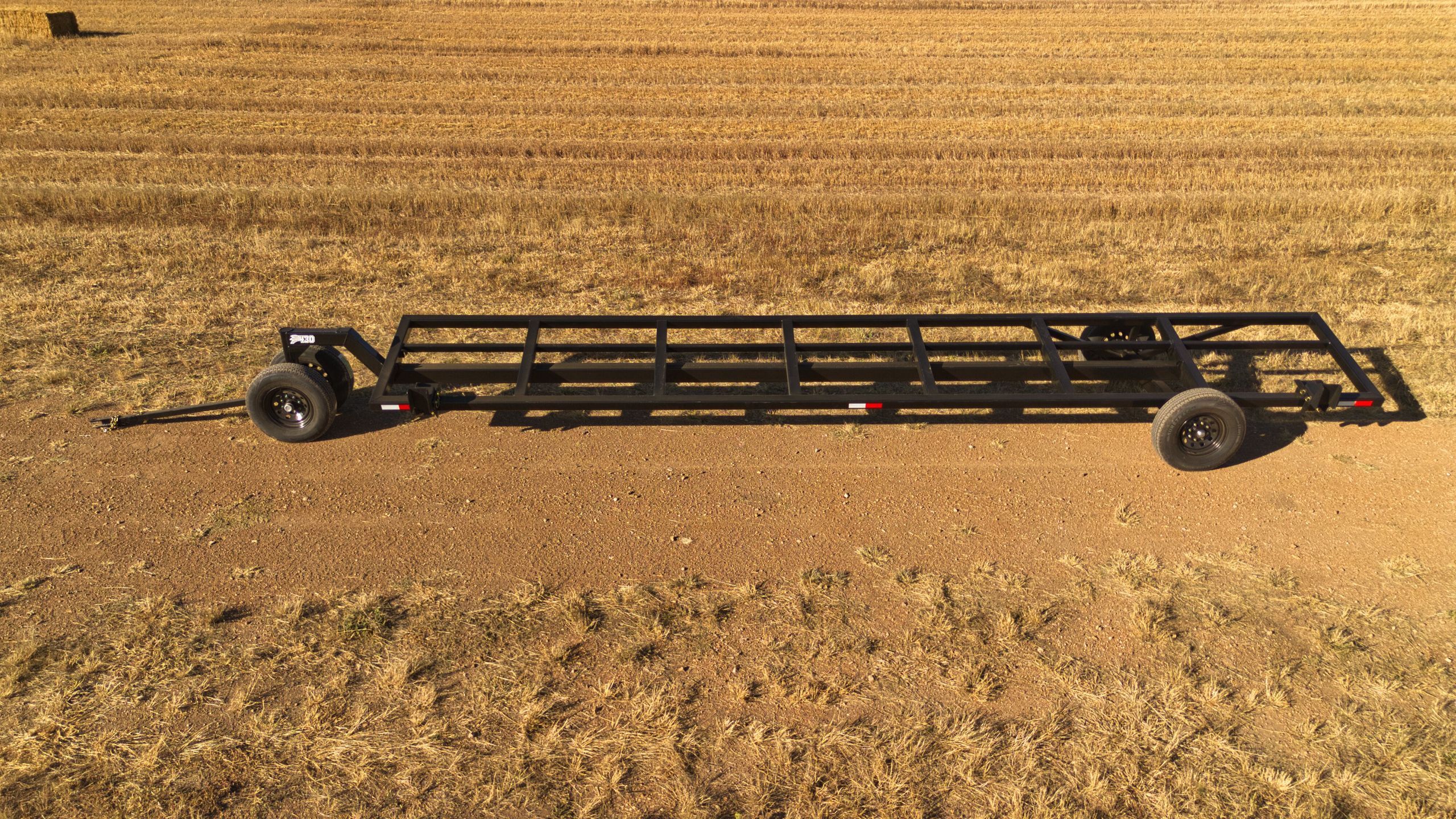

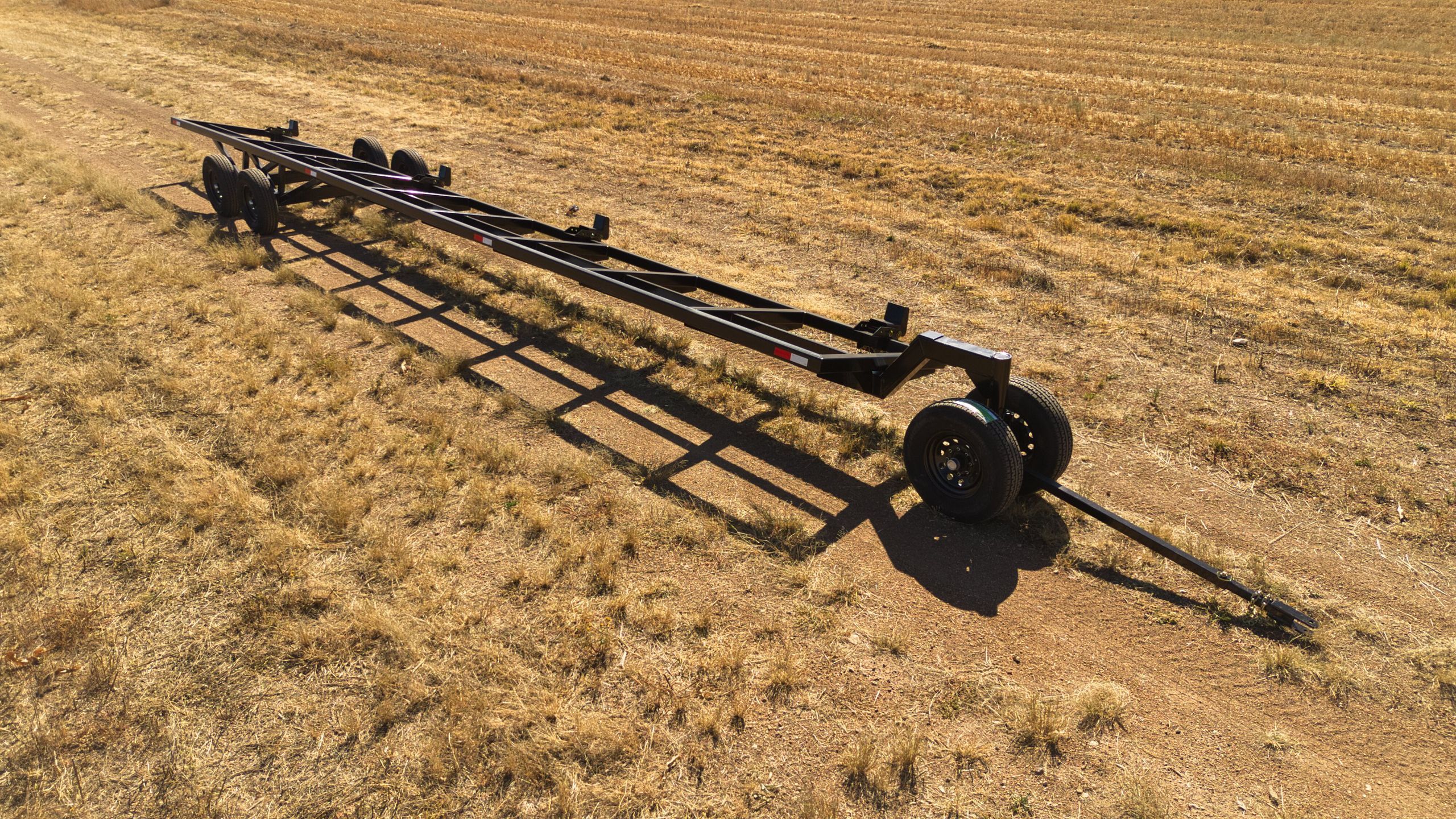

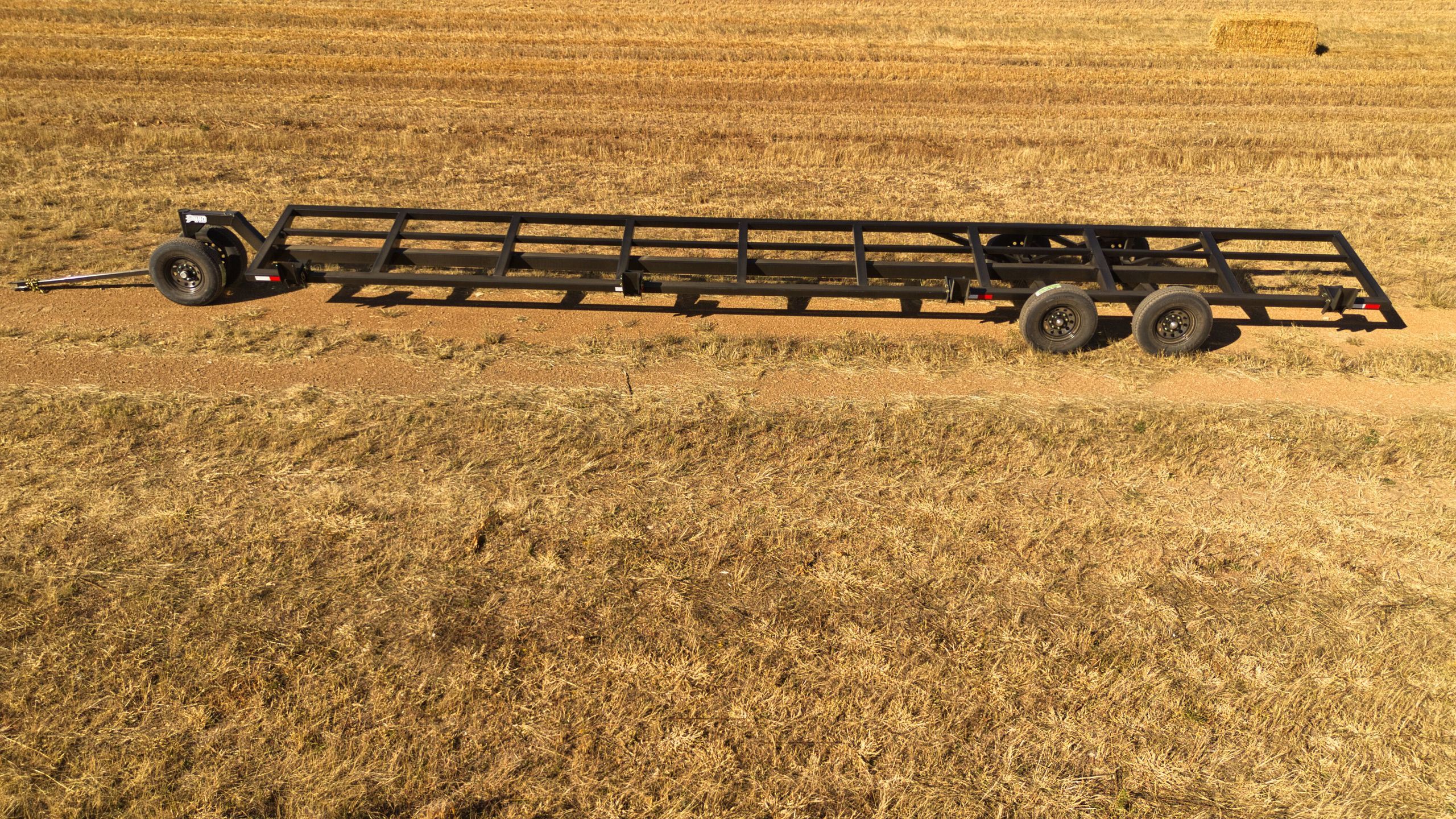

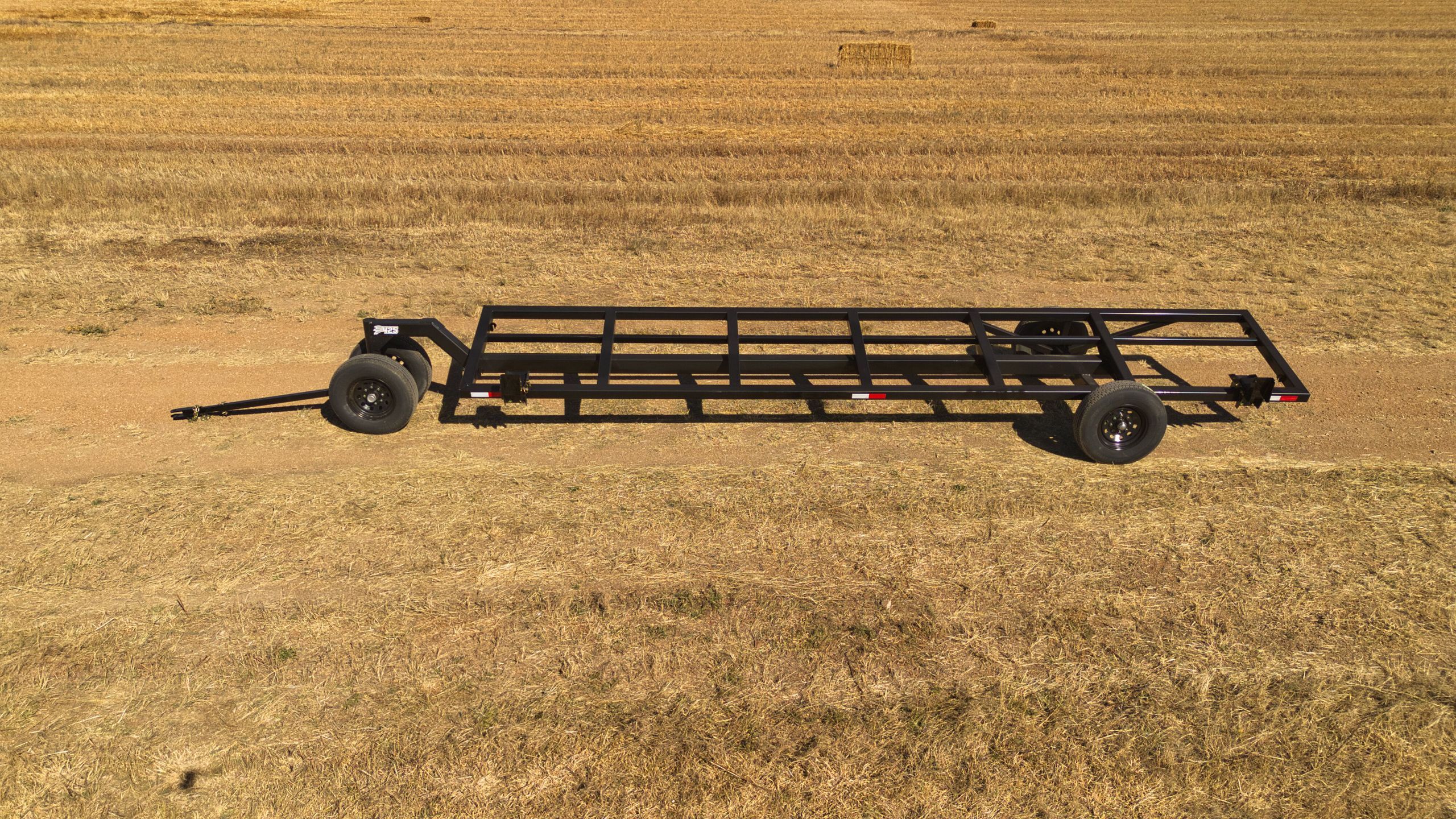

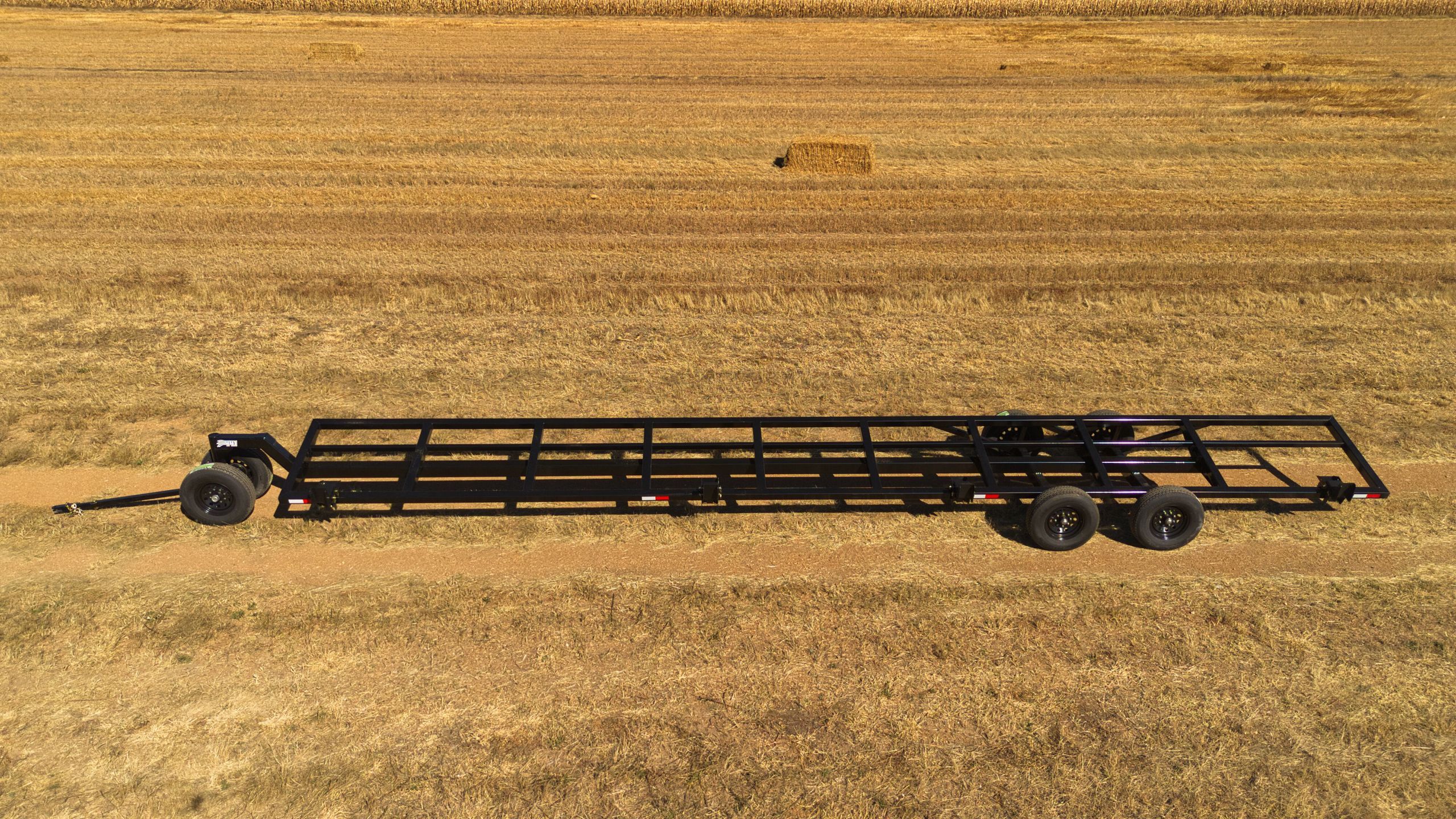

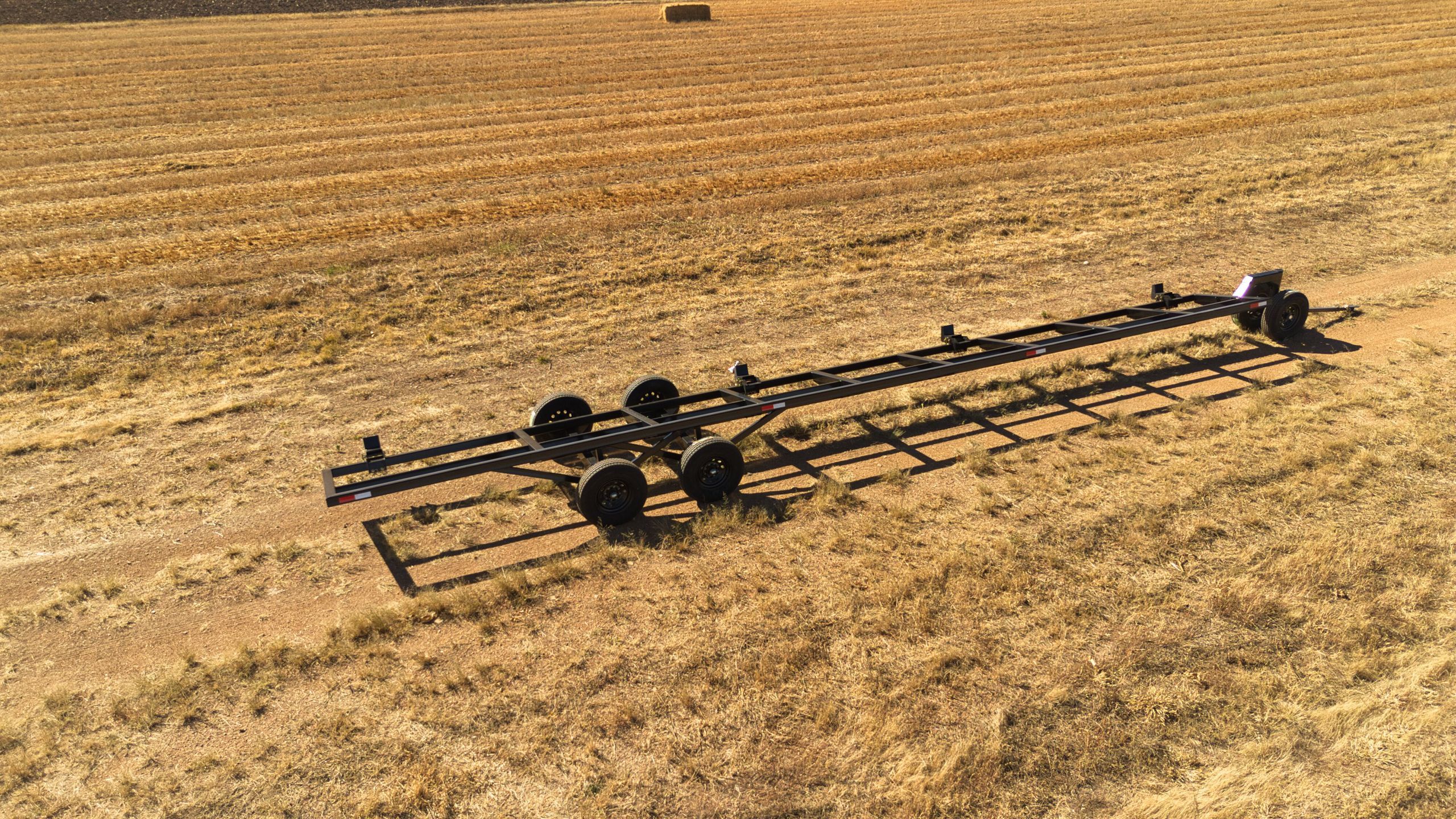

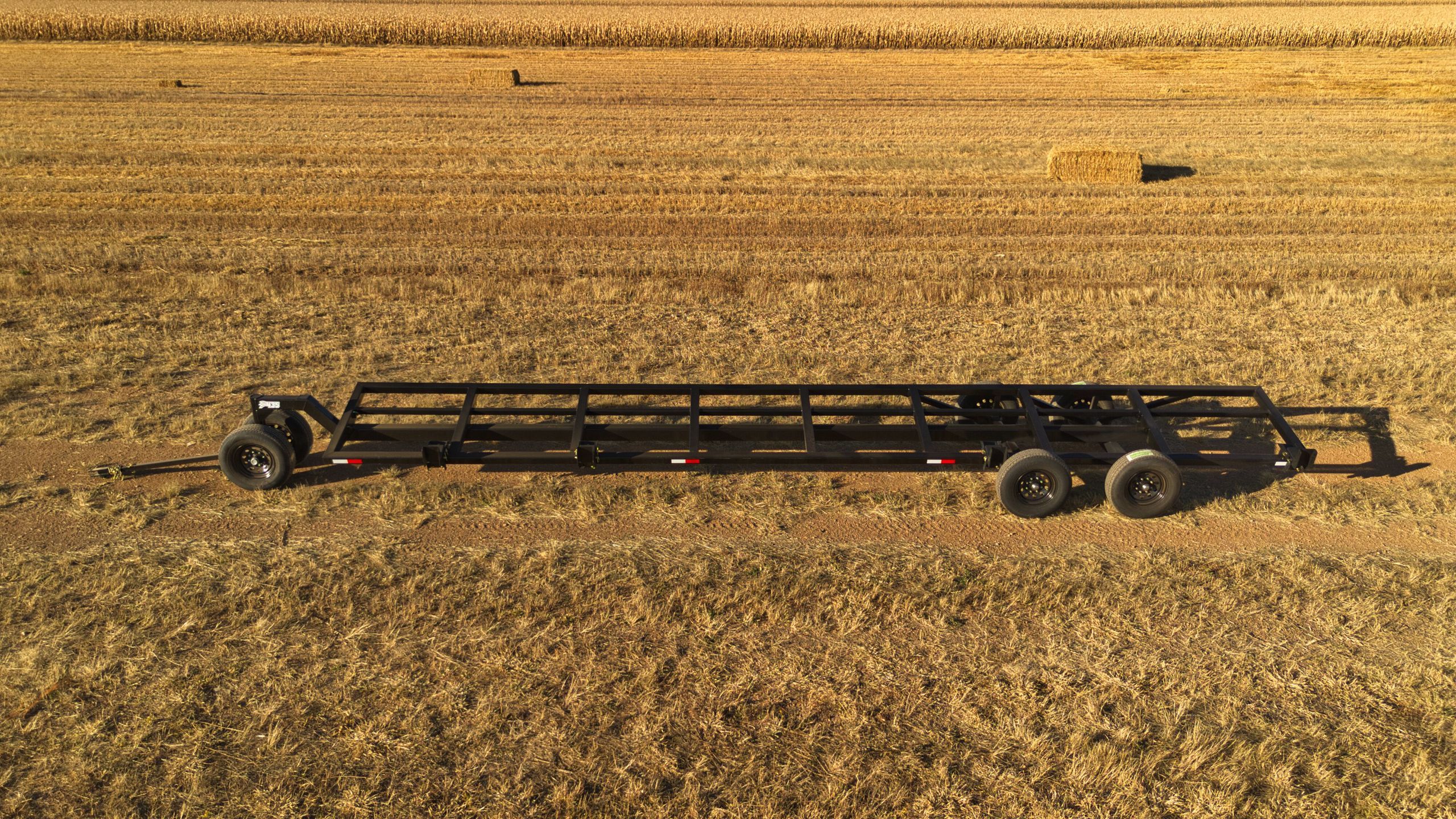

The 4 Series Header Wagons are designed to provide a simple and dependable solution for transporting combine headers during harvest. Available for headers from 20 ft to 42 ft, the series uses a practical 4" × 4" steel frame with adjustable header supports and a swivel front dolly for easy maneuvering through fields, farm entrances, and equipment yards. Smaller models use a single rear axle, while the larger models use tandem fixed axles for increased stability and load capacity. Its straightforward construction makes the 4 Series a practical choice for everyday header transport.
