Specifications
| Feature | Description |
|---|---|
| Type | Pull-type disc harrow (heavy-duty) |

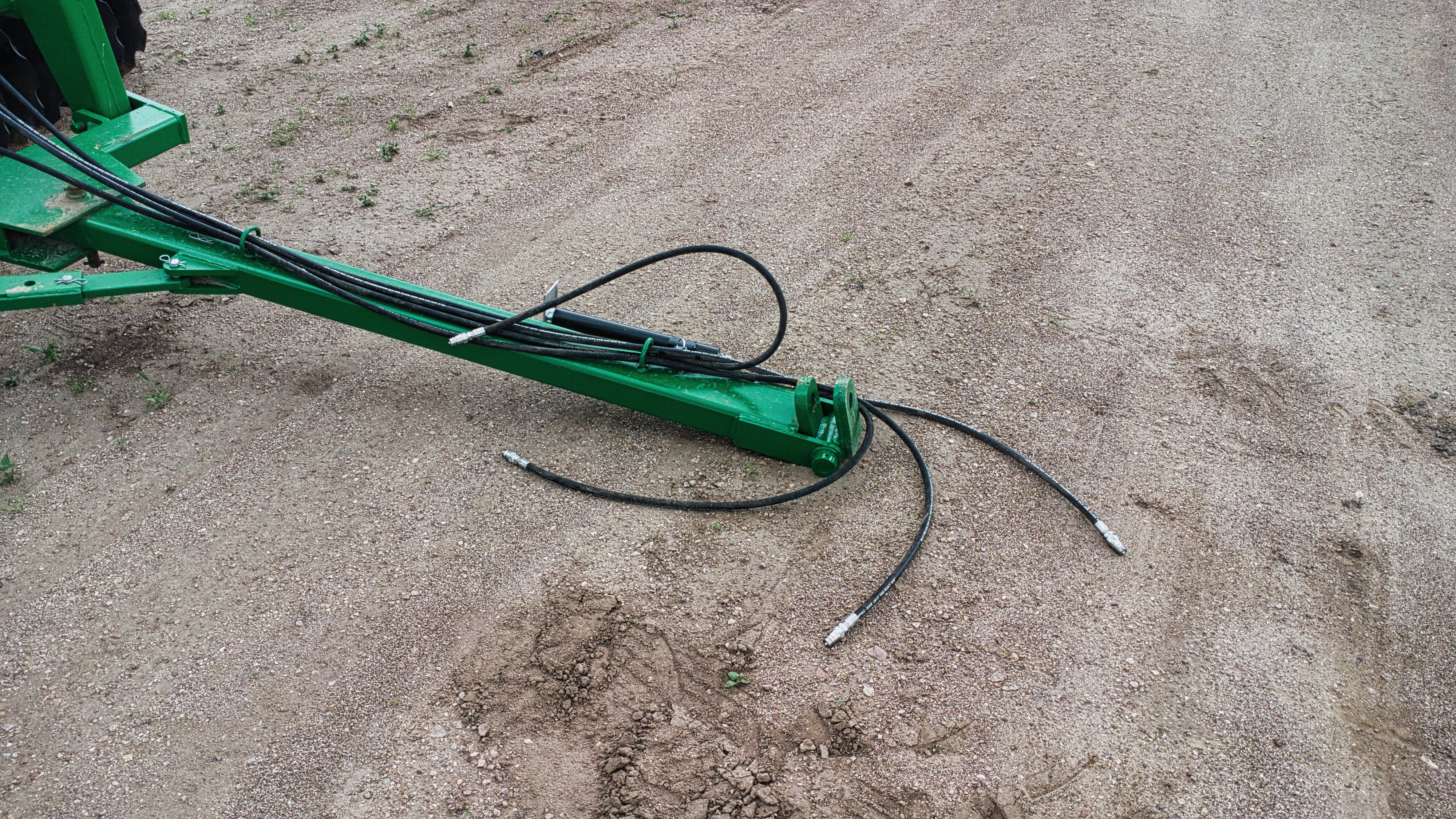

| Hitch Type | Pin-through drawbar |
| Disc Diameter | 26” / 28” |
| Disc Thickness | 1/4” |
| Disc Type | Plain or notched |
| Disc Material | Carbon steel |
| Disc Spacing | 9” or 11” |
| Number of Discs | 24 – 64+ |
| Working Width | Approx. 108” – 350”+ |
| Gang Angle | Adjustable |
| Frame | 4” × 6” up to 4” × 8” heavy steel tubing |
| Bearings | Heavy-duty sealed cast housings |
| Scrapers | Included |
| Transport | Wheels included |

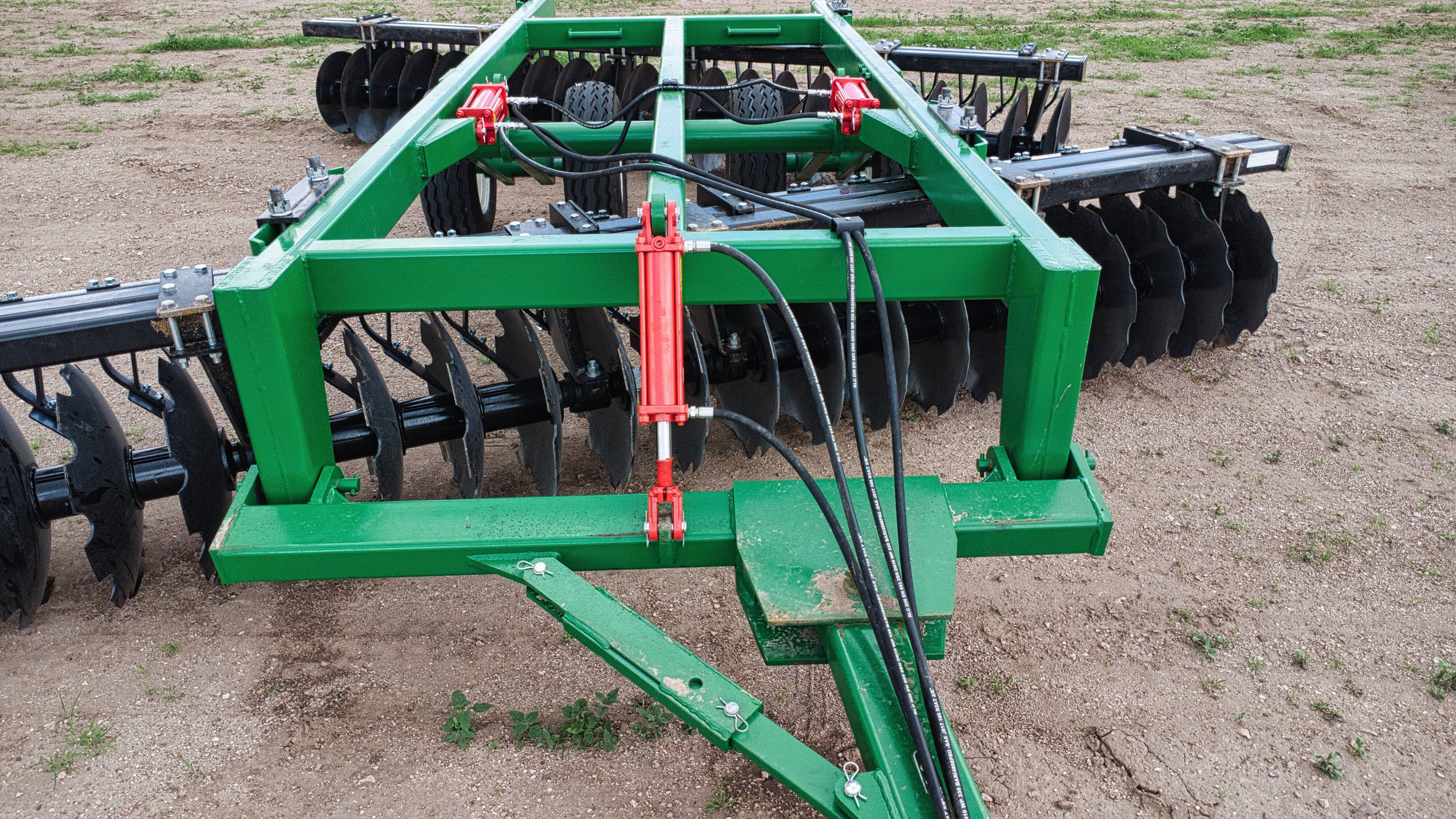

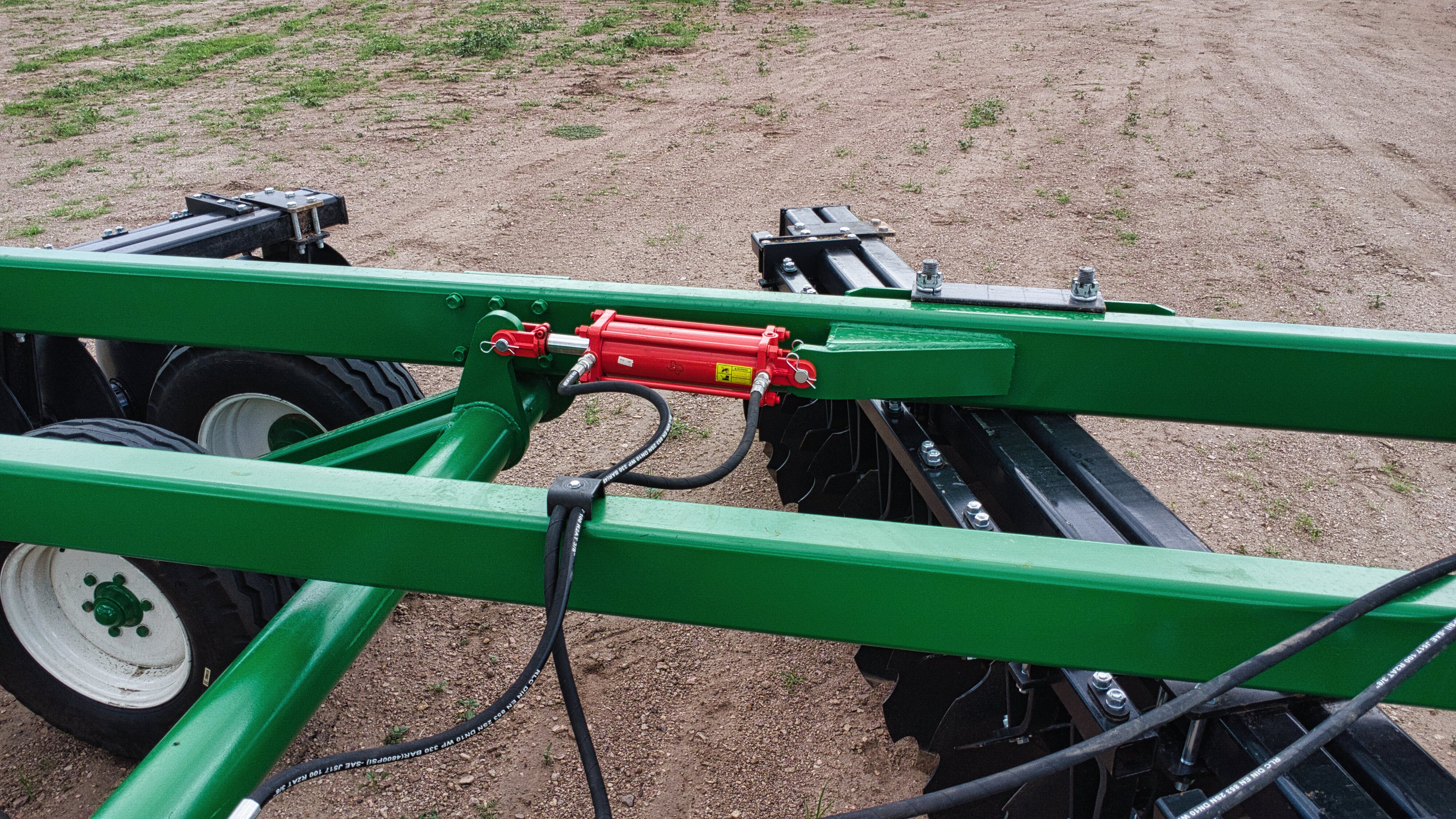

| Hydraulic System | Lift (and folding on large models) |
| Jack | Not required |
| Recommended HP | 120–250+ HP |
| Soil Type | Medium to heavy |
| Residue Handling | High |

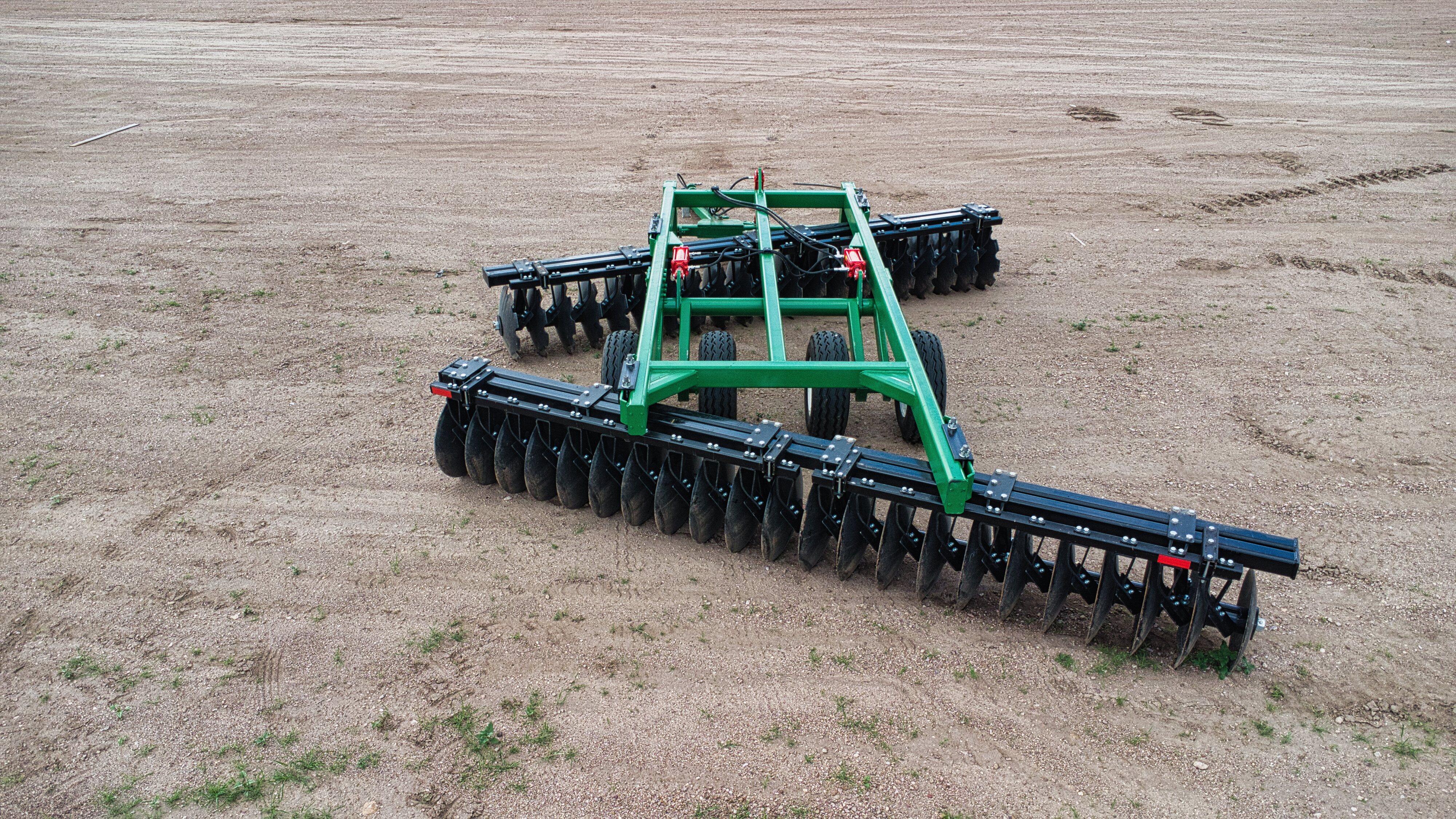

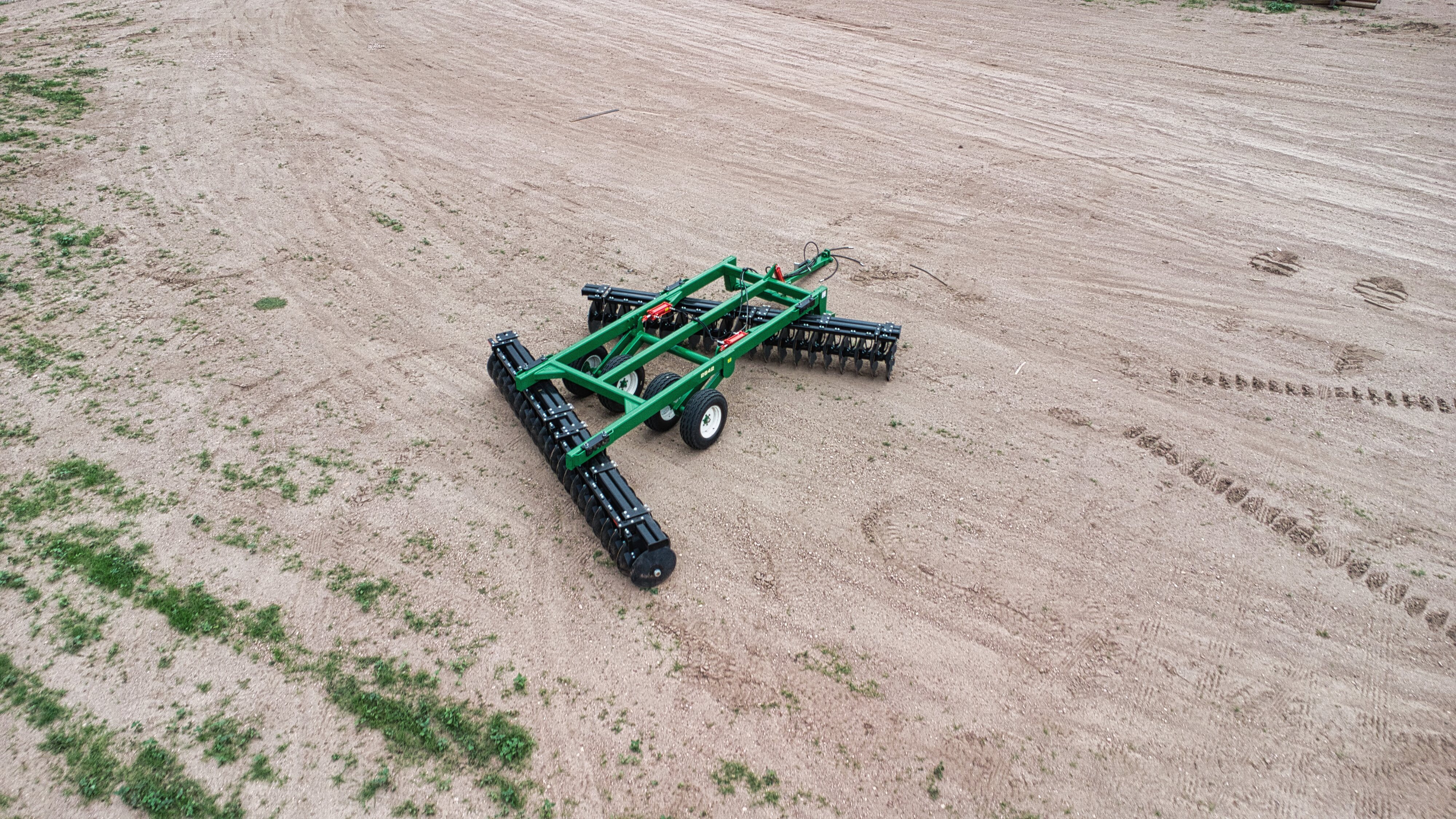

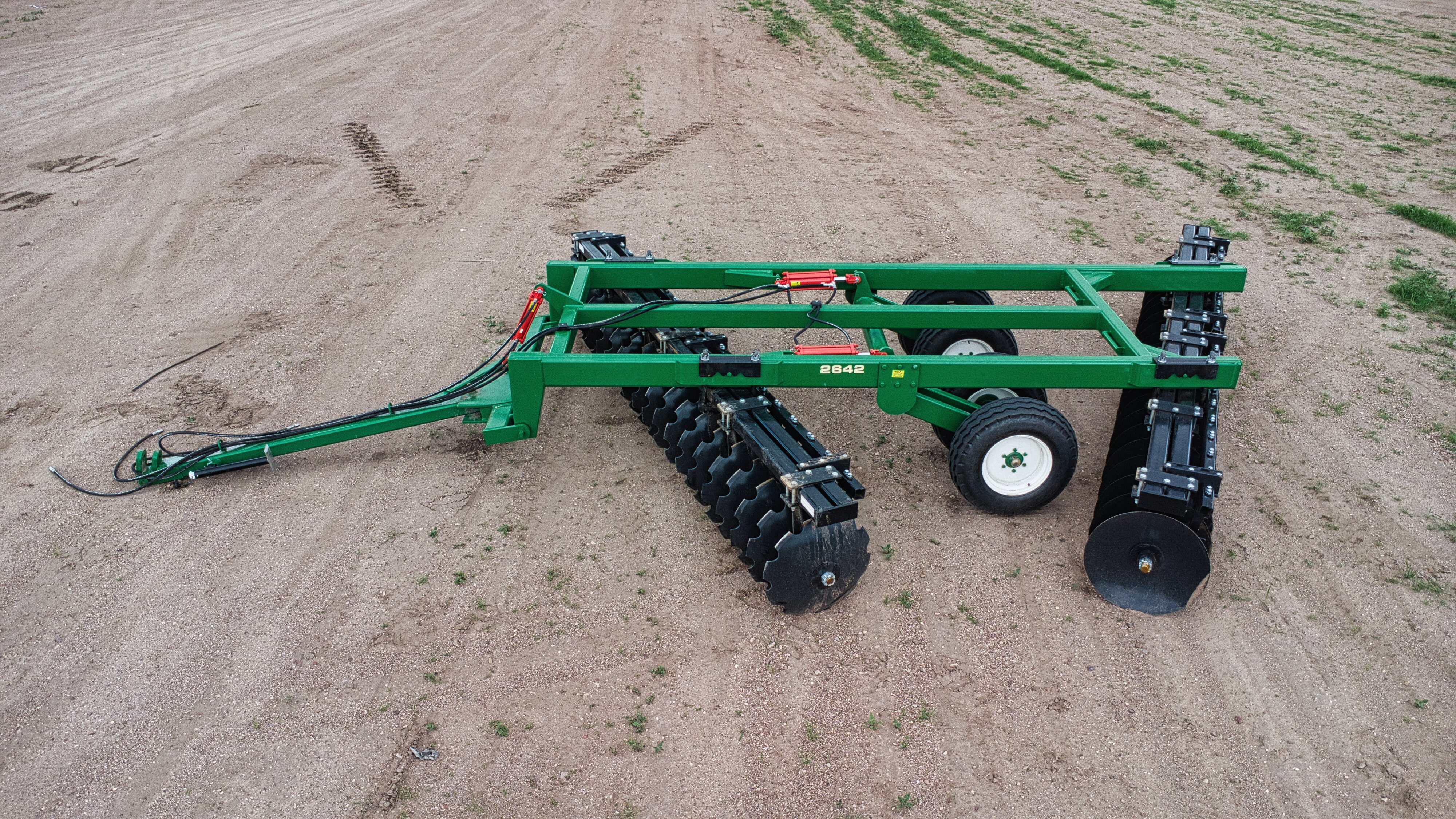

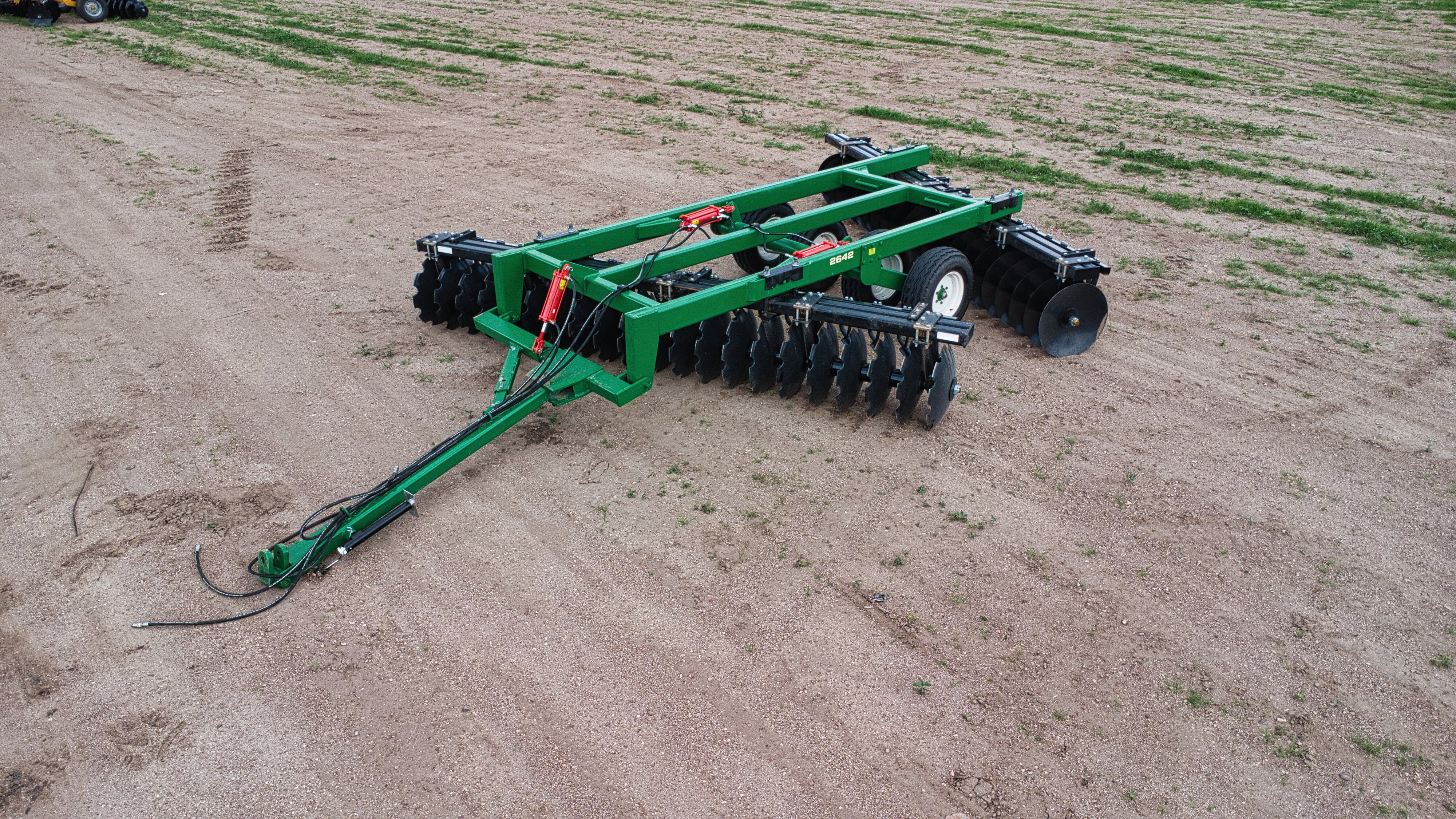

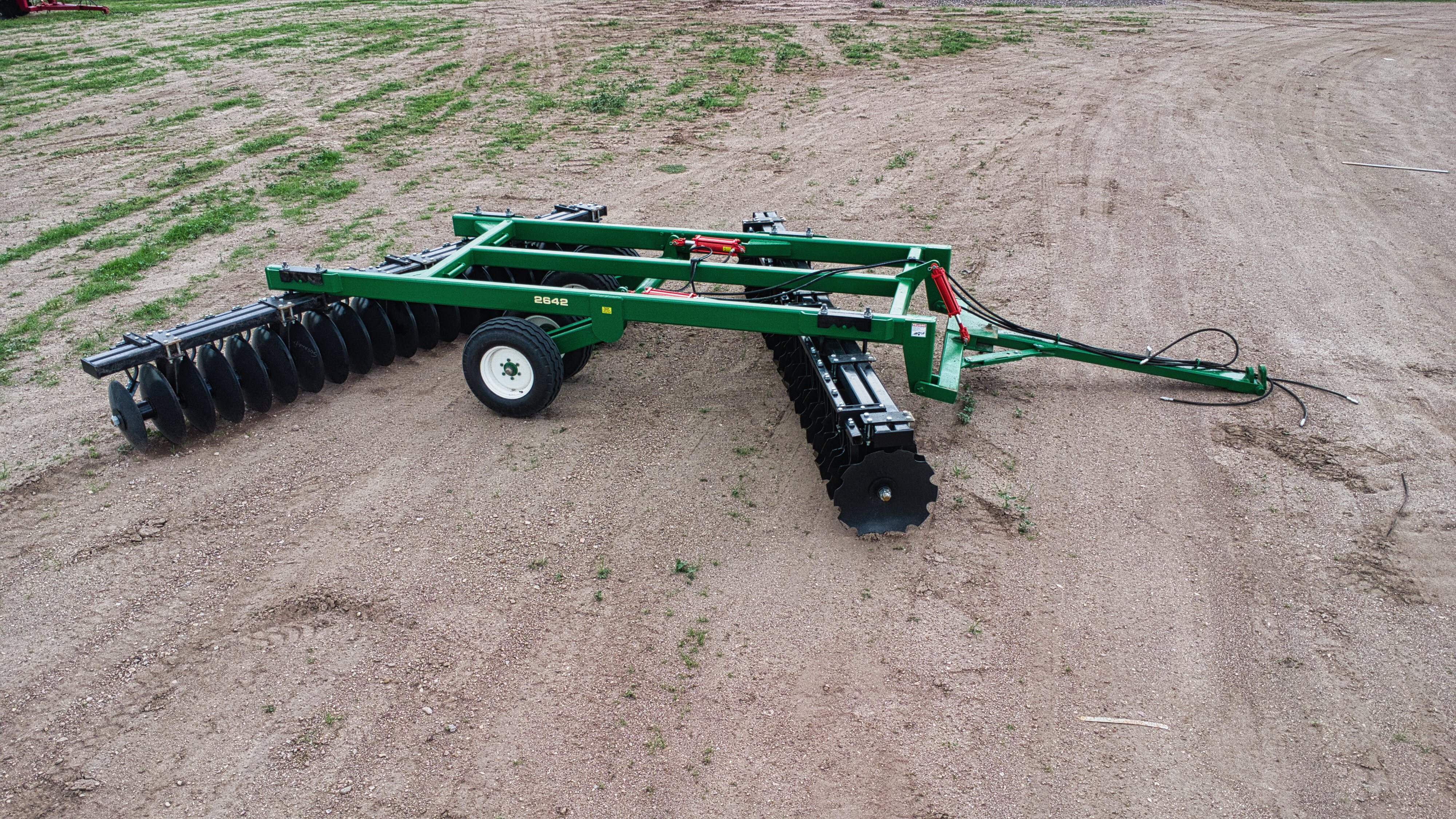

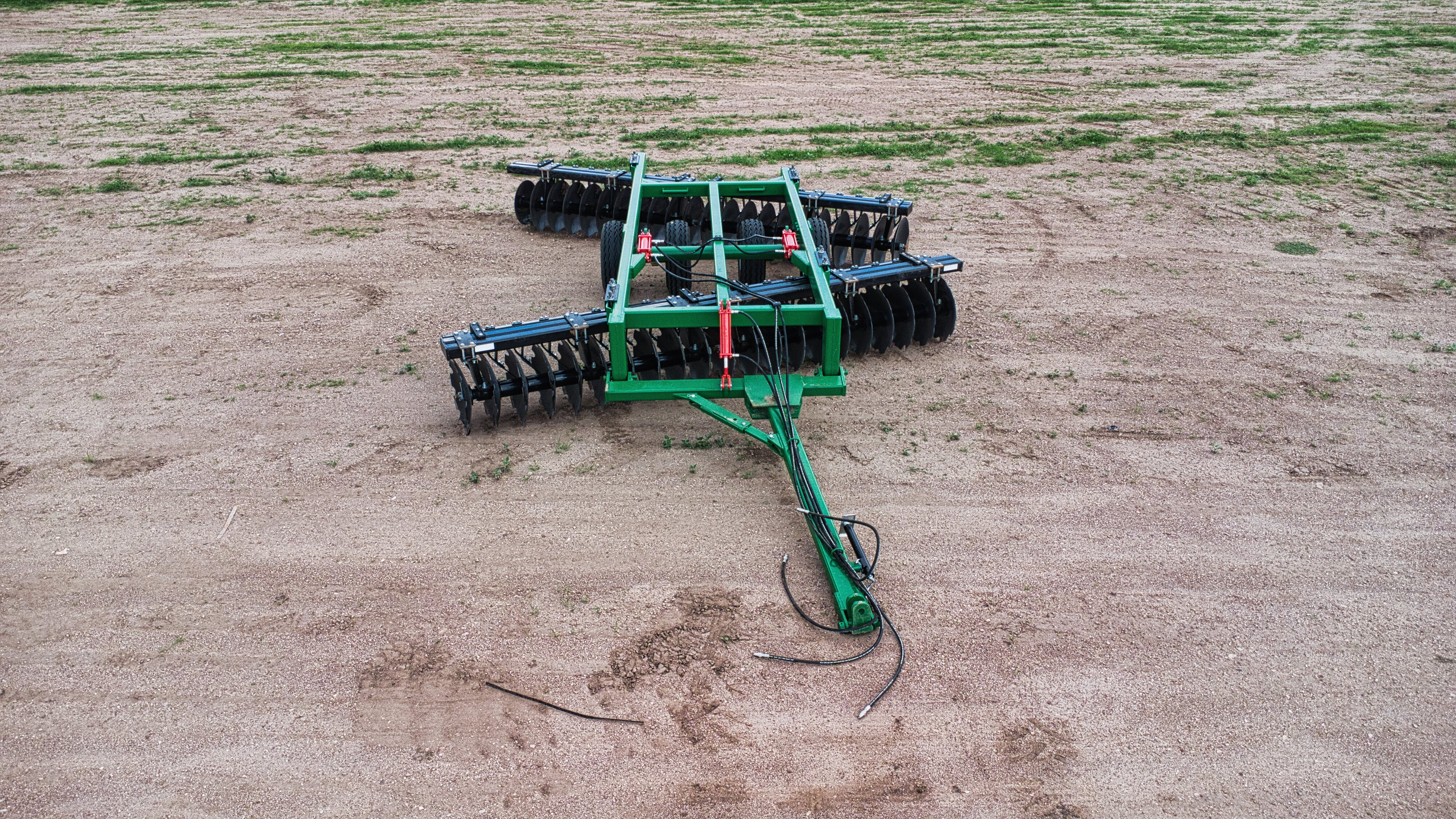

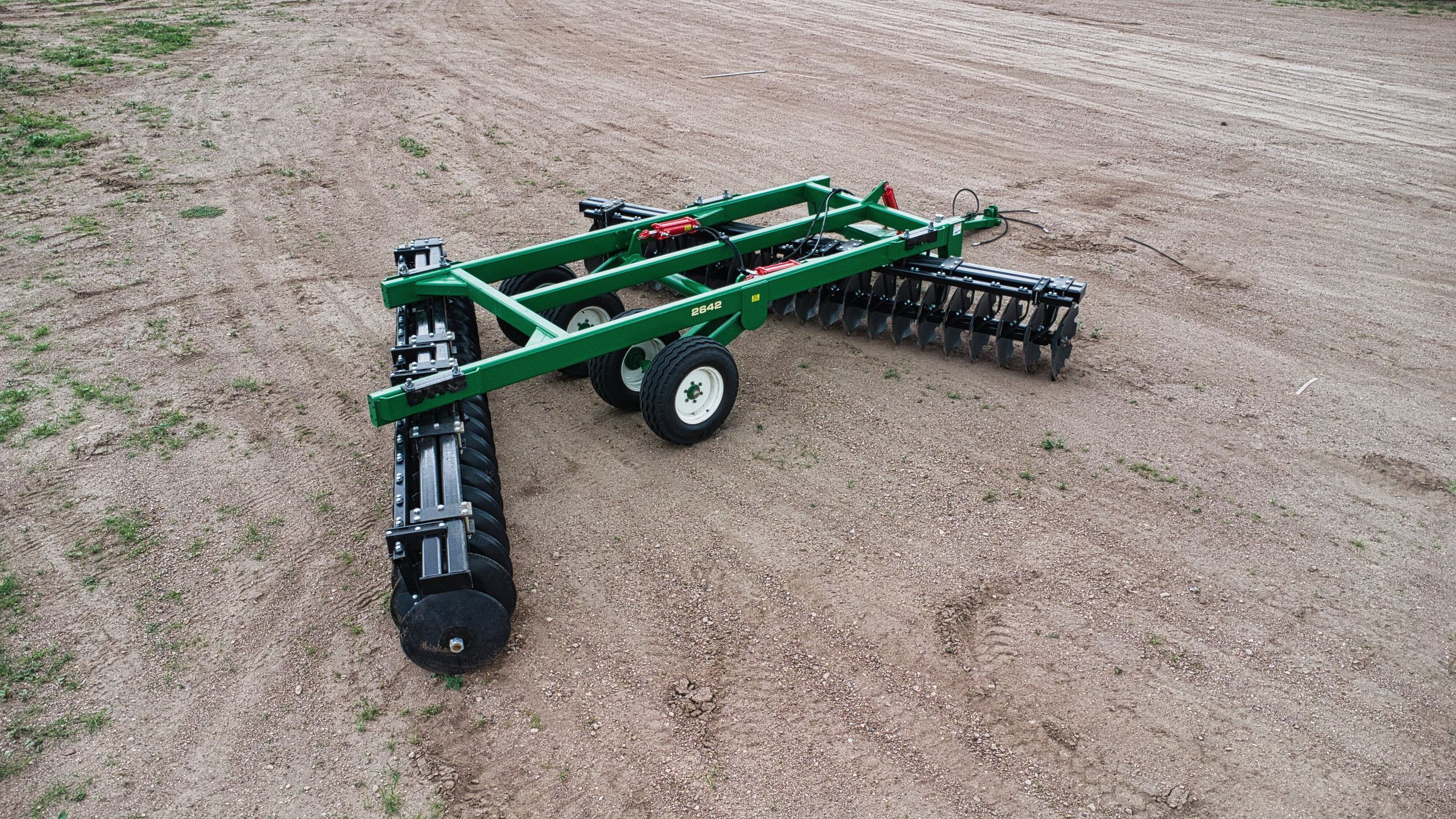

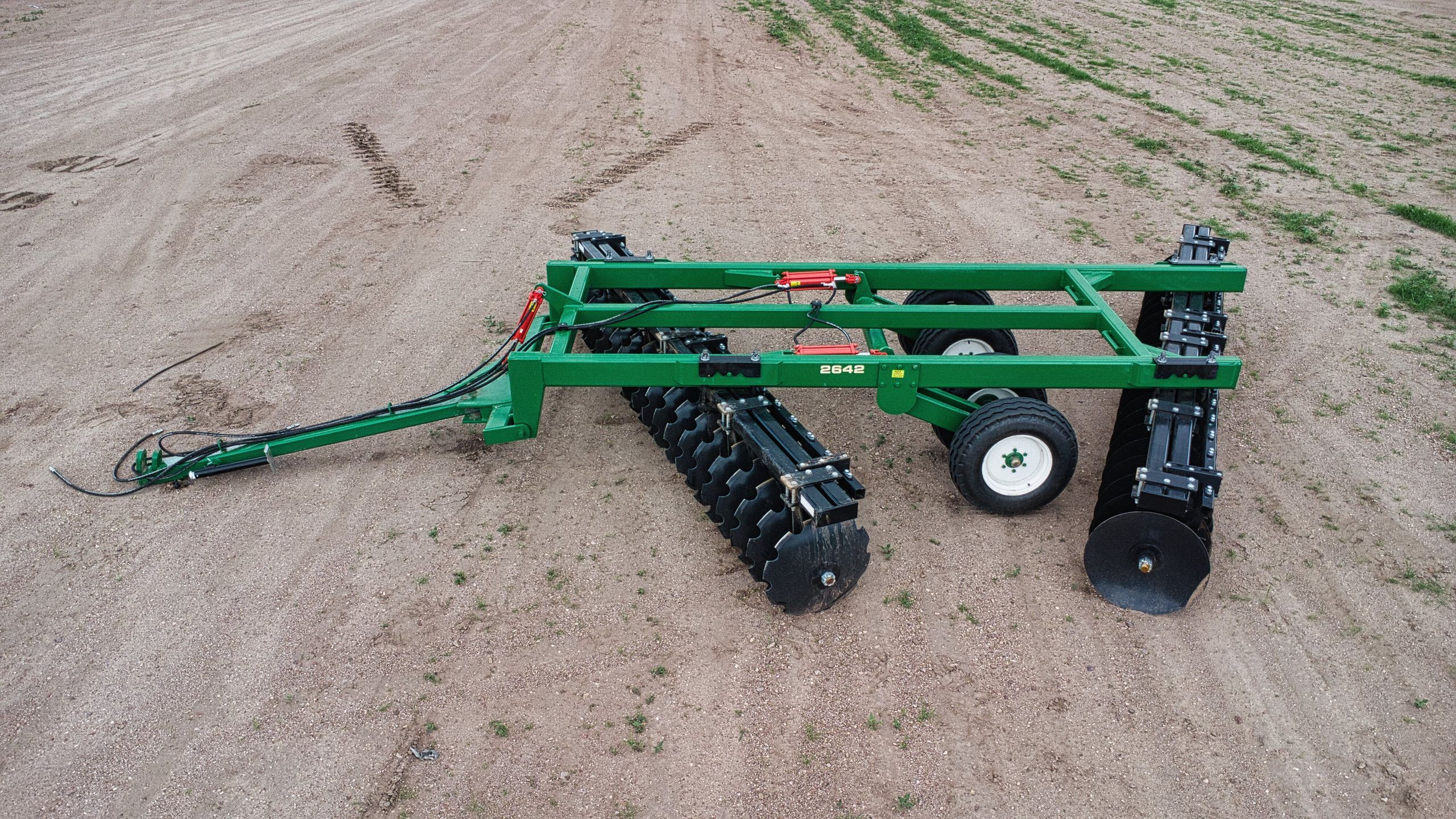

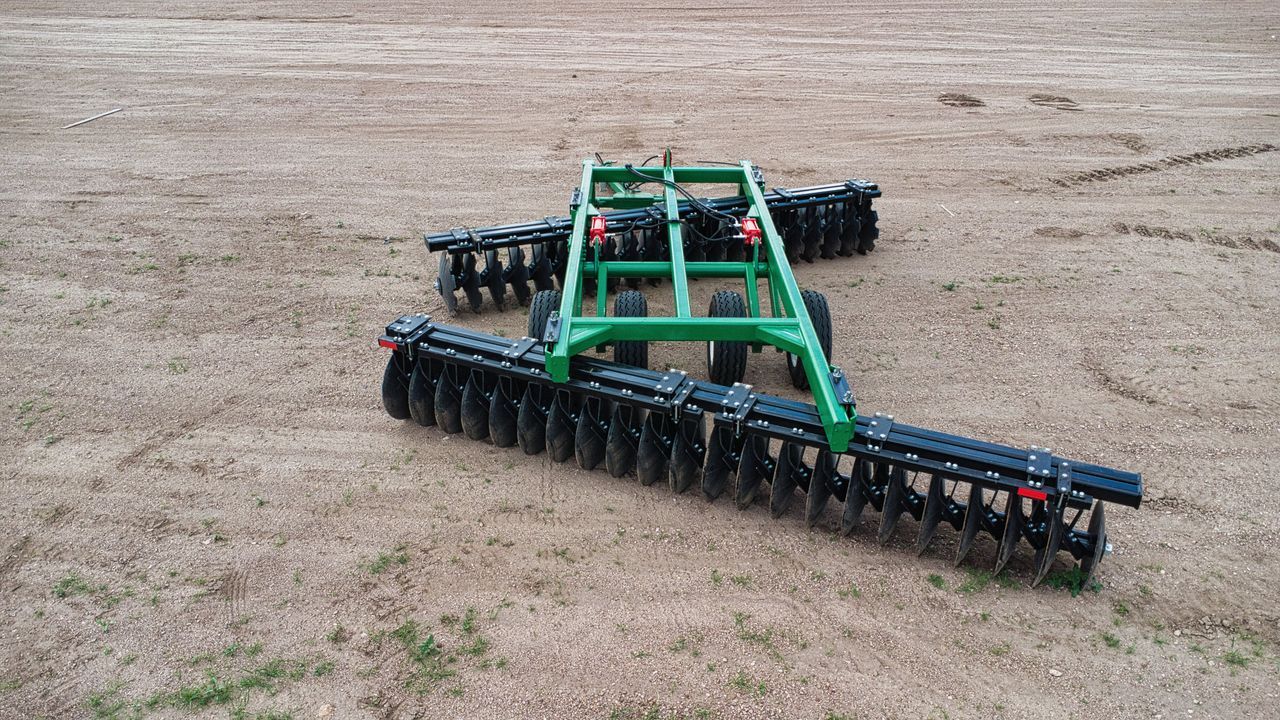

The 26” and 28” heavy-duty disc harrows are built for tougher ground and higher residue conditions. With a reinforced frame and thicker discs, these models are designed to handle demanding field work without bending or slowing down. Ideal for breaking hard soil and working in more aggressive conditions, they offer the strength needed for consistent performance season after season. Type: Pull-type disc harrow (heavy-duty) Hitch Type: Pin-through drawbar Disc Diameter: 26” / 28” Disc Thickness: 1/4” Disc Type: Plain or notched Disc Material: Carbon steel Disc Spacing: 9” or 11” Number of Discs: 24 – 64+ Working Width: Approx. 108” – 350”+ Gang Angle: Adjustable Frame: 4” × 6” up to 4” × 8” heavy steel tubing Bearings: Heavy-duty sealed cast housings Scrapers: Included Transport: Wheels included Hydraulic System: Lift (and folding on large models) Jack: Not required Recommended HP: 120–250+ HP Soil Type: Medium to heavy
