Specifications

FeatureDescription
Header Capacity (ft)25
Total Length (ft)33 (including gooseneck, dolly, and telescopic hitch)
Overall Width (in)95
Frame MaterialSteel
Main Frame Size4x4
Incline Frame DesignIncline
Number of Brackets2
Bracket TypeAdjustable
Axle TypeFixed
Axle Quantity1
Axle Rating (lbs)7,000
Dolly TypeSwivel front dolly
Dolly Axle Rating (lbs)7,000
Wheel / Tire SizeST235/80R16
Tire Ply Rating10-ply (16-ply optional)
BrakesNone
Gooseneck / Coupler StyleMini gooseneck + dolly
Hitch Type1" clevis
LightsNone
Shipping Weight lbs2,266 lbs
GVWR (lbs)14,000

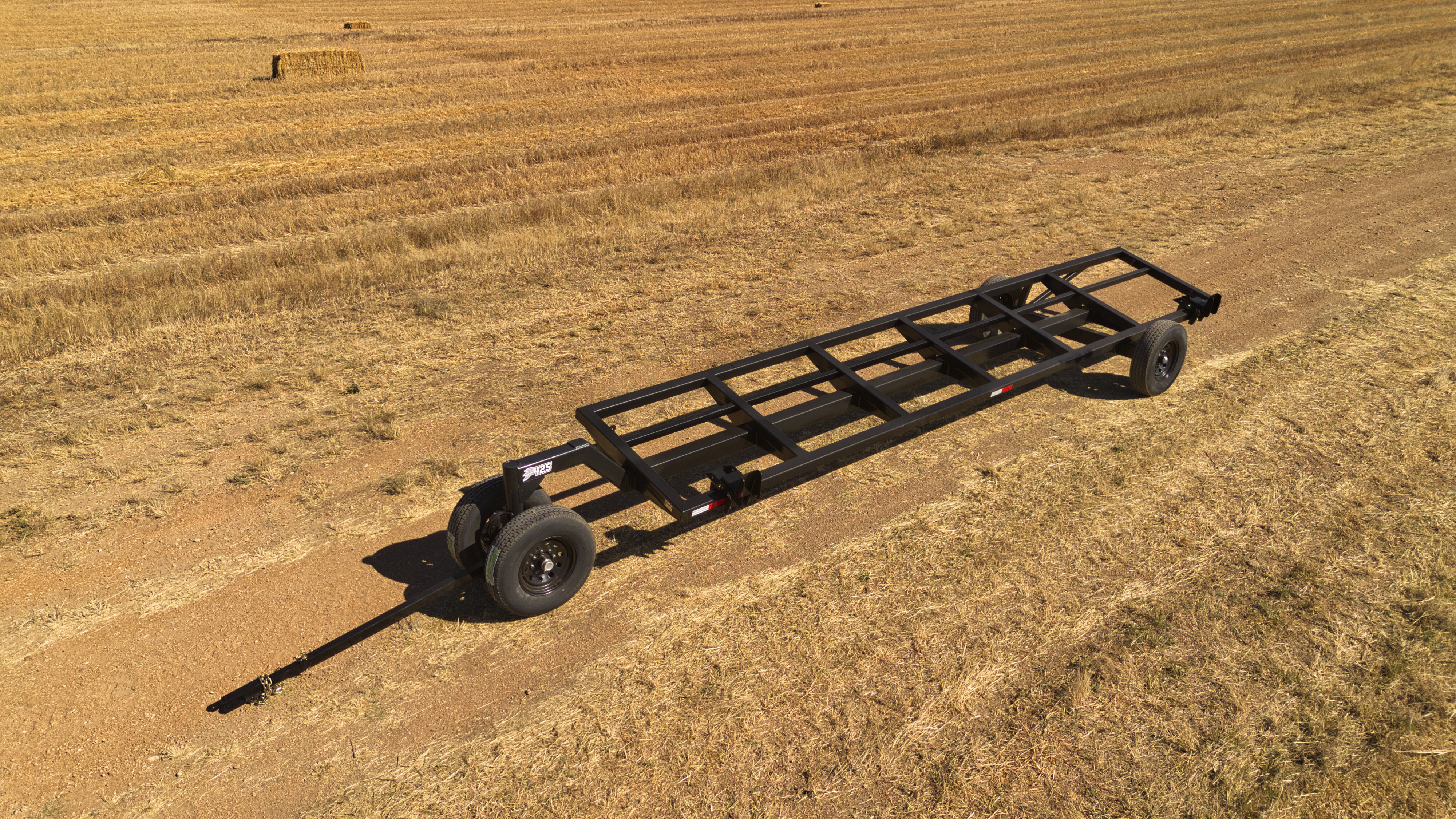

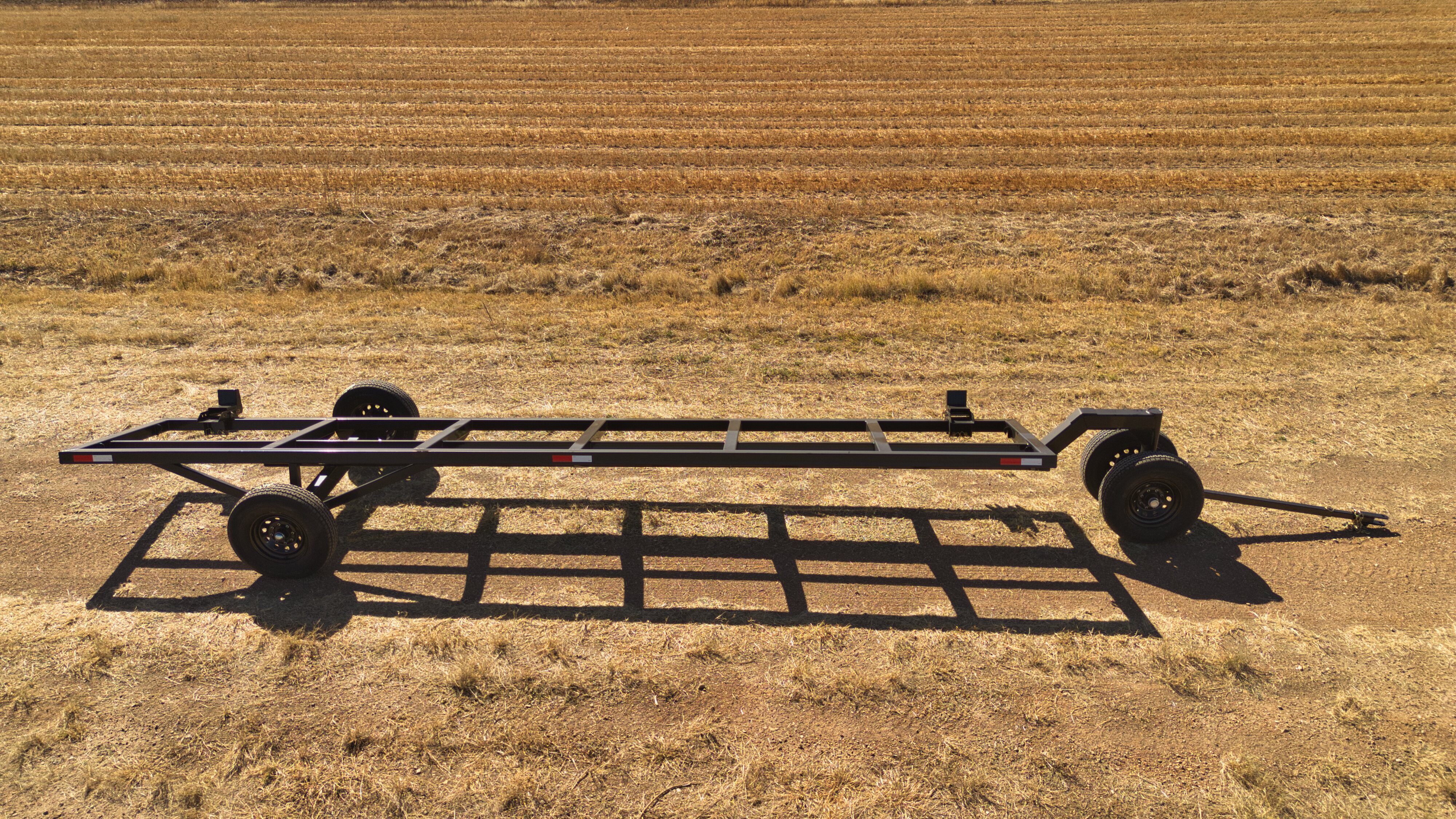

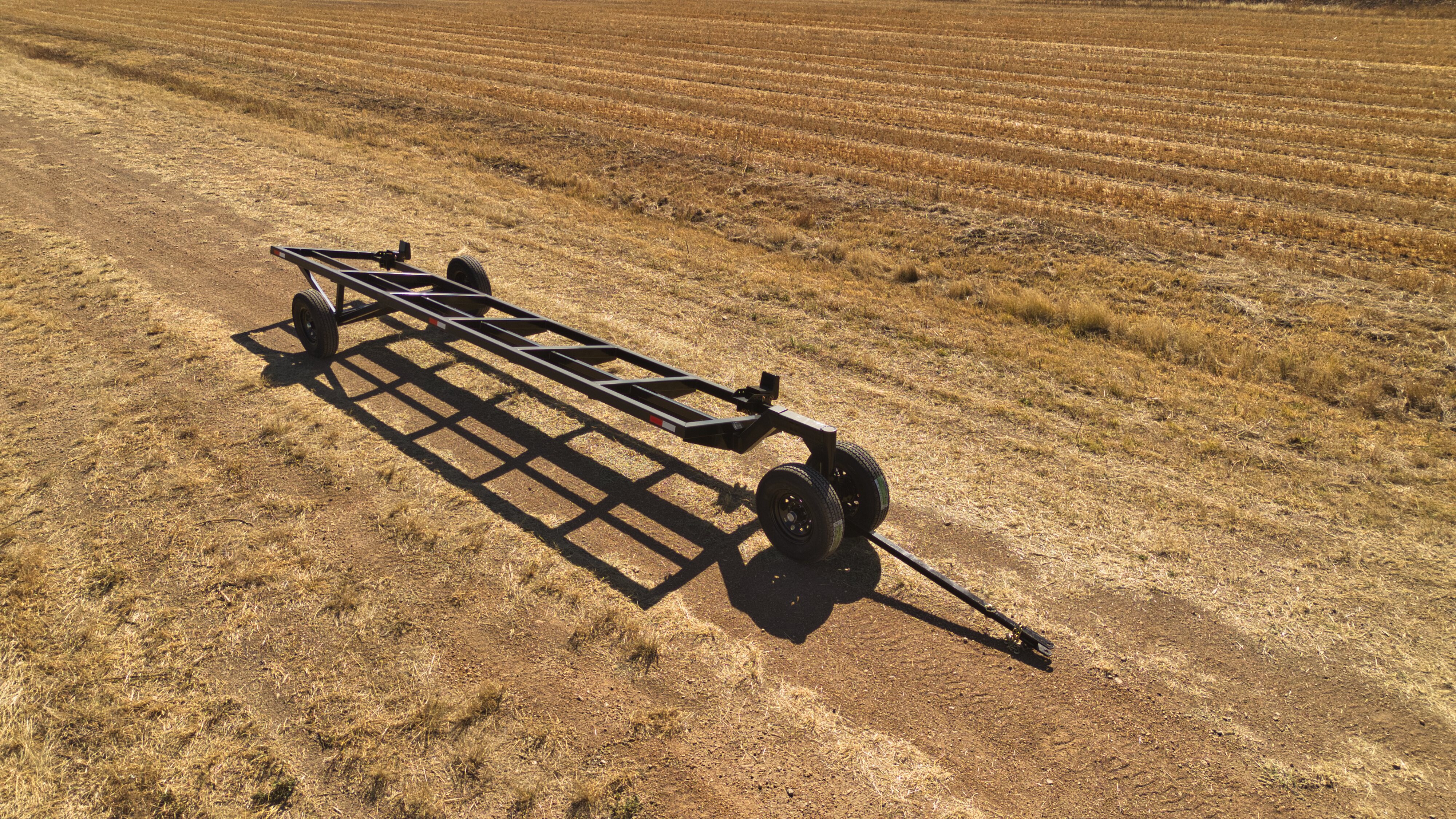

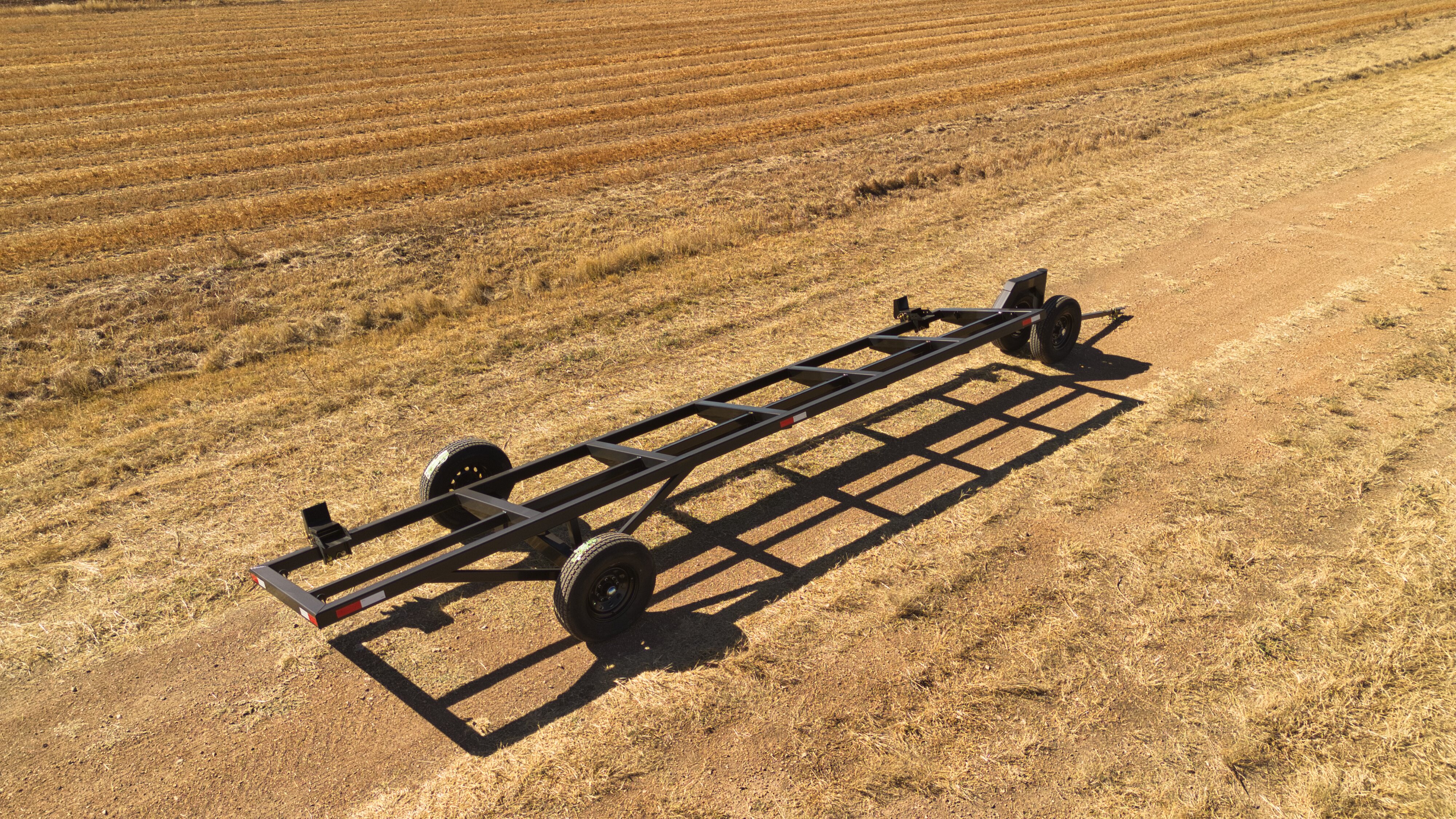

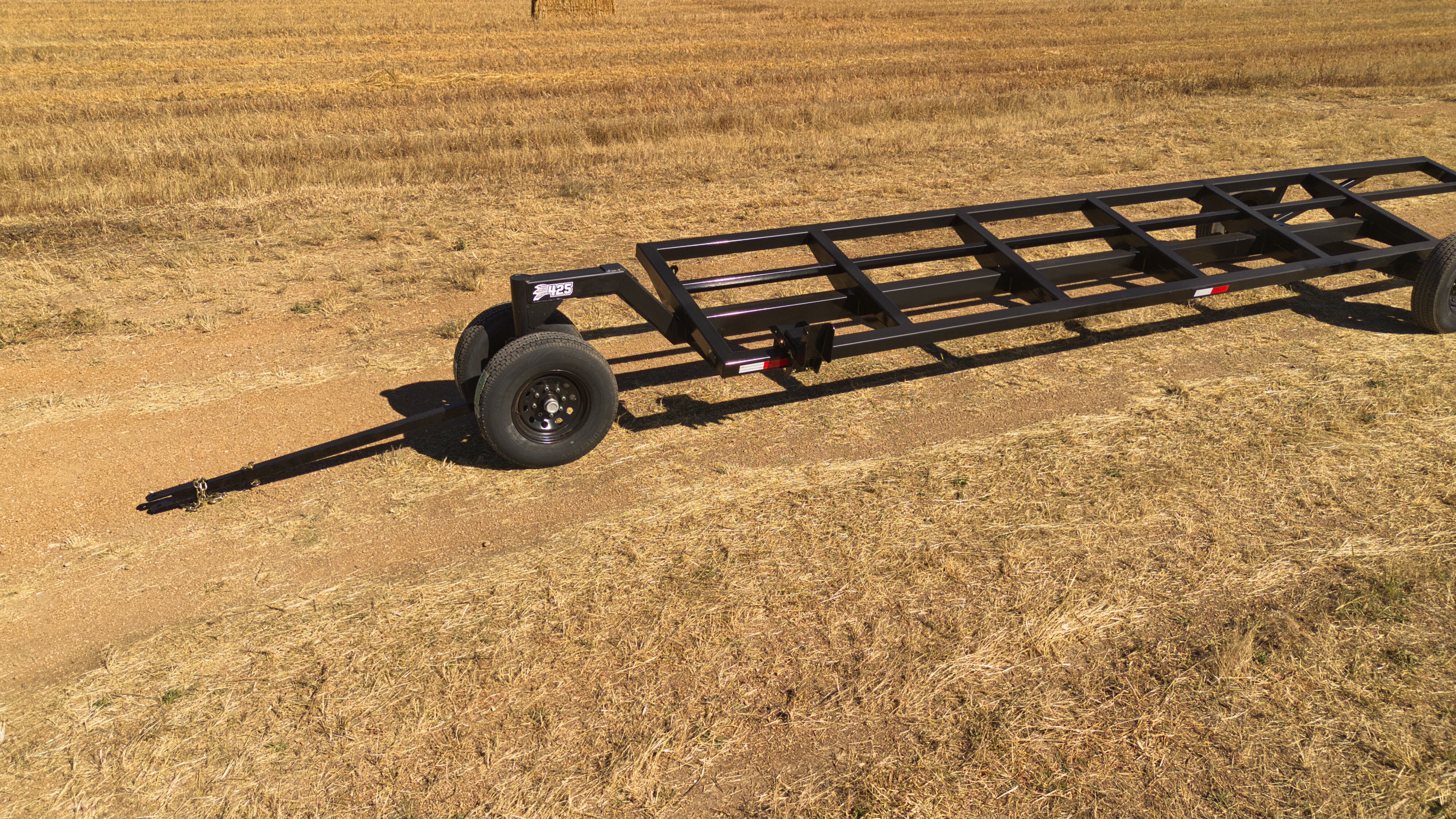

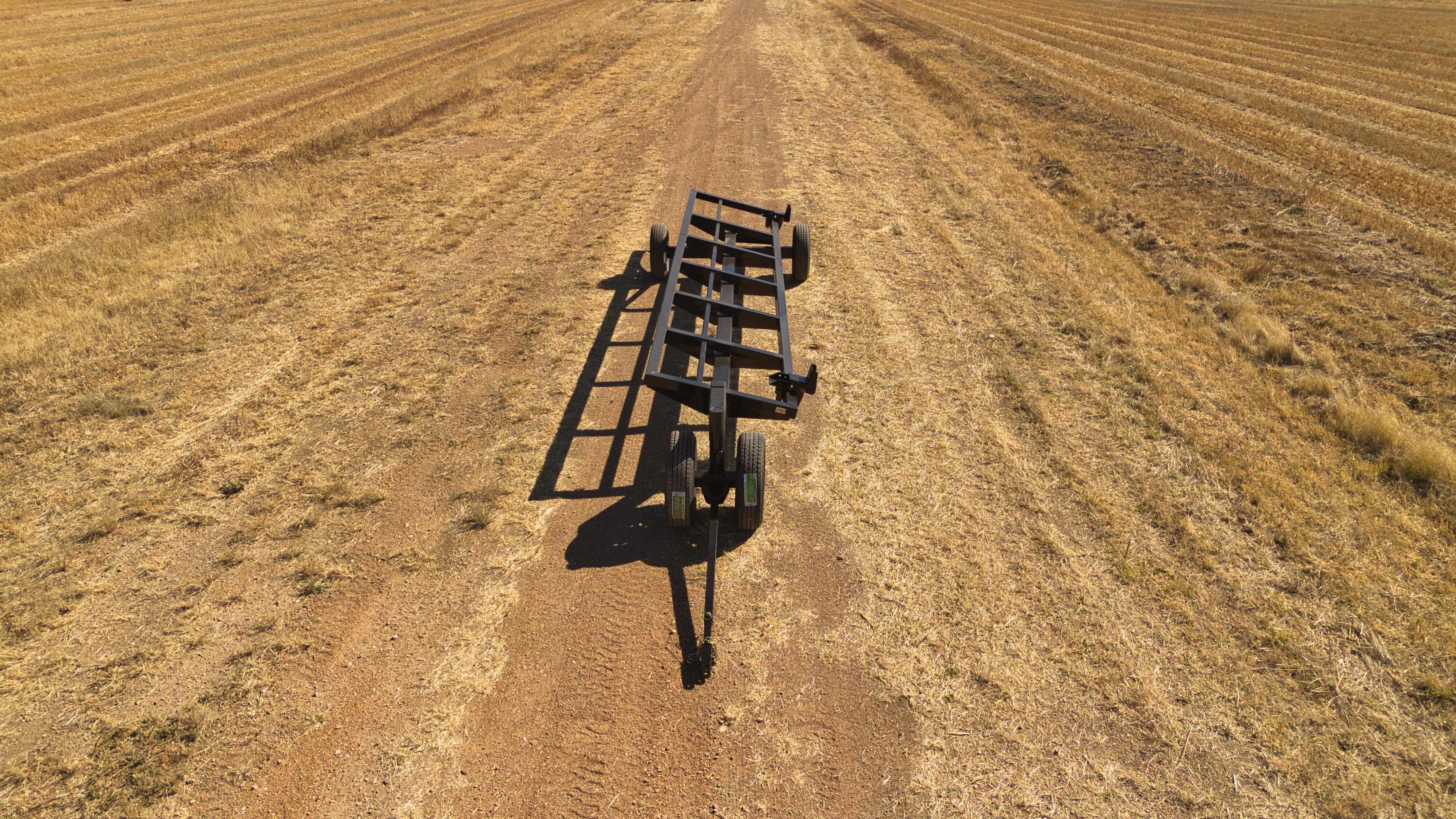

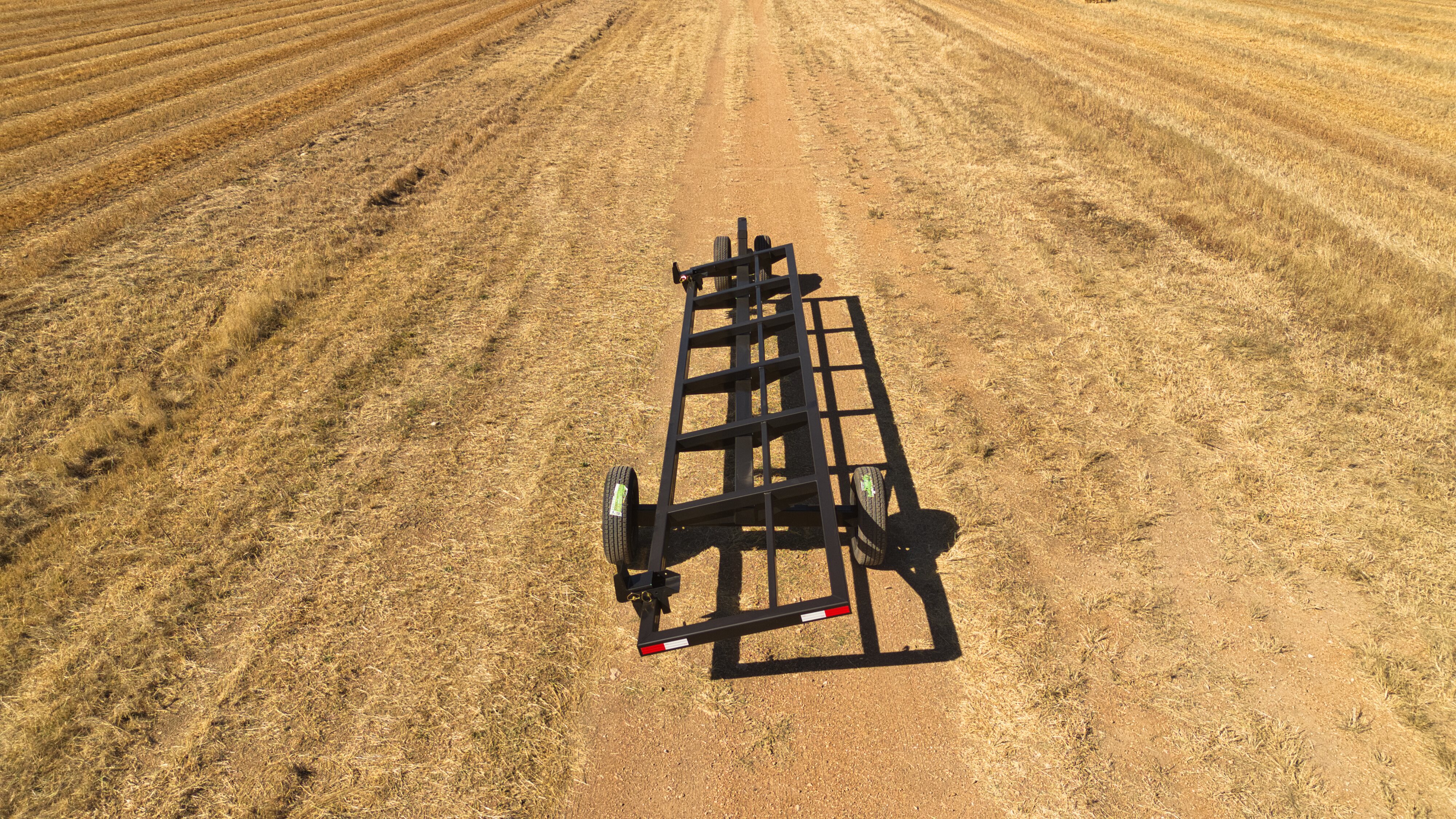

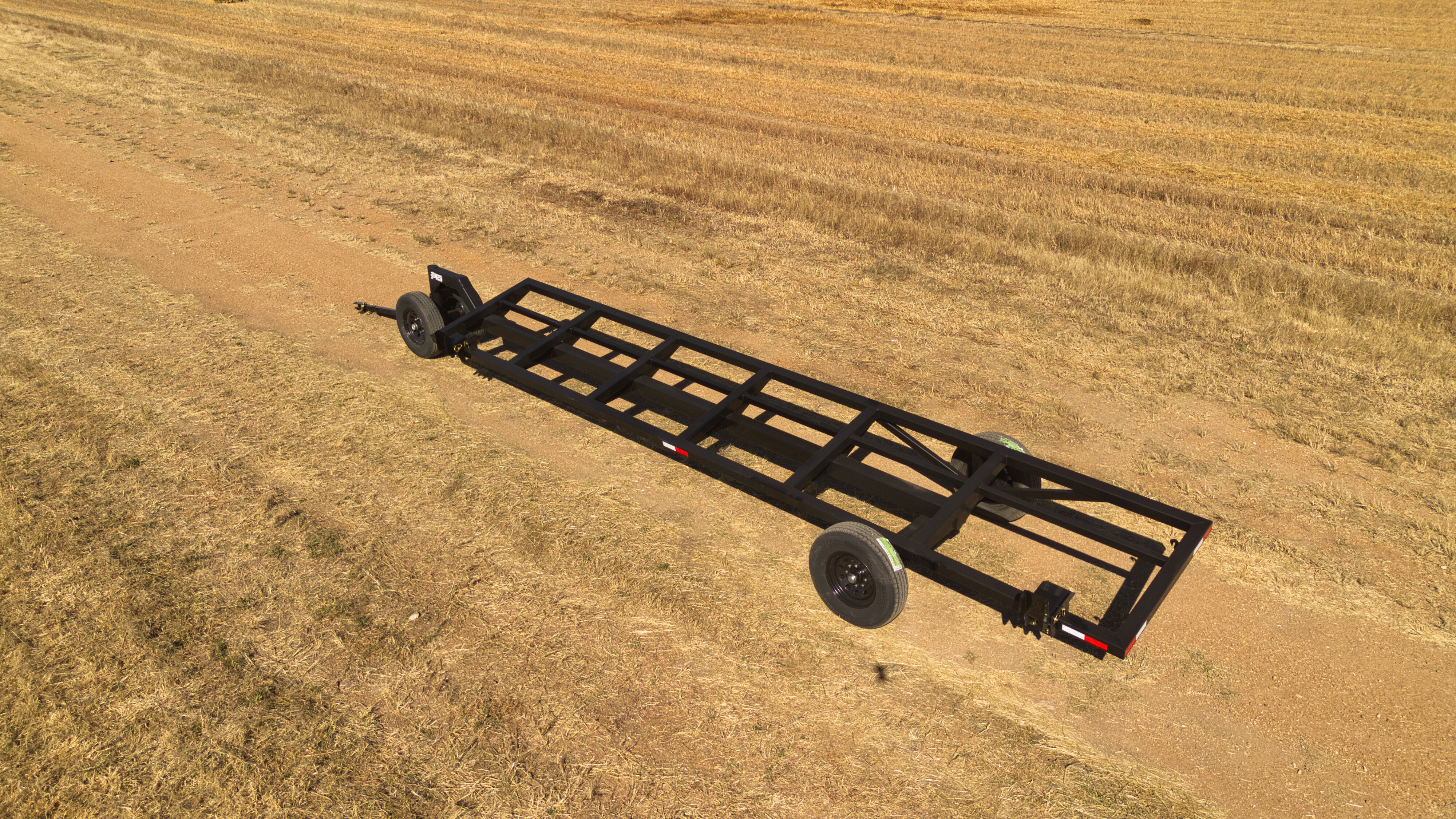

The 425 is a great fit for farms running 25’ heads that need a tough, simple trailer with minimal maintenance. With a 4x4 incline frame and swivel front dolly, it’s easy to back into sheds, fuel yards, and tight field driveways. The single 7k axle keeps the wagon light and easy to pull, but still strong enough for modern 25’ grain or flex heads. This model is all about practicality: adjustable brackets let you position the header where you want it, and the telescopic hitch gives you extra reach and flexibility when hooking up behind different trucks or tractors. No lights or brake system to maintain means fewer things to chase during the busy season—just grease, tires, and go.

×
